1. Oil Technics

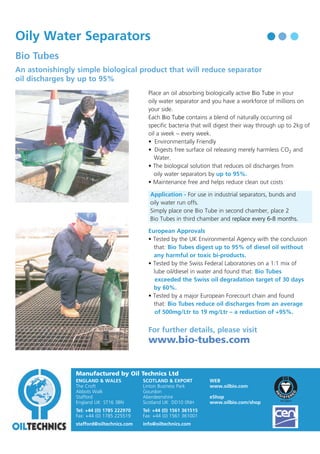

Oily Water Separators
F O R
Bio Tubes
T H E
O I L
R E C Y C L I N G
I N D U ST R Y
An astonishingly simple biological product that will reduce separator
oil discharges by up to 95%
Place an oil absorbing biologically active Bio Tube in your
oily water separator and you have a workforce of millions on
your side.
Each Bio Tube contains a blend of naturally occurring oil
specific bacteria that will digest their way through up to 2kg of
oil a week – every week.
• Environmentally Friendly
• Digests free surface oil releasing merely harmless CO2 and
Water.
• The biological solution that reduces oil discharges from
oily water separators by up to 95%.
• Maintenance free and helps reduce clean out costs
Application - For use in industrial separators, bunds and
oily water run offs.
Simply place one Bio Tube in second chamber, place 2
Bio Tubes in third chamber and replace every 6-8 months.
European Approvals
• Tested by the UK Environmental Agency with the conclusion
that: Bio Tubes digest up to 95% of diesel oil without
any harmful or toxic bi-products.
• Tested by the Swiss Federal Laboratories on a 1:1 mix of
lube oil/diesel in water and found that: Bio Tubes
exceeded the Swiss oil degradation target of 30 days
by 60%.
• Tested by a major European Forecourt chain and found
that: Bio Tubes reduce oil discharges from an average
of 500mg/Ltr to 19 mg/Ltr – a reduction of +95%.
For further details, please visit
www.bio-tubes.com
Manufactured by Oil Technics Ltd
ENGLAND & WALES
The Croft
Abbots Walk
Stafford
England UK ST16 3BN
SCOTLAND & EXPORT
Linton Business Park
Gourdon
Aberdeenshire
Scotland UK DD10 0NH
Tel: +44 (0) 1785 222970
Fax: +44 (0) 1785 225519
Tel: +44 (0) 1561 361515
Fax: +44 (0) 1561 361001
stafford@oiltechnics.com
info@oiltechnics.com
WEB
www.oilbio.com
eShop
www.oilbio.com/shop
Oil Contamination Solutions

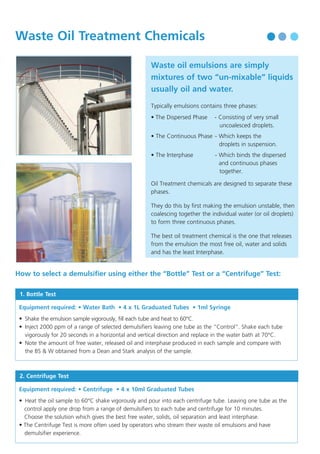

2. Waste Oil Treatment Chemicals

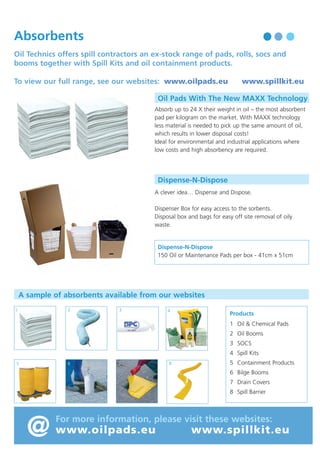

Absorbents
Waste oil emulsions are simply
mixtures of two “un-mixable” liquids
usually oil and water.
Oil Technics offers spill contractors an ex-stock range of pads, rolls, socs and
booms together with Spill Kits and oil containment products.
To view our full range, see our websites: www.oilpads.eu
Oil Pads With The New MAXX Technology
Typically emulsions contains three phases:
• The Dispersed Phase
Absorb up to 24 X their weight in oil – the most absorbent
pad per kilogram on the market. With MAXX technology
less material is needed to pick up the same amount of oil,
which results in lower disposal costs!
Ideal for environmental and industrial applications where
low costs and high absorbency are required.
- Consisting of very small
uncoalesced droplets.
• The Continuous Phase - Which keeps the
droplets in suspension.
• The Interphase
www.spillkit.eu
- Which binds the dispersed
and continuous phases
together.
Dispense-N-Dispose
Oil Treatment chemicals are designed to separate these
phases.
A clever idea… Dispense and Dispose.
They do this by first making the emulsion unstable, then
coalescing together the individual water (or oil droplets)
to form three continuous phases.
Dispenser Box for easy access to the sorbents.
Disposal box and bags for easy off site removal of oily
waste.
The best oil treatment chemical is the one that releases
from the emulsion the most free oil, water and solids
and has the least Interphase.
Dispense-N-Dispose
150 Oil or Maintenance Pads per box - 41cm x 51cm
How to select a demulsifier using either the “Bottle” Test or a “Centrifuge” Test:
A sample of absorbents available from our websites
1. Bottle Test
Equipment required: • Water Bath • 4 x 1L Graduated Tubes • 1ml Syringe
2
1
3
4
• Shake the emulsion sample vigorously, fill each tube and heat to 60°C.
• Inject 2000 ppm of a range of selected demulsifiers leaving one tube as the “Control”. Shake each tube
vigorously for 20 seconds in a horizontal and vertical direction and replace in the water bath at 70°C.
• Note the amount of free water, released oil and interphase produced in each sample and compare with
the BS & W obtained from a Dean and Stark analysis of the sample.
1 Oil & Chemical Pads
2 Oil Booms
3 SOCS
4 Spill Kits
6
5
7
8
5 Containment Products
6 Bilge Booms
2. Centrifuge Test
7 Drain Covers
Equipment required: • Centrifuge • 4 x 10ml Graduated Tubes
• Heat the oil sample to 60°C shake vigorously and pour into each centrifuge tube. Leaving one tube as the
control apply one drop from a range of demulsifiers to each tube and centrifuge for 10 minutes.
Choose the solution which gives the best free water, solids, oil separation and least interphase.
• The Centrifuge Test is more often used by operators who stream their waste oil emulsions and have
demulsifier experience.
Products
8 Spill Barrier
@
For more information, please visit these websites:
www.oilpads.eu
www.spillkit.eu

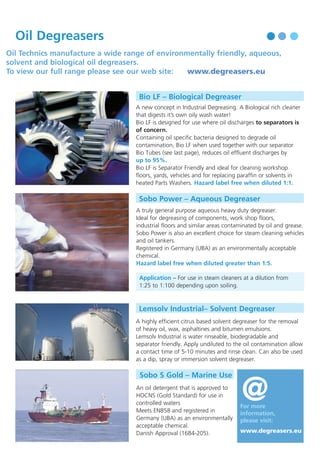

3. Oil Degreasers
Oil Treatment Chemicals can be either:
Oil Technics manufacture a wide range of environmentally friendly, aqueous,
solvent and biological oil degreasers.
To view our full range please see our web site:
www.degreasers.eu
Bio LF – Biological Degreaser
A new concept in Industrial Degreasing. A Biological rich cleaner
that digests it’s own oily wash water!
Bio LF is designed for use where oil discharges to separators is
of concern.
Containing oil specific bacteria designed to degrade oil
contamination, Bio LF when used together with our separator
Bio Tubes (see last page), reduces oil effluent discharges by
up to 95%.
Bio LF is Separator Friendly and ideal for cleaning workshop
floors, yards, vehicles and for replacing paraffin or solvents in
heated Parts Washers. Hazard label free when diluted 1:1.
Sobo Power – Aqueous Degreaser
A truly general purpose aqueous heavy duty degreaser.
Ideal for degreasing of components, work shop floors,
industrial floors and similar areas contaminated by oil and grease.
Sobo Power is also an excellent choice for steam cleaning vehicles
and oil tankers.
Registered in Germany (UBA) as an environmentally acceptable
chemical.
Hazard label free when diluted greater than 1:5.
Application – For use in steam cleaners at a dilution from
1:25 to 1:100 depending upon soiling.
• Demulsifiers used in treating water in oil emulsions (W/O)
• Reverse Demulsifiers used in treating oil in water emulsifiers (O/W).
Oil emulsions vary considerably and Oil Technics has a wide range of Demulsifiers and Reverse Demulsifiers to treat
most emulsions. We offer a free waste oil laboratory Demulsifier selection service.
Below are listed some of those most frequently used waste oil chemical treatments.
Demulsifiers – For Waste Oil Emulsions
OT775 – De-Ashing Demulsifier
For use in treating lube oil emulsions containing oil, water and heavy metals (ash). OT 775 is a De-Ashing demulsifier
designed to typically reduce the Ash content of treated emulsions by up to 80–90%.
Note – This is a two part process using demulsifier OT 775 together with Sulphuric Acid.
It is important to use OT775 with treatment tanks that have a corrosion resistant construction.
OT2456 – Garage Oil Demulsifier
Designed to phase separate waste garage oil emulsions.
OT2375 – Centrifuge Aid and Ship Ballast Demulsifier
Designed to phase separate low sulphur fuel oils.
OT99
– High Water Content Demulsifier
Designed to phase separate high water content waste oil emulsions.
Reverse Demulsifiers – Water in Oil Emulsions
WT507 – Oil “Polishing” Reverse Demulsifier
Designed to separate, at ambient temperatures, light oil in water emulsions.
WT525 – Coolant Oil Reverse Demulsifier
Designed to separate, at ambient temperatures, waste cutting oil and coolant emulsions.
Lemsolv Industrial– Solvent Degreaser
A highly efficient citrus based solvent degreaser for the removal
of heavy oil, wax, asphaltines and bitumen emulsions.
Lemsolv Industrial is water rinseable, biodegradable and
separator friendly. Apply undiluted to the oil contamination allow
a contact time of 5-10 minutes and rinse clean. Can also be used
as a dip, spray or immersion solvent degreaser.
Sobo S Gold – Marine Use
An oil detergent that is approved to
HOCNS (Gold Standard) for use in
controlled waters
Meets EN858 and registered in
Germany (UBA) as an environmentally
acceptable chemical.
Danish Approval (1684-205).
@
For more
information,
please visit:
www.degreasers.eu
Oily Sludge Emulsions – Tank bottoms
WT620/OS88 – De-oiling Sludges
Combined sludge demulsifier with water treatment agent especially designed for separating tank bottoms, crude oil
and refinery oil sludges.
Oil Dispersant – Marine Application
Disperse 1040
Type 2/3 oil slick dispersant. Dilute with water for aerial spraying or use as a concentrate on beach or rocks.
@ www.demulsifiers.eu
For more information, please visit

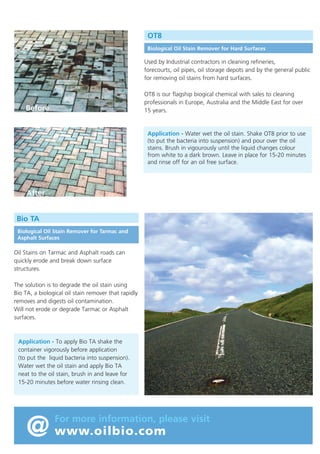

4. Oil Bioremediation
OT8
Biological Oil Stain Remover for Hard Surfaces
All of the products shown have been designed to handle oil contamination
from Diesel to Heavy Fuel Oil.
Tested in the UK by the Environmental Agency (England) and found to
produce no harmful or toxic biproducts.
• Tested by the Swiss Federal Laboratories and found to exceed by +60% the
degradation result required under OECO 301F.
Used by Industrial contractors in cleaning refineries,
forecourts, oil pipes, oil storage depots and by the general public
for removing oil stains from hard surfaces.
•
OT8 is our flagship biogical chemical with sales to cleaning
professionals in Europe, Australia and the Middle East for over
15 years.
Before
The bacteria used in these products are classified in Europe as Type 1 i.e. unlikely to cause infection.
Bio Gel – Oil Contaminated Gravel
Oil contaminated gravel, stones and top soil
Shipping oil contaminated stones and gravel to landfill is
expensive. Bio Gel removes oil in situ.
It is a biological solution that is simply poured over the oil
contaminated stones or gravel and left to digest.
Stir thoroughly before application, spread lightly over the
oil using a soft brush and leave for 2-3 weeks (1-2 weeks in
hot climates). Turn over the treated upper area using a fork
and re-apply to achieve a totally oil free surface. Suitable
for use in the bioremediation of oil storage areas, tank
bunds, transformer footings and railway lines, etc.
S-Oil Treat – Oil Contaminated Soil
For those familiar with bioremediation composting our dry
powder bacteria, S-Oil Treat is the composting bacteria of
choice.
With a bacterial count of 4 x 109 cfu/ml and an
application rate as low as 0.25 kg per metre cube of
contaminated soil.
Oil contaminated soil
The photo shows the bio remediation by composting of a
pipeline spill in The Oman. S-Oil Treat was applied to
30,000 tonnes of oil contaminated soil achieving a 99%
reduction in Total Hydrocarbons and Polycylic Aromatics
(see website www.oilbio.com for full report).
Road Bio – Oil Contaminated Roads
Road Bio is an oil spill detergent that removes hydrocarbon,
greases and liquid paint spills from Road Surfaces.
Containing a blend of biodegradable cleaning surfactants
Road Bio cleans spills on roads without causing an emulsion
or contributing to surface erosion.
European Approvals:
German UBA (No 3406-0025) - An environmentally acceptable
cleaning chemical.
Dutch Rijkwaterstaat - Awarded highest overall marks for cleaning
efficiency road erosion, environmental impact, cost and dilution.
Cleaning road spills
Application - Water wet the oil stain. Shake OT8 prior to use
(to put the bacteria into suspension) and pour over the oil
stains. Brush in vigourously until the liquid changes colour
from white to a dark brown. Leave in place for 15-20 minutes
and rinse off for an oil free surface.
After
Bio TA
Biological Oil Stain Remover for Tarmac and
Asphalt Surfaces
Oil Stains on Tarmac and Asphalt roads can
quickly erode and break down surface
structures.
The solution is to degrade the oil stain using
Bio TA, a biological oil stain remover that rapidly
removes and digests oil contamination.
Will not erode or degrade Tarmac or Asphalt
surfaces.
Application - To apply Bio TA shake the
container vigorously before application
(to put the liquid bacteria into suspension).
Water wet the oil stain and apply Bio TA
neat to the oil stain, brush in and leave for
15-20 minutes before water rinsing clean.
@ www.oilbio.com
For more information, please visit

5. Oil Bioremediation
OT8
Biological Oil Stain Remover for Hard Surfaces
All of the products shown have been designed to handle oil contamination
from Diesel to Heavy Fuel Oil.
Tested in the UK by the Environmental Agency (England) and found to
produce no harmful or toxic biproducts.
• Tested by the Swiss Federal Laboratories and found to exceed by +60% the
degradation result required under OECO 301F.
Used by Industrial contractors in cleaning refineries,
forecourts, oil pipes, oil storage depots and by the general public
for removing oil stains from hard surfaces.
•
OT8 is our flagship biogical chemical with sales to cleaning
professionals in Europe, Australia and the Middle East for over
15 years.
Before
The bacteria used in these products are classified in Europe as Type 1 i.e. unlikely to cause infection.
Bio Gel – Oil Contaminated Gravel
Oil contaminated gravel, stones and top soil
Shipping oil contaminated stones and gravel to landfill is
expensive. Bio Gel removes oil in situ.
It is a biological solution that is simply poured over the oil
contaminated stones or gravel and left to digest.
Stir thoroughly before application, spread lightly over the
oil using a soft brush and leave for 2-3 weeks (1-2 weeks in
hot climates). Turn over the treated upper area using a fork
and re-apply to achieve a totally oil free surface. Suitable
for use in the bioremediation of oil storage areas, tank
bunds, transformer footings and railway lines, etc.
S-Oil Treat – Oil Contaminated Soil
For those familiar with bioremediation composting our dry
powder bacteria, S-Oil Treat is the composting bacteria of
choice.
With a bacterial count of 4 x 109 cfu/ml and an
application rate as low as 0.25 kg per metre cube of
contaminated soil.
Oil contaminated soil
The photo shows the bio remediation by composting of a
pipeline spill in The Oman. S-Oil Treat was applied to
30,000 tonnes of oil contaminated soil achieving a 99%
reduction in Total Hydrocarbons and Polycylic Aromatics
(see website www.oilbio.com for full report).
Road Bio – Oil Contaminated Roads
Road Bio is an oil spill detergent that removes hydrocarbon,
greases and liquid paint spills from Road Surfaces.
Containing a blend of biodegradable cleaning surfactants
Road Bio cleans spills on roads without causing an emulsion
or contributing to surface erosion.
European Approvals:
German UBA (No 3406-0025) - An environmentally acceptable
cleaning chemical.
Dutch Rijkwaterstaat - Awarded highest overall marks for cleaning
efficiency road erosion, environmental impact, cost and dilution.
Cleaning road spills
Application - Water wet the oil stain. Shake OT8 prior to use
(to put the bacteria into suspension) and pour over the oil
stains. Brush in vigourously until the liquid changes colour
from white to a dark brown. Leave in place for 15-20 minutes
and rinse off for an oil free surface.
After
Bio TA
Biological Oil Stain Remover for Tarmac and
Asphalt Surfaces
Oil Stains on Tarmac and Asphalt roads can
quickly erode and break down surface
structures.
The solution is to degrade the oil stain using
Bio TA, a biological oil stain remover that rapidly
removes and digests oil contamination.
Will not erode or degrade Tarmac or Asphalt
surfaces.
Application - To apply Bio TA shake the
container vigorously before application
(to put the liquid bacteria into suspension).
Water wet the oil stain and apply Bio TA
neat to the oil stain, brush in and leave for
15-20 minutes before water rinsing clean.
@ www.oilbio.com
For more information, please visit

6. Oil Degreasers
Oil Treatment Chemicals can be either:
Oil Technics manufacture a wide range of environmentally friendly, aqueous,
solvent and biological oil degreasers.
To view our full range please see our web site:
www.degreasers.eu
Bio LF – Biological Degreaser
A new concept in Industrial Degreasing. A Biological rich cleaner
that digests it’s own oily wash water!
Bio LF is designed for use where oil discharges to separators is
of concern.
Containing oil specific bacteria designed to degrade oil
contamination, Bio LF when used together with our separator
Bio Tubes (see last page), reduces oil effluent discharges by
up to 95%.
Bio LF is Separator Friendly and ideal for cleaning workshop
floors, yards, vehicles and for replacing paraffin or solvents in
heated Parts Washers. Hazard label free when diluted 1:1.
Sobo Power – Aqueous Degreaser
A truly general purpose aqueous heavy duty degreaser.
Ideal for degreasing of components, work shop floors,
industrial floors and similar areas contaminated by oil and grease.
Sobo Power is also an excellent choice for steam cleaning vehicles
and oil tankers.
Registered in Germany (UBA) as an environmentally acceptable
chemical.
Hazard label free when diluted greater than 1:5.
Application – For use in steam cleaners at a dilution from
1:25 to 1:100 depending upon soiling.
• Demulsifiers used in treating water in oil emulsions (W/O)
• Reverse Demulsifiers used in treating oil in water emulsifiers (O/W).
Oil emulsions vary considerably and Oil Technics has a wide range of Demulsifiers and Reverse Demulsifiers to treat
most emulsions. We offer a free waste oil laboratory Demulsifier selection service.
Below are listed some of those most frequently used waste oil chemical treatments.
Demulsifiers – For Waste Oil Emulsions
OT775 – De-Ashing Demulsifier
For use in treating lube oil emulsions containing oil, water and heavy metals (ash). OT 775 is a De-Ashing demulsifier
designed to typically reduce the Ash content of treated emulsions by up to 80–90%.
Note – This is a two part process using demulsifier OT 775 together with Sulphuric Acid.
It is important to use OT775 with treatment tanks that have a corrosion resistant construction.
OT2456 – Garage Oil Demulsifier
Designed to phase separate waste garage oil emulsions.
OT2375 – Centrifuge Aid and Ship Ballast Demulsifier
Designed to phase separate low sulphur fuel oils.
OT99
– High Water Content Demulsifier
Designed to phase separate high water content waste oil emulsions.
Reverse Demulsifiers – Water in Oil Emulsions
WT507 – Oil “Polishing” Reverse Demulsifier
Designed to separate, at ambient temperatures, light oil in water emulsions.
WT525 – Coolant Oil Reverse Demulsifier
Designed to separate, at ambient temperatures, waste cutting oil and coolant emulsions.
Lemsolv Industrial– Solvent Degreaser
A highly efficient citrus based solvent degreaser for the removal
of heavy oil, wax, asphaltines and bitumen emulsions.
Lemsolv Industrial is water rinseable, biodegradable and
separator friendly. Apply undiluted to the oil contamination allow
a contact time of 5-10 minutes and rinse clean. Can also be used
as a dip, spray or immersion solvent degreaser.
Sobo S Gold – Marine Use
An oil detergent that is approved to
HOCNS (Gold Standard) for use in
controlled waters
Meets EN858 and registered in
Germany (UBA) as an environmentally
acceptable chemical.
Danish Approval (1684-205).
@
For more
information,
please visit:
www.degreasers.eu
Oily Sludge Emulsions – Tank bottoms
WT620/OS88 – De-oiling Sludges
Combined sludge demulsifier with water treatment agent especially designed for separating tank bottoms, crude oil
and refinery oil sludges.
Oil Dispersant – Marine Application
Disperse 1040
Type 2/3 oil slick dispersant. Dilute with water for aerial spraying or use as a concentrate on beach or rocks.
@ www.demulsifiers.eu
For more information, please visit

7. Waste Oil Treatment Chemicals
Absorbents
Waste oil emulsions are simply
mixtures of two “un-mixable” liquids
usually oil and water.
Oil Technics offers spill contractors an ex-stock range of pads, rolls, socs and
booms together with Spill Kits and oil containment products.
To view our full range, see our websites: www.oilpads.eu
Oil Pads With The New MAXX Technology
Typically emulsions contains three phases:
• The Dispersed Phase
Absorb up to 24 X their weight in oil – the most absorbent
pad per kilogram on the market. With MAXX technology
less material is needed to pick up the same amount of oil,
which results in lower disposal costs!
Ideal for environmental and industrial applications where
low costs and high absorbency are required.
- Consisting of very small
uncoalesced droplets.
• The Continuous Phase - Which keeps the
droplets in suspension.
• The Interphase
www.spillkit.eu
- Which binds the dispersed
and continuous phases
together.
Dispense-N-Dispose
Oil Treatment chemicals are designed to separate these
phases.
A clever idea… Dispense and Dispose.
They do this by first making the emulsion unstable, then
coalescing together the individual water (or oil droplets)
to form three continuous phases.
Dispenser Box for easy access to the sorbents.
Disposal box and bags for easy off site removal of oily
waste.
The best oil treatment chemical is the one that releases
from the emulsion the most free oil, water and solids
and has the least Interphase.
Dispense-N-Dispose
150 Oil or Maintenance Pads per box - 41cm x 51cm
How to select a demulsifier using either the “Bottle” Test or a “Centrifuge” Test:
A sample of absorbents available from our websites
1. Bottle Test
Equipment required: • Water Bath • 4 x 1L Graduated Tubes • 1ml Syringe
2
1
3
4
• Shake the emulsion sample vigorously, fill each tube and heat to 60°C.
• Inject 2000 ppm of a range of selected demulsifiers leaving one tube as the “Control”. Shake each tube
vigorously for 20 seconds in a horizontal and vertical direction and replace in the water bath at 70°C.
• Note the amount of free water, released oil and interphase produced in each sample and compare with
the BS & W obtained from a Dean and Stark analysis of the sample.
1 Oil & Chemical Pads
2 Oil Booms
3 SOCS
4 Spill Kits
6
5
7
8
5 Containment Products
6 Bilge Booms
2. Centrifuge Test
7 Drain Covers
Equipment required: • Centrifuge • 4 x 10ml Graduated Tubes
• Heat the oil sample to 60°C shake vigorously and pour into each centrifuge tube. Leaving one tube as the
control apply one drop from a range of demulsifiers to each tube and centrifuge for 10 minutes.
Choose the solution which gives the best free water, solids, oil separation and least interphase.
• The Centrifuge Test is more often used by operators who stream their waste oil emulsions and have
demulsifier experience.
Products
8 Spill Barrier
@
For more information, please visit these websites:
www.oilpads.eu
www.spillkit.eu

8. Oil Technics
Oily Water Separators
F O R
Bio Tubes
T H E
O I L
R E C Y C L I N G
I N D U ST R Y
An astonishingly simple biological product that will reduce separator
oil discharges by up to 95%
Place an oil absorbing biologically active Bio Tube in your
oily water separator and you have a workforce of millions on
your side.
Each Bio Tube contains a blend of naturally occurring oil
specific bacteria that will digest their way through up to 2kg of
oil a week – every week.
• Environmentally Friendly
• Digests free surface oil releasing merely harmless CO2 and
Water.
• The biological solution that reduces oil discharges from
oily water separators by up to 95%.
• Maintenance free and helps reduce clean out costs
Application - For use in industrial separators, bunds and
oily water run offs.
Simply place one Bio Tube in second chamber, place 2
Bio Tubes in third chamber and replace every 6-8 months.
European Approvals
• Tested by the UK Environmental Agency with the conclusion
that: Bio Tubes digest up to 95% of diesel oil without
any harmful or toxic bi-products.
• Tested by the Swiss Federal Laboratories on a 1:1 mix of
lube oil/diesel in water and found that: Bio Tubes
exceeded the Swiss oil degradation target of 30 days
by 60%.
• Tested by a major European Forecourt chain and found
that: Bio Tubes reduce oil discharges from an average
of 500mg/Ltr to 19 mg/Ltr – a reduction of +95%.
For further details, please visit
www.bio-tubes.com
Manufactured by Oil Technics Ltd
ENGLAND & WALES
The Croft
Abbots Walk
Stafford
England UK ST16 3BN
SCOTLAND & EXPORT
Linton Business Park
Gourdon
Aberdeenshire
Scotland UK DD10 0NH
Tel: +44 (0) 1785 222970
Fax: +44 (0) 1785 225519
Tel: +44 (0) 1561 361515
Fax: +44 (0) 1561 361001
stafford@oiltechnics.com
info@oiltechnics.com
WEB
www.oilbio.com
eShop
www.oilbio.com/shop
Oil Contamination Solutions
