OCPI, or Open Charge Point Interface, facilitates real-time data exchange between Charge Point Operators (CPO) and Mobility Service Providers (MSP) through eight modules including locations, sessions, and commands. The document outlines the functionality of each module, emphasizing transactions such as reserving charge points for electric vehicles. Key procedures involve credential exchanges and the push/pull dynamics of information sharing to enhance user experience in locating and utilizing charging stations.

1. OCPI in a nutshell

2. OCPI
Charge PointOpen Interface
OCP.., What?

3. https://www.youtube.com/watch?v=JmeLlGYuk_g

4. Exchanging data between CPO - MSP and vise versa (Bilateral)
Functionality
CPO MSP
Uniform.. Realtime
Open.. Get or Push

5. OCPI
Lukas
CMS 2.0Billing Engine
MSP X
MSP Y
MSPn
Exchanging Data
Backoffice
Gateway
System X
CDR Data..
Commands..
Chargepoint info..
Authorisation
Data (tokens)

6. OCPI
v2.1
Version
module
Credentials
module
Locations
module
Sessions
module
CDR
module
Tariff
module
Token
module
Commands
module
The eight modules..

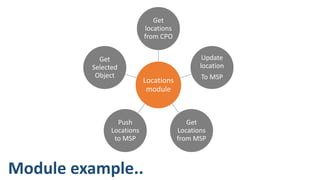

7. Locations
module
Get
locations
from CPO
Update
location
To MSP
Get
Locations
from MSP
Push
Locations
to MSP
Get
Selected
Object
Module example..

8. The Version module
Which version do you use?

9. Credentials Module

10. Token module
https://www.youtube.com/watch?v=VcOSwCUg3Lg

11. Locations module
Exchange Location and charge point
information from the CPO to MSP
Connector status..
Location.. (POI)
CP name..

12. Sessions module
Get all charging sessions..

13. CDR module

14. Tariff module
Exchange tariff
information

15. Commands module
Start
Stop
Reserve
Unlock

16. Scenario

17. Example (reserve now!)
• Pre-condition: CPO and MSP has exchanged credential information with OCPI.
• Pre-condition: The CPO and MSP exchanged location information with OCPI.
1. User need power for his EV
2. The user uses an app from his MSP to search for available charge points.
3. The user reserves the charge point with his app.
4. The MSP system sends the reserve Command with the OCPI to the CPO.
5. The CPO receives the command from OCPI and reserves the charge pole for
x minutes.

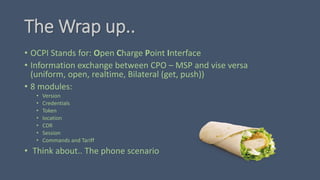

18. The Wrap up..
• OCPI Stands for: Open Charge Point Interface
• Information exchange between CPO – MSP and vise versa
(uniform, open, realtime, Bilateral (get, push))
• 8 modules:
• Version
• Credentials
• Token
• location
• CDR
• Session
• Commands and Tariff
• Think about.. The phone scenario
