The OCCIware project aims at building a comprehensive engineering toolchain for managing Everything as a Service (XaaS). The objective is to dramatically decrease the cost of using or providing XaaS by breaking silos between layers and domains of Cloud Computing. Leveraging the Open Cloud Computing Interface (OCCI) standard-to-be, we are developing a model-driven engineering studio as well as generic runtimes adapted to various domains: Linked Open Data, cloud computing, platform as a service, Big Data, connected objects, etc. The project, funded by French Ministry of Industry, involves 10 academic and industrial partners and is supervised by a committee of 11 top scientists and industry experts. The session will include a demo of the design and implementation of an OCCI application.

1. OCCIware
A framework for Everything as a Service
Marc Dutoo, Open Wide
OW2Con@POSS, Paris
November, 18th 2015

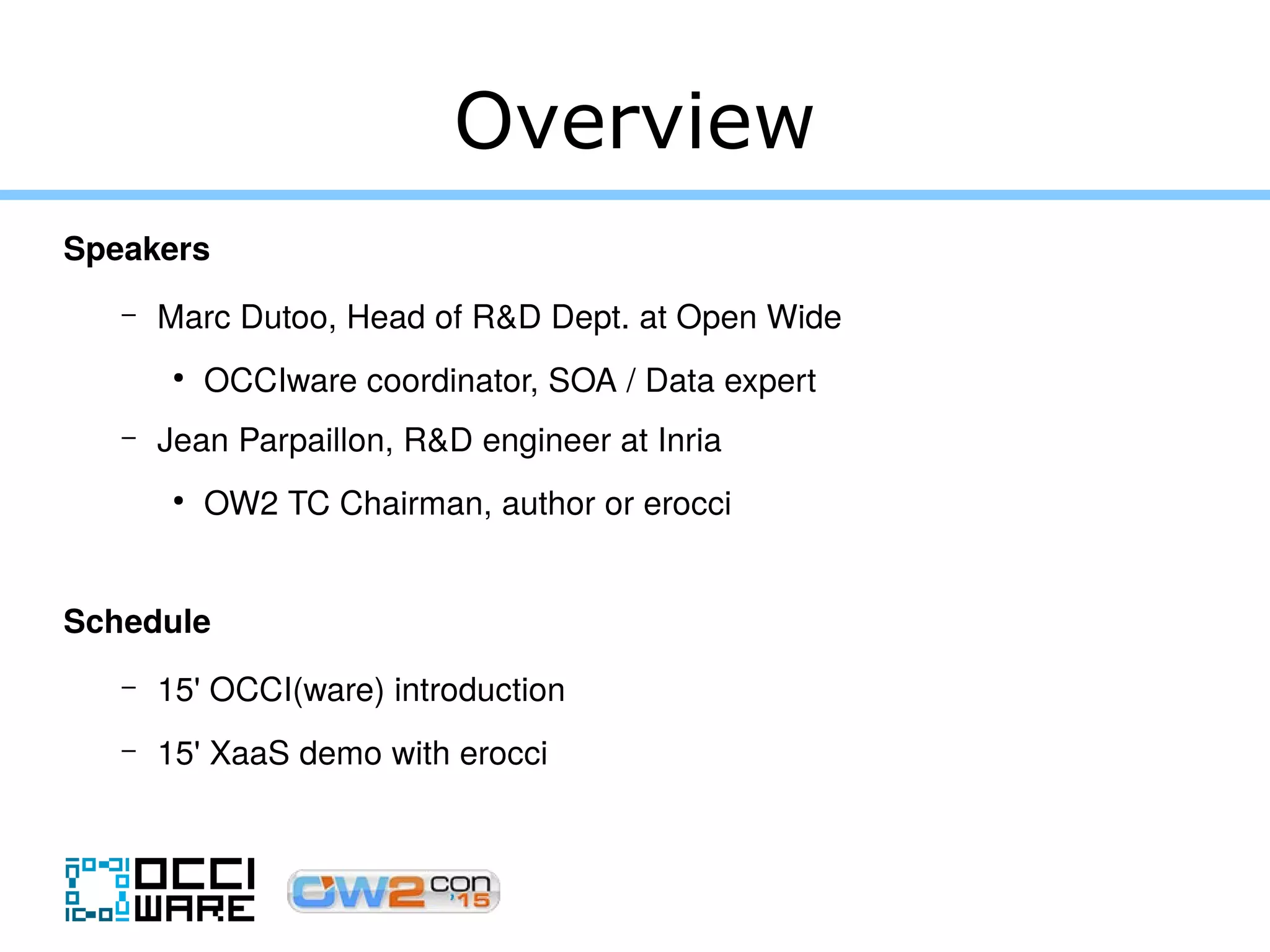

2. Overview
Speakers
– Marc Dutoo, Head of R&D Dept. at Open Wide
●
OCCIware coordinator, SOA / Data expert
– Jean Parpaillon, R&D engineer at Inria
●
OW2 TC Chairman, author or erocci
Schedule
– 15' OCCI(ware) introduction
– 15' XaaS demo with erocci

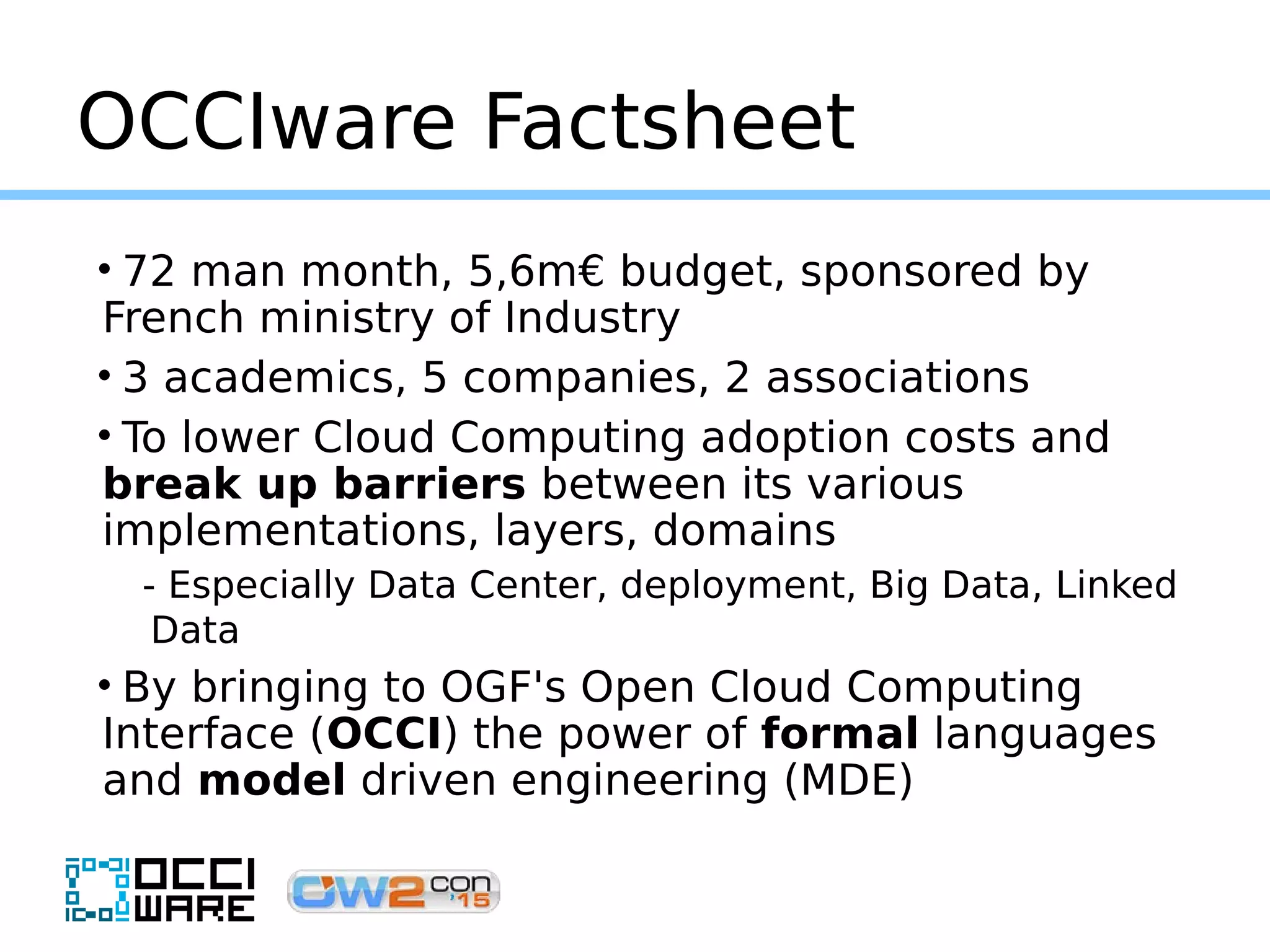

3. OCCIware Factsheet
• 72 man month, 5,6m€ budget, sponsored by
French ministry of Industry
• 3 academics, 5 companies, 2 associations
• To lower Cloud Computing adoption costs and
break up barriers between its various
implementations, layers, domains
- Especially Data Center, deployment, Big Data, Linked
Data
• By bringing to OGF's Open Cloud Computing
Interface (OCCI) the power of formal languages
and model driven engineering (MDE)

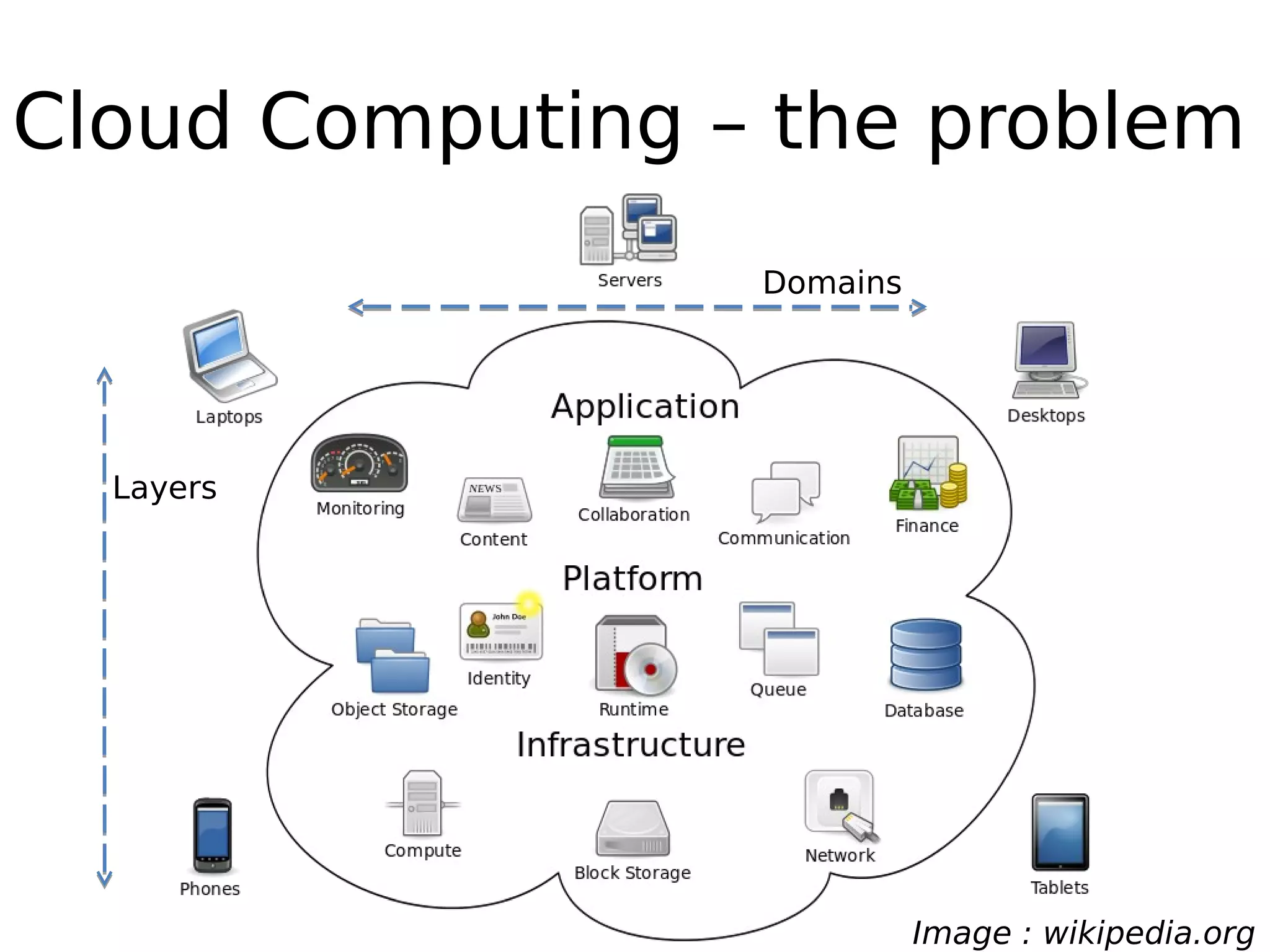

4. Cloud Computing – the problem
Layers
Domains
Image : wikipedia.org

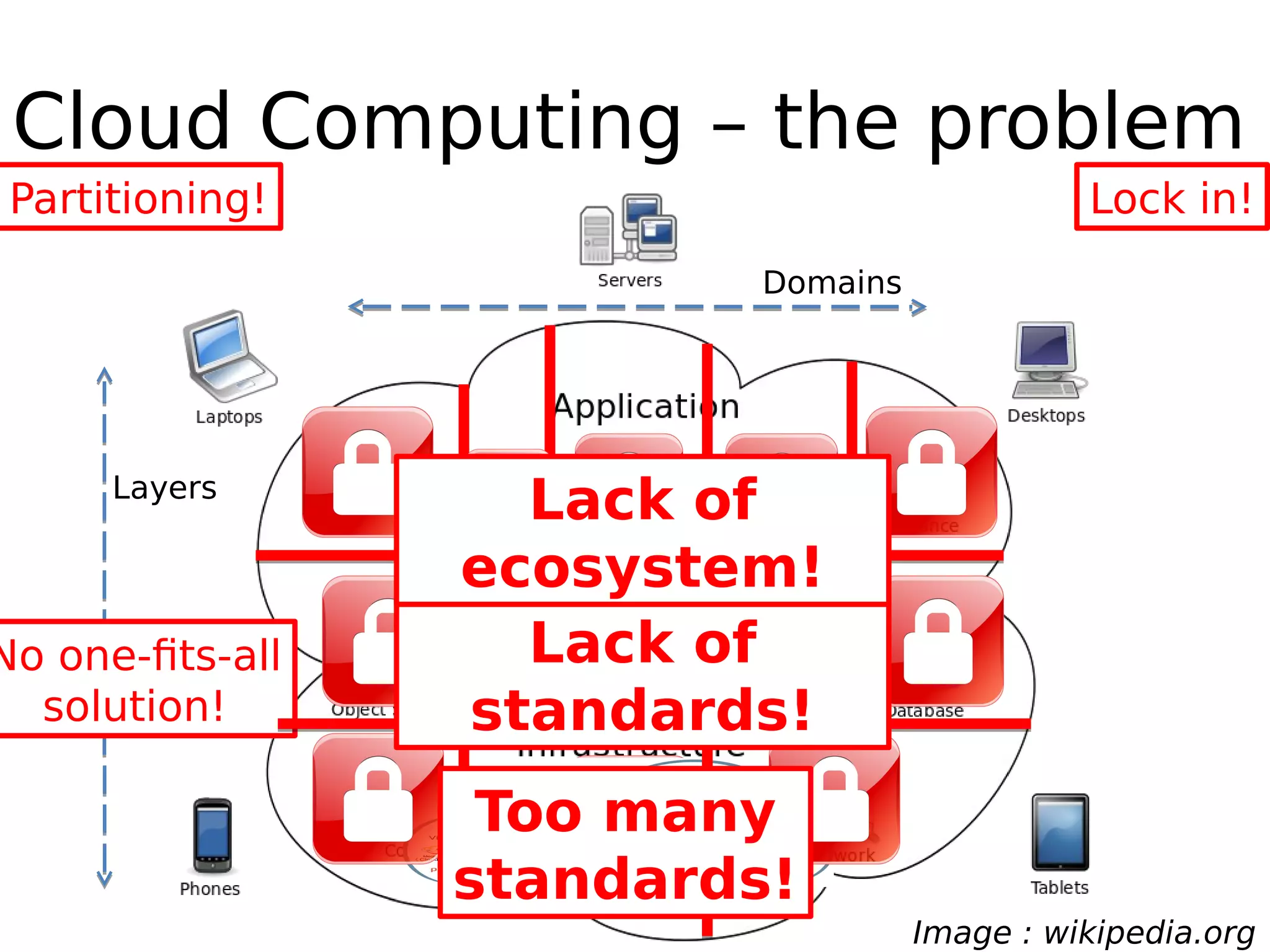

5. Partitioning! Lock in!
No one-fits-all
solution!
Lack of
standards!
Layers
Domains
Too many
standards!
Lack of
ecosystem!
Cloud Computing – the problem
Image : wikipedia.org

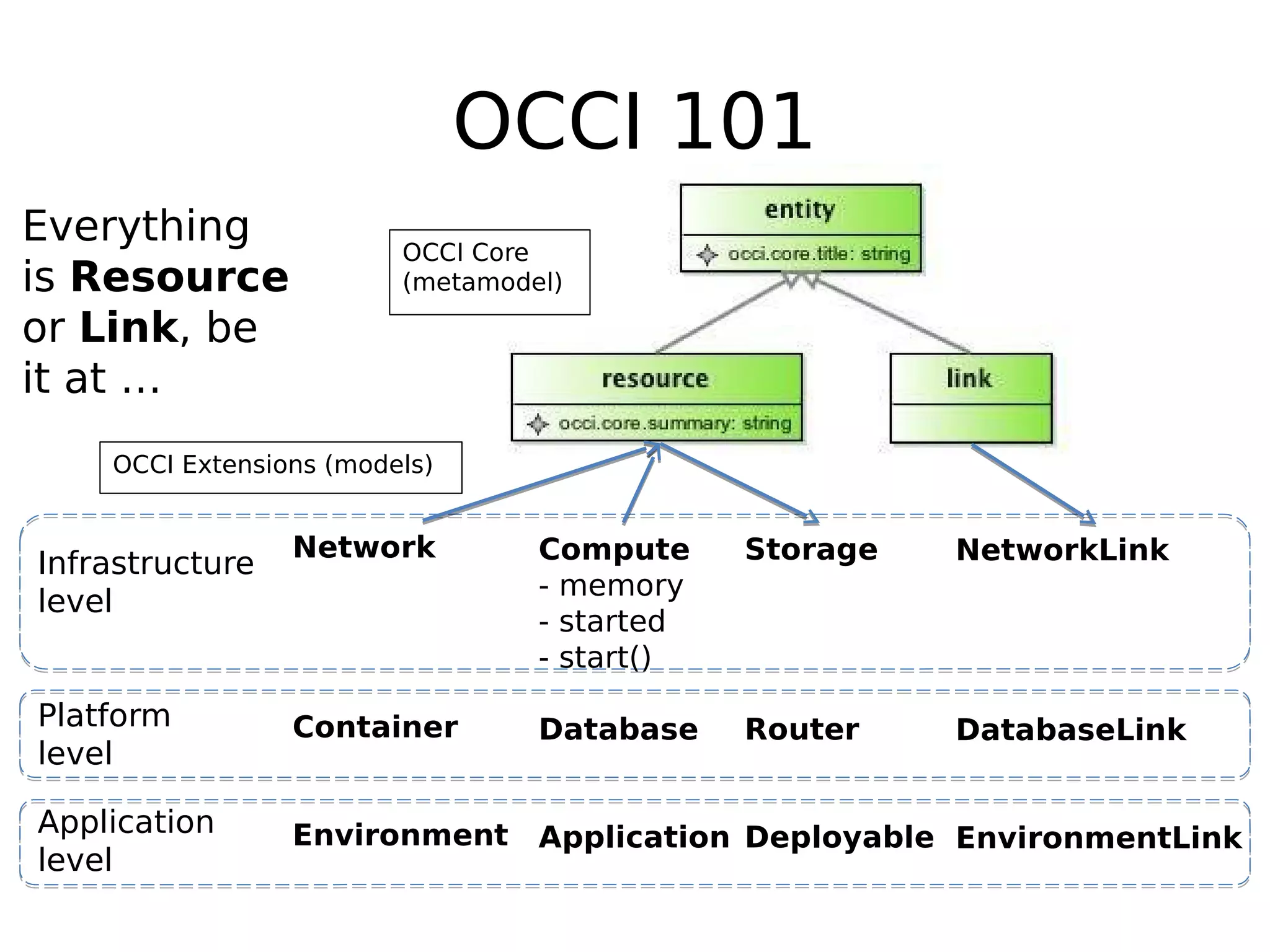

6. OCCI 101
OCCI Core
(metamodel)
Network
Container
Environment
Compute
- memory
- started
- start()
Database
Application
Storage
Router
Deployable
NetworkLink
DatabaseLink
EnvironmentLink
Everything
is Resource
or Link, be
it at …
Platform
level
Infrastructure
level
Application
level
OCCI Extensions (models)

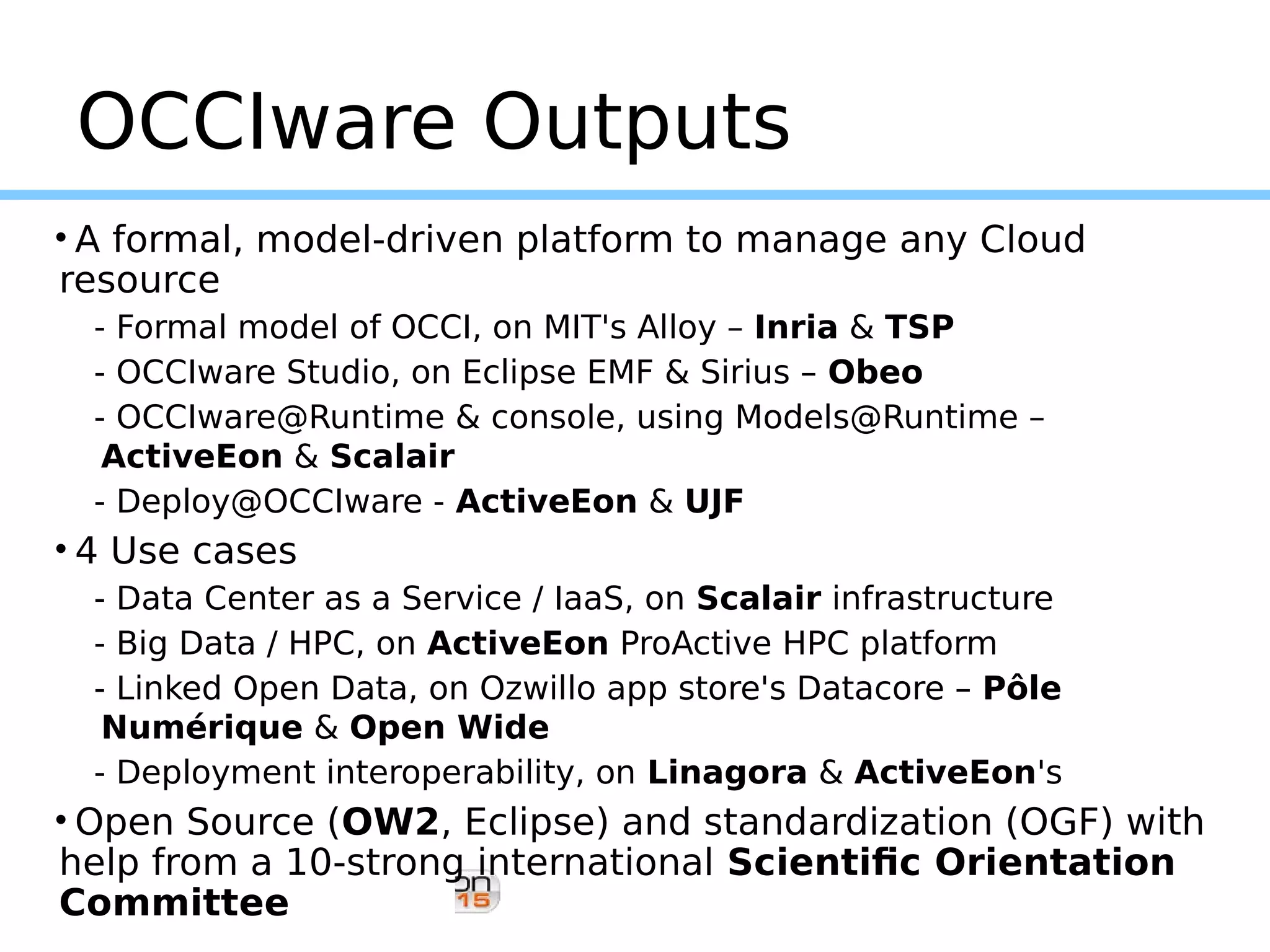

7. OCCIware Outputs
• A formal, model-driven platform to manage any Cloud
resource
- Formal model of OCCI, on MIT's Alloy – Inria & TSP
- OCCIware Studio, on Eclipse EMF & Sirius – Obeo
- OCCIware@Runtime & console, using Models@Runtime –
ActiveEon & Scalair
- Deploy@OCCIware - ActiveEon & UJF
• 4 Use cases
- Data Center as a Service / IaaS, on Scalair infrastructure
- Big Data / HPC, on ActiveEon ProActive HPC platform
- Linked Open Data, on Ozwillo app store's Datacore – Pôle
Numérique & Open Wide
- Deployment interoperability, on Linagora & ActiveEon's
• Open Source (OW2, Eclipse) and standardization (OGF) with
help from a 10-strong international Scientific Orientation
Committee

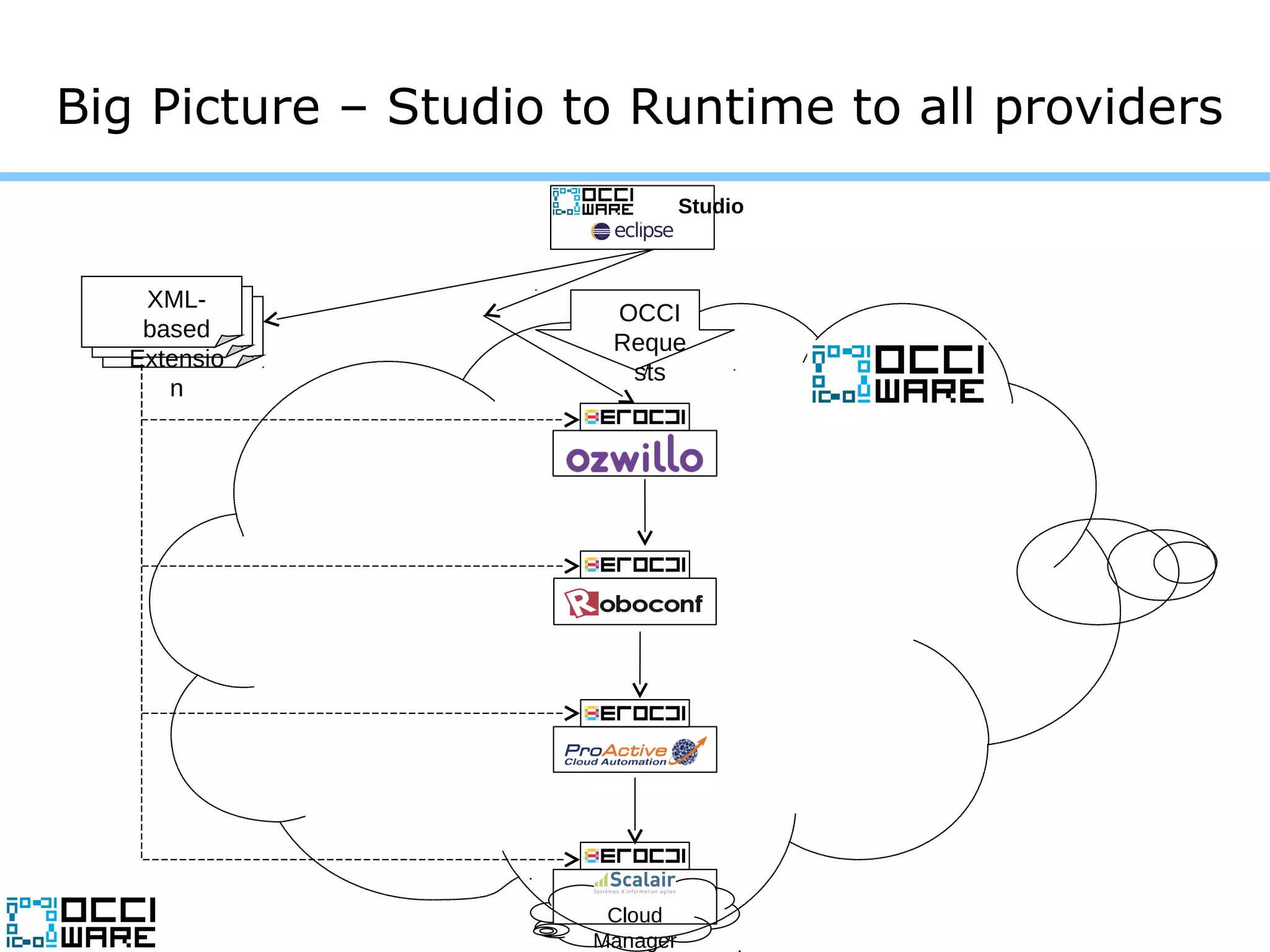

8. Big Picture – Studio to Runtime to all providers
Studio
XML-
based
Extensio
n
Cloud
Manager
OCCI
Reque
sts

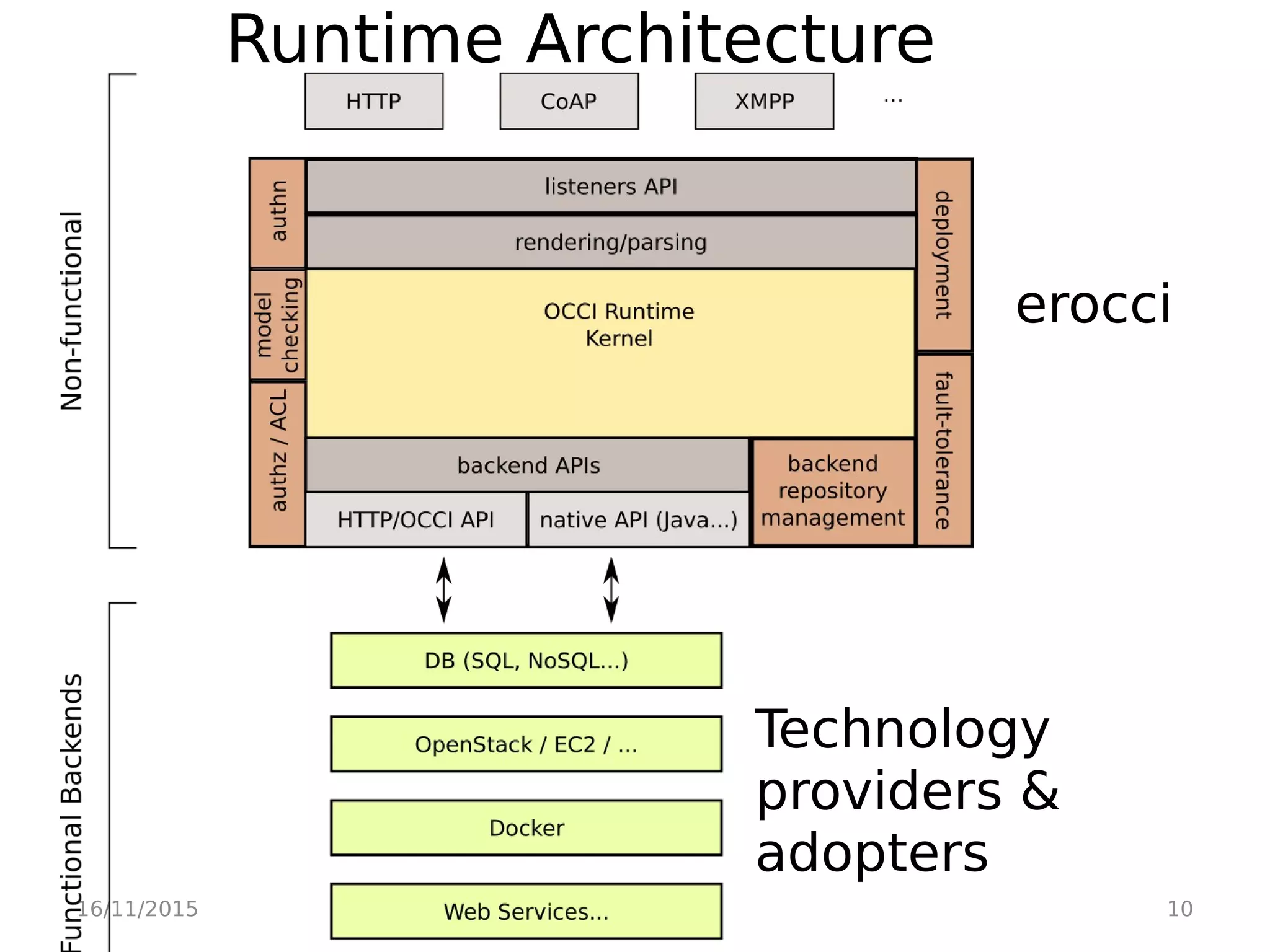

9. 16/11/2015 10
Runtime Architecture
erocci
Technology
providers &
adopters

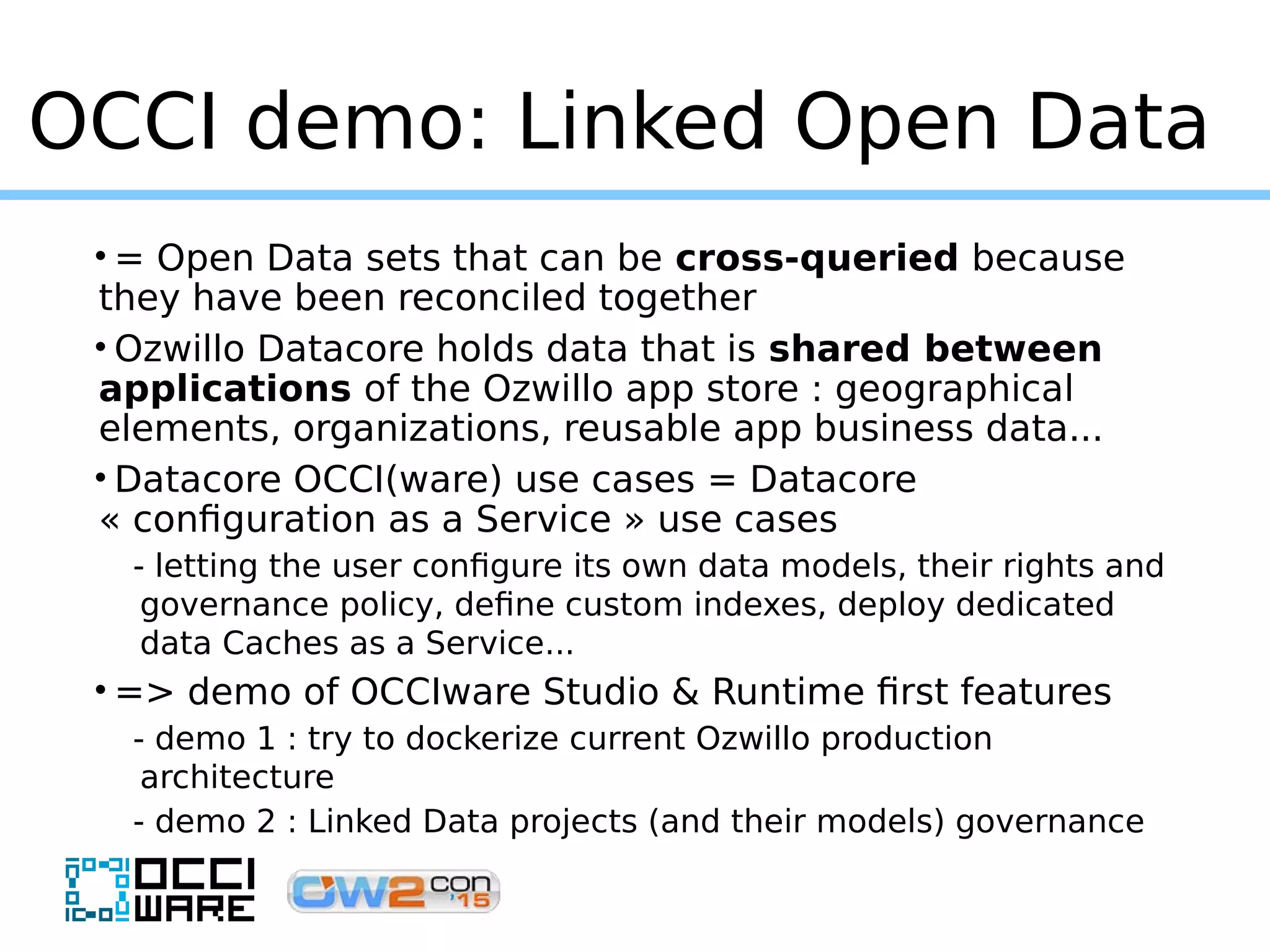

10. OCCI demo: Linked Open Data
• = Open Data sets that can be cross-queried because
they have been reconciled together
• Ozwillo Datacore holds data that is shared between
applications of the Ozwillo app store : geographical
elements, organizations, reusable app business data...
• Datacore OCCI(ware) use cases = Datacore
« configuration as a Service » use cases
- letting the user configure its own data models, their rights and
governance policy, define custom indexes, deploy dedicated
data Caches as a Service...
• => demo of OCCIware Studio & Runtime first features
- demo 1 : try to dockerize current Ozwillo production
architecture
- demo 2 : Linked Data projects (and their models) governance

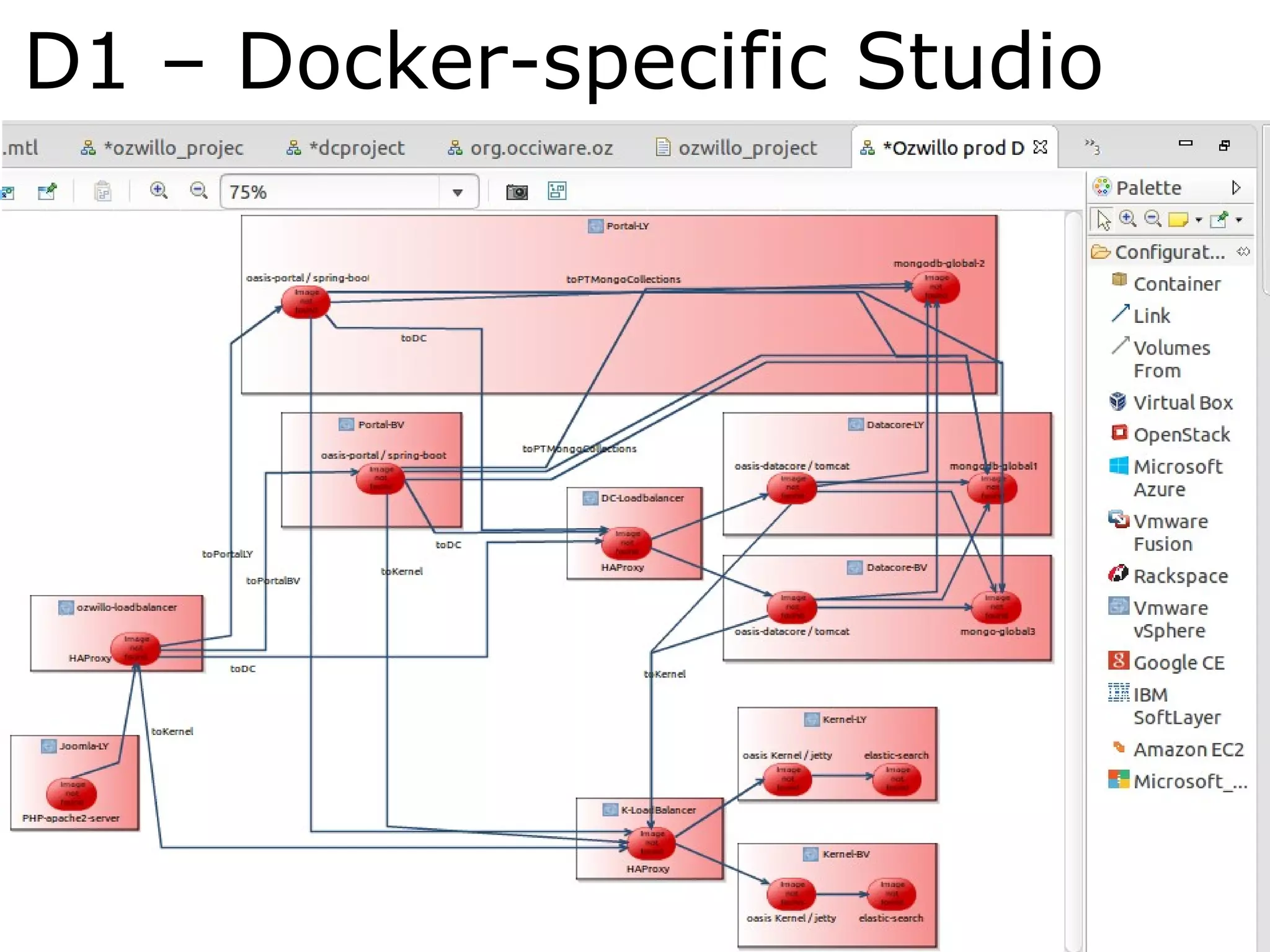

11. D1 – Docker-specific Studio

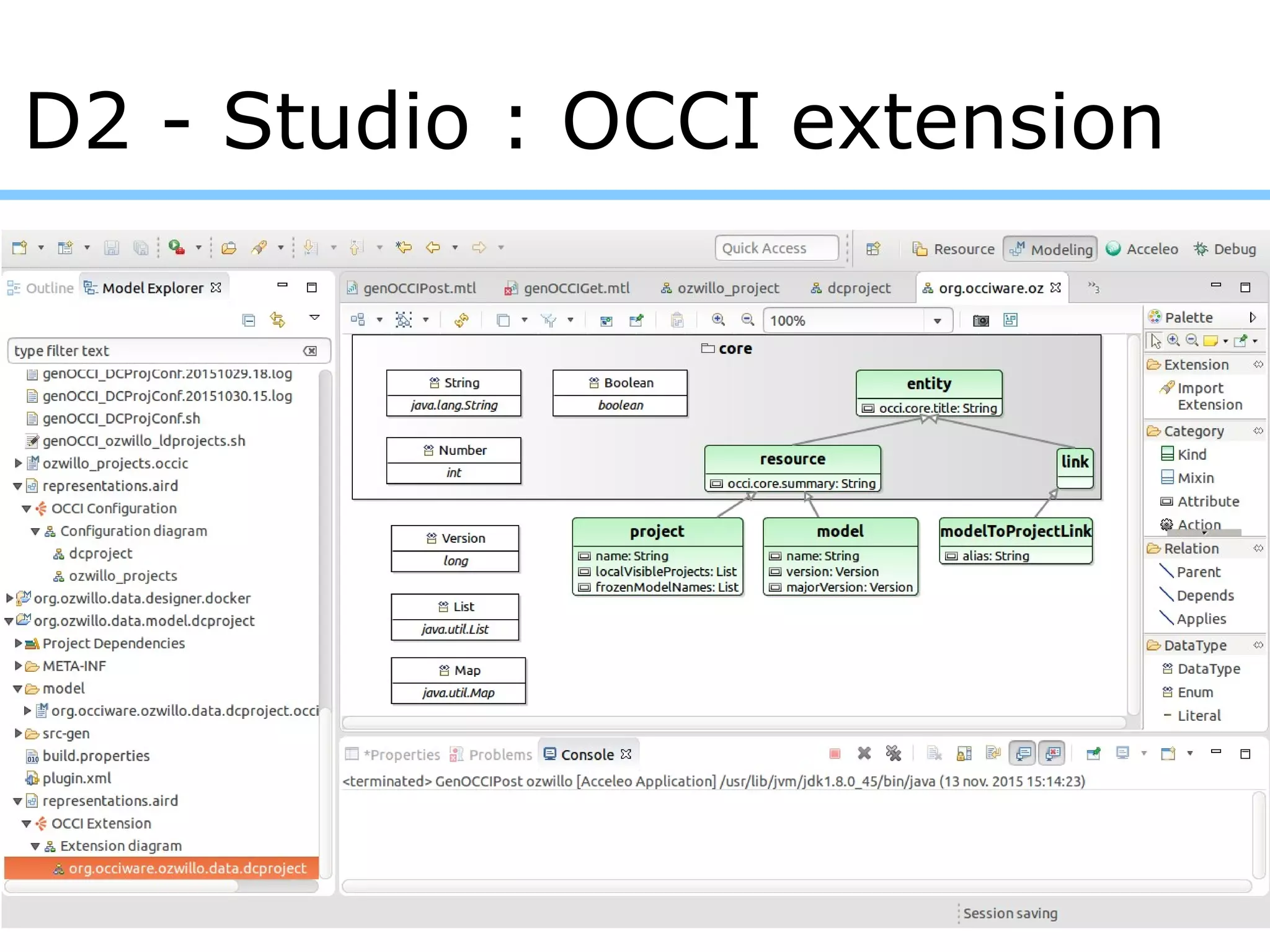

12. D2 - Studio : OCCI extension

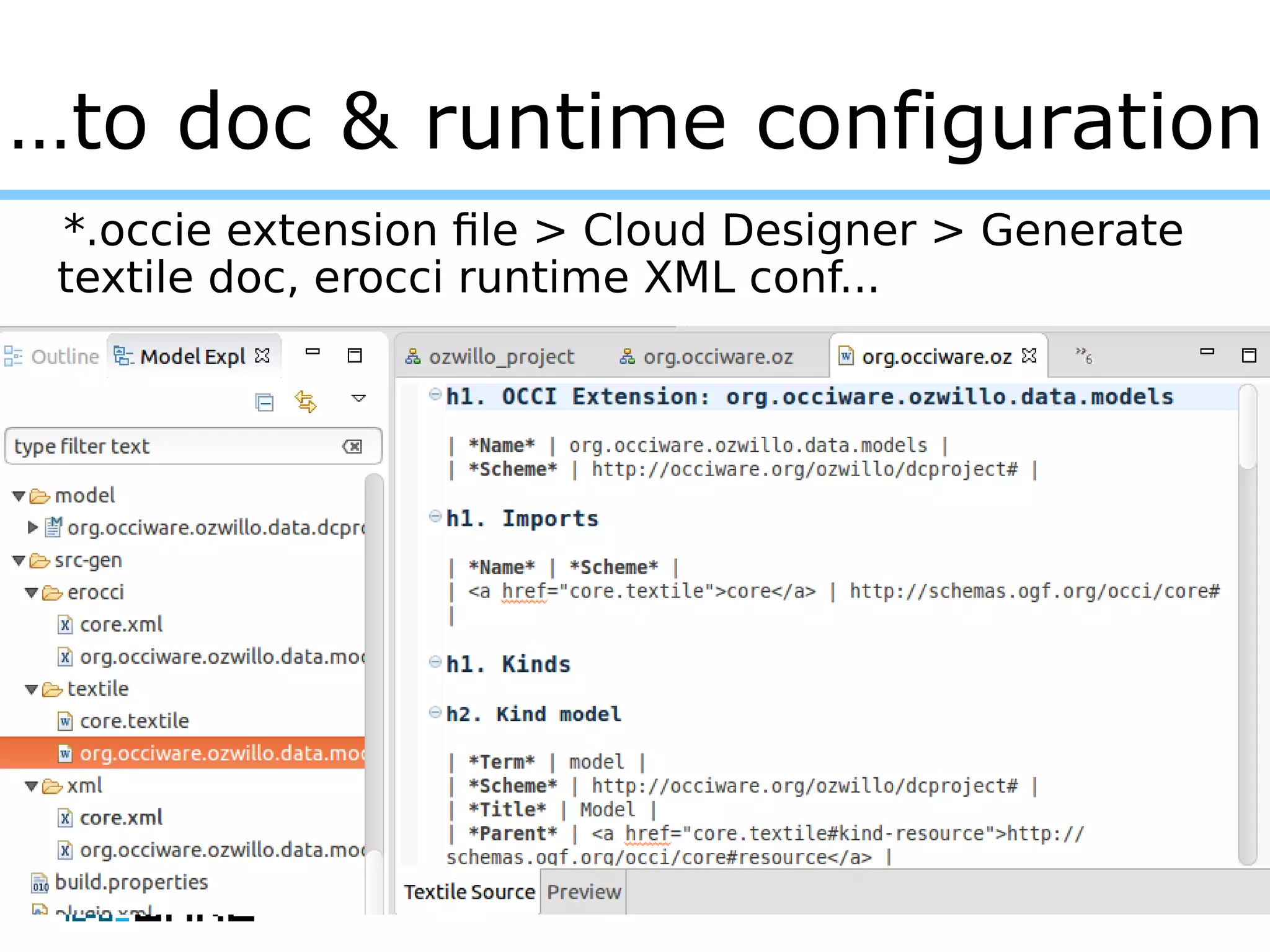

13. …to doc & runtime configuration
*.occie extension file > Cloud Designer > Generate
textile doc, erocci runtime XML conf...

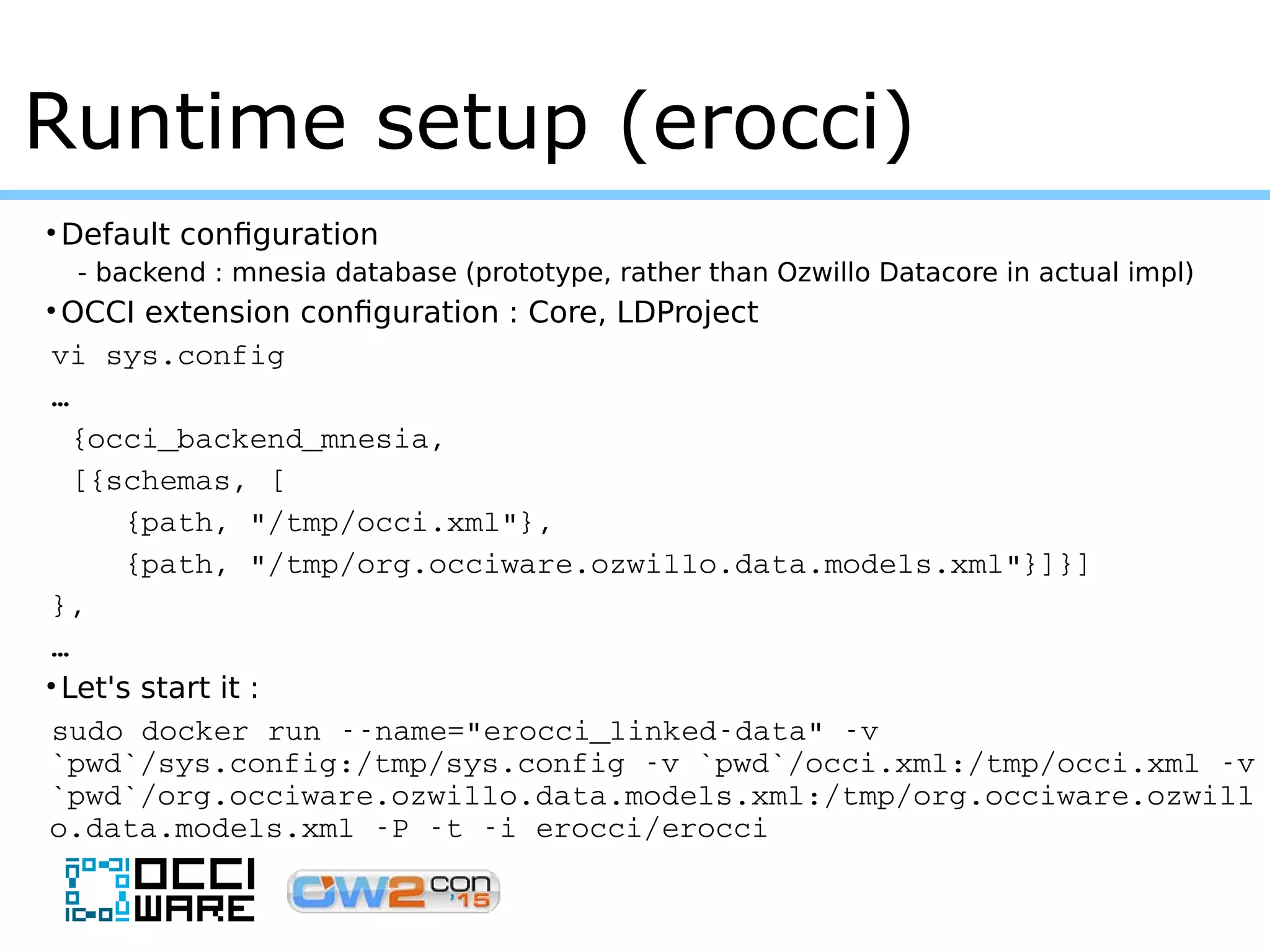

14. •Default configuration
- backend : mnesia database (prototype, rather than Ozwillo Datacore in actual impl)
•OCCI extension configuration : Core, LDProject
vi sys.config
…
{occi_backend_mnesia,
[{schemas, [
{path, "/tmp/occi.xml"},
{path, "/tmp/org.occiware.ozwillo.data.models.xml"}]}]
},
…
•Let's start it :
sudo docker run ­­name="erocci_linked­data" ­v
`pwd`/sys.config:/tmp/sys.config ­v `pwd`/occi.xml:/tmp/occi.xml ­v
`pwd`/org.occiware.ozwillo.data.models.xml:/tmp/org.occiware.ozwill
o.data.models.xml ­P ­t ­i erocci/erocci
Runtime setup (erocci)

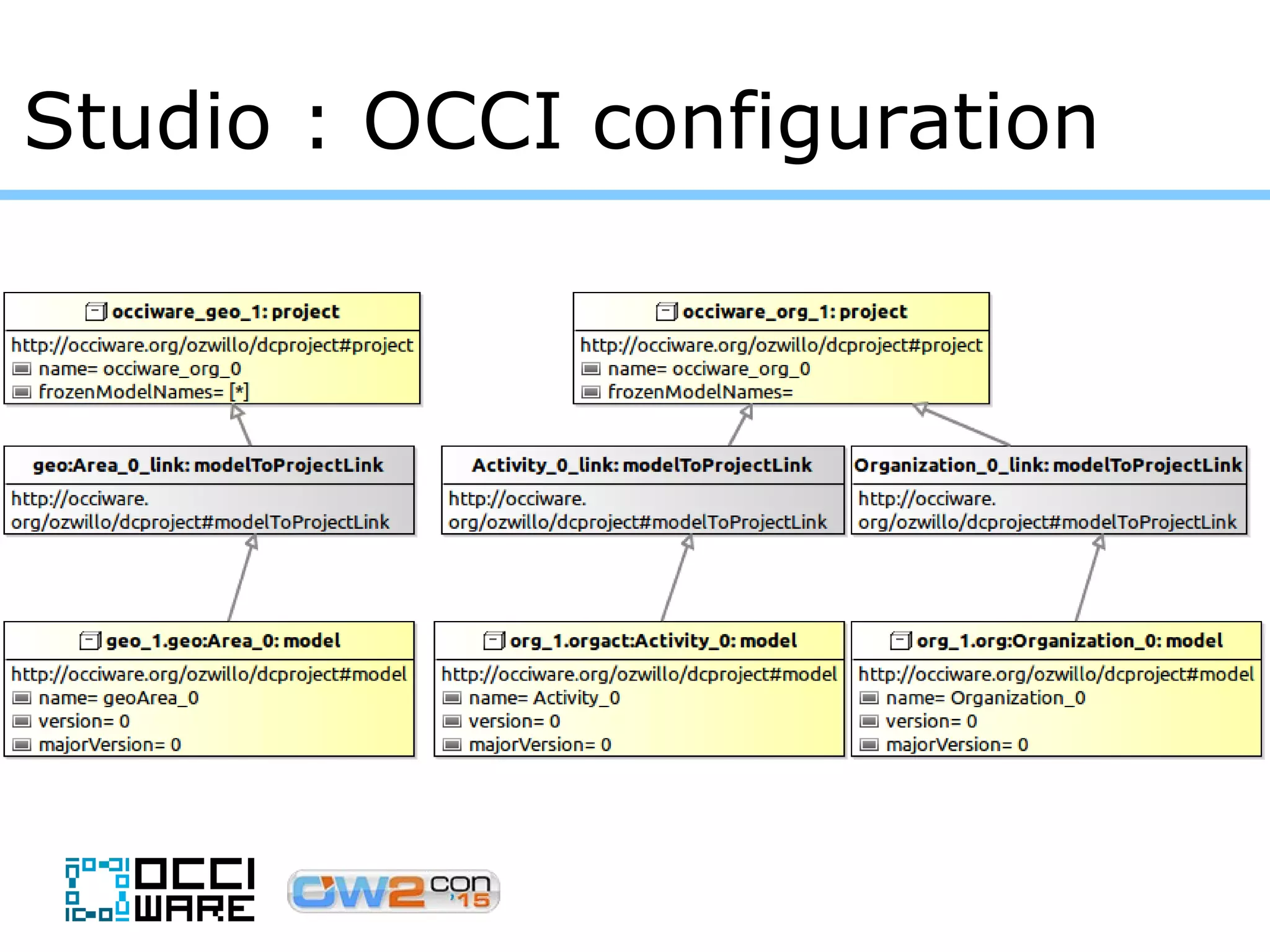

15. Studio : OCCI configuration

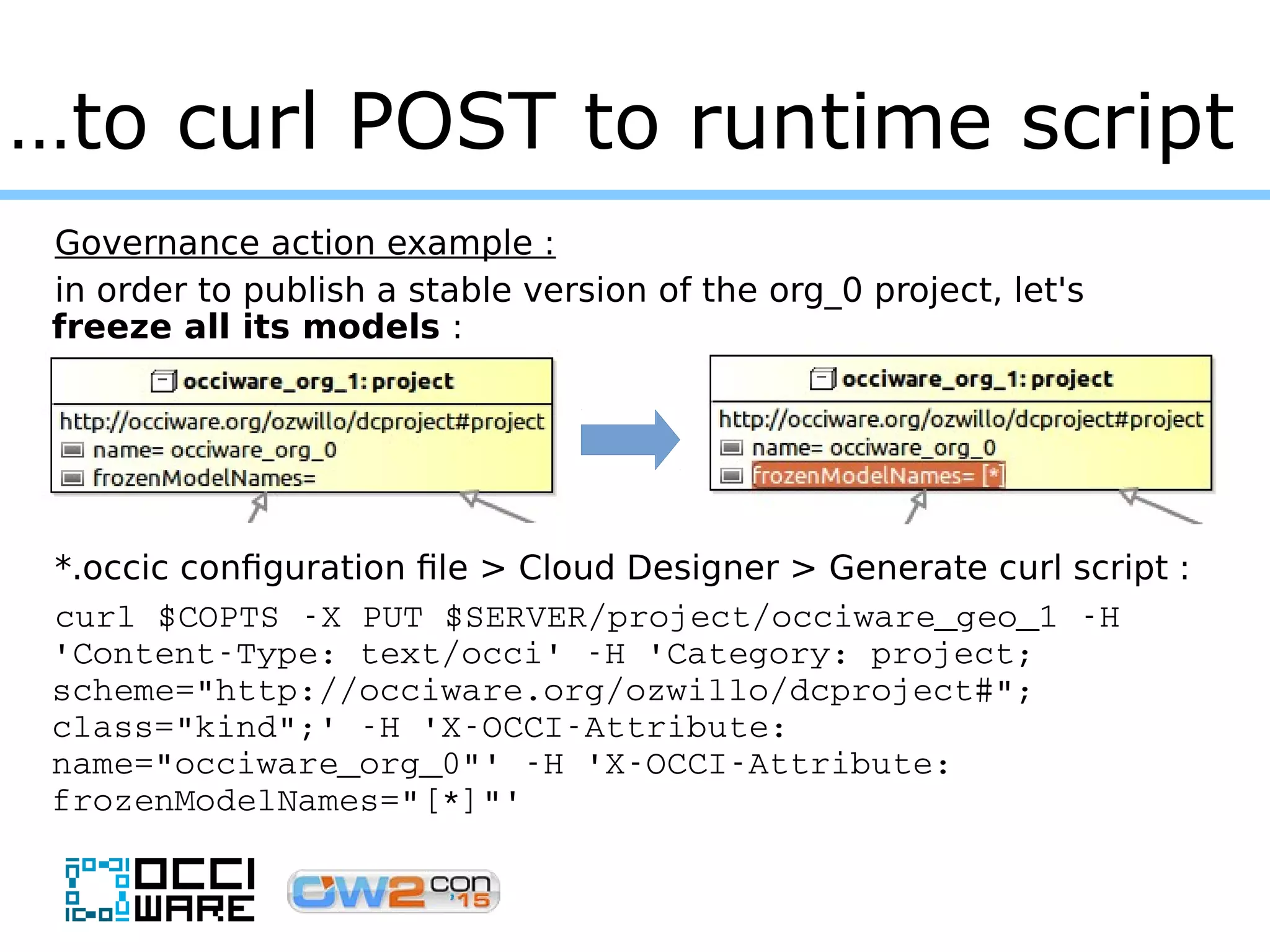

16. …to curl POST to runtime script
Governance action example :
in order to publish a stable version of the org_0 project, let's
freeze all its models :
*.occic configuration file > Cloud Designer > Generate curl script :
curl $COPTS ­X PUT $SERVER/project/occiware_geo_1 ­H
'Content­Type: text/occi' ­H 'Category: project;
scheme="http://occiware.org/ozwillo/dcproject#";
class="kind";' ­H 'X­OCCI­Attribute:
name="occiware_org_0"' ­H 'X­OCCI­Attribute:
frozenModelNames="[*]"'

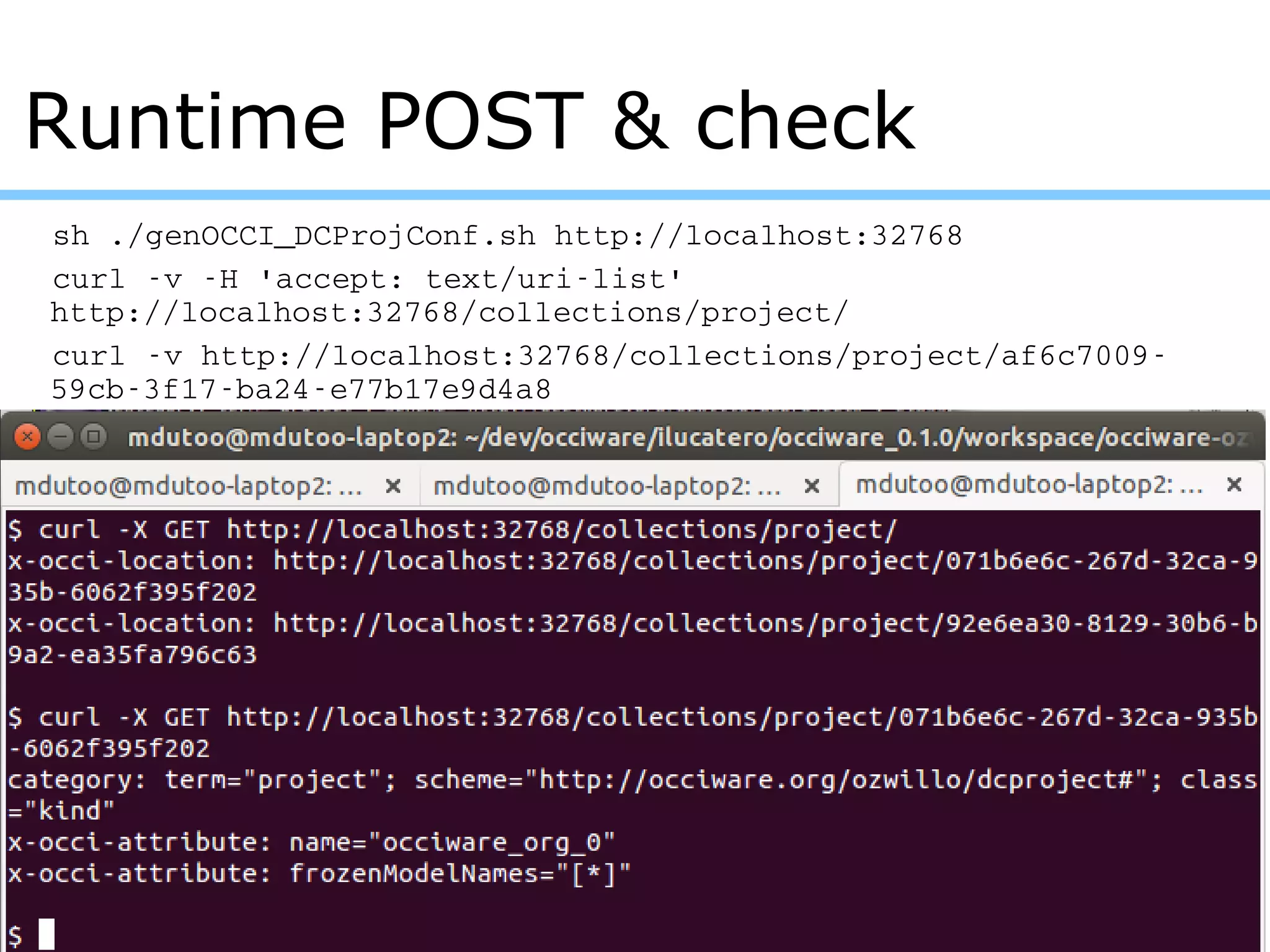

17. sh ./genOCCI_DCProjConf.sh http://localhost:32768
curl ­v ­H 'accept: text/uri­list'
http://localhost:32768/collections/project/
curl ­v http://localhost:32768/collections/project/af6c7009­
59cb­3f17­ba24­e77b17e9d4a8
Runtime POST & check

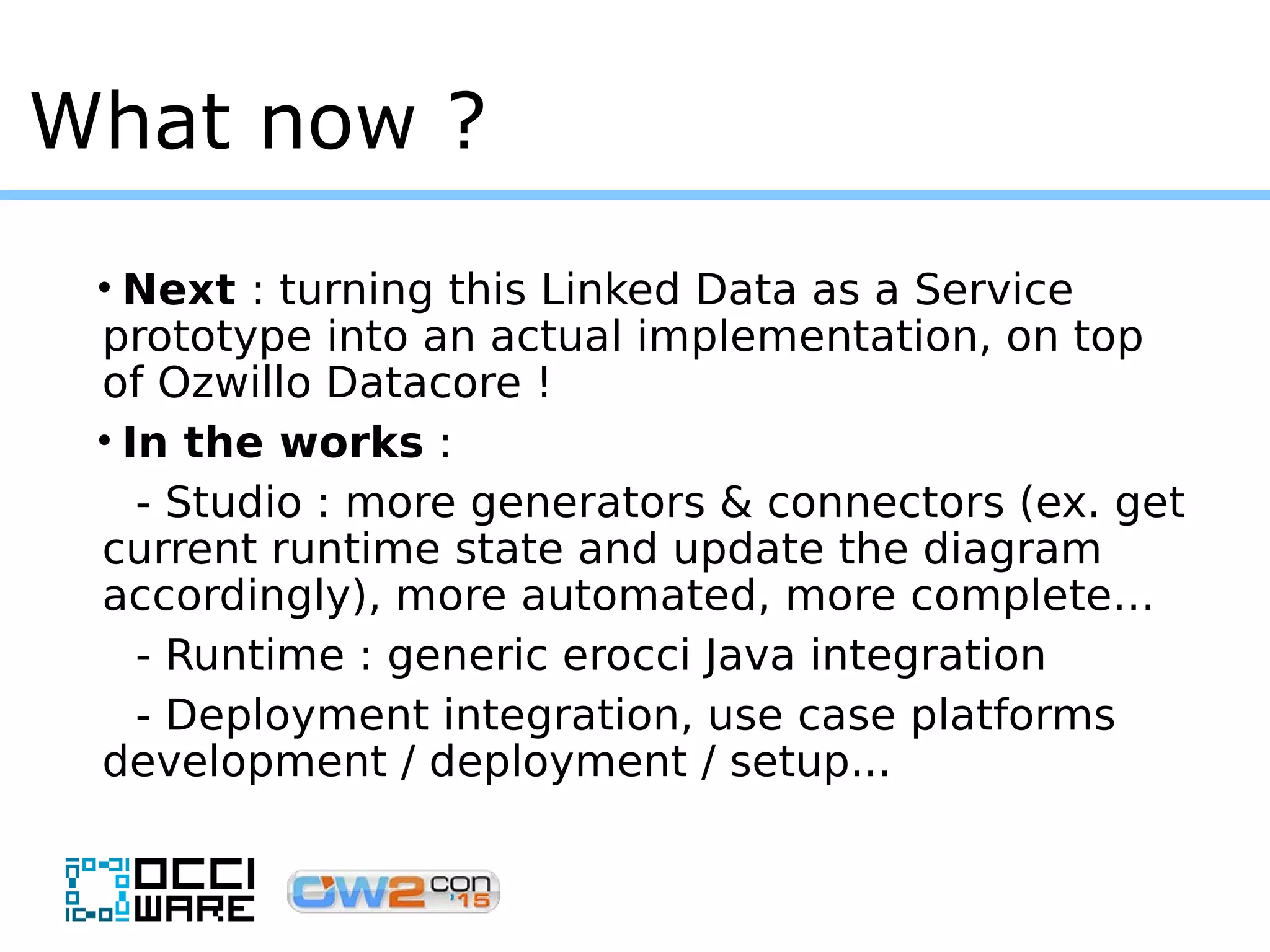

18. What now ?
• Next : turning this Linked Data as a Service
prototype into an actual implementation, on top
of Ozwillo Datacore !
• In the works :
- Studio : more generators & connectors (ex. get
current runtime state and update the diagram
accordingly), more automated, more complete…
- Runtime : generic erocci Java integration
- Deployment integration, use case platforms
development / deployment / setup...

19. Any questions ?
Thanks for your attention !
Contact : http://www.occiware.org - marc.dutoo at openwide.fr
Source : https://github.com/occiware
Partners :
Sponsors :
DGE (PIA) & System@tic, SCS, Images & Réseaux, PICOM, Minalogic clusters
