1. Document-oriented data access for
domain-driven .NET systems with
PostgreSQL & Marten
Bojan Veljanovski, CTO at HASELT
October, 2017 @ Macedonian .NET User Group
1

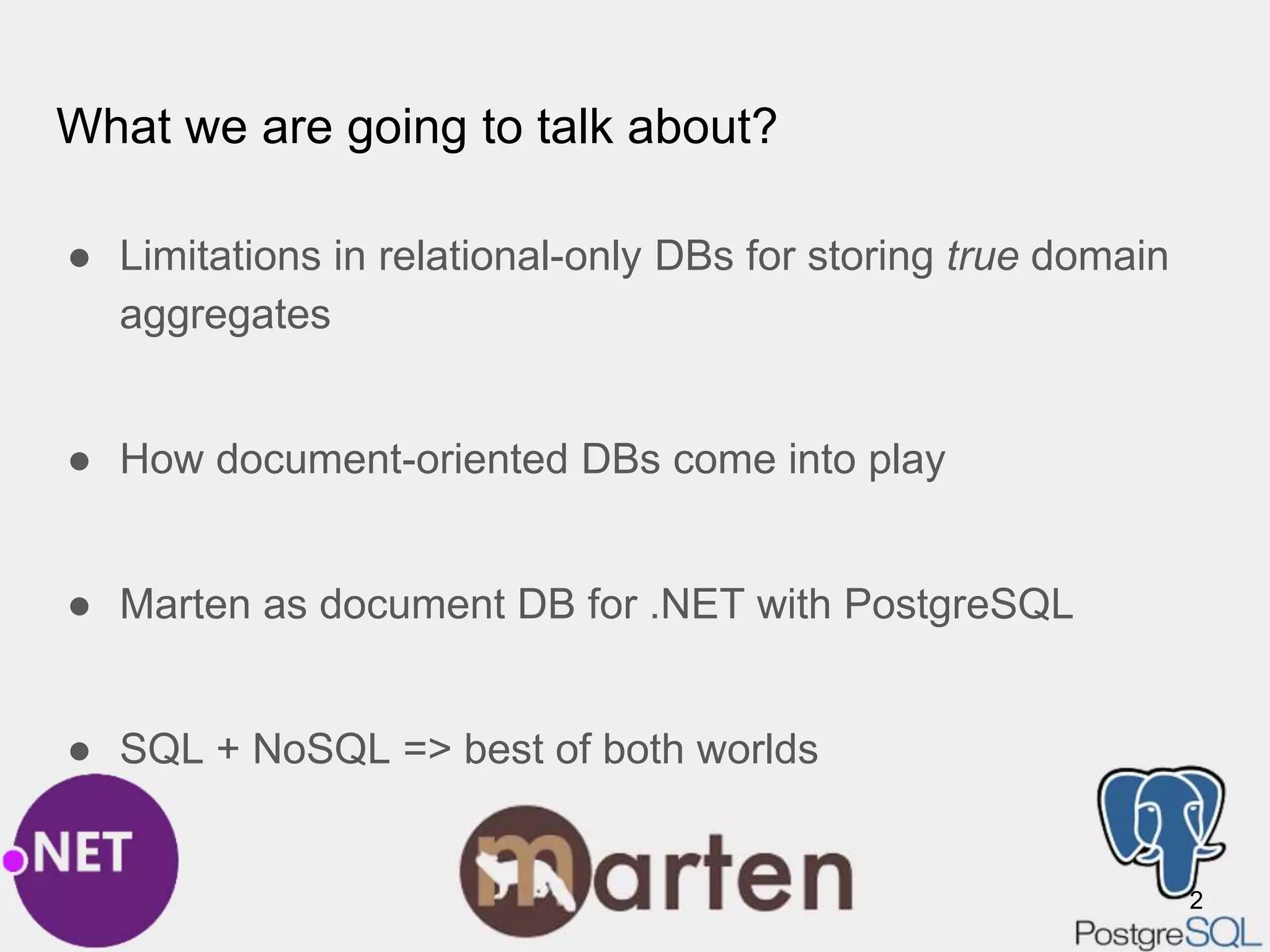

2. What we are going to talk about?
● Limitations in relational-only DBs for storing true domain
aggregates
● How document-oriented DBs come into play
● Marten as document DB for .NET with PostgreSQL
● SQL + NoSQL => best of both worlds
2

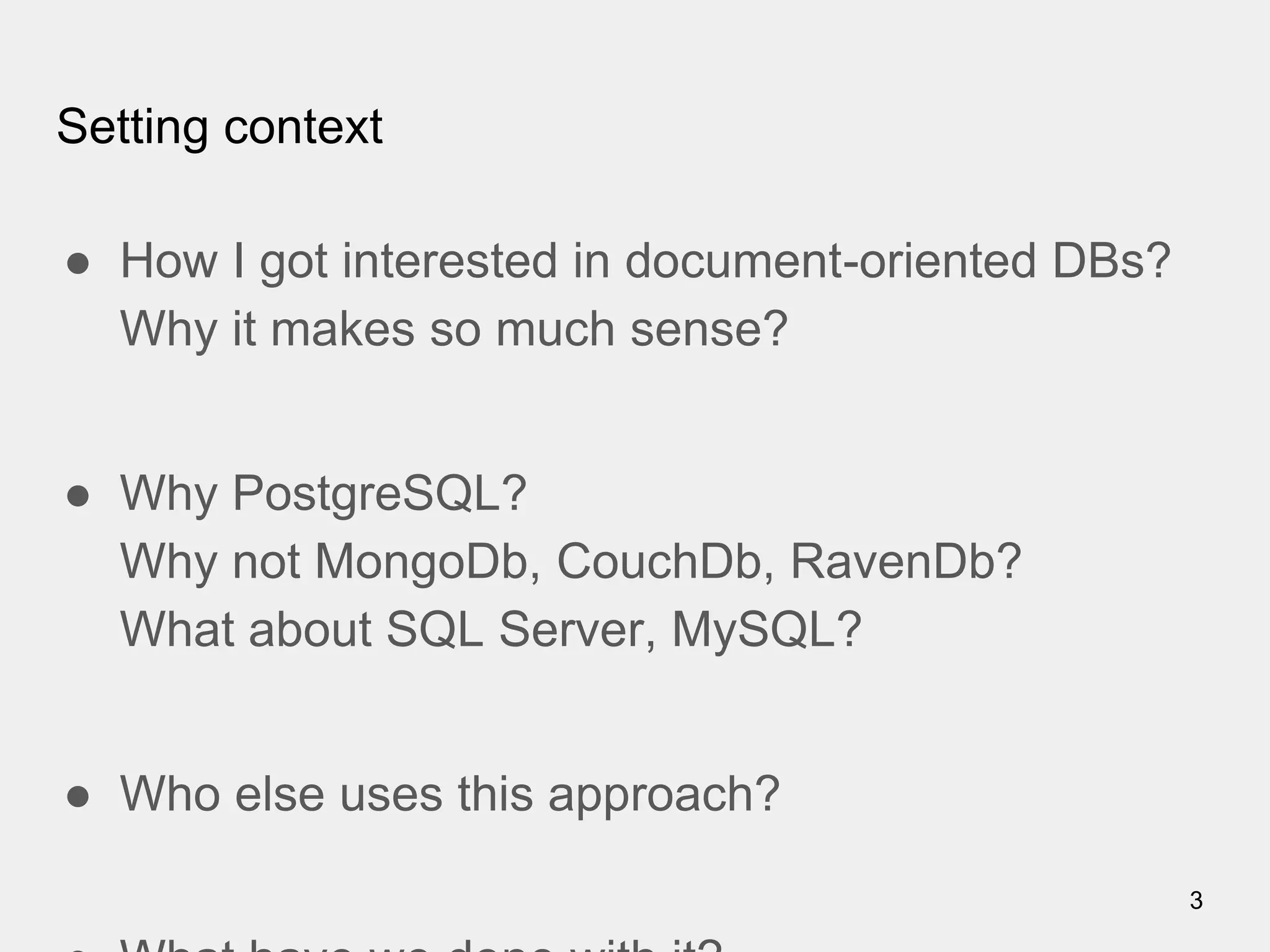

3. Setting context
● How I got interested in document-oriented DBs?
Why it makes so much sense?
● Why PostgreSQL?
Why not MongoDb, CouchDb, RavenDb?
What about SQL Server, MySQL?
● Who else uses this approach?
3

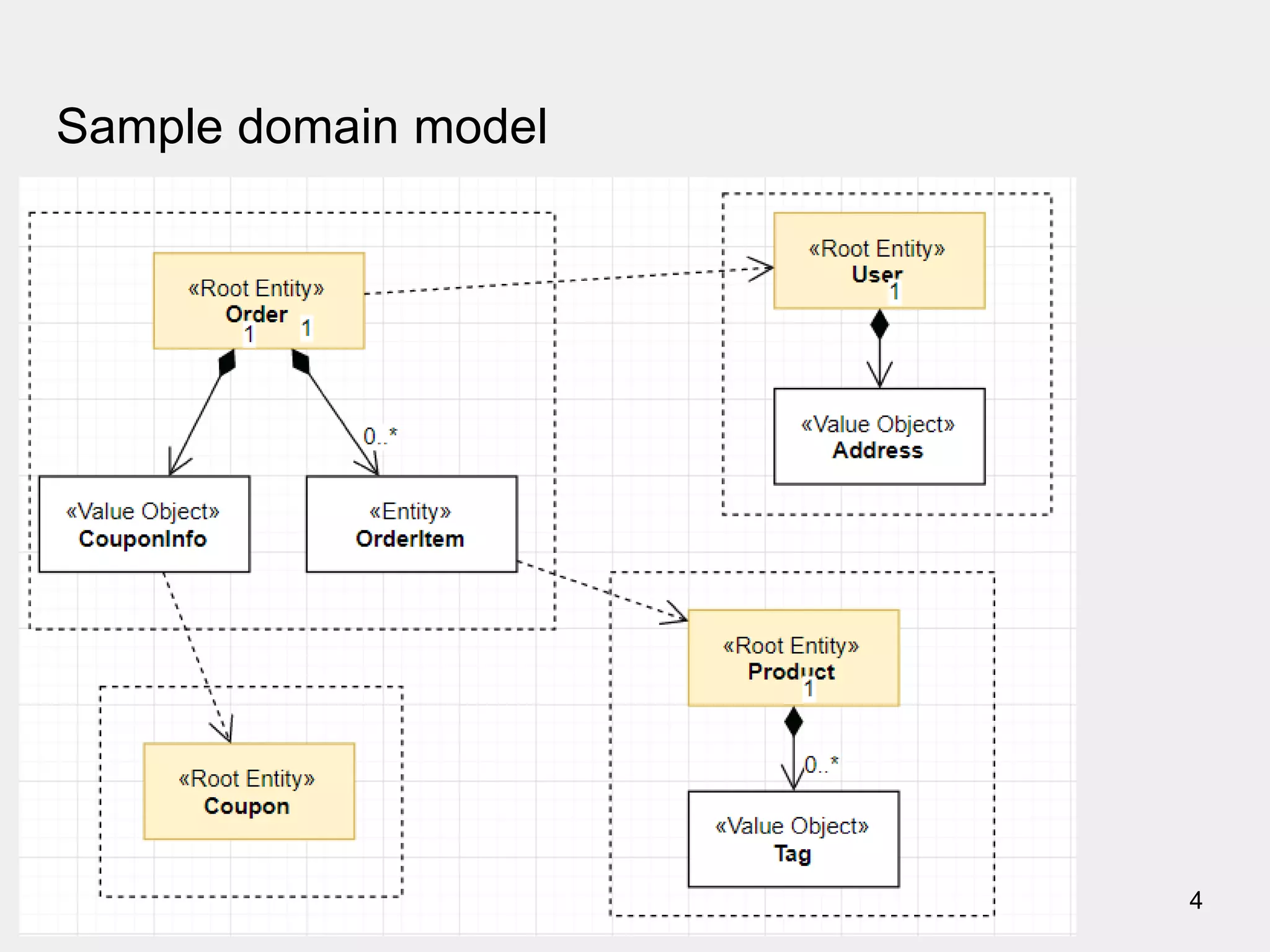

4. Sample domain model
4

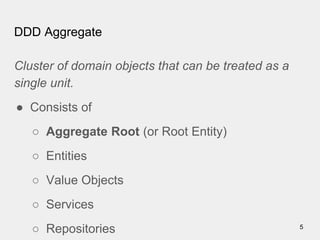

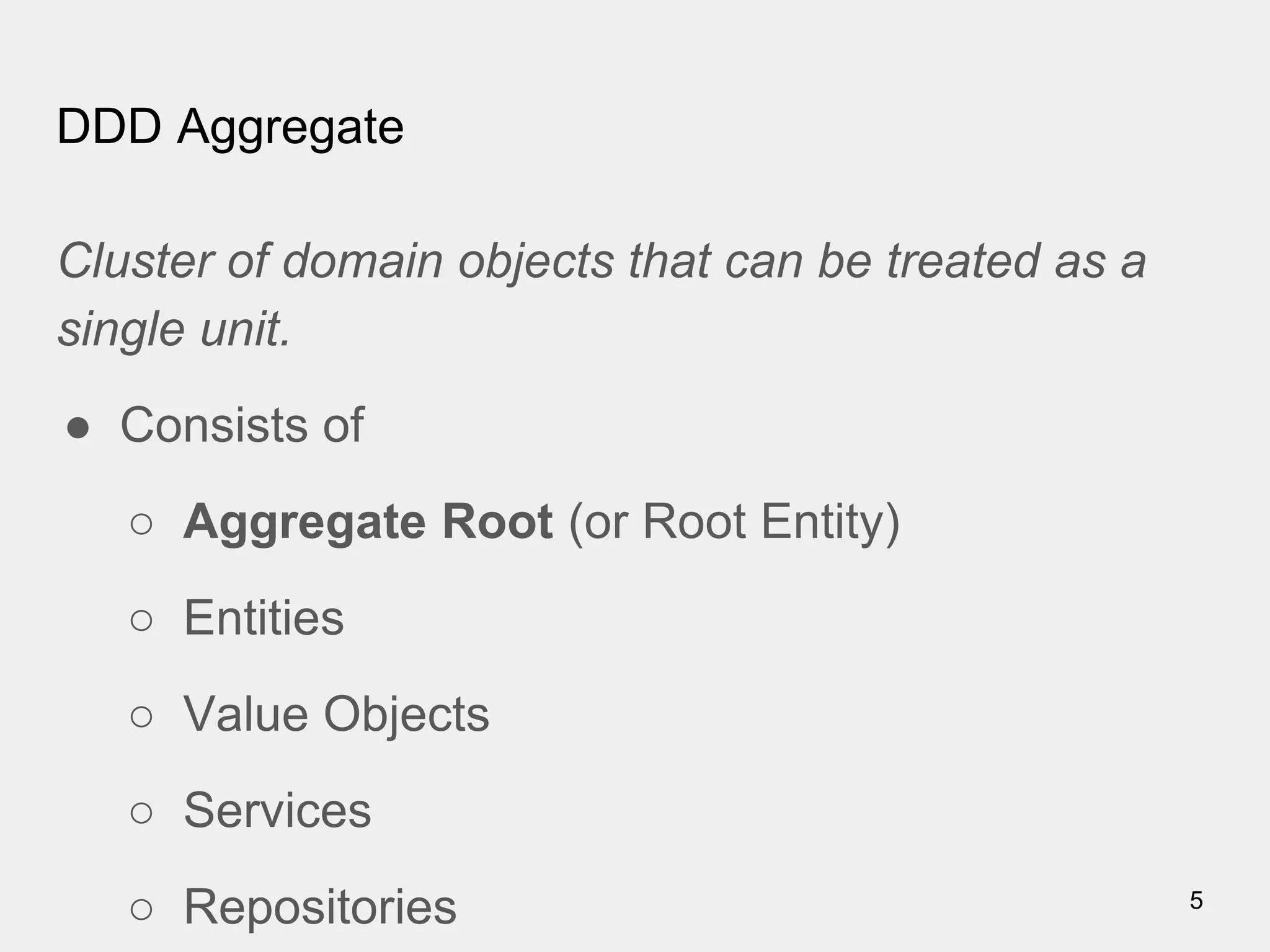

5. DDD Aggregate
Cluster of domain objects that can be treated as a
single unit.
● Consists of
○ Aggregate Root (or Root Entity)
○ Entities
○ Value Objects
○ Services
○ Repositories 5

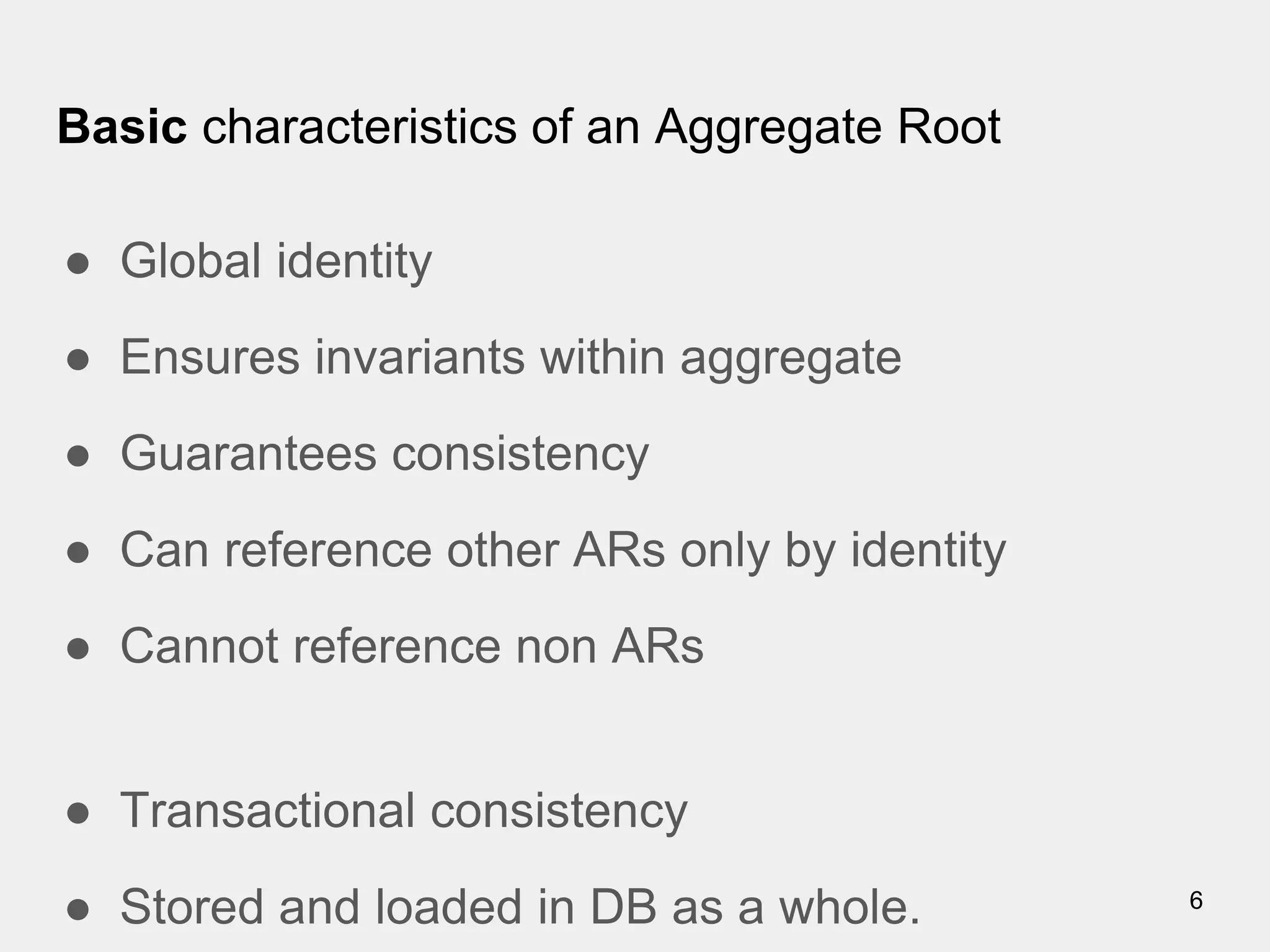

6. Basic characteristics of an Aggregate Root
● Global identity
● Ensures invariants within aggregate
● Guarantees consistency
● Can reference other ARs only by identity
● Cannot reference non ARs
● Transactional consistency
● Stored and loaded in DB as a whole. 6

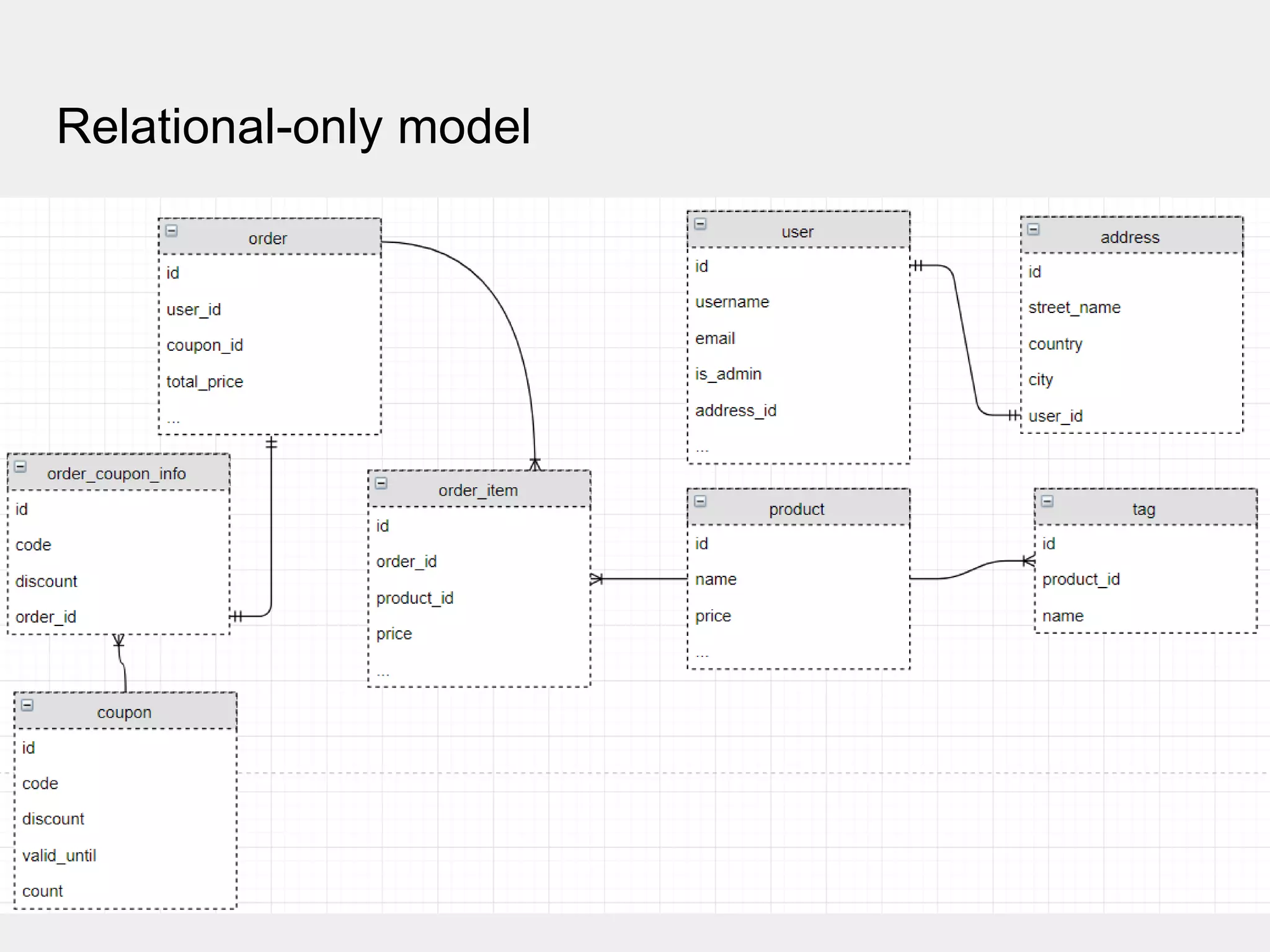

7. Relational-only model
7

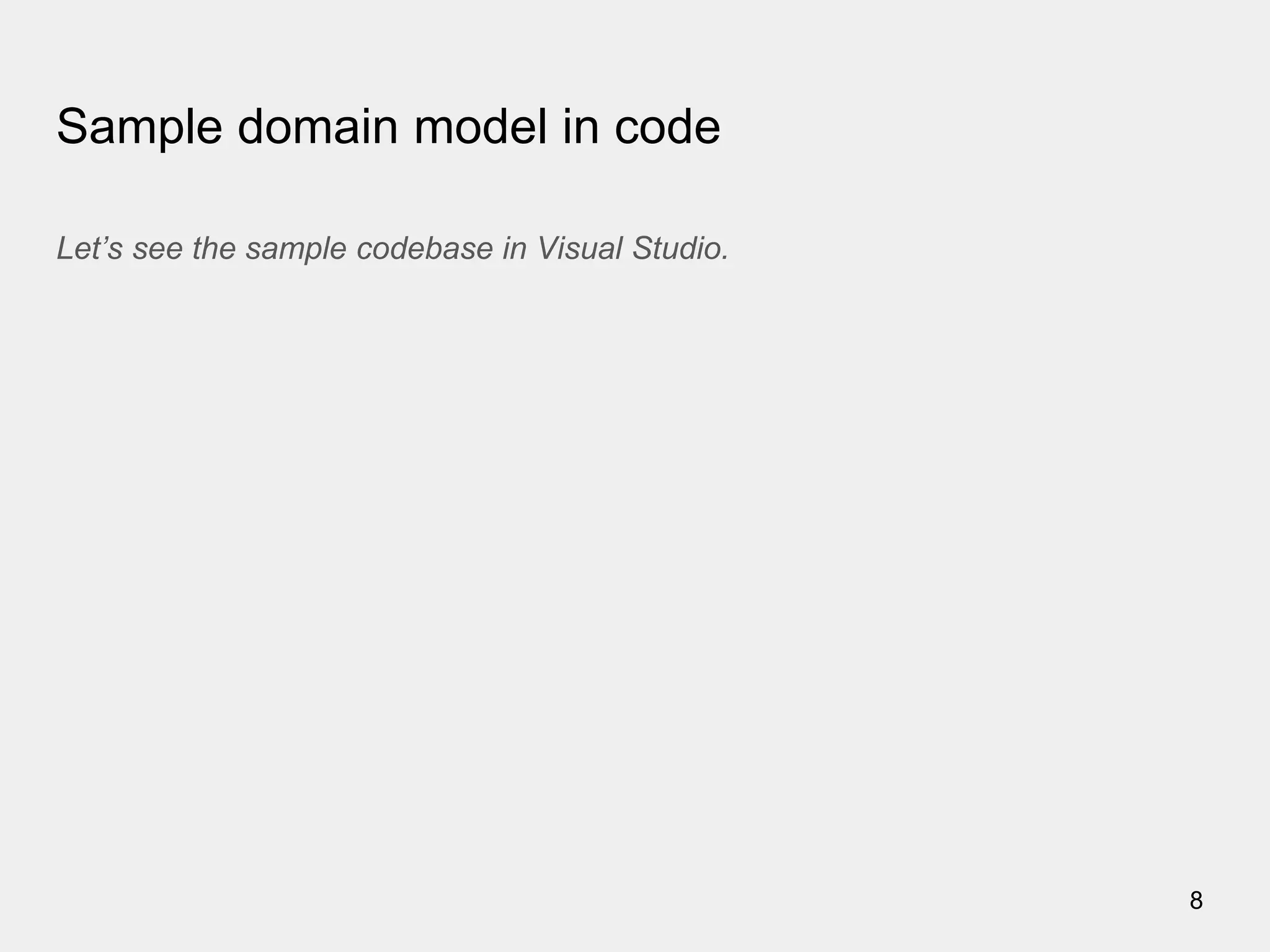

8. Sample domain model in code
Let’s see the sample codebase in Visual Studio.
8

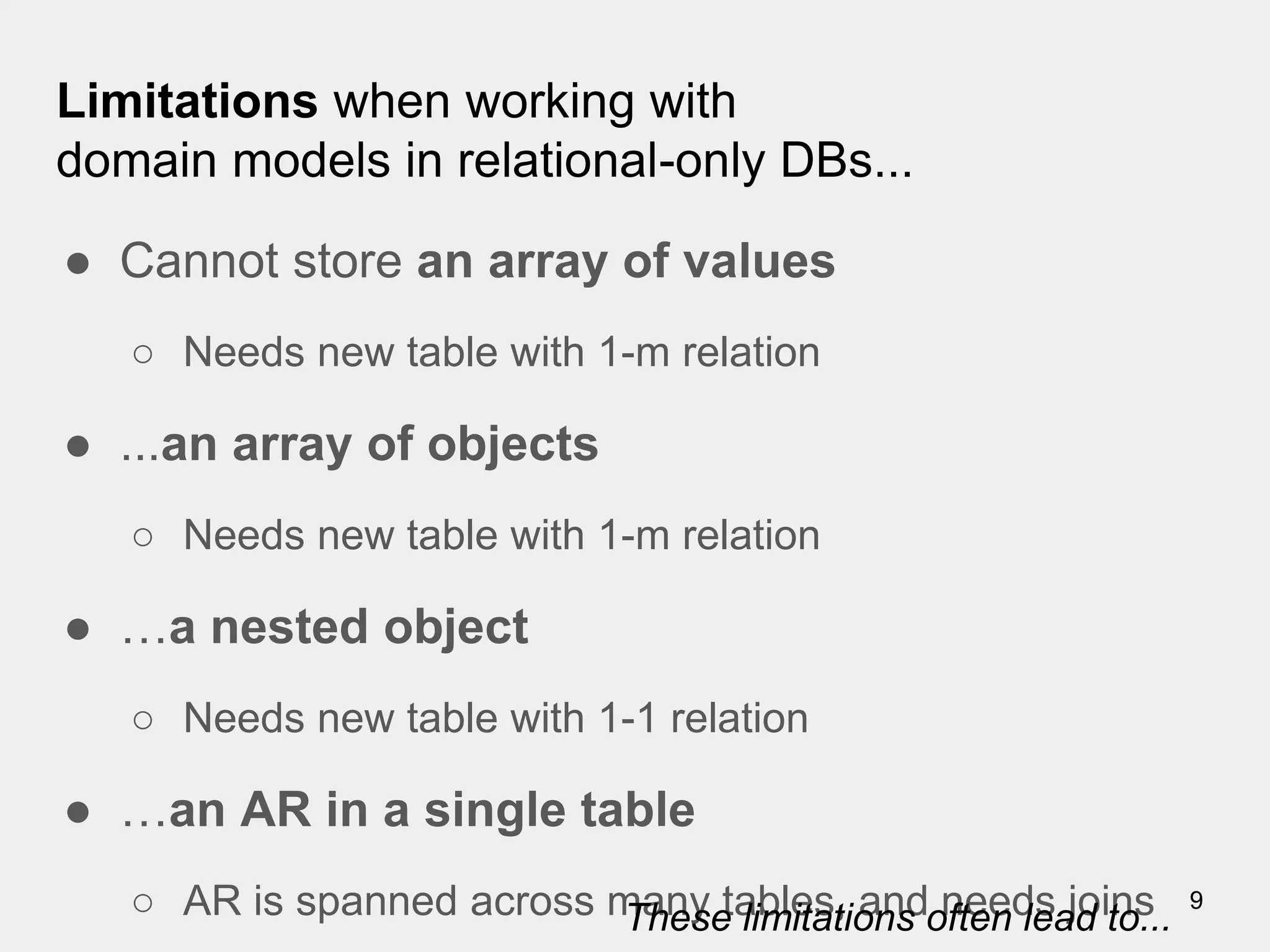

9. Limitations when working with
domain models in relational-only DBs...
● Cannot store an array of values
○ Needs new table with 1-m relation
● ...an array of objects
○ Needs new table with 1-m relation
● …a nested object
○ Needs new table with 1-1 relation
● …an AR in a single table
○ AR is spanned across many tables, and needs joinsThese limitations often lead to...
9

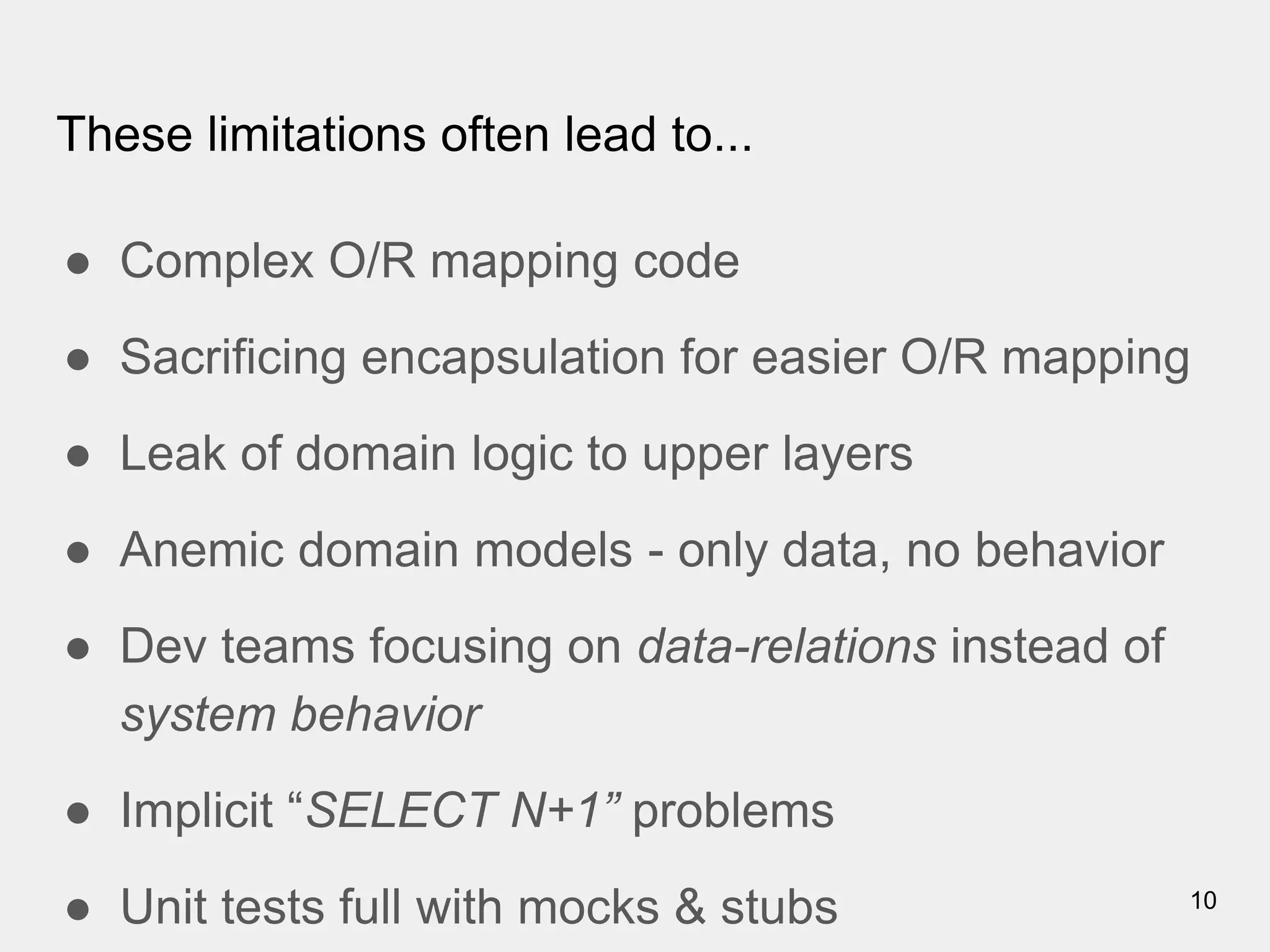

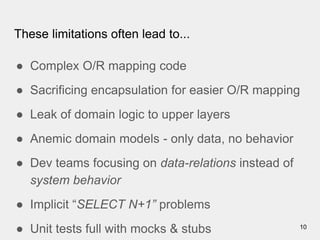

10. These limitations often lead to...
● Complex O/R mapping code
● Sacrificing encapsulation for easier O/R mapping
● Leak of domain logic to upper layers
● Anemic domain models - only data, no behavior
● Dev teams focusing on data-relations instead of
system behavior
● Implicit “SELECT N+1” problems
● Unit tests full with mocks & stubs 10

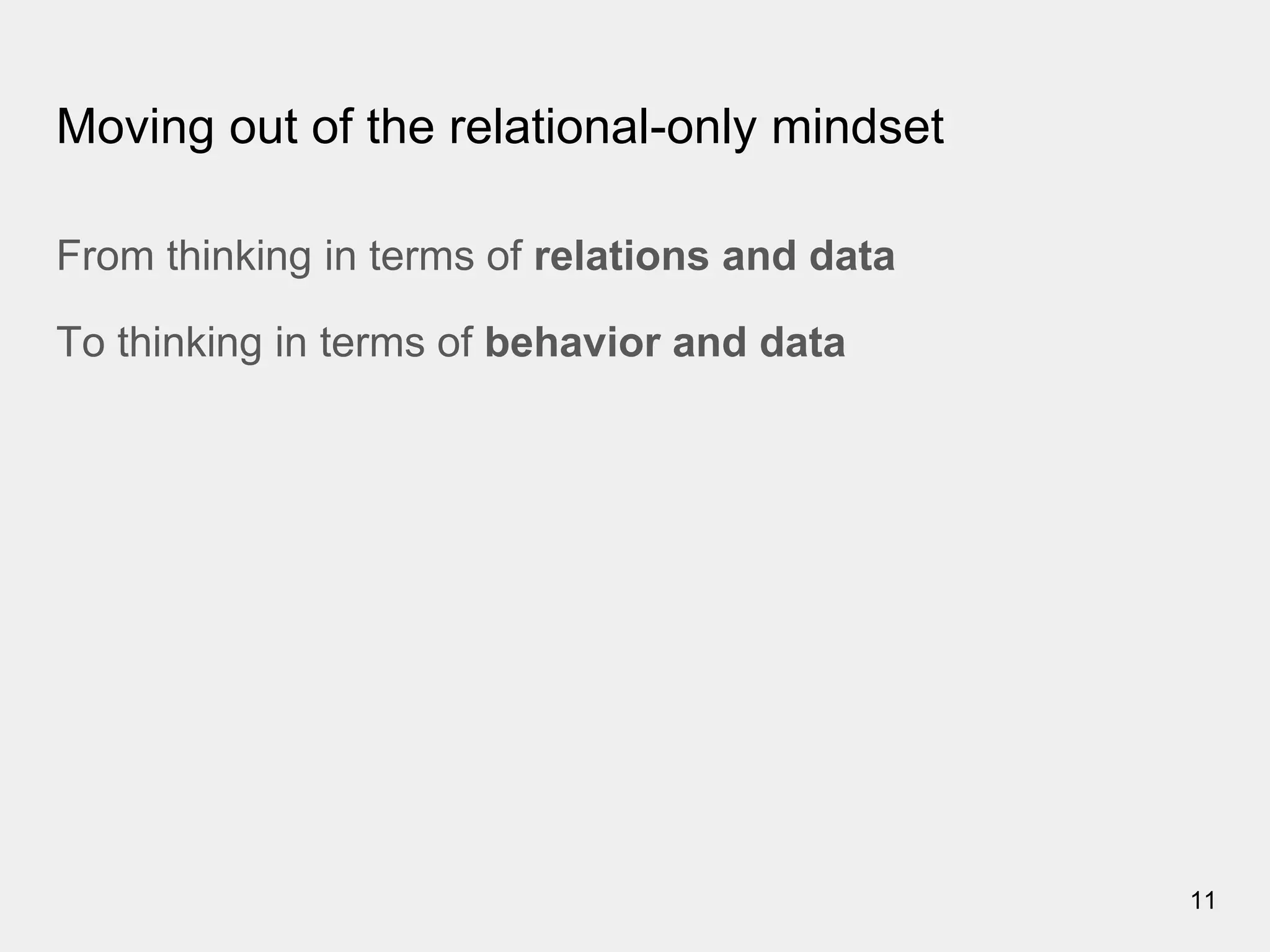

11. Moving out of the relational-only mindset
From thinking in terms of relations and data
To thinking in terms of behavior and data
11

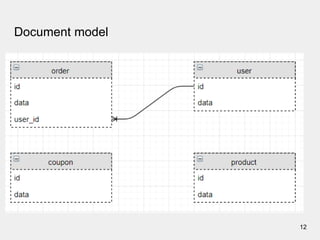

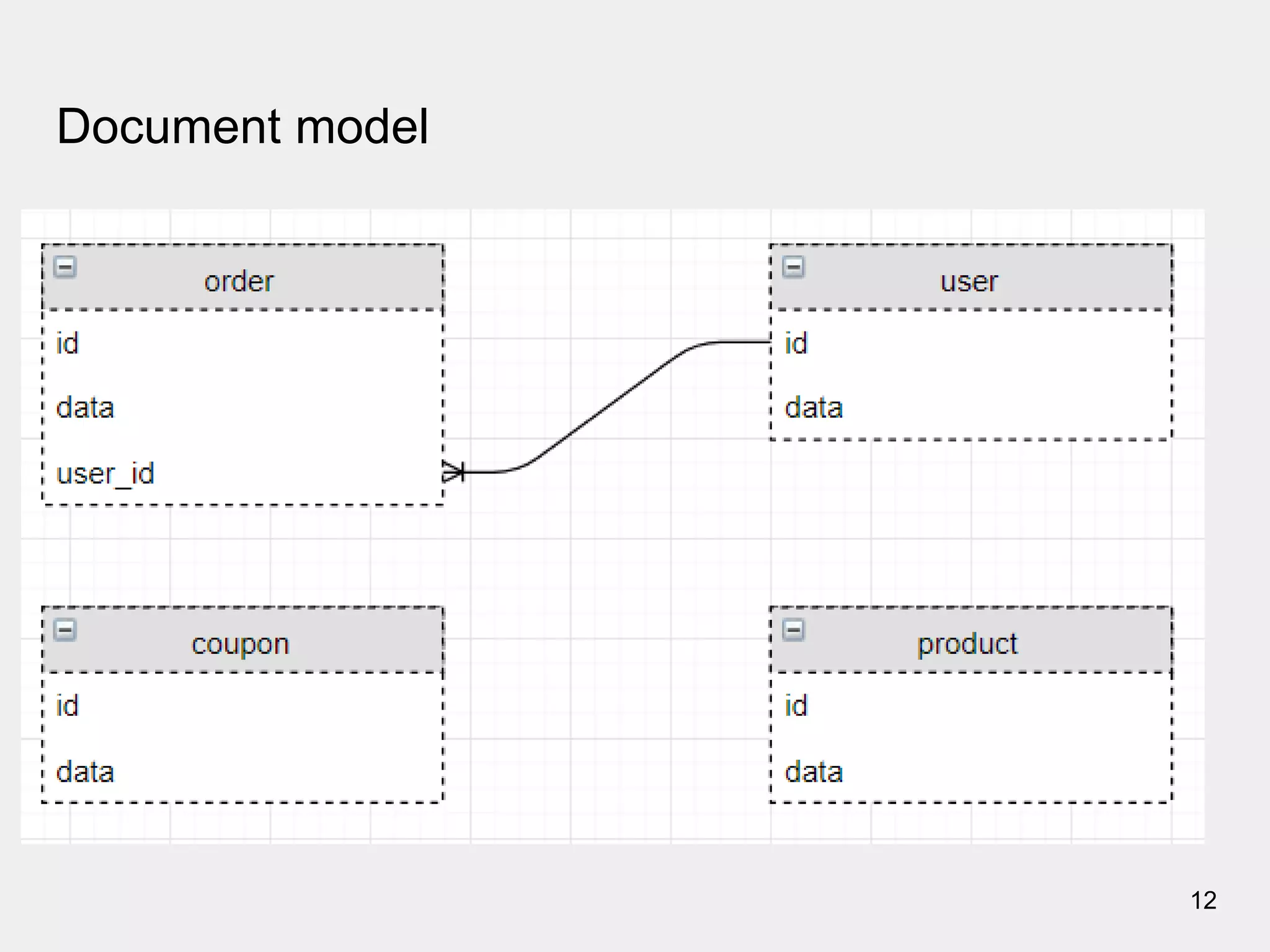

12. Document model
12

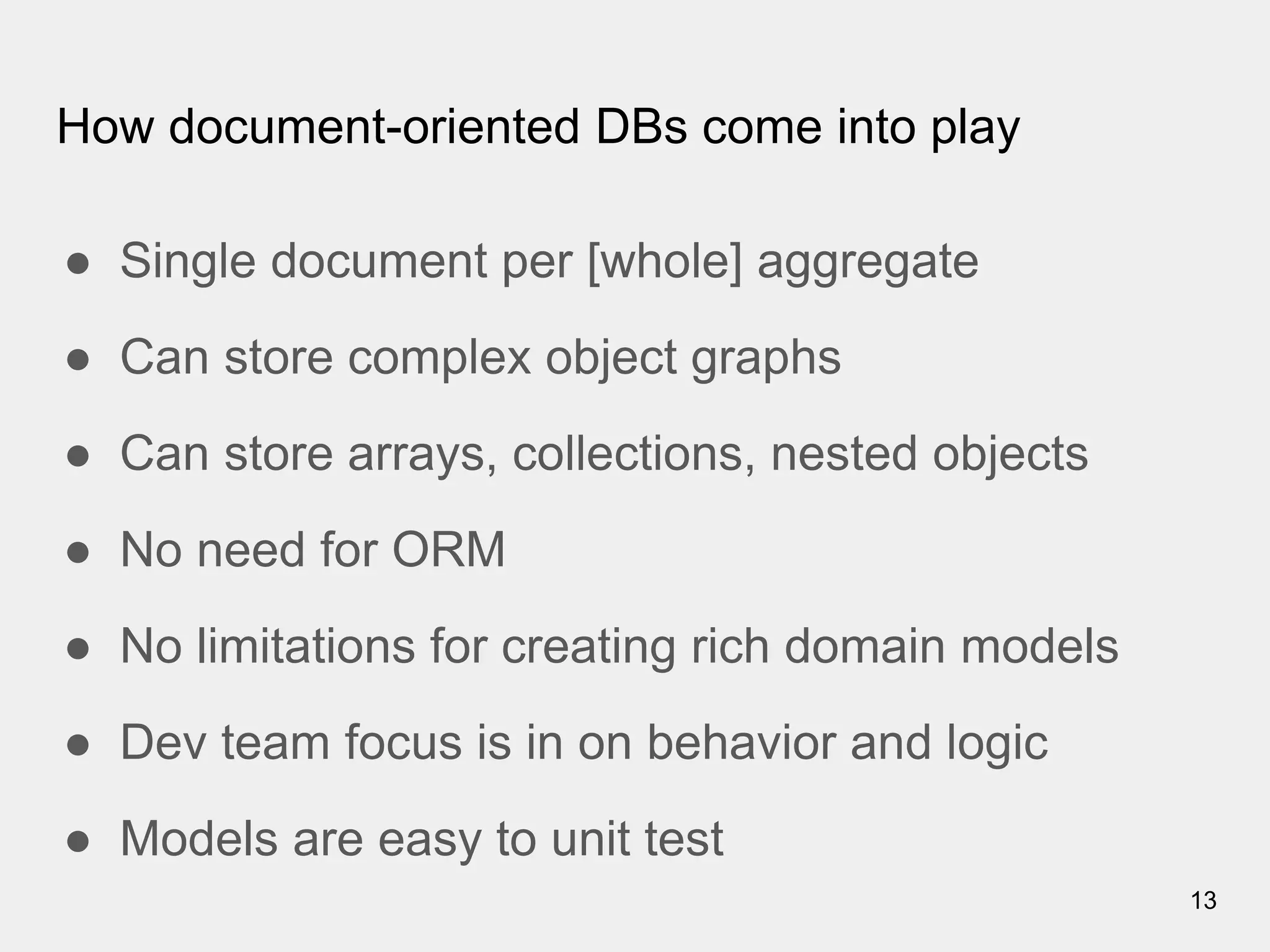

13. How document-oriented DBs come into play
● Single document per [whole] aggregate
● Can store complex object graphs
● Can store arrays, collections, nested objects
● No need for ORM
● No limitations for creating rich domain models
● Dev team focus is in on behavior and logic
● Models are easy to unit test
13

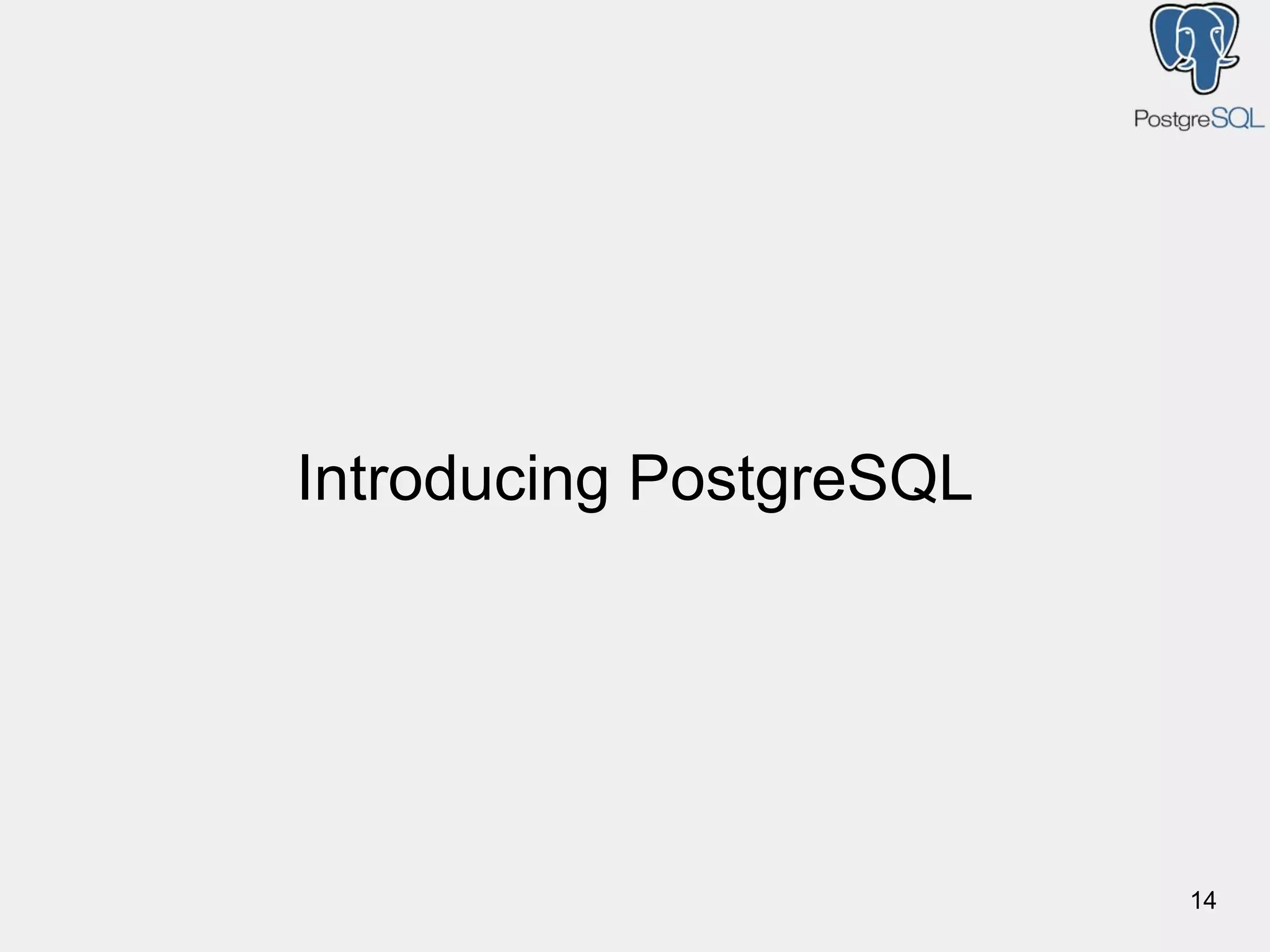

14. Introducing PostgreSQL
14

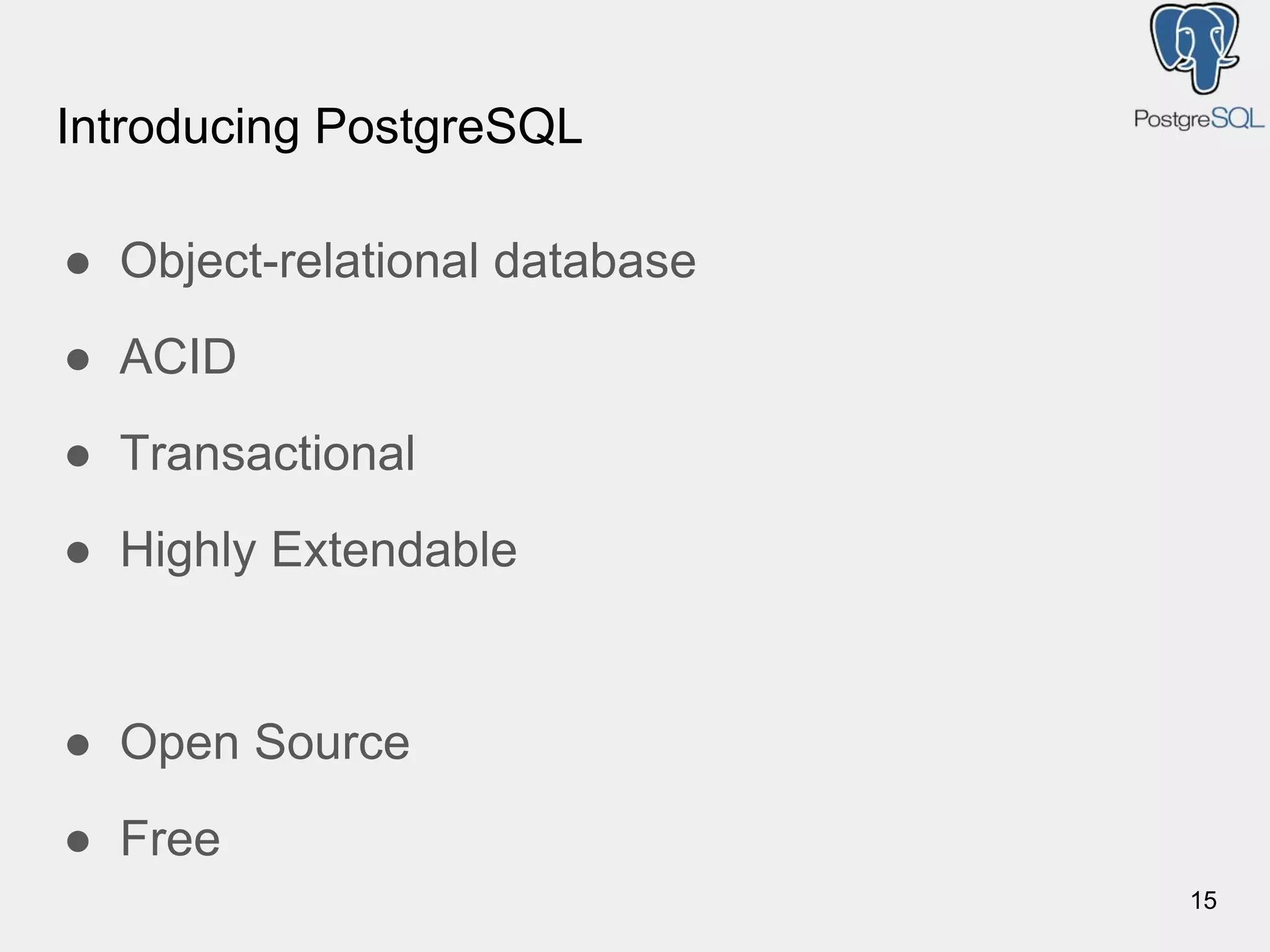

15. Introducing PostgreSQL
● Object-relational database
● ACID
● Transactional
● Highly Extendable
● Open Source
● Free
15

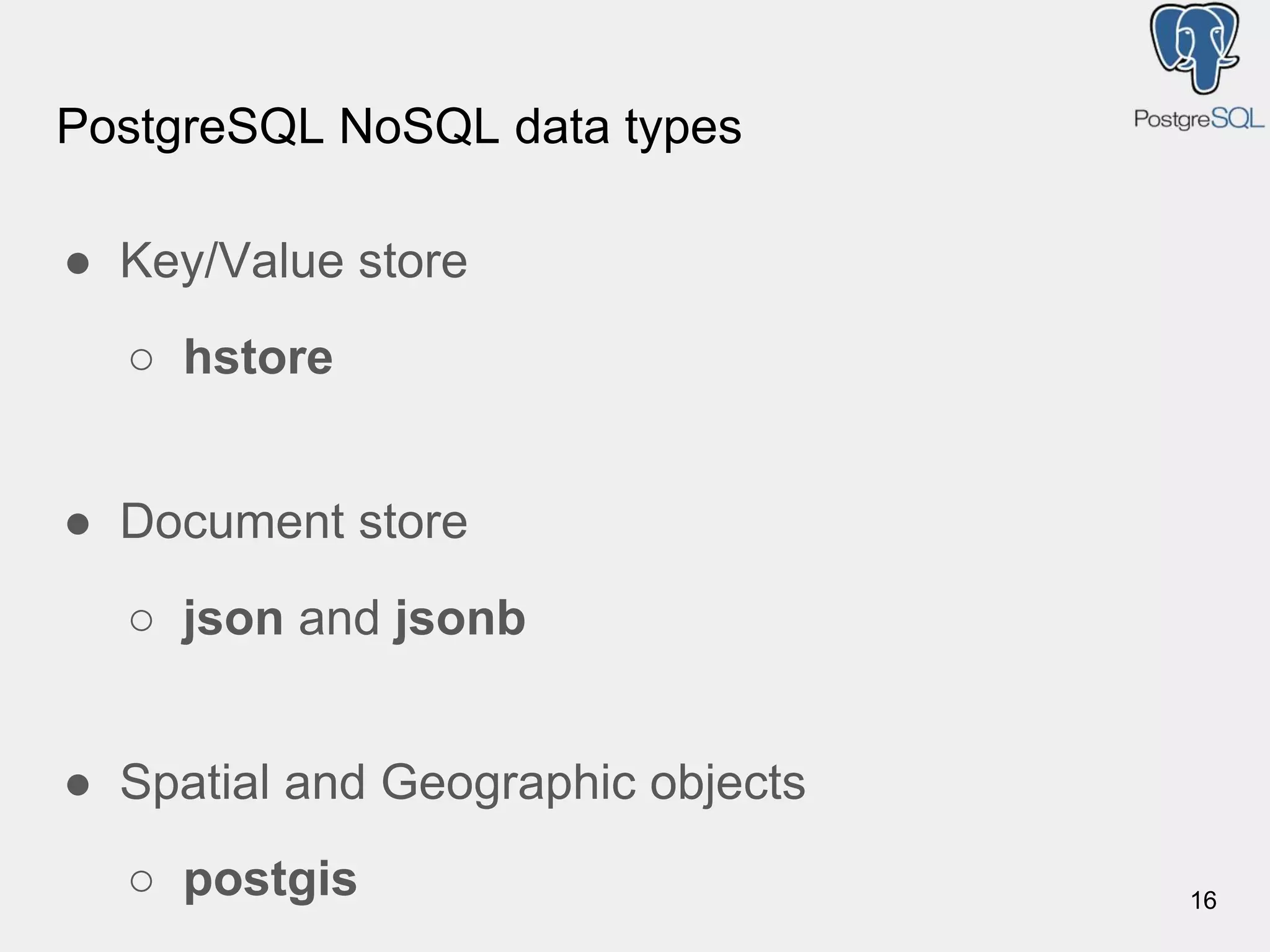

16. PostgreSQL NoSQL data types
● Key/Value store
○ hstore
● Document store
○ json and jsonb
● Spatial and Geographic objects
○ postgis 16

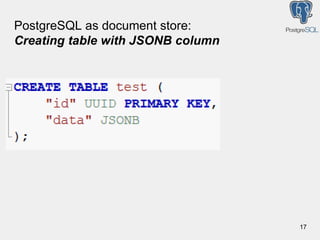

17. PostgreSQL as document store:
Creating table with JSONB column
17

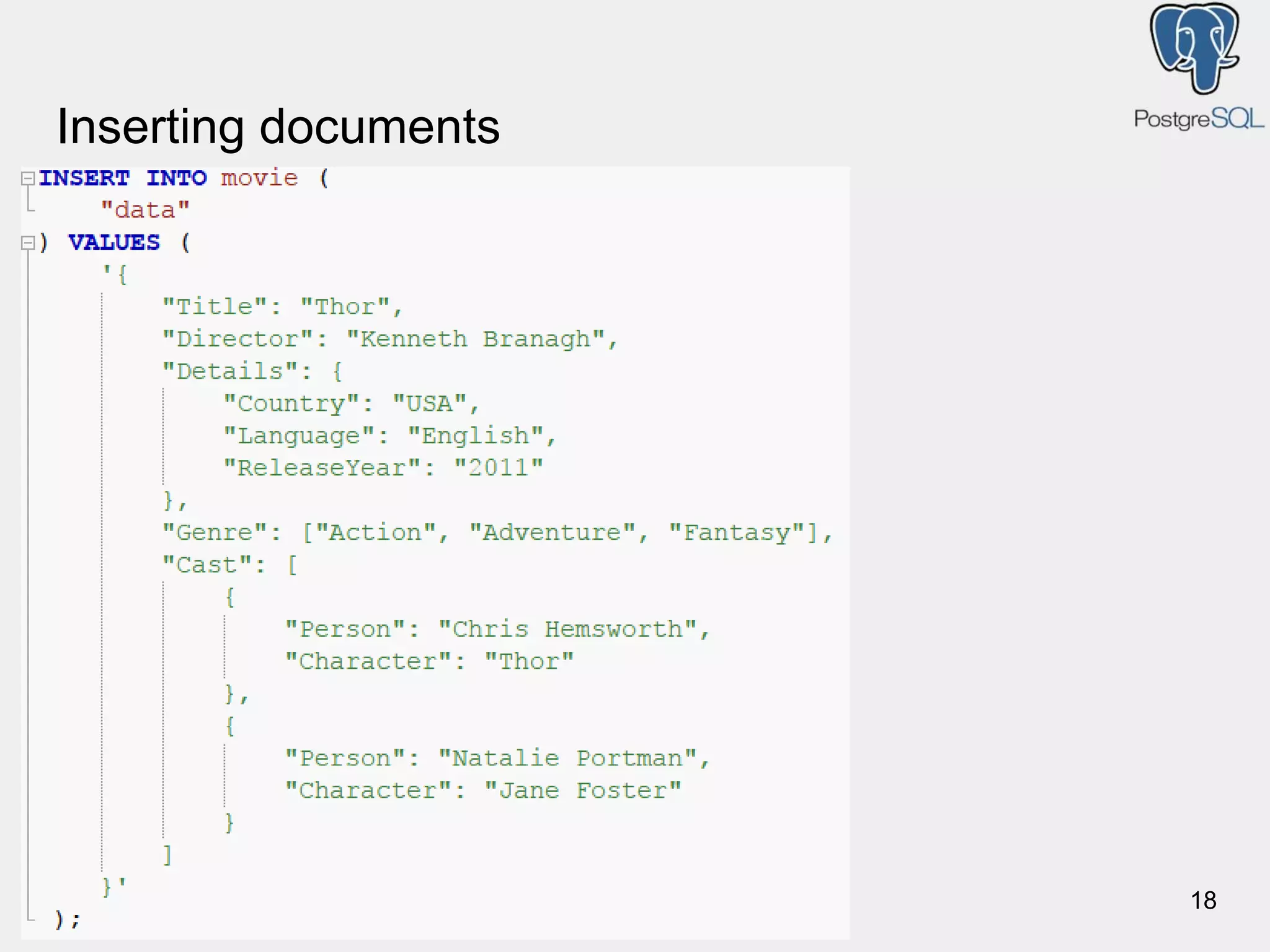

18. Inserting documents
18

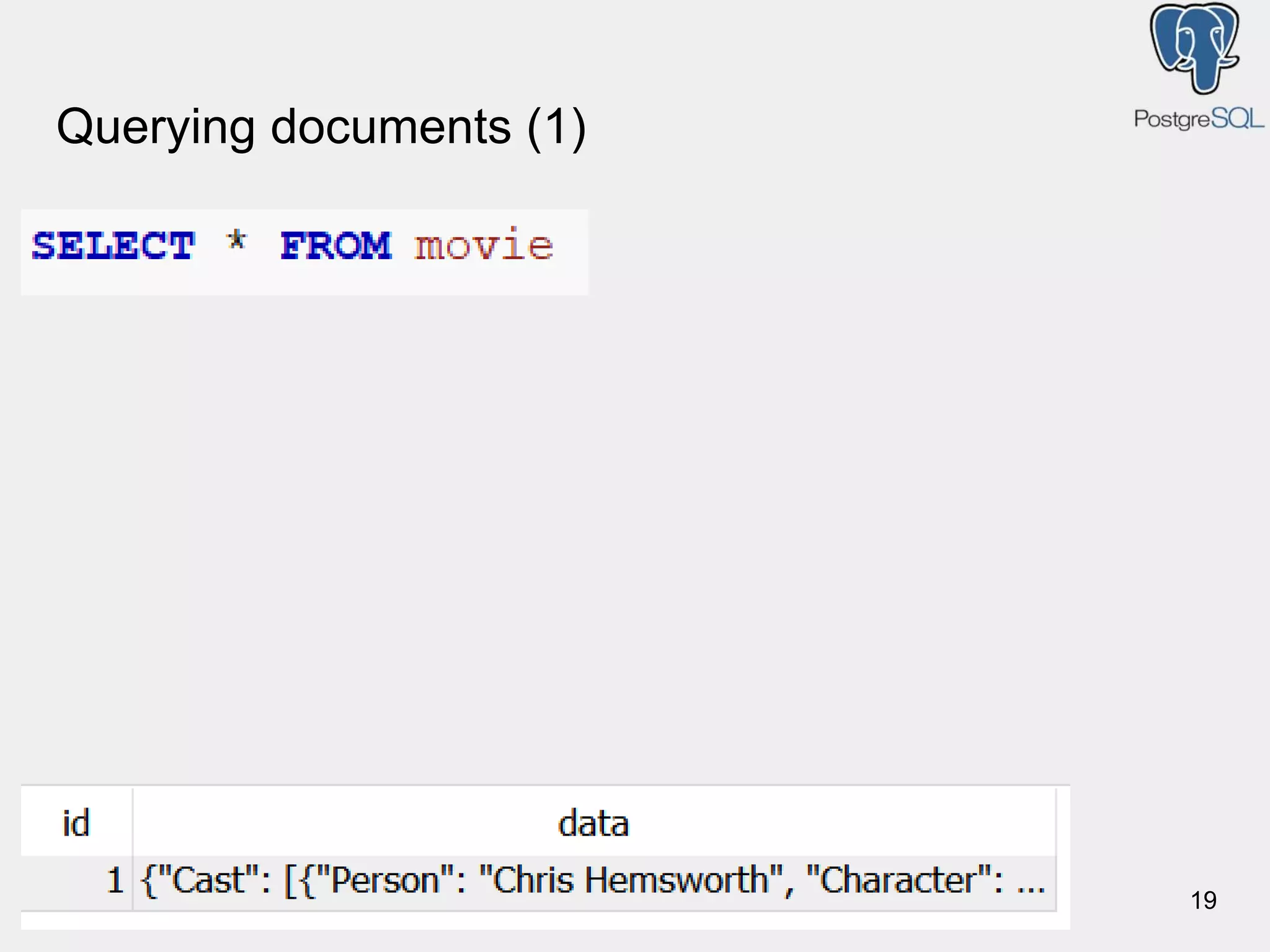

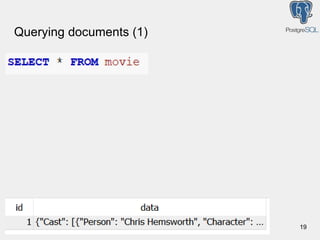

19. Querying documents (1)
19

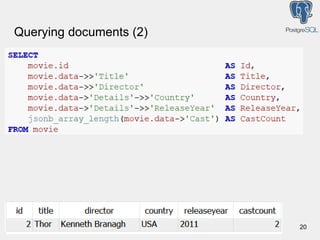

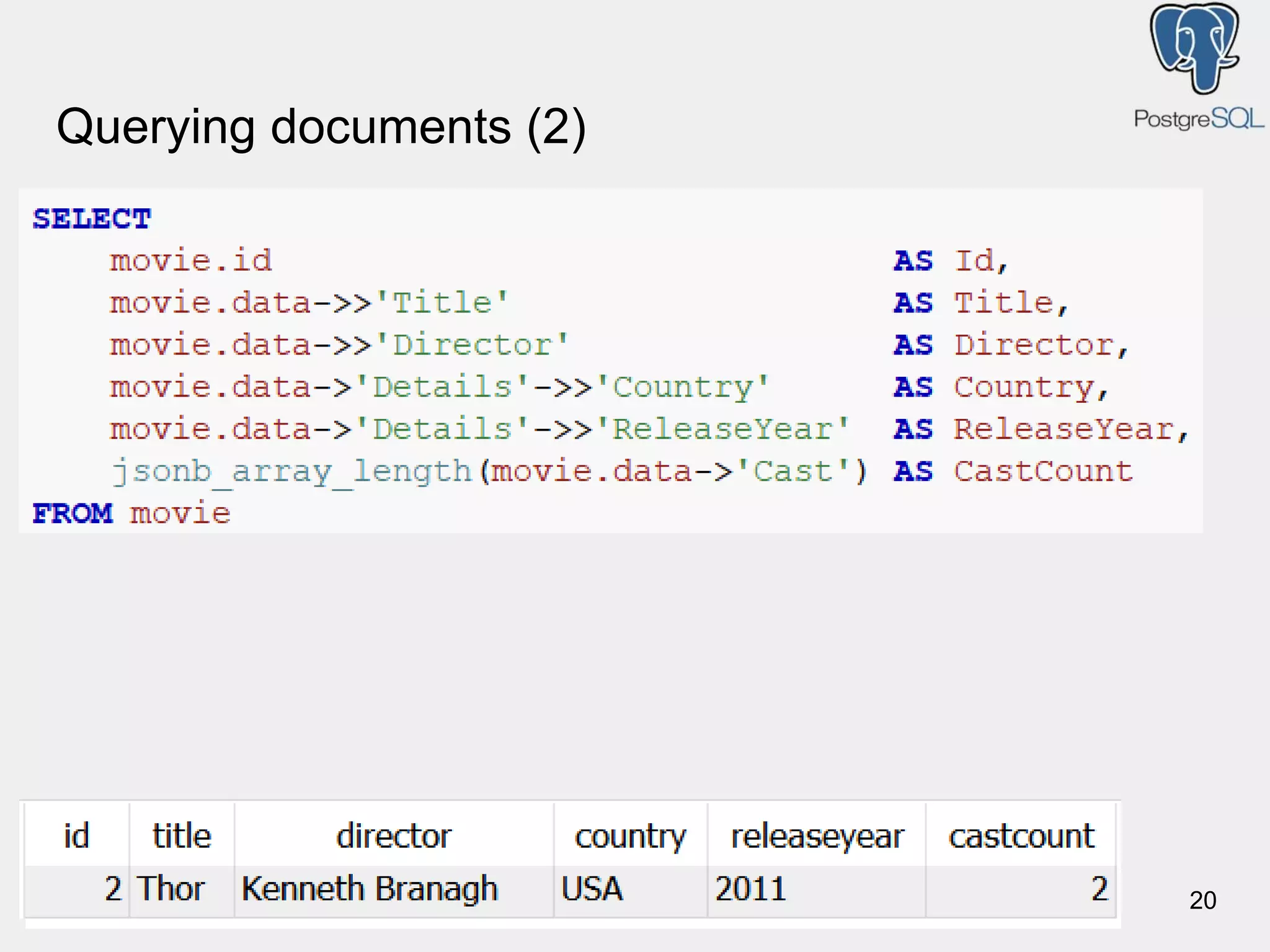

20. Querying documents (2)
20

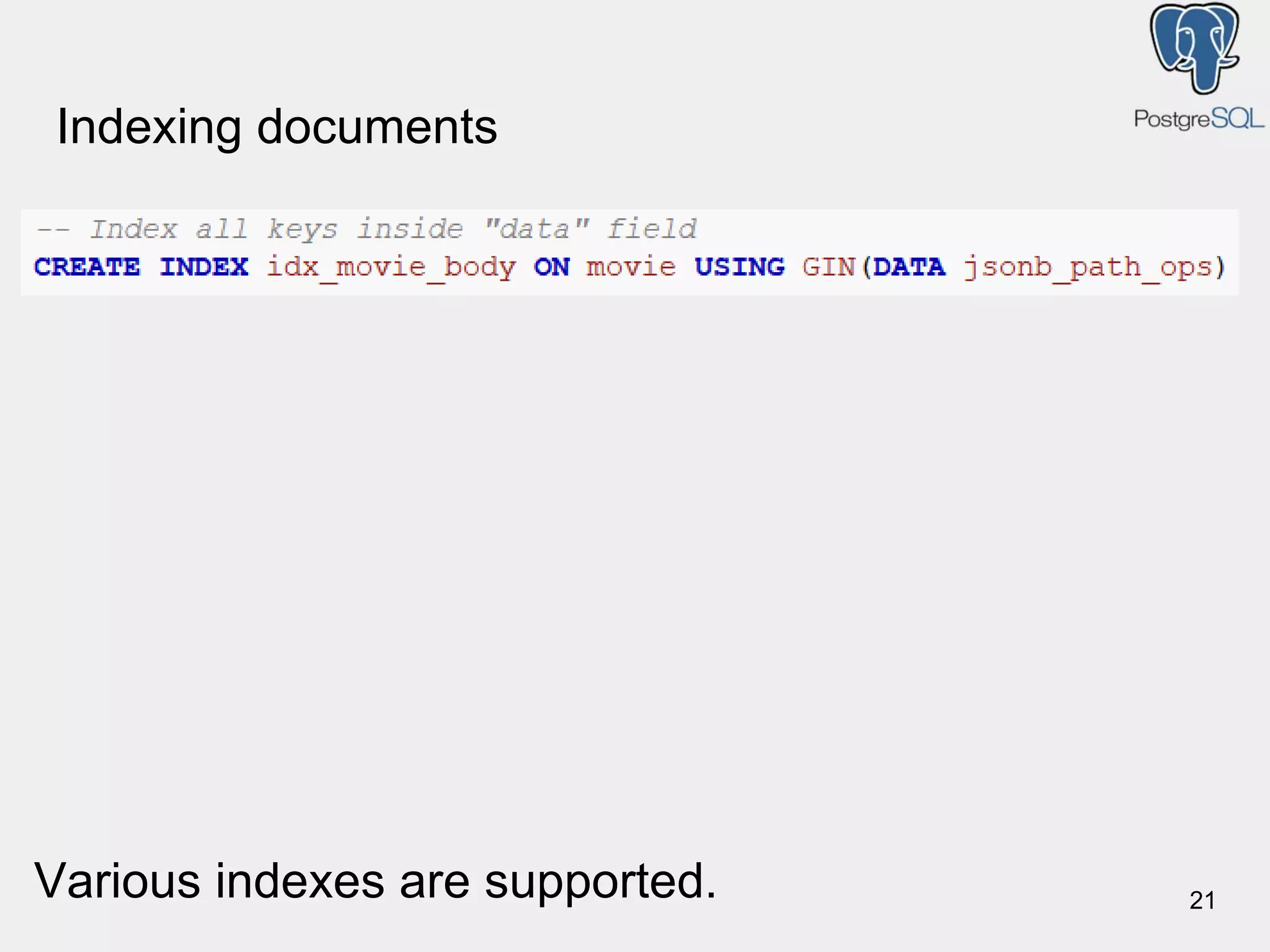

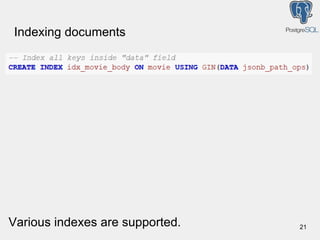

21. Indexing documents
Various indexes are supported. 21

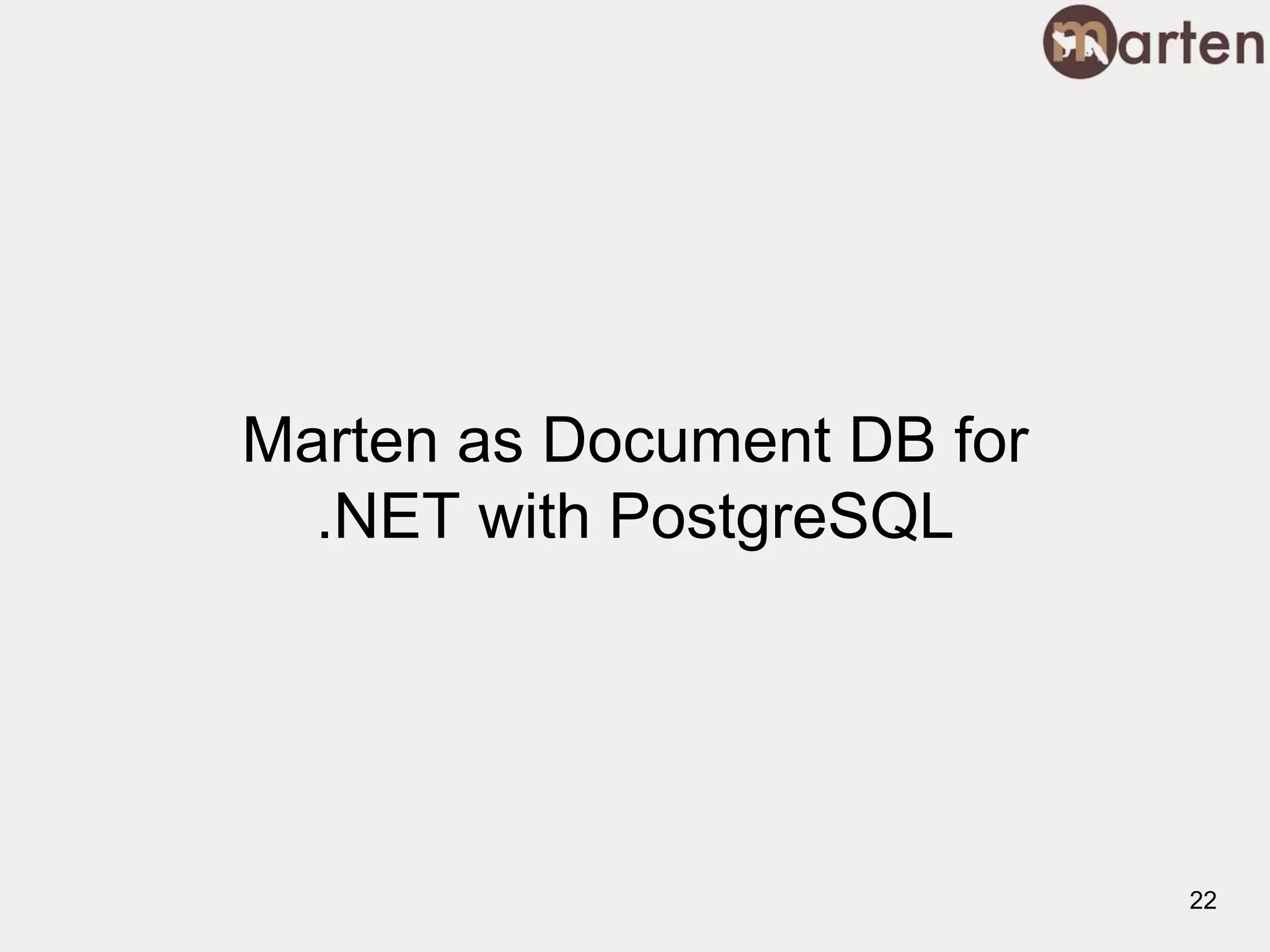

22. Marten as Document DB for
.NET with PostgreSQL
22

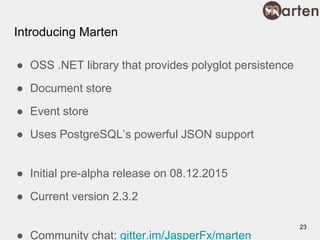

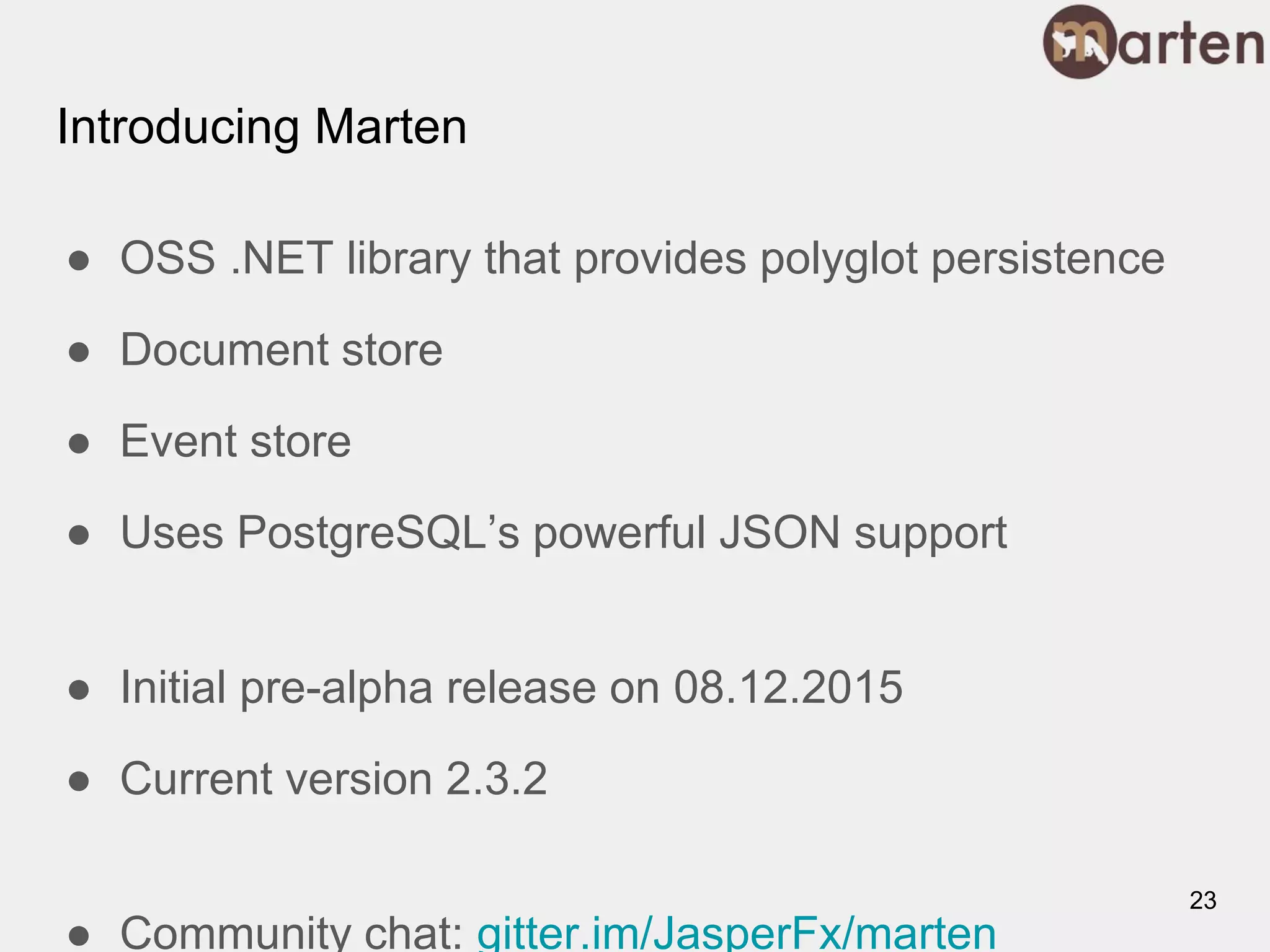

23. Introducing Marten
● OSS .NET library that provides polyglot persistence
● Document store
● Event store
● Uses PostgreSQL’s powerful JSON support
● Initial pre-alpha release on 08.12.2015
● Current version 2.3.2
● Community chat: gitter.im/JasperFx/marten
23

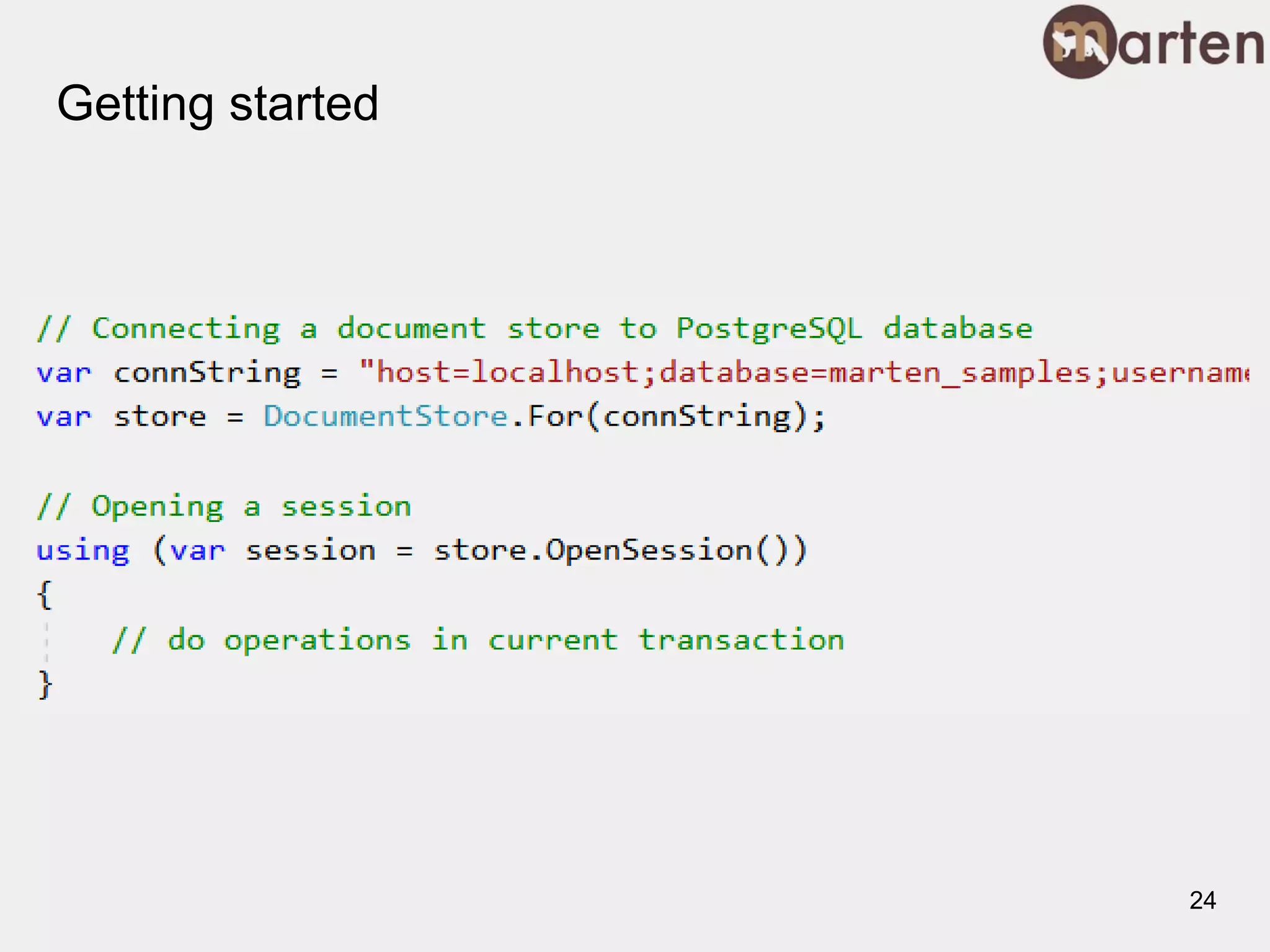

24. Getting started
24

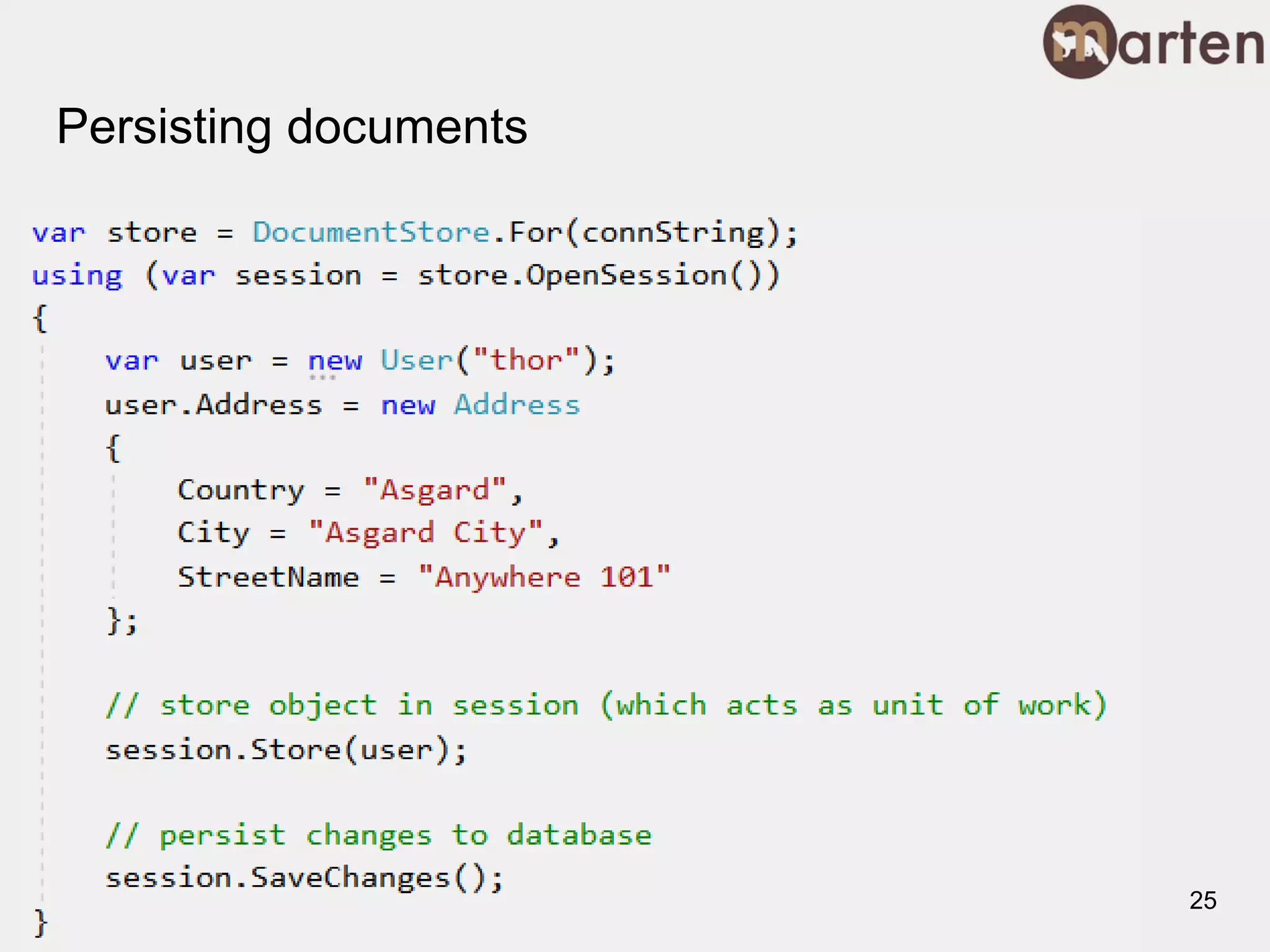

25. Persisting documents
25

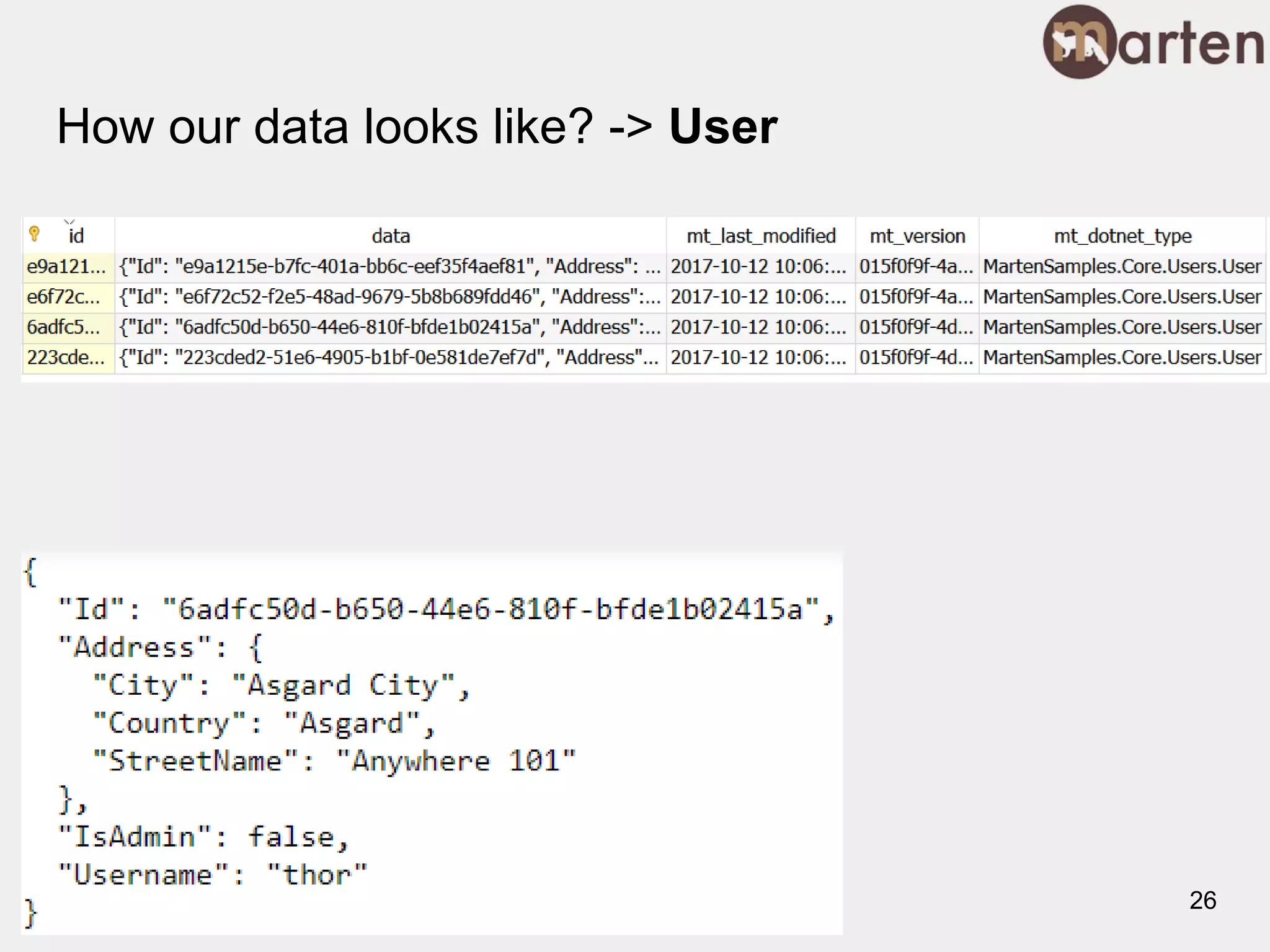

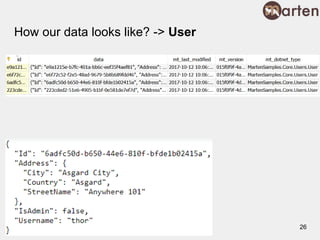

26. How our data looks like? -> User
26

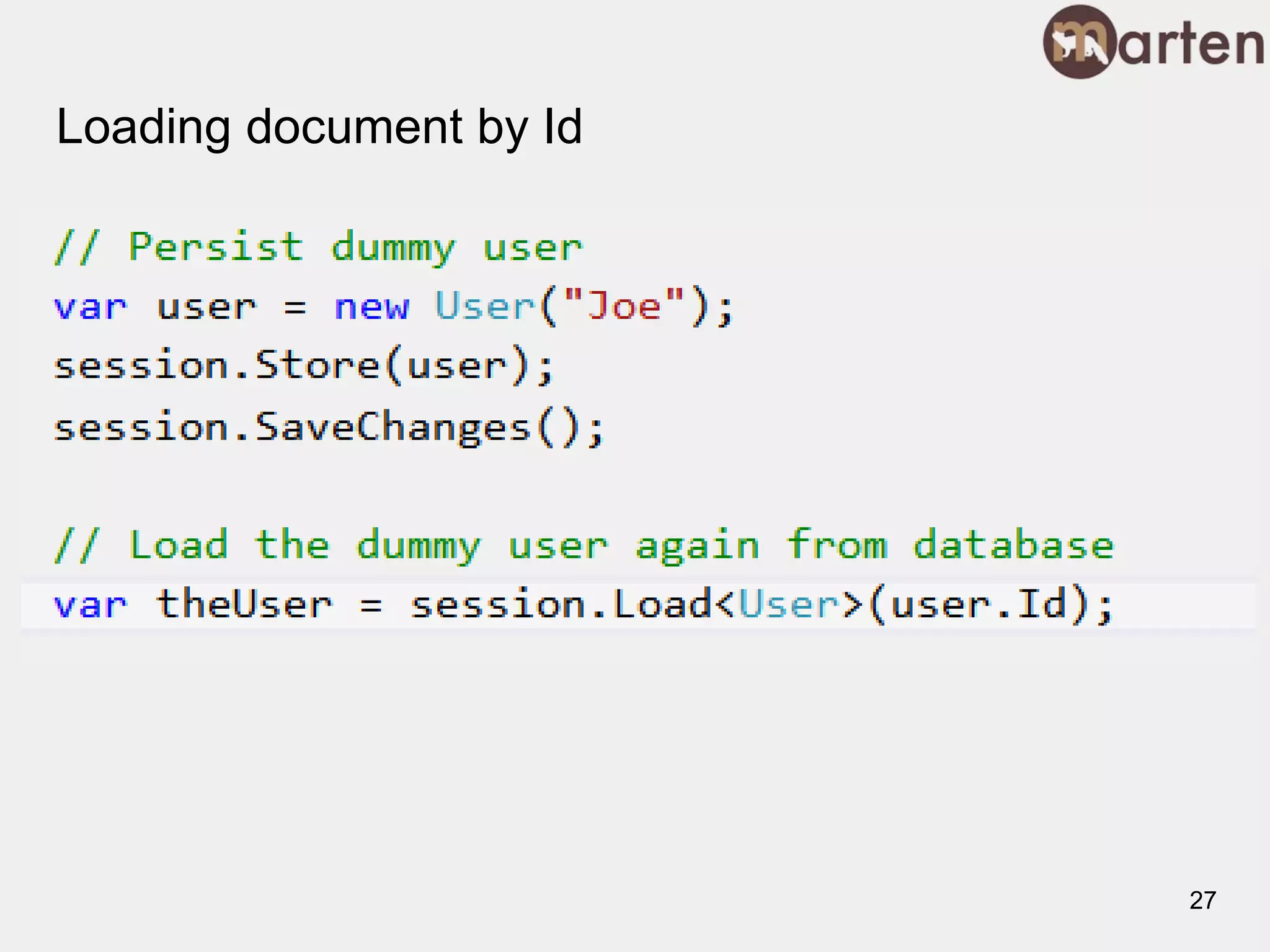

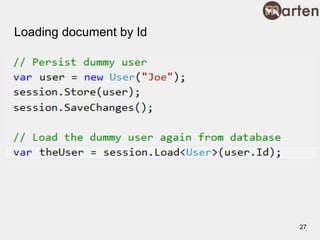

27. Loading document by Id
27

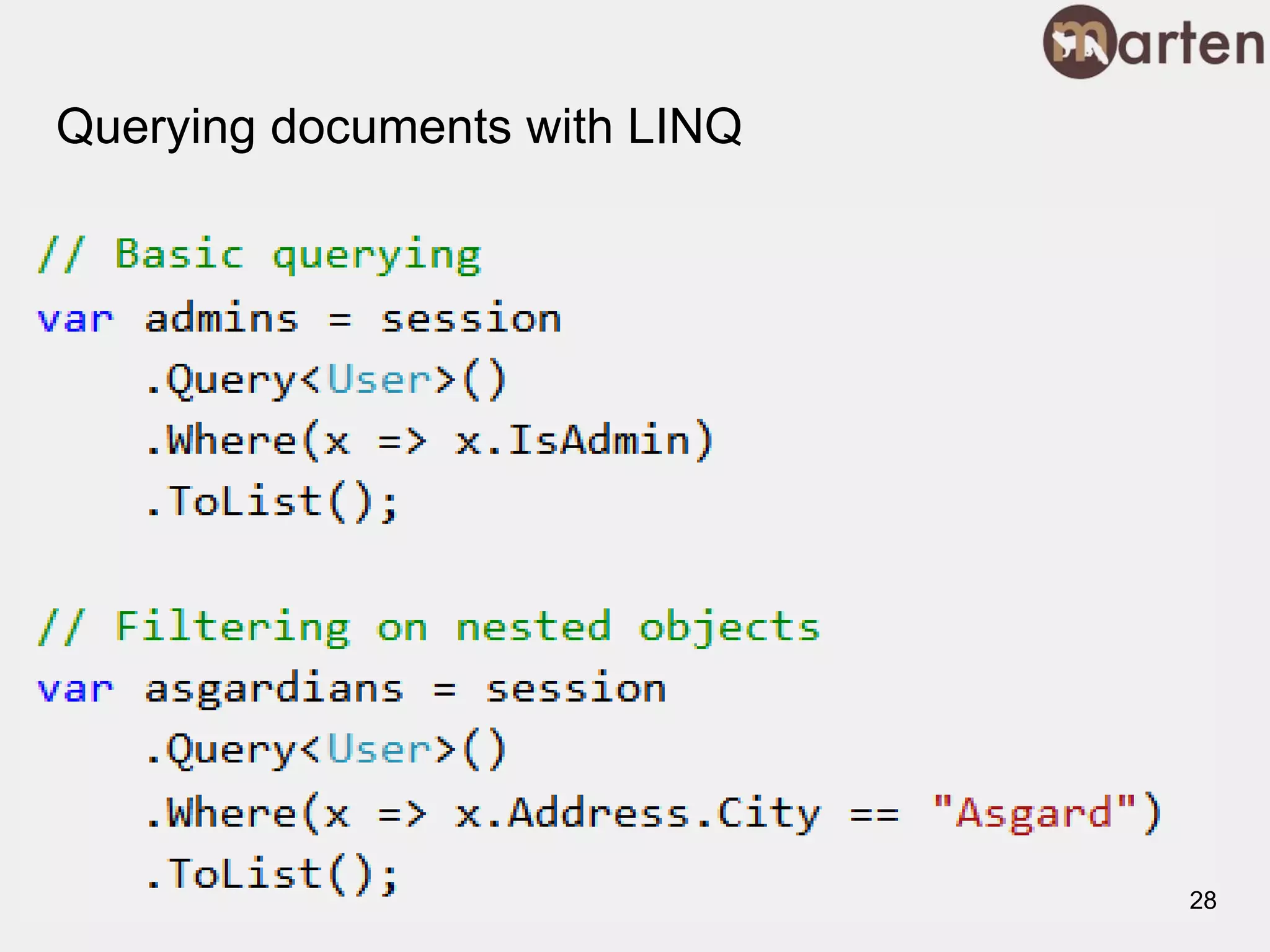

28. Querying documents with LINQ
28

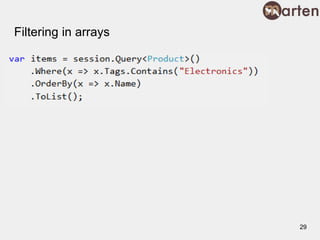

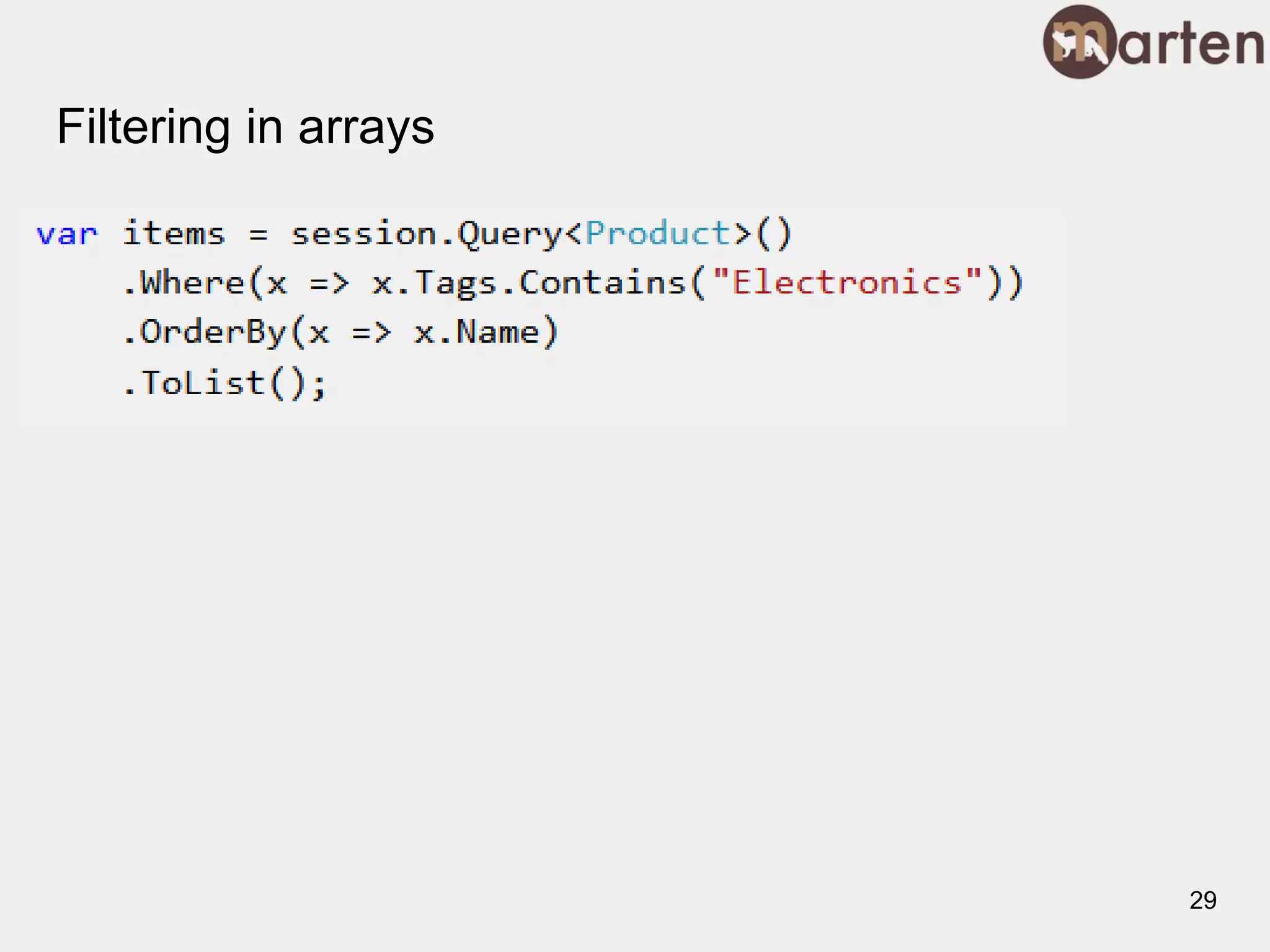

29. Filtering in arrays
29

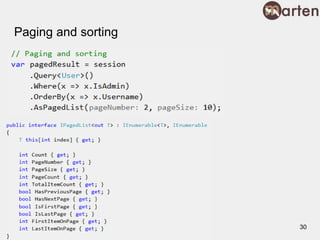

30. Paging and sorting
30

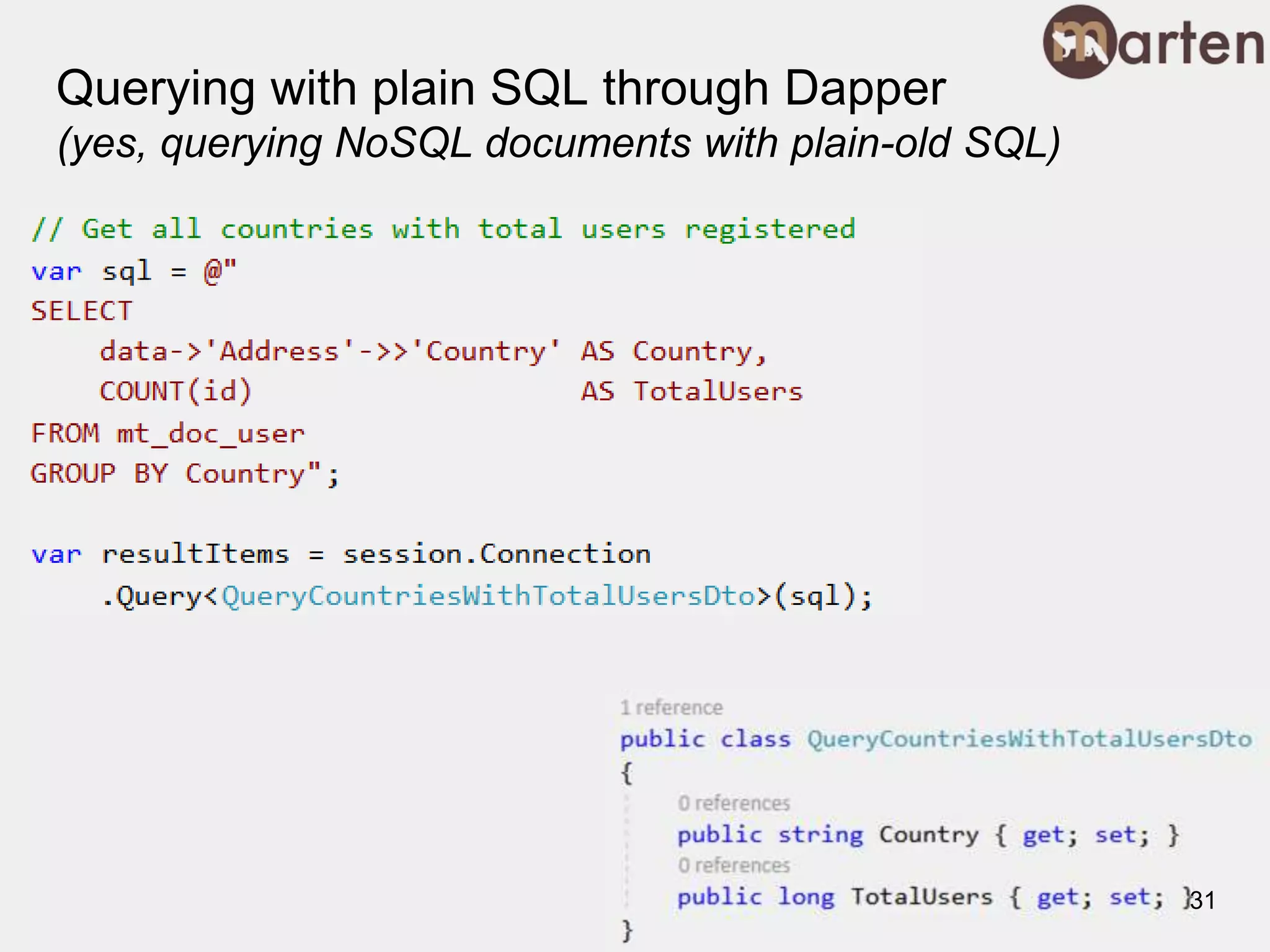

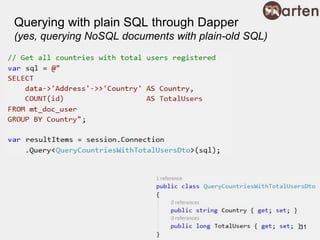

31. Querying with plain SQL through Dapper
(yes, querying NoSQL documents with plain-old SQL)
31

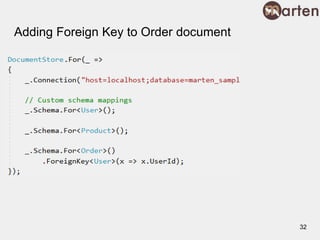

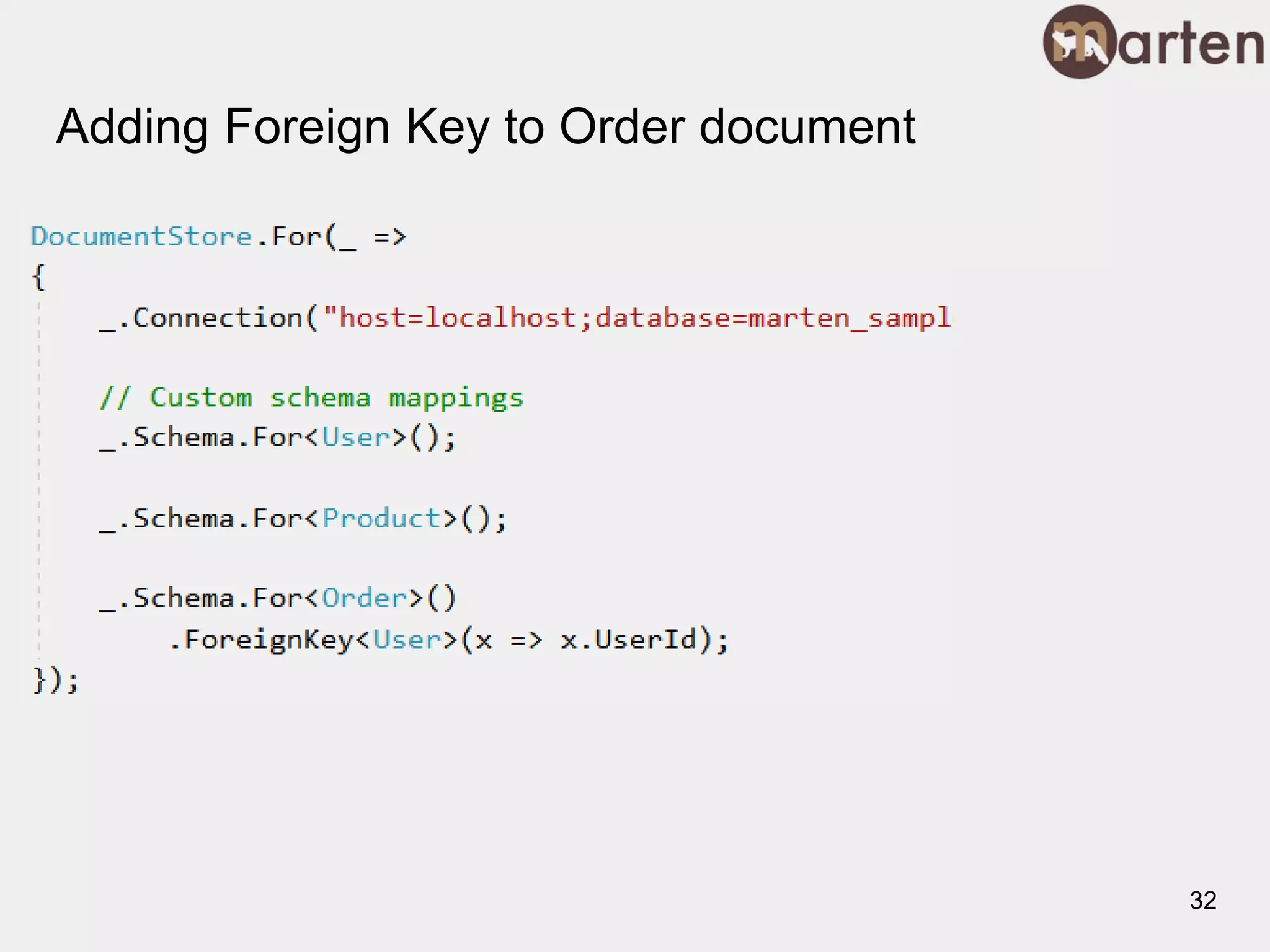

32. Adding Foreign Key to Order document
32

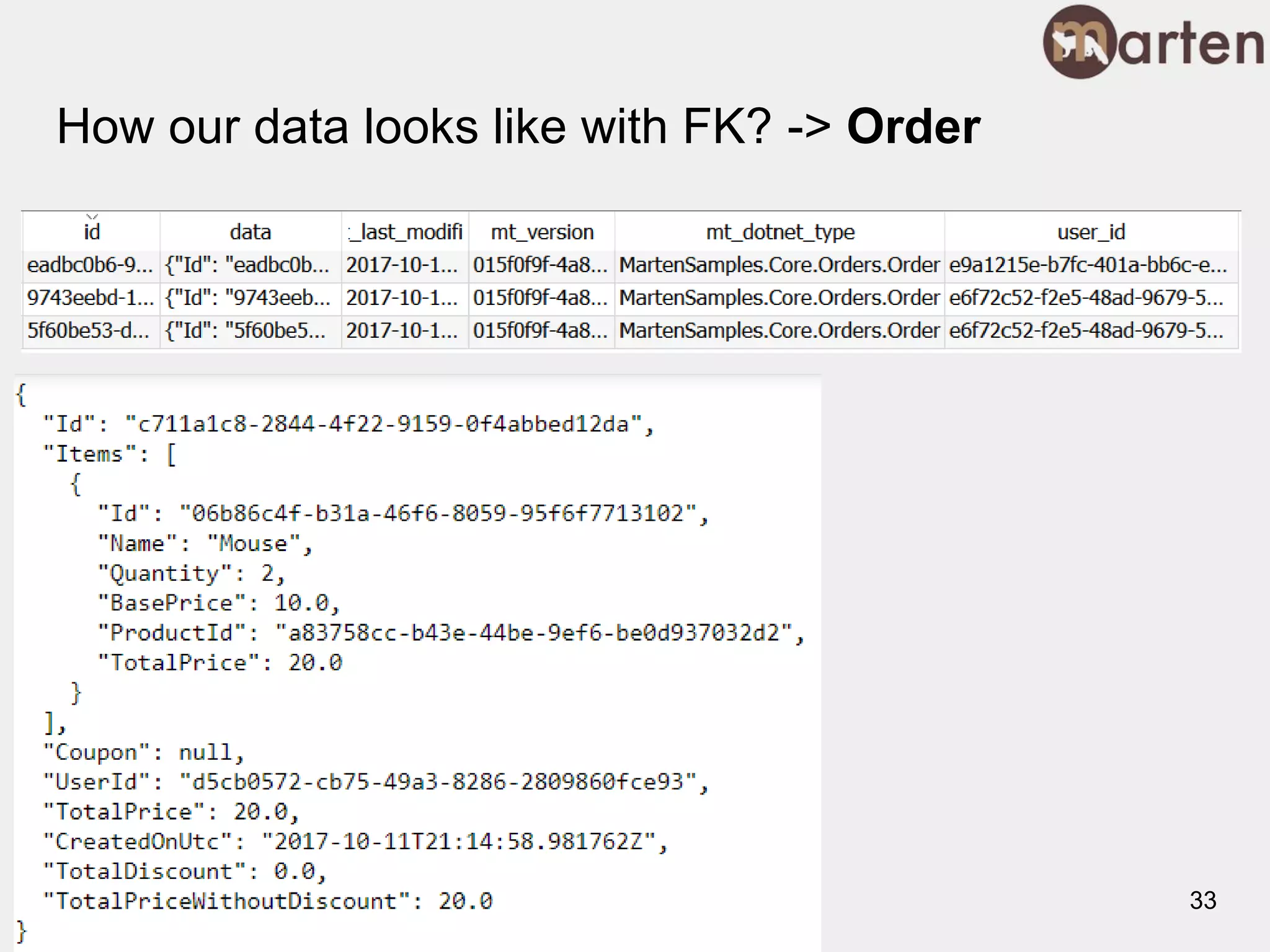

33. How our data looks like with FK? -> Order
33

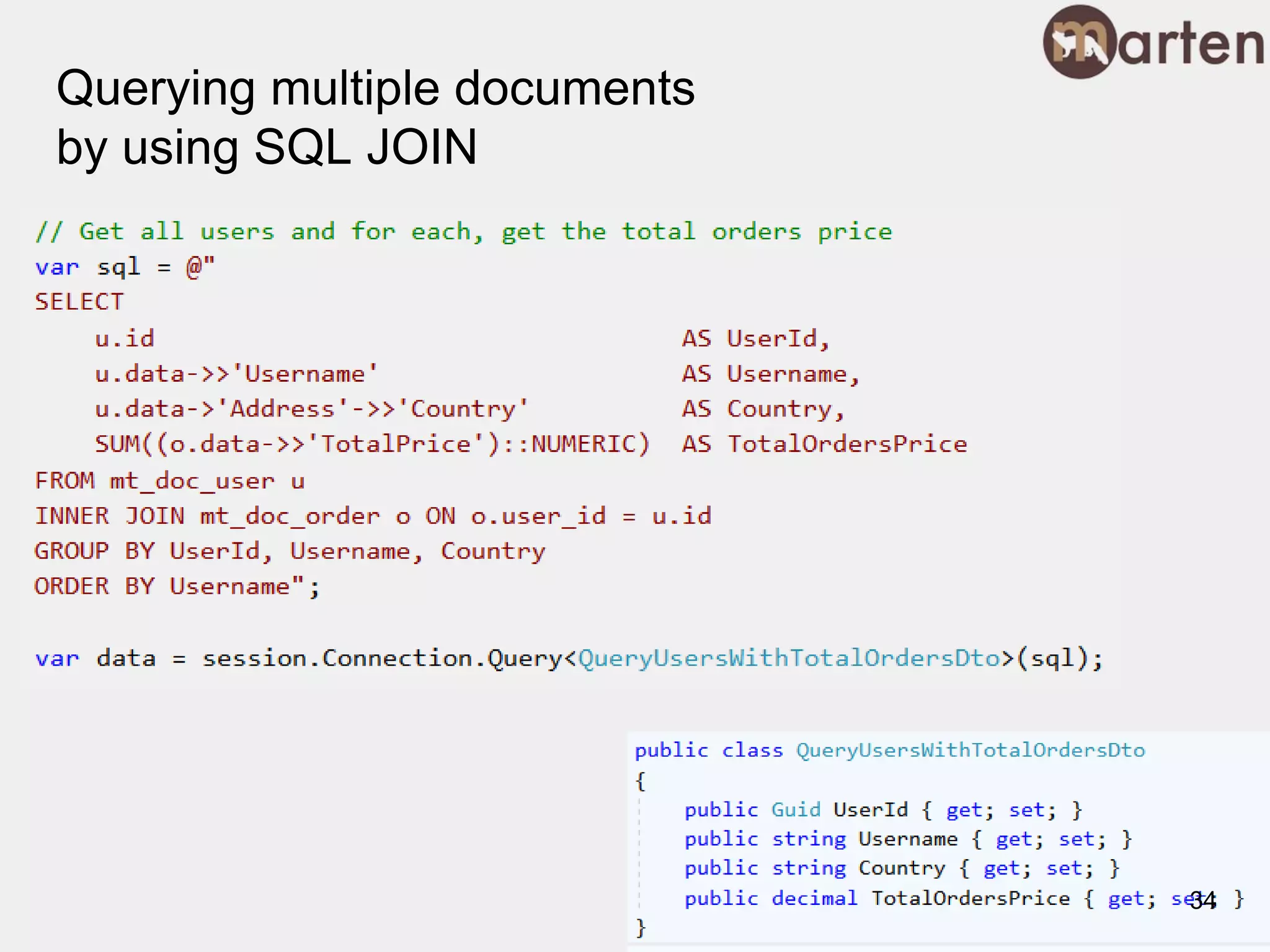

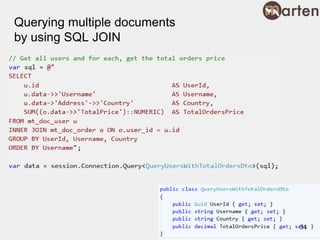

34. Querying multiple documents
by using SQL JOIN
34

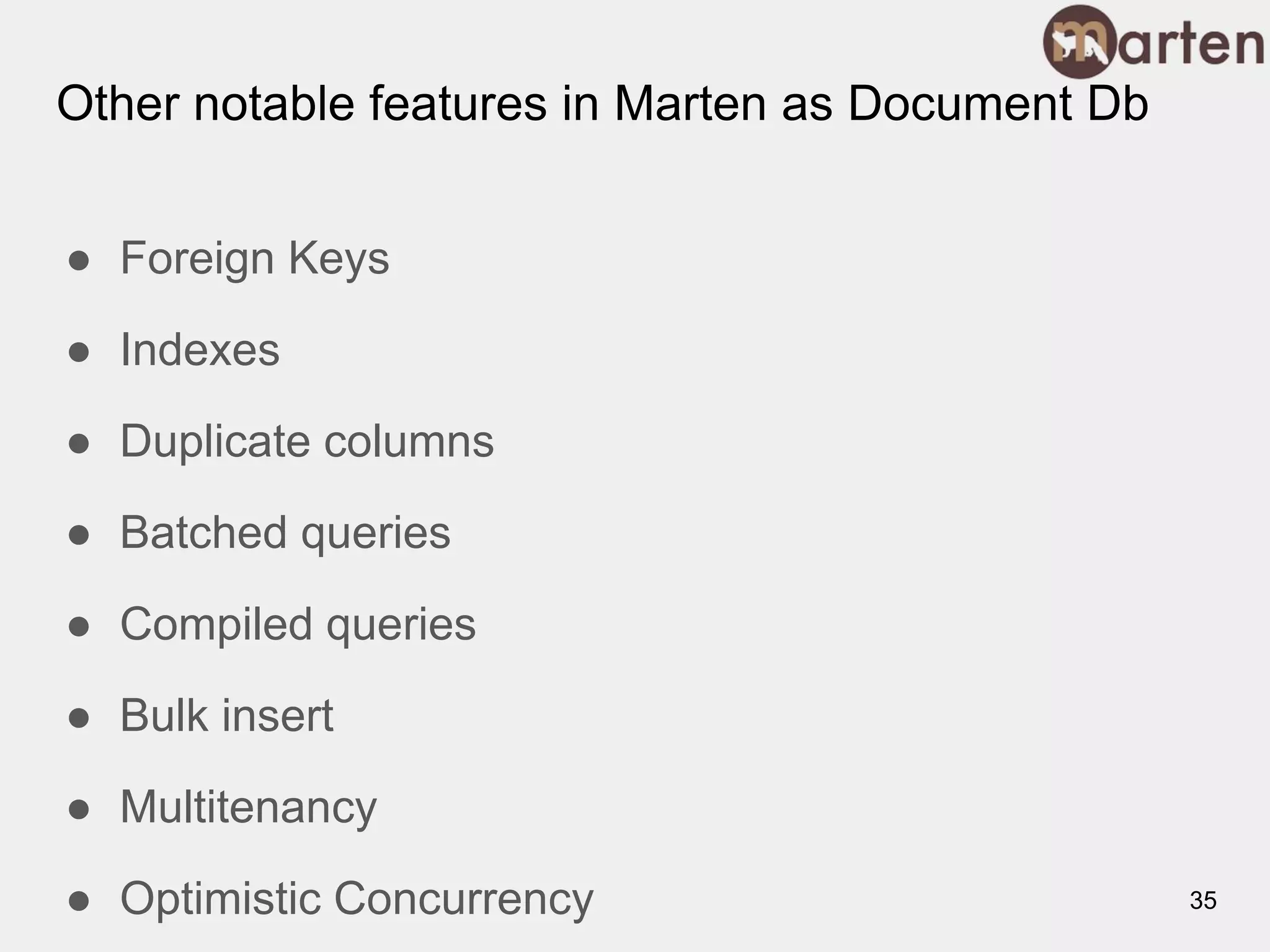

35. Other notable features in Marten as Document Db
● Foreign Keys
● Indexes
● Duplicate columns
● Batched queries
● Compiled queries
● Bulk insert
● Multitenancy
● Optimistic Concurrency 35

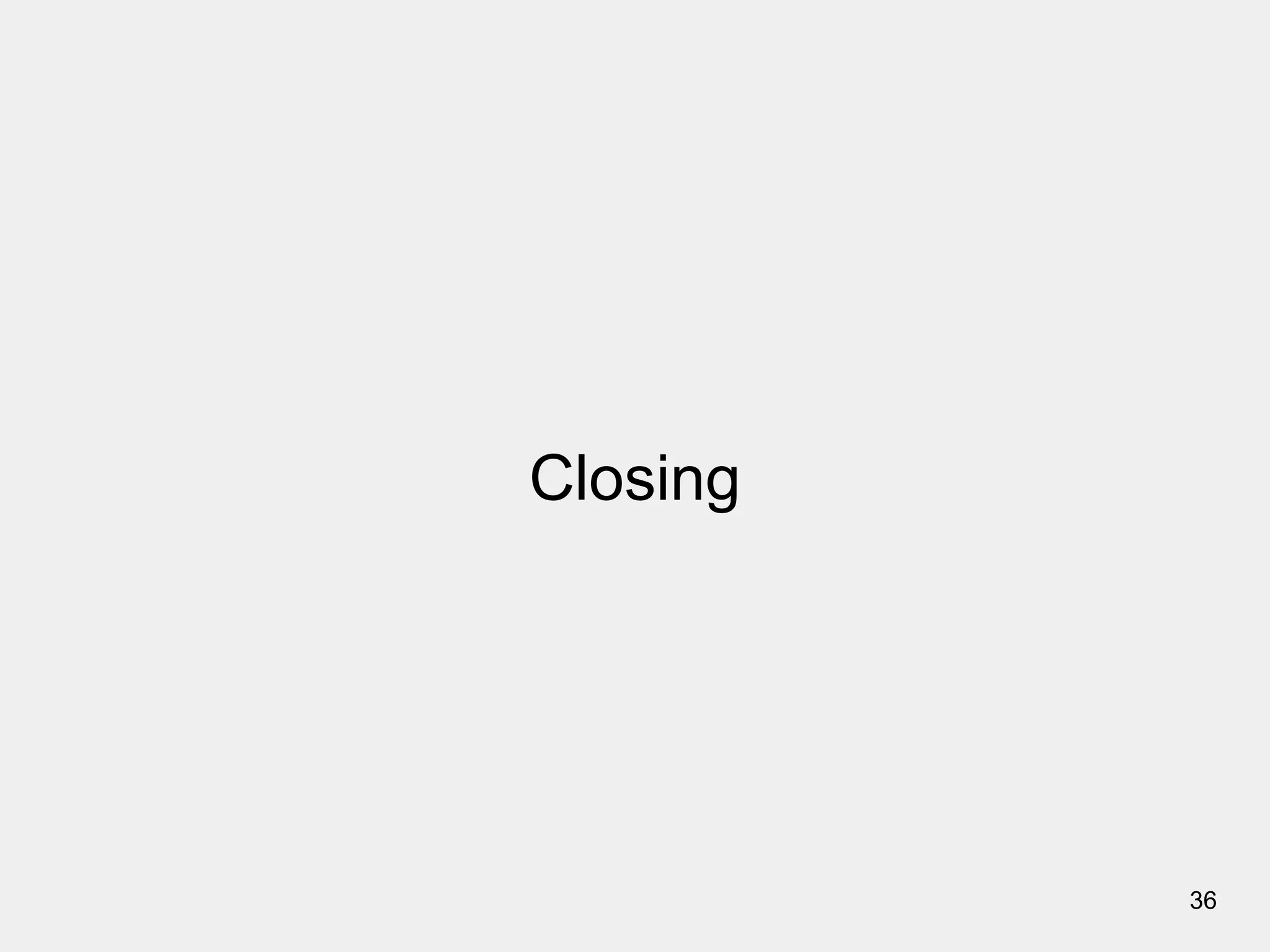

36. Closing
36

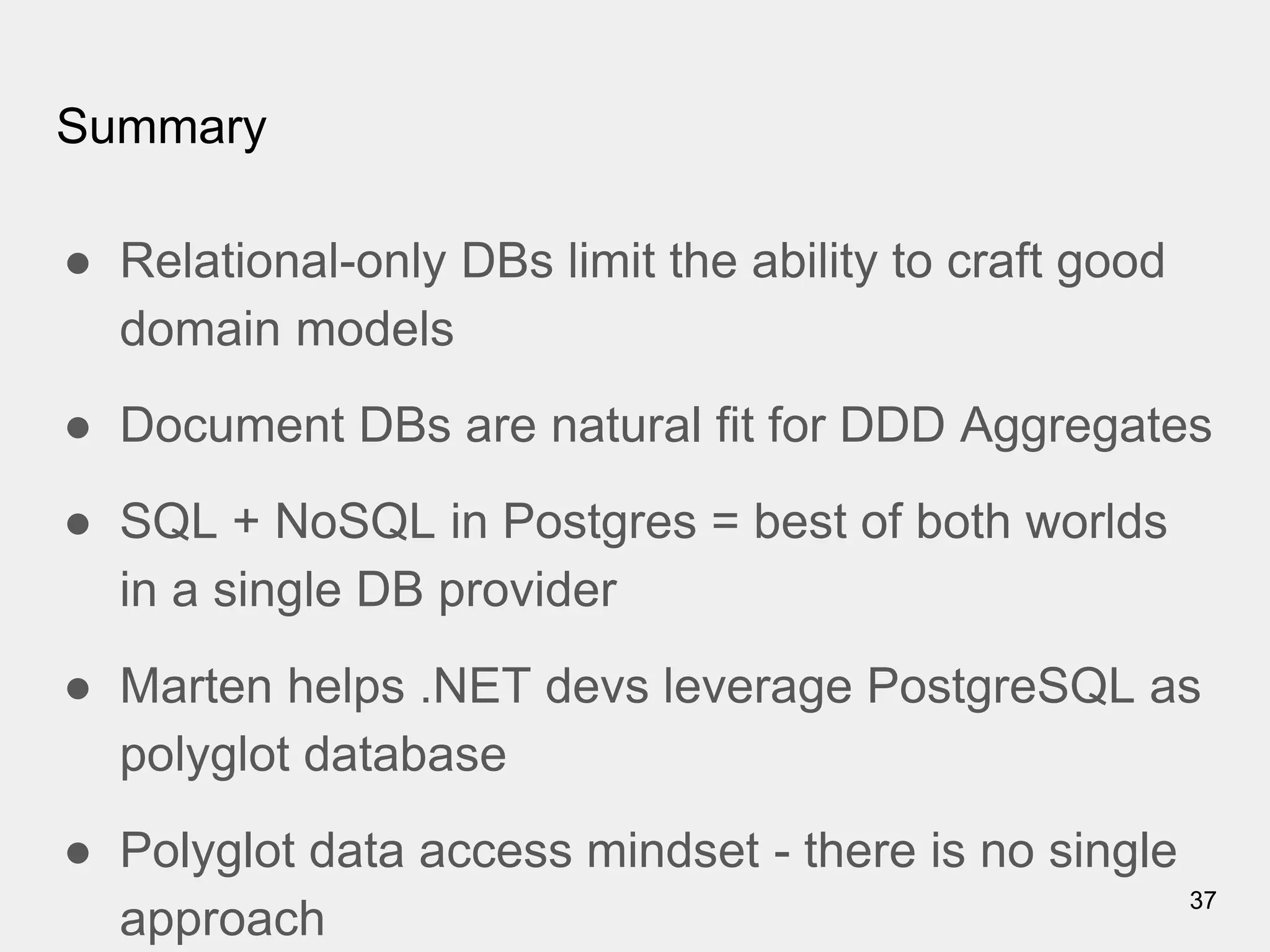

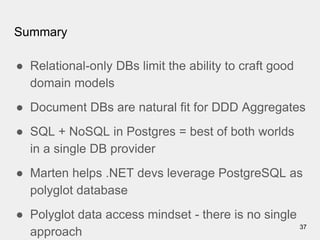

37. Summary
● Relational-only DBs limit the ability to craft good
domain models
● Document DBs are natural fit for DDD Aggregates
● SQL + NoSQL in Postgres = best of both worlds
in a single DB provider
● Marten helps .NET devs leverage PostgreSQL as
polyglot database
● Polyglot data access mindset - there is no single
approach
37

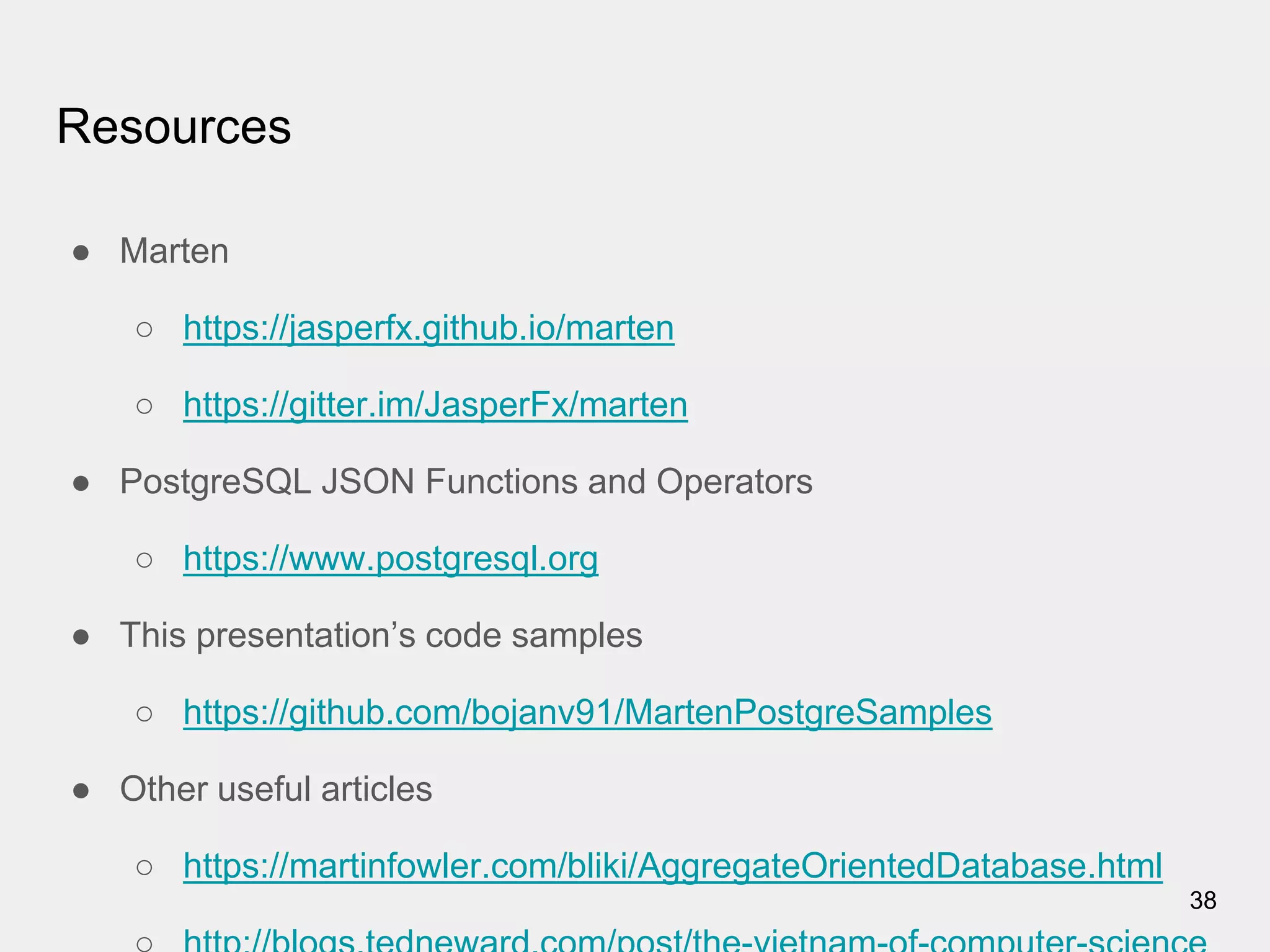

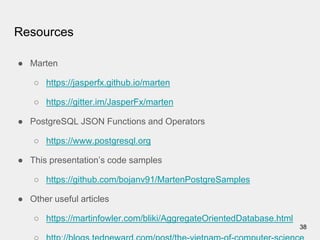

38. Resources
● Marten
○ https://jasperfx.github.io/marten
○ https://gitter.im/JasperFx/marten
● PostgreSQL JSON Functions and Operators
○ https://www.postgresql.org
● This presentation’s code samples
○ https://github.com/bojanv91/MartenPostgreSamples
● Other useful articles
○ https://martinfowler.com/bliki/AggregateOrientedDatabase.html
38
