COOL
WORKING
by
By Alegre Design
NOOM
NO
OM

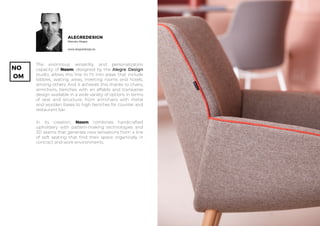

www.alegredesign.es
ALEGREDESIGN
Marcelo Alegre
The enormous versatility and personalization
capacity of Noom, designed by the Alegre Design
studio, allows this line to fit into areas that include
lobbies, waiting areas, meeting rooms and hotels,
among others. And it achieves this thanks to chairs,
armchairs, benches with an affable and transverse
design available in a wide variety of options in terms
of seat and structure, from armchairs with metal
and wooden bases to high benches for counter and
restaurant bar.
In its creation, Noom combines handcrafted
upholstery with pattern-making technologies and
3D seams that generate new sensations from a line
of soft seating that find their space organically in
contract and work environments.
NOOM
by ALEGRE DESIGN
www.actiu.com
NOOM PROGRAM
Serie 10
Armchair
Medium Backrest
Serie 20
Armchair
High Backrest
Serie 30
Chair
Medium Backrest
Serie 40
Stool / Draughtman Chair
Low Backrest
NOOM
by
Alegre
Design
www.actiu.com

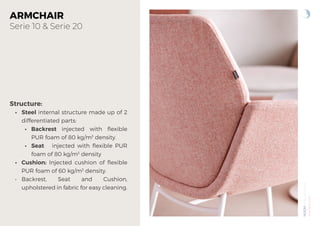

ARMCHAIR
Serie 10 & Serie 20
Structure:
• Steel internal structure made up of 2
differentiated parts:
• Backrest injected with flexible
PUR foam of 80 kg/m3
density.
• Seat injected with flexible PUR
foam of 80 kg/m3
density
• Cushion: Injected cushion of flexible
PUR foam of 60 kg/m3
density.
• Backrest, Seat and Cushion,
upholstered in fabric for easy cleaning.
NOOM
by
Alegre
Design
www.actiu.com

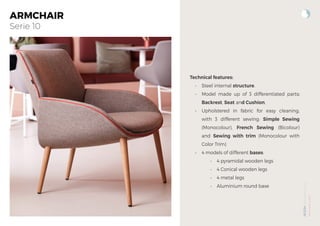

ARMCHAIR
Serie 10
Technical features:
• Steel internal structure.
• Model made up of 3 differentiated parts:
Backrest, Seat and Cushion.
• Upholstered in fabric for easy cleaning,
with 3 different sewing: Simple Sewing
(Monocolour), French Sewing (Bicolour)
and Sewing with trim (Monocolour with
Color Trim)
• 4 models of different bases:
• 4 pyramidal wooden legs
• 4 Conical wooden legs
• 4 metal legs
• Aluminium round base
NOOM
by
Alegre
Design
www.actiu.com
ARMCHAIR
Models
Serie 10
4 pyramidal wooden legs
• Swivel seat
• Self-return system
4 metal legs
4 Conical wooden legs Aluminium round base
• Swivel seat
• Self-return system
78,5
64´7 63´8
76
42,2
57,7
83,3
78,5
64´7 63´8
76
42,2
57,7
83,3
83,3
42,2
76 78,5
Ø 830
57,7
83,3
42,2
76 78,5
57´8
57,7
NOOM
by
Alegre
Design
www.actiu.com
ARMCHAIR
Serie 20
Technical features:
• Steel internal structure.
• Model made up of 3 differentiated parts:
Backrest, Seat and Cushion.
• Upholstered in fabric for easy cleaning,
with 3 different sewing: Simple Sewing
(Monocolour), French Sewing (Bicolour)
and Sewing with trim (Monocolour with
Color Trim)
• 2 models of different bases:
• 4 pyramidal wooden legs
• Aluminium round base
NOOM
by
Alegre
Design
www.actiu.com

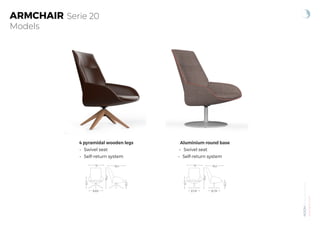

ARMCHAIR
Models
Serie 20
4 pyramidal wooden legs
• Swivel seat
• Self-return system
Aluminium round base
• Swivel seat
• Self-return system
104,4
42,2
76 83,4
Ø 830
57,7
104,4
42,2
76 83,4
Ø 578 Ø 578
57,7
NOOM
by ALEGRE DESIGN
www.actiu.com
NOOM
by
Alegre
Design
www.actiu.com

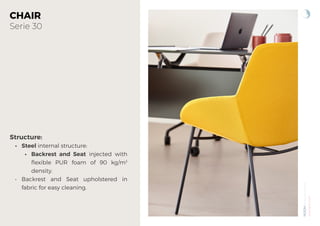

CHAIR
Serie 30
Structure:
• Steel internal structure:
• Backrest and Seat injected with
flexible PUR foam of 90 kg/m3
density.
• Backrest and Seat upholstered in
fabric for easy cleaning.
NOOM
by
Alegre
Design
www.actiu.com

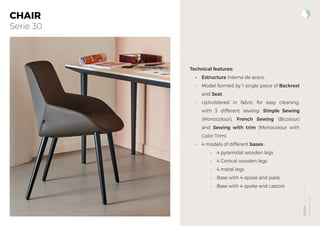

CHAIR
Serie 30
Technical features:
• Estructura interna de acero.
• Model formed by 1 single piece of Backrest
and Seat.
• Upholstered in fabric for easy cleaning,
with 3 different sewing: Simple Sewing
(Monocolour), French Sewing (Bicolour)
and Sewing with trim (Monocolour with
Color Trim)
• 4 models of different bases::
• 4 pyramidal wooden legs
• 4 Conical wooden legs
• 4 metal legs
• Base with 4-spoke and pads
• Base with 4-spoke and castors
NOOM
by
Alegre
Design
www.actiu.com
ARMCHAIR
Models
Serie 10
4 Conical wooden legs 4 pyramidal wooden legs
• Swivel seat
• Self-return system
4 metal legs Base with 4-spoke and pads
• Swivel seat
• Self-return system
Base with 4-spoke and castors
• Swivel seat
• Gas Lift
• Standard soft hole castors
82,4
47,6
60,5
61,6
45,3
52,5 53,9
58,5
82,4
47,6
60,5
61,6
45,3
53,1 54,3
58,5
82,4
47,6
60,5
61,6
45,3
52,1 52,1
58,5
82,4
47,6
61,6
45,3
67,5
58,5
83-89
48-54
61,6
45,3
67,5
58,5
NOOM
by ALEGRE DESIGN
www.actiu.com
NOOM
by ALEGRE DESIGN
www.actiu.com

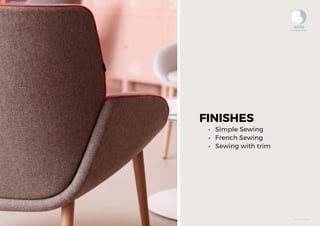

FINISHES
• Simple Sewing
• French Sewing
• Sewing with trim
NOOM
by
Alegre
Design
www.actiu.com

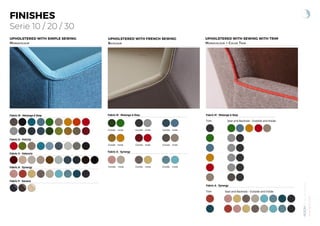

FINISHES
Serie 10 / 20 / 30
UPHOLSTERED WITH SIMPLE SEWING
Monocolour
UPHOLSTERED WITH FRENCH SEWING
Bicolour
UPHOLSTERED WITH SEWING WITH TRIM
Monocolour + Color Trim
Fabric M - Melange & Step
Fabric D - Felicity
Fabric A - Synergy
Fabric V - Valencia
Fabric P - Savana
Fabric M - Melange & Step
Fabric A - Synergy
Outside Outside Outside
Inside
Outside Inside
Outside Inside
Outside Inside
Outside Inside
Outside
Outside
Inside
Inside
Inside Inside
Fabric M - Melange & Step
Fabric A - Synergy
Trim
Trim
Seat and Backrest - Outside and Inside
Seat and Backrest - Outside and Inside
NOOM
by ALEGRE DESIGN
www.actiu.com
STOOL / DRAUGHTMAN CHAIR
Serie 40
Technical features:
• Backrest and Seat. Polypropylene (P.P.) housing
of 5 mm thick with fiberglass.
• Lower part of support in injected aluminium.
• Optional cushion in 2 different models:
• Injected cushion of flexible PUR foam
• of 120 kg/m3
density. Upholstered in M or
D finishes.
• Optional textured PUR padding of
280 kg/m3
density, textile type
• 2 different seating heights:
• Seating height 76 cm.
• Seating height 67 cm.
• 4 models of different bases:
• Cantilever
• 4 pyramidal steel legs
• 4 pyramidal wooden legs
• Draughtman chair with swivel base with
castors
NOOM
by
Alegre
Design
www.actiu.com

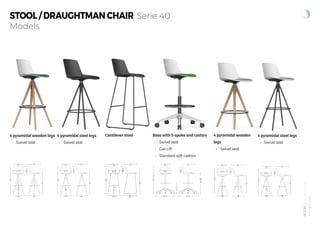

Models
STOOL / DRAUGHTMAN CHAIR Serie 40
4 pyramidal wooden legs
• Swivel seat
4 pyramidal steel legs
• Swivel seat
Cantilever stool 4 pyramidal wooden
legs
• Swivel seat
4 pyramidal steel legs
• Swivel seat
Base with 5-spoke and castors
• Swivel seat
• Gas Lift
• Standard soft castors
101
31,6
76
28,2
47
34,1
45,2 48,1
42,8
101
30,9
76
28,2
47
34,1
42,8
43
43
92,5
21,5
67
28,2
47
34,1
42,8
38
38
101
30,9
76
28,2
47
34,1
42,8
43
43
92,5
21,5
67
28,2
47
34,1
42,8
38
38
67,5 67,5
97-113
31,5
69-85
28,2
47
34,1
42,8
NOOM
by ALEGRE DESIGN
www.actiu.com
Promoting intrinsic quality, has
always ensured the exellence of
our products and services.
As a manufacturer, Actiu
produces and mantains high
standards of quality in all of their
processes, ensuring that our
clients and partners always obtain
a distinguished service which
makes them unique.
QUALITY
A
C
T
I
U
PRODUCE Y UTILIZA
T
A
B
L
E
R
O
S
C
L
A
S
E
E
1
S
T
A
N
D
A
R
D
-
N
O
R
M
A
E
U
R
O
P
E
A
EN 13986
E1
UNE-EN ISO 9001:2008
EN ISO 14006:2011 UNE-EN ISO 14001:2004
PEFC/04-31-0782
​SUSTAINABLE
PRODUCTION
The mark of
responsable
forestry
PEFC
Certificate
E1byEN13986
Certificate
ISO9001
Certificate
ECODESIGN
Certificate
ISO14001
Certificate
COOL
WORKING
by
