1. Neuron count from cell-based
drug screen images
Vladimir Morozov, ALS-TDI
October , 2014

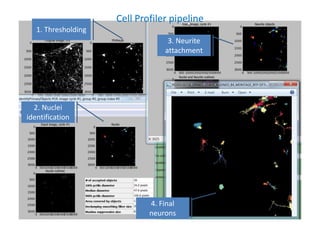

2. Cell Profiler pipeline
1. Thresholding
2. Nuclei
identification
3. Neurite
attachment
4. Final
neurons

3. Making training set for detecting healthy neurons
•We consider good looking cells as
positive
•Microphages were identified as
negative examples
•Other non-neuron cells (e.g. astrocytes)
were NOT specified as negative

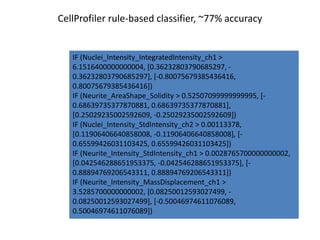

4. CellProfiler rule-based classifier, ~77% accuracy
IF (Nuclei_Intensity_IntegratedIntensity_ch1 >
6.1516400000000004, [0.36232803790685297, -
0.36232803790685297], [-0.80075679385436416,
0.80075679385436416])
IF (Neurite_AreaShape_Solidity > 0.52507099999999995, [-
0.68639735377870881, 0.68639735377870881],
[0.25029235002592609, -0.25029235002592609])
IF (Nuclei_Intensity_StdIntensity_ch2 > 0.00113378,
[0.11906406640858008, -0.11906406640858008], [-
0.65599426031103425, 0.65599426031103425])
IF (Neurite_Intensity_StdIntensity_ch1 > 0.0028765700000000002,
[0.042546288651953375, -0.042546288651953375], [-
0.88894769206543311, 0.88894769206543311])
IF (Neurite_Intensity_MassDisplacement_ch1 >
3.5285700000000002, [0.08250012593027499, -
0.08250012593027499], [-0.50046974611076089,
0.50046974611076089])

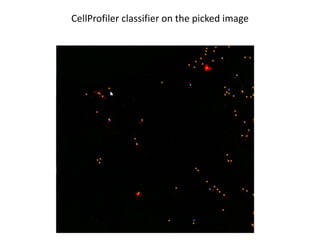

5. CellProfiler classifier on the picked image

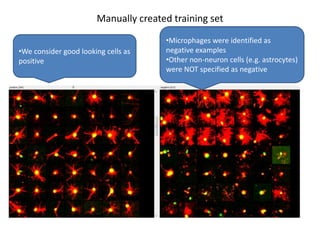

6. Manually created training set
•We consider good looking cells as
positive
•Microphages were identified as
negative examples
•Other non-neuron cells (e.g. astrocytes)
were NOT specified as negative

7. Built own classifier in R
Using the training set I tried
• Yeo-Johnson feature transformation (can
handle negative values) to make them more
normally distributed
• 4-5 non-linear (rules, trees, boosting) classifier
algorithms
• The best performance ,85% accuracy with the
Multivariate Adaptive Regression Splines
(MARS,”earth”) algorithm. This model was
used for the final neuron classification

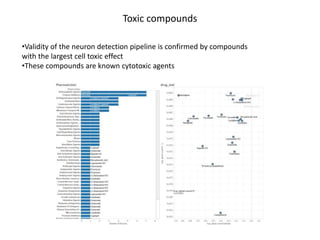

8. Toxic compounds
•Validity of the neuron detection pipeline is confirmed by compounds
with the largest cell toxic effect
•These compounds are known cytotoxic agents

9. Protective compounds
•Statically significant protective compounds were identified
•These compounds don’t show statistical enrichment for specific
pharmacological or structural classes or mechanism of action
