1. 共享 x 安全 = NetworkPolicy ?
施嘉峻 (ccshih)
iiiccshih@gmail.com
Presented at iThome Kubernetes Day, Sep 20, 2017

2. About Me
@ ccshih
# Kubernetes
# OpenShift
+ Red Hat Certificate of Expertise in
Platform-as-a-Service (OpenShift Admin)
2

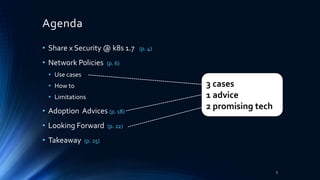

3. Agenda
• Share x Security @ k8s 1.7 (p. 4)
• Network Policies (p. 6)
• Use cases
• How to
• Limitations
• Adoption Advices (p. 18)
• Looking Forward (p. 22)
• Takeaway (p. 25)
3
3 cases
1 advice
2 promising tech

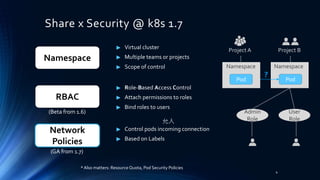

4. Share x Security @ k8s 1.7
Network
Policies
(Beta from 1.6)
RBAC
Namespace
(GA from 1.7)
Virtual cluster
Multiple teams or projects
Scope of control
Role-Based Access Control
Attach permissions to roles
Bind roles to users
Control pods incoming connection
Based on Labels
Project A Project B
Namespace Namespace
Pod Pod
Admin
Role
User
Role
?
4
*Also matters: Resource Quota, Pod Security Policies
允入

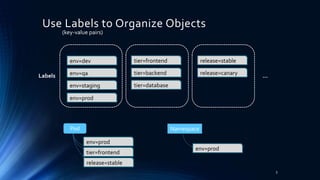

5. Use Labels to Organize Objects
5
tier=frontend
(key-value pairs)
tier=backend
tier=database
env=dev
env=qa
env=staging
env=prod
release=stable
release=canary
Pod
Labels …
env=prod
tier=frontend
release=stable
env=prod
Namespace

6. First Scenario
6
Pod
Pod Pod
Pod Pod
Pod
tier=frontend tier=backend tier=database
Namespace b
PodPod
PodPod
Namespace a

7. Without Network Policy (k8s default)
7
Pod
Pod Pod
Pod Pod
Pod
tier=frontend tier=backend tier=database
Namespace b
PodPod
PodPod
Namespace a
Pod accepts any connection from any namespace

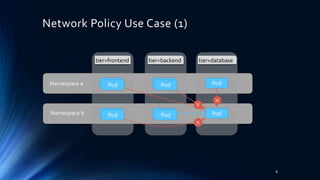

8. Network Policy Use Case (1)
8
Pod
Pod Pod
Pod Pod
Pod
tier=frontend tier=backend tier=database
Namespace b
PodPod
PodPod
Namespace a

9. apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
name: allow-backend-access-database
namespace: b
spec:
podSelector:
matchLabels:
tier: database
ingress:
- from:
- podSelector:
matchLabels:
tier: backend
ports:
- protocol: TCP
port: 3306
Network Policy Example (1)
9
This policy applies to …
Allows connection from …
to this port
Pod
Pod Pod
Pod Pod
Pod
tier=frontend tier=backend tier=database
Namespace b
PodPod
PodPod
Namespace a

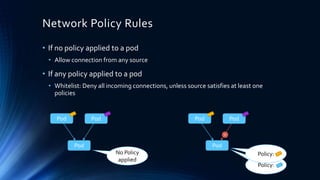

10. Policy:
Network Policy Rules
• If no policy applied to a pod
• Allow connection from any source
• If any policy applied to a pod
• Whitelist: Deny all incoming connections, unless source satisfies at least one
policies
10
PodPod
Pod
PodPod
Pod
No Policy
applied
Policy:

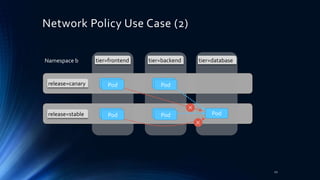

11. Network Policy Use Case (2)
11
Pod
Pod Pod
Pod
Pod
tier=frontend tier=backend tier=database
PodPod
PodPod
release=canary
release=stable
Namespace b

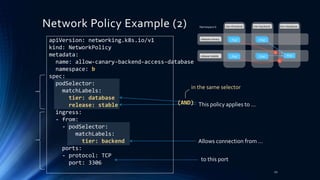

12. Network Policy Example (2)
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
name: allow-canary-backend-access-database
namespace: b
spec:
podSelector:
matchLabels:
tier: database
release: stable
ingress:
- from:
- podSelector:
matchLabels:
tier: backend
ports:
- protocol: TCP
port: 3306
12
This policy applies to …
Allows connection from …
to this port
Pod
Pod Pod
Pod
Pod
tier=frontend tier=backend tier=database
PodPod
PodPod
release=canary
release=stable
Namespace b
(AND)
in the same selector

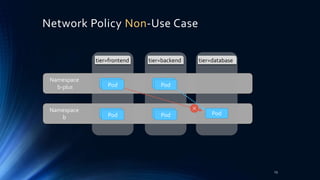

13. Network Policy Non-Use Case
13
Pod
Pod Pod
Pod
Pod
tier=frontend tier=backend tier=database
PodPod
PodPod
Namespace
b-plus
Namespace
b

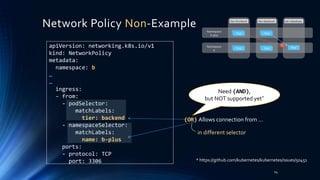

14. Network Policy Non-Example
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
namespace: b
…
…
ingress:
- from:
- podSelector:
matchLabels:
tier: backend
- namespaceSelector:
matchLabels:
name: b-plus
ports:
- protocol: TCP
port: 3306
14
Allows connection from …(OR)
Pod
Pod Pod
Pod
Pod
tier=frontend tier=backend tier=database
PodPod
PodPod
Namespace
b-plus
Namespace
b
Need (AND),
but NOT supported yet*
* https://github.com/kubernetes/kubernetes/issues/50451
in different selector

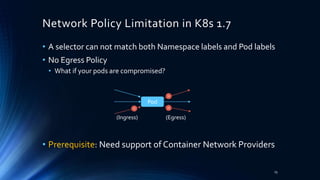

15. Network Policy Limitation in K8s 1.7
• A selector can not match both Namespace labels and Pod labels
• No Egress Policy
• What if your pods are compromised?
• Prerequisite: Need support of Container Network Providers
15
Pod
(Ingress) (Egress)

16. Network Providers who Support Network Policy
16
Calico cilium ROMANA WeaveNet
&

17. Note:
• Not standard k8s Network Policy
• Run with calicoctl, instead of kubectl
• Calico also supports Egress policy (not
shown here)

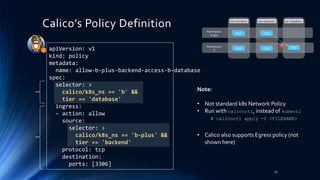

Calico’s Policy Definition
17
Pod
Pod Pod
Pod
Pod
tier=frontend tier=backend tier=database
PodPod
PodPod
Namespace
b-plus
Namespace
bapiVersion: v1
kind: policy
metadata:
name: allow-b-plus-backend-access-b-database
spec:
selector: >
calico/k8s_ns == 'b' &&
tier == 'database'
ingress:
- action: allow
source:
selector: >
calico/k8s_ns == 'b-plus' &&
tier == 'backend'
protocol: tcp
destination:
ports: [3306]
# calicoctl apply -f <FILENAME>

18. Adoption Advices
18

19. Adoption Advices
• (skipped) Use special labels for network policy
• Rethink IP-based packet filter
19

20. Dynamic Nature of K8s
20
Source: https://www.slideshare.net/gmccance/cern-data-centre-evolution
K8s is primarily
designed for
(Static)
(Dynamic)
(change IP)

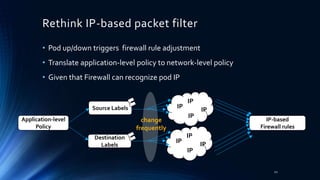

21. Rethink IP-based packet filter
• Pod up/down triggers firewall rule adjustment
• Translate application-level policy to network-level policy
• Given that Firewall can recognize pod IP
21
IP
Source Labels
Destination
Labels
IP IP
IP
IP
IP IP
IP
IP-based
Firewall rules
Application-level
Policy
change
frequently

22. Looking Forward
22

23. Looking forward (1)
• Cilium
• Not use IP to define filter
• Flexible and Efficient
23
IP
Source Labels
Destination
Labels
IP IP
IP
IP
IP IP
IP
eBPF
(Packet Filter)
Application-level
Policy
change
frequently
(Require Linux Kernel 4.8 ↑)
id
id

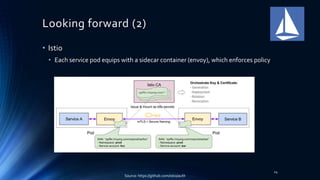

24. Looking forward (2)
24
• Istio
• Each service pod equips with a sidecar container (envoy), which enforces policy
Source: https://github.com/istio/auth

25. Takeaway
25

26. Takeaway
• By default, pod can talk to each other at network level
• Network Policy
• whitelists pod incoming connection
• needs container network provider’s support
• can not apply to some cross-namespace scenario
• Adoption
• security needs as agile as containers
• Looking forward
• Flavored policy enforcement
26

27. Contact
• iiiccshih@gmail.com
27

28. References
• Network Policy
• Official document
• Recipes by ahmetb
• Calico
• Getting started with k8s
28
