Network diagrams sample by Gregg Booth
This document provides a summary of the network infrastructure of a medical office. It includes details on servers, routers, switches, wireless access points, virtual local area networks, IP addressing schemes, and connected devices such as printers, scanners, and IP phones. The network utilizes Cisco switches and routers to separate data, voice, and wireless traffic onto different VLANs with IP schemes like 192.168.144.x for data and 192.168.2.x for voice. Critical servers run applications for Active Directory, Eclinicalworks, faxing, and virtualization. The network also connects to an external extranet and supports a wireless guest network.
Network diagrams sample by Gregg Booth

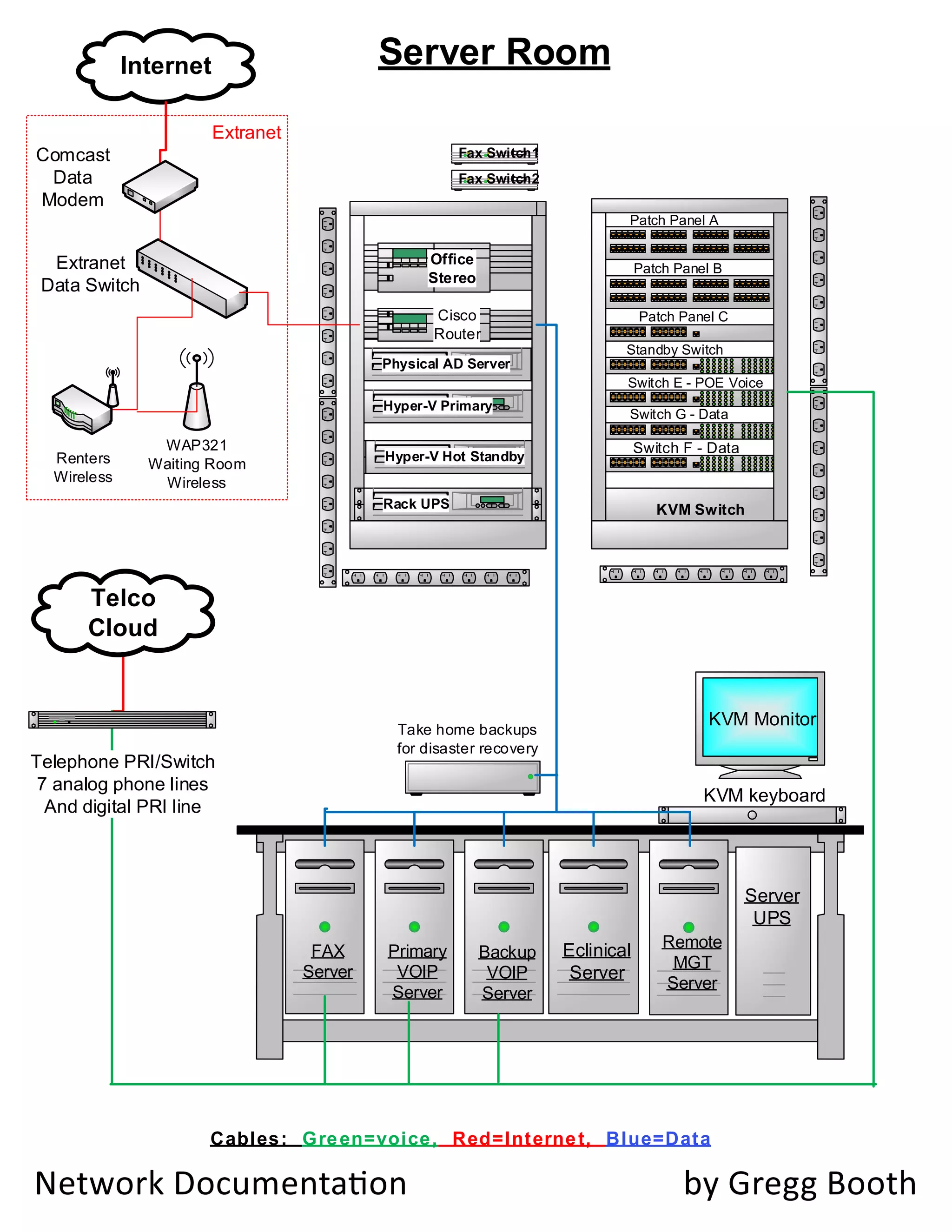

- 1. Extranet KVM Switch KVM Monitor Eclinical Server Backup VOIP Server Primary VOIP Server Takehome backups for disaster recovery Patch Panel A Office Stereo Patch Panel B Switch E - POE Voice Switch G - Data Switch F - Data Patch Panel C Standby Switch Physical AD Server Hyper-V Hot Standby Hyper-V Primary Cisco Router KVM keyboard Server Room Remote MGT Server FAX Server Extranet Data Switch WAP321 Waiting Room Wireless Telco Cloud Internet Server UPS Fax Switch2 Fax Switch1 Renters Wireless Comcast Data Modem Rack UPS Telephone PRI/Switch 7 analog phone lines And digital PRI line Cables: Green=voice, Red=Internet, Blue=Data

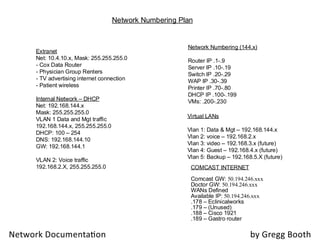

- 2. Network Numbering Plan COMCASTINTERNET Comcast GW: 50.194.246.xxx Doctor GW: 50.194.246.xxx WANs Defined Available IP: 50.194.246.xxx .178 – Eclinicalworks .179 – (Unused) .188 – Cisco 1921 .189 – Gastro router Network Numbering (144.x) Router IP .1-.9 Server IP .10-.19 Switch IP .20-.29 WAP IP .30-.39 Printer IP .70-.80 DHCP IP .100-.199 VMs: .200-.230 Virtual LANs Vlan 1: Data & Mgt – 192.168.144.x Vlan 2: voice – 192.168.2.x Vlan 3: video – 192.168.3.x (future) Vlan 4: Guest – 192.168.4.x (future) Vlan 5: Backup – 192.168.5.X (future) Extranet Net: 10.4.10.x, Mask: 255.255.255.0 - Cox Data Router - Physician Group Renters - TV advertising internet connection - Patient wireless Internal Network – DHCP Net: 192.168.144.x Mask: 255.255.255.0 VLAN 1 Data and Mgt traffic 192.168.144.x, 255.255.255.0 DHCP: 100 – 254 DNS: 192.168.144.10 GW: 192.168.144.1 VLAN 2: Voice traffic 192.168.2.X, 255.255.255.0
- 3. Switch G SG200-50 IP: 144.23 SwitchE SGE2010P IP: 144.21 Vserver 144.10 Drac 144.12 EclinicalServer IP: 144.11 Drac: 144.13 Fonality Primary Server IP: 2.14 Fonality Backup Server IP: 2.15 Fax Server IP: 144.66 WAP321 IP: 192.168.10.x Public Network Layout Cisco SA540 WAN IP: 50.194.246.177 LAN IP: 144.1, 2.1, 3.1, 4.1, 5.1 VLAN 1-5 WAP321 IP: 144.31 Internal wireless Switch F SG200-50 IP: 144.22 VOIP Phones Vlan 2.x Mgt Server IP: 144.99 IP: 2.99 SA Port 4 MGT Srvr Note: Mgt WS has powered off connections to all routers and switches for remote configuration option Gigabit Switch D - PBX and VOIP phones SA540 Port5 SW-D port 24 Outside Office Network Gastro MD Wireless
- 4. Routers, Servers, Switchesand WAPs Cisco SA540 Vlan 1-5 WAN IP:50.194.246.xxx LAN IP: 144.1, 2.1, 3.1, 4.1, 5.1 RDP, VPN, FTP, FTPs, SSLVPN Cisco SGE2010P Switch E (POE) IP: 144.21 Spare switch Cisco SG200-50 Switch G IP: 144.23 Mostly servers Cisco SG200-50 Switch F IP: 144.22 Mostly PCs, printers Cisco WAP321 Office Wireless Network IP: 144.35 (inside office lan) Cisco WAP321 Public Wireless Networks IP: 192.168.10.x (outside office lan) Vserver Active Directory Virtual Server IP: 144.10 DRAC: 144.12 EcwServer2 Eclinicalworks IP: 144.11 DRAC: 144.13 FaxServer Eclinical Faxes IP: 144.66 PBX1 Fonality primary IP: 2.14 PBX2 Fonality backup IP: 2.15 Hyper-V Server1 Main Hyper-V Server IP: 144.16 DRAC: 144.17 Hyper-V Server2 Backup Hyper-V Server IP: 144.18 DRAC: 144.19

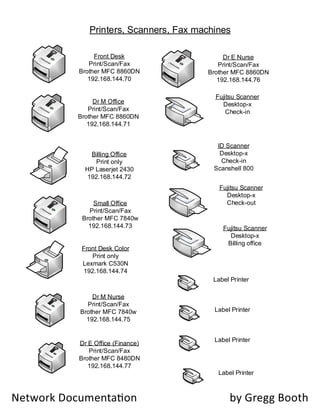

- 5. Front Desk Print/Scan/Fax Brother MFC8860DN 192.168.144.70 Dr M Office Print/Scan/Fax Brother MFC 8860DN 192.168.144.71 Billing Office Print only HP Laserjet 2430 192.168.144.72 Small Office Print/Scan/Fax Brother MFC 7840w 192.168.144.73 Front Desk Color Print only Lexmark C530N 192.168.144.74 Dr M Nurse Print/Scan/Fax Brother MFC 7840w 192.168.144.75 Dr E Nurse Print/Scan/Fax Brother MFC 8860DN 192.168.144.76 Dr E Office (Finance) Print/Scan/Fax Brother MFC 8480DN 192.168.144.77 Fujitsu Scanner Desktop-x Check-in Fujitsu Scanner Desktop-x Check-out ID Scanner Desktop-x Check-in Scanshell 800 Label Printer Fujitsu Scanner Desktop-x Billing office Printers, Scanners, Fax machines Label Printer Label Printer Label Printer
