Spider Architecture
날짜 : 2016.03.21
Ver. 1.0
작성 : DB실 전수진

2. café.naver.com/mysqlpg
 Spider Setup
 Architecture
 Topology
Agenda

3. café.naver.com/mysqlpg
 Spider Setup
 Architecture
 Topology
Agenda

4. café.naver.com/mysqlpg
Setup

5. café.naver.com/mysqlpg
Setup

6. café.naver.com/mysqlpg
Setup
■ Server Spec

7. café.naver.com/mysqlpg
Setup
■ MySQL Install
Sandbox : http://mysqlsandbox.net/

8. café.naver.com/mysqlpg
Setup
■ MySQL Install
Step 1. 사전 요구 프로그램 설치
sudo su -
yum install -y gcc automake autoconf libtool make cpan libstdc*
yum install -y perl-CPAN
yum install -y --skip-broken perl*
cpan YAML

9. café.naver.com/mysqlpg
Setup
■ MySQL Install
Step 2. 그룹(mysql)/계정(maria) 생성
sudo su -
mkdir -p /usr1/program
mkdir -p /usr1/mysql/dba/tools
groupadd -g 900 mysql
cat /etc/group | grep -E 'mysql|maria'
useradd maria -g mysql -d /home/maria -u 901 -c mysql_user
echo 'maria:oracle' | chpasswd
cat /etc/passwd | grep -E 'mysql|maria'
chown -R maria:mysql /usr1
ls -l /usr1

10. café.naver.com/mysqlpg
Setup
■ MySQL Install
Step 3. Sandbox Download & Compile
sudo su -
cd /usr1/program
wget http://search.cpan.org/CPAN/authors/id/G/GM/GMAX/MySQL-Sandbox-3.1.05.tar.gz
ls -l MySQL-Sandbox*
tar xvfz MySQL-Sandbox-3.1.05.tar.gz
cd MySQL-Sandbox-3.1.05
perl Makefile.PL
make && make test
make install

11. café.naver.com/mysqlpg
Setup
■ MySQL Install
Step 4. MariaDB 10.1 (SpiderNode) / MySQL 5.7 (DataNode) Binary Download
su - maria
cd /usr1/program/
wget http://ftp.kaist.ac.kr/mariadb//mariadb-10.1.12/bintar-linux-glibc_214-x86_64/mariadb-10.1.12-linux-glibc_214-x86_64.tar.gz
tar xvfz mariadb-10.1.12-linux-glibc_214-x86_64.tar.gz
mv mariadb-10.1.12-linux-glibc_214-x86_64 /usr1/mysql/10.1.12
wget https://downloads.mariadb.com/archives/mysql-5.7/mysql-5.7.11-linux-glibc2.5-x86_64.tar.gz
tar zxvf mysql-5.7.11-linux-glibc2.5-x86_64.tar.gz
mv mysql-5.7.11-linux-glibc2.5-x86_64 /usr1/mysql/5.7.11
ls -l /usr1/mysql
chown -R maria:mysql /usr1

12. café.naver.com/mysqlpg
Setup
■ MySQL Install
Step 5. Multi Instance Install (Spider : 4, Data : 6)
su - maria
cd /usr1/mysql
mkdir -p /usr1/mysql/sandboxes
make_multiple_sandbox -r spider_node 10.1.12 --upper_directory=/usr1/mysql/sandboxes --how_many_nodes=4
make_multiple_sandbox -r data_node 5.7.11 --upper_directory=/usr1/mysql/sandboxes --how_many_nodes=6
ps -ef | awk -F ' ' '{print $2, $9;}' | grep mysqld_safe
6479 /usr1/mysql/10.1.12/bin/mysqld_safe
…
7604 /usr1/mysql/5.7.11/bin/mysqld_safe
…
netstat -nap | grep LISTEN | grep mysql

13. café.naver.com/mysqlpg
Setup
■ MySQL Install
Step 5. Multi Instance Install
# Port 변경 (Spider Node)
cd /usr1/mysql/sandboxes/spider_node && ./stop_all
cd /usr1/mysql/sandboxes/spider_node/node1 && ./change_ports 3306
cd /usr1/mysql/sandboxes/spider_node/node2 && ./change_ports 3307
cd /usr1/mysql/sandboxes/spider_node/node3 && ./change_ports 9906
cd /usr1/mysql/sandboxes/spider_node/node4 && ./change_ports 9907
cd /usr1/mysql/sandboxes/spider_node && ./start_all
cd /usr1/mysql/sandboxes/spider_node && ./status_all
cd /usr1/mysql/sandboxes/spider_node && ./use_all -e " select version()"
netstat -nap | grep LISTEN | grep mysql
3306
10001
10002
10003

14. café.naver.com/mysqlpg
Setup
■ MySQL Install
Step 5. Multi Instance Install
# Port 변경 (Data Node)
cd /usr1/mysql/sandboxes/data_node && ./stop_all
cd /usr1/mysql/sandboxes/data_node/node1 && ./change_ports 10001
cd /usr1/mysql/sandboxes/data_node/node2 && ./change_ports 10002
cd /usr1/mysql/sandboxes/data_node/node3 && ./change_ports 10003
cd /usr1/mysql/sandboxes/data_node/node4 && ./change_ports 20001
cd /usr1/mysql/sandboxes/data_node/node5 && ./change_ports 20002
cd /usr1/mysql/sandboxes/data_node/node6 && ./change_ports 20003
cd /usr1/mysql/sandboxes/data_node && ./start_all
cd /usr1/mysql/sandboxes/data_node && ./status_all
cd /usr1/mysql/sandboxes/data_node && ./use_all -e " select version()"
netstat -nap | grep LISTEN | grep mysql
3306
10001
10002
10003

15. café.naver.com/mysqlpg
Setup
■ MySQL Install
Step 6. Define an easy way to access the nodes from the MariaDB or MySQL client
su - maria
alias spider1='/usr1/mysql/10.1.12/bin/mysql --user=msandbox --password=msandbox --host=localhost --port=3306 --socket=/tmp/mysql_sandbox3306.sock'
alias spider2='/usr1/mysql/10.1.12/bin/mysql --user=msandbox --password=msandbox --host=localhost --port=3307 --socket=/tmp/mysql_sandbox3307.sock'
alias spider3='/usr1/mysql/10.1.12/bin/mysql --user=msandbox --password=msandbox --host=localhost --port=9906 --socket=/tmp/mysql_sandbox9906.sock'
alias spider4='/usr1/mysql/10.1.12/bin/mysql --user=msandbox --password=msandbox --host=localhost --port=9907 --socket=/tmp/mysql_sandbox9907.sock'
alias backend1='/usr1/mysql/5.7.11/bin/mysql --user=msandbox --password=msandbox --host=localhost --port=10001 --socket=/tmp/mysql_sandbox10001.sock
alias backend2='/usr1/mysql/5.7.11/bin/mysql --user=msandbox --password=msandbox --host=localhost --port=10002 --socket=/tmp/mysql_sandbox10002.sock
alias backend3='/usr1/mysql/5.7.11/bin/mysql --user=msandbox --password=msandbox --host=localhost --port=10003 --socket=/tmp/mysql_sandbox10003.sock
alias backend11='/usr1/mysql/5.7.11/bin/mysql --user=msandbox --password=msandbox --host=localhost --port=20001 --socket=/tmp/mysql_sandbox20001.sock'
alias backend12='/usr1/mysql/5.7.11/bin/mysql --user=msandbox --password=msandbox --host=localhost --port=20002 --socket=/tmp/mysql_sandbox20002.sock'
alias backend13='/usr1/mysql/5.7.11/bin/mysql --user=msandbox --password=msandbox --host=localhost --port=20003 --socket=/tmp/mysql_sandbox20003.sock'
$ spider1 -e "select version()"
+-----------------+
| version() |
+-----------------+
| 10.1.12-MariaDB |
+-----------------+
$ backend1 -e "select version()"
+------------+
| version() |
+------------+
| 5.7.11-log |
+------------+

16. café.naver.com/mysqlpg
Setup
■ MySQL Install
Step 6. Define an easy way to access the nodes from the MariaDB or MySQL client
su – maria
cd /usr1/mysql/dba

17. café.naver.com/mysqlpg
Setup
Spider_node general_log
data_node1 general_log
data_node2 general_log

18. café.naver.com/mysqlpg
Setup

19. café.naver.com/mysqlpg
 Spider Setup
 Architecture
 Topology
Agenda

20. café.naver.com/mysqlpg
Architecture
■ Type
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
# Federation # Sharding # High Availability

21. café.naver.com/mysqlpg
Architecture
■ Federation
Without connection pool or MariaDB thread pool, HaProxy and Spider have been protecting the tcp socket overflow without specific TCP tuning.
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
backend1 << EOF
DROP DATABASE IF EXISTS backend ;
CREATE DATABASE backend;
CREATE TABLE backend.sbtest (
id int unsigned NOT NULL AUTO_INCREMENT
, k int unsigned NOT NULL DEFAULT '0'
, c char(100) NOT NULL DEFAULT ''
, pad char(60) NOT NULL DEFAULT ''
, PRIMARY KEY (id)
, KEY k (k)
)
ENGINE=InnoDB;
DESC backend.sbtest;
EOF
①

22. café.naver.com/mysqlpg
Architecture
■ Federation
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
spider1 << EOF
DROP SERVER IF EXISTS backend1;
CREATE SERVER backend1 FOREIGN DATA WRAPPER mysql
OPTIONS( HOST '127.0.0.1‘
, DATABASE 'backend‘
, USER 'msandbox‘
, PASSWORD 'msandbox‘
, PORT 10001);
EOF②

23. café.naver.com/mysqlpg
Architecture
■ Federation
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
spider1 << EOF
CREATE DATABASE IF NOT EXISTS test;
DROP TABLE IF EXISTS test.sbtest;
CREATE TABLE test.sbtest (
id int unsigned NOT NULL AUTO_INCREMENT
, k int unsigned NOT NULL DEFAULT '0'
, c char(100) NOT NULL DEFAULT ''
, pad char(60) NOT NULL DEFAULT ''
, PRIMARY KEY (id)
, KEY k (k)
)
ENGINE=spider COMMENT='wrapper "mysql",srv "backend1"';
SELECT * FROM test.sbtest LIMIT 10;
EOF
③

24. café.naver.com/mysqlpg
Architecture
■ Federation & HA
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
backend1 << EOF
CREATE TABLE backend.sbtest (
id int unsigned NOT NULL AUTO_INCREMENT
, k int unsigned NOT NULL DEFAULT '0'
, c char(100) NOT NULL DEFAULT ''
, pad char(60) NOT NULL DEFAULT ''
, PRIMARY KEY (id)
, KEY k (k)
)
ENGINE=InnoDB;
EOF
backend2 << EOF
…
EOF
backend3 << EOF
…
EOF
①①

25. café.naver.com/mysqlpg
Architecture
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
spider1 << EOF
CREATE SERVER backend1 FOREIGN DATA WRAPPER mysql
OPTIONS( HOST '127.0.0.1‘
, DATABASE 'backend‘
, USER 'msandbox‘
, PASSWORD 'msandbox‘
, PORT 10001);
CREATE SERVER backend2 FOREIGN DATA WRAPPER mysql
…
CREATE SERVER backend3 FOREIGN DATA WRAPPER mysql
…
EOF
■ Federation & HA
②

26. café.naver.com/mysqlpg
Architecture
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
spider1 << EOF
CREATE DATABASE IF NOT EXISTS test;
DROP TABLE IF EXISTS test.sbtest;
CREATE TABLE test.sbtest (
id int unsigned NOT NULL AUTO_INCREMENT
, k int unsigned NOT NULL DEFAULT '0'
, c char(100) NOT NULL DEFAULT ''
, pad char(60) NOT NULL DEFAULT ''
, PRIMARY KEY (id)
, KEY k (k)
)
ENGINE=spider COMMENT='wrapper "mysql",srv "backend1 backend2 backend3"';
SELECT * FROM test.sbtest LIMIT 10;
EOF
■ Federation & HA
③

27. café.naver.com/mysqlpg
Architecture
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
spider1 << EOF
TRUNCATE TABLE test.sbtest;
Insert into test.sbtest values (1, 100, 'A', 'A1');
Insert into test.sbtest values (2, 200, 'A', 'A1');
Insert into test.sbtest values (3, 300, 'A', 'A1');
Insert into test.sbtest values (4, 400, 'A', 'A1');
Insert into test.sbtest values (5, 500, 'A', 'A1');
SELECT * FROM test.sbtest;
EOF
backend1 -e"select count(*) from backend.sbtest;"
backend2 -e"select count(*) from backend.sbtest;"
backend3 -e"select count(*) from backend.sbtest;"
+----------+
| count(*) |
+----------+
| 5 |
+----------+
■ Federation & HA
④
동일한 데이터를 확인할 수 있음 !

28. café.naver.com/mysqlpg
Architecture
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
cd /usr1/mysql/sandboxes/data_node/node2 && ./stop
spider1 -e "Insert into test.sbtest values (11, 1100, 'A', 'A1');"
-- ERROR 1429 (HY000) at line 1:
Unable to connect to foreign data source: backend2
backend1 -e"select count(*) from backend.sbtest;"
-- 5
backend2 -e"select count(*) from backend.sbtest;"
-- ERROR 2002 (HY000):
Can't connect to local MySQL server through socket '/tmp/mysql_sandbox100
backend3 -e"select count(*) from backend.sbtest;"
-- 5
■ Federation & HA
Datanode2 장애유발!

29. café.naver.com/mysqlpg
Architecture
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
■ Federation & HA
spider1 << EOF
DROP TABLE IF EXISTS test.sbtest;
CREATE TABLE test.sbtest (
id int unsigned NOT NULL AUTO_INCREMENT
, k int unsigned NOT NULL DEFAULT '0'
, c char(100) NOT NULL DEFAULT ''
, pad char(60) NOT NULL DEFAULT ''
, PRIMARY KEY (id)
, KEY k (k)
)
ENGINE=spider COMMENT='wrapper "mysql",srv "backend1 backend3"';
EOF
spider1 -e "Insert into test.sbtest values (11, 1100, 'A', 'A1');"
backend1 -e"select count(*) from backend.sbtest;"
backend3 -e"select count(*) from backend.sbtest;"
-- 6
-- 6
복구방법 :
테이블의 정의를 변경함
으로써 빠르게 복구 가능

30. café.naver.com/mysqlpg
Architecture
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
backend1 << EOF
CREATE TABLE backend.sbtest (
id int unsigned NOT NULL AUTO_INCREMENT
, k int unsigned NOT NULL DEFAULT '0'
, c char(100) NOT NULL DEFAULT ''
, pad char(60) NOT NULL DEFAULT ''
, PRIMARY KEY (id)
, KEY k (k)
)
ENGINE=InnoDB;
EOF
backend2 << EOF
CREATE TABLE backend.sbtest (
id int unsigned NOT NULL AUTO_INCREMENT
, k int unsigned NOT NULL DEFAULT '0'
, c char(100) NOT NULL DEFAULT ''
, pad char(60) NOT NULL DEFAULT ''
, PRIMARY KEY (id)
, KEY k (k)
)
ENGINE=InnoDB;
EOF
■ Sharding
Data Sharding
②①

31. café.naver.com/mysqlpg
Architecture
■ Sharding
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
spider1 << EOF
CREATE SERVER backend1 FOREIGN DATA WRAPPER mysql
OPTIONS( HOST '127.0.0.1‘
, DATABASE 'backend‘
, USER 'msandbox‘
, PASSWORD 'msandbox‘
, PORT 10001);
CREATE SERVER backend2 FOREIGN DATA WRAPPER mysql
OPTIONS( HOST '127.0.0.1‘
, DATABASE 'backend‘
, USER 'msandbox‘
, PASSWORD 'msandbox‘
, PORT 10002);
EOF
③ ④

32. café.naver.com/mysqlpg
Architecture
■ Sharding
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
spider1 << EOF
CREATE DATABASE IF NOT EXISTS test;
CREATE TABLE test.sbtest (
id int unsigned NOT NULL AUTO_INCREMENT
, k int unsigned NOT NULL DEFAULT '0'
, c char(100) NOT NULL DEFAULT ''
, pad char(60) NOT NULL DEFAULT ''
, PRIMARY KEY (id)
, KEY k (k)
)
ENGINE=spider COMMENT='wrapper "mysql", table "sbtest"'
PARTITION BY KEY (id)
(
PARTITION pt1 COMMENT = 'srv "backend1"'
, PARTITION pt2 COMMENT = 'srv "backend2"'
);
SELECT count(*) FROM test.sbtest LIMIT 10;
EOF
⑤

33. café.naver.com/mysqlpg
Architecture
■ Sharding
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
spider1 << EOF
TRUNCATE TABLE test.sbtest;
Insert into test.sbtest values (1, 100, 'A', 'A1');
Insert into test.sbtest values (2, 200, 'A', 'A1');
Insert into test.sbtest values (3, 300, 'A', 'A1');
Insert into test.sbtest values (4, 400, 'A', 'A1');
Insert into test.sbtest values (5, 500, 'A', 'A1');
SELECT * FROM test.sbtest;
EOF
backend1 -e"select count(*) from backend.sbtest;"
-- 3
backend2 -e"select count(*) from backend.sbtest;"
-- 2
⑥

34. café.naver.com/mysqlpg
Architecture
■ High Availability
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
backend1 << EOF
CREATE TABLE backend.sbtest (
id int unsigned NOT NULL AUTO_INCREMENT
, k int unsigned NOT NULL DEFAULT '0'
, c char(100) NOT NULL DEFAULT ''
, pad char(60) NOT NULL DEFAULT ''
, PRIMARY KEY (id)
, KEY k (k)
)
ENGINE=InnoDB;
CREATE TABLE backend_rpl.sbtest (
id int unsigned NOT NULL AUTO_INCREMENT
, k int unsigned NOT NULL DEFAULT '0'
, c char(100) NOT NULL DEFAULT ''
, pad char(60) NOT NULL DEFAULT ''
, PRIMARY KEY (id)
, KEY k (k)
)
ENGINE=InnoDB;
EOF
backend2 << EOF
CREATE TABLE backend.sbtest (
id int unsigned NOT NULL AUTO_INCREMENT
, k int unsigned NOT NULL DEFAULT '0'
, c char(100) NOT NULL DEFAULT ''
, pad char(60) NOT NULL DEFAULT ''
, PRIMARY KEY (id)
, KEY k (k)
)
ENGINE=InnoDB;
CREATE TABLE backend_rpl.sbtest (
id int unsigned NOT NULL AUTO_INCREMENT
, k int unsigned NOT NULL DEFAULT '0'
, c char(100) NOT NULL DEFAULT ''
, pad char(60) NOT NULL DEFAULT ''
, PRIMARY KEY (id)
, KEY k (k)
)
ENGINE=InnoDB;
EOF
②①
back1 back1_rpl back2 back2_rpl

35. café.naver.com/mysqlpg
Architecture
■ High Availability
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
spider1 << EOF
CREATE SERVER backend1 FOREIGN DATA WRAPPER mysql
OPTIONS( HOST '127.0.0.1‘, DATABASE 'backend‘ , … , PORT 10001);
CREATE SERVER backend1_rpl FOREIGN DATA WRAPPER mysql
OPTIONS( HOST '127.0.0.1‘, DATABASE 'backend_rpl‘, … , PORT 10001);
CREATE SERVER backend2 FOREIGN DATA WRAPPER mysql
OPTIONS( HOST '127.0.0.1‘, DATABASE 'backend‘ , … , PORT 10002);
CREATE SERVER backend2_rpl FOREIGN DATA WRAPPER mysql
OPTIONS( HOST '127.0.0.1‘, DATABASE 'backend_rpl‘, … , PORT 10002);
EOF
back1 back1_rpl back2 back2_rpl
④③

36. café.naver.com/mysqlpg
Architecture
■ High Availability
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
back1 back1_rpl back2 back2_rpl
spider1 << EOF
CREATE DATABASE IF NOT EXISTS test;
CREATE TABLE test.sbtest (
id int unsigned NOT NULL AUTO_INCREMENT
, k int unsigned NOT NULL DEFAULT '0'
, c char(100) NOT NULL DEFAULT ''
, pad char(60) NOT NULL DEFAULT ''
, PRIMARY KEY (id)
, KEY k (k)
)
ENGINE=spider COMMENT='wrapper "mysql", table "sbtest"'
PARTITION BY KEY (id)
(
PARTITION pt1 COMMENT = 'srv "backend1 backend2_rpl"'
, PARTITION pt2 COMMENT = 'srv "backend2 backend1_rpl"'
);
INSERT INTO test.sbtest select 10000001, 0, '' ,'replicas test';
EOF
⑤

37. café.naver.com/mysqlpg
Architecture
■ High Availability
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
back1 back1_rpl back2 back2_rpl
backend1 -e "SELECT * FROM backend.sbtest WHERE id=10000001";
+----------+---+---+---------------+
| id | k | c | pad |
+----------+---+---+---------------+
| 10000001 | 0 | | replicas test |
+----------+---+---+---------------+
backend2 -e "SELECT * FROM backend.sbtest where id=10000001";
backend2 -e "SELECT * FROM backend_rpl.sbtest where id=10000001";
+----------+---+---+---------------+
| id | k | c | pad |
+----------+---+---+---------------+
| 10000001 | 0 | | replicas test |
+----------+---+---+---------------+
⑥

38. café.naver.com/mysqlpg
Architecture
■ High Availability
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
back1 back1_rpl back2 back2_rpl
spider1 << EOF
insert into test.sbtest values (1, 100, 'A', 'A1');
insert into test.sbtest values (2, 200, 'A', 'A1');
insert into test.sbtest values (3, 300, 'A', 'A1');
insert into test.sbtest values (4, 400, 'A', 'A1');
insert into test.sbtest values (5, 500, 'A', 'A1');
EOF
backend1 -e "select (select count(*) from backend.sbtest) as cnt1
, (select count(*) from backend_rpl.sbtest) as cnt2"
+------+------+
| cnt1 | cnt2 |
+------+------+
| 4 | 2 |
+------+------+
backend2 -e "select (select count(*) from backend.sbtest) as cnt1
, (select count(*) from backend_rpl.sbtest) as cnt2"
+------+------+
| cnt1 | cnt2 |
+------+------+
| 2 | 4 |
+------+------+
⑦
⑧
4 42 2

39. café.naver.com/mysqlpg
Architecture
■ High Availability
What is happening if we stop one backend?
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
back1 back1_rpl back2 back2_rpl
spider1 -e "SELECT * FROM test.sbtest where id=10000001";
+----------+---+---+---------------+
| id | k | c | pad |
+----------+---+---+---------------+
| 10000001 | 0 | | replicas test |
+----------+---+---+---------------+
cd /usr1/mysql/sandboxes/data_node/node1 && ./stop
backend1 -e "SELECT * FROM backend.sbtest where id=10000001"
-- ERROR 2002 (HY000): Can't connect to local MySQL server through socket '/tmp/mysql_sandbox10001.sock'
spider1 -e "SELECT * FROM test.sbtest where id=10000001";
-- ERROR 1429 (HY000): Unable to connect to foreign data source: backend1_rpl
spider1 -e "SELECT * from mysql.spider_tables order by link_id, server";
cd /usr1/mysql/sandboxes/data_node/node1 && ./start
spider1 -e "SELECT * FROM test.sbtest where id=10000001";
+----------+---+---+---------------+
| id | k | c | pad |
+----------+---+---+---------------+
| 10000001 | 0 | | replicas test |
+----------+---+---+---------------+
⑨
⑩
4 42 2

40. café.naver.com/mysqlpg
Architecture
■ High Availability
What is happening if we stop one backend?
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
back1 back1_rpl back2 back2_rpl
-- Data Node Replica 모니터링 등록
spider1 << EOF
DROP TABLE IF EXISTS test.sbtest;
CREATE TABLE test.sbtest (
id int unsigned NOT NULL AUTO_INCREMENT
…
)
ENGINE=spider COMMENT='wrapper "mysql", table "sbtest"'
PARTITION BY KEY (id)
(
PARTITION pt1 COMMENT = 'srv "backend1 backend2_rpl", mbk "2", mkd "2", msi "1", link_status "0 0"'
, PARTITION pt2 COMMENT = 'srv "backend2 backend1_rpl", mbk "2", mkd "2", msi "1", link_status "0 0"'
);
CREATE SERVER mon FOREIGN DATA WRAPPER mysql
OPTIONS ( HOST '127.0.0.1', DATABASE 'test', … , PORT 3306);
INSERT INTO mysql.spider_link_mon_servers VALUES ('%','%','%',1,'mon‘
,NULL,NULL,NULL,NULL,NULL,NULL,NULL,NULL,NULL,NULL,NULL,0,NULL,NULL);
SELECT * FROM mysql.spider_link_mon_servers;
SELECT spider_flush_table_mon_cache();
EOF
HA 모니터링을 관장할
서버의 @@Service_ID
- Spider_Node : 1, 2
- Data_Node : 101, 102
Node Status
1 : 정상, 3 : 중지
2 : 관리 작업 중
@@server_id = 1
@@server_id = 101
@@server_id = 102
⑪

41. café.naver.com/mysqlpg
Architecture
■ High Availability
What is happening if we stop one backend?
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
back1 back1_rpl back2 back2_rpl
spider1 -e "SELECT * FROM test.sbtest where id=10000001";
+----------+---+---+---------------+
| id | k | c | pad |
+----------+---+---+---------------+
| 10000001 | 0 | | replicas test |
+----------+---+---+---------------+
cd /usr1/mysql/sandboxes/data_node/node1 && ./stop
backend1 -e "SELECT * FROM backend.sbtest where id=10000001"
-- ERROR 2002 (HY000): Can't connect to local MySQL server through socket '/tmp/mysql_sandbox10001.sock'
spider1 -e "SELECT * FROM test.sbtest where id=10000001";
+----------+---+---+---------------+
| id | k | c | pad |
+----------+---+---+---------------+
| 10000001 | 0 | | replicas test |
+----------+---+---+---------------+
spider1 -e "SELECT * from mysql.spider_tables order by link_id, server";
+---------+--------------+--------------+-------------+
| link_id | server | table_name | link_status |
+---------+--------------+--------------+-------------+
| 0 | backend1 | sbtest#P#pt1 | 3 |
| 1 | backend1_rpl | sbtest#P#pt2 | 3 |
| 0 | backend2 | sbtest#P#pt2 | 1 |
| 1 | backend2_rpl | sbtest#P#pt1 | 1 |
+---------+--------------+--------------+-------------+
데이터 조회는 되었지만,
실제는 fail 상태로 존재함
⑫

42. café.naver.com/mysqlpg
Architecture
■ High Availability
What is happening if we stop one backend?
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
back1 back1_rpl back2 back2_rpl
cd /usr1/mysql/sandboxes/data_node/node1 && ./start
spider1 << EOF
select * from mysql.spider_tables order by link_id, server, table_name;
-- link status 변경 : fail -> maintenance
ALTER TABLE test.sbtest
ENGINE=spider COMMENT='wrapper "mysql", table "sbtest"'
PARTITION BY KEY (id)
(
PARTITION pt1 COMMENT = 'srv "backend1 backend2_rpl", mbk "2", mkd "2", msi "1", link_status "2 0"'
, PARTITION pt2 COMMENT = 'srv "backend2 backend1_rpl", mbk "2", mkd "2", msi "1", link_status "0 2"'
);
select * from mysql.spider_tables order by link_id, server, table_name;
+---------+--------------+--------------+-------------+
| link_id | server | table_name | link_status |
+---------+--------------+--------------+-------------+
| 0 | backend1 | sbtest#P#pt1 | 2 |
| 1 | backend1_rpl | sbtest#P#pt2 | 2 |
| 0 | backend2 | sbtest#P#pt2 | 1 |
| 1 | backend2_rpl | sbtest#P#pt1 | 1 |
+---------+--------------+--------------+-------------+
⑬

43. café.naver.com/mysqlpg
Architecture
■ High Availability
What is happening if we stop one backend?
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
back1 back1_rpl back2 back2_rpl
select * from mysql.spider_tables order by link_id, server, table_name;
+---------+--------------+--------------+-------------+
| link_id | server | table_name | link_status |
+---------+--------------+--------------+-------------+
| 0 | backend1 | sbtest#P#pt1 | 2 |
| 1 | backend1_rpl | sbtest#P#pt2 | 2 |
| 0 | backend2 | sbtest#P#pt2 | 1 |
| 1 | backend2_rpl | sbtest#P#pt1 | 1 |
+---------+--------------+--------------+-------------+
select spider_copy_tables('test.sbtest#P#pt1','1','0');
-- 1
select spider_copy_tables('test.sbtest#P#pt2','0','1');
-- 1
⑭

44. café.naver.com/mysqlpg
Architecture
■ High Availability
What is happening if we stop one backend?
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
back1 back1_rpl back2 back2_rpl
-- link status 변경 : maintenance -> live
ALTER TABLE test.sbtest
ENGINE=spider COMMENT='wrapper "mysql", table "sbtest"'
PARTITION BY KEY (id)
(
PARTITION pt1 COMMENT = 'srv "backend1 backend2_rpl", mbk "2", mkd "2", msi "1", link_status "1 0"'
, PARTITION pt2 COMMENT = 'srv "backend2 backend1_rpl", mbk "2", mkd "2", msi "1", link_status "0 1"'
);
select * from mysql.spider_tables order by link_id, server, table_name;
+---------+--------------+--------------+-------------+
| link_id | server | table_name | link_status |
+---------+--------------+--------------+-------------+
| 0 | backend1 | sbtest#P#pt1 | 1 |
| 1 | backend1_rpl | sbtest#P#pt2 | 1 |
| 0 | backend2 | sbtest#P#pt2 | 1 |
| 1 | backend2_rpl | sbtest#P#pt1 | 1 |
+---------+--------------+--------------+-------------+
⑮

45. café.naver.com/mysqlpg
Architecture
■ High Availability
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
back1 back1_rpl back2 back2_rpl
spider1 << EOF
insert into test.sbtest values (1, 100, 'A', 'A1');
insert into test.sbtest values (2, 200, 'A', 'A1');
insert into test.sbtest values (3, 300, 'A', 'A1');
insert into test.sbtest values (4, 400, 'A', 'A1');
insert into test.sbtest values (5, 500, 'A', 'A1');
EOF
backend1 -e "select (select count(*) from backend.sbtest) as cnt1
, (select count(*) from backend_rpl.sbtest) as cnt2"
+------+------+
| cnt1 | cnt2 |
+------+------+
| 4 | 2 |
+------+------+
backend2 -e "select (select count(*) from backend.sbtest) as cnt1
, (select count(*) from backend_rpl.sbtest) as cnt2"
+------+------+
| cnt1 | cnt2 |
+------+------+
| 2 | 4 |
+------+------+

46. café.naver.com/mysqlpg
Architecture
■ High Availability
Reference : https://mariadb.com/kb/en/mariadb/spider-storage-engine-overview/
select link_id, server, table_name, link_status
from mysql.spider_tables
order by link_id, server, table_name

47. café.naver.com/mysqlpg
Architecture
■ High Availability

48. café.naver.com/mysqlpg
Architecture

49. café.naver.com/mysqlpg

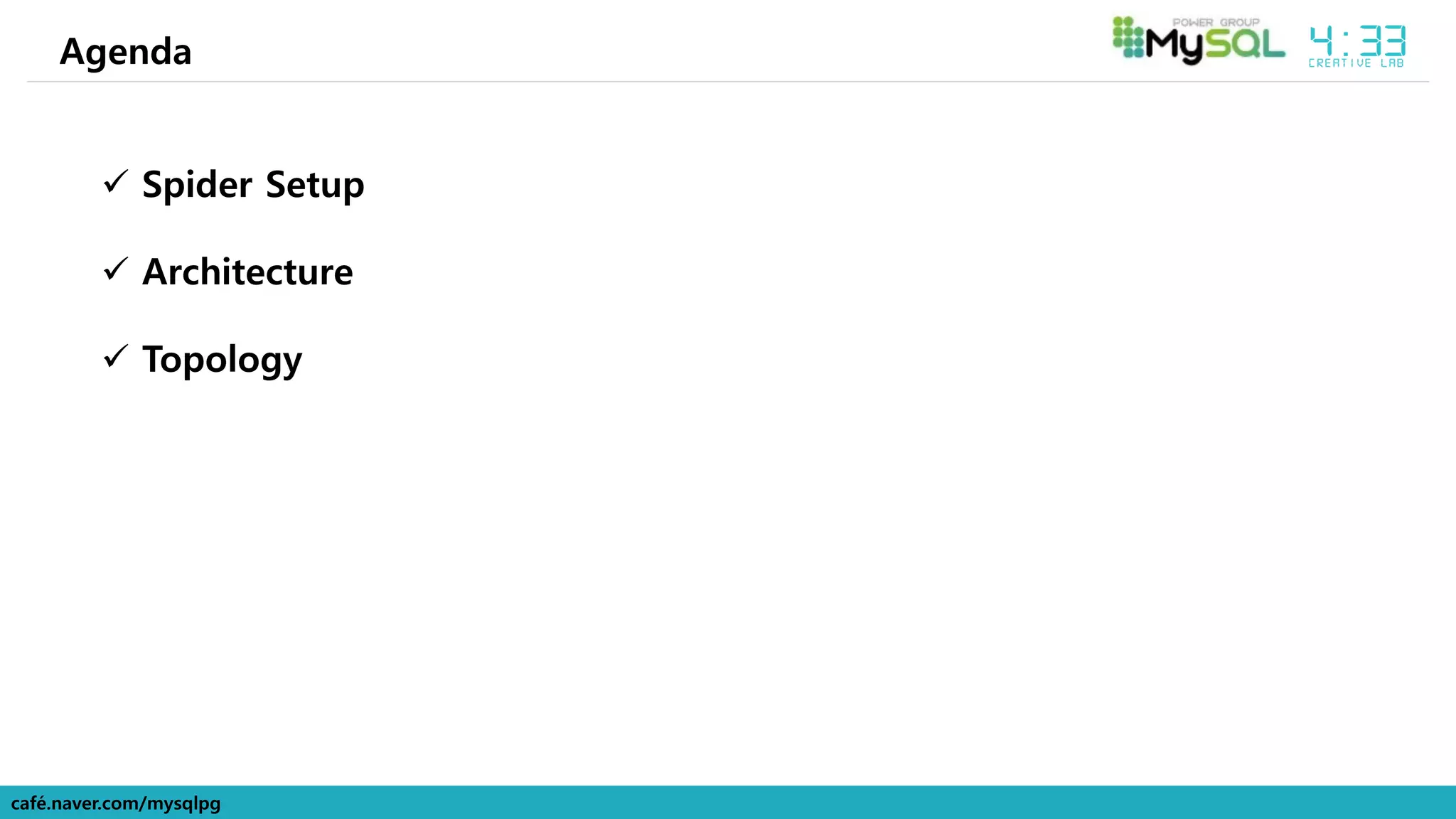

 Spider Setup
 Architecture
 Topology
Agenda

50. café.naver.com/mysqlpg
Topology
FrontDB
Master1 Slave1
Master2 Slave2
Master3 Slave3

51. café.naver.com/mysqlpg
Topology
FrontDB
Master1 Slave1
Master2 Slave2
Master3 Slave3
Master1 Slave1
Master2 Slave2
Master3 Slave3
CollectDB
(ETL)

52. café.naver.com/mysqlpg
Topology
Master1 Slave1
Master2 Slave2
Master3 Slave3
FrontDB1
FrontDB2
CollectDB1
(admintool)
CollectDB2
(ETL)

53. café.naver.com/mysqlpg
Topology
Master3
Master3a
Master1
Master1a
Master2
Master2a
FrontDB1
FrontDB2
CollectDB
FrontDB
Master1 Slave1
Master2 Slave2
Master3 Slave3
Master1 Slave1
Master2 Slave2
Master3 Slave3
CollectDB
(ETL)
Master1 Slave1
Master2 Slave2
Master3 Slave3
FrontDB1
FrontDB2
CollectDB1
(admintool)
CollectDB2
(ETL)

54. café.naver.com/mysqlpg
Topology
FrontDB
Master1 Slave1
Master2 Slave2
Master3 Slave3
Master1 Slave1
Master2 Slave2
Master3 Slave3
Master1 Slave1
Master2 Slave2
Master3 Slave3
FrontDB1
FrontDB2
Master1
Master1a
Master2
MAster2a
Master3
Master3a
FrontDB1
FrontDB2
&
CollectDB
CollectDB
(ETL)
CollectDB1
(admintool)
CollectDB2
(ETL)
Master3
Master3a
Master1
Master1a
Master2
Master2a
FrontDB1
FrontDB2

55. café.naver.com/mysqlpg
Topology
FrontShard1 FrontShard2
Master1 Master1a
Master2 MAster2a
Spec : 12Core / 32GB
 Spider : 1GB
 Data1 : 6GB
 Data2 : 6GB
 DB Connection 수에 주의 !!!
Dev, QA
Live 1단계
FrontShard1 FrontShard2
Master1 Master1a
Master2 MAster2a
DB 부하 및 서비스 오픈 전략에 맞춰 서버 배치 진행
Live 2단계

56. café.naver.com/mysqlpg
