MVC
Model View Controller
MVC purpose?
● An architecture for separating
components of a large code block by
abstracting components of a large code
base into smaller manageable pieces.
● Can be used to structure code of any language
MVC components?
● Model - database management
● View - user interface
● Controller - logic for user requests
MVC.pptx
Model purpose?
● The model in MVC architecture is responsible
for manipulating the data.
● Structuring data.
● Inserting, deleting, updating…
● Never interacts with the view directly
Model example
● The model will define what an acceptable piece of data
should look like.
● Any piece of data not adhering to the model structure
should not be allowed into the database.
Model
Student {
Name: String
Class: String,
Grade: Number,
}
Valid
Student {
Name: “Bob”,
Class: “Math”,
Grade: 80,
}
Not Valid
Student {
ID: 808,
Class:501 ,
Grade: “Pass”,
}

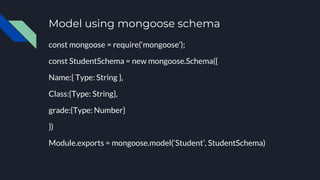

Model using mongoose schema
const mongoose = require(‘mongoose’);
const StudentSchema = new mongoose.Schema({
Name:{ Type: String },
Class:{Type: String},
grade:{Type: Number}
})
Module.exports = mongoose.model(‘Student’, StudentSchema)

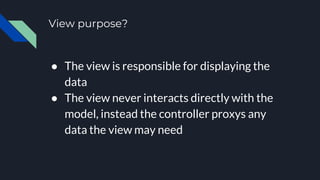

View purpose?
● The view is responsible for displaying the
data
● The view never interacts directly with the
model, instead the controller proxys any
data the view may need
View examples
Views provide the user interface in the MVC
architecture and can be simple html or
template engines like EJS and Express-
Handlebars
<%= EJS %>

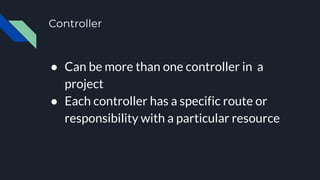

Controller
● Can be more than one controller in a
project
● Each controller has a specific route or
responsibility with a particular resource

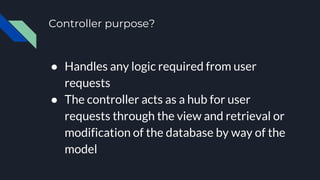

Controller purpose?
● Handles any logic required from user
requests
● The controller acts as a hub for user
requests through the view and retrieval or
modification of the database by way of the
model
Controller answering a request from the
user
//inventory router directs request to applicable
controllers
Router.get('/',inventoryController.getInventory)
Router.post('/', inventoryController.addPart)
● Router has determined controllers responsible for
specific resources to handle requests

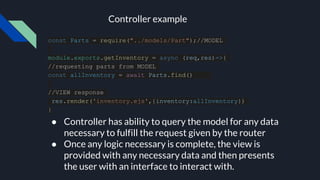

const Parts = require("../models/Part");//MODEL
module.exports.getInventory = async (req,res)=>{
//requesting parts from MODEL
const allInventory = await Parts.find()
//VIEW response
res.render('inventory.ejs',{inventory:allInventory})
}
● Controller has ability to query the model for any data
necessary to fulfill the request given by the router
● Once any logic necessary is complete, the view is
provided with any necessary data and then presents
the user with an interface to interact with.

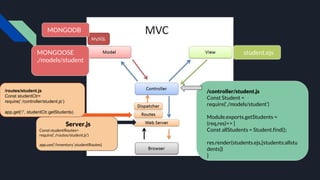

Controller example
student.ejs
MONGODB
/controller/student.js
Const Student =
require(‘./models/student’)
Module.exports.getStudents =
(req,res)=> {
Const allStudents = Student.find();
res.render(students.ejs,{students:allstu
dents})
}
MONGOOSE
./models/student
Server.js
Const studentRoutes=
require(‘./routes/student.js’)
app.use(‘/inventory’,studentRoutes)
/routes/student.js
Const studentCtr=
require(‘./controller/student.js’)
app.get(‘/’, studentCtr.getStudents)
