1. All contents © MuleSoft, LLC
28 Ottobre 2022
MILANO MuleSoft Meetup Group
Batch Processing Best Practices - Luca Bonaldo
Introduzione a CI/CD con Mulesoft - Paolo Petronzi

2. All contents © MuleSoft, LLC
MuleSoft Meetup Milano – Luca Bonaldo, Software developer
Batch Processing

3. All contents © MuleSoft, LLC
Agenda
1. What is a batch job?
2. When to use batch process?
3. Batch job phases
4. Batch Configuration
5. Batch Steps and Aggregators
6. Batch and API Led
7. Tuning and sizing
8. Tips and tricks
9. For Each vs Batch Job

4. “Batch Process” - is the processing of
application programs and their data
individually, with one being completed
before the next is started.

5. All contents © MuleSoft, LLC

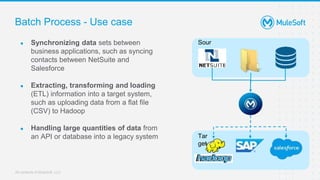

Batch Process - Use case
● Synchronizing data sets between
business applications, such as syncing
contacts between NetSuite and
Salesforce
● Extracting, transforming and loading
(ETL) information into a target system,
such as uploading data from a flat file
(CSV) to Hadoop
● Handling large quantities of data from
an API or database into a legacy system
Sour
ce
Tar
get

6. All contents © MuleSoft, LLC

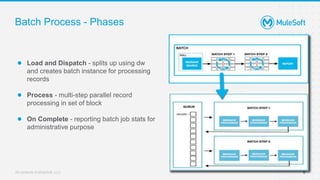

Batch Process - Phases
6
● Load and Dispatch - splits up using dw
and creates batch instance for processing
records
● Process - multi-step parallel record
processing in set of block
● On Complete - reporting batch job stats for
administrative purpose

7. All contents © MuleSoft, LLC

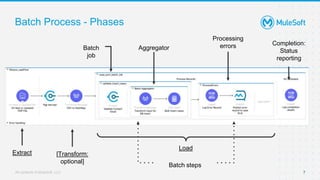

Batch Process - Phases
7
[Transform:
optional]
Aggregator
Processing
errors
Extract
Load
Completion:
Status
reporting
Batch steps
Batch
job

8. All contents © MuleSoft, LLC

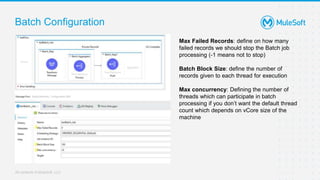

Batch Configuration
Max Failed Records: define on how many
failed records we should stop the Batch job
processing (-1 means not to stop)
Batch Block Size: define the number of
records given to each thread for execution
Max concurrency: Defining the number of
threads which can participate in batch
processing if you don’t want the default thread
count which depends on vCore size of the
machine

9. All contents © MuleSoft, LLC

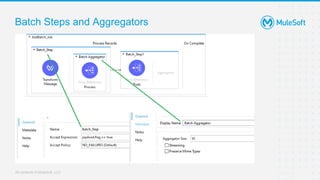

Batch Steps and Aggregators

10. All contents © MuleSoft, LLC

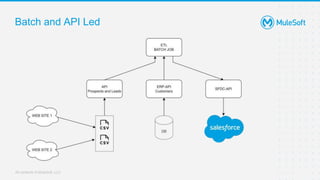

Batch and API Led

11. All contents © MuleSoft, LLC

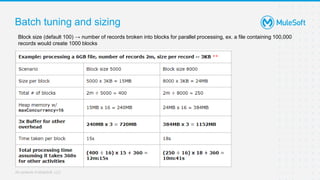

Batch tuning and sizing
Block size (default 100) → number of records broken into blocks for parallel processing, ex. a file containing 100,000
records would create 1000 blocks

12. All contents © MuleSoft, LLC

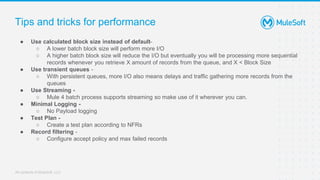

Tips and tricks for performance
● Use calculated block size instead of default-
○ A lower batch block size will perform more I/O
○ A higher batch block size will reduce the I/O but eventually you will be processing more sequential
records whenever you retrieve X amount of records from the queue, and X < Block Size
● Use transient queues -
○ With persistent queues, more I/O also means delays and traffic gathering more records from the
queues
● Use Streaming -
○ Mule 4 batch process supports streaming so make use of it wherever you can.
● Minimal Logging -
○ No Payload logging
● Test Plan -
○ Create a test plan according to NFRs
● Record filtering -
○ Configure accept policy and max failed records

13. All contents © MuleSoft, LLC

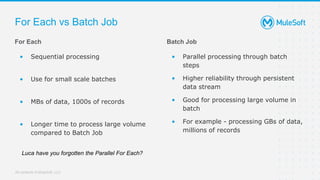

Batch Job
• Parallel processing through batch
steps
• Higher reliability through persistent
data stream
• Good for processing large volume in
batch
• For example - processing GBs of data,
millions of records
For Each vs Batch Job
For Each
• Sequential processing
• Use for small scale batches
• MBs of data, 1000s of records
• Longer time to process large volume
compared to Batch Job
Luca have you forgotten the Parallel For Each?

14. All contents © MuleSoft, LLC
MuleSoft Meetup Milano – Paolo Umberto Petronzi, Software Architect
Introduzione a CI/CD con Mulesoft

15. All contents © MuleSoft, LLC
Agenda
1. Intro
2. Continuous Integration
3. Continuous Delivery
4. CI/CD in Mulesoft

16. All contents © MuleSoft, LLC
1 - Intro

17. All contents © MuleSoft, LLC
Intro
Goals
● Anticipate risks
● Left-shift of testing phase to the early stages of software development
● Reduce time to market
● Improve code quality
● Lighten software development and delivery process

18. All contents © MuleSoft, LLC
2 - Continuous
Integration

19. All contents © MuleSoft, LLC

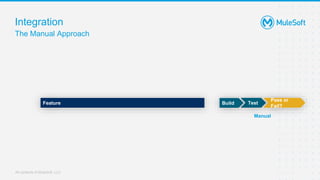

Integration
The Manual Approach
Feature Test
Pass or
Fail?
Build
Manual

20. All contents © MuleSoft, LLC

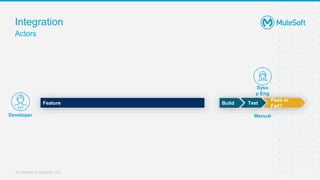

Integration
Actors
Feature
Syso
p Eng
Test
Pass or
Fail?
Build
Manual
Developer

21. All contents © MuleSoft, LLC

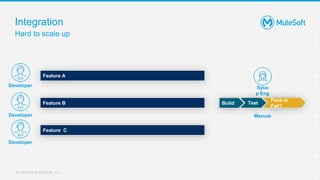

Integration
Hard to scale up
Feature A
Feature B
Syso
p Eng
Test
Pass or
Fail?
Build
Feature C
Manual
Developer
Developer
Developer

22. All contents © MuleSoft, LLC

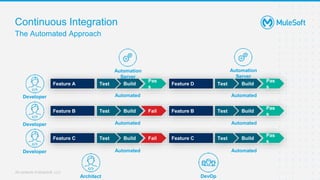

Continuous Integration
The Automated Approach
Developer
Feature A
Feature B
Feature C
Build
Pas
s
Test
Build Fail
Test
Build Fail
Test
Feature D
Feature B
Feature C
Build
Pas
s
Test
Build
Test
Build
Test
Pas
s
Pas
s
Automation
Server
Automated
Automated
Automated
Automated
Automated
Automated
Architect DevOp
Developer
Developer
Automation
Server

23. All contents © MuleSoft, LLC
2 - Continuous Delivery

24. All contents © MuleSoft, LLC

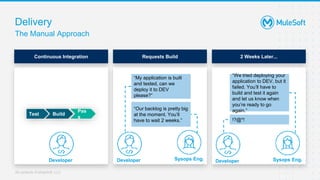

Delivery
The Manual Approach
Requests Build
Sysops Eng.
Developer
Build
Pas
s
Test
Continuous Integration 2 Weeks Later...
“My application is built
and tested, can we
deploy it to DEV
please?”
“Our backlog is pretty big
at the moment. You’ll
have to wait 2 weeks.”
“We tried deploying your
application to DEV, but it
failed. You’ll have to
build and test it again
and let us know when
you’re ready to go
again.”
!?@*!
Developer Sysops Eng.
Developer

25. All contents © MuleSoft, LLC
Continuous Delivery
The Automated Approach
Continuous
Integration
Build
Test
Acceptance
Test
Deploy to
Staging
Deploy to
Production
Automated Manual
Test if the requirements
for deploying are met
Deploy to a test environment to verify
behaviour, do performance testing etc.
Feature
Automated
Automated
Automated
Automation
Server

26. All contents © MuleSoft, LLC

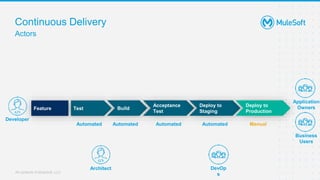

Continuous Delivery
Actors
Build
Test
Acceptance
Test
Deploy to
Staging
Deploy to
Production
Automated Manual
Feature
Automated
Automated
Automated
Developer
Application
Owners
Business
Users
Architect DevOp
s

27. All contents © MuleSoft, LLC

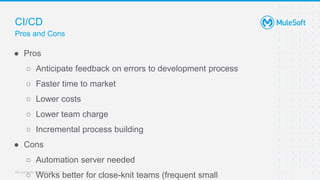

CI/CD
Pros and Cons
● Pros
○ Anticipate feedback on errors to development process
○ Faster time to market
○ Lower costs
○ Lower team charge
○ Incremental process building
● Cons
○ Automation server needed
○ Works better for close-knit teams (frequent small

28. All contents © MuleSoft, LLC
3 - CI/CD in Mulesoft

29. All contents © MuleSoft, LLC

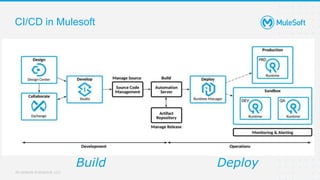

CI/CD in Mulesoft
Build Deploy

30. All contents © MuleSoft, LLC

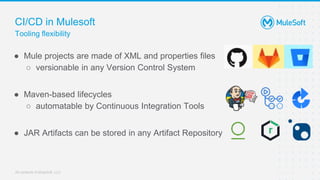

CI/CD in Mulesoft
Tooling flexibility
● Mule projects are made of XML and properties files
○ versionable in any Version Control System
● Maven-based lifecycles
○ automatable by Continuous Integration Tools
● JAR Artifacts can be stored in any Artifact Repository

31. All contents © MuleSoft, LLC

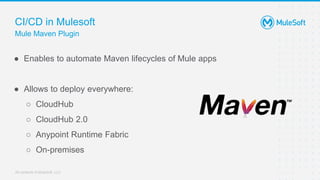

CI/CD in Mulesoft
Mule Maven Plugin
● Enables to automate Maven lifecycles of Mule apps
● Allows to deploy everywhere:
○ CloudHub
○ CloudHub 2.0
○ Anypoint Runtime Fabric
○ On-premises

32. All contents © MuleSoft, LLC

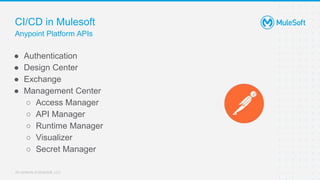

CI/CD in Mulesoft
Anypoint Platform APIs
● Authentication
● Design Center
● Exchange
● Management Center
○ Access Manager
○ API Manager
○ Runtime Manager
○ Visualizer
○ Secret Manager

33. All contents © MuleSoft, LLC
CI/CD in Mulesoft
Anypoint CLI
● Scripting + command-line (Anypoint Platform / Anypoint PCE)
○ Account
○ API Manager
○ CloudHub (Apps, VPCs, DLBs)
○ CloudHub 2.0
○ Local Servers, Server Groups and Clusters
○ Runtime Fabric
○ Design Center
○ Exchange

34. All contents © MuleSoft, LLC

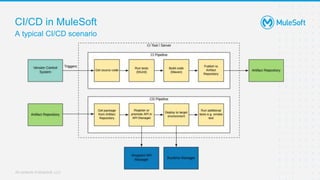

CI/CD in MuleSoft
A typical CI/CD scenario

35. All contents © MuleSoft, LLC
Next Meetup
(The best is yet to come!)

36. All contents © MuleSoft, LLC

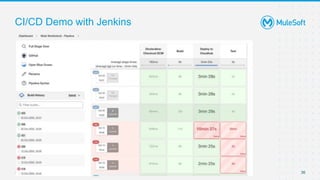

CI/CD Demo with Jenkins
36

37. All contents © MuleSoft, LLC

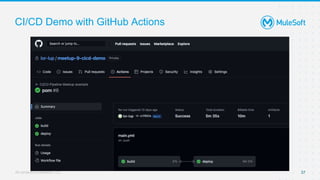

CI/CD Demo with GitHub Actions
37

38. All contents © MuleSoft, LLC
Diventa il prossimo Meetup Speaker!
● Mostra alla community un vero caso d’uso di CI/CD
● Condividi un argomento che può essere interessante
all’indirizzo email meetup@florence-consulting.it
● Sceglieremo la proposta più originale
● Riceverai un voucher per partecipare ad un corso
MuleSoft a tua scelta
● Riceverai gadgets della MuleSoft community
38

39. All contents © MuleSoft, LLC
GRAZIE!
We Are Hiring!

40. All contents © MuleSoft, LLC
Contattaci all’indirizzo meetup@florence-
consulting.it
Hai ancora domande e vuoi
approfondire in separata sede?
Invia il tuo feedback
Finito l’evento riceverai una e-mail per inviare il
tuo feedback: facci sapere con precisione quali
sono i topic che ti piacerebbe approfondire
insieme!
We Are Hiring!

41. All contents © MuleSoft, LLC
Thank You
