This document provides an overview and agenda for a Mojito training session. It discusses what Mojito is, its architecture, how to install and set it up, how to create a simple weather application in Mojito, and various Mojito components like mojits, models, controllers, views, binders, addons, configuration, assets and logging. It also provides links to code examples and documentation.

1. Mojito training
Keshavaprasad B S

2. ● What is Mojito?
● Mojito Architecture
● Installation & Setup
● Create a simple weather app
○ Understand application components
○ Deep dive into few of them
● Create a composite mojit
● Lazy Mojit
Agenda

3. ● Mojito is a node module and hence benefits from the speed and
scalability on Node.js. It uses express package of Node.js.
● MVC framework built on YUI3
● Mojito offers:
○ Library for internationalization & localization
○ Device specific presentation
○ Ability to run the same code on either client or the server
○ Integrated unit testing
What is Mojito?

4. ● Designed with the goal of running
in multiple runtime environments
and supporting online and offline
experiences.
○ Mobile browser: supports
HTML-based online
experience; may also support
an HTML5-based offline
experience
○ Desktop browser: assumed to
be always connected; supports
HTML-based online
experience
○ Native client: deployed as
packaged applications,
wrapping native chrome
around an HTML5-based
experience
Mojito architecture

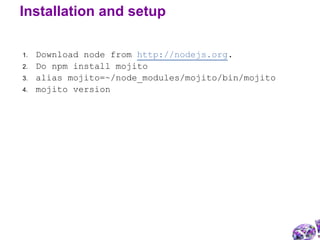

5. 1. Download node from http://nodejs.org.
2. Do npm install mojito
3. alias mojito=~/node_modules/mojito/bin/mojito
4. mojito version
Installation and setup

6. ● Basic unit of composition and reuse in a Mojito application
● Why Mojit? : Module + Widget = Mojit
● Path: <app_name>/mojits/<mojit_name>
● Mojit components:
○ Models
○ Controller
○ Binders
○ View files
● Example: https://github.com/kbsbng/mojito-
examples/tree/master/HelloWorld/mojits/helloWorld
Application components: mojit

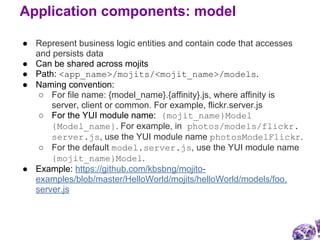

7. ● Represent business logic entities and contain code that accesses
and persists data
● Can be shared across mojits
● Path: <app_name>/mojits/<mojit_name>/models.
● Naming convention:
○ For file name: {model_name}.{affinity}.js, where affinity is
server, client or common. For example, flickr.server.js
○ For the YUI module name: {mojit_name}Model
{Model_name}. For example, in photos/models/flickr.
server.js, use the YUI module name photosModelFlickr.
○ For the default model.server.js, use the YUI module name
{mojit_name}Model.
● Example: https://github.com/kbsbng/mojito-
examples/blob/master/HelloWorld/mojits/helloWorld/models/foo.
server.js
Application components: model

8. ● Path: <app_name>/mojits/<mojit_name>/controller.
server.js.
● Naming convention:
○ For the file name: controller.{affinity}.js, where
affinity is common, server, or client.
○ For the YUI module name: use the mojit name.
● Example: https://github.com/kbsbng/mojito-
examples/blob/master/HelloWorld/mojits/helloWorld/controller.
server.js
● Controller <=> Model communication:
○ through ActionContext: ac.models.get
('{model_name}').{model_function}
● Passing data to the view.
○ through ActionContext: ac.done(data).
Application components: controller

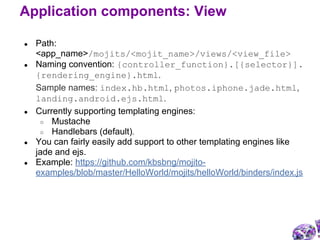

9. ● Path:
<app_name>/mojits/<mojit_name>/views/<view_file>
● Naming convention: {controller_function}.[{selector}].
{rendering_engine}.html.
Sample names: index.hb.html, photos.iphone.jade.html,
landing.android.ejs.html.
● Currently supporting templating engines:
○ Mustache
○ Handlebars (default).
● You can fairly easily add support to other templating engines like
jade and ejs.
● Example: https://github.com/kbsbng/mojito-
examples/blob/master/HelloWorld/mojits/helloWorld/binders/index.js
Application components: View

10. ● Runs only on the client side
● Binders can
○ Attach event handlers to the mojit's DOM node
○ Communicate with other mojits on the page
○ Execute actions on the mojit that the binder is attached to
○ Refresh the mojit
● Example: https://github.com/kbsbng/mojito-
examples/blob/master/SimpleWeatherApp/mojits/Weather/binders/i
ndex.js
Application components: binder

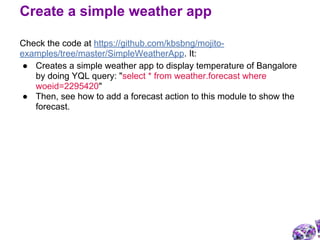

11. Check the code at https://github.com/kbsbng/mojito-
examples/tree/master/SimpleWeatherApp. It:
● Creates a simple weather app to display temperature of Bangalore
by doing YQL query: "select * from weather.forecast where
woeid=2295420"
● Then, see how to add a forecast action to this module to show the
forecast.
Create a simple weather app

12. ● https://github.com/kbsbng/mojito-
examples/blob/master/SimpleWeatherApp/routes.json
Deep dive: routing

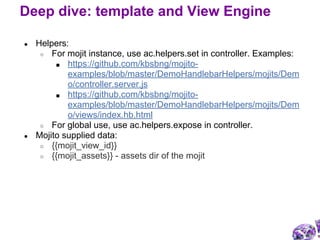

13. ● Helpers:
○ For mojit instance, use ac.helpers.set in controller. Examples:
■ https://github.com/kbsbng/mojito-
examples/blob/master/DemoHandlebarHelpers/mojits/Dem
o/controller.server.js
■ https://github.com/kbsbng/mojito-
examples/blob/master/DemoHandlebarHelpers/mojits/Dem
o/views/index.hb.html
○ For global use, use ac.helpers.expose in controller.
● Mojito supplied data:
○ {{mojit_view_id}}
○ {{mojit_assets}} - assets dir of the mojit
Deep dive: template and View Engine

14. ● Example: https://github.com/kbsbng/mojito-
examples/tree/master/SimpleWeatherApp/mojits/Weather
Deep dive: Controller actions, action <=>
view mapping

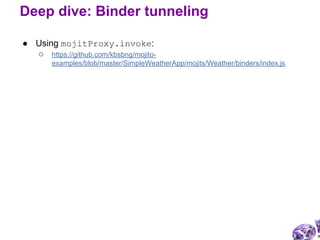

15. ● Using mojitProxy.invoke:
○ https://github.com/kbsbng/mojito-
examples/blob/master/SimpleWeatherApp/mojits/Weather/binders/index.js
Deep dive: Binder tunneling

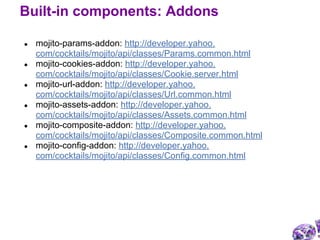

16. ● mojito-params-addon: http://developer.yahoo.
com/cocktails/mojito/api/classes/Params.common.html
● mojito-cookies-addon: http://developer.yahoo.
com/cocktails/mojito/api/classes/Cookie.server.html
● mojito-url-addon: http://developer.yahoo.
com/cocktails/mojito/api/classes/Url.common.html
● mojito-assets-addon: http://developer.yahoo.
com/cocktails/mojito/api/classes/Assets.common.html
● mojito-composite-addon: http://developer.yahoo.
com/cocktails/mojito/api/classes/Composite.common.html
● mojito-config-addon: http://developer.yahoo.
com/cocktails/mojito/api/classes/Config.common.html
Built-in components: Addons

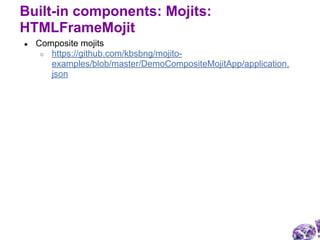

17. ● Composite mojits
○ https://github.com/kbsbng/mojito-
examples/blob/master/DemoCompositeMojitApp/application.
json
Built-in components: Mojits:
HTMLFrameMojit

18. ● To use lazy mojit, app should:
○ create a top-level mojit instance of type HTMLFrameMojit
○ deploy the mojit instance of type HTMLFrameMojit to the client
("deploy": true)
○ create a container mojit that has children mojit instances
("children": { ... })
○ defer the dispatch of the mojit instance that will be lazily loaded
("defer": true)
Built-in components: Mojits: LazyMojit

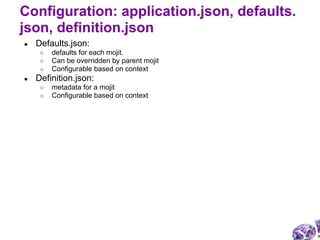

19. ● Defaults.json:
○ defaults for each mojit.
○ Can be overridden by parent mojit
○ Configurable based on context
● Definition.json:
○ metadata for a mojit
○ Configurable based on context
Configuration: application.json, defaults.
json, definition.json

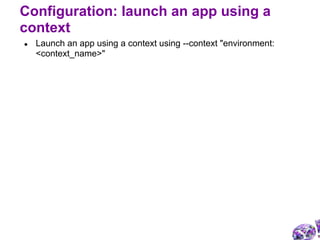

20. ● Launch an app using a context using --context "environment:
<context_name>"
Configuration: launch an app using a
context

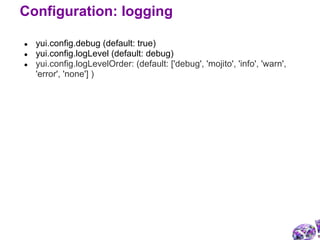

21. ● yui.config.debug (default: true)
● yui.config.logLevel (default: debug)
● yui.config.logLevelOrder: (default: ['debug', 'mojito', 'info', 'warn',
'error', 'none'] )
Configuration: logging

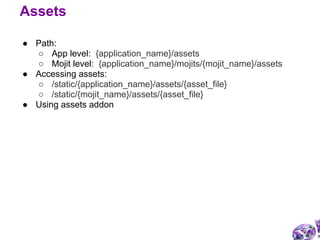

22. ● Path:
○ App level: {application_name}/assets
○ Mojit level: {application_name}/mojits/{mojit_name}/assets
● Accessing assets:
○ /static/{application_name}/assets/{asset_file}
○ /static/{mojit_name}/assets/{asset_file}
● Using assets addon
Assets

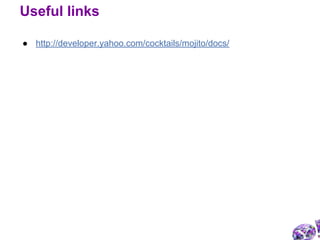

23. ● http://developer.yahoo.com/cocktails/mojito/docs/
Useful links

24. Thanks!
