1. Summary
MODEL
MOdel DrivEn and quaLity
Antonio Troina [708267], Federico Villa [720492]
{antonio.troina , federico.villa}@mail.polimi.it
Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano
http://www.polimi.it
May 27, 2008
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it

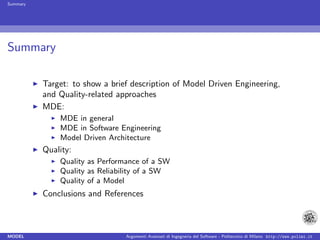

2. Summary
Summary
Target: to show a brief description of Model Driven Engineering,
and Quality-related approaches
MDE:
MDE in general
MDE in Software Engineering
Model Driven Architecture
Quality:
Quality as Performance of a SW
Quality as Reliability of a SW
Quality of a Model
Conclusions and References
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it

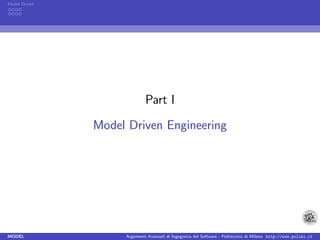

3. Model Driven
Part I
Model Driven Engineering
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
4. Model Driven

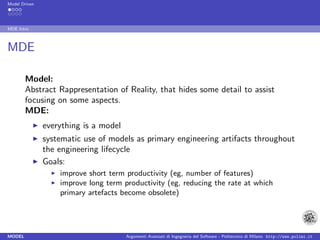

MDE Intro
MDE
Model:
Abstract Rappresentation of Reality, that hides some detail to assist
focusing on some aspects.
MDE:
everything is a model
systematic use of models as primary engineering artifacts throughout
the engineering lifecycle
Goals:
improve short term productivity (eg, number of features)
improve long term productivity (eg, reducing the rate at which
primary artefacts become obsolete)
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
5. Model Driven
MDE Intro

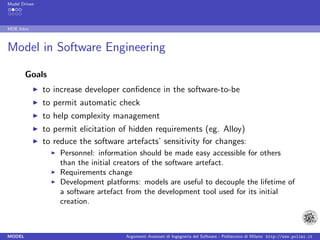

Model in Software Engineering
Goals
to increase developer confidence in the software-to-be
to permit automatic check
to help complexity management
to permit elicitation of hidden requirements (eg. Alloy)
to reduce the software artefacts’ sensitivity for changes:
Personnel: information should be made easy accessible for others
than the initial creators of the software artefact.
Requirements change
Development platforms: models are useful to decouple the lifetime of
a software artefact from the development tool used for its initial
creation.
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
6. Model Driven
MDE Intro
MDE in Software Engineering
Developers represent designs using models that conform to an
appropriate metamodel which are then automatically transformed to
implementation by specific tools
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
7. Model Driven
MDE Intro
The Businness Logic - Domain Specific Languages
it’s a programming language or specification language dedicated to a
particular problem domain (e.g queries for database, regular
expression for text search)
it provides a language with notation and concepts geared to the
domain
while models are tend to be designed for describing structures, DSL
are suitable to describe businness logic
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
8. Model Driven
MDA Overview

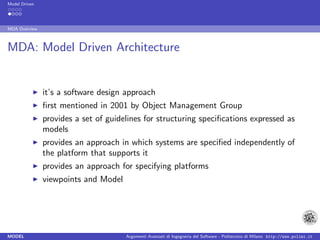

MDA: Model Driven Architecture
it’s a software design approach
first mentioned in 2001 by Object Management Group
provides a set of guidelines for structuring specifications expressed as
models
provides an approach in which systems are specified independently of
the platform that supports it
provides an approach for specifying platforms
viewpoints and Model
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
9. Model Driven
MDA Overview
MDA Overview
Viewpoints:
Computation Independent Viewpoint: it focuses on the environment
of the system and on the requirements
Platform Independent Viewpoint: it focuses on operations of the
system showing the part that does not change from one platform to
another.
Platform Specific Viewpoint: combines PIV with elements related to
a specific platform.
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
10. Model Driven
MDA Overview
MDA Overview

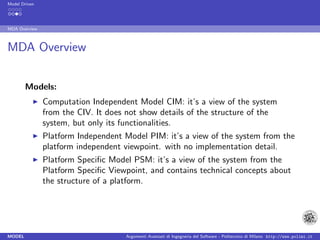

Models:
Computation Independent Model CIM: it’s a view of the system
from the CIV. It does not show details of the structure of the
system, but only its functionalities.
Platform Independent Model PIM: it’s a view of the system from the
platform independent viewpoint. with no implementation detail.
Platform Specific Model PSM: it’s a view of the system from the
Platform Specific Viewpoint, and contains technical concepts about
the structure of a platform.
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
11. Model Driven
MDA Overview
MDA Overview

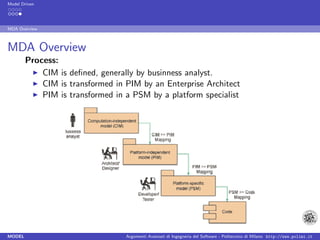

Process:
CIM is defined, generally by businness analyst.
CIM is transformed in PIM by an Enterprise Architect
PIM is transformed in a PSM by a platform specialist
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
12. Quality Sofware Performace Sofware Reliability Model Quality
Part II
Quality
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
13. Quality Sofware Performace Sofware Reliability Model Quality
Quality Overview
What is Software Quality?
Quality is very difficult to understand
Trascendent view: quality is something that can be perceived but not
defined
Manufacturing view: Quality as conformance to product
specifications
User view: quality as fitnes for the user’s purspose
Value based: ability of the software to generate money
Product view: quality decomposed in several aspect related to the
product
From the point of view of the sw engineering, during the
development phase we can check only internal properties and
application model!
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
14. Quality Sofware Performace Sofware Reliability Model Quality
Quality Overview
Quality attributes
Performance
Reliability

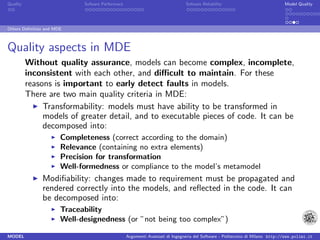

Quality of the Model: not a real attribute but it deeply influences
software quality
Security
Safety
We’ll discuss only the first 3 attributes.
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
15. Quality Sofware Performace Sofware Reliability Model Quality
Performance Analysis and Prediction

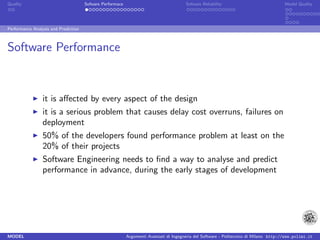

Software Performance
it is affected by every aspect of the design
it is a serious problem that causes delay cost overruns, failures on
deployment
50% of the developers found performance problem at least on the
20% of their projects
Software Engineering needs to find a way to analyse and predict
performance in advance, during the early stages of development
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
16. Quality Sofware Performace Sofware Reliability Model Quality
Performance Analysis and Prediction

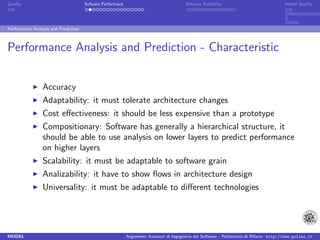

Performance Analysis and Prediction - Characteristic
Accuracy
Adaptability: it must tolerate architecture changes
Cost effectiveness: it should be less expensive than a prototype
Compositionary: Software has generally a hierarchical structure, it
should be able to use analysis on lower layers to predict performance
on higher layers
Scalability: it must be adaptable to software grain
Analizability: it have to show flows in architecture design
Universality: it must be adaptable to different technologies
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
17. Quality Sofware Performace Sofware Reliability Model Quality
Performance Analysis and Prediction
Performance Analysis and Prediction- Approaches
Measurement Based

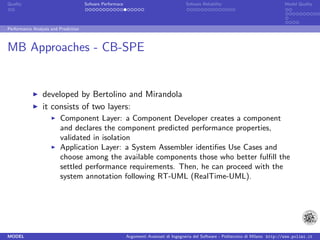

Model Based (eg, SPE, CB-SPE, PUMA)

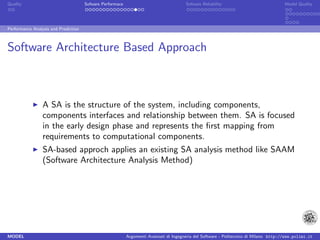

Software Architecture Based
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
18. Quality Sofware Performace Sofware Reliability Model Quality
Performance Analysis and Prediction

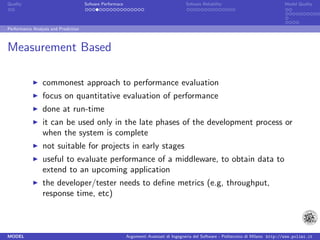

Measurement Based
commonest approach to performance evaluation
focus on quantitative evaluation of performance
done at run-time
it can be used only in the late phases of the development process or
when the system is complete
not suitable for projects in early stages
useful to evaluate performance of a middleware, to obtain data to
extend to an upcoming application
the developer/tester needs to define metrics (e.g, throughput,
response time, etc)
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
19. Quality Sofware Performace Sofware Reliability Model Quality
Performance Analysis and Prediction

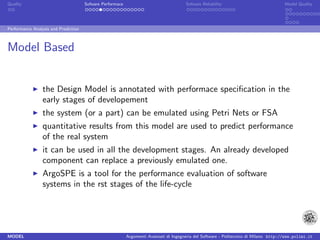

Model Based
the Design Model is annotated with performace specification in the
early stages of developement
the system (or a part) can be emulated using Petri Nets or FSA
quantitative results from this model are used to predict performance
of the real system
it can be used in all the development stages. An already developed
component can replace a previously emulated one.
ArgoSPE is a tool for the performance evaluation of software
systems in the rst stages of the life-cycle
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it

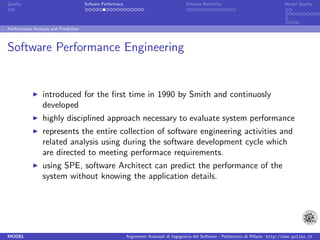

20. Quality Sofware Performace Sofware Reliability Model Quality
Performance Analysis and Prediction
Software Performance Engineering
introduced for the first time in 1990 by Smith and continuosly
developed
highly disciplined approach necessary to evaluate system performance
represents the entire collection of software engineering activities and
related analysis using during the software development cycle which
are directed to meeting performace requirements.
using SPE, software Architect can predict the performance of the
system without knowing the application details.
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
21. Quality Sofware Performace Sofware Reliability Model Quality
Performance Analysis and Prediction

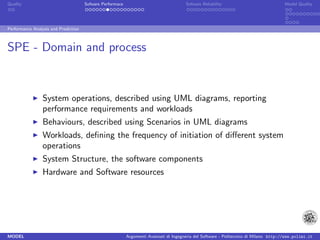

SPE - Domain and process
System operations, described using UML diagrams, reporting
performance requirements and workloads
Behaviours, described using Scenarios in UML diagrams
Workloads, defining the frequency of initiation of different system
operations
System Structure, the software components
Hardware and Software resources
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
22. Quality Sofware Performace Sofware Reliability Model Quality
Performance Analysis and Prediction

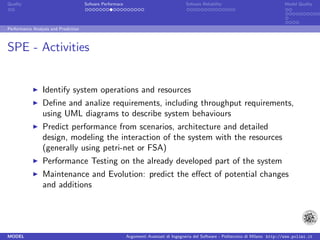

SPE - Activities
Identify system operations and resources
Define and analize requirements, including throughput requirements,
using UML diagrams to describe system behaviours
Predict performance from scenarios, architecture and detailed
design, modeling the interaction of the system with the resources
(generally using petri-net or FSA)
Performance Testing on the already developed part of the system
Maintenance and Evolution: predict the effect of potential changes
and additions
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
23. Quality Sofware Performace Sofware Reliability Model Quality
Performance Analysis and Prediction

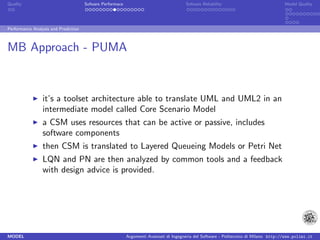

MB Approach - PUMA
it’s a toolset architecture able to translate UML and UML2 in an
intermediate model called Core Scenario Model
a CSM uses resources that can be active or passive, includes
software components
then CSM is translated to Layered Queueing Models or Petri Net
LQN and PN are then analyzed by common tools and a feedback
with design advice is provided.
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
24. Quality Sofware Performace Sofware Reliability Model Quality
Performance Analysis and Prediction

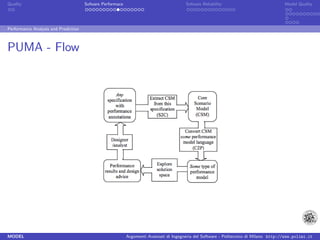

PUMA - Flow
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
25. Quality Sofware Performace Sofware Reliability Model Quality
Performance Analysis and Prediction

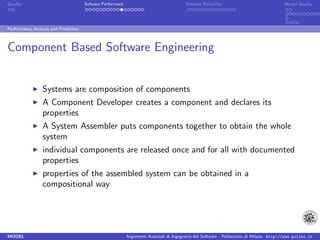

Component Based Software Engineering
Systems are composition of components
A Component Developer creates a component and declares its
properties
A System Assembler puts components together to obtain the whole
system
individual components are released once and for all with documented
properties
properties of the assembled system can be obtained in a
compositional way
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
26. Quality Sofware Performace Sofware Reliability Model Quality
Performance Analysis and Prediction
MB Approaches - CB-SPE
developed by Bertolino and Mirandola
it consists of two layers:
Component Layer: a Component Developer creates a component
and declares the component predicted performance properties,
validated in isolation
Application Layer: a System Assembler identifies Use Cases and
choose among the available components those who better fulfill the
settled performance requirements. Then, he can proceed with the
system annotation following RT-UML (RealTime-UML).
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
27. Quality Sofware Performace Sofware Reliability Model Quality
Performance Analysis and Prediction

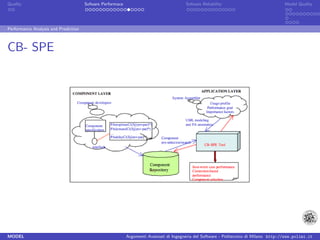

CB- SPE
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
28. Quality Sofware Performace Sofware Reliability Model Quality
Performance Analysis and Prediction

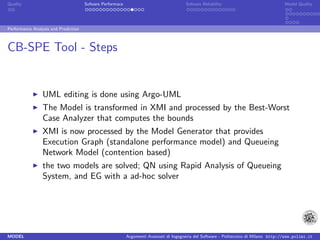

CB-SPE Tool - Steps
UML editing is done using Argo-UML
The Model is transformed in XMI and processed by the Best-Worst
Case Analyzer that computes the bounds
XMI is now processed by the Model Generator that provides
Execution Graph (standalone performance model) and Queueing
Network Model (contention based)
the two models are solved; QN using Rapid Analysis of Queueing
System, and EG with a ad-hoc solver
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
29. Quality Sofware Performace Sofware Reliability Model Quality
Performance Analysis and Prediction
Software Architecture Based Approach
A SA is the structure of the system, including components,
components interfaces and relationship between them. SA is focused
in the early design phase and represents the first mapping from
requirements to computational components.
SA-based approch applies an existing SA analysis method like SAAM
(Software Architecture Analysis Method)
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
30. Quality Sofware Performace Sofware Reliability Model Quality
Performance Analysis and Prediction

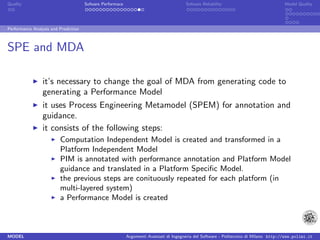

SPE and MDA
it’s necessary to change the goal of MDA from generating code to
generating a Performance Model
it uses Process Engineering Metamodel (SPEM) for annotation and
guidance.
it consists of the following steps:
Computation Independent Model is created and transformed in a
Platform Independent Model
PIM is annotated with performance annotation and Platform Model
guidance and translated in a Platform Specific Model.
the previous steps are conituously repeated for each platform (in
multi-layered system)
a Performance Model is created
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
31. Quality Sofware Performace Sofware Reliability Model Quality
Performance Analysis and Prediction

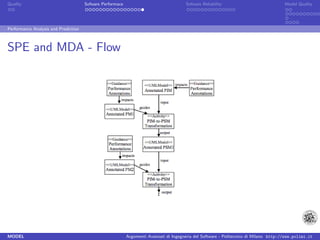

SPE and MDA - Flow
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
32. Quality Sofware Performace Sofware Reliability Model Quality
Software Reliability

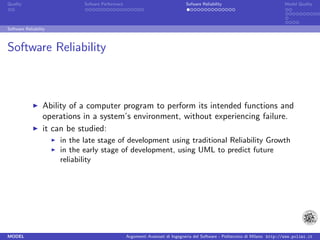

Software Reliability
Ability of a computer program to perform its intended functions and
operations in a system’s environment, without experiencing failure.
it can be studied:
in the late stage of development using traditional Reliability Growth
in the early stage of development, using UML to predict future
reliability
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
33. Quality Sofware Performace Sofware Reliability Model Quality
Software Reliability
Reliability Growth
it is a well-structured process of finding reliability problems by
testing, incorporating corrective actions (strategy) and monitoring
the increase of the product’s reliability throughout the test phases.
it defines Reliability Goals associated to failures
it’s used to determinate, with a managemente strategy:
if the stated Raliability Goal will be reached
when the Realiability Goal will be met
the associated cost to that Goal
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
34. Quality Sofware Performace Sofware Reliability Model Quality
Software Reliability

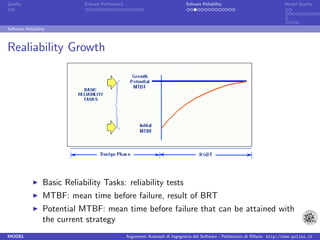

Realiability Growth
Basic Reliability Tasks: reliability tests
MTBF: mean time before failure, result of BRT
Potential MTBF: mean time before failure that can be attained with
the current strategy
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
35. Quality Sofware Performace Sofware Reliability Model Quality
Software Reliability
UML for Reliability
UML provides a common notational ground to represent and
validate software components as well as a complete system.
it’s possible to make the reliability analysis compatible with UML
artifacts using appropriate annotations
Cortellessa, Harshinder and Bojan Cukic propesed probabilistic
annotations for:
Use Case Diagrams (functional description, actors and scenarios)
Sequence Diagrams (interaction between components to complete a
task)
Deployment Diagrams (platform configuration)
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
36. Quality Sofware Performace Sofware Reliability Model Quality
Software Reliability

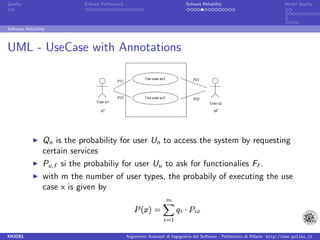

UML - UseCase with Annotations
Qn is the probability for user Un to access the system by requesting
certain services
Pu,f si the probabiliy for user Uu to ask for functionalies Ff .
with m the number of user types, the probabily of executing the use
case x is given by
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
37. Quality Sofware Performace Sofware Reliability Model Quality
Software Reliability

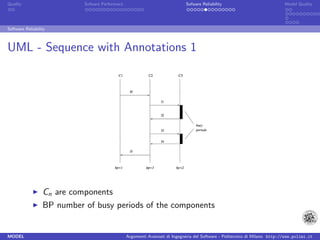

UML - Sequence with Annotations 1
Cn are components
BP number of busy periods of the components
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
38. Quality Sofware Performace Sofware Reliability Model Quality
Software Reliability

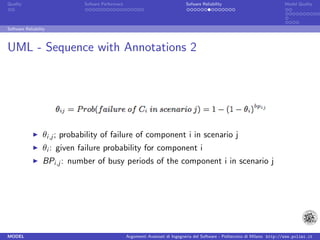

UML - Sequence with Annotations 2
θi,j ; probability of failure of component i in scenario j
θi : given failure probability for component i
BPi,j : number of busy periods of the component i in scenario j
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
39. Quality Sofware Performace Sofware Reliability Model Quality
Software Reliability

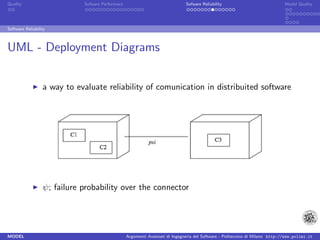

UML - Deployment Diagrams
a way to evaluate reliability of comunication in distribuited software
ψ; failure probability over the connector
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
40. Quality Sofware Performace Sofware Reliability Model Quality
Software Reliability

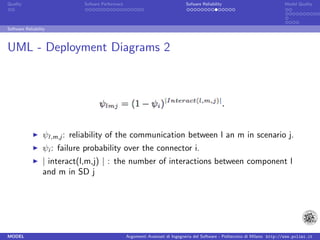

UML - Deployment Diagrams 2
ψl,m,j : reliability of the communication between l an m in scenario j.
ψi : failure probability over the connector i.
| interact(l,m,j) | : the number of interactions between component l
and m in SD j
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
41. Quality Sofware Performace Sofware Reliability Model Quality
Software Reliability
Predicted Reliability of the System
pj: probability of the scenario j
θi : given failure probability for component i
ψl.i,j : reliability of the communication between l and i in scenario j.
BPi,j : number of busy periods of the component i in scenario j
| interact(l,i,j) | : the number of interactions between component l
and i in scenario j
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
42. Quality Sofware Performace Sofware Reliability Model Quality
Software Reliability

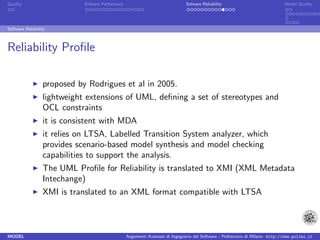

Reliability Profile
proposed by Rodrigues et al in 2005.
lightweight extensions of UML, defining a set of stereotypes and
OCL constraints
it is consistent with MDA
it relies on LTSA, Labelled Transition System analyzer, which
provides scenario-based model synthesis and model checking
capabilities to support the analysis.
The UML Profile for Reliability is translated to XMI (XML Metadata
Intechange)
XMI is translated to an XML format compatible with LTSA
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
43. Quality Sofware Performace Sofware Reliability Model Quality
Software Reliability
Reliability Profile - Steps (1)
the steps are applied to a scenario specification expressed as a collection
of :
Basic Message Sequence Charts: message exchange between
components
High Level Message Sequence Charts: sequencial composition of
BSMC
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
44. Quality Sofware Performace Sofware Reliability Model Quality
Software Reliability
Reliability Profile - Steps (2)
In the first step, scenarios are annotated with the probability of
transition between scenarios and the reliability of the components
(probabilities sum to 1)
In the second step Labeled Transition System is computed from the
annotated scenario.
In the third and forth steps LTS is interpreted as a Markov Model
and reliability is predicted
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
45. Quality Sofware Performace Sofware Reliability Model Quality
Software Reliability

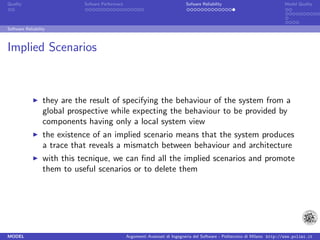

Implied Scenarios
they are the result of specifying the behaviour of the system from a
global prospective while expecting the behaviour to be provided by
components having only a local system view
the existence of an implied scenario means that the system produces
a trace that reveals a mismatch between behaviour and architecture
with this tecnique, we can find all the implied scenarios and promote
them to useful scenarios or to delete them
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
46. Quality Sofware Performace Sofware Reliability Model Quality
Model Quality

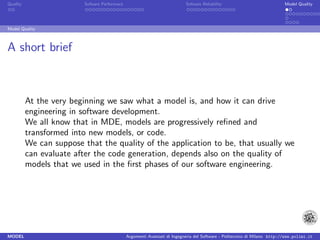

A short brief
At the very beginning we saw what a model is, and how it can drive
engineering in software development.
We all know that in MDE, models are progressively refined and
transformed into new models, or code.
We can suppose that the quality of the application to be, that usually we
can evaluate after the code generation, depends also on the quality of
models that we used in the first phases of our software engineering.
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
47. Quality Sofware Performace Sofware Reliability Model Quality
Model Quality

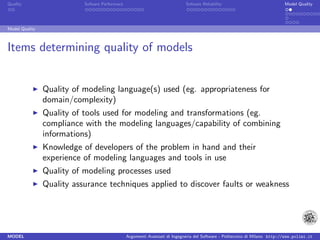

Items determining quality of models
Quality of modeling language(s) used (eg. appropriateness for
domain/complexity)
Quality of tools used for modeling and transformations (eg.
compliance with the modeling languages/capability of combining
informations)
Knowledge of developers of the problem in hand and their
experience of modeling languages and tools in use
Quality of modeling processes used
Quality assurance techniques applied to discover faults or weakness
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
48. Quality Sofware Performace Sofware Reliability Model Quality

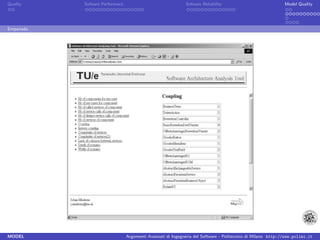

Empanada

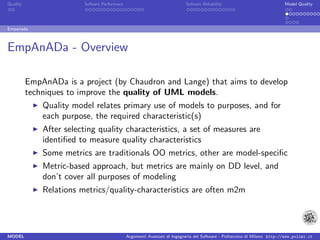

EmpAnADa - Overview
EmpAnADa is a project (by Chaudron and Lange) that aims to develop
techniques to improve the quality of UML models.
Quality model relates primary use of models to purposes, and for
each purpose, the required characteristic(s)
After selecting quality characteristics, a set of measures are
identified to measure quality characteristics
Some metrics are traditionals OO metrics, other are model-specific
Metric-based approach, but metrics are mainly on DD level, and
don’t cover all purposes of modeling
Relations metrics/quality-characteristics are often m2m
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
49. Quality Sofware Performace Sofware Reliability Model Quality
Empanada

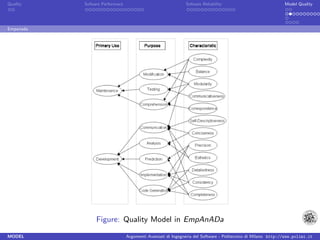

Figure: Quality Model in EmpAnADa
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
50. Quality Sofware Performace Sofware Reliability Model Quality
Empanada

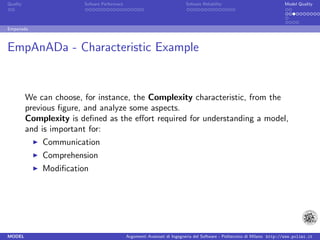

EmpAnADa - Characteristic Example
We can choose, for instance, the Complexity characteristic, from the
previous figure, and analyze some aspects.
Complexity is defined as the effort required for understanding a model,
and is important for:
Communication
Comprehension
Modification
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
51. Quality Sofware Performace Sofware Reliability Model Quality
Empanada

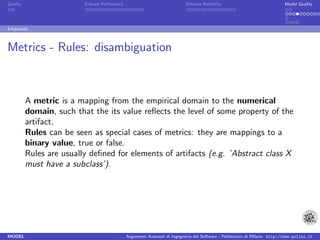

Metrics - Rules: disambiguation
A metric is a mapping from the empirical domain to the numerical
domain, such that the its value reflects the level of some property of the
artifact.
Rules can be seen as special cases of metrics: they are mappings to a
binary value, true or false.
Rules are usually defined for elements of artifacts (e.g. ’Abstract class X
must have a subclass’).
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
52. Quality Sofware Performace Sofware Reliability Model Quality
Empanada

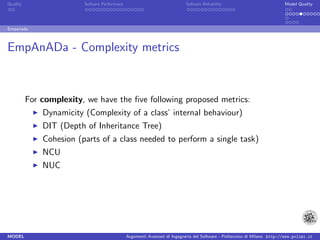

EmpAnADa - Complexity metrics
For complexity, we have the five following proposed metrics:
Dynamicity (Complexity of a class’ internal behaviour)
DIT (Depth of Inheritance Tree)
Cohesion (parts of a class needed to perform a single task)
NCU
NUC
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
53. Quality Sofware Performace Sofware Reliability Model Quality
Empanada
Figure: Relations between metrics and rules and characteristics
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
54. Quality Sofware Performace Sofware Reliability Model Quality
Empanada

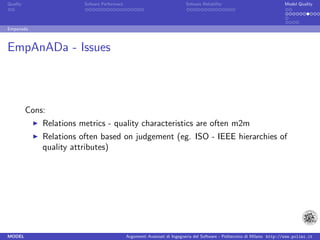

EmpAnADa - Issues
Cons:
Relations metrics - quality characteristics are often m2m
Relations often based on judgement (eg. ISO - IEEE hierarchies of
quality attributes)
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
55. Quality Sofware Performace Sofware Reliability Model Quality
Empanada

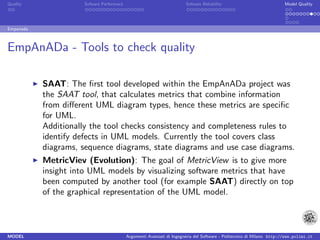

EmpAnADa - Tools to check quality
SAAT: The first tool developed within the EmpAnADa project was
the SAAT tool, that calculates metrics that combine information
from different UML diagram types, hence these metrics are specific
for UML.
Additionally the tool checks consistency and completeness rules to
identify defects in UML models. Currently the tool covers class
diagrams, sequence diagrams, state diagrams and use case diagrams.

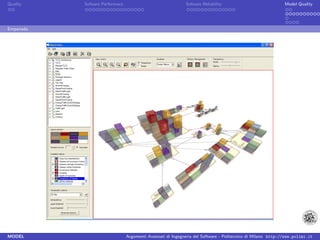

MetricViev (Evolution): The goal of MetricView is to give more
insight into UML models by visualizing software metrics that have
been computed by another tool (for example SAAT) directly on top
of the graphical representation of the UML model.
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
56. Quality Sofware Performace Sofware Reliability Model Quality
Empanada
EmpAnADa - Tools to check quality
Export of the software architectures, created with Rational Rose
(UML modelling tool), to an interchange file (XMI)
The Software Architecture Analysis Tool (SAAT ) takes as input the
XMI file, and creates an analysis report
MetricView visualize these metrics (calculated by SAAT) in the UML
model (created with Rational Rose)
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
57. Quality Sofware Performace Sofware Reliability Model Quality
Empanada

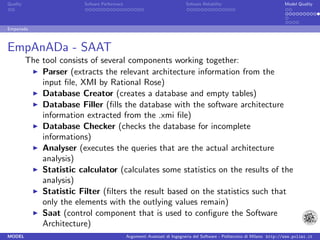

EmpAnADa - SAAT
The tool consists of several components working together:
Parser (extracts the relevant architecture information from the
input file, XMI by Rational Rose)
Database Creator (creates a database and empty tables)
Database Filler (fills the database with the software architecture
information extracted from the .xmi file)
Database Checker (checks the database for incomplete
informations)
Analyser (executes the queries that are the actual architecture
analysis)
Statistic calculator (calculates some statistics on the results of the
analysis)
Statistic Filter (filters the result based on the statistics such that
only the elements with the outlying values remain)
Saat (control component that is used to configure the Software
Architecture)
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
58. Quality Sofware Performace Sofware Reliability Model Quality
Empanada
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
59. Quality Sofware Performace Sofware Reliability Model Quality
Empanada
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
60. Quality Sofware Performace Sofware Reliability Model Quality

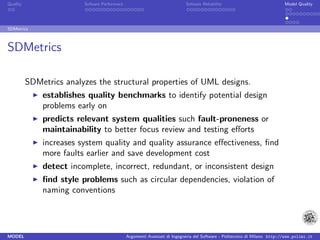

SDMetrics
SDMetrics
SDMetrics analyzes the structural properties of UML designs.
establishes quality benchmarks to identify potential design
problems early on
predicts relevant system qualities such fault-proneness or
maintainability to better focus review and testing efforts
increases system quality and quality assurance effectiveness, find
more faults earlier and save development cost
detect incomplete, incorrect, redundant, or inconsistent design
find style problems such as circular dependencies, violation of
naming conventions
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
61. Quality Sofware Performace Sofware Reliability Model Quality
Others Definition and MDE

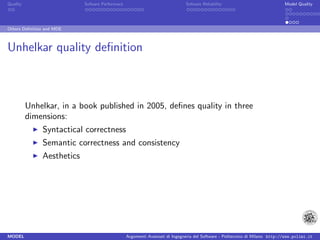

Unhelkar quality definition
Unhelkar, in a book published in 2005, defines quality in three
dimensions:
Syntactical correctness
Semantic correctness and consistency
Aesthetics
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
62. Quality Sofware Performace Sofware Reliability Model Quality
Others Definition and MDE
Framework for quality of models and modeling languages
developed by Krogstie (et al.)
Quality goals defined as relations between blocks
Some goals are objectively measured (eg. syntactic quality) - if ML
has a formal semantic
Some goals are not measurable (eg. domain modelers’ knowledge)
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
63. Quality Sofware Performace Sofware Reliability Model Quality
Others Definition and MDE
Quality aspects in MDE
Without quality assurance, models can become complex, incomplete,
inconsistent with each other, and difficult to maintain. For these
reasons is important to early detect faults in models.
There are two main quality criteria in MDE:
Transformability: models must have ability to be transformed in
models of greater detail, and to executable pieces of code. It can be
decomposed into:
Completeness (correct according to the domain)
Relevance (containing no extra elements)
Precision for transformation
Well-formedness or compliance to the model’s metamodel
Modifiability: changes made to requirement must be propagated and
rendered correctly into the models, and reflected in the code. It can
be decomposed into:
Traceability
Well-designedness (or ”not being too complex”)
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
64. Quality Sofware Performace Sofware Reliability Model Quality
Others Definition and MDE

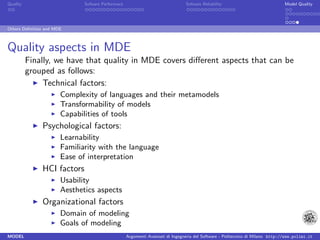

Quality aspects in MDE
Finally, we have that quality in MDE covers different aspects that can be
grouped as follows:
Technical factors:
Complexity of languages and their metamodels
Transformability of models
Capabilities of tools
Psychological factors:
Learnability
Familiarity with the language
Ease of interpretation
HCI factors
Usability
Aesthetics aspects
Organizational factors
Domain of modeling
Goals of modeling
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
65. Conclusion

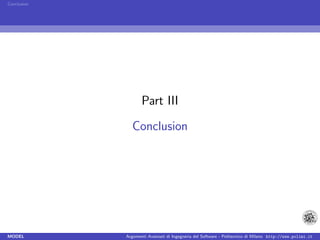

Part III
Conclusion
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
66. Conclusion

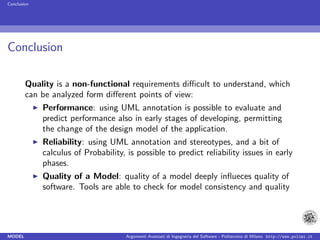

Conclusion
Quality is a non-functional requirements difficult to understand, which
can be analyzed form different points of view:
Performance: using UML annotation is possible to evaluate and
predict performance also in early stages of developing, permitting
the change of the design model of the application.
Reliability: using UML annotation and stereotypes, and a bit of
calculus of Probability, is possible to predict reliability issues in early
phases.
Quality of a Model: quality of a model deeply influeces quality of
software. Tools are able to check for model consistency and quality
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
67. Conclusion

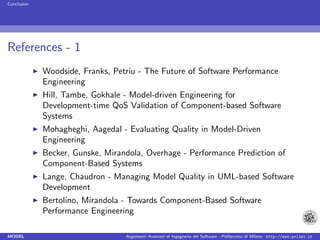

References - 1
Woodside, Franks, Petriu - The Future of Software Performance
Engineering
Hill, Tambe, Gokhale - Model-driven Engineering for
Development-time QoS Validation of Component-based Software
Systems
Mohagheghi, Aagedal - Evaluating Quality in Model-Driven
Engineering
Becker, Gunske, Mirandola, Overhage - Performance Prediction of
Component-Based Systems
Lange, Chaudron - Managing Model Quality in UML-based Software
Development
Bertolino, Mirandola - Towards Component-Based Software
Performance Engineering
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
68. Conclusion

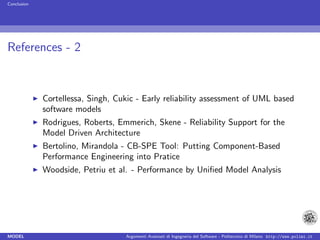

References - 2
Cortellessa, Singh, Cukic - Early reliability assessment of UML based
software models
Rodrigues, Roberts, Emmerich, Skene - Reliability Support for the
Model Driven Architecture
Bertolino, Mirandola - CB-SPE Tool: Putting Component-Based
Performance Engineering into Pratice
Woodside, Petriu et al. - Performance by Unified Model Analysis
MODEL Argomenti Avanzati di Ingegneria del Software - Politecnico di Milano http://www.polimi.it
