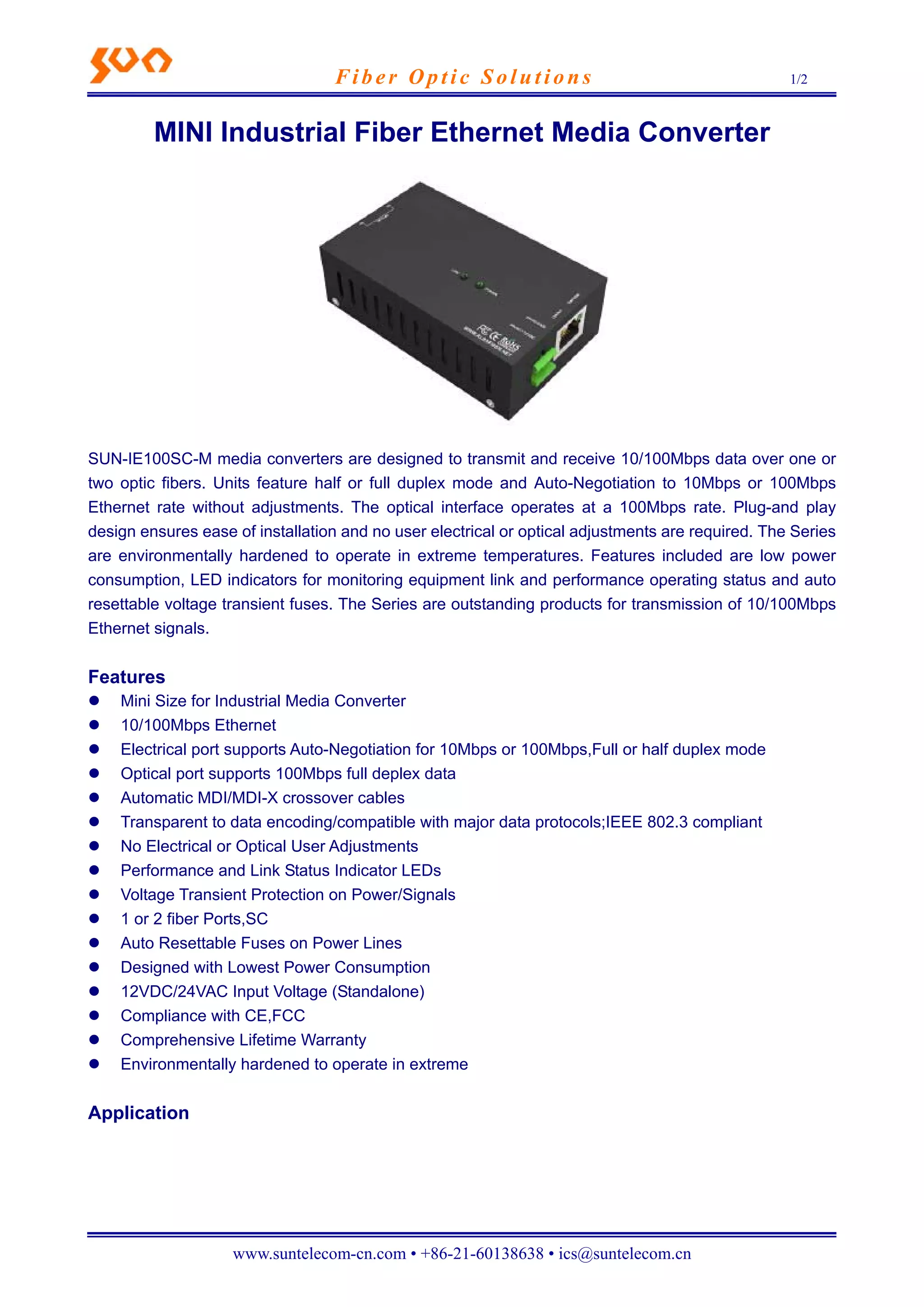

1. Fiber Opt i c S o l u t i o n s 1/2
MINI Industrial Fiber Ethernet Media Converter
SUN-IE100SC-M media converters are designed to transmit and receive 10/100Mbps data over one or
two optic fibers. Units feature half or full duplex mode and Auto-Negotiation to 10Mbps or 100Mbps
Ethernet rate without adjustments. The optical interface operates at a 100Mbps rate. Plug-and play
design ensures ease of installation and no user electrical or optical adjustments are required. The Series
are environmentally hardened to operate in extreme temperatures. Features included are low power
consumption, LED indicators for monitoring equipment link and performance operating status and auto
resettable voltage transient fuses. The Series are outstanding products for transmission of 10/100Mbps
Ethernet signals.
Features
z Mini Size for Industrial Media Converter
z 10/100Mbps Ethernet
z Electrical port supports Auto-Negotiation for 10Mbps or 100Mbps,Full or half duplex mode
z Optical port supports 100Mbps full deplex data
z Automatic MDI/MDI-X crossover cables
z Transparent to data encoding/compatible with major data protocols;IEEE 802.3 compliant
z No Electrical or Optical User Adjustments
z Performance and Link Status Indicator LEDs
z Voltage Transient Protection on Power/Signals
z 1 or 2 fiber Ports,SC
z Auto Resettable Fuses on Power Lines
z Designed with Lowest Power Consumption
z 12VDC/24VAC Input Voltage (Standalone)
z Compliance with CE,FCC
z Comprehensive Lifetime Warranty
z Environmentally hardened to operate in extreme
Application
www.suntelecom-cn.com • +86-21-60138638 • ics@suntelecom.cn

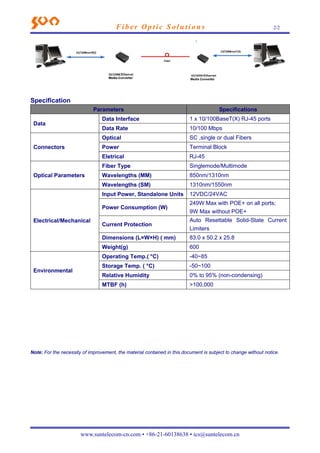

2. Fiber Opt i c S o l u t i o n s 2/2
www.suntelecom-cn.com • +86-21-60138638 • ics@suntelecom.cn
Specification
Parameters Specifications
Data
Data Interface 1 x 10/100BaseT(X) RJ-45 ports
Data Rate 10/100 Mbps
Connectors
Optical SC ,single or dual Fibers
Power Terminal Block
Eletrical RJ-45
Optical Parameters
Fiber Type Singlemode/Multimode
Wavelengths (MM) 850nm/1310nm
Wavelengths (SM) 1310nm/1550nm
Electrical/Mechanical
Input Power, Standalone Units 12VDC/24VAC
Power Consumption (W)
249W Max with POE+ on all ports;
9W Max without POE+
Current Protection
Auto Resettable Solid-State Current
Limiters
Dimensions (L×W×H) ( mm) 83.0 x 50.2 x 25.8
Weight(g) 600
Environmental
Operating Temp.( °C) -40~85
Storage Temp. ( °C) -50~100
Relative Humidity 0% to 95% (non-condensing)
MTBF (h) >100,000
Note: For the necessity of improvement, the material contained in this document is subject to change without notice.
