UAV Radar System. Drone detection .Portable ultra light radar system for use in protecting city infra-estructure. Designed specially for government, law enforcement and or security agencies, that want to enable air surveillance and protection against unauthorized trespasser in cities or sensitive áreas
2. Confidential 2

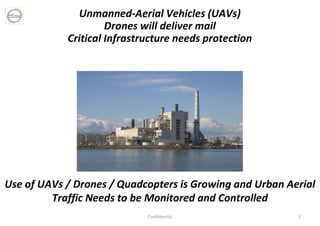

Unmanned-Aerial Vehicles (UAVs)
Drones will deliver mail
Critical Infrastructure needs protection
Use of UAVs / Drones / Quadcopters is Growing and Urban Aerial
Traffic Needs to be Monitored and Controlled
3. 4/26/2015 Confidential 3
360°, 3D Micro-Radars Grid Operation for UAVs Traffic
Monitoring
Management
Detection, Query
and Identification
Jam
4. 4/26/2015 Confidential 4
360°, 3D Micro-Radars for UAVs
Aerial Traffic Monitoring
Our Grid Micro-Radar systems:
• Monitor the Aerial Environment
for detection and tracking of
UAVs / Drones / Quadcopters
• Query on Board Transponders for
identification of the UAVs
• Grid Operation network of Micro-
Radars in urban area
5. 4/26/2015 Confidential 5
360°, 3D Micro-Radars for UAVs
Aerial Traffic Monitoring
• Handover of UAVs between
Radars in the grid for continuous
tracking
• Access to Law enforcement cloud
grid for:
• Tracking
• Communicating
• Friends-or-Foe Identification
• Jamming (GPS,
Communication , Video)
6. 4/26/2015 Confidential 6
Our 360°, 3D Micro-Radars Positioned in CIF
and Urban Locations
Our Systems’ Advantages
• Cost: Breakthrough technology
allowing Micro-Radar grids at low cost
• Blind Zones Coverage: Assures
detection and tracking in high density
environment
• Low Radiated Power: Comply with
urban safety regulations
7. 4/26/2015 Confidential 7
Our 3D Micro-Radars Positioned
on Roof-Tops
Our Systems’ Advantages - II
• Coverage: Each UAV is covered by
several Micro-Radars to enhance
performance (Smooth hand over).
• Immediate Response: In times of
emergency, notification and
instructions may be provided to one or
several UAVs simultaneously in order to
deviate UAV traffic.
8. 4/26/2015 Confidential 8
4.8-5.9 GHz Micro-Radar
Systems
250mm
Φ230mm
Φ190mm
Small, Out-of-the-Box, Rapid
Deployment 360° 3D Micro-Radar
System
9. 4/26/2015 Confidential 9
4.8-5.9 GHz Micro-Radar Technical Specs.
Value
Property
4.8-5.9 [GHz]
Frequency
Dual mode:
1. Track Mode: FMCW
2. Pulse-Doppler
Radar Type
20 [MHz]
Receiver Bandwidth
5 [m]
Minimum Detection Range
400[m]
Maximum Detection Range
1.8 [m]
Range Resolution
Multimodal and
Interferometry
DOA Method
Continuous Aperture
Antenna Topology
Full 360°
Azimuth Coverage - Transmit
mode
Full 360°
Azimuth Coverage - Receive
mode
±1.5°
Azimuth Accuracy
Value
Property
Up to ± 45° above and
Below the horizon. Total
90°
Elevation Coverage
±1.5°
Elevation Accuracy
]
2
[m
0.2
Minimum Target Cross Section
(RCS)
0.1 [m/sec]
Minimum Target Velocity
30 [m/sec]
Maximum Target Velocity
1. GPS Receiver and
antenna – L1 band
2. 6-Axis Gyro
Localization and Stabilization
1. Ethernet
2. RS-485
3. WiFi
4. Bluetooth
5. 2G, 3G, LTE
Interface - Communication
