CABLE TRAYS

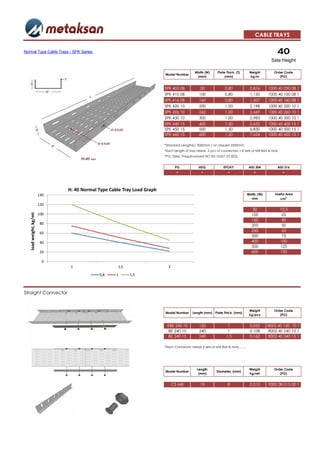

Normal Type Cable Trays - SPK Series 40
Side Height

Width (W) Plate Thick. (T) Weight Order Code
Model Number
(mm) (mm) kg/m (PG)

SPK 405 08 50 0,80 0,816 1000 40 050 08 1
SPK 410 08 100 0,80 1,130 1000 40 100 08 1
SPK 416 08 160 0,80 1,507 1000 40 160 08 1
SPK 420 10 200 1,00 2,198 1000 40 200 10 1
SPK 426 10 260 1,00 2,669 1000 40 260 10 1
SPK 430 10 300 1,00 2,983 1000 40 300 10 1
SPK 440 15 400 1,50 5,652 1000 40 400 15 1
SPK 450 15 500 1,50 6,830 1000 40 500 15 1
SPK 460 15 600 1,50 7,654 1000 40 600 15 1

*Standard Length(L) 3000mm / on request 2500mm
*Each length of tray needs 2 pcs of connectors + 8 sets of M8 Bolt & Nuts
*PG: Steel, Pregalvanised ISO EN 10327 (TS 822)

PG HDG EPOXY AISI 304 AISI 316
+ + + + +

H: 40 Normal Type Cable Tray Load Graph
140 Width, (W) Useful Area
mm cm2
120
50 12,5
100 100 25
load weight, kg/mt

160 40
80 200 50
260 65
60
300 75
40 400 100
500 125
20 600 150

0
1 1,5 2
0,8 1 1,5

Straight Connector - DBE Series
Straight Connector

Weight Order Code
Model Number Length (mm) Plate Thick. (mm)
kg/pcs (PG)

KBE 240 10 120 1 0,052 8002 40 120 10 1
BE 240 10 240 1 0,108 8002 40 240 10 1
BE 240 15 240 1,5 0,162 8002 40 240 15 1

*Each Connector needs 4 sets of M8 Bolt & Nuts……..

Length Weight Order Code
Model Number Diameter, (mm)
(mm) kg/set (PG)

CS M8 15 8 0,012 9000 08 015 00 1

CABLE TRAYS

Normal Type Non PerforatedCable Trays - SDK Series 40
Side Height

Model Number
(mm) (mm) kg/m (PG)

SDK 405 08 50 0,80 0,816 1100 40 050 08 1
SDK 410 08 100 0,80 1,130 1100 40 100 08 1
SDK 416 08 160 0,80 1,507 1100 40 160 08 1
SDK 420 10 200 1,00 2,198 1100 40 200 10 1
SDK 426 10 260 1,00 2,669 1100 40 260 10 1
SDK 430 10 300 1,00 2,983 1100 40 300 10 1
SDK 440 15 400 1,50 5,652 1100 40 400 15 1
SDK 450 15 500 1,50 6,830 1100 40 500 15 1
SDK 460 15 600 1,50 7,654 1100 40 600 15 1


+ + + + +

140 Useful Area
Width, (W) mm
cm2
120
50 12,5
100 100 25
load weight, kg/mt

160 40
80 200 50
260 65
60
300 75
40 400 100
500 125
20 600 150

0
1 1,5 2
0,8 1 1,5 0,8 1 1,5

Straight Connector

Weight Order Code
kg/pcs (PG)

KBE 240 10 120 1 0,052 8002 40 120 10 1
BE 240 10 240 1 0,108 8002 40 240 10 1
BE 240 15 240 1,5 0,162 8002 40 240 15 1


Length Order Code
Model Number Diameter, (mm) Weight kg/set
(mm) (PG)

CS M8 15 8 0,012 9000 08 015 00 1

CABLE TRAYS

Heavy Duty Type Cable Trays - APK Series 40
Side Height

Model Number
(mm) (mm) kg/m (PG)

APK 405 08 50 0,80 0,942 1200 40 050 08 1
APK 410 08 100 0,80 1,256 1200 40 100 08 1
APK 416 08 160 0,80 1,633 1200 40 160 08 1
APK 420 10 200 1,00 2,355 1200 40 200 10 1
APK 426 10 260 1,00 2,826 1200 40 260 10 1
APK 430 10 300 1,00 3,140 1200 40 300 10 1
APK 440 15 400 1,50 5,888 1200 40 400 15 1
APK 450 15 500 1,50 7,065 1200 40 500 15 1
APK 460 15 600 1,50 8,243 1200 40 600 15 1


+ + + + +

H: 40 Heavy Duty Type Cable Tray Load Graph
180 Useful Gross Section
Width, (W) mm
cm2
160
140
50 18,6
load weight, kg/mt

120 100 38,6
100 160 62,6
200 78,6
80 260 102,6
60 300 118,6
400 158,6
40 500 198,6
20 600 238,6

0
1 1,5 2

0,8 1 1,5

Straight Connector

Weight Order Code
kg/pcs (PG)

KBE 240 10 120 1 0,052 8002 40 120 10 1
BE 240 10 240 1 0,108 8002 40 240 10 1
BE 240 15 240 1,5 0,162 8002 40 240 15 1


Length Order Code
(mm) (PG)

CS M8 15 8 0,012 9000 08 015 00 1

CABLE TRAYS

Heavy Duty Non Perfoated Type Cable Trays - ADK Series 40
Side Height

Model Number
(mm) (mm) kg/m (PG)

ADK 405 08 50 0,80 0,942 1300 40 050 08 1
ADK 410 08 100 0,80 1,256 1300 40 100 08 1
ADK 416 08 160 0,80 1,633 1300 40 160 08 1
ADK 420 10 200 1,00 2,355 1300 40 200 10 1
ADK 426 10 260 1,00 2,826 1300 40 260 10 1
ADK 430 10 300 1,00 3,140 1300 40 300 10 1
ADK 440 15 400 1,50 5,888 1300 40 400 15 1
ADK 450 15 500 1,50 7,065 1300 40 500 15 1
ADK 460 15 600 1,50 8,243 1300 40 600 15 1


+ + + + +

H: 40 Heavy Duty Non Type Cable Tray Load Graph
Width, (W) mm
cm2
160
140
50 18,6
load weight, kg/mt

120 100 38,6
100 160 62,6
200 78,6
80 260 102,6
60 300 118,6
400 158,6
40 500 198,6
20 600 238,6

0
1 1,5 2

0,8 1 1,5

Straight Connector

Weight Order Code
kg/pcs (PG)

KBE 240 10 120 1 0,052 8002 40 120 10 1
BE 240 10 240 1 0,108 8002 40 240 10 1
BE 240 15 240 1,5 0,162 8002 40 240 15 1


Length Order Code
(mm) (PG)

CS M8 15 8 0,012 9000 08 015 00 1

CABLE TRAYS

Side Height

Model Number
(mm) (mm) kg/m (PG)

SPK 505 08 50 0,80 0,942 1000 50 050 08 1
SPK 510 08 100 0,80 1,256 1000 50 100 08 1
SPK 516 08 160 0,80 1,633 1000 50 160 08 1
SPK 520 10 200 1,00 2,355 1000 50 200 10 1
SPK 526 10 260 1,00 2,826 1000 50 260 10 1
SPK 530 10 300 1,00 3,140 1000 50 300 10 1
SPK 540 15 400 1,50 5,888 1000 50 400 15 1
SPK 550 15 500 1,50 7,065 1000 50 500 15 1
SPK 560 15 600 1,50 7,654 1000 50 600 15 1


+ + + + +

160 Width, (W) Useful Area
mm cm2
140
50 12,5
120
100 25
load weight, kg/mt

100 160 40
200 50
80
260 65
60 300 75
400 100
40 500 125
20 600 150

0
1 1,5 2
0,8 1 1,5

Straight Connector

Weight Order Code
kg/pcs (PG)

KBE 250 10 120 1 0,061 8002 50 120 10 1
BE 250 10 240 1 0,122 8002 50 240 10 1
BE 250 15 240 1,5 0,184 8002 50 240 15 1


Length Weight Order Code
Model Number Diameter, (mm)
(mm) kg/set (PG)

CS M8 15 8 0,012 9000 08 015 00 1

CABLE TRAYS

Normal Type Non Perforated Cable Trays - SDK Series 50
Side Height

Model Number
(mm) (mm) kg/m (PG)

SDK 505 08 50 0,80 0,942 1100 50 050 08 1
SDK 510 08 100 0,80 1,256 1100 50 100 08 1
SDK 516 08 160 0,80 1,633 1100 50 160 08 1
SDK 520 10 200 1,00 2,355 1100 50 200 10 1
SDK 526 10 260 1,00 2,826 1100 50 260 10 1
SDK 530 10 300 1,00 3,140 1100 50 300 10 1
SDK 540 15 400 1,50 5,888 1100 50 400 15 1
SDK 550 15 500 1,50 7,065 1100 50 500 15 1
SDK 560 15 600 1,50 7,654 1100 50 600 15 1


+ + + + +

H: 50 Normal Type Non Perforated Cable Tray Load Graph
160 Useful Area
Width, (W) mm
cm2
140
50 12,5
120
100 25
load weight, kg/mt

100 160 40
200 50
80
260 65
60 300 75
400 100
40 500 125
20 600 150

0
1 1,5 2
0,8 1 1,5

Straight Connector

Weight Order Code
kg/pcs (PG)

KBE 250 10 120 1 0,061 8002 50 120 10 1
BE 250 10 240 1 0,122 8002 50 240 10 1
BE 250 15 240 1,5 0,184 8002 50 240 15 1


Length Order Code
(mm) (PG)

CS M8 15 8 0,012 9000 08 015 00 1

CABLE TRAYS

Side Height

Model Number
(mm) (mm) kg/m (PG)

APK 505 08 50 0,80 1,068 1200 50 050 08 1
APK 510 08 100 0,80 1,382 1200 50 100 08 1
APK 516 08 160 0,80 1,758 1200 50 160 08 1
APK 520 10 200 1,00 2,512 1200 50 200 10 1
APK 526 10 260 1,00 2,983 1200 50 260 10 1
APK 530 10 300 1,00 3,297 1200 50 300 10 1
APK 540 15 400 1,50 6,123 1200 50 400 15 1
APK 550 15 500 1,50 7,301 1200 50 500 15 1
APK 560 15 600 1,50 8,478 1200 50 600 15 1


+ + + + +

Width, (W) mm
cm2

200
50 23,6
load weight, kg/mt

100 48,6
150 160 78,6
200 98,6
260 128,6
100
300 148,6
400 198,6
50 500 248,6
600 298,6

0
1 1,5 2

0,8 1 1,5

Straight Connector

Weight Order Code
kg/pcs (PG)

KBE 250 10 120 1 0,061 8002 50 120 10 1
BE 250 10 240 1 0,122 8002 50 240 10 1
BE 250 15 240 1,5 0,184 8002 50 240 15 1


Length Order Code
(mm) (PG)

CS M8 15 8 0,012 9000 08 015 00 1

CABLE TRAYS

Side Height

Model Number
(mm) (mm) kg/m (PG)

ADK 505 08 50 0,80 1,068 1300 50 050 08 1
ADK 510 08 100 0,80 1,382 1300 50 100 08 1
ADK 516 08 160 0,80 1,758 1300 50 160 08 1
ADK 520 10 200 1,00 2,512 1300 50 200 10 1
ADK 526 10 260 1,00 2,983 1300 50 260 10 1
ADK 530 10 300 1,00 3,297 1300 50 300 10 1
ADK 540 15 400 1,50 6,123 1300 50 400 15 1
ADK 550 15 500 1,50 7,301 1300 50 500 15 1
ADK 560 15 600 1,50 8,478 1300 50 600 15 1


+ + + + +

Width, (W) mm
cm2

200
50 23,6
load weight, kg/mt

100 48,6
150 160 78,6
200 98,6
260 128,6
100
300 148,6
400 198,6
50 500 248,6
600 298,6

0
1 1,5 2

0,8 1 1,5

Straight Connector

Weight Order Code
kg/pcs (PG)

KBE 250 10 120 1 0,061 8002 50 120 10 1
BE 250 10 240 1 0,122 8002 50 240 10 1
BE 250 15 240 1,5 0,184 8002 50 240 15 1


Length Order Code
(mm) (PG)

CS M8 15 8 0,012 9000 08 015 00 1

CABLE TRAYS

Side Height

Model Number
(mm) (mm) kg/m (PG)

SPK 610 08 100 0,80 1,382 1000 60 100 08 1
SPK 616 08 160 0,80 1,758 1000 60 160 08 1
SPK 620 10 200 1,00 2,512 1000 60 200 10 1
SPK 626 10 260 1,00 2,983 1000 60 260 10 1
SPK 630 10 300 1,00 3,297 1000 60 300 10 1
SPK 640 15 400 1,50 6,123 1000 60 400 15 1
SPK 650 15 500 1,50 7,301 1000 60 600 15 1
SPK 660 15 600 1,50 7,654 1000 60 600 15 1


+ + + + +

180 Useful Area
Width, (W) mm
cm2
160
140
100 25
load weight, kg/mt

120
160 40
100 200 50
80 260 65
300 75
60 400 100
40 500 125
600 150
20
0
1 1,5 2
0,8 1 1,5

Straight Connector

Weight Order Code
kg/pcs (PG)

KBE 260 10 120 1 0,071 8002 60 120 10 1
BE 260 10 240 1 0,141 8002 60 240 10 1
BE 260 15 240 1,5 0,212 8002 60 240 15 1


Length Order Code
(mm) (PG)

CS M8 15 8 0,012 9000 08 015 00 1

CABLE TRAYS

Normal Type Non Perforated Cable Trays - SDK Series 60
Side Height

Model Number
(mm) (mm) kg/m (PG)

SDK 610 08 100 0,80 1,382 1100 60 100 08 1
SDK 616 08 160 0,80 1,758 1100 60 160 08 1
SDK 620 10 200 1,00 2,512 1100 60 200 10 1
SDK 626 10 260 1,00 2,983 1100 60 260 10 1
SDK 630 10 300 1,00 3,297 1100 60 300 10 1
SDK 640 15 400 1,50 6,123 1100 60 400 15 1
SDK 650 15 500 1,50 7,301 1100 60 600 15 1
SDK 660 15 600 1,50 7,654 1100 60 600 15 1


+ + + + +

H: 60 Normal Type Non Perforated Cable Tray Load Graph
180 Useful Area
Width, (W) mm
cm2
160
140
100 25
load weight, kg/mt

120
160 40
100 200 50
80 260 65
300 75
60 400 100
40 500 125
600 150
20
0
1 1,5 2
0,8 1 1,5

Straight Connector

Weight Order Code
kg/pcs (PG)

KBE 260 10 120 1 0,071 8002 60 120 10 1
BE 260 10 240 1 0,141 8002 60 240 10 1
BE 260 15 240 1,5 0,212 8002 60 240 15 1


Length Order Code
(mm) (PG)

CS M8 15 8 0,012 9000 08 015 00 1

CABLE TRAYS

Side Height

Model Number
(mm) (mm) kg/m (PG)

APK 610 08 100 0,80 1,507 1200 60 100 08 1
APK 616 08 160 0,80 1,884 1200 60 160 08 1
APK 620 10 200 1,00 2,669 1200 60 200 10 1
APK 626 10 260 1,00 3,140 1200 60 260 10 1
APK 630 10 300 1,00 3,454 1200 60 300 10 1
APK 640 15 400 1,50 6,359 1200 60 400 15 1
APK 650 15 500 1,50 7,536 1200 60 500 15 1
APK 660 15 600 1,50 8,714 1200 60 600 15 1


+ + + + +

H:60 Heavy Duty Type Cable Tray Load Graph
Width, (W) mm
cm2

200
load weight, kg/mt

100 58,6
150 160 94,6
200 118,6
260 154,6
100
300 178,6
400 238,6
50 500 298,6
600 358,6

0
1 1,5 2

0,8 1 1,5

Straight Connector

Weight Order Code
kg/pcs (PG)

KBE 260 10 120 1 0,071 8002 60 120 10 1
BE 260 10 240 1 0,141 8002 60 240 10 1
BE 260 15 240 1,5 0,212 8002 60 240 15 1


Length Order Code
(mm) (PG)

CS M8 15 8 0,012 9000 08 015 00 1

CABLE TRAYS

Side Height

Model Number
(mm) (mm) kg/m (PG)

ADK 610 08 100 0,80 1,507 1300 60 100 08 1
ADK 616 08 160 0,80 1,884 1300 60 160 08 1
ADK 620 10 200 1,00 2,669 1300 60 200 10 1
ADK 626 10 260 1,00 3,140 1300 60 260 10 1
ADK 630 10 300 1,00 3,454 1300 60 300 10 1
ADK 640 15 400 1,50 6,359 1300 60 400 15 1
ADK 650 15 500 1,50 7,536 1300 60 500 15 1
ADK 660 15 600 1,50 8,714 1300 60 600 15 1


+ + + + +

Width, (W) mm
cm2

200
load weight, kg/mt

100 58,6
150 160 94,6
200 118,6
260 154,6
100
300 178,6
400 238,6
50 500 298,6
600 358,6

0
1 1,5 2

0,8 1 1,5

Straight Connector

Weight Order Code
kg/pcs (PG)

KBE 260 10 120 1 0,071 8002 60 120 10 1
BE 260 10 240 1 0,141 8002 60 240 10 1
BE 260 15 240 1,5 0,212 8002 60 240 15 1


Length Order Code
(mm) (PG)

CS M8 15 8 0,012 9000 08 015 00 1

CABLE TRAYS

Side Height

Model Number
(mm) (mm) kg/m (PG)

APK 110 08 100 0,80 2,010 1200 10 100 08 1
APK 116 08 160 0,80 2,386 1200 10 160 08 1
APK 120 10 200 1,00 3,297 1200 10 200 10 1
APK 126 10 260 1,00 3,768 1200 10 260 10 1
APK 130 10 300 1,00 4,082 1200 10 300 10 1
APK 140 15 400 1,50 7,301 1200 10 400 15 1
APK 150 15 500 1,50 8,478 1200 10 500 15 1
APK 160 15 600 1,50 9,656 1200 10 600 15 1


+ + + + +

Width, (W) mm
cm2

250
load weight, kg/mt

200 100 98,6
160 158,6
150 200 198,6
260 258,6
100 300 298,6
400 398,6
500 498,6
50
600 598,6

0
1 1,5 2

0,8 1 1,5

Straight Connector

Weight Order Code
kg/pcs (PG)

BE 160 10 240 1 0,226 8002 10 240 10 1
BE 160 12 240 1,2 0,271 8002 10 240 12 1
BE 160 15 240 1,5 0,339 8002 10 240 15 1


Length Order Code
(mm) (PG)

CS M8 15 8 0,012 9000 08 015 00 1

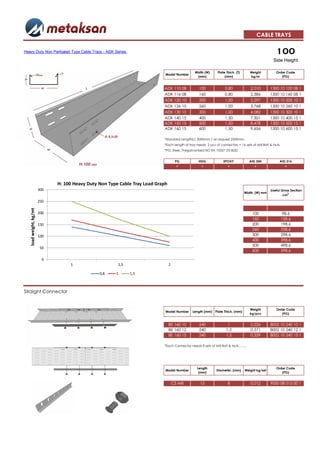

CABLE TRAYS

Side Height

Model Number
(mm) (mm) kg/m (PG)

ADK 110 08 100 0,80 2,010 1300 10 100 08 1
ADK 116 08 160 0,80 2,386 1300 10 160 08 1
ADK 120 10 200 1,00 3,297 1300 10 200 10 1
ADK 126 10 260 1,00 3,768 1300 10 260 10 1
ADK 130 10 300 1,00 4,082 1300 10 300 10 1
ADK 140 15 400 1,50 7,301 1300 10 400 15 1
ADK 150 15 500 1,50 8,478 1300 10 500 15 1
ADK 160 15 600 1,50 9,656 1300 10 600 15 1


+ + + + +

Width, (W) mm
cm2
250
load weight, kg/mt

200 100 98,6
160 158,6
150 200 198,6
260 258,6
100 300 298,6
400 398,6
500 498,6
50
600 598,6

0
1 1,5 2

0,8 1 1,5

Straight Connector

Weight Order Code
kg/pcs (PG)

BE 160 10 240 1 0,226 8002 10 240 10 1
BE 160 12 240 1,2 0,271 8002 10 240 12 1
BE 160 15 240 1,5 0,339 8002 10 240 15 1


Length Order Code
(mm) (PG)

CS M8 15 8 0,012 9000 08 015 00 1

CABLE TRAYS

Accessories of Cable Trays

PRODUCT DETAILS ORDER CODES
Width (W) Plate Thick.
Model Code Height, (H) 40 mm Height, (H) 50 mm Height, (H) 60 mm Height, (H) 100 mm
(mm) (T) (mm)

90 DEGREE BEND KA90 05 10 50 1,00 1220 40 050 10 1 1220 50 050 10 1
KA90 10 10 100 1,00 1220 40 100 10 1 1220 50 100 10 1 1220 60 100 10 1 1220 10 100 10 1
KA90 16 10 160 1,00 1220 40 160 10 1 1220 50 160 10 1 1220 60 160 10 1 1220 10 160 10 1
KA90 20 12 200 1,20 1220 40 200 12 1 1220 50 200 12 1 1220 60 200 12 1 1220 10 200 12 1
KA90 26 12 260 1,20 1220 40 260 12 1 1220 50 260 12 1 1220 60 260 12 1 1220 10 260 12 1
KA90 30 12 300 1,20 1220 40 300 12 1 1220 50 300 12 1 1220 60 300 12 1 1220 10 300 12 1
KA90 40 15 400 1,50 1220 40 400 15 1 1220 50 400 15 1 1220 60 400 15 1 1220 10 400 15 1
KA90 50 15 500 1,50 1220 40 500 15 1 1220 50 500 15 1 1220 60 500 15 1 1220 10 500 15 1
KA90 60 15 600 1,50 1220 40 600 15 1 1220 50 600 15 1 1220 60 600 15 1 1220 10 600 15 1

TEE BEND KAT 05 10 50 1,00 1230 40 050 10 1 1230 50 050 10 1
KAT 10 10 100 1,00 1230 40 100 10 1 1230 50 100 10 1 1230 60 100 10 1 1230 10 100 10 1
KAT 16 10 160 1,00 1230 40 160 10 1 1230 50 160 10 1 1230 60 160 10 1 1230 10 160 10 1
KAT 20 12 200 1,20 1230 40 200 12 1 1230 50 200 12 1 1230 60 200 12 1 1230 10 200 12 1
KAT 26 12 260 1,20 1230 40 260 12 1 1230 50 260 12 1 1230 60 260 12 1 1230 10 260 12 1
KAT 30 12 300 1,20 1230 40 300 12 1 1230 50 300 12 1 1230 60 300 12 1 1230 10 300 12 1
KAT 40 15 400 1,50 1230 40 400 15 1 1230 50 400 15 1 1230 60 400 15 1 1230 10 400 15 1
KAT 50 15 500 1,50 1230 40 500 15 1 1230 50 500 15 1 1230 60 500 15 1 1230 10 500 15 1
KAT 60 15 600 1,50 1230 40 600 15 1 1230 50 600 15 1 1230 60 600 15 1 1230 10 600 15 1

CROSS OVER KAD 05 10 50 1,00 1240 40 050 10 1 1240 50 050 10 1
KAD 10 10 100 1,00 1240 40 100 10 1 1240 50 100 10 1 1240 60 100 10 1 1240 10 100 10 1
KAD 16 10 160 1,00 1240 40 160 10 1 1240 50 160 10 1 1240 60 160 10 1 1240 10 160 10 1
KAD 20 12 200 1,20 1240 40 200 12 1 1240 50 200 12 1 1240 60 200 12 1 1240 10 200 12 1
KAD 26 12 260 1,20 1240 40 260 12 1 1240 50 260 12 1 1240 60 260 12 1 1240 10 260 12 1
KAD 30 12 300 1,20 1240 40 300 12 1 1240 50 300 12 1 1240 60 300 12 1 1240 10 300 12 1
KAD 40 15 400 1,50 1240 40 400 15 1 1240 50 400 15 1 1240 60 400 15 1 1240 10 400 15 1
KAD 50 15 500 1,50 1240 40 500 15 1 1240 50 500 15 1 1240 60 500 15 1 1240 10 500 15 1
KAD 60 15 600 1,50 1240 40 600 15 1 1240 50 600 15 1 1240 60 600 15 1 1240 10 600 15 1

VERTICAL INSIDE BEND KAIB 05 08 50 0,80 1250 40 050 08 1 1250 50 050 08 1
KAIB 10 08 100 0,80 1250 40 100 08 1 1250 50 100 08 1 1250 60 100 08 1 1250 10 100 08 1
KAIB 16 08 160 0,80 1250 40 160 08 1 1250 50 160 08 1 1250 60 160 08 1 1250 10 160 08 1
KAIB 20 10 200 1,00 1250 40 200 10 1 1250 50 200 10 1 1250 60 200 10 1 1250 10 200 10 1
KAIB 26 10 260 1,00 1250 40 260 10 1 1250 50 260 10 1 1250 60 260 10 1 1250 10 260 10 1
KAIB 30 10 300 1,00 1250 40 300 10 1 1250 50 300 10 1 1250 60 300 10 1 1250 10 300 10 1
KAIB 40 15 400 1,50 1250 40 400 15 1 1250 50 400 15 1 1250 60 400 15 1 1250 10 400 15 1
KAIB 50 15 500 1,50 1250 40 500 15 1 1250 50 500 15 1 1250 60 500 15 1 1250 10 500 15 1
KAIB 60 15 600 1,50 1250 40 600 15 1 1250 50 600 15 1 1250 60 600 15 1 1250 10 600 15 1

VERTICAL OUTSIDE BEND KADB 05 08 50 0,80 1250 40 050 08 1 1250 50 050 08 1
KADB 10 08 100 0,80 1250 40 100 08 1 1250 50 100 08 1 1250 60 100 08 1 1250 10 100 08 1
KADB 16 08 160 0,80 1250 40 160 08 1 1250 50 160 08 1 1250 60 160 08 1 1250 10 160 08 1
KADB 20 10 200 1,00 1250 40 200 10 1 1250 50 200 10 1 1250 60 200 10 1 1250 10 200 10 1
KADB 26 10 260 1,00 1250 40 260 10 1 1250 50 260 10 1 1250 60 260 10 1 1250 10 260 10 1
KADB 30 10 300 1,00 1250 40 300 10 1 1250 50 300 10 1 1250 60 300 10 1 1250 10 300 10 1
KADB 40 15 400 1,50 1250 40 400 15 1 1250 50 400 15 1 1250 60 400 15 1 1250 10 400 15 1
KADB 50 15 500 1,50 1250 40 500 15 1 1250 50 500 15 1 1250 60 500 15 1 1250 10 500 15 1
KADB 60 15 600 1,50 1250 40 600 15 1 1250 50 600 15 1 1250 60 600 15 1 1250 10 600 15 1

*No connectors required for fixing of bends
*Required 4 sets of M8 Bolt & Nuts for each edge of bends
*Please specify A, B, C and D dimentions if order unequal bend / different radius

+ + + + +

CABLE TRAYS


Width (W) Plate Thick.
(mm) (T) (mm)
REDUCER
RO 04 08 40 1,50 8010 40 040 15 1 8010 50 040 15 1 8010 60 040 15 1 8010 10 040 15 1
RO 05 08 50 1,50 8010 40 050 15 1 8010 50 050 15 1 8010 60 050 15 1 8010 10 050 15 1
RO 06 08 60 1,50 8010 40 060 15 1 8010 50 060 15 1 8010 60 060 15 1 8010 10 060 15 1
RO 08 10 80 1,50 8010 40 080 15 1 8010 50 080 15 1 8010 60 080 15 1 8010 10 080 15 1
RO 10 10 100 1,50 8010 40 100 15 1 8010 50 100 15 1 8010 60 100 15 1 8010 10 100 15 1
RO 16 10 160 1,50 8010 40 160 15 1 8010 50 160 15 1 8010 60 160 15 1 8010 10 160 15 1
RO 20 15 200 1,50 8010 40 200 15 1 8010 50 200 15 1 8010 60 200 15 1 8010 10 200 15 1
*Middle Reduction RO…. 8010.…. RO 30 15 300 1,50 8010 40 300 15 1 8010 50 300 15 1 8010 60 300 15 1 8010 10 300 15 1
*Left Reduction RL….. 8020….. RO 40 15 400 1,50 8010 40 400 15 1 8010 50 400 15 1 8010 60 400 15 1 8010 10 400 15 1
*Right Reduction RG…. 8030….. RO 50 15 500 1,50 8010 40 500 15 1 8010 50 500 15 1 8010 60 500 15 1 8010 10 500 15 1

BARRIER STRIP SEP 240 08 15 0,80 8112 40 000 08 1 8112 50 000 08 1 8112 60 000 08 1 8112 10 000 08 1
SEP 240 09 15 0,90 8112 40 000 09 1 8112 50 000 09 1 8112 60 000 09 1 8112 10 000 09 1
SEP 240 10 15 1,00 8112 40 000 10 1 8112 50 000 10 1 8112 60 000 10 1 8112 10 000 10 1
SEP 240 12 15 1,20 8112 40 000 12 1 8112 50 000 12 1 8112 60 000 12 1 8112 10 000 12 1
SEP 240 15 15 1,50 8112 40 000 15 1 8112 50 000 15 1 8112 60 000 15 1 8112 10 000 15 1
SEP 240 20 15 2,00 8112 40 000 20 1 8112 50 000 20 1 8112 60 000 20 1 8112 10 000 20 1

STOP END SON 05 08 50 0,80 8210 40 050 08 1 8210 50 050 08 1
SON 10 08 100 0,80 8210 40 100 08 1 8210 50 100 08 1 8210 60 100 08 1 8210 10 100 08 1
SON 16 08 160 0,80 8210 40 160 08 1 8210 50 160 08 1 8210 60 160 08 1 8210 10 160 08 1
SON 20 10 200 1,00 8210 40 200 10 1 8210 50 200 10 1 8210 60 200 10 1 8210 10 200 10 1
SON 26 10 260 1,00 8210 40 260 10 1 8210 50 260 10 1 8210 60 260 10 1 8210 10 260 10 1
SON 30 10 300 1,00 8210 40 300 10 1 8210 50 300 10 1 8210 60 300 10 1 8210 10 300 10 1
SON 40 20 400 1,50 8210 40 400 15 1 8210 50 400 15 1 8210 60 400 15 1 8210 10 400 15 1
SON 50 15 500 1,50 8210 40 500 15 1 8210 50 500 15 1 8210 60 500 15 1 8210 10 500 15 1
SON 60 20 600 1,50 8210 40 600 15 1 8210 50 600 15 1 8210 60 600 15 1 8210 10 600 15 1

Connectors of Cable Trays


VERTICAL ADJUSTABLE Width (W) Plate Thick.
CONNECTOR (mm) (T) (mm)

BDD 340 08 300 0,80 8323 40 300 08 1 8323 50 300 08 1 8323 60 300 08 1 8323 10 300 08 1
BDD 340 10 300 1,00 8323 40 300 10 1 8323 50 300 10 1 8323 60 300 10 1 8323 10 300 10 1
BDD 340 15 300 1,50 8323 40 300 15 1 8323 50 300 15 1 8323 60 300 15 1 8323 10 300 15 1


HORIZONTAL ADJUSTABLE Width (W) Plate Thick.
(mm) (T) (mm)
CONNECTOR

BYD 140 08 300 0,80 8311 40 300 08 1 8311 50 300 08 1 8311 60 300 08 1 8311 10 300 08 1
BYD 140 10 300 1,00 8311 40 300 10 1 8311 50 300 10 1 8311 60 300 10 1 8311 10 300 10 1
BYD 140 15 300 1,50 8311 40 300 15 1 8311 50 300 15 1 8311 60 300 15 1 8311 10 300 15 1


+ + + + +

COVERS

Cable Tray Covers - KK Series

Model Number
(mm) (mm) kg/m (PG)

KK 05 06 50 0,60 0,358 3000 13 050 06 1
KK 05 08 50 0,80 0,477 3000 13 050 08 1
KK 10 06 100 0,60 0,593 3000 13 100 06 1
KK 10 08 100 0,80 0,791 3000 13 100 08 1
KK 16 06 160 0,60 0,876 3000 13 160 06 1
KK 16 08 160 0,80 1,168 3000 13 160 08 1
KK 20 08 200 0,80 1,419 3000 13 200 08 1
KK 20 10 200 1,00 1,774 3000 13 200 10 1
KK 26 08 260 0,80 1,796 3000 13 260 08 1
KK 26 10 260 1,00 2,245 3000 13 260 10 1
KK 30 08 300 0,80 2,047 3000 13 300 08 1
KK 30 10 300 1,00 2,559 3000 13 300 10 1
KK 40 10 400 1,00 3,344 3000 13 400 10 1
KK 40 15 400 1,50 5,016 3000 13 400 15 1
KK 50 10 500 1,00 4,129 3000 13 500 10 1
KK 50 15 500 1,50 6,194 3000 13 500 15 1
KK 60 10 600 1,00 4,914 3000 13 600 10 1
KK 60 15 600 1,50 7,371 3000 13 600 15 1

*Each length of tray cover needs 4 pcs of cover clamps

+ + + + +
Cover Clamp- KT/1

Height Plate Thick. (T) Order Code
Model Number Weight kg/pcs
(mm) (mm) (PG)

KT/1 25 25 2,00 0,026 3901 25 000 20 1
KT/1 40 40 2,00 0,031 3901 40 000 20 1
KT/1 50 50 2,00 0,034 3901 50 000 20 1
KT/1 60 60 2,00 0,037 3901 60 000 20 1
KT/1 80 80 2,00 0,043 3901 80 000 20 1
KT/1 100 100 2,00 0,049 3901 10 000 20 1

Cover Holder- KT/2

Width (W) Order Code
Model Number Height (H) (mm) Weight kg/set
(mm) (PG)

KT/2 405 50 40,00 0,080 3902 40 050 15 1
KT/2 410 100 40,00 0,104 3902 40 100 15 1
KT/2 416 160 40,00 0,132 3902 40 160 15 1
KT/2 420 200 40,00 0,151 3902 40 200 15 1
KT/2 426 260 40,00 0,179 3902 40 260 15 1
KT/2 430 300 40,00 0,264 3902 40 300 20 1
KT/2 440 400 40,00 0,327 3902 40 400 20 1
KT/2 450 500 40,00 0,389 3902 40 500 20 1
KT/2 460 600 40,00 0,452 3902 40 600 20 1

*Each holder set include 2 sets of M8 Bolt and Nuts
*The product may be produced in any reguested height

ORDER CODES PRINCIPLE FOR SOME OTHER STANDARD HEIGHTS
H:25 H:50 H:60 H:80 H:100

KT/2 2… KT/2 5… KT/2 6… KT/2 8… KT/2 1…

For example: If you need to order the clamp for tray 300x60mm,
the order code is KT/2 630

COVERS


Model Number
90º Horizontal Bend Covers (mm) (mm) kg/pcs (PG)

KK90 05 10 50 1,00 0,079 3020 13 050 10 1
KK90 10 10 100 1,00 0,177 3020 13 100 10 1
KK90 16 10 160 1,00 0,346 3020 13 160 10 1
KK90 20 12 200 1,20 0,589 3020 13 200 12 1
KK90 26 12 260 1,20 0,905 3020 13 260 12 1
KK90 30 12 300 1,20 1,154 3020 13 300 12 1
KK90 40 15 400 1,50 2,384 3020 13 400 15 1
KK90 50 15 500 1,50 3,562 3020 13 500 15 1
KK90 60 15 600 1,50 4,975 3020 13 600 15 1

Model Number
Tee Horizontal Bend Covers (mm) (mm) kg/pcs (PG)

KKT 05 10 50 1,00 0,118 3030 13 050 10 1
KKT 10 10 100 1,00 0,236 3030 13 100 10 1
KKT 16 10 160 1,00 0,429 3030 13 160 10 1
KKT 20 12 200 1,20 0,707 3030 13 200 12 1
KKT 26 12 260 1,20 1,051 3030 13 260 12 1
KKT 30 12 300 1,20 1,319 3030 13 300 12 1
KKT 40 15 400 1,50 2,649 3030 13 400 15 1
KKT 50 15 500 1,50 3,886 3030 13 500 15 1
KKT 60 15 600 1,50 5,358 3030 13 600 15 1

Model Number
Crossing Horizontal Bend Covers (mm) (mm) kg/pcs (PG)

KKD 05 10 50 1,00 0,133 3040 13 050 10 1
KKD 10 10 100 1,00 0,254 3040 13 100 10 1
KKD 16 10 160 1,00 0,452 3040 13 160 10 1
KKD 20 12 200 1,20 0,739 3040 13 200 12 1
KKD 26 12 260 1,20 1,089 3040 13 260 12 1
KKD 30 12 300 1,20 1,360 3040 13 300 12 1
KKD 40 15 400 1,50 2,713 3040 13 400 15 1
KKD 50 15 500 1,50 3,961 3040 13 500 15 1
KKD 60 15 600 1,50 5,445 3040 13 600 15 1

90º Vertical Bend Covers Model Number
(mm) (mm) kg/pcs (PG)

KKIB 05 08 50 0,80 0,310 3050 13 050 08 1
KKIB 10 08 100 0,80 0,514 3050 13 100 08 1
KKIB 16 08 160 0,80 0,759 3050 13 160 08 1
KKIB 20 10 200 1,00 1,153 3050 13 200 10 1
KKIB 26 10 260 1,00 1,459 3050 13 260 10 1
KKIB 30 10 300 1,00 1,663 3050 13 300 10 1
KKIB 40 15 400 1,50 3,260 3050 13 400 15 1
KKIB 50 15 500 1,50 4,026 3050 13 500 15 1
KKIB 60 15 600 1,50 4,791 3050 13 600 15 1

Model Number
90º Vertical Bend Covers (mm) (mm) kg/pcs (PG)

KKDB 05 08 50 0,80 0,310 3050 13 050 08 1
KKDB 10 08 100 0,80 0,514 3050 13 100 08 1
KKDB 16 08 160 0,80 0,759 3050 13 160 08 1
KKDB 20 10 200 1,00 1,153 3050 13 200 10 1
KKDB 26 10 260 1,00 1,459 3050 13 260 10 1
KKDB 30 10 300 1,00 1,663 3050 13 300 10 1
KKDB 40 15 400 1,50 3,260 3050 13 400 15 1
KKDB 50 15 500 1,50 4,026 3050 13 500 15 1
KKDB 60 15 600 1,50 4,791 3050 13 600 15 1

*Each pieces required 4 pcs of Cover Clamps for fixing to vertical bend
*Flexible Vercital bend delivered in plain possition and may be used for 30, 60, 90 degrees

+ + + + +

CABLE TRAYS

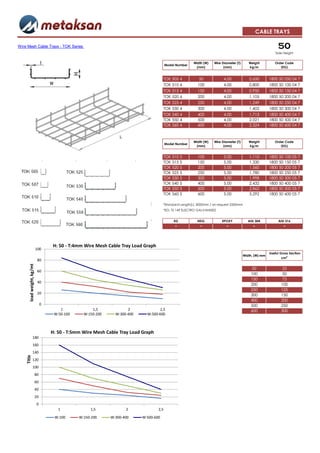

Wire Mesh Cable Trays - TOK Series 50
Side Height

Width (W) Wire Diameter (T) Weight Order Code
Model Number
(mm) (mm) kg/m (EG)

TOK 505 4 50 4,00 0,650 1800 50 050 04 7
TOK 510 4 100 4,00 0,800 1800 50 100 04 7
TOK 515 4 150 4,00 0,950 1800 50 150 04 7
TOK 520 4 200 4,00 1,105 1800 50 200 04 7
TOK 525 4 250 4,00 1,249 1800 50 250 04 7
TOK 530 4 300 4,00 1,402 1800 50 300 04 7
TOK 540 4 400 4,00 1,713 1800 50 400 04 7
TOK 550 4 500 4,00 2,021 1800 50 500 04 7
TOK 560 4 600 4,00 2,324 1800 50 600 04 7

Model Number
(mm) (mm) kg/m (EG)

TOK 510 5 100 5,00 1,110 1800 50 100 05 7
TOK 515 5 150 5,00 1,330 1800 50 150 05 7
TOK 520 5 200 5,00 1,560 1800 50 200 05 7
TOK 525 5 250 5,00 1,780 1800 50 250 05 7
TOK 530 5 300 5,00 1,998 1800 50 300 05 7
TOK 540 5 400 5,00 2,432 1800 50 400 05 7
TOK 550 5 500 5,00 2,862 1800 50 500 05 7
TOK 560 5 600 5,00 3,292 1800 50 600 05 7

*EG: TS 149 ELECTRO GALVANISED

EG HDG EPOXY AISI 304 AISI 316
+ + + + +

H: 50 - T:4mm Wire Mesh Cable Tray Load Graph
100
Useful Gross Section
Width, (W) mm
cm2
80
load weight, kg/mt

50 25
60
100 50
150 75
40
200 100
250 125
20 300 150
400 200
0 500 250
1 1,5 2 2,5 600 300
W:50-100 W:150-200 W:300-400 W:500-600

180
160
140
Title

120
100
80
60
40
20
0
1 1,5 2 2,5
W:100 W:150-200 W:300-400 W:500-600

CABLE TRAYS

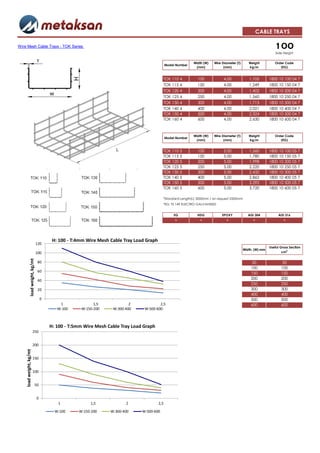

Wire Mesh Cable Trays - TOK Series 100
Side Height

Model Number
(mm) (mm) kg/m (EG)

TOK 110 4 100 4,00 1,105 1800 10 100 04 7
TOK 115 4 150 4,00 1,249 1800 10 150 04 7
TOK 120 4 200 4,00 1,402 1800 10 200 04 7
TOK 125 4 250 4,00 1,560 1800 10 250 04 7
TOK 130 4 300 4,00 1,713 1800 10 300 04 7
TOK 140 4 400 4,00 2,021 1800 10 400 04 7
TOK 150 4 500 4,00 2,324 1800 10 500 04 7
TOK 160 4 600 4,00 2,630 1800 10 600 04 7

Model Number
(mm) (mm) kg/m (EG)

TOK 520 TOK 110 5 100 5,00 1,560 1800 10 100 05 7
TOK 115 5 150 5,00 1,780 1800 10 150 05 7
TOK 120 5 200 5,00 1,998 1800 10 200 05 7
TOK 125 5 250 5,00 2,220 1800 10 250 05 7
TOK 130 5 300 5,00 2,432 1800 10 300 05 7
TOK 140 5 400 5,00 2,862 1800 10 400 05 7
TOK 150 5 500 5,00 3,292 1800 10 500 05 7
TOK 160 5 600 5,00 3,720 1800 10 600 05 7


+ + + + +

120
Width, (W) mm
100 cm2
load weight, kg/mt

80 50 50
100 100
60
150 150
40 200 200
250 250
20 300 300
400 400
0 500 500
1 1,5 2 2,5 600 600
W:100 W:150-200 W:300-400 W:500-600

250

200
load weight, kg/mt

150

100

50

0
1 1,5 2 2,5

W:100 W:150-200 W:300-400 W:500-600

CABLE TRAYS

Connector- TBE

Model Number
(mm) (mm) kg/m (EG)

TBE 100 30 2 0,04 1801 00 000 20 7

*Each set TBE 100 connector include 2 connectors and 1 set of M6 Bolt and Nuts...
*For HDG trays advaced to order connector in DACROMET finish

EG DACROMET HDG AISI 304 AISI 316
+ +

Number of connectors advaced for wire mesh trays
Width (W) H:50mm H:100mm
50 2
100 2 2+1
150 2 2+1
200 2+1 2+2
250 2+1 2+2
300 2+2 2+3
400 2+2 2+3
500 2+2 2+3
600 2+2 2+3

Fixing Unit- TSE
Model Number
(mm) (mm) kg/m (EG)

TSE 100 25 2 0,03 1802 00 000 20 7

*Each set TSE 100 connector include 1 connector and 1 set of M6 Bolt, Nut and Washer
*For HDG trays advaced to order connector in DACROMET finish

EG DACROMET HDG AISI 304 AISI 316
+ +

Number of connectors advaced for wire mesh trays
Width (W) H:50mm H:100mm
50 1
100 1 1
150 1 1
200 2 2
250 2 2
300 2 2
400 2 2
500 2 2
600 2 2

Different Bends- Installation Examples

CABLE LADDERS

Pregalvanised Type Cable Ladder - PKM Series 50
Side Height

Width (W) Beam /Rung Weight Order Code
Model Number
(mm) Thick. (T) (mm) kg/m (PG)

PKM 510 8 100 1,20 1,827 2100 50 100 12 1
PKM 515 8 150 1,20 1,941 2100 50 150 12 1
PKM 520 8 200 1,20 2,054 2100 50 200 12 1
PKM 530 8 300 1,20 2,280 2100 50 300 12 1
PKM 540 8 400 1,20 2,506 2100 50 400 12 1
PKM 545 8 450 1,20 2,619 2100 50 450 12 1
PKM 550 8 500 1,20 2,732 2100 50 500 12 1
PKM 560 8 600 1,20 2,958 2100 50 600 12 1

*Standard production 8 rungs in a length / on request 10 rungs in a length
*PG:ISO EN 10327 (TS 822) PREGALVANIZ

+

H: 50 Pregalvanised Type Cable Ladder Load Graph T:1,2 Width, (W) mm
cm2
120
load weight, kg/mt

100
100 33,6
80 150 51,1
60 200 68,6
40 300 103,6
400 138,6
20
450 156,1
0 500 173,6
1,5 2 3 600 208,6
support space, meter
750 261,1
900 313,6
Straight Connector

Weight Order Code
kg/pcs (PG)

BE 250 15 250 1,5 0,191 8002 50 001 15 1
BE 250 20 250 2 0,255 8002 50 001 20 1


Length Order Code
(mm) (PG)

CS M8 15 8 0,012 9000 08 015 00 1

Fixing Unit- MT/1
Model Number

MT/1 30 2,00 0,050 2000 00 000 20 1
*Each Fixing Unit needs 1 sets of M8x15mm Bolt & Nuts for fixing to bracket

+ + + + +

CABLE LADDERS

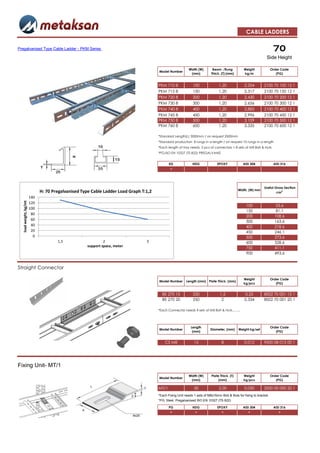

Pregalvanised Type Cable Ladder - PKM Series 70
Side Height

Width (W) Beam /Rung Weight Order Code
Model Number
(mm) Thick. (T) (mm) kg/m (PG)

PKM 710 8 100 1,20 2,204 2100 70 100 12 1
PKM 715 8 150 1,20 2,317 2100 70 150 12 1
PKM 720 8 200 1,20 2,430 2100 70 200 12 1
PKM 730 8 300 1,20 2,656 2100 70 300 12 1
PKM 740 8 400 1,20 2,883 2100 70 400 12 1
PKM 745 8 450 1,20 2,996 2100 70 450 12 1
PKM 750 8 500 1,20 3,109 2100 70 500 12 1
PKM 760 8 600 1,20 3,335 2100 70 600 12 1

*Standard production 8 rungs in a length / on request 10 rungs in a length
*PG:ISO EN 10327 (TS 822) PREGALVANIZ

+

Width, (W) mm
H: 70 Pregalvanised Type Cable Ladder Load Graph T:1,2 cm2
140
load weight, kg/mt

120
100 53,6
100
150 81,1
80
200 108,6
60
300 163,6
40 400 218,6
20 450 246,1
0 500 273,6
1,5 2 3 600 328,6
support space, meter
750 411,1
900 493,6
Straight Connector

Weight Order Code
kg/pcs (PG)

BE 270 15 250 1,5 0,25 8002 70 001 15 1
BE 270 20 250 2 0,334 8002 70 001 20 1


Length Order Code
(mm) (PG)

CS M8 15 8 0,012 9000 08 015 00 1

Fixing Unit- MT/1
Model Number

MT/1 30 2,00 0,050 2000 00 000 20 1
*Each Fixing Unit needs 1 sets of M8x15mm Bolt & Nuts for fixing to bracket

+ + + + +

CABLE LADDERS

Underfloor Cable Trays - DAK Series

Height (H) Weight Order Code
Model Number Width (W) (mm)
(mm) kg/m (PG)

DAK 308 30 80,00 2,562 1600 30 080 12 1
DAK 312 30 120,00 3,724 1600 30 120 12 1
DAK 316 30 160,00 4,473 1600 30 160 12 1
DAK 320 30 200,00 5,540 1600 30 200 12 1
DAK 324 30 240,00 6,333 1600 30 240 12 1
DAK 330 30 300,00 7,459 1600 30 300 12 1
DAK 408 40 80,00 2,751 1600 40 080 12 1
DAK 412 40 120,00 4,092 1600 40 120 12 1
DAK 416 40 160,00 4,841 1600 40 160 12 1
DAK 420 40 200,00 6,105 1600 40 200 12 1
DAK 424 40 240,00 6,896 1600 40 240 12 1
DAK 430 40 300,00 8,024 1600 40 300 12 1

*PG:ISO EN 10327 (TS 822) PREGALVANİZ

+

DBE 308 / DBE 408 DBE 316 / DBE 416 DBE 324 / DBE 424

DBE 312 / DBE 412 DBE 320 / DBE 420 DBE 330 / DBE 430

Straight connector
(mm) kg/m (PG)

DBE 308 30 80,00 0,150 1601 30 080 12 1
DBE 312 30 120,00 0,186 1601 30 120 12 1
DBE 316 30 160,00 0,226 1601 30 160 12 1
DBE 320 30 200,00 0,264 1601 30 200 12 1
DBE 324 30 240,00 0,300 1601 30 240 12 1
DBE 330 30 300,00 0,356 1601 30 300 12 1
DBE 408 40 80,00 0,160 1601 40 080 12 1
DBE 412 40 120,00 0,196 1601 40 120 12 1
DBE 416 40 160,00 0,234 1601 40 160 12 1
DBE 420 40 200,00 0,276 1601 40 200 12 1
DBE 424 40 240,00 0,310 1601 40 240 12 1
DBE 430 40 300,00 0,367 1601 40 300 12 1

*Each lenght needs 1 pcs of connector

+

CABLE TRAYS

Junction Box

(mm) kg/pcs (PG)

BUAT 33 65-90 330x330 4,000 1610 65 330 00 1
BUAT 36 65-90 360x360 4,350 1610 65 360 00 1
BUAT 42 65-90 420x420 4,700 1610 65 420 00 1


+

DAK 308
DAK 312
BOX 330x330
DAK 316
DAK 320
DAK 324 BOX 360x360
DAK 330 BOX 420x420
DAK 408
DAK 412
BOX 330x330
DAK 416
DAK 420
DAK 424 BOX 360x360
DAK 430 BOX 420x420

Empty Junction Box

(mm) kg/pcs (PG)

BUAT 33 /1 65 330x330 2,600 1611 65 330 00 1
BUAT 36 /1 65 360x360 2,900 1611 65 360 00 1
BUAT 42 /1 65 420x420 3,200 1611 65 420 00 1

+

Socket Case

Weight Order Code
Model Number Sockets (pcs) Width (W) (mm)
kg/pcs (PG)

BUAT 36-42 /2 8 270,00 1,450 1612 65 270 08 0
BUAT 36-42 /2 12 270,00 1,500 1612 65 270 12 0


+

Metal Cover

(mm) kg/pcs (PG)

BUAT 36 /3 15 360x360 1,900 1613 65 360 20 1
BUAT 42 /3 15 420x420 1,600 1613 65 420 20 1


+ + +

C SUPPORT

C channel profiles 21x41

Dimentions Thickness (T) Weight Order Code
Model Number
(mm) (mm) kg/m (PG)

C 2141 2 21x41 2,00 1,617 4100 21 041 20 1
C 2141 C 2141 2.5 21x41 2,50 2,021 4100 21 041 25 1
C 2141A 2 21x41 2,00 1,617 4101 21 041 20 1
C 2141A 2.5 21x41 2,50 2,021 4101 21 041 25 1

*Standard hole 11x25mm / on request 14x28mm
*ISO EN 10327 (TS 822) PREGALVANISED

A = 11 x 25 mm PG HDG EPOXY AISI 304 AISI 316
+ + + + +

C 2141A

C channel profiles

Model Number
(mm) (mm) kg/m (PG)

C 4141 C 4141 2 41x41 2,00 2,245 4100 41 041 20 1
C 4141 2.5 41x41 2,50 2,806 4100 41 041 25 1
C 4141A 2 41x41 2,00 2,245 4101 41 041 20 1
C 4141A 2.5 41x41 2,50 2,806 4101 41 041 25 1

*Standard hole 11x25mm / on request 14x28mm

A = 11 x 25 mm + + + + +

C 4141A

C support static value

21x41x2 21x41x2,5 41x41x2,5 41x41x2,5
L F f F f F f F f
(mm) (kg) (mm) (kg) (mm) (kg) (mm) (kg) (mm)

250 39,00 0,43 49,00 0,59 90,00 0,37 140,00 0,24
500 19,50 1,72 24,50 2,35 45,00 1,48 70,00 0,94
750 13,00 3,87 16,33 5,28 30,00 3,35 46,67 2,12
1.000 9,75 6,88 12,29 9,39 22,50 5,92 35,00 3,77
1.250 7,80 10,74 9,80 11,66 18,00 9,26 28,00 5,90
1.500 6,50 15,47 8,17 21,22 15,00 13,30 23,33 8,49
1.750 5,57 21,06 7,00 28,74 12,86 18,14 20,00 11,56
2.000 4,88 27,50 6,13 37,54 11,25 23,70 17,50 15,10
2.250 10,00 29,94 15,56 19,11
2.500 - - - - 9,00 37,83 14,00 23,59

U SUPPORT

U profile 34x48

Model Number
(mm) (mm) kg/m (PG)

U 3448 1,2 34x48 1,20 1,093 4200 34 048 12 1
U 3448 1,5 34x48 1,50 1,366 4200 34 048 15 1
U 3448 2,0 34x48 2,00 1,821 4200 34 048 20 1

*Standard Length(L) 3000mm / on request 500-2500mm

+ + + + +

U profile 30x45

Model Number
(mm) (mm) kg/m (PG)

U 3045 1,2 30x45 1,20 0,989 4200 30 045 12 1
U 3045 1,5 30x45 1,50 1,236 4200 30 045 15 1
U 3045 2,0 30x45 2,00 1,649 4200 30 045 20 1


+ + + + +

U profile 40x50

Model Number
(mm) (mm) kg/m (PG)

U 4050 1,2 40x50 1,20 1,225 4200 40 050 12 1
U 4050 1,5 40x50 1,50 1,531 4200 40 050 15 1
U 4050 2,0 40x50 2,00 2,041 4200 40 050 20 1


+ + + + +

U profile support ceiling

Length (L) Thickness (T) Weight Order Code
Model Number
(mm) (mm) kg/pcs (EG)

UT1 10 100 2,00 0,491 4210 30 010 20 7
UT1 50 500 2,00 1,248 4210 30 050 20 7
UT1 100 1000 2,00 2,195 4210 30 100 20 7
UT1 150 1500 2,00 3,142 4210 30 150 20 7
UT1 200 2000 2,00 4,089 4210 30 200 20 7

*Head Plate may be ordered in different thickness and hole design
*TS 149 ELECTRO GALVANISED

+ + + + +

U SUPPORT

U profile ceiling supports

Thickness (T) Weight Order Code Thickness (T) Weight Order Code
Model Number Model Number
(mm) kg/pcs (PG) (mm) kg/pcs (PG)

UT2 01 2 0,25 422130 050 20 1 UT2 02 2 0,14 4222 30 050 20 1

*Order code for 1 pcs, for each ceiling should be ordered 2 pcs

Thickness (T) Weight Order Code
Model Number
(mm) kg/pcs (PG)

UT2 03 3 0,46 4223 80 055 30 1

*All items available in following finishes:

+ + + + +

U profile brackets
Model Length (L) Thickness (T) Weight Order Code
Number (mm) (mm) kg/pcs (PG)

UK 10 130 1,50 0,280 4250 30 010 15 1
UK 16 190 1,50 0,410 4250 30 016 15 1
UK 20 230 1,50 0,500 4250 30 020 150 1
UK 30 330 2,00 0,700 4250 30 030 20 1
UK 40 430 2,00 0,910 4250 30 040 20 1
UK 50 530 2,00 1,140 4250 30 050 20 1
UK 60 630 2,00 1,350 4250 30 060 20 1

*Bolts and Nuts M8 required for fixing of brackets to U profiles
*All items available in following finishes:

+ + + + +

U support static values

SUPPORT SYSTEMS

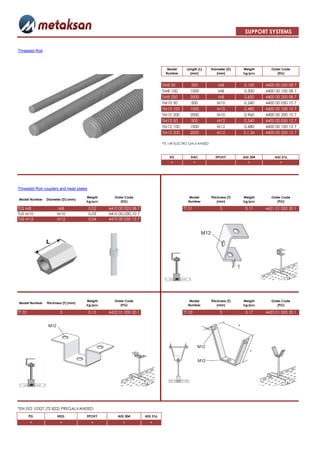

Threaded Rod

Model Length (L) Diameter (D) Weight Order Code
Number (mm) (mm) kg/pcs (EG)

TM8 50 500 M8 0,150 4400 00 050 08 7
TM8 100 1000 M8 0,300 4400 00 100 08 7
TM8 200 2000 M8 0,600 4400 00 200 08 7
TM10 50 500 M10 0,240 4400 00 050 10 7
TM10 100 1000 M10 0,480 4400 00 100 10 7
TM10 200 2000 M10 0,960 4400 00 200 10 7
TM12 50 500 M12 0,340 4400 00 050 12 7
TM12 100 1000 M12 0,680 4400 00 100 12 7
TM12 200 2000 M12 0,1,36 4400 00 200 12 7

*TS 149 ELECTRO GALVANISED

EG DAC EPOXY AISI 304 AISI 316
+ + + +

Threaded Rod couplers and head plates

Weight Order Code Model Thickness (T) Weight Order Code
Model Number Diameter (D) (mm)
kg/pcs (EG) Number (mm) kg/pcs (PG)

TUS M8 M8 0,02 4410 00 025 08 7 TT 01 3 0,11 4421 01 000 30 1
TUS M10 M10 0,03 4410 00 030 10 7
TUS M12 M12 0,04 4410 00 035 12 7

Weight Order Code Model Thickness (T) Weight Order Code
Model Number Thickness (T) (mm)
kg/pcs (PG) Number (mm) kg/pcs (PG)

TT 02 3 0,15 4422 01 000 30 1 TT 03 3 0,17 4423 01 000 30 1

*EN ISO 10327 (TS 822) PREGALVANISED
+ + + + +

SUPPORT SYSTEMS

Tray Carriers


TK1 50 55 1,50 0,100 4431 60 055 15 1
TK1 100 105 1,50 0,135 4431 60 105 15 1
TK1 160 165 1,50 0,175 4431 60 165 15 1
TK1 200 205 2,00 0,200 4431 60 205 20 1


+ + + + +

Tray Carriers


TK2 160 220 1,50 0,215 4432 40 220 15 1
TK2 200 260 1,50 0,254 4432 40 260 15 1
TK2 300 360 1,50 0,352 4432 40 360 15 1
TK2 400 460 1,50 0,450 4432 40 460 15 1
TK2 500 560 1,50 0,547 4432 40 560 15 1
TK2 600 660 1,50 0,645 4432 40 660 15 1


+ + + + +

Tray Carriers


TK3 160 220 2,00 0,366 4433 30 220 20 1
TK3 200 260 2,00 0,433 4433 30 260 20 1
TK3 300 360 2,00 0,599 4433 30 360 20 1
TK3 400 460 2,00 0,766 4433 30 460 20 1
TK3 500 560 2,00 0,932 4433 30 560 20 1
TK3 600 660 2,00 1,098 4433 30 660 20 1


+ + + + +

Tray Carriers


TK5 50 60 3,00 0,188 4435 10 060 30 7
TK5 100 110 3,00 0,235 4435 10 110 30 7
TK5 160 170 3,00 0,292 4435 10 170 30 7
TK5 200 210 3,00 0,320 4435 10 210 30 7


+ + + + +

SUPPORT SYSTEMS

Brackets for Wall Mounting

Model Number

DK 05 50 1,50 0,110 4510 10 050 15 1
DK 10 100 1,50 0,185 4510 10 100 15 1
DK 16 160 1,50 0,260 4510 10 160 15 1
DK 20 200 1,50 0,310 4510 10 200 15 1
DK 30 300 2,00 0,710 4510 10 300 20 1
DK 40 400 2,00 0,910 4510 10 400 20 1
DK 50 500 2,00 1,100 4510 10 500 20 1
DK 60 600 2,00 1,310 4510 10 600 20 1

*Required M8 bolt and Nuts for fixing to Trays.

+ + + + +

Brackets for Wall Mounting (Welded)

Model Number
(mm) (mm) kg/pcs (EG)

DKK 05 50 1,50 0,180 4520 10 050 15 7
DKK 10 100 1,50 0,230 4520 10 100 15 7
DKK 16 160 1,50 0,290 4520 10 160 15 7
DKK 20 200 1,50 0,330 4520 10 200 15 7
DKK 30 300 1,50 0,890 4520 10 300 15 7
DKK 40 400 1,50 1,060 4520 10 400 15 7
DKK 50 500 1,50 1,230 4520 10 500 15 7
DKK 60 600 1,50 1,410 4520 10 600 15 7
DKK 30-60
*TS 822 ELECTROGALVANISED

+ + + + +

Brackets for Wall & Floor Mounting

Diment (LxH) Thickness (T) Weight Order Code
Model Number

YDT 305 50x30 2,00 0,080 4530 30 050 20 1
YDT 310 100x30 2,00 0,104 4530 30 100 20 1
YDT 316 160x30 2,00 0,132 4530 30 160 20 1
YDT 320 200x30 2,00 0,151 4530 30 200 20 1
YDT 330 300x30 3,00 0,297 4530 30 300 30 1
YDT 340 400x30 3,00 0,367 4530 30 400 30 1
YDT 350 500x30 3,00 0,438 4530 30 500 30 1
YDT 360 600x30 3,00 0,509 4530 30 600 30 1


+ + + + +

SUPPORT SYSTEMS

Rounded Head Square Neck Bolt & Flanged Nuts

Model Weight Order Code
Dimentions (D) (mm)
Number kg/pcs

CS M6 M6 0,01 9000 06 015 00 7
CS M8 M8 0,01 9000 08 015 00 7
CS M10 M10 0,04 9000 10 025 00 7
CS M12 M12 0,06 9000 12 025 00 7

Hex Nuts

Dimentions (D) (mm)
Number kg/pcs

S M6 M6 0,00 9001 06 000 00 7
S M8 M8 0,01 9001 08 000 00 7
S M10 M10 0,01 9001 10 000 00 7
S M12 M12 0,02 9001 12 000 00 7

Flanged Nuts

Dimentions (D) (mm)
Number kg/pcs

FS M6 M6 0,00 9002 06 000 00 7
FS M8 M8 0,01 9002 08 000 00 7
FS M10 M10 0,01 9002 10 000 00 7
FS M12 M12 0,02 9002 12 000 00 7

Flat washers

Dimentions (D) (mm)
Number kg/pcs

P M6 M6 0,00 9011 06 000 00 7
P M8 M8 0,00 9011 08 000 00 7
P M10 M10 0,00 9011 10 000 00 7
P M12 M12 0,01 9011 12 000 00 7

Spring lock washers

Dimentions (D) (mm)
Number kg/pcs

YP M6 M6 0,00 9012 06 000 00 7
YP M8 M8 0,00 9012 08 000 00 7
YP M10 M10 0,00 9012 10 000 00 7
YP M12 M12 0,01 9012 12 000 00 7

Serrated lock washer

Dimentions (D) (mm)
Number kg/pcs

TP M6 M6 0,00 9013 06 000 00 7
TP M8 M8 0,00 9013 08 000 00 7
TP M10 M10 0,00 9013 10 000 00 7
TP M12 M12 0,01 9013 12 000 00 7

SUPPORT SYSTEMS

Hex Bolts

Dimentions (D) (mm)
Number kg/pcs

AC M6 M6 0,07 9020 06 025 00 7
AC M8 M8 0,01 9020 08 025 00 7
AC M10 M10 0,02 9020 10 025 00 7
AC M12 M12 0,03 9020 12 025 00 7

Splinte Pins

Dimentions (D) (mm)
Number kg/pcs

KOP M6 0,07 9030 06 025 00 7

Drop in Anchor

Dimentions (D) (mm)
Number kg/pcs

CD M6 M6 0,07 9040 06 030 00 7
CD M8 M8 0,01 9040 08 030 00 7
CD M10 M10 0,02 9040 10 030 00 7
CD M12 M12 0,05 9040 12 040 00 7

Draw in Anchor

Dimentions (D) (mm)
Number kg/pcs

SD M6 M6 0,01 9041 06 040 00 7
SD M8 M8 0,02 9041 08 040 00 7
SD M10 M10 0,03 9041 10 060 00 7
SD M12 M12 0,05 9041 12 060 00 7

Sleeve Anchor

Dimentions (D) (mm)
Number kg/pcs

GD M6 M6 0,01 9042 06 040 00 7
GD M8 M8 0,02 9042 08 040 00 7
GD M10 M10 0,03 9042 10 060 00 7
GD M12 M12 0,05 9042 12 060 00 7

Heavy Duty Expension Anchor

Dimentions (D) (mm)
Number kg/pcs

AD M6 M6 0,02 9043 06 040 00 7
AD M8 M8 0,02 9043 08 040 00 7
AD M10 M10 0,04 9043 10 060 00 7
AD M12 M12 0,06 9043 12 060 00 7

PVC CABLE TRUNKINGS

PVC cable trunkings (Box Package)

Model Width (W) Height (H) Length (L) Package Volume, Order Code
Number (mm) (mm) (mm) Quantity (mt) m3 (PVC)

PT 1212 12 12 2.000 288 0,051 5000 012 012 00 0
PT 1510 15 10 2.000 260 0,051 5000 010 015 00 0
PT 1616 16 16 2.000 162 0,051 5000 016 016 00 0
PT 2010 20 10 2.000 210 0,051 5000 010 020 00 0
PT 2516 25 16 2.000 160 0,079 5000 016 025 00 0
PT 2525 25 25 2.000 98 0,079 5000 025 025 00 0
PT 2540 25 40 2.000 80 0,093 5000 040 025 00 0
PT 3011 30 11 2.000 210 0,079 5000 011 030 00 0
PT 3020 30 20 2.000 108 0,079 5000 020 030 00 0


PT 4016 40 16 2.000 120 0,093 5000 016 040 00 0
PT 4025 40 25 2.000 80 0,093 5000 025 040 00 0
PT 4040 40 40 2.000 64 0,093 5000 040 040 00 0
PT 4060 40 60 2.000 48 0,093 5000 060 040 00 0
PT 6040 60 40 2.000 48 0,093 5000 040 060 00 0
PT 6060 60 60 2.000 48 0,115 5000 060 060 00 0
PT 6080 60 80 2.000 36 0,115 5000 080 060 00 0
PT 8040 80 40 2.000 36 0,093 5000 040 080 00 0
PT 8060 80 60 2.000 36 0,115 5000 060 080 00 0
PT 10040 100 40 2.000 32 0,093 5000 040 100 00 0
PT 10060 100 60 2.000 32 0,115 5000 060 100 00 0
PT 12060 120 60 2.000 24 0,115 5000 060 120 00 0

Adhesive PVC cable trunkings (Box Package)


APT 1212 12 12 2.000 288 0,051 5200 012 012 00 0
APT 1510 15 10 2.000 260 0,051 5200 010 015 00 0
APT 1616 16 16 2.000 162 0,051 5200 016 016 00 0
APT 2010 20 10 2.000 210 0,051 5200 010 020 00 0
APT 2516 25 16 2.000 160 0,079 5200 016 025 00 0
APT 2525 25 25 2.000 98 0,079 5200 025 025 00 0
APT 2540 25 40 2.000 80 0,093 5200 040 025 00 0


APT 3011 30 11 2.000 210 0,079 5200 011 030 00 0
APT 3020 30 20 2.000 108 0,079 5200 020 030 00 0
APT 4016 40 16 2.000 120 0,093 5200 016 040 00 0
APT 4025 40 25 2.000 80 0,093 5200 025 040 00 0
APT 4040 40 40 2.000 64 0,093 5200 040 040 00 0
APT 4060 40 60 2.000 48 0,093 5200 060 040 00 0
APT 6040 60 40 2.000 48 0,093 5200 040 060 00 0

PVC CABLE TRUNKINGS

PVC cable trunkings (Nylon Package)


PT 1212 12 12 2.000 100 0,017 5000 012 012 01 0
PT 1510 15 10 2.000 100 0,017 5000 010 015 01 0
PT 1616 16 16 2.000 100 0,029 5000 016 016 01 0
PT 2010 20 10 2.000 100 0,021 5000 010 020 01 0
PT 2516 25 16 2.000 80 0,033 5000 016 025 01 0
PT 2525 25 25 2.000 50 0,036 5000 025 025 01 0
PT 2540 25 40 2.000 48 0,044 5000 040 025 01 0
PT 3011 30 11 2.000 50 0,019 5000 011 030 01 0
PT 3020 30 20 2.000 50 0,031 5000 020 030 01 0


PT 4016 40 16 2.000 50 0,035 5000 016 040 01 0
PT 4025 40 25 2.000 50 0,051 5000 025 040 01 0
PT 4040 40 40 2.000 40 0,07 5000 040 040 01 0
PT 4060 40 60 2.000 30 0,081 5000 060 040 01 0
PT 6040 60 40 2.000 30 0,081 5000 040 060 01 0
PT 6060 60 60 2.000 32 0,102 5000 060 060 01 0
PT 6080 60 80 2.000 24 0,114 5000 080 060 01 0
PT 8040 80 40 2.000 18 0,062 5000 040 080 01 0
PT 8060 80 60 2.000 24 0,114 5000 060 080 01 0
PT 10040 100 40 2.000 16 0,067 5000 040 100 01 0
PT 10060 100 60 2.000 16 0,1 5000 060 100 01 0
PT 12060 120 60 2.000 16 0,119 5000 060 120 01 0

Adhesive PVC cable trunkings (Nylon Package)


APT 1212 12 12 2.000 100 0,017 5200 012 012 01 0
APT 1510 15 10 2.000 100 0,017 5200 010 015 01 0
APT 1616 16 16 2.000 100 0,029 5200 016 016 01 0
APT 2010 20 10 2.000 100 0,021 5200 010 020 01 0
APT 2516 25 16 2.000 80 0,033 5200 016 025 01 0
APT 2525 25 25 2.000 50 0,036 5200 025 025 01 0
APT 2540 25 40 2.000 48 0,044 5200 040 025 01 0


APT 3011 30 11 2.000 50 0,019 5200 011 030 01 0
APT 3020 30 20 2.000 50 0,031 5200 020 030 01 0
APT 4016 40 16 2.000 50 0,035 5200 016 040 01 0
APT 4025 40 25 2.000 50 0,051 5200 025 040 01 0
APT 4040 40 40 2.000 40 0,07 5200 040 040 01 0
APT 4060 40 60 2.000 30 0,081 5200 060 040 01 0
APT 6040 60 40 2.000 30 0,081 5200 040 060 01 0

PVC CABLE TRUNKINGS

PVC cable trunkings accessories

The order code of Outside Corner of
12x12 trunking: 5001 012 012 00 0

Single Channel Double Channel
Model Number ORDER CODE Outside Corner Inside Corner T Corner L Corner Joinder End Cup
Side Side

PT 1212 ... 012 012 00 0 5001 5002 5003 5004 5005 5006 5007 5008
PT 1510 ... 010 015 00 0 5001 5002 5003 5004 5005 5006 5007 5008
PT 1616 ... 016 016 00 0 5001 5002 5003 5004 5005 5006 5007 5008
PT 2010 ... 010 020 00 0 5001 5002 5003 5004 5005 5006 5007 5008
PT 2516 ... 016 025 00 0 5001 5002 5003 5004 5005 5006 5007 5008
PT 2525 ... 025 025 00 0 5001 5002 5003 5004 5005 5006 5007 5008
PT 2540 ... 040 025 00 0 5001 5002 5003 5004 5005 5006 5007 5008
PT 3011 ... 011 030 00 0 5001 5002 5003 5004 5005 5006 5007 5008
PT 3020 ... 020 030 00 0 5001 5002 5003 5004 5005 5006 5007 5008
PT 4016 ... 016 040 00 0 5001 5002 5003 5004 5005 5006 5007 5008
PT 4025 ... 025 040 00 0 5001 5002 5003 5004 5005 5006 5007 5008
PT 4040 ... 040 040 00 0 5001 5002 5003 5004 5005 5006 5007 5008
PT 4060 ... 060 040 00 0

The order code of Inside Corner of
60x40 trunking: 5002 040 060 00 0

Model Number ORDER CODE Outside Corner Inside Corner T Corner L Corner Joinder End Cup Socket Fence Separator

PT 6040 ... 040 060 00 0 5001 5002 5003 5004 5005 5006 5011
PT 6060 ... 060 060 00 0 5001 5002 5003 5004 5005 5006 5011
PT 6080 ... 080 060 00 0 5001 5002 5003 5004 5005 5006 5011
PT 8040 ... 040 080 00 0 5001 5002 5003 5004 5005 5006 5011
PT 8060 ... 060 080 00 0 5001 5002 5003 5004 5005 5006 5011
PT 10040 ... 040 100 00 0 5001 5002 5003 5004 5005 5006 5009 5011
PT 10060 ... 060 100 00 0 5001 5002 5003 5004 5005 5006 5009 5011
PT 12060 ... 060 120 00 0 5011

PVC CABLE TRUNKINGS

Plint Type Cable Trunking

Model Width (W) Height (H) Length (L) Package Order Code
Package Volume, m3
Number (mm) (mm) (mm) Quantity (mt) (PVC)

KSPT 5016 50 16 2.000 54 In Box 0,1 5000 016 050 10 0
KSPT 7020 70 20 2.000 40 In Box 0,079 5000 020 070 10 0

Model Outside Order Code
Inside Corner T Corner L Corner Joinder Right End Cup Left End Cup
Number Corner (PVC)

KSPT 5016 5301 5302 5012 5013 ... 016 050 10 0
KSPT 7020 5301 5302 5012 5013 ... 020 070 10 0

Inside covered cable trunkings 40x25

Package Volume, m3

ICPT 4025 40 25 2.000 50 In Box 0,1 5300 25 040 00 0

Inside Corner T Corner L Corner Joinder End Cup Separator
Number Corner (PVC)

ICPT 4025 5301 5302 5303 5304 5305 5306 ... 025 040 00 0


Package Volume, m3

ICPT 10035 100 35 2.000 16 In Box 0,138 5300 35 100 00 0

Number Corner (PVC)

ICPT 10035 5301 5302 5303 5304 5305 5306 5311 ... 035 100 00 0


Package Volume, m3

ICPT 10050 100 50 2.000 16 In Box 0,149 5300 50 100 00 0

Number Corner (PVC)

ICPT 10050 5301 5302 5303 5304 5305 5306 5311 ... 050 100 00 0

PVC CABLE TRUNKINGS

Socket Sets 55x55mm
http://www.metaksan.com/plastic-cable-trays-trunkings--74.aspx

Package Order Code
Model Number Size (mm) Discription Package
Quantity (pcs) (PVC)

PS 01 55 x 55 Single Frame 10 Nylon 5321 55 100 00 0

Package Order Code

PS 02 55 x 55 Double Frame 10 Nylon 5322 55 100 00 0

Package Order Code

PS 03 55 x 55 Triple Frame 15 Nylon 5323 55 100 00 0

Package Order Code

PS 04 55 x 55 Quartet Frame 20 Nylon 5324 55 100 00 0

Socket Sets 45x45mm

Package Order Code

PS 11 45 x 45 Single Frame 20 Nylon 5331 45 100 00 0

Package Order Code

PS 12 45 x 45 Double Frame 20 Nylon 5332 45 100 00 0

Package Order Code

PS 13 45 x 45 Triple Frame 20 Nylon 5333 45 100 00 0

Package Order Code

PS 14 45 x 45 Quartet Frame 20 Nylon 5334 45 100 00 0

PVC CABLE TRUNKINGS

Floor Type cable trunkings (Box Package)

Volume, m3
Number (mm) (mm) (mm) Quantity (mt) (PVC-GREY)

DPT 5012 50 12 2.000 60 0,041 5400 12 050 00 0
DPT 7520 75 20 2.000 40 0,056 5400 20 075 00 0
DPT 9020 90 20 2.000 20 0,034 5400 20 090 00 0

Volume, m3
Number (mm) (mm) (mm) Quantity (mt) (PVC-WHITE)

DPT 5012 50 12 2.000 60 0,041 5400 12 050 00 1
DPT 7520 75 20 2.000 40 0,056 5400 20 075 00 1
DPT 9020 90 20 2.000 20 0,034 5400 20 090 00 1
*Two Colors available: Grey, White

Slotted Type cable trunkings (Box Package)

Volume, m3
Number (mm) (mm) (mm) Quantity (mt) (PVC-GREY; BLUE)

DMT 2525 25 25 2.000 80 0,04 5500 25 025 00 0
DMT 2540 25 40 2.000 80 0,053 5500 40 025 00 0
DMT 4040 40 40 2.000 64 0,069 5500 40 040 00 0
DMT 4060 40 60 2.000 60 0,093 5500 60 040 00 0
DMT 6040 60 40 2.000 48 0,093 5500 40 060 00 0
DMT 6060 60 60 2.000 48 0,134 5500 60 060 00 0
DMT 6080 60 80 2.000 40 0,132 5500 80 060 00 0
DMT 8040 80 40 2.000 28 0,071 5500 40 080 00 0
DMT 8060 80 60 2.000 40 0,132 5500 60 080 00 0
DMT 10040 100 40 2.000 32 0,074 5400 40 100 00 1
DMT 10060 100 60 2.000 32 0,112 5400 60 100 00 1

Adhesive Slotted Type cable trunkings (Box Package)

Volume, m3
Number (mm) (mm) (mm) Quantity (mt) (PVC-GREY; BLUE)

ADT 2525 25 25 2.000 80 0,04 5600 25 025 00 0
ADT 2540 25 40 2.000 80 0,053 5600 40 025 00 0
ADT 4040 40 40 2.000 64 0,069 5600 40 040 00 0
ADT 4060 40 60 2.000 60 0,093 5600 60 040 00 0
ADT 6040 60 40 2.000 48 0,093 5600 40 060 00 0
ADT 6060 60 60 2.000 48 0,134 5600 60 060 00 0
ADT 6080 60 80 2.000 40 0,132 5600 80 060 00 0
ADT 8040 80 40 2.000 28 0,071 5600 40 080 00 0
ADT 8060 80 60 2.000 40 0,132 5600 60 080 00 0
ADT 10040 100 40 2.000 32 0,074 5600 40 100 00 0
ADT 10060 100 60 2.000 32 0,112 5600 60 100 00 0

PVC CABLE TRUNKINGS

Wood Colour Covered In Box

Mahogany

Beech

Wood Colour Covered PVC Trunkings
12x12 15x10 16x16 20x10 25x16 25x25 25x40 30x11 Birch
30x20 40x16 40x25 40x40 40x60 60x40 60x60 60x80
80x40 80x60 100x40 100x60 120x60

Wood Colour Covered Plint Type Cable Trunkings
50x16 70x20
Walnut
Wood Colour Covered Inside covered cable trunkings
40x25 100x35 100x50

Wood Colour Covered Floor Type cable trunkings
50x12 75x20 90x20

Wood Colour Covered Self Advesive In Box

Mahogany

Beech

Wood Colour Covered Self Advesive PVC Trunkings
12x12 15x10 16x16 20x10 25x16 25x25 25x40 30x11 Birch
30x20 40x16 40x25 40x40 40x60 60x40 60x60 60x80
80x40 80x60 100x40 100x60 120x60

Wood Colour Covered Self Advesive Plint Type Cable Trunkings
50x16 70x20
Walnut
Wood Colour Covered Self Advesive Inside covered cable trunkings
40x25 100x35 100x50

Wood Colour Covered Self Advesive Floor Type cable trunkings
50x12 75x20 90x20

METAL SPIRAL PIPES

Metal Spiral Pipe

Inside Outside Package, Package Order Code
THECNICAL PROPERTIES Model Number
D,mm D,mm mt volume, m3 (PG)

Material Galvanised Steel CSB-1 7 10 50 0,0074 6300 01 007 00 1
Compression Resistance 320 Newton /60 sec class 2 CSB-3 9 12 50 0,0110 6300 03 009 00 1
Impact Resistance 1 kg / 100mm class 2 CSB-5 11 14 50 0,0180 6300 05 011 00 1
Temperature Resistance -15 C/ +60 C CSB-8 14 17 50 0,0246 6300 08 014 00 1
Insulation Strength CSB-10 16 19 50 0,0302 6300 10 016 00 1
Insulation Resistance CSB-12 18 21 50 0,0364 6300 12 018 00 1
CSB-15 21 24 50 0,0442 6300 15 021 00 1
CSB-20 26 30 25 0,0335 6300 20 026 00 1
CSB-22 29 33 25 0,0368 6300 22 029 00 1
CSB-24 30 34 25 0,0402 6300 24 030 00 1
CSB-26 32 36 25 0,0460 6300 26 032 00 1
CSB-28 35 39 25 0,0505 6300 28 035 00 1
CSB-31 37 41 25 0,0550 6300 31 037 00 1
CSB-36 42 46 25 0,0726 6300 36 042 00 1
CSB-39 45 49 25 0,0786 6300 39 045 00 1
CSB-45 51 55 25 0,0942 6300 45 051 00 1
CSB-50 55 59 25 0,0126 6300 50 055 00 1
CSB-55 60 64 25 0,1526 6300 55 060 00 1
CSB-58 63 67 25 0,2073 6300 58 063 00 1
CSB-60 70 74 25 0,2134 6300 60 070 00 1
APPLICATION FIELDS CSB-61 76 80 25 0,2560 6300 61 076 00 1
Machinery Industry CSB-65 80 84 25 0,3100 6300 65 080 00 1
Protecting cables under ground CSB-70 89 93 25 0,3960 6300 70 089 00 1
Chemical Industry CSB-72 95 99 25 0,5036 6300 72 095 00 1
Protecting electrical Installations CSB-73 102 106 25 0,9257 6300 73 102 00 1

PVC Coated Metal Spiral Pipe

Inside Outside Package, Package Order Code
THECNICAL PROPERTIES Model Number
D,mm D,mm mt volume, m3 (PVC)

Material PVC on Galvanised Steel PSB-151 7 11 50 0.0074 6310 01 007 00 1
Compression Resistance 320 Newton /60 sec class 2 PSB-153 9 13 50 0.0110 6310 03 009 00 1
Impact Resistance 1 kg / 100mm class 2 PSB-155 11 15 50 0.0180 6310 05 011 00 1
Temperature Resistance -15 C/ +60 C PSB-158 14 18 50 0.0246 6310 08 014 00 1
Insulation Strength PSB-160 16 20 50 0.0302 6310 10 016 00 1
Insulation Resistance PSB-162 18 22 50 0.0364 6310 12 018 00 1
PSB-165 21 25 50 0.0442 6310 15 021 00 1
PSB-170 26 31 25 0.0335 6310 20 026 00 1
PSB-172 29 34 25 0,0368 6310 22 029 00 1
PSB-174 30 35 25 0.0402 6310 24 030 00 1
PSB-176 32 37 25 0.0460 6310 26 032 00 1
PSB-178 35 40 25 0,0505 6310 28 035 00 1
PSB-181 37 42 25 0.0550 6310 31 037 00 1
PSB-186 42 47 25 0.0726 6310 36 042 00 1
PSB-189 45 50 25 0.0786 6310 39 045 00 1
PSB-195 51 56 25 0.0942 6310 45 051 00 1
PSB-200 55 60 25 0.0126 6310 50 055 00 1
PSB-205 60 65 25 0.1526 6310 55 060 00 1
PSB-208 63 68 25 0,1866 6310 58 063 00 1
PSB-215 70 75 25 0,2371 6310 65 070 00 1
APPLICATION FIELDS PSB-221 76 81 25 0,2824 6310 71 076 00 1
Machinery Industry PSB-225 80 85 25 0,3468 6310 75 080 00 1
Protecting cables under ground PSB-234 89 94 25 0,4670 6310 84 089 00 1
Chemical Industry PSB-245 95 100 25 0,5457 6310 95 095 00 1
Protecting electrical Installations PSB-252 102 107 25 1,0303 6310 02 102 00 1

PLASTIC SPIRAL PIPES

Plastic Spiral Pipe- Black

THECNICAL PROPERTIES

Material Plastic -Black
Compression Resistance 320 Newton /60 sec class 2
Impact Resistance 1 kg / 100mm class 2
Temperature Resistance -15 C/ +60 C
Insulation Strength
Insulation Resistance

Package Order Code
Model Number Size, mm Inside D,mm Outside D,mm Additional Information Package, mt
volume, m3 (PLASTIC)

DOG 276 12 12,3 16 Without Wire Puller 100 0.0320 6710 01 012 00 0
DOG 277 14 14,5 18 With Wire Puller 100 0.0463 6710 01 014 00 0

Plastic Spiral Pipes -colored


Material Plastic -White, Blue, Red, Grey
Insulation Strength
Insulation Resistance

Package Order Code
volume, m3 (PLASTIC)

DOG 276 12 12,3 16 Without Wire Puller 100 0.0320 6720 01 012 00 0


PVC Spiral Pipe Self-extinguishing / Light Gauge


Material PVC
Temperature Resistance -25 C/ +60 C class 4/1
Insulation Strength 2000 V/ 50 Hz / 15 min
Insulation Resistance >100 MΩ / 60 sec / 500 V
Color Code Ral 2004; Ral 7031; Ral 7035; Ral 9003; Ral 9005

Package Order Code
volume, m3 (PVC)

PVC 16H 16 11,2 16 Without Wire Puller 100 0.0380 6750 01 016 00 0
PVC 20H 20 14,6 20 Without Wire Puller 100 0,0510 6750 01 020 00 0

APLICATION FIELDS
Used in flush mounted and surface mounted applications, walls and suspended ceilings, under plaster and electrical installations
where low mechanical stress is expected.

PVC Spiral Pipe Self-extinguishing / Light Gauge (Wire Inside)


Material PVC

Package Order Code
volume, m3 (PVC)

PVC 16H 16 11,2 16 With Wire Puller 100 0.0380 6750 01 016 01 0
PVC 20H 20 14,6 20 With Wire Puller 100 0,0510 6750 01 020 01 0

APLICATION FIELDS


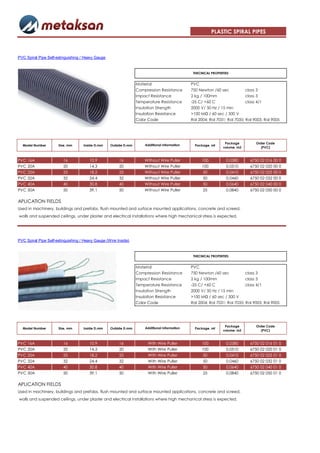

PVC Spiral Pipe Self-extinguishing / Heavy Gauge


Material PVC

Package Order Code
volume, m3 (PVC)

PVC 16A 16 10,9 16 Without Wire Puller 100 0.0380 6750 02 016 00 0
PVC 20A 20 14,3 20 Without Wire Puller 100 0,0510 6750 02 020 00 0

APLICATION FIELDS
Used in machinery, buildings and prefabs, flush mounted and surface mounted applications, concrete and screed,
walls and suspended ceilings, under plaster and electrical installations where high mechanical stress is expected.

PVC Spiral Pipe Self-extinguishing / Heavy Gauge (Wire Inside)


Material PVC

Package Order Code
volume, m3 (PVC)

PVC 16A 16 10,9 16 With Wire Puller 100 0.0380 6750 02 016 01 0
PVC 20A 20 14,3 20 With Wire Puller 100 0,0510 6750 02 020 01 0

APLICATION FIELDS

PP SPIRAL PIPES

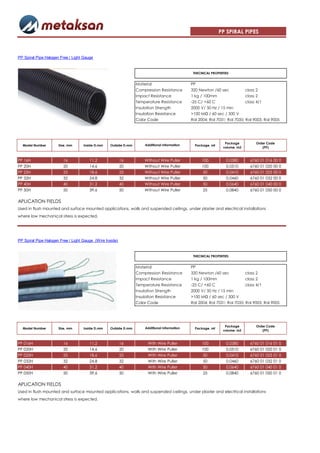

PP Spiral Pipe Halogen Free / Light Gauge


Material PP

Package Order Code
volume, m3 (PP)

PP 16H 16 11,2 16 Without Wire Puller 100 0.0380 6760 01 016 00 0
PP 20H 20 14,6 20 Without Wire Puller 100 0,0510 6760 01 020 00 0

APLICATION FIELDS

PP Spiral Pipe Halogen Free / Light Gauge (Wire Inside)


Material PP

Package Order Code
volume, m3 (PP)

PP 016H 16 11,2 16 With Wire Puller 100 0.0380 6760 01 016 01 0
PP 020H 20 14,6 20 With Wire Puller 100 0,0510 6760 01 020 01 0

APLICATION FIELDS

PP SPIRAL PIPES

PP Spiral Pipe Halogen Free / Heavy Gauge


Material PP Vo

Package Order Code
volume, m3 (PP)

PP 16A 16 10,9 16 Without Wire Puller 100 0.0380 6760 02 016 00 0
PP 20A 20 14,3 20 Without Wire Puller 100 0,0510 6760 02 020 00 0

APLICATION FIELDS

PP Spiral Pipe Halogen Free / Heavy Gauge (Wire Inside)


Material PP

Package Order Code
volume, m3 (PP)

PP 016A 16 10,9 16 With Wire Puller 100 0.0380 6760 02 016 01 0
PP 020A 20 14,3 20 With Wire Puller 100 0,0510 6760 02 020 01 0

APLICATION FIELDS

PP SPIRAL PIPES

PP Vo Spiral Pipe Halogen Free-Self-extinguishing / Light Gauge


Material PP Vo

Package Order Code
volume, m3 (PP)

PPVo 16H 16 11,2 16 Without Wire Puller 100 0.0380 6770 01 016 00 0
PPVo 20H 20 14,6 20 Without Wire Puller 100 0,0510 6770 01 020 00 0

APLICATION FIELDS

PP Vo Spiral Pipe Halogen Free-Self-extinguishing / Light Gauge (Wire Inside)


Material PP Vo

Package Order Code
volume, m3 (PP)

PPVo 016H 16 11,2 16 With Wire Puller 100 0.0380 6770 01 016 01 0
PPVo 020H 20 14,6 20 With Wire Puller 100 0,0510 6770 01 020 01 0

APLICATION FIELDS

PP SPIRAL PIPES

PP Vo Spiral Pipe Halogen Free-Self-extinguishing / Heavy Gauge


Material PP Vo

Package Order Code
volume, m3 (PP)

PPVo 16A 16 10,9 16 Without Wire Puller 100 0.0380 6770 02 016 00 0
PPVo 20A 20 14,3 20 Without Wire Puller 100 0,0510 6770 02 020 00 0

APLICATION FIELDS

PP Vo Spiral Pipe Halogen Free-Self-extinguishing / Heavy Gauge (Wire Inside)


Material PP Vo

Package Order Code
volume, m3 (PP)

PPVo 016A 16 10,9 16 With Wire Puller 100 0.0380 6770 02 016 01 0
PPVo 020A 20 14,3 20 With Wire Puller 100 0,0510 6770 02 020 01 0

APLICATION FIELDS

SPIRAL PIPES

PP Polypropylene Spiral Pipes


Material PP Polypropylene
Excellent impact strenght in cold
Excellent resistance under reversed bending stresses
Burning Behaviour according to FM VSS 302
Colors Black-Grey-Blue-Green-Red-White

Package Order Code
volume, m3 (PP)

PP 5 5 5,1 7,1 Without Wire Puller 100 0,0120 6730 01 005 00 0
PP 8.5 8,5 8,8 11,7 Without Wire Puller 50 0,0135 6730 01 008 00 0

PA6 Polyamid Spiral Pipes


Material PA6 Polyamid
Permanent Vibration as per DIN 55442, high flexibility
Flame Retardant V-DIN 75200 -HF
V2 for UL 94 (1,2 mm thickness)
Colors Black-Grey (Ral 7031)

Package Order Code
volume, m3 (PA6)

PA6 5 5 5,1 7,1 Without Wire Puller 100 0,0120 6740 01 005 00 0
PA6 8.5 8,5 8,8 11,7 Without Wire Puller 50 0,0135 6740 01 008 00 0

SPIRAL PIPES

PA6 Polyamid Spiral Pipes - Self-extinguishing


Material PA6 Vo Polyamid- HF
Permanent Vibration, No significant impairment due to UV rays
Burning Behaviour according V-DIN VSS 302
to FM 75200 -HF
Vo according to UL 94 DIN EN ISO 8580
Colors Black-Grey (Ral 7031)

Package Order Code
volume, m3 (PA6)

PA6 Vo 5 5 5,1 7,1 Without Wire Puller 100 0,0120 6740 02 005 00 0
PA6 Vo 8.5 8,5 8,8 11,7 Without Wire Puller 50 0,0135 6740 02 008 00 0

Thermoplastic elastomer Spiral Pipes


Material Thermoplastic Elastomer Type TYE-E
Excellent flexibility and heat resistance for convoluted tubing
Halogen Free flame retardant V-DIN 75200 -HF
package
Flexibility allows easy cable installation
Colors Black

Package Order Code
volume, m3 (TPE)

TPE-E 5 5 5,1 7,1 Without Wire Puller 100 0,0120 6780 00 005 00 0
TPE-E 8.5 8,5 8,8 11,7 Without Wire Puller 50 0,0135 6780 00 008 00 0

SPIRAL PIPES

Polyamid PA6 Connecting Components of Spiral Pipes

Suitable Size, Order Code
Model Number Product Description Inside C,mm Ø D,mm
mm (PA6)

RPG 7 PG connector 7 10,1 11 6740 03 007 00 0
RPG 8,5 PG connector 8,5 12 11 6740 03 008 00 0
RPG 10 PG connector 10 13,6 13,6 6740 03 010 00 0
RPG 12 PG connector 12 16,2 17 6740 03 012 00 0
RPG 14 PG connector 14 18,8 19 6740 03 014 00 0
RPG 17 PG connector 17 22 21 6740 03 017 00 0
RPG 22 PG connector 22 29 26,7 6740 03 022 00 0
RPG 29 PG connector 29 35 35,3 6740 03 029 00 0
RPG 36 PG connector 36 43 45,3 6740 03 036 00 0
RPG 48 PG connector 48 55 57,6 6740 03 047 00 0

Model Number Product Description Inside C,mm Ø D,mm
mm (PA6)

RM 7 METRIC connector 7 10,1 8,5 6740 04 007 00 0
RM 8,5 METRIC connector 8,5 12 10,4 6740 04 008 00 0
RM 10 METRIC connector 10 13,6 14 6740 04 010 00 0
RM 12 METRIC connector 12 16,2 14 6740 04 012 00 0
RM 14 METRIC connector 14 18,8 17,5 6740 04 014 00 0
RM 17 METRIC connector 17 22 17,5 6740 04 017 00 0

Polyamid PA6 Clip for Spiral Pipes

Model Number Product Description L X H,mm Ø D,mm
mm (PA6)

CL 7 Clip 7 / 8,5 15 X 13 7 6740 05 007 00 0
CL 10 Clip 10 18 X 15 9 6740 05 010 00 0
CL 12 Clip 12 20 X 17 10 6740 05 012 00 0
CL 14 Clip 14 23 X 19 11 6740 05 014 00 0
CL 17 Clip 17 27 X 22,5 14 6740 05 017 00 0
CL 22 Clip 22 / 23 34 X 29 22 6740 05 022 00 0
CL 29 Clip 29 41 X 35 25 6740 05 029 00 0
CL 36 Clip 36 53 X 41 31 6740 05 036 00 0
CL 48 Clip 48 81 X 62 51 6740 05 047 00 0

PP Flexible Pipes Connector- Halogen Free

Nominal D, Order Code
Model Number Product Description Color Material
mm (PP)

REK-16-PP Connector 16 RAL 7035 PP-HF 6790 01 016 00 0

PVC RIGIT PIPES

PVC Rigit Pipes Self-extinguishing / Light Gauge


Material PVC
Compression Resistance 320 Newton /60 sec Class 2
Impact Resistance 1 kg / 100mm / -25 C Class 2
Temperature Resistance -25 C/ +60 C Class 4 /1

Color Code RAL 7035

Model Number Nominal Diameter Inside D,mm Outside D,mm Length, mt Packaging, mt Packaging, m3 Order Code (PVC)

PVC 116H Ø 16 13,4 16,0 3 150 mt 0,0384 6510 01 016 00 0

PVC 120H Ø 20 17 20,0 3 105 mt 0,0420 6510 01 020 00 0

PVC 125H Ø 25 22,1 25,0 3 60 mt 0,0375 6510 01 025 00 0

PVC 132H Ø 32 28,2 32,0 3 45 mt 0,0461 6510 01 032 00 0

PVC 140H Ø 40 36,6 40,0 3 36 mt 0,0576 6510 01 040 00 0

PVC 150H Ø 50 46,6 50,0 3 30 mt 0,0750 6510 01 050 00 0

APLICATION FIELDS

PVC Rigit Pipes Self-extinguishing / Medium Gauge


Material PVC

Color Code RAL 7035


PVC 116O Ø 16 12,8 16,0 3 150 mt 0,0384 6510 02 016 00 0

PVC 120O Ø 20 16,6 20,0 3 105 mt 0,0420 6510 02 020 00 0

PVC 125O Ø 25 21 25,0 3 60 mt 0,0375 6510 02 025 00 0

PVC 132O Ø 32 27,5 32,0 3 45 mt 0,0461 6510 02 032 00 0

PVC 140O Ø 40 35,6 40,0 3 36 mt 0,0576 6510 02 040 00 0

PVC 150O Ø 50 45,4 50,0 3 30 mt 0,0750 6510 02 050 00 0

APLICATION FIELDS
Used in electrical installations requiring resistance against impact and crushings, flush mounted and surface mounted applications, in walls,
ceilings, concrete, screed and suspended ceiling, under floor and plaster.

PVC RIGIT PIPES

PVC Rigit Pipes Self-extinguishing / Heavy Gauge


Material PVC

Color Code RAL 7035


PVC 116A Ø 16 11,9 16,0 3 150 mt 0,0384 6510 03 016 00 0

PVC 120A Ø 20 15,7 20,0 3 105 mt 0,0420 6510 03 020 00 0

PVC 125A Ø 25 20,2 25,0 3 60 mt 0,0375 6510 03 025 00 0

PVC 132A Ø 32 26,2 32,0 3 45 mt 0,0461 6510 03 032 00 0

PVC 140A Ø 40 34,4 40,0 3 36 mt 0,0576 6510 03 040 00 0

PVC 150A Ø 50 44,2 50,0 3 30 mt 0,0750 6510 03 050 00 0

APLICATION FIELDS
Used in buildings and prefabs, flush mounted and surface mounted applications, concrete and screed, walls and suspended ceilings,
under plaster and electrical installations where high mechanical stress is expected.

PVC RIGIT PIPES

PVC Rigit Pipes with Internal Coupling Self-extinguishing / Light Gauge


Material PVC

Color Code RAL 7035


PVCM 116H Ø 16 13,4 16,0 3 150 mt 0,0384 6520 01 016 00 0

PVCM 120H Ø 20 17 20,0 3 105 mt 0,0420 6520 01 020 00 0

PVCM 125H Ø 25 22,1 25,0 3 60 mt 0,0375 6520 01 025 00 0

PVCM 132H Ø 32 28,2 32,0 3 45 mt 0,0461 6520 01 032 00 0

PVCM 140H Ø 40 36,6 40,0 3 36 mt 0,0576 6520 01 040 00 0

PVCM 150H Ø 50 46,6 50,0 3 30 mt 0,0750 6520 01 050 00 0

APLICATION FIELDS
where low mechanical stress is expected. (Easy installation without using fittings)

PVC Rigit Pipes with Internal Coupling Self-extinguishing / Medium Gauge


Material PVC

Color Code RAL 7035


PVCM 116O Ø 16 12,8 16,0 3 150 mt 0,0384 6520 02 016 00 0

PVCM 120O Ø 20 16,6 20,0 3 105 mt 0,0420 6520 02 020 00 0

PVCM 125O Ø 25 21 25,0 3 60 mt 0,0375 6520 02 025 00 0

PVCM 132O Ø 32 27,5 32,0 3 45 mt 0,0461 6520 02 032 00 0

PVCM 140O Ø 40 35,6 40,0 3 36 mt 0,0576 6520 02 040 00 0

PVCM 150O Ø 50 45,4 50,0 3 30 mt 0,0750 6520 02 050 00 0

APLICATION FIELDS
ceilings, concrete, screed and suspended ceiling, under floor and plaster. (Easy installation without using fittings)

PVC RIGIT PIPES

PVC Rigit Pipes with Internal Coupling Self-extinguishing / Heavy Gauge


Material PVC

Color Code RAL 7035


PVCM 116A Ø 16 11,9 16,0 3 150 mt 0,0384 6520 03 016 00 0

PVCM 120A Ø 20 15,7 20,0 3 105 mt 0,0420 6520 03 020 00 0

PVCM 125A Ø 25 20,2 25,0 3 60 mt 0,0375 6520 03 025 00 0

PVCM 132A Ø 32 26,2 32,0 3 45 mt 0,0461 6520 03 032 00 0

PVCM 140A Ø 40 34,4 40,0 3 36 mt 0,0576 6520 03 040 00 0

PVCM 150A Ø 50 44,2 50,0 3 30 mt 0,0750 6520 03 050 00 0

APLICATION FIELDS
under plaster and electrical installations where high mechanical stress is expected. (Easy installation without using fittings)

PVC RIGIT PIPES

PP Rigit Pipes Halogen Free / Light Gauge


Material PP

Color Code RAL 7035; 9003; 9005

Model Number Nominal Diameter Inside D,mm Outside D,mm Length, mt Packaging, mt Packaging, m3 Order Code (PP)

PP 116H Ø 16 13,4 16,0 3 150 mt 0,0384 6530 01 016 00 0

PP 120H Ø 20 17 20,0 3 105 mt 0,0420 6530 01 020 00 0

PP 125H Ø 25 22,1 25,0 3 60 mt 0,0375 6530 01 025 00 0

PP 132H Ø 32 28,2 32,0 3 45 mt 0,0461 6530 01 032 00 0

PP 140H Ø 40 36,6 40,0 3 36 mt 0,0576 6530 01 040 00 0

PP 150H Ø 50 46,6 50,0 3 30 mt 0,0750 6530 01 050 00 0

APLICATION FIELDS

PP Rigit Pipes Halogen Free / Medium Gauge


Material PP

Color Code RAL 7035; 9003; 9005


PP 116O Ø 16 12,8 16,0 3 150 mt 0,0384 6530 02 016 00 0

PP 120O Ø 20 16,6 20,0 3 105 mt 0,0420 6530 02 020 00 0

PP 125O Ø 25 21 25,0 3 60 mt 0,0375 6530 02 025 00 0

PP 132O Ø 32 27,5 32,0 3 45 mt 0,0461 6530 02 032 00 0

PP 140O Ø 40 35,6 40,0 3 36 mt 0,0576 6530 02 040 00 0

PP 150O Ø 50 45,4 50,0 3 30 mt 0,0750 6530 02 050 00 0

APLICATION FIELDS

PVC RIGIT PIPES

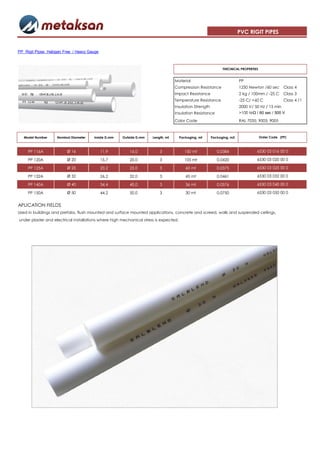

PP Rigit Pipes Halogen Free / Heavy Gauge


Material PP

Color Code RAL 7035; 9003; 9005


PP 116A Ø 16 11,9 16,0 3 150 mt 0,0384 6530 03 016 00 0

PP 120A Ø 20 15,7 20,0 3 105 mt 0,0420 6530 03 020 00 0

PP 125A Ø 25 20,2 25,0 3 60 mt 0,0375 6530 03 025 00 0

PP 132A Ø 32 26,2 32,0 3 45 mt 0,0461 6530 03 032 00 0

PP 140A Ø 40 34,4 40,0 3 36 mt 0,0576 6530 03 040 00 0

PP 150A Ø 50 44,2 50,0 3 30 mt 0,0750 6530 03 050 00 0

APLICATION FIELDS

PVC RIGIT PIPES

PP Rigit Pipes Halogen Free Self-extinguishing / Light Gauge


Material PP Vo

Color Code RAL 7035; 9003; 9005


PPVo 116H Ø 16 13,4 16,0 3 150 mt 0,0384 6540 01 016 00 0

PPVo 120H Ø 20 17 20,0 3 105 mt 0,0420 6540 01 020 00 0

PPVo 125H Ø 25 22,1 25,0 3 60 mt 0,0375 6540 01 025 00 0

PPVo 132H Ø 32 28,2 32,0 3 45 mt 0,0461 6540 01 032 00 0

PPVo 140H Ø 40 36,6 40,0 3 36 mt 0,0576 6540 01 040 00 0

PPVo 150H Ø 50 46,6 50,0 3 30 mt 0,0750 6540 01 050 00 0

APLICATION FIELDS

PP Rigit Pipes Halogen Free Self-extinguishing / Medium Gauge


Material PP Vo

Color Code RAL 7035; 9003; 9005


PPVo 116O Ø 16 12,8 16,0 3 150 mt 0,0384 6540 02 016 00 0

PPVo 120O Ø 20 16,6 20,0 3 105 mt 0,0420 6540 02 020 00 0

PPVo 125O Ø 25 21 25,0 3 60 mt 0,0375 6540 02 025 00 0

PPVo 132O Ø 32 27,5 32,0 3 45 mt 0,0461 6540 02 032 00 0

PPVo 140O Ø 40 35,6 40,0 3 36 mt 0,0576 6540 02 040 00 0

PPVo 150O Ø 50 45,4 50,0 3 30 mt 0,0750 6540 02 050 00 0

APLICATION FIELDS

PVC RIGIT PIPES

PP Rigit Pipes Halogen Free Self-extinguishing / Heavy Gauge


Material PP Vo

Color Code RAL 7035; 9003; 9005


PPVo 116A Ø 16 11,9 16,0 3 150 mt 0,0384 6540 03 016 00 0

PPVo 120A Ø 20 15,7 20,0 3 105 mt 0,0420 6540 03 020 00 0

PPVo 125A Ø 25 20,2 25,0 3 60 mt 0,0375 6540 03 025 00 0

PPVo 132A Ø 32 26,2 32,0 3 45 mt 0,0461 6540 03 032 00 0

PPVo 140A Ø 40 34,4 40,0 3 36 mt 0,0576 6540 03 040 00 0

PPVo 150A Ø 50 44,2 50,0 3 30 mt 0,0750 6540 03 050 00 0

APLICATION FIELDS

PIPE FITTINGS

PVC Coupling Self-extinguishing

Nominal Outside Packaging,
Model Number Inside D,mm Length, mm Order Code (PVC)
Diameter D,mm pcs

MUF-16-PVC Ø 16 16,1 18,6 80 2.000 6550 00 016 00 0

MUF-20-PVC Ø 20 20,1 23,0 80 1.200 6550 00 020 00 0

MUF-25-PVC Ø 25 25,2 28,0 80 760 6550 00 025 00 0

MUF-32-PVC Ø 32 32,2 35,0 100 440 6550 00 032 00 0

MUF-40-PVC Ø 40 40,3 43,0 100 250 6550 00 040 00 0

MUF-50-PVC Ø 50 50,3 53,0 100 160 6550 00 050 00 0
Color: RAL 7035; RAL 9005

PP Halogen Free Coupling Self-extinguishing

Model Number Inside D,mm Length, mm Order Code (PP)
Diameter D,mm pcs

MUF-16-PP Ø 16 16,1 18,6 80 2.000 6550 01 016 00 0

MUF-20-PP Ø 20 20,1 23,0 80 1.200 6550 01 020 00 0

MUF-25-PP Ø 25 25,2 28,0 80 760 6550 01 025 00 0

MUF-32-PP Ø 32 32,2 35,0 100 440 6550 01 032 00 0

MUF-40-PP Ø 40 40,3 43,0 100 250 6550 01 040 00 0

MUF-50-PP Ø 50 50,3 53,0 100 160 6550 01 050 00 0

PVC Flexible Coupling Self-extinguishing

Model Number Inside D,mm Length, mm Order Code (PVC)
Diameter D,mm pcs

EMUF-16-PVC Ø 16 16,1 17,0 275 500 6550 02 016 00 0

EMUF-20-PVC Ø 20 20,1 21,3 275 300 6550 02 020 00 0

EMUF-25-PVC Ø 25 25,1 26,7 390 150 6550 02 025 00 0

EMUF-32-PVC Ø 32 32,1 33,4 390 90 6550 02 032 00 0

PP Halogen Free Flexible Coupling Self-extinguishing

Diameter D,mm pcs

EMUF-16-PP Ø 16 16,1 17,0 275 500 6550 03 016 00 0

EMUF-20-PP Ø 20 20,1 21,3 275 300 6550 03 020 00 0

EMUF-25-PP Ø 25 25,1 26,7 390 150 6550 03 025 00 0

EMUF-32-PP Ø 32 32,1 33,4 390 90 6550 03 032 00 0

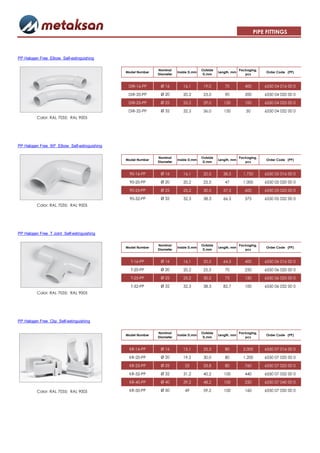

PIPE FITTINGS

PP Halogen Free Elbow Self-extinguishing

Diameter D,mm pcs

DIR-16-PP Ø 16 16,1 19,0 70 400 6550 04 016 00 0

DIR-20-PP Ø 20 20,2 23,0 90 200 6550 04 020 00 0

DIR-25-PP Ø 25 25,2 29,0 120 100 6550 04 025 00 0

DIR-32-PP Ø 32 32,3 36,0 150 50 6550 04 032 00 0

PP Halogen Free 90º Elbow Self-extinguishing

Diameter D,mm pcs

90-16-PP Ø 16 16,1 20,5 38,5 1.750 6550 05 016 00 0

90-20-PP Ø 20 20,2 25,5 47 1.000 6550 05 020 00 0

90-25-PP Ø 25 25,2 30,5 57,5 600 6550 05 025 00 0

90-32-PP Ø 32 32,3 38,3 66,5 375 6550 05 032 00 0

PP Halogen Free T Joint Self-extinguishing

Diameter D,mm pcs

T-16-PP Ø 16 16,1 20,5 64,5 400 6550 06 016 00 0

T-20-PP Ø 20 20,2 25,5 70 250 6550 06 020 00 0

T-25-PP Ø 25 25,2 30,5 75 150 6550 06 025 00 0

T-32-PP Ø 32 32,3 38,3 82,7 100 6550 06 032 00 0

PP Halogen Free Clip Self-extinguishing

Diameter D,mm pcs

KR-16-PP Ø 16 15,1 25,3 80 2.000 6550 07 016 00 0

KR-20-PP Ø 20 19,2 30,0 80 1.200 6550 07 020 00 0

KR-25-PP Ø 25 25 33,8 80 760 6550 07 025 00 0

KR-32-PP Ø 32 31,2 40,2 100 440 6550 07 032 00 0

KR-40-PP Ø 40 39,2 48,2 100 250 6550 07 040 00 0

Color: RAL 7035; RAL 9005 KR-50-PP Ø 50 49 59,2 100 160 6550 07 050 00 0

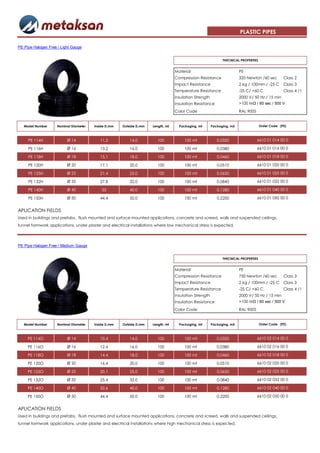

PLASTIC PIPES

PE Pipe Halogen Free / Light Gauge


Material PE

Color Code RAL 9005

Model Number Nominal Diameter Inside D,mm Outside D,mm Length, mt Packaging, mt Packaging, m3 Order Code (PE)

PE 114H Ø 14 11,2 14,0 100 100 mt 0,0320 6610 01 014 00 0

PE 116H Ø 16 13,2 16,0 100 100 mt 0,0380 6610 01 016 00 0

PE 118H Ø 18 15,1 18,0 100 100 mt 0,0460 6610 01 018 00 0

PE 120H Ø 20 17,1 20,0 100 100 mt 0,0510 6610 01 020 00 0

PE 125H Ø 25 21,4 25,0 100 100 mt 0,0650 6610 01 025 00 0

PE 132H Ø 32 27,8 32,0 100 100 mt 0,0840 6610 01 032 00 0

PE 140H Ø 40 35 40,0 100 100 mt 0,1280 6610 01 040 00 0

PE 150H Ø 50 44,4 50,0 100 100 mt 0,2200 6610 01 050 00 0

APLICATION FIELDS
tunnel formwork applications, under plaster and electrical installations where low mechanical stress is expected.

PE Pipe Halogen Free / Medium Gauge


Material PE

Color Code RAL 9005


PE 114O Ø 14 10,4 14,0 100 100 mt 0,0320 6610 02 014 00 0

PE 116O Ø 16 12,4 16,0 100 100 mt 0,0380 6610 02 016 00 0

PE 118O Ø 18 14,4 18,0 100 100 mt 0,0460 6610 02 018 00 0

PE 120O Ø 20 16,4 20,0 100 100 mt 0,0510 6610 02 020 00 0

PE 125O Ø 25 20,1 25,0 100 100 mt 0,0650 6610 02 025 00 0

PE 132O Ø 32 25,4 32,0 100 100 mt 0,0840 6610 02 032 00 0

PE 140O Ø 40 32,6 40,0 100 100 mt 0,1280 6610 02 040 00 0

PE 150O Ø 50 44,4 50,0 100 100 mt 0,2200 6610 02 050 00 0

APLICATION FIELDS
tunnel formwork applications, under plaster and electrical installations where high mechanical stress is expected.

PLASTIC PIPES

PE Pipe Halogen Free Self-extinguishing/ Light Gauge


Material PE

Color Code RAL 2004


PE 114H-Vo Ø 14 11,2 14,0 100 100 mt 0,0320 6620 01 014 00 0

PE 116H-Vo Ø 16 13,2 16,0 100 100 mt 0,0380 6620 01 016 00 0

PE 118H-Vo Ø 18 15,1 18,0 100 100 mt 0,0460 6620 01 018 00 0

PE 120H-Vo Ø 20 17,1 20,0 100 100 mt 0,0510 6620 01 020 00 0

PE 125H-Vo Ø 25 21,4 25,0 100 100 mt 0,0650 6620 01 025 00 0

PE 132H-Vo Ø 32 27,8 32,0 100 100 mt 0,0840 6620 01 032 00 0

PE 140H-Vo Ø 40 35 40,0 100 100 mt 0,1280 6620 01 040 00 0

PE 150H-Vo Ø 50 44,4 50,0 100 100 mt 0,2200 6620 01 050 00 0

APLICATION FIELDS

PE Pipe Halogen Free Self-extinguishing / Medium Gauge


Material PE

Color Code RAL 2004


PE 114O-Vo Ø 14 10,4 14,0 100 100 mt 0,0320 6620 02 014 00 0

PE 116O-Vo Ø 16 12,4 16,0 100 100 mt 0,0380 6620 02 016 00 0

PE 118O-Vo Ø 18 14,4 18,0 100 100 mt 0,0460 6620 02 018 00 0

PE 120O-Vo Ø 20 16,4 20,0 100 100 mt 0,0510 6620 02 020 00 0

PE 125O-Vo Ø 25 20,1 25,0 100 100 mt 0,0650 6620 02 025 00 0

PE 132O-Vo Ø 32 25,4 32,0 100 100 mt 0,0840 6620 02 032 00 0

PE 140O-Vo Ø 40 32,6 40,0 100 100 mt 0,1280 6620 02 040 00 0

PE 150O-Vo Ø 50 44,4 50,0 100 100 mt 0,2200 6620 02 050 00 0

APLICATION FIELDS

PLASTIC PIPES

PE Pipe Halogen Free (2nd quality) / Light Gauge


Material PE

Color Code RAL 9005


PE 214H Ø 14 11,2 14,0 100 100 mt 0,0320 6630 01 014 00 0

PE 216H Ø 16 13,2 16,0 100 100 mt 0,0380 6630 01 016 00 0

PE 218H Ø 18 15,1 18,0 100 100 mt 0,0460 6630 01 018 00 0

PE 220H Ø 20 17,1 20,0 100 100 mt 0,0510 6630 01 020 00 0

PE 225H Ø 25 21,4 25,0 100 100 mt 0,0650 6630 01 025 00 0

PE 232H Ø 32 27,8 32,0 100 100 mt 0,0840 6630 01 032 00 0

PE 240H Ø 40 35 40,0 100 100 mt 0,1280 6630 01 040 00 0

PE 250H Ø 50 44,4 50,0 100 100 mt 0,2200 6630 01 050 00 0

APLICATION FIELDS

PE Pipe Halogen Free (2nd quality) / Medium Gauge


Material PE

Color Code RAL 9005


PE 214O Ø 14 10,4 14,0 100 100 mt 0,0320 6630 02 014 00 0

PE 216O Ø 16 12,4 16,0 100 100 mt 0,0380 6630 02 016 00 0

PE 218O Ø 18 14,4 18,0 100 100 mt 0,0460 6630 02 018 00 0

PE 220O Ø 20 16,4 20,0 100 100 mt 0,0510 6630 02 020 00 0

PE 225O Ø 25 20,1 25,0 100 100 mt 0,0650 6630 02 025 00 0

PE 232O Ø 32 25,4 32,0 100 100 mt 0,0840 6630 02 032 00 0

PE 240O Ø 40 32,6 40,0 100 100 mt 0,1280 6630 02 040 00 0

PE 250O Ø 50 44,4 50,0 100 100 mt 0,2200 6630 02 050 00 0

APLICATION FIELDS

PLASTIC PIPES

PE Pipe Halogen Free Self-extinguishing (2nd quality) / Light Gauge


Material PE

Color Code RAL 2004


PE 214H-Vo Ø 14 11,2 14,0 100 100 mt 0,0320 6640 01 014 00 0

PE 216H-Vo Ø 16 13,2 16,0 100 100 mt 0,0380 6640 01 016 00 0

PE 218H-Vo Ø 18 15,1 18,0 100 100 mt 0,0460 6640 01 018 00 0

PE 220H-Vo Ø 20 17,1 20,0 100 100 mt 0,0510 6640 01 020 00 0

PE 225H-Vo Ø 25 21,4 25,0 100 100 mt 0,0650 6640 01 025 00 0

PE 232H-Vo Ø 32 27,8 32,0 100 100 mt 0,0840 6640 01 032 00 0

PE 240H-Vo Ø 40 35 40,0 100 100 mt 0,1280 6640 01 040 00 0

PE 250H-Vo Ø 50 44,4 50,0 100 100 mt 0,2200 6640 01 050 00 0

APLICATION FIELDS

PE Pipe Halogen Free Self-extinguishing (2nd quality)/ Medium Gauge


Material PE

Color Code RAL 2004


PE 214O-Vo Ø 14 10,4 14,0 100 100 mt 0,0320 6640 02 014 00 0

PE 216O-Vo Ø 16 12,4 16,0 100 100 mt 0,0380 6640 02 016 00 0

PE 218O-Vo Ø 18 14,4 18,0 100 100 mt 0,0460 6640 02 018 00 0

PE 220O-Vo Ø 20 16,4 20,0 100 100 mt 0,0510 6640 02 020 00 0

PE 225O-Vo Ø 25 20,1 25,0 100 100 mt 0,0650 6640 02 025 00 0

PE 232O-Vo Ø 32 25,4 32,0 100 100 mt 0,0840 6640 02 032 00 0

PE 240O-Vo Ø 40 32,6 40,0 100 100 mt 0,1280 6640 02 040 00 0

PE 250O-Vo Ø 50 44,4 50,0 100 100 mt 0,2200 6640 02 050 00 0

APLICATION FIELDS

Metaksan full

More Related Content

What's hot

Viewers also liked

Similar to Metaksan full

Recently uploaded

Metaksan full
