The document outlines design details for a project involving timber and steel connections. It includes specifications for a timber roof deck, elevations, sections, and various connection types for steel elements. Additionally, it details specific measurements and connection methods for structural elements.

1. 102 CAB
Name:
Elliot Heeley
Sid:
5565869
Date:
24/4/2015
Project:
The Shed
Page:
1

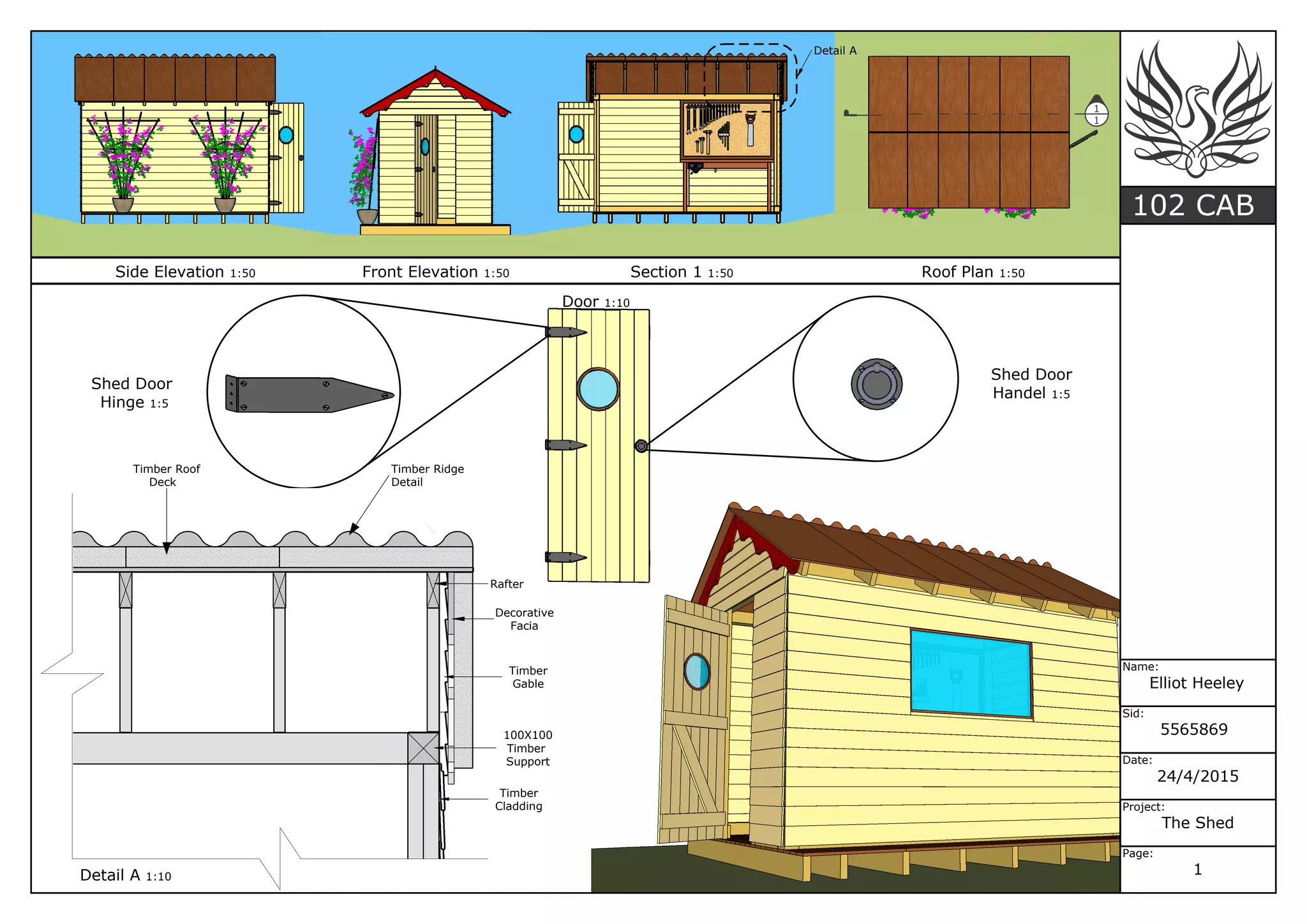

Timber Roof
Deck
Timber Ridge
Detail
Rafter
Decorative
Facia
Timber
Cladding
100X100
Timber
Support
Timber
Gable
Side Elevation 1:50 Roof Plan 1:50Section 1 1:50Front Elevation 1:50
Detail A 1:10
Door 1:10
Shed Door
Hinge 1:5
Shed Door
Handel 1:5
1
1
Detail A

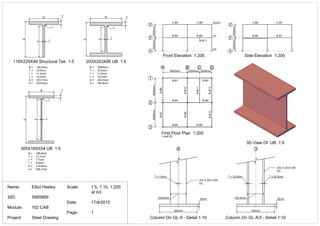

2. 102 CAB
Name:
Elliot Heeley
Sid:
5565869
Date:
24/4/2015
Project:
Steel Connections
Base Type: 2
Connection Type:
4
9
11
12
Base Type 2
Page:
1
Connecrtion
Type 4
Connecrtion
Type 12
Connecrtion
Type 9
Connecrtion
Type 11 Base Type 2

3. 102 CAB
Name:
Elliot Heeley
Sid:
5565869
Date:
24/4/2015
Project:
Steel Connections
Base Type: 2
Connection Type:
4
9
11
12
Page:
2

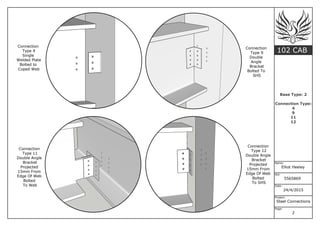

Connection
Type 11
Double Angle
Bracket
Projected
15mm From
Edge Of Web
Bolted
To Web
Connection
Type 4
Single
Welded Plate
Bolted to
Coped Web
Connection
Type 12
Double Angle
Bracket
Projected
15mm From
Edge Of Web
Bolted
To SHS
Connection
Type 9
Double
Angle
Bracket
Bolted To
SHS
