This document provides specifications for a dress shirt, including: 1) Detailed measurements and descriptions of the shirt parts and features. 2) Bills of materials listing all fabrics, trims, and packaging materials. 3) An operation breakdown detailing each production step and estimated thread consumption. 4) Calculations of fabric consumption per shirt. 5) Images and details of labels and packaging.

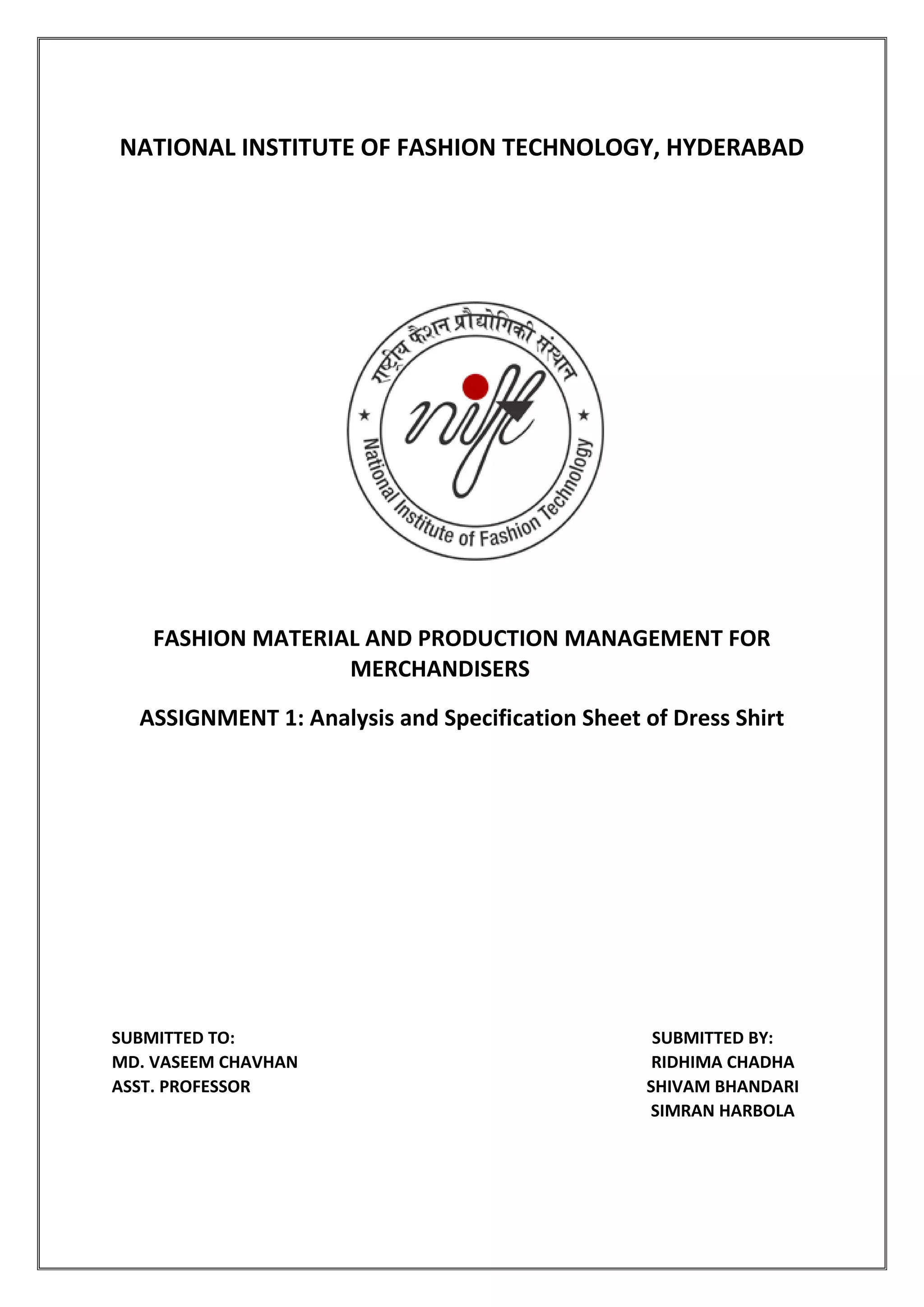

1. NATIONAL INSTITUTE OF FASHION TECHNOLOGY, HYDERABAD
FASHION MATERIAL AND PRODUCTION MANAGEMENT FOR
MERCHANDISERS
ASSIGNMENT 1: Analysis and Specification Sheet of Dress Shirt
SUBMITTED TO: SUBMITTED BY:
MD. VASEEM CHAVHAN RIDHIMA CHADHA
ASST. PROFESSOR SHIVAM BHANDARI
SIMRAN HARBOLA

2. FRONT BACK

3. Page | 3
REVERSE BUTTON AND BUTTONHOLE PLACKETS

4. Page | 4
SLEEVE OPENING & PLACKET

5. Page | 5
COLLAR ATTACH SIDE SEAM

6. Page | 6
Production Patterns

7. Page | 7

8. Page | 8

9. Page | 9

10. Page | 10
Product Description
Product Dress Shirt Style Number #SS002052 Master Style Shirt
Description Regular Fit 9 Button Check Shirt Fabrication 100% Cotton Brand SMARTYPANTS
Illustration of Garment

11. Points of Measurement
Sno. POM Description Measurement in Inches
1 LEN HSP TO HEM 41.5
2 NK WIDTH @ SEAM 7
3 FRT NK DROP @ SEAM 2.25
4 FRT NK DROP- PKT PLACEMENT 5.5
5 COLLAR STAND LEN BTN - BTN HOLE 13.5
6 COLLAR LEN @ COLLAR SEAM 12.75
7 COLLAR LEN @ TOP EDGE OPEN 13
8 COLLAR PT LENGTH 3.5
9 COLLAR HEIGHT @ CB 2
10 COLLAR STAND HEIGHT @ CB 1.25
11 FORWARD SHLDR SEAM @ HPS-STRAIGHT 0.5
12 ACROSS SHOULDER 15
13 ACROSS FRONT 15
14 CHEST 1" BELOW AH RLXD 38
15 WAIST RLXD 37
16 SWEEP RLXD @ HEM 60.5
17 SHIRT TAIL HEIGHT -FRONT 2.5
18 BTN PLCMT FM BTTM EDGE 4.75
19 PLACKET WIDTH 1
20 ARMHOLE DROP FROM HSP 1
21 SLV LENGTH 18
22 SLV OPENING 8.5
23 SLV CUFF HEIGHT 1.75
24 SLV BTN PLACEMENT FRM SHLDR PT 17.5
25 TAB LENGTH NG 5
26 TAB WIDTH 1.25
27 PKT OPENING 4.75
28 PKT HEIGHT @ CTR 5.25
29 PKT PLACEMENT @ SS 3

12. Page | 12
Bills of Materials
SN.NO. TYPE/NAME/DESCRIPTION IMAGE
QUALITY
DETAILS
SUPPLIER
LIST
USAGE
QUANTITY /
UNIT
UNIT OF
MEASUREMENT
FABRIC
1 WOVEN Y/D Plain Weave
100% COTTON
,140 GSM,
WIDTH- 52",
EPI: 95
PPI: 64
Body metres
TRIMS
2 THREADS
2 ply ,polyester
thread tkt-150.
DTM to Base
Fabric.
MADURA
COATS
INDIA LTD.
Sewing Cone
3 BUTTONS
Plastic, 4 Adjacent
Hole, 20 Ligne,
Black
GAYATRI
ENTERPRISE
14 Lignes
4 FUSING
Black Micro dot
fusing , GSM:-60-
70
Temperature: 130-
150 o C
Pressure: 2-4 bars
Time: 10-15s
VANCY PVT
LTD.
Collar and
cuffs
0.125 metres

13. Page | 13
5 MAIN LABEL
Woven Jacquard
label
PANWAR
LABELS
Brand
name
1 Pieces
6 FIT LABEL Polyester label Size 1 Pieces
7 WASHCARE LABEL Polyester label
Washing
instructions
1 Pieces
8
MANUFACTURER'S DETAIL
LABEL
Polyester label 1 Pieces
PACKAGING MATERIAL
9 Carton 550*550*250 mm
SHAKTI
TRADERS
Cover 0.03 Pieces
10 Carton tape 24mm width Cover 0.05 Pieces

14. Page | 14
11 Poly bag 30cm*50cm Packaging 1 Pieces
12 Pins Metal
ENRICH
Trading Co.
Packaging 1 Pieces
13 Shirt supporter hard paper Packaging 1 Pieces
14 Collar Supporter Plastic Packaging 1 Pieces
15 Butterfly Plastic Packaging 1 Pieces
16 Barcode sticker 3cm*4.5cm
M.R LABELS
& CO.
Packaging 1 Pieces

15. Page | 15
17 hang tag 6cm*8cm
M.R LABELS
& CO.
Packaging 1 Pieces
18 Tissue Paper 1 ply
Enrich
Trading Co.
Packaging 0.03 Roll

16. Page | 16
Operation Breakdown with Thread Consumption
Sno. Operation Description
Machine
Type
Stitch
Type
Seam Type
Seam Length
(Inch)
Seam Length
(Cm)
Thread
Factor
Thread
Consumption
COLLAR
1 Cut collar edge SN - CUT 301 20 50.8 2.5 127.0
2 Out line top collar SNLS 301
Superimposed Seam SSe without
top stitch
20 50.8 2.5 127.0
3 Cut top collar bottom SN - CUT 301 12.5 31.75 2.5 79.4
4 Attach Collar to Collar Band SN 301 Superimposed Seam SSc 12.5 31.75 2.5 79.4
5 Cut collar band bottom SN CUT 301 14 3/4 37.465 2.5 93.7
BACK
6 Pre tack on lable SNLS 301 Superimposed seam SSa 0.75 1.91 2.5 4.8
7 Attach lable to neck SNLS 301 Superimposed seam SSa 1.5 3.81 2.5 9.5
0
8 Sew sleeve cuff hem x 2 SNLS 301
Lapped Seam ct 2/Superimposed
seam SSe without top stitch
9.5 24.13 2.5 60.3
9
Make sleeve cuff both side x
2 x 2
SNLS 301 Bound Seam BSc 8.5 21.59 2.5 54.0
ASSEMBLY
10 Join shoulder x 2 SNLS 301 Superimposed seam SSa 9 22.86 2.5 57.2
11 Attach collar SNLS 301 Superimposed seam SSa 15 38.1 2.5 95.3
12 Attach sleeve x 2 3/OL 504 Superimposed seam SSa 37 93.98 14 1315.7
13 Sew side seam x 2 3/OL 504 Superimposed seam SSa 68 172.72 14 2418.1
14 Sew top placket hem SNLS 301 Edge finish Seam EFb 1 2.54 2.5 6.4
15 Sew bottom placket hem SNLS 301 Edge finish Seam EFb 1 2.54 2.5 6.4
16 Sew bottom hem with shape SNLS 301 Edge finish Seam EFb 63.5 161.29 2.5 403.2
17 Make sleeve tab SNLS 301 Superimposed Seam SSc 12 30.48 2.5 76.2
18
Attach sleeve placket to
sleeve x 2
SNLS 301
Bound Seam BSc 12
30.48 2.5 76.2
19
Attach cuff x 2 (with Sleeve
Tab)
SNLS 301
Lapped Seam LSf 19 1/2
49.53 2.5 123.8
20 Close cuff x 2 SNLS 301 Lapped Seam LSf 14 35.56 2.5 88.9
21 Top stitch on sleeve cuff x 2 SNLS 301
Lapped Seam ct 2/Superimposed
seam SSe without top stitch 19.5
49.53 2.5 123.8

17. Page | 17
22
Attach button on front &
sleeve x 14
BA 301
14
35.56 19.5 693.4
23
Sew button hole placket &
sleeve x 12
BH 301
0.75
1.905 85 161.9
24 Sleeve placket attach SNLS 301 Superimposed seam SSa 12 30.48 2.5 76.2
Fabric Consumption
Fabric consumption by single formula: (Body Lenght + Sleeve Length + Allowance )*(Half chest + Allowance)*2*110 /100*100*1000
Fabric consumption by single formula: (104.14+45.72+5.08)*(48.26+5.08)*2*110/ 100*100*1000
Fabric consumption by single formula: 0.1818kg or 200 grams

18. Wash Care Labels

19. Page | 19
Bar Code Label

20. Page | 20
Fabric Composition
