The document provides an overview of the qooxdoo framework and toolkit. It demonstrates how to download and explore the qooxdoo SDK which contains over 15,000 files. Code examples are provided to illustrate defining a class with properties, mixins, inheritance and interfaces. Additional features highlighted include extensive documentation, GUI components, easy key/command binding, layouts for positioning elements, and REST call capabilities.

1. http://qooxdoo.org
1

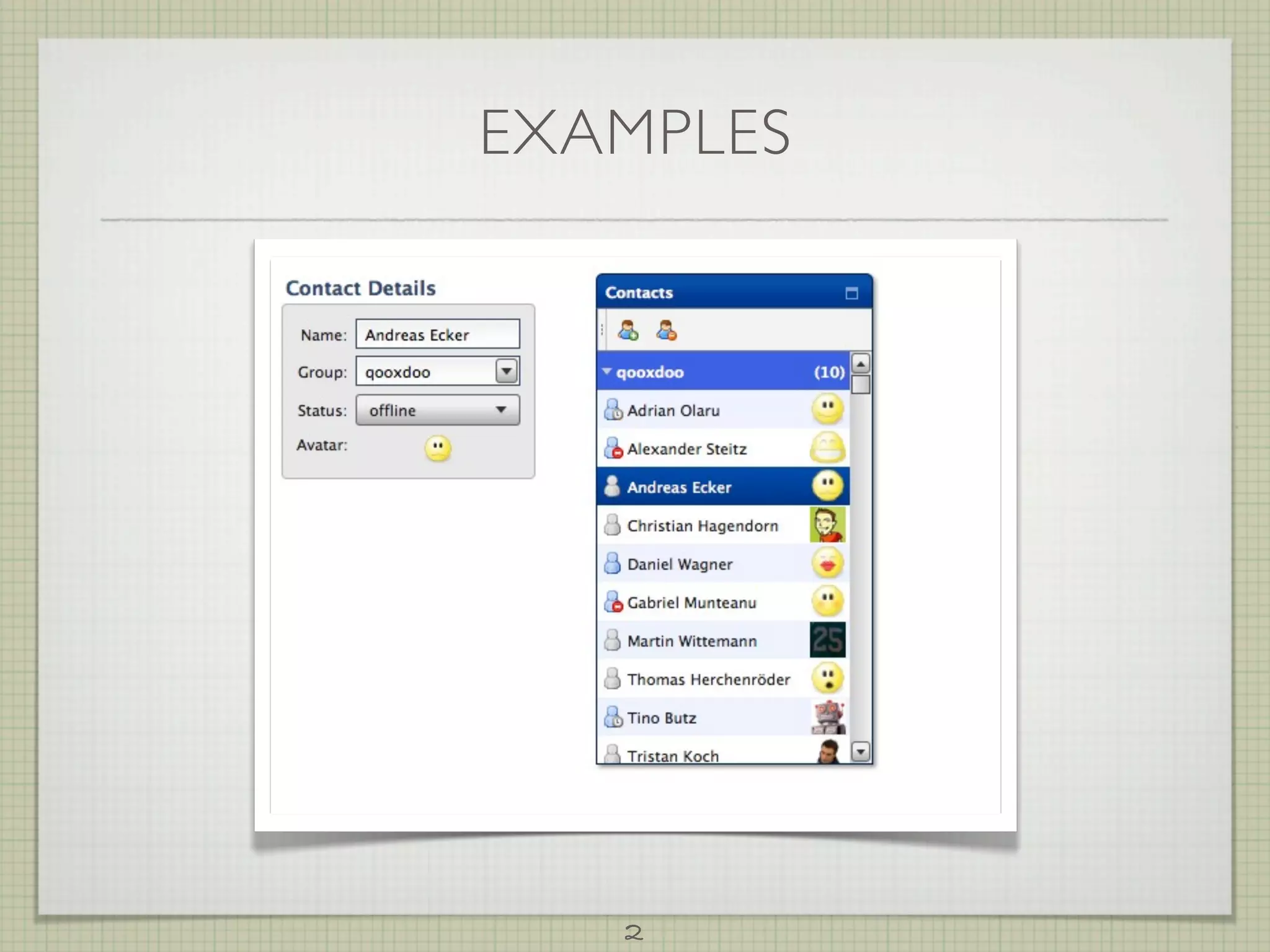

2. EXAMPLES
2

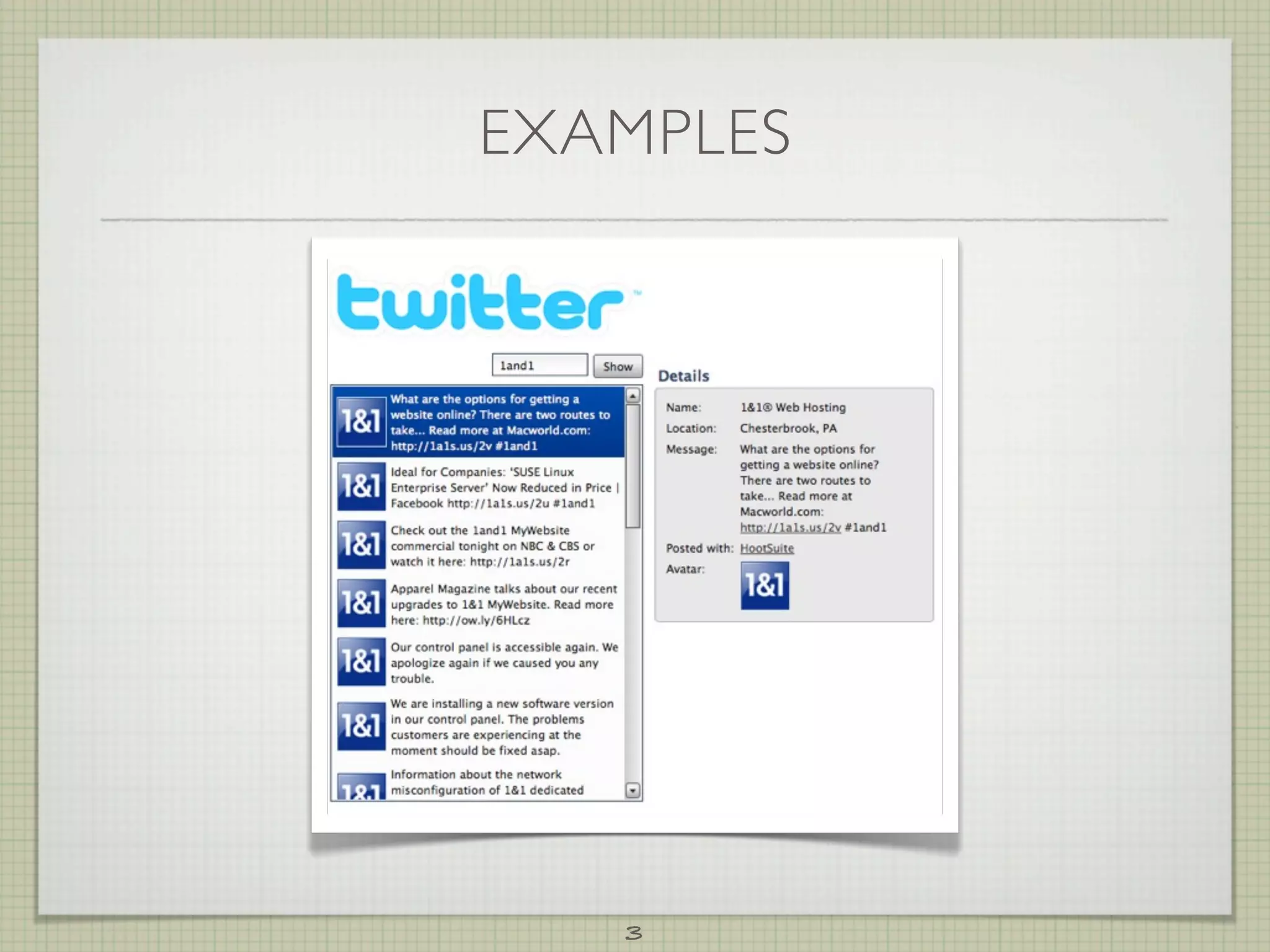

3. EXAMPLES
3

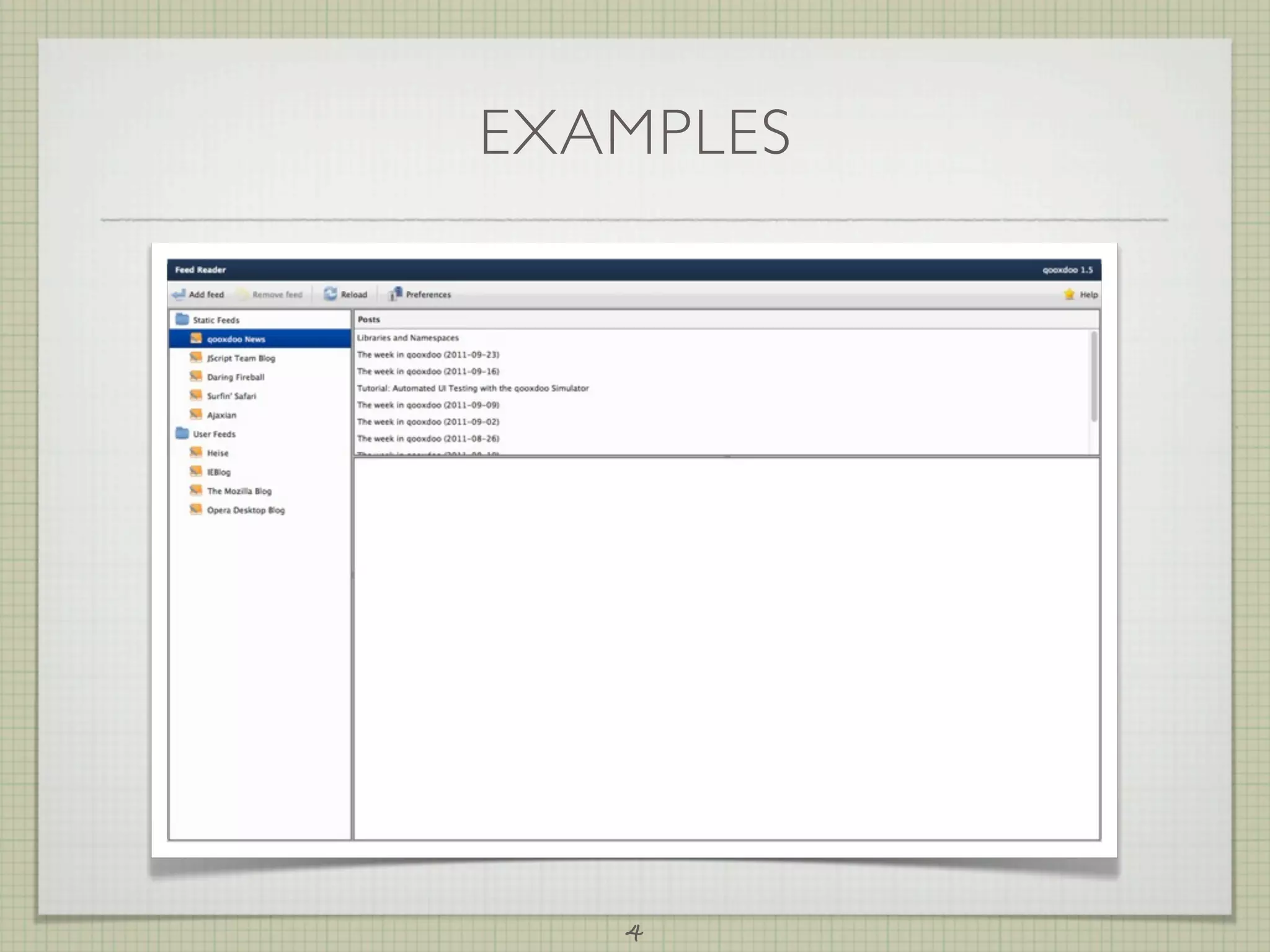

4. EXAMPLES
4

5. 5

6. IT'S NOT A TOY
6

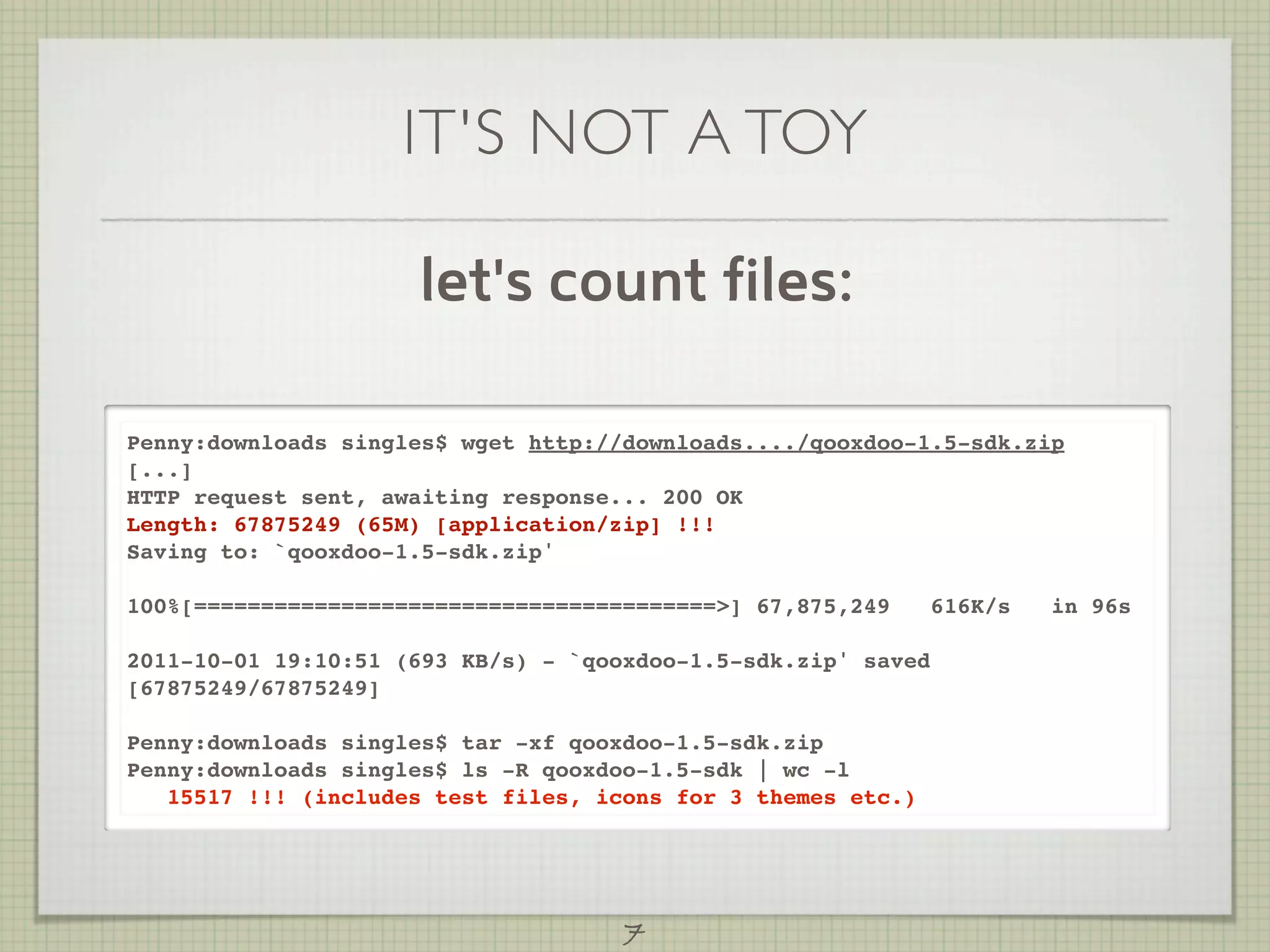

7. IT'S NOT A TOY
let's count files:
Penny:downloads singles$ wget http://downloads..../qooxdoo-1.5-sdk.zip
[...]
HTTP request sent, awaiting response... 200 OK
Length: 67875249 (65M) [application/zip] !!!
Saving to: `qooxdoo-1.5-sdk.zip'
100%[=======================================>] 67,875,249 616K/s in 96s
2011-10-01 19:10:51 (693 KB/s) - `qooxdoo-1.5-sdk.zip' saved
[67875249/67875249]
Penny:downloads singles$ tar -xf qooxdoo-1.5-sdk.zip
Penny:downloads singles$ ls -R qooxdoo-1.5-sdk | wc -l
15517 !!! (includes test files, icons for 3 themes etc.)
7

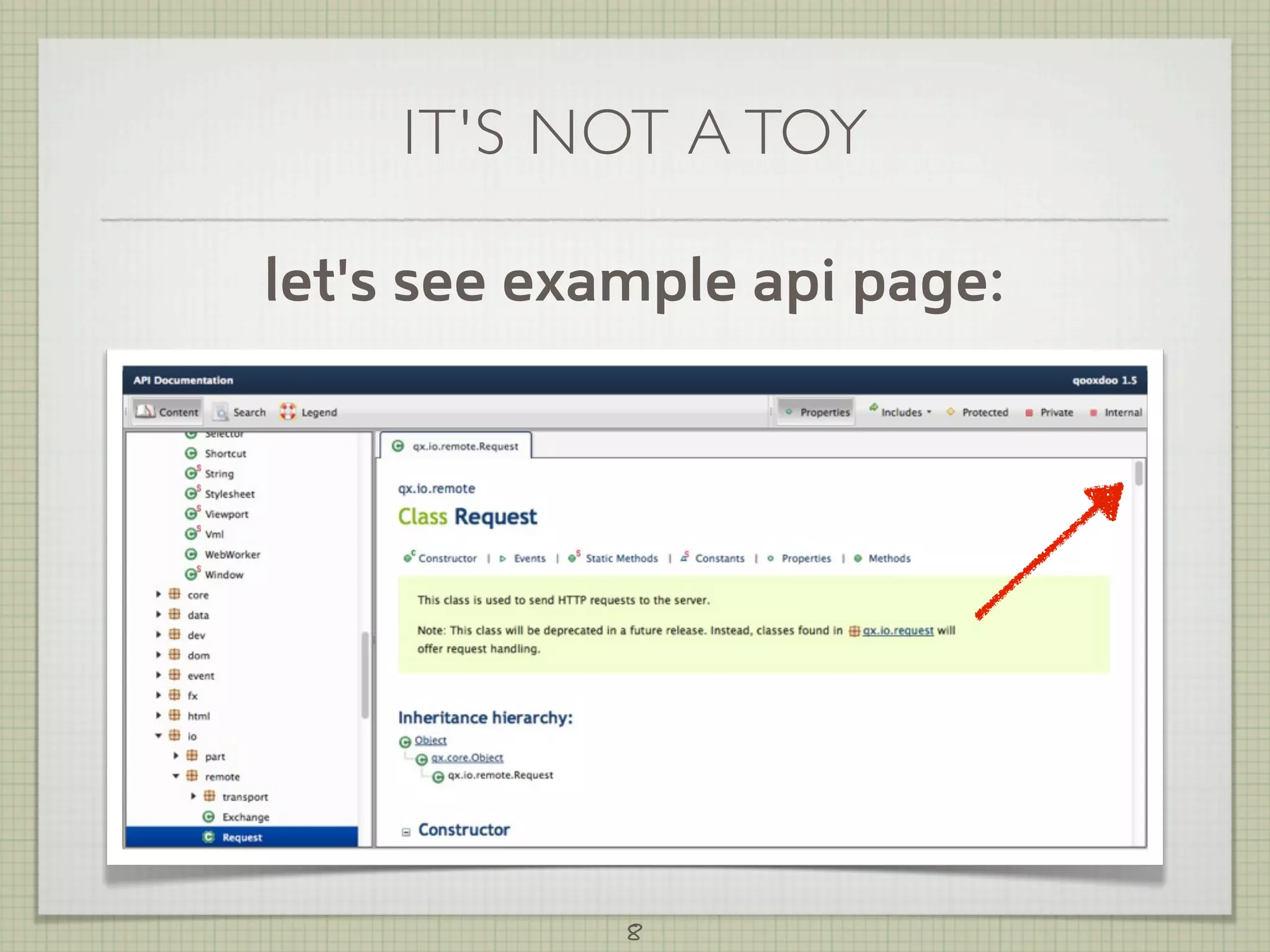

8. IT'S NOT A TOY
let's see example api page:
8

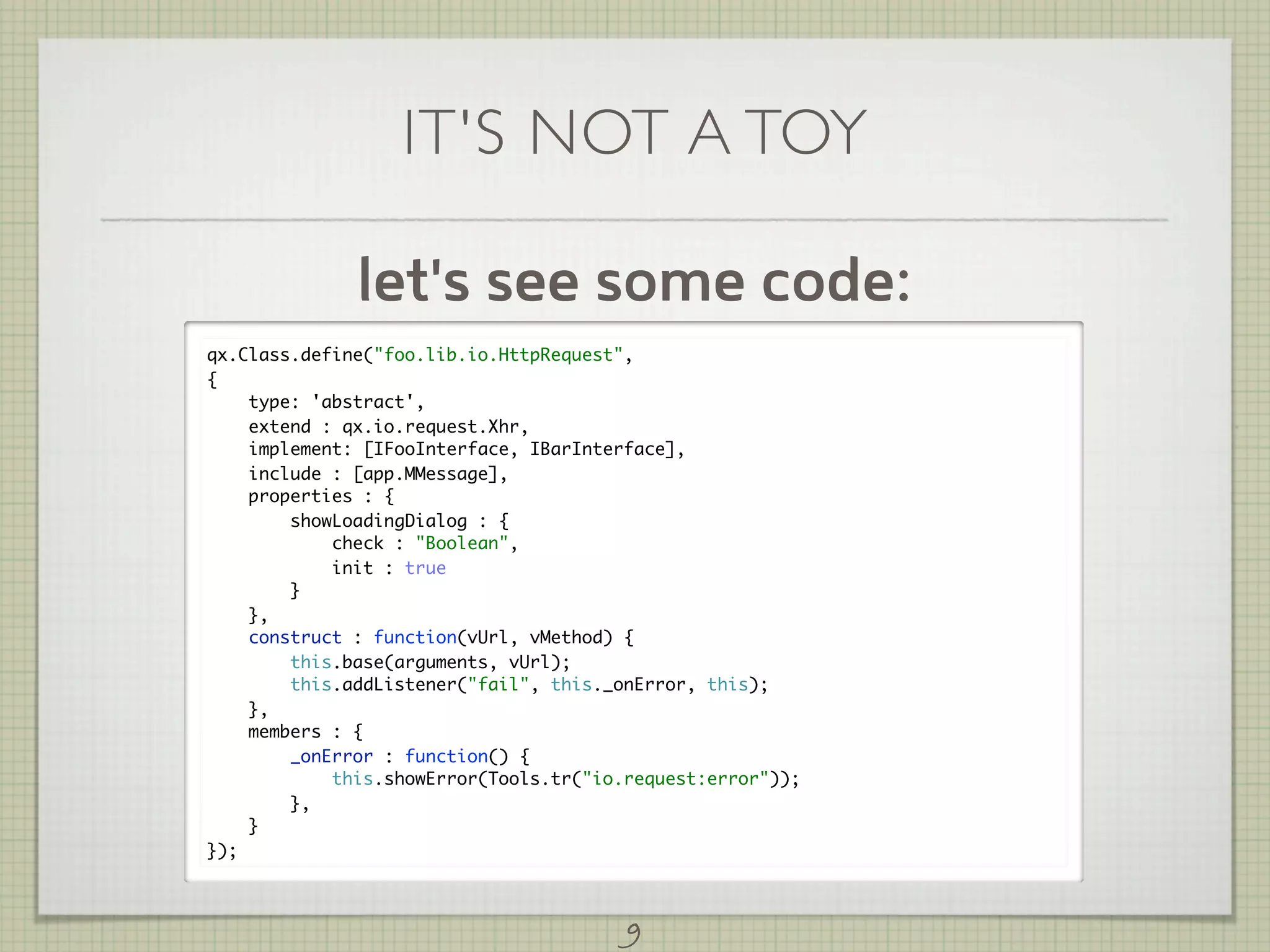

9. IT'S NOT A TOY
let's see some code:
qx.Class.define("foo.lib.io.HttpRequest",
{
type: 'abstract',
extend : qx.io.request.Xhr,
implement: [IFooInterface, IBarInterface],
include : [app.MMessage],
properties : {
showLoadingDialog : {
check : "Boolean",
init : true
}
},
construct : function(vUrl, vMethod) {
this.base(arguments, vUrl);
this.addListener("fail", this._onError, this);
},
members : {
_onError : function() {
this.showError(Tools.tr("io.request:error"));
},
}
});
9

10. IT'S NOT A TOY
let's see some code:
qx.Class.define("foo.lib.io.HttpRequest",
{
type: 'abstract', class type
extend : qx.io.request.Xhr,
implement: [IFooInterface, IBarInterface],
include : [app.MMessage],
properties : {
showLoadingDialog : {
check : "Boolean",
init : true
}
},
construct : function(vUrl, vMethod) {
this.base(arguments, vUrl);
this.addListener("fail", this._onError, this);
},
members : {
_onError : function() {
this.showError(Tools.tr("io.request:error"));
},
}
});
10

11. IT'S NOT A TOY
let's see some code:
qx.Class.define("foo.lib.io.HttpRequest",
{
type: 'abstract',
extend : qx.io.request.Xhr, inheritance
implement: [IFooInterface, IBarInterface],
include : [app.MMessage],
properties : {
showLoadingDialog : {
check : "Boolean",
init : true
}
},
construct : function(vUrl, vMethod) {
this.base(arguments, vUrl);
this.addListener("fail", this._onError, this);
},
members : {
_onError : function() {
this.showError(Tools.tr("io.request:error"));
},
}
});
11

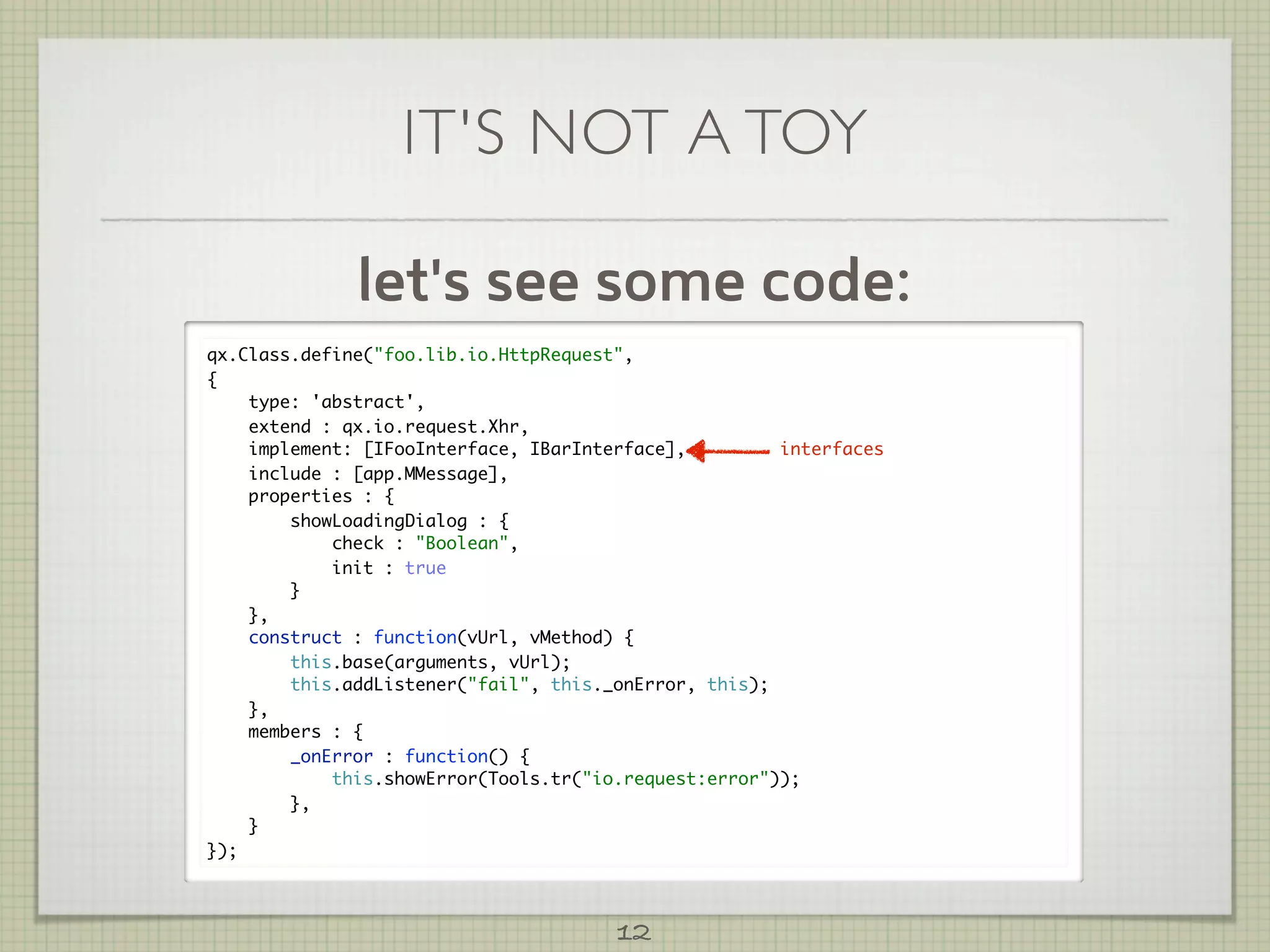

12. IT'S NOT A TOY
let's see some code:
qx.Class.define("foo.lib.io.HttpRequest",
{
type: 'abstract',
extend : qx.io.request.Xhr,
implement: [IFooInterface, IBarInterface], interfaces
include : [app.MMessage],
properties : {
showLoadingDialog : {
check : "Boolean",
init : true
}
},
construct : function(vUrl, vMethod) {
this.base(arguments, vUrl);
this.addListener("fail", this._onError, this);
},
members : {
_onError : function() {
this.showError(Tools.tr("io.request:error"));
},
}
});
12

13. IT'S NOT A TOY
let's see some code:
qx.Class.define("foo.lib.io.HttpRequest",
{
type: 'abstract',
extend : qx.io.request.Xhr,
implement: [IFooInterface, IBarInterface],
include : [app.MMessage], mixins !
properties : {
showLoadingDialog : {
check : "Boolean",
init : true
}
},
construct : function(vUrl, vMethod) {
this.base(arguments, vUrl);
this.addListener("fail", this._onError, this);
},
members : {
_onError : function() {
this.showError(Tools.tr("io.request:error"));
},
}
});
13

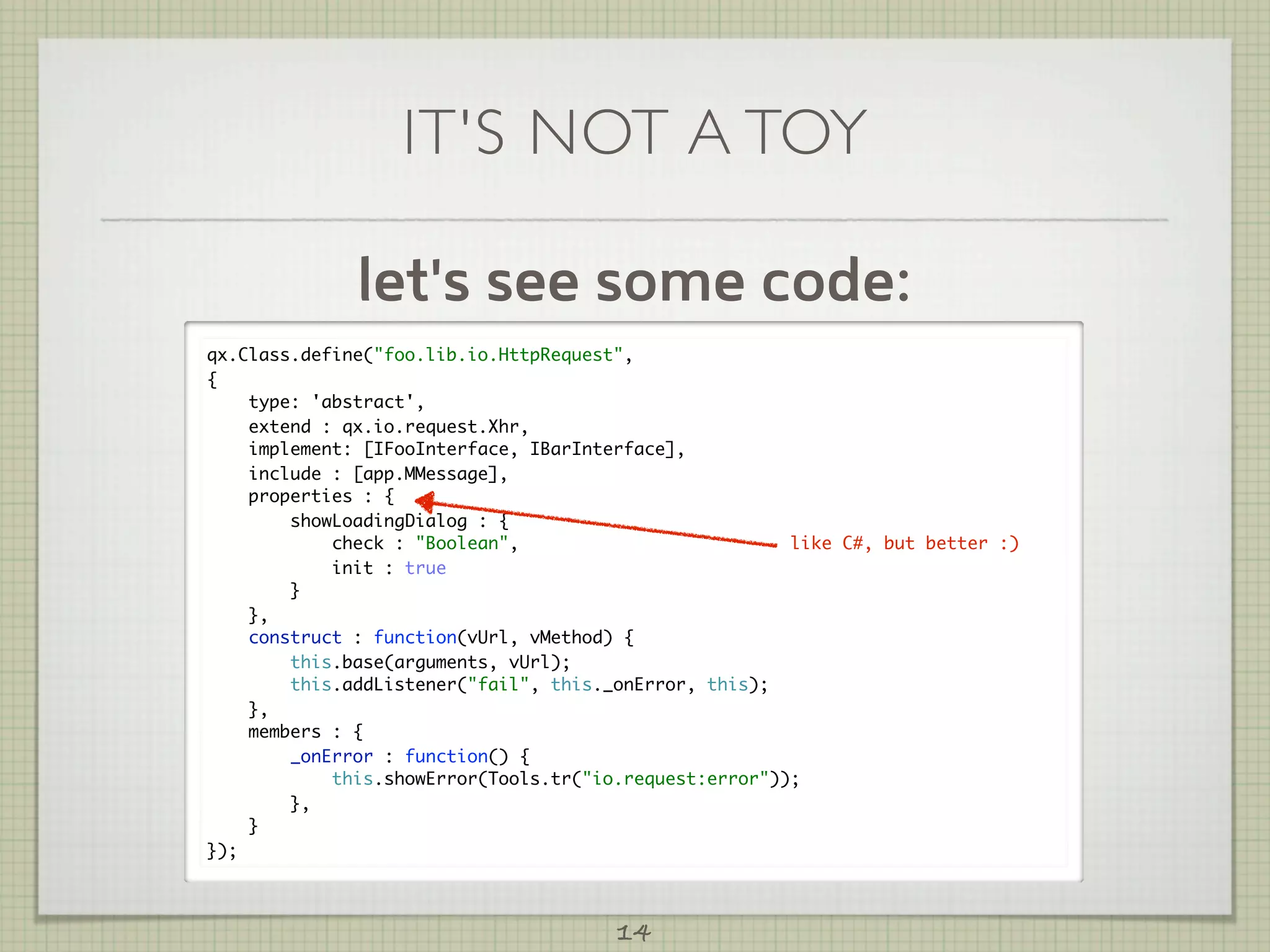

14. IT'S NOT A TOY
let's see some code:
qx.Class.define("foo.lib.io.HttpRequest",
{
type: 'abstract',
extend : qx.io.request.Xhr,
implement: [IFooInterface, IBarInterface],
include : [app.MMessage],
properties : {
showLoadingDialog : {
check : "Boolean", like C#, but better :)
init : true
}
},
construct : function(vUrl, vMethod) {
this.base(arguments, vUrl);
this.addListener("fail", this._onError, this);
},
members : {
_onError : function() {
this.showError(Tools.tr("io.request:error"));
},
}
});
14

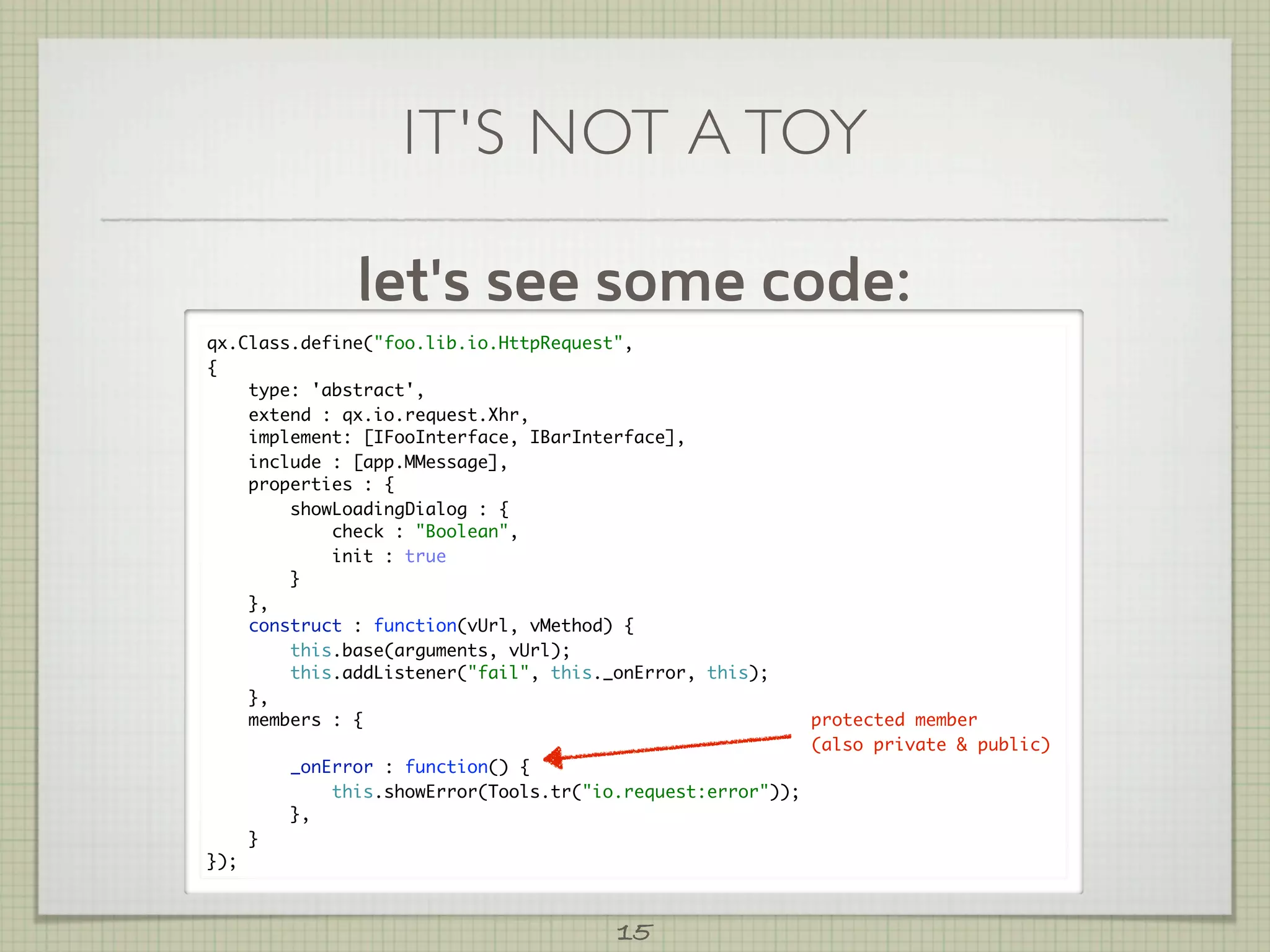

15. IT'S NOT A TOY
let's see some code:
qx.Class.define("foo.lib.io.HttpRequest",
{
type: 'abstract',
extend : qx.io.request.Xhr,
implement: [IFooInterface, IBarInterface],
include : [app.MMessage],
properties : {
showLoadingDialog : {
check : "Boolean",
init : true
}
},
construct : function(vUrl, vMethod) {
this.base(arguments, vUrl);
this.addListener("fail", this._onError, this);
},
members : { protected member
(also private & public)
_onError : function() {
this.showError(Tools.tr("io.request:error"));
},
}
});
15

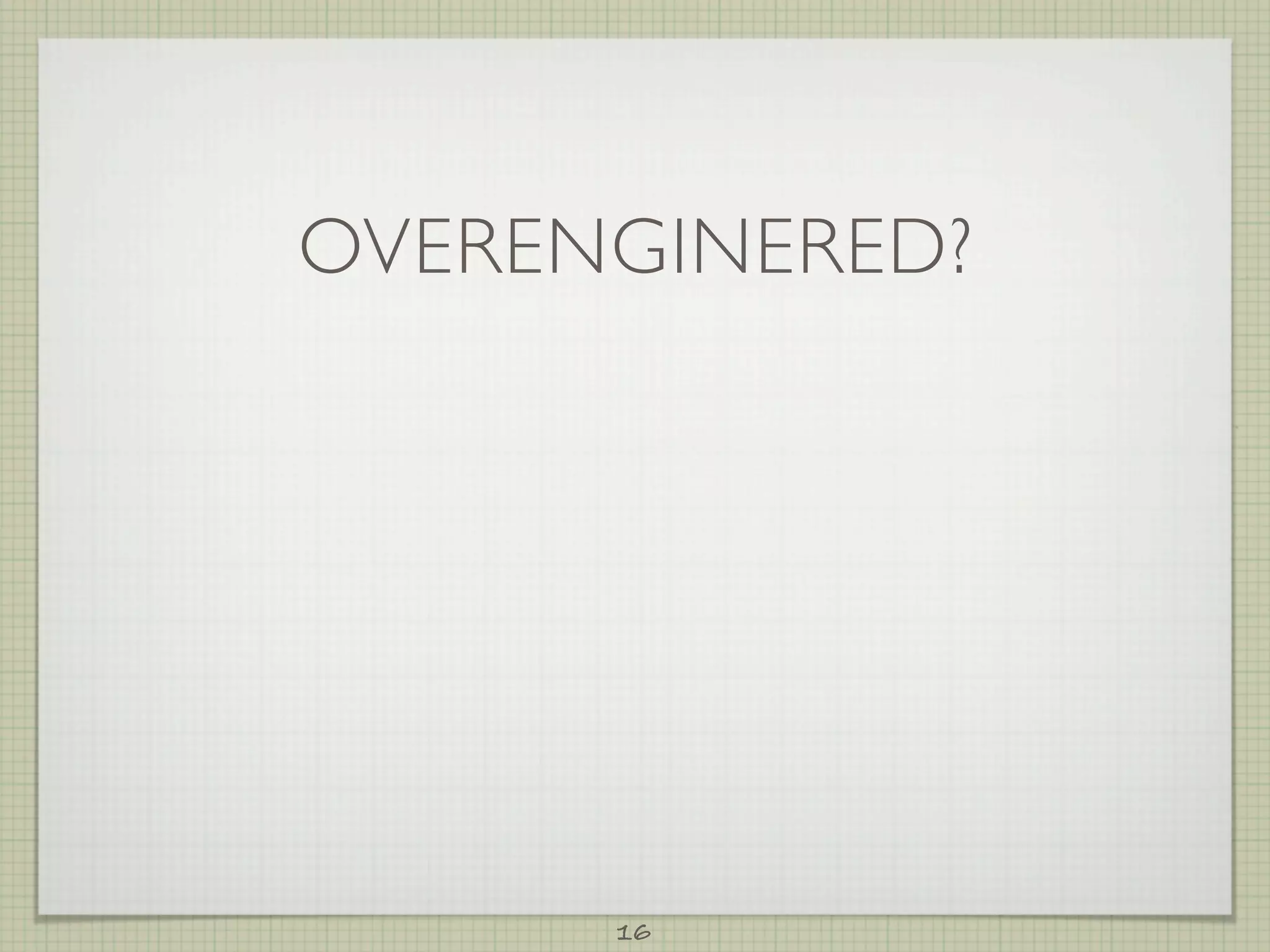

16. OVERENGINERED?
16

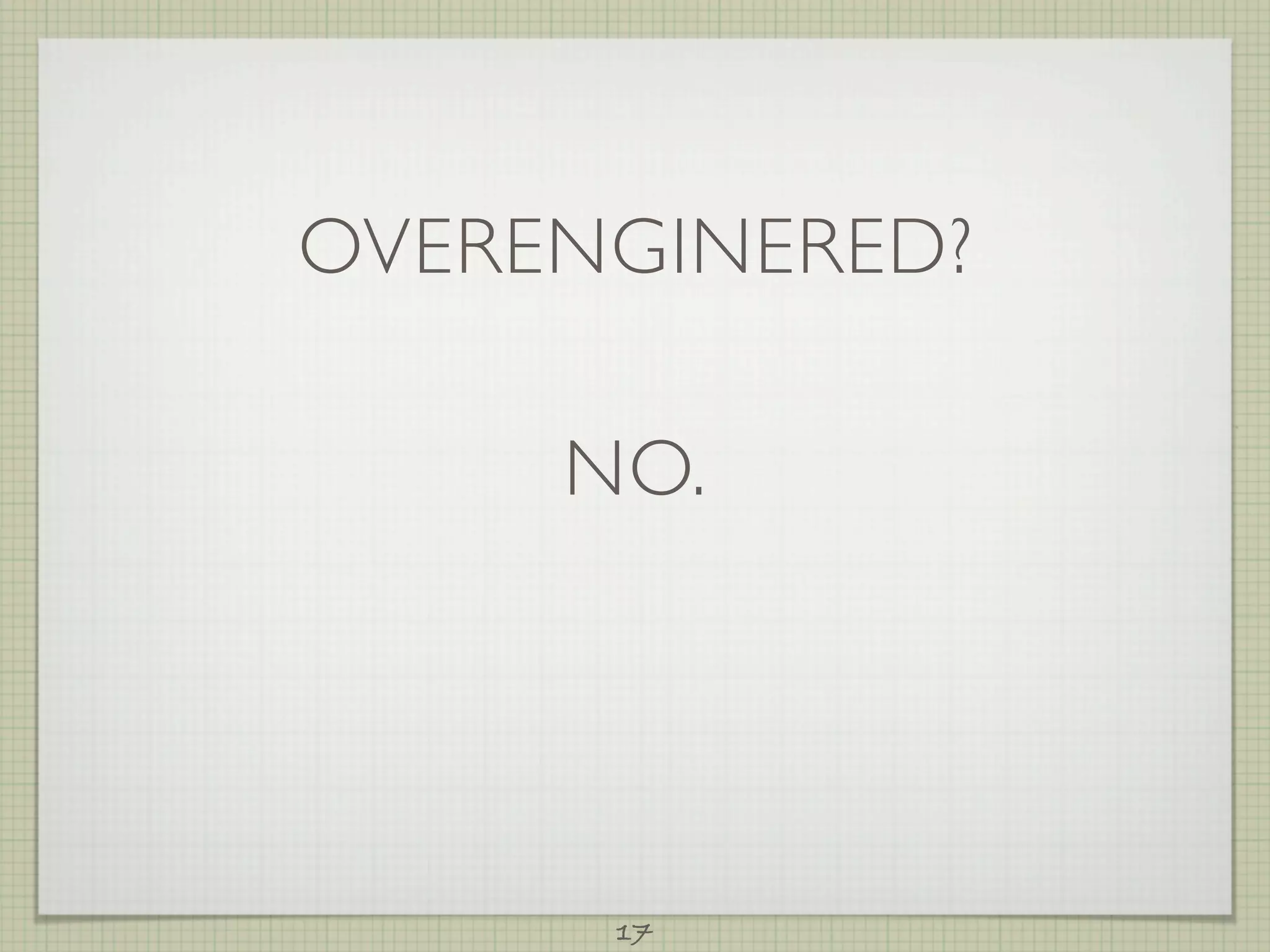

17. OVERENGINERED?
NO.
17

18. OVERENGINERED?
NO.
WELL DESIGNED!
18

19. BUT!
19

20. BUT!
YOU HAVE TO KNOW WHAT
YOU ARE DOING
20

21. BUT!
YOU HAVE TO KNOW WHAT
YOU ARE DOING
IN ANOTHER CASE...
21

22. 22

23. QOOXDOO
=
FRAMEWORK
+
GUI TOOLKIT
23

24. LOT OF FEATURES
24

25. LOT OF FEATURES
BUT WE DON'T HAVE TIME
TO TALK ABOUT ALL OF
THEM, SO...
25

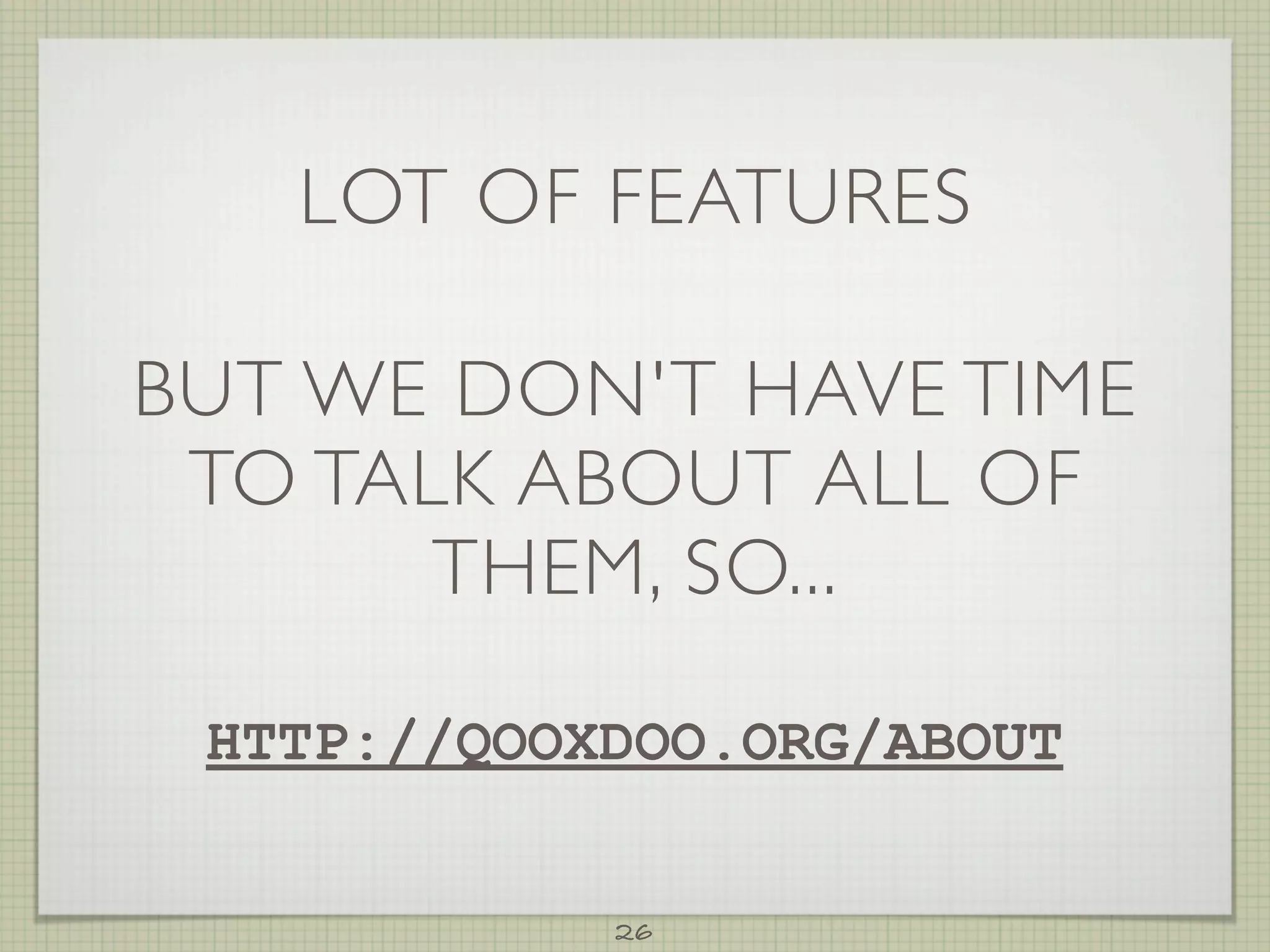

26. LOT OF FEATURES
BUT WE DON'T HAVE TIME
TO TALK ABOUT ALL OF
THEM, SO...
HTTP://QOOXDOO.ORG/ABOUT
26

27. THINGS WORTH
MENTIONING *
* IMHO
27

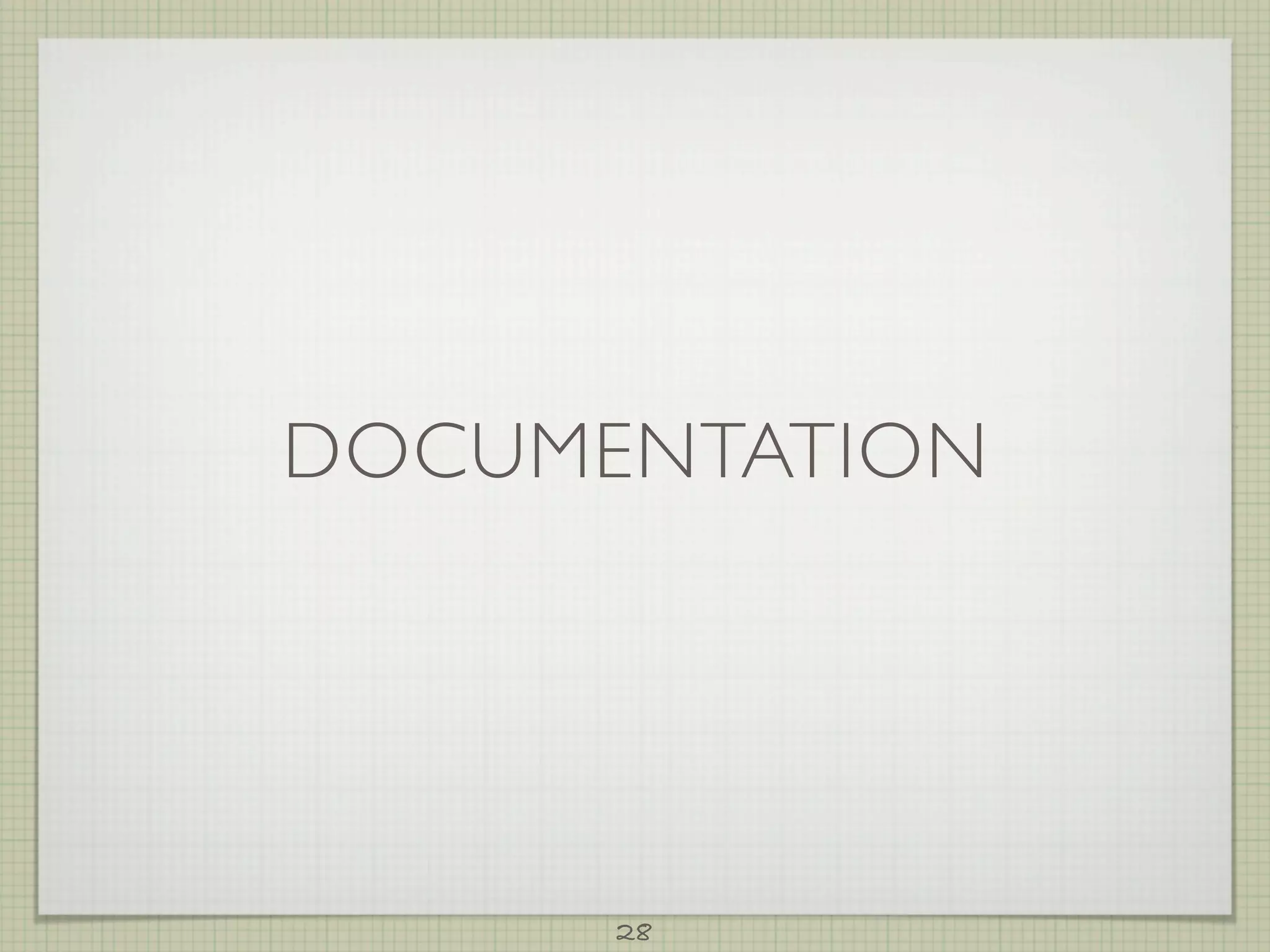

28. DOCUMENTATION
28

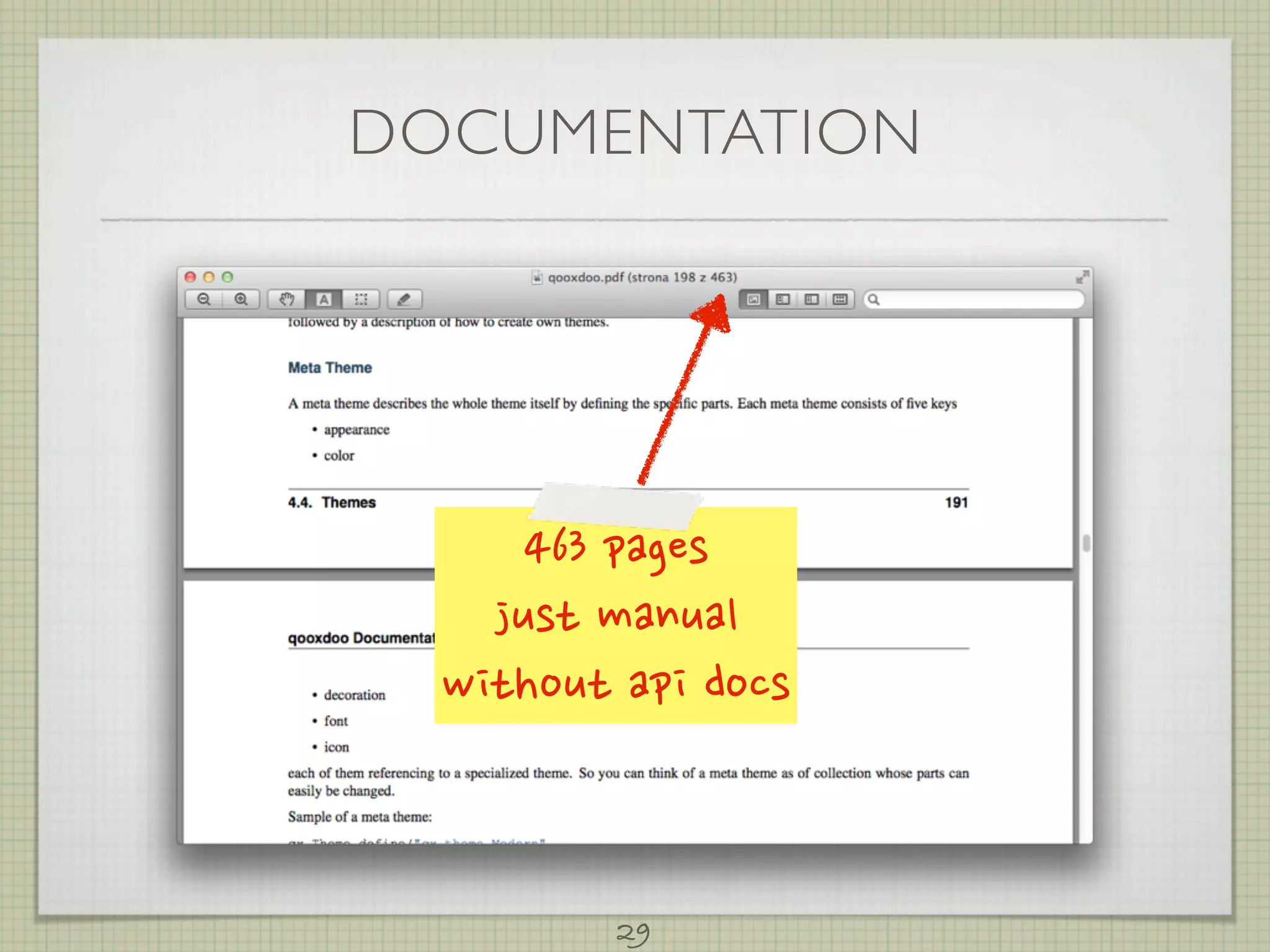

29. DOCUMENTATION
463pages
justmanual
withoutapidocs
29

30. DOCUMENTATION
+ DEMOS
+ PLAYGROUND
(RIA MOBILE)
30

31. MIXINS
31

32. MIXINS
Something like interfaces, but
with implementation.
32

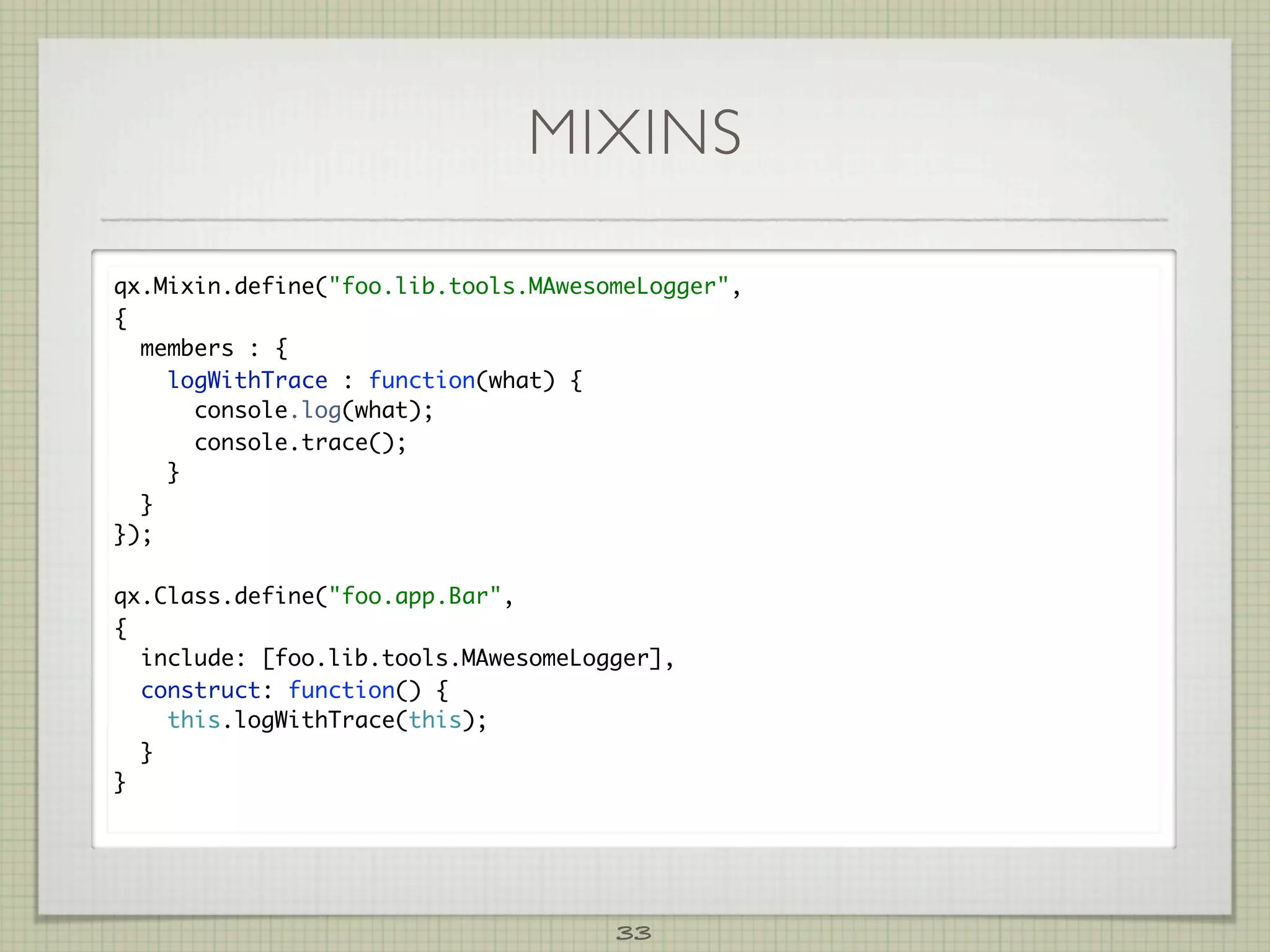

33. MIXINS
qx.Mixin.define(foo.lib.tools.MAwesomeLogger,
{
members : {
logWithTrace : function(what) {
console.log(what);
console.trace();
}
}
});
qx.Class.define(foo.app.Bar,
{
include: [foo.lib.tools.MAwesomeLogger],
construct: function() {
this.logWithTrace(this);
}
}
33

34. PROPERTIES
34

35. 35

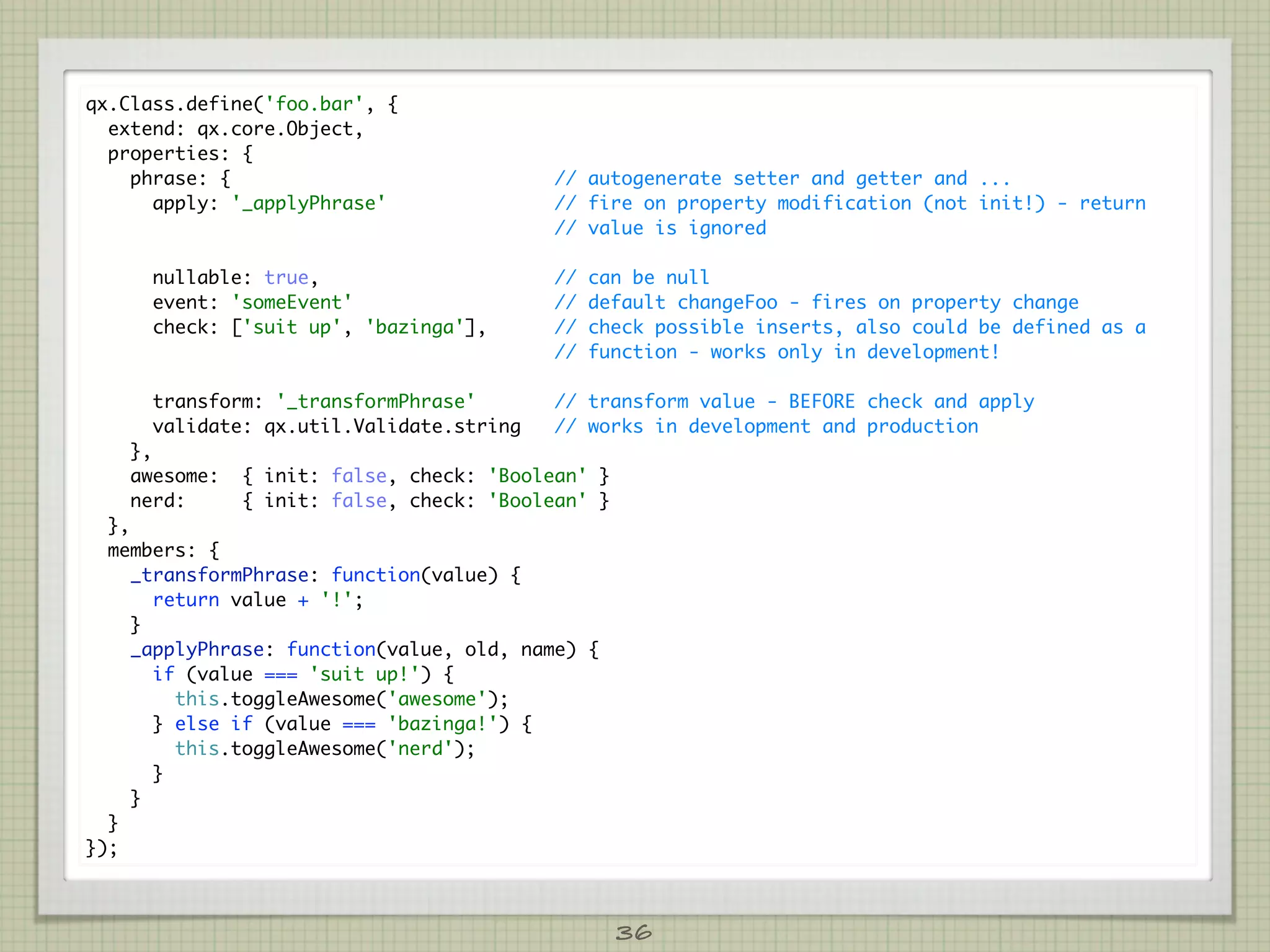

36. qx.Class.define('foo.bar', {
extend: qx.core.Object,
properties: {
phrase: { // autogenerate setter and getter and ...
apply: '_applyPhrase' // fire on property modification (not init!) - return
// value is ignored
nullable: true, // can be null
event: 'someEvent' // default changeFoo - fires on property change
check: ['suit up', 'bazinga'], // check possible inserts, also could be defined as a
// function - works only in development!
transform: '_transformPhrase' // transform value - BEFORE check and apply
validate: qx.util.Validate.string // works in development and production
},
awesome: { init: false, check: 'Boolean' }
nerd: { init: false, check: 'Boolean' }
},
members: {
_transformPhrase: function(value) {
return value + '!';
}
_applyPhrase: function(value, old, name) {
if (value === 'suit up!') {
this.toggleAwesome('awesome');
} else if (value === 'bazinga!') {
this.toggleAwesome('nerd');
}
}
}
});
36

37. LOT OF CONSISTENT(!) GUI
COMPONENTS
37

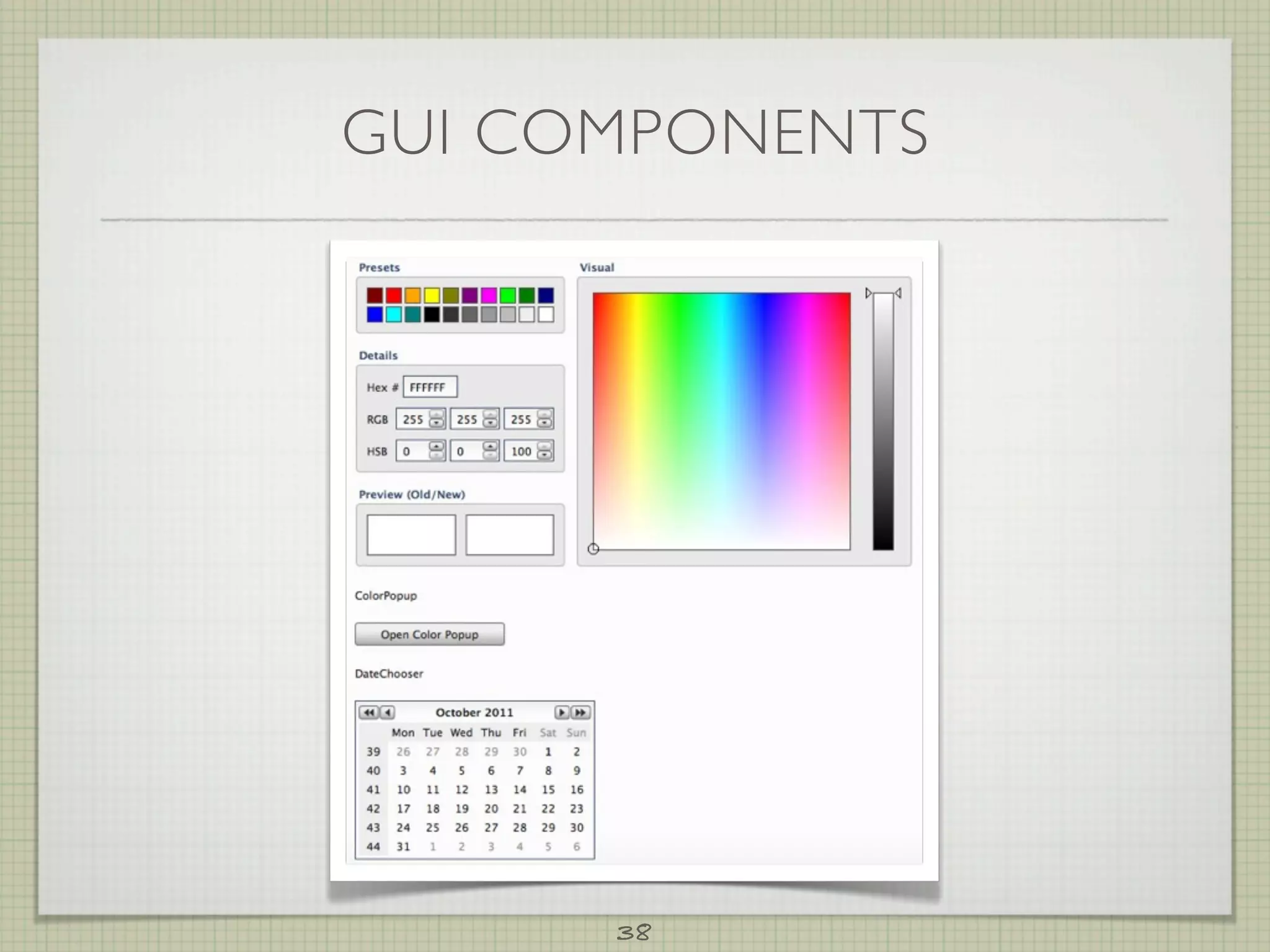

38. GUI COMPONENTS
38

39. GUI COMPONENTS
39

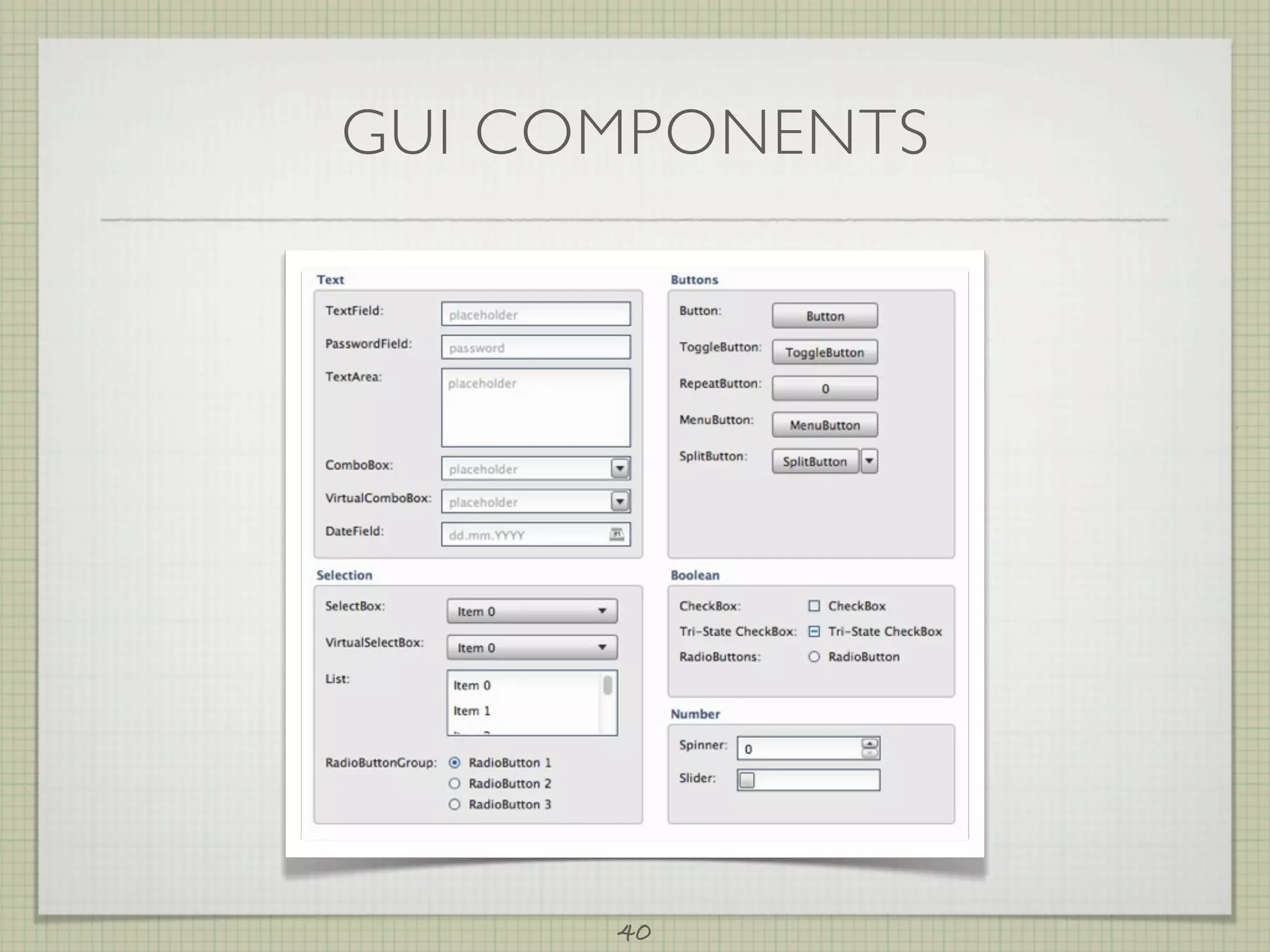

40. GUI COMPONENTS
40

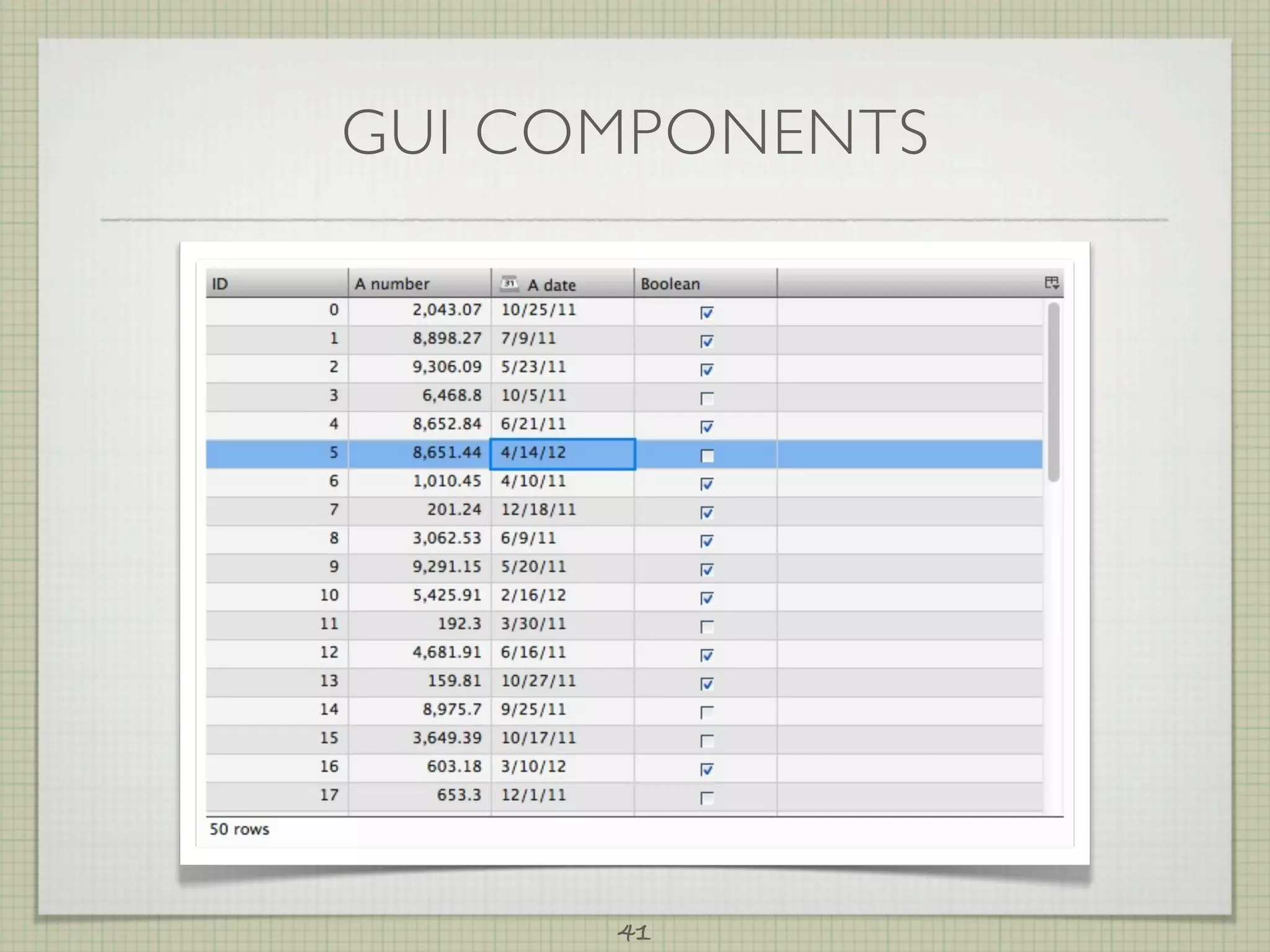

41. GUI COMPONENTS
41

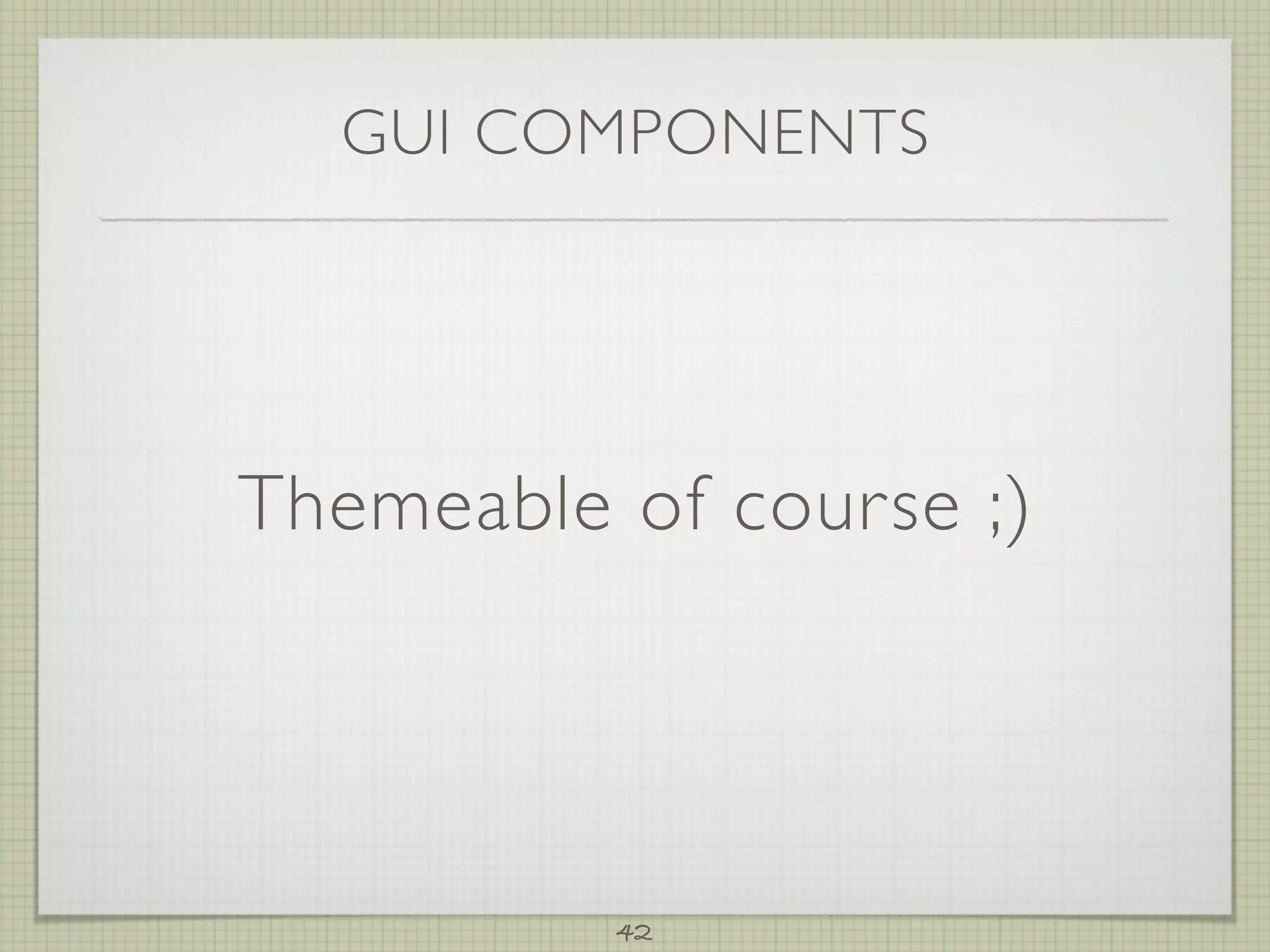

42. GUI COMPONENTS
Themeable of course ;)
42

43. EASY KEY/COMMANDS
BINDING
43

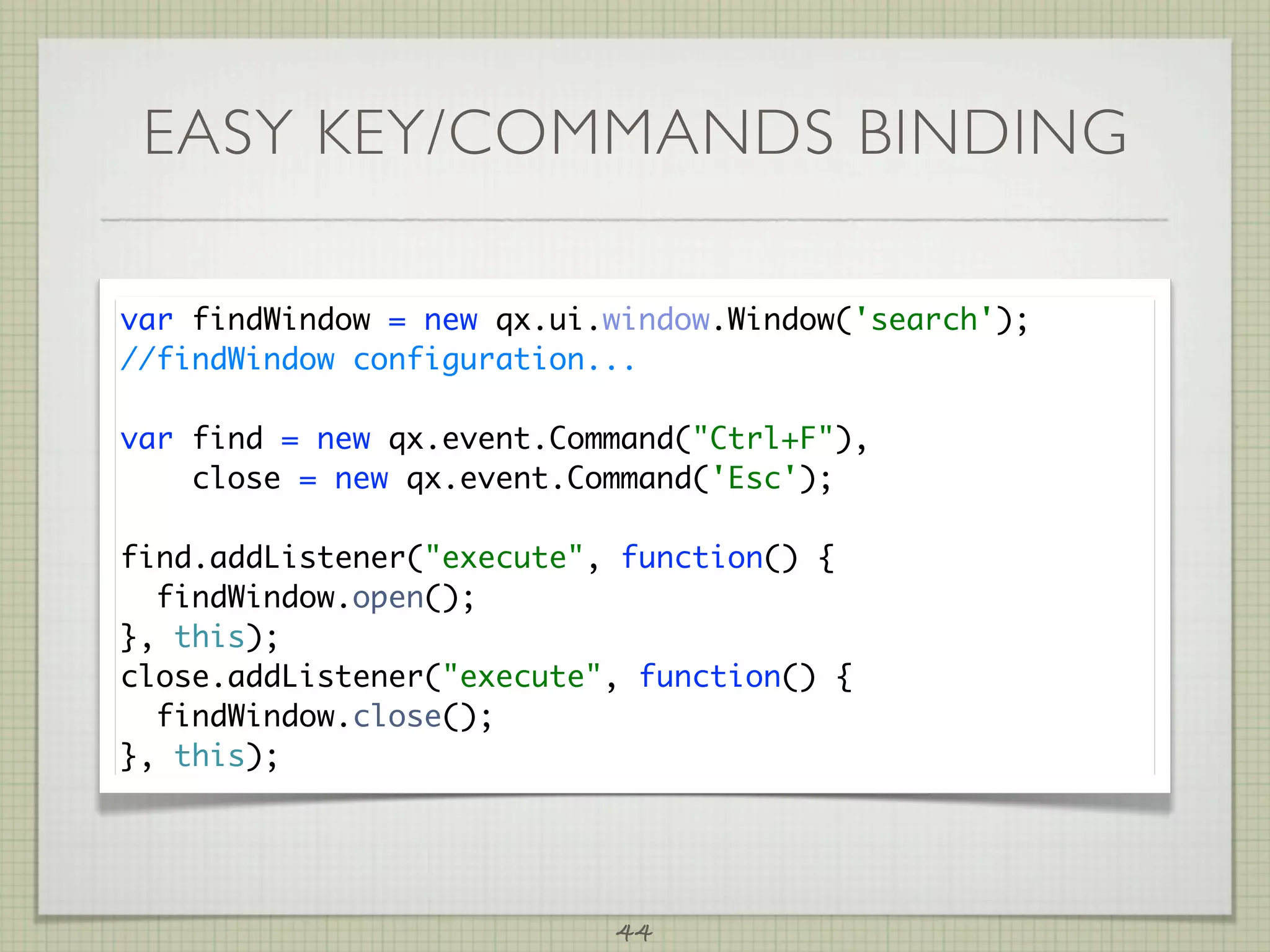

44. EASY KEY/COMMANDS BINDING
var findWindow = new qx.ui.window.Window('search');
//findWindow configuration...
var find = new qx.event.Command(Ctrl+F),
close = new qx.event.Command('Esc');
find.addListener(execute, function() {
findWindow.open();
}, this);
close.addListener(execute, function() {
findWindow.close();
}, this);
44

45. EASY ELEMENTS
POSITIONING
(WITH LAYOUTS)
45

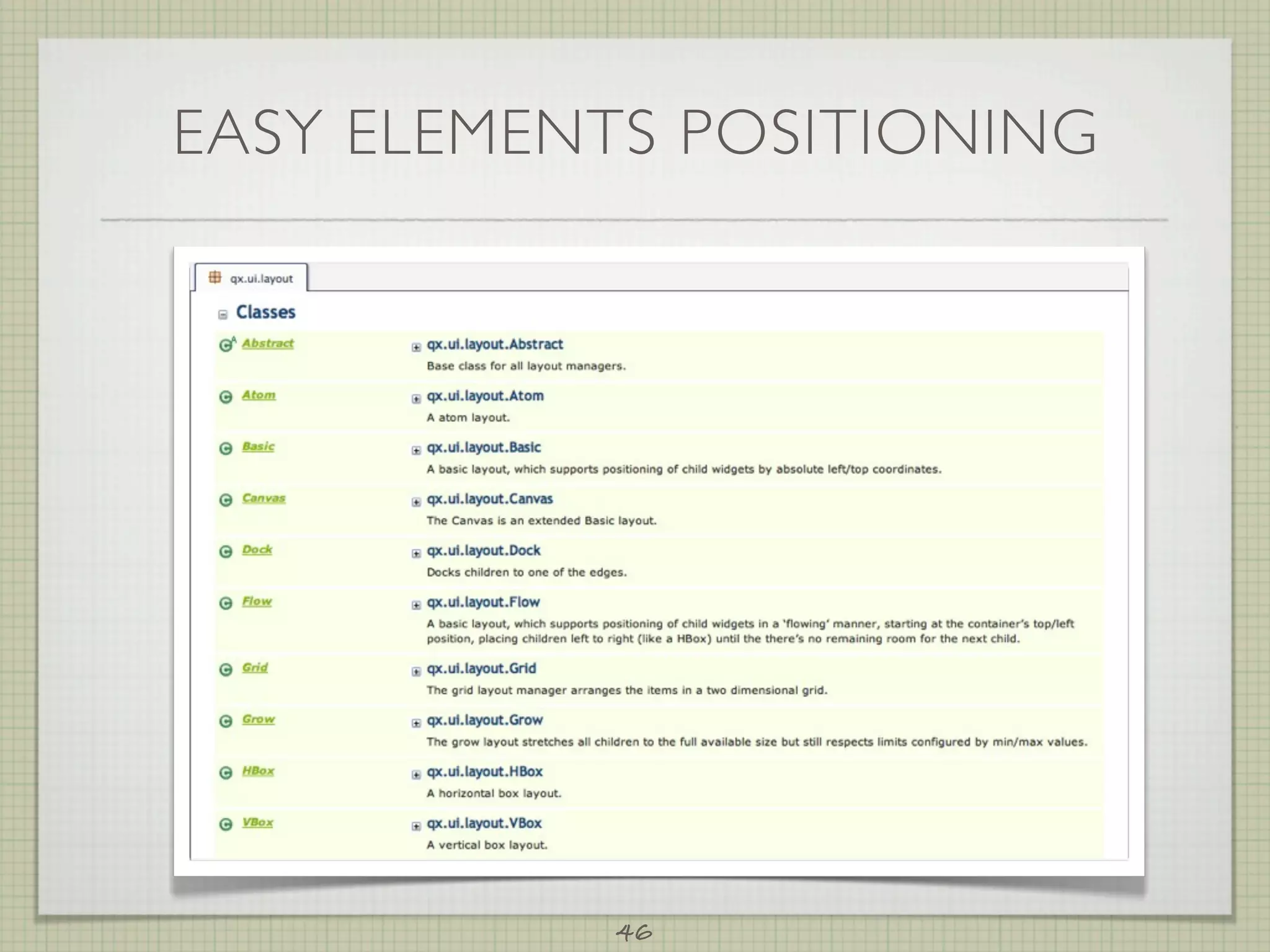

46. EASY ELEMENTS POSITIONING
46

47. EASY REST CALLS
47

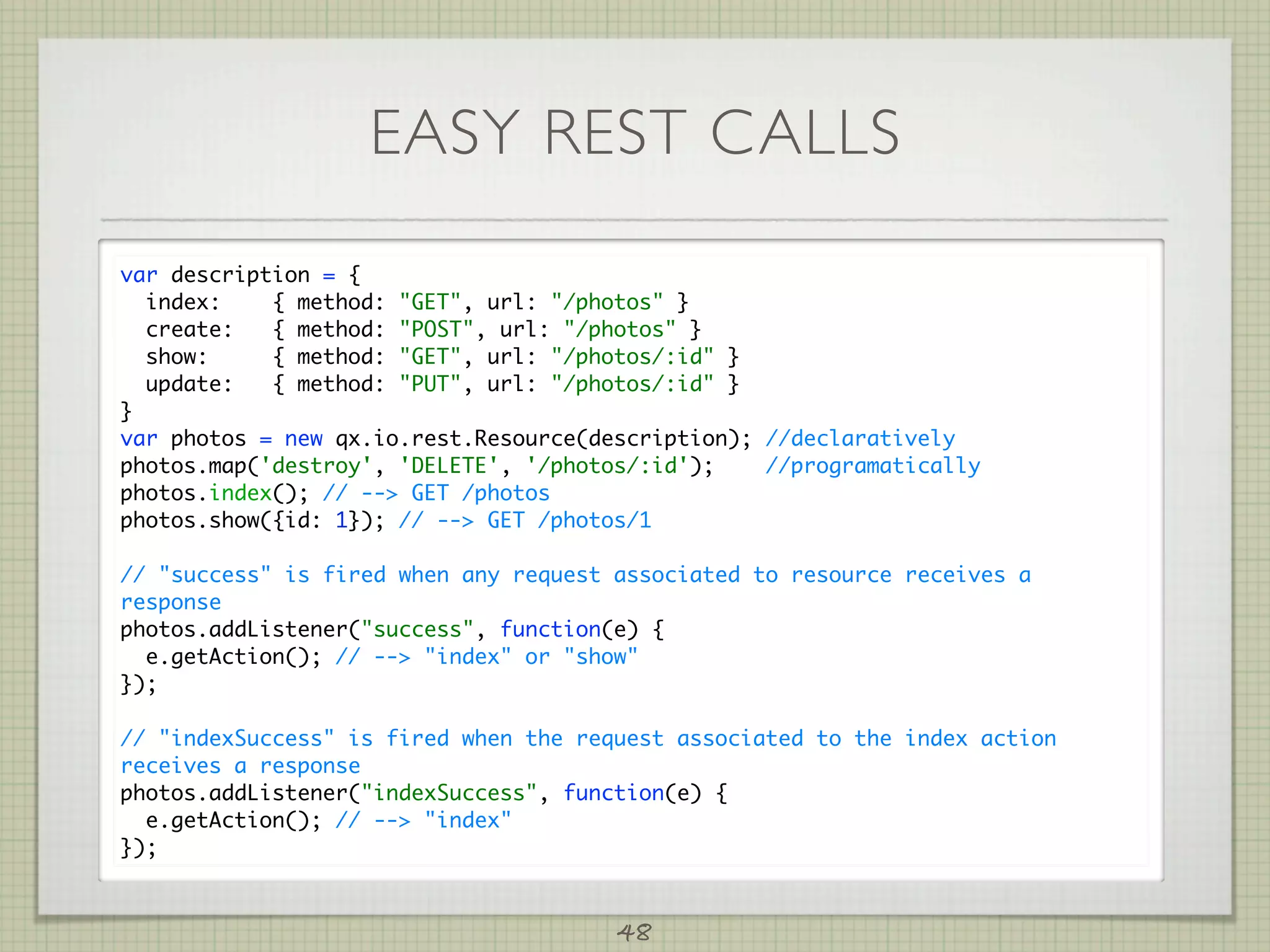

48. EASY REST CALLS
var description = {
index: { method: GET, url: /photos }
create: { method: POST, url: /photos }
show: { method: GET, url: /photos/:id }
update: { method: PUT, url: /photos/:id }
}
var photos = new qx.io.rest.Resource(description); //declaratively
photos.map('destroy', 'DELETE', '/photos/:id'); //programatically
photos.index(); // -- GET /photos
photos.show({id: 1}); // -- GET /photos/1
// success is fired when any request associated to resource receives a
response
photos.addListener(success, function(e) {
e.getAction(); // -- index or show
});
// indexSuccess is fired when the request associated to the index action
receives a response
photos.addListener(indexSuccess, function(e) {
e.getAction(); // -- index
});
48

49. HTML EDITOR
OUT OF THE BOX
49

50. HTML EDITOR
The html editor does have some issues. Just not to give the impression
that it would try to compete with more advanced editors like ckEditor,
etc., because it doesn't. Still fine for many products, though.
[Andreas Ecker]
50

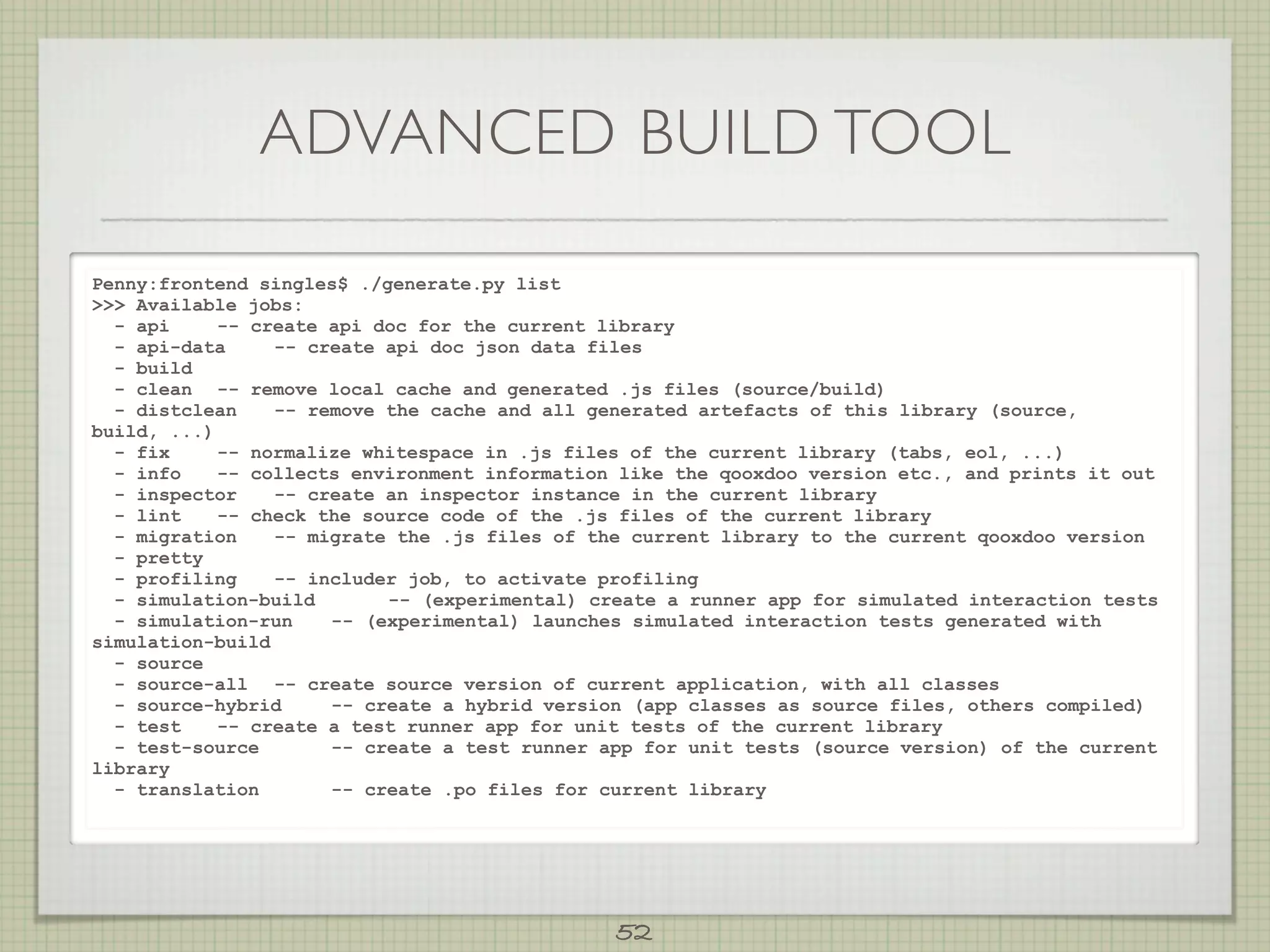

51. ADVANCED BUILD TOOL
51

52. ADVANCED BUILD TOOL
Penny:frontend singles$ ./generate.py list
Available jobs:
- api -- create api doc for the current library
- api-data -- create api doc json data files
- build
- clean -- remove local cache and generated .js files (source/build)
- distclean -- remove the cache and all generated artefacts of this library (source,
build, ...)
- fix -- normalize whitespace in .js files of the current library (tabs, eol, ...)
- info -- collects environment information like the qooxdoo version etc., and prints it out
- inspector -- create an inspector instance in the current library
- lint -- check the source code of the .js files of the current library
- migration -- migrate the .js files of the current library to the current qooxdoo version
- pretty
- profiling -- includer job, to activate profiling
- simulation-build -- (experimental) create a runner app for simulated interaction tests
- simulation-run -- (experimental) launches simulated interaction tests generated with
simulation-build
- source
- source-all -- create source version of current application, with all classes
- source-hybrid -- create a hybrid version (app classes as source files, others compiled)
- test -- create a test runner app for unit tests of the current library
- test-source -- create a test runner app for unit tests (source version) of the current
library
- translation -- create .po files for current library
52

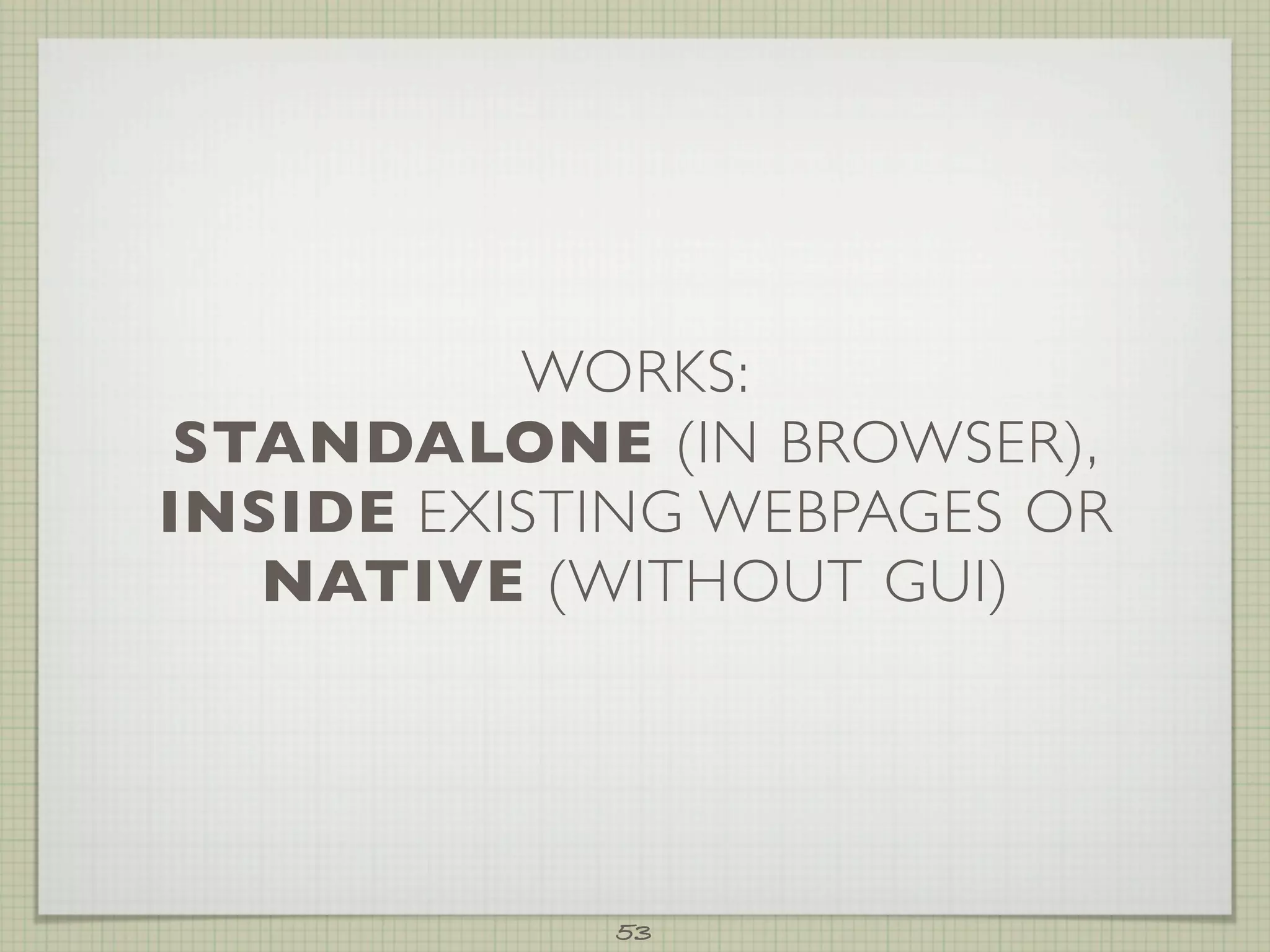

53. WORKS:
STANDALONE (IN BROWSER),
INSIDE EXISTING WEBPAGES OR
NATIVE (WITHOUT GUI)
53

54. MOBILE SUPPORT
54

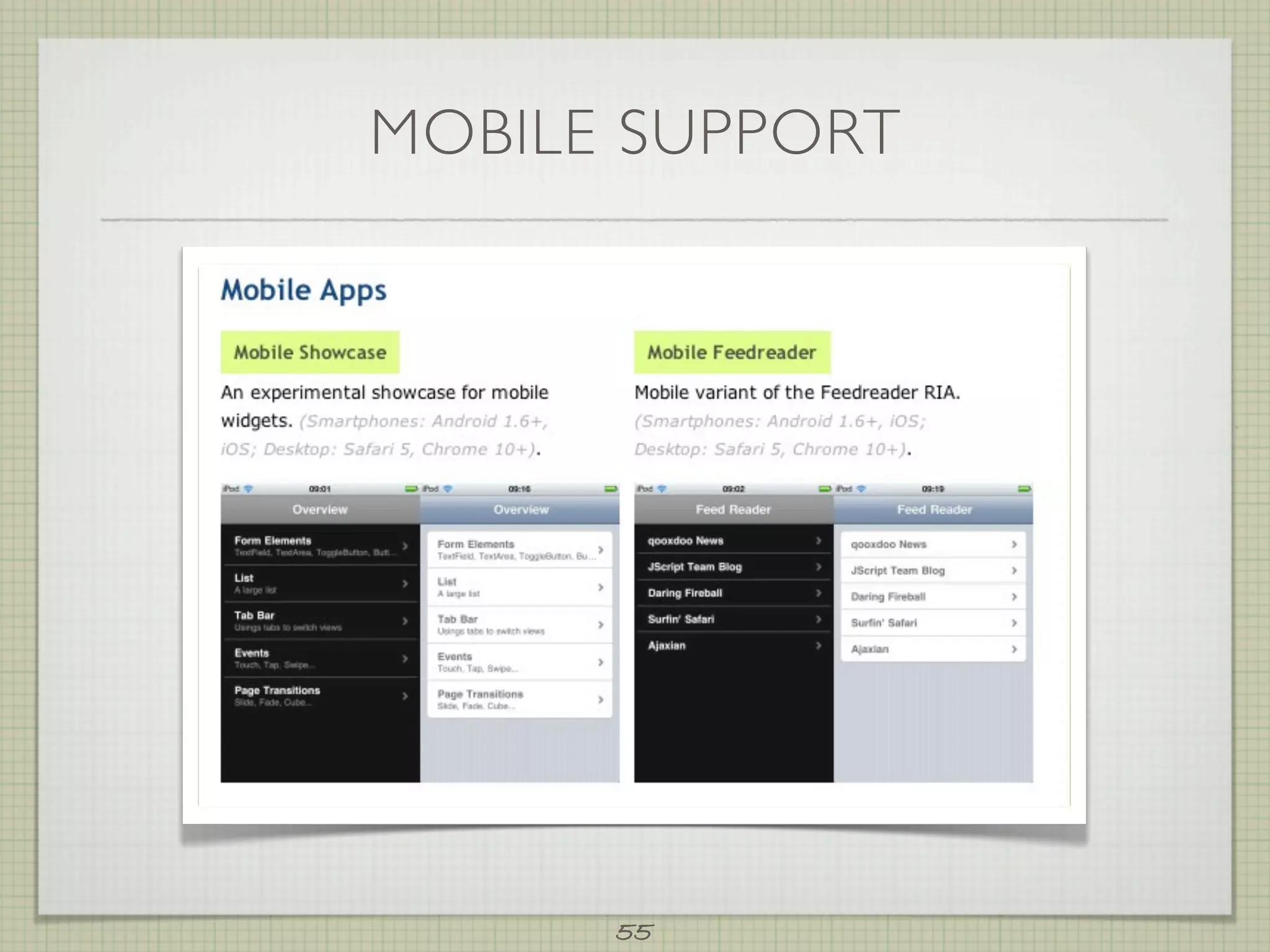

55. MOBILE SUPPORT
55

56. DEVELOPER FRIENDLY
(TESTS TOOLS)
56

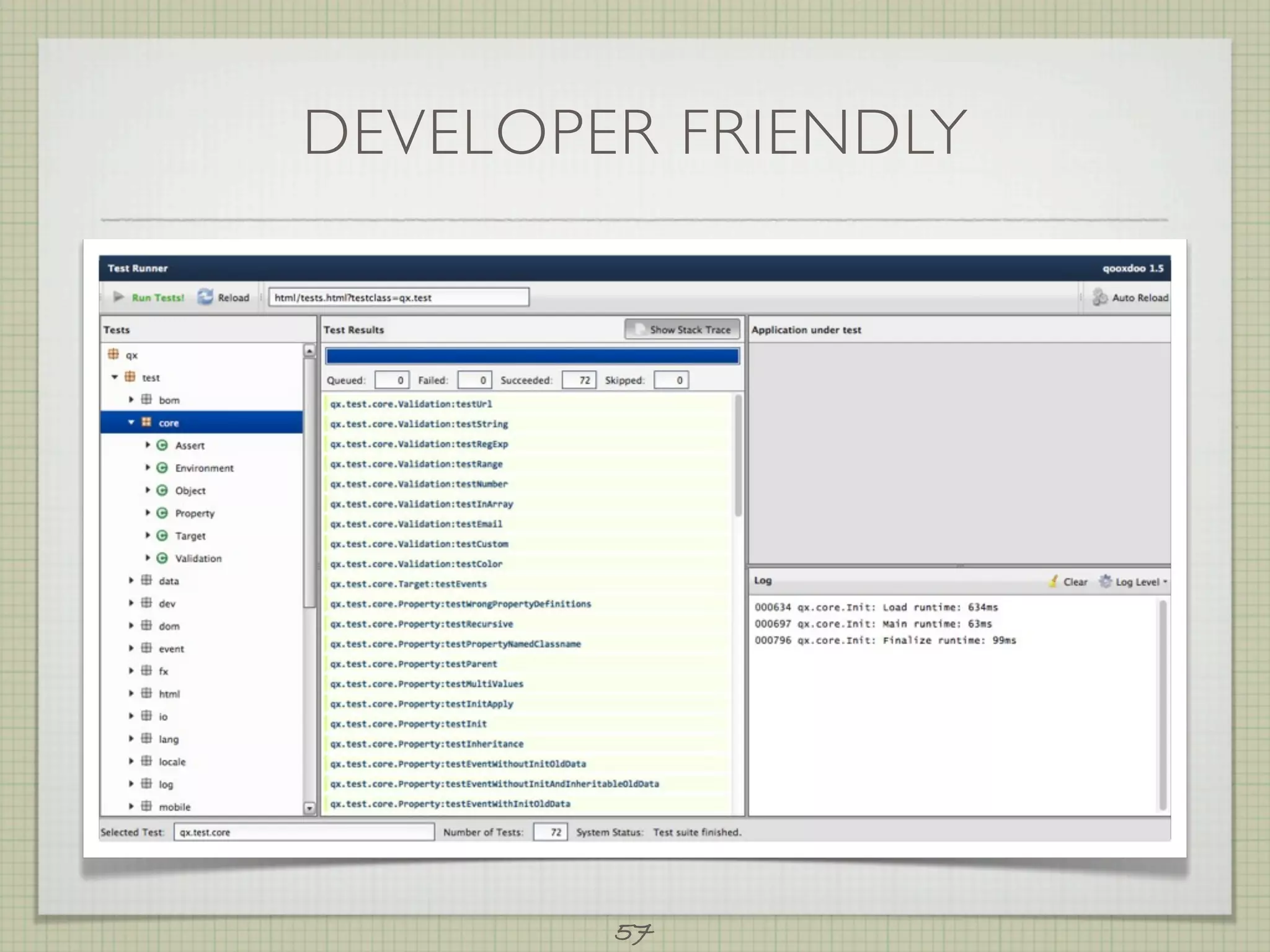

57. DEVELOPER FRIENDLY
57

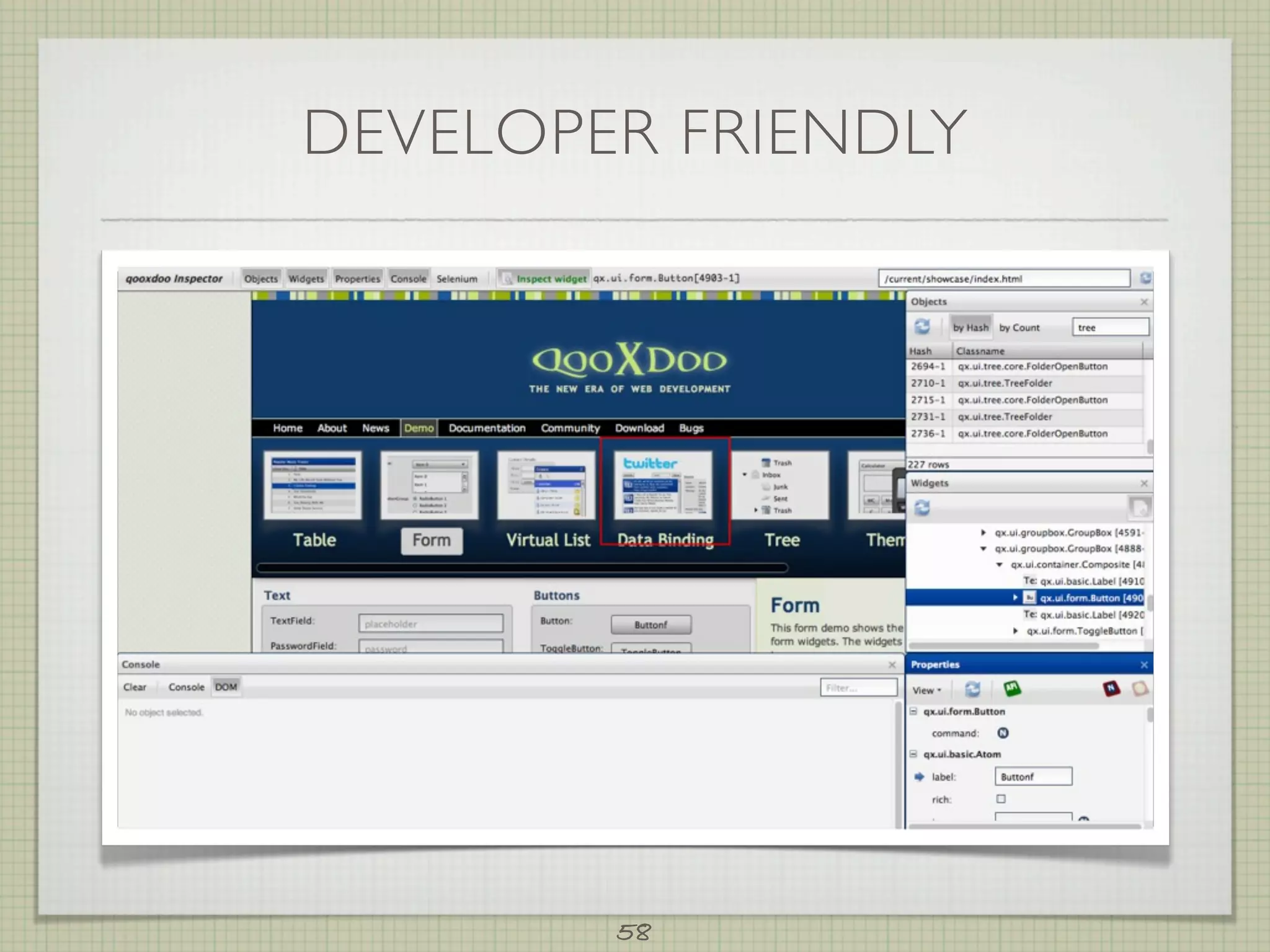

58. DEVELOPER FRIENDLY
58

59. LOCALIZATION AND
TRANSLATION
59

60. AND MUCH MORE...
60

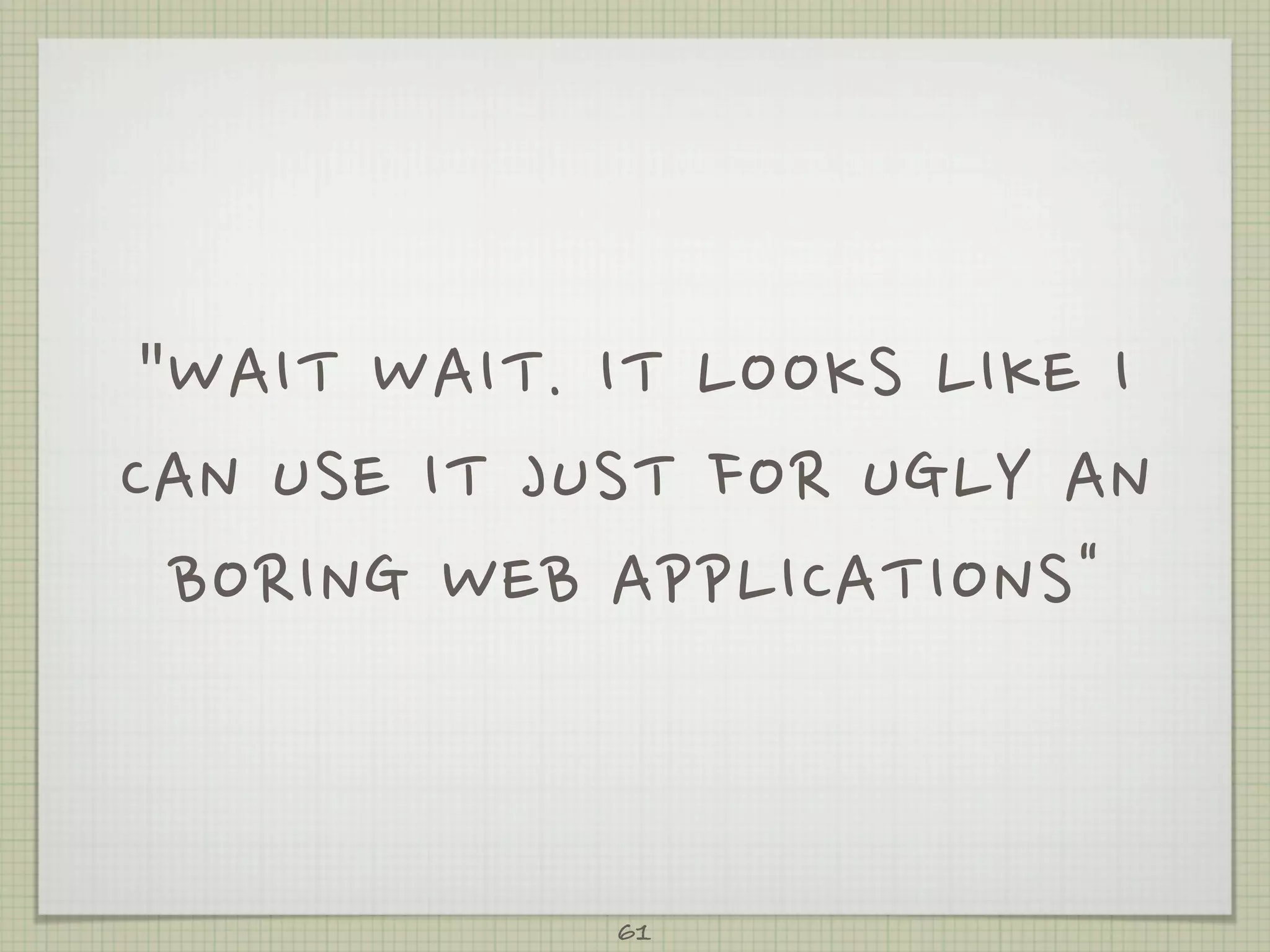

61. WAIT W AIT. I T L OOKS L IKE I
CAN U SE I T J UST F OR U GLY A N
BORING W EB A PPLICATIONS
61

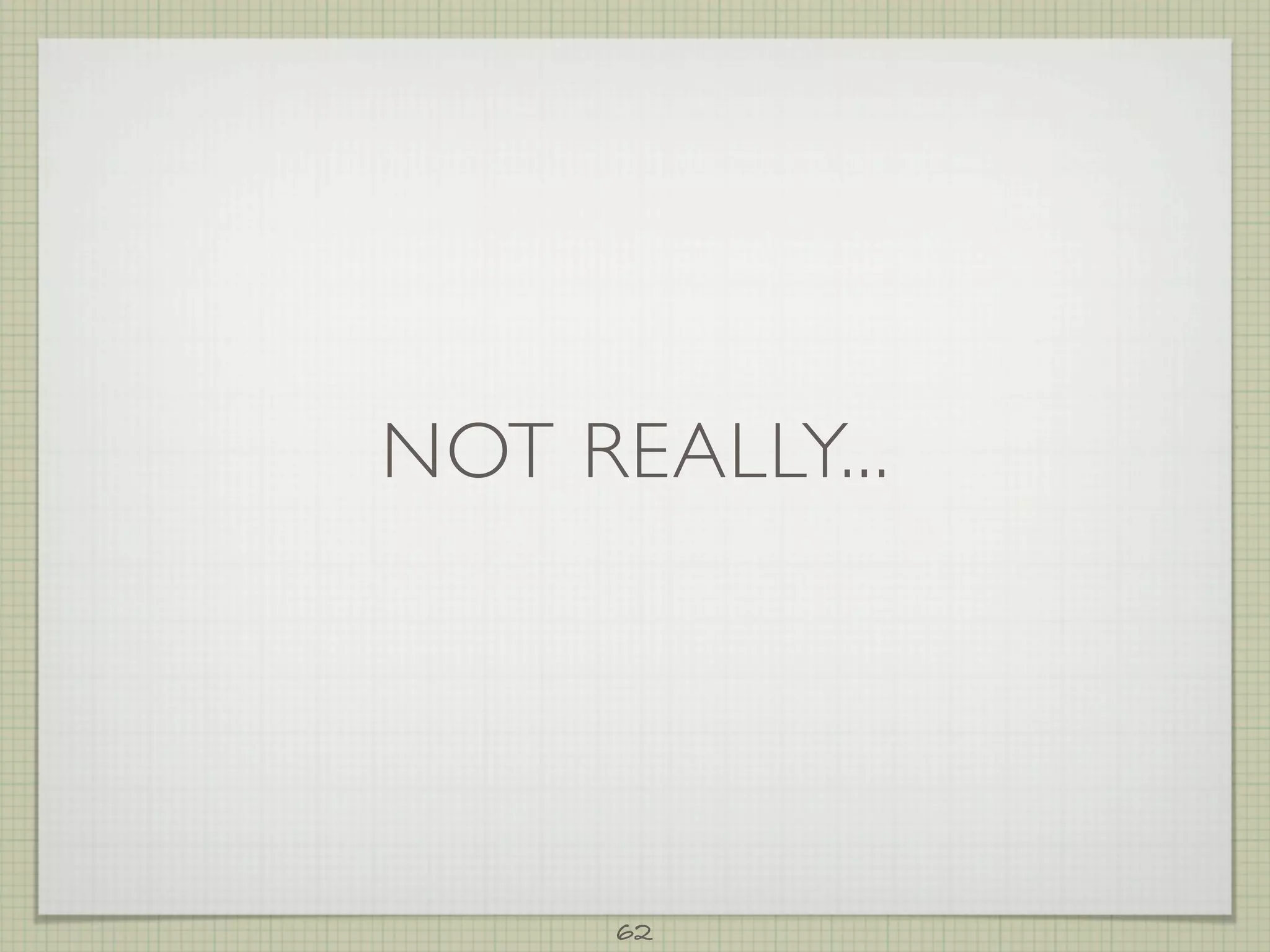

62. NOT REALLY...
62

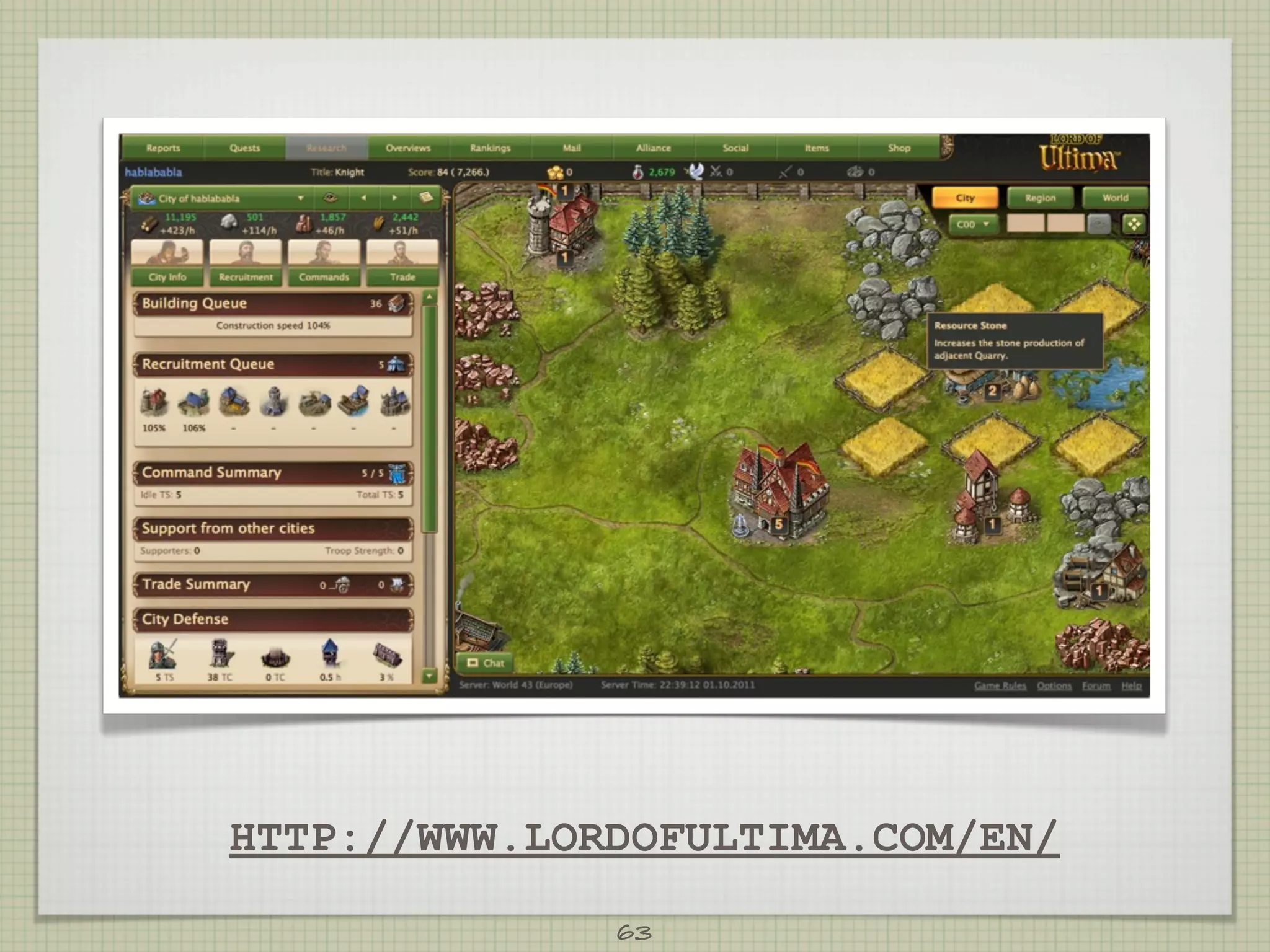

63. HTTP://WWW.LORDOFULTIMA.COM/EN/
63

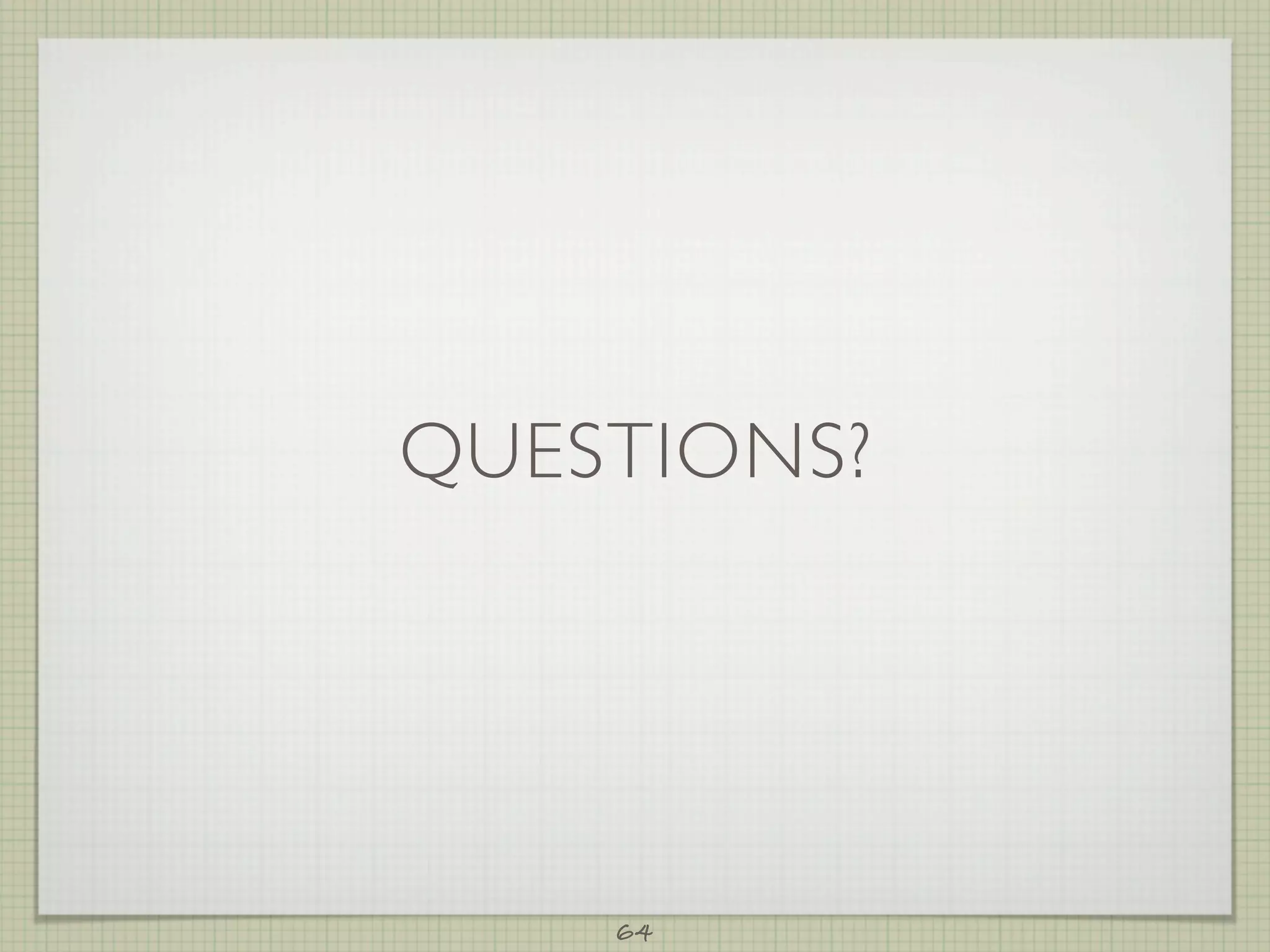

64. QUESTIONS?
64

65. THANKS!
65

66. name: Radosław Benkel
nick: singles
www: http://www.rbenkel.me
twitter: @singlespl
* and I have nothing in common with http://www.singles.pl ;]
66
