Mechatronics

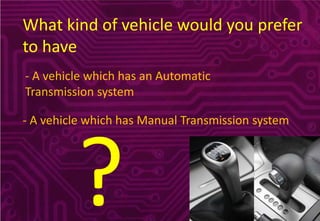

- 2. What kind ofvehicle would you prefer to have - A vehicle which has an Automatic Transmission system - A vehicle which has Manual Transmission system

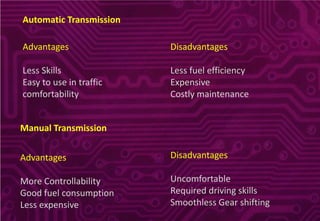

- 3. Automatic Transmission Disadvantages Less fuelefficiency Expensive Costly maintenance Advantages Less Skills Easy to use in traffic comfortability Manual Transmission Advantages More Controllability Good fuel consumption Less expensive Disadvantages Uncomfortable Required driving skills Smoothless Gear shifting
- 4. Can't we performa vehicle in both transmission systems? That's the point which this project is focused

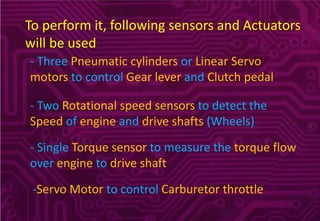

- 5. To perform it,following sensors and Actuators will be used - Three Pneumatic cylinders or Linear Servo motors to control Gear lever and Clutch pedal - Two Rotational speed sensors to detect the Speed of engine and drive shafts (Wheels) - Single Torque sensor to measure the torque flow over engine to drive shaft -Servo Motor to control Carburetor throttle

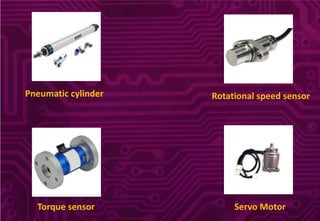

- 6. Pneumatic cylinder Rotationalspeed sensor Torque sensor Servo Motor
- 7.

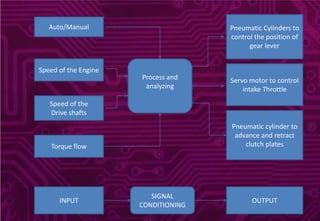

- 8. Auto/Manual Speed of theEngine Speed of the Drive shafts Torque flow Process and analyzing Pneumatic Cylinders to control the position of gear lever Servo motor to control intake Throttle Pneumatic cylinder to advance and retract clutch plates INPUT SIGNAL CONDITIONING OUTPUT

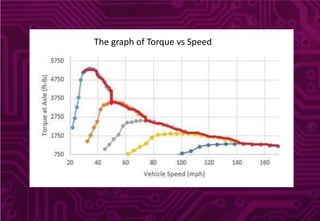

- 9. The graph ofTorque vs Speed
- 10. Automatic Transmission Disadvantages Less fuelefficiency Expensive Costly maintenance Advantages Less Skills Easy to use in traffic comfortability Manual Transmission Advantages More Controllability Good fuel consumption Less expensive Disadvantages Uncomfortable Required driving skills Smoothless Gear shifting

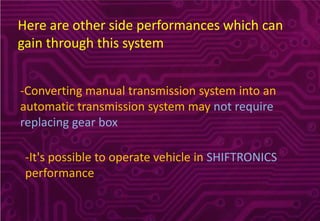

- 11. Here are otherside performances which can gain through this system -Converting manual transmission system into an automatic transmission system may not require replacing gear box -It's possible to operate vehicle in SHIFTRONICS performance
- 12.
- 13.
