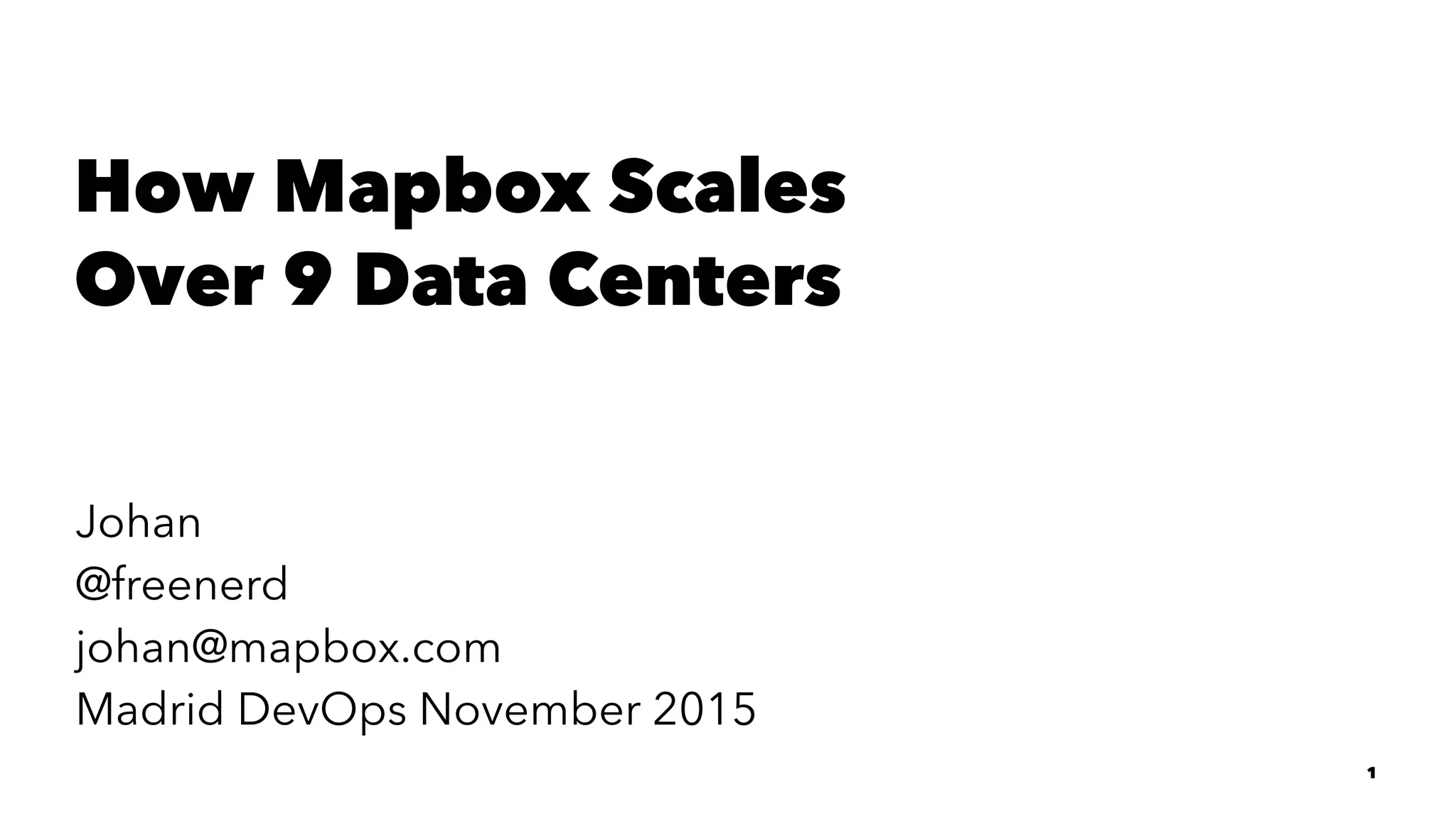

1. How Mapbox Scales
Over 9 Data Centers
Johan
@freenerd
johan@mapbox.com
Madrid DevOps November 2015
1

2. • What is Mapbox?
• 9 data centers?
• Tracing a map request
2

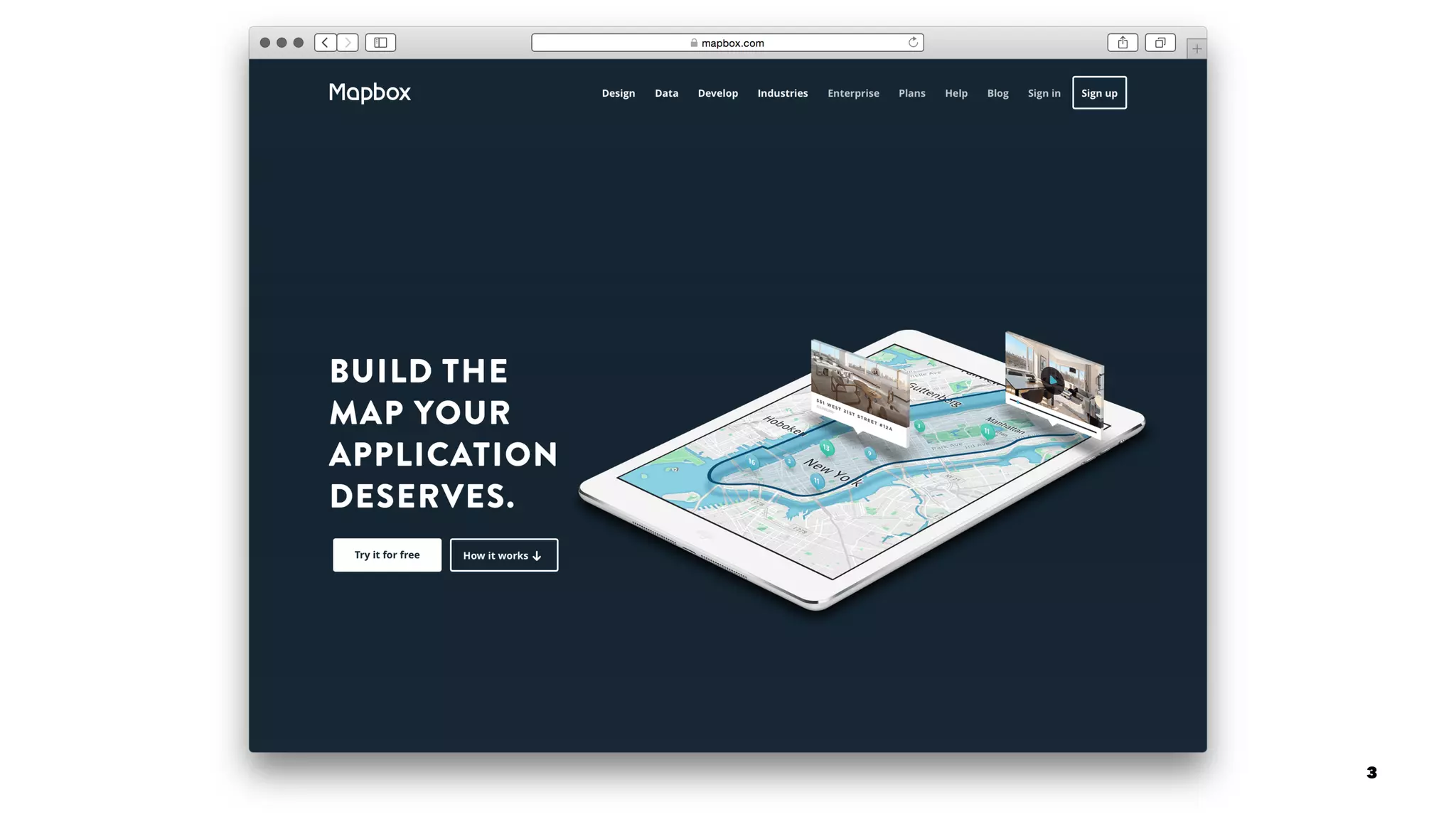

3. 3

4. 4

5. 5

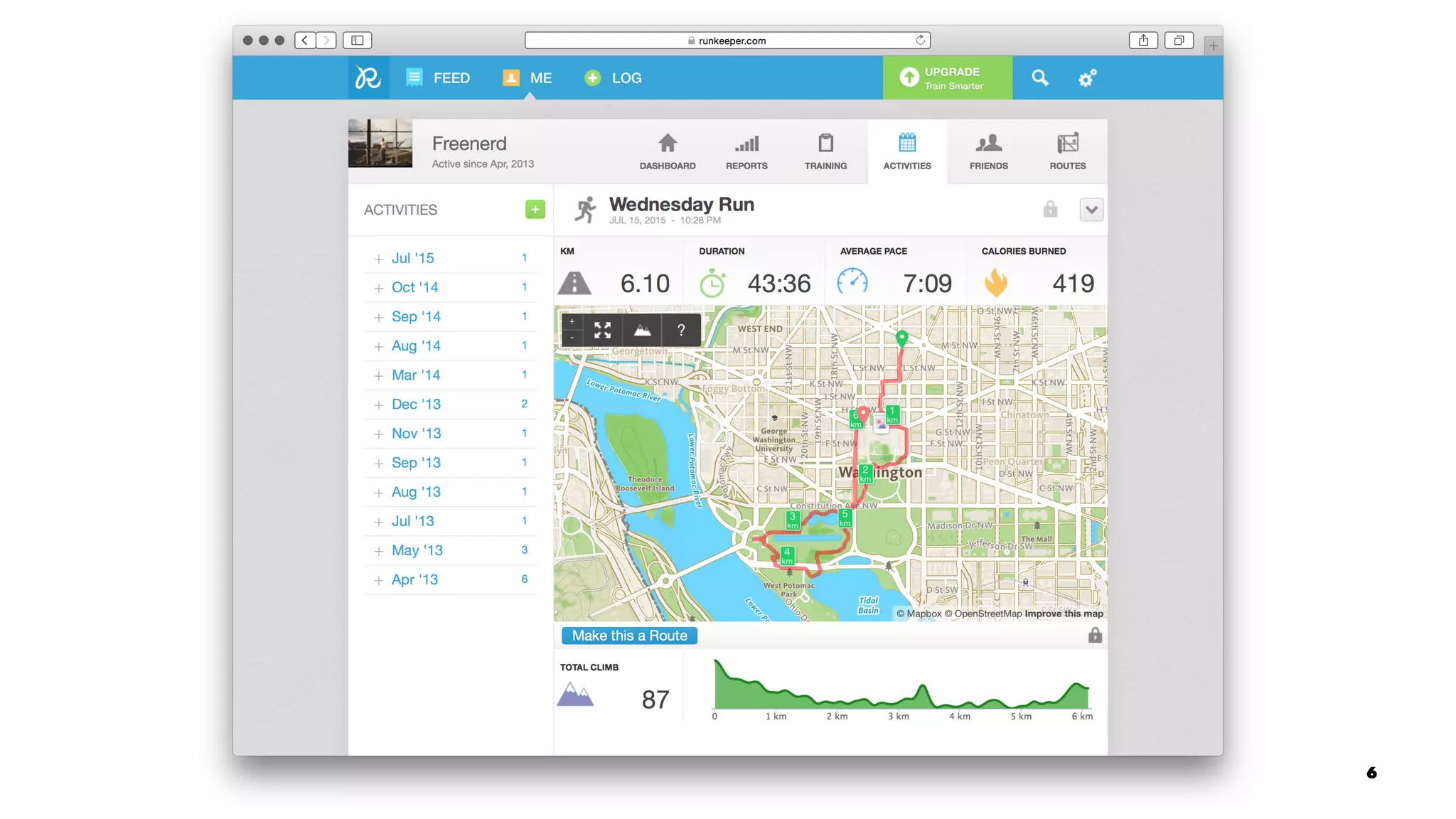

6. 6

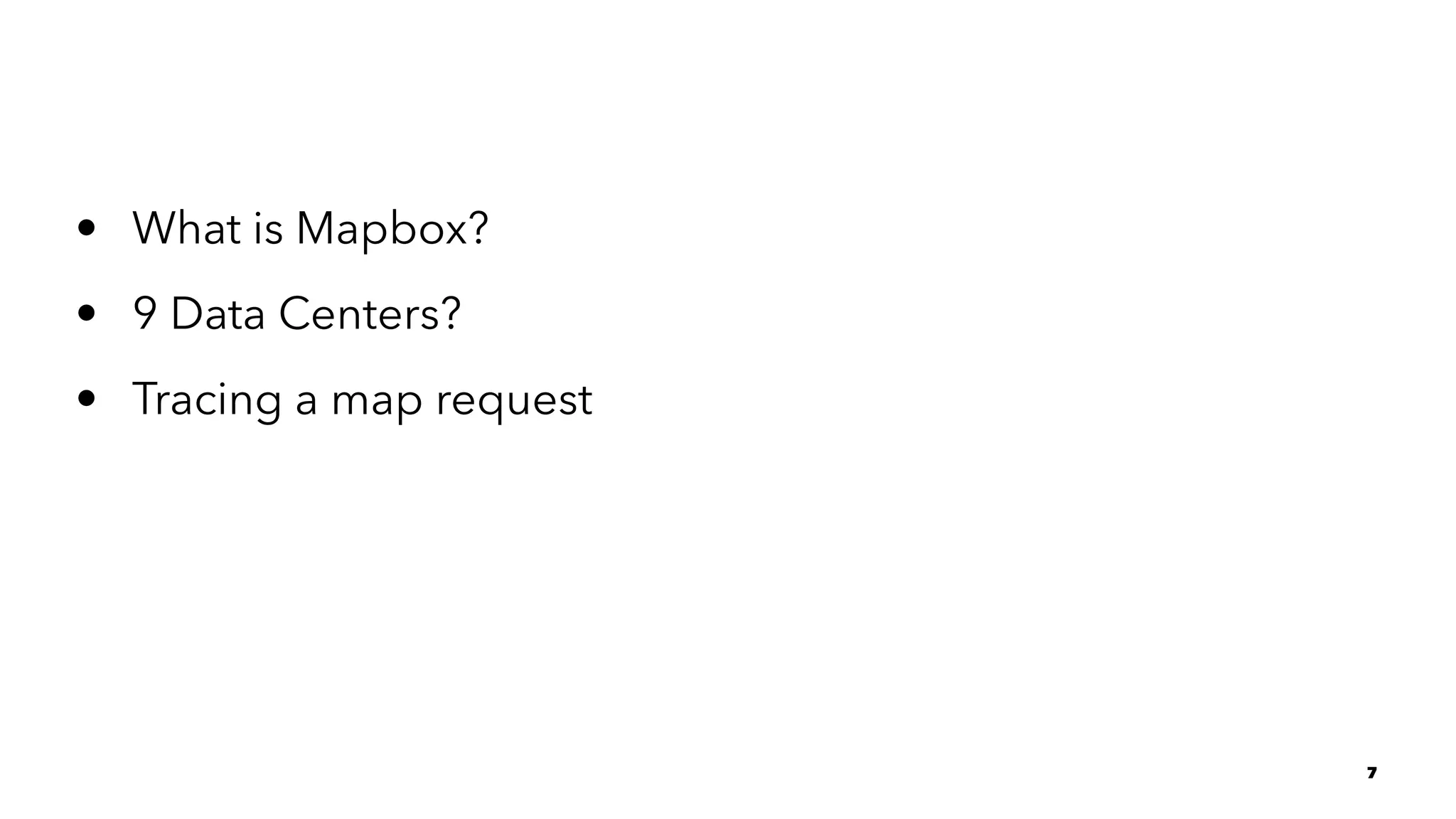

7. • What is Mapbox?
• 9 Data Centers?
• Tracing a map request
7

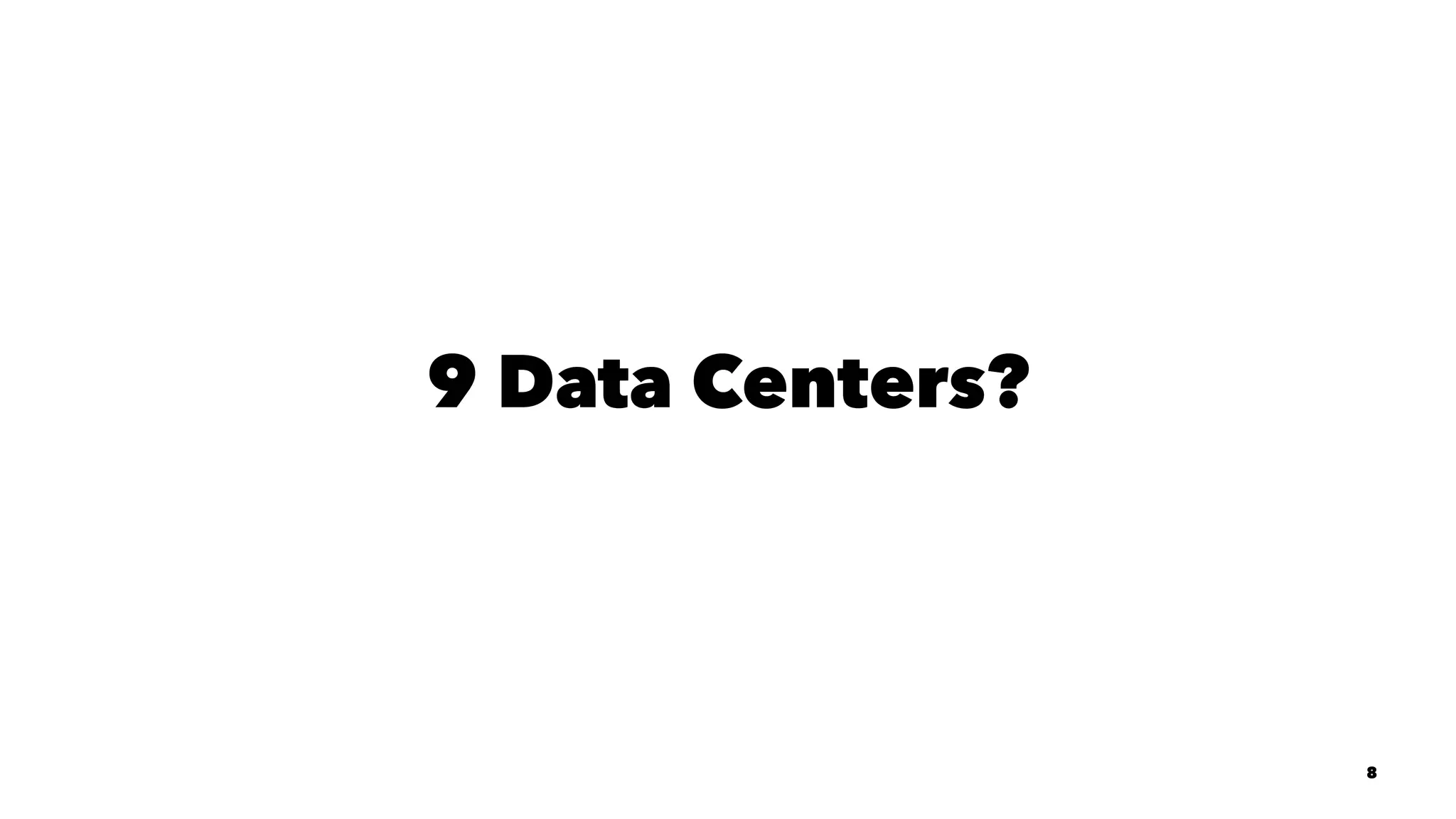

8. 9 Data Centers?
8

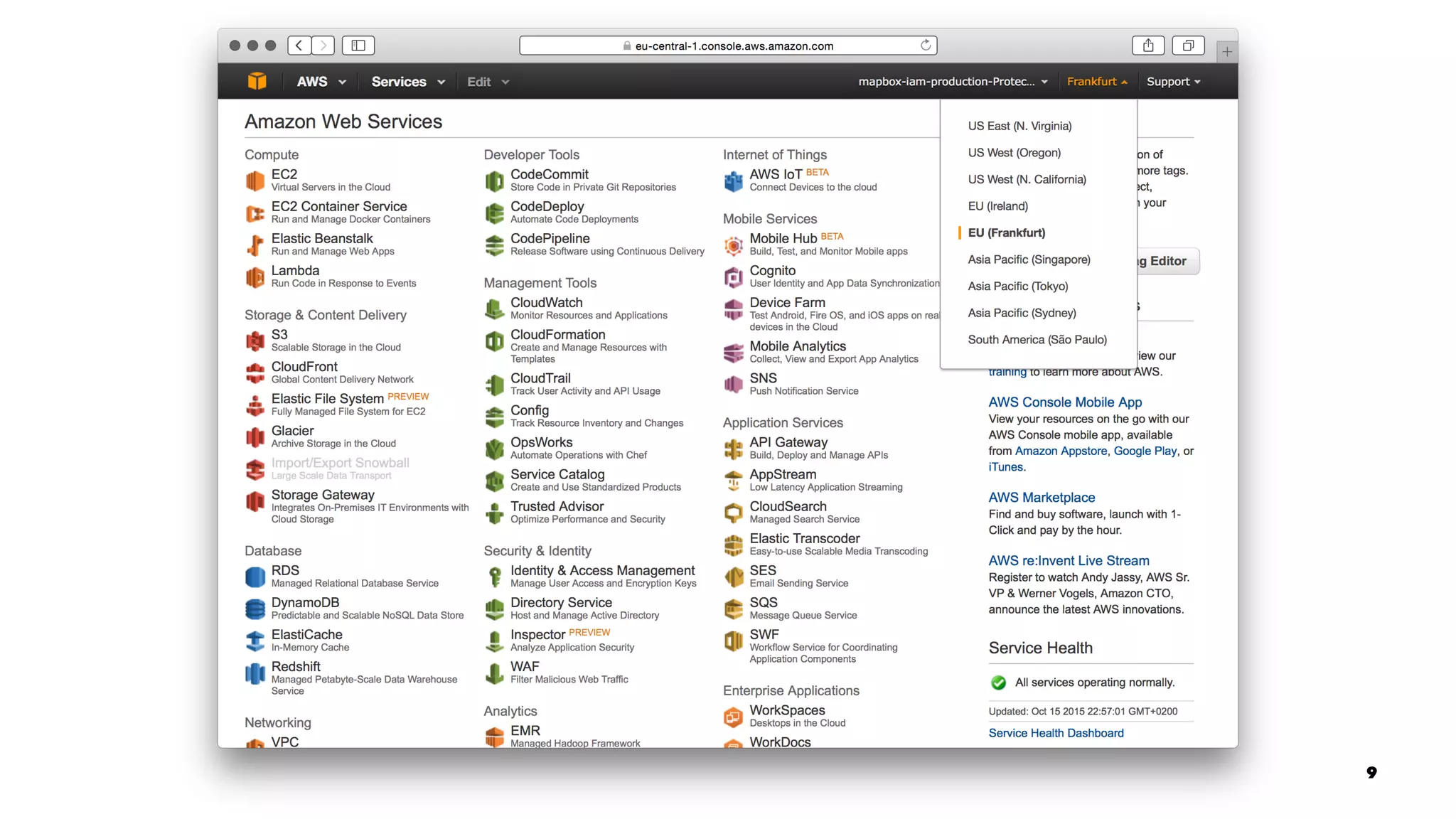

9. 9

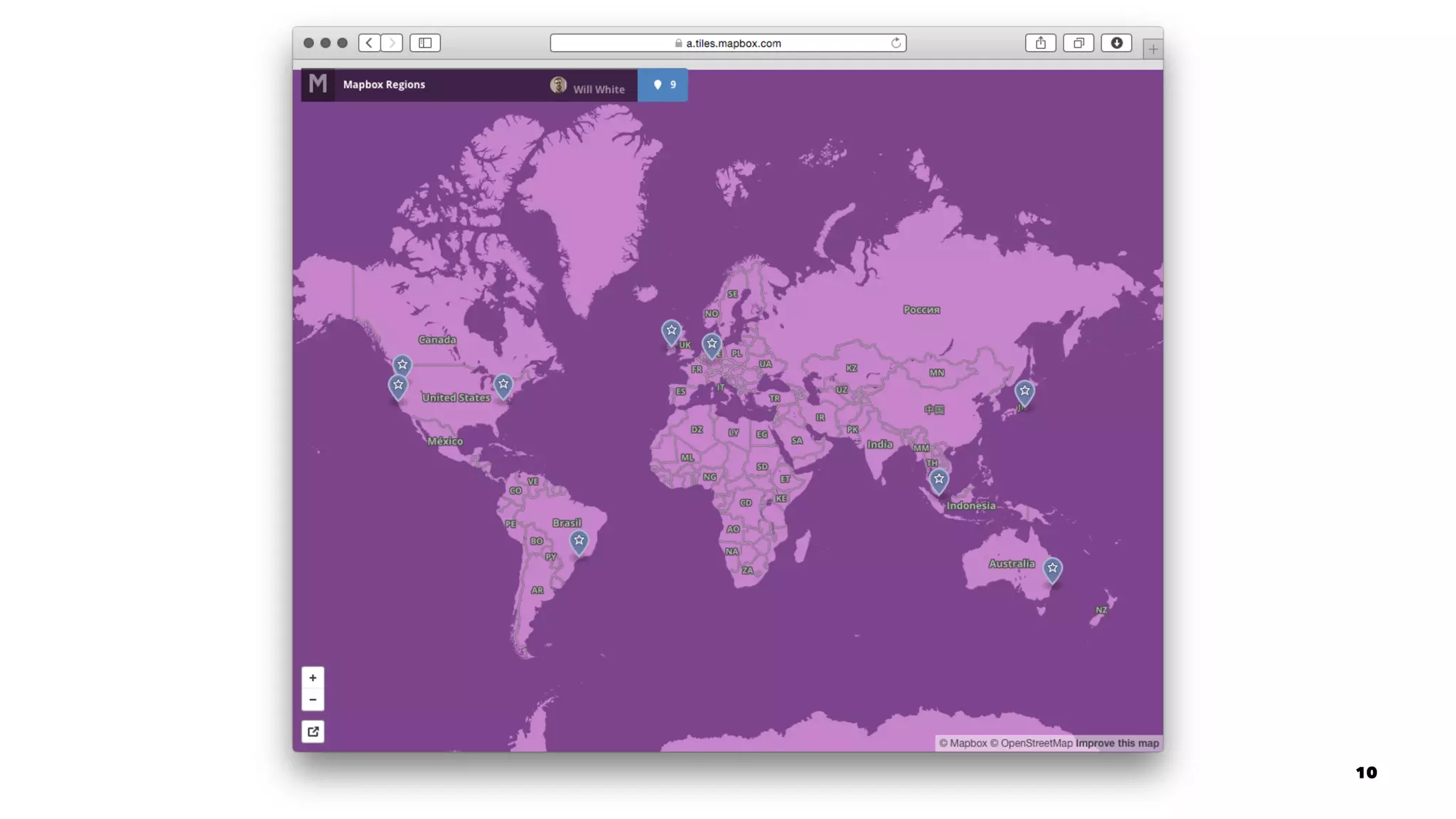

10. 10

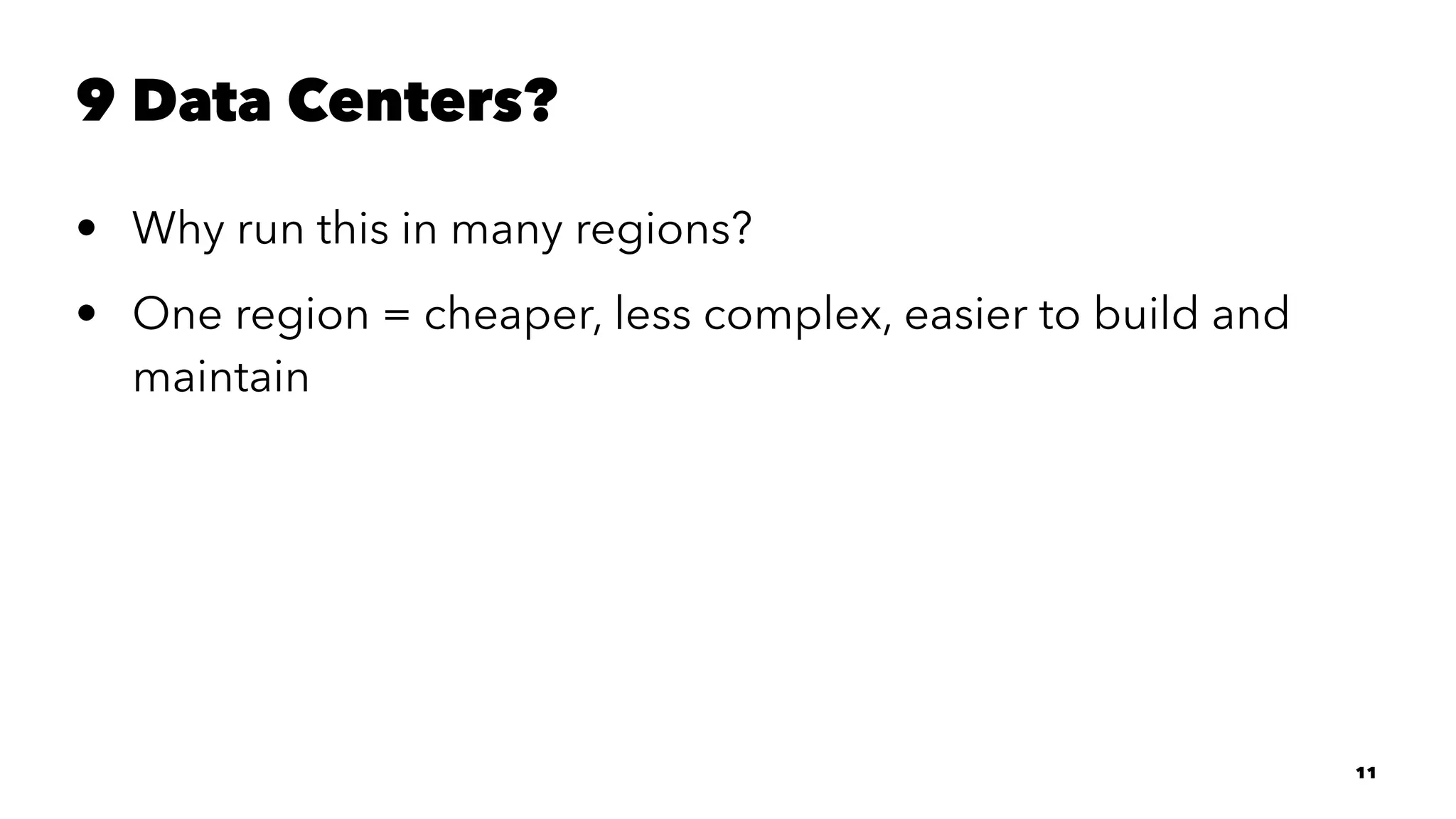

11. 9 Data Centers?
• Why run this in many regions?
• One region = cheaper, less complex, easier to build and
maintain
11

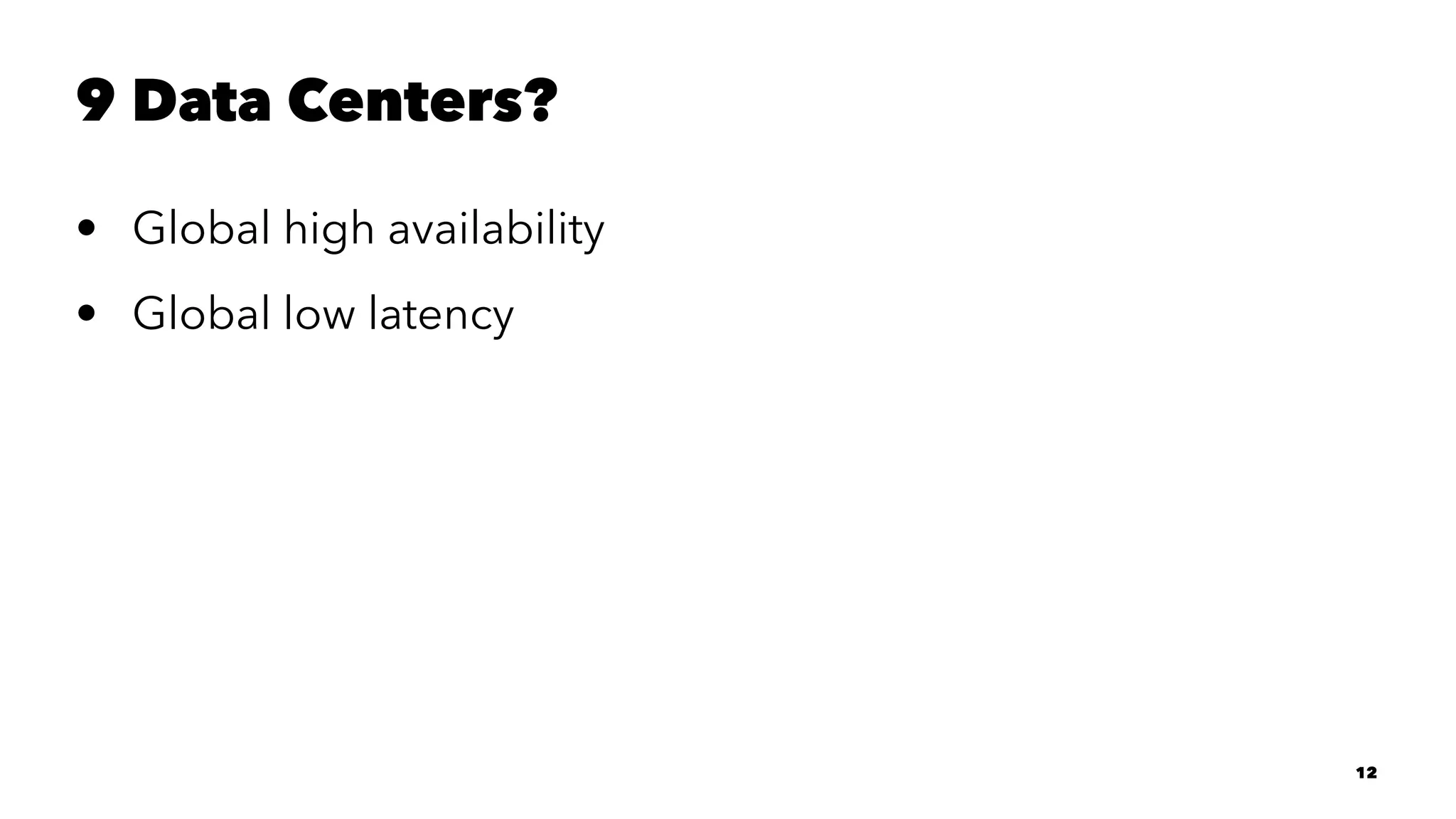

12. 9 Data Centers?
• Global high availability
• Global low latency
12

13. 9 Data Centers?
Global high availability

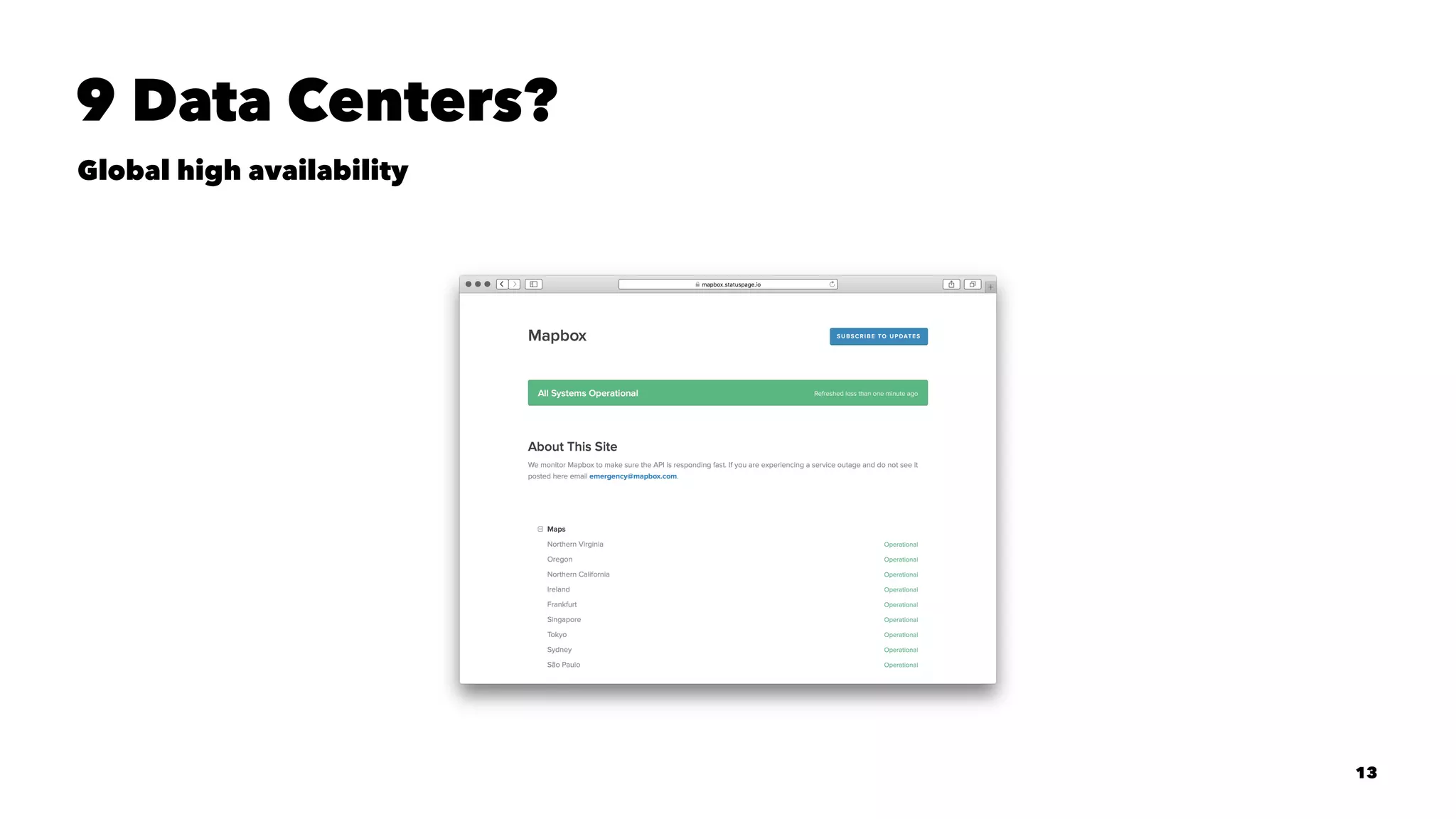

13

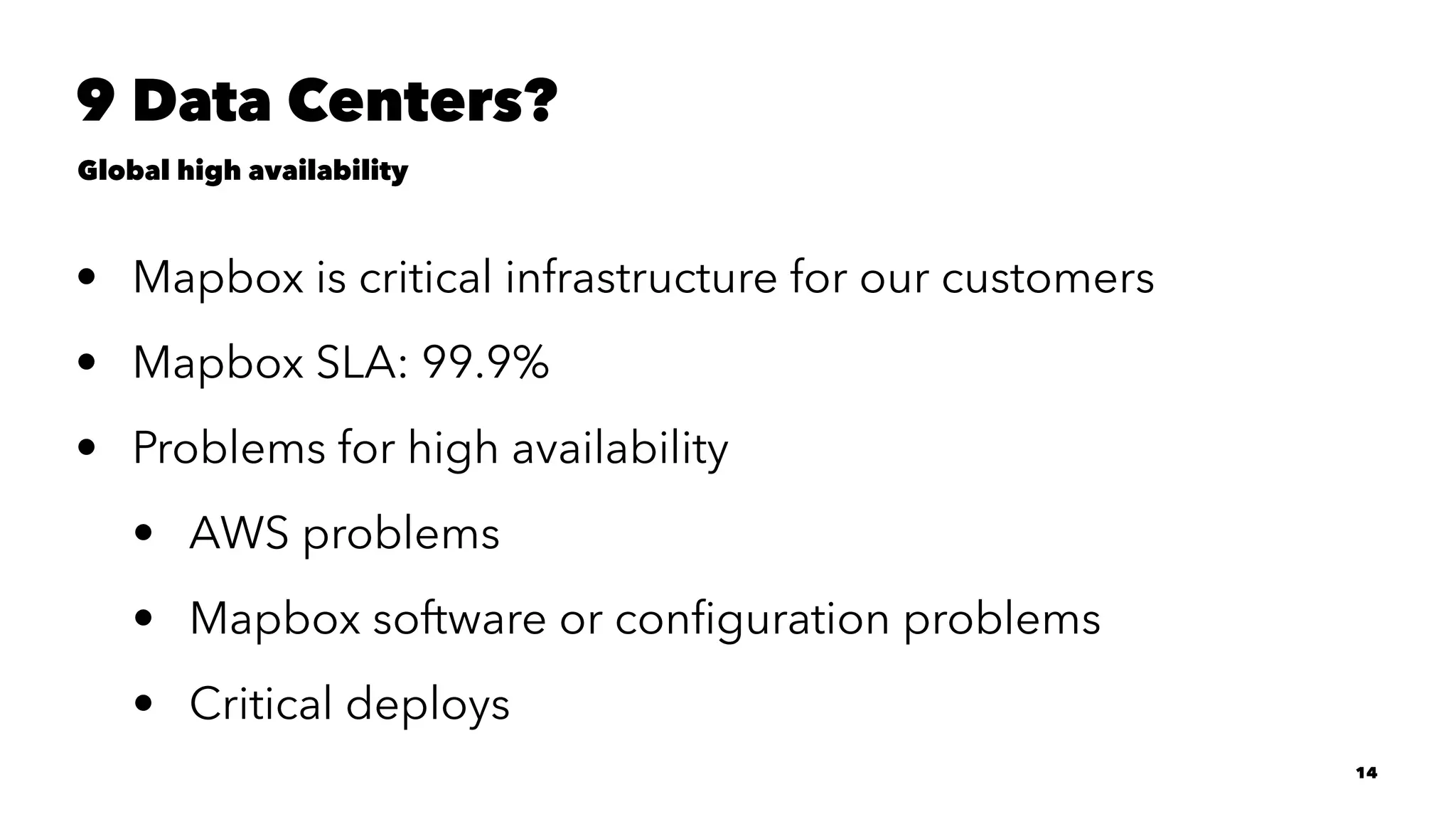

14. 9 Data Centers?
Global high availability
• Mapbox is critical infrastructure for our customers
• Mapbox SLA: 99.9%
• Problems for high availability
• AWS problems
• Mapbox software or configuration problems
• Critical deploys
14

15. 9 Data Centers?
• Global high availability
• Global low latency
15

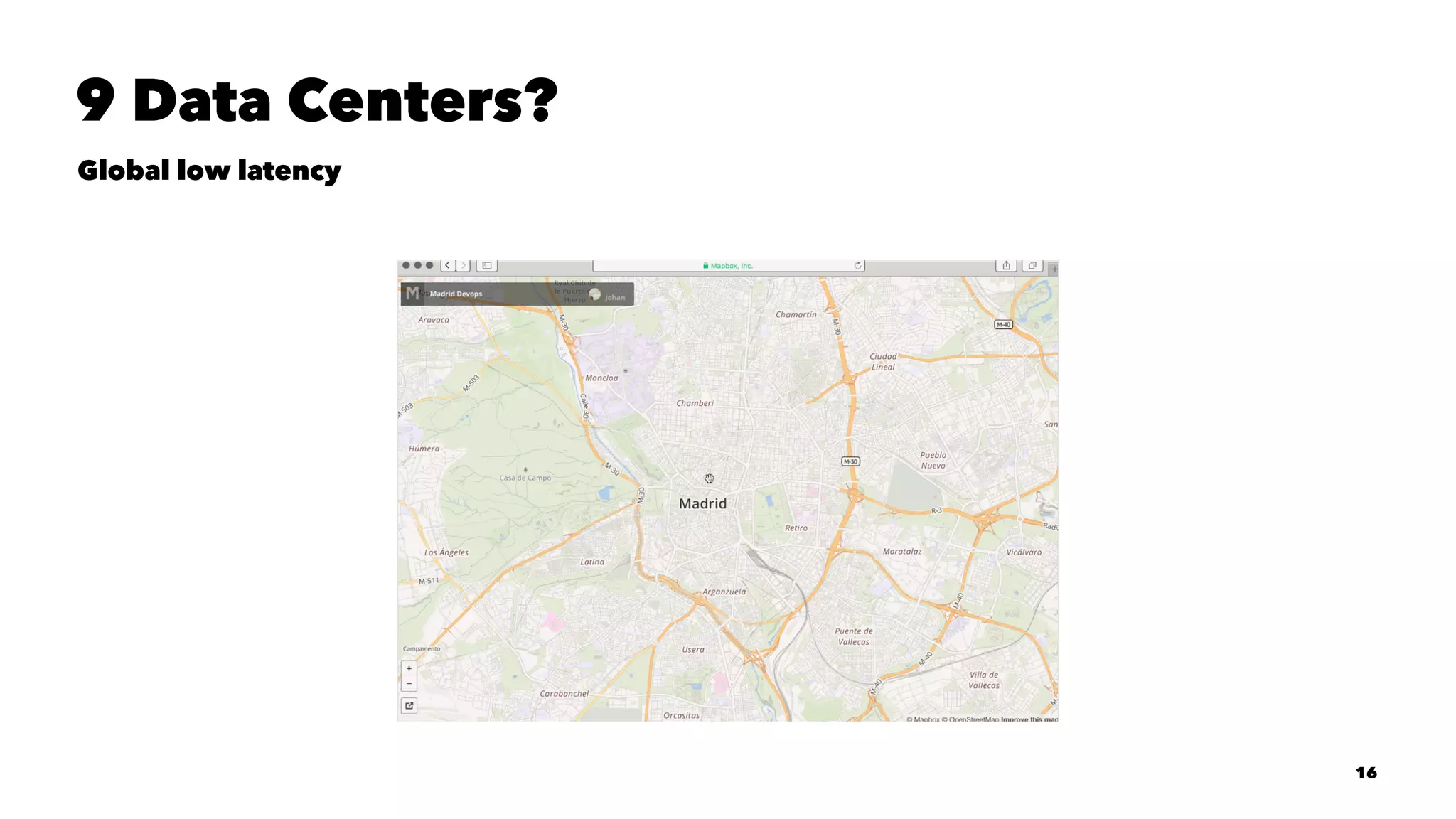

16. 9 Data Centers?
Global low latency
16

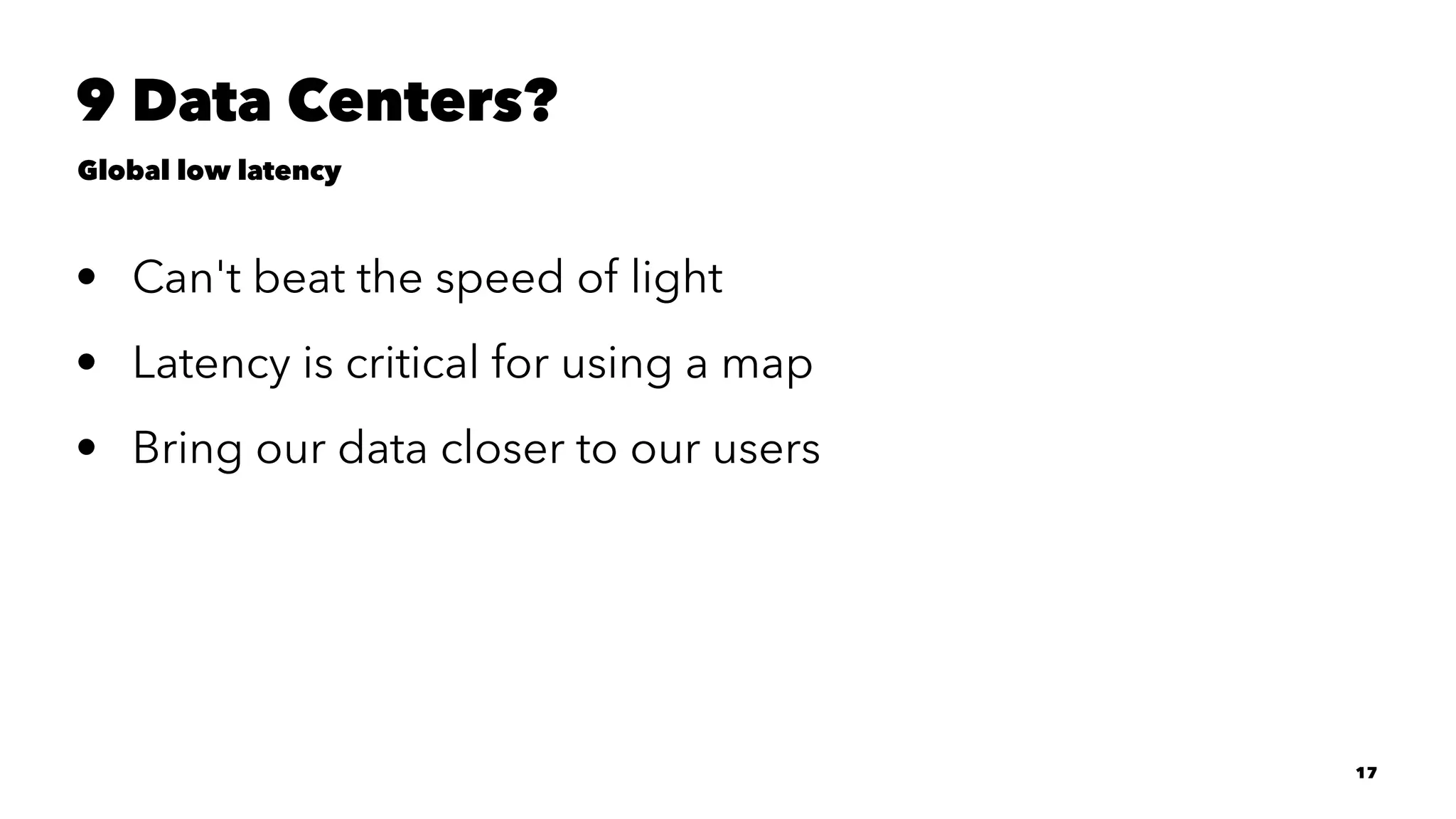

17. 9 Data Centers?
Global low latency
• Can't beat the speed of light
• Latency is critical for using a map
• Bring our data closer to our users
17

18. 9 Data Centers?
• Global high availability
• Global low latency
18

19. Let's trace a request
19

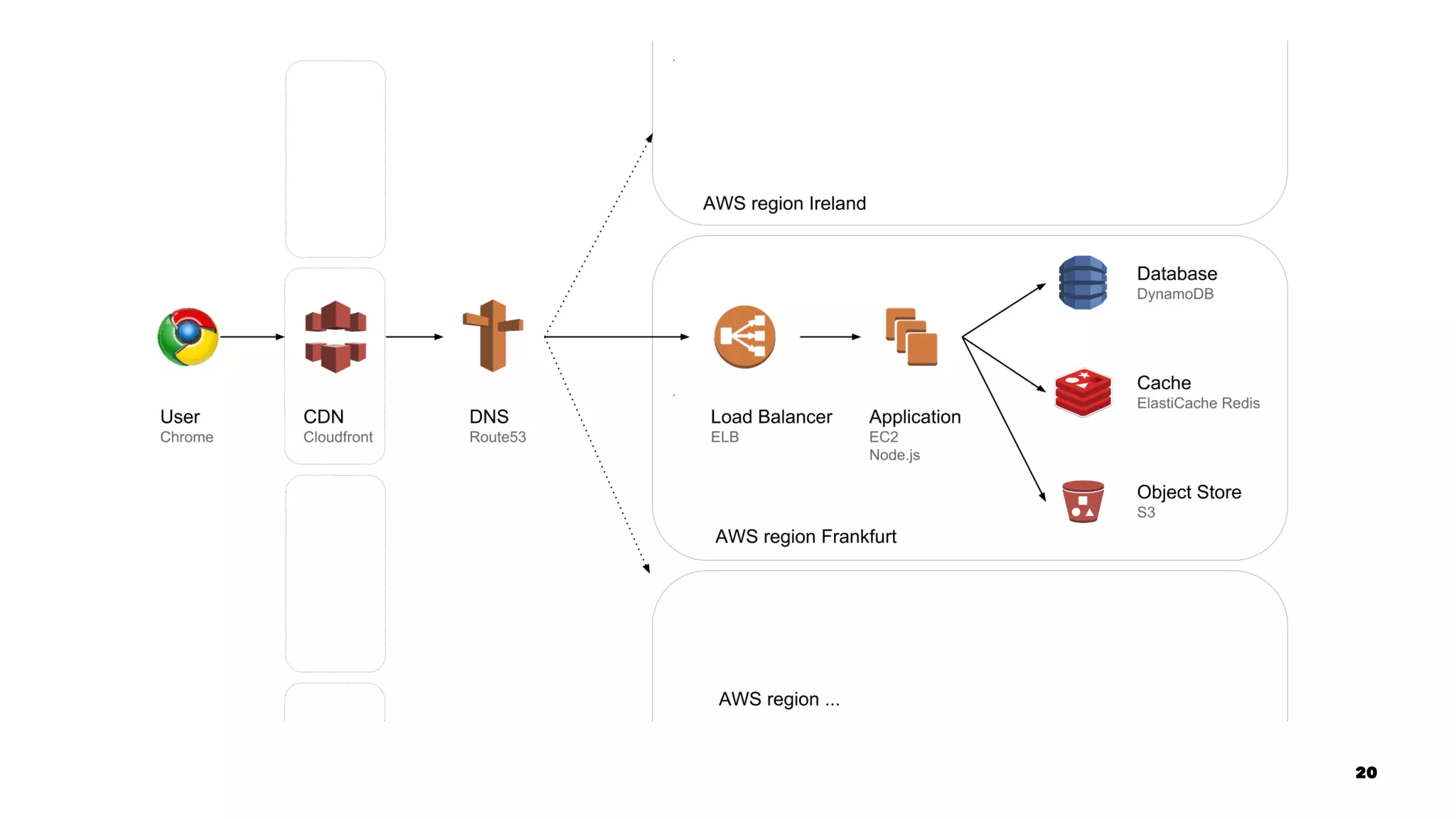

20. 20

21. 21

22. What is a map?
22

23. 23

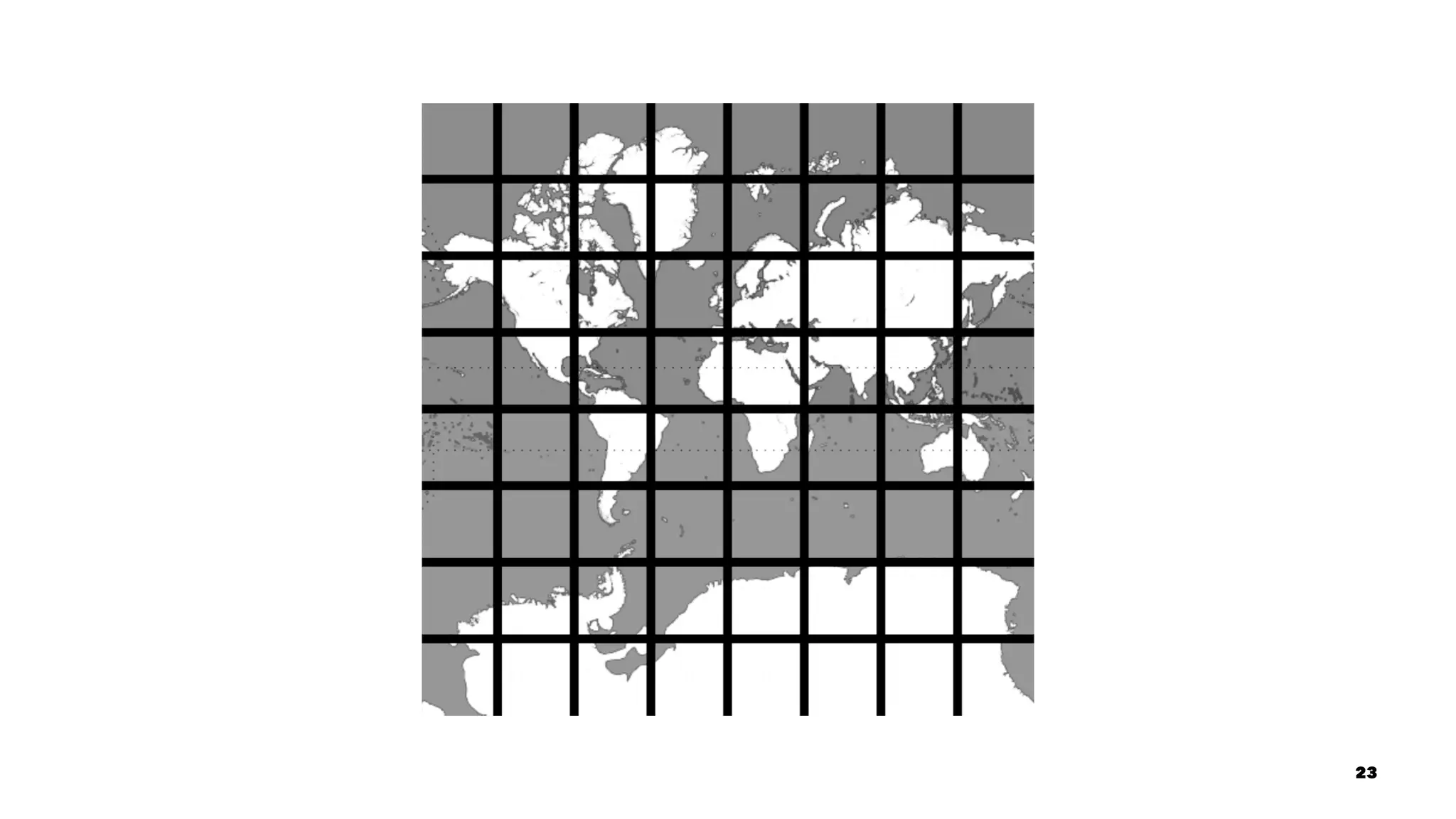

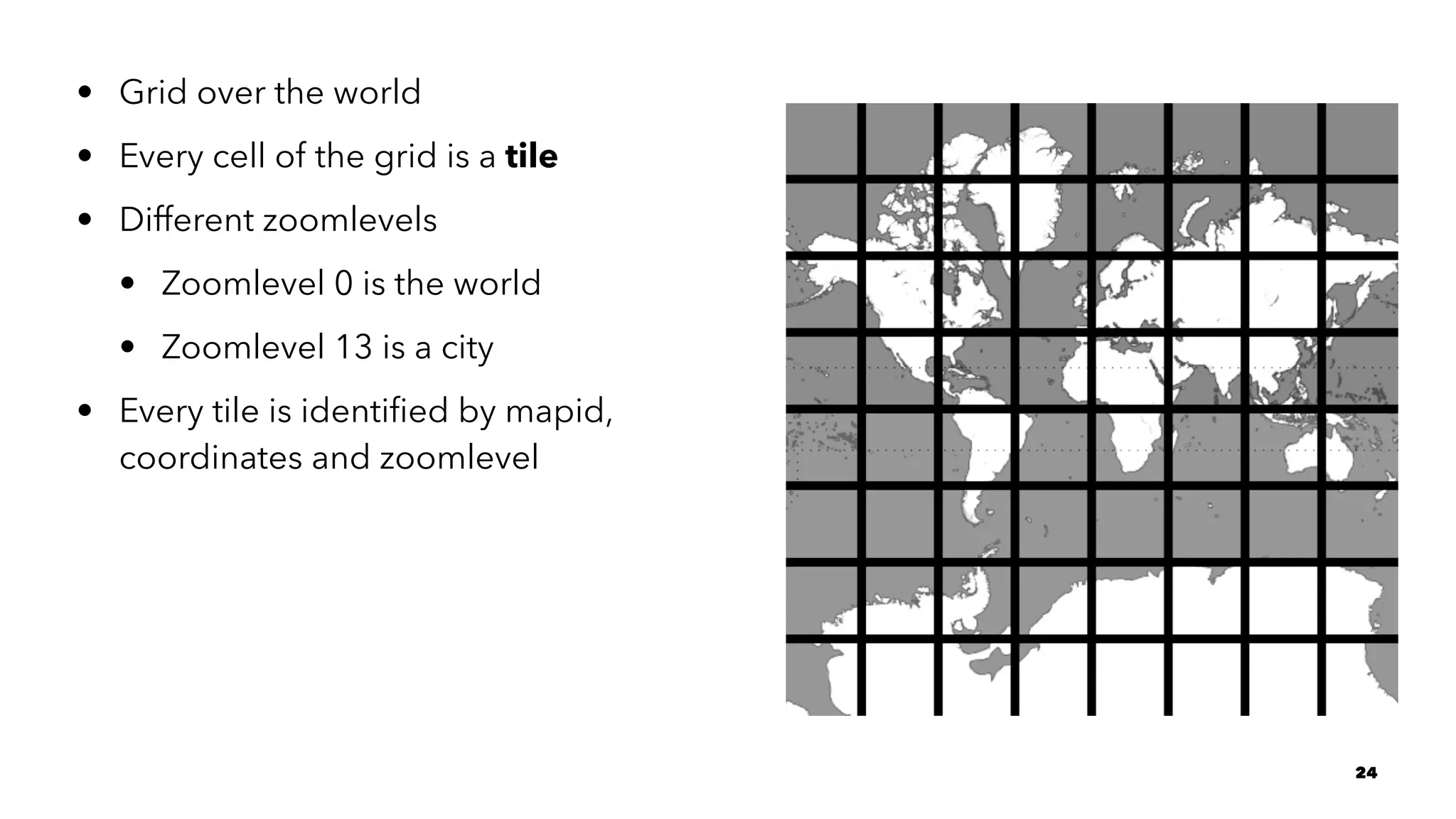

24. • Grid over the world
• Every cell of the grid is a tile
• Different zoomlevels
• Zoomlevel 0 is the world
• Zoomlevel 13 is a city
• Every tile is identified by mapid,
coordinates and zoomlevel
24

25. 25

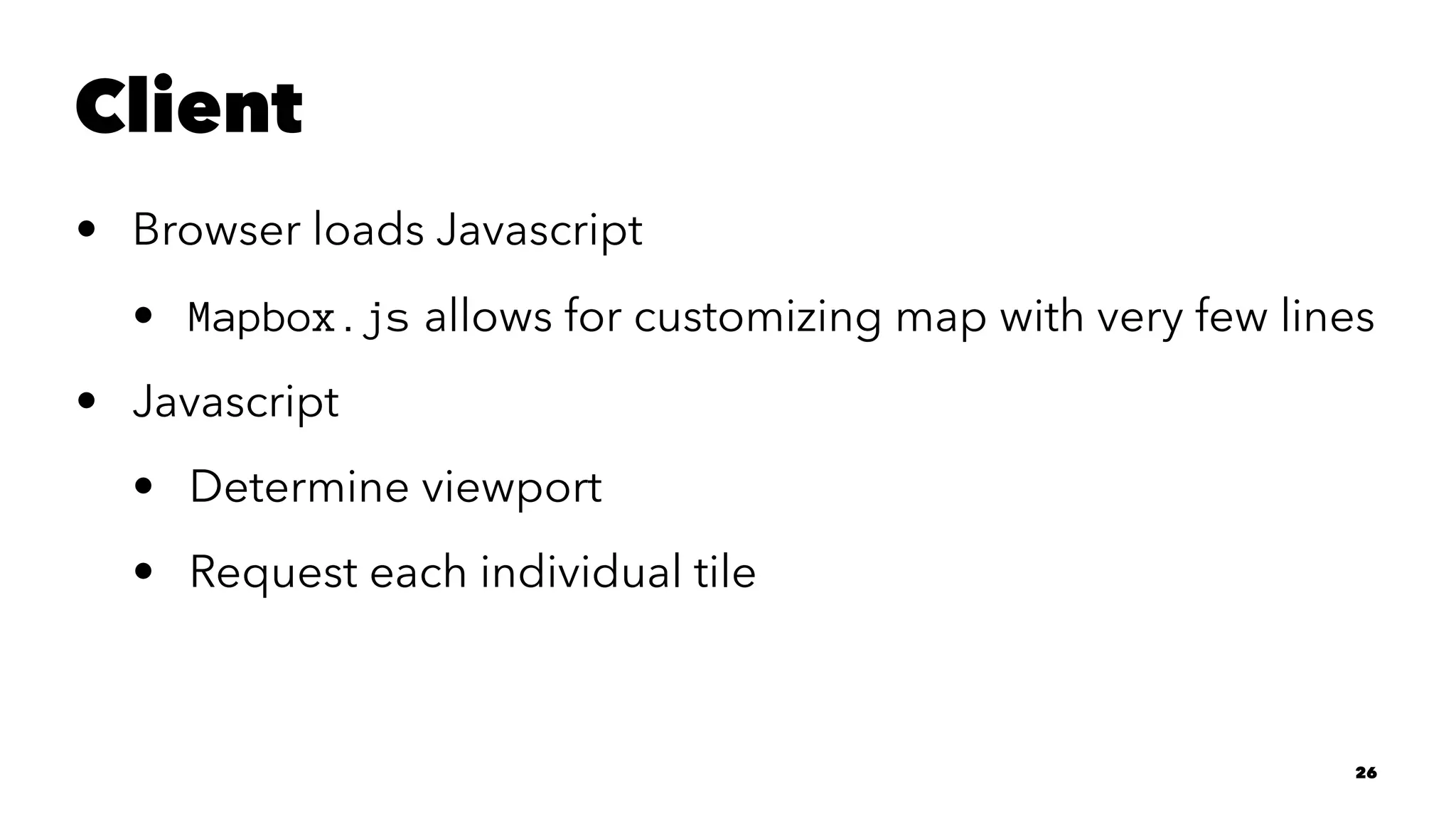

26. Client
• Browser loads Javascript
• Mapbox.js allows for customizing map with very few lines
• Javascript
• Determine viewport
• Request each individual tile
26

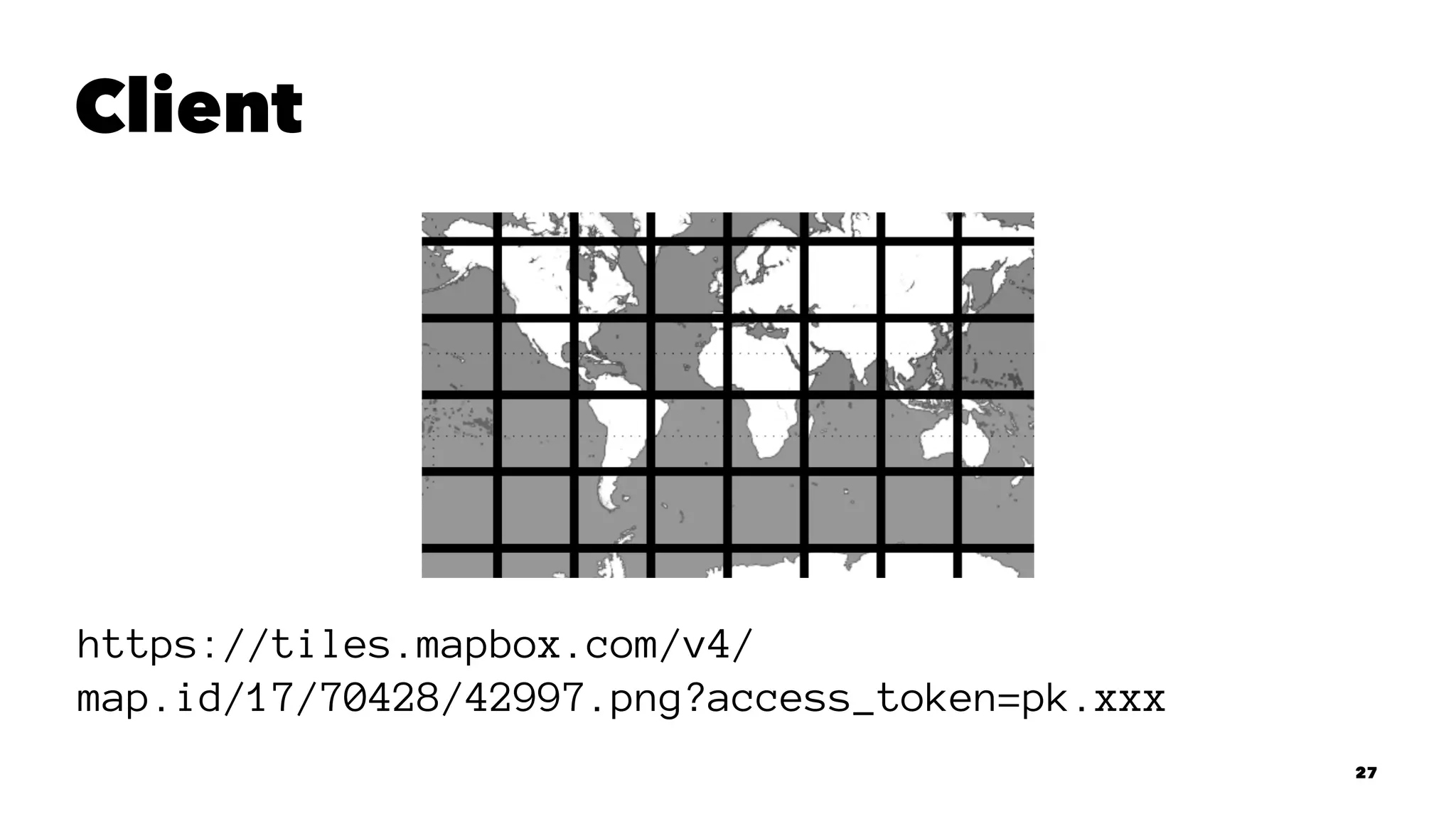

27. Client
https://tiles.mapbox.com/v4/
map.id/17/70428/42997.png?access_token=pk.xxx
27

28. 28

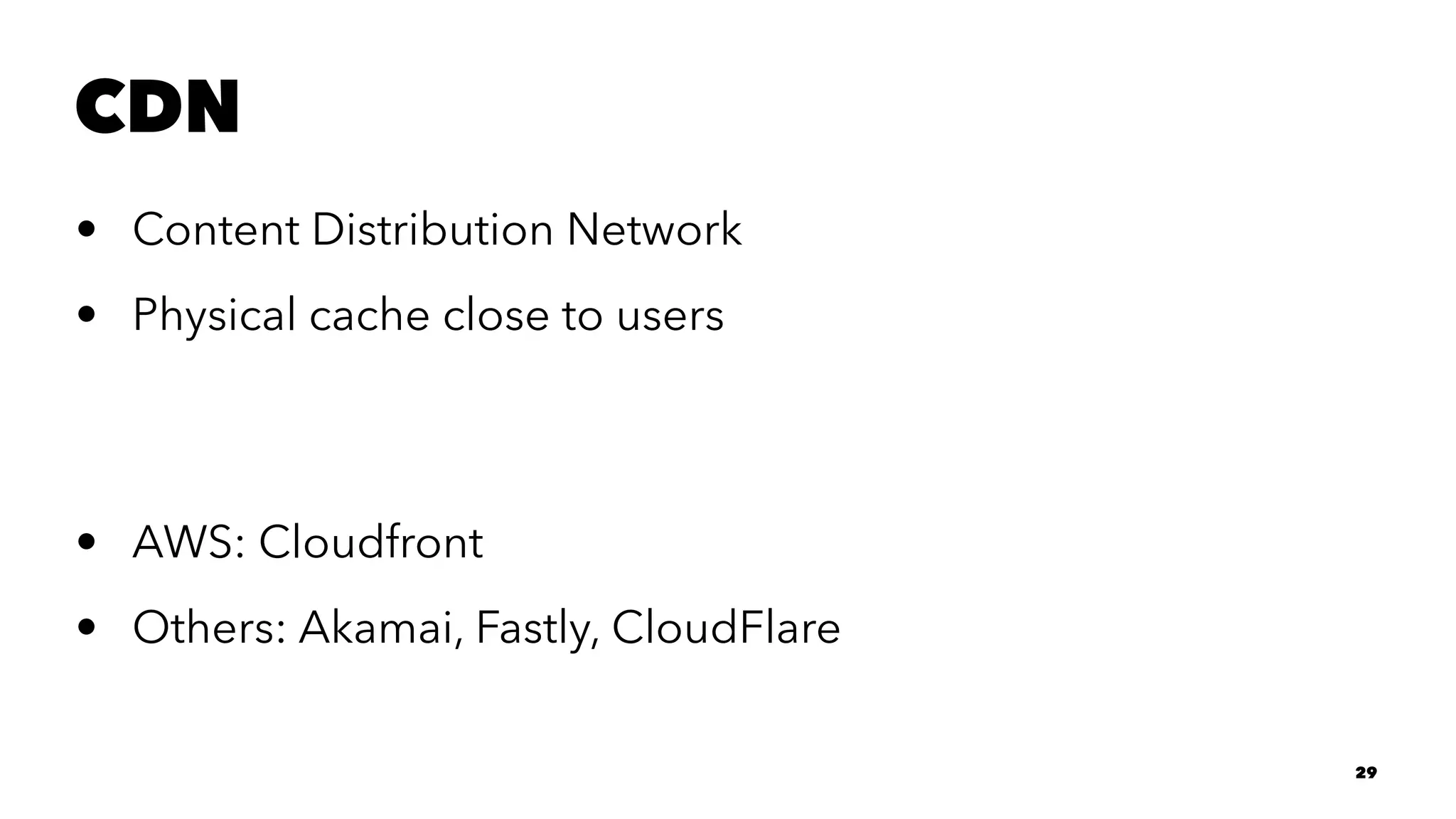

29. CDN
• Content Distribution Network
• Physical cache close to users
• AWS: Cloudfront
• Others: Akamai, Fastly, CloudFlare
29

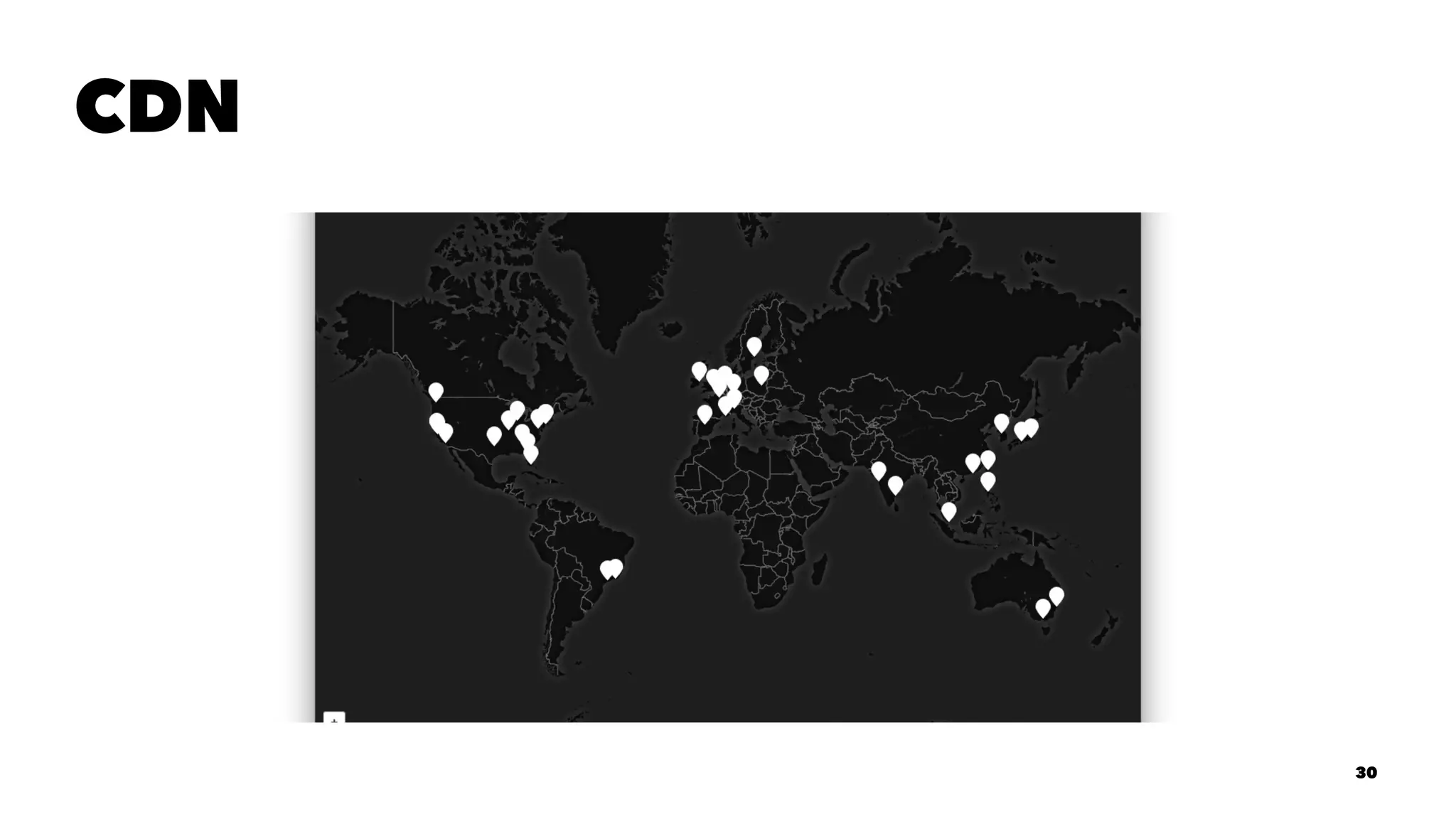

30. CDN
30

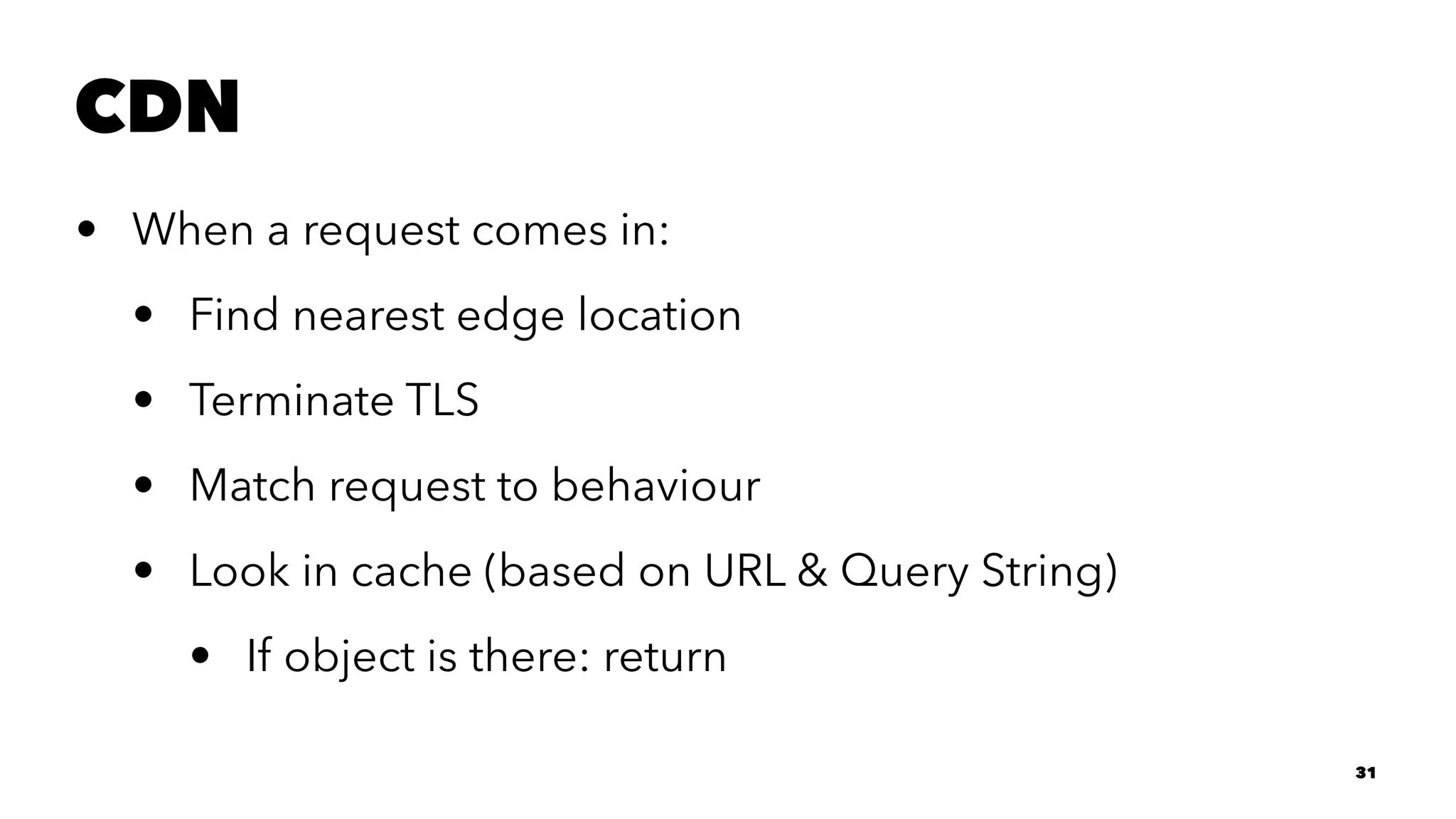

31. CDN
• When a request comes in:
• Find nearest edge location
• Terminate TLS
• Match request to behaviour
• Look in cache (based on URL & Query String)
• If object is there: return
31

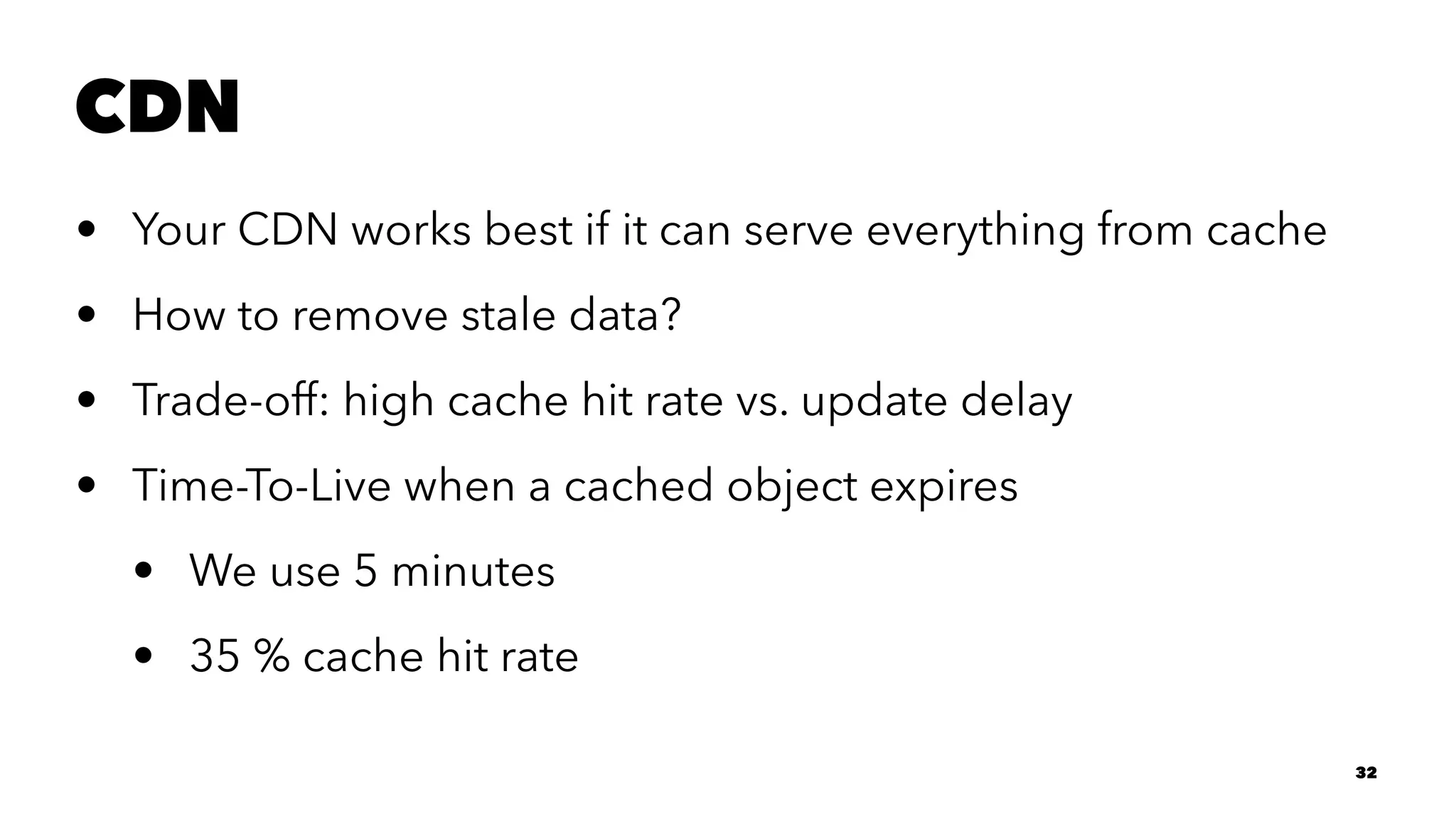

32. CDN
• Your CDN works best if it can serve everything from cache
• How to remove stale data?
• Trade-off: high cache hit rate vs. update delay
• Time-To-Live when a cached object expires
• We use 5 minutes
• 35 % cache hit rate
32

33. 33

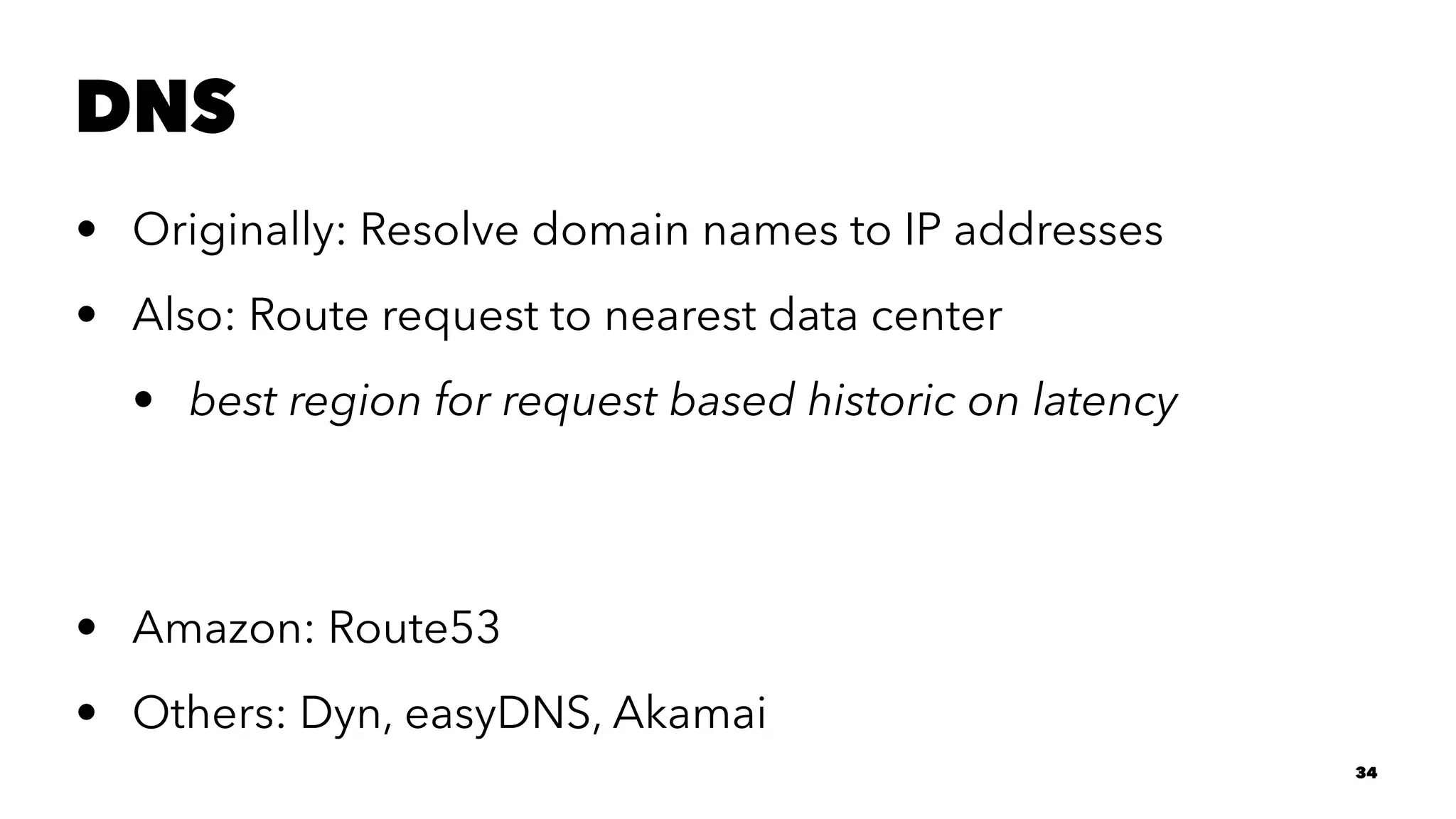

34. DNS
• Originally: Resolve domain names to IP addresses
• Also: Route request to nearest data center
• best region for request based historic on latency
• Amazon: Route53
• Others: Dyn, easyDNS, Akamai
34

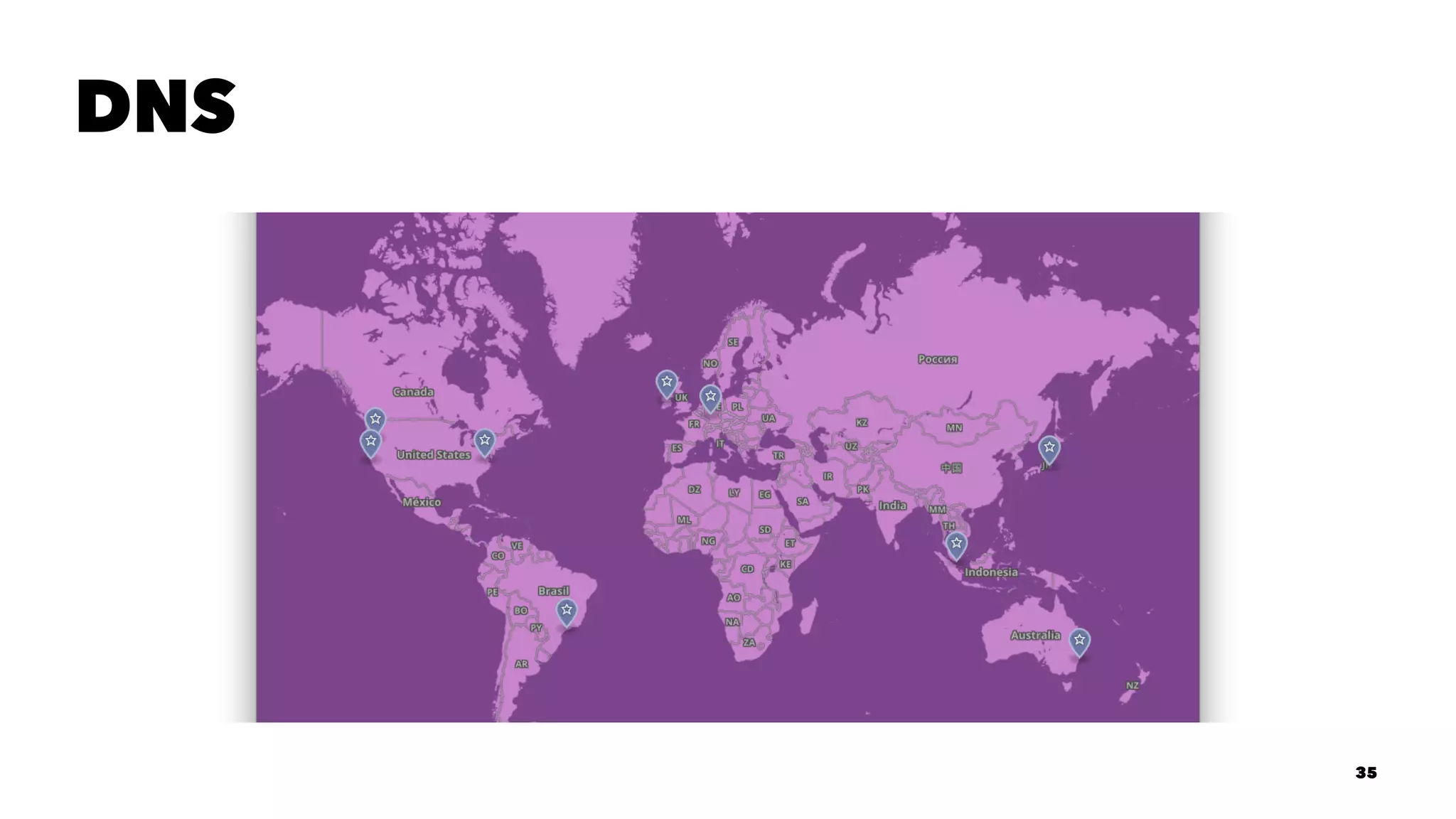

35. DNS
35

36. 36

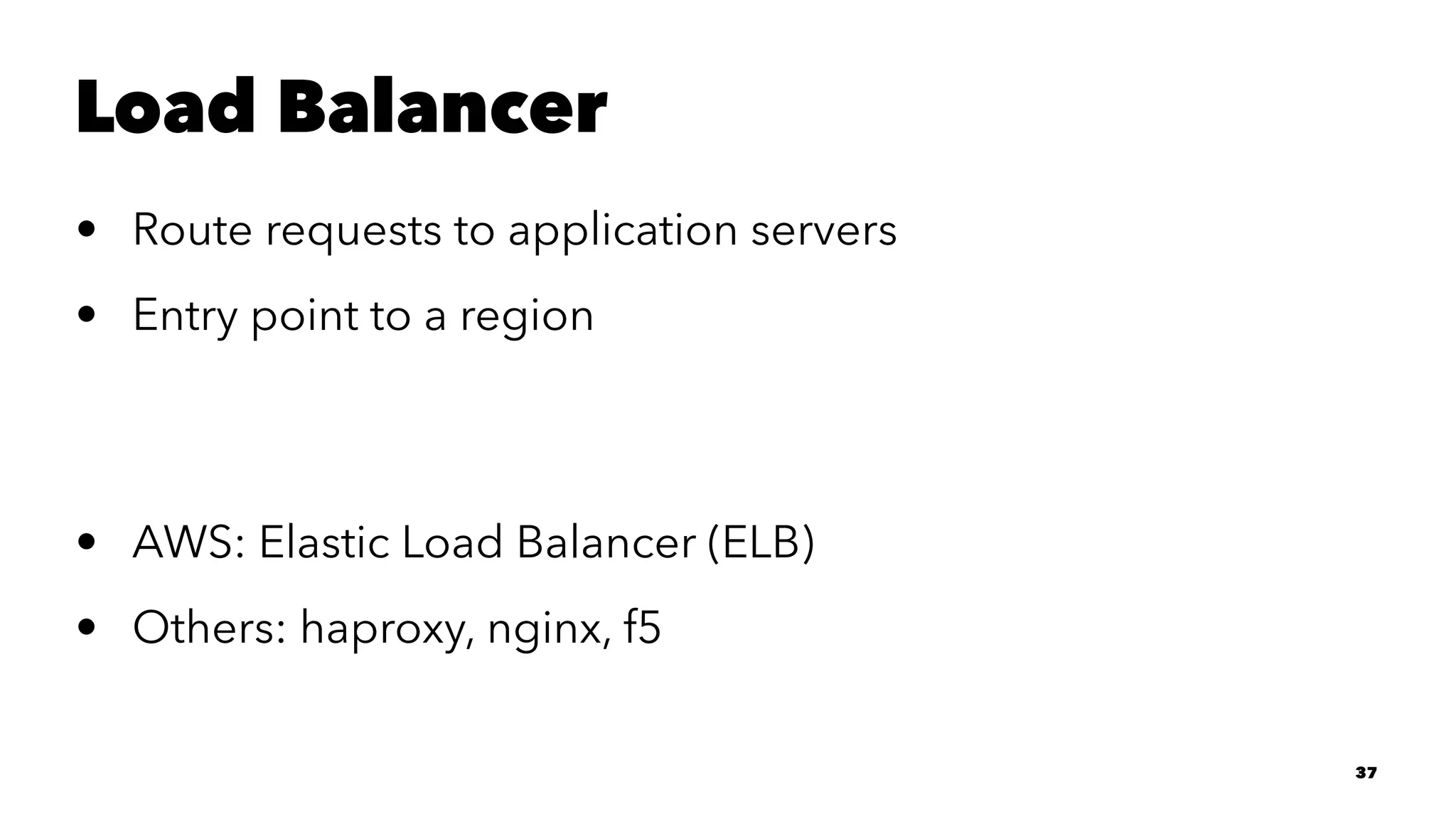

37. Load Balancer
• Route requests to application servers
• Entry point to a region
• AWS: Elastic Load Balancer (ELB)
• Others: haproxy, nginx, f5
37

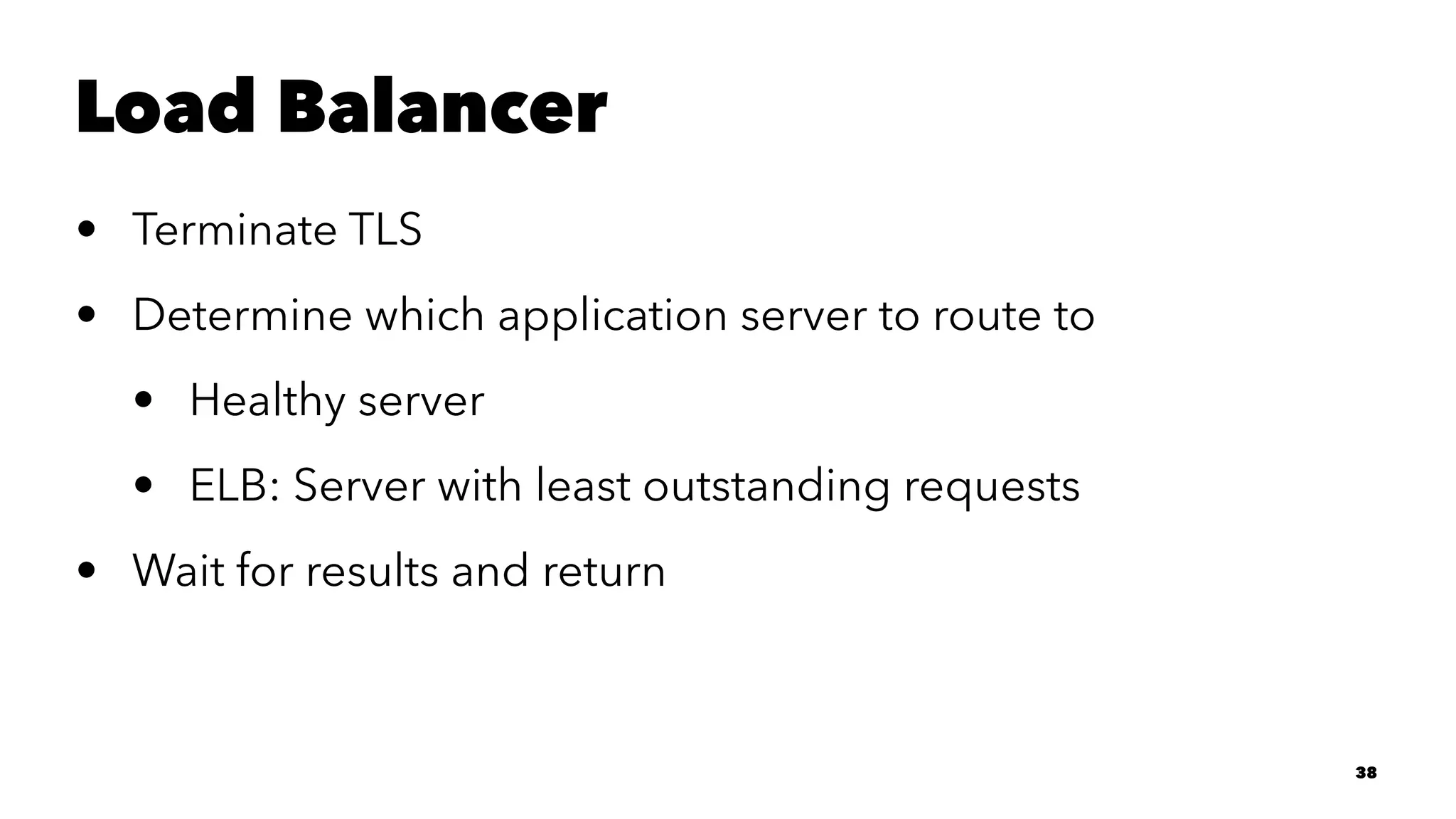

38. Load Balancer
• Terminate TLS
• Determine which application server to route to
• Healthy server
• ELB: Server with least outstanding requests
• Wait for results and return
38

39. 39

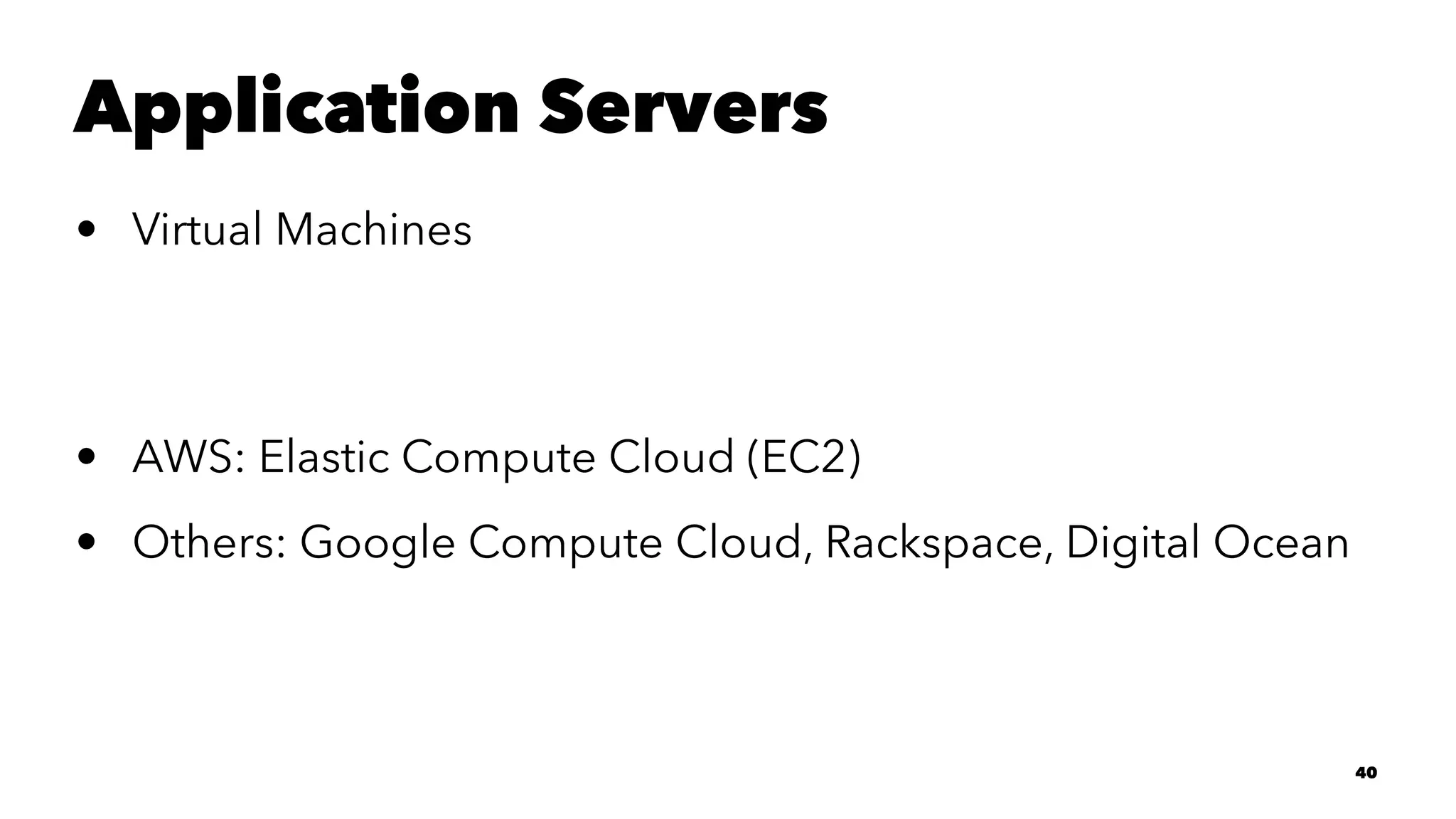

40. Application Servers
• Virtual Machines
• AWS: Elastic Compute Cloud (EC2)
• Others: Google Compute Cloud, Rackspace, Digital Ocean
40

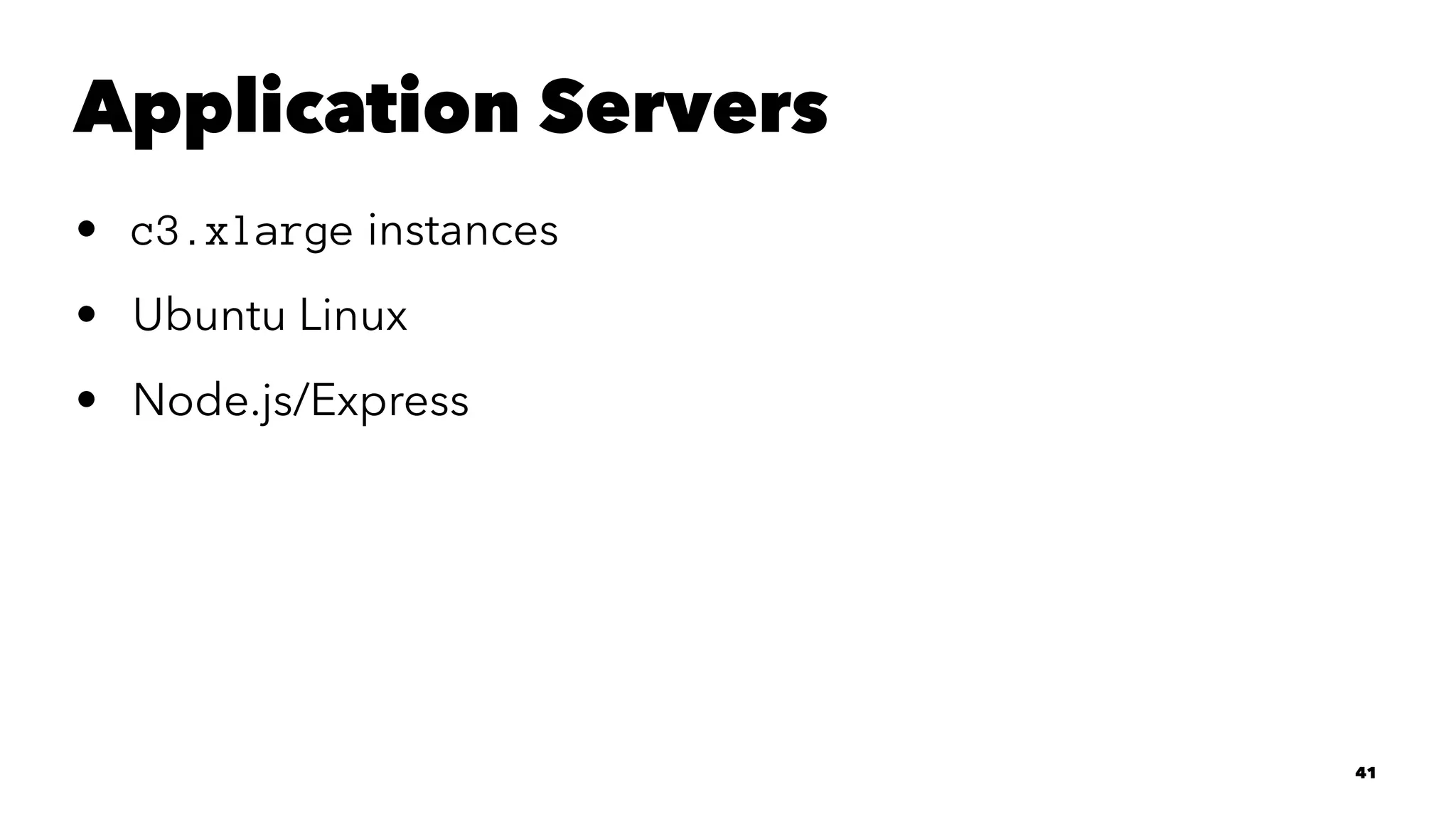

41. Application Servers
• c3.xlarge instances
• Ubuntu Linux
• Node.js/Express
41

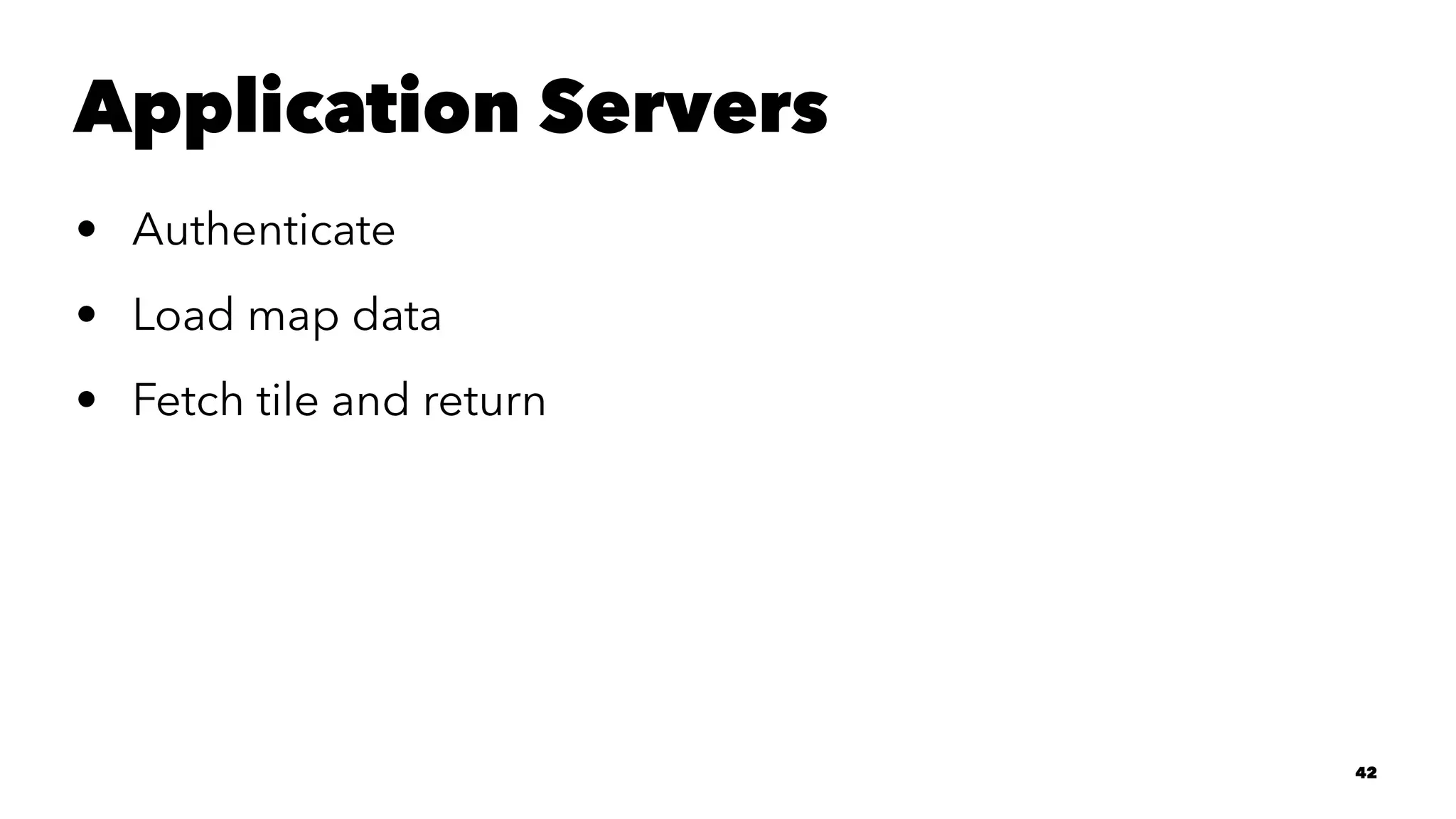

42. Application Servers
• Authenticate
• Load map data
• Fetch tile and return
42

43. 43

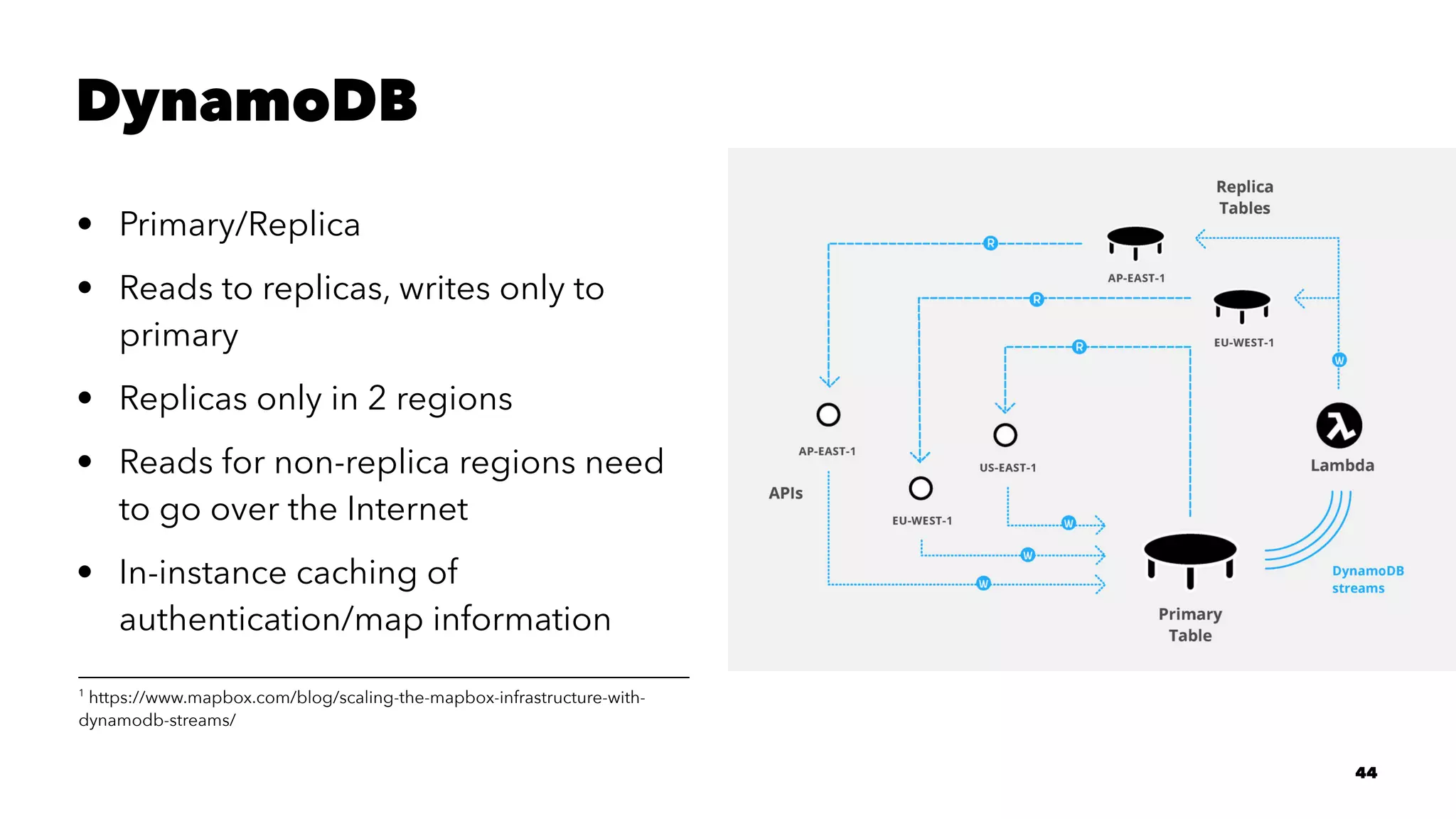

44. DynamoDB
• Primary/Replica
• Reads to replicas, writes only to
primary
• Replicas only in 2 regions
• Reads for non-replica regions need
to go over the Internet
• In-instance caching of
authentication/map information
1
https://www.mapbox.com/blog/scaling-the-mapbox-infrastructure-with-
dynamodb-streams/
44

45. 45

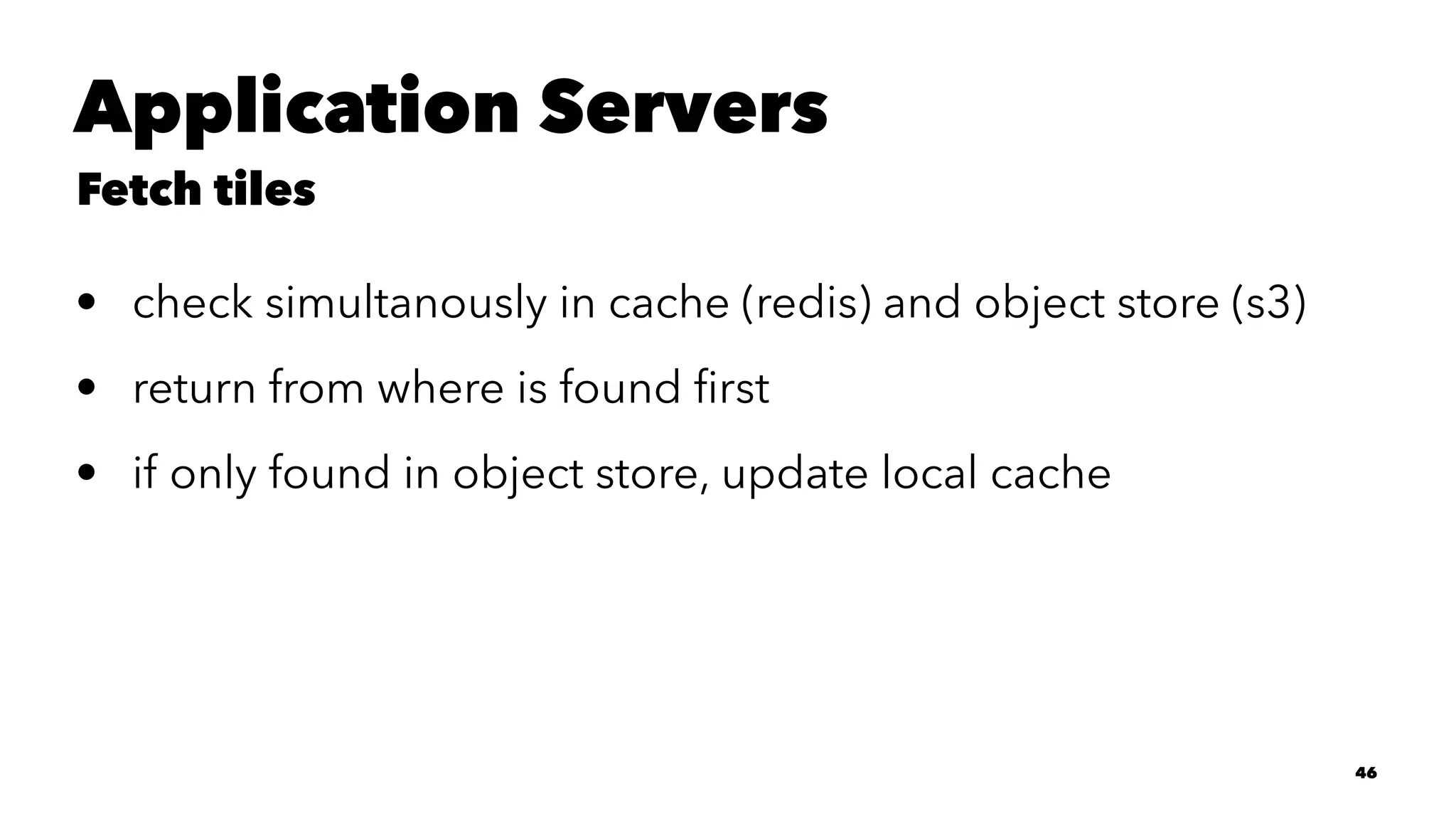

46. Application Servers
Fetch tiles
• check simultanously in cache (redis) and object store (s3)
• return from where is found first
• if only found in object store, update local cache
46

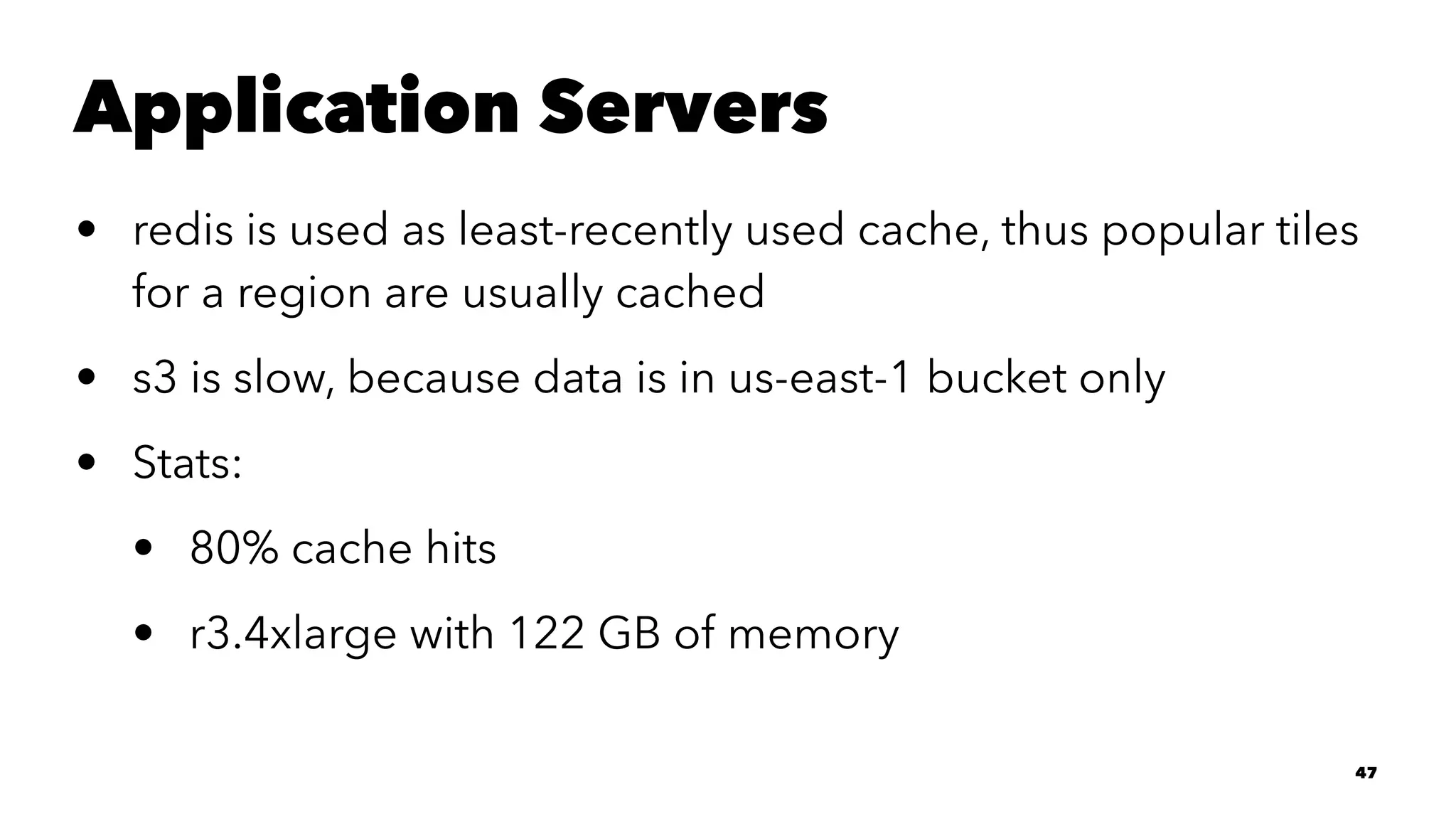

47. Application Servers
• redis is used as least-recently used cache, thus popular tiles
for a region are usually cached
• s3 is slow, because data is in us-east-1 bucket only
• Stats:
• 80% cache hits
• r3.4xlarge with 122 GB of memory
47

48. 48

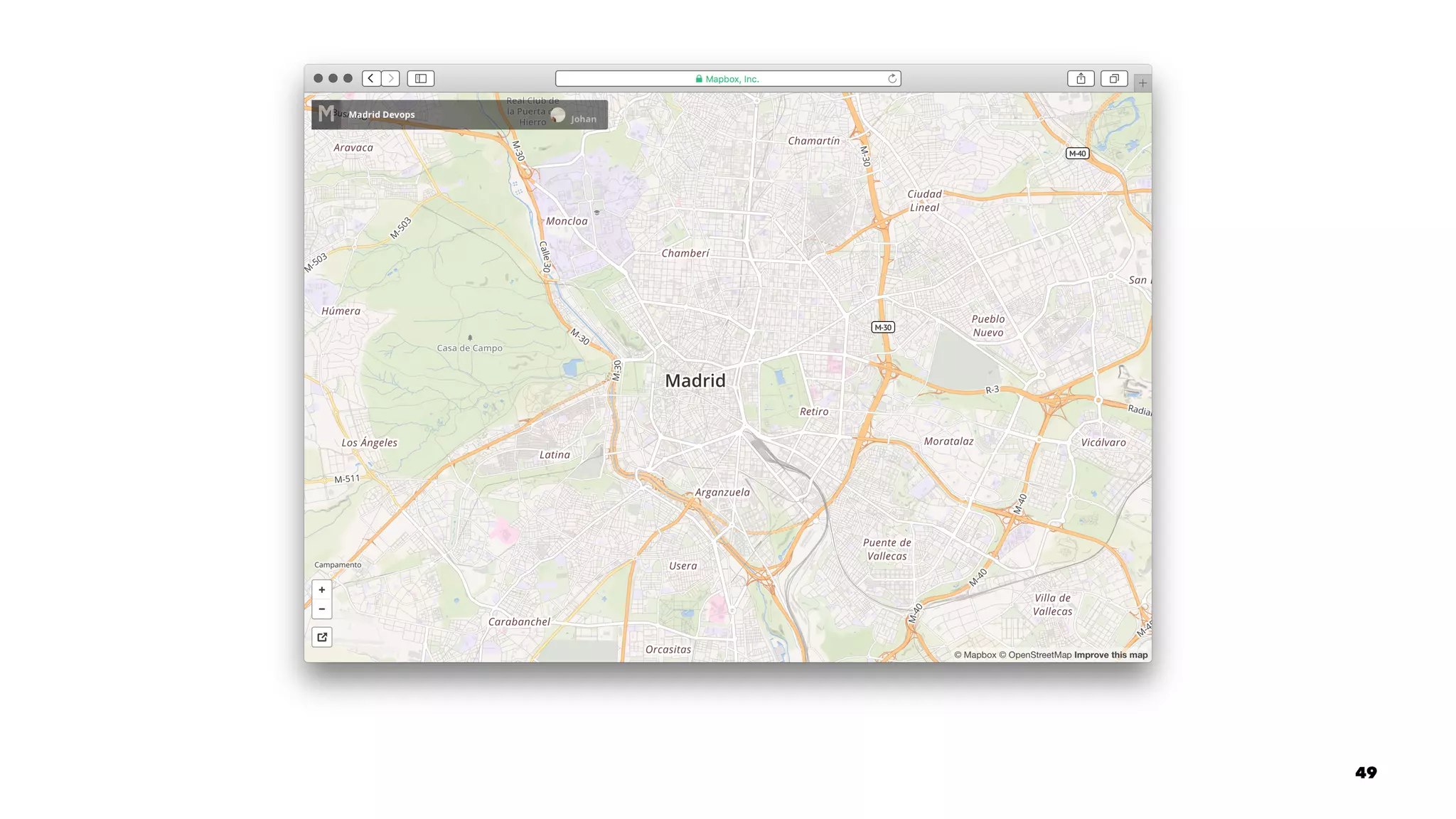

49. 49

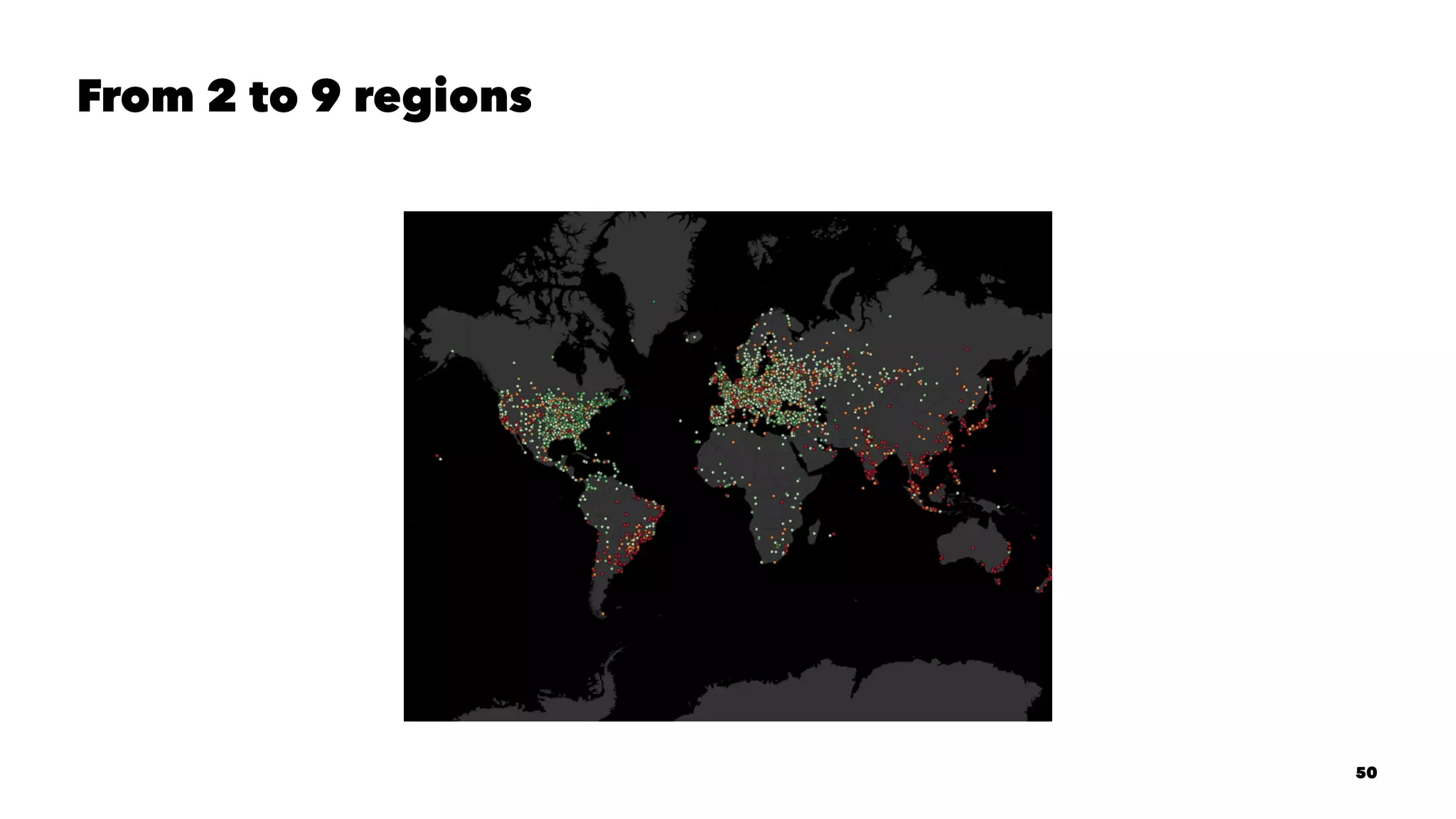

50. From 2 to 9 regions
50

51. From 2 to 9 regions
51

52. From 2 to 9 regions
52

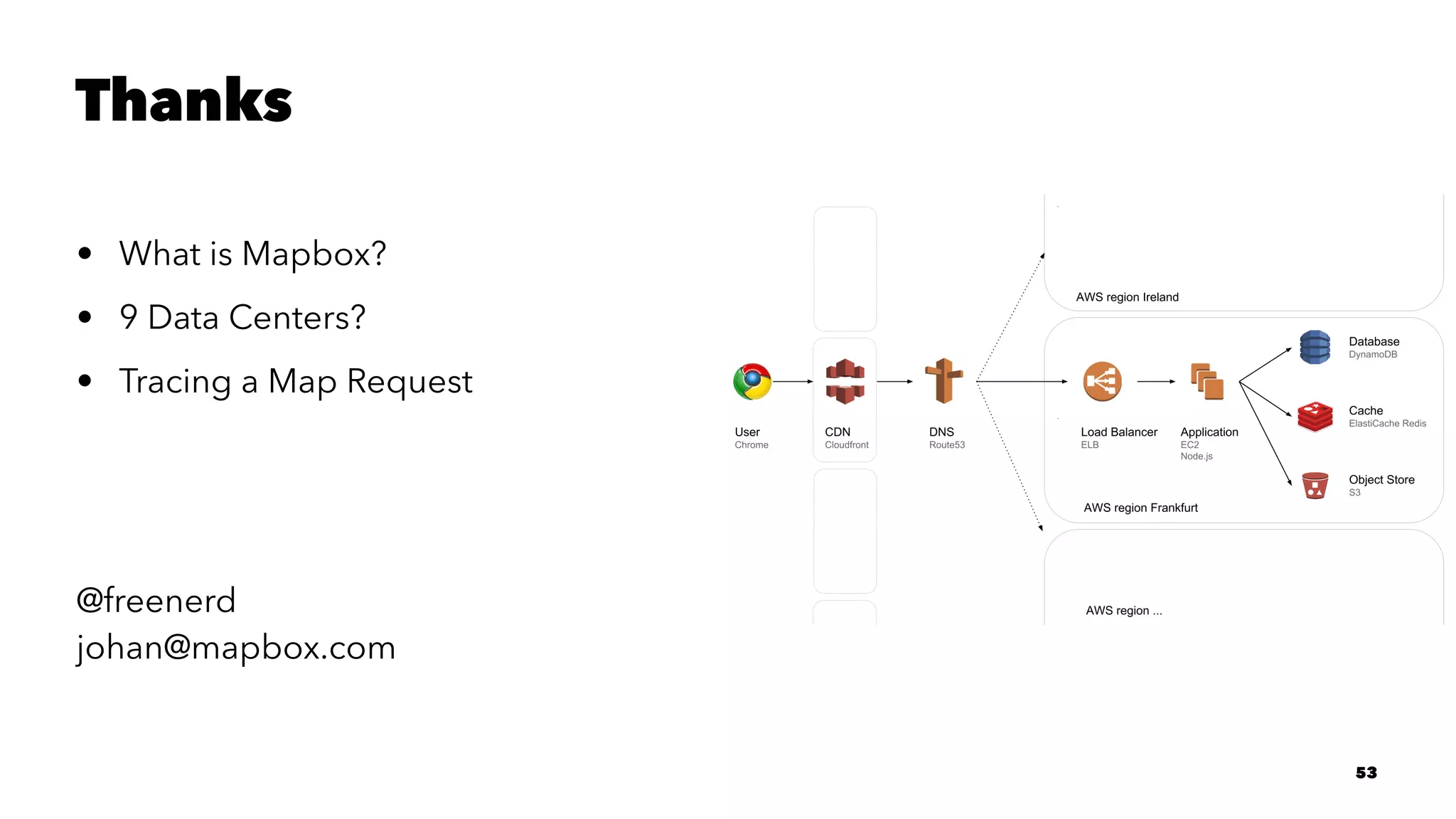

53. Thanks
• What is Mapbox?
• 9 Data Centers?
• Tracing a Map Request
@freenerd
johan@mapbox.com
53

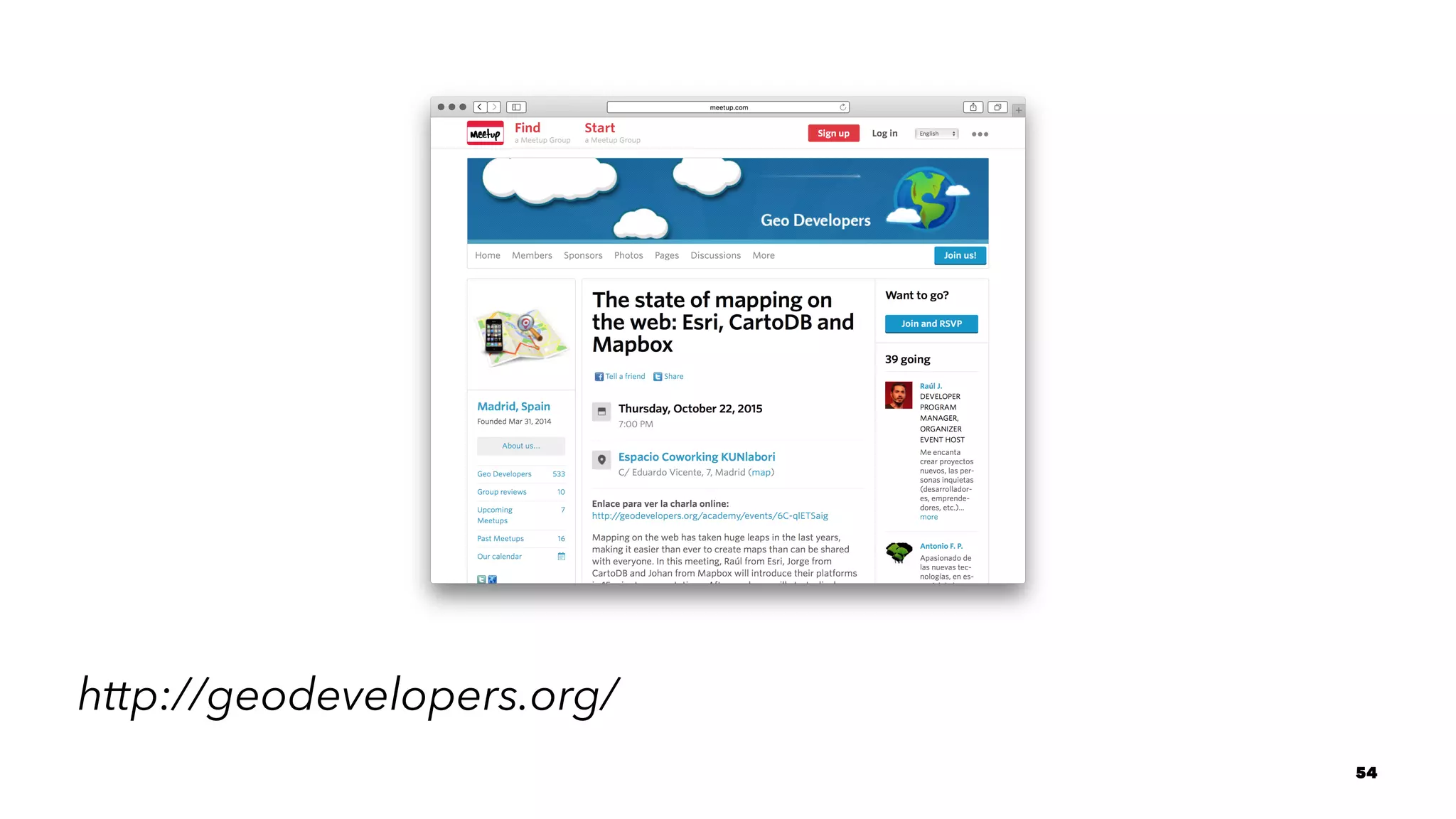

54. http://geodevelopers.org/
54

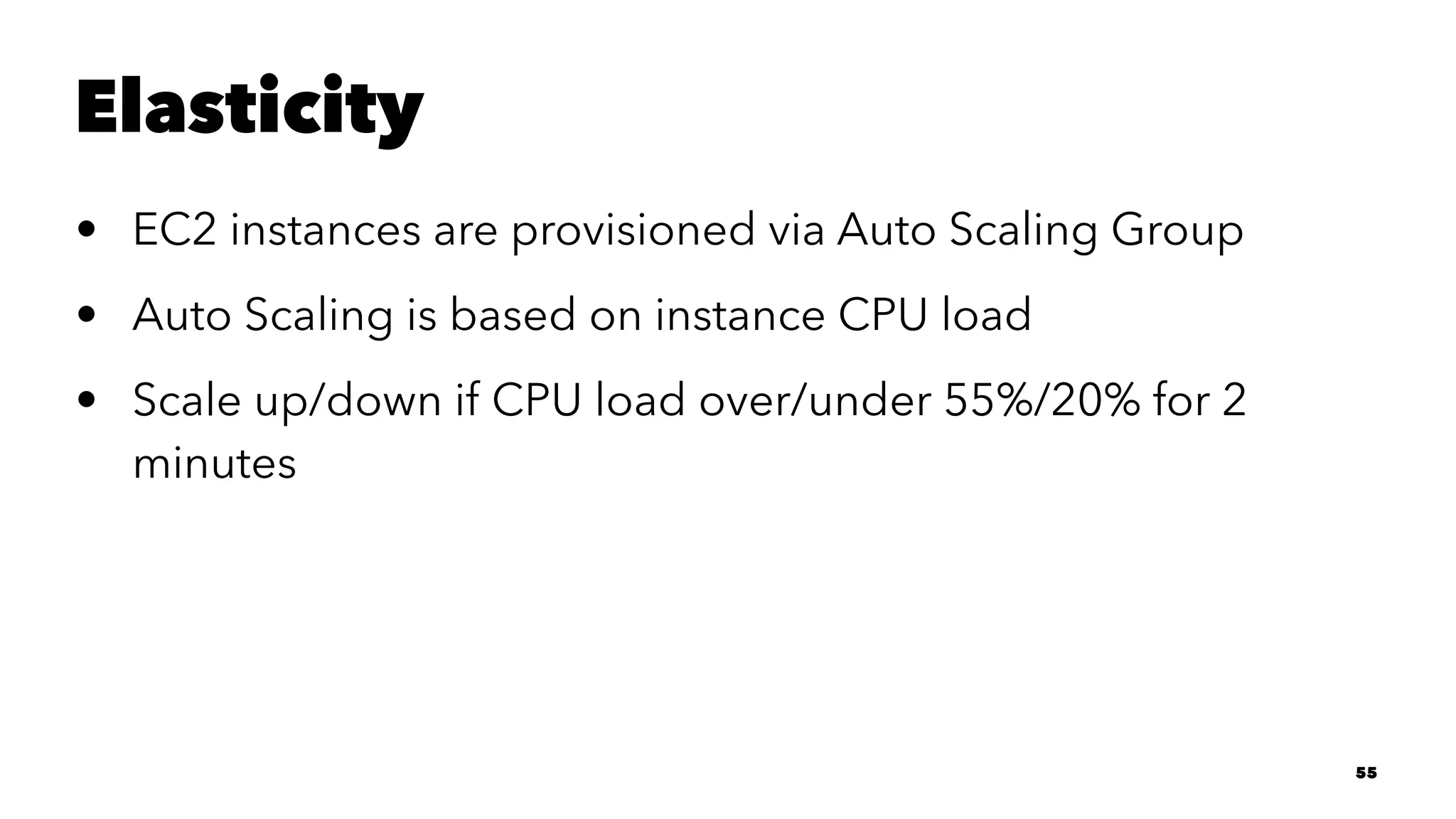

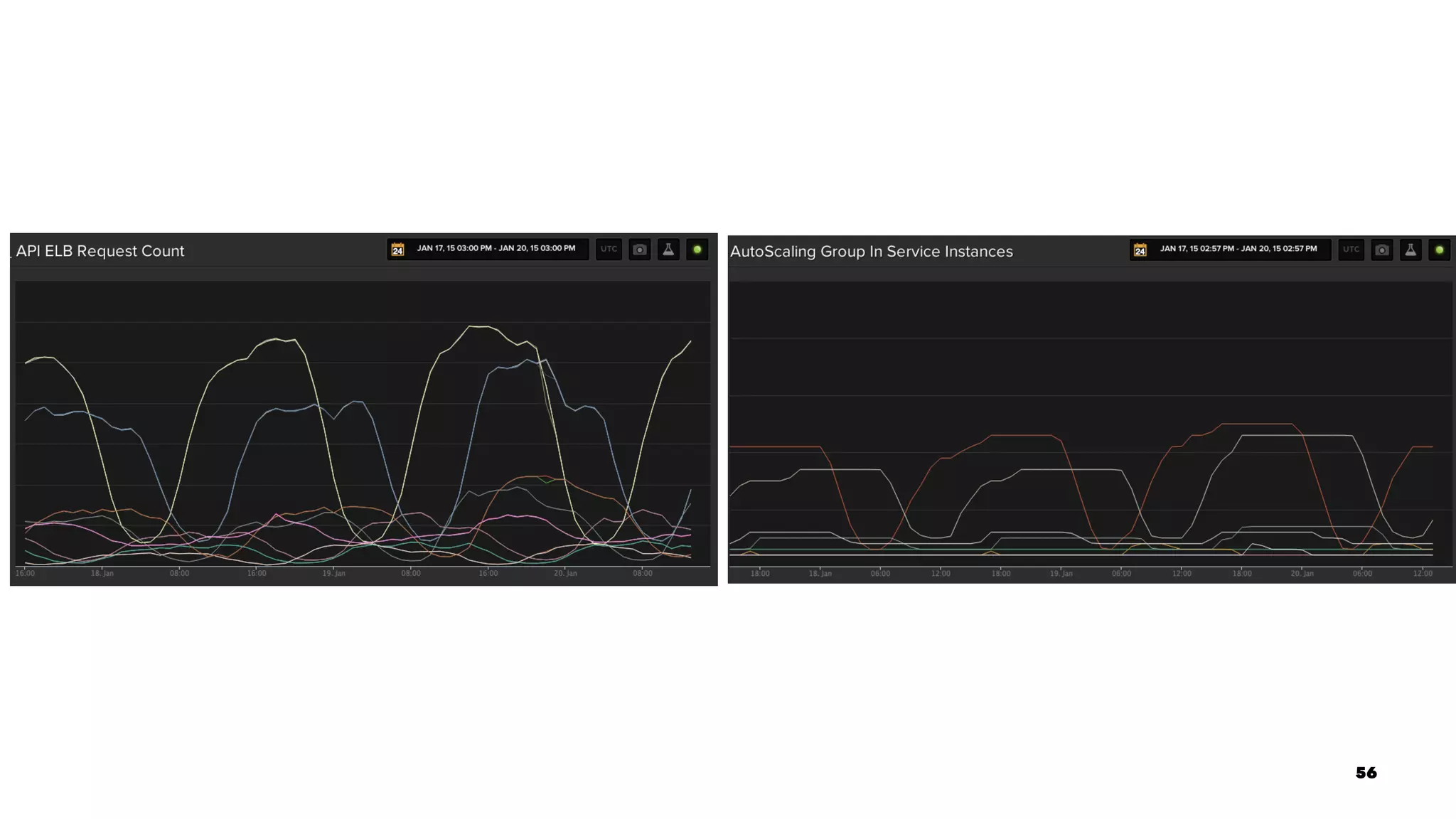

55. Elasticity
• EC2 instances are provisioned via Auto Scaling Group
• Auto Scaling is based on instance CPU load
• Scale up/down if CPU load over/under 55%/20% for 2
minutes
55
