Rational Developer for z Systems and Rational Integration Tester can be used to test mainframe applications with and without live data. They allow developing and testing applications in isolation using database and program stubs to virtualize interactions with DB2 and CICS. This reduces wait times and allows testing early in the development cycle. Benefits include increased productivity, quality, and reduced risk through decoupling of delivery schedules.

1. Mainframe Application Testing Both
With and Without Live Data
Session 3193

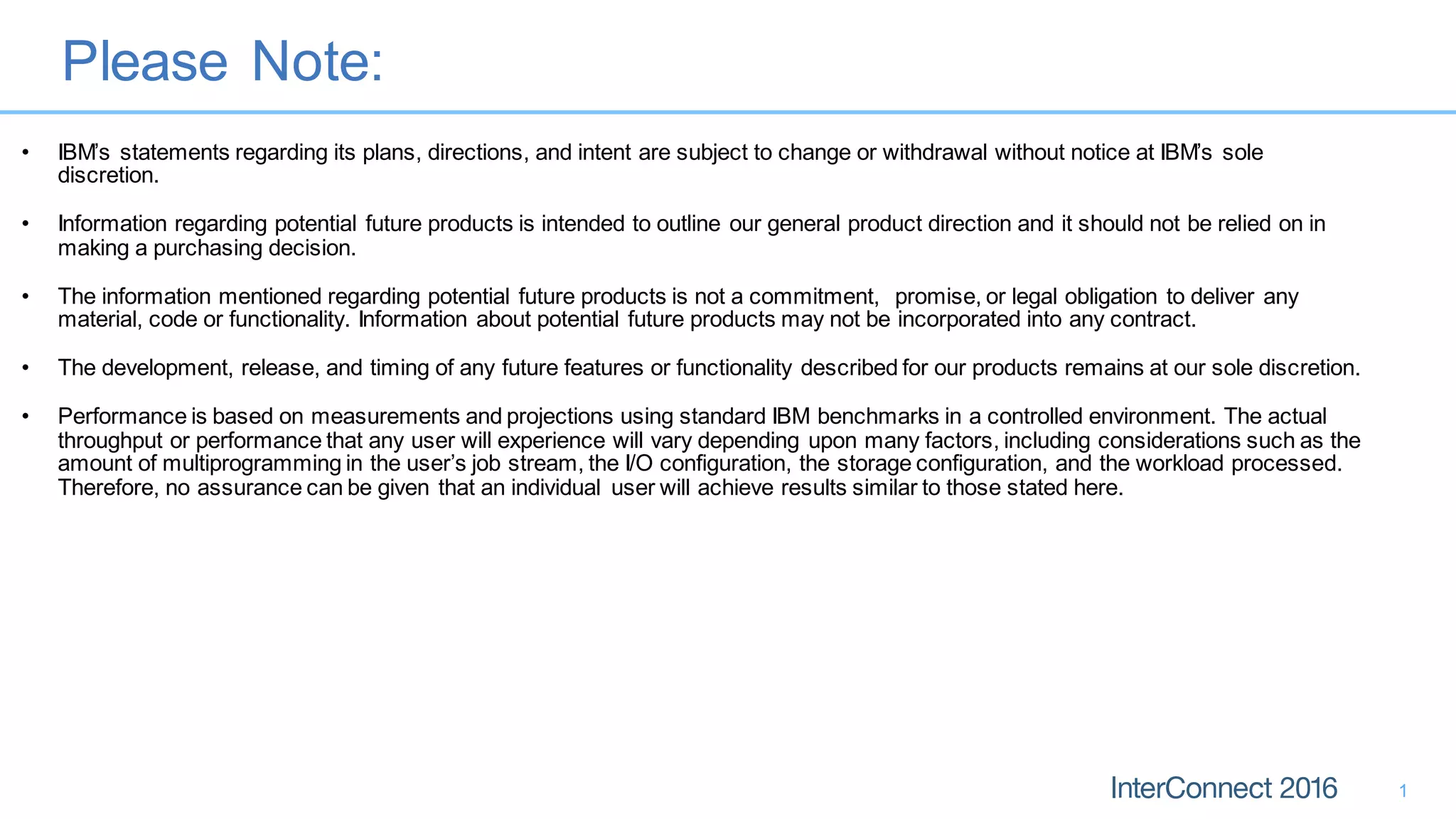

2. Please Note:
1
• IBM’s statements regarding its plans, directions, and intent are subject to change or withdrawal without notice at IBM’s sole
discretion.
• Information regarding potential future products is intended to outline our general product direction and it should not be relied on in
making a purchasing decision.
• The information mentioned regarding potential future products is not a commitment, promise, or legal obligation to deliver any
material, code or functionality. Information about potential future products may not be incorporated into any contract.
• The development, release, and timing of any future features or functionality described for our products remains at our sole discretion.
• Performance is based on measurements and projections using standard IBM benchmarks in a controlled environment. The actual
throughput or performance that any user will experience will vary depending upon many factors, including considerations such as the
amount of multiprogramming in the user’s job stream, the I/O configuration, the storage configuration, and the workload processed.
Therefore, no assurance can be given that an individual user will achieve results similar to those stated here.

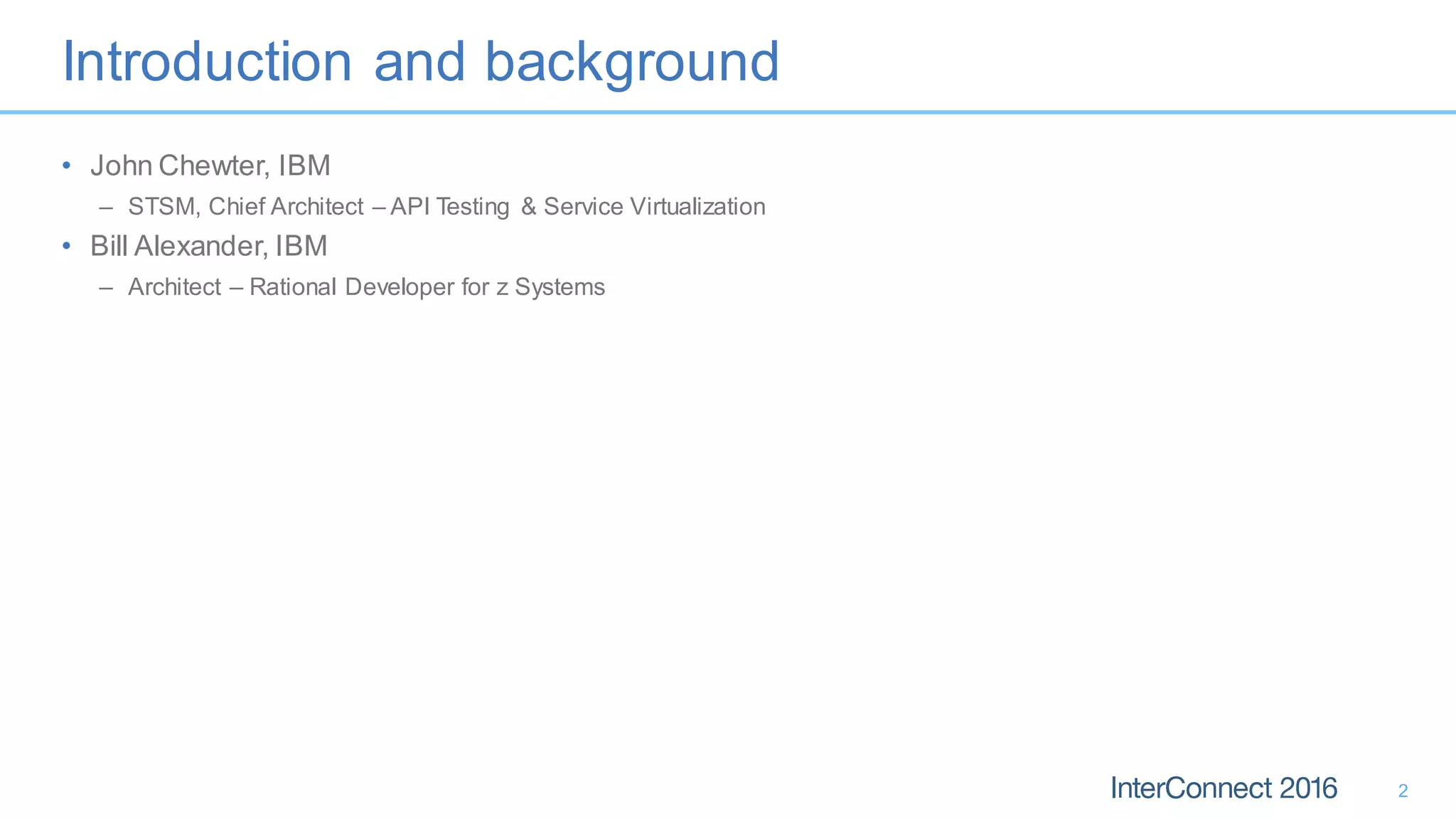

3. • John Chewter, IBM
– STSM, Chief Architect – API Testing & Service Virtualization
• Bill Alexander, IBM
– Architect – Rational Developer for z Systems
2

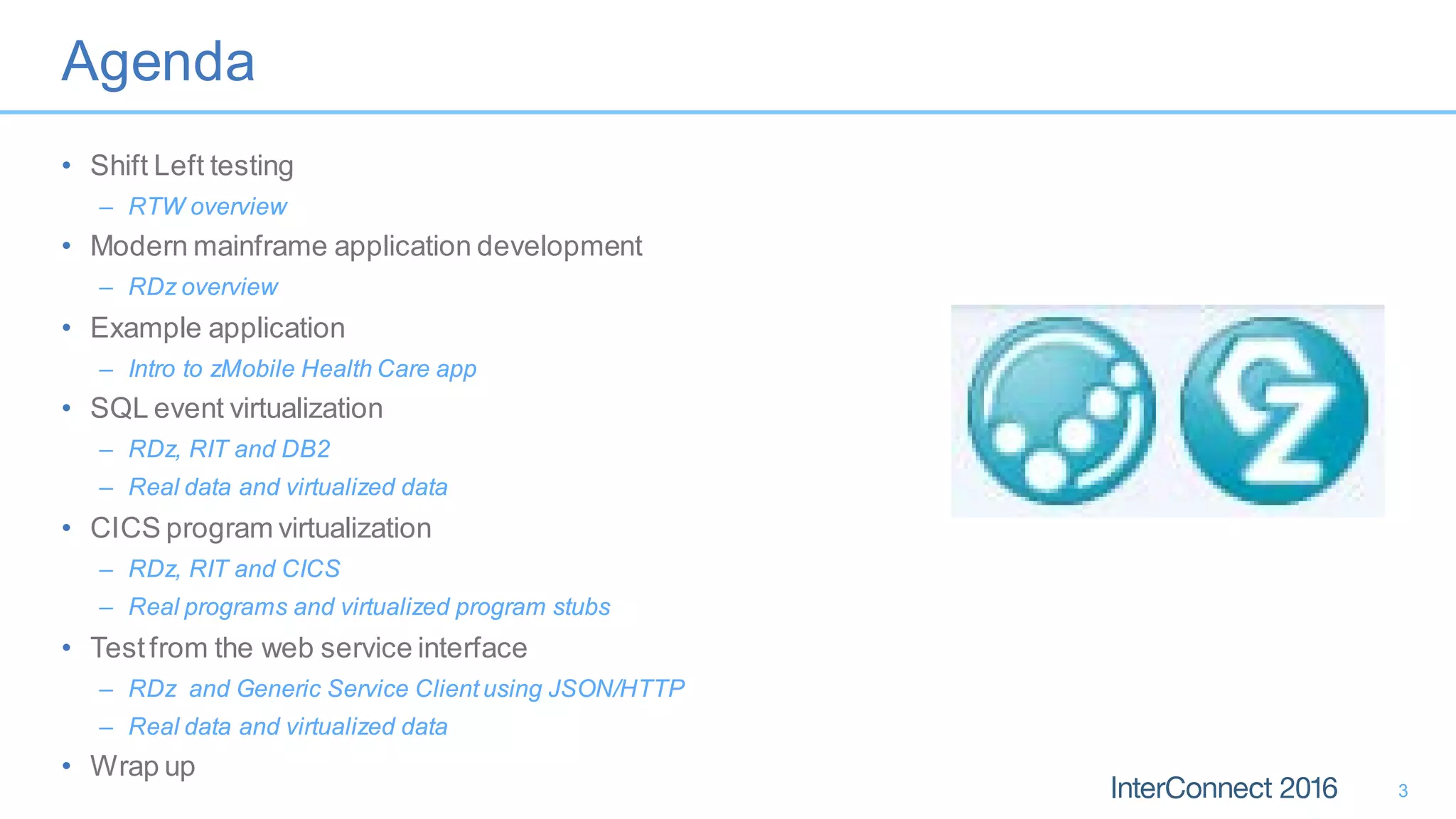

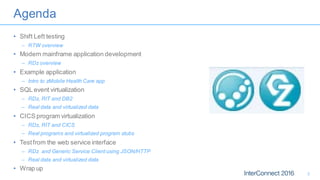

Introduction and background

4. • Shift Left testing
– RTW overview
• Modern mainframe application development
– RDz overview
• Example application
– Intro to zMobile Health Care app
• SQL event virtualization
– RDz, RIT and DB2
– Real data and virtualized data
• CICS program virtualization
– RDz, RIT and CICS
– Real programs and virtualized program stubs
• Testfrom the web service interface
– RDz and Generic Service Client using JSON/HTTP
– Real data and virtualized data

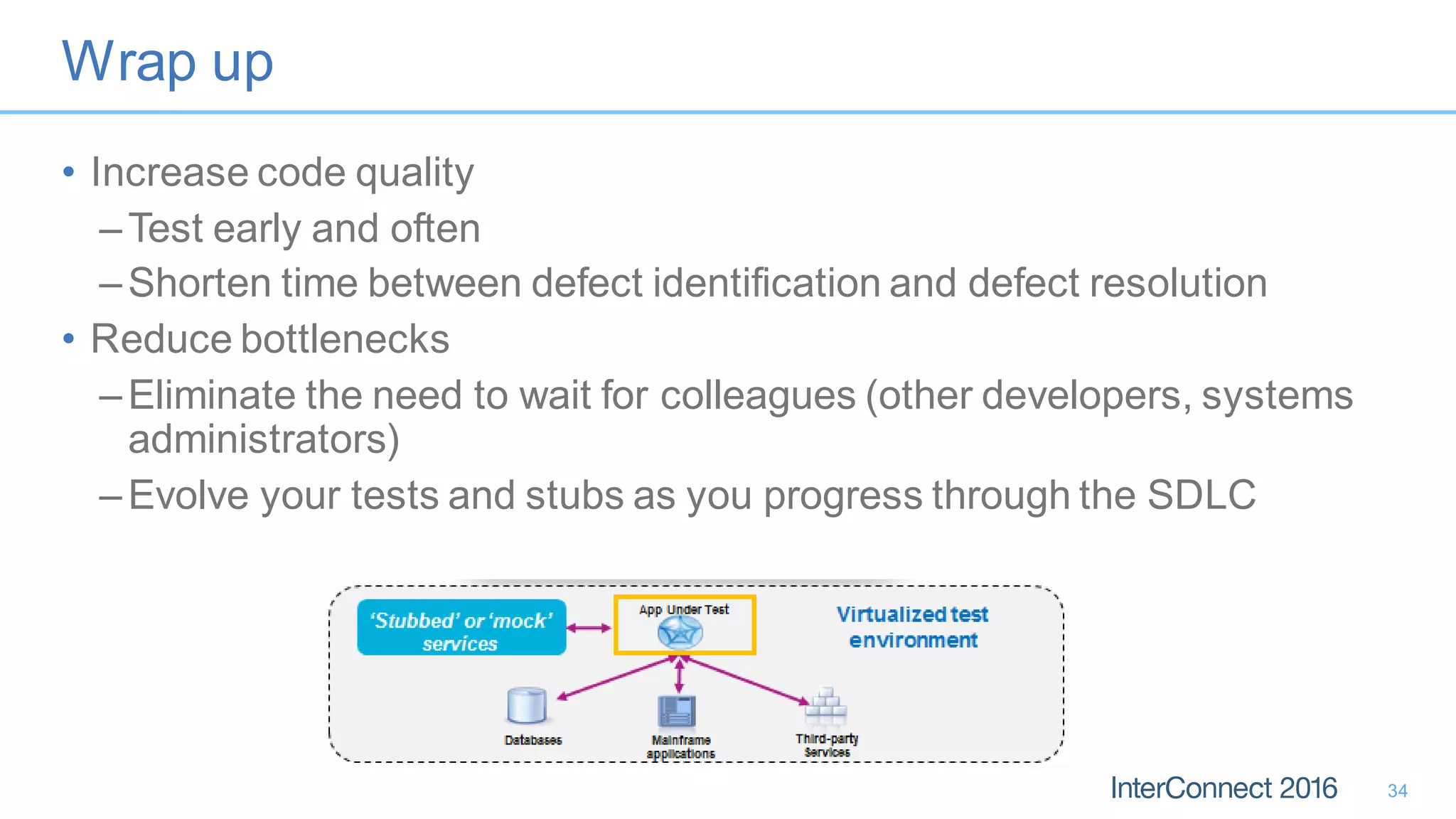

• Wrap up
3
Agenda

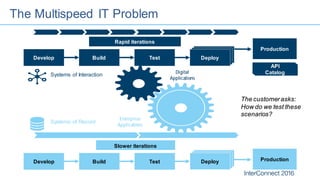

5. Rapid iterations
Develop Build Test Deploy
Production
API
Catalog
Develop Build Test Deploy
Slower iterations
Production
Systems of Interaction
Systems of Record
Digital
Applications
Enterprise
Applications
The Multispeed IT Problem
The customerasks:
How do we test these
scenarios?

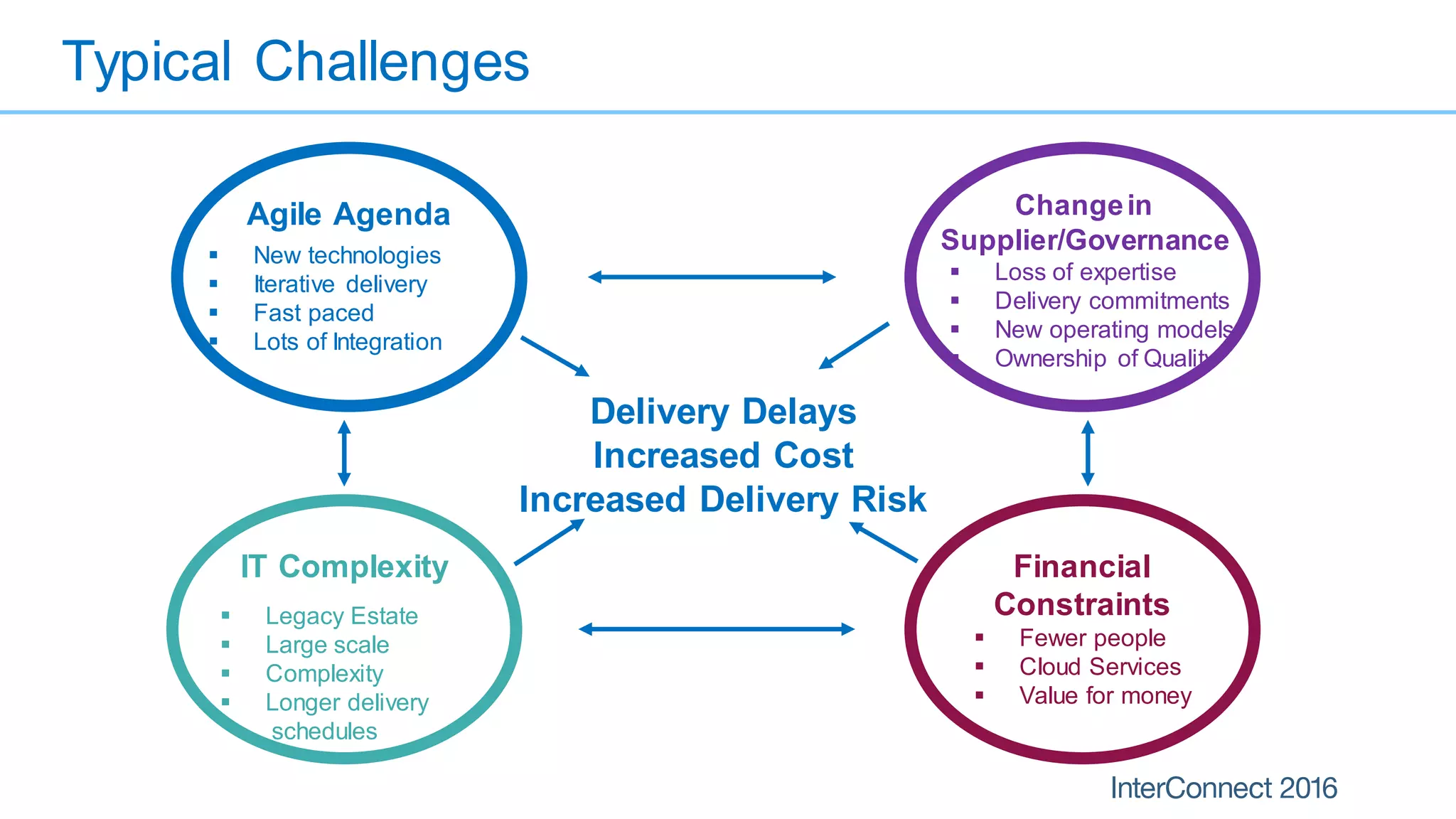

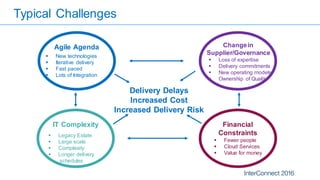

6. Typical Challenges
Agile Agenda
IT Complexity
 New technologies
 Iterative delivery
 Fast paced
 Lots of Integration
 Legacy Estate
 Large scale
 Complexity
 Longer delivery
schedules
Financial
Constraints
 Fewer people
 Cloud Services
 Value for money
Delivery Delays
Increased Cost
Increased Delivery Risk
 Loss of expertise
 Delivery commitments
 New operating models
 Ownership of Quality
Changein
Supplier/Governance

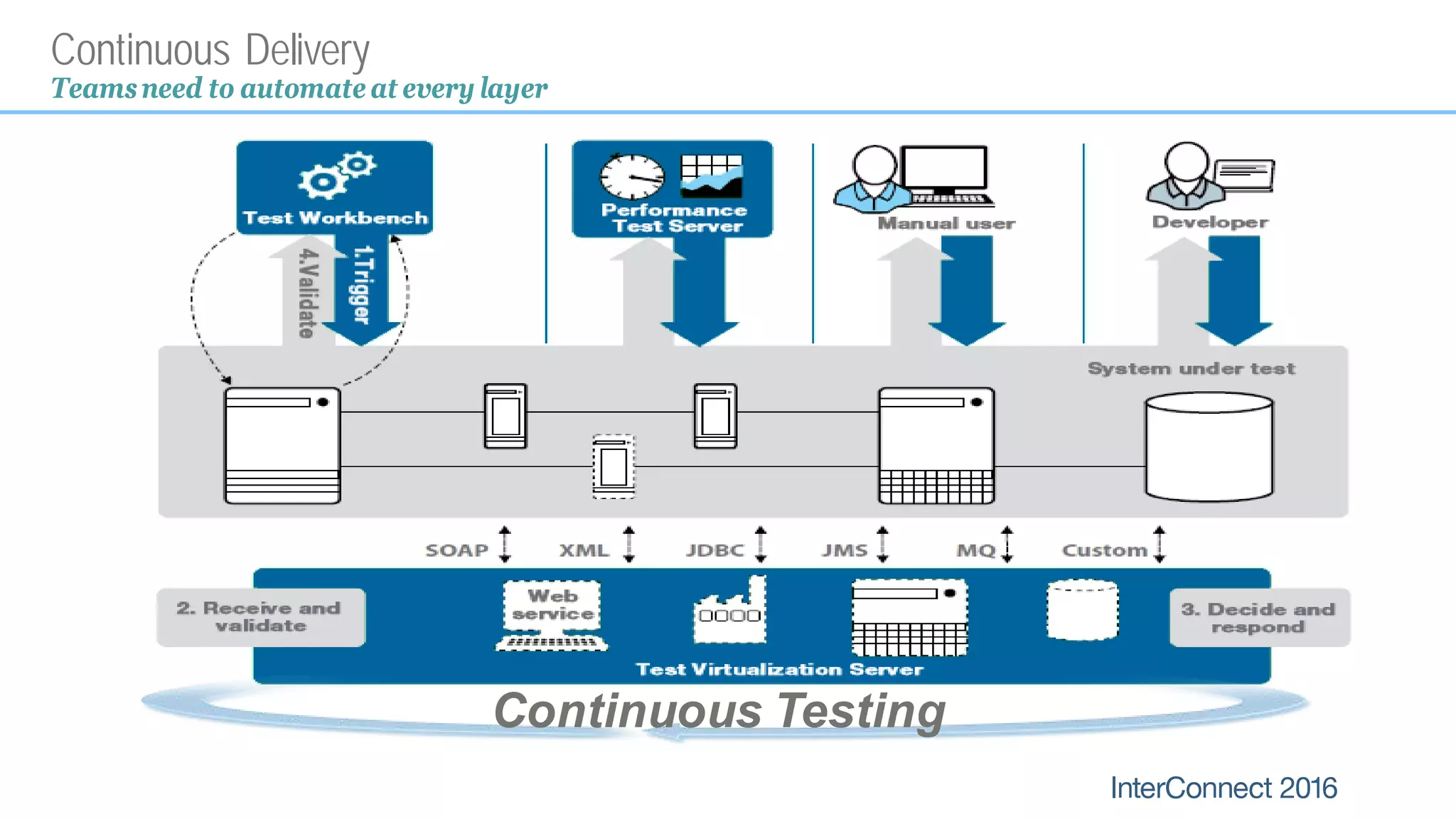

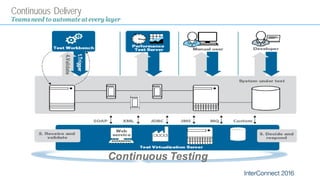

7. Continuous Delivery
Teamsneed to automate at every layer
Continuous Testing

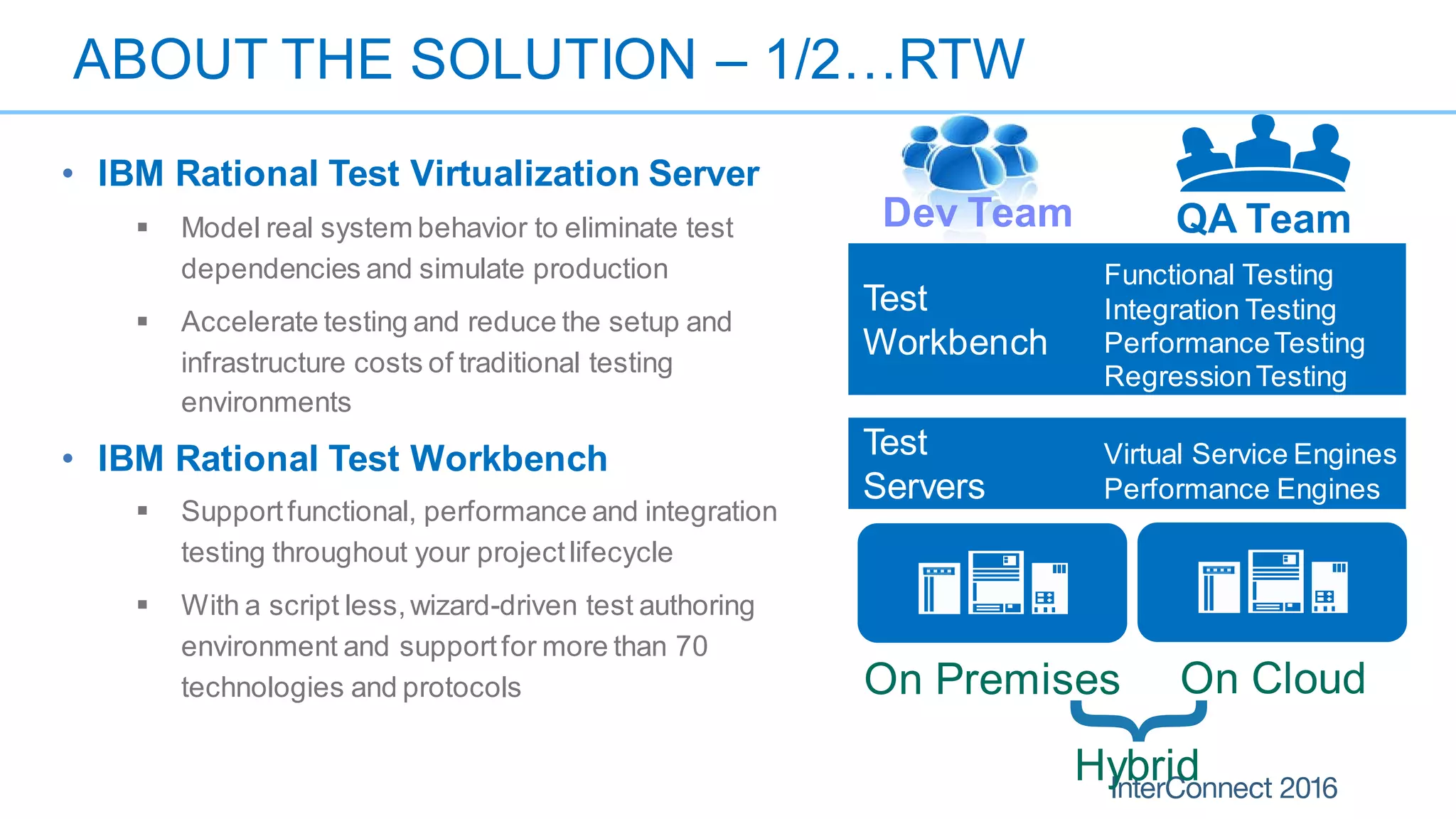

8. • IBM Rational Test Virtualization Server
 Model real system behavior to eliminate test
dependencies and simulate production
 Accelerate testing and reduce the setup and
infrastructure costs of traditional testing
environments
• IBM Rational Test Workbench
 Supportfunctional, performance and integration
testing throughout your projectlifecycle
 With a script less,wizard-driven test authoring
environment and supportfor more than 70
technologies and protocols
Load Agents
VirtualizationAgents
QA Team
On Premises
Test
Workbench
Functional Testing
Integration Testing
PerformanceTesting
RegressionTesting
Mobile Testing
Test
Servers
ABOUT THE SOLUTION – 1/2…RTW
Virtual Service Engines
Performance Engines
On Cloud
{
Hybrid
Dev Team

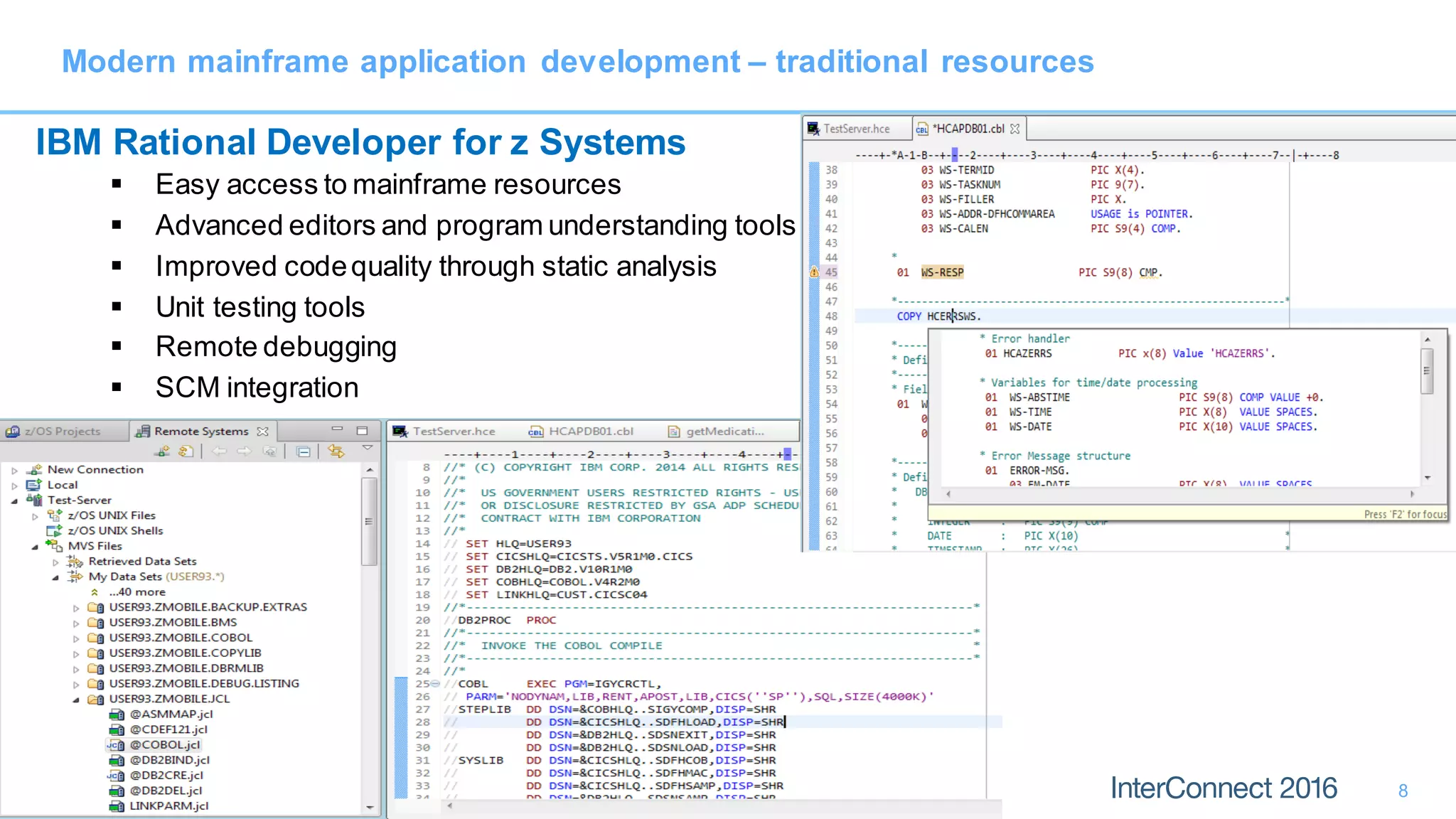

9. Modern mainframe application development – traditional resources
8
IBM Rational Developer for z Systems
 Easy access to mainframe resources
 Advanced editors and program understanding tools
 Improved codequality through static analysis
 Unit testing tools
 Remote debugging
 SCM integration

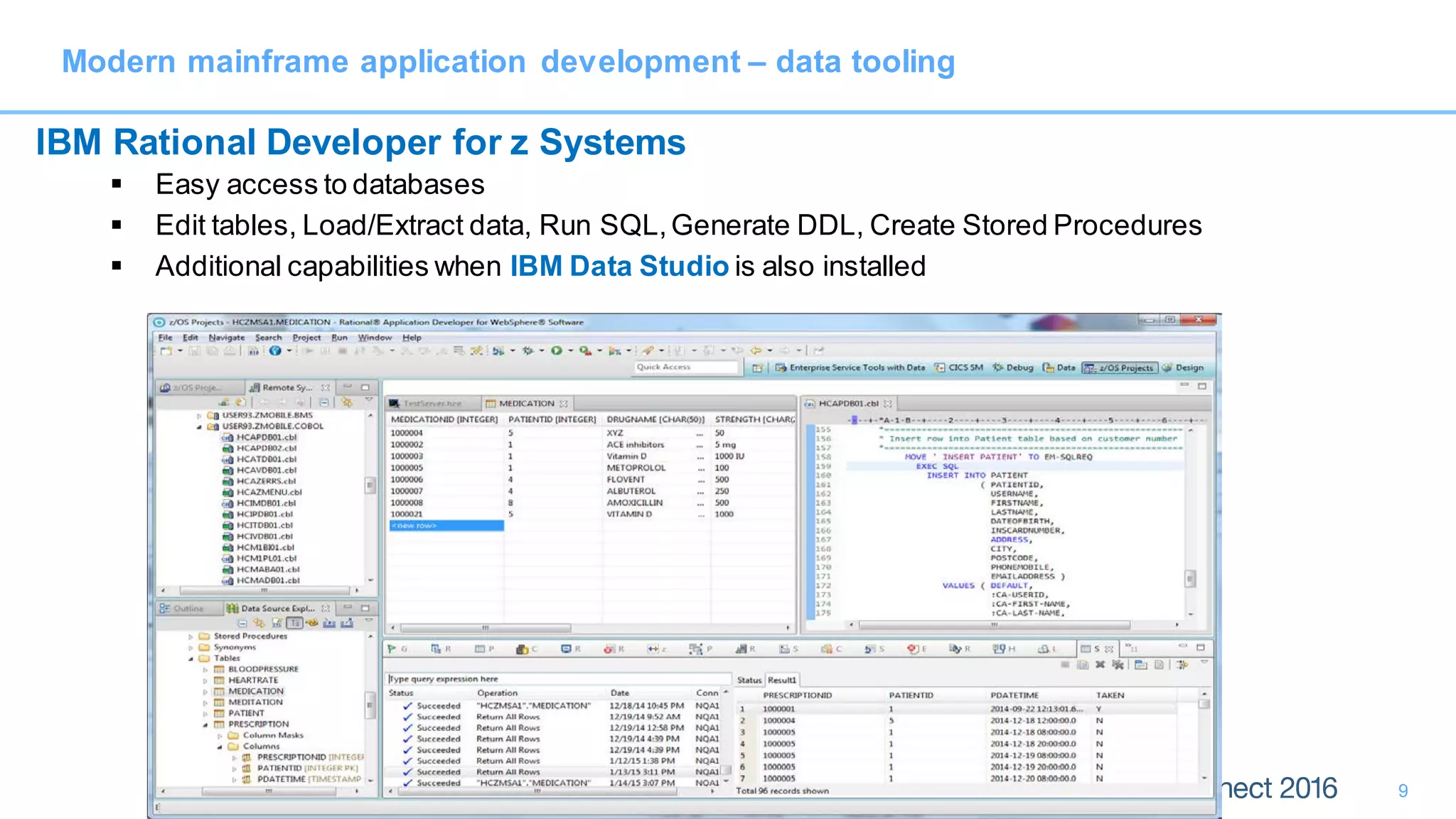

10. Modern mainframe application development – data tooling
9
IBM Rational Developer for z Systems
 Easy access to databases
 Edit tables, Load/Extract data, Run SQL,Generate DDL, Create Stored Procedures
 Additional capabilities when IBM Data Studio is also installed

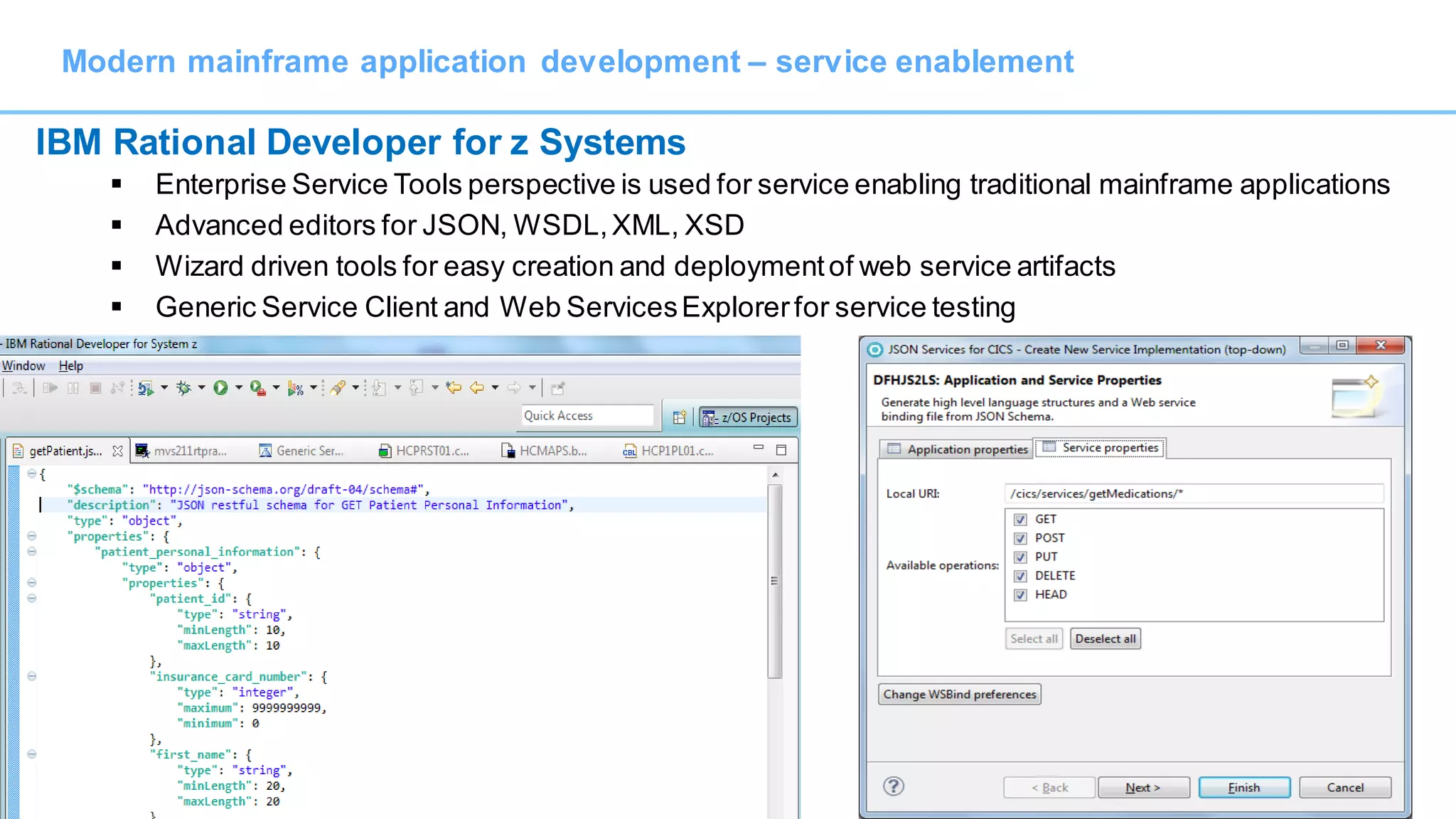

11. Modern mainframe application development – service enablement
10
IBM Rational Developer for z Systems
 Enterprise Service Tools perspective is used for service enabling traditional mainframe applications
 Advanced editors for JSON, WSDL,XML, XSD
 Wizard driven tools for easy creation and deploymentof web service artifacts
 Generic Service Client and Web ServicesExplorerfor service testing

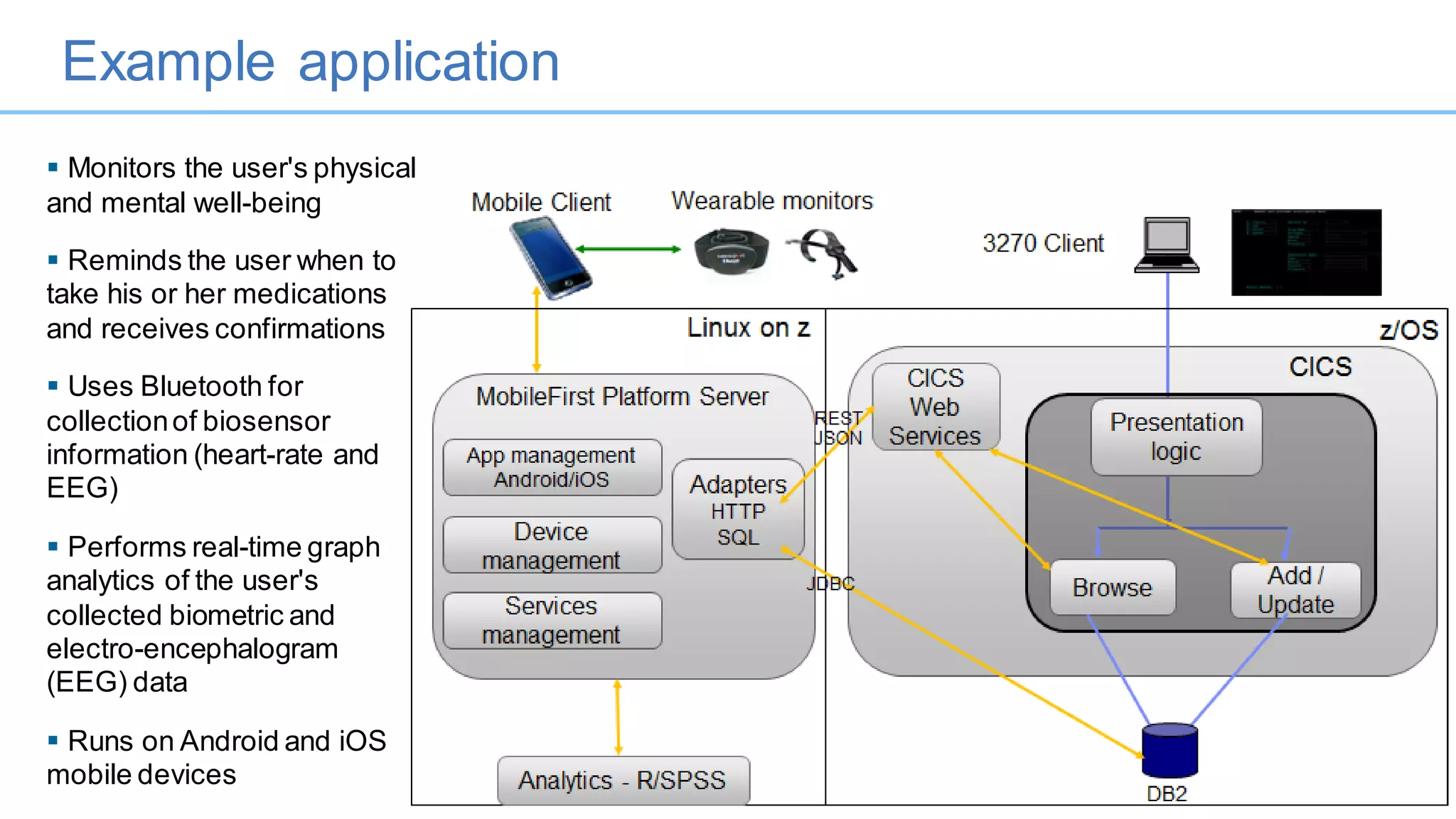

12. 11
 Monitors the user's physical
and mental well-being
 Reminds the user when to
take his or her medications
and receives confirmations
 Uses Bluetooth for
collectionof biosensor
information (heart-rate and
EEG)
 Performs real-time graph
analytics of the user's
collected biometric and
electro-encephalogram
(EEG) data
 Runs on Android and iOS
mobile devices
Example application

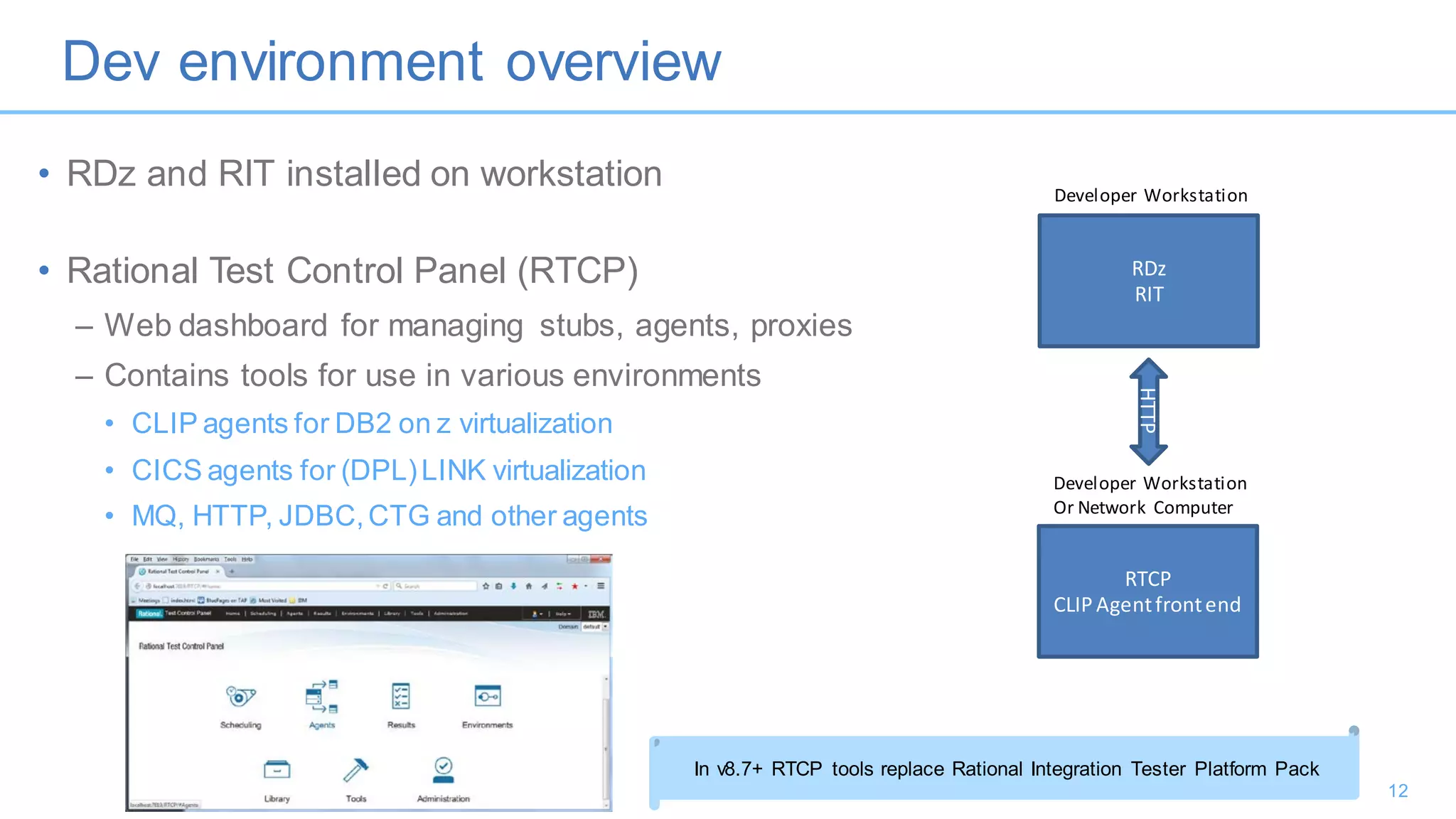

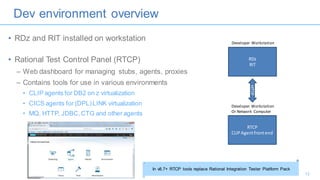

13. Dev environment overview
• RDz and RIT installed on workstation
• Rational Test Control Panel (RTCP)
– Web dashboard for managing stubs, agents, proxies
– Contains tools for use in various environments
• CLIP agents for DB2 on z virtualization
• CICS agents for (DPL)LINK virtualization
• MQ, HTTP, JDBC,CTG and other agents
12
RDz
RIT
Developer Workstation
RTCP
CLIPAgentfrontend
Developer Workstation
Or Network Computer
HTTP
In v8.7+ RTCP tools replace Rational Integration Tester Platform Pack

14. SQL event virtualization for programs that
access DB2 on z
13

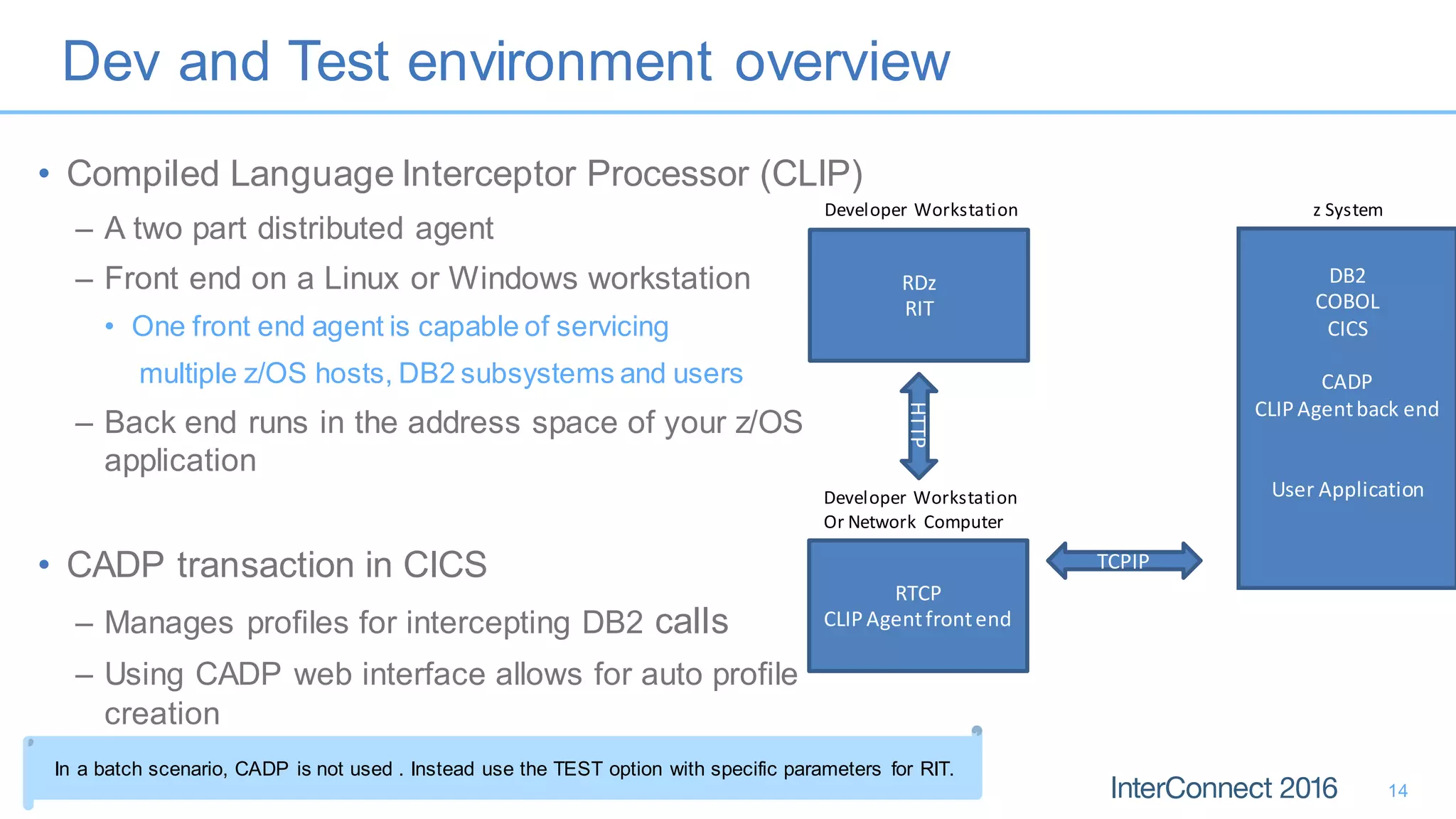

15. Dev and Test environment overview
14
• Compiled Language Interceptor Processor (CLIP)
– A two part distributed agent
– Front end on a Linux or Windows workstation
• One front end agent is capable of servicing
multiple z/OS hosts, DB2 subsystems and users
– Back end runs in the address space of your z/OS
application
• CADP transaction in CICS
– Manages profiles for intercepting DB2 calls
– Using CADP web interface allows for auto profile
creation
DB2
COBOL
CICS
CADP
CLIPAgentback end
User Application
RDz
RIT
Developer Workstation z System
RTCP
CLIPAgentfrontend
Developer Workstation
Or Network Computer
TCPIP
HTTP
In a batch scenario, CADP is not used . Instead use the TEST option with specific parameters for RIT.

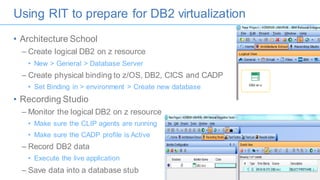

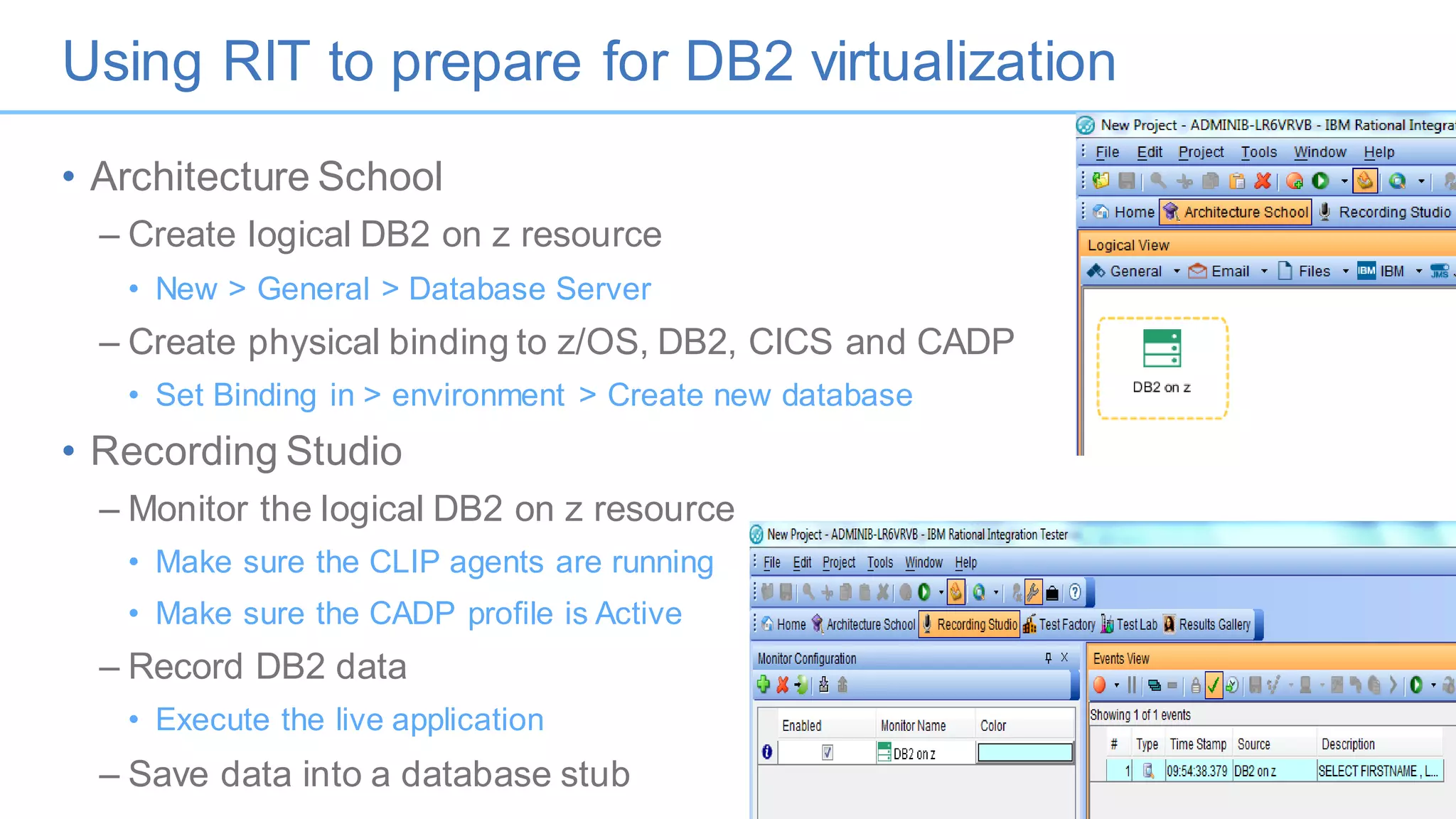

16. Using RIT to prepare for DB2 virtualization
• Architecture School
– Create logical DB2 on z resource
• New > General > Database Server
– Create physical binding to z/OS, DB2, CICS and CADP
• Set Binding in > environment > Create new database
• Recording Studio
– Monitor the logical DB2 on z resource
• Make sure the CLIP agents are running
• Make sure the CADP profile is Active
– Record DB2 data
• Execute the live application
– Save data into a database stub 15

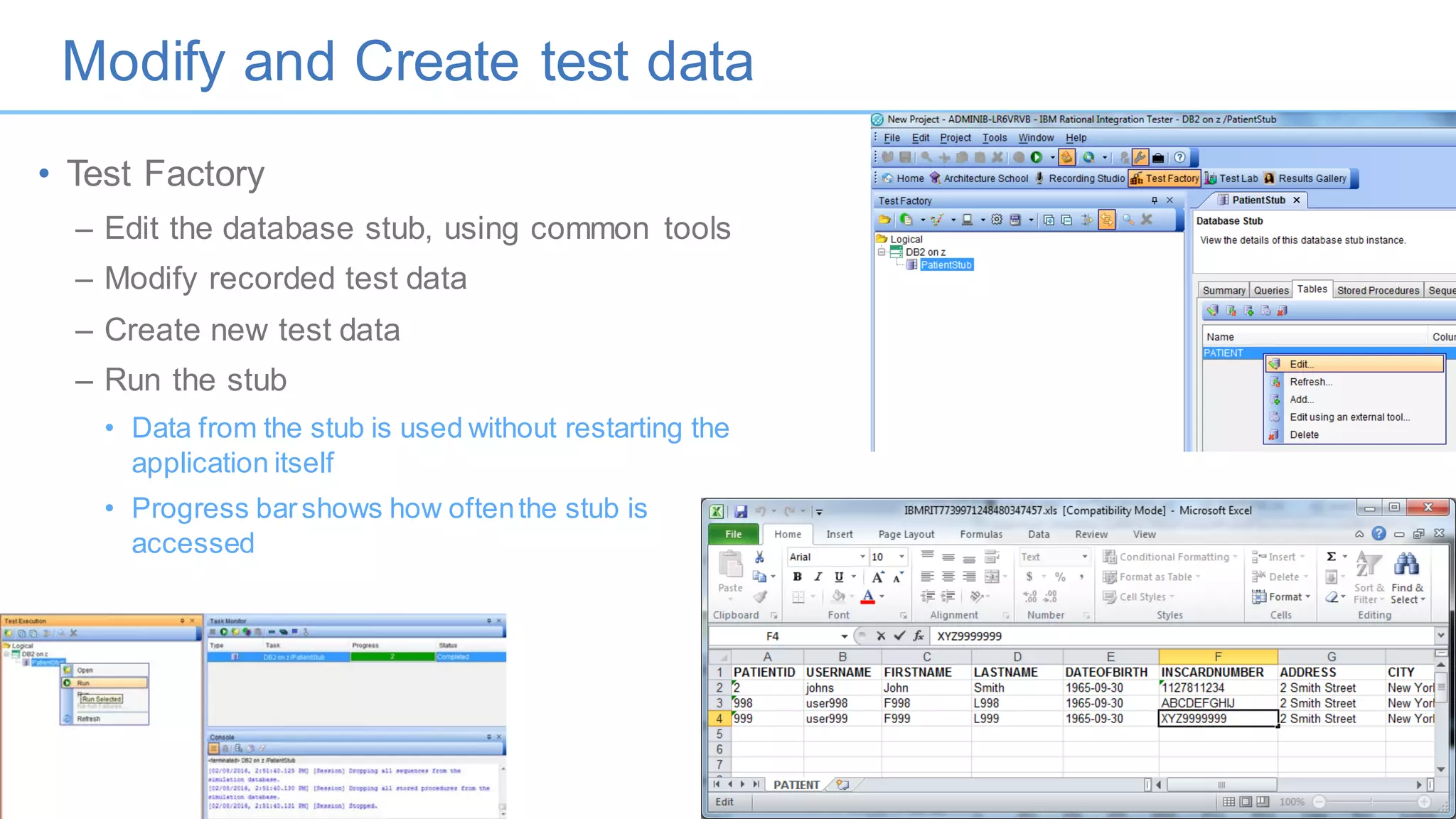

17. Modify and Create test data
16
• Test Factory
– Edit the database stub, using common tools
– Modify recorded test data
– Create new test data
– Run the stub
• Data from the stub is used without restarting the
application itself
• Progress barshows how oftenthe stub is
accessed

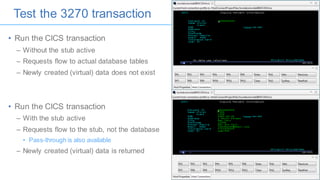

18. 17
• Run the CICS transaction
– Without the stub active
– Requests flow to actual database tables
– Newly created (virtual) data does not exist
• Run the CICS transaction
– With the stub active
– Requests flow to the stub, not the database
• Pass-through is also available
– Newly created (virtual) data is returned
Test the 3270 transaction

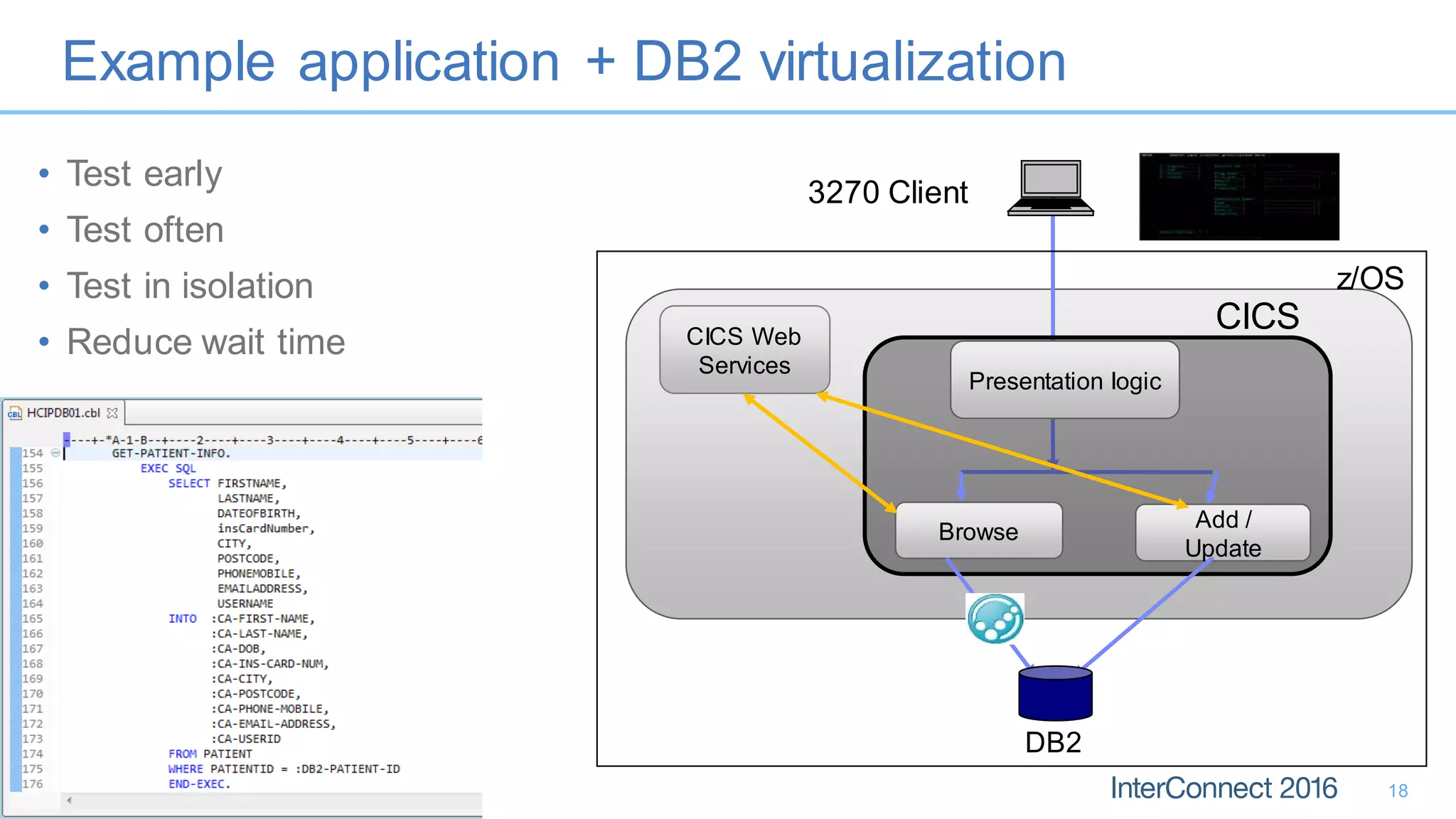

19. Example application + DB2 virtualization
18
z/OS
CICS Web
Services
CICS
Presentation logic
Add /
Update
Browse
3270 Client
DB2
• Test early
• Test often
• Test in isolation
• Reduce wait time

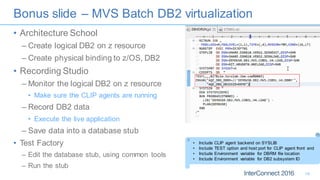

20. Bonus slide – MVS Batch DB2 virtualization
19
• Architecture School
– Create logical DB2 on z resource
– Create physical binding to z/OS, DB2
• Recording Studio
– Monitor the logical DB2 on z resource
• Make sure the CLIP agents are running
– Record DB2 data
• Execute the live application
– Save data into a database stub
• Test Factory
– Edit the database stub, using common tools
– Run the stub
• Include CLIP agent backend on SYSLIB
• Include TEST option and host:port for CLIP agent front end
• Include Environment variable for DBRM file location
• Include Environment variable for DB2 subsystem ID

21. CICS Program LINK (DPL)
virtualization
20

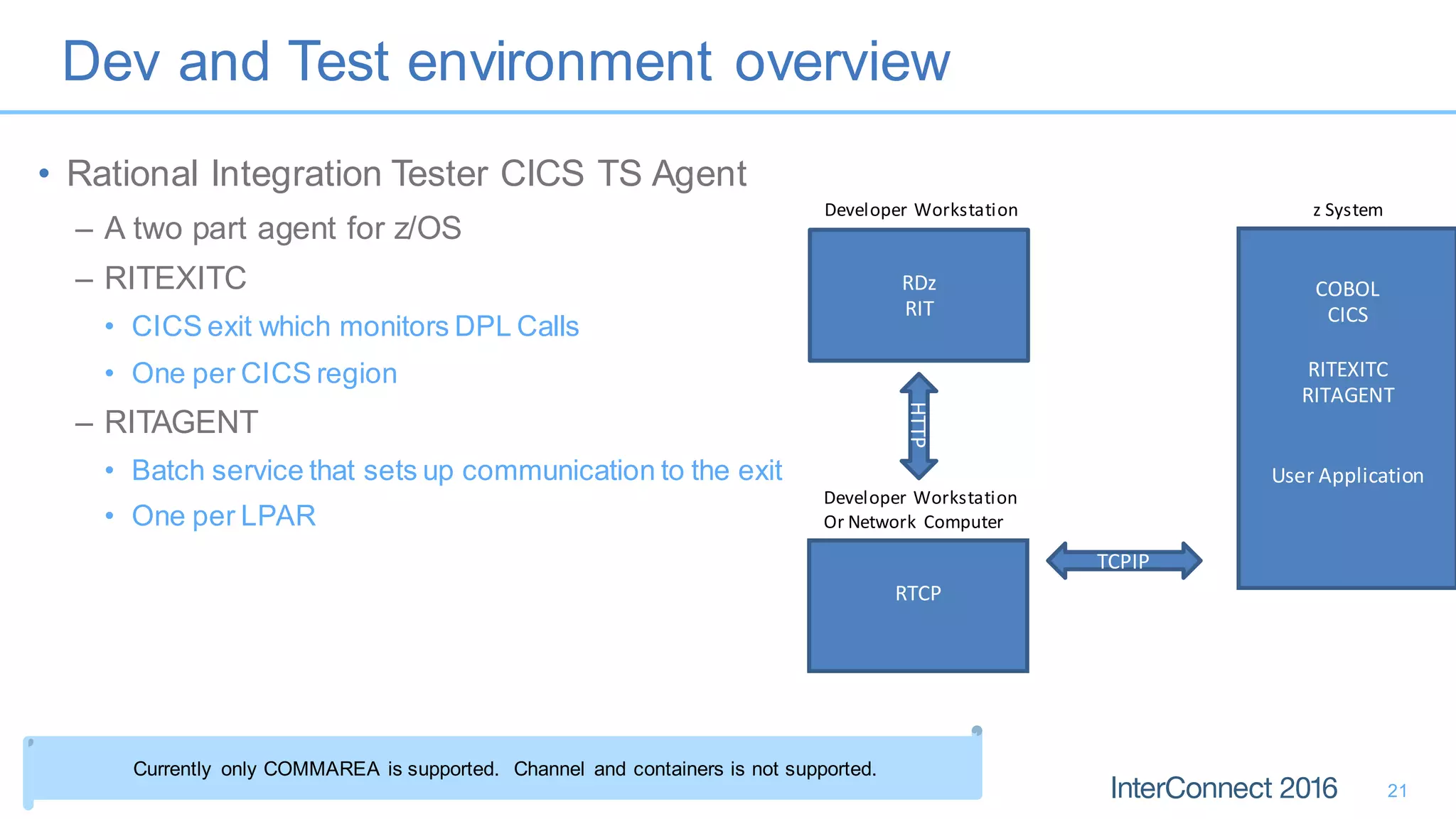

22. Dev and Test environment overview
21
• Rational Integration Tester CICS TS Agent
– A two part agent for z/OS
– RITEXITC
• CICS exit which monitors DPL Calls
• One per CICS region
– RITAGENT
• Batch service that sets up communication to the exit
• One per LPAR
COBOL
CICS
RITEXITC
RITAGENT
User Application
RDz
RIT
Developer Workstation z System
RTCP
Developer Workstation
Or Network Computer
TCPIP
HTTP
Currently only COMMAREA is supported. Channel and containers is not supported.

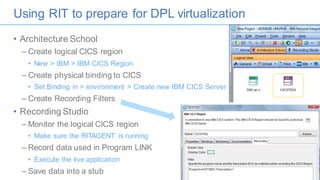

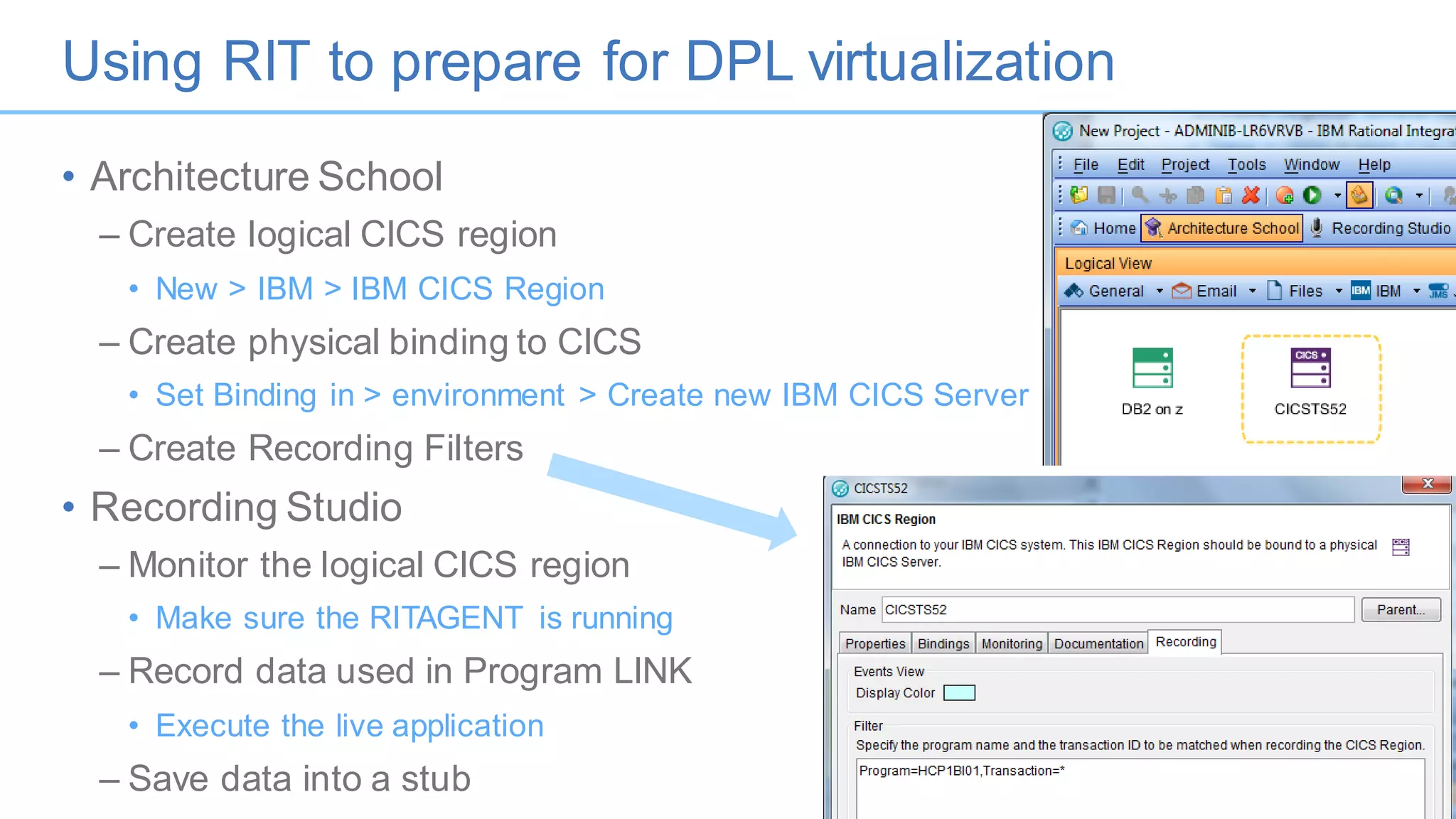

23. Using RIT to prepare for DPL virtualization
• Architecture School
– Create logical CICS region
• New > IBM > IBM CICS Region
– Create physical binding to CICS
• Set Binding in > environment > Create new IBM CICS Server
– Create Recording Filters
• Recording Studio
– Monitor the logical CICS region
• Make sure the RITAGENT is running
– Record data used in Program LINK
• Execute the live application
– Save data into a stub 22

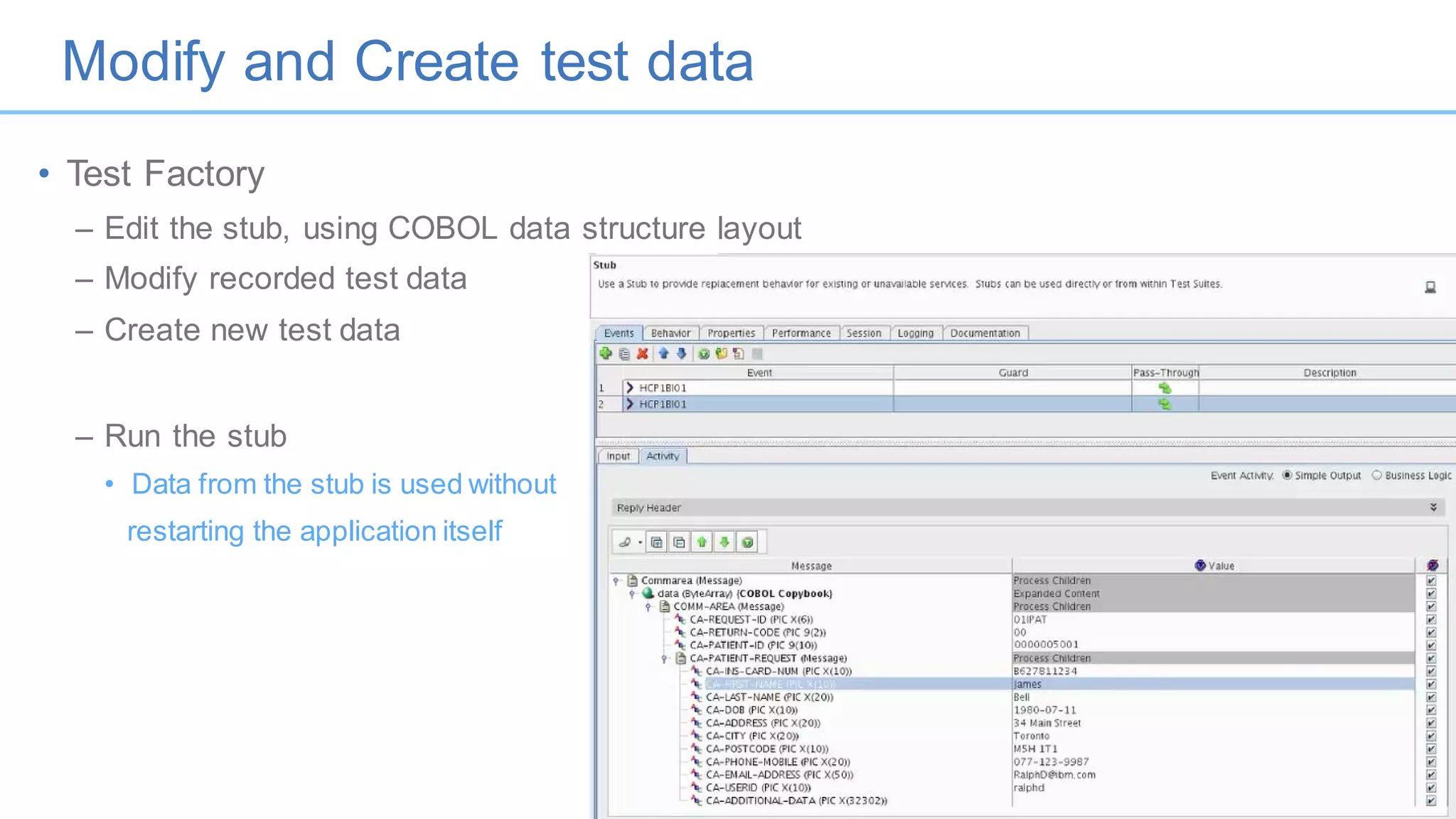

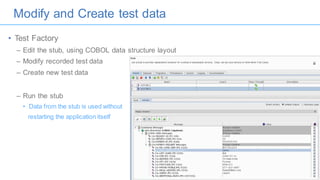

24. Modify and Create test data
23
• Test Factory
– Edit the stub, using COBOL data structure layout
– Modify recorded test data
– Create new test data
– Run the stub
• Data from the stub is used without
restarting the application itself

25. 24

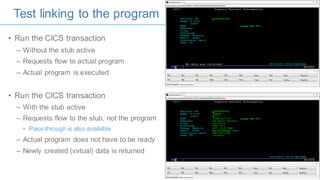

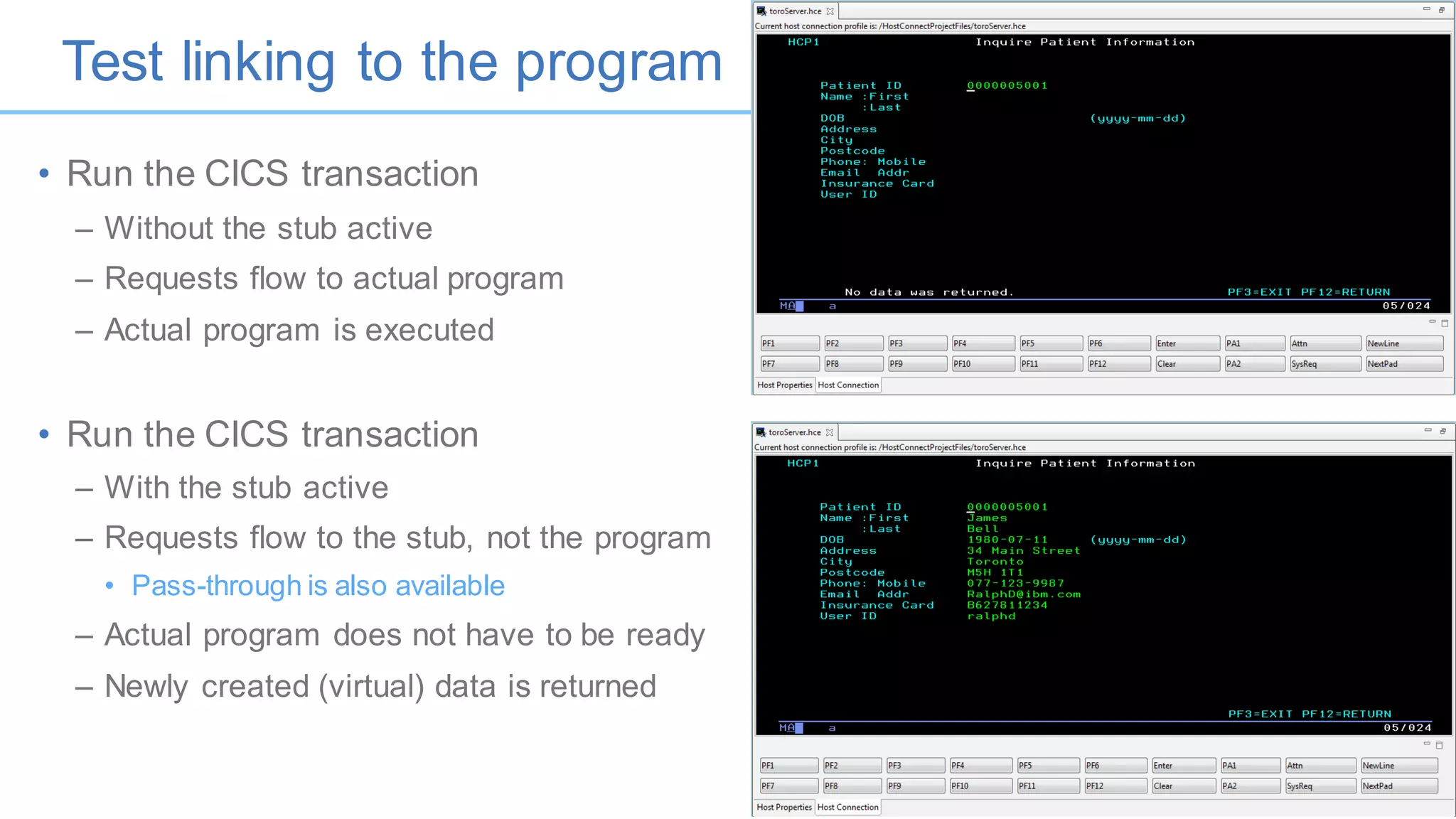

• Run the CICS transaction
– Without the stub active
– Requests flow to actual program
– Actual program is executed
• Run the CICS transaction
– With the stub active
– Requests flow to the stub, not the program
• Pass-through is also available
– Actual program does not have to be ready
– Newly created (virtual) data is returned
Test linking to the program

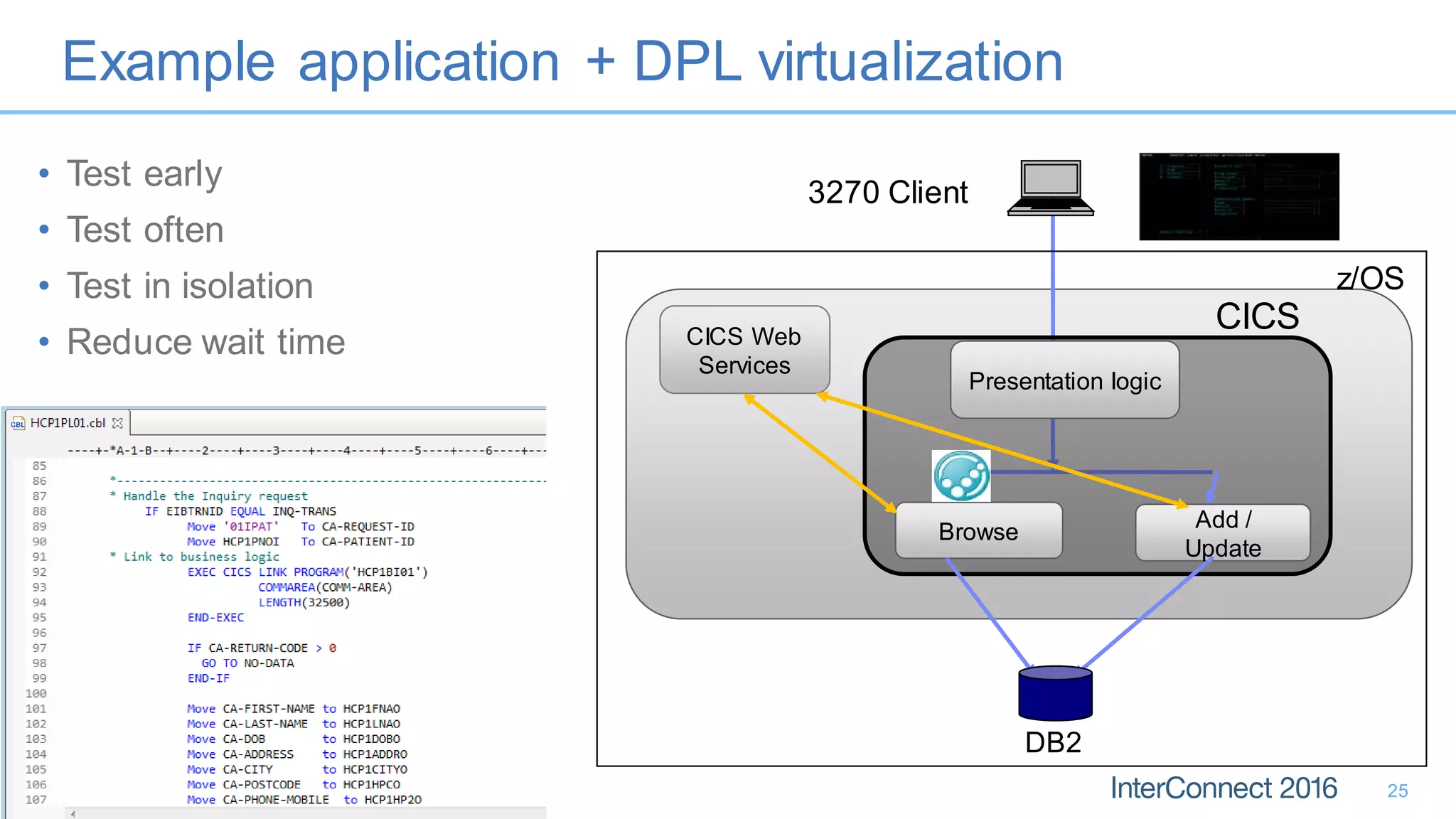

26. Example application + DPL virtualization
25
z/OS
CICS Web
Services
CICS
Presentation logic
Add /
Update
Browse
3270 Client
DB2
• Test early
• Test often
• Test in isolation
• Reduce wait time

27. CICS web service virtualization
26

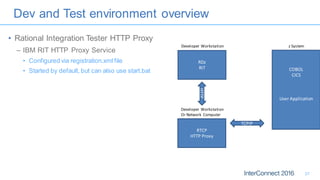

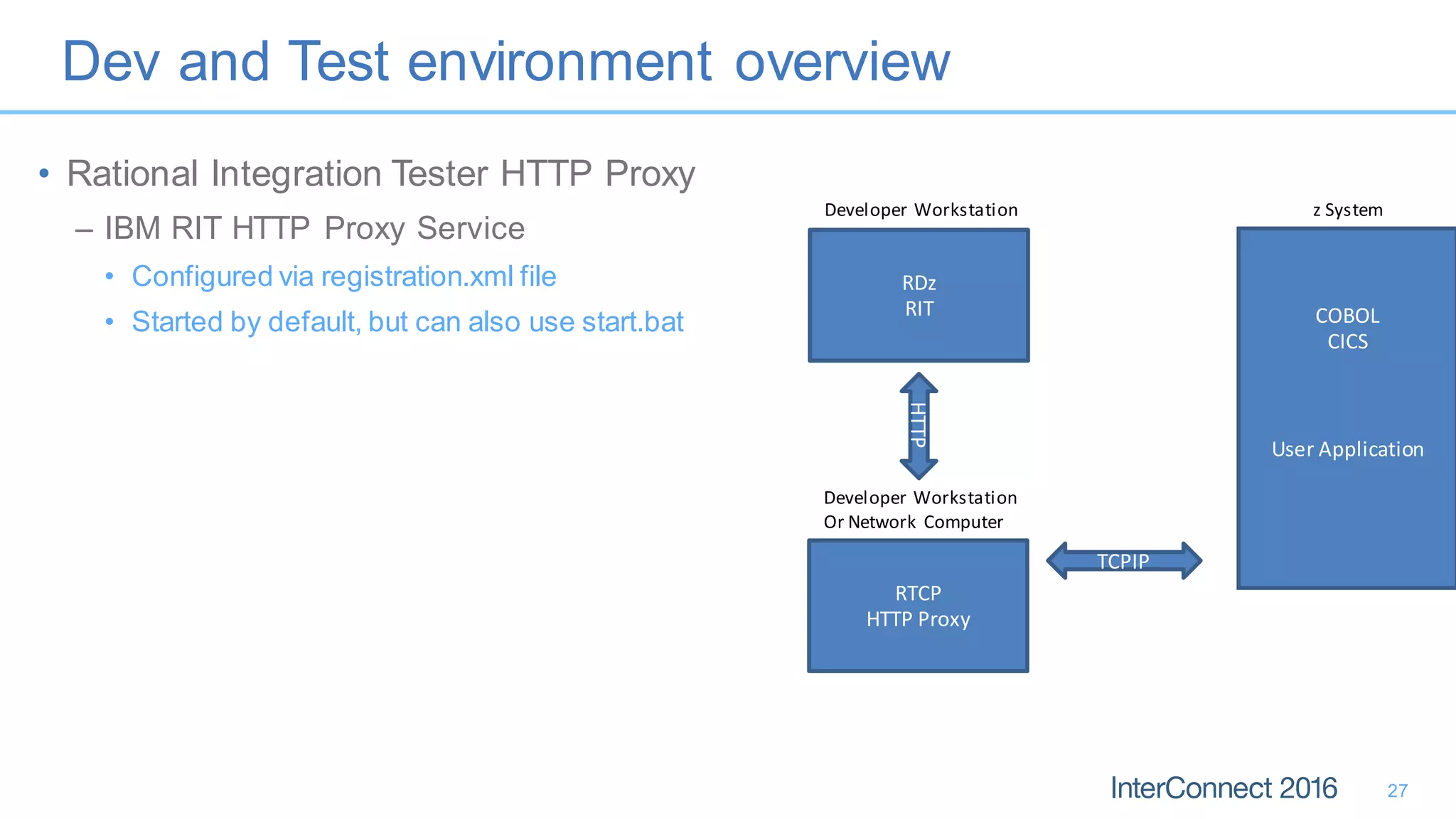

28. Dev and Test environment overview
27
• Rational Integration Tester HTTP Proxy
– IBM RIT HTTP Proxy Service
• Configured via registration.xml file
• Started by default, but can also use start.bat COBOL
CICS
User Application
RDz
RIT
Developer Workstation z System
RTCP
HTTP Proxy
Developer Workstation
Or Network Computer
TCPIP
HTTP

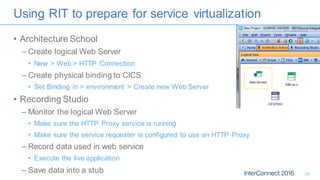

29. Using RIT to prepare for service virtualization
• Architecture School
– Create logical Web Server
• New > Web > HTTP Connection
– Create physical binding to CICS
• Set Binding in > environment > Create new Web Server
• Recording Studio
– Monitor the logical Web Server
• Make sure the HTTP Proxy service is running
• Make sure the service requester is configured to use an HTTP Proxy
– Record data used in web service
• Execute the live application
– Save data into a stub 28

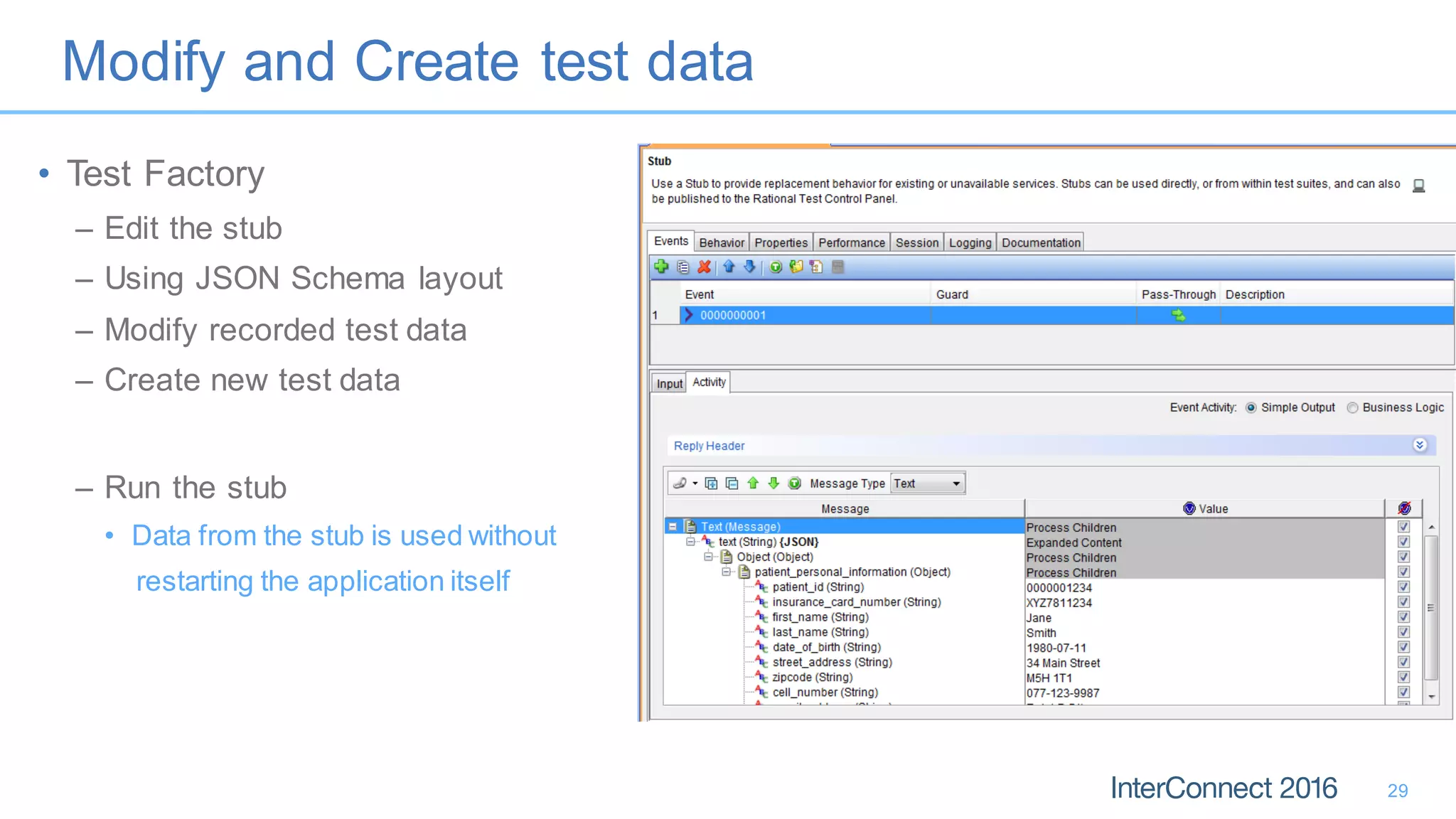

30. Modify and Create test data
29
• Test Factory
– Edit the stub
– Using JSON Schema layout
– Modify recorded test data
– Create new test data
– Run the stub
• Data from the stub is used without
restarting the application itself

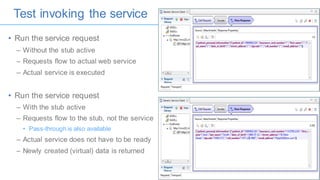

31. 30

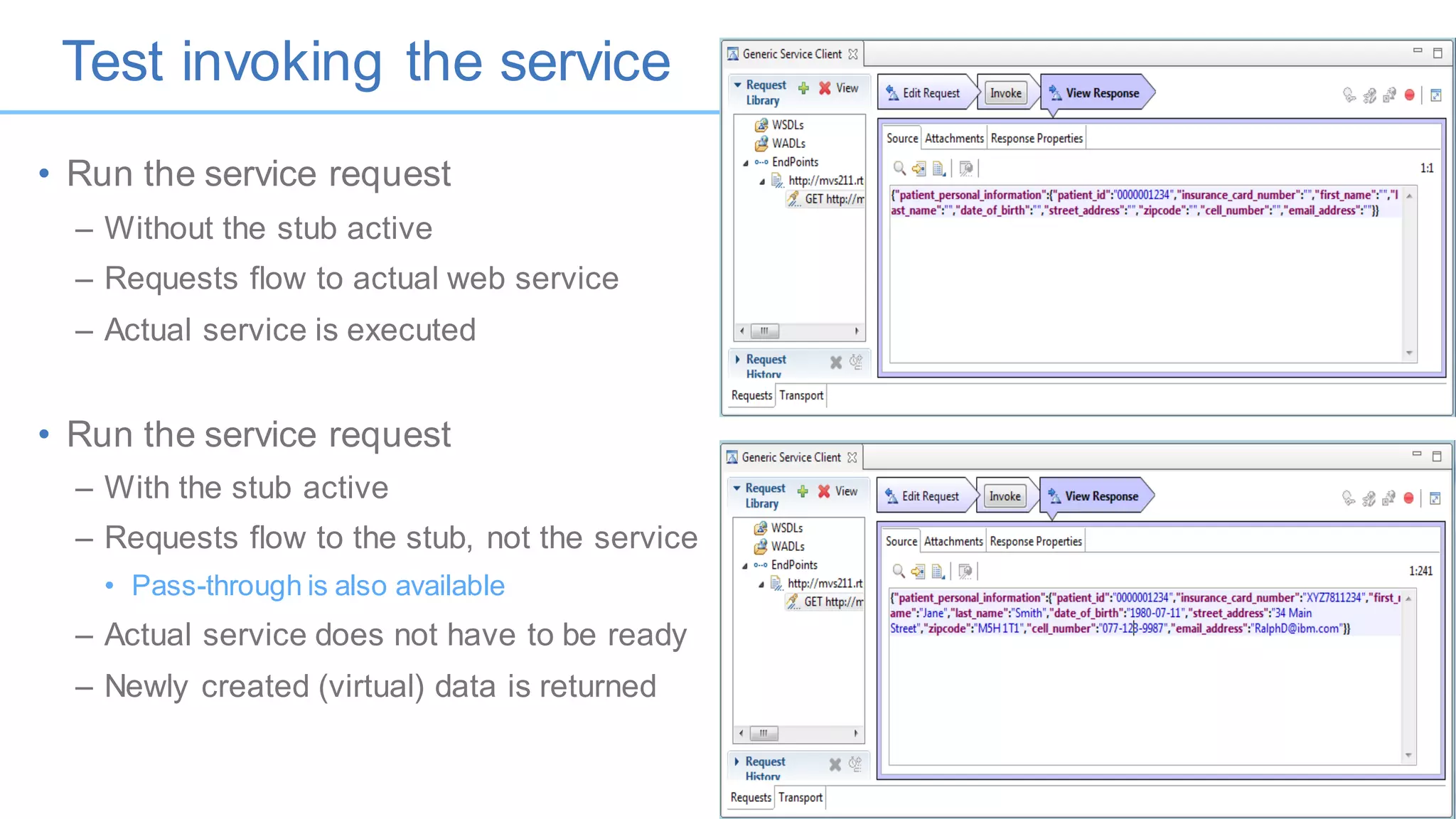

• Run the service request
– Without the stub active
– Requests flow to actual web service
– Actual service is executed
• Run the service request
– With the stub active
– Requests flow to the stub, not the service
• Pass-through is also available
– Actual service does not have to be ready
– Newly created (virtual) data is returned
Test invoking the service

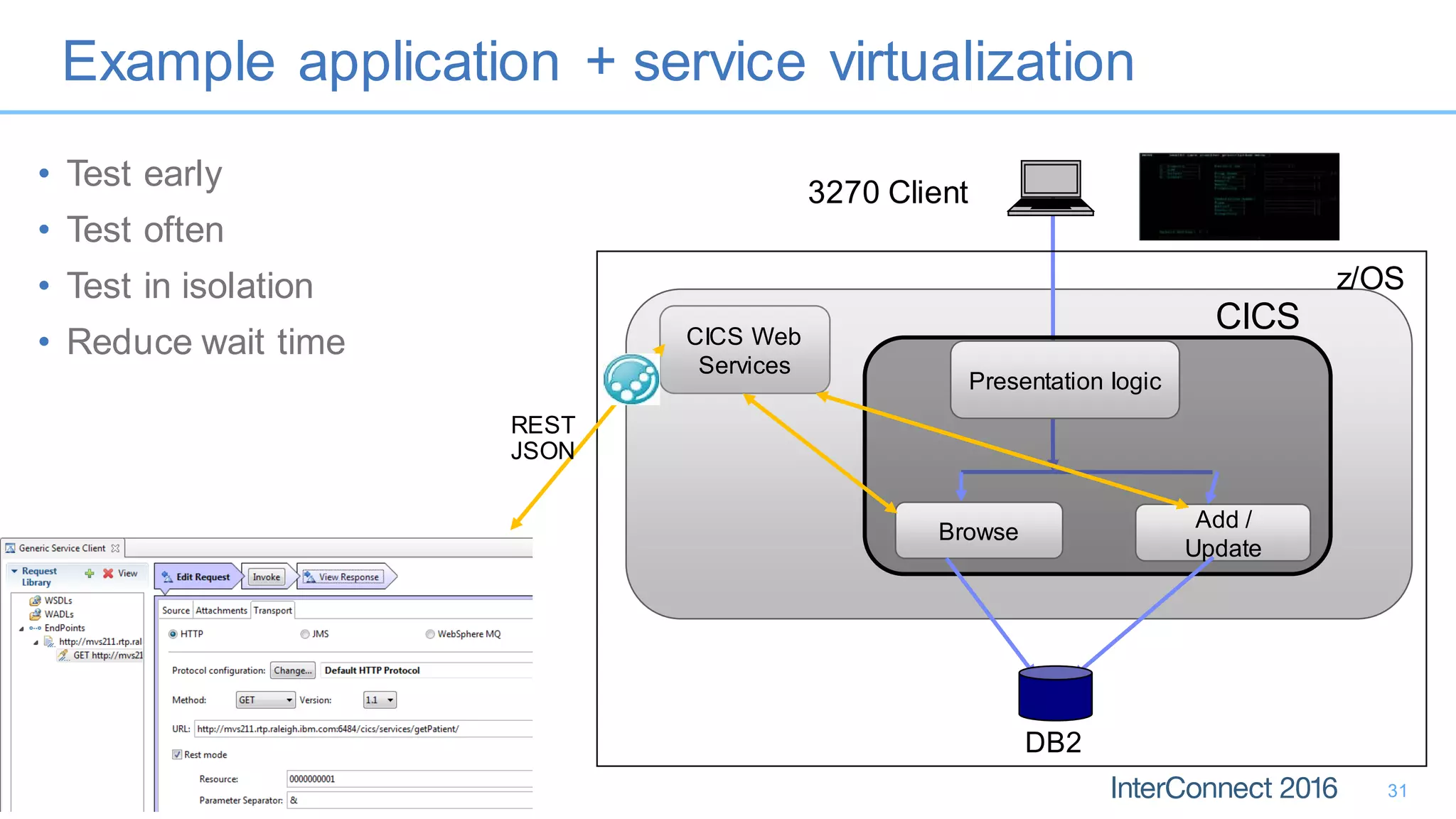

32. Example application + service virtualization
31
z/OS
CICS Web
Services
CICS
Presentation logic
Add /
Update
Browse
3270 Client
DB2
• Test early
• Test often
• Test in isolation
• Reduce wait time
REST
JSON

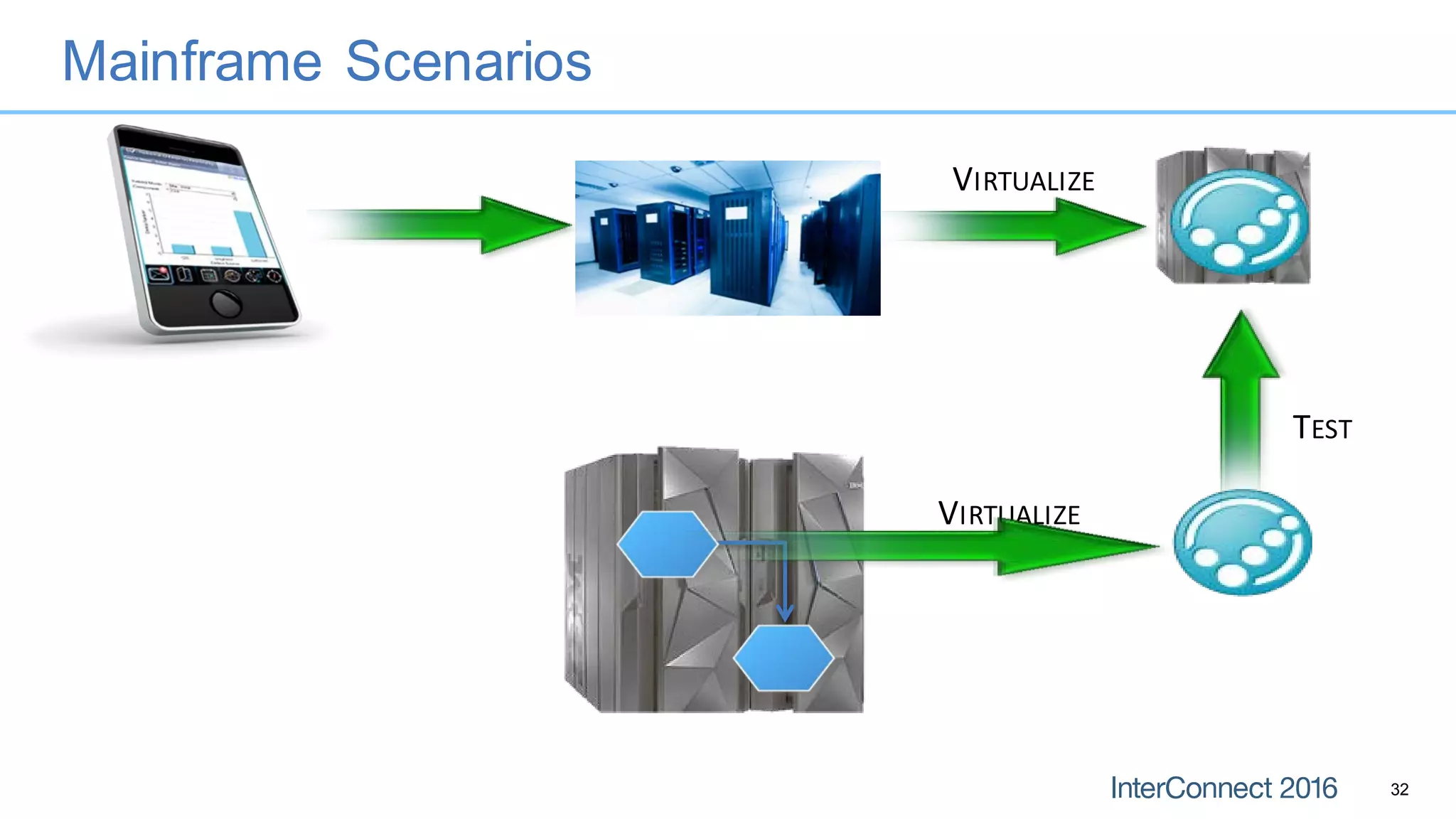

33. Mainframe Scenarios
32
TEST
VIRTUALIZE
VIRTUALIZE

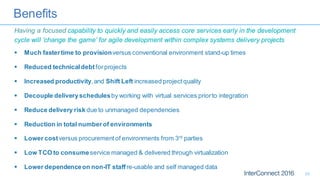

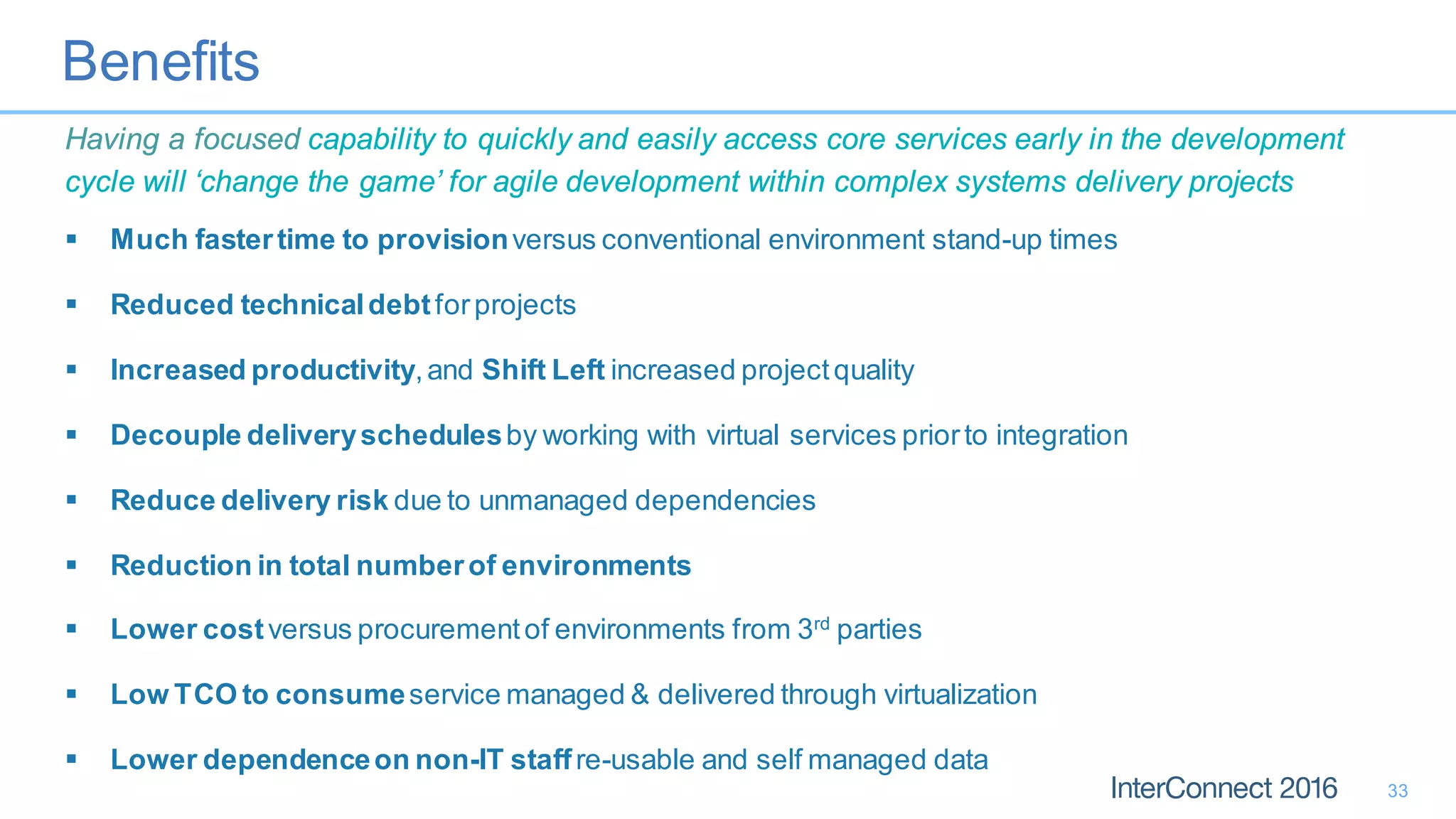

34. Benefits
33
Having a focused capability to quickly and easily access core services early in the development
cycle will ‘change the game’ for agile development within complex systems delivery projects
 Much fastertime to provisionversus conventional environment stand-up times
 Reduced technicaldebtforprojects
 Increased productivity,and Shift Left increased projectquality
 Decouple deliveryschedulesby working with virtual services priorto integration
 Reduce delivery risk due to unmanaged dependencies
 Reduction in total numberof environments
 Lower costversus procurementof environments from 3rd
parties
 Low TCO to consumeservice managed & delivered through virtualization
 Lower dependenceon non-IT staffre-usable and self managed data

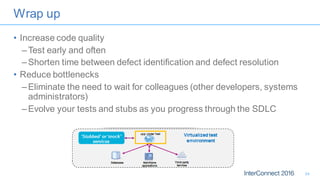

35. • Increase code quality
–Test early and often
–Shorten time between defect identification and defect resolution
• Reduce bottlenecks
–Eliminate the need to wait for colleagues (other developers, systems
administrators)
–Evolve your tests and stubs as you progress through the SDLC
34
Wrap up

36. • Rational Test Workbench: https://ibm.biz/BdHs5T
• Rational Developer for z Systems: https://ibm.biz/BdHkuU
• IBM DevOps page: http://ibm.com/DevOps
• IBM DevOps for Enterprise Systems: http://bit.ly/1PB02KS
• IBM Enterprise DevOps for z Systems cloud-based trial:
– https://ibm.biz/BdH666
• For Dummies books:
– https://ibm.biz/mmdevops
– http://ibm.co/devopsfordummies
– http://ibm.co/agilefordummies
– http://ibm.co/ServiceVirtualizationForDummies
– http://ibm.co/ARDfordummies 35

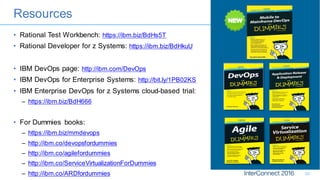

Resources

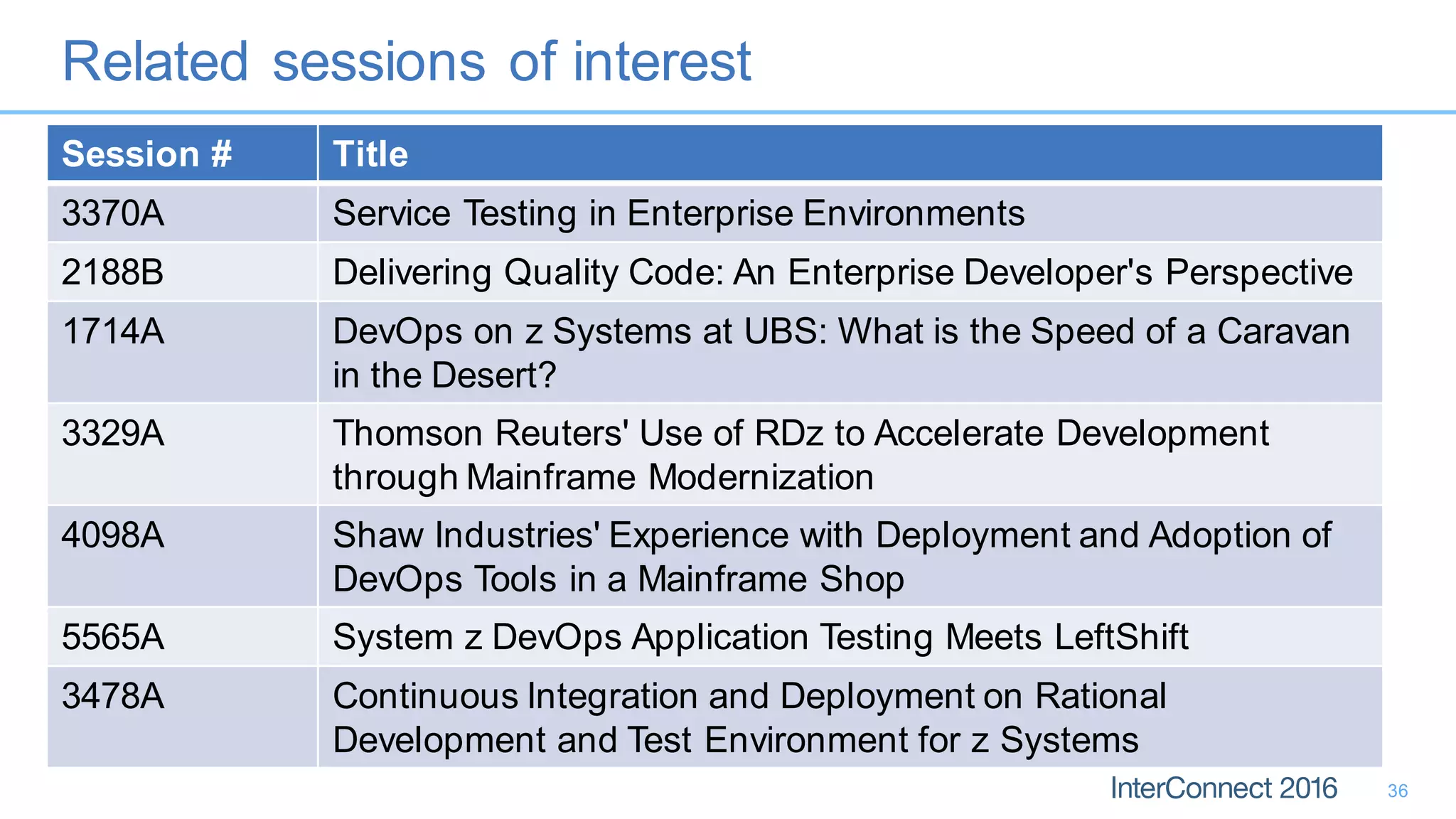

37. Related sessions of interest
Session # Title
3370A Service Testing in Enterprise Environments
2188B Delivering Quality Code: An Enterprise Developer's Perspective
1714A DevOps on z Systems at UBS: What is the Speed of a Caravan
in the Desert?
3329A Thomson Reuters' Use of RDz to Accelerate Development
through Mainframe Modernization
4098A Shaw Industries' Experience with Deployment and Adoption of
DevOps Tools in a Mainframe Shop
5565A System z DevOps Application Testing Meets LeftShift
3478A Continuous Integration and Deployment on Rational
Development and Test Environment for z Systems
36

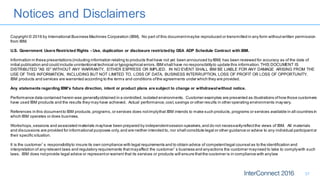

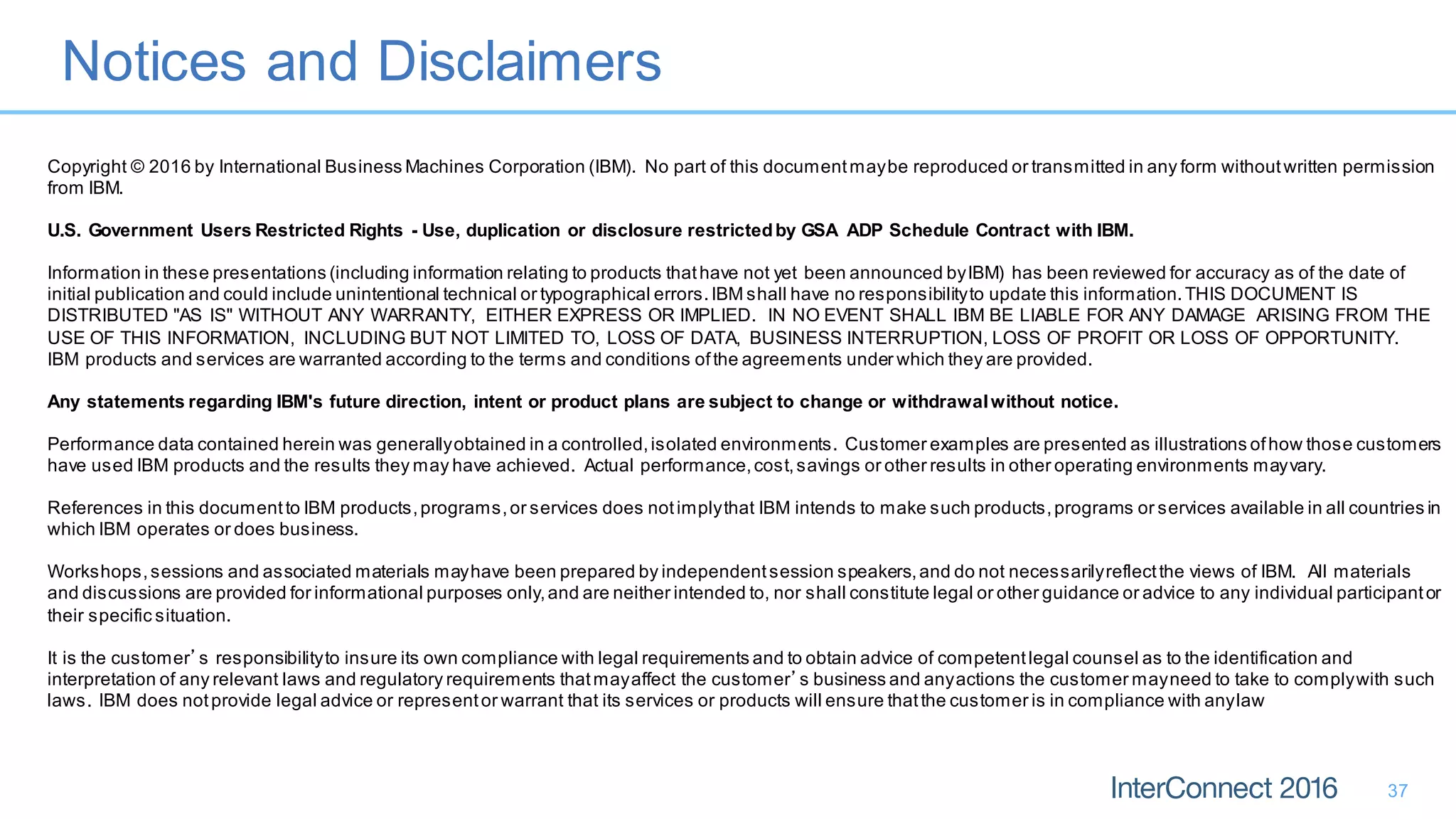

38. Notices and Disclaimers
37
Copyright © 2016 by International Business Machines Corporation (IBM). No part of this documentmaybe reproduced or transmitted in any form withoutwritten permission
from IBM.
U.S. Government Users Restricted Rights - Use, duplication or disclosure restrictedby GSA ADP Schedule Contract with IBM.
Information in these presentations (including information relating to products thathave not yet been announced byIBM) has been reviewed for accuracy as of the date of
initial publication and could include unintentional technical or typographical errors.IBM shall have no responsibilityto update this information.THIS DOCUMENT IS
DISTRIBUTED "AS IS" WITHOUT ANY WARRANTY, EITHER EXPRESS OR IMPLIED. IN NO EVENT SHALL IBM BE LIABLE FOR ANY DAMAGE ARISING FROM THE
USE OF THIS INFORMATION, INCLUDING BUT NOT LIMITED TO, LOSS OF DATA, BUSINESS INTERRUPTION, LOSS OF PROFIT OR LOSS OF OPPORTUNITY.
IBM products and services are warranted according to the terms and conditions ofthe agreements under which they are provided.
Any statements regarding IBM's future direction, intent or product plans are subject to change or withdrawalwithout notice.
Performance data contained herein was generallyobtained in a controlled,isolated environments. Customer examples are presented as illustrations ofhow those customers
have used IBM products and the results they may have achieved. Actual performance,cost,savings or other results in other operating environments mayvary.
References in this documentto IBM products,programs,or services does notimplythat IBM intends to make such products,programs or services available in all countries in
which IBM operates or does business.
Workshops,sessions and associated materials mayhave been prepared by independentsession speakers,and do not necessarilyreflectthe views of IBM. All materials
and discussions are provided for informational purposes only,and are neither intended to, nor shall constitute legal or other guidance or advice to any individual participantor
their specific situation.
It is the customer’s responsibilityto insure its own compliance with legal requirements and to obtain advice of competentlegal counsel as to the identification and
interpretation of any relevant laws and regulatory requirements thatmayaffect the customer’s business and anyactions the customer mayneed to take to complywith such
laws. IBM does notprovide legal advice or representor warrant that its services or products will ensure thatthe customer is in compliance with anylaw

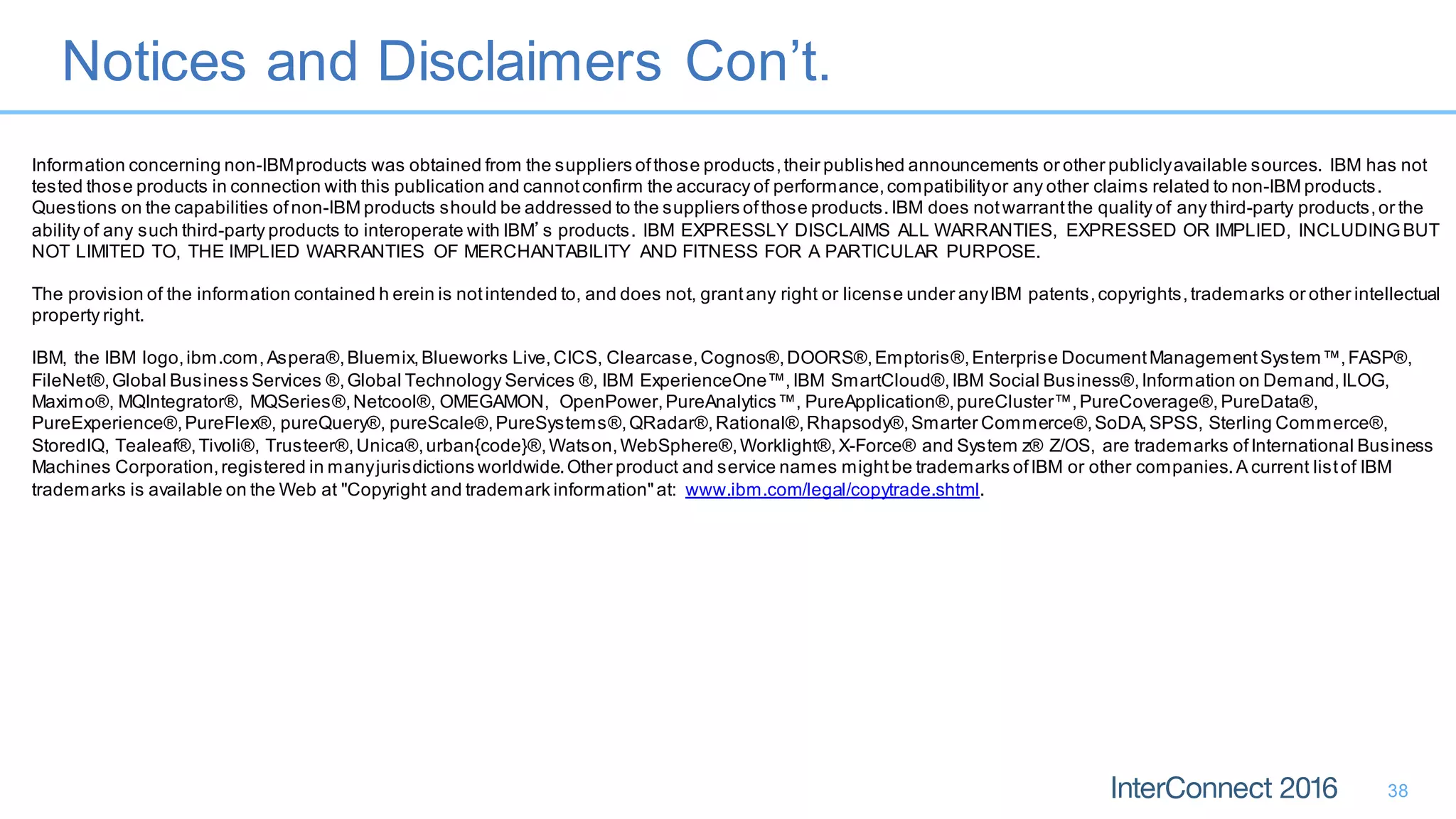

39. Notices and Disclaimers Con’t.
38
Information concerning non-IBMproducts was obtained from the suppliers ofthose products,their published announcements or other publiclyavailable sources. IBM has not
tested those products in connection with this publication and cannotconfirm the accuracy of performance,compatibilityor any other claims related to non-IBM products.
Questions on the capabilities ofnon-IBM products should be addressed to the suppliers ofthose products.IBM does notwarrantthe quality of any third-party products,or the
ability of any such third-party products to interoperate with IBM’s products. IBM EXPRESSLY DISCLAIMS ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDINGBUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
The provision of the information contained h erein is notintended to, and does not, grantany right or license under anyIBM patents,copyrights,trademarks or other intellectual
property right.
IBM, the IBM logo,ibm.com,Aspera®,Bluemix,Blueworks Live,CICS, Clearcase,Cognos®,DOORS®,Emptoris®,Enterprise DocumentManagementSystem™,FASP®,
FileNet®,Global Business Services ®,Global Technology Services ®, IBM ExperienceOne™,IBM SmartCloud®,IBM Social Business®,Information on Demand,ILOG,
Maximo®, MQIntegrator®, MQSeries®,Netcool®, OMEGAMON, OpenPower,PureAnalytics™, PureApplication®,pureCluster™,PureCoverage®, PureData®,
PureExperience®,PureFlex®, pureQuery®, pureScale®,PureSystems®,QRadar®,Rational®,Rhapsody®,Smarter Commerce®,SoDA,SPSS, Sterling Commerce®,
StoredIQ, Tealeaf®,Tivoli®, Trusteer®,Unica®,urban{code}®,Watson,WebSphere®,Worklight®,X-Force® and System z® Z/OS, are trademarks ofInternational Business
Machines Corporation,registered in manyjurisdictions worldwide.Other product and service names mightbe trademarks ofIBM or other companies.A current listof IBM
trademarks is available on the Web at "Copyright and trademark information"at: www.ibm.com/legal/copytrade.shtml.

40. Thank You
Your Feedback is Important!
Access the InterConnect 2016 Conference Attendee
Portal to complete your session surveys from your
smartphone,
laptop or conference kiosk.
