The document provides product details for two magnetic stirrer models, HS2 and HS3. Both models are highly chemically resistant and ideal for laboratory stirring and heating applications. The HS2 uses analog temperature control while the HS3 uses digital temperature control. Key features include a flat or round hot plate, reliable temperature control up to 250°C, a 500W heating power, speeds up to 1400 rpm, and safety features like auto cut-off of heating.

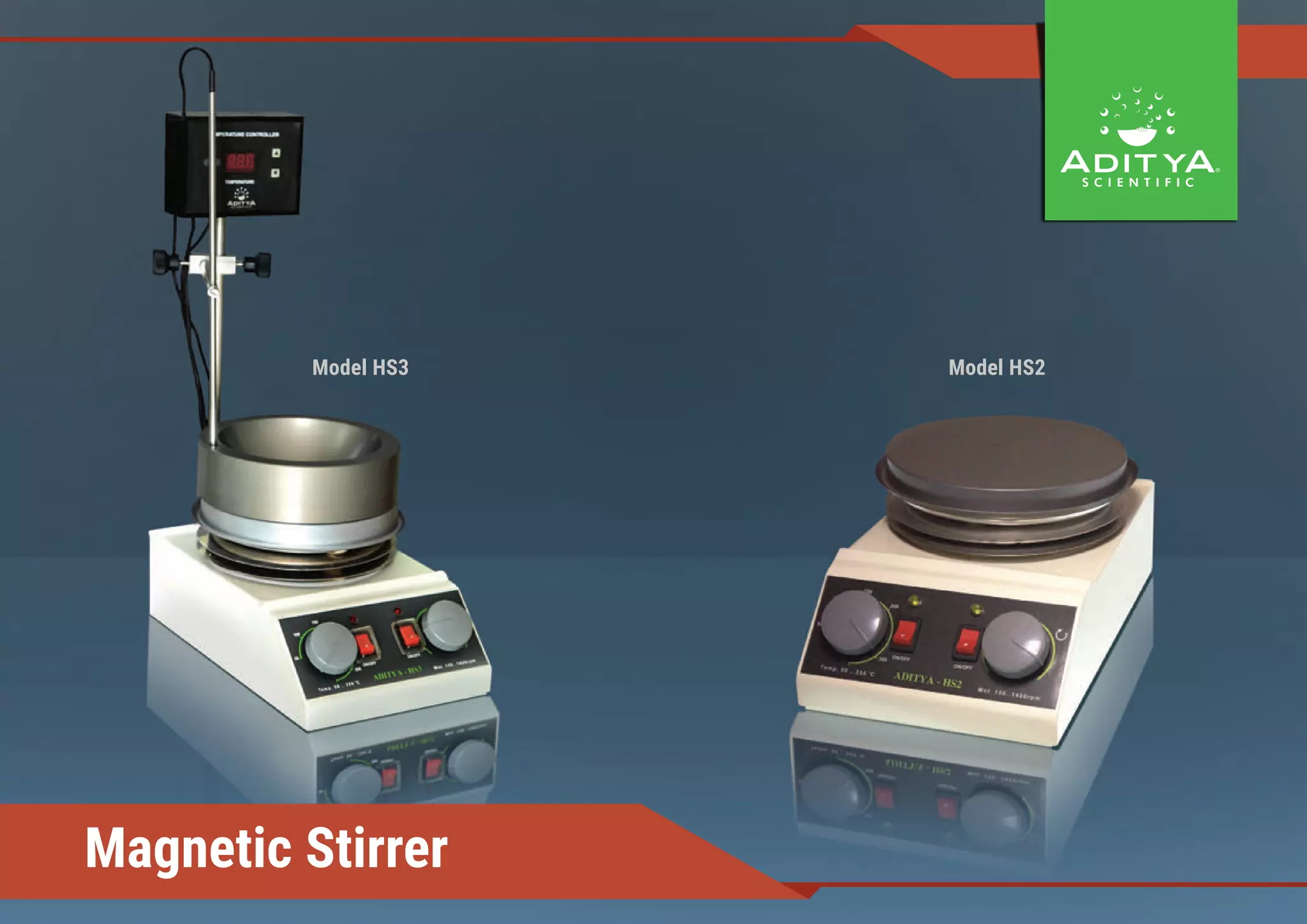

1. Magnetic Stirrer
Model HS3 Model HS2

2. PRODUCT DATASHEET
ADITYA Magnetic Stirrers, HS2 & HS3 are highly chemical resistant to acid, alkali and oil. Ideal for all types of laboratory stirring and
heating applications. High level of safety, thanks to the improved heat control technology. These stirrers give high level of reliability
even at low speed and high temperatures. The stirring speed is controlled by electronic circuit and temperature is controlled by closed
loop thermostat control.
Magnetic Stirrer
Features
HS2 (Analog Temperature Control) HS3 (Digital Temperature Control)
Magnetic stirrers with new flat and
round hot plate
Highly reliable temperature control
All units come with a heating power
of 500 W for fast heating-up
High-efficiency motor with low power
consumption
Hot plate temperature range: 50 - 250°C,
Medium Temperature range: up to 200 °C
Wide speed range up to 1400 rpm
Excellent stirring results in volumes
up to 20 L (H2O)
Enhanced heavy-duty stirring magnet
drives stirring bars with ease
Maintenance-free motors with smooth
start feature
Safety logic for Auto Cut Off of heating
plate temperature when using digital
temperature controller optional available
for this model.
Stand support to save space and avoid
additional accessories

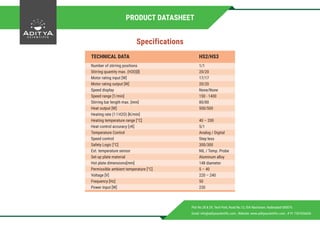

3. Specifications
Plot No.28 & 29, Tech Park, Road No.12, IDA Nacharam, Hyderabad-500076.
Email: info@adityascientific.com , Website: www.adityascientific.com , # 91 7207656656
TECHNICAL DATA HS2/HS3
Number of stirring positions
Stirring quantity max. (H20)[l]
Motor rating input [W]
Motor rating output [W]
Speed display
Speed range [1/min]
Stirring bar length max. [mm]
Heat output [W]
Heating rate (1 l H2O) [K/min]
Heating temperature range [°C]
Heat control accuracy [±K]
Temperature Control
Speed control
Safety Logic [°C]
Ext. temperature sensor
Set-up plate material
Hot plate dimensions[mm]
Permissible ambient temperature [°C]
Voltage [V]
Frequency [Hz]
Power Input [W]
1/1
20/20
17/17
20/20
None/None
150 - 1400
80/80
500/500
40 – 200
5/1
Analog / Digital
Step less
300/300
NIL / Temp. Probe
Aluminum alloy
148 diameter
5 – 40
220 – 240
50
230
