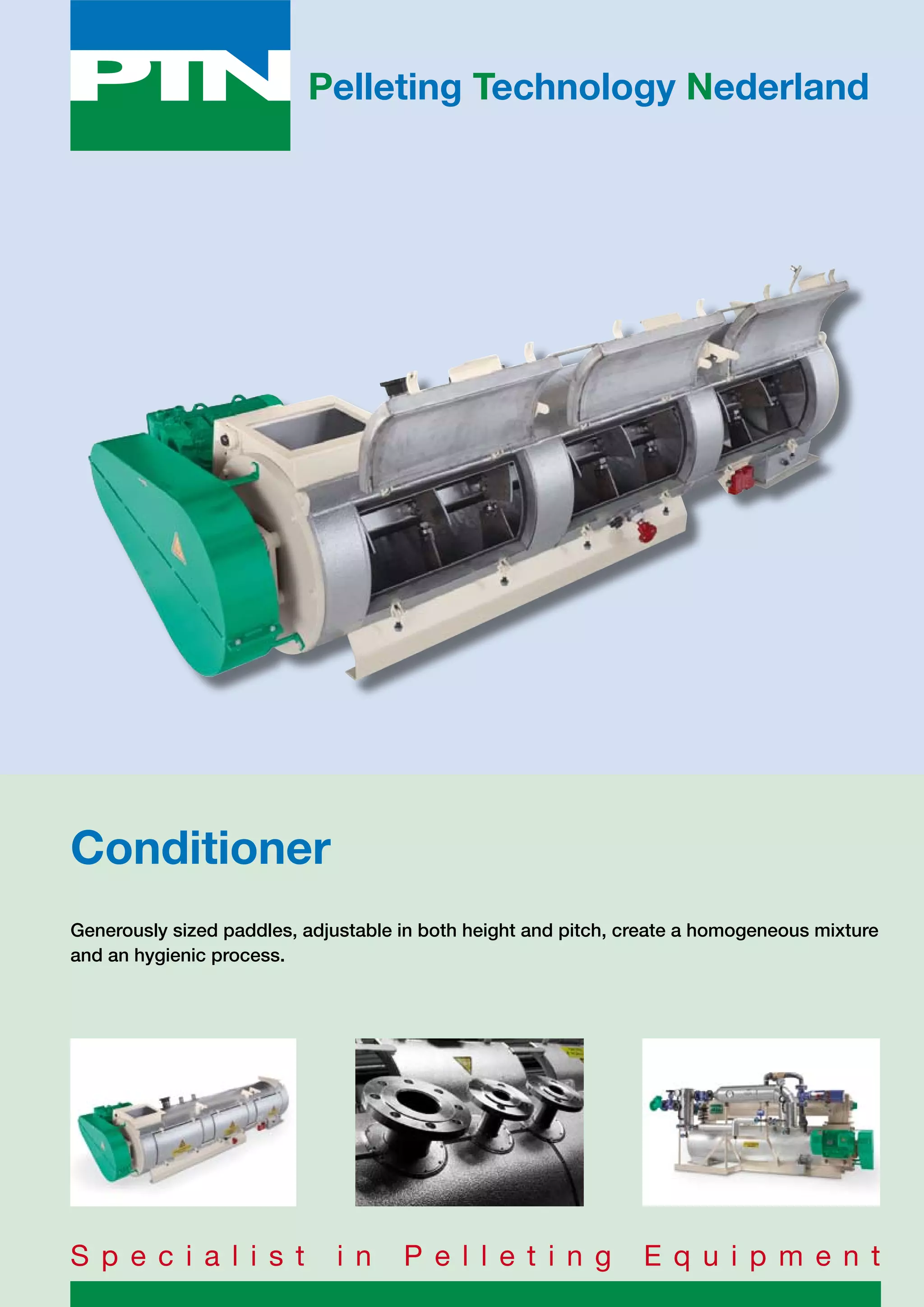

1. Pelleting Technology Nederland
Conditioner
Generously sized paddles, adjustable in both height and pitch, create a homogeneous mixture
and an hygienic process.
S p e c i a l i s t i n P e l l e t i n g E q u i p m e n t

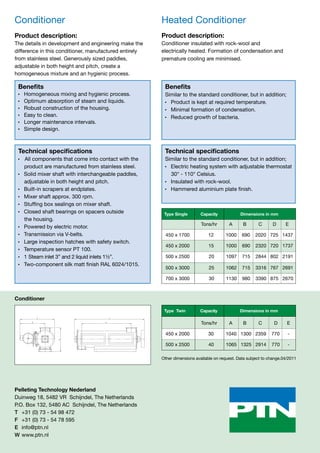

2. Benefits
l
Homogeneous mixing and hygienic process.
l
Optimum absorption of steam and liquids.
l
Robust construction of the housing.
l
Easy to clean.
l
Longer maintenance intervals.
l
Simple design.
Product description:
The details in development and engineering make the
difference in this conditioner, manufactured entirely
from stainless steel. Generously sized paddles,
adjustable in both height and pitch, create a
homogeneous mixture and an hygienic process.
Conditioner
Pelleting Technology Nederland
Duinweg 18, 5482 VR Schijndel, The Netherlands
P.O. Box 132, 5480 AC Schijndel, The Netherlands
T +31 (0) 73 - 54 98 472
F +31 (0) 73 - 54 78 595
E info@ptn.nl
W www.ptn.nl
Technical specifications
l
All components that come into contact with the
product are manufactured from stainless steel.
l
Solid mixer shaft with interchangeable paddles,
adjustable in both height and pitch.
l
Built-in scrapers at endplates.
l
Mixer shaft approx. 300 rpm.
l
Stuffing box sealings on mixer shaft.
l
Closed shaft bearings on spacers outside
the housing.
l
Powered by electric motor.
l
Transmission via V-belts.
l
Large inspection hatches with safety switch.
l
Temperature sensor PT 100.
l
1 Steam inlet 3” and 2 liquid inlets 1½”.
l
Two-component silk matt finish RAL 6024/1015.
Conditioner
Heated Conditioner
Benefits
Similar to the standard conditioner, but in addition;
l
Product is kept at required temperature.
l
Minimal formation of condensation.
l
Reduced growth of bacteria.
Product description:
Conditioner insulated with rock-wool and
electrically heated. Formation of condensation and
premature cooling are minimised.
Technical specifications
Similar to the standard conditioner, but in addition;
l
Electric heating system with adjustable thermostat
30° - 110° Celsius.
l
Insulated with rock-wool.
l
Hammered aluminium plate finish.
Other dimensions available on request. Data subject to change.04/2011
Type Single Capacity Dimensions in mm
Tons/hr A B C D E
450 x 1700 12 1000 690 2020 725 1437
450 x 2000 15 1000 690 2320 720 1737
500 x 2500 20 1097 715 2844 802 2191
500 x 3000 25 1062 715 3316 767 2691
700 x 3000 30 1130 980 3390 875 2670
Type Twin Capacity Dimensions in mm
Tons/hr A B C D E
450 x 2000 30 1040 1300 2359 770 -
500 x 2500 40 1065 1325 2914 770 -
