1. BRAILLON
M
AGETICS
USA
2
020
5
1
BOBINES
AIMANT
PIECE
C H I C A G O
2020 DEALS
REF 10.25
MAGNETIC CHUCKS
ELECTRO-PERMANENT
FOR GRINDING AND EDM
APPLICATION TYPE EPEFINE2
| Grinding | Metrology | EDM |
GRINDING
Reference
Weight
Kg
A
inch.
B
inch.
C
inch.
10.25.5.300150 25,0 11.811 5,906 2,677
10.25.5.450150 35,0 17.717 5,906 2,677
10.25.5.500200 60,0 19.685 7,874 2,677
10.25.5.600200 75,0 23.622 7,874 2,677
10.25.5.600250 97,0 23.622 9,843 2,677
10.25.5.700250 120,0 27.559 9,843 2,677
10.25.5.1000250 165,0 39.370 9,843 2,677
10.25.5.500300 84,0 19.685 11.811 2,677
10.25.5.600300 115,0 23.622 11.811 2,677
10.25.5.700300 147,0 27.559 11.811 2,677
10.25.5.900300 160,0 35.433 11.811 2,677
10.25.5.1000300 170,0 39.370 11.811 2,677
10.25.5.1200300 202,0 47.244 11.811 2,677
10.25.5.1500300 252,0 59.055 11.811 2,677
10.25.5.600400 134,0 23.622 15,748 2,677
10.25.5.800400 180,0 31.496 15,748 2,677
10.25.5.1000400 225,0 39.370 15,748 2,677
10.25.5.1200400 270,0 47.244 15,748 2,677
10.25.5.800500 225,0 31.496 19,685 2,677
10.25.5.1000500 250,0 39.370 19,685 2,677
Other sizes on request
WITH FULL
DEMAGNETIZATION
All BRAILLON MAGNETICS Electro-Permanent
chucks integrate the full demagnetization
concept.
During demagnetization cycle, the Alnico
magnets are completely demagnetized due
to a series of decreasing electric impluses
according to the know how of BRAILLON
MAGNETICS.
The full demagnetization permits to reach the
lowest possible residual magnetism level in
the workpiece, including the workpieces
made of high-alloy steel.
1. Non magnetized
The magnets are not polarized
2. Magnetization
Energizing the coils creates the magnetic field
3. Magnetized
The magnetic field is maintained by the magnets
Extra thin
pole pitch.
Ideal for thin parts
Homogenous force
throughout entire
chuck
Options : slots
on the long side
CONTROL UNIT WITH REMOTE CONTROL
MC20 + T20
NEW x Digital
x Self diagnostic

2. BRAILLON
M
AGETICS
USA
2
020
BRAILLON MAGNETIC SYSTEMS INC.
2333 Wisconsin Ave - Downers Grove 60515 IL – USA
usa@braillon.com - www.braillon.com - Phone 312.912.1355 C H I C A G O 2020 DEALS

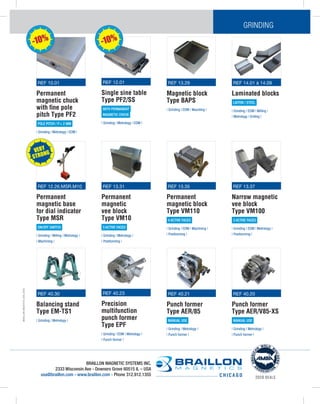

GRINDING
REF 12.01
Single sine table
Type PF2/SS
WITH PERMANENT
MAGNETIC CHUCK
| Grinding | Metrology | EDM |
REF 14.01 à 14.09
Laminated blocks
LAITON / STEEL
| Grinding | EDM | Milling |
| Metrology | Drilling |
REF 13.29
Magnetic block
Type BAPS
| Grinding | EDM | Mounting |
REF 40.30
Balancing stand
Type EM-TS1
| Grinding | Metrology |
REF 10.01
Permanent
magnetic chuck
with fine pole
pitch Type PF2
POLE PITCH / P= 2 MM
| Grinding | Metrology | EDM |
REF 40.23
Precision
multifunction
punch former
Type EPF
| Grinding | EDM | Metrology |
| Punch former |
REF 13.31
Permanent
magnetic
vee block
Type VM10
3 ACTIVE FACES
| Grinding | Metrology |
| Positionning |
REF 13.35
Permanent
magnetic block
Type VM110
4 ACTIVE FACES
| Grinding | EDM | Machining |
| Positionning |
REF 13.37
Narrow magnetic
vee block
Type VM100
3 ACTIVE FACES
| Grinding | EDM | Metrology |
| Positionning |
REF 40.21
Punch former
Type AER/85
MANUAL USE
| Grinding | Metrology |
| Punch former |
REF 40.20
Punch former
Type AER/V85-XS
MANUAL USE
| Grinding | Metrology |
| Punch former |
REF 12.26.MSR.M10
Permanent
magnetic base
for dial indicator
Type MSR
ON/OFF SWITCH
| Grinding | Milling | Metrology |
| Machining |
-10% -10%
VERY
STRONG
