The document discusses IBA MagicMax Universal, a device for quality assurance of medical imaging equipment. It can measure beam quality, display quality, and image quality for modalities like radiography, CT, and mammography. The document provides specifications for MagicMax Universal and its accessories. It also lists several hospitals and institutions in Indonesia that currently use MagicMax Universal for their quality control needs.

1. IBA MAGICMAX UNIVERSAL
RSUD.Cengkareng

2. Protect, Enhance, and Save Lives - 2 -
 PERMENKES NO. 83 TAHUN 2015
 Rumah sakit tipe A/B/C wajib memiliki fisikawan medis
 Fisikawan Medis memerlukan peralatan untuk melakukan pelayanan fisika medik
 PERKA BAPETEN NO. 4 TAHUN 2020
 Kondisi penyinaran harus tepat sehingga menghasilkan kualitas citra yang baik.
Sehingga perlu dicek berkala kesesuaian antara nilai faktor eksposi dengan nilai
terukur
 Keputusan Kepala BAPETEN NO. 1211/K/V/2021
 Tentang penetapan nilai tingkat panduan diagnostik indonesia untuk modalitas
sinar-x CT-Scan dan Radiografi Umum
Dasar Peraturan

3. Protect, Enhance, and Save Lives - 3 -
IBA Medical Imaging
Full QA Solution Provider
Beam
Quality
Display
Quality
Quality

4. Protect, Enhance, and Save Lives - 4 -
Beam Quality - MagicMaX Universal
Exceptional ▪ Innovative ▪ One Integrated Solution
MagicMaX Universal
(Multimeter)
Specifications
Characteristic
Size (L x W x H) 145x 90 x 35mm
Weight approximate 280g
Bias range Up to 400 V
Wave Form
Recording time resolution
Recording time
Single phase to high freq.
 0.1 ms
 > 500 s

5. Protect, Enhance, and Save Lives - 5 -
Beam Quality - MagicMaX Universal Family
Exceptional ▪ Innovative ▪ One Integrated Solution
Radiography CT Mammography
One Solution for all X-Ray Modalities

6. Protect, Enhance, and Save Lives - 6 -
Beam Quality - MagicMaX Universal Family
Exceptional ▪ Innovative ▪ One Integrated Solution
kV Range Accuracy Total
filtration
range
Sensitivity
Rad/
Fluo
40 – 150 kV < ± 2 % or 0.7 kV 2 – 22 mm
(0.08” - 0.87”)
3 mm (0.11”) Al, 50 kV, 1 mA
@ 50 cm (19.7”)
CT 75 – 150 kV < ± 2 % or 0.7 kV 2 – 22 mm
(0.08” - 0.87”)
6 mm (0.24”) Al, 90 kV, 0.5
mA @ 50 cm (19.7”)
XR-detector
Dose range Dose rate range Energy dependence HVL Range
50 nGy – 50 Gy
5.7 mR – 5.7 kR
160 nGy/s – 160 mGy/s
684 µR/min – 1.094
kR/min
Auto corrected for 2 mm to
22 mm (0.08” – 0.86”) total
filtration for dose rates
above 200 µGy/s
1.3 mm – 10mm

7. Protect, Enhance, and Save Lives - 7 -
Beam Quality - MagicMaX Universal Family
Exceptional ▪ Innovative ▪ One Integrated Solution
XM-detector
Anode/Filter
Combination
Tube
kV
±2% or 0.7kV
Total
Filtration
[um]]
HVL [mm Al]
±10% or 0.05mm
Dose
±5%
Dose Rate
±5%
Time
±1% or 0.2 ms
Mo/Mo General 22- 49 20- 40 0.18 - 0.48
50nGy
-
50Gy
160
nGy/s
-
160mGy/
s
2 ms - 300 s
Mo/Rh General 22- 49 20- 40 0.20 - 0.54
Mo/Mo GE 22- 48 20- 40 0.18 - 0.48
Mo/Rh GE 22- 48 20- 40 0.20 - 0.54
Rh/Rh General 25- 48 20- 60 0.30 - 0.72
W/ Ag General 21- 38 20- 80 0.18 - 0.77
W/ Rh General 21- 38 20- 75 0.18 - 0-67
Measuring Range for CT Dose measuring range Dose rate measuring range
100kV – 150kV
(RQR 8 – RQR 10)
0.1 mGycm – 999 Gycm 1.00 mGycm / s - 0.5 Gycm/s
Ionization Chamber
DCT10-MM

8. Protect, Enhance, and Save Lives - 8 -
MagicMaX Universal Accessories
Exceptional ▪ Innovative ▪ One Integrated Solution
Specification Characteristics
Maximum current 2A
Measurement range 10 mA to 2A
0.1 mAs – 1000As
Size 183 mm x 61.3 mm x 35.6 mm
Working temp. +15°C – 35°C
Working humidity < 85% (rh without condensation)
Specification Characteristics
Connector Lemo, Triaxial plug
Detector cable length 200cm (about 6.5 ft)
Illuminance Measurement Range 0.1 to 10000 lx
V(λ) – Adjustment 6%
Cosine-Correction 3%
MagicMaX Current Probe
Illuminance Detector MM-LS

9. Protect, Enhance, and Save Lives - 9 -
Beam Quality - MagicMaX Universal Software
Exceptional ▪ Innovative ▪ One Integrated Solution
Computer Operating system:
 Operating system: Windows 7 32 and 64 bit, Windows
8/ 8.1, 64 bit, Windows 10 32 and 64 Bit
 Pentium processor (or equivalent), minimum 1.6 GHz
 1 GB RAM.
 600 MB free hard disk space
 DirectX 9.29.1973 or later
 Internet Explorer version 6 or later
 Microsoft .Net Framework 4.6.1 Client Framework
 Windows updates
 Minimum one USB 2.0 port

10. Protect, Enhance, and Save Lives - 10 -
Image Quality Phantoms
Multiple test integrated into one phantom
Primus A Pasmam
Innovative, Competent, Flexible
3-part PMMA

11. Protect, Enhance, and Save Lives - 11 -
Image Quality - Phantoms
Multiple test integrated into one phantom
 Base phantom (40mm) with AI-step wedge
 Structure plate (6mm) with rotable lead line
resolution test (5,6,7,8 & 10lp/mm)
 4 rows of metal balls for check of missed tissue at
chest wall side
 4PMMA-attenuation plates (2x10mm, 2x20mm)
 Three optimized phantom modules
 Flexible arrangement
 Applicable to both pediatric and adult head and
body
 Fulfill FDA performance standard
 17 step Dynamic step wedge
 8 Low Contrast Details
 Spatial resolution test 0.5 – 5 LP/mm

12. Protect, Enhance, and Save Lives - 12 -
Image Quality – 3-part PMMA Phantom

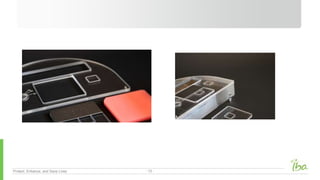

13. Protect, Enhance, and Save Lives - 13 -

14. Protect, Enhance, and Save Lives - 14 -
Image Quality – Primus A + BATT

15. Protect, Enhance, and Save Lives - 15 -
Video Demonstration

16. Protect, Enhance, and Save Lives - 17 -
Populasi
1. RSUD Majalengka
2. RSUD Cideres
3. RS Siloam TB Simatupang
4. RSUD Pasar Minggu
5. RSUD Cibitung
6. RSUP H. Adam Malik Medan
7. BPFK Jakarta
8. BAPETEN
9. RSUD dr. Loekmono Hadi Kudus
10. RSUP dr. Moh Hoesin Palembang
11. RSUP Sanglah Denpasar
12. RSUD. Tobelo
13. RSUD. Syekh Yusuf Gowa
14. RSUD. Buton
15. RSUD.Ir.Soekarno Bangka
16. Poltekes Jakarta
Daftar instansi dan rumah sakit yang sudah menggunakan IBA MagicMax Universal:

17. Protect, Enhance, and Save Lives - 18 -

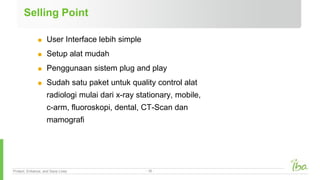

Selling Point
 User Interface lebih simple
 Setup alat mudah
 Penggunaan sistem plug and play
 Sudah satu paket untuk quality control alat
radiologi mulai dari x-ray stationary, mobile,
c-arm, fluoroskopi, dental, CT-Scan dan
mamografi

18. Thank you
