The Macron Mini 6-28 linear actuator is available in lengths up to 12 meters and features a NEMA 23 or 34 motor mounting. It has a repeatability of +/- 0.001 inches and accuracy of +/- 0.003 inches per 36 inches of travel. Additional options include sensors, extra carts, bellows, and a wrap-around cart. The actuator has a maximum speed of 200 inches per second and acceleration exceeding 5 G's.

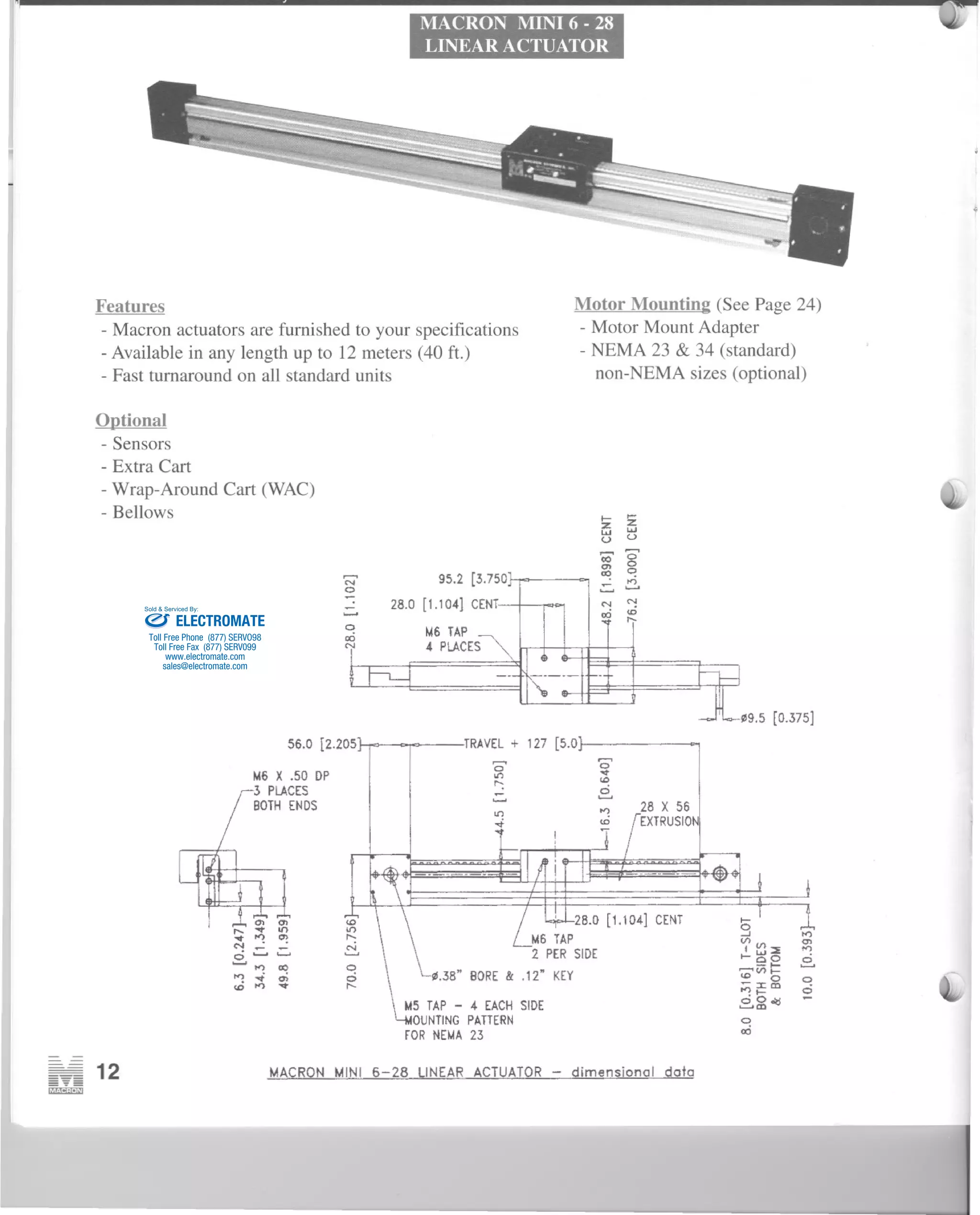

1. MACRON MINI 6 -28
LINEAR ACTUATOR
Features
-Macron actuators are furnished to your specifications
- Available in any length up to 12 meters (40 ft.)
- Fast turnaround on all standard units
Motor Mountin2 (See Page 24)
- Motor Mount Adapter
- NEMA 23 & 34 (standard)
non-NEMA sizes (optional)
Optional
- Sensors
- Extra Cart
- Wrap-Around Cart (WAC)
- Bellows
~9.5 [0.375]
56.0 [2.205 ,TRAVEL+ 127 [5.0
-------
o
o......
26.0 [1.104J CENT
1ot6TAP
'2 PERSIDE
.38" BORE& .12" KEY
t.t5 TAP- 4 EACHSIDE
OUNTINGPATTERN
FORNEMA23
12 MACRONMINI 6-28 LINEAR ACTUATOR- dimensional data
I- !Z%
w w
U U
cog
..-. C7I 0
N 95.2 [3.7 .,0
28.0 [1.104J CENT
r;-
t.l6 TAP
4 PLACES
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

2. MACRON MINI 6 -28
LINEAR ACTUATOR
TECHNICAL DATA
Specifications:
R~peatabili~
~~ne~~ccuE~cy
Breakaway Torque
Belt Tensile Limit
Belt Running Load- -
TravellRevolution
~~lley I.?iameter
Pulley ~eight (each)
Maxim?m Speed
!,-ccele~atio.?-Exceeding
Motor Mount/Coupling
+/- 0.001 in
;-/- 0.003 in per 36 in
8 - 10 oz-in
250 lbs
o - 50lbs
105 mmlrev (4.134 in/rev)
33.43 mm (1.316 in)
3.3 oz
200 in/see
5 G's
NEMA 23, 34 (standard),
non-NEMA sizes (optional)
Shipping Weight
I~ First meter of travel
Additional per meter
10 lbs
4lbs
Load Capacities
Dy'!!.aIpicHogzonta!
Static Horizontal
To C!.stomer Specifications
To Customer Specifications
Inertia Calculation
-W values of
actuators
:- wei~ht of cart & ~ardw~re
-weight of belt/meter of travel
-weight of (two) pulleys
weight
1.156 lbs
0.213 lbs/m
0.2121bs
inertia
0.501 lbs - in2
0.092 lbs - in2
0.046 lbs - in2
'0 For Multi-Axis Units and other specifications not listed, contact your local Distributor or
Macron for Engineering Design assistance and quotations.
