Amphenol LTW Technology Co., Ltd. specializes in high-end waterproof connectors for outdoor and industrial applications, holding multiple patents and certifications. Their new M12 screw terminal connectors are designed for robustness, providing IP67 rated waterproofing and security under mechanical stress, suitable for various industries like industrial automation and marine. For inquiries, contact their global sales team specialized in different market segments.

1. Specifications :
Innovation in Waterproof Solution
Amphenol LTW Technology Co., Ltd | 9F No. 657-12 Jungjeng Road, Shinjuang District, New Taipei City, Taiwan
Telephone: +886-2-2908-5626 | Fax: +886-2-2902-9787 | http://www.amphenolltw.com
* Design and specifications are subject to change without notice.
About Amphenol LTW
Amphenol LTW has actively devoted to various outdoor and industrial applications by successfully developing high-end
waterproof connectors to meet strict requirements; also has many worldwide patents and certification such as ISO 14001. ISO
9001 and NMEA 2000…etc.. Now Amphenol LTW is not merely a supplier of waterproof connectors but also a solution provider
in diversified market segments.
For more information, please contact:
Industrial Automation, Marine, and Other Markets:
Global: Luc Kan | Sales & Marketing | Email: luc@ltw-tech.com
LED Market:
Global: Edward Liu | Business Development Manager | Email: edward_liu@ltw-tech.com
North America: Anson Ting | LED Market Manager | Email: anson.ting@industrial-amphenol.com
Europe: Darren Boston | Business Development Manager EMEAR, LED Market | Email: darren_boston@ltw-tech.com
Applications :
Membership
Industrial Automation Marine LED Lighting Broadband Wireless Access

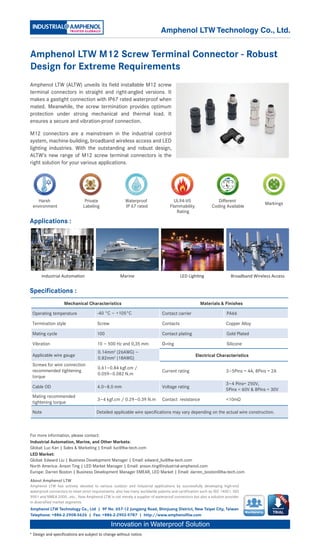

Amphenol LTW M12 Screw Terminal Connector - Robust
Design for Extreme Requirements
Amphenol LTW (ALTW) unveils its field installable M12 screw
terminal connectors in straight and right-angled versions. It
makes a gastight connection with IP67 rated waterproof when
mated. Meanwhile, the screw termination provides optimum
protection under strong mechanical and thermal load. It
ensures a secure and vibration-proof connection.
M12 connectors are a mainstream in the industrial control
system, machine-building, broadband wireless access and LED
lighting industries. With the outstanding and robust design,
ALTW’s new range of M12 screw terminal connectors is the
right solution for your various applications.
Mechanical Characteristics Materials & Finishes
Operating temperature -40 °C ~ +105°C Contact carrier PA66
Termination style Screw Contacts Copper Alloy
Mating cycle 100 Contact plating Gold Plated
Vibration 10 ~ 500 Hz and 0,35 mm O-ring Silicone
Applicable wire gauge
0.14mm2
(26AWG) ~
0.82mm2
(18AWG)
Electrical Characteristics
Screws for wire connection
recommended tightening
torque
0.61~0.84 kgf.cm /
0.059~0.082 N.m
Current rating 3~5Pins = 4A, 8Pins = 2A
Cable OD 4.0~8.0 mm Voltage rating
3~4 Pins= 250V,
5Pins = 60V & 8Pins = 30V
Mating recommended
tightening torque
3~4 kgf.cm / 0.29~0.39 N.m Contact resistance <10mΩ
Note Detailed applicable wire specifications may vary depending on the actual wire construction.
Amphenol LTW Technology Co., Ltd.
1
4
2
3
5
Waterproof
IP 67 rated
Harsh
environment
Private
Labeling
UL94-V0
Flammability
Rating
Different
Coding Available
Markings
