This document describes a loop power indicator device that measures 4-20mA DC input signals with 0.1% linearity and accuracy. It has a 0.56" 4-digit LED display, auto-senses polarity, allows decimal point selection, provides 5.5V forward voltage drop at 20mA, and includes adjustable zero and span calibration. The device is microcontroller-based and amplifies input signals while also powering attached sensors or transmitters.

1. Loop Power Indicator
Process Instruments

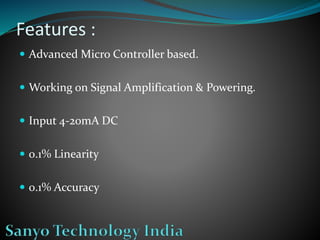

2. Features :
 Advanced Micro Controller based.
 Working on Signal Amplification & Powering.
 Input 4-20mA DC
 0.1% Linearity
 0.1% Accuracy

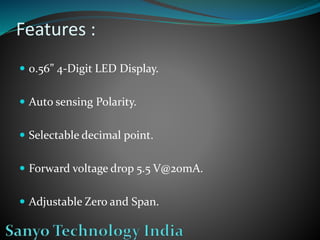

3. Features :
 0.56” 4-Digit LED Display.
 Auto sensing Polarity.
 Selectable decimal point.
 Forward voltage drop 5.5 V@20mA.
 Adjustable Zero and Span.

4. Sanyo Technology India
Thanks All
