This document describes a temperature transmitter that uses an advanced microcontroller to measure temperature from RTD or thermocouple sensors. It provides automatic cold junction compensation for thermocouples, has 0.5% accuracy for thermocouples and 0.2% accuracy for PT-100 RTDs, and outputs a 4-20mA signal proportional to the temperature through a current loop with up to 600 ohm load capacity. The transmitter can be head or DIN rail mounted and operates on a 12-36VDC power supply.

1. Temperature Transmitters
Process Instruments

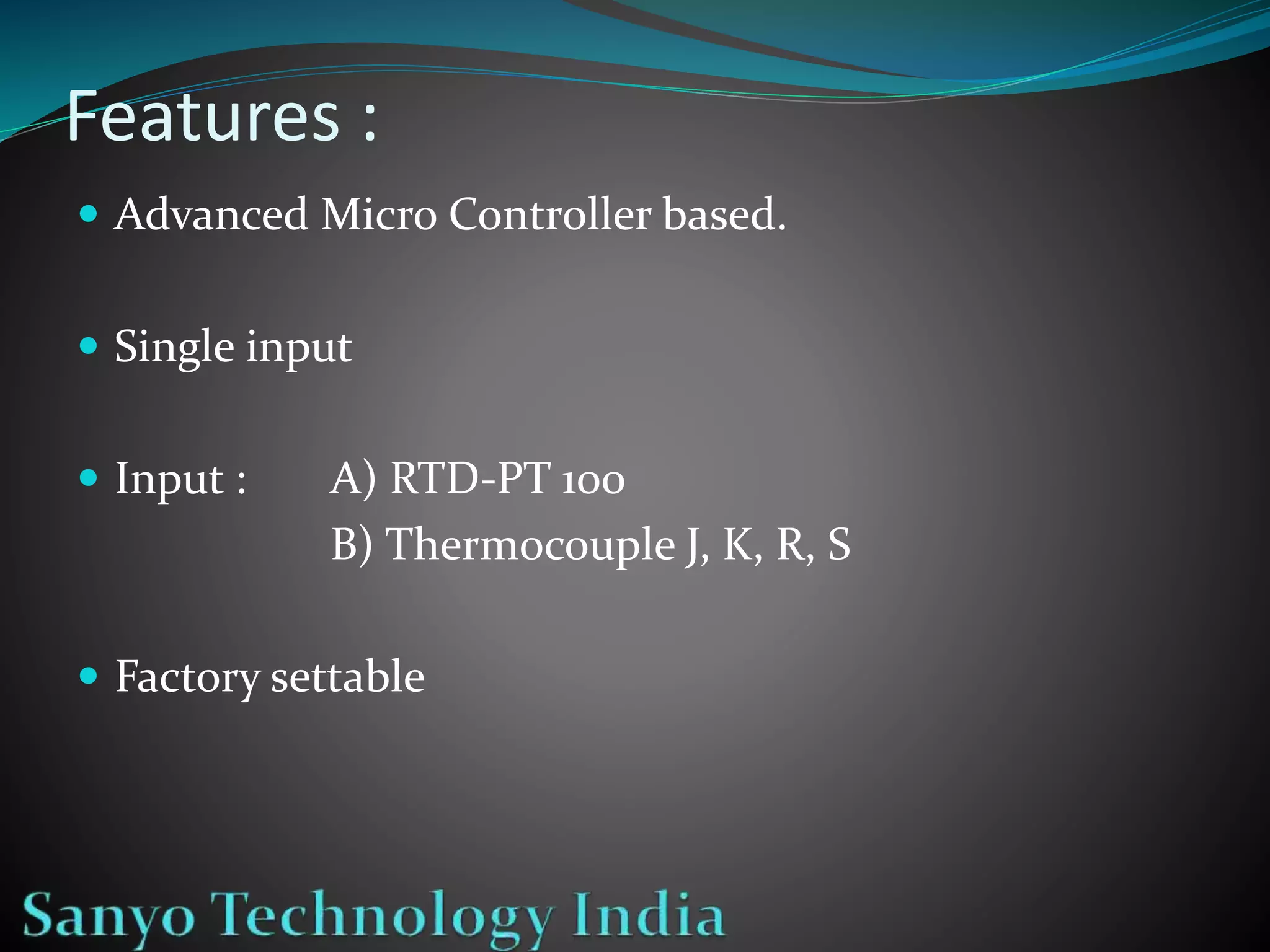

2. Features :
 Advanced Micro Controller based.
 Single input
 Input : A) RTD-PT 100
B) Thermocouple J, K, R, S
 Factory settable

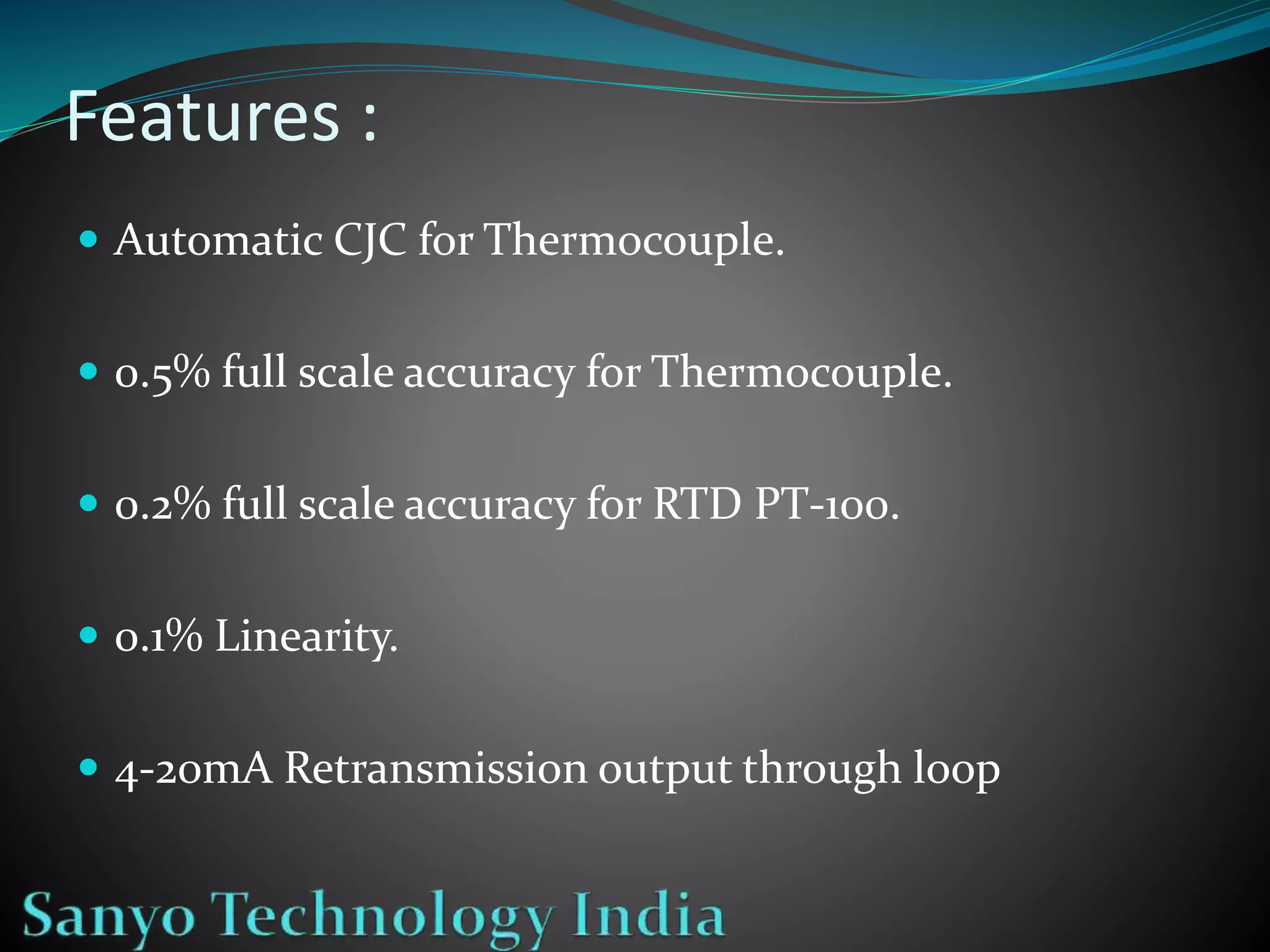

3. Features :
 Automatic CJC for Thermocouple.
 0.5% full scale accuracy for Thermocouple.
 0.2% full scale accuracy for RTD PT-100.
 0.1% Linearity.
 4-20mA Retransmission output through loop

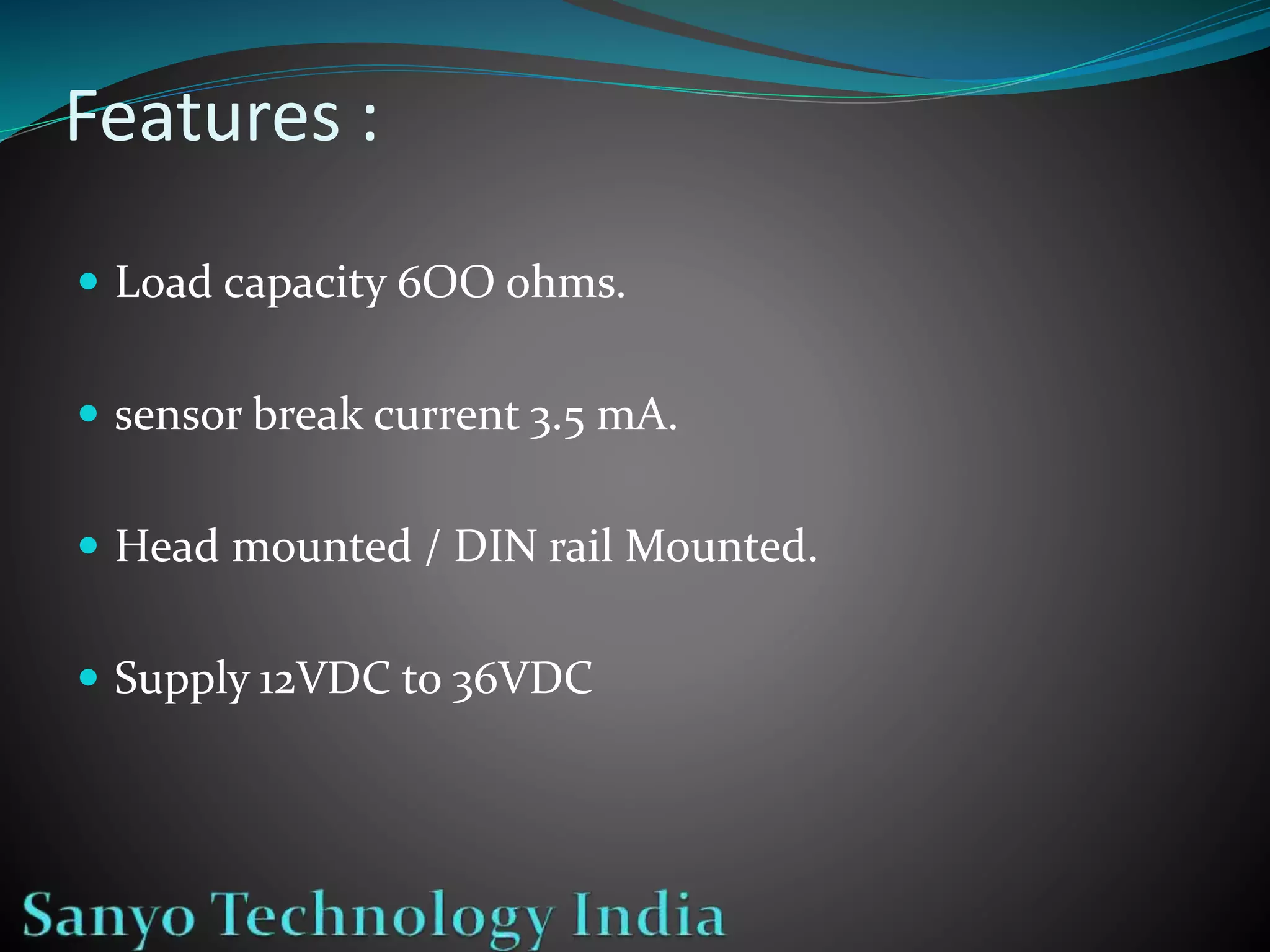

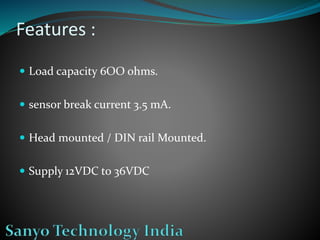

4. Features :
 Load capacity 6OO ohms.
 sensor break current 3.5 mA.
 Head mounted / DIN rail Mounted.
 Supply 12VDC to 36VDC

5. Sanyo Technology India
Thanks All
