Logical clocks are used in distributed systems to determine the order of events. Lamport timestamps assign each process a clock that increments for each local event and message. Vector clocks assign each process an element in a vector that is incremented for local events and updated based on received messages. This allows vector clocks to determine if events are causally before, concurrent, or have no ordering. Examples are given to illustrate how logical and vector clocks work.

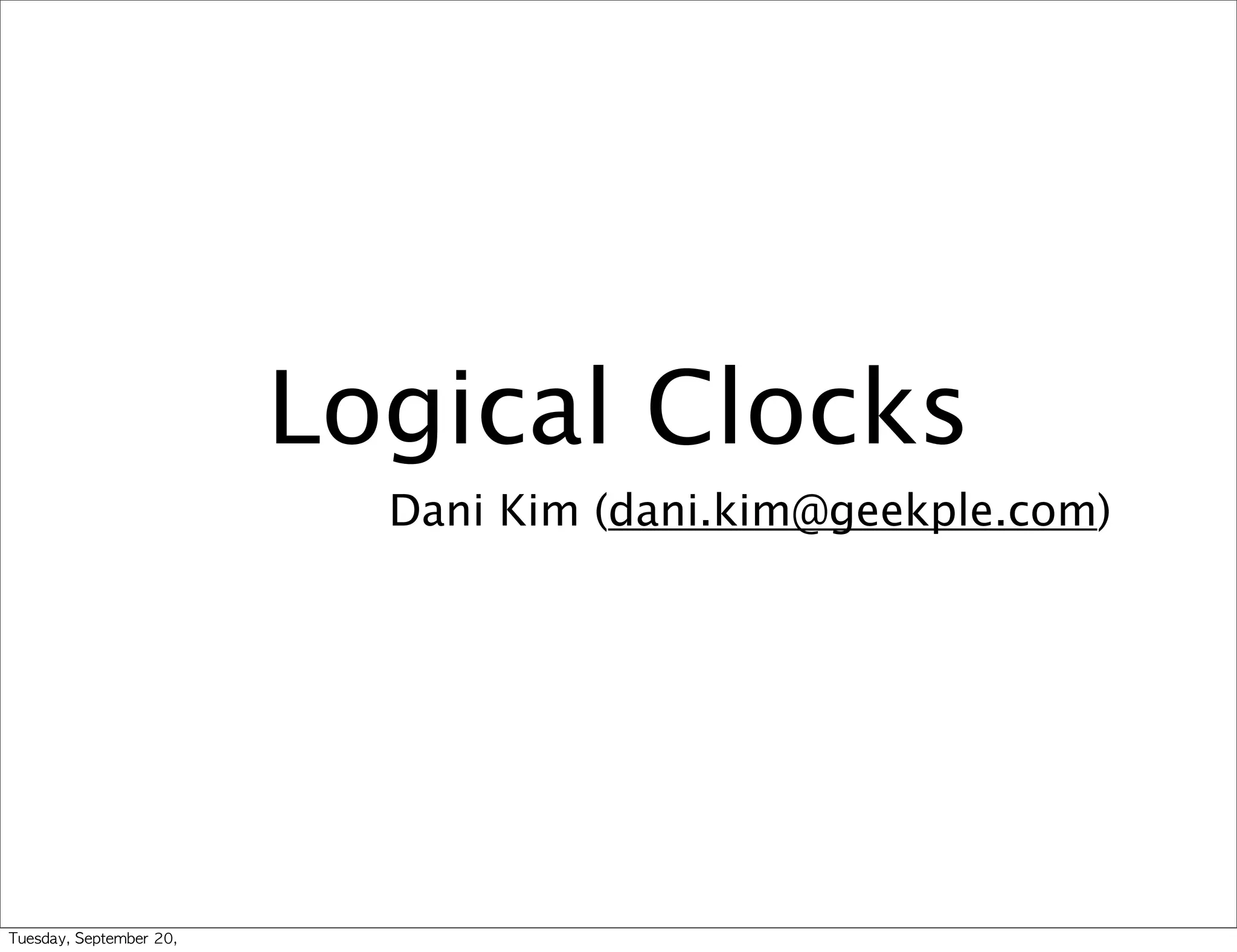

1. Logical Clocks
Dani Kim (dani.kim@geekple.com)
Tuesday, September 20,

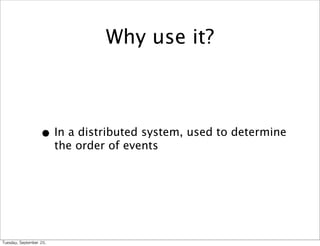

2. Why use it?
• In a distributed system, used to determine
the order of events
Tuesday, September 20,

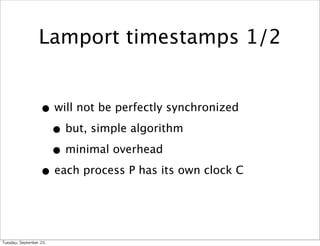

3. Lamport timestamps 1/2
• will not be perfectly synchronized
• but, simple algorithm
• minimal overhead
• each process P has its own clock C
Tuesday, September 20,

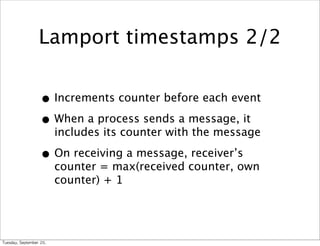

4. Lamport timestamps 2/2
• Increments counter before each event
• When a process sends a message, it
includes its counter with the message
• On receiving a message, receiver’s
counter = max(received counter, own
counter) + 1
Tuesday, September 20,

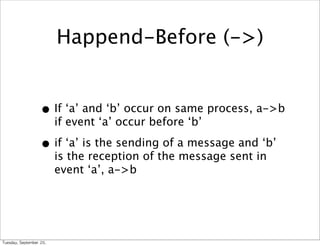

5. Happend-Before (->)
• If ‘a’ and ‘b’ occur on same process, a->b
if event ‘a’ occur before ‘b’
• if ‘a’ is the sending of a message and ‘b’
is the reception of the message sent in
event ‘a’, a->b
Tuesday, September 20,

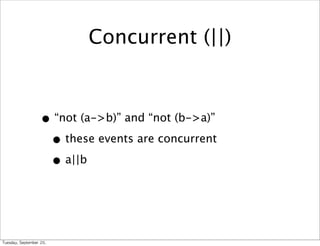

6. Concurrent (||)
• “not (a->b)” and “not (b->a)”
• these events are concurrent
• a||b
Tuesday, September 20,

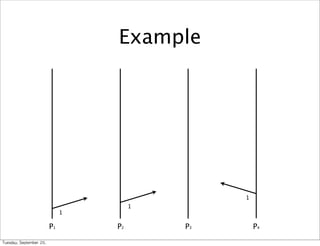

7. Example
1
1
1
P1 P2 P3 P4
Tuesday, September 20,

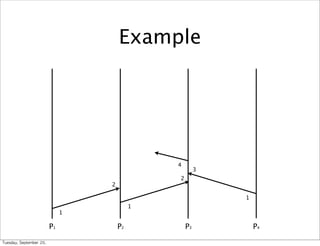

8. Example
4
3
2
2
1
1
1
P1 P2 P3 P4
Tuesday, September 20,

9. Example
5
4
3
2
2
1
1
1
P1 P2 P3 P4
Tuesday, September 20,

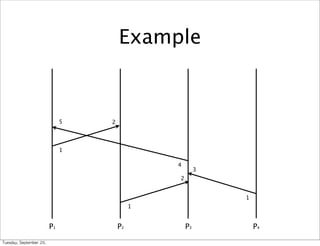

10. Example
5 2
1
4
3
2
1
1
P1 P2 P3 P4
Tuesday, September 20,

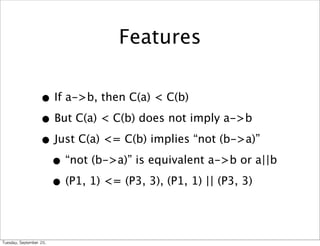

11. Features
• If a->b, then C(a) < C(b)
• But C(a) < C(b) does not imply a->b
• Just C(a) <= C(b) implies “not (b->a)”
• “not (b->a)” is equivalent a->b or a||b
• (P1, 1) <= (P3, 3), (P1, 1) || (P3, 3)
Tuesday, September 20,

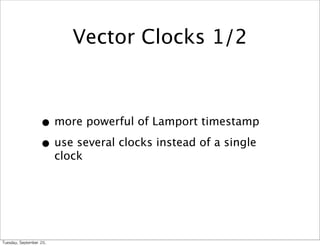

12. Vector Clocks 1/2
• more powerful of Lamport timestamp
• use several clocks instead of a single
clock
Tuesday, September 20,

13. Vector Clocks 2/2
• Each time a process experiences an internal event, it
increments its own logical clock in the vector by one
• Each time a process prepares to send a message, it
increments its own logical clock in the vector by one
and then send its entire vector along with the
message being sent
• Each time a process receives a message, it increments
its own logical clock in the vector by one and updates
each element in its vector by taking the maximum of
the value in its own vector clock and the value in the
vector in the received message
• http://en.wikipedia.org/wiki/Vector_clocks
Tuesday, September 20,

14. Example
[0,0,0,1]
[0,1,0,0]
[1,0,0,0]
P1 P2 P3 P4
Tuesday, September 20,

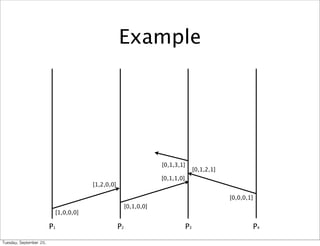

15. Example
[0,1,3,1]
[0,1,2,1]
[0,1,1,0]
[1,2,0,0]
[0,0,0,1]
[0,1,0,0]
[1,0,0,0]
P1 P2 P3 P4
Tuesday, September 20,

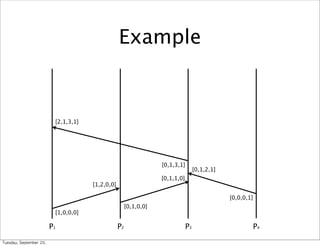

16. Example
[2,1,3,1]
[0,1,3,1]
[0,1,2,1]
[0,1,1,0]
[1,2,0,0]
[0,0,0,1]
[0,1,0,0]
[1,0,0,0]
P1 P2 P3 P4
Tuesday, September 20,

17. Example
[2,1,3,1] [1,2,0,0]
[1,0,0,0]
[0,1,3,1]
[0,1,2,1]
[0,1,1,0]
[0,0,0,1]
[0,1,0,0]
P1 P2 P3 P4
Tuesday, September 20,

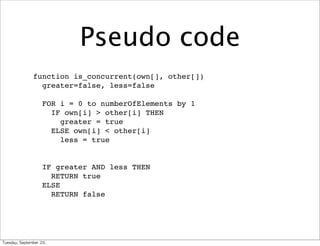

18. Pseudo code
function is_concurrent(own[], other[])
greater=false, less=false
FOR i = 0 to numberOfElements by 1
IF own[i] > other[i] THEN
greater = true
ELSE own[i] < other[i]
less = true
IF greater AND less THEN
RETURN true
ELSE
RETURN false
Tuesday, September 20,

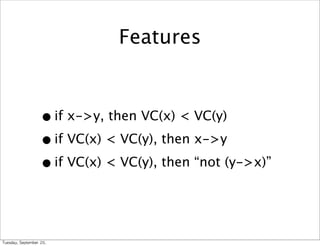

19. Features
• if x->y, then VC(x) < VC(y)
• if VC(x) < VC(y), then x->y
• if VC(x) < VC(y), then “not (y->x)”
Tuesday, September 20,

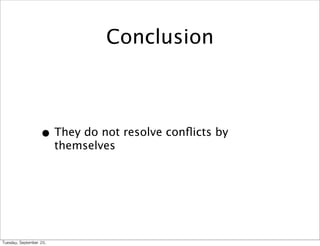

20. Conclusion
• They do not resolve conflicts by
themselves
Tuesday, September 20,

21. References
• http://en.wikipedia.org/wiki/Vector_clock
• http://en.wikipedia.org/wiki/Logical_clock
