The document outlines a comprehensive range of levelling feet products offered by GMT, including various types of foot plates and spindles made from materials such as polyamide, steel, stainless steel, and zinc alloy. It highlights the flexibility in combinations, load capacities, and features like self-aligning and sound-dampening properties. Availability from stock ensures quick access for customers to meet specific levelling needs.

1. Levelling Feet Range

2. Index
Introduction—Specify your own levelling feet
3
Foot Plates polyamide / steel / zinc alloy
4—5
Foot Plates stainless steel
6—7
Foot Plates—hygienic standard
stainless steel
8—9
Spindles zinc plated steel
10—11
Spindles stainless steel
12—13
Foot Plates self aligning—standard / heavy duty
14—15
Spindles self aligning
16—17
Levelling Feet
18—19
eco-series
End Caps square
20—21
End Caps round
22—23
Levelling Feet for all needs pictorial overview
24
Contact GMT
25
2 Levelling Feet Range

3. Specify your own levelling feet
GMT offer a wide variety of combinations of levelling feet for customers to
specify. Spindles can be combined with every type of threaded foot plate.*
Advantages
Flexibility in terms of sizes and materials
Usually available from stock
Noise/sound proofing where required
High load capability
Self-aligning levelling feet available
Materials
Foot plates in re-inforced polyamide, steel
and stainless steel
Spindels from stainless steel (AISI 304) or
zinc plated steel
Oil and water resistant properties
Medical, food and hygene standard
approved levelling feet available
Steel feet available for increased load capacity
Assembly
Obtain the sound damping insert device
from the footplate
Turn in the thread of the spindle
Lower the spindle in the footplate
Put back the ultrasound silencing device
in the foot plate
In a matter of seconds you have assembled a levelling foot which meets the required parameters exactly.
*
Except for self-aligning levelling feet.
Levelling Feet Range
3

4. Foot Plates polyamide
D
(mm)
d
(mm)
Load
(daN)
LEVEL-STD2163-F01
30
-
500
LEVEL-STD2163-F02
40
-
LEVEL-STD2163-F03
50
-
LEVEL-STD2163-F04
60
-
LEVEL-STD2163-F05
80
55
LEVEL-STD2163-F06
100
74
LEVEL-STD2163-F07
120
94
Product Code
900
1000
Ground
Fixings
No
Yes
30
30
d
D
D
Representation of polyamide foot plate without ground fixings.
ø 30, 40, 50 and 60mm
Representation of polyamide foot plate with ground fixings.
ø 80, 100 and 120mm
Foot Plates steel / zinc alloy
D
(mm)
Product Code
Load
(daN)
Finish
LEVEL-STD2163-F10
30
HQZ
LEVEL-STD2163-F11
40
HQZ
LEVEL-STD2163-F12
50
HQZ
LEVEL-STD2163-F13
60
LEVEL-STD2163-F14
80
HQZ
LEVEL-STD2163-F15
100
HQZ
LEVEL-STD2163-F16
120
Ground
Fixings
HQZ
3000
No
HQZ
No
STL = Steel Finish, HQZ = High Quality Zinc alloy finish
Foot Plates ø 80, 100, 120mm also available with drilled holes for ground fixings.
30
D
D
Representation of foot plates ø 30, 40, 50, 60, 80, 100 and 120mm
4 Levelling Feet Range
30

5. Foot Plates
GMT offer a wide range of
foot plate sizes and materials.
The spindels shown on pages
10 to 13 can be mated with
any foot plate to provide the
required combination of levelling foot.
Parts are normally available
from stock to ensure quick
availability.
Material
GMT foot plates are available
in re-inforced polyamide, high
quality zinc alloy, steel or
stainless steel (AISI 304).
The sound absorbing rubber
material is oil and water resistant to ensure product longevity in cases of contamination of the foot plates.
Properties
GMT foot plates have been
designed for loads up to 500,
900, 1000 and 3000 daN.
T he
soun d
absorbin g/
damping rubber material has
a hardness of 70 Shore A.
Levelling Feet Range
3
5

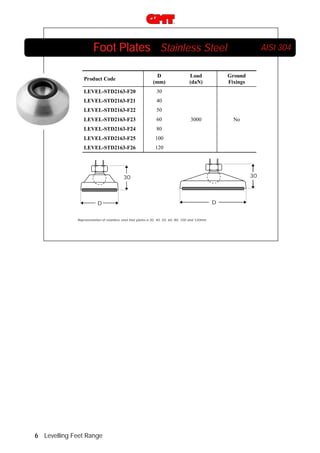

6. Foot Plates Stainless Steel
D
(mm)
Product Code
LEVEL-STD2163-F20
60
LEVEL-STD2163-F24
100
LEVEL-STD2163-F26
No
80
LEVEL-STD2163-F25
3000
50
LEVEL-STD2163-F23
Ground
Fixings
40
LEVEL-STD2163-F22
Load
(daN)
30
LEVEL-STD2163-F21
AISI 304
120
30
30
D
Representation of stainless steel foot plates ø 30, 40, 50, 60, 80, 100 and 120mm
6 Levelling Feet Range
D

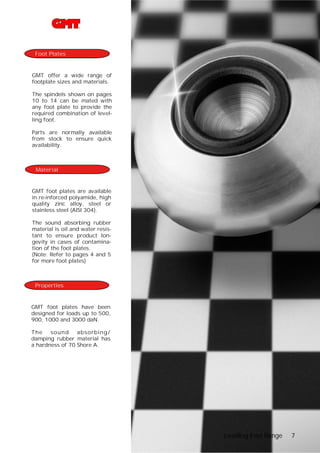

7. Foot Plates
GMT offer a wide range of
footplate sizes and materials.
The spindels shown on pages
10 to 14 can be mated with
any foot plate to provide the
required combination of levelling foot.
Parts are normally available
from stock to ensure quick
availability.
Material
GMT foot plates are available
in re-inforced polyamide, high
quality zinc alloy, steel or
stainless steel (AISI 304).
The sound absorbing rubber
material is oil and water resistant to ensure product longevity in cases of contamination of the foot plates.
(Note: Refer to pages 4 and 5
for more foot plates)
Properties
GMT foot plates have been
designed for loads up to 500,
900, 1000 and 3000 daN.
T he
soun d
absorbin g/
damping rubber material has
a hardness of 70 Shore A.
Levelling Feet Range
3
7

8. Hygienic Foot Plates Stainless Steel
D
(mm)
h
(mm)
H
(mm)
Load
(daN)
LEVEL-STD2163-F30
60
8
37
700
LEVEL-STD2163-F31
80
8
37
700
LEVEL-STD2163-F32
100
8
37
700
Product Code
Ground
Fixings
No
Representation of GMT hygienic footplate manufactured from a Thermo Plastic Elastomer (TPE) 70° Shore A
hardness with stainless steel upper - ø 60, 80 and 100 mm
Hygienic quality foot plates can be
combined with many lengths and
types of spindles which can be
found on pages 10 to 13.
8 Levelling Feet Range
AISI 304

9. Foot Plates
GMT’s new stainless steel foot
plates have a unique sealed
ball/articulation connection.
This guarantees optimum
hygiene by way of a sealed
couple foot. As a result, these
leveling feet are particularly
well suited to environments
containing food or special
chemicals.
Available in 60, 80 and
100mm sizes, these footplates can be combined with a
wide range of spindles. (refer
pages 10 to 13)
Material
Stainless Steel: AISI 304
Rubber: TPE 70° Shore A
(Thermo-Plastic Elastomer)
Properties
Rubber
UV resistant
Non-marking
US FDA Norm
Anti-bacterial
Levelling Feet Range
3
9

10. Spindles Zinc Plated Steel
Product Code
M
(mm)
L
(mm)
M8
40
80
M10
45
70
90
125
LEVEL-STD2163-S01
LEVEL-STD2163-S02
LEVEL-STD2163-S03
LEVEL-STD2163-S04
LEVEL-STD2163-S05
LEVEL-STD2163-S06
M12
LEVEL-STD2163-S12
LEVEL-STD2163-S13
LEVEL-STD2163-S14
LEVEL-STD2163-S15
LEVEL-STD2163-S16
AF
17
Other Lengths are available
upon request
85
100
125
150
200
M24
LEVEL-STD2163-S22
LEVEL-STD2163-S23
LEVEL-STD2163-S24
LEVEL-STD2163-S25
LEVEL-STD2163-S26
L
14
66
100
125
150
200
M20
LEVEL-STD2163-S17
LEVEL-STD2163-S18
LEVEL-STD2163-S19
LEVEL-STD2163-S20
LEVEL-STD2163-S21
M
45
66
100
125
150
M16
LEVEL-STD2163-S07
LEVEL-STD2163-S08
LEVEL-STD2163-S09
LEVEL-STD2163-S10
LEVEL-STD2163-S11
AF
85
100
125
150
200
22
Spindle with zinc plated steel
M = Spindle stud diameter
L = Spindle length
AF = Holding collar dimension
across flats
*
17*
These spindles provide 2 flat
sides instead of the usual 6
(hexagonal)
Short Spindles Zinc Plated Steel
Material
H
(mm)
h
(mm)
D
(mm)
AF
(mm)
M
(mm)
LEVEL-STD2163-S40
Zinc Plated Steel
22
7.5
15
14
M6i (x10)
LEVEL-STD2163-S41
Zinc Plated Steel
22
7.5
15
14
M8i (x10)
Product Code
GMT Short Spindles are suitable for directly affixing foot plates by means
of standard inserts/attachments where levelling is not necessary.
h
AF
H
D
10
Levelling Feet Range
M

11. Spindles
GMT offer a large variety of
spindles in stainless steel or
steel finished with a zinc coating.
Each spindle can be combined
with a wide variety of foot
plates such as those listed on
pages 4 and 6.
Parts are usually available
from stock. Consequently customers are able to specify the
levelling feet they require and
obtain the parts quickly
Material
GMT spindles are made of
either zinced coated steel or
stainless steel
Levelling Feet Range
3
11

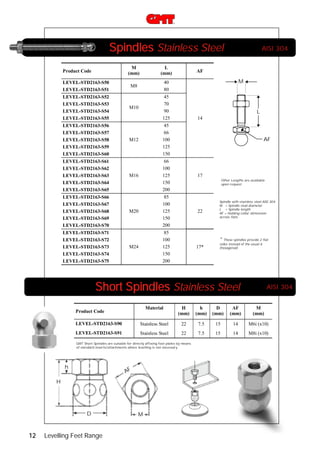

12. Spindles Stainless Steel
M
(mm)
Product Code
LEVEL-STD2163-S50
LEVEL-STD2163-S51
LEVEL-STD2163-S52
LEVEL-STD2163-S53
LEVEL-STD2163-S54
LEVEL-STD2163-S55
LEVEL-STD2163-S56
LEVEL-STD2163-S57
LEVEL-STD2163-S58
LEVEL-STD2163-S59
LEVEL-STD2163-S60
LEVEL-STD2163-S61
LEVEL-STD2163-S62
LEVEL-STD2163-S63
LEVEL-STD2163-S64
LEVEL-STD2163-S65
LEVEL-STD2163-S66
LEVEL-STD2163-S67
LEVEL-STD2163-S68
LEVEL-STD2163-S69
LEVEL-STD2163-S70
LEVEL-STD2163-S71
LEVEL-STD2163-S72
LEVEL-STD2163-S73
LEVEL-STD2163-S74
LEVEL-STD2163-S75
L
(mm)
M8
40
80
M10
45
70
90
125
AISI 304
M12
M
L
14
45
66
100
125
150
M16
AF
66
100
125
150
200
M20
17
Other Lengths are available
upon request
85
100
125
150
200
M24
AF
85
100
125
150
200
22
Spindle with stainless steel AISI 304
M = Spindle stud diameter
L = Spindle length
AF = Holding collar dimension
across flats
*
17*
These spindles provide 2 flat
sides instead of the usual 6
(hexagonal)
Short Spindles Stainless Steel
AISI 304
Material
H
(mm)
h
(mm)
D
(mm)
AF
(mm)
M
(mm)
LEVEL-STD2163-S90
Stainless Steel
22
7.5
15
14
M6i (x10)
LEVEL-STD2163-S91
Stainless Steel
22
7.5
15
14
M8i (x10)
Product Code
GMT Short Spindles are suitable for directly affixing foot plates by means
of standard inserts/attachments where levelling is not necessary.
h
AF
H
D
12
Levelling Feet Range
M

13. Spindles
GMT offer a large variety of
spindles in stainless steel or
steel finished with a zinc coating.
Each spindle can be combined
with a wide variety of foot
plates such as those listed on
pages 4 and 6.
Parts are usually available
from stock. Consequently customers are able to specify the
levelling feet they require and
obtain the parts quickly
Material
GMT spindles are made of
either zinced coated steel or
stainless steel
Levelling Feet Range
3
13

14. Foot Plates standard self-aligning
D
(mm)
Load
(daN)
Ground
Fixings
LEVEL-ADJ2164-F01
60
450
No
LEVEL-ADJ2164-F02
80
500
LEVEL-ADJ2164-F03
100
600
Product Code
(w/o sound damping)
D
(mm)
Sound damping material
Product Code
LEVEL-ADJ2164-D01
80
LEVEL-ADJ2164-D03
Standard
Supplied
60
LEVEL-ADJ2164-D02
Yes
100
Standard
ø9
No
ø 60mm : Standard self-aligning foot plates from
reinforced polyamide are manufactured without
ground fixing holes.
18
ø 80 and 100mm : Standard self-aligning foot plates
from reinforced polyamide are manufactured with
ground fixing holes.
D
Foot Plates heavy duty self-aligning
D
(mm)
Product Code
(w/o sound damping)
LEVEL-ADJ2164-F10
Product Code
LEVEL-ADJ2164-D04
4500
Yes
Standard
Supplied
125
No
ø 125mm : ‘Heavy Duty’
self- aligning foot plates in
reinforced polyamide are
manufactured with ground
fixing holes.
22
D
Levelling Feet Range
125
ø14
44
14
Ground
Fixings
D
(mm)
Sound damping material
Heavy Duty
Load
(daN)

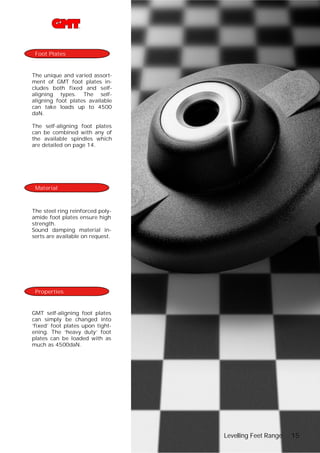

15. Foot Plates
The unique and varied assortment of GMT foot plates includes both fixed and selfaligning types. The selfaligning foot plates available
can take loads up to 4500
daN.
The self-aligning foot plates
can be combined with any of
the available spindles which
are detailed on page 14.
Material
The steel ring reinforced polyamide foot plates ensure high
strength.
Sound damping material inserts are available on request.
Properties
GMT self-aligning foot plates
can simply be changed into
‘fixed’ foot plates upon tightening. The ‘heavy duty’ foot
plates can be loaded with as
much as 4500daN.
Levelling Feet Range
15

16. Spindles self-aligning
Zinc Steel Finish
Product Code
M
(mm)
M12
100
LEVEL-ADJ2164-S03
150
LEVEL-ADJ2164-S04
66
LEVEL-ADJ2164-S05
M16
100
LEVEL-ADJ2164-S06
22
150
LEVEL-ADJ2164-S07
100
LEVEL-ADJ2164-S08
M20
LEVEL-ADJ2164-S09
Stainless Steel
Product Code
M
(mm)
LEVEL-ADJ2164-S21
150
200
L
(mm)
AF
66
LEVEL-ADJ2164-S20
M12
100
LEVEL-ADJ2164-S22
150
LEVEL-ADJ2164-S23
66
LEVEL-ADJ2164-S24
M16
100
LEVEL-ADJ2164-S25
150
LEVEL-ADJ2164-S26
100
LEVEL-ADJ2164-S27
M20
LEVEL-ADJ2164-S28
M
M = Thread diameter
L = Spindle Length
AF = Tightening collar
AF
Levelling Feet Range
150
200
Representation of self-aligning
spindle with stainless steel (AISI
304) or zinc finish.
L
16
AF
66
LEVEL-ADJ2164-S01
LEVEL-ADJ2164-S02
L
(mm)
22

17. Foot Plates
The unique and varied assortment of GMT foot plates includes both fixed and selfaligning types. The selfaligning foot plates available
can take loads up to 4500
daN.
The self-aligning foot plates
can be combined with any of
the available spindles which
are detailed on page 14.
Material
The steel ring reinforced polyamide foot plates ensure high
strength.
Sound damping material inserts are available on request.
Properties
GMT self-aligning foot plates
can simply be changed into
‘fixed’ foot plates upon tightening. The ‘heavy duty’ foot
plates can be loaded with as
much as 4500daN.
Levelling Feet Range
17

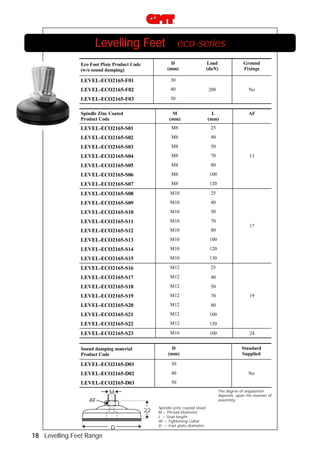

18. Levelling Feet eco-series
D
(mm)
Eco Foot Plate Product Code
(w/o sound damping)
Load
(daN)
Ground
Fixings
200
No
AF
LEVEL-ECO2165-F01
30
LEVEL-ECO2165-F02
40
LEVEL-ECO2165-F03
50
Spindle Zinc Coated
Product Code
M
(mm)
L
(mm)
LEVEL-ECO2165-S01
M8
25
LEVEL-ECO2165-S02
M8
40
LEVEL-ECO2165-S03
M8
50
LEVEL-ECO2165-S04
M8
70
LEVEL-ECO2165-S05
M8
80
LEVEL-ECO2165-S06
M8
100
LEVEL-ECO2165-S07
M8
120
LEVEL-ECO2165-S08
M10
25
LEVEL-ECO2165-S09
M10
40
LEVEL-ECO2165-S10
M10
50
LEVEL-ECO2165-S11
M10
70
LEVEL-ECO2165-S12
M10
80
LEVEL-ECO2165-S13
M10
100
LEVEL-ECO2165-S14
M10
120
LEVEL-ECO2165-S15
M10
130
LEVEL-ECO2165-S16
M12
25
LEVEL-ECO2165-S17
M12
40
LEVEL-ECO2165-S18
M12
50
LEVEL-ECO2165-S19
M12
70
LEVEL-ECO2165-S20
M12
80
LEVEL-ECO2165-S21
M12
100
LEVEL-ECO2165-S22
M12
120
LEVEL-ECO2165-S23
M16
100
Sound damping material
Product Code
D
(mm)
LEVEL-ECO2165-D01
30
LEVEL-ECO2165-D02
40
LEVEL-ECO2165-D03
50
M
22
18 Levelling Feet Range
17
19
24
Standard
Supplied
No
The degree of angulation
depends upon the manner of
assembly.
AF
D
13
Spindle (zinc coated steel)
M = Thread Diameter
L = Stud length
AF = Tightening Collar
D = Foot plate diameter

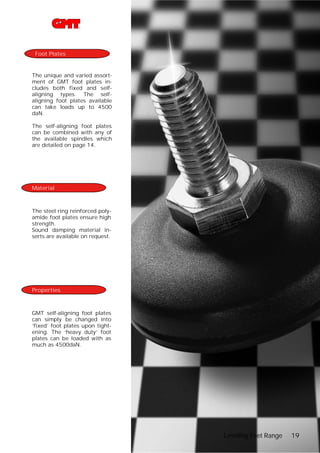

19. Foot Plates
The unique and varied assortment of GMT foot plates includes both fixed and selfaligning types. The selfaligning foot plates available
can take loads up to 4500
daN.
The self-aligning foot plates
can be combined with any of
the available spindles which
are detailed on page 14.
Material
The steel ring reinforced polyamide foot plates ensure high
strength.
Sound damping material inserts are available on request.
Properties
GMT self-aligning foot plates
can simply be changed into
‘fixed’ foot plates upon tightening. The ‘heavy duty’ foot
plates can be loaded with as
much as 4500daN.
Levelling Feet Range
19

20. End Caps Square
Product Code
LEVEL-END2166-S01
LEVEL-END2166-S02
LEVEL-END2166-S03
LEVEL-END2166-S04
Leg Size
BxB/
thickness
M
(mm)
30 x 30
1.5 thick
M10
30 x 30
2.0 thick
LEVEL-END2166-S05
LEVEL-END2166-S06
LEVEL-END2166-S07
M12
b
(mm)
L
(mm)
S
(mm)
30
27.5
33
27
M12
Load
(daN)
550
M10
30
26.5
33
27
43
35
M10
40 x 40
1.5 thick
M12
40
37.5
M16
LEVEL-END2166-S08
M20
LEVEL-END2166-S09
M10
LEVEL-END2166-S10
LEVEL-END2166-S11
M12
40 x 40
2.0 thick
600
M14
LEVEL-END2166-S12
40
36.5
43
35
40
34.5
43
35
50
47.5
55
44
50
46.5
55
44
50
45.5
55
44
M16
LEVEL-END2166-S13
M20
LEVEL-END2166-S14
LEVEL-END2166-S15
M12
40 x 40
3.0 thick
LEVEL-END2166-S16
LEVEL-END2166-S18
M12
50 x 50
1.5 thick
LEVEL-END2166-S19
M12
50 x 50
2.0 thick
LEVEL-END2166-S22
M12
50 x 50
2.5 thick
LEVEL-END2166-S25
LEVEL-END2166-S30
LEVEL-END2166-S31
LEVEL-END2166-S32
1000
M12
50 x 50
3.0 thick
LEVEL-END2166-S28
LEVEL-END2166-S29
M16
M20
LEVEL-END2166-S26
LEVEL-END2166-S27
M16
M20
LEVEL-END2166-S23
LEVEL-END2166-S24
M16
M20
LEVEL-END2166-S20
LEVEL-END2166-S21
M16
M20
LEVEL-END2166-S17
M16
S
L
Levelling Feet Range
50
44.5
55
44
60
56.5
55
45
60
52.5
55
45
M20
60 x 60
2.0 thick
60 x 60
4.0 thick
M16
M20
M16
M20
B
b
20
B
(mm)
M
Square End Caps are manufactured in reinforced polyamide and brass inserts
B = Outer Breadth
b = Inner Breadth
S = Insert length
L = Total length
M = Thread size

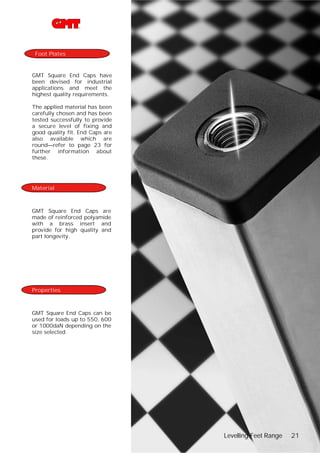

21. Foot Plates
GMT Square End Caps have
been devised for industrial
applications and meet the
highest quality requirements.
The applied material has been
carefully chosen and has been
tested successfully to provide
a secure level of fixing and
good quality fit. End Caps are
also available which are
round—refer to page 23 for
further information about
these.
Material
GMT Square End Caps are
made of reinforced polyamide
with a brass insert and
provide for high quality and
part longevity.
Properties
GMT Square End Caps can be
used for loads up to 550, 600
or 1000daN depending on the
size selected.
Levelling Feet Range
21

22. End Caps
Product Code
Leg Dia, B /
M
thickness
(mm)
LEVEL-END2167-R01
LEVEL-END2167-R02
LEVEL-END2167-R03
Round
M10
30
1mm thick
M12
30
28.4
35
29
300
38
35.5
43
34
500
42
39.9
42
34
M14
LEVEL-END2167-R04
M16
LEVEL-END2167-R05
M10
LEVEL-END2167-R06
LEVEL-END2167-R07
38
1.5mm thick
M12
M14
LEVEL-END2167-R08
M16
LEVEL-END2167-R09
M10
LEVEL-END2167-R10
LEVEL-END2167-R11
M12
42.4
1.5mm thick
M14
LEVEL-END2167-R12
M16
LEVEL-END2167-R13
M20
LEVEL-END2167-R14
M12
LEVEL-END2167-R15
LEVEL-END2167-R16
48.3
1.5mm thick
600
M14
48
45.8
49
38
51
48.4
49
38
M16
LEVEL-END2167-R17
M20
LEVEL-END2167-R18
M12
LEVEL-END2167-R19
LEVEL-END2167-R20
50.9
1.5mm thick
LEVEL-END2167-R21
S
Levelling Feet Range
M14
L
800
M16
M20
Round End Caps are manufactured in reinforced polyamide with brass inserts
B = Outer Diameter
b = Inner Diameter
S = Insert length
L = Total length
M = Thread size
B
b
22
B
b
L
S
Load
(mm) (mm) (mm) (mm) (daN)
M

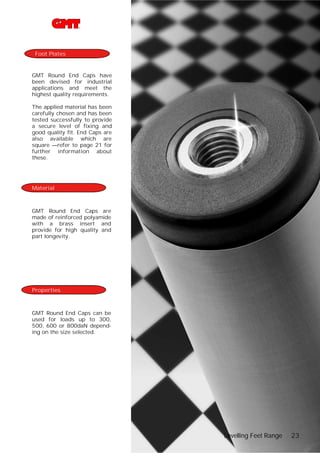

23. Foot Plates
GMT Round End Caps have
been devised for industrial
applications and meet the
highest quality requirements.
The applied material has been
carefully chosen and has been
tested successfully to provide
a secure level of fixing and
good quality fit. End Caps are
also available which are
square —refer to page 21 for
further information about
these.
Material
GMT Round End Caps are
made of reinforced polyamide
with a brass insert and
provide for high quality and
part longevity.
Properties
GMT Round End Caps can be
used for loads up to 300,
500, 600 or 800daN depending on the size selected.
Levelling Feet Range
23

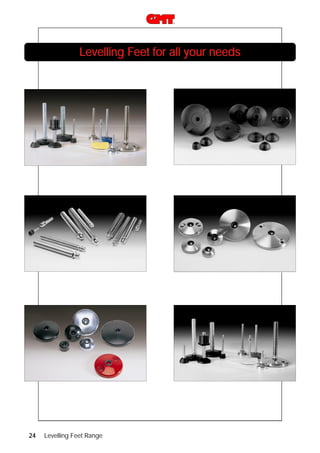

24. Levelling Feet for all your needs
24
Levelling Feet Range

25. GMT RUBBER-METAL-TECHNIC LTD.
THE SIDINGS, STATION ROAD, GUISELEY, LEEDS, WEST YORKSHIRE, UK, LS20 8BX
TEL: +44 (0) 1943 870 670
FAX: +44 (0) 1943 870 631
EMAIL: sales@gmt.gb.com
WEBSITE: www.gmt.gb.com
