The document summarizes lessons learned from migrating a large, highly relational SQL database with tens of millions of records across 32 tables to a "classic" NoSQL key-value store. Some key challenges included running the SQL and NoSQL databases in parallel during migration, reconciling differences between the data stores, and addressing more limited querying capabilities of NoSQL. It emphasizes planning for people impacts and tooling needs like data migration utilities and improved testing. Overall, the migration increased flexibility but also introduced complexity, so thorough planning and monitoring were important lessons.
8. What about it is large and highly relational? 10s of millions points of interest Many many 100s of millions of contributing records MySQL DB is 600 GB on disk 32 tables, 202 columns 46 non-PRIMARY constraints 8
10. “Classic” NoSQL? What did you use? It isn’t CouchDB but a variation of a Nokia internal one It’s a Key Value store holding JSON Without the key you cannot access the value It isn’t a “document store” as the store does nothing with the structure 10
11. Why did you port this to NoSQL? bigger and bigger Nokia maps – web and phone Yahoo! and soon Bing, => Facebook Postponed sharding by bigger HDD We learnt a lot over the last 3 years 11
12. Why did you port this to NoSQL? (continued) SQL databases can be rigid The world is a messy place “State field”? Integrating other organisations’ data 12
13. Complicated? The SQL and NoSQL databases will need to run in parallel for some time Ops &Disk space Truth or System of Record Reconciliation Syncronisation Querying 13
14. Complicated Ops & disk Releases, QA, staging and live deployments are more complex when there are two concurrent data storage systems What assumptions are other people making? 2 x HDD 14
16. Complicated reconciliation How do you know that your two data stores disagree? Do you check each on on each read/write, or do you have some “batch” code to check equivalence? Top tip: build a batch reconciler to check keys and revision/etags you _do_ have etags don’t you?! 16
17. Complicated synchronisation Have you ever tried to keep two different calendars synchronised? Ever get two email clients telling you you have different numbers of unread mail for the same email account? 17
18. Complicated querying KV stores generally don’t do querying Some NoSQL stores allow some, but usually more restricted than SQL We used Solr for performance even though it isn’t as powerful as SQL The synchronisation complexity is here to stay for us 18
20. Lessons learnt: people Why. It’s a question you will be asked and you will have to answer 20
21. Lesson learnt: people The “DB~A” role is still needed Here the “~A” is more to do with data/information architecture than with administration Top tip: design your JSON. Print it out. 21
22. Lesson learnt: people The effect on your team You may have a team of enterprise Java-types who are used to writing Eclipse-enabled code In our case we wanted to keep the flexibility that JSON gives us, but it meant we no longer had the same sort of model objects 22
23. Lessons learnt: tools Build “SQL to NoSQL” and “NoSQL to SQL” seeders You will need to seed your NoSQL from your SQL. You probably have existing DAOs which can form the basis – but this assumes your entities are essentially the same (top tip: keep them so!) 23
24. Lessons learnt: tools Build “SQL to NoSQL” and “NoSQL to SQL” seeders “NoSQL to SQL” was a seeder we learnt the hard way. 24
25. Lessons learnt: tools What’s your unit/integration test coverage? 5 releases post initial launch, is your test data still exercising all code paths? 25
26. Lesson learnt: tools You may find that not everything fits into a Key Value engine Even with a queryable index, some data sets really are relational ;-) The down-side is that you may therefore have to keep long term the SQL database 26
27. Lesson learnt: tools Visualise your system Monitoring: calls, load, response times Volumetrics: num docs, HDD, milestones Context: draw a systems context diagram (which reminds me …) 27
28. Lesson learnt: data Key generation – it’s not sequence numbers nor “auto-increments” anymore Many are UUIDs and they are long and ugly But “guess and check” is ugly too Consistent hash? 28
29. Lesson learnt: data Make the revision/etag of the JSON data visible in the JSON Not just in a header (assuming HTTP here) The data will be taken off-platform, if you want to change it you will need to know that the revision is (or is not) still the same 29
30. Lesson learnt: data Version of the JSON “schema” in the KV You have many docs You might have to “upgrade” the structure of the KV doc Keep the schema version in the JSON 30
31. Lesson learnt: data Many little not few big? Easier to replicate “Big” docs can be tough on networks Trade-off with more client calls (esp error handling) 31
32. Probably good ideas If you’re _thinking_ about doing this, do use one of the open source ones Get one that replicates easily Build POCs 32

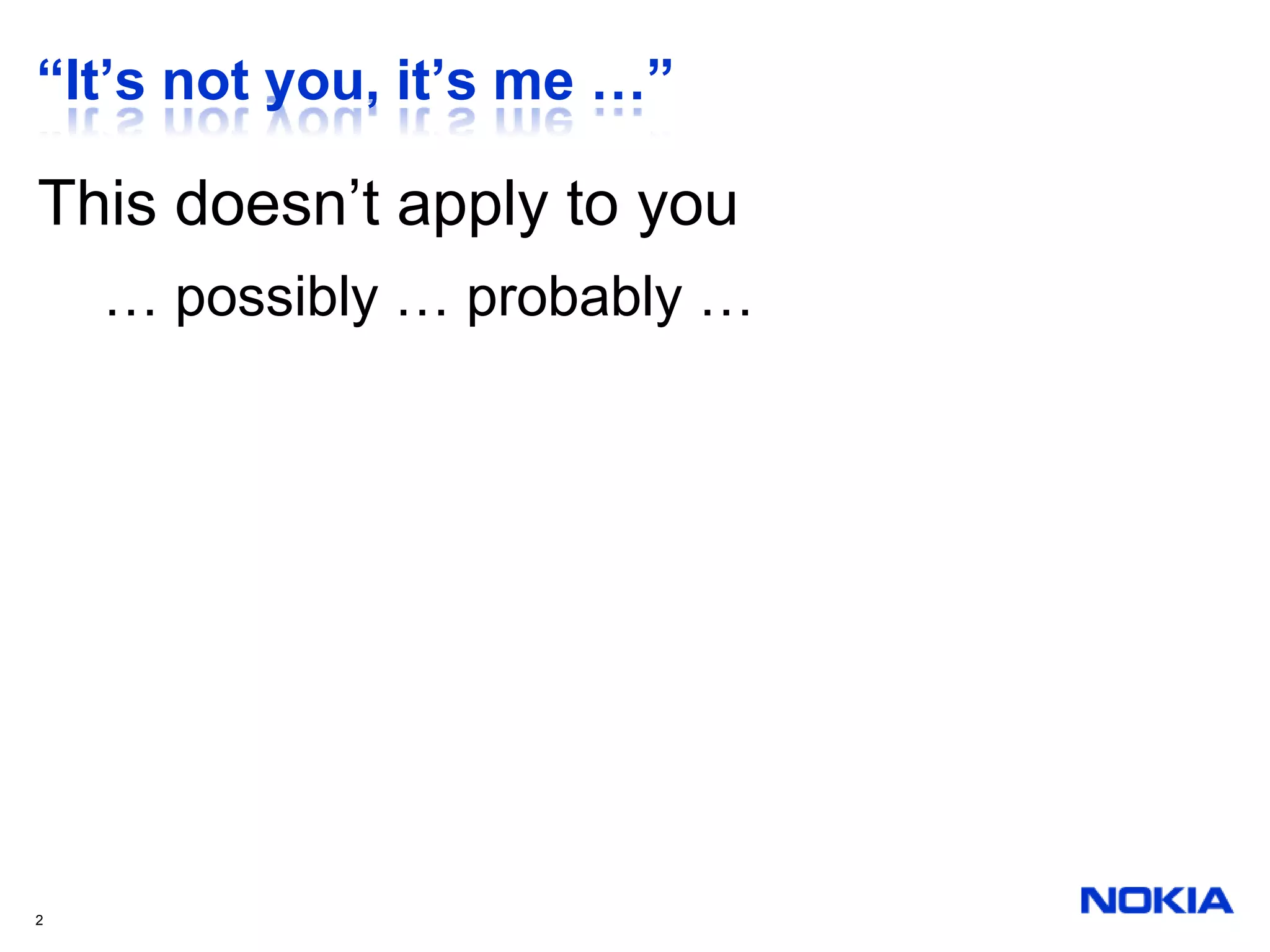

There may be large chunks of this talk that simply do not apply to your situation.If so, sorry. Perhaps you can identify situations that you will want to continue to avoid?I’ve tried to be “general” in that I hope it isn’t team/project/tool specific, but I’ve also tried to be at least a little specific in the lessons learntThe mail goal of this talk is to give you food for thought so that when you do this there will be a little less to be uncertain about or fewer “gotchas”I probably have not done a brilliant job of removing all of the “my situation” specifics, so if it’s confusing, please be kind ;-)
There may be large chunks of this talk that simply do not apply to your situation.If so, sorry. Perhaps you can identify situations that you will want to continue to avoid?I probably have not done a brilliant job of removing all of the “my situation” specifics, so if it’s confusing, please be kind ;-)
Nokia’s “Places Registry” aims to be the largest validated “point of interest” repository in the world.Question: hands up if you have you ever owned a Nokia phone?Question: who knows that you have free navigation on the Nokia devices?You know that navigation needs some sort of destination and that they are often interesting places (not just your friend’s address )Hence Nokia built an ecosystem of applications/services to deal with this, and has bought some big names in the Geo/Mapping/SatNav world
Names - one mandatory 'default' name and many optional alternative names in multiple languagesCategories - at least one predefined core categoryTags - free text keywordsLocation information – the longitude and latitude of the place on Earth as well as the postal addressContact data - information such as phone number, email address and website URL that may help matching and de-duplication
The registry is from where all place information comes from for maps on the web and on Nokia devices – and soon on Windows Phone devices too.
Very large? The financial industries will think not …Is it something that any of you will be dealing with? I think so …XX = I can’t say this number ;-o There’s a “Where 2.0” conference coming up soon and those folks have asked that I don’t steal their thunder!
These are odd graphs. It’s an unusually quiet Monday morning, but clearly shows a background/underlying pattern.OPR is often a “write heavy” application. Read operations generally take place in constant time, the response times are generally consistent. Write times are pretty quick (200ms or so) for updates to existing POIs and much longer for registrations of new POIS (we check the existing places to see if we already know about that place – a process known as “matching”).The fact that we are (a) write heavy and (b) write costly was something that affected our decision to move to NoSQL.
There are more complications here – I had to build another KV (which had the same API as the Nokia vShards) which could be replicated across multiple data centres (as I am in two and will soon be in three) and the Nokia vShards does not yet support multiple data centres.Apologies if you were hoping to see CouchDB-specific lessons
Learnt about the business, the first version
Moving to custom JPA-based DAOs helped enormously, but writing so many rows in many different tables (some of which were UNINDEXED to speed up insert performance) things were slow
If everything “just works” this won’t be an issue, but, …When problems arise, as the ops team still see a regular SQL database and unless you have “real dev-ops” (another top tip) you’re app teams will have to check people’s assumptions
In the first releases, when the NoSQL is a synchronised “slave” of the SQL the answer is clearIn later releases if you have a single “cutover” release the answer is clearIf the two co-exist side by side, you will want to have a predefined policy for handling thisbut how do you know that your two systems disagree?
If you’re at this conference and you’re in the state of putting a new storage engine under an existing application you probably have more code than you want. Code to check two stores on each request is extraordinarily hard to write and have unit/integrations tests for
It can be easy if you can have some sort of cross-system two phased commit
What's wrong with what you have? It will take some time - during which things will get worseDo you have to maintain operational capability/up time/processing/new features/customers/clients etcetc while rebuilding? If so there may wellbe senior people in your organisation who do not understand the pros and cons of NoSQL and will be skeptical.
It’s just as easy to make bad KV JSON design decisions as it is to make bad schema designs!The team argued over the JSON and we changed the structure a few times. This then meant re-writes of code that accessed things. For other reasons we did not use model objects – and these changes therefore took more and more time.
We needed it as we had a wetware/pilot error when one DBA splatted our production database and also managed to corrupt the backup. Good work there. 1.2 million POIs were lost from the SQL database – but as they were in the NoSQL we were able eventually to repair.What are seeders?
We needed it as we had a wetware/pilot error when one DBA splatted our production database and also managed to corrupt the backup. Good work there. 1.2 million POIs were lost from the SQL database – but as they were in the NoSQL we were able eventually to
