1. Server Maintenance
Introducing Active Directory
Chapter One
Teacher’s Name: Brendar Othman
Lecture: 1st
Semester: 1st
Stage: 5th
Department: network
Academic Year: 2024-2025

2. CS- Department (2023 – 2024) 2
• Introducing Active Directory.
• Active Directory Domain Services (ADDS).
• Active Directory Functions.
• The Active Directory Architecture.
• Active Directory Logical Components.
• Active Directory Physical Components.
• Global Catalog.
• Replication.
• Deploying AD DS
• Installing Active Directory 2012.

3. 3
• A directory service is a repository of information about the resources—hardware,
software, and human—that are connected to a network.
• Users, computers, and applications throughout the network can access the
repository for a variety of purposes:
 User authentication
 Storage of configuration data
 Accessing files and printers
Introduction Active Directory

4. CS- Department (2023 – 2024) 4
• ADDS provides a distributed database that stores and manages
information about network resources and application-specific
data from directory-enabled applications.
• A server that is running ADDS is called a domain controller.
Active Directory Domain Services (ADDS)

5. CS- Department (2023 – 2024) 5
Active Directory Functions
• Authentication is the process of verifying a user’s identity by using:
 Passwords
 Smart cards
 Biometrics (fingerprint scan)

6. CS- Department (2020 – 2021) 6
• Authorization is the process of granting the user access only to the resources
he or she is permitted to use by using: ACLs and ACEs.
 An access control list (ACL) is a ordered list of classification rules and
actions. Each single classification rule, together with its action, is called
an Access Control Element (ACE).
 An ACL must have at least one ACE. Each ACE is made up of filters
that determine traffic classifications and associated actions.
Active Directory Functions (cont.)

7. CS- Department (2023 – 2024) 7

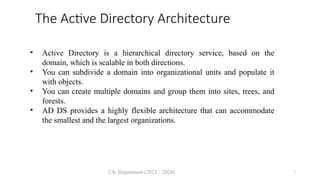

The Active Directory Architecture
• Active Directory is a hierarchical directory service, based on the
domain, which is scalable in both directions.
• You can subdivide a domain into organizational units and populate it
with objects.
• You can create multiple domains and group them into sites, trees, and
forests.
• AD DS provides a highly flexible architecture that can accommodate
the smallest and the largest organizations.

8. CS- Department (2023 – 2024) 8
Active Directory Logical Components
• Organization Units: An organizational unit (OU) is a container object that
helps to organize objects for the purpose of administration or group policy
application.

9. CS- Department (2020 – 2021) 9
Active Directory Logical Components
• Domains : a domain in Windows 2000 is very similar to a domain is
Windows NT. It is still a logical group of users and computers that share
the characteristics of centralized security and administration.

10. CS- Department (2020 – 2021) 10
Active Directory Logical Components
• Domain Trees :tree is a collection of Active Directory domains that
share a contiguous namespace.

11. CS- Department (2020 – 2021) 11

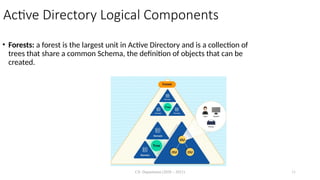

Active Directory Logical Components
• Forests: a forest is the largest unit in Active Directory and is a collection of
trees that share a common Schema, the definition of objects that can be
created.

12. CS- Department (2023 – 2024) 12

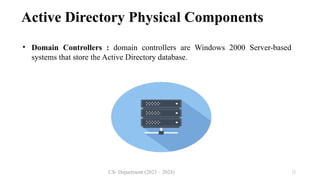

Active Directory Physical Components
• Domain Controllers : domain controllers are Windows 2000 Server-based
systems that store the Active Directory database.

13. CS- Department (2023 – 2024) 13

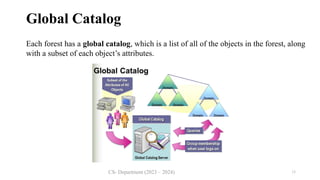

Global Catalog
Each forest has a global catalog, which is a list of all of the objects in the forest, along
with a subset of each object’s attributes.

14. CS- Department (2023 – 2024) 14

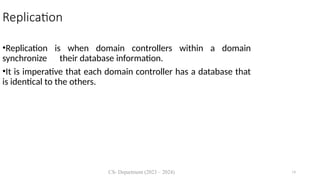

Replication
•Replication is when domain controllers within a domain
synchronize their database information.
•It is imperative that each domain controller has a database that
is identical to the others.

15. CS- Department (2023 – 2024) 15
Types Of Replication
Single-master replication:
A single primary system replicates the contents of its database to one or more
secondary systems on the network.

16. 16
CS- Department (2023 – 2024)
Types Of Replication
Multiple-master replication:
It is possible to make changes to domain objects on any domain controller,
which replicates those changes to all of the other domain controllers.

17. CS- Department (2023 – 2024) 17
Deploying AD DS
There are many variables that can affect the performance of an Active
Directory installation:
• The hardware you select for your domain controllers
• The capabilities of your network
• The types of WAN links connecting your remote sites

18. CS- Department (2023 – 2024) 18
Installing the AD DS Role in primary domain server
• The Add features that are required dialog box in the Add Roles and Features
Wizard.

19. CS- Department (2023 – 2024) 19

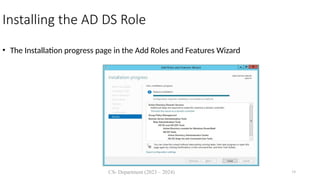

Installing the AD DS Role
• The Installation progress page in the Add Roles and Features Wizard

20. CS- Department (2023 – 2024) 20
Installing the AD DS Role (Cont.)
The Deployment Configuration page of the Active Directory Domain Services
Configuration Wizard

21. CS- Department (2023 – 2024) 21
Installing the AD DS Role (cont.)
• The Additional Options page of the Active Directory
Domain Services Configuration Wizard.

22. CS- Department (2023 – 2024) 22
Installing the AD DS Role (cont.)
The Paths page of the Active Directory Domain Services Configuration Wizard

23. CS- Department (2023 – 2024) 23
Installing Active Directory 2012
• The Prerequisites Check page of the Active Directory Domain Services
Configuration Wizard

24. CS- Department (2023 – 2024) 24

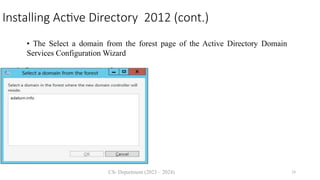

Installing Active Directory 2012 (cont.)
• The Select a domain from the forest page of the Active Directory Domain
Services Configuration Wizard

25. CS- Department (2023 – 2024) 25
Installing Active Directory 2012 (cont.)
• The Domain Controller Options page of the Active Directory
Domain Services Configuration Wizard

26. CS- Department (2023 – 2024) 26

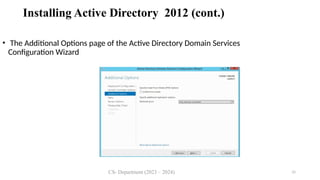

• The Additional Options page of the Active Directory Domain Services
Configuration Wizard
Installing Active Directory 2012 (cont.)

27. 27
CS- Department (2023 – 2024)
• The Deployment Configuration page of the Active Directory Domain
Services Configuration Wizard
Installing Active Directory 2012 (cont.)

28. 28
CS- Department (2023 – 2024)
• The Domain Controller Options page of the Active Directory Domain Services
Configuration Wizard
Installing Active Directory 2012 (cont.)

29. CS- Department (2020 – 2021) 29
Installing the AD DS Role in secondary domain server
• The Add features that are required dialog box in the Add Roles and Features
Wizard.

30. CS- Department (2020 – 2021) 30
Installing the AD DS Role (Cont.)
• The Installation progress page in the Add Roles and Features Wizard

31. 31
CS- Department (2023 – 2024)
Installing the AD DS Role (Cont.)
• The Deployment Configuration page of the Active Directory Domain Services
Configuration Wizard

32. 32
CS- Department (2023 – 2024)
Installing the AD DS Role (Cont.)
• The Additional Options page of the Active Directory Domain
Services Configuration Wizard.

33. 33
CS- Department (2023 – 2024)
Installing the AD DS Role (Cont.)
The Paths page of the Active Directory Domain Services Configuration Wizard

34. 34
CS- Department (2023 – 2024)

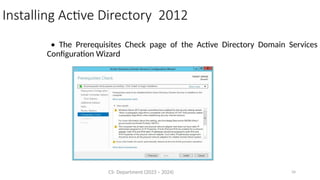

Installing Active Directory 2012
• The Prerequisites Check page of the Active Directory Domain Services
Configuration Wizard

35. 35
CS- Department (2023 – 2024)
Installing Active Directory 2012 (Cont.)
• The Select a domain from the forest page of the Active Directory Domain
Services Configuration Wizard

36. 36
CS- Department (2023 – 2024)
Installing Active Directory 2012 (Cont.)
• The Domain Controller Options page of the Active Directory
Domain Services Configuration Wizard

37. 37
CS- Department (2023 – 2024)
• The Additional Options page of the Active Directory Domain
Services Configuration Wizard
Installing Active Directory 2012 (Cont.)

38. CS- Department (2020 – 2021) 38
Question Bank
• Active Directory is a ------------------------ directory service, based on the domain, which is scalable
in both directions.
A. Network B. One Direction C. Object-Oriented D. Hierarchical
• Describe four of Active Directory’s logical components .
• What are the physical components of the active directory?
• A server that is running ………. is called a domain controller.
Q/ Answer The Following Questions:
