Schneider Electric's new green headquarters building in Paris, called Le Hive, was designed and built to be highly energy efficient. It uses EcoStruxure, an integrated energy management system, to optimize building systems like HVAC, lighting, and security. Energy usage is closely monitored through extensive metering to identify savings opportunities. Occupants can control their local environments through wall panels and help meet efficiency goals through an employee engagement program aimed at eco-friendly behaviors. The building has achieved major energy reductions since opening in 2008 through technical solutions, certification programs, and increased awareness.

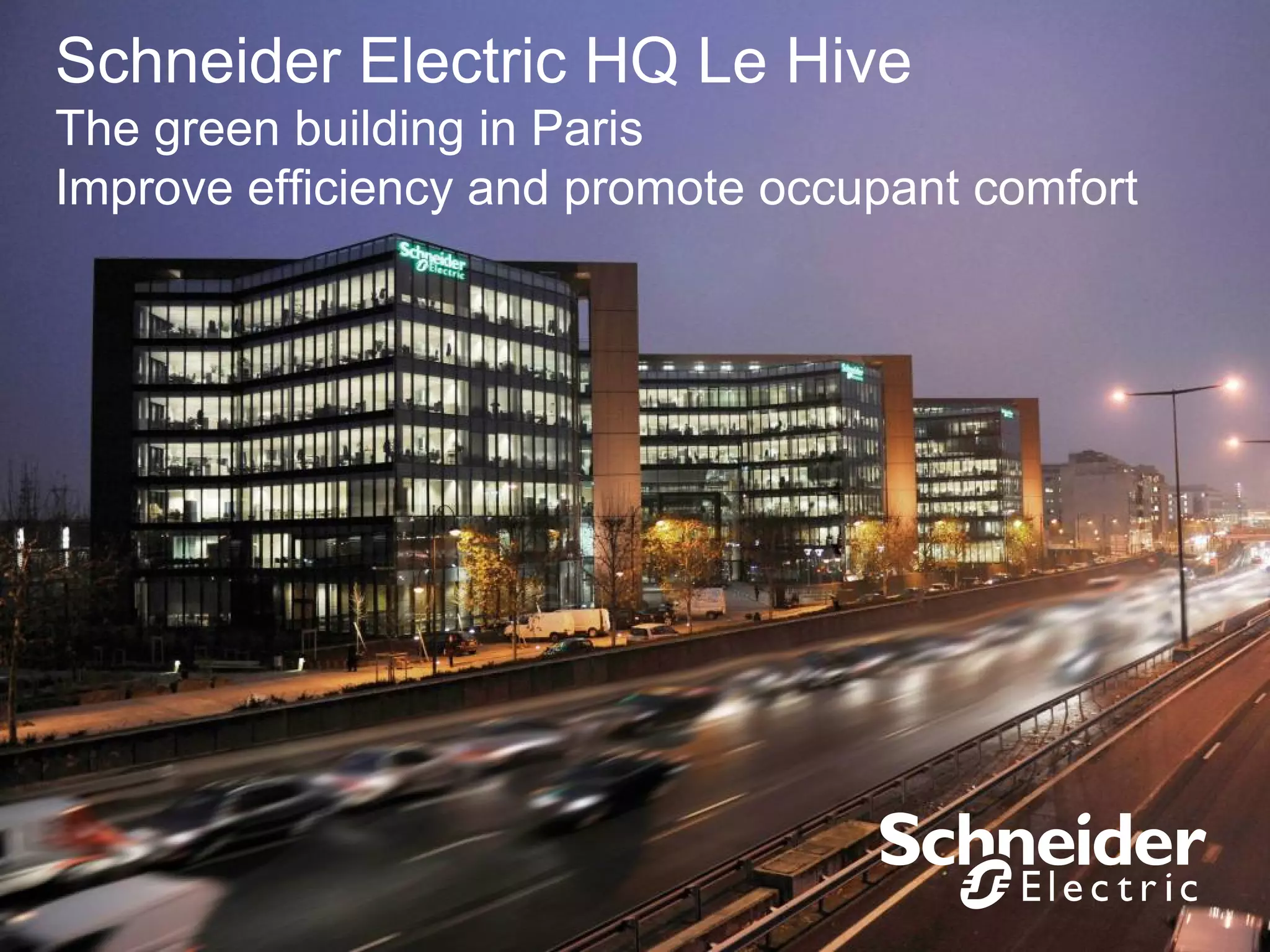

1. Schneider Electric HQ Le Hive
The green building in Paris
Improve efficiency and promote occupant comfort

2. Located 10 km west of Paris in
Rueil Malmaison
Schneider Electric 2

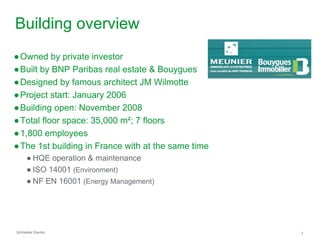

3. Building overview
● Owned by private investor
● Built by BNP Paribas real estate & Bouygues
● Designed by famous architect JM Wilmotte
● Project start: January 2006
● Building open: November 2008
● Total floor space: 35,000 m²; 7 floors
● 1,800 employees
● The 1st building in France with at the same time
● HQE operation & maintenance
● ISO 14001 (Environment)
● NF EN 16001 (Energy Management)
Schneider Electric 3

4. EcoStruxure integrated architecture
Active energy management architecture from Plant to Plug
Services
Supervision
Energy Mgt. Services
Enterprise portal
Power
management
Process
& Machines
management Services
IT / Server
Room
management
Supervision
Building
management
Security
management
Supervision
Services
Schneider Electric 4

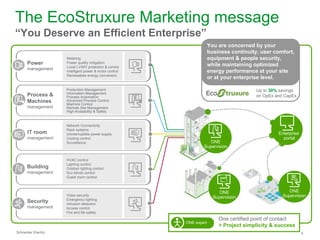

5. The EcoStruxure Marketing message
“You Deserve an Efficient Enterprise”
You are concerned by your
business continuity, user comfort,
Metering equipment & people security,
Power Power quality mitigation
Local LV/MV protection & control
while maintaining optimized
management
Intelligent power & motor control energy performance at your site
Renewables energy conversion
or at your enterprise level.
Production Management Up to 30% savings
Information Management
Process & Process Automation on OpEx and CapEx
Machines Advanced Process Control
Machine Control
management Remote Site Management
High-Availability & Safety
Network Connectivity
Rack systems
IT room Uninterruptible power supply Enterprise
management Cooling control portal
Surveillance ONE
Supervision
HVAC control
Lighting control
Building Outdoor lighting control
management Sun blinds control
Guest room control
ONE ONE
Video security
Supervision Supervision
Emergency lighting
Security Intrusion detection
management Access control
Fire and life safety
One certified point of contact
ONE expert
> Project simplicity & success
Schneider Electric 5

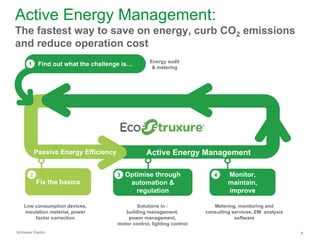

6. Active Energy Management:
The fastest way to save on energy, curb CO2 emissions
and reduce operation cost
Energy audit
1 Find out what the challenge is… & metering
Passive Energy Efficiency Active Energy Management
2 3 Optimise through 4 Monitor,
Fix the basics automation & maintain,
regulation improve
Low consumption devices, Solutions in : Metering, monitoring and
insulation material, power building management, consulting services, EM analysis
factor correction power management, software
motor control, lighting control
Schneider Electric 6

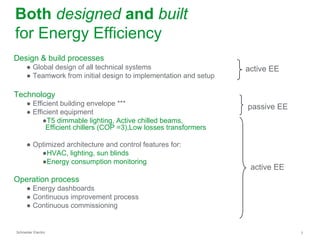

7. Both designed and built
for Energy Efficiency
Design & build processes
● Global design of all technical systems active EE
● Teamwork from initial design to implementation and setup
Technology
● Efficient building envelope *** passive EE
● Efficient equipment
●T5 dimmable lighting, Active chilled beams,
Efficient chillers (COP =3),Low losses transformers
● Optimized architecture and control features for:
●HVAC, lighting, sun blinds
●Energy consumption monitoring
active EE
Operation process
● Energy dashboards
● Continuous improvement process
● Continuous commissioning
Schneider Electric 7

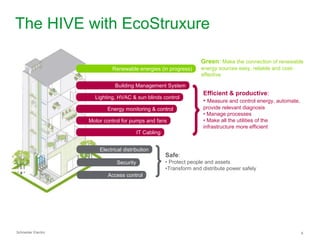

8. The HIVE with EcoStruxure
Green: Make the connection of renewable
Renewable energies (in progress) energy sources easy, reliable and cost-
effective
Building Management System
Efficient & productive:
Lighting, HVAC & sun blinds control
• Measure and control energy, automate,
Energy monitoring & control provide relevant diagnosis
• Manage processes
Motor control for pumps and fans • Make all the utilities of the
infrastructure more efficient
IT Cabling
Electrical distribution
Safe:
Security • Protect people and assets
•Transform and distribute power safely
Access control
Schneider Electric 8

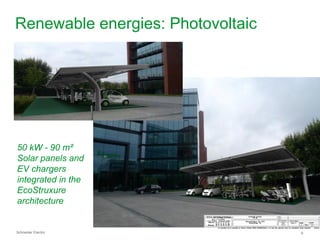

9. Renewable energies: Photovoltaic
50 kW - 90 m²
Solar panels and
EV chargers
integrated in the
EcoStruxure
architecture
Schneider Electric 9

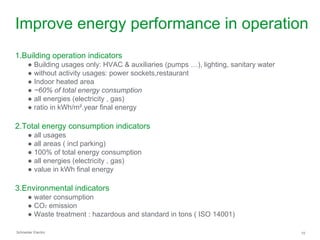

10. Improve energy performance in operation
1.Building operation indicators
● Building usages only: HVAC & auxiliaries (pumps …), lighting, sanitary water
● without activity usages: power sockets,restaurant
● Indoor heated area
● ~60% of total energy consumption
● all energies (electricity , gas)
● ratio in kWh/m².year final energy
2.Total energy consumption indicators
● all usages
● all areas ( incl parking)
● 100% of total energy consumption
● all energies (electricity , gas)
● value in kWh final energy
3.Environmental indicators
● water consumption
● CO2 emission
● Waste treatment : hazardous and standard in tons ( ISO 14001)
Schneider Electric 10

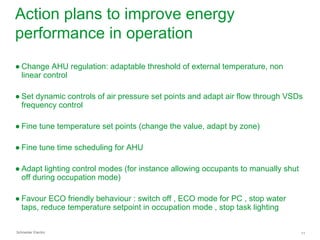

11. Action plans to improve energy
performance in operation
● Change AHU regulation: adaptable threshold of external temperature, non
linear control
● Set dynamic controls of air pressure set points and adapt air flow through VSDs
frequency control
● Fine tune temperature set points (change the value, adapt by zone)
● Fine tune time scheduling for AHU
● Adapt lighting control modes (for instance allowing occupants to manually shut
off during occupation mode)
● Favour ECO friendly behaviour : switch off , ECO mode for PC , stop water
taps, reduce temperature setpoint in occupation mode , stop task lighting
Schneider Electric 11

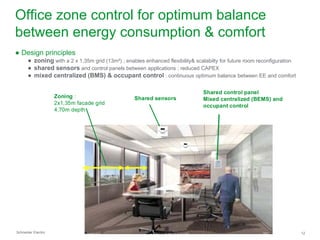

12. Office zone control for optimum balance
between energy consumption & comfort
● Design principles
● zoning with a 2 x 1,35m grid (13m²) ; enables enhanced flexibility& scalabilty for future room reconfiguration
● shared sensors and control panels between applications ; reduced CAPEX
● mixed centralized (BMS) & occupant control : continuous optimum balance between EE and comfort
Shared control panel
Zoning : Shared sensors Mixed centralized (BEMS) and
2x1,35m facade grid
occupant control
4,70m depth
Schneider Electric 12

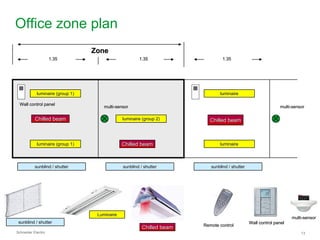

13. Office zone plan
Zone
1.35 1.35 1.35
luminaire (group 1) luminaire
Wall control panel
multi-sensor
multi- multi-sensor
multi-
Chilled beam luminaire (group 2) Chilled beam
luminaire (group 1) Chilled beam luminaire
sunblind / shutter sunblind / shutter sunblind / shutter
Luminaire
multi-sensor
multi-
sunblind / shutter Wall control panel
Remote control
Chilled beam
Schneider Electric 13

14. Continued…
● Lighting features
● a presence+light sensor in each zone
● manual switch on and automatic switch off ( 20mn in individual office, after hours in open space)
● automatic constant lux level with adaptable setting ( eg 330lux)
● HVAC features
● a presence+light sensor in each zone
● automatic ventilation & temperature control by zone
● manual switch on and automatic swich off ( 20mn in individual office, after hours in open space)
● occupant can change temperature setting in a +/- 1,5°C range on central( BMS) setting
● manual on/of for the 2 scenarios : comfort/presence – reduced/absence
● automatic(BMS) switch on for the reduced/absence scenario after hours
● Sunblinds features
● occupants control up/down in individual offices and open space
● Occupants control
● In open space , meeting rooms and individual offices : wall mounted multifunctional panel for
lighting control, temperature settings &sunlbinds control; + comfort/presence and
reduced/absence scenarios
● remote control in individual office for light, sunblinds and temperature settings
● Air quality control
● combined hygrometry-external-interal temperature sensors linked to automatic air flow control
Schneider Electric 14

15. Energy consumption is under control by
a comprehensive energy monitoring
● Energy metering
● by zone
● by usage in each zone
● by energy
● 12 heat and cold meters on hair
handling units , heat water
production, heated floor
● 140 electrical energy meters
● Automatic data collection and
storage
● Reporting for Facility manager
● Energy awareness for Visitors
and employees on display in
the showroom
Schneider Electric 15

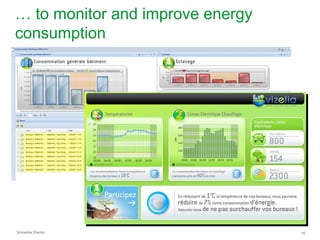

16. … to monitor and improve energy
consumption
Schneider Electric 16

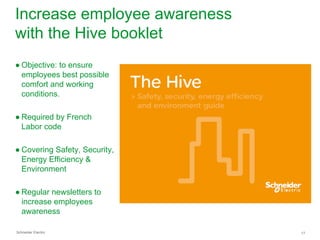

17. Increase employee awareness
with the Hive booklet
● Objective: to ensure
employees best possible
comfort and working
conditions.
● Required by French
Labor code
● Covering Safety, Security,
Energy Efficiency &
Environment
● Regular newsletters to
increase employees
awareness
Schneider Electric 17

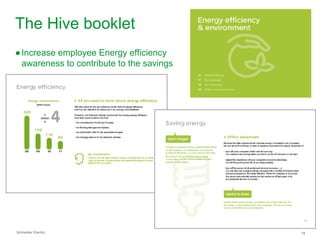

18. The Hive booklet
● Increase employee Energy efficiency
awareness to contribute to the savings
Schneider Electric 18

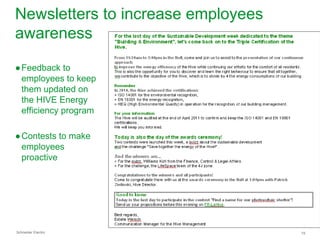

19. Newsletters to increase employees
awareness
● Feedback to
employees to keep
them updated on
the HIVE Energy
efficiency program
● Contests to make
employees
proactive
Schneider Electric 19

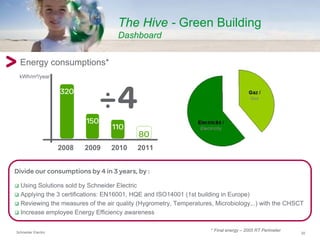

20. The Hive - Green Building
Dashboard
Energy consumptions*
kWh/m²/year
320
150
110
80
2008 2009 2010 2011
Divide our consumptions by 4 in 3 years, by :
 Using Solutions sold by Schneider Electric
 Applying the 3 certifications: EN16001, HQE and ISO14001 (1st building in Europe)
 Reviewing the measures of the air quality (Hygrometry, Temperatures, Microbiology,..) with the CHSCT
 Increase employee Energy Efficiency awareness
Schneider Electric
* Final energy – 2005 RT Perimeter
20

21. Q&A
Make the most of your energy
Email: jacques.bollecker@schneider-electric.com
Schneider Electric 21

22. Thank you
for your participation !
Schneider Electric 22
