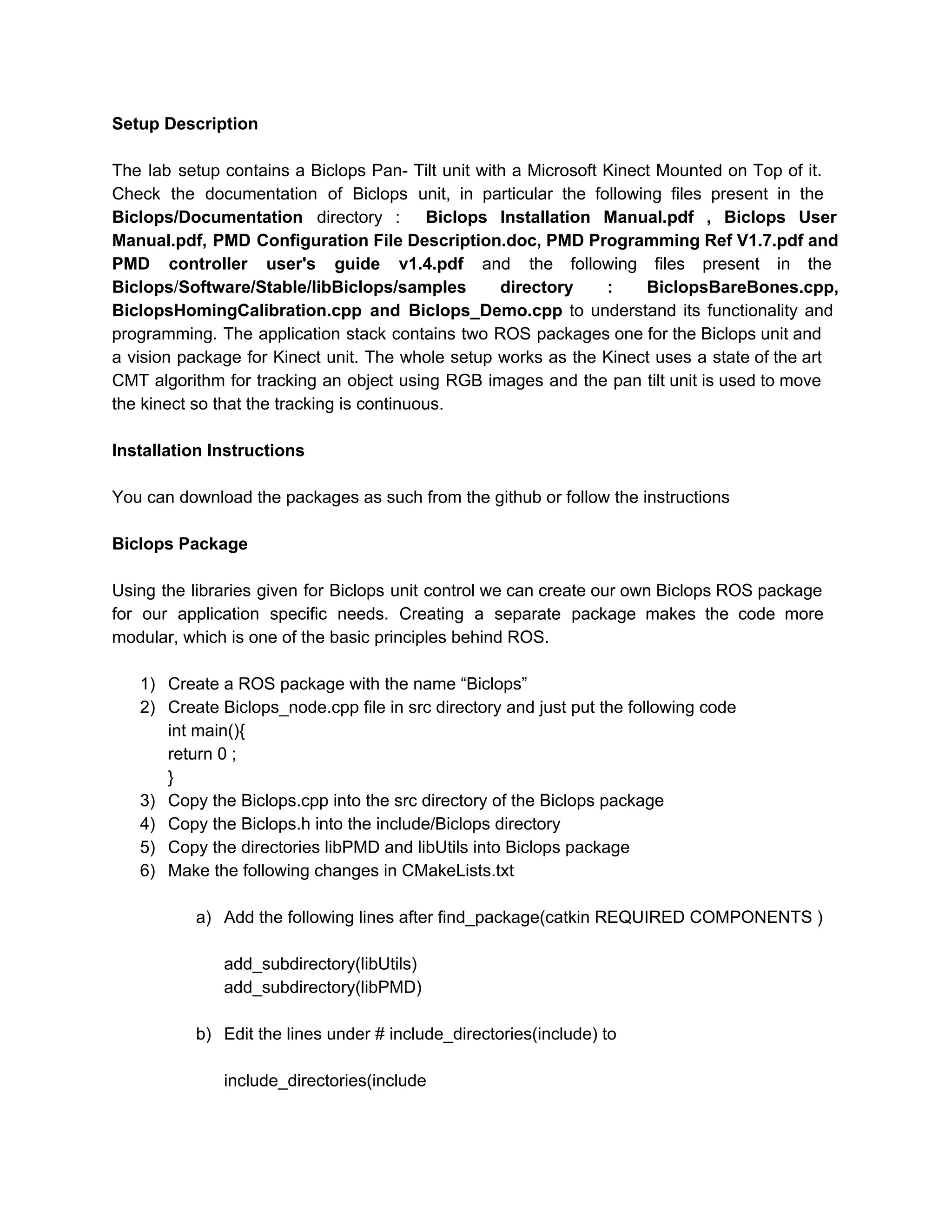

1. Setup Description
The lab setup contains a Biclops Pan­ Tilt unit with a Microsoft Kinect Mounted on Top of it.
Check the documentation of Biclops unit, in particular the following files present in the
Biclops/Documentation ​directory : ​Biclops Installation Manual.pdf , ​Biclops User
Manual.pdf​, ​PMD Configuration File Description.doc​, ​PMD Programming Ref V1.7.pdf and
PMD controller user's guide v1.4.pdf and the following files present in the
Biclops​/​Software/Stable/libBiclops/samples directory : ​BiclopsBareBones.cpp​,
BiclopsHomingCalibration.cpp and ​Biclops_Demo.cpp ​to understand its functionality and
programming. The application stack contains two ROS packages one for the Biclops unit and
a vision package for Kinect unit. The whole setup works as the Kinect uses a state of the art
CMT algorithm for tracking an object using RGB images and the pan tilt unit is used to move
the kinect so that the tracking is continuous.
Installation Instructions
You can download the packages as such from the github or follow the instructions
Biclops Package
Using the libraries given for Biclops unit control we can create our own Biclops ROS package
for our application specific needs. Creating a separate package makes the code more
modular, which is one of the basic principles behind ROS.
1) Create a ROS package with the name “Biclops”
2) Create Biclops_node.cpp file in src directory and just put the following code
int main(){
return 0 ;
}
3) Copy the Biclops.cpp into the src directory of the Biclops package
4) Copy the Biclops.h into the include/Biclops directory
5) Copy the directories libPMD and libUtils into Biclops package
6) Make the following changes in CMakeLists.txt
a) Add the following lines after find_package(catkin REQUIRED COMPONENTS )
add_subdirectory(libUtils)
add_subdirectory(libPMD)

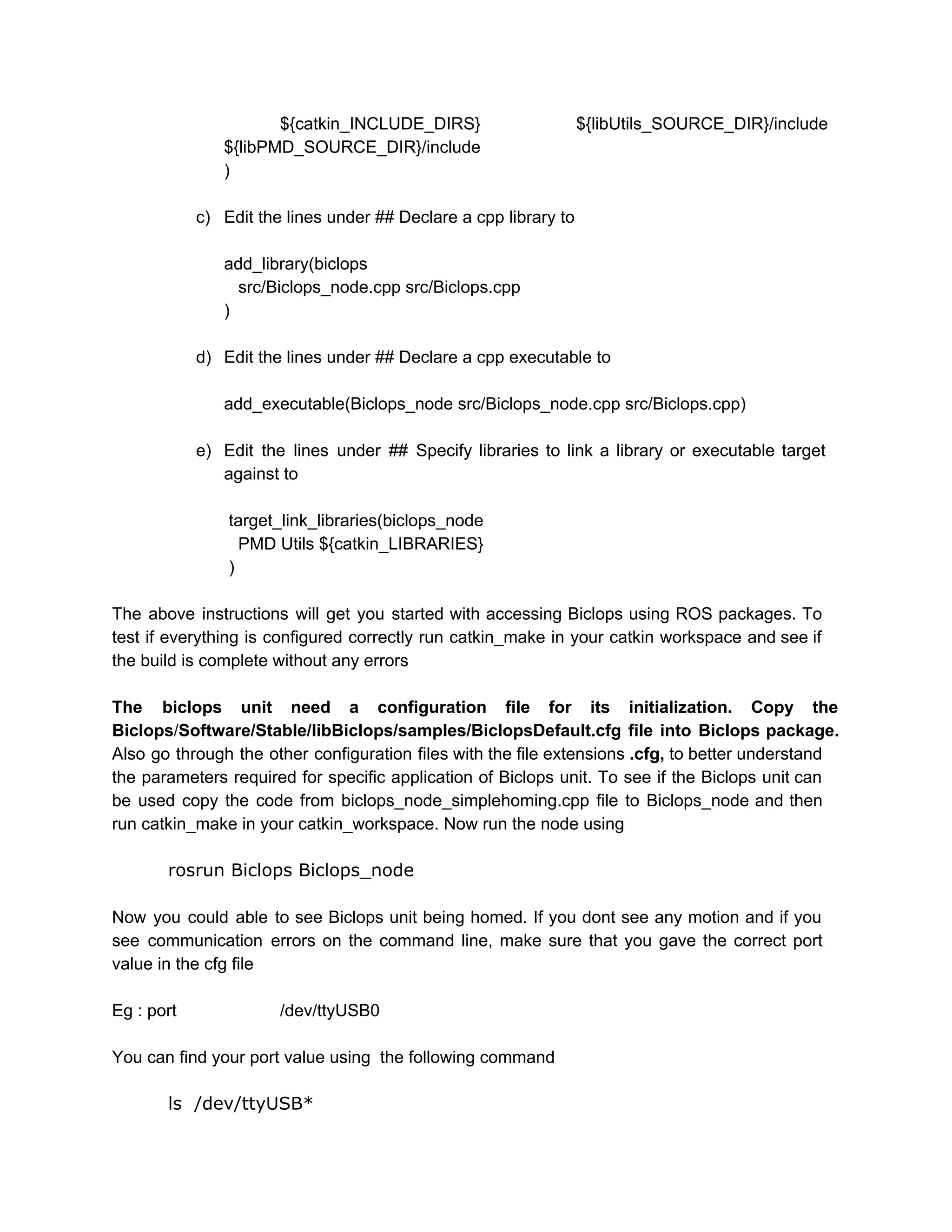

b) Edit the lines under # include_directories(include) to
include_directories(include

2. ${catkin_INCLUDE_DIRS} ${libUtils_SOURCE_DIR}/include
${libPMD_SOURCE_DIR}/include
)
c) Edit the lines under ## Declare a cpp library to
add_library(biclops
src/Biclops_node.cpp src/Biclops.cpp
)
d) Edit the lines under ## Declare a cpp executable to
add_executable(Biclops_node src/Biclops_node.cpp src/Biclops.cpp)
e) Edit the lines under ## Specify libraries to link a library or executable target
against to
target_link_libraries(biclops_node
PMD Utils ${catkin_LIBRARIES}
)
The above instructions will get you started with accessing Biclops using ROS packages. To
test if everything is configured correctly run catkin_make in your catkin workspace and see if
the build is complete without any errors
The biclops unit need a configuration file for its initialization. Copy the
Biclops​/​Software/Stable/libBiclops/samples/BiclopsDefault.cfg file into Biclops package.
Also go through the other configuration files with the file extensions ​.cfg, ​to better understand
the parameters required for specific application of Biclops unit. To see if the Biclops unit can
be used copy the code from biclops_node_simplehoming.cpp file to Biclops_node and then
run catkin_make in your catkin_workspace. Now run the node using
rosrun Biclops Biclops_node
Now you could able to see Biclops unit being homed. If you dont see any motion and if you
see communication errors on the command line, make sure that you gave the correct port
value in the cfg file
Eg : port /dev/ttyUSB0
You can find your port value using the following command
ls /dev/ttyUSB*

3.
If everything is configured correctly and if still the Biclops unit has communication errors
please check the connections of the serial port, if they are broken or intact.
ROS Services
Check ROS turtorials on ROS Services and Messages to understand the basic concepts.
http://wiki.ros.org/ROS/Tutorials/CreatingMsgAndSrv
http://wiki.ros.org/ROS/Tutorials/UnderstandingServicesParams
A ros service can be invoked from the command line using
rosservice call /servicename {args}
This can be demonstrated with the Biclops unit. We can create a service for homing the
Biclops unit from the command line whenever we want. Use the code from
biclops_node_homingservice.cpp.
This uses Empty.h header file for service message types and the service callback function
has just homing sequence of Biclops. This service can be called using
rosservice call /homing_sequence ‘{}’
Note the empty arguemnts as we used empty.h header file without any arguments.
URDF ­ Biclops Model
URDF ­ Unified Robot Description Format is an xml format to describe a robot with various
joints and Links. Go through the following tutorials step by step to better understand the
concept of URDF and its implementation
http://wiki.ros.org/urdf/Tutorials/
To understand this, we can visualize the model of Biclops in Rviz.
To use the robot model you need to set one ROS parameter “robot_description”. One way to
do it is to use the following lines in a launch file

4. <param name="robot_description" command="cat $(find
Biclops)/urdf/model.urdf" />
Where Biclops is the package name and model.urdf file is inside the urdf directory of ROS
package.
You can also set this from the command line
For visualizing the model with joint movements use the following command when you are in
Biclops package directory
roslaunch urdf_tutorial display.launch model:=urdf/model.urdf gui:=True
Check the urdf tutorials on ROS documentation to learn more about using the URDF files
with real robots.
Biclops Teleop
Check the following basic ROS tutorials to understand the turtlesim package and using
tele­operation of the turtle from the keyboard arrow keys
http://wiki.ros.org/ROS/Tutorials/UnderstandingNodes
http://wiki.ros.org/ROS/Tutorials/UnderstandingTopics
We can use the teleop node to move the Biclops Unit. Left and Right arrow keys can be used
to control the PAN motion, Up and Down arrow keys can be used to control the TILT motion.
To implement this check the code in biclops_node_teleop.cpp file
Kinect Setup in Linux
To ensure proper working of Kinect in Linux several drivers need to be installed. Please
following the instructions for installing the drivers.
Software
To control the LED and the tilt motor, we will use ​freenect ​library (open source, unofficial):
■ http://openkinect.org/

5. ■ Git​: ​https://github.com/OpenKinect/libfreenect
To control the video flux and get the depth map, we’ll take ​openNI ​drivers (open source, official):
■ http://openni.org/
■ Git​: ​https://github.com/OpenNI/OpenNI
We also need ​PrimeSense​(the company that makes the Kinect) sensor module (open source):
Warning:​ Official PrimeSense driver is not compatible with the Kinect, we need to take a modified version.
■ http://www.primesense.com/
■ Git​: ​https://github.com/avin2/SensorKinect​ (it’s the modified version)
Environment setup
1­ Download needed libraries/software.
mkdir KinectLibs; cd KinectLibs
git clone https://github.com/OpenKinect/libfreenect
git clone https://github.com/OpenNI/OpenNI
git clone https://github.com/avin2/SensorKinect
sudo apt­get install cmake libglut3­dev pkg­config build­essential libxmu­dev libxi­dev libusb­1.0­0­dev
python
● if you get ​“Unable to locate package libglut3­dev”, ​use this command instead:
sudo apt­get install cmake freeglut3­dev pkg­config build­essential libxmu­dev libxi­dev libusb­1.0­0­dev
python
sudo add­apt­repository "deb http://archive.canonical.com/ lucid partner"
sudo apt­get update
sudo apt­get install sun­java6­jdk

6. sudo apt­get install doxygen mono­complete graphviz
1­ Install openKinect (libFreenect)
# in libfreenect directory, in the KinectLibs dir
mkdir build
cd build
cmake ..
make
sudo make install
sudo ldconfig /usr/local/lib64/
● Once libFreenect is installed, plug the Kinect, then set permission to R/W on the usb devices
(motor and camera).
sudo chmod a+rw /dev/bus/usb//
sudo chmod a+rw /dev/bus/usb//
lsusb | grep Xbox
libusb couldn't open USB device /dev/bus/usb/001/006: Permission denied.
libusb requires write access to USB device nodes.
● Now, let’s see if everything is correctly setup, just run ​glview,​ you should get something like
Tip​: you can play a bit with the features with these commands:
‘w’­tilt up, ‘s’­level, ‘x’­tilt down, ‘0’­‘6′­select LED mode, ‘f’­video format
On the left there is an openGL representation of the depth map, the pixel color is set according to the point’s distance
to the sensor, on the right you can get the regular RGB camera view, or the infrared one (so you can see the infrared
pattern, switch between them with ‘f’)
Let’s now have a look on how to setup the gesture recognition libraries.
2­ Install OpenNi
We just installed a perfectly fine working library here, that seems to handle all functions of the Kinect, why
would we need another one?

7. It’s because of the high level library, NITE, which works only with OpenNi drivers, but the OpenNi drivers (which are
not Kinect specific) can’t control the Kinect motorized tilt or it’s led. So we need both libraries to have full access to
the Kinect.
So basically:
● we will use ​libfreenect to control the tilt and the led (so the device ​Xbox NUI Motor​, which also handle
the led).
● we will use ​OpenNi + Sensor module​ to get the camera streams (the device ​Xbox NUI Camera​)
● we will use ​NITE libraries in concert with OpenNI to get the high level API (so gesture recognition,
hand/skeleton tracking and so on)
Note​: ​Xbox NUI Audio​ device is handled by OpenNi, not libfreenect.
#inOpenNIdirectory,intheultratronikdir
cdPlatform/Linux/CreateRedist
chmod+x./RedistMaker
./RedistMaker
cd../Redist/OpenNI-Bin-Dev-Linux-x64-v1.5.2.23/
sudo./install.sh
Note​: it’s Sensor­Bin­Linux­x64­v5.1.0.25​for me, but might be different for you, there is only one directory in Redist/
anyway, just replace in case the name is wrong.
4­ Install NITE
● Download the library according to your system, then just run install.sh as root. that’s it.
You’re now all set for using the kinect!
Discover the Kinect potential with the examples
Go into your NITE directory, then
cdSamples/Bin/x64-Release;lsSample*
These are the available examples, these cover pretty much all the high level recognition handled by NITE.

8. You can find detailed documentation of these functions in NITE/Documentation/ directory, here is just a “quick start”
guide for each example.
NOTE : In case of installation errors please refer to the following page and the discussions part of
it
http://www.kdab.com/setting­up­kinect­for­programming­in­linux­part­1/
Vision Package
1) Create a ROS package with the name “vision”. and with opencv2 & cv_bridge as
package dependencies
2) Create vision_node.cpp file in src directory and just put the following code
int main(){
return 0 ;
}
3) Copy the CMT.cpp into the src directory of the vision package
4) Copy the CMT.h into the include/vision directory
5) Make the following changes in CMakeLists.txt
f) Add the following lines after find_package(catkin REQUIRED COMPONENTS )
find_package(OpenCV REQUIRED)
find_package(Qt4 REQUIRED COMPONENTS
QtCore
QtGui
)
g) Edit the lines under # include_directories(include) to
include_directories( include
${catkin_INCLUDE_DIRS}
)
h) Edit the lines under ## Declare a cpp executable to
add_executable(vision_node src/vision_node.cpp src/CMT.cpp)

9. i) Edit the lines under ## Specify libraries to link a library or executable target
against to
target_link_libraries(vision_node
${catkin_LIBRARIES} ${OpenCV_LIBS}
)
The above instructions will get you started with making a vision ROS packages that uses
CMT algorithm. To test if everything is configured correctly run catkin_make in your catkin
workspace and see if the build is complete without any errors
To understand the CMT algorithm please read the following publication
http://www.gnebehay.com/publications/wacv_2014/wacv_2014.pdf
To see the working of CMT algorithm copy and paste the code from vision_node_simple.cpp
to vision_node.cpp of src directory. Run catkin_make in the catking workspace and if there
are no errors the package will be built successfully
It is assumed that the kinect is connected and made sure that it is working by running
examples as mentioned before in Kinect installation part. Now run the following command to
see CMT algorithm
rosrun vision vision_node.cpp
You will be prompted to enter if you want to select the region of interest manually. Enter “y” if
you want to do it manually. By default the bounding box is at the center of the image frame of
640 X 480 resolution. Then an image screen appears, press enter when the object you want
to track is in the field of view. Now use the mouse and draw a rectangular box around the
object of interest and press enter. The CMT algorithm starts tracking and give you center,
scale and orientation values of the object being tracked.
ROS Messages
Check ROS turtorials on ROS Services and Messages to understand the basic concepts. In
our case we use messages to send out data (center, scale and orientation) over ROS topics.
The two types are messages we will look are in the msg directory of vision package with the
names
center.msg ­ message type for sending the center value alone
vision.msg ­ message type for sending the center, scale and orientation values
together.

10.
Follow the ROS turotials to configure the CMakeLists.txt and package.xml files to
implement the custom messages
Now copy the code from vision_node_withmsg.cpp file to vision_node.cpp file in src directory
to see the center, scale and orientation values being published as ROS Topics.
Calibration Details of the Biclops ­ Kinect assembly
The field of view of Kinect is
43​0 ​
Vertical
57​0 ​
Horizontal
Considering that the kinect is operated with 640 X 480 resolution, the PAN joint calibration is
done as follows,
Considering the tracking is done such that the tracked point is always placed in the center of
the field of view of Kinect, the following variables are declared
pan_max_step=320;​ (Half of the 640 pixel resolution)
pan_max_angle=28.5;​ (Half of the 57​0 ​
Horizontal)
The values returned from the tracking algorithm results in the X pixel value on a 640 pixel
resolution scale, the variable used in the code is ​center_point.CenterX ​in the
biclops_node.cpp ​file
The following code converts the returned pixel values into the corresponding PAN joint value
pan_pos_value=int (center_point.CenterX)­320; ​ (Getting the value on half resolution)
pan_pos_value= ( pan_pos_value / pan_max_step ) * pan_max_angle;
A similar calibration is done for the TILT joint. For operating kinect at other resolutions the
corresponding variables are to be changed to ensure correct tracking.
For any further information or suggestions in the documentation, kindly write to me at
yeshasvitvs@gmail.com
