1. Real Time Media Stream Processing with FI-WARE
Ivan Gracia
Kurento.org
igracia@kurento.org, @kurentoms

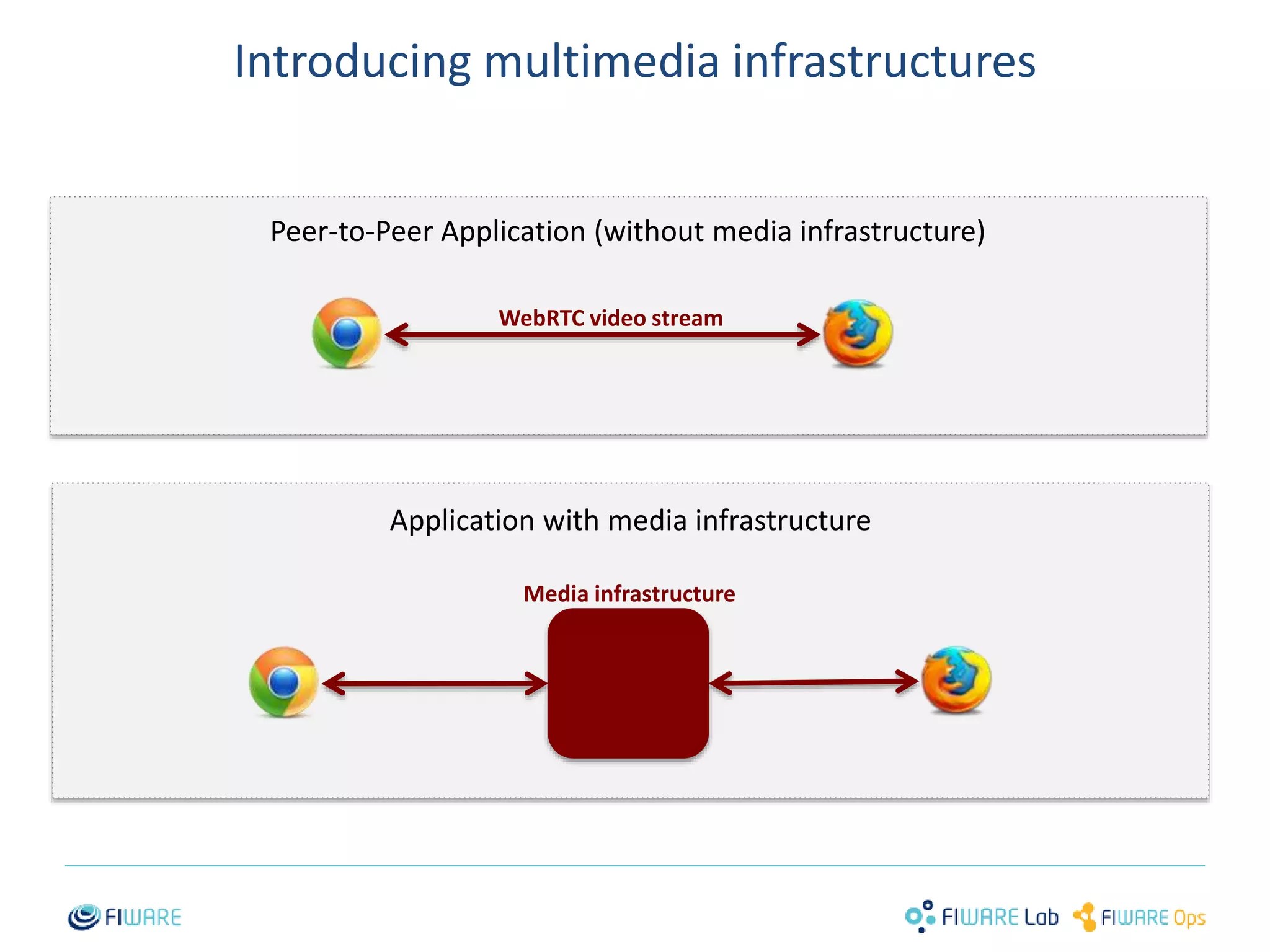

2. Introducing multimedia infrastructures
Peer-to-Peer Application (without media infrastructure)
WebRTC video stream
Application with media infrastructure
Media infrastructure
1

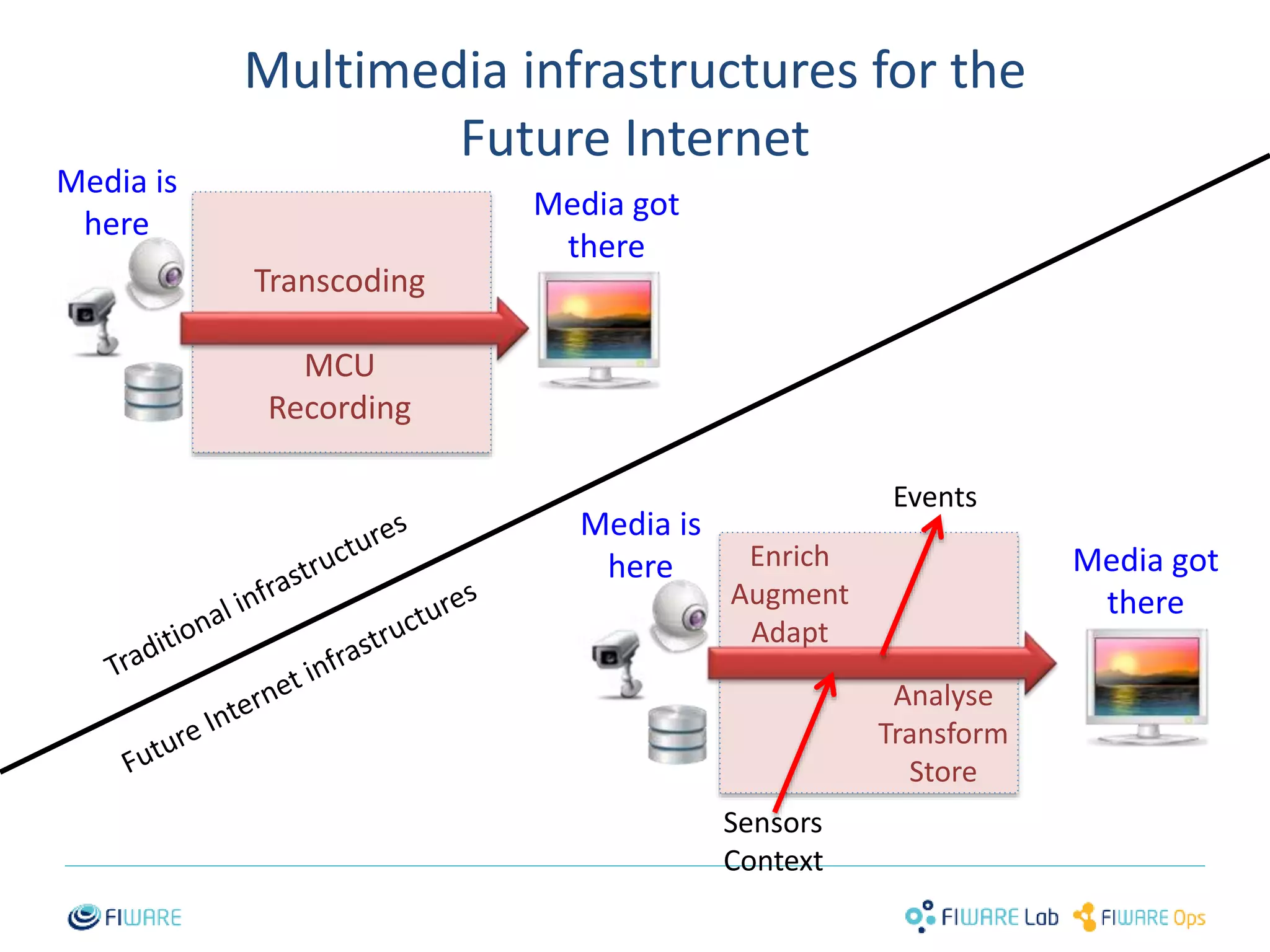

3. Multimedia infrastructures for the
Future Internet
2
Media is
here
Media got
there
Media got
there
Analyse
Transform
Store
Transcoding
MCU
Recording
Enrich
Augment
Adapt
Sensors
Context
Events
Media is
here

4. Enrich, augment, adapt, analyse, transform, store: what’s
the problem?
Complexity
3

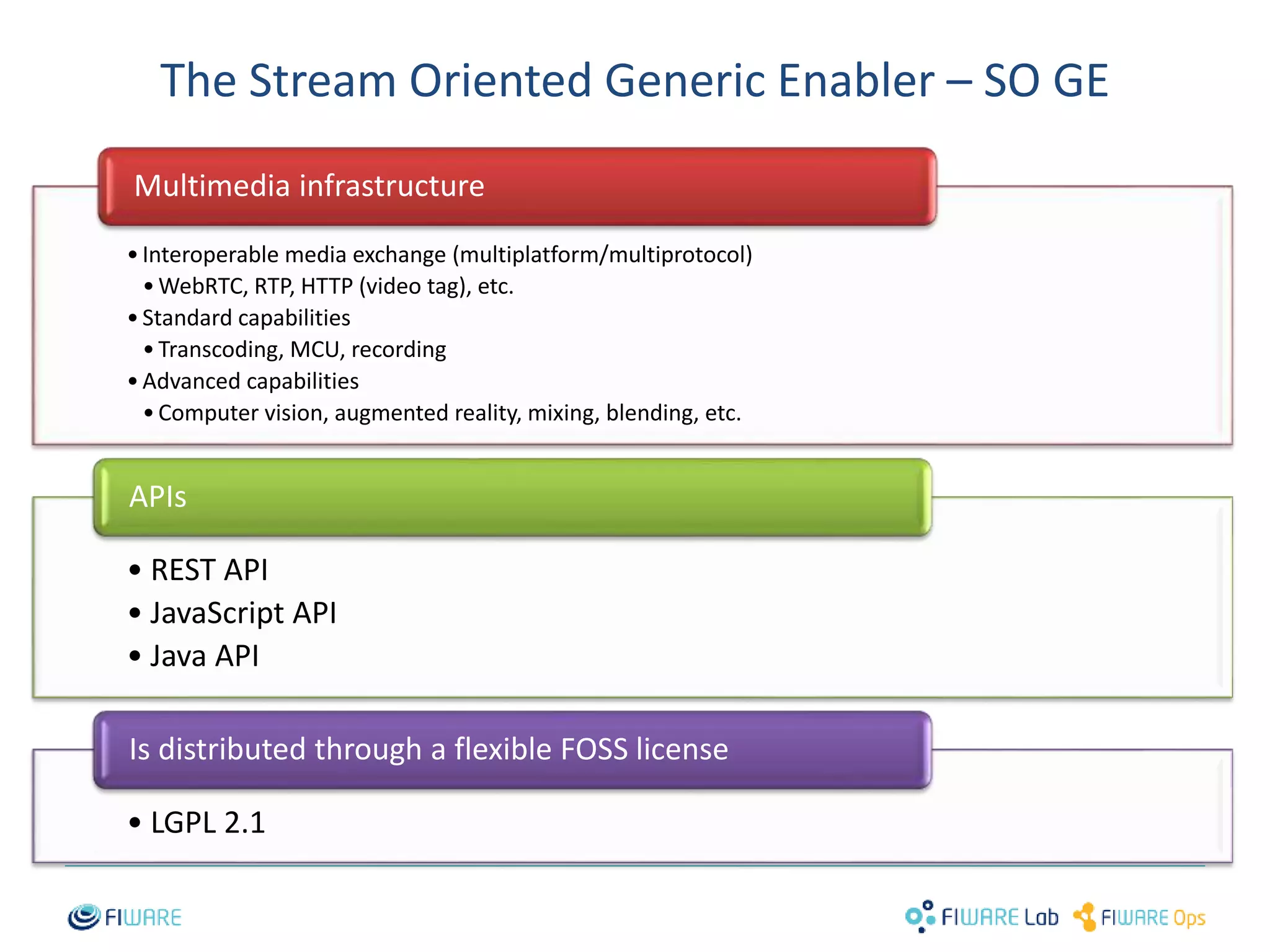

5. The Stream Oriented Generic Enabler – SO GE
• Interoperable media exchange (multiplatform/multiprotocol)
•WebRTC, RTP, HTTP (video tag), etc.
• Standard capabilities
• Transcoding, MCU, recording
• Advanced capabilities
• Computer vision, augmented reality, mixing, blending, etc.
Is distributed through a flexible FOSS license
4
Multimedia infrastructure
APIs
• REST API
• JavaScript API
• Java API
• LGPL 2.1

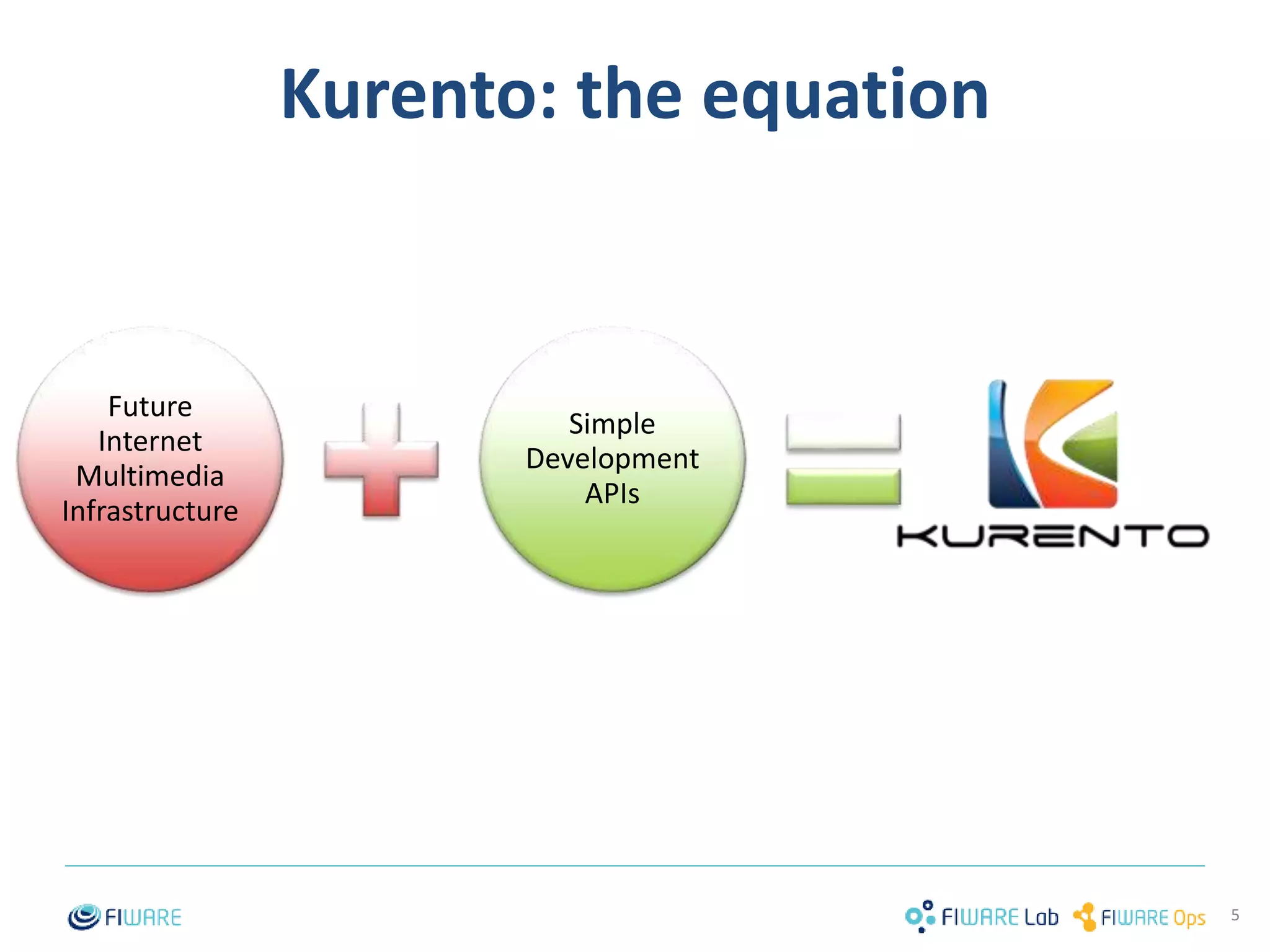

6. Kurento: the equation
5
Future
Internet
Multimedia
Infrastructure
Simple
Development
APIs
5

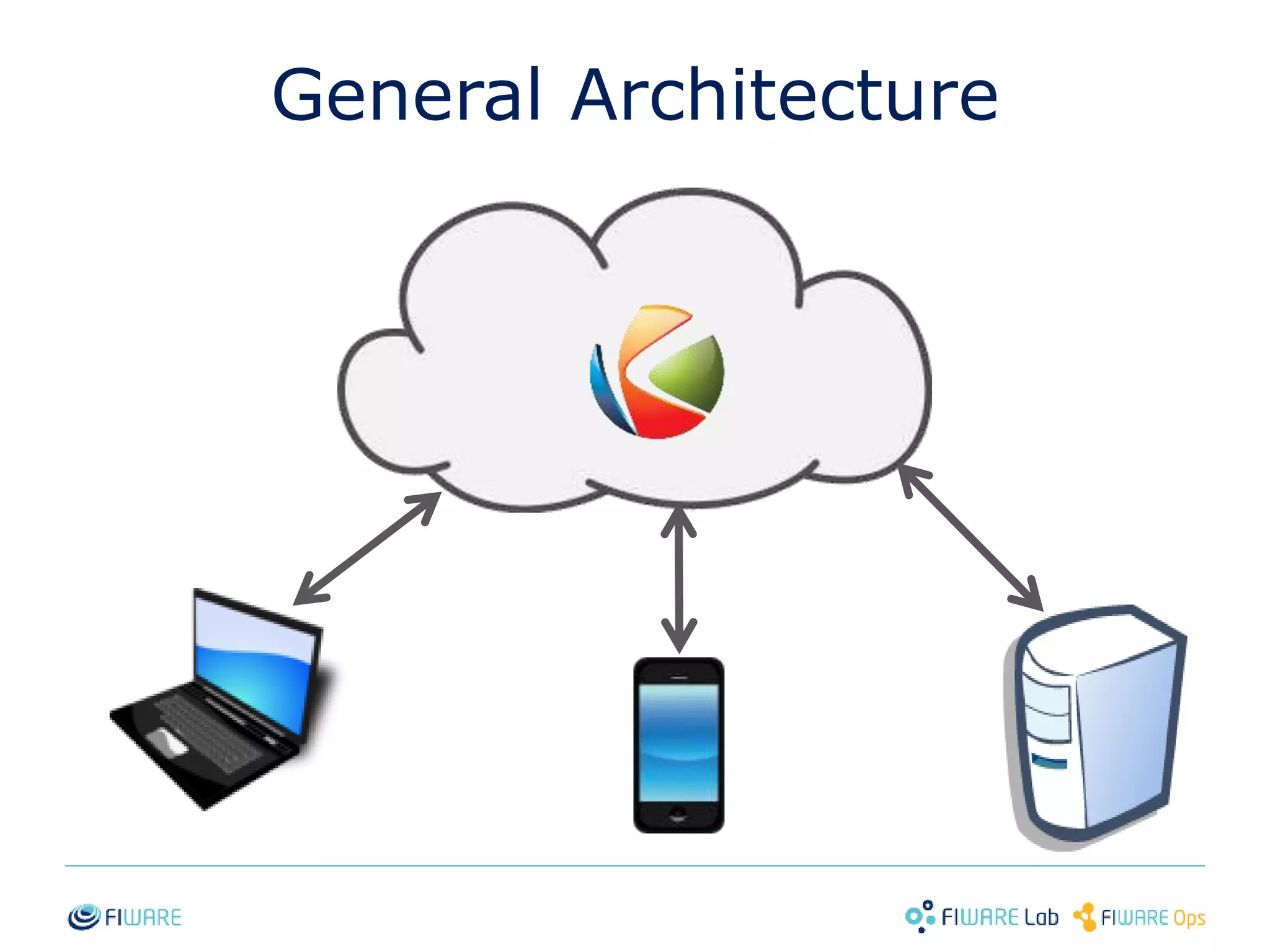

7. General Architecture
6

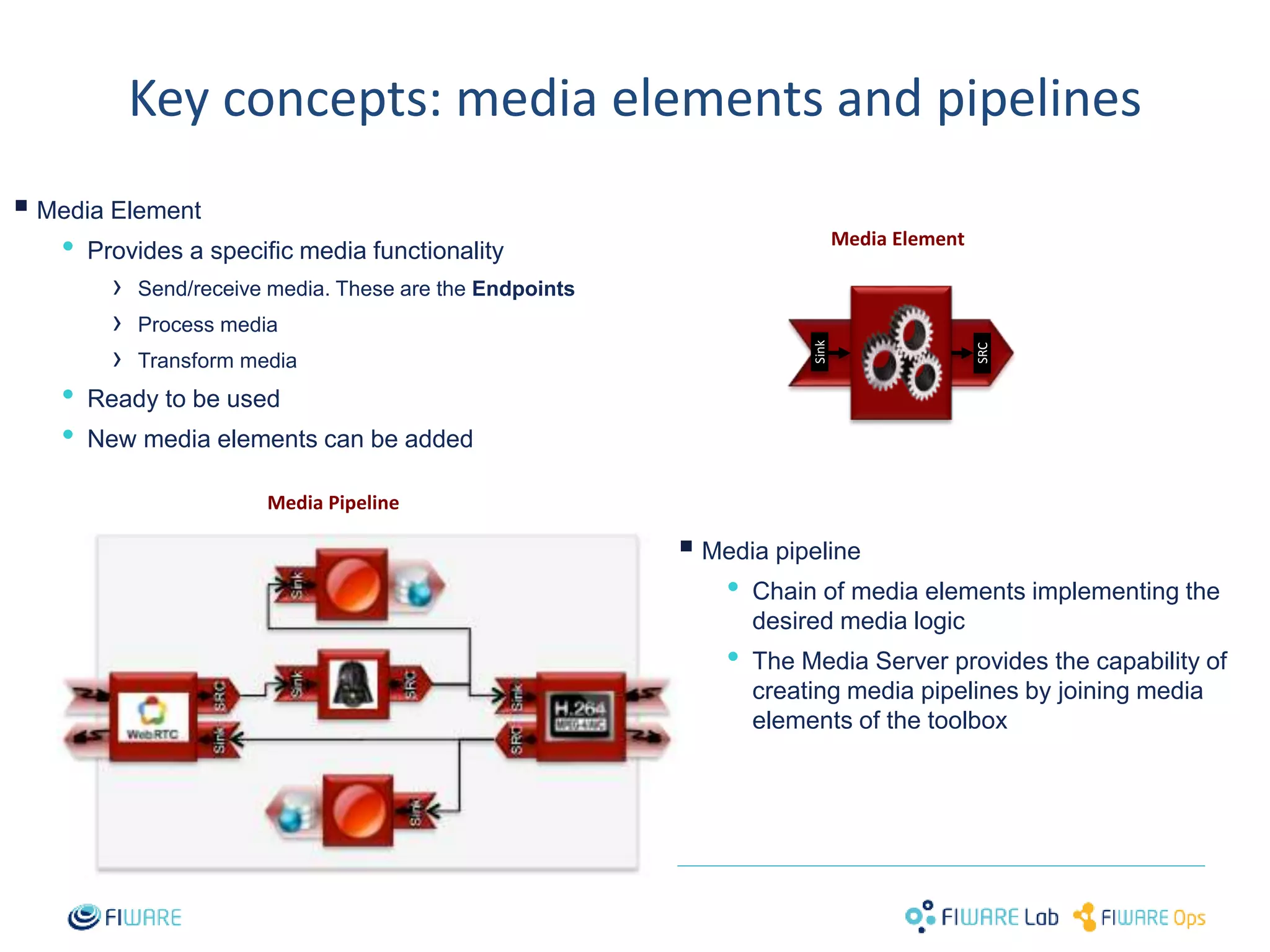

8. Key concepts: media elements and pipelines
7

Media Element
• Provides a specific media functionality
› Send/receive media. These are the Endpoints
› Process media
› Transform media
• Ready to be used
• New media elements can be added

Media Element
Sink
SRC
Media pipeline
• Chain of media elements implementing the
desired media logic
• The Media Server provides the capability of
creating media pipelines by joining media
elements of the toolbox
Media Pipeline

9. 8

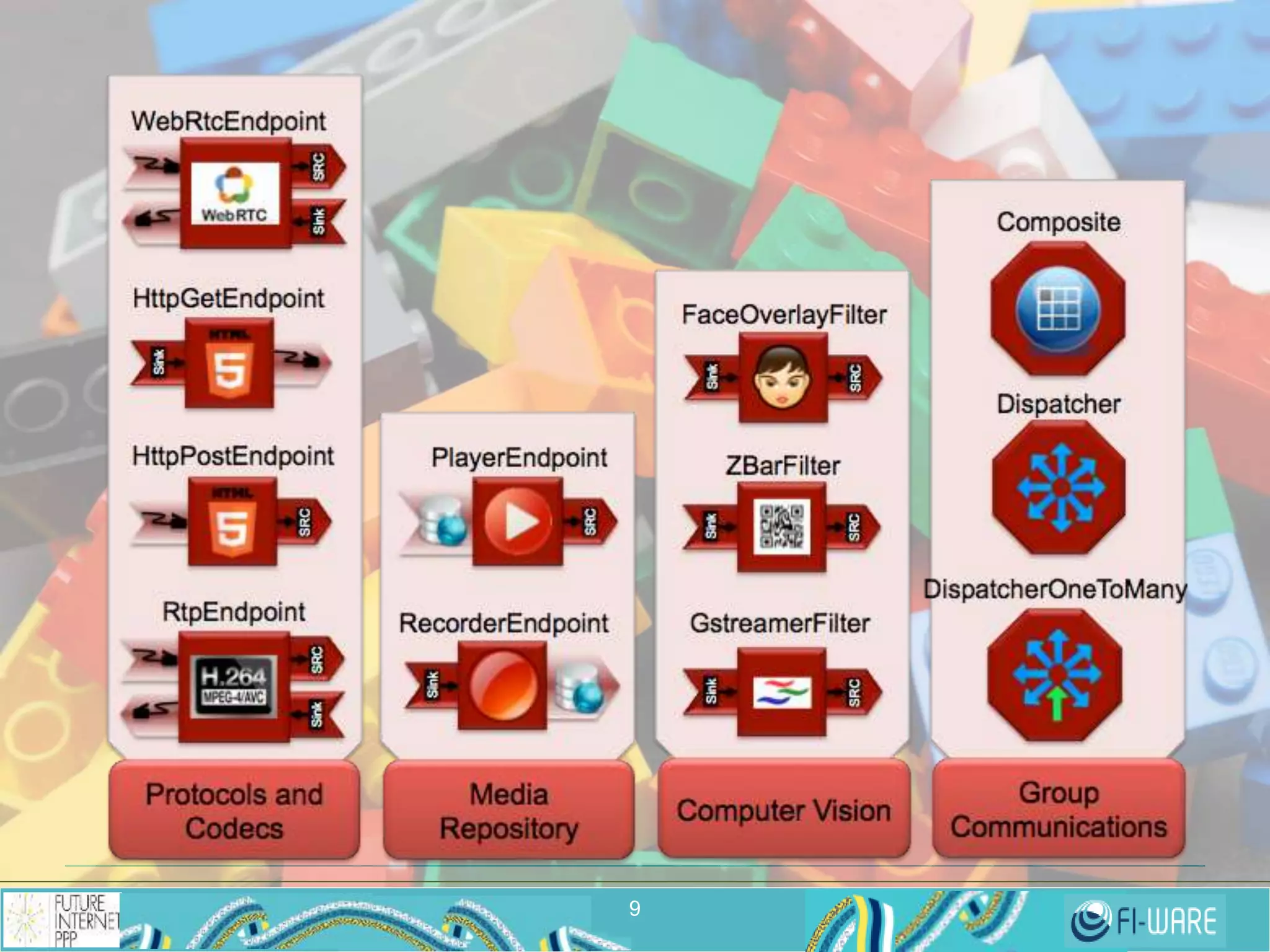

10. 9

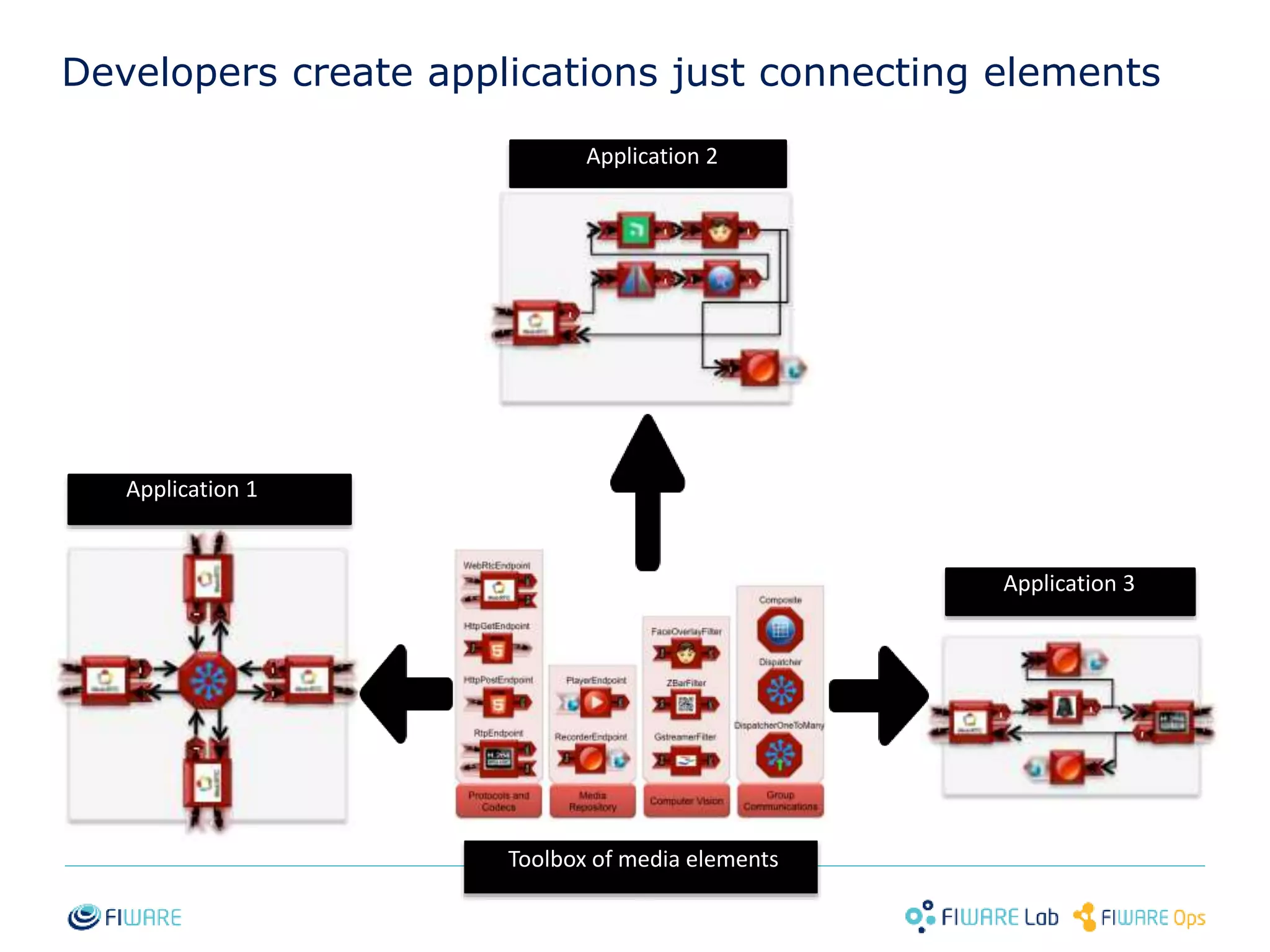

11. Developers create applications just connecting elements
Application 2
Application 3
Application 1
Toolbox of media elements
10

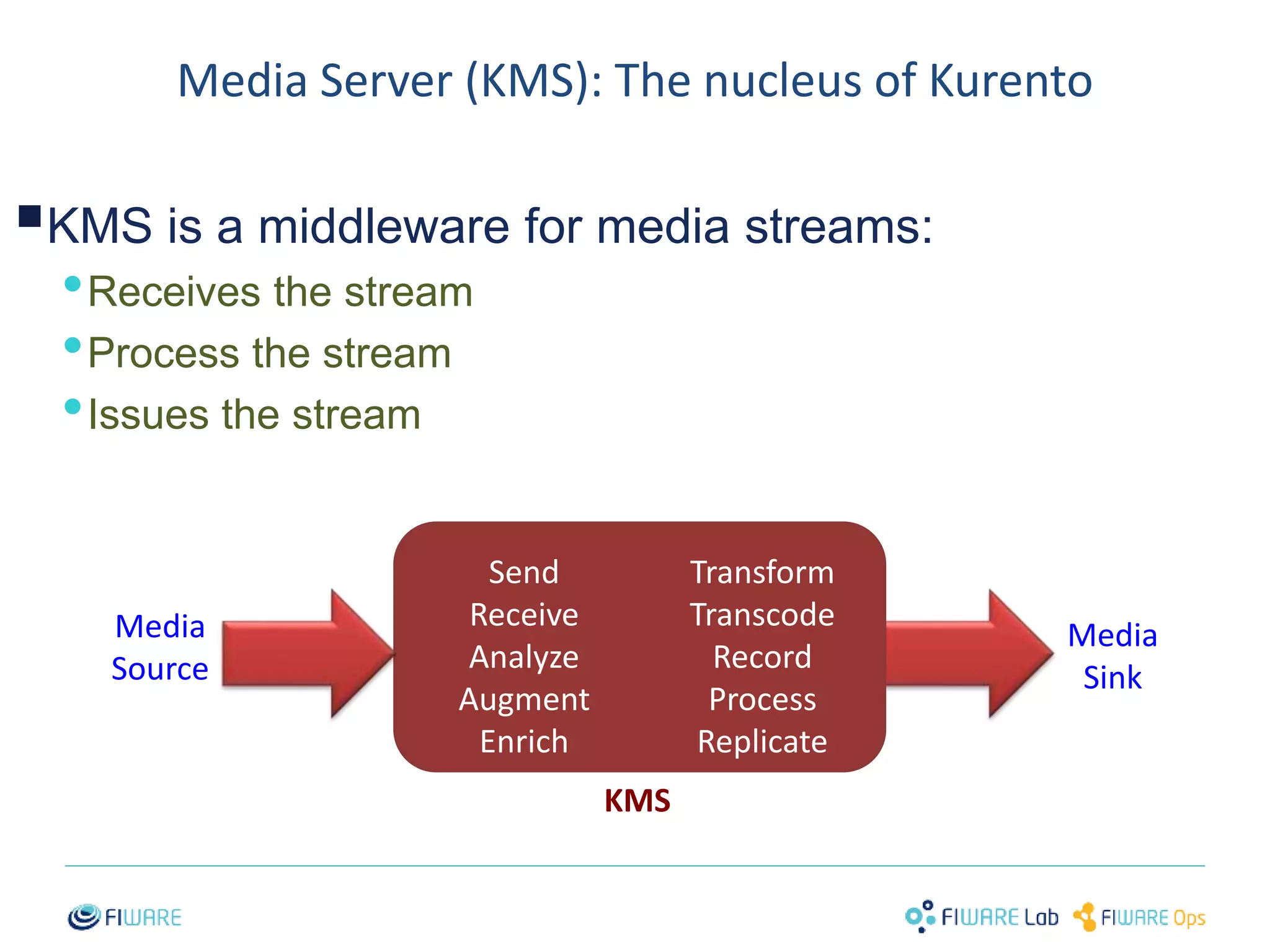

12. Media Server (KMS): The nucleus of Kurento

KMS is a middleware for media streams:
•Receives the stream
•Process the stream
•Issues the stream
11
Send
Receive
Analyze
Augment
Enrich
Transform
Transcode
Record
Process
Replicate
Media
Source
Media
Sink
KMS

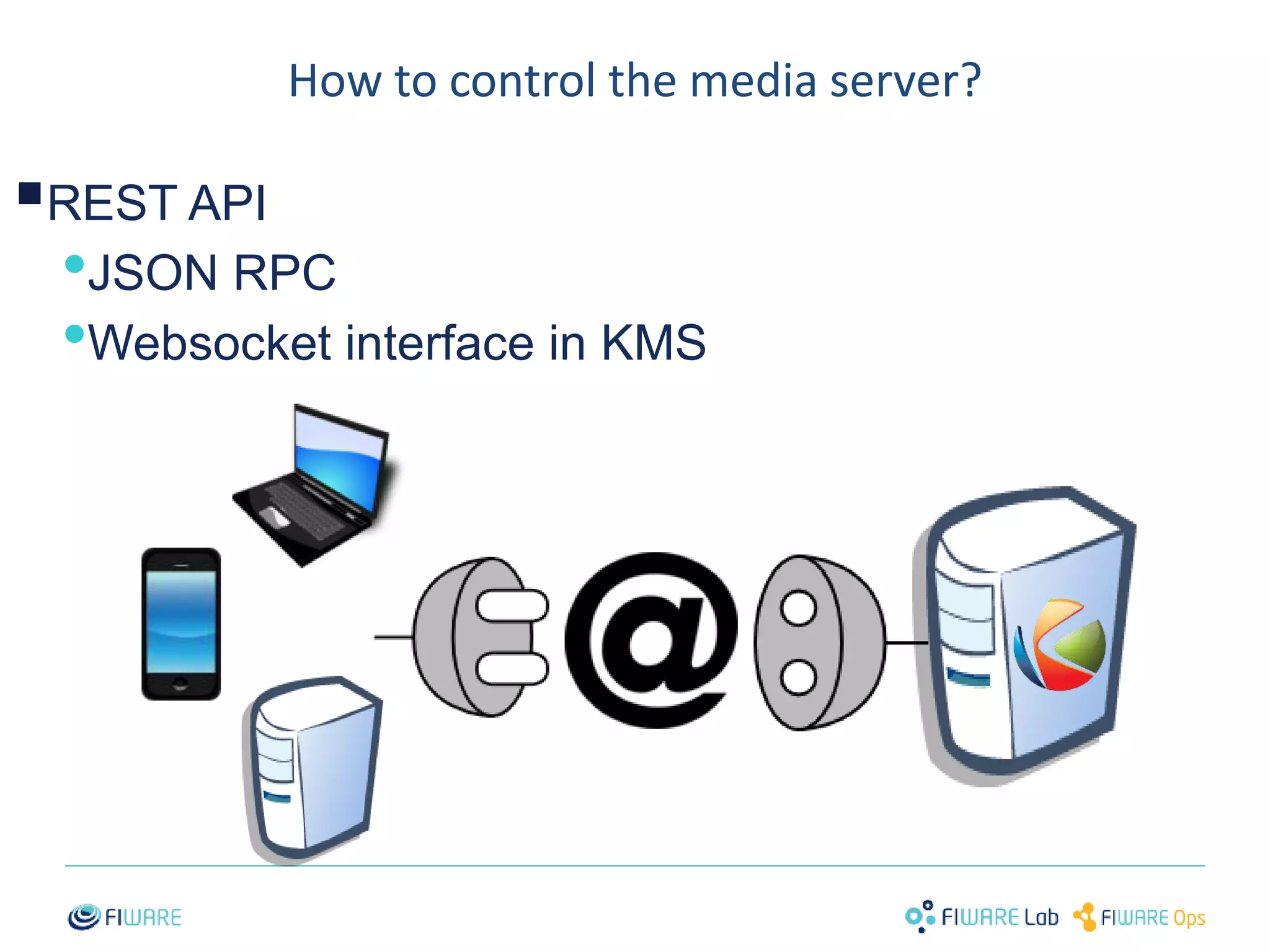

13. How to control the media server?

REST API
•JSON RPC
•Websocket interface in KMS
12

14. API Implementations
For now…
13

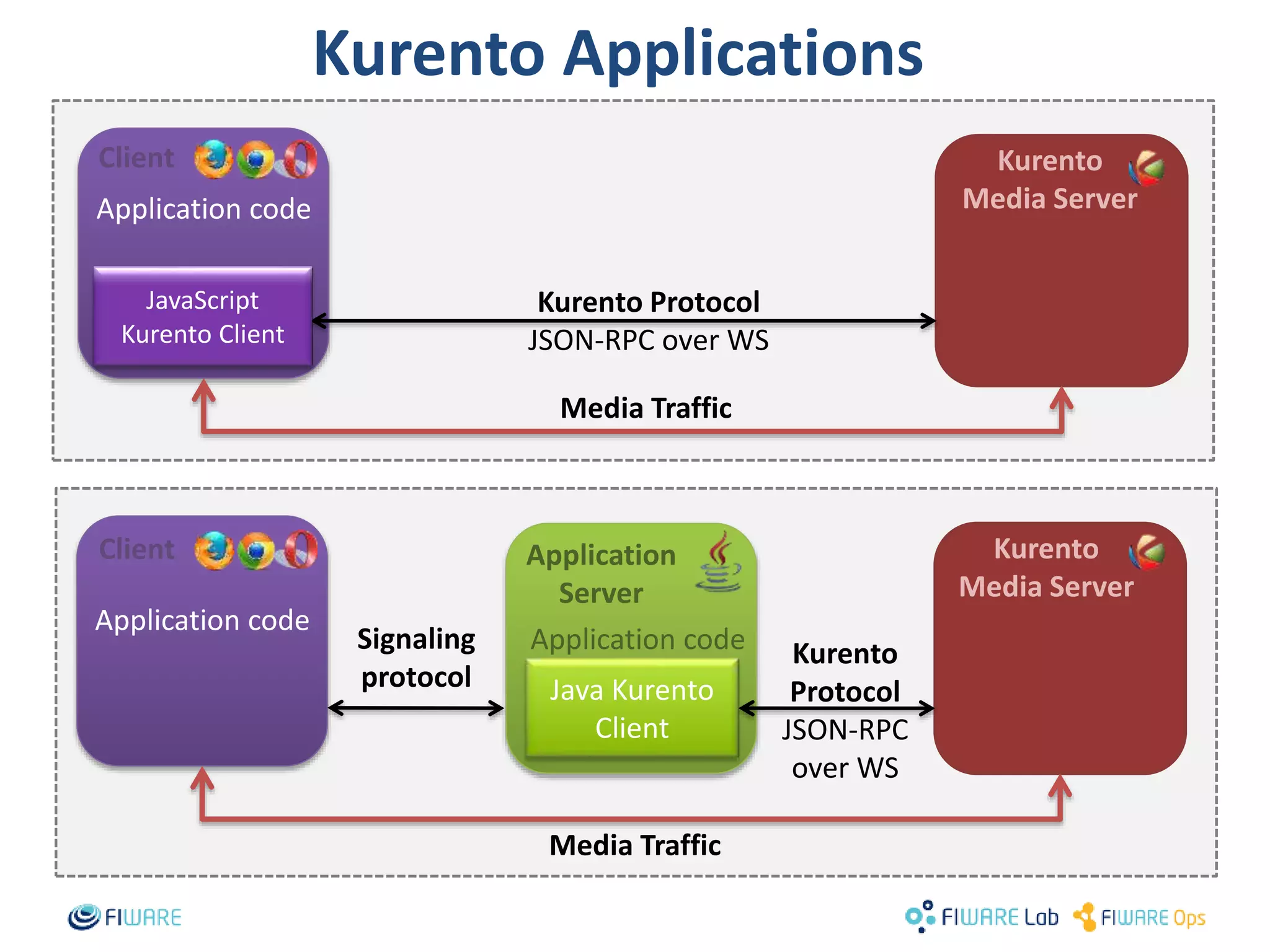

15. Kurento Protocol
JSON-RPC over WS
Media Traffic
Client Kurento
14
Application code
Media Traffic
Media Server
Application
Server
Java Kurento
Client
JavaScript
Kurento Client
Application code
Application code Kurento
Protocol
JSON-RPC
over WS
Signaling
protocol
Kurento
Media Server
Client
Kurento Applications

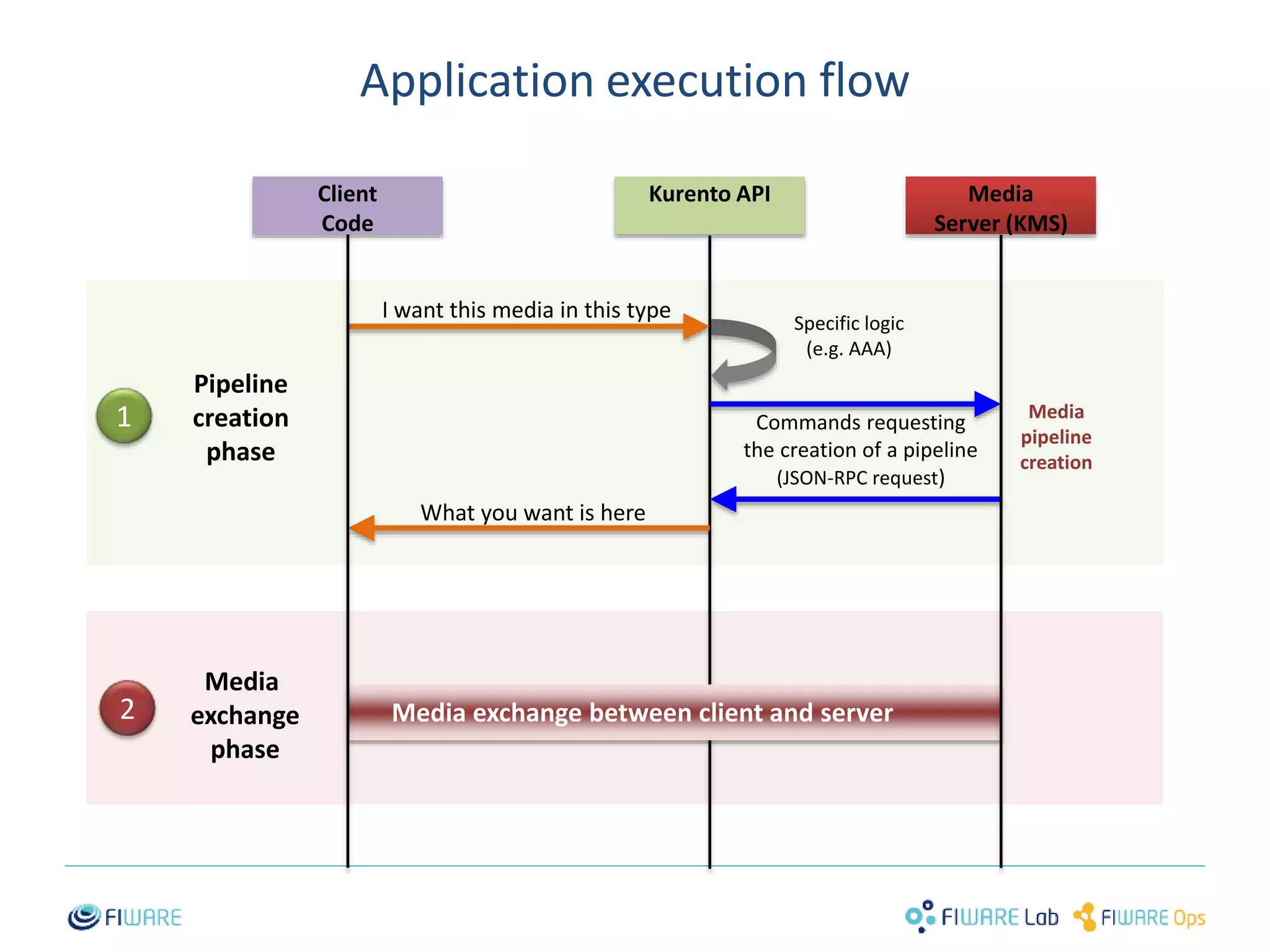

16. Application execution flow
15
Client
Code
Kurento API Media
Server (KMS)
I want this media in this type
Commands requesting
the creation of a pipeline
(JSON-RPC request)
What you want is here
Pipeline
creation
phase
Media
exchange
phase
1
2
Specific logic
(e.g. AAA)
Media
pipeline
creation
Media exchange between client and server

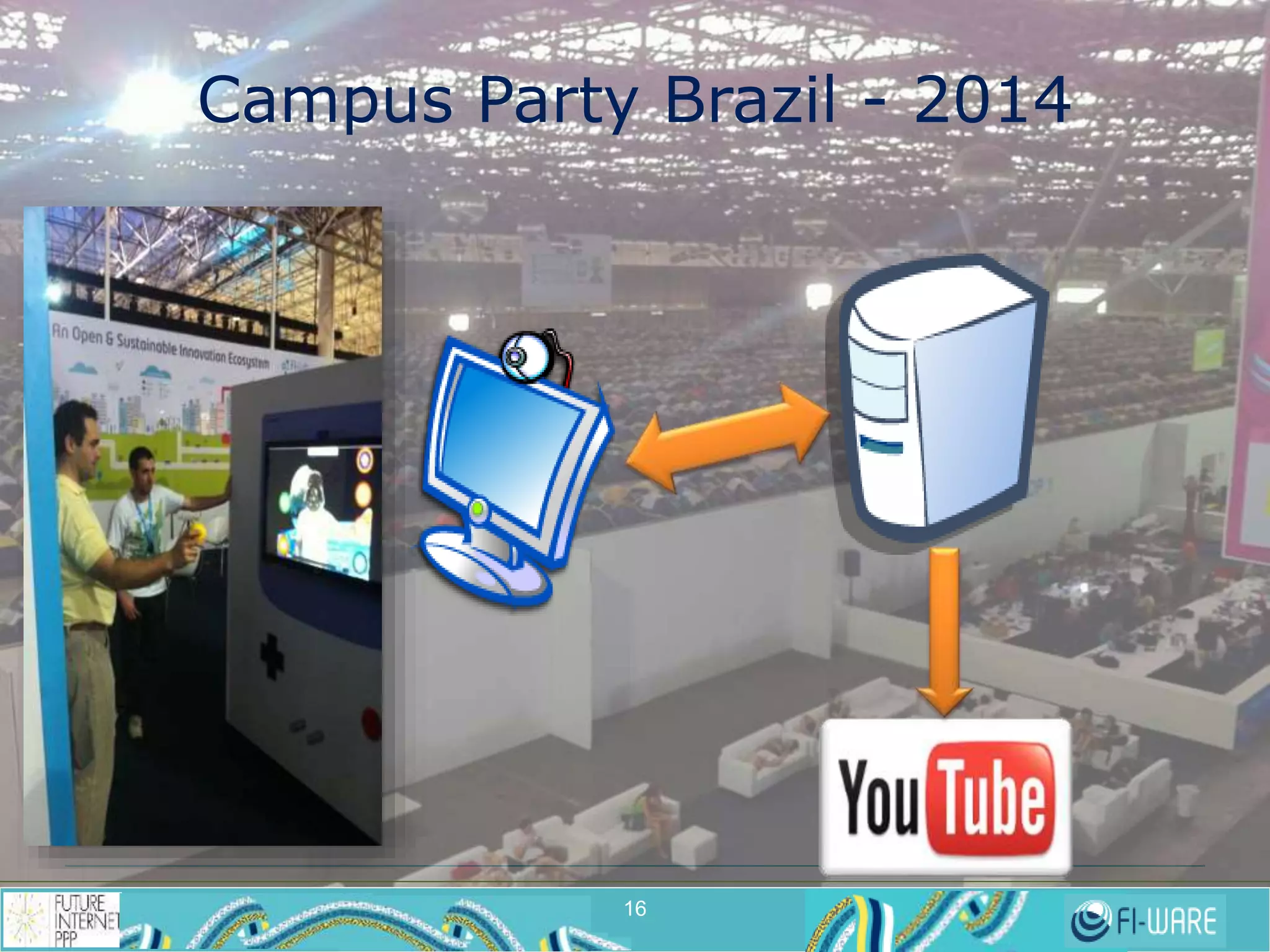

17. Campus Party Brazil - 2014
16
16

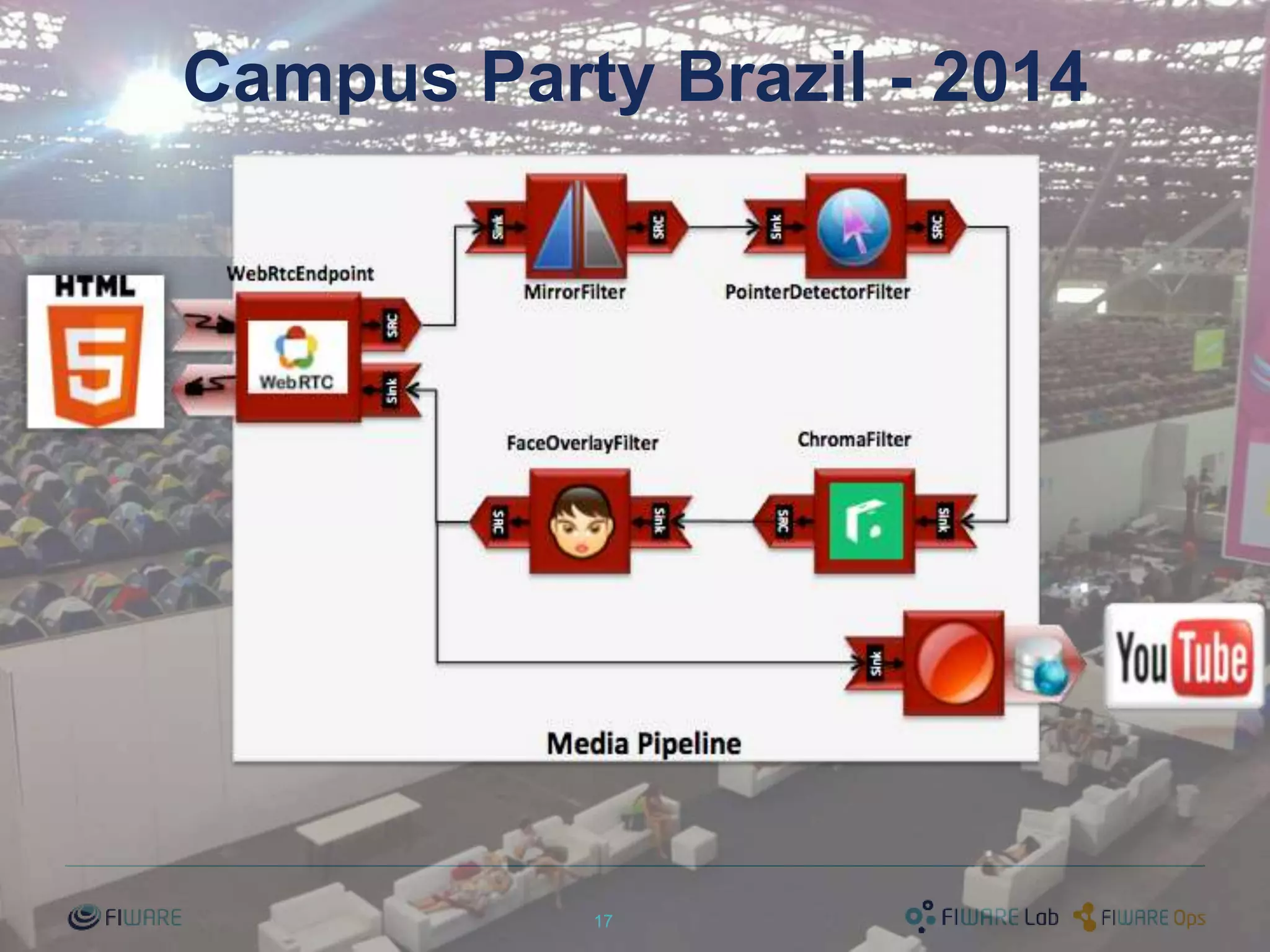

18. Campus Party Brazil - 2014
17

19. Let’s get started!
Tutorials
http://www.kurento.org/docs/current/tutorials.html
18

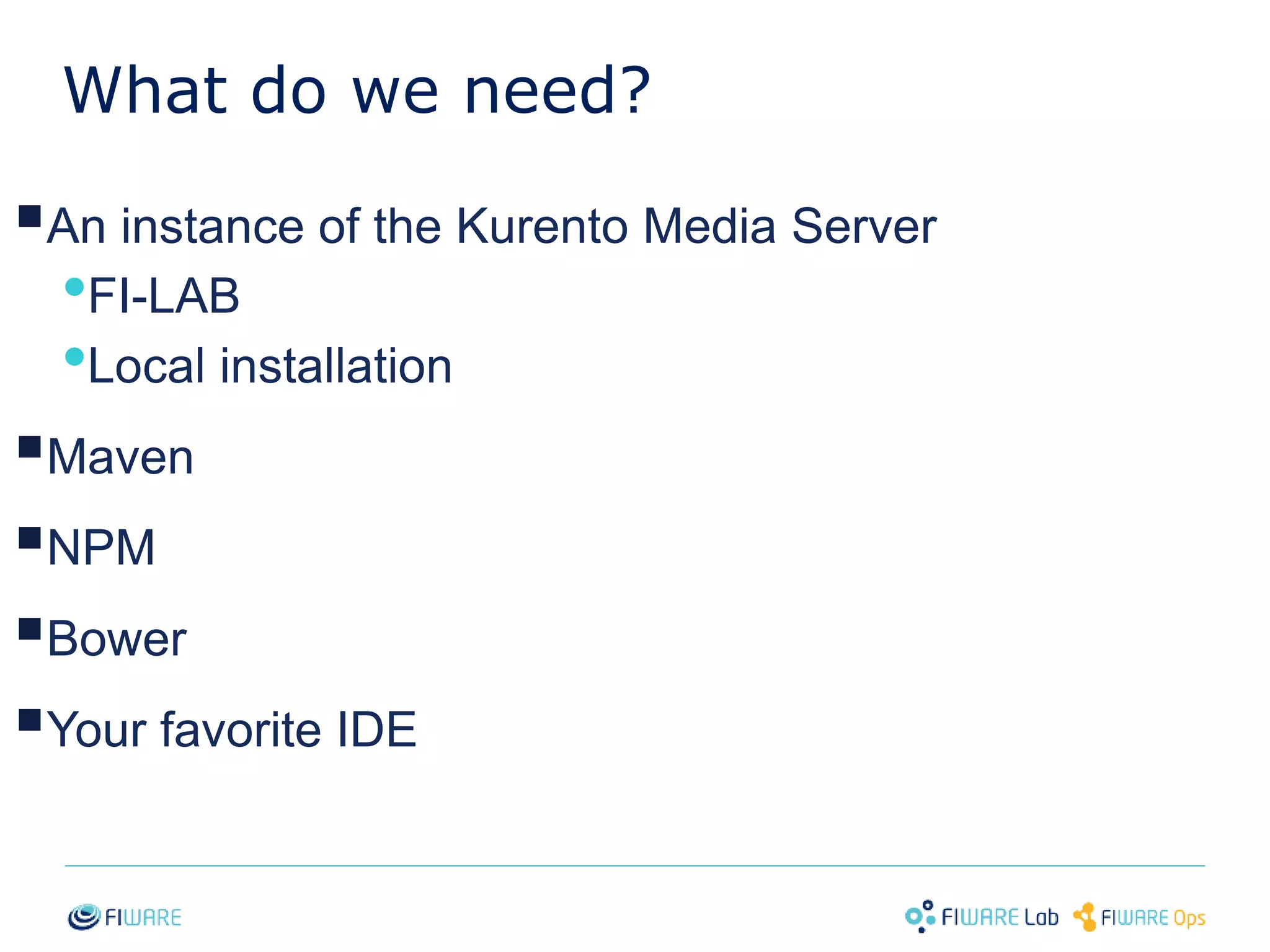

20. What do we need?

An instance of the Kurento Media Server
•FI-LAB
•Local installation

Maven

NPM

Bower

Your favorite IDE
19

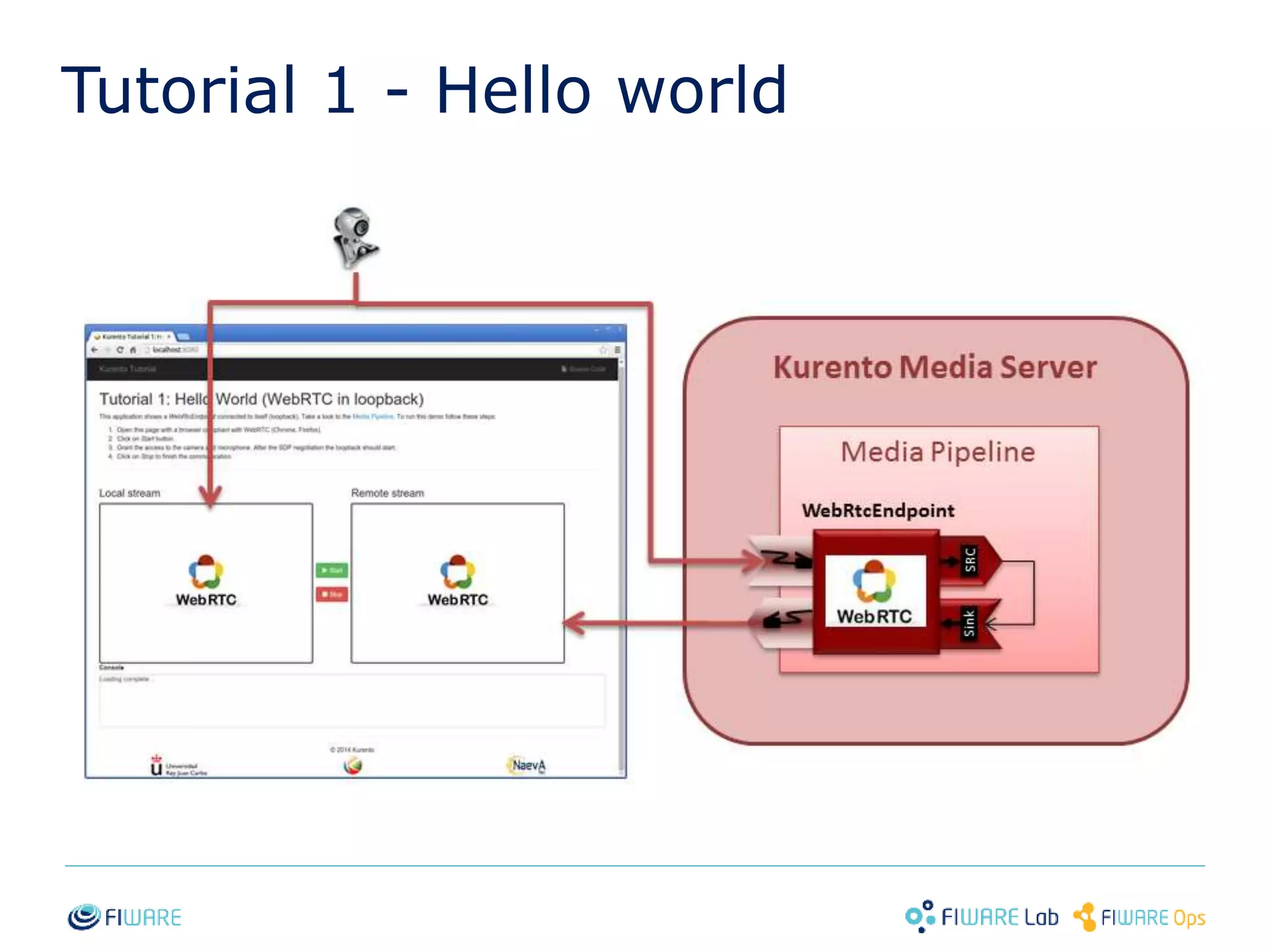

21. Tutorial 1 - Hello world
20

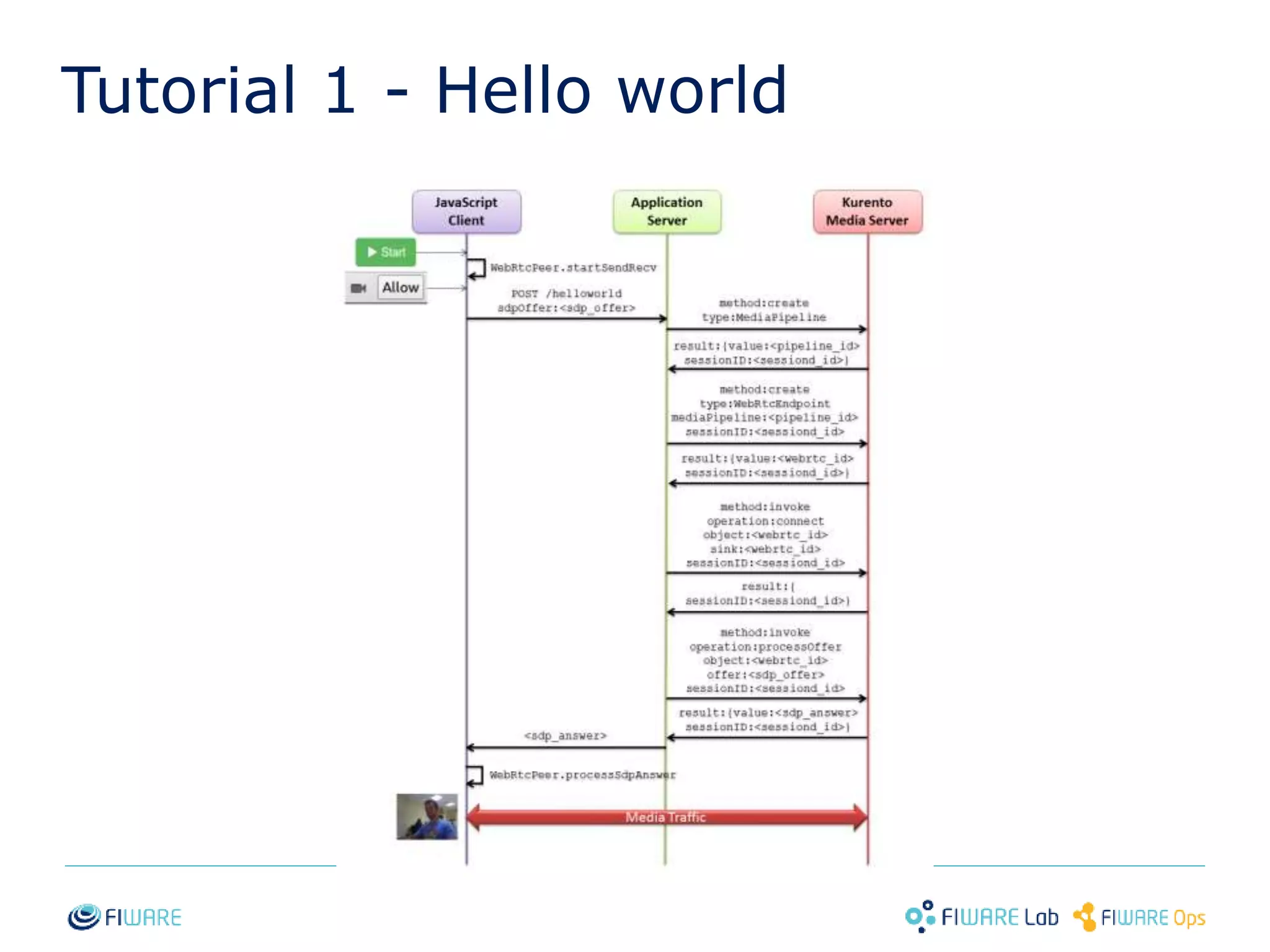

22. Tutorial 1 - Hello world
21

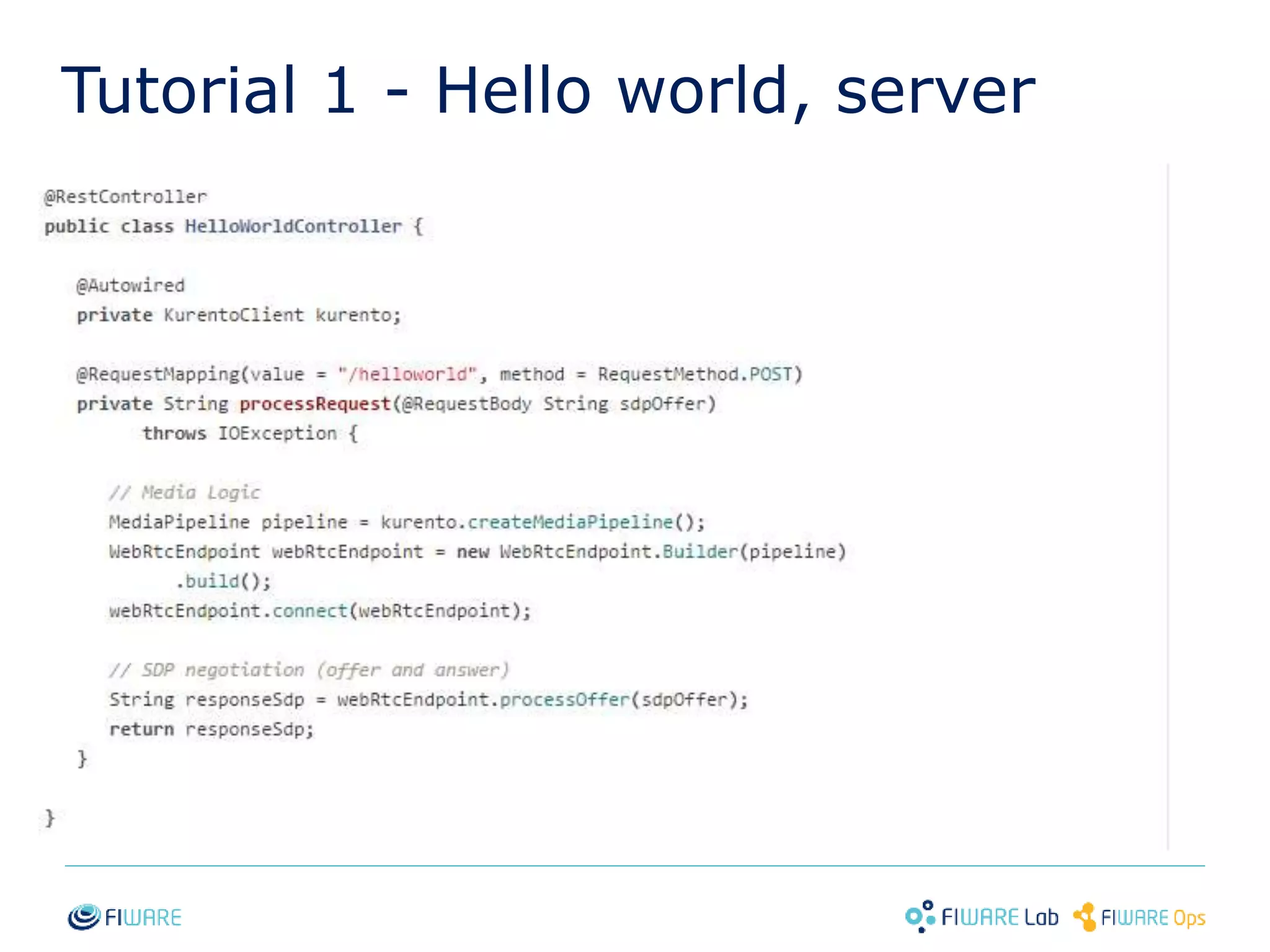

23. Tutorial 1 - Hello world, server
22

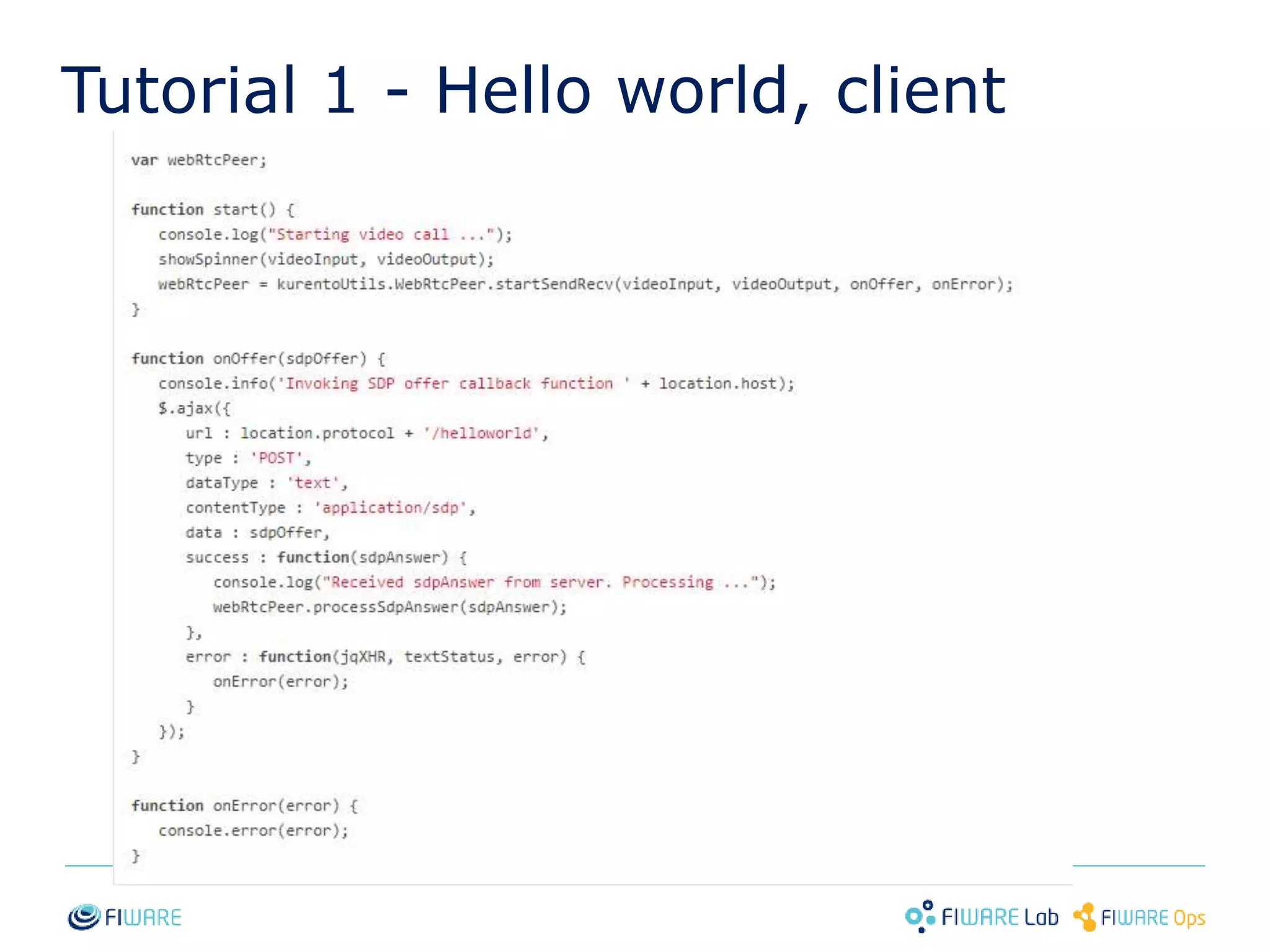

24. Tutorial 1 - Hello world, client
23

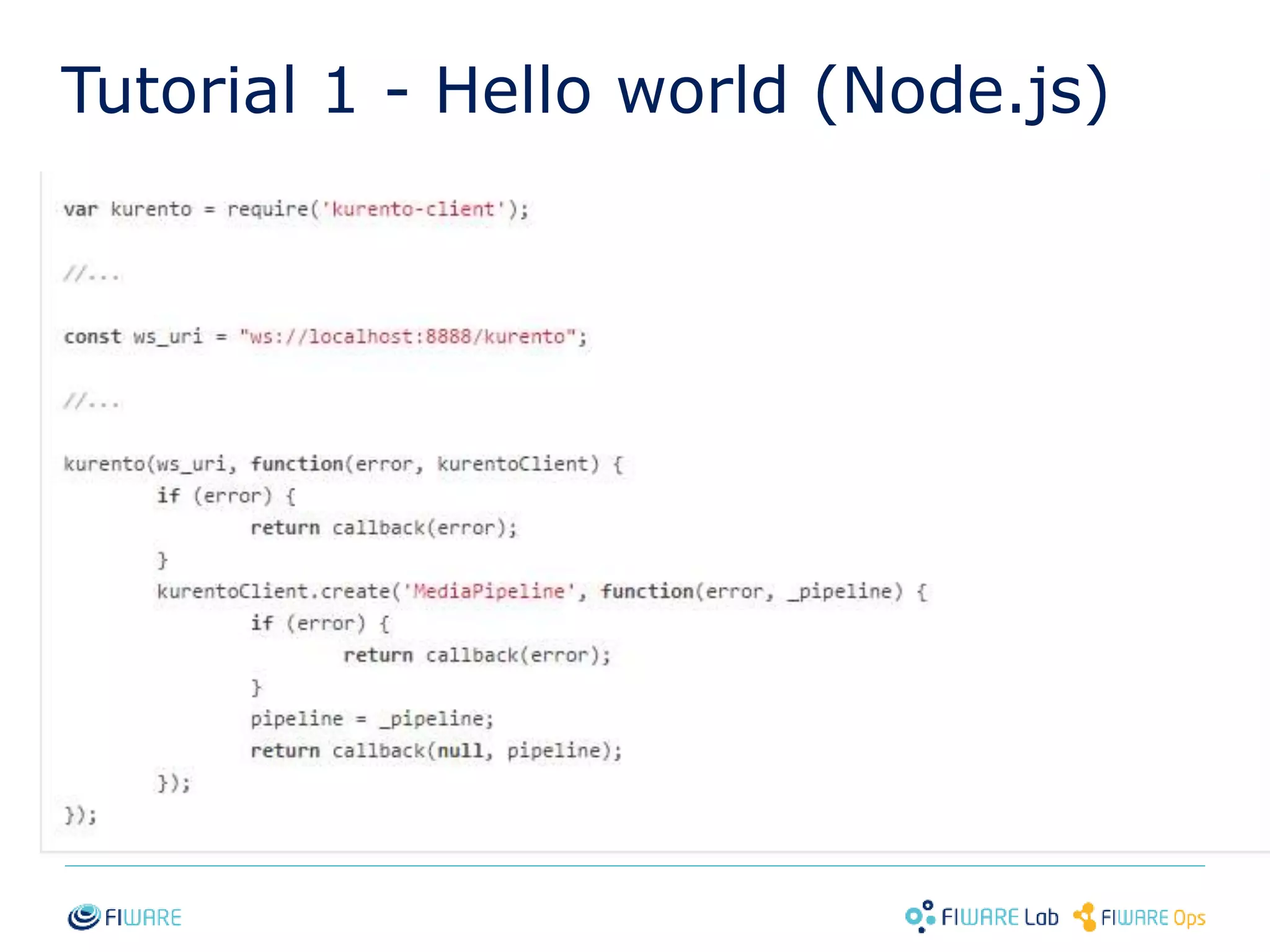

25. Tutorial 1 - Hello world (Node.js)
24

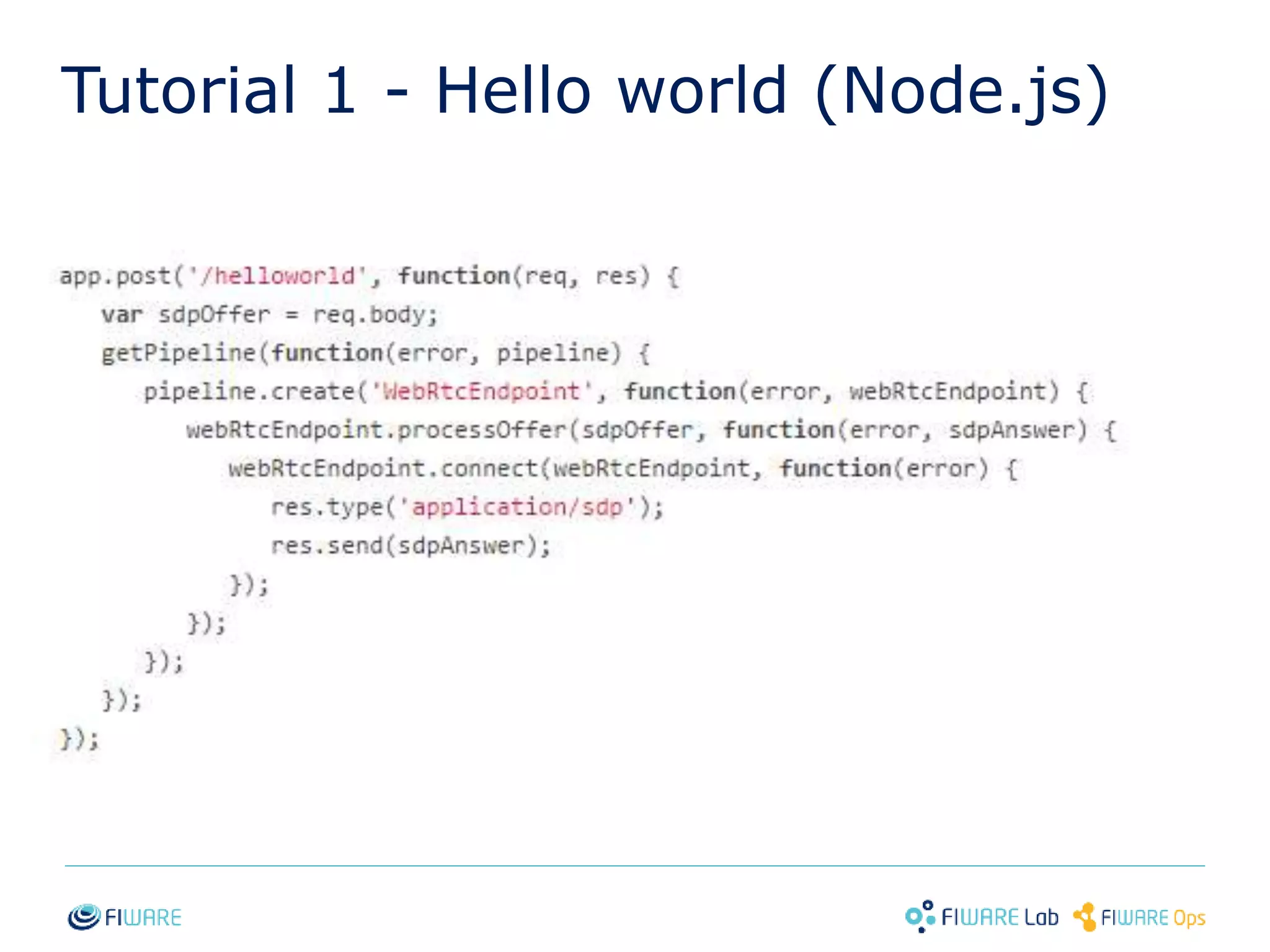

26. Tutorial 1 - Hello world (Node.js)
25

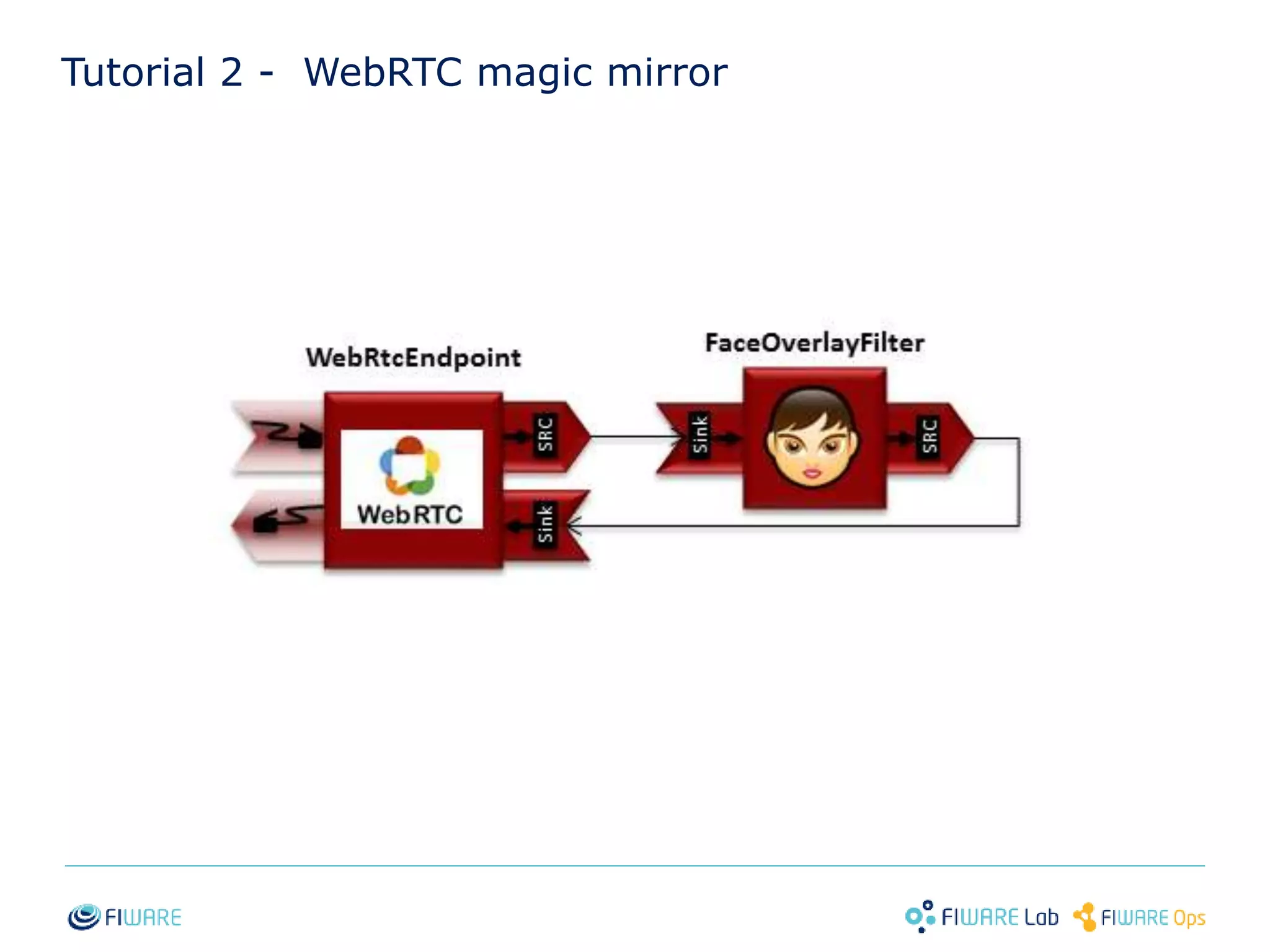

27. Tutorial 2 - WebRTC magic mirror

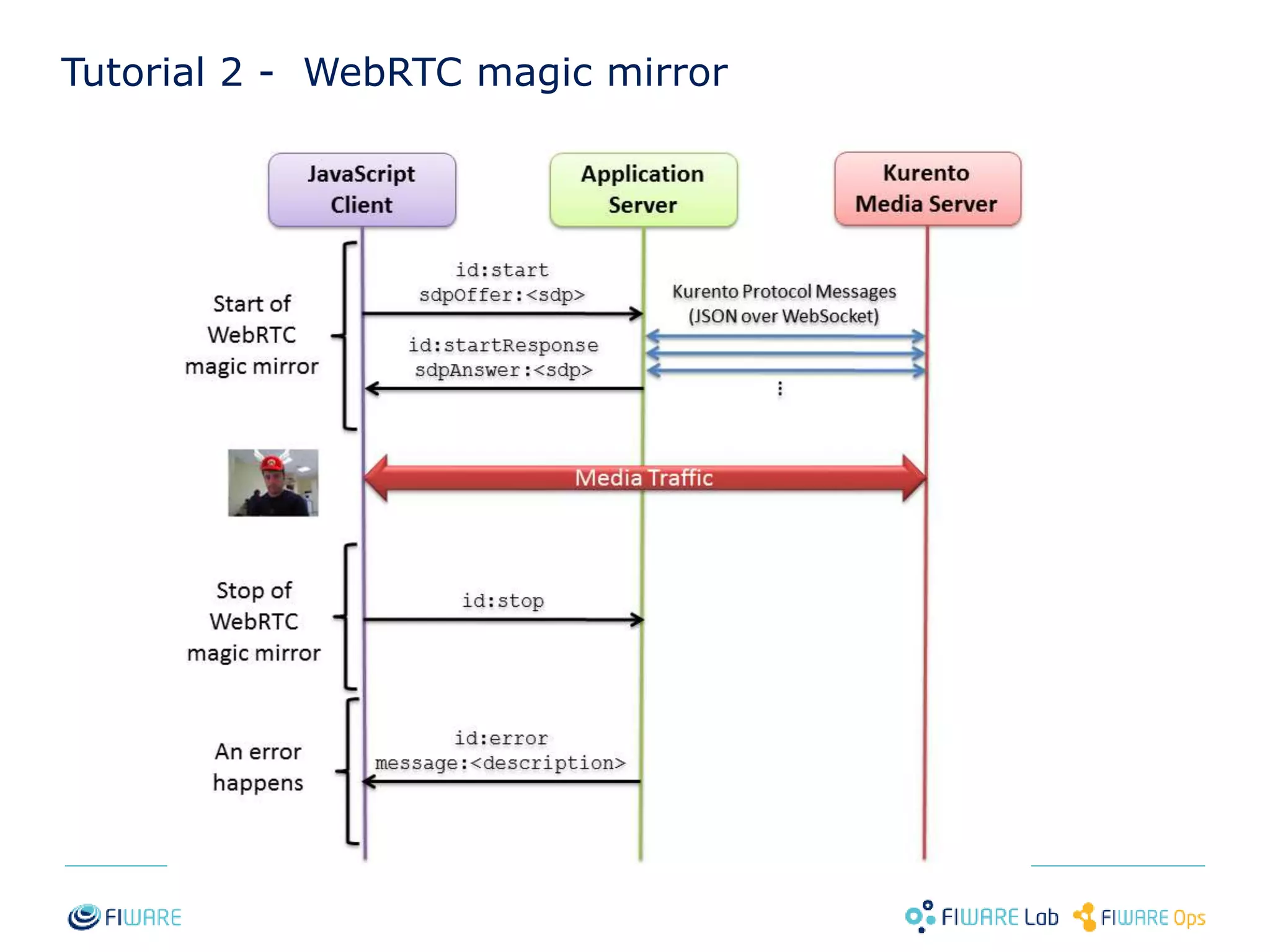

26

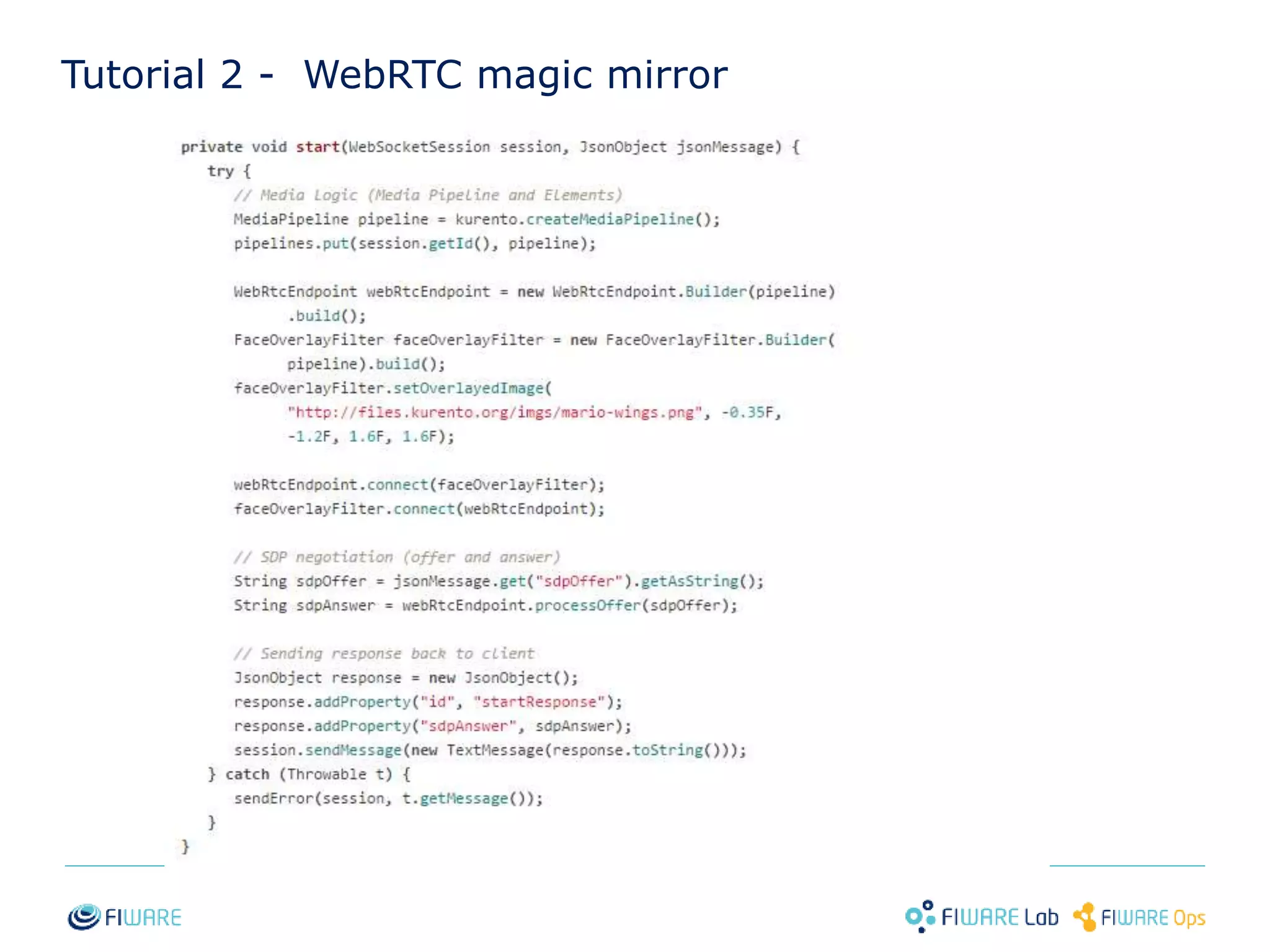

28. Tutorial 2 - WebRTC magic mirror
27

29. Tutorial 2 - WebRTC magic mirror
28

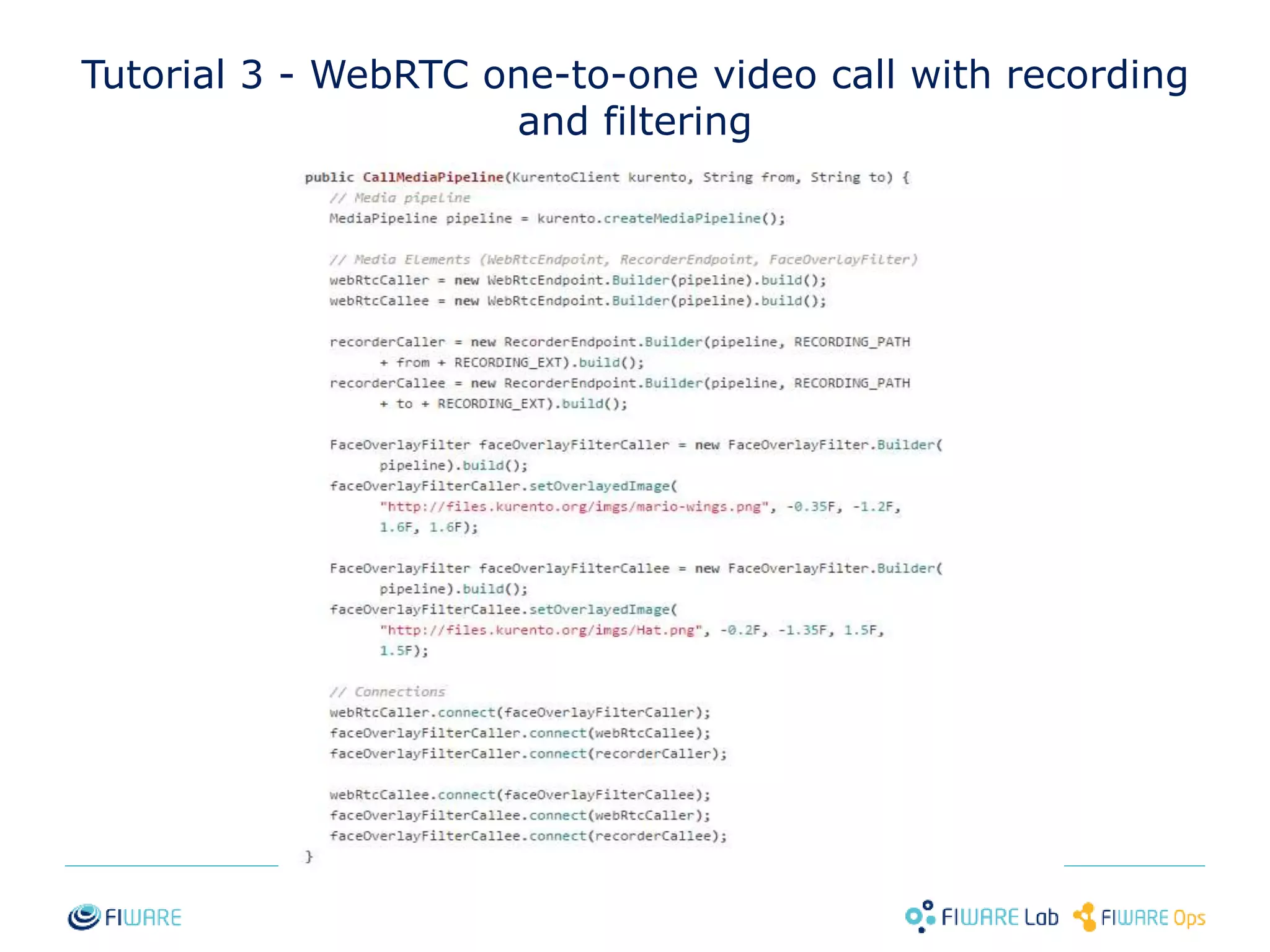

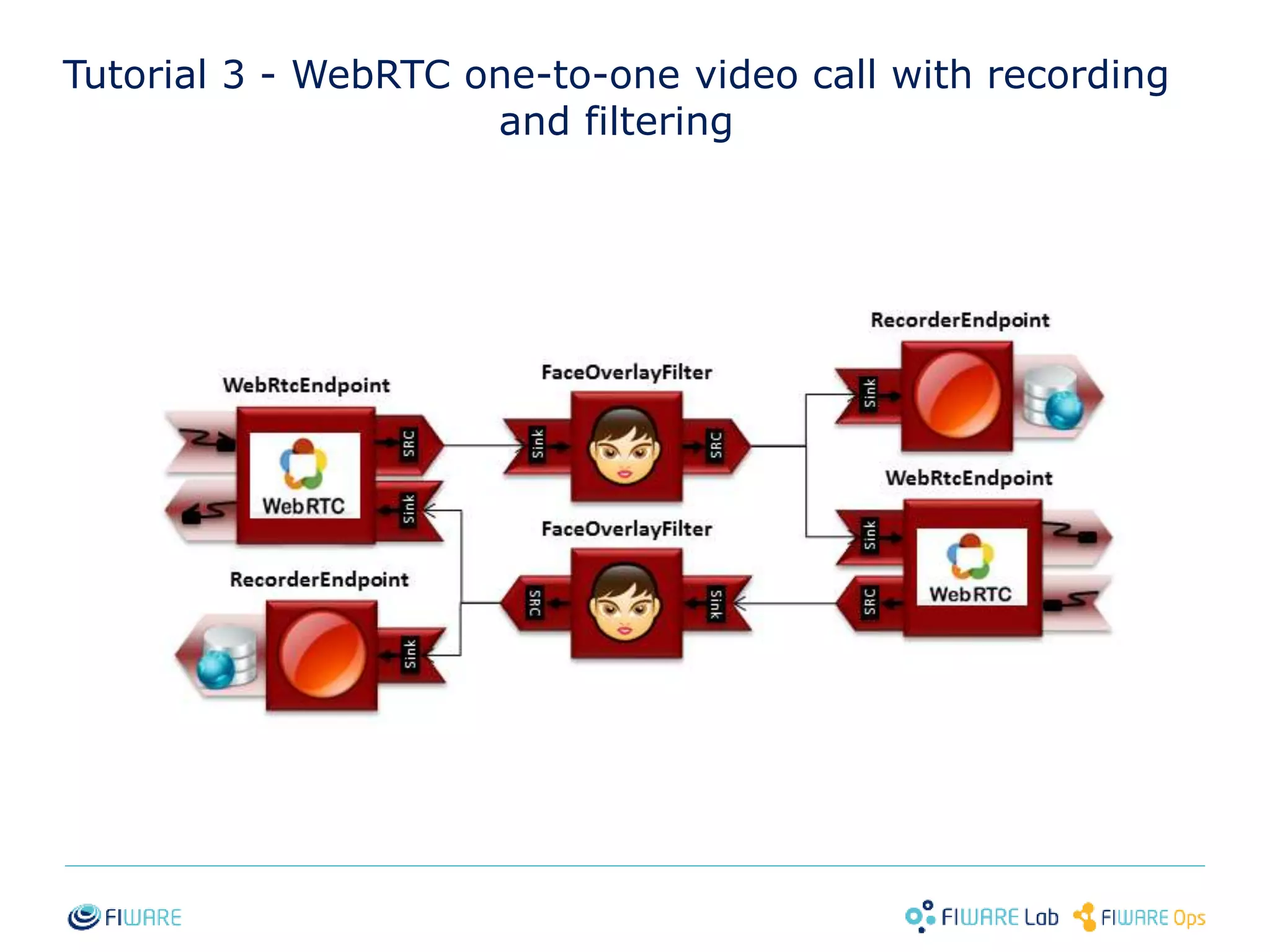

30. Tutorial 3 - WebRTC one-to-one video call with recording
and filtering
29

31. Tutorial 3 - WebRTC one-to-one video call with recording
and filtering
30

32. Expanding Kurento
31

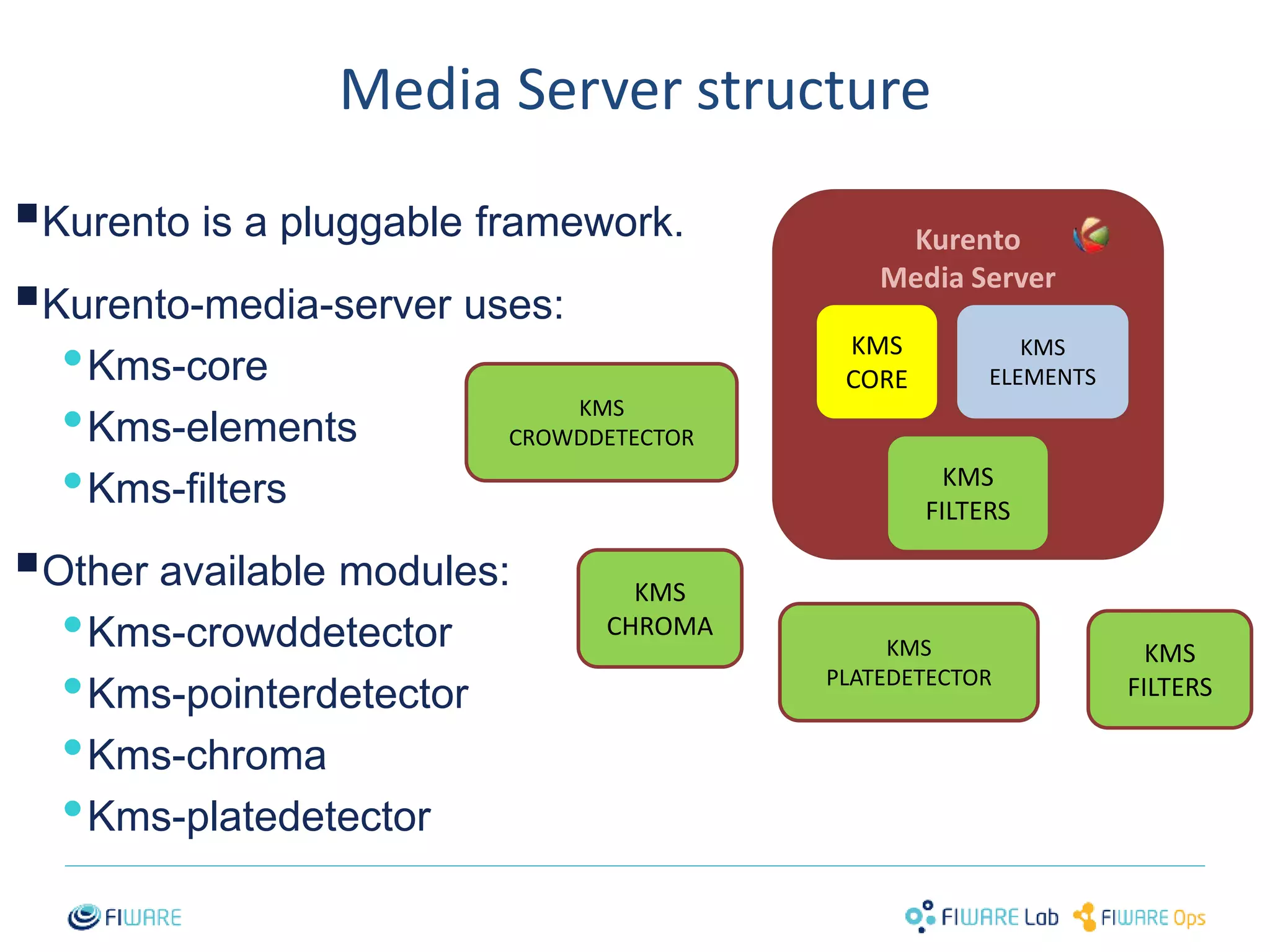

33. Media Server structure

Kurento is a pluggable framework.

Kurento-media-server uses:
•Kms-core
•Kms-elements
•Kms-filters

Other available modules:
•Kms-crowddetector
•Kms-pointerdetector
•Kms-chroma
•Kms-platedetector
32
Kurento
Media Server
KMS
CORE
KMS
ELEMENTS
KMS
FILTERS
KMS
CROWDDETECTOR
KMS
CHROMA
KMS
PLATEDETECTOR
KMS
FILTERS

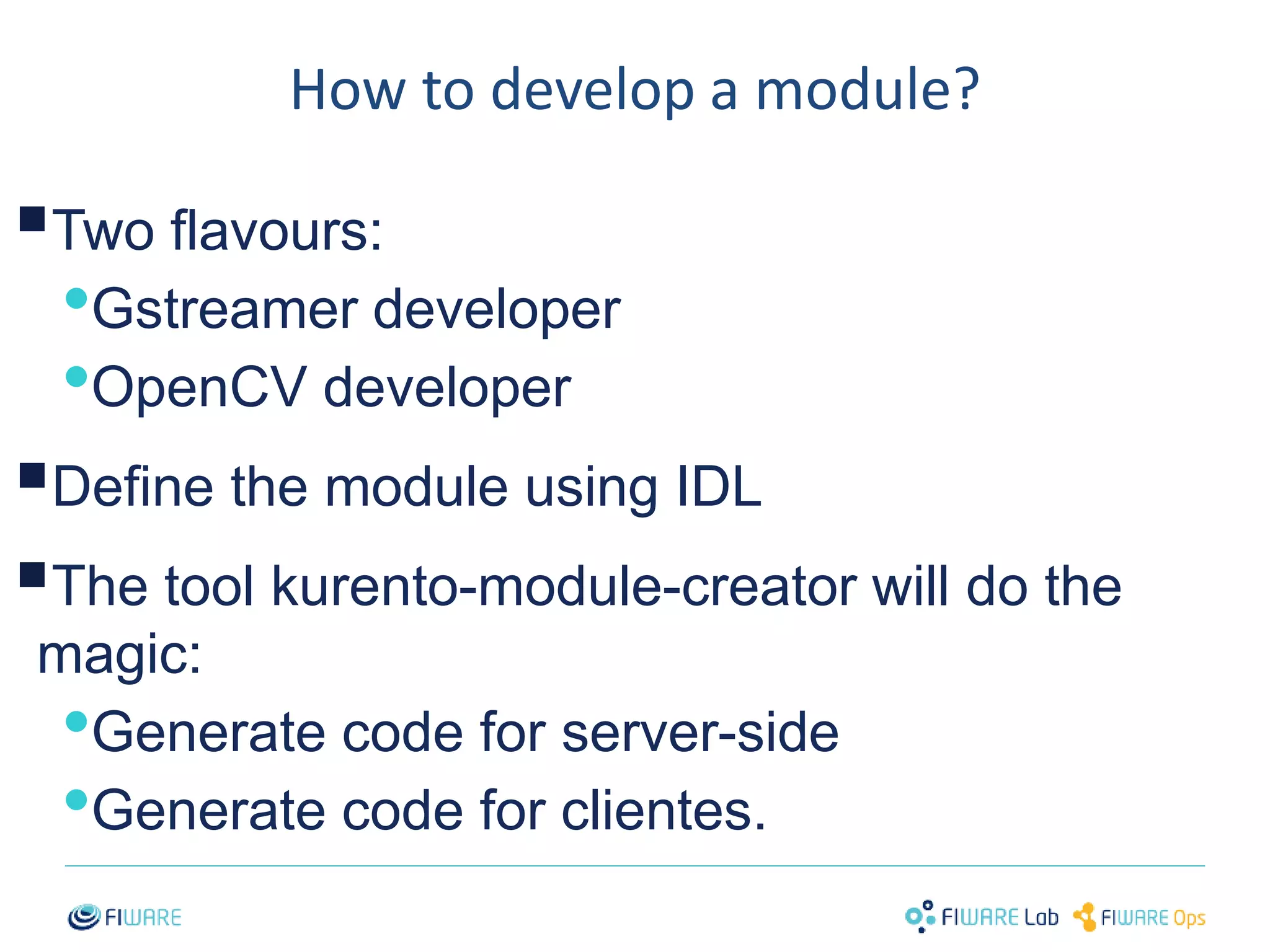

34. How to develop a module?

Two flavours:
•Gstreamer developer
•OpenCV developer

Define the module using IDL

The tool kurento-module-creator will do the
magic:
•Generate code for server-side
•Generate code for clientes.
33

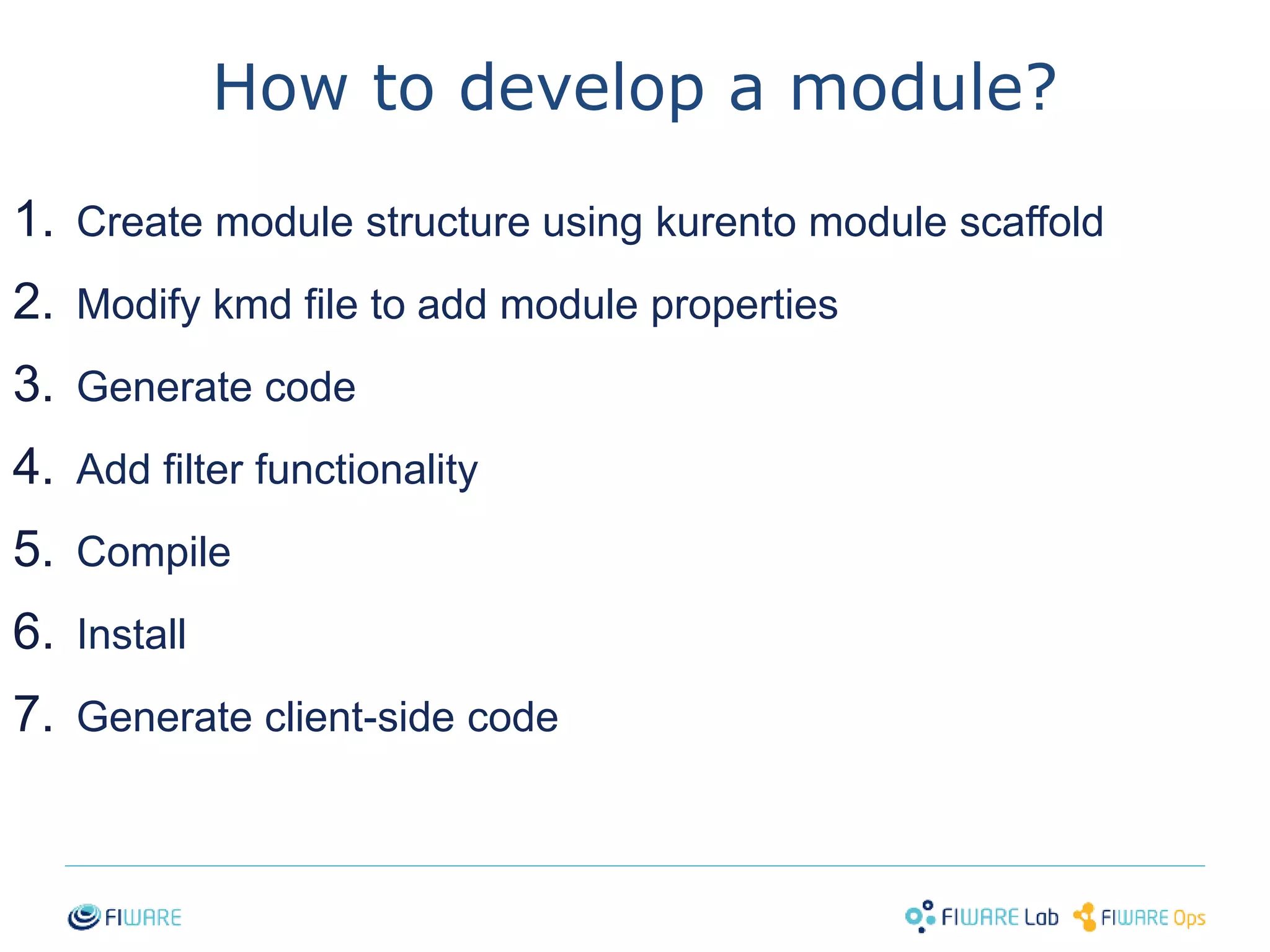

35. How to develop a module?
1. Create module structure using kurento module scaffold
2. Modify kmd file to add module properties
3. Generate code
4. Add filter functionality
5. Compile
6. Install
7. Generate client-side code
34

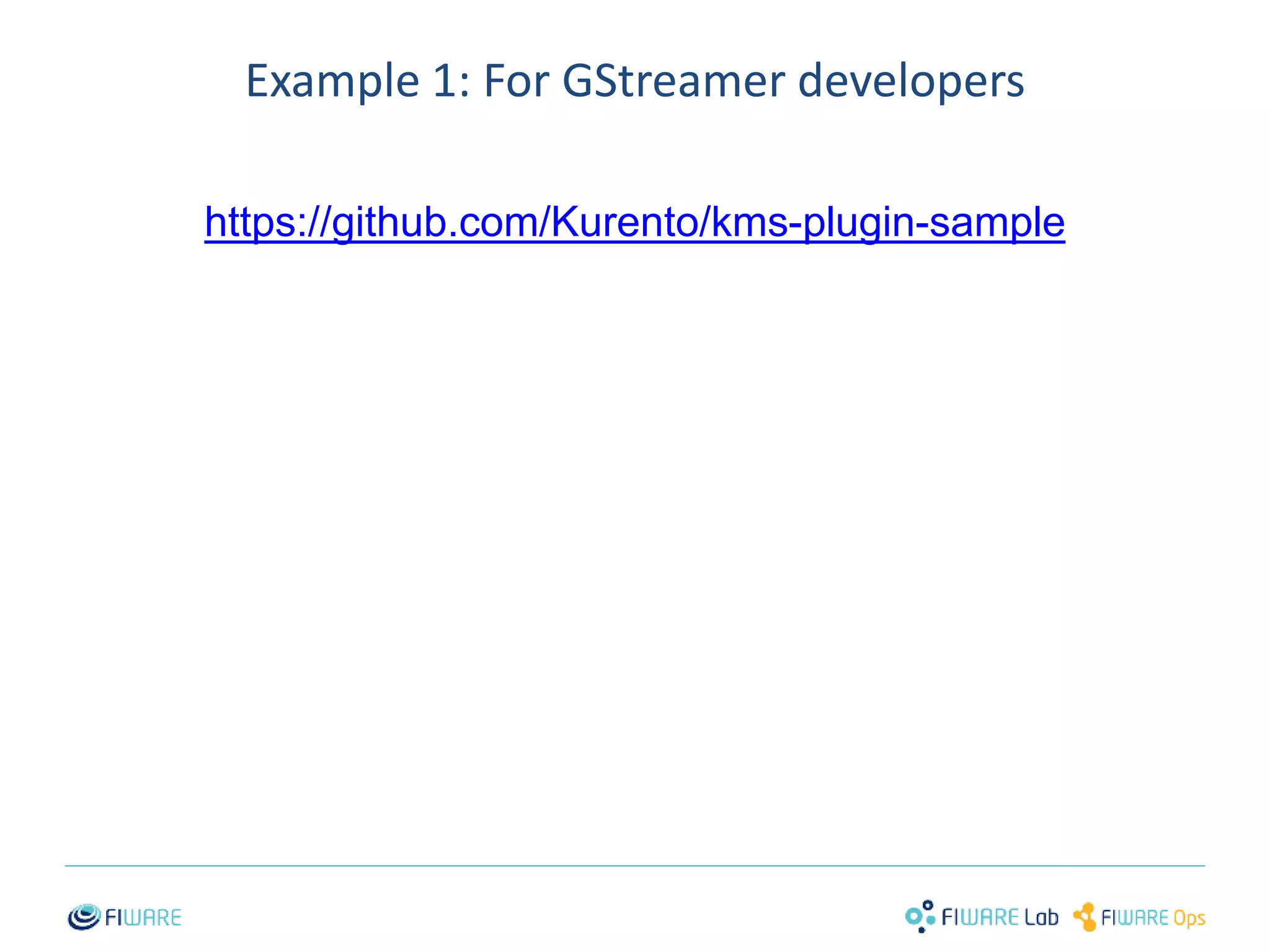

36. Example 1: For GStreamer developers
https://github.com/Kurento/kms-plugin-sample
35

37. Example 2: For OpenCV developers
https://github.com/Kurento/kms-opencv-plugin-sample
36

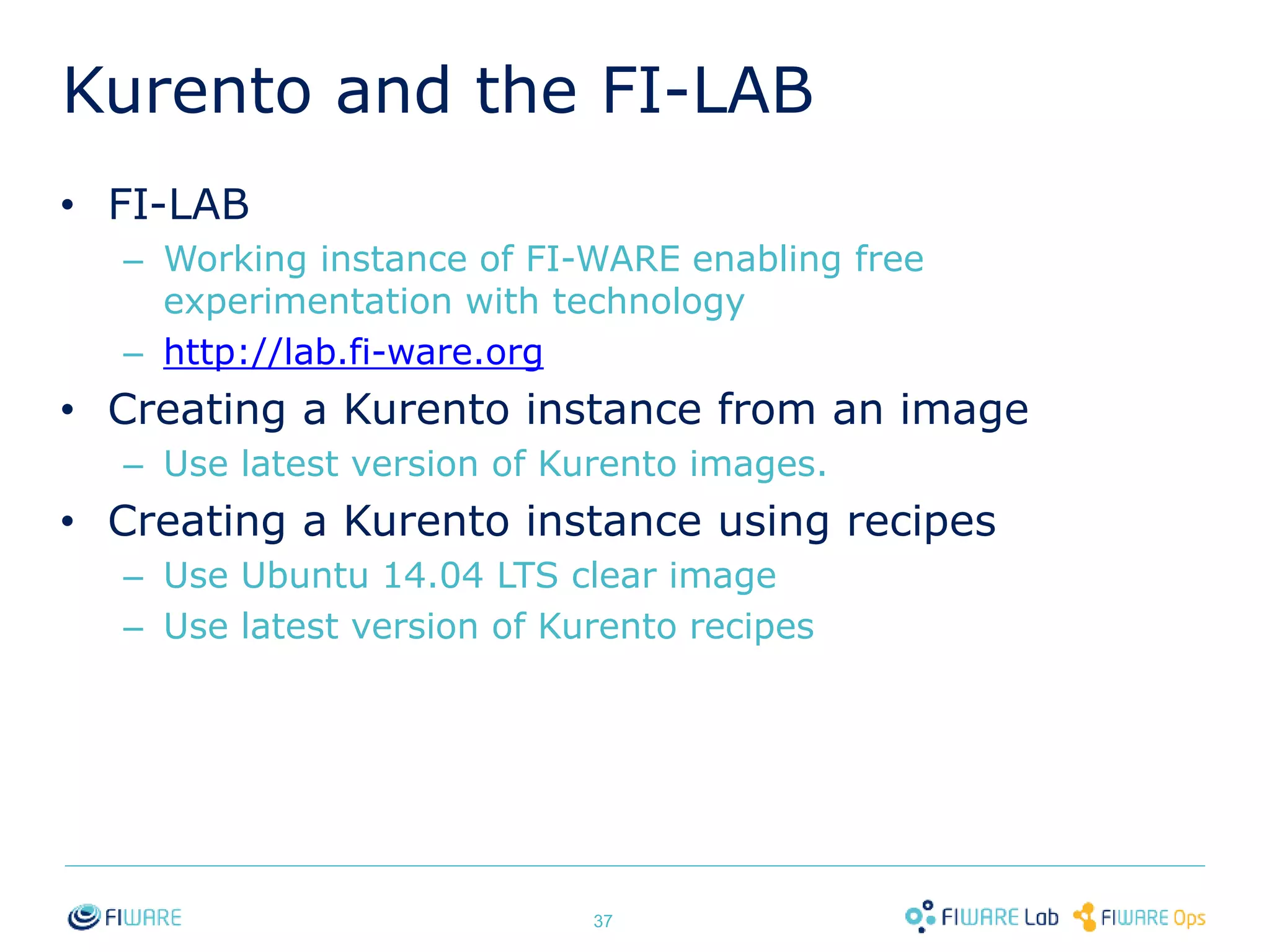

38. Kurento and the FI-LAB
• FI-LAB
– Working instance of FI-WARE enabling free
experimentation with technology
– http://lab.fi-ware.org
• Creating a Kurento instance from an image
– Use latest version of Kurento images.
• Creating a Kurento instance using recipes
– Use Ubuntu 14.04 LTS clear image
– Use latest version of Kurento recipes
37

39. Kurento and the FI-LAB
38

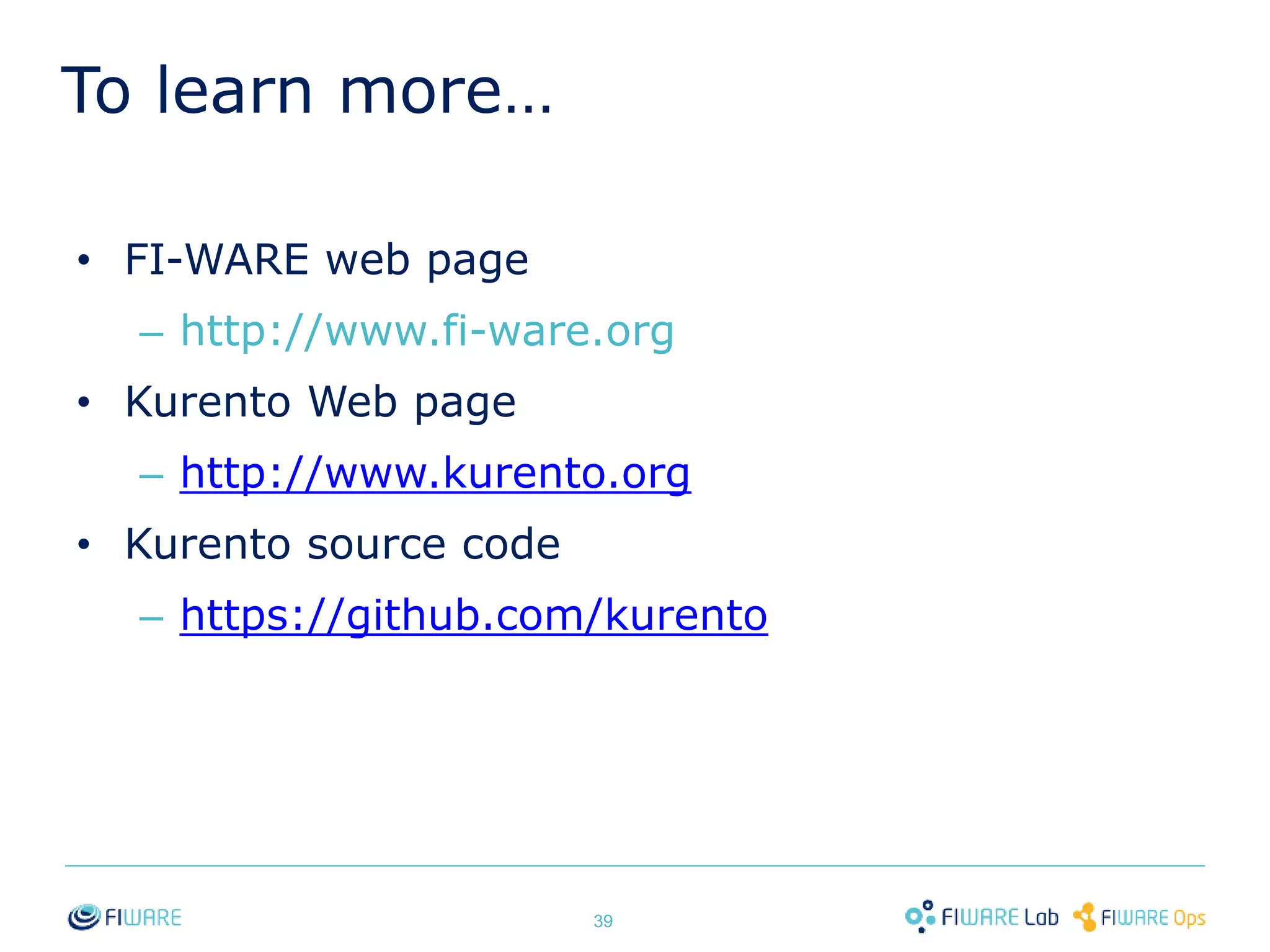

40. To learn more…
• FI-WARE web page
– http://www.fi-ware.org
• Kurento Web page
– http://www.kurento.org
• Kurento source code
– https://github.com/kurento
39

41. Thanks!
