Kurento FIWARE
This document discusses open APIs and multimedia applications using FI-WARE. It describes the Stream Oriented Generic Enabler (SO GE), which uses Kurento media server to enable rich multimedia applications through WebRTC. The document outlines Kurento's key concepts of media elements and pipelines that can be combined to create applications. It provides an overview of using Kurento to build multimedia features like recordings, filters, augmented reality and more.
More Related Content
Kurento FIWARE
- 1. Open APIs forOpen Minds The Stream Oriented Generic Enabler – SO GE Developing rich multimedia applications with FI-WARE. IVAN GRACIA igracia@kurento.org
- 2.
- 3.

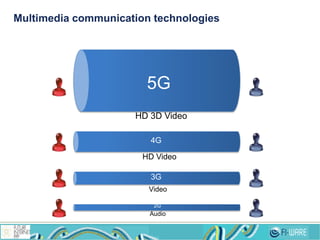

- 4. 2G 3G 4G 5G Audio Video HD Video HD 3DVideo Multimedia communication technologies

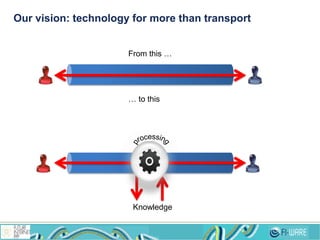

- 5. Our vision: technologyfor more than transport From this … … to this Knowledge
- 6. Our ingredients forcooking the Stream Oriented GE

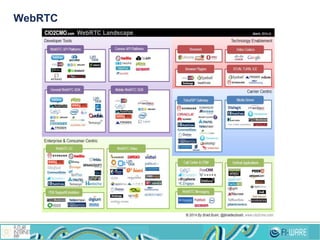

- 7.

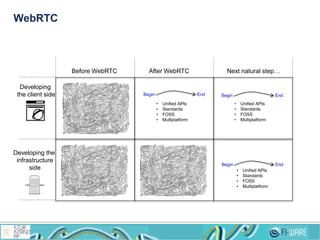

- 8. WebRTC Developing the client side Developingthe infrastructure side Before WebRTC After WebRTC Next natural step… Begin End Begin End Begin End • Unified APIs • Standards • FOSS • Multiplatform • Unified APIs • Standards • FOSS • Multiplatform • Unified APIs • Standards • FOSS • Multiplatform

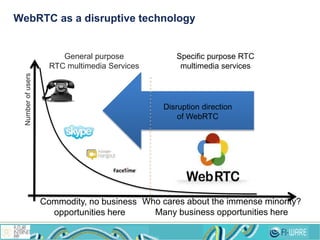

- 9. WebRTC as adisruptive technology Numberofusers General purpose RTC multimedia Services Specific purpose RTC multimedia services Commodity, no business opportunities here Who cares about the immense minority? Many business opportunities here Disruption direction of WebRTC
- 10. WebRTC is aWWW technology

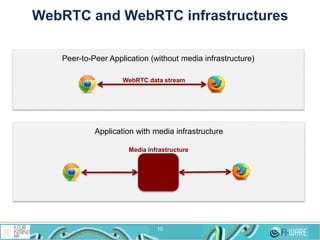

- 11. 10 Peer-to-Peer Application (withoutmedia infrastructure) WebRTC data stream Application with media infrastructure Media infrastructure WebRTC and WebRTC infrastructures

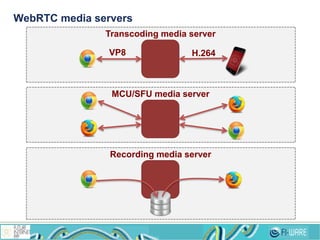

- 12. WebRTC media servers Transcodingmedia server VP8 H.264 MCU/SFU media server Recording media server

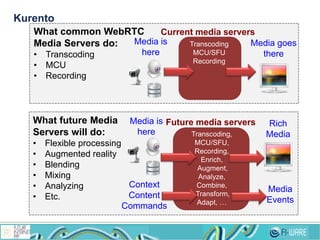

- 13. Kurento What common WebRTC MediaServers do: • Transcoding • MCU • Recording What future Media Servers will do: • Flexible processing • Augmented reality • Blending • Mixing • Analyzing • Etc. Media is here Media goes there Transcoding MCU/SFU Recording Current media servers Media is here Rich Media goes there Future media servers Transcoding, MCU/SFU, Recording, Enrich, Augment, Analyze, Combine, Transform, Adapt, … Context Content Commands Media Events

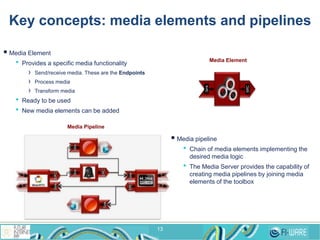

- 14. Key concepts: mediaelements and pipelines 13 Media Element • Provides a specific media functionality › Send/receive media. These are the Endpoints › Process media › Transform media • Ready to be used • New media elements can be added Media pipeline • Chain of media elements implementing the desired media logic • The Media Server provides the capability of creating media pipelines by joining media elements of the toolbox Media Element Sink SRC Media Pipeline
- 15.
- 16.

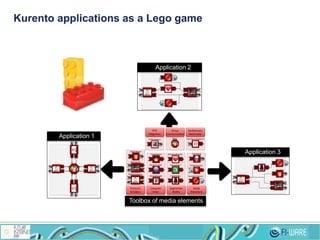

- 17. Kurento applications asa Lego game Protocols & Codecs Computer Vision Augmented Reality Mul sensory Mul media Media Repository IPTV Integra on Group Communica ons Sink% H pEndpoint Sink%SRC% RtpEndpoint SRC$ DataChannelEndpoint Sink%SRC% WebRtcEndpoint Sink% SRC% BarCodeReader Sink% SRC% PointerTracker Sink% SRC% FaceDetector Sink% SRC% FaceOverlay Sink% SRC% ChromaFilter Sink% SRC% HeartRateBlender Sink% RecorderEndpoint SRC$ PlayerEndpoint Sink% CdnUpload Sink% IPTVConnector Mixer SinkSRC Sink SRC Sink SRCSink Sink Application 2 Sink SRC Sink SRCSink SinkSRC Sink Application 3 SinkSRC SRCSink SRC Sink SinkSRC Application 1 Toolbox of media elements

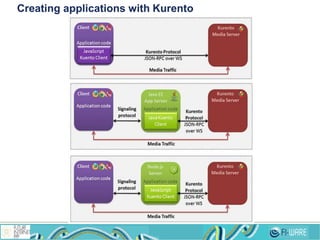

- 18. Creating applications withKurento

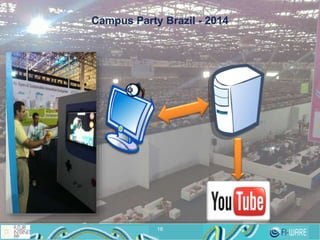

- 19. 18 Campus Party Brazil- 2014 18

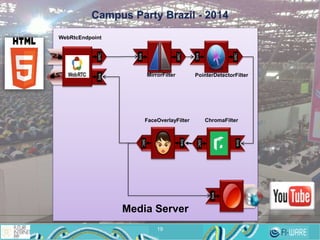

- 20. 1919 Campus Party Brazil- 2014 SinkSRC Sink WebRtcEndpoint Sink SRC Sink SRC MirrorFilter PointerDetectorFilter Sink SRC ChromaFilter Sink SRC FaceOverlayFilter Media Server
- 21.
- 22.

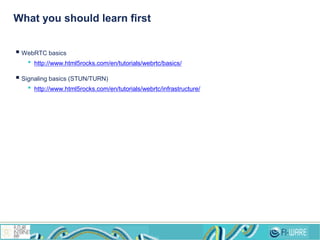

- 23. What you shouldlearn first WebRTC basics • http://www.html5rocks.com/en/tutorials/webrtc/basics/ Signaling basics (STUN/TURN) • http://www.html5rocks.com/en/tutorials/webrtc/infrastructure/

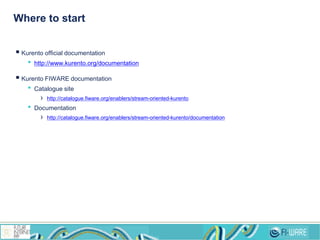

- 24. Where to start Kurento official documentation • http://www.kurento.org/documentation Kurento FIWARE documentation • Catalogue site › http://catalogue.fiware.org/enablers/stream-oriented-kurento • Documentation › http://catalogue.fiware.org/enablers/stream-oriented-kurento/documentation
- 25. Installing Kurento MediaServer Requirements • Ubuntu 14.04 box (sudo) • Internet connectivity Install •sudo add-apt-repository ppa:kurento/kurento •sudo apt-get update •sudo apt-get install kurento-media-server Launch •sudo service kurento-media-server start
- 26.

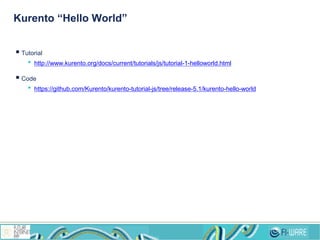

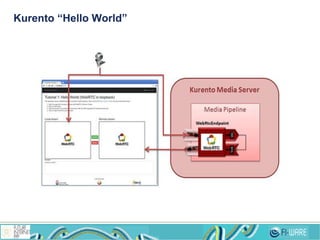

- 27. Kurento “Hello World” Tutorial • http://www.kurento.org/docs/current/tutorials/js/tutorial-1-helloworld.html Code • https://github.com/Kurento/kurento-tutorial-js/tree/release-5.1/kurento-hello-world

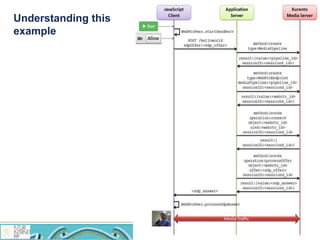

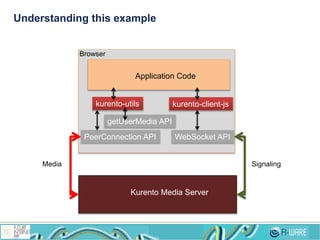

- 28. Understanding this example PeerConnectionAPI getUserMedia API kurento-utils kurento-client-js Application Code WebSocket API Kurento Media Server Browser SignalingMedia
- 29.
- 30. You don’t catchthe point?

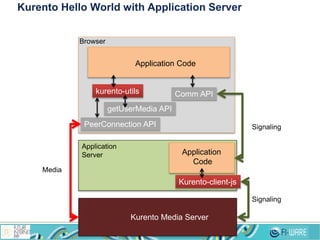

- 31. Kurento Hello Worldwith Application Server PeerConnection API getUserMedia API kurento-utils Application Code Comm API Kurento Media Server Browser Signaling Media Application Server Kurento-client-js Application Code Signaling

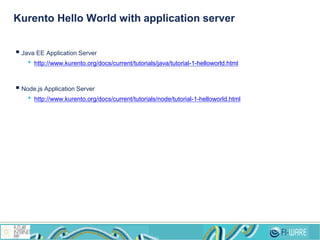

- 32. Kurento Hello Worldwith application server Java EE Application Server • http://www.kurento.org/docs/current/tutorials/java/tutorial-1-helloworld.html Node.js Application Server • http://www.kurento.org/docs/current/tutorials/node/tutorial-1-helloworld.html
- 33.

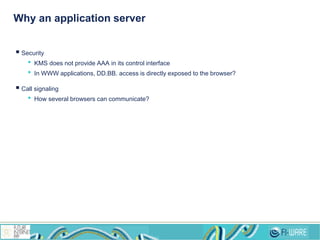

- 34. Why an applicationserver Security • KMS does not provide AAA in its control interface • In WWW applications, DD.BB. access is directly exposed to the browser? Call signaling • How several browsers can communicate?
- 35.

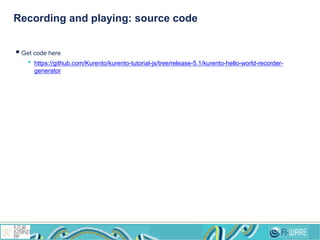

- 36. Recording and playing:source code Get code here • https://github.com/Kurento/kurento-tutorial-js/tree/release-5.1/kurento-hello-world-recorder- generator

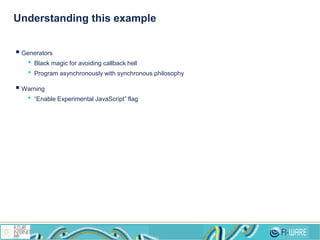

- 37. Understanding this example Generators • Black magic for avoiding callback hell • Program asynchronously with synchronous philosophy Warning • “Enable Experimental JavaScript” flag
- 38. Advanced topics: Workingwith calls P2P WebRTC call

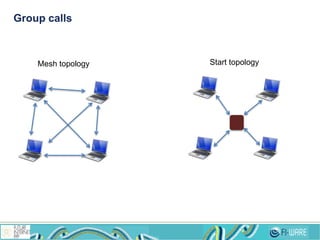

- 39. Group calls Mesh topologyStart topology

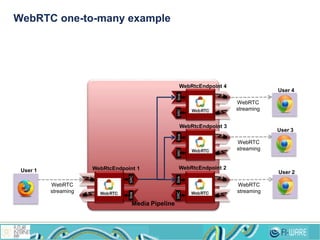

- 40. WebRTC one-to-many example MediaPipeline WebRTC streaming SinkSRC WebRTC streaming SRCSinkSRCSink WebRTC streaming WebRtcEndpoint 1 WebRtcEndpoint 3 WebRtcEndpoint 2 SRCSink WebRTC streaming WebRtcEndpoint 4 User 1 User 2 User 3 User 4
- 41. WebRTC one tomany example: code Java EE • http://www.kurento.org/docs/current/tutorials/java/tutorial-3-one2many.html Node.js • http://www.kurento.org/docs/current/tutorials/node/tutorial-3-one2many.html
- 42.
- 43.
- 44.
- 45.

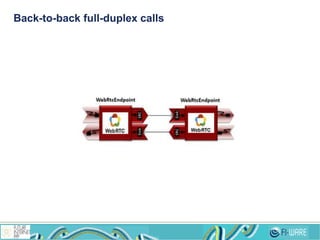

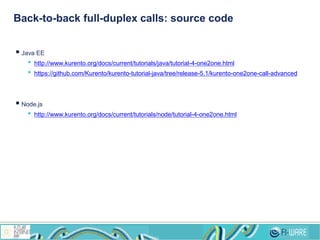

- 46. Back-to-back full-duplex calls:source code Java EE • http://www.kurento.org/docs/current/tutorials/java/tutorial-4-one2one.html • https://github.com/Kurento/kurento-tutorial-java/tree/release-5.1/kurento-one2one-call-advanced Node.js • http://www.kurento.org/docs/current/tutorials/node/tutorial-4-one2one.html

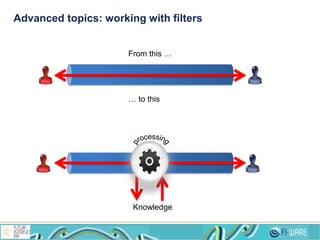

- 47. Advanced topics: workingwith filters From this … … to this Knowledge

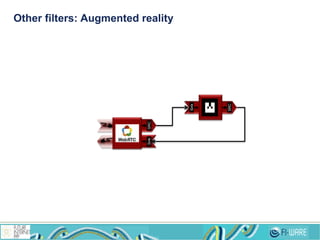

- 48. Other filters: Augmentedreality Sink SRC SinkSRC

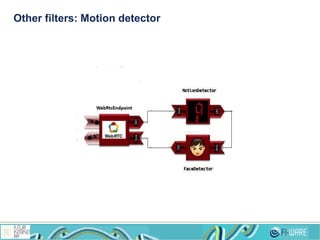

- 49. Other filters: Motiondetector
- 50.

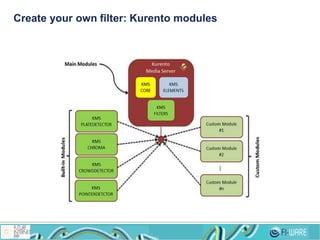

- 51. Create your ownfilter: Kurento modules

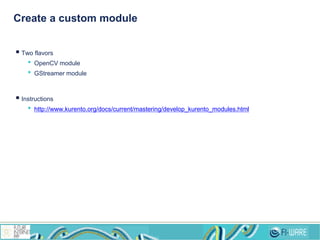

- 52. Create a custommodule Two flavors • OpenCV module • GStreamer module Instructions • http://www.kurento.org/docs/current/mastering/develop_kurento_modules.html
- 53. http://fi-ppp.eu http://fi-ware.eu Follow @Fiware on Twitter ! Thanks ! 52
Editor's Notes
- #3 With the advent of unlimited channels, unlimited applications, unlimited news, unlimited information and unlimited entertainment — why are we feeling more isolated? Has the technology of connecting human beings and ideas only begun to tap into fulfilling the most fundamental human needs? Even as we are living through a transitional period where we are now able to instantly “attach” to other people and ideas, why are we longing less for “instant messaging” and more for “meaningful messaging?”
- #7 If you're not familiar with WebRTC, it's the technology which will cause the next drive towards mass adoption of voice, video and file collaboration. In essence, it will enable high quality video and audio in your web browser, which is one of the most deployed applications in the world. It has been drafted by W3C (World Wide Web Consortium) with protocol work done by IETF (Internet Engineering Task Force). WebRTC ultimately simplifies the incorporation of real-time communications into a web browser. The objective of WebRTC is to trigger a real-time session in your browser, without having to download anything, simply functioning as part of the normal operation of browser. Everything required to deliver a high quality experience at the endpoint is supported natively within a WebRTC-capable web browser.
- #9 WebRTC defines several APIs together with a collection of communication processes and protocols. From a development perspective, core functions are encapsulated into three main JavaScript APIs: getUserMedia, RTCPeerConnection and RTCDataChannel. These APIs are incorporated into browsers that support WebRTC, hence a web developer who has JavaScript programming experience can bring an interactive video collaboration experience to the web. WebRTC allows a mesh-based technology to enable users to send and receive streams to and from each other.
- #10 Although WebRTC isn't confined solely to web applications, embedding real-time communications directly into web browsers has been the focus for most of the industry. With WebRTC it becomes possible to embed real-time video into a range of vertical applications, including for business, medical and education purposes.
