Kuhn integra 5200 series folding grain drill

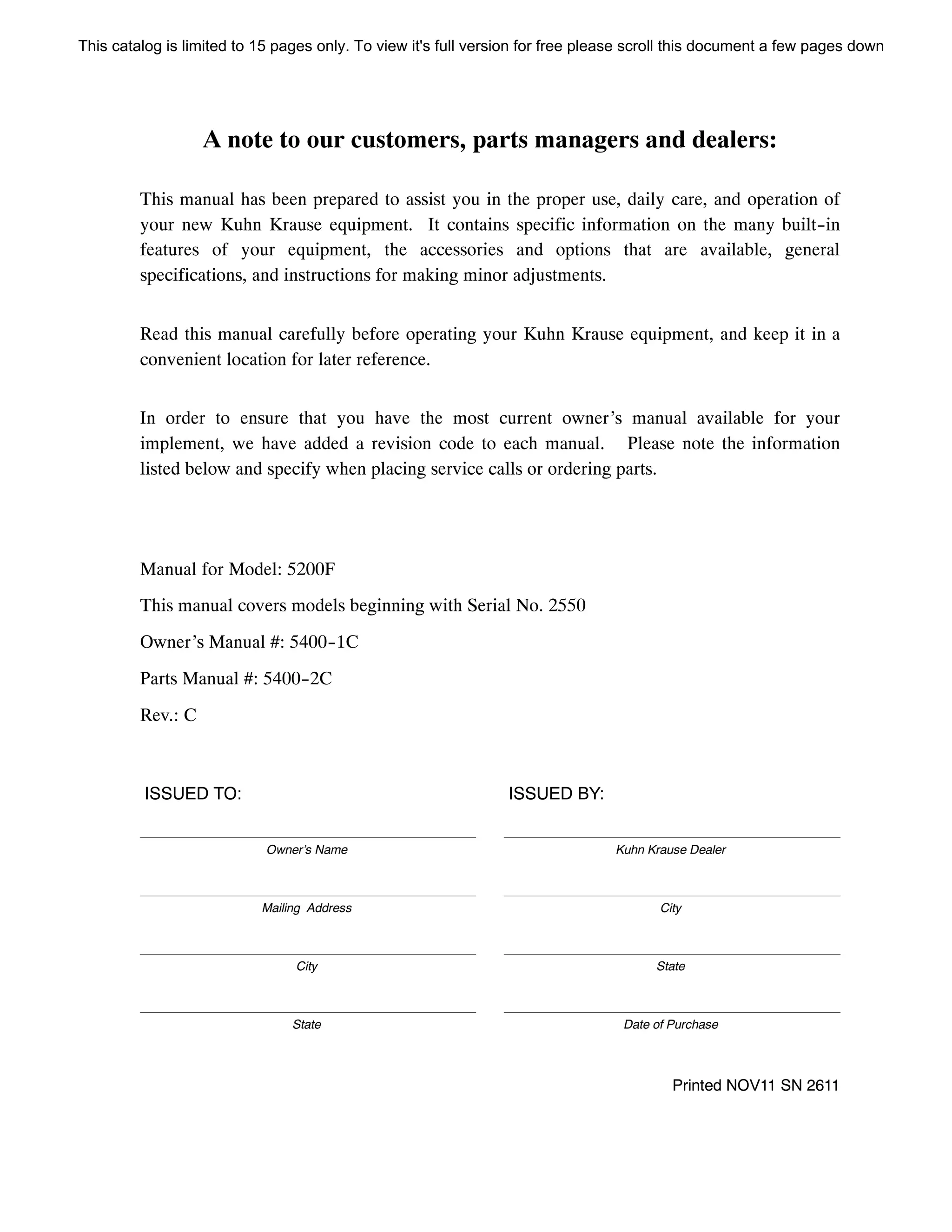

A note to our customers, parts managers and dealers:
This manual has been prepared to assist you in the proper use, daily care, and operation of
your new Kuhn Krause equipment. It contains specific information on the many built--in
features of your equipment, the accessories and options that are available, general
specifications, and instructions for making minor adjustments.
Read this manual carefully before operating your Kuhn Krause equipment, and keep it in a
convenient location for later reference.
In order to ensure that you have the most current owner’s manual available for your
implement, we have added a revision code to each manual. Please note the information
listed below and specify when placing service calls or ordering parts.
Manual for Model: 5200F
This manual covers models beginning with Serial No. 2550
Owner’s Manual #: 5400--1C
Parts Manual #: 5400--2C
Rev.: C
ISSUED TO: ISSUED BY:
Owner’s Name Kuhn Krause Dealer
Mailing Address City
City State
State Date of Purchase
Printed NOV11 SN 2611
This catalog is limited to 15 pages only. To view it's full version for free please scroll this document a few pages down

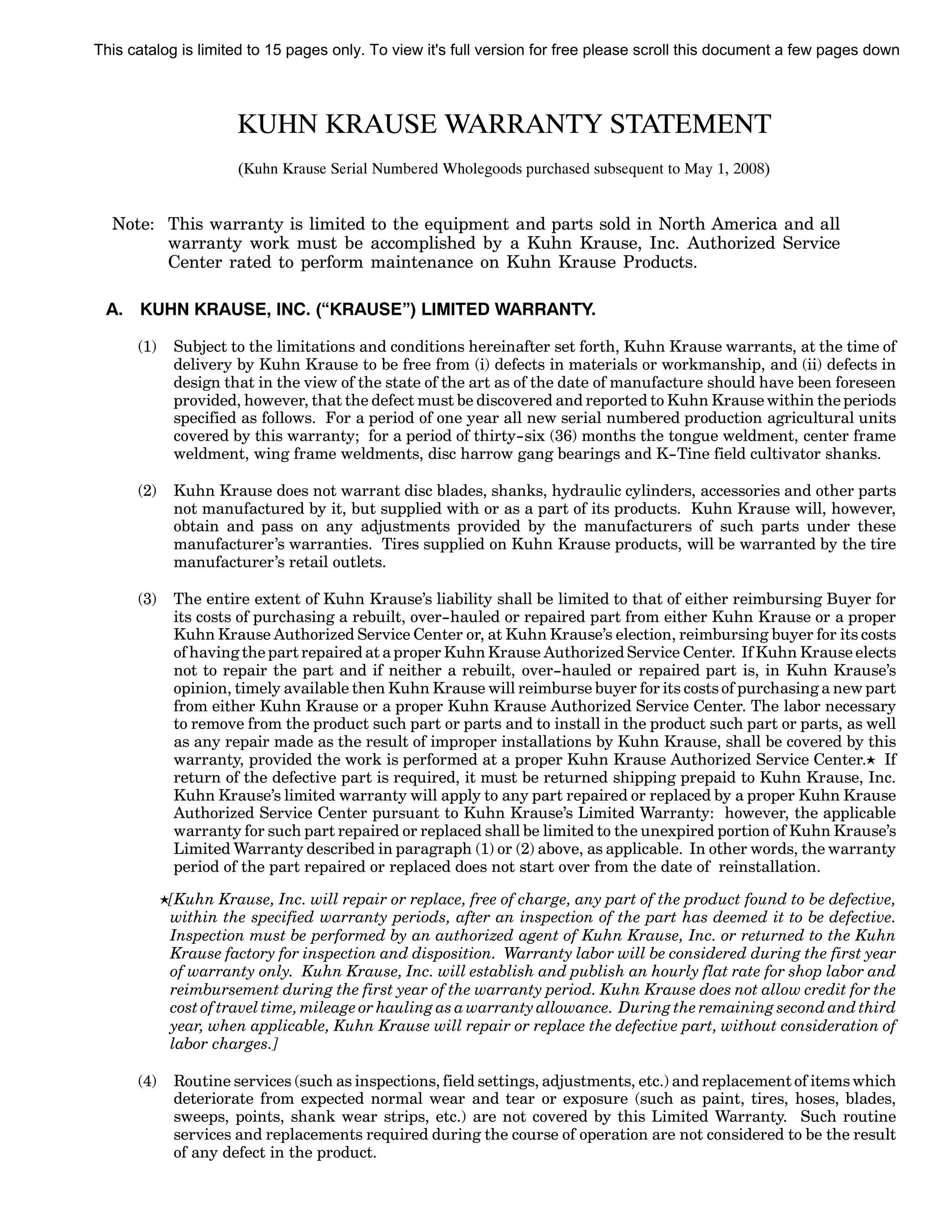

KUHN KRAUSE WARRANTY STATEMENT
(Kuhn Krause Serial Numbered Wholegoods purchased subsequent to May 1, 2008)
Note: This warranty is limited to the equipment and parts sold in North America and all
warranty work must be accomplished by a Kuhn Krause, Inc. Authorized Service
Center rated to perform maintenance on Kuhn Krause Products.
A. KUHN KRAUSE, INC. (“KRAUSE”) LIMITED WARRANTY.
(1) Subject to the limitations and conditions hereinafter set forth, Kuhn Krause warrants, at the time of
delivery by Kuhn Krause to be free from (i) defects in materials or workmanship, and (ii) defects in
design that in the view of the state of the art as of the date of manufacture should have been foreseen
provided, however, that the defect must be discovered and reported to Kuhn Krause within the periods
specified as follows. For a period of one year all new serial numbered production agricultural units
covered by this warranty; for a period of thirty--six (36) months the tongue weldment, center frame
weldment, wing frame weldments, disc harrow gang bearings and K--Tine field cultivator shanks.
(2) Kuhn Krause does not warrant disc blades, shanks, hydraulic cylinders, accessories and other parts
not manufactured by it, but supplied with or as a part of its products. Kuhn Krause will, however,
obtain and pass on any adjustments provided by the manufacturers of such parts under these
manufacturer’s warranties. Tires supplied on Kuhn Krause products, will be warranted by the tire
manufacturer’s retail outlets.
(3) The entire extent of Kuhn Krause’s liability shall be limited to that of either reimbursing Buyer for
its costs of purchasing a rebuilt, over--hauled or repaired part from either Kuhn Krause or a proper
Kuhn Krause Authorized Service Center or, at Kuhn Krause’s election, reimbursing buyer for its costs
of having the part repaired at a proper Kuhn Krause Authorized Service Center. If Kuhn Krause elects
not to repair the part and if neither a rebuilt, over--hauled or repaired part is, in Kuhn Krause’s
opinion, timely available then Kuhn Krause will reimburse buyer for its costs of purchasing a new part
from either Kuhn Krause or a proper Kuhn Krause Authorized Service Center. The labor necessary
to remove from the product such part or parts and to install in the product such part or parts, as well
as any repair made as the result of improper installations by Kuhn Krause, shall be covered by this
warranty, provided the work is performed at a proper Kuhn Krause Authorized Service Center.K If
return of the defective part is required, it must be returned shipping prepaid to Kuhn Krause, Inc.
Kuhn Krause’s limited warranty will apply to any part repaired or replaced by a proper Kuhn Krause
Authorized Service Center pursuant to Kuhn Krause’s Limited Warranty: however, the applicable
warranty for such part repaired or replaced shall be limited to the unexpired portion of Kuhn Krause’s
Limited Warranty described in paragraph (1) or (2) above, as applicable. In other words, the warranty
period of the part repaired or replaced does not start over from the date of reinstallation.
K[Kuhn Krause, Inc. will repair or replace, free of charge, any part of the product found to be defective,
within the specified warranty periods, after an inspection of the part has deemed it to be defective.
Inspection must be performed by an authorized agent of Kuhn Krause, Inc. or returned to the Kuhn
Krause factory for inspection and disposition. Warranty labor will be considered during the first year
of warranty only. Kuhn Krause, Inc. will establish and publish an hourly flat rate for shop labor and
reimbursement during the first year of the warranty period. Kuhn Krause does not allow credit for the
cost of travel time, mileage or hauling as a warranty allowance. During the remaining second and third
year, when applicable, Kuhn Krause will repair or replace the defective part, without consideration of
labor charges.]
(4) Routine services (such as inspections, field settings, adjustments, etc.) and replacement of items which
deteriorate from expected normal wear and tear or exposure (such as paint, tires, hoses, blades,
sweeps, points, shank wear strips, etc.) are not covered by this Limited Warranty. Such routine
services and replacements required during the course of operation are not considered to be the result
of any defect in the product.

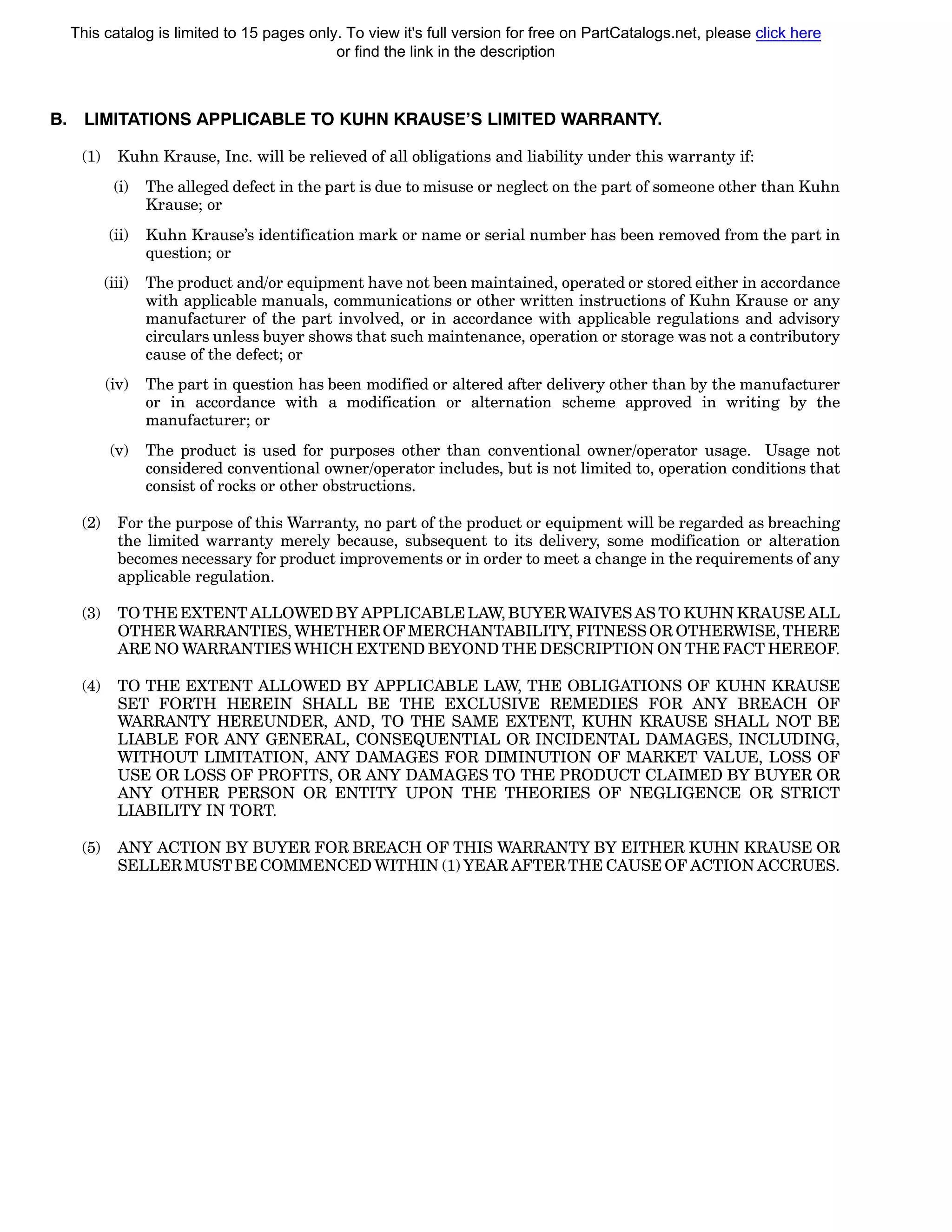

B. LIMITATIONS APPLICABLE TO KUHN KRAUSE’S LIMITED WARRANTY.
(1) Kuhn Krause, Inc. will be relieved of all obligations and liability under this warranty if:
(i) The alleged defect in the part is due to misuse or neglect on the part of someone other than Kuhn
Krause; or
(ii) Kuhn Krause’s identification mark or name or serial number has been removed from the part in
question; or
(iii) The product and/or equipment have not been maintained, operated or stored either in accordance
with applicable manuals, communications or other written instructions of Kuhn Krause or any
manufacturer of the part involved, or in accordance with applicable regulations and advisory
circulars unless buyer shows that such maintenance, operation or storage was not a contributory
cause of the defect; or
(iv) The part in question has been modified or altered after delivery other than by the manufacturer
or in accordance with a modification or alternation scheme approved in writing by the
manufacturer; or
(v) The product is used for purposes other than conventional owner/operator usage. Usage not
considered conventional owner/operator includes, but is not limited to, operation conditions that
consist of rocks or other obstructions.
(2) For the purpose of this Warranty, no part of the product or equipment will be regarded as breaching
the limited warranty merely because, subsequent to its delivery, some modification or alteration
becomes necessary for product improvements or in order to meet a change in the requirements of any
applicable regulation.
(3) TO THE EXTENT ALLOWED BY APPLICABLE LAW, BUYER WAIVES AS TO KUHN KRAUSE ALL
OTHER WARRANTIES, WHETHER OF MERCHANTABILITY, FITNESS OR OTHERWISE, THERE
ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACT HEREOF.
(4) TO THE EXTENT ALLOWED BY APPLICABLE LAW, THE OBLIGATIONS OF KUHN KRAUSE
SET FORTH HEREIN SHALL BE THE EXCLUSIVE REMEDIES FOR ANY BREACH OF
WARRANTY HEREUNDER, AND, TO THE SAME EXTENT, KUHN KRAUSE SHALL NOT BE
LIABLE FOR ANY GENERAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING,
WITHOUT LIMITATION, ANY DAMAGES FOR DIMINUTION OF MARKET VALUE, LOSS OF
USE OR LOSS OF PROFITS, OR ANY DAMAGES TO THE PRODUCT CLAIMED BY BUYER OR
ANY OTHER PERSON OR ENTITY UPON THE THEORIES OF NEGLIGENCE OR STRICT
LIABILITY IN TORT.
(5) ANY ACTION BY BUYER FOR BREACH OF THIS WARRANTY BY EITHER KUHN KRAUSE OR
SELLER MUST BE COMMENCED WITHIN (1) YEAR AFTER THE CAUSE OF ACTION ACCRUES.
This catalog is limited to 15 pages only. To view it's full version for free on PartCatalogs.net, please click here
or find the link in the description

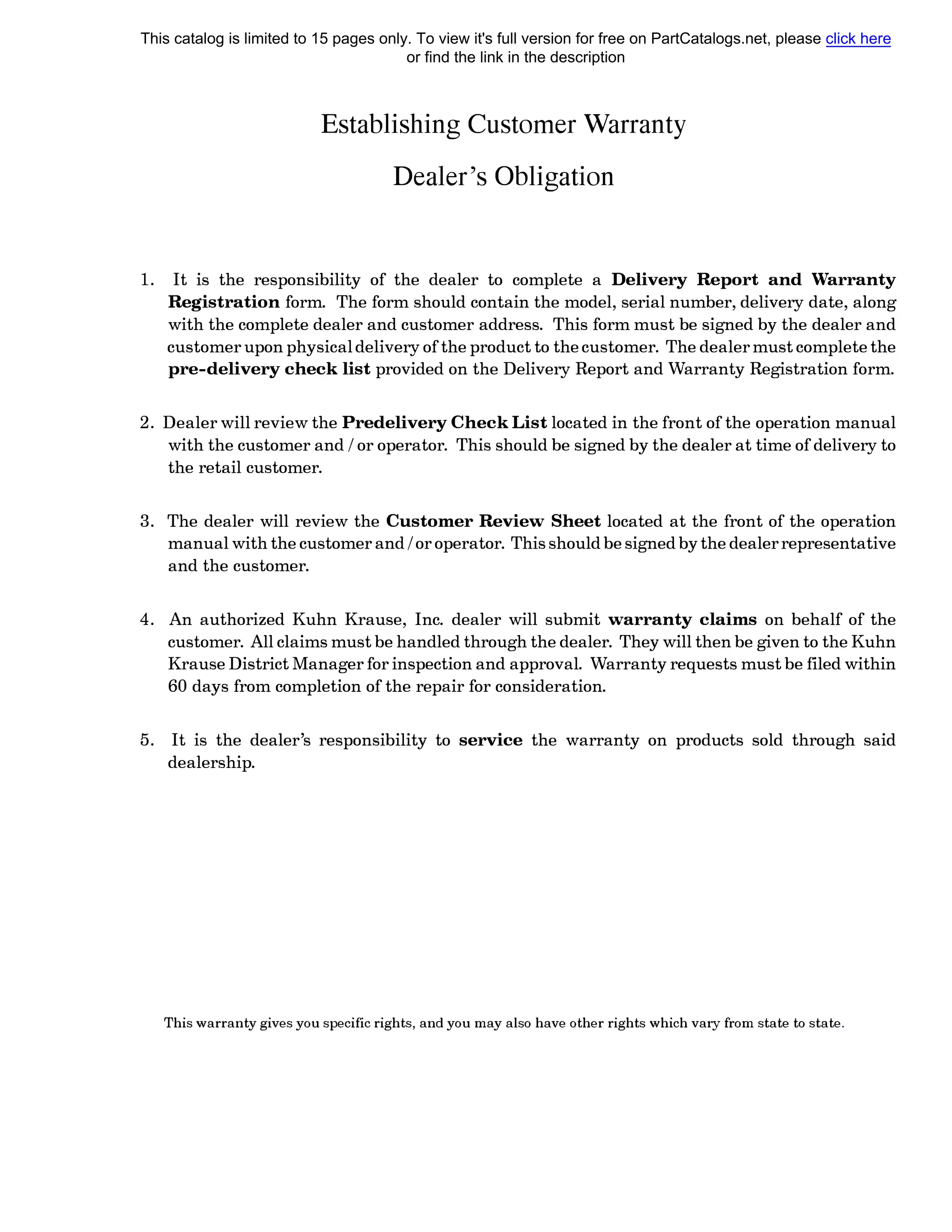

EstaЫishing Customer Warranty
Dealer's OЬligation
1. It is the responsiЬility of the dealer to complete а Delivery Report and Warranty
Registration form. The form should contain the model, serial number, delivery date, along
with the complete dealer and customer address. This form must Ье signed Ьу the dealer and
customer upon physical delivery of the product to the customer. The dealer must complete the
pre-delivery check list provided on the Delivery Report and Warranty Registration form.
2. Dealer will review the Predelivery Check List located in the front of the operation manual
with the customer and / or operator. This should Ье signed Ьу the dealer at time of delivery to
the retail customer.
3. The dealer will review the Customer Review Sheet located at the front of the operation
manual with the customer and / or operator. This should Ье signed Ьу the dealer representative
and the customer.
4. An authorized Kuhn Krause, lnc. dealer will submit warranty claims on behalf of the
customer. All claims must Ье handled through the dealer. They will then Ье given to the Kuhn
Krause District Manager for inspection and approval. Warranty requests must Ье filed within
60 days from completion of the repair for consideration.
5. It is the dealer's responsiЬility to service the warranty on products sold through said
dealership.
This warranty gives you specific rights, and you тау also have other rights which vary from state to state.

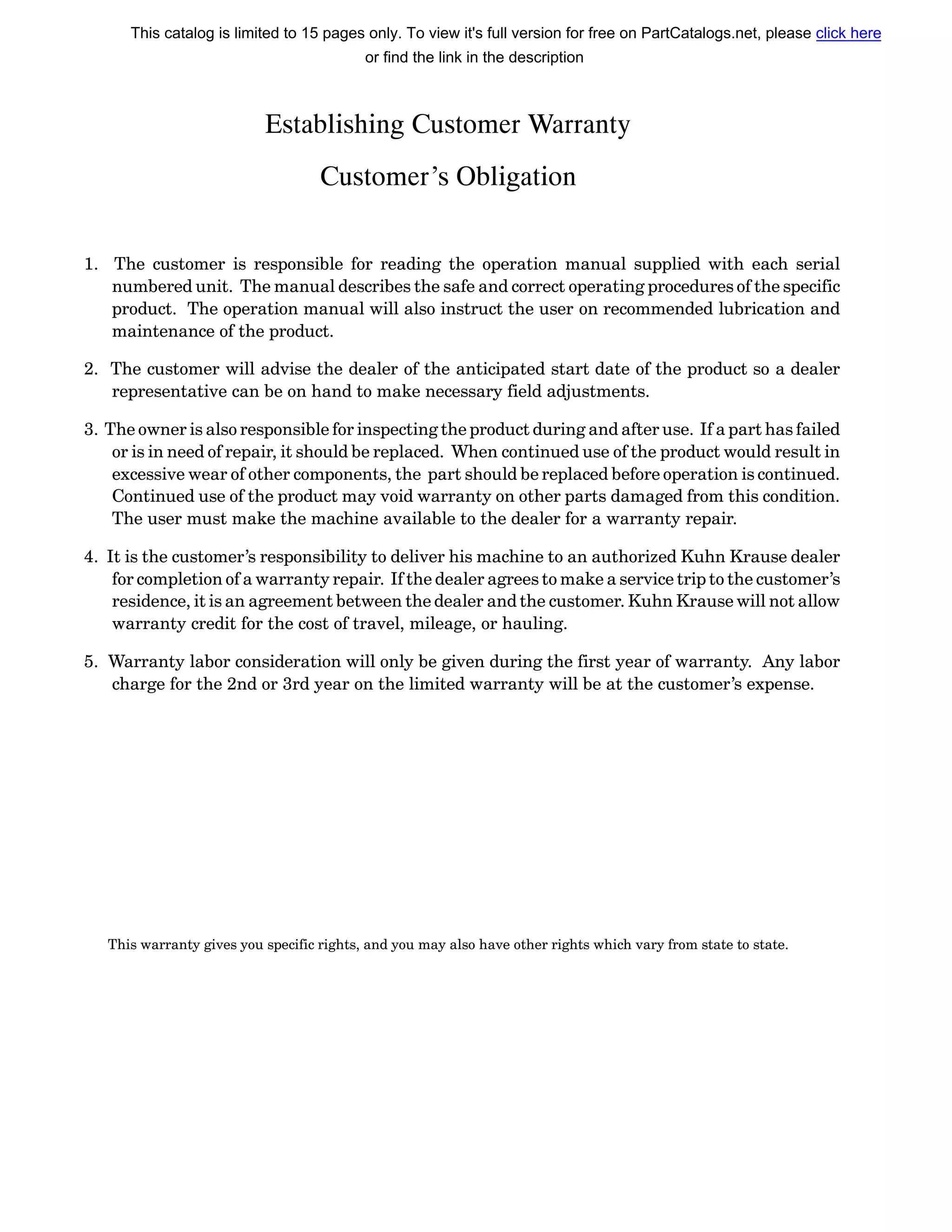

Establishing Customer Warranty
Customer’s Obligation
1. The customer is responsible for reading the operation manual supplied with each serial
numbered unit. The manual describes the safe and correct operating procedures of the specific
product. The operation manual will also instruct the user on recommended lubrication and
maintenance of the product.
2. The customer will advise the dealer of the anticipated start date of the product so a dealer
representative can be on hand to make necessary field adjustments.
3. The owner is also responsible for inspecting the product during and after use. If a part has failed
or is in need of repair, it should be replaced. When continued use of the product would result in
excessive wear of other components, the part should be replaced before operation is continued.
Continued use of the product may void warranty on other parts damaged from this condition.
The user must make the machine available to the dealer for a warranty repair.
4. It is the customer’s responsibility to deliver his machine to an authorized Kuhn Krause dealer
for completion of a warranty repair. If the dealer agrees to make a service trip to the customer’s
residence, it is an agreement between the dealer and the customer. Kuhn Krause will not allow
warranty credit for the cost of travel, mileage, or hauling.
5. Warranty labor consideration will only be given during the first year of warranty. Any labor
charge for the 2nd or 3rd year on the limited warranty will be at the customer’s expense.
This warranty gives you specific rights, and you may also have other rights which vary from state to state.

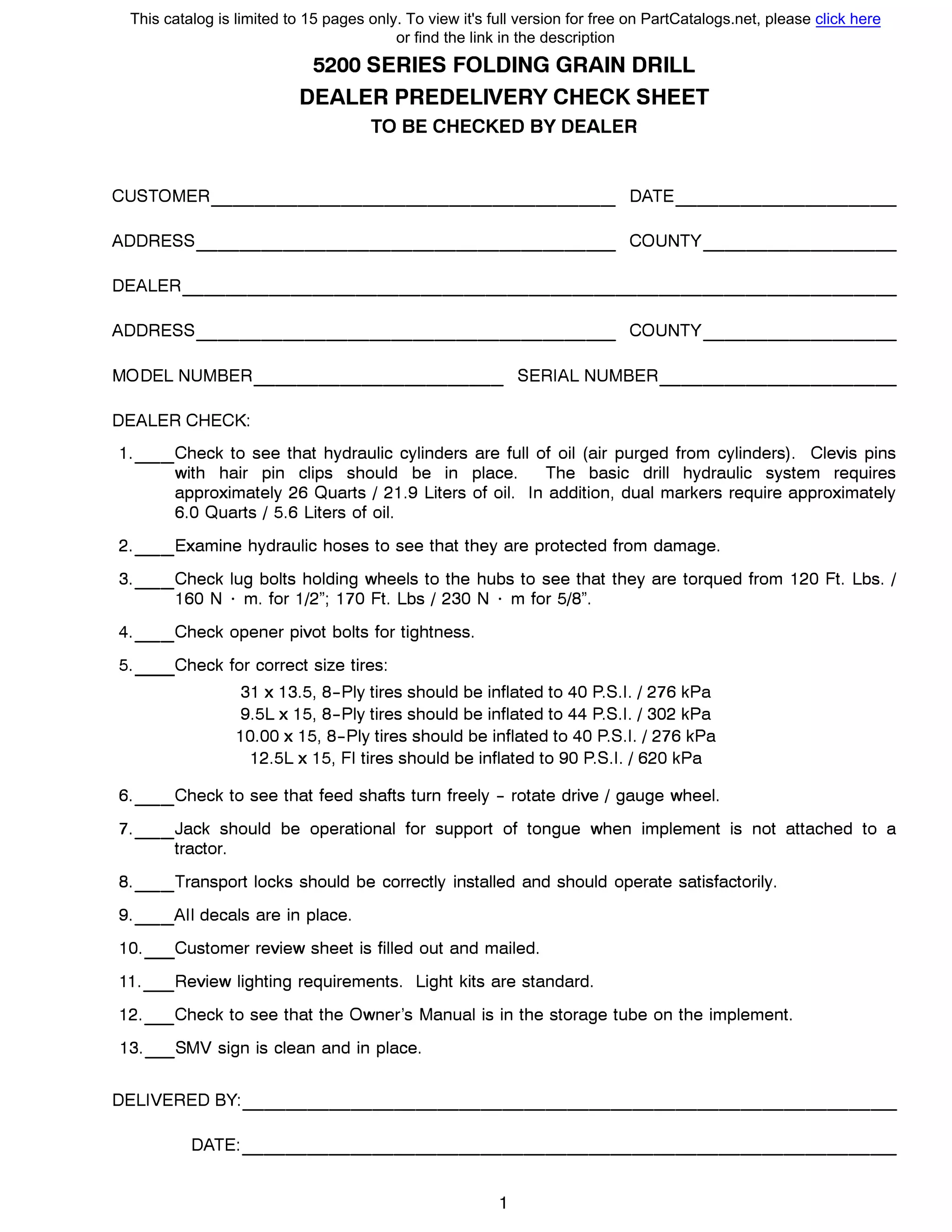

5200 SERIES FOLDING GRAIN DRILL
DEALER PREDELIVERY СНЕСК SHEET
ТО ВЕ CHECKED ВУ DEALER
CUSTOMER DATE------------------- ----------
ADDRESS COUNTY------------------- ---------
DEALER---------------------------------
ADDRESS COUNTY------------------- ---------
MODEL NUMBER SERIAL NUMBER------------ -----------
DEALER СНЕСК:
1.__Check to see that hydraulic cylinders are full of oil (air purged from cylinders). Clevis pins
with hair pin clips should Ье in place. The basic drill hydraulic system requires
approximately 26 Quarts / 21.9 Liters of oil. ln addition, dual markers require approximately
6.0 Quarts / 5.6 Liters of oil.
2.__Examine hydraulic hoses to see that they are protected from damage.
3.__Check lug bolts holding wheels to the hubs to see that they are torqued from 120 Ft. Lbs. /
160 N · m. for 1/2"; 170 Ft. Lbs / 230 N · m for 5/8".
4.__Check opener pivot bolts for tightness.
5. Check for correct size tires:
31 х 13.5, 8-Ply tires should Ье inflated to 40 P.S.I. / 276 kPa
9.5L х 15, 8-Ply tires should Ье inflated to 44 P.S.I. / 302 kPa
10.00 х 15, 8-Ply tires should Ье inflated to 40 P.S.I. / 276 kPa
12.5L х 15, FI tires should Ье inflated to 90 P.S.I. / 620 kPa
6.__Check to see that feed shafts turn freely - rotate drive / gauge wheel.
7.__Jack should Ье operational for support of tongue when implement is not attached to а
tractor.
8.__Transport locks should Ье correctly installed and should operate satisfactorily.
9.__AII decals are in place.
1О. Customer review sheet is filled out and mailed.
11._Review lighting requirements. Light kits are standard.
12._Check to see that the Owner's Manual is in the storage tube оп the implement.
13._SMV sign is clean and in place.
DELIVERED ВУ:------------------------------
DATE: ------------------------------

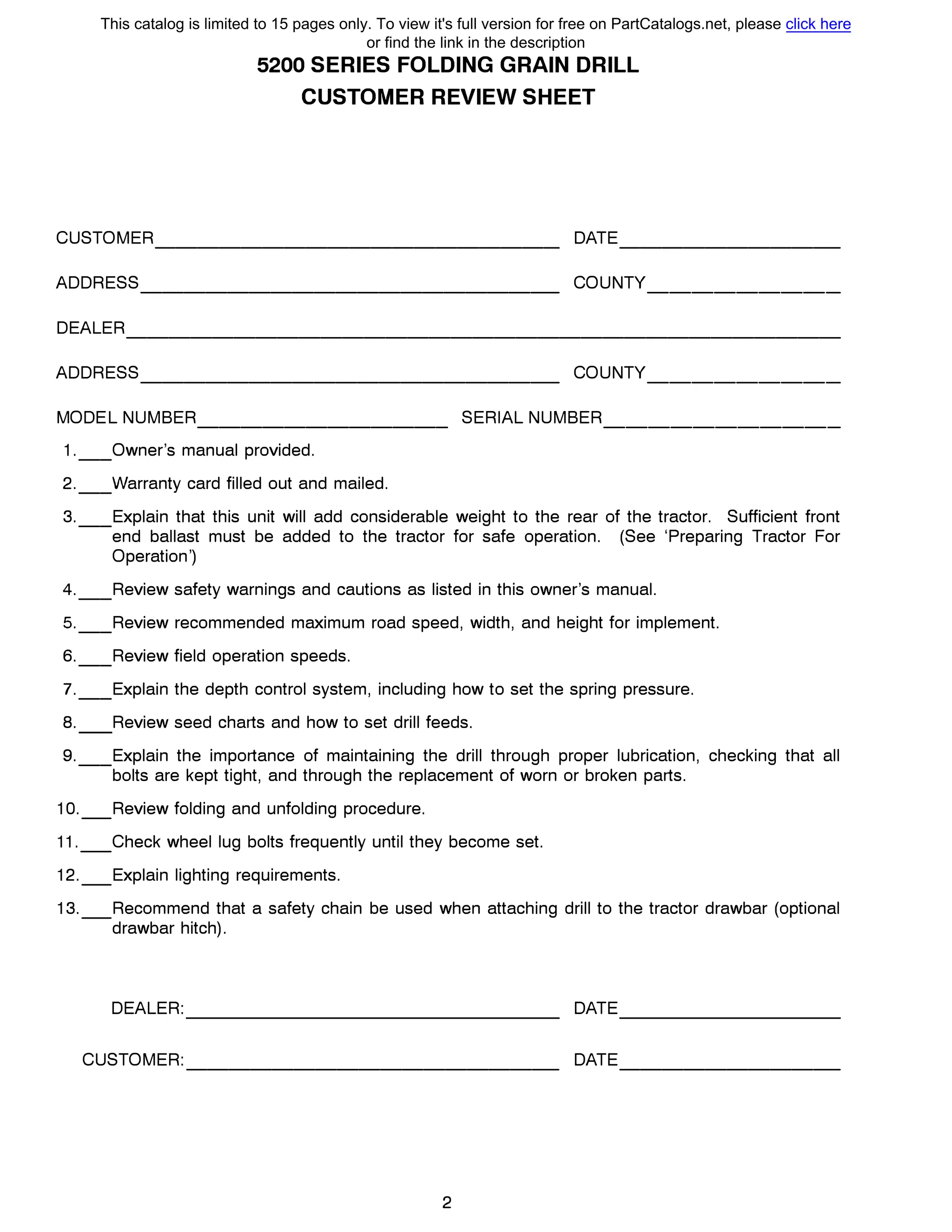

5200 SERIES FOLDING GRAIN DRILL
CUSTOMER REVIEW SHEET
CUSTOMER DATE------------------- ----------
ADDRESS COUNTY------------------- ---------
DEALER---------------------------------
ADDRESS COUNTY------------------- ---------
MODEL NUMBER SERIAL NUMBER------------ -----------
1.__0wner's manual provided.
2.__Warranty card filled out and mailed.
3.__Explain that this unit will add consideraЬle weight to the rear of the tractor. Sufficient front
end ballast must Ье added to the tractor for safe operation. (See 'Preparing Tractor For
Operation')
4.__Review safety warnings and cautions as listed in this owner's manual.
5.__Review recommended maximum road speed, width, and height for implement.
6.__Review field operation speeds.
7.__Explain the depth control system, including how to set the spring pressure.
8. Review seed charts and how to set drill feeds.
9.__Explain the importance of maintaining the drill through proper lubrication, checking that all
bolts are kept tight, and through the replacement of worn or broken parts.
1O._Review folding and unfolding procedure.
11._Check wheel lug bolts frequently until they become set.
12._Explain lighting requirements.
13._Recommend that а safety chain Ье used when attaching drill to the tractor drawbar (optional
drawbar hitch).
DEALER: DATE
CUSTOMER: DATE----------------- ----------
2

3

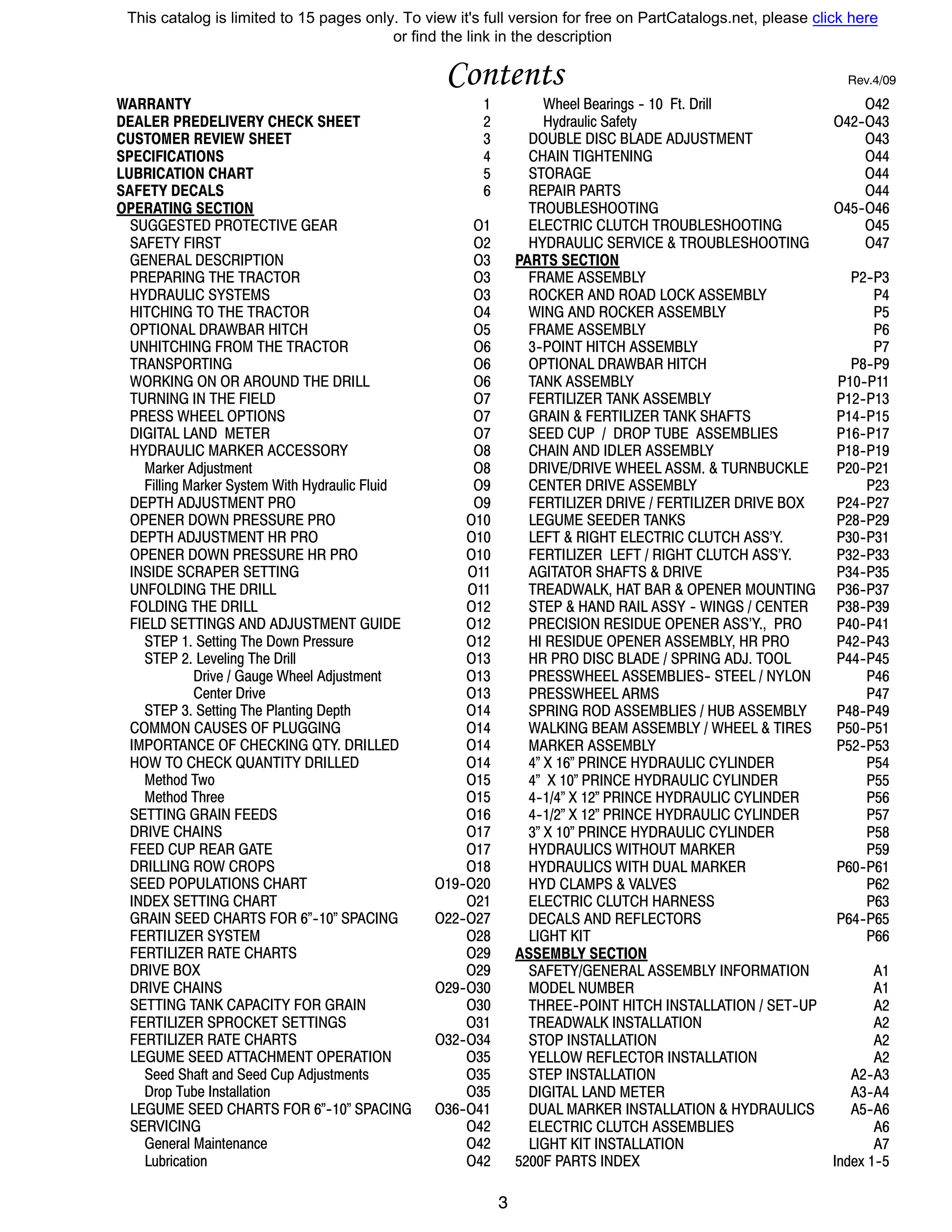

Contents Rev.4/09
WARRANTY 1
DEALER PREDELIVERY CHECK SHEET 2
CUSTOMER REVIEW SHEET 3
SPECIFICATIONS 4
LUBRICATION CHART 5
SAFETY DECALS 6
OPERATING SECTION
SUGGESTED PROTECTIVE GEAR O1
SAFETY FIRST O2
GENERAL DESCRIPTION O3
PREPARING THE TRACTOR O3
HYDRAULIC SYSTEMS O3
HITCHING TO THE TRACTOR O4
OPTIONAL DRAWBAR HITCH O5
UNHITCHING FROM THE TRACTOR O6
TRANSPORTING O6
WORKING ON OR AROUND THE DRILL O6
TURNING IN THE FIELD O7
PRESS WHEEL OPTIONS O7
DIGITAL LAND METER O7
HYDRAULIC MARKER ACCESSORY O8
Marker Adjustment O8
Filling Marker System With Hydraulic Fluid O9
DEPTH ADJUSTMENT PRO O9
OPENER DOWN PRESSURE PRO O10
DEPTH ADJUSTMENT HR PRO O10
OPENER DOWN PRESSURE HR PRO O10
INSIDE SCRAPER SETTING O11
UNFOLDING THE DRILL O11
FOLDING THE DRILL O12
FIELD SETTINGS AND ADJUSTMENT GUIDE O12
STEP 1. Setting The Down Pressure O12
STEP 2. Leveling The Drill O13
Drive / Gauge Wheel Adjustment O13
Center Drive O13
STEP 3. Setting The Planting Depth O14
COMMON CAUSES OF PLUGGING O14
IMPORTANCE OF CHECKING QTY. DRILLED O14
HOW TO CHECK QUANTITY DRILLED O14
Method Two O15
Method Three O15
SETTING GRAIN FEEDS O16
DRIVE CHAINS O17
FEED CUP REAR GATE O17
DRILLING ROW CROPS O18
SEED POPULATIONS CHART O19--O20
INDEX SETTING CHART O21
GRAIN SEED CHARTS FOR 6”--10” SPACING O22--O27
FERTILIZER SYSTEM O28
FERTILIZER RATE CHARTS O29
DRIVE BOX O29
DRIVE CHAINS O29--O30
SETTING TANK CAPACITY FOR GRAIN O30
FERTILIZER SPROCKET SETTINGS O31
FERTILIZER RATE CHARTS O32--O34
LEGUME SEED ATTACHMENT OPERATION O35
Seed Shaft and Seed Cup Adjustments O35
Drop Tube Installation O35
LEGUME SEED CHARTS FOR 6”--10” SPACING O36--O41
SERVICING O42
General Maintenance O42
Lubrication O42
Wheel Bearings -- 10 Ft. Drill O42
Hydraulic Safety O42--O43
DOUBLE DISC BLADE ADJUSTMENT O43
CHAIN TIGHTENING O44
STORAGE O44
REPAIR PARTS O44
TROUBLESHOOTING O45--O46
ELECTRIC CLUTCH TROUBLESHOOTING O45
HYDRAULIC SERVICE & TROUBLESHOOTING O47
PARTS SECTION
FRAME ASSEMBLY P2--P3
ROCKER AND ROAD LOCK ASSEMBLY P4
WING AND ROCKER ASSEMBLY P5
FRAME ASSEMBLY P6
3--POINT HITCH ASSEMBLY P7
OPTIONAL DRAWBAR HITCH P8--P9
TANK ASSEMBLY P10--P11
FERTILIZER TANK ASSEMBLY P12--P13
GRAIN & FERTILIZER TANK SHAFTS P14--P15
SEED CUP / DROP TUBE ASSEMBLIES P16--P17
CHAIN AND IDLER ASSEMBLY P18--P19
DRIVE/DRIVE WHEEL ASSM. & TURNBUCKLE P20--P21
CENTER DRIVE ASSEMBLY P23
FERTILIZER DRIVE / FERTILIZER DRIVE BOX P24--P27
LEGUME SEEDER TANKS P28--P29
LEFT & RIGHT ELECTRIC CLUTCH ASS’Y. P30--P31
FERTILIZER LEFT / RIGHT CLUTCH ASS’Y. P32--P33
AGITATOR SHAFTS & DRIVE P34--P35
TREADWALK, HAT BAR & OPENER MOUNTING P36--P37
STEP & HAND RAIL ASSY -- WINGS / CENTER P38--P39
PRECISION RESIDUE OPENER ASS’Y., PRO P40--P41
HI RESIDUE OPENER ASSEMBLY, HR PRO P42--P43
HR PRO DISC BLADE / SPRING ADJ. TOOL P44--P45
PRESSWHEEL ASSEMBLIES-- STEEL / NYLON P46
PRESSWHEEL ARMS P47
SPRING ROD ASSEMBLIES / HUB ASSEMBLY P48--P49
WALKING BEAM ASSEMBLY / WHEEL & TIRES P50--P51
MARKER ASSEMBLY P52--P53
4” X 16” PRINCE HYDRAULIC CYLINDER P54
4--1/4” X 12” PRINCE HYDRAULIC CYLINDER P56
4--1/2” X 12” PRINCE HYDRAULIC CYLINDER P57
HYDRAULICS WITHOUT MARKER P59
HYDRAULICS WITH DUAL MARKER P60--P61
HYD CLAMPS & VALVES P62
ELECTRIC CLUTCH HARNESS P63
DECALS AND REFLECTORS P64--P65
LIGHT KIT P66
ASSEMBLY SECTION
SAFETY/GENERAL ASSEMBLY INFORMATION A1
MODEL NUMBER A1
THREE--POINT HITCH INSTALLATION / SET--UP A2
TREADWALK INSTALLATION A2
STOP INSTALLATION A2
YELLOW REFLECTOR INSTALLATION A2
STEP INSTALLATION A2--A3
DIGITAL LAND METER A3--A4
DUAL MARKER INSTALLATION & HYDRAULICS A5--A6
ELECTRIC CLUTCH ASSEMBLIES A6
LIGHT KIT INSTALLATION A7
5200F PARTS INDEX Index 1--5

MODEL NUMBER
5200-25
5200-30
5200-36
MODEL
ALL
MODEL
5200-25
5200-30
5200-36

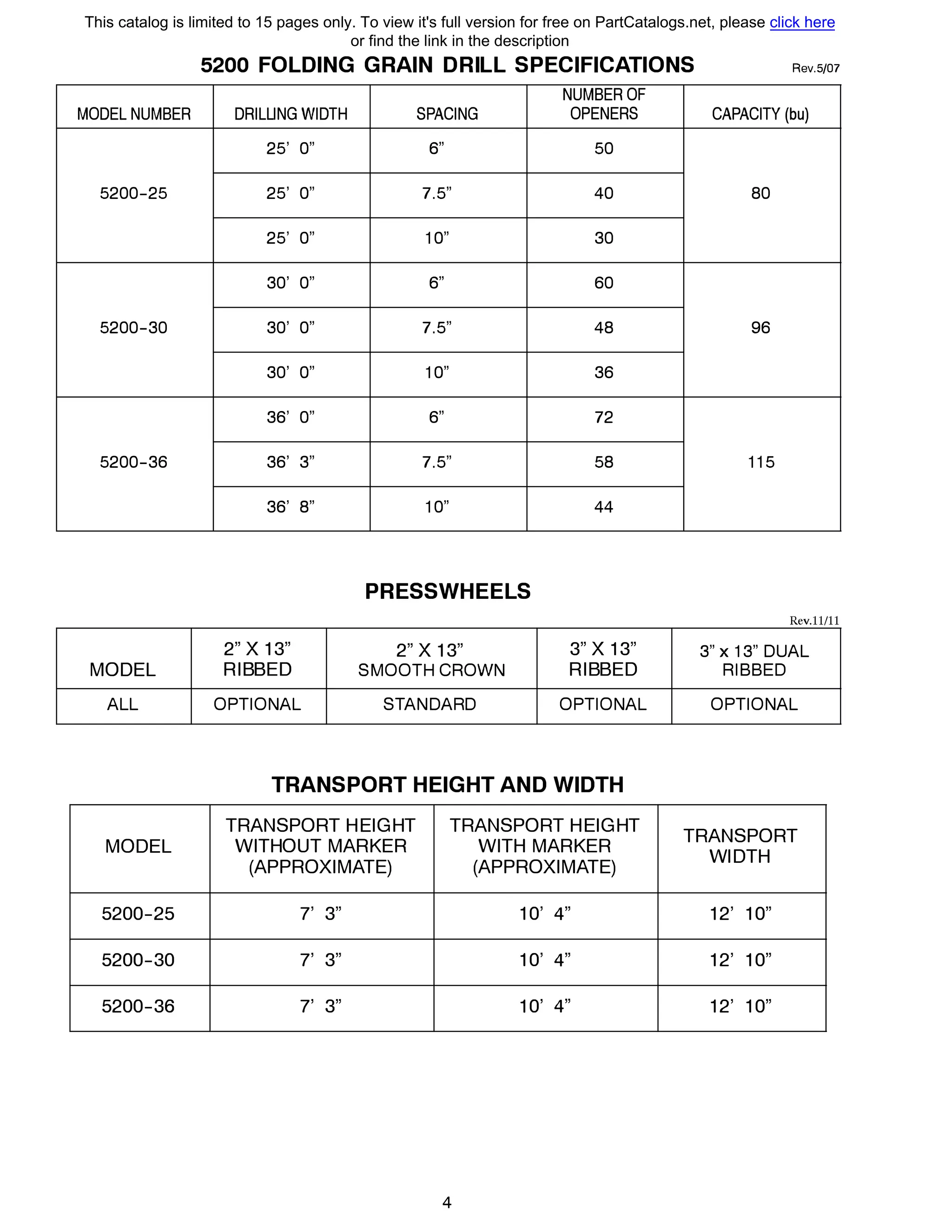

5200 FOLDING GRAIN DRILL SPECIFICATIONS Rev.5/07
NUMBER OF
DRILLING WIDTH SPACING OPENERS CAPACITY (bu)
25' О" 6" 50
25' О" 7.5" 40 80
25' О" 1О" 30
30' О" 6" 60
30' О" 7.5" 48 96
30' О" 1О" 36
36' О" 6" 72
36' 3" 7.5" 58 115
36' 8" 1О" 44
PRESSWHEELS
Rev.11/11
2" Х 13" 2" Х 13" 3" Х 13" 3" х 13" DUAL
RIBBED SMOOTH CROWN RIBBED RIBBED
OPTIONAL STANDARD OPTIONAL OPTIONAL
TRANSPORT HEIGHT AND WIDTH
TRANSPORT HEIGHT TRANSPORT HEIGHT
TRANSPORT
WITHOUT MARKER WITH MARKER
WIDTH
(APPROXIMATE) (APPROXIMATE)
7' 3" 10' 4" 12' 10"
7' 3" 10' 4" 12' 10"
7' 3" 10' 4" 12' 10"
4

(Л

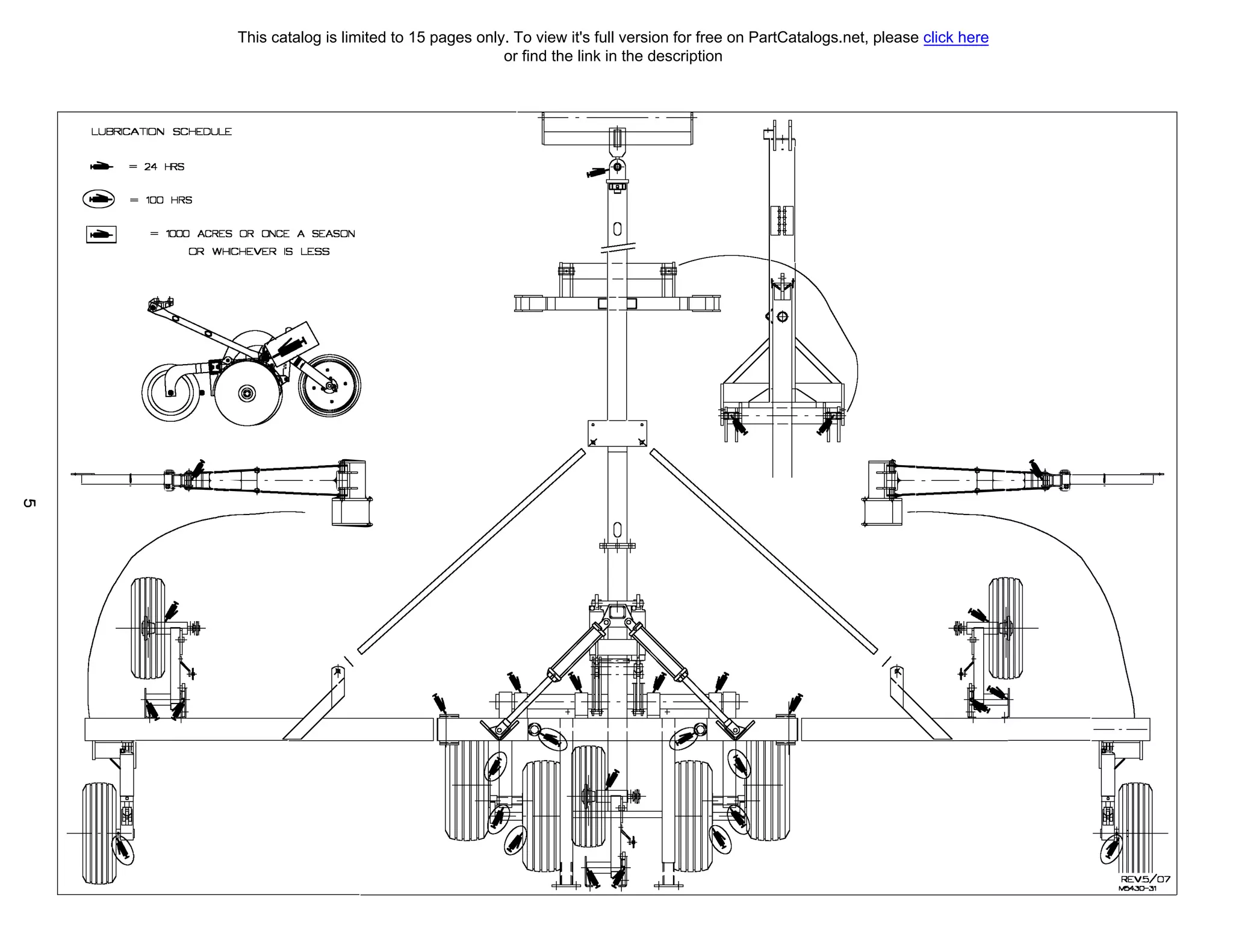

LUBRICATIDN SCHEDULE
,._ = 24HRS
@
1 .... 1
100 HRS
= 1000 ACRES DR ONCE А SEASON
DR WHCHEVER 15 LESS
а:4Е-±1--·�
au
{J--f±--
REV.5/07
�а-�,

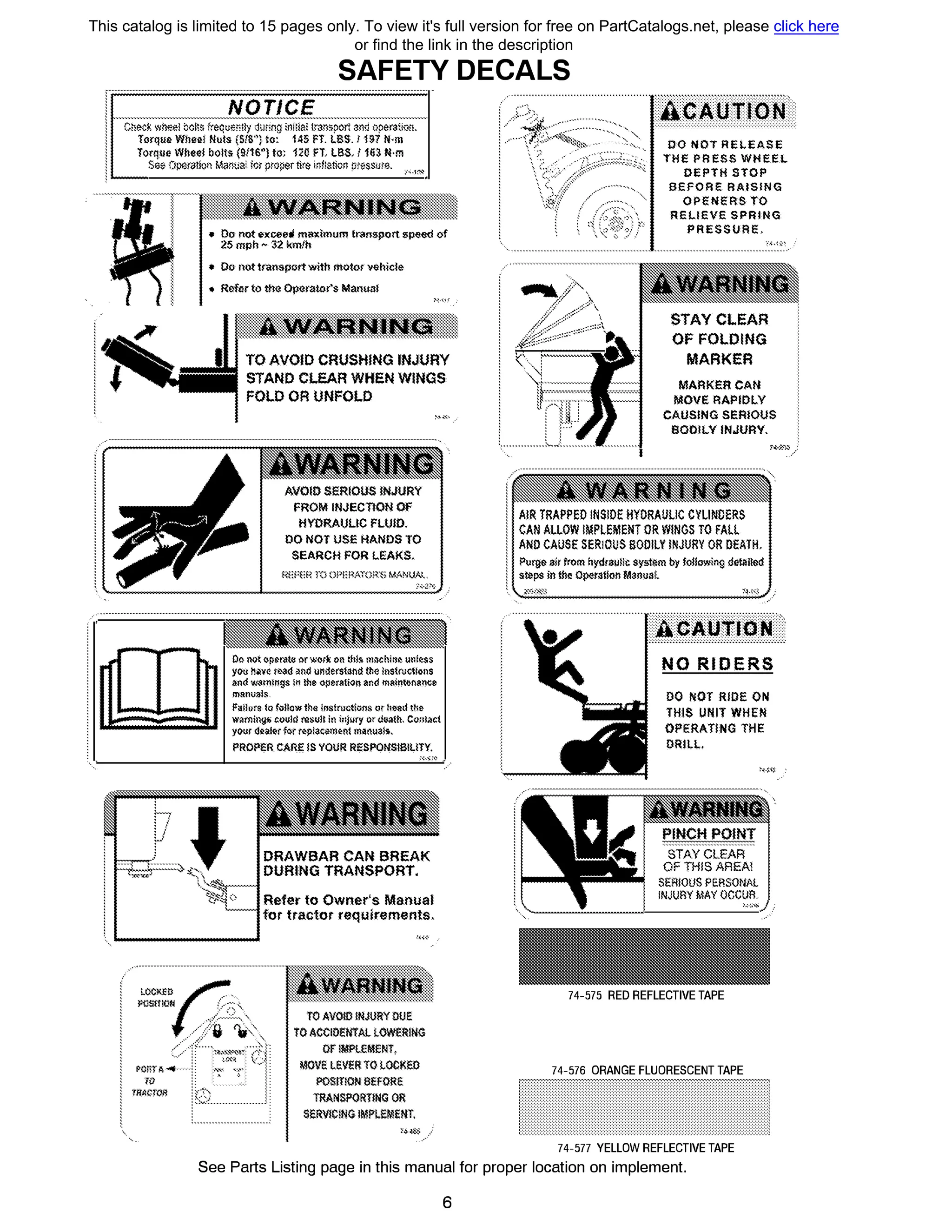

SAFEТY DECALS
1 НОТ/СЕ
i С�ос� ,�h,;el Mli& lrequ;зr,l!y d��rmg iniliai t,зnspon зп� operэtiiJ�.
i TGrque Wheel Nt1ls (51S") !о: 145 FT. LBS. 1 НП N·m
! Torque Wbee! bolts (9Л6'') to; 120 FТ, LBS, 1163 N·m
j
Se� OpiИQlioн Mar.1t:ai: for pmperttre i·�Bgtkm �res.s1иe. :,,;.i�
-
- -
• Оо not exceed maximt1m !1-эn,;;:port ,;;:peed of
25 mph � З:2 km.'h
• Dr; поttпшsportwith motor vehicle
• Refur to the Operator's Manual
��
ТО AVOID CRUSHING INJURY
STAND CLEAR WHEN WINGS
FOLD OR UNFOLD
FROM INJECTION OF
HYDRAULIC FШID.
DO NOT USE HANDS ТО
SEARCH FOR lEAKS,
Do not er,&rate orwer� 011 Ф!� m�chiti" u11l�.&s
you Mv� r1><1d �nd under$t�nd IM ln$tn;ct!on$
and W<ttnings in lhe opэrэtion and mзinwnзn�e
ma11u11ls
l'ailo,re la foHoъv lh<> iN.qlriн:tions ш h"e,i t�!>
ъvarni119:б could msult in i11j�ry ord..ath, Cor,i;,ct
yo�r <J�&l<!r f<fr �pl3�<>m�Rt m�nu3!$,
PROPER CARE !SYOUR RESPO№SIBIL!TY.
DRAWBAR CAN BREAK
DURING TRANSPORT.
Refer to Owner's Manual
fot ttactot requirements.
z;��<<г·············
Yiiг1:··············l.,)............-...........•
BG1uт11.1t1]...............................................
00 NOT REI.EASE
ТНЕ PRESS WHEEL
DEPTH STOP
BEFOAE RAISING
OPENERS ТО
REllEVE SPRING
PRESSURE,
STAYCLEAR
OF FOLDING
MARKER
MARKER CAN
MOVE RAPIDLУ
CAUSING SERIOUS
8001LY INJURY,
A!R TRAPPEO INSIOE HYDRAULIC СУШШЕRS
CAN ALLOW IMPLEMENT OR W!NGS ТО FAll
AND CAUSE SERIOUS BODILY INJURY OR ОЕАТН,
Purg& air from hydrau!I:,: sys�m Ьу fo!!owiщ1 detiiil&d
s�ps in tbe Op,Jratlon Мэrн1аl.
............................................ ..........................................
1.11шm11н':
NO RIDERS
DO NOT RIDE ON
THIS UNIT WHEN
OPERAТING ТНЕ
DRILL.
SТAYCLEAR
OF THIS AREA!
SERIOUS PERSON/L
INJURY МАУ OCCUR.
!-:-:,...... l i
74-575 RED REFLECТIVE ТАРЕ
-74-576 ORANGE FLUORESCENT ТАРЕ
74-577 YELLOW REFLECТIVE ТАРЕ
See Parts Listing page in this manual for proper location оп implement.
6

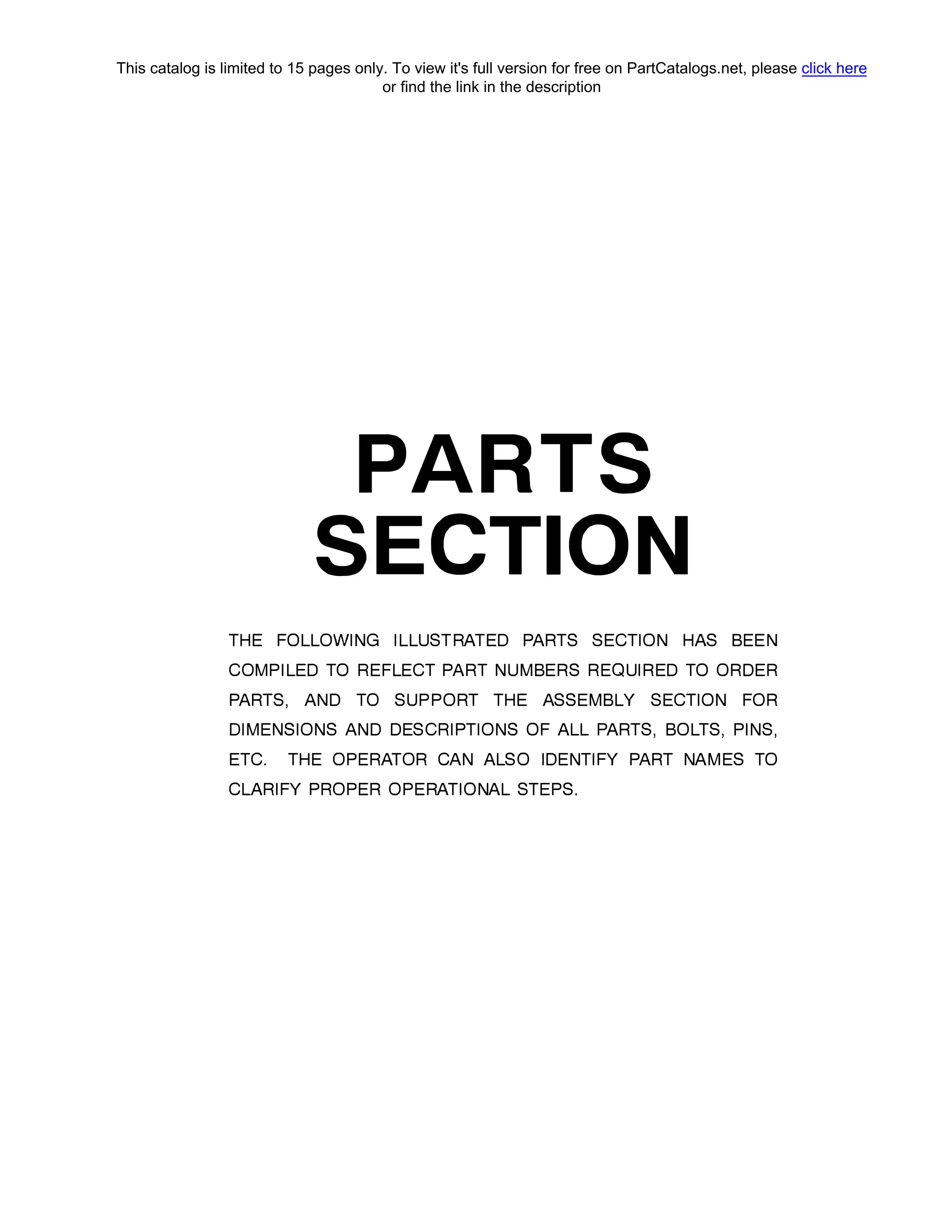

PARTS
SECTION
ТНЕ FOLLOWING ILLUSTRATED PARTS SECTION HAS BEEN
COMPILED ТО REFLECT PART NUMBERS REQUIRED ТО ORDER
PARTS, AND ТО SUPPORT ТНЕ ASSEMBLY SECTION FOR
DIMENSIONS AND DESCRIPTIONS OF ALL PARTS, BOLTS, PINS,
ЕТС. ТНЕ OPERATOR CAN ALSO IDENTIFY PART NAMES ТО
CLARIFY PROPER OPERATIONAL STEPS.

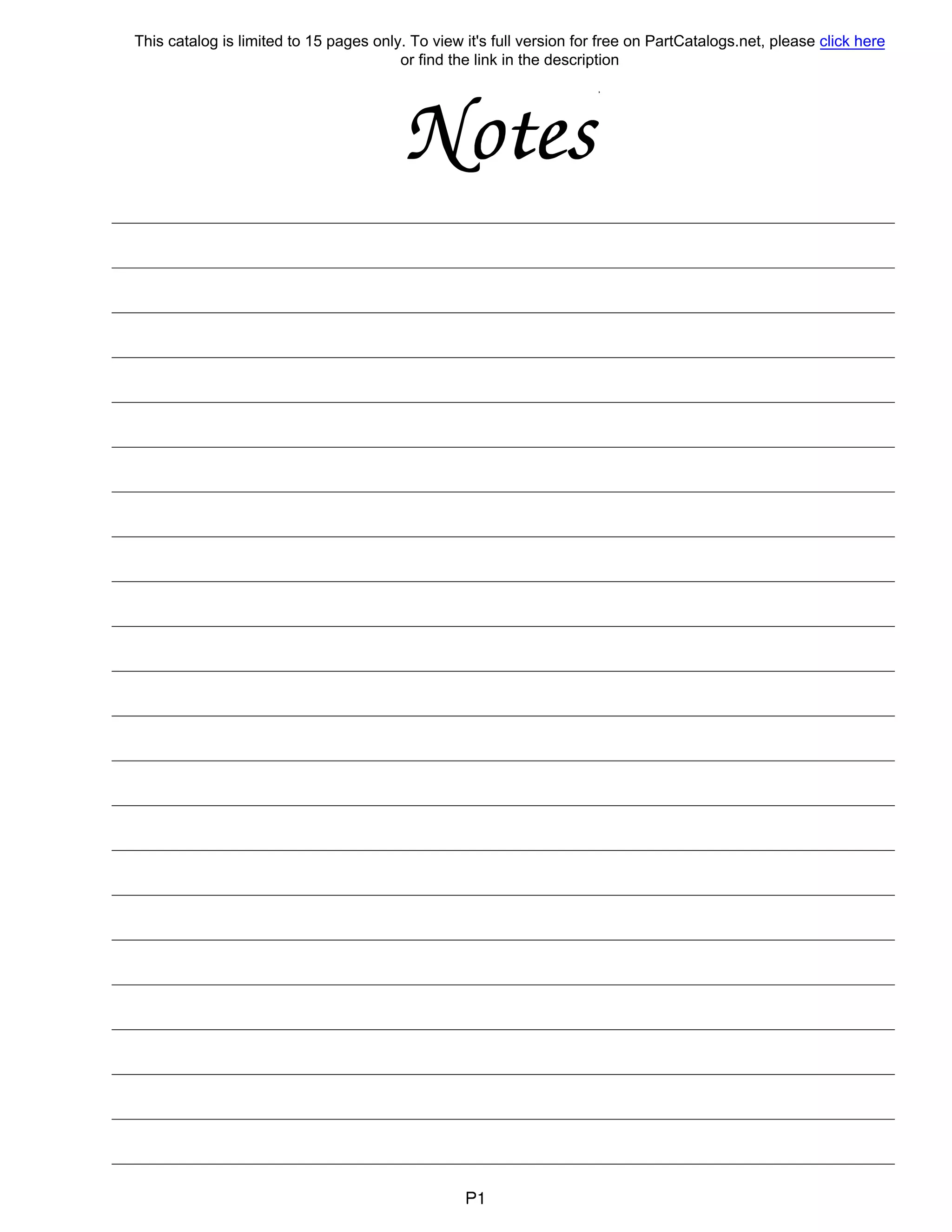

(j[otes
Р1

PARTCATALOGS.NET End of 15-page catalog excerpt
Thanks for viewing this catalogs’
ﬁrst 15 pages on Slideshare!
To view the full version of this catalog
for free on PartCatalogs.net,
please visit this link

Kuhn integra 5200 series folding grain drill

More Related Content

What's hot

Similar to Kuhn integra 5200 series folding grain drill

More from PartCatalogs Net

Recently uploaded

Kuhn integra 5200 series folding grain drill
