This document provides information to customers, parts managers, and dealers about a manual for a Kuhn Krause equipment model 4000. The manual contains specifications, instructions for use and care, and information on features and accessories. It advises reading the manual carefully before operating the equipment and keeping it handy for reference. The document also provides the manual and parts manual numbers and revision codes to ensure the most up-to-date information when ordering parts or service.

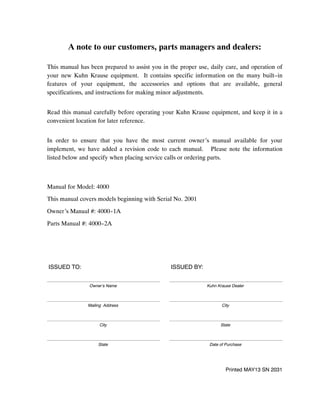

3. A note to our customers, parts managers and dealers:
This manual has been prepared to assist you in the proper use, daily care, and operation of
your new Kuhn Krause equipment. It contains specific information on the many built--in
features of your equipment, the accessories and options that are available, general
specifications, and instructions for making minor adjustments.
Read this manual carefully before operating your Kuhn Krause equipment, and keep it in a
convenient location for later reference.
In order to ensure that you have the most current owner’s manual available for your
implement, we have added a revision code to each manual. Please note the information
listed below and specify when placing service calls or ordering parts.
Manual for Model: 4000
This manual covers models beginning with Serial No. 2001
Owner’s Manual #: 4000--1A
Parts Manual #: 4000--2A
ISSUED TO: ISSUED BY:
Owner’s Name Kuhn Krause Dealer
Mailing Address City
City State
State Date of Purchase
Printed MAY13 SN 2031

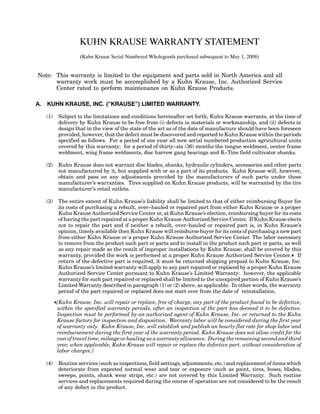

5. KUHN KRAUSE WARRANTY STATEMENT
(Kuhn Krause Serial Numbered Wholegoods purchased subsequent to May 1, 2008)
Note: This warranty is limited to the equipment and parts sold in North America and all
warranty work must be accomplished by a Kuhn Krause, Inc. Authorized Service
Center rated to perform maintenance on Kuhn Krause Products.
A. KUHN KRAUSE, INC. (“KRAUSE”) LIMITED WARRANTY.
(1) Subject to the limitations and conditions hereinafter set forth, Kuhn Krause warrants, at the time of
delivery by Kuhn Krause to be free from (i) defects in materials or workmanship, and (ii) defects in
design that in the view of the state of the art as of the date of manufacture should have been foreseen
provided, however, that the defect must be discovered and reported to Kuhn Krause within the periods
specified as follows. For a period of one year all new serial numbered production agricultural units
covered by this warranty; for a period of thirty--six (36) months the tongue weldment, center frame
weldment, wing frame weldments, disc harrow gang bearings and K--Tine field cultivator shanks.
(2) Kuhn Krause does not warrant disc blades, shanks, hydraulic cylinders, accessories and other parts
not manufactured by it, but supplied with or as a part of its products. Kuhn Krause will, however,
obtain and pass on any adjustments provided by the manufacturers of such parts under these
manufacturer’s warranties. Tires supplied on Kuhn Krause products, will be warranted by the tire
manufacturer’s retail outlets.
(3) The entire extent of Kuhn Krause’s liability shall be limited to that of either reimbursing Buyer for
its costs of purchasing a rebuilt, over--hauled or repaired part from either Kuhn Krause or a proper
Kuhn Krause Authorized Service Center or, at Kuhn Krause’s election, reimbursing buyer for its costs
of having the part repaired at a proper Kuhn Krause Authorized Service Center. If Kuhn Krause elects
not to repair the part and if neither a rebuilt, over--hauled or repaired part is, in Kuhn Krause’s
opinion, timely available then Kuhn Krause will reimburse buyer for its costs of purchasing a new part
from either Kuhn Krause or a proper Kuhn Krause Authorized Service Center. The labor necessary
to remove from the product such part or parts and to install in the product such part or parts, as well
as any repair made as the result of improper installations by Kuhn Krause, shall be covered by this
warranty, provided the work is performed at a proper Kuhn Krause Authorized Service Center.K If
return of the defective part is required, it must be returned shipping prepaid to Kuhn Krause, Inc.
Kuhn Krause’s limited warranty will apply to any part repaired or replaced by a proper Kuhn Krause
Authorized Service Center pursuant to Kuhn Krause’s Limited Warranty: however, the applicable
warranty for such part repaired or replaced shall be limited to the unexpired portion of Kuhn Krause’s
Limited Warranty described in paragraph (1) or (2) above, as applicable. In other words, the warranty
period of the part repaired or replaced does not start over from the date of reinstallation.
K[Kuhn Krause, Inc. will repair or replace, free of charge, any part of the product found to be defective,
within the specified warranty periods, after an inspection of the part has deemed it to be defective.
Inspection must be performed by an authorized agent of Kuhn Krause, Inc. or returned to the Kuhn
Krause factory for inspection and disposition. Warranty labor will be considered during the first year
of warranty only. Kuhn Krause, Inc. will establish and publish an hourly flat rate for shop labor and
reimbursement during the first year of the warranty period. Kuhn Krause does not allow credit for the
cost of travel time, mileage or hauling as a warranty allowance. During the remaining second and third
year, when applicable, Kuhn Krause will repair or replace the defective part, without consideration of
labor charges.]
(4) Routine services (such as inspections, field settings, adjustments, etc.) and replacement of items which
deteriorate from expected normal wear and tear or exposure (such as paint, tires, hoses, blades,
sweeps, points, shank wear strips, etc.) are not covered by this Limited Warranty. Such routine
services and replacements required during the course of operation are not considered to be the result
of any defect in the product.

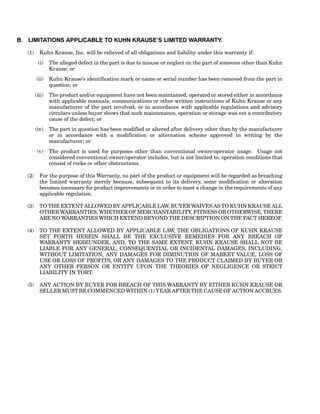

6. B. LIMITATIONS APPLICABLE TO KUHN KRAUSE’S LIMITED WARRANTY.
(1) Kuhn Krause, Inc. will be relieved of all obligations and liability under this warranty if:
(i) The alleged defect in the part is due to misuse or neglect on the part of someone other than Kuhn
Krause; or
(ii) Kuhn Krause’s identification mark or name or serial number has been removed from the part in
question; or
(iii) The product and/or equipment have not been maintained, operated or stored either in accordance
with applicable manuals, communications or other written instructions of Kuhn Krause or any
manufacturer of the part involved, or in accordance with applicable regulations and advisory
circulars unless buyer shows that such maintenance, operation or storage was not a contributory
cause of the defect; or
(iv) The part in question has been modified or altered after delivery other than by the manufacturer
or in accordance with a modification or alternation scheme approved in writing by the
manufacturer; or
(v) The product is used for purposes other than conventional owner/operator usage. Usage not
considered conventional owner/operator includes, but is not limited to, operation conditions that
consist of rocks or other obstructions.
(2) For the purpose of this Warranty, no part of the product or equipment will be regarded as breaching
the limited warranty merely because, subsequent to its delivery, some modification or alteration
becomes necessary for product improvements or in order to meet a change in the requirements of any
applicable regulation.
(3) TO THE EXTENT ALLOWED BY APPLICABLE LAW, BUYER WAIVES AS TO KUHN KRAUSE ALL
OTHER WARRANTIES, WHETHER OF MERCHANTABILITY, FITNESS OR OTHERWISE, THERE
ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACT HEREOF.
(4) TO THE EXTENT ALLOWED BY APPLICABLE LAW, THE OBLIGATIONS OF KUHN KRAUSE
SET FORTH HEREIN SHALL BE THE EXCLUSIVE REMEDIES FOR ANY BREACH OF
WARRANTY HEREUNDER, AND, TO THE SAME EXTENT, KUHN KRAUSE SHALL NOT BE
LIABLE FOR ANY GENERAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING,
WITHOUT LIMITATION, ANY DAMAGES FOR DIMINUTION OF MARKET VALUE, LOSS OF
USE OR LOSS OF PROFITS, OR ANY DAMAGES TO THE PRODUCT CLAIMED BY BUYER OR
ANY OTHER PERSON OR ENTITY UPON THE THEORIES OF NEGLIGENCE OR STRICT
LIABILITY IN TORT.
(5) ANY ACTION BY BUYER FOR BREACH OF THIS WARRANTY BY EITHER KUHN KRAUSE OR
SELLER MUST BE COMMENCED WITHIN (1) YEAR AFTER THE CAUSE OF ACTION ACCRUES.

11. 3
Table of Contents Rev.MAR12
WARRANTY

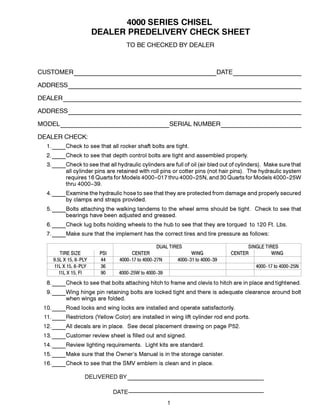

DEALER PREDELIVERY CHECK SHEET 1

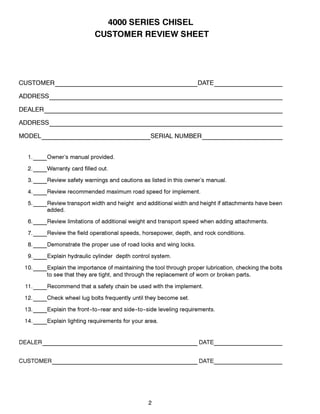

CUSTOMER REVIEW SHEET 2
TABLE OF CONTENTS 3

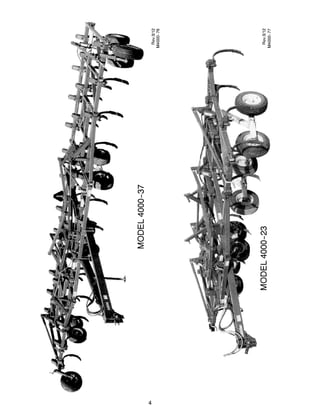

GENERAL INFORMATION PHOTOGRAPHS 4

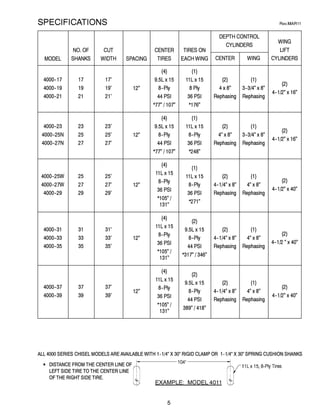

SPECIFICATIONS CHART 5

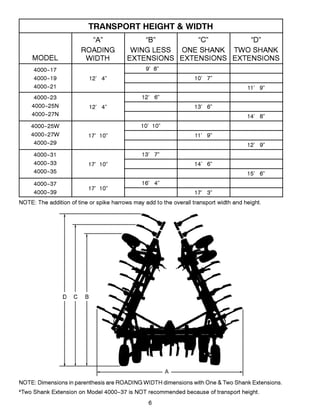

TRANSPORT HEIGHT & WIDTH CHART 6

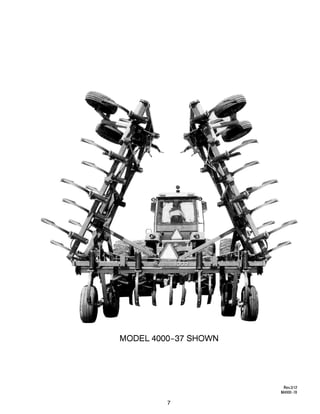

TRANSPORT PHOTOGRAPH 7
GENERAL INFORMATION DRAWING 8

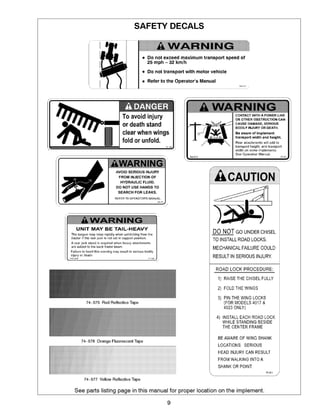

SAFETY DECALS 9
OPERATING SECTION
About Your Chisel 01
Preparing the Chisel for Operation O1
Preparing the Tractor O2
Hydraulic System O2
Hitching & Unhitching O2
Hitching to the tractor O2
Unhitching from the tractor O3
Transporting O4
Wing locks -- Models 4017 & 4023 O4
Road locks -- All Models O4
Road lock storage O5
Transport safety O5
Hitch pin O6
Field Adjustments O6
Leveling the frames O6
Changing field depth O8
Flexibility O8
Controlled depth O8
Turning in the field O9
Shanks and points O9
Servicing O9
General maintenance O9
Lubrication O9
Wheel bearings O10
Walking beam maintenance O10
Storage O10
Repair parts O10
HYDRAULIC SAFETY O11
TROUBLE SHOOTING O12--O13

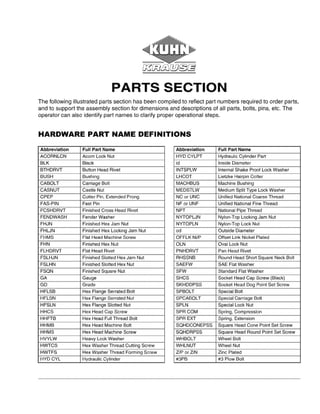

PARTS SECTION

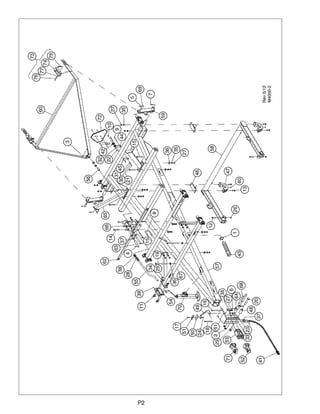

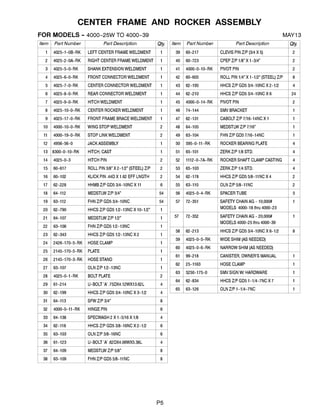

CENTER FRAME,ROCKER(4000--17 to--25N) P2--P3
CENTER FRAME, ROCKER (4000--25W to 39) P4--P5

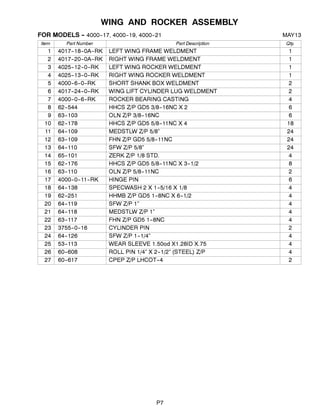

WING & ROCKER ASSEMBLY (4000--17 to 21) P6--P7

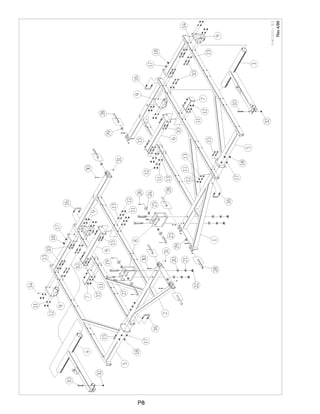

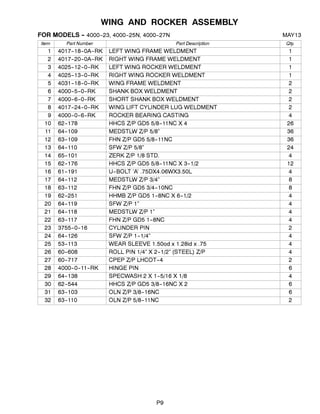

WING ROCKER ASSEMBLY (4000--23 to 27N) P8--P9

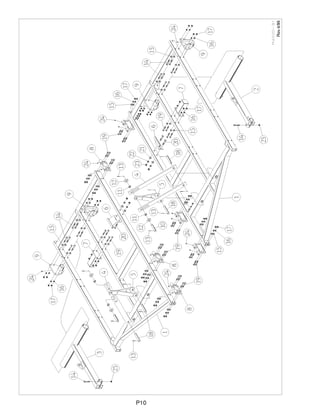

WING & ROCKER ASSEMBLY (4000--25W to 29) P10--P11

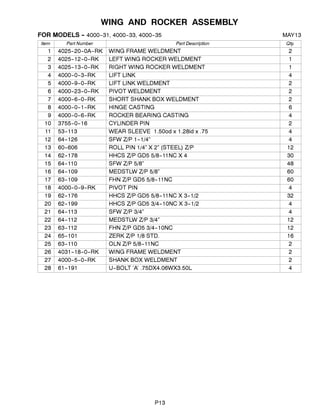

WING & ROCKER ASSEMBLY (4000--31 to 35) P12--P13

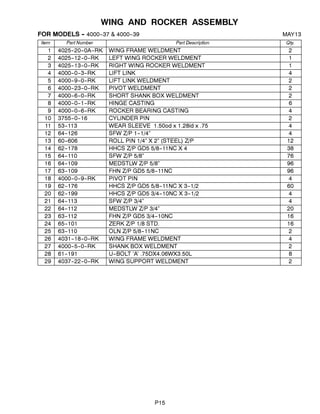

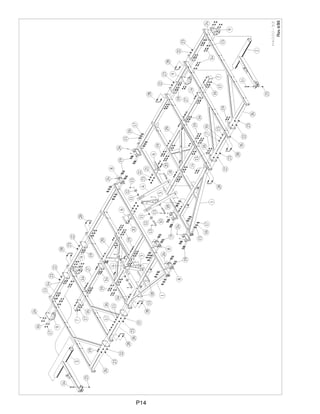

WING & ROCKER ASSEMBLY (4000--37 to 39) P14--P15

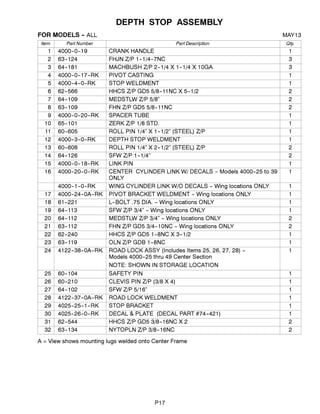

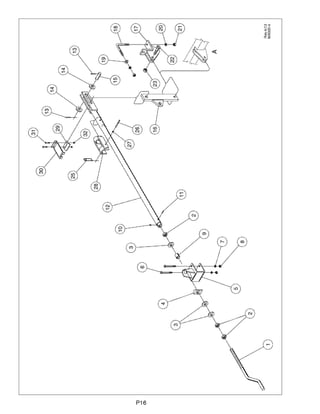

DEPTH STOP ASSEMBLY P16--P17

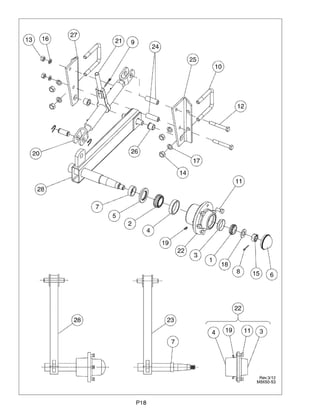

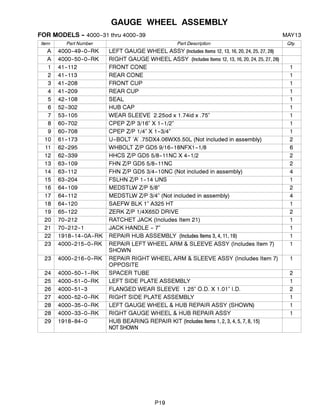

GAUGE WHEEL ASSEMBLY P18--P19

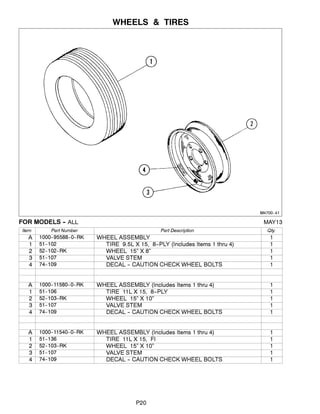

WHEEL & TIRE ASSEMBLIES P20

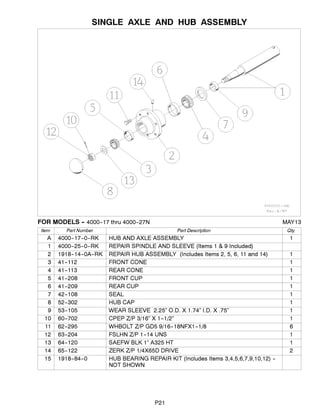

SINGLE AXLE & HUB ASSEMBLY P21

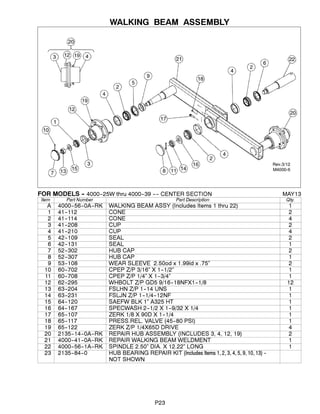

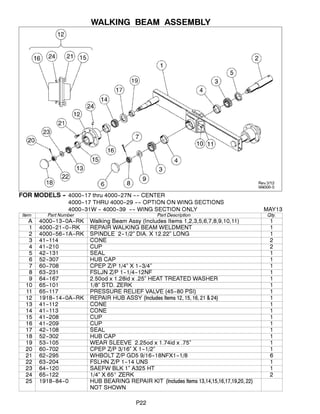

WALKING BEAM ASSEMBLY P22--P23

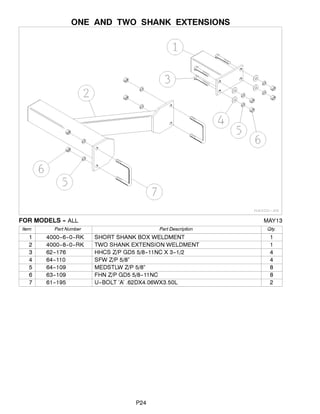

ONE & TWO SHANK EXTENSIONS P24
SHANK ASSEMBLY 1--1/4 X 2 X 30 P25

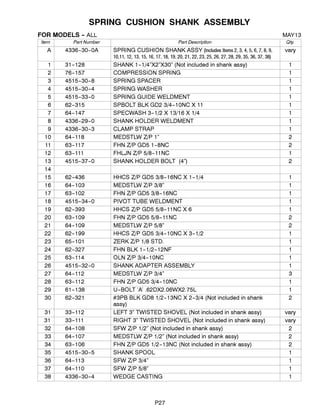

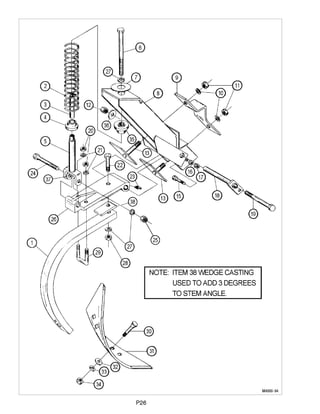

SPRING CUSHION SHANK ASSEMBLY P26--P27

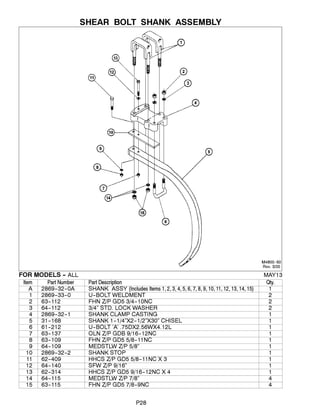

SHEAR BOLT SHANK ASSEMBLY P28

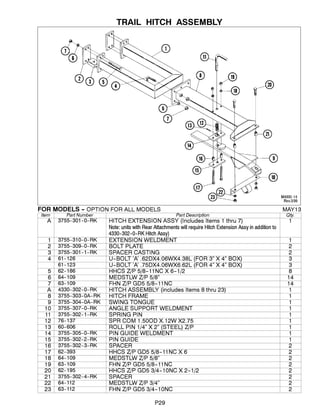

TRAIL HITCH ASSEMBLY P29

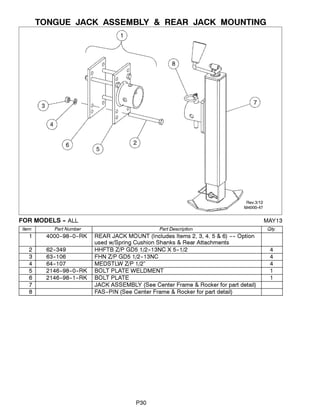

TONGUE JACK ASSEMBLY & REAR JACK P30

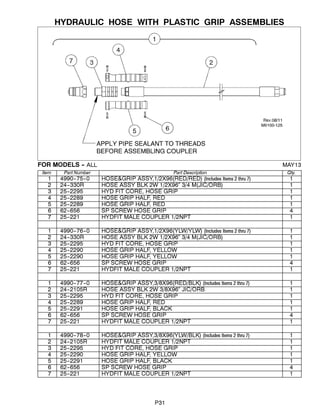

HYDRAULIC HOSE W/ PLASTIC GRIP P31

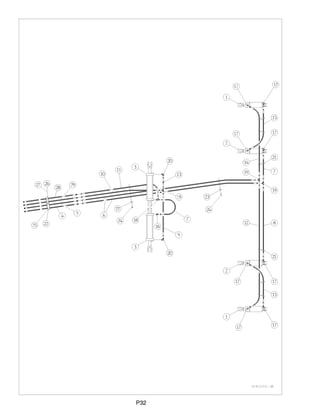

HYDRAULIC HOSE GROUP -- 4000--17 P32--P33

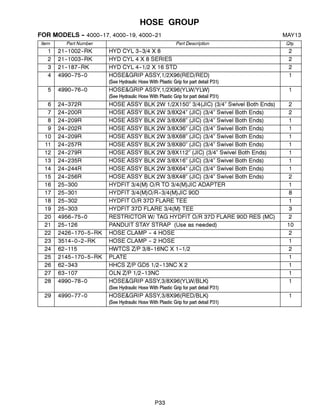

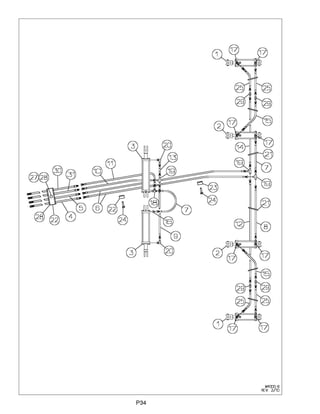

HYDRAULIC HOSE GROUP -- 4000--23 P34--P35

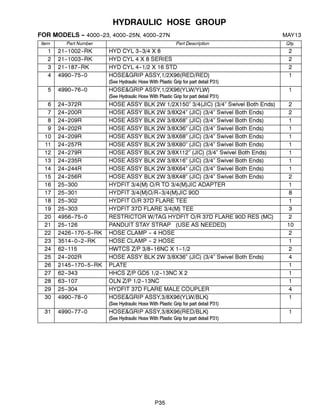

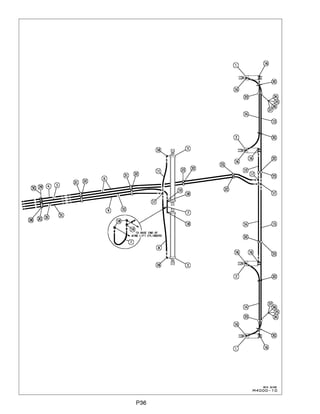

HYDRAULIC HOSE GROUP -- 4000--25 P36--P37

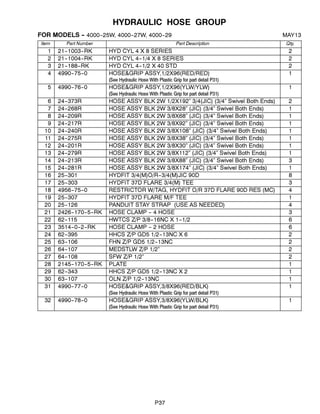

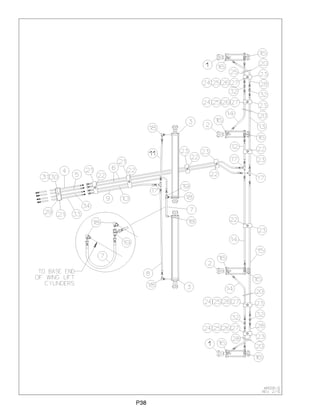

HYDRAULIC HOSE GROUP -- 4000--31 P38--P39

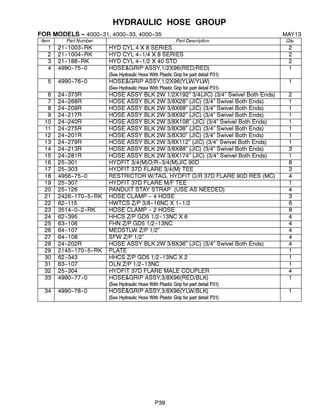

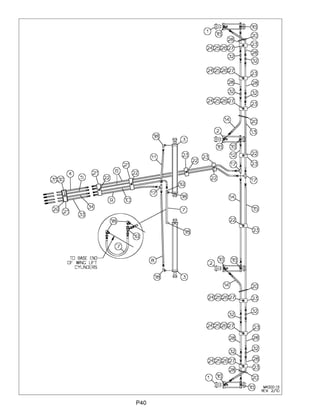

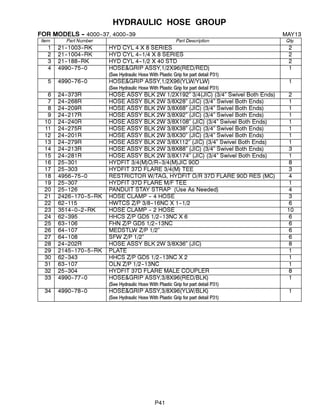

HYDRAULIC HOSE GROUP -- 4000--37 P40--P41

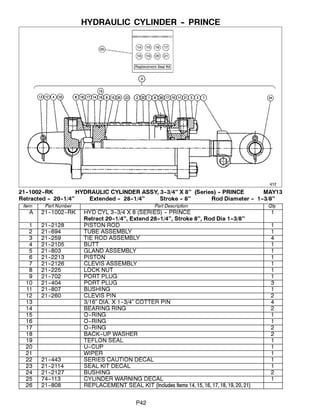

3--3/4 x 8 PRINCE CYLINDER P42

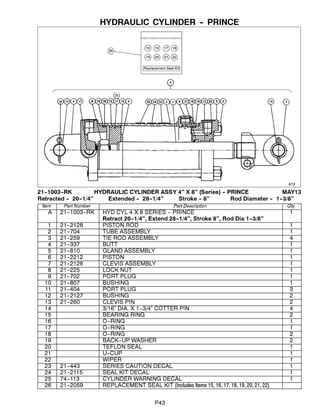

4 x 8 PRINCE CYLINDER P43

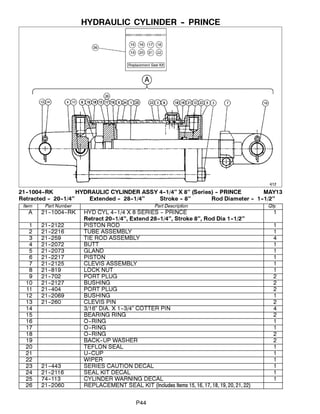

4--1/4 x 8 PRINCE CYLINDER P44

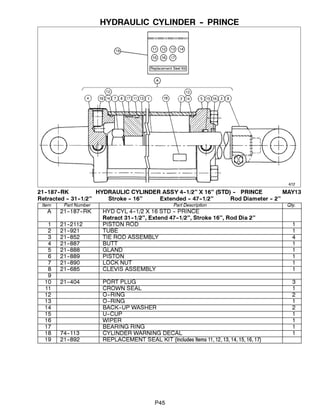

4--1/2 x 16 PRINCE CYLINDER P45

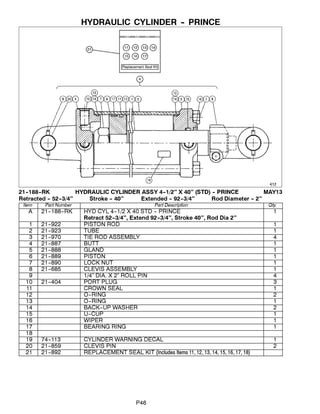

4--1/2 x 40 PRINCE CYLINDER P46

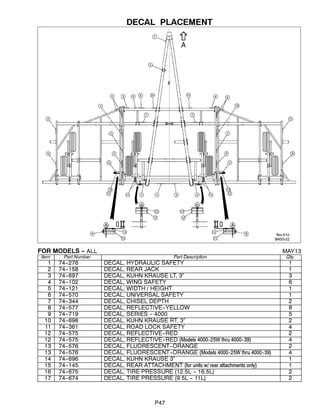

DECAL PLACEMENT P47

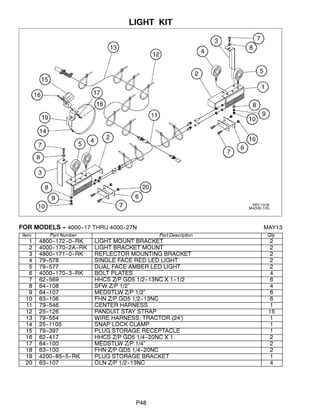

LIGHT KIT PARTS (4000--17 thru 4000--25N) P48

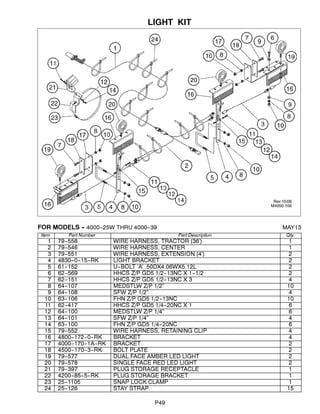

LIGHT KIT (4000--25W thru 4000--39) P49

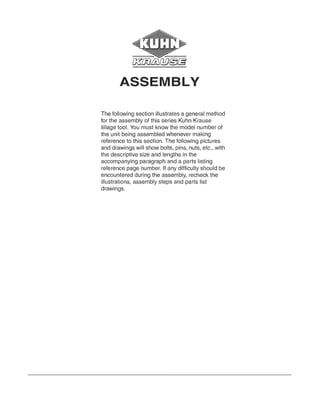

ASSEMBLY SECTION

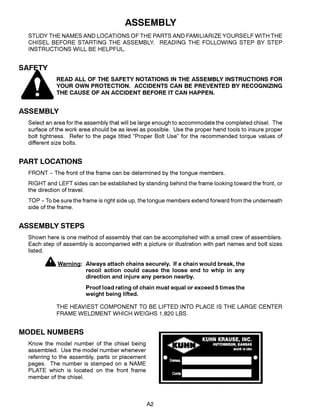

Safety & Assembly Information A2
Model Number A2

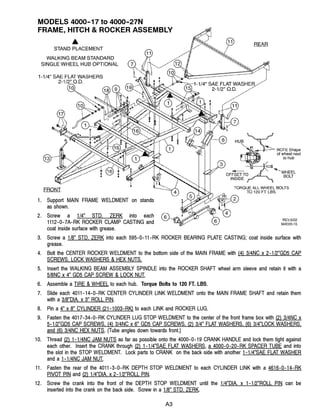

Frame Hitch & Rocker -- 4000--17 thru 4000--27N A3

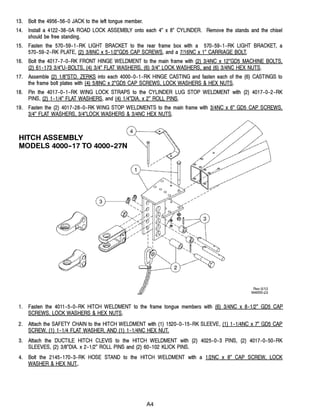

Hitch Assembly -- 4000--17 thru 4000--27N A4

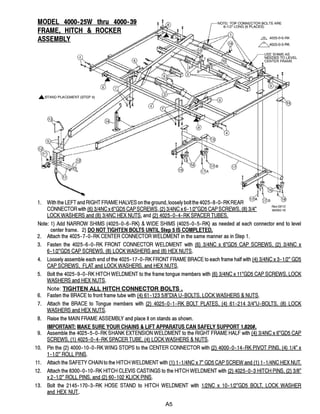

Frame, Hitch & Rocker Asm. 4000--25W to 39 A5

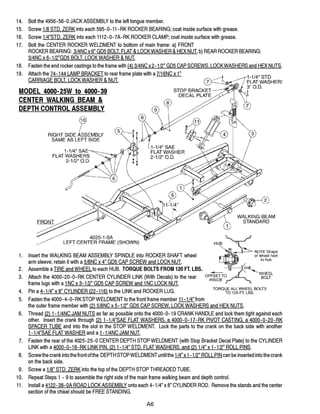

Walking Beam, Depth Control -- 4000--25W to 39 A6

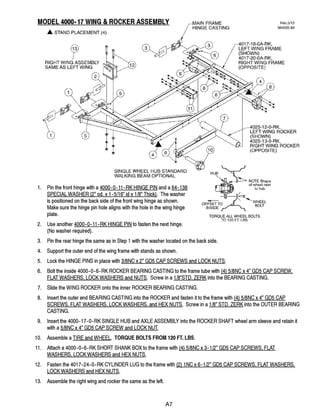

Wing & Rocker Assembly -- 4000--17 A7

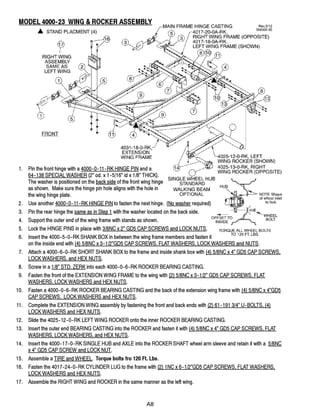

Wing & Rocker Assembly -- 4000--23 A8

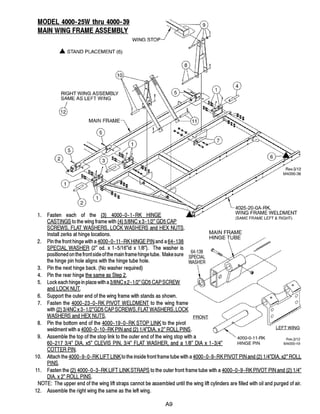

Main Wing Frame Assembly -- 4000--25W to 39 A9

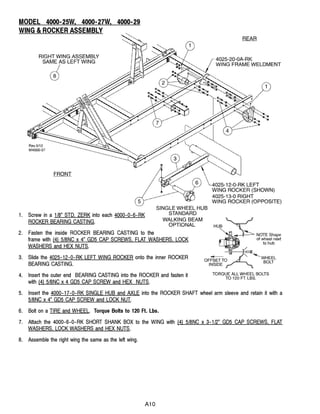

Wing & Rocker Assembly -- 4000--25W to 29 A10

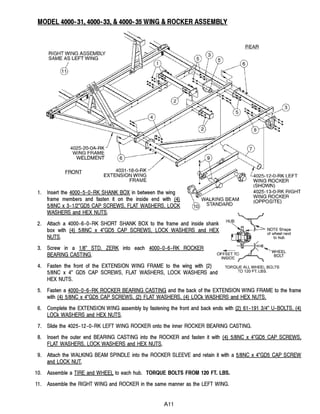

Wing & Rocker Assembly -- 4000--31 to 35 A11

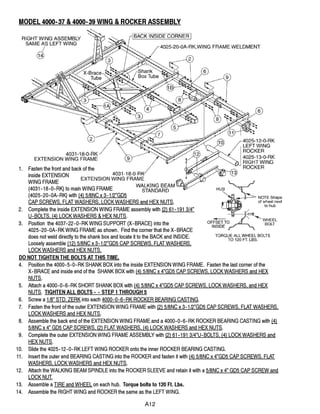

Wing & Rocker Assembly -- 4000--37 & 39 A12

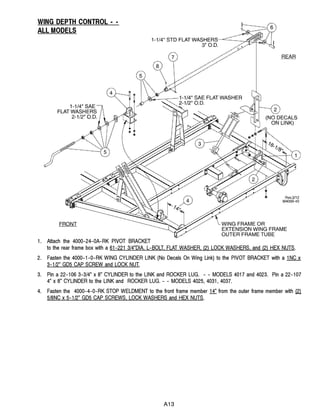

Wing Depth Control -- All Models A13

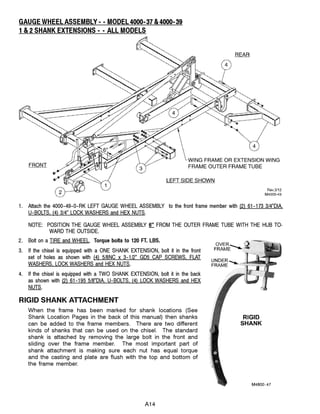

Gauge Wheel, 1 & 2 Shank Extensions A14
Rigid Shank Attachment A14

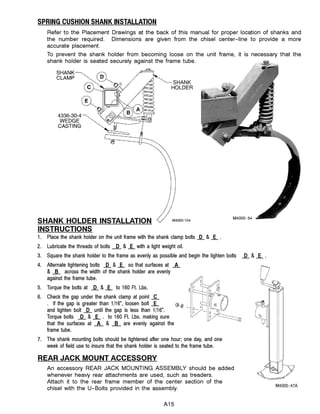

Spring Cushion Shank Installation A15
Shank Holder Installation A15
Rear Jack Mount A15

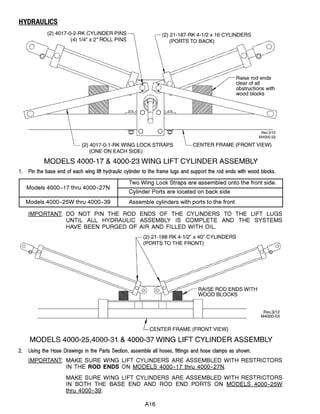

Hydraulics A16

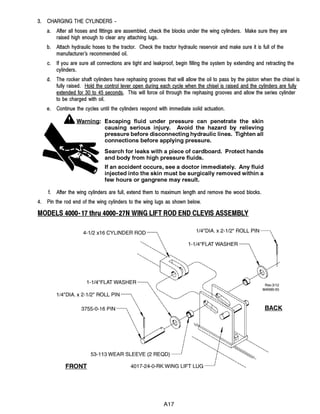

Charging the Cylinders A17
Wing Lift Rod End Clevis -- 4000--17 thru 27N A17

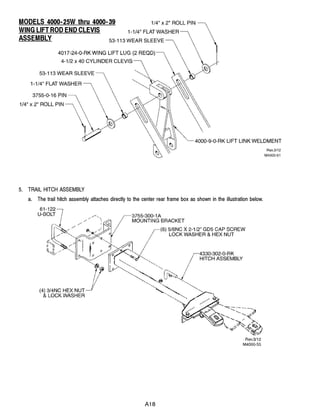

Wing Lift Rod End Clevis -- 4000--25W thru 39 A18

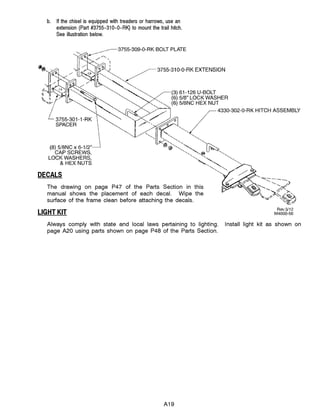

Decals A19
Trail Hitch Assembly A19

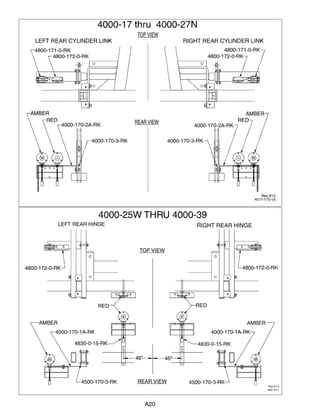

Light Kit Installation Instructions A20

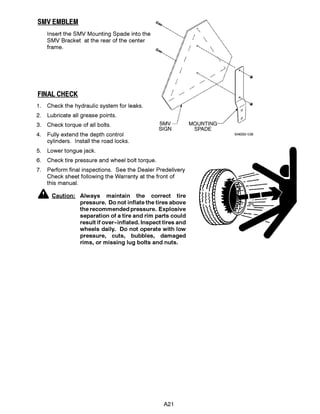

SMV Emblem A21
Final Check A21
Tine Harrow Groups A22

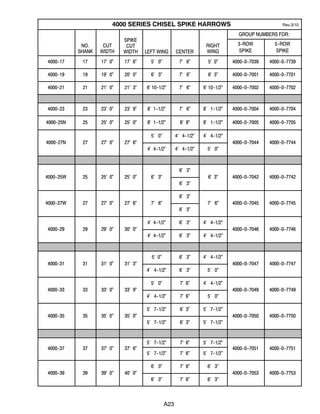

Spike Harrow Groups A23

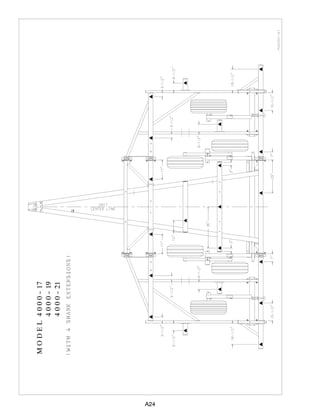

Model 4000--17 thru 21 Shank Placement A24

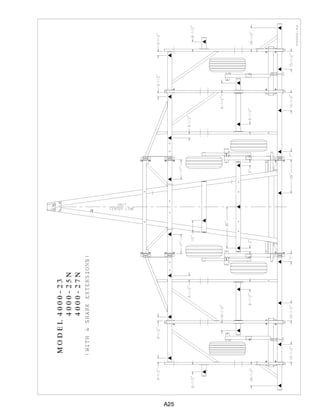

Model 4000--23 thru 27N Shank Placement A25
Model 4000--25W thru 29 Shank Placement A26
Model 4000--31 thru 35 Shank Placement A27

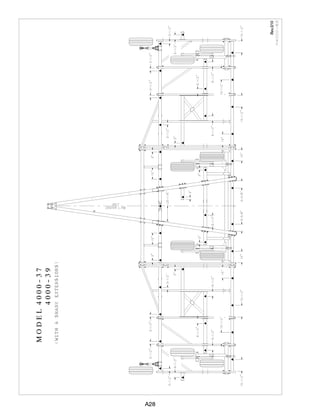

Model 4000--37 thru 39 Shank Placement A28

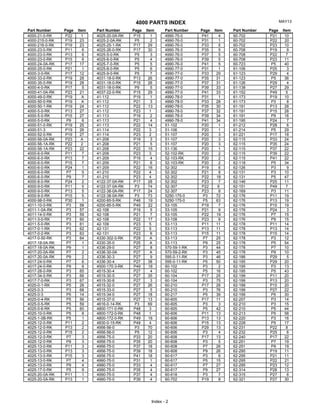

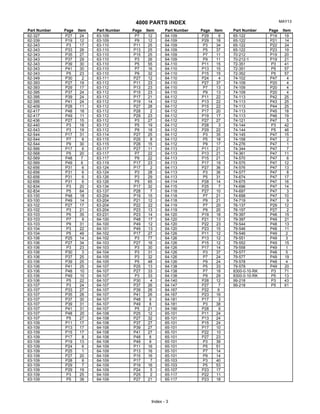

PARTS INDEX Index 1--4

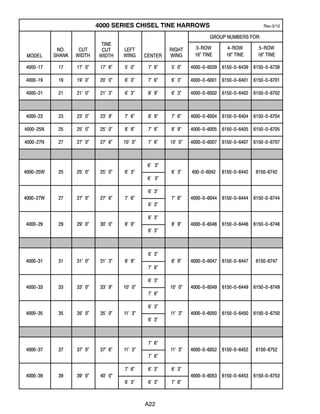

92. A22
4000 SERIES CHISEL TINE HARROWS Rev.3/10
GROUP NUMBERS FOR:
MODEL
NO.
SHANK
CUT
WIDTH
TINE
CUT
WIDTH
LEFT
WING CENTER
RIGHT
WING
3--ROW
16” TINE
4--ROW
16” TINE
5--ROW
16” TINE
4000--17 17 17’ 0” 17’ 6” 5’ 0” 7’ 6” 5’ 0” 4000--0--6039 6150--0--6439 6150--0--6739
4000--19 19 19’ 0” 20’ 0” 6’ 3” 7’ 6” 6’ 3” 4000--0--6001 6150--0--6401 6150--0--6701
4000--21 21 21’ 0” 21’ 3” 6’ 3” 8’ 9” 6’ 3” 4000--0--6002 6150--0--6402 6150--0--6702
4000--23 23 23’ 0” 23’ 9” 7’ 6” 8’ 9” 7’ 6” 4000--0--6004 6150--0--6404 6150--0--6704
4000--25N 25 25’ 0” 25’ 0” 8’ 9” 7’ 6” 8’ 9” 4000--0--6005 6150--0--6405 6150--0--6705
4000--27N 27 27’ 0” 27’ 6” 10’ 0” 7’ 6” 10’ 0” 4000--0--6007 6150--0--6407 6150--0--6707
4000 25W 25 25’ 0” 25’ 0” 6’ 3”
6’ 3”
6’ 3” 400 0 6042 6150 0 6442 6150 67424000--25W 25 25’ 0” 25’ 0” 6’ 3”
6’ 3”
6’ 3” 400--0--6042 6150--0--6442 6150--6742
4000 27W 27 27’ 0” 27’ 6” 7’ 6”
6’ 3”
7’ 6” 4000 0 6044 6150 0 6444 6150 0 67444000--27W 27 27’ 0” 27’ 6” 7’ 6”
6’ 3”
7’ 6” 4000--0--6044 6150--0--6444 6150--0--6744
4000 29 29 29’ 0” 30’ 0” 8’ 9”
6’ 3”
8’ 9” 4000 0 6046 6150 0 6446 6150 0 67464000--29 29 29’ 0” 30’ 0” 8’ 9”
6’ 3”
8’ 9” 4000--0--6046 6150--0--6446 6150--0--6746
4000 31 31 31’ 0” 31’ 3” 8’ 9”
6’ 3”
8’ 9” 4000 0 6047 6150 0 6447 6150 67474000--31 31 31’ 0” 31’ 3” 8’ 9”
7’ 6”
8’ 9” 4000--0--6047 6150--0--6447 6150--6747
4000 33 33 33’ 0” 33’ 9” 10’ 0”
6’ 3”
10’ 0” 4000 0 6049 6150 0 6449 6150 0 67494000--33 33 33’ 0” 33’ 9” 10’ 0”
7’ 6”
10’ 0” 4000--0--6049 6150--0--6449 6150--0--6749
4000 35 35 35’ 0” 35’ 0” 11’ 3”
6’ 3”
11’ 3” 4000 0 6050 6150 0 6450 6150 0 67504000--35 35 35’ 0” 35’ 0” 11’ 3”
6’ 3”
11’ 3” 4000--0--6050 6150--0--6450 6150--0--6750
4000 37 37 37’ 0” 37’ 6” 11’ 3”
7’ 6”
11’ 3” 4000 0 6052 6150 0 6452 6150 67524000--37 37 37’ 0” 37’ 6” 11’ 3”
7’ 6”
11’ 3” 4000--0--6052 6150--0--6452 6150--6752
4000 39 39 39’ 0” 40’ 0”
7’ 6” 6’ 3” 6’ 3”
4000 0 6053 6150 0 6453 6150 0 67534000--39 39 39’ 0” 40’ 0”
6’ 3” 6’ 3” 7’ 6”
4000--0--6053 6150--0--6453 6150--0--6753

93. A23
4000 SERIES CHISEL SPIKE HARROWS Rev.3/10
SPIKE
GROUP NUMBERS FOR:
NO.
SHANK
CUT
WIDTH
SPIKE
CUT
WIDTH LEFT WING CENTER
RIGHT
WING
3--ROW
SPIKE
5--ROW
SPIKE
4000--17 17 17’ 0” 17’ 6” 5’ 0” 7’ 6” 5’ 0” 4000--0--7039 4000--0--7739
4000--19 19 19’ 0” 20’ 0” 6’ 3” 7’ 6” 6’ 3” 4000--0--7001 4000--0--7701
4000--21 21 21’ 0” 21’ 3” 6’ 10--1/2” 7’ 6” 6’ 10--1/2” 4000--0--7002 4000--0--7702
4000--23 23 23’ 0” 23’ 9” 8’ 1--1/2” 7’ 6” 8’ 1--1/2” 4000--0--7004 4000--0--7704
4000 25N 25 25’ 0” 25’ 0” 8’ 1 1/2” 8’ 9” 8’ 1 1/2” 4000 0 7005 4000 0 77054000--25N 25 25’ 0” 25’ 0” 8’ 1--1/2” 8’ 9” 8’ 1--1/2” 4000--0--7005 4000--0--7705
4000 27N 27 27’ 0” 27’ 6”
5’ 0” 4’ 4--1/2” 4’ 4--1/2”
4000 0 7044 4000 0 77444000--27N 27 27’ 0” 27’ 6”
4’ 4--1/2” 4’ 4--1/2” 5’ 0”
4000--0--7044 4000--0--7744
4000 25W 25 25’ 0” 25’ 0” 6’ 3”
6’ 3”
6’ 3” 4000 0 7042 4000 0 77424000--25W 25 25’ 0” 25’ 0” 6’ 3”
6’ 3”
6’ 3” 4000--0--7042 4000--0--7742
4000 27W 27 27’ 0” 27’ 6” 7’ 6”
6’ 3”
7’ 6” 4000 0 7045 4000 0 77454000--27W 27 27’ 0” 27’ 6” 7’ 6”
6’ 3”
7’ 6” 4000--0--7045 4000--0--7745
4000 29 29 29’ 0” 30’ 0”
4’ 4--1/2” 6’ 3” 4’ 4--1/2”
4000 0 7046 4000 0 77464000--29 29 29’ 0” 30’ 0”
4’ 4--1/2” 6’ 3” 4’ 4--1/2”
4000--0--7046 4000--0--7746
4000 31 31 31’ 0” 31’ 3”
5’ 0” 6’ 3” 4’ 4--1/2”
4000 0 7047 4000 0 77474000--31 31 31’ 0” 31’ 3”
4’ 4--1/2” 6’ 3” 5’ 0”
4000--0--7047 4000--0--7747
4000 33 33 33’ 0” 33’ 9”
5’ 0” 7’ 6” 4’ 4--1/2”
4000 0 7049 4000 0 77494000--33 33 33’ 0” 33’ 9”
4’ 4--1/2” 7’ 6” 5’ 0”
4000--0--7049 4000--0--7749
4000 35 35 35’ 0” 35’ 0”
5’ 7--1/2” 6’ 3” 5’ 7--1/2”
4000 0 7050 4000 0 77504000--35 35 35’ 0” 35’ 0”
5’ 7--1/2” 6’ 3” 5’ 7--1/2”
4000--0--7050 4000--0--7750
4000 37 37 37’ 0” 37’ 6”
5’ 7--1/2” 7’ 6” 5’ 7--1/2”
4000 0 7051 4000 0 77514000--37 37 37’ 0” 37’ 6”
5’ 7--1/2” 7’ 6” 5’ 7--1/2”
4000--0--7051 4000--0--7751
4000 39 39 39’ 0” 40’ 0”
6’ 3” 7’ 6” 6’ 3”
4000 0 7053 4000 0 77534000--39 39 39’ 0” 40’ 0”
6’ 3” 7’ 6” 6’ 3”
4000--0--7053 4000--0--7753

99. 4000 PARTS INDEX MAY13
Part Number Page Item Part Number Page Item Part Number Page Item Part Number Page Item
1000-11540-0-RK P20 A 21-443 P44 23 24-244R P33 14 25-304 P41 32
1000-11580-0-RK P20 A 2145-170-3-RK P3 49 24-244R P35 14 25-307 P37 19
1000-95588-0-RK P20 A 2145-170-3-RK P5 26 24-256R P33 15 25-307 P39 19
1071-31-2 P25 4 2145-170-5-RK P3 50 24-256R P35 15 25-307 P41 19
1112-0-7A-RK P3 47 2145-170-5-RK P33 25 24-257R P33 11 2810-31-1 P25 5
1112-0-7A-RK P5 52 2145-170-5-RK P35 26 24-257R P35 11 2869-32-0A P28 A
1520-0-15-RK P3 48 2145-170-5-RK P37 28 2426-170-5-RK P3 51 2869-32-1 P28 4
1918-14-0A-RK P19 22 2145-170-5-RK P39 29 2426-170-5-RK P33 22 2869-32-2 P28 10
1918-14-0A-RK P21 2 2145-170-5-RK P41 29 2426-170-5-RK P35 22 2969-33-0 P28 1
1918-14-0A-RK P22 12 2145-170-5-RK P5 25 2426-170-5-RK P37 21 31-118 P25 9
1918-84-0 P19 29 2146-98-0-RK P30 5 2426-170-5-RK P39 21 31-128 P27 1
1918-84-0 P21 15 2146-98-1-RK P30 6 2426-170-5-RK P41 21 31-168 P28 5
1918-84-0 P22 25 21-685 P45 8 2426-170-5-RK P5 24 33-111 P27 31
21-1002-RK P33 1 21-685 P46 8 24-268R P37 7 33-112 P27 31
21-1002-RK P35 1 21-694 P42 2 24-268R P39 7 33-155 P25 10
21-1002-RK P42 A 21-702 P42 9 24-268R P41 7 3514-0-2-RK P33 23
21-1003-RK P33 2 21-702 P43 9 24-275R P37 11 3514-0-2-RK P35 23
21-1003-RK P35 2 21-702 P44 9 24-275R P39 11 3514-0-2-RK P37 23
21-1003-RK P37 1 21-704 P43 2 24-275R P41 11 3514-0-2-RK P39 23
21-1003-RK P39 1 21-803 P42 5 24-279R P33 12 3514-0-2-RK P41 23
21-1003-RK P41 1 21-807 P42 11 24-279R P35 12 3755-0-16 P11 10
21-1003-RK P43 A 21-807 P43 10 24-279R P37 13 3755-0-16 P13 10
21-1004-RK P37 2 21-808 P42 26 24-279R P39 13 3755-0-16 P15 10
21-1004-RK P39 2 21-810 P43 5 24-279R P41 13 3755-0-16 P7 23
21-1004-RK P41 2 21-819 P44 8 24-281R P37 15 3755-0-16 P9 23
21-1004-RK P44 A 21-852 P45 3 24-281R P39 15 3755-301-0-RK P29 A
21-187-RK P33 3 21-859 P46 20 24-281R P41 15 3755-301-1-RK P29 3
21-187-RK P35 3 21-887 P45 4 24-330R P31 2 3755-302-1-RK P29 11
21-187-RK P45 A 21-887 P46 4 24-330R P31 2 3755-302-2-RK P29 15
21-188-RK P37 3 21-888 P45 5 24-372R P33 6 3755-302-3-RK P29 16
21-188-RK P39 3 21-888 P46 5 24-372R P35 6 3755-302-4-RK P29 21
21-188-RK P41 3 21-889 P45 6 24-373R P37 6 3755-303-0A-RK P29 8
21-188-RK P46 A 21-889 P46 6 24-373R P39 6 3755-304-0A-RK P29 9
21-2059 P43 26 21-890 P45 7 24-373R P41 6 3755-305-0-RK P29 14
21-2060 P44 26 21-890 P46 7 25-1105 P48 14 3755-307-0-RK P29 10
21-2069 P44 12 21-892 P45 19 25-1105 P49 23 3755-309-0-RK P29 2
21-2072 P44 4 21-892 P46 21 25-1163 P3 1 3755-310-0-RK P29 1
21-2073 P44 5 21-921 P45 2 25-1163 P5 62 3950-0-10-RK P3 52
21-2105 P42 4 21-922 P46 1 25-126 P33 21 3950-0-11-RK P3 53
21-2112 P45 1 21-923 P46 2 25-126 P35 21 4000-0-10-RK P5 41
21-2114 P42 23 21-970 P46 3 25-126 P37 20 4000-0-11-RK P5 32
21-2115 P43 24 24-200R P33 7 25-126 P39 20 4000-0-11-RK P7 17
21-2116 P44 24 24-200R P35 7 25-126 P41 20 4000-0-11-RK P9 28
21-2122 P44 1 24-201R P37 12 25-126 P48 12 4000-0-14-RK P5 45
21-2125 P44 7 24-201R P39 12 25-126 P49 24 4000-0-17-RK P17 4
21-2126 P42 7 24-201R P41 12 25-221 P31 7 4000-0-18-RK P17 15
21-2126 P43 7 24-202R P33 9 25-221 P31 7 4000-0-19 P17 1
21-2127 P42 24 24-202R P35 9 25-221 P31 7 4000-0-19 P3 55
21-2127 P43 12 24-202R P35 25 25-221 P31 7 4000-0-1-RK P11 8
21-2127 P44 10 24-202R P39 28 25-2289 P31 4 4000-0-1-RK P13 8
21-2128 P42 1 24-202R P41 28 25-2289 P31 4 4000-0-1-RK P15 8
21-2128 P43 1 24-209R P33 8 25-2289 P31 5 4000-0-1-RK P3 54
21-2212 P43 6 24-209R P33 10 25-2290 P31 4 4000-0-20-RK P17 9
21-2213 P42 6 24-209R P35 8 25-2291 P31 5 4000-0-20-RK P17 16
21-2216 P44 2 24-209R P35 10 25-2291 P31 5 4000-0-20-RK P3 56
21-2217 P44 6 24-209R P37 8 25-2295 P31 3 4000-0-3-RK P11 4
21-225 P42 8 24-209R P39 8 25-2295 P31 3 4000-0-3-RK P13 4
21-225 P43 8 24-209R P41 8 25-2295 P31 3 4000-0-3-RK P15 4
21-259 P42 3 24-2105R P31 2 25-300 P33 16 4000-0-6-RK P11 9
21-259 P43 3 24-2105R P31 2 25-300 P35 16 4000-0-6-RK P13 9
21-259 P44 3 24-213R P37 14 25-301 P33 17 4000-0-6-RK P15 9
21-260 P42 12 24-213R P39 14 25-301 P35 17 4000-0-6-RK P7 7
21-260 P43 13 24-213R P41 14 25-301 P37 16 4000-0-6-RK P9 9
21-260 P44 13 24-217R P37 9 25-301 P39 16 4000-0-9-RK P11 18
21-337 P43 4 24-217R P39 9 25-301 P41 16 4000-0-9-RK P13 18
2135-14-0A-RK P23 20 24-217R P41 9 25-302 P33 18 4000-0-9-RK P15 18
2135-84-0 P23 23 24-2290 P31 4 25-302 P35 18 4000-10-0-RK P5 10
21-404 P42 10 24-2290 P31 5 25-303 P33 19 4000-1-0-RK P17 16
21-404 P43 11 24-2295 P31 3 25-303 P35 19 4000-13-0A-RK P22 A
21-404 P44 11 24-235R P33 13 25-303 P37 17 4000-170-1A-RK P49 17
21-404 P45 10 24-235R P35 13 25-303 P39 17 4000-170-2A-RK P48 2
21-404 P46 10 24-240R P37 10 25-303 P41 17 4000-170-3-RK P48 6
21-443 P42 22 24-240R P39 10 25-304 P35 29 4000-17-0-RK P21 A
21-443 P43 23 24-240R P41 10 25-304 P39 32 4000-19-0-RK P5 11
Index - 1

100. 4000 PARTS INDEX MAY13
Part Number Page Item Part Number Page Item Part Number Page Item Part Number Page Item
4000-21-0-RK P22 1 4025-20-0A-RK P15 1 4990-75-0 P41 4 60-702 P21 10
4000-215-0-RK P19 23 4025-2-0A-RK P5 2 4990-76-0 P31 1 60-702 P22 20
4000-216-0-RK P19 23 4025-25-1-RK P17 29 4990-76-0 P33 5 60-702 P23 10
4000-23-0-RK P11 6 4025-26-0-RK P17 30 4990-76-0 P35 5 60-708 P19 9
4000-23-0-RK P13 6 4025-5-0-RK P5 3 4990-76-0 P37 5 60-708 P22 7
4000-23-0-RK P15 6 4025-6-0-RK P5 4 4990-76-0 P39 5 60-708 P23 11
4000-24-0A-RK P17 17 4025-7-0-RK P5 5 4990-76-0 P41 5 60-723 P5 40
4000-25-0-RK P21 1 4025-8-0-RK P5 6 4990-77-0 P31 1 61-106 P25 3
4000-3-0-RK P17 12 4025-9-0-RK P5 7 4990-77-0 P33 29 61-123 P29 4
4000-33-0-RK P19 28 4031-18-0-RK P13 26 4990-77-0 P35 31 61-123 P5 36
4000-35-0-RK P19 28 4031-18-0-RK P15 26 4990-77-0 P37 31 61-126 P29 4
4000-4-0-RK P17 5 4031-18-0-RK P9 5 4990-77-0 P39 33 61-138 P27 29
4000-41-0A-RK P23 21 4037-22-0-RK P15 29 4990-77-0 P41 33 61-152 P49 5
4000-49-0-RK P19 A 41-112 P19 1 4990-78-0 P31 1 61-173 P19 10
4000-50-0-RK P19 A 41-112 P21 3 4990-78-0 P33 28 61-173 P3 8
4000-50-1-RK P19 24 41-112 P22 13 4990-78-0 P35 30 61-191 P13 28
4000-5-0-RK P13 27 41-112 P23 1 4990-78-0 P37 32 61-191 P15 28
4000-5-0-RK P15 27 41-113 P19 2 4990-78-0 P39 34 61-191 P9 16
4000-5-0-RK P9 6 41-113 P21 4 4990-78-0 P41 34 61-195 P24 7
4000-51-0-RK P19 25 41-113 P22 14 51-102 P20 1 61-212 P28 6
4000-51-3 P19 26 41-114 P22 3 51-106 P20 1 61-214 P5 29
4000-52-0-RK P19 27 41-114 P23 2 51-107 P20 3 61-221 P17 18
4000-56-0A-RK P23 A 41-208 P19 3 51-107 P20 3 62-115 P33 24
4000-56-1A-RK P22 2 41-208 P21 5 51-107 P20 3 62-115 P35 24
4000-56-1A-RK P23 22 41-208 P22 15 51-136 P20 1 62-115 P37 22
4000-6-0-RK P11 7 41-208 P23 3 52-102-RK P20 2 62-115 P39 22
4000-6-0-RK P13 7 41-209 P19 4 52-103-RK P20 2 62-115 P41 22
4000-6-0-RK P15 7 41-209 P21 6 52-103-RK P20 2 62-118 P5 34
4000-6-0-RK P24 1 41-209 P22 16 52-302 P19 6 62-126 P3 9
4000-6-0-RK P7 5 41-210 P22 4 52-302 P21 8 62-131 P3 10
4000-6-0-RK P9 7 41-210 P23 4 52-302 P22 18 62-131 P5 47
4000-8-0-RK P24 2 4122-37-0A-RK P17 28 52-302 P23 7 62-146 P25 11
4000-9-0-RK P11 5 4122-37-0A-RK P3 74 52-307 P22 6 62-151 P49 7
4000-9-0-RK P13 5 4122-38-0A-RK P17 24 52-307 P23 8 62-169 P3 11
4000-9-0-RK P15 5 4122-38-0A-RK P3 73 5250-175-0 P3 72 62-176 P11 19
4000-98-0-RK P30 1 4200-85-5-RK P48 19 5250-175-0 P5 63 62-176 P13 19
4011-10-0-RK P3 58 4200-85-5-RK P49 22 53-105 P19 7 62-176 P15 19
4011-1-0A-RK P3 57 42-108 P19 5 53-105 P21 9 62-176 P24 3
4011-14-0-RK P3 59 42-108 P21 7 53-105 P22 19 62-176 P7 15
4011-3-0-RK P3 60 42-108 P22 17 53-108 P23 9 62-176 P9 15
4011-5-0-RK P3 61 42-109 P23 5 53-113 P11 11 62-178 P11 14
4017-0-1-RK P3 62 42-131 P22 5 53-113 P13 11 62-178 P13 14
4017-0-2-RK P3 63 42-131 P23 6 53-113 P15 11 62-178 P15 14
4017-0-50-RK P3 64 4330-302-0-RK P29 A 53-113 P7 25 62-178 P3 12
4017-18-0A-RK P7 1 4330-35-0 P25 A 53-113 P9 25 62-178 P5 54
4017-18-0A-RK P9 1 4336-29-0 P27 8 570-59-1-RK P3 44 62-178 P7 10
4017-20-0A-RK P7 2 4336-30-0A P27 A 570-59-2-RK P3 45 62-178 P9 10
4017-20-0A-RK P9 2 4336-30-3 P27 9 595-0-11-RK P3 46 62-186 P29 5
4017-24-0-RK P7 6 4336-30-4 P27 38 595-0-11-RK P5 50 62-195 P29 20
4017-24-0-RK P9 8 4500-170-3-RK P49 18 60-102 P3 2 62-195 P3 13
4017-28-0-RK P3 65 4515-30-4 P27 4 60-102 P5 16 62-195 P5 43
4017-34-0-RK P3 66 4515-30-5 P27 35 60-104 P17 25 62-199 P11 20
4017-7-0-RK P3 67 4515-30-8 P27 3 60-104 P3 75 62-199 P13 20
4025-0-1-RK P5 28 4515-32-0 P27 26 60-210 P17 26 62-199 P15 20
4025-0-3 P3 68 4515-33-0 P27 5 60-210 P3 76 62-199 P27 22
4025-0-3 P5 14 4515-34-0 P27 18 60-217 P5 39 62-199 P5 30
4025-0-4-RK P5 56 4515-37-0 P27 13 60-605 P17 11 62-207 P3 14
4025-0-5-RK P5 59 4616-0-14-RK P3 69 60-605 P3 3 62-210 P3 15
4025-0-6-RK P5 60 4800-171-0-RK P48 3 60-605 P5 42 62-210 P5 44
4025-10-0-RK P5 8 4800-172-0-RK P48 1 60-606 P11 13 62-213 P5 58
4025-1-0B-RK P5 1 4800-172-0-RK P49 16 60-606 P13 13 62-220 P3 16
4025-12-0-RK P11 2 4830-0-15-RK P49 4 60-606 P15 13 62-228 P5 17
4025-12-0-RK P13 2 4956-56-0 P3 70 60-606 P29 13 62-231 P22 8
4025-12-0-RK P15 2 4956-56-0 P5 12 60-606 P3 4 62-232 P25 6
4025-12-0-RK P7 3 4956-75-0 P33 20 60-608 P17 13 62-240 P17 22
4025-12-0-RK P9 3 4956-75-0 P35 20 60-608 P3 5 62-251 P7 19
4025-13-0-RK P11 3 4956-75-0 P37 18 60-608 P7 26 62-251 P9 19
4025-13-0-RK P13 3 4956-75-0 P39 18 60-608 P9 26 62-295 P19 11
4025-13-0-RK P15 3 4956-75-0 P41 18 60-617 P3 6 62-295 P21 11
4025-13-0-RK P7 4 4990-75-0 P31 1 60-617 P5 15 62-295 P22 21
4025-13-0-RK P9 4 4990-75-0 P33 4 60-617 P7 27 62-295 P23 12
4025-17-0-RK P5 9 4990-75-0 P35 4 60-617 P9 27 62-314 P28 13
4025-20-0A-RK P11 1 4990-75-0 P37 4 60-618 P3 7 62-315 P27 6
4025-20-0A-RK P13 1 4990-75-0 P39 4 60-702 P19 8 62-321 P27 30
Index - 2

101. 4000 PARTS INDEX MAY13
Part Number Page Item Part Number Page Item Part Number Page Item Part Number Page Item
62-327 P27 24 63-109 P7 12 64-109 P29 6 65-122 P19 19
62-339 P19 12 63-109 P9 12 64-109 P29 18 65-122 P21 14
62-343 P3 17 63-110 P11 25 64-109 P3 34 65-122 P22 24
62-343 P33 26 63-110 P13 25 64-109 P5 37 65-122 P23 19
62-343 P35 27 63-110 P15 25 64-109 P7 11 70-212 P19 20
62-343 P37 29 63-110 P3 26 64-109 P9 11 70-212-1 P19 21
62-343 P39 30 63-110 P5 55 64-110 P11 15 72-351 P3 41
62-343 P41 30 63-110 P7 16 64-110 P13 15 72-351 P5 57
62-343 P5 23 63-110 P9 32 64-110 P15 15 72-352 P5 57
62-349 P30 2 63-111 P27 12 64-110 P24 4 74-102 P47 4
62-393 P27 19 63-112 P11 23 64-110 P27 37 74-109 P20 4
62-393 P29 17 63-112 P13 23 64-110 P7 13 74-109 P20 4
62-395 P37 24 63-112 P15 23 64-110 P9 13 74-109 P20 4
62-395 P39 24 63-112 P17 21 64-112 P11 22 74-113 P42 25
62-395 P41 24 63-112 P19 14 64-112 P13 22 74-113 P43 25
62-409 P28 11 63-112 P27 28 64-112 P15 22 74-113 P44 25
62-417 P48 16 63-112 P28 2 64-112 P17 20 74-113 P45 18
62-417 P49 11 63-112 P29 23 64-112 P19 17 74-113 P46 19
62-436 P27 15 63-112 P3 27 64-112 P27 27 74-121 P47 5
62-440 P3 18 63-112 P5 19 64-112 P28 3 74-144 P3 42
62-543 P3 19 63-112 P9 18 64-112 P29 22 74-144 P5 46
62-544 P17 31 63-114 P27 25 64-112 P3 35 74-145 P47 15
62-544 P7 8 63-115 P25 8 64-112 P5 18 74-158 P47 2
62-544 P9 30 63-115 P28 15 64-112 P9 17 74-276 P47 1
62-566 P17 6 63-117 P27 11 64-113 P11 21 74-344 P47 7
62-568 P5 20 63-117 P7 22 64-113 P13 21 74-361 P47 11
62-569 P48 7 63-117 P9 22 64-113 P15 21 74-570 P47 6
62-569 P49 6 63-119 P17 23 64-113 P17 19 74-575 P47 12
62-656 P31 6 63-124 P17 2 64-113 P27 36 74-576 P47 13
62-656 P31 6 63-124 P3 28 64-113 P3 36 74-577 P47 8
62-656 P31 6 63-126 P3 29 64-113 P5 31 74-674 P47 17
62-656 P31 6 63-126 P5 65 64-114 P28 14 74-675 P47 16
62-834 P3 20 63-134 P17 32 64-115 P25 7 74-696 P47 14
62-834 P5 64 63-137 P28 7 64-118 P27 10 74-697 P47 3
63-100 P48 18 63-204 P19 15 64-118 P7 21 74-698 P47 10
63-100 P49 14 63-204 P21 12 64-118 P9 21 74-719 P47 9
63-102 P27 17 63-204 P22 22 64-119 P7 20 76-137 P29 12
63-102 P3 21 63-204 P23 13 64-119 P9 20 76-157 P27 2
63-103 P5 35 63-231 P23 14 64-120 P19 18 79-397 P48 15
63-103 P7 9 64-100 P48 17 64-120 P21 13 79-397 P49 21
63-103 P9 31 64-100 P49 12 64-120 P22 23 79-544 P48 13
63-104 P3 22 64-101 P49 13 64-120 P23 15 79-546 P48 11
63-104 P5 49 64-102 P17 27 64-126 P11 12 79-546 P49 2
63-106 P25 14 64-102 P3 77 64-126 P13 12 79-551 P49 3
63-106 P27 34 64-103 P27 16 64-126 P15 12 79-552 P49 15
63-106 P3 23 64-103 P3 30 64-126 P17 14 79-558 P49 1
63-106 P30 3 64-104 P3 31 64-126 P3 37 79-577 P48 5
63-106 P37 25 64-105 P3 32 64-126 P7 24 79-577 P49 19
63-106 P39 25 64-105 P5 48 64-126 P9 24 79-578 P48 4
63-106 P41 25 64-107 P25 13 64-138 P5 33 79-578 P49 20
63-106 P48 10 64-107 P27 33 64-138 P7 18 8300-0-10-RK P3 71
63-106 P49 10 64-107 P3 33 64-138 P9 29 8300-0-10-RK P5 13
63-106 P5 22 64-107 P30 4 64-140 P28 12 99-218 P3 43
63-107 P3 24 64-107 P37 26 64-147 P27 7 99-218 P5 61
63-107 P33 27 64-107 P39 26 64-167 P22 9
63-107 P35 28 64-107 P41 26 64-167 P23 16
63-107 P37 30 64-107 P48 9 64-181 P17 3
63-107 P39 31 64-107 P49 8 64-181 P3 38
63-107 P41 31 64-107 P5 21 64-190 P28 9
63-107 P48 20 64-108 P25 12 65-101 P11 24
63-107 P5 27 64-108 P27 32 65-101 P13 24
63-109 P11 17 64-108 P37 27 65-101 P15 24
63-109 P13 17 64-108 P39 27 65-101 P17 10
63-109 P15 17 64-108 P41 27 65-101 P22 10
63-109 P17 8 64-108 P48 8 65-101 P27 23
63-109 P19 13 64-108 P49 9 65-101 P3 39
63-109 P24 6 64-109 P11 16 65-101 P5 51
63-109 P25 1 64-109 P13 16 65-101 P7 14
63-109 P27 20 64-109 P15 16 65-101 P9 14
63-109 P28 8 64-109 P17 7 65-103 P3 40
63-109 P29 7 64-109 P19 16 65-103 P5 53
63-109 P29 19 64-109 P24 5 65-107 P23 17
63-109 P3 25 64-109 P25 2 65-117 P22 11
63-109 P5 38 64-109 P27 21 65-117 P23 18
Index - 3
