The CR-10 Plus is a portable, battery-powered color difference reader that provides quick and precise color control with features including a built-in utility software, USB connectivity, and the ability to measure color differences in various formats. It is designed for both field and lab use, boasting a lightweight and ergonomic design for ease of operation. The instrument features a standard measuring area of 8 mm, offers high measurement accuracy, and can store up to 1,000 measurements.

1. Tel：(0755) 86354829 / 86354826 Fax：(0755)29182559 Mobile：13723487970
Website：http:// www.inteke.com E-mail：inteke@gmail.com / inteke@vip.163.com
INTEKE INSTRUMENT CO., LIMITED
E-mail:inteke@gmail.com
CR-10 Plus Color Reader
 Konica Minolta s CR-10 Plus (successor to the CR-10)
color difference reader is a portable, battery powered, and
hand-held instrument for quick, precise color control. The
CR-10 Plus tristimulus colorimeter is easily operable,
economical and portable like never before. With a built-in
utility software application, it allows changing of instrument
settings, set tolerances, pass/fail judgment and data analysis
directly on the instrument. Also includes USB connectivity to
a computer for easy data transferring.
 CR-10 Plus has the ability to measure precise color
difference expressed in L*a*b* and dE* or L*C*H* and dE*
displayed on an easy to view LCD screen. The CR-10 Plus boasts a standard measuring area of 8
mm and 5 mm with an optional accessory allowing it useful in a broad array of applications. All color
measurements are taken using conditions of the standard illuminant D65 and 10 degrees observer
and Specular Component Included (SCI) while offering a Xenon lamp light source for longer life and
more stable readings.
 The CR-10 Plus color reader is used to assess color differences between two samples. Its compact
design allows it to be used easily in the field, or in the lab. This is a high-quality and economical
instrument that is perfect for users in need of an easy-to-use color reader. The CR-10 Plus does not
sacrifice elegance for simplicity. It is easily operable and ergonomic for repeated use over long
periods of time.
Features
 Easy to use and ergonomic, making it great for first-time users
 Color difference expressed in L*a*b* and dE* or L*C*H* and dE* on the LCD screen
 Built in storage for up to 1,000 measurement including target data
 USB connectivity for easy PC connection
 On board Utility Software application
 Lightweight, compact size and battery-operated allowing it to be taken almost anywhere

2. Tel：(0755) 86354829 / 86354826 Fax：(0755)29182559 Mobile：13723487970
Website：http:// www.inteke.com E-mail：inteke@gmail.com / inteke@vip.163.com
INTEKE INSTRUMENT CO., LIMITED
E-mail:inteke@gmail.com
Specifications
Model Color Reader CR-10 Plus
Illuminating/viewing geometry 8°:di (8°illumination angle/diffuse viewing: specular component included
(conforms to DIN 5033 Teil 7, JIS Z 8722 condition d, ISO 7724/1, CIE No.
15, ASTM E 116
Detector Silicon photocells (6 pcs.)
Display range L*: 1 to 100
Light source Pulsed xenon lamps
Measurement time Approx. 1 sec
Battery performance Approx. 2,000 measurement at 10-sec. intervals when using
alkaline-manganese batteries
Measurement area Approx. ø8 mm, approx. ø5 mm (optional accessory
(*Optional ø5 mm mask does not conform to DIN 5033 Teil 7 and CIE N)
Repeatability Standard deviation within ΔE*ab 0.1
(when a white calibration plate is measured 30 times at 10-second intervals)
Display languages English, Simplified Chinese, Japanese
Interface USB2.0
Observer 10° Standard Observer

3. Tel：(0755) 86354829 / 86354826 Fax：(0755)29182559 Mobile：13723487970
Website：http:// www.inteke.com E-mail：inteke@gmail.com / inteke@vip.163.com
INTEKE INSTRUMENT CO., LIMITED
E-mail:inteke@gmail.com

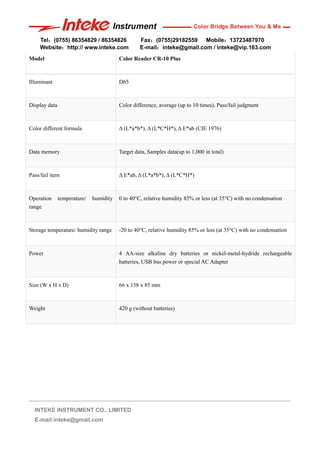

Model Color Reader CR-10 Plus
Illuminant D65
Display data Color difference, average (up to 10 times), Pass/fail judgment
Color different formula Δ (L*a*b*), Δ (L*C*H*), Δ E*ab (CIE 1976)
Data memory Target data, Samples data(up to 1,000 in total)
Pass/fail item Δ E*ab, Δ (L*a*b*), Δ (L*C*H*)
Operation temperature/ humidity
range
0 to 40°C, relative humidity 85% or less (at 35°C) with no condensation
Storage temperature/ humidity range -20 to 40°C, relative humidity 85% or less (at 35°C) with no condensation
Power 4 AA-size alkaline dry batteries or nickel-metal-hydride rechargeable
batteries, USB bus power or special AC Adapter
Size (W x H x D) 66 x 158 x 85 mm
Weight 420 g (without batteries)
