Analisa 3 Ruangan

1. Analisis Jaringan LAN

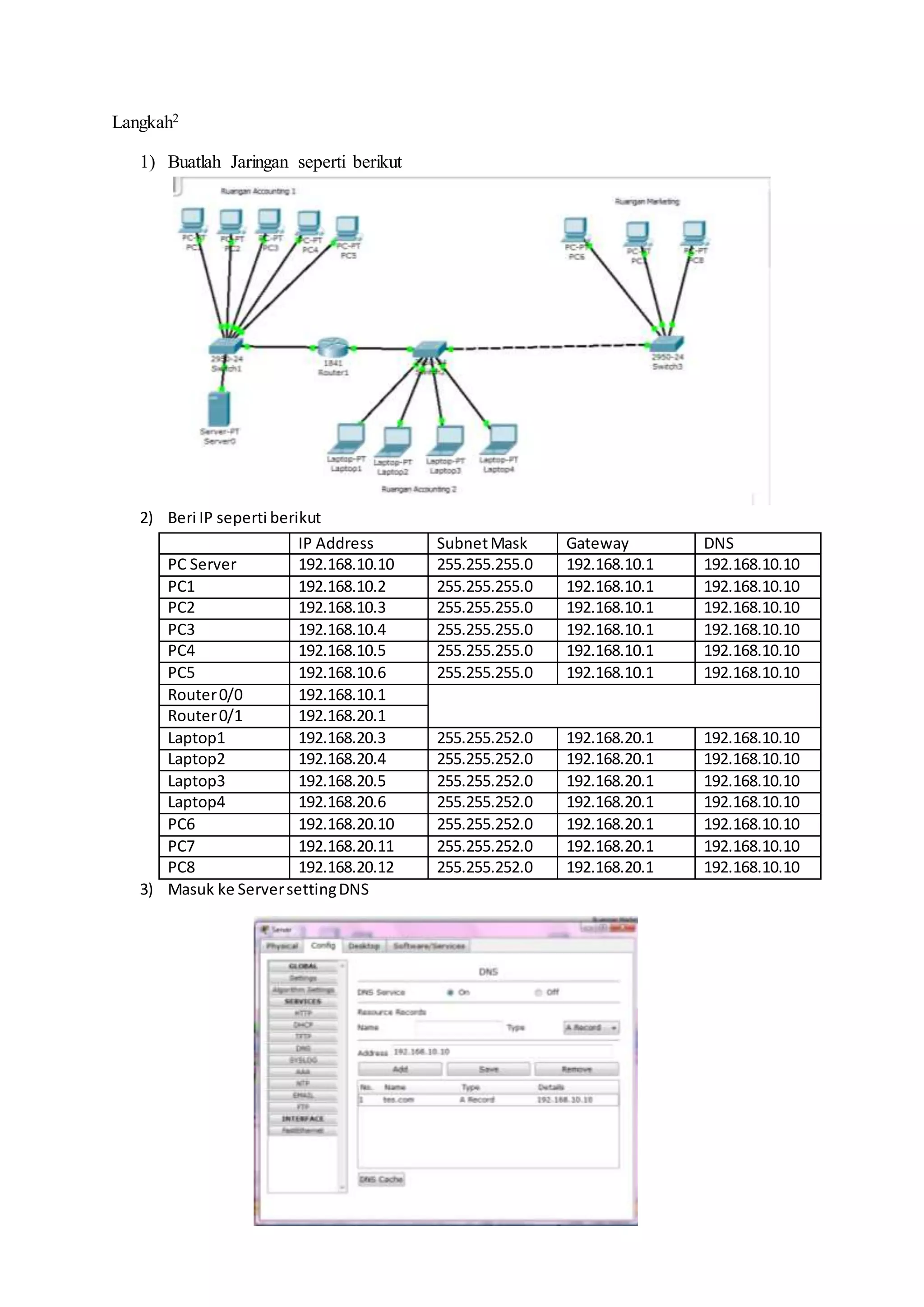

2. Langkah2
1) Buatlah Jaringan seperti berikut
2) Beri IP seperti berikut
IP Address Subnet Mask Gateway DNS
PC Server 192.168.10.10 255.255.255.0 192.168.10.1 192.168.10.10
PC1 192.168.10.2 255.255.255.0 192.168.10.1 192.168.10.10
PC2 192.168.10.3 255.255.255.0 192.168.10.1 192.168.10.10
PC3 192.168.10.4 255.255.255.0 192.168.10.1 192.168.10.10
PC4 192.168.10.5 255.255.255.0 192.168.10.1 192.168.10.10
PC5 192.168.10.6 255.255.255.0 192.168.10.1 192.168.10.10
Router 0/0 192.168.10.1
Router 0/1 192.168.20.1
Laptop1 192.168.20.3 255.255.252.0 192.168.20.1 192.168.10.10
Laptop2 192.168.20.4 255.255.252.0 192.168.20.1 192.168.10.10
Laptop3 192.168.20.5 255.255.252.0 192.168.20.1 192.168.10.10
Laptop4 192.168.20.6 255.255.252.0 192.168.20.1 192.168.10.10
PC6 192.168.20.10 255.255.252.0 192.168.20.1 192.168.10.10
PC7 192.168.20.11 255.255.252.0 192.168.20.1 192.168.10.10
PC8 192.168.20.12 255.255.252.0 192.168.20.1 192.168.10.10
3) Masuk ke Server setting DNS

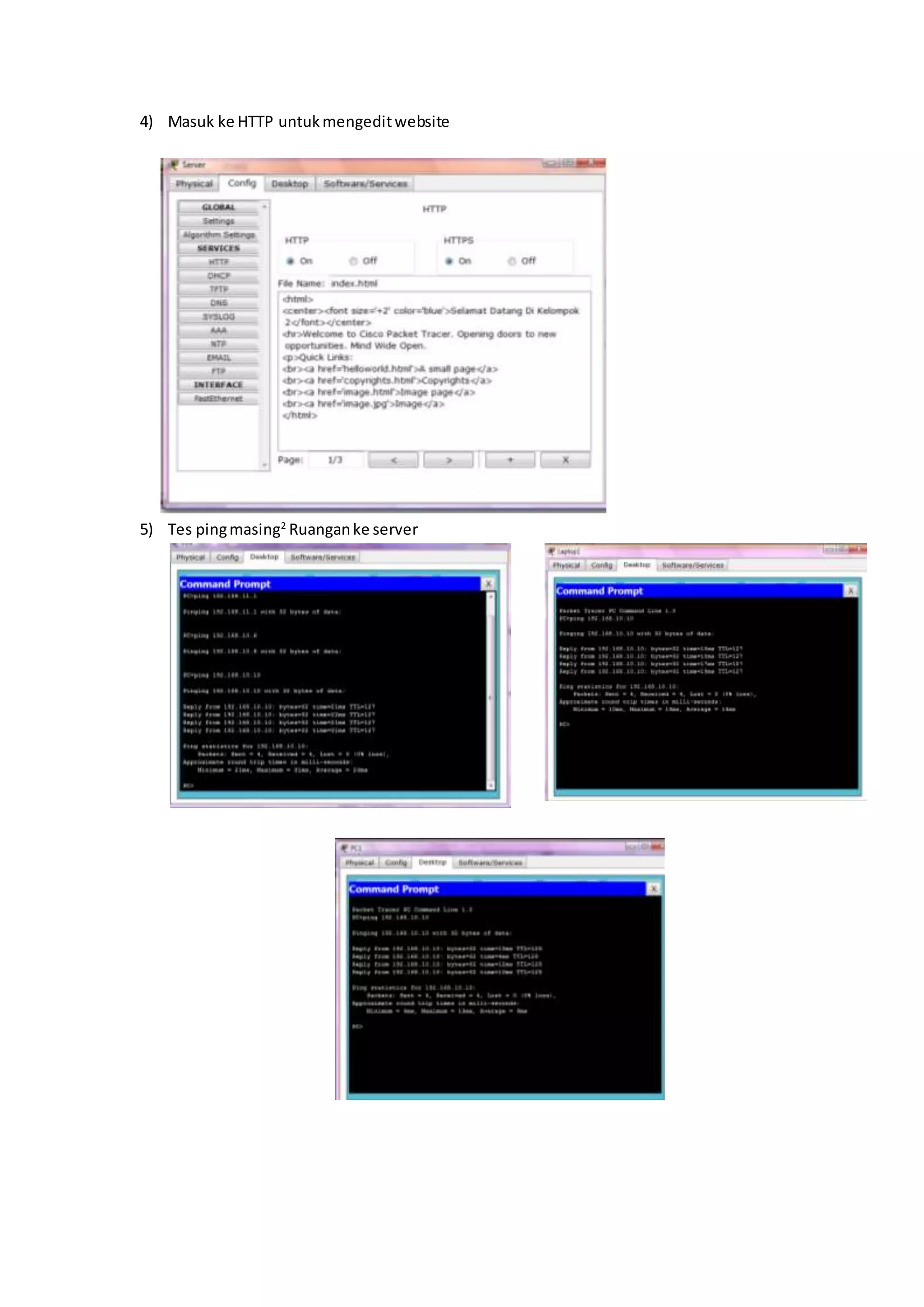

3. 4) Masuk ke HTTP untuk mengedit website
5) Tes ping masing2 Ruangan ke server

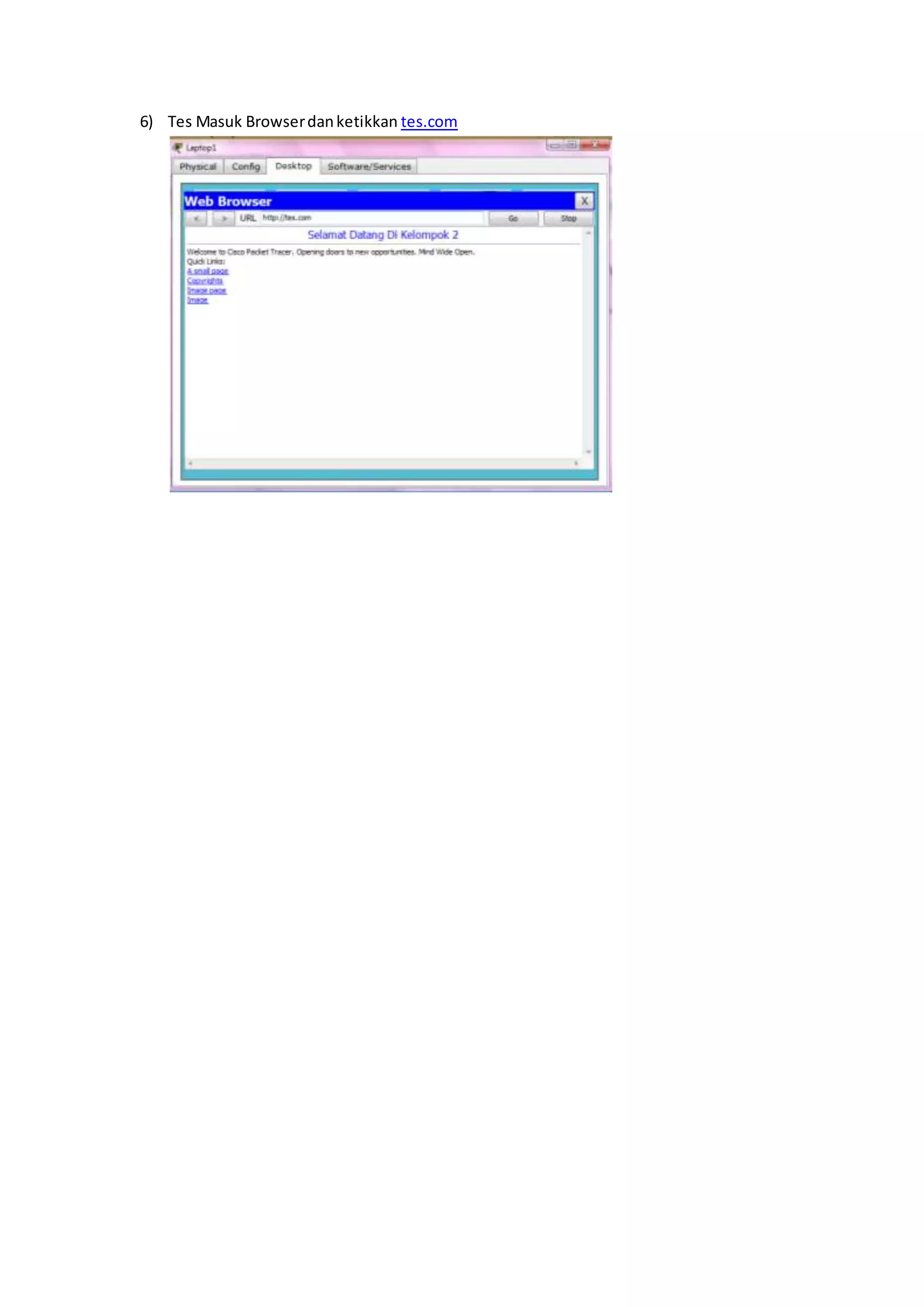

4. 6) Tes Masuk Browser dan ketikkan tes.com
