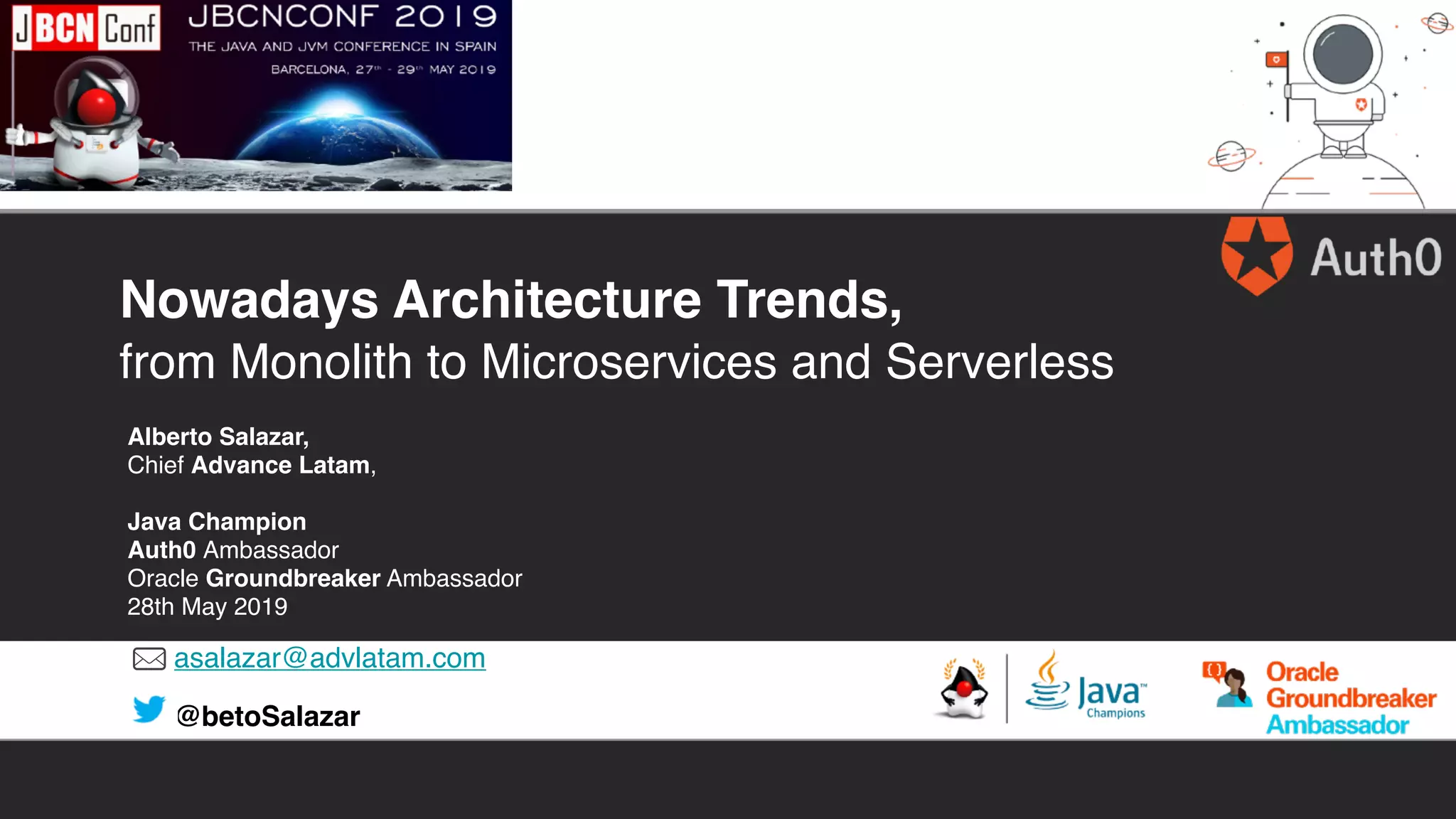

Nowadays Architecture Trends,
from Monolith to Microservices and Serverless
Alberto Salazar,
Chief Advance Latam,
Java Champion
Auth0 Ambassador
Oracle Groundbreaker Ambassador
28th May 2019

2. Alberto Salazar
@betoSalazar
www.advlatam.com
www.cloudbanco.com
www.ecuadorjug.org www.javaday.ec
● Author
● Speaker
● Community
● Java Champion
● Groundbreaker
● Auth0 Ambassador
● Chief Advance Latam

3. How I get experience?
@betoSalazar

4. The monolith is our legacy ?

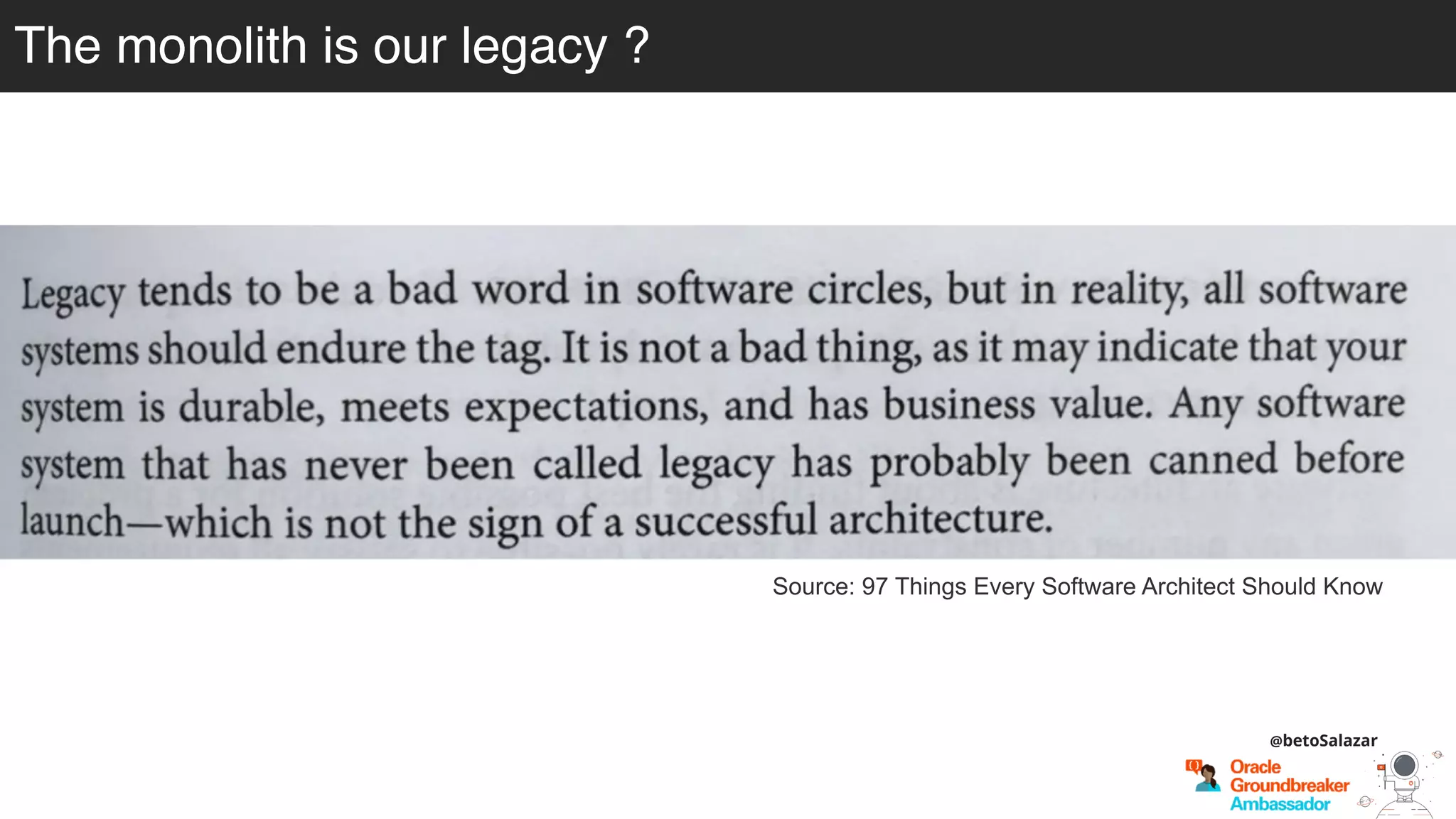

5. Source: 97 Things Every Software Architect Should Know
@betoSalazar
The monolith is our legacy ?

6. The journey
● Overview Monolith - Microservices - Serverless
● Monolith in real life
● Microservices really?
● Third party services and Serverless
● Tips, tricks, pros, cons & code

7. asalazar@advlatam.com
@betoSalazar
Architecture Trends
Overview Monolith - Microservices - Serverless

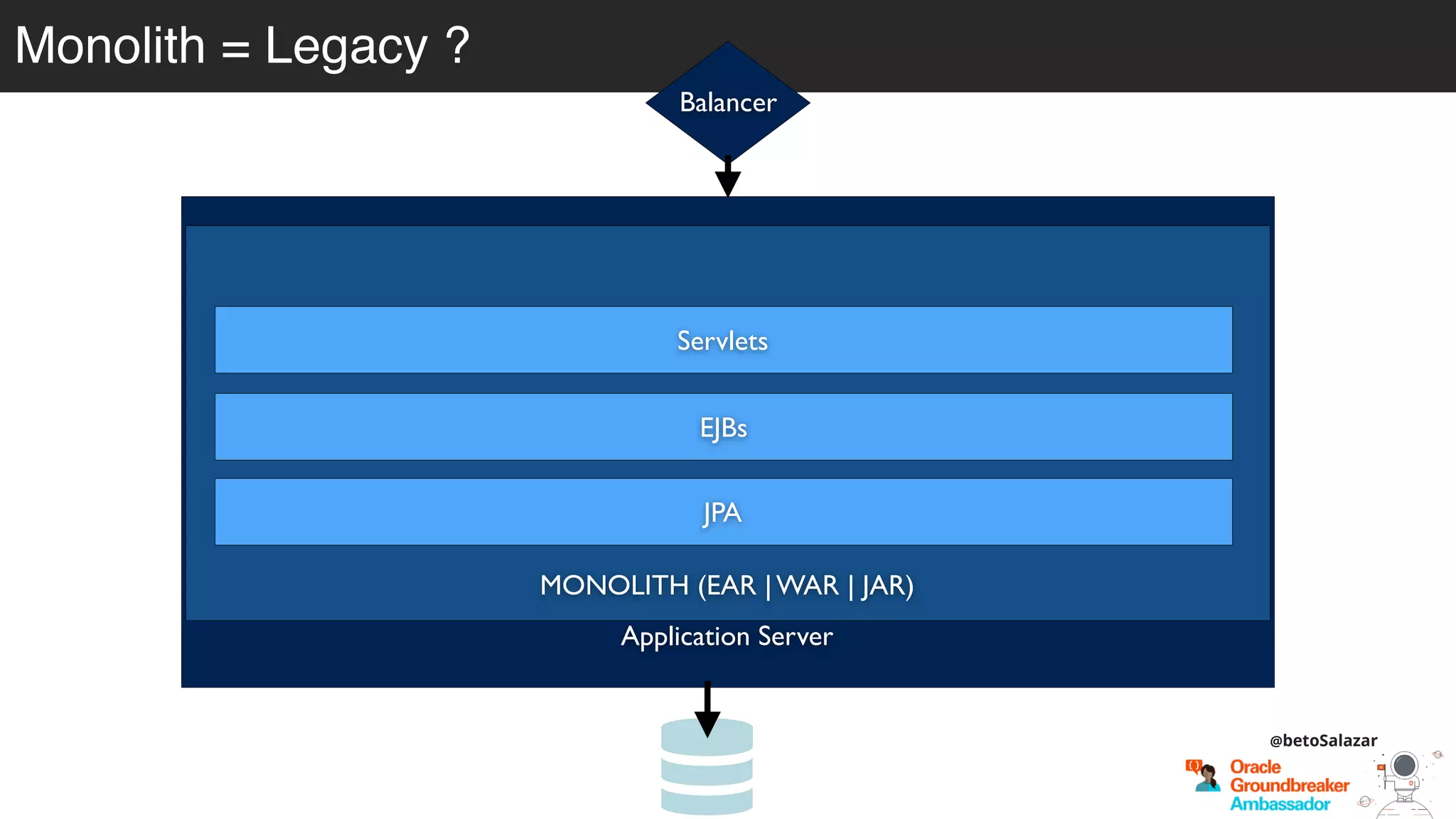

8. Monolith = Legacy ?
@betoSalazar
Application Server
MONOLITH (EAR | WAR | JAR)
Servlets
EJBs
JPA
Balancer

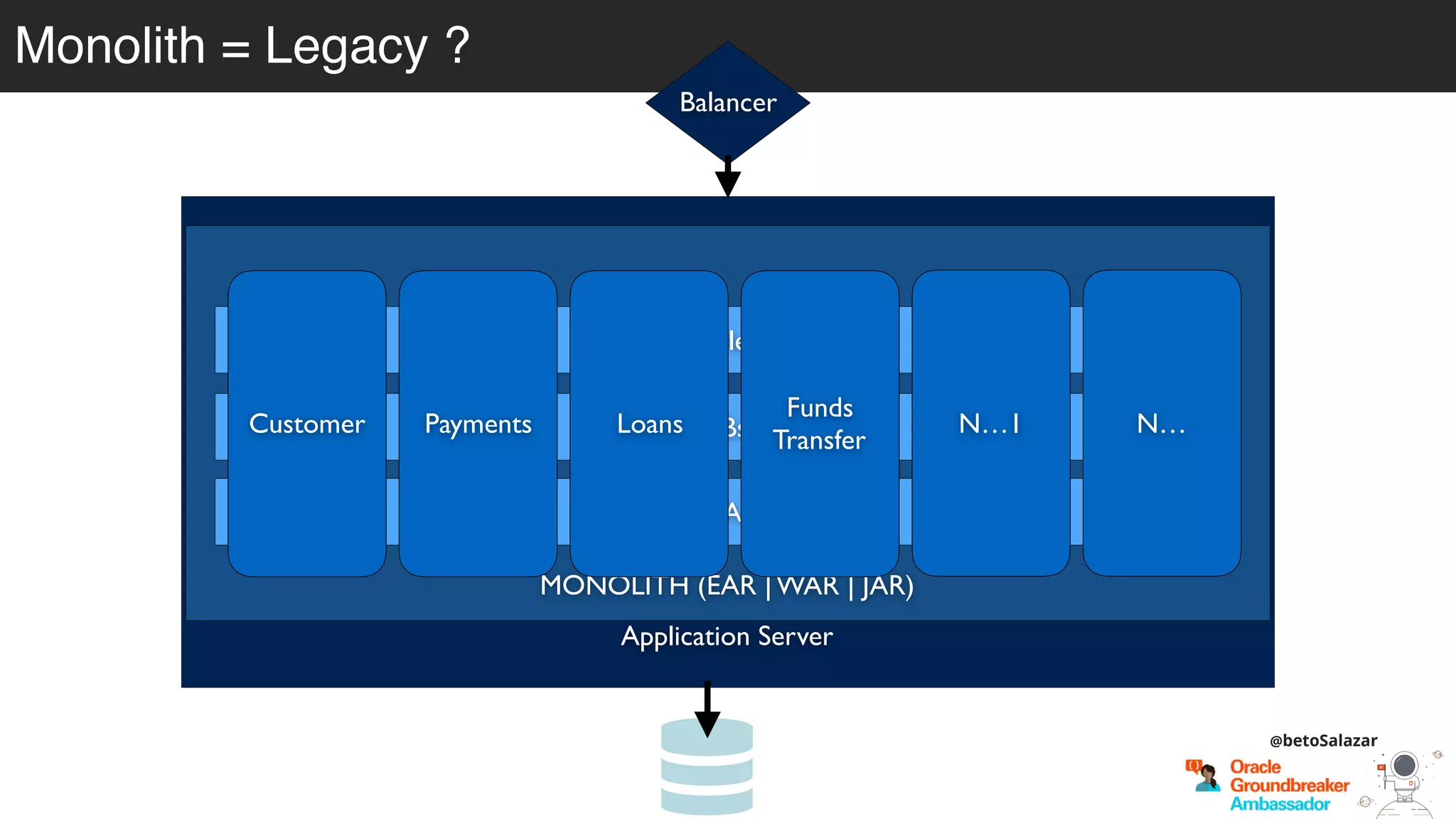

9. Monolith = Legacy ?
@betoSalazar
Application Server
MONOLITH (EAR | WAR | JAR)
Servlets
EJBs
JPA
Balancer
Customer Payments Loans
Funds
Transfer
N…1 N…

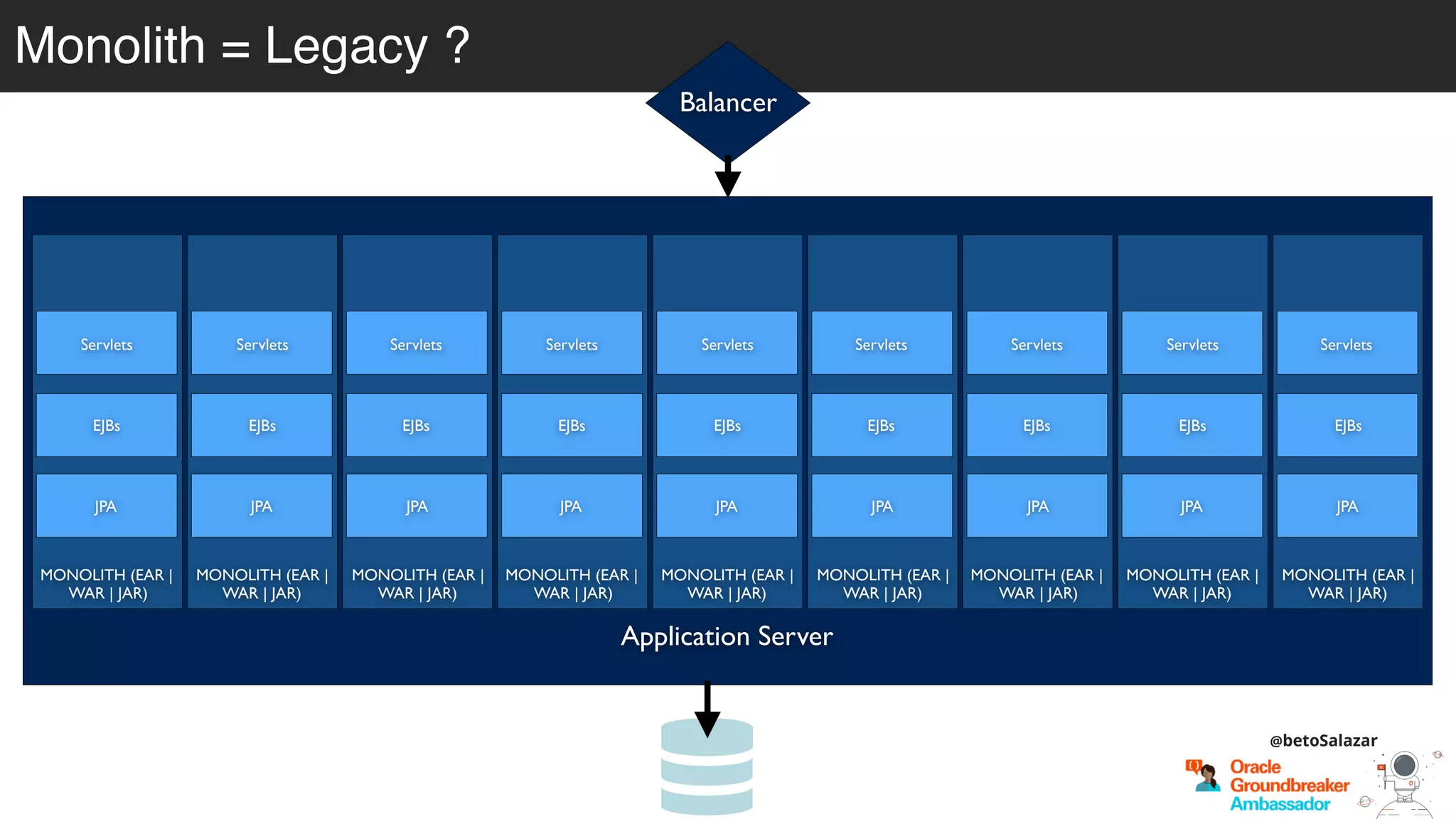

10. Monolith = Legacy ?
@betoSalazar
Application Server
MONOLITH (EAR |
WAR | JAR)
Servlets
EJBs
JPA
Balancer
MONOLITH (EAR |
WAR | JAR)
Servlets
EJBs
JPA
MONOLITH (EAR |
WAR | JAR)
Servlets
EJBs
JPA
MONOLITH (EAR |
WAR | JAR)
Servlets
EJBs
JPA
MONOLITH (EAR |
WAR | JAR)
Servlets
EJBs
JPA
MONOLITH (EAR |
WAR | JAR)
Servlets
EJBs
JPA
MONOLITH (EAR |
WAR | JAR)
Servlets
EJBs
JPA
MONOLITH (EAR |
WAR | JAR)
Servlets
EJBs
JPA
MONOLITH (EAR |
WAR | JAR)
Servlets
EJBs
JPA

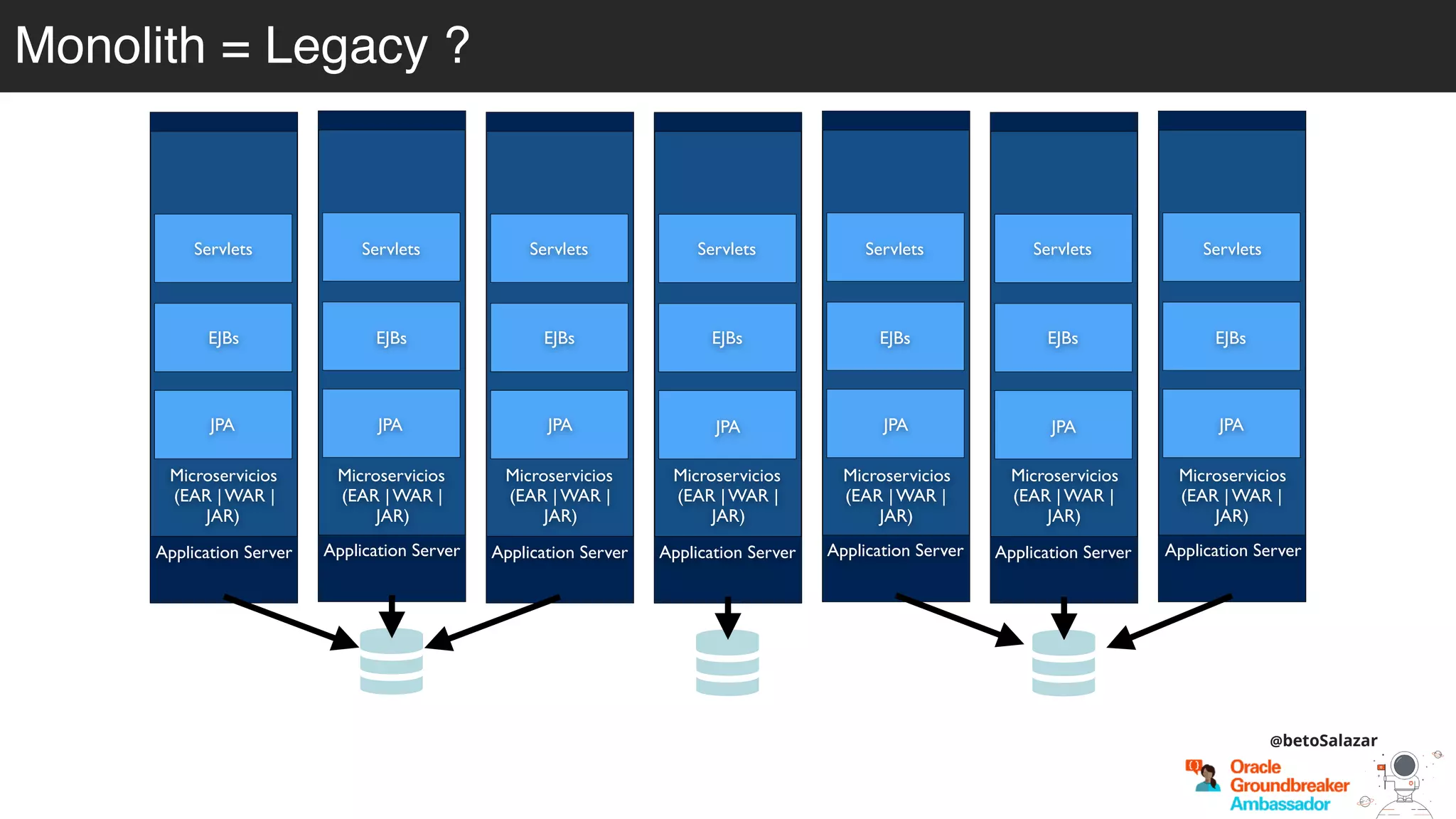

11. Monolith = Legacy ?
@betoSalazar
Application Server
Microservicios
(EAR | WAR |
JAR)
Servlets
EJBs
JPA
Application Server
Microservicios
(EAR | WAR |
JAR)
Servlets
EJBs
JPA
Application Server
Microservicios
(EAR | WAR |
JAR)
Servlets
EJBs
JPA
Application Server
Microservicios
(EAR | WAR |
JAR)
Servlets
EJBs
JPA
Application Server
Microservicios
(EAR | WAR |
JAR)
Servlets
EJBs
JPA
Application Server
Microservicios
(EAR | WAR |
JAR)
Servlets
EJBs
JPA
Application Server
Microservicios
(EAR | WAR |
JAR)
Servlets
EJBs
JPA

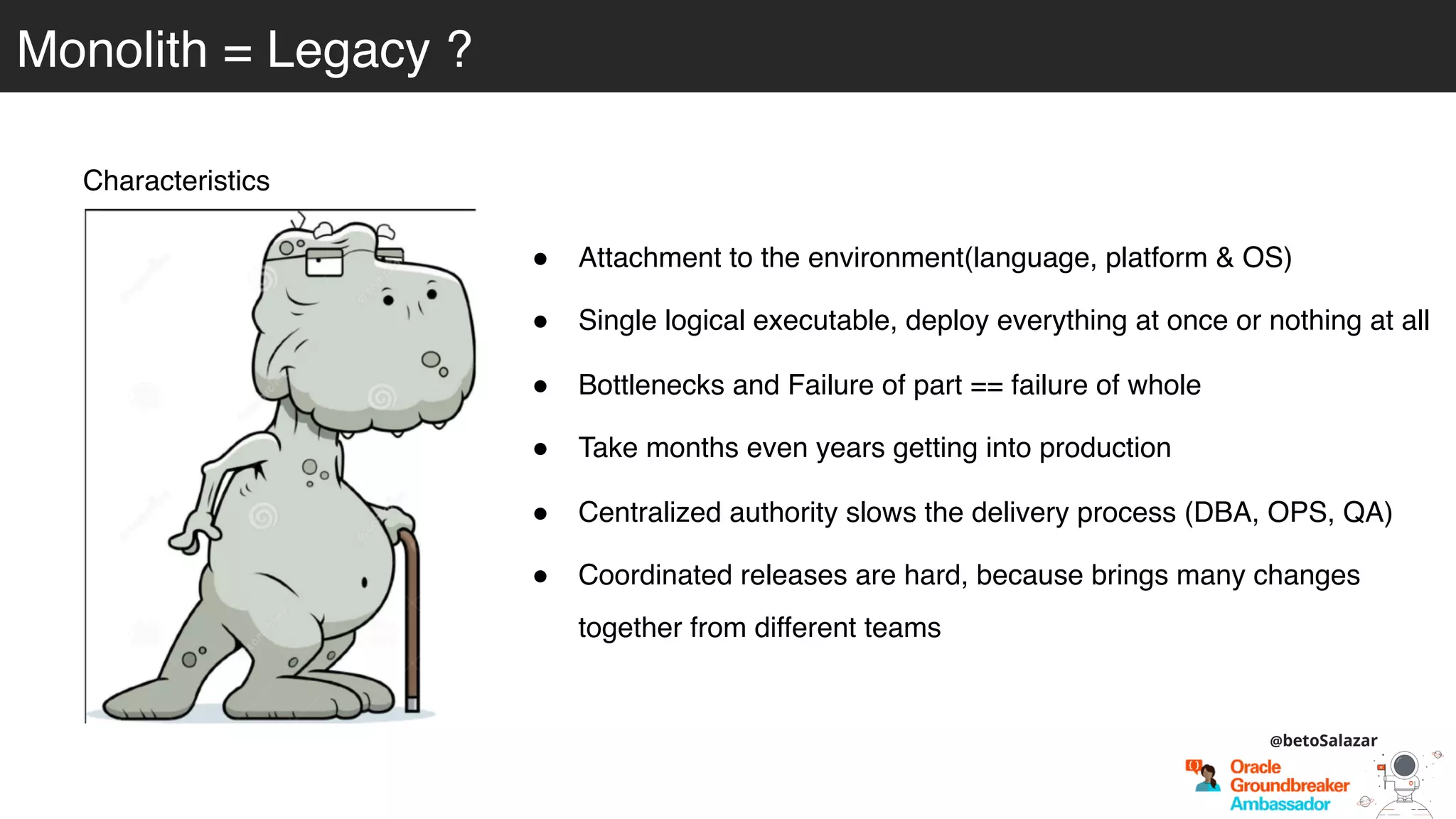

12. Monolith = Legacy ?
Characteristics
! Attachment to the environment(language, platform & OS)
! Single logical executable, deploy everything at once or nothing at all
! Bottlenecks and Failure of part == failure of whole
! Take months even years getting into production
! Centralized authority slows the delivery process (DBA, OPS, QA)
! Coordinated releases are hard, because brings many changes
together from different teams
@betoSalazar

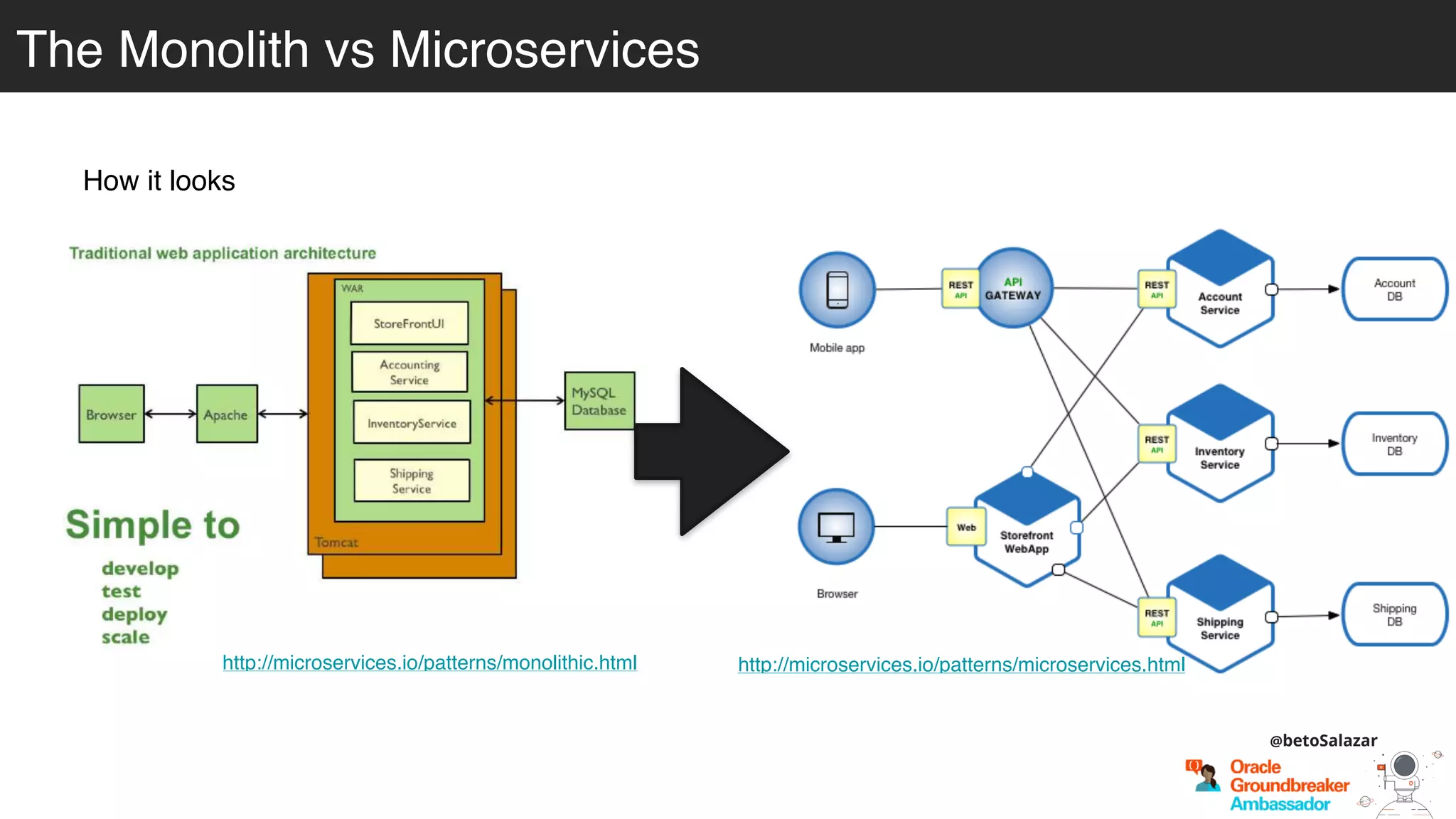

13. The Monolith vs Microservices
How it looks
http://microservices.io/patterns/monolithic.html http://microservices.io/patterns/microservices.html
@betoSalazar

14. Microservices
Characteristics
! Deployable, executable & scaled independently
! Smaller code modules are easier to understand
! High cohesion, low coupling
! Failure is isolated (Fail one part of the system)
! Independent Teams (decide their own
architecture)
! Polyglot “Plus”
https://martinfowler.com/articles/microservices.html
https://martinfowler.com/bliki/MicroservicePrerequisites.html
@betoSalazar

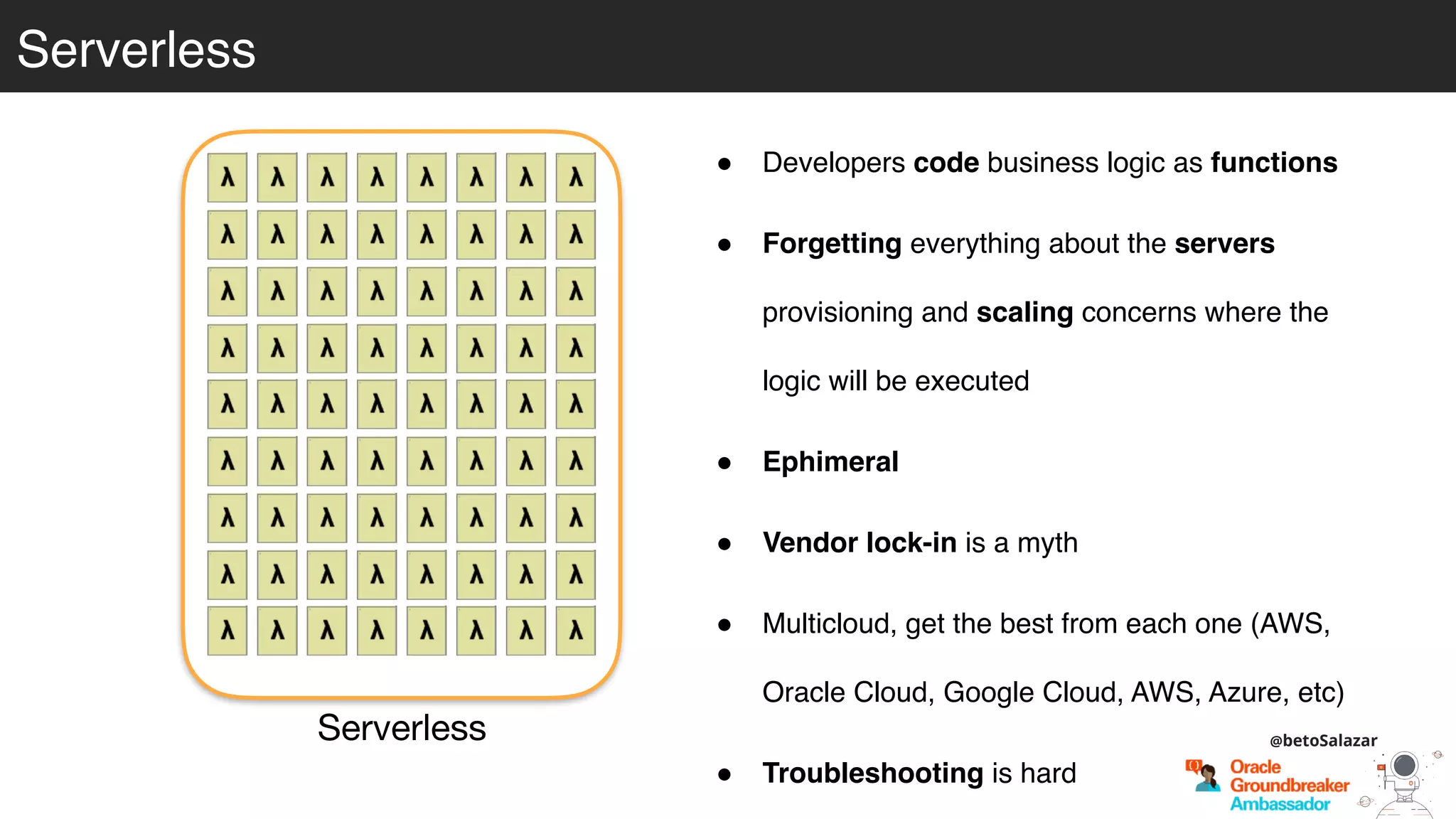

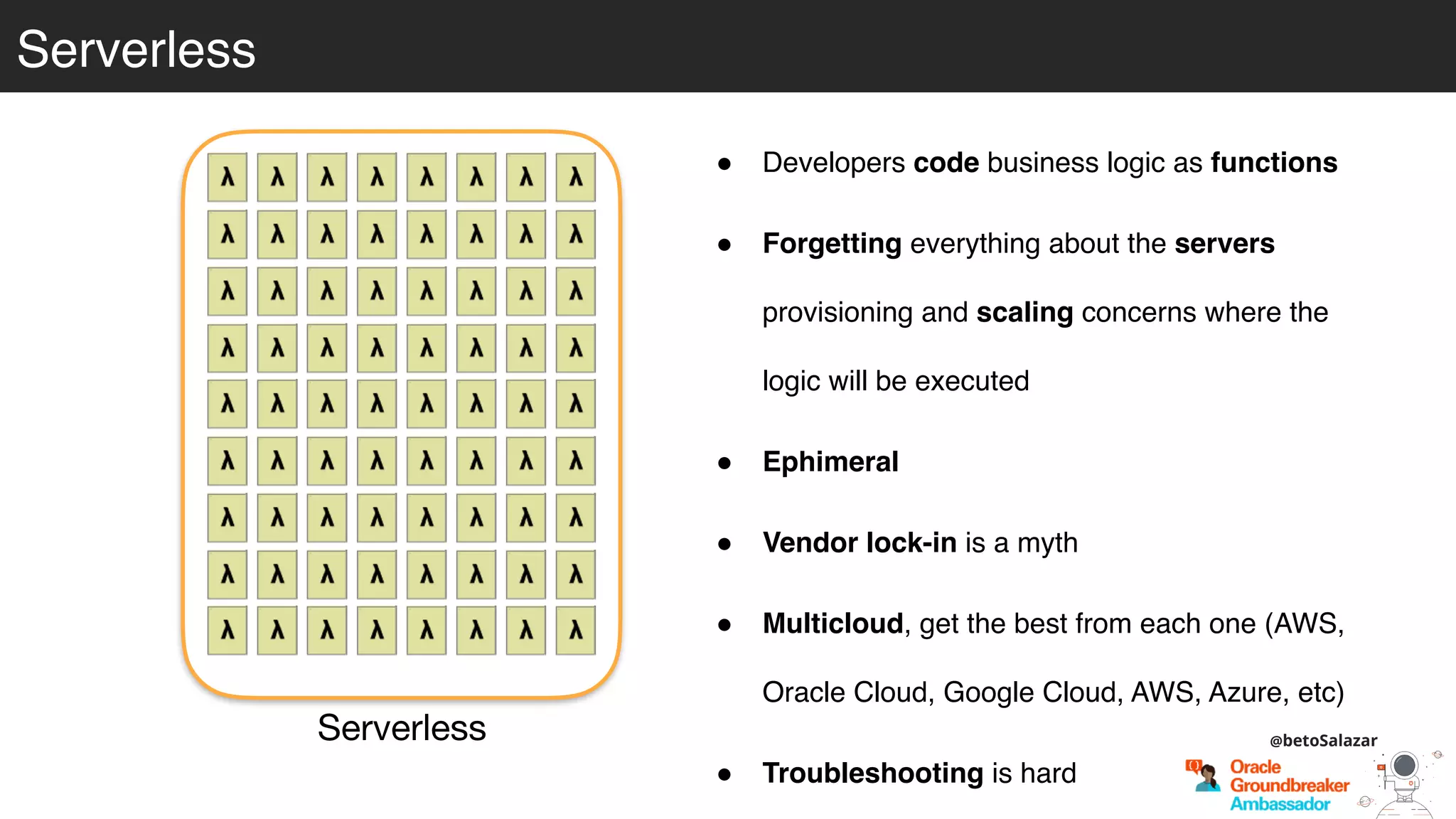

15. Serverless
Serverless
! Developers code business logic as functions
! Forgetting everything about the servers
provisioning and scaling concerns where the
logic will be executed
! Ephimeral
! Vendor lock-in is a myth
! Multicloud, get the best from each one (AWS,
Oracle Cloud, Google Cloud, AWS, Azure, etc)
! Troubleshooting is hard
@betoSalazar

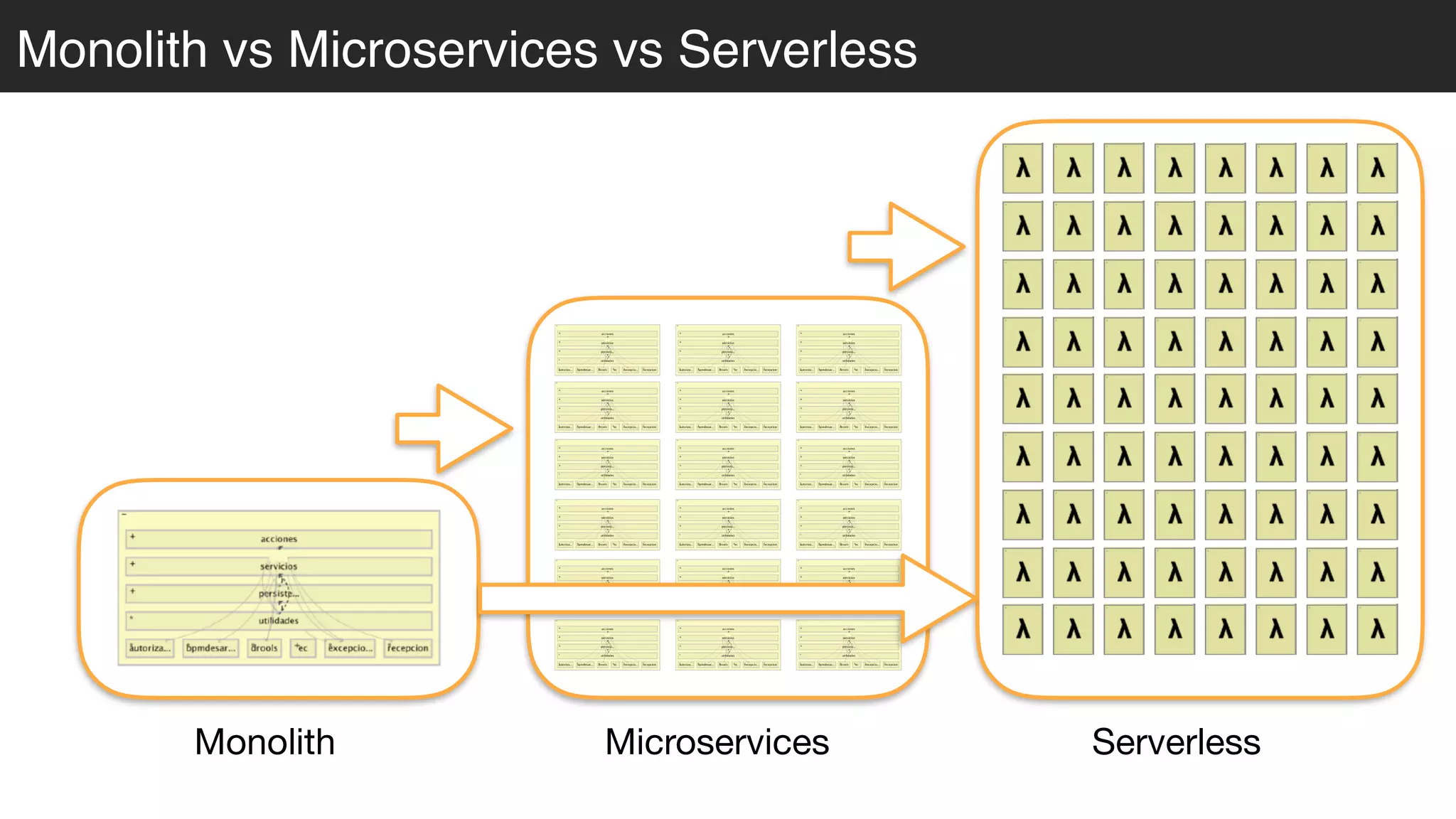

16. Monolith vs Microservices vs Serverless
Monolith Microservices Serverless

17. asalazar@advlatam.com
@betoSalazar

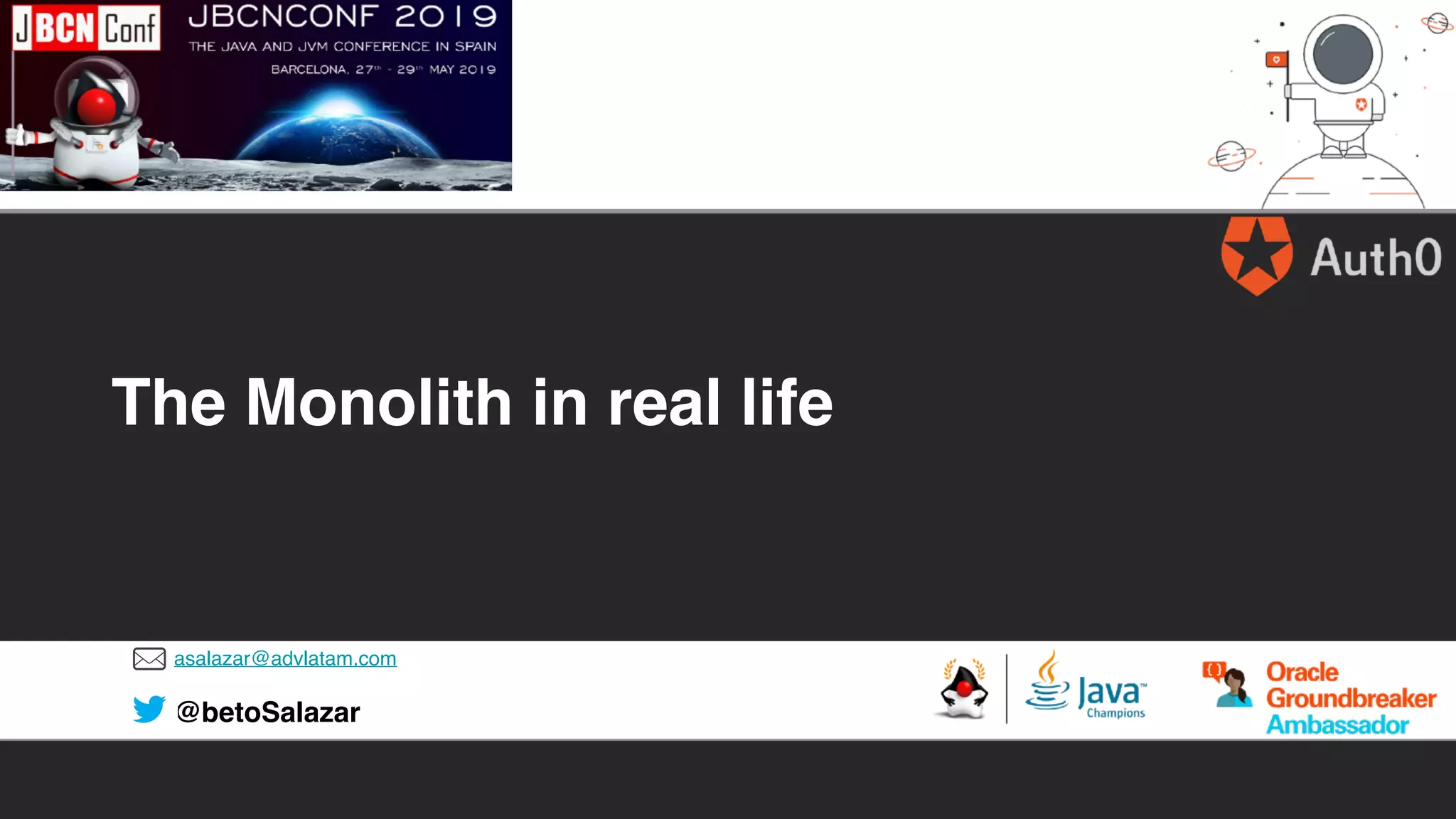

The Monolith in real life

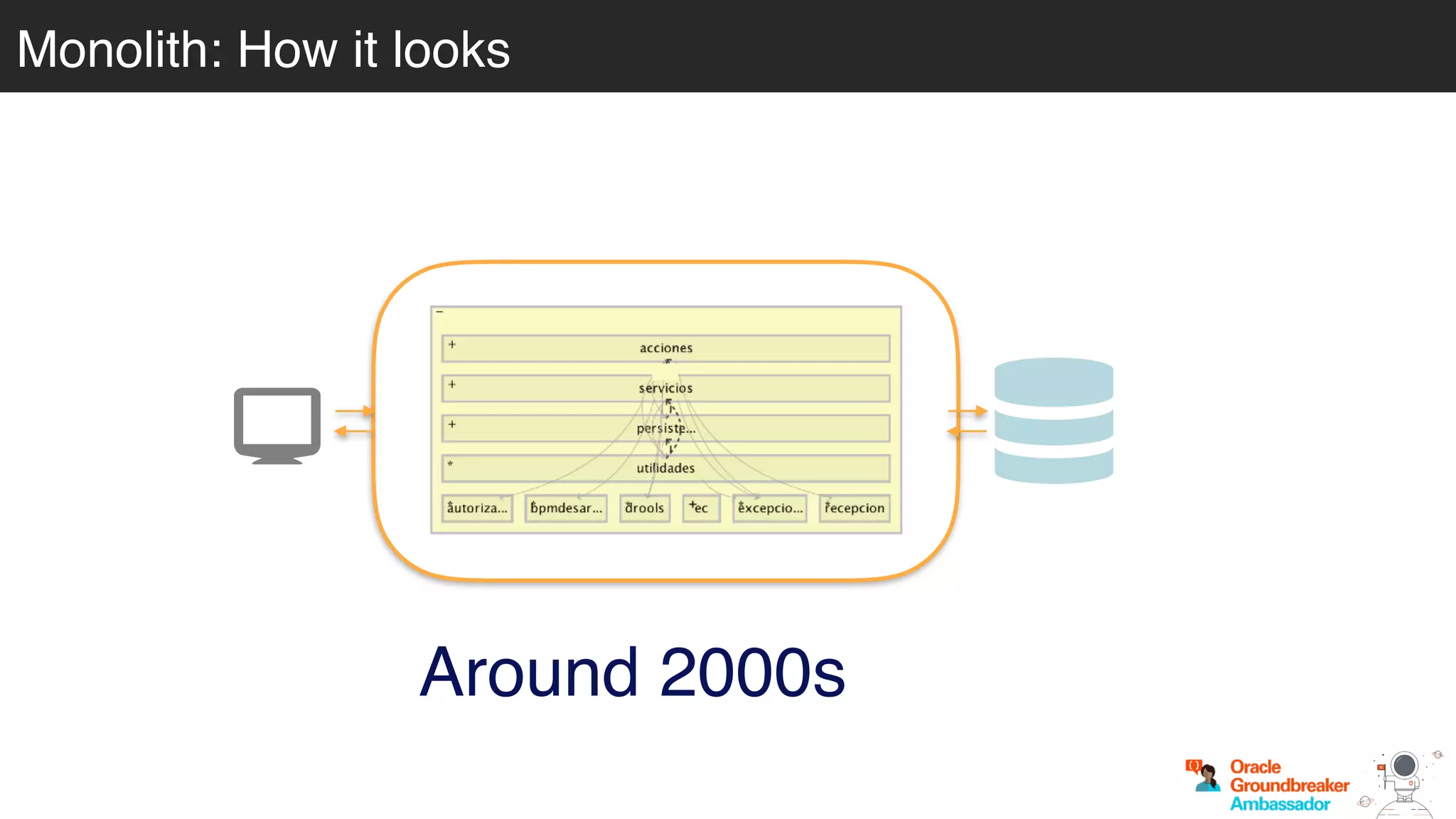

18. Around 2000s
Monolith: How it looks

19. What is the problem ?What is the problem ?
Around 2000s

20. What is the problem ?What is the problem ?
@betoSalazar
Grow the code and the team

21. What is the problem ?What is the problem ?
@betoSalazar
Modular really ?

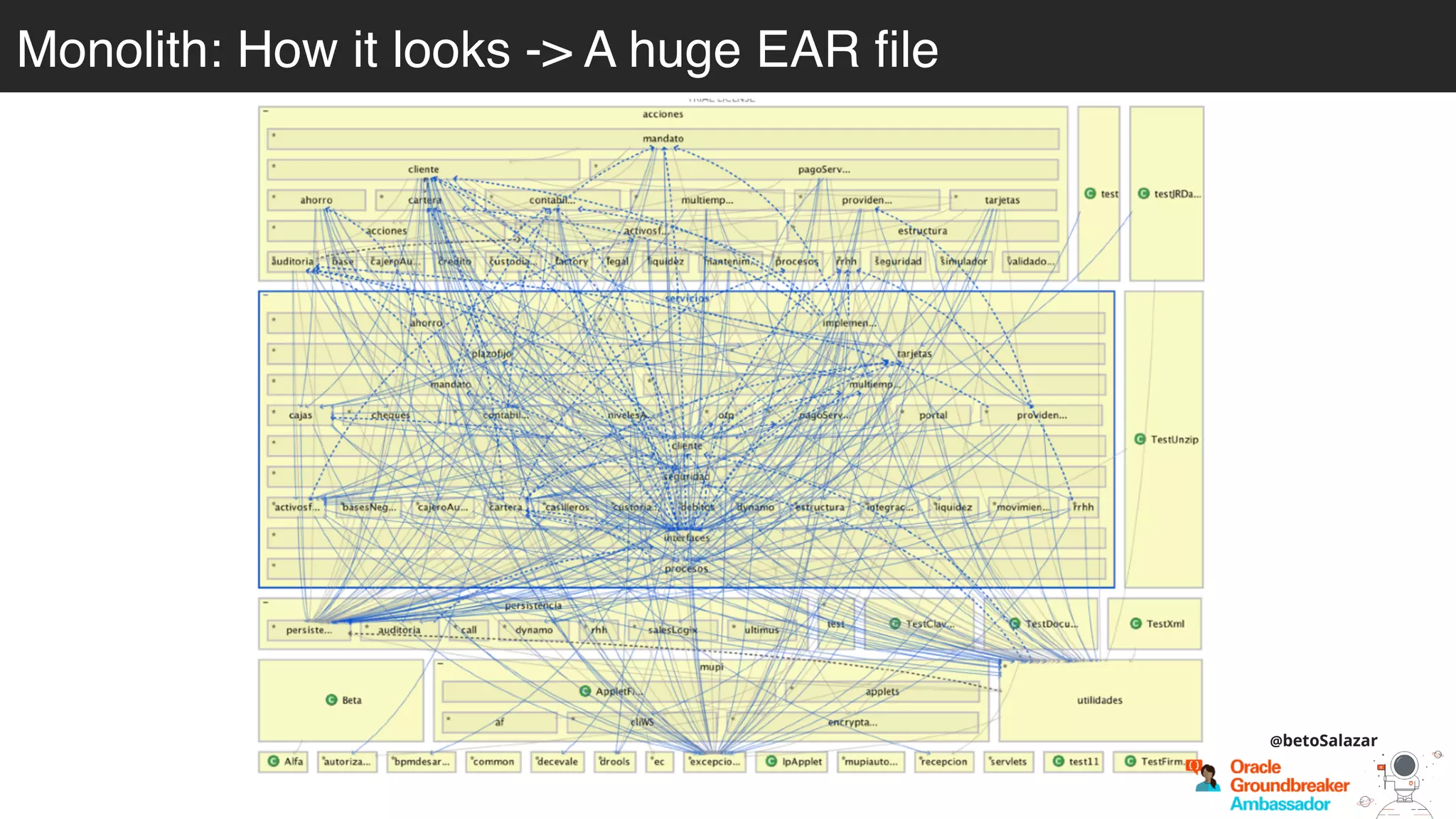

22. Monolith: How it looks -> A huge EAR file
@betoSalazar

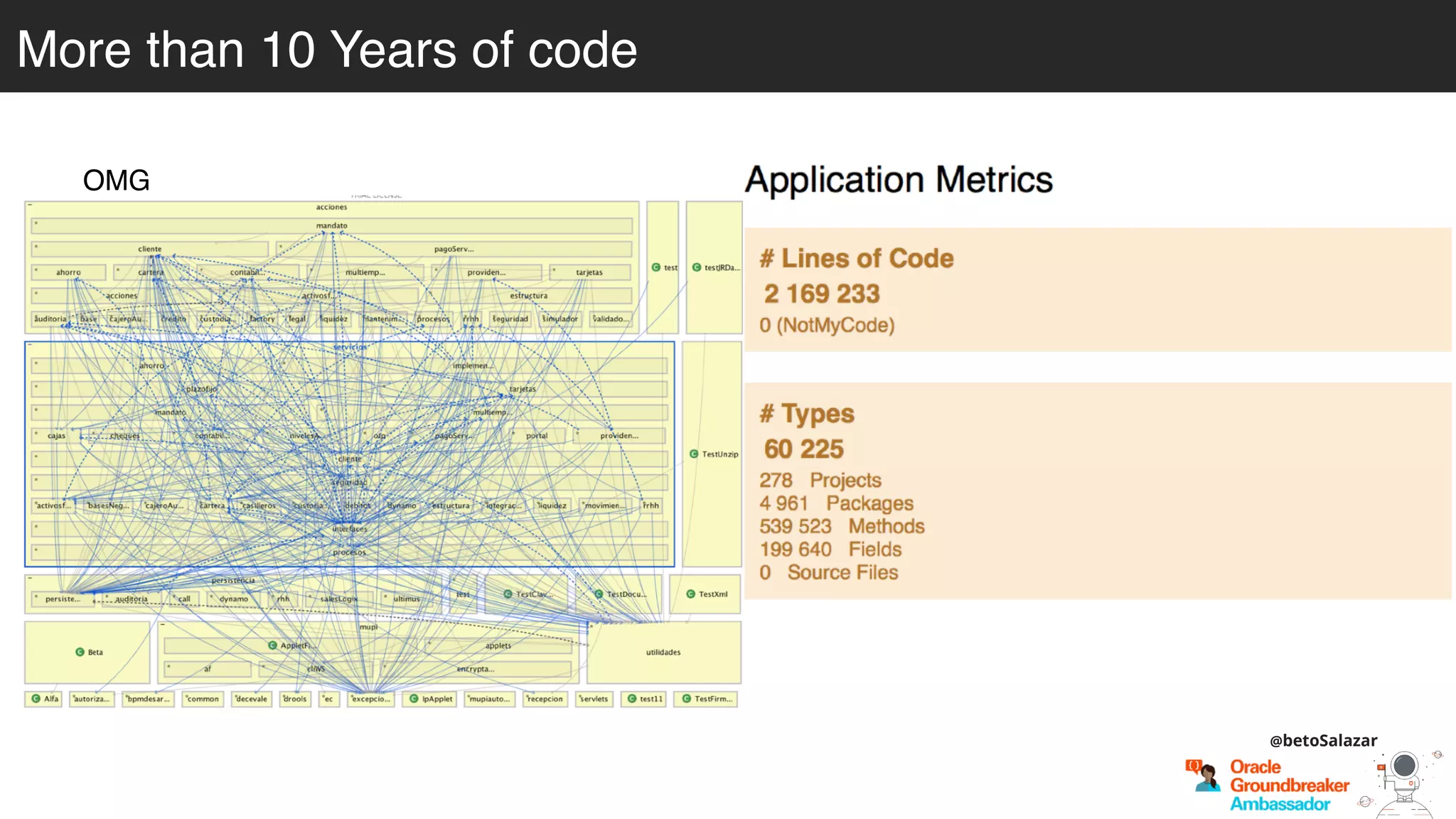

23. More than 10 Years of code
OMG
@betoSalazar

24. @betoSalazar
The experience
Transactions Scale all or nothing
Fail all or nothing
Cost of maintenance
Coordinate releases
Trace and log
Only one tech stack

25. Nowadays Architecture Trends

26. asalazar@advlatam.com
@betoSalazar
Microservices really ?

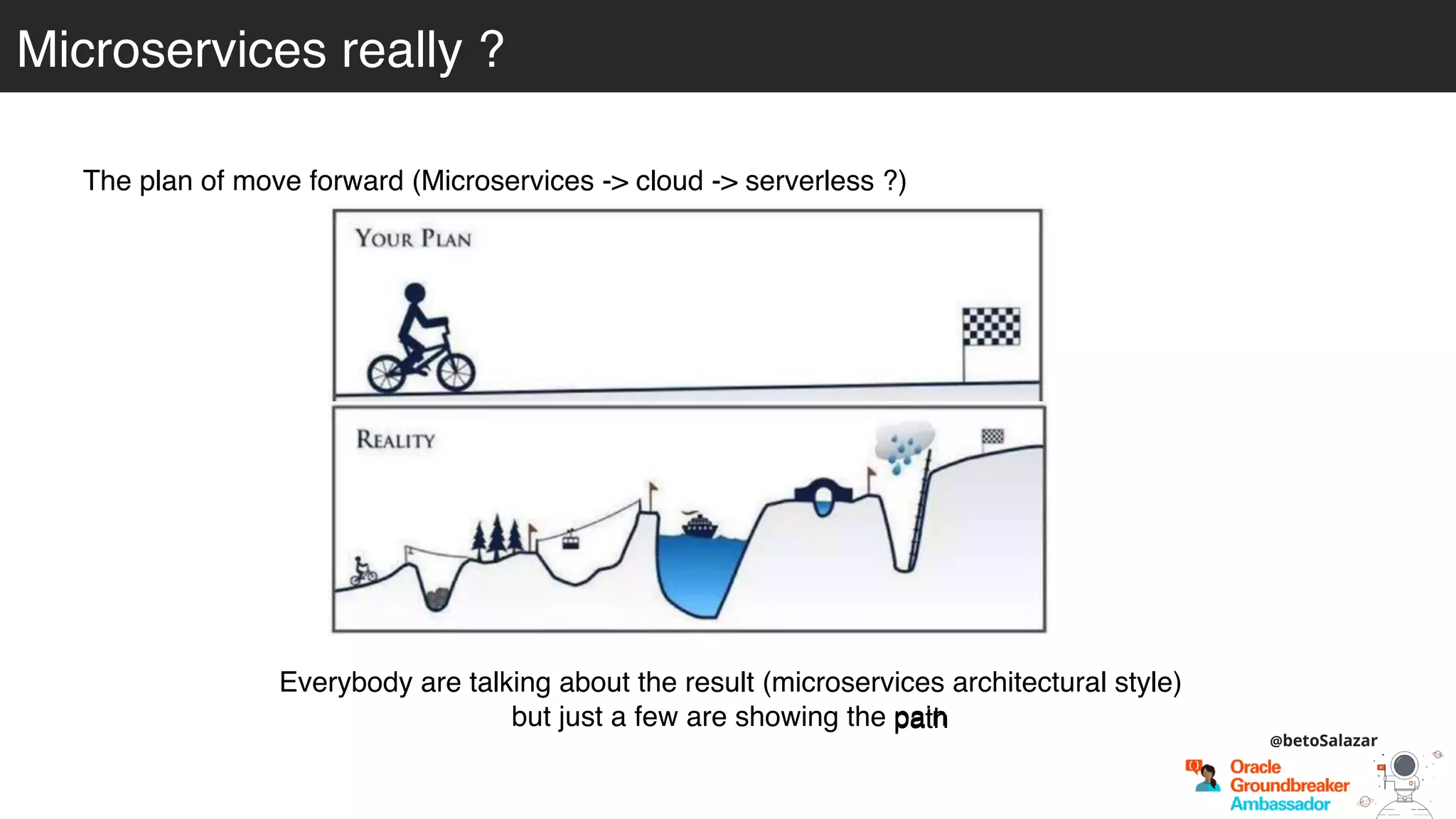

27. Microservices really ?
The plan of move forward (Microservices -> cloud -> serverless ?)
Everybody are talking about the result (microservices architectural style)
but just a few are showing the painpath
@betoSalazar

28. The Monolith to Microservices
How it looks
http://microservices.io/patterns/monolithic.html http://microservices.io/patterns/microservices.html
@betoSalazar

29. Microservices really ?
@betoSalazar

30. Move to Microservices my experience
@betoSalazar
!Split and establish interfaces (Test)
!Reuse business logic (Test)
!Move in parts the frontend (Evolve)
!Rewrite or refactor the backend (Test)
!Cultural evolution (CI - CD - DevOps)

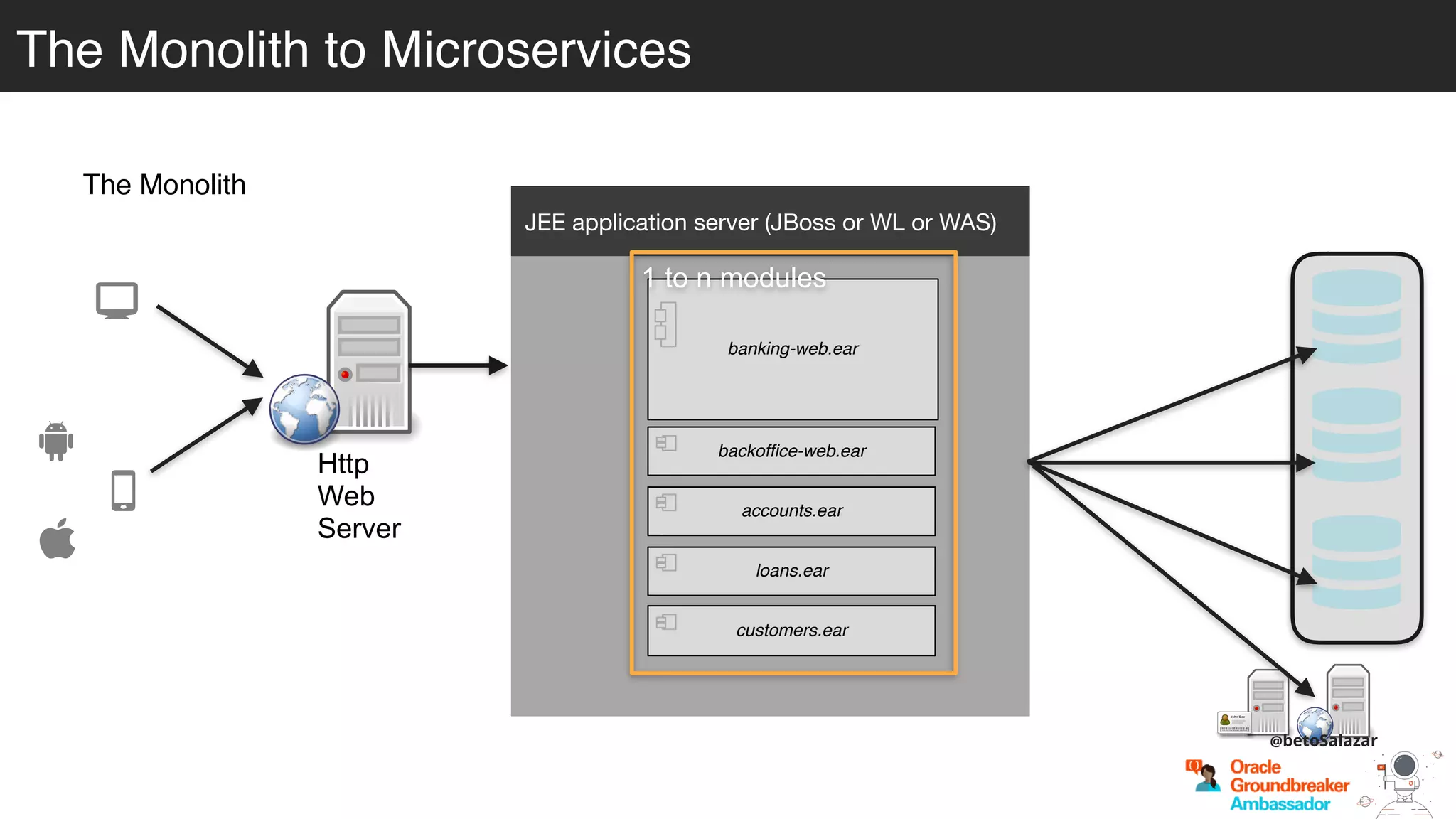

31. JEE application server (JBoss or WL or WAS)
banking-web.ear
backoffice-web.ear
accounts.ear
loans.ear
customers.ear
The Monolith to Microservices
The Monolith
1 to n modules
Http
Web
Server
@betoSalazar

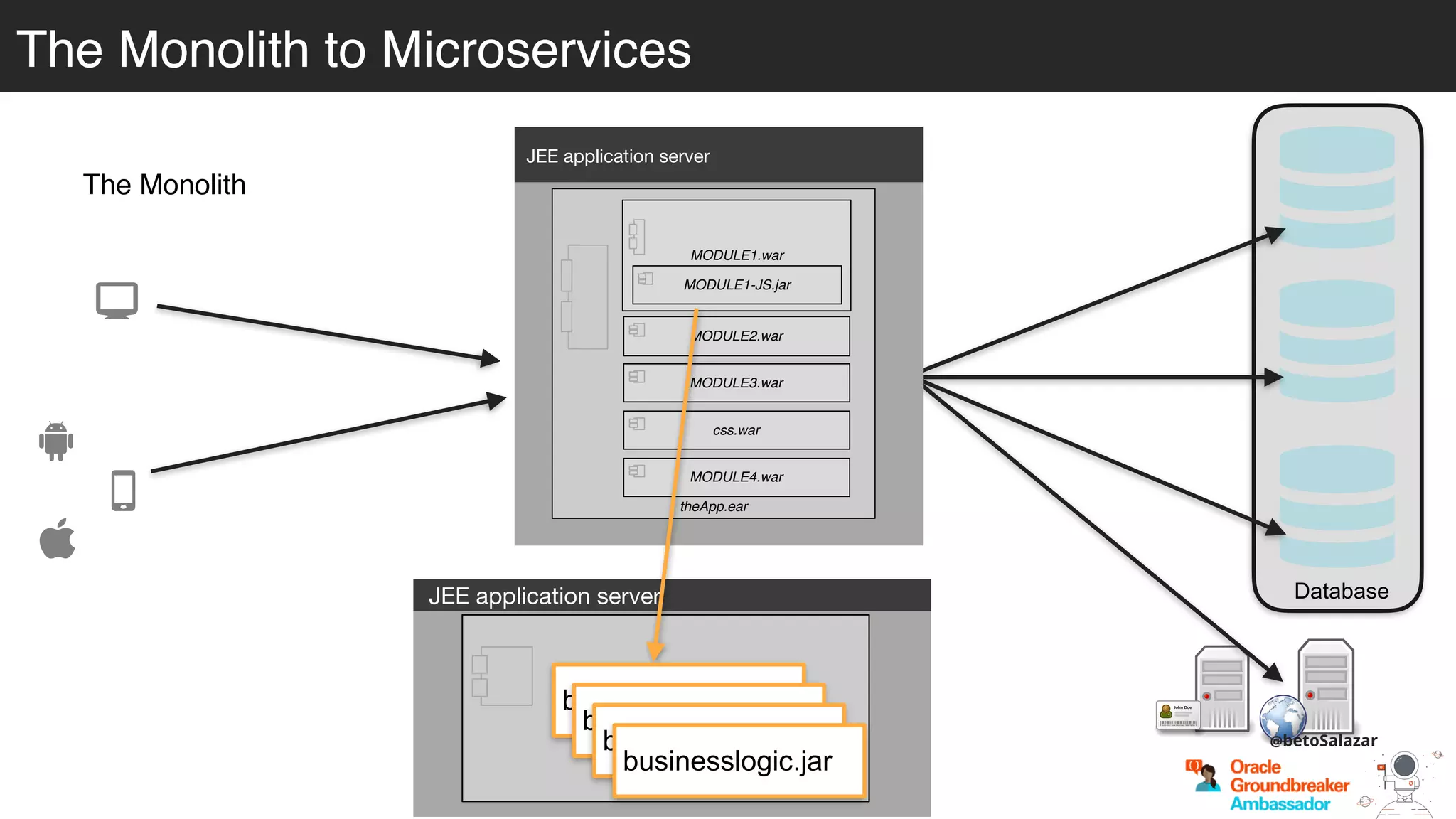

32. JEE application server
The Monolith
Database
JEE application server
theApp.ear
MODULE1.war
MODULE1-JS.jar
MODULE2.war
MODULE3.war
css.war
MODULE4.war
businesslogic.jar
businesslogic.jar
businesslogic.jar
businesslogic.jar
@betoSalazar
The Monolith to MicroservicesThe Monolith to Microservices

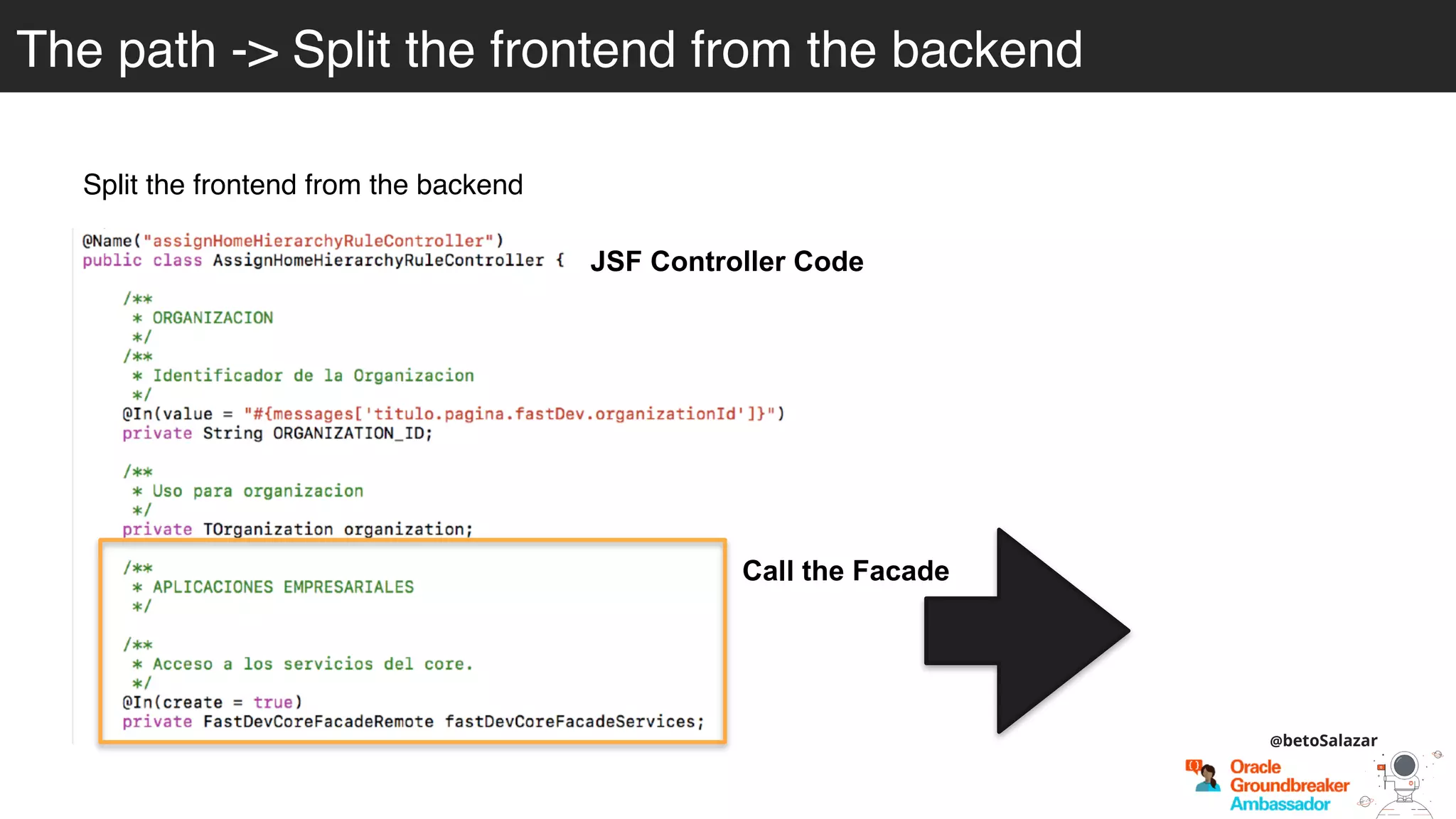

33. Split the frontend from the backend
JSF Controller Code
Call the Facade
The path -> Split the frontend from the backend
@betoSalazar

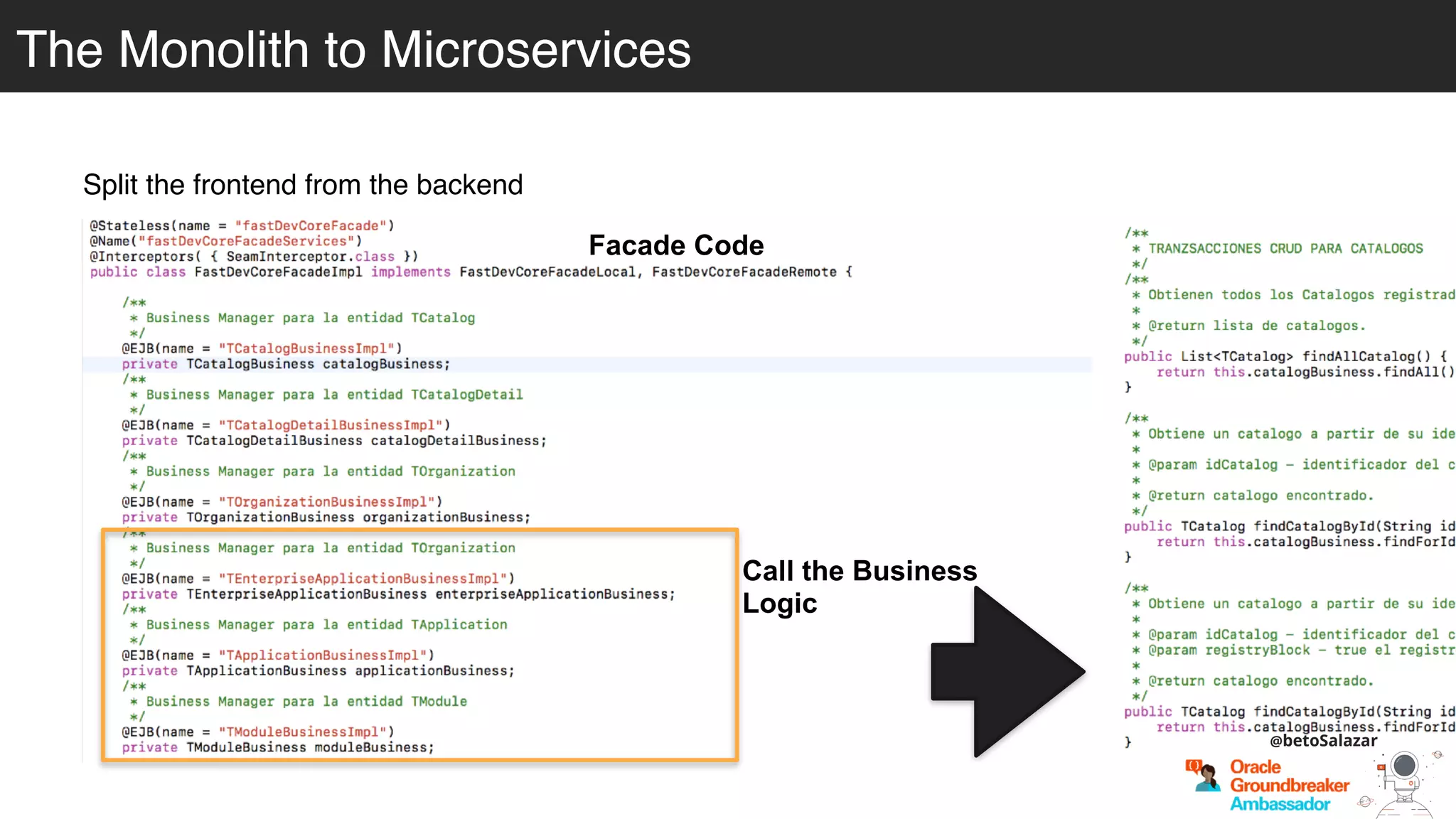

34. Split the frontend from the backend
Facade Code
Call the Business
Logic
@betoSalazar
The Monolith to MicroservicesThe Monolith to Microservices

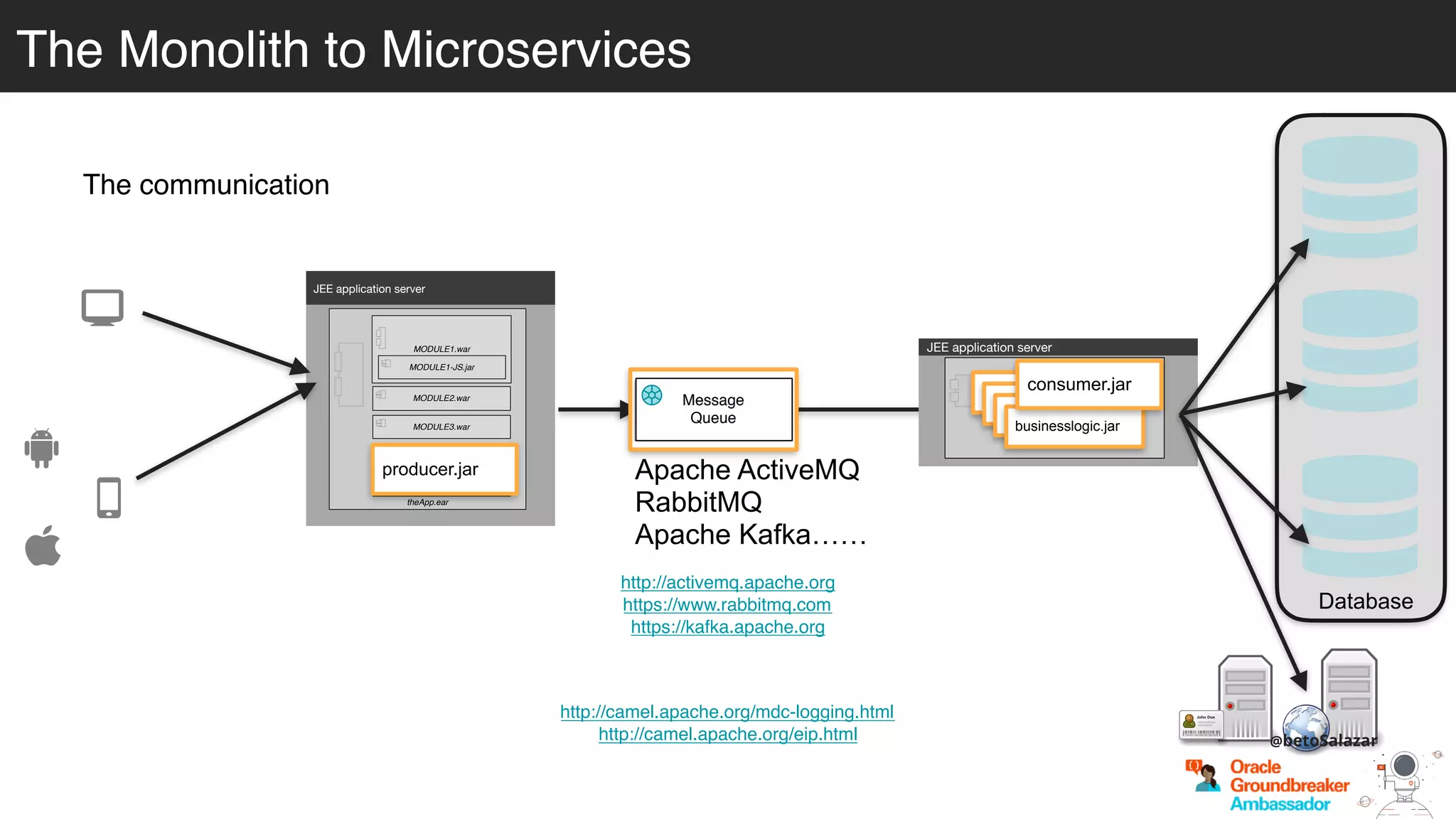

35. The communication
JEE application server
theApp-backend.ear
businesslogi
businesslogi
businesslogibusinesslogic.jar
JEE application server
theApp.ear
MODULE1.war
MODULE1-JS.jar
MODULE2.war
MODULE3.war
css.war
MODULE4.war
Database
Message
Queue
Apache ActiveMQ
RabbitMQ
Apache Kafka……
http://activemq.apache.org
https://www.rabbitmq.com
https://kafka.apache.org
producer.jar
http://camel.apache.org/mdc-logging.html
http://camel.apache.org/eip.html
consumer.jar
@betoSalazar
The Monolith to MicroservicesThe Monolith to Microservices

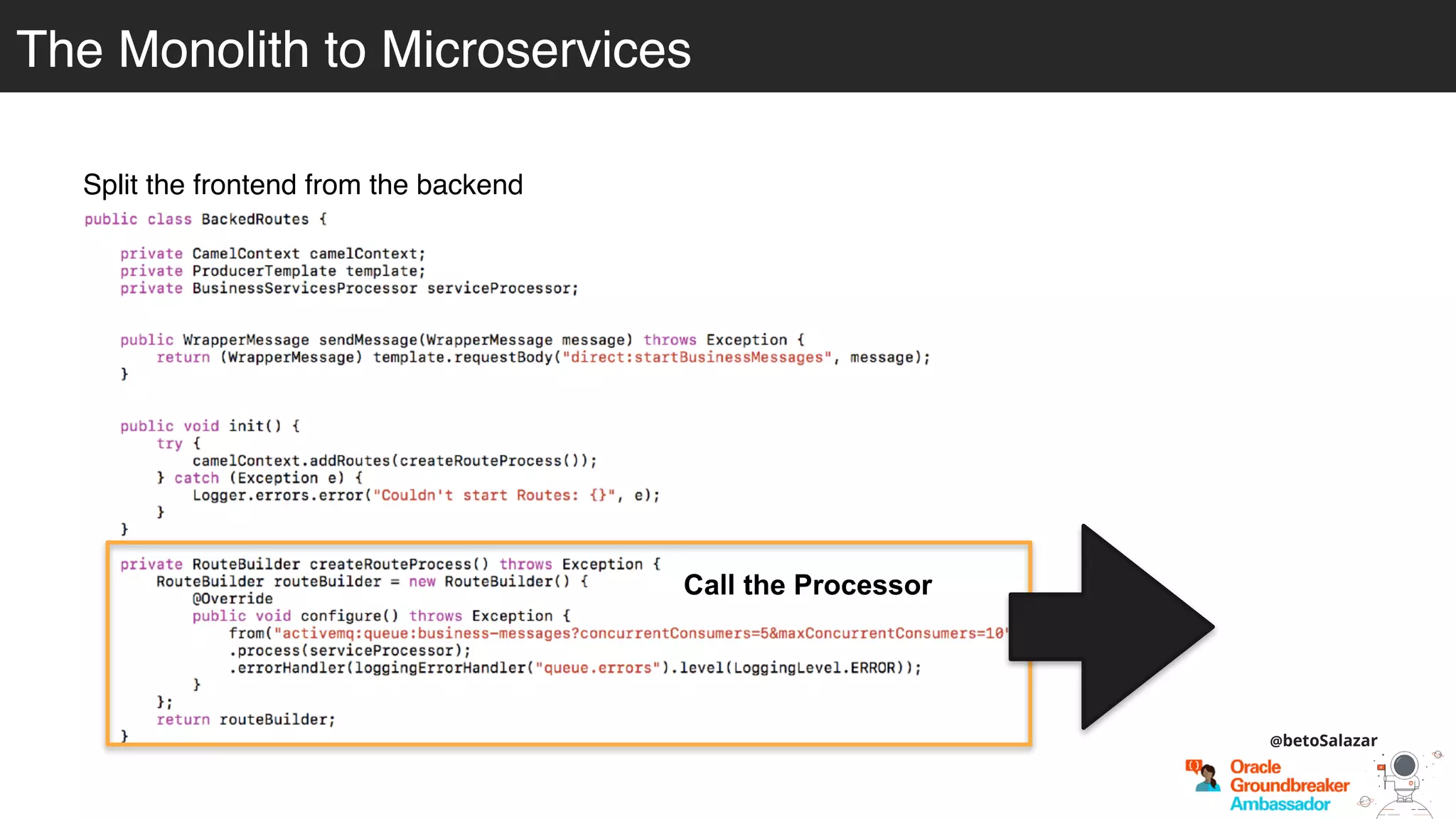

36. Split the frontend from the backend
Call the Processor
@betoSalazar
The Monolith to MicroservicesThe Monolith to Microservices

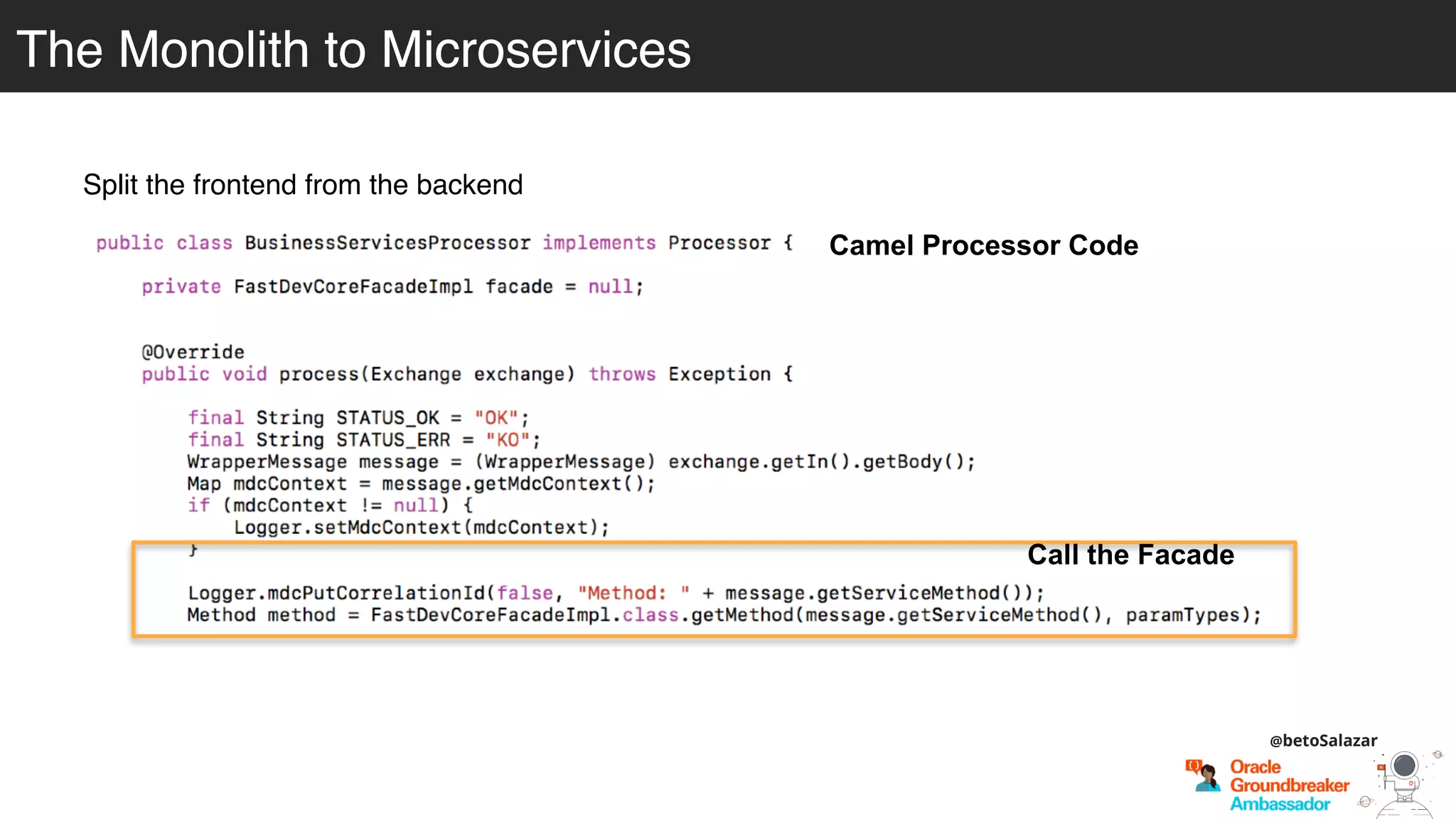

37. Split the frontend from the backend
Camel Processor Code
Call the Facade
@betoSalazar
The Monolith to MicroservicesThe Monolith to Microservices

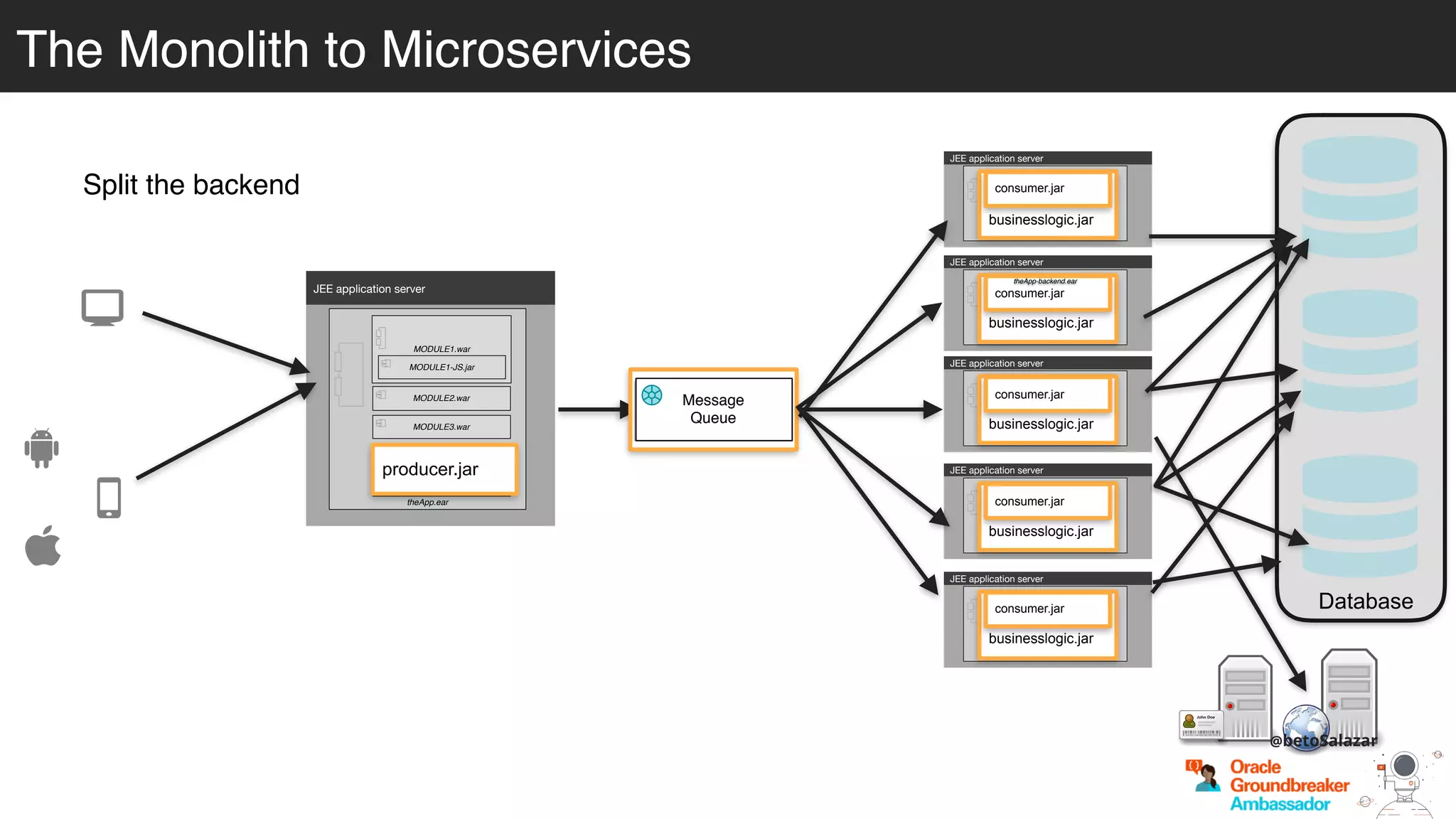

38. JEE application server
theApp.ear
MODULE1.war
MODULE1-JS.jar
MODULE2.war
MODULE3.war
css.war
MODULE4.war
Database
Message
Queue
producer.jar
JEE application server
theApp-backend.ear
businesslogic.jar
consumer.jar
JEE application server
theApp-backend.ear
businesslogic.jar
consumer.jar
JEE application server
theApp-backend.ear
businesslogic.jar
consumer.jar
JEE application server
theApp-backend.ear
businesslogic.jar
consumer.jar
JEE application server
theApp-backend.ear
businesslogic.jar
consumer.jar
Split the backend
@betoSalazar
The Monolith to MicroservicesThe Monolith to Microservices

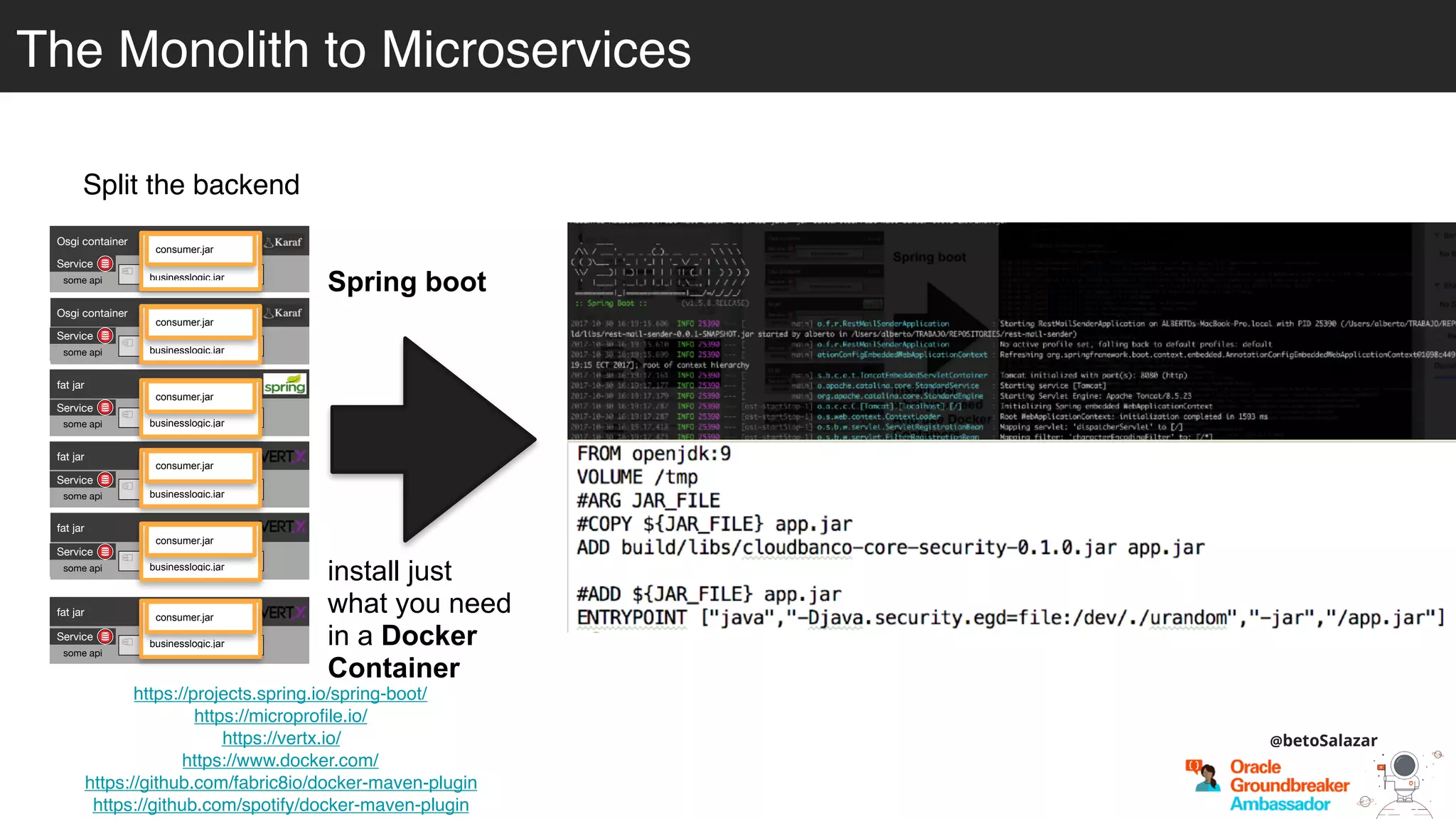

39. Split the backend
https://projects.spring.io/spring-boot/
https://microprofile.io/
https://vertx.io/
https://www.docker.com/
https://github.com/fabric8io/docker-maven-plugin
https://github.com/spotify/docker-maven-plugin
Spring boot
install just
what you need
in a Docker
Container
Osgi container
engine-orchestrator.jar
Osgi container
dynamic-camel-routes.jar
fat jar
batch.jar
fat jar
services.jar
fat jar
business-module1.jar
fat jar
business-module-n.jar
Service
some api
Service
some api
Service
some api
Service
some api
Service
some api
Service
some api
businesslogic.jar
consumer.jar
businesslogic.jar
consumer.jar
businesslogic.jar
consumer.jar
businesslogic.jar
consumer.jar
businesslogic.jar
consumer.jar
businesslogic.jar
consumer.jar
@betoSalazar
The Monolith to Microservices

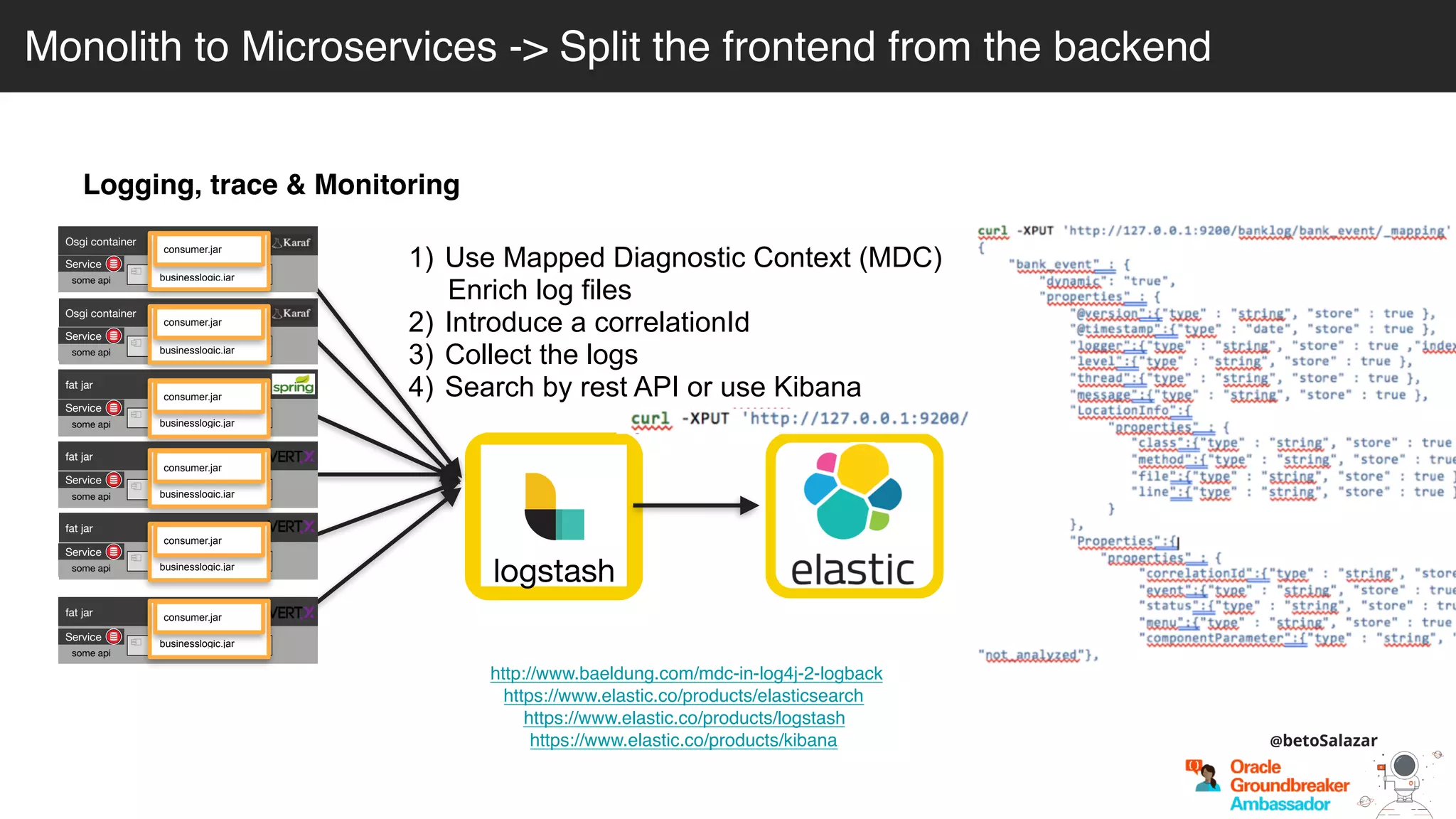

40. Logging, trace & Monitoring
http://www.baeldung.com/mdc-in-log4j-2-logback
https://www.elastic.co/products/elasticsearch
https://www.elastic.co/products/logstash
https://www.elastic.co/products/kibana
logstash
1) Use Mapped Diagnostic Context (MDC)
Enrich log files
2) Introduce a correlationId
3) Collect the logs
4) Search by rest API or use Kibana
Osgi container
engine-orchestrator.jar
Osgi container
dynamic-camel-routes.jar
fat jar
batch.jar
fat jar
services.jar
fat jar
business-module1.jar
fat jar
business-module-n.jar
Service
some api
Service
some api
Service
some api
Service
some api
Service
some api
Service
some api
businesslogic.jar
consumer.jar
businesslogic.jar
consumer.jar
businesslogic.jar
consumer.jar
businesslogic.jar
consumer.jar
businesslogic.jar
consumer.jar
businesslogic.jar
consumer.jar
Monolith to Microservices -> Split the frontend from the backend
@betoSalazar

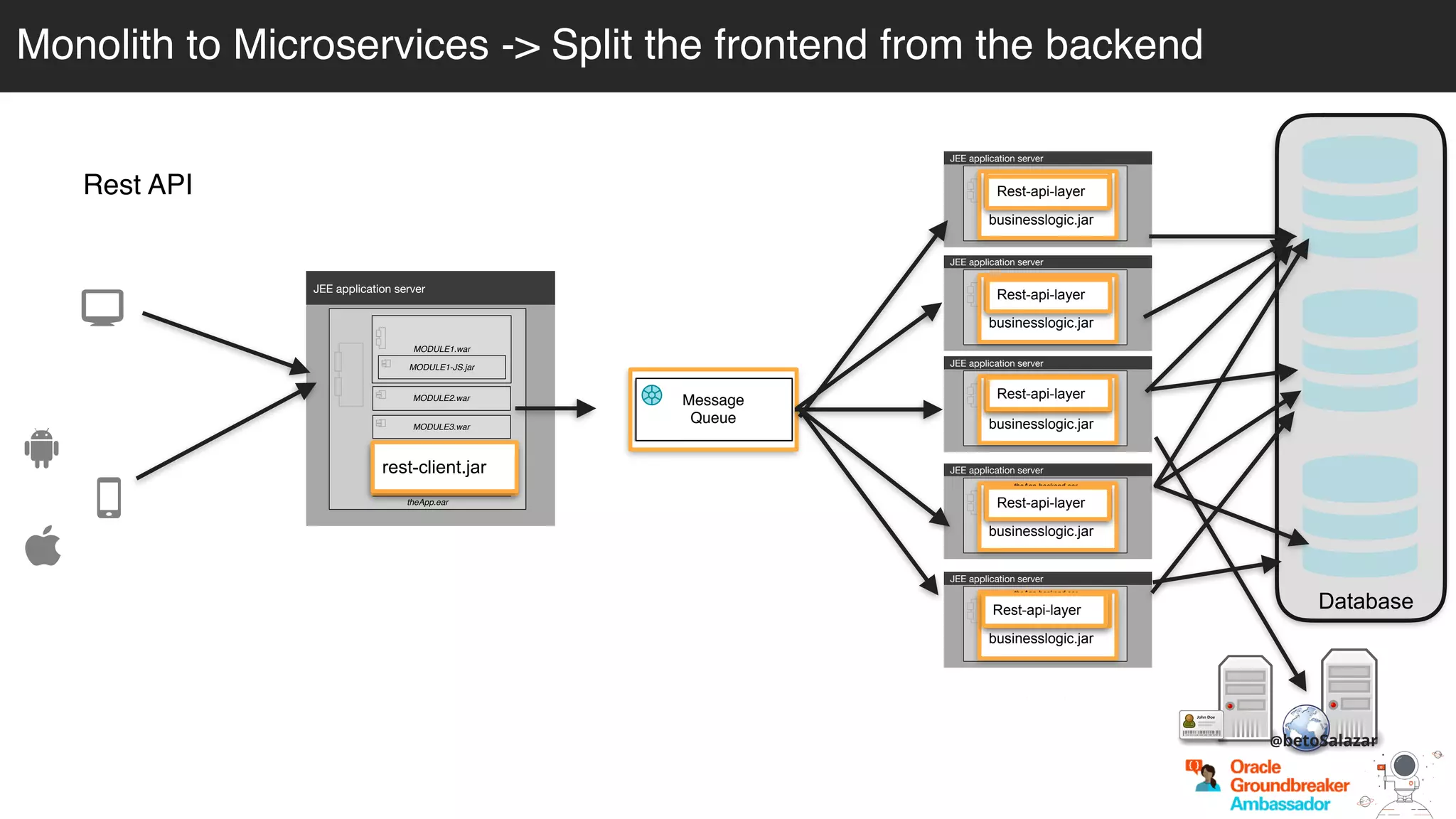

41. JEE application server
theApp-backend.ear
businesslogic.jar
consumer.jar
JEE application server
theApp-backend.ear
businesslogic.jar
consumer.jar
JEE application server
theApp-backend.ear
businesslogic.jar
consumer.jar
JEE application server
theApp.ear
MODULE1.war
MODULE1-JS.jar
MODULE2.war
MODULE3.war
css.war
MODULE4.war
Database
Message
Queue
producer.jar
JEE application server
theApp-backend.ear
businesslogic.jar
consumer.jar
JEE application server
theApp-backend.ear
businesslogic.jar
consumer.jarRest API
rest-client.jar
Rest-api-layer
Rest-api-layer
Rest-api-layer
Rest-api-layer
Rest-api-layer
Monolith to Microservices -> Split the frontend from the backend
@betoSalazar

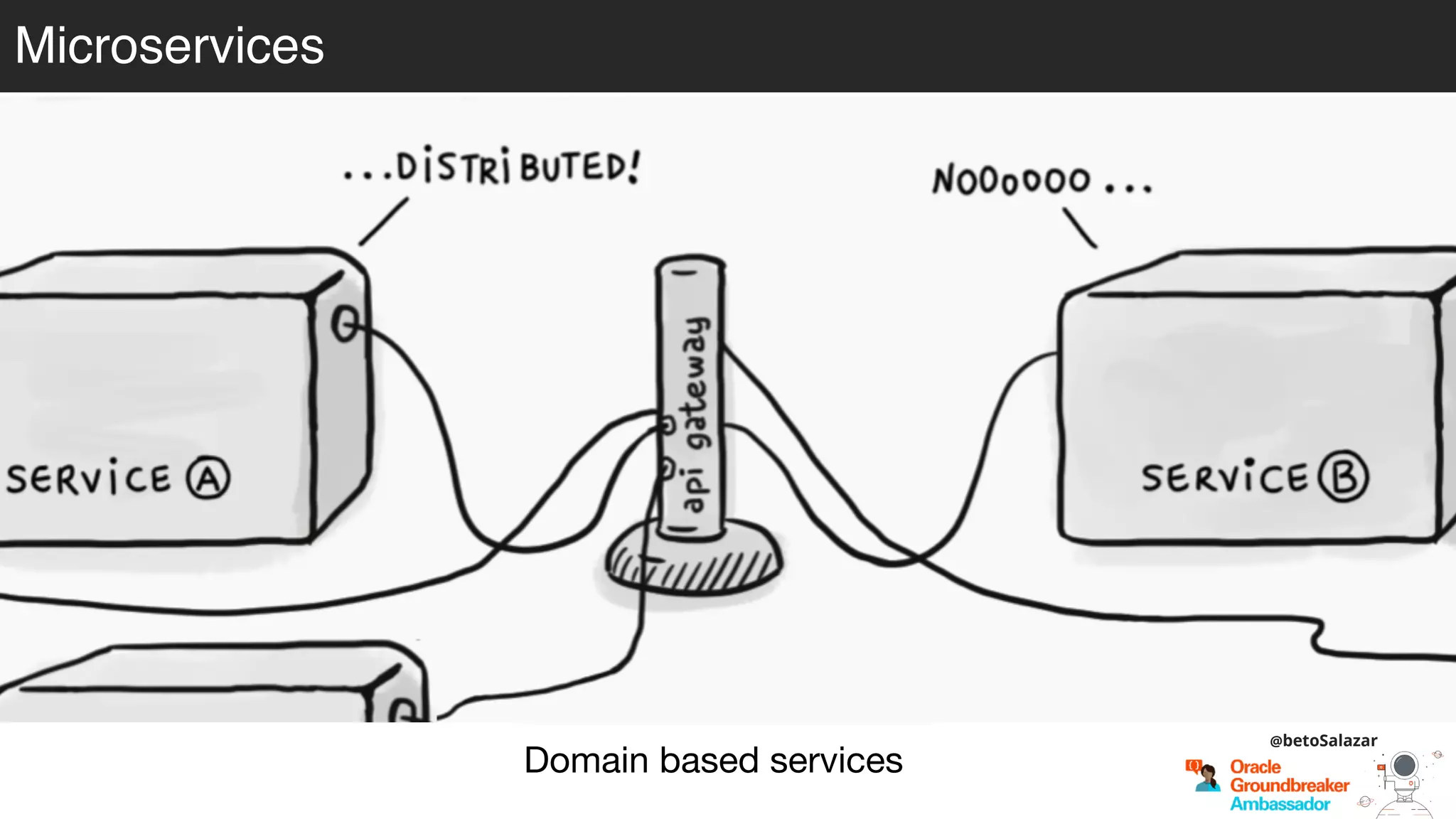

42. Microservices
Domain based services
@betoSalazar

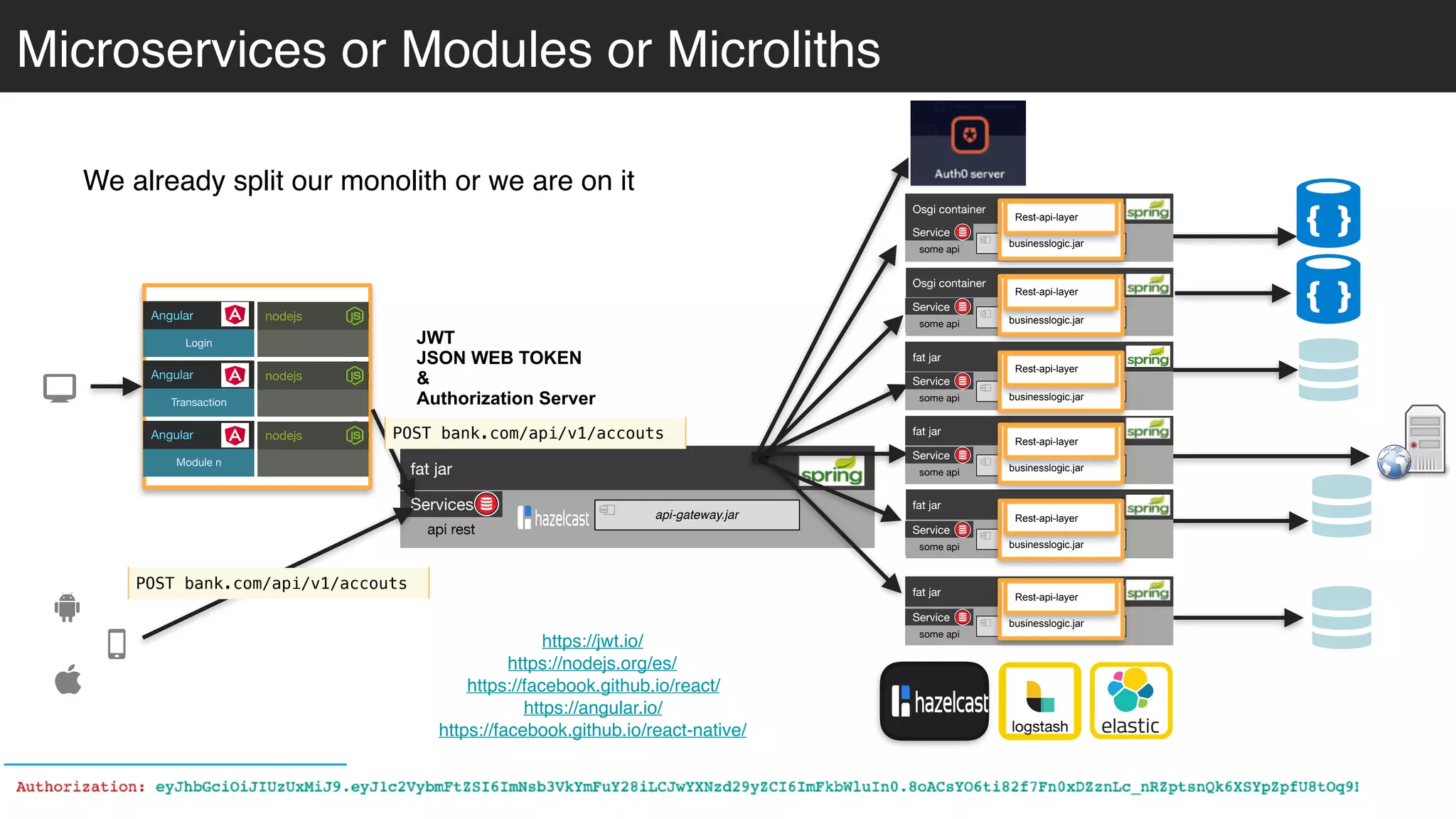

43. Microservices or Modules or Microliths
We already split our monolith or we are on it
https://jwt.io/
https://nodejs.org/es/
https://facebook.github.io/react/
https://angular.io/
https://facebook.github.io/react-native/
fat jar
api-gateway.jar
Services
api rest
POST bank.com/api/v1/accouts
POST bank.com/api/v1/accouts
logstash
Login
Angular nodejs
Transaction
Angular nodejs
Module n
Angular nodejs
Osgi container
engine-orchestrator.jar
Osgi container
dynamic-camel-routes.jar
fat jar
batch.jar
fat jar
services.jar
fat jar
business-module1.jar
fat jar
business-module-n.jar
Service
some api
Service
some api
Service
some api
Service
some api
Service
some api
Service
some api
businesslogic.jar
Rest-api-layer
businesslogic.jar
Rest-api-layer
businesslogic.jar
Rest-api-layer
businesslogic.jar
Rest-api-layer
businesslogic.jar
Rest-api-layer
businesslogic.jar
Rest-api-layer
JWT
JSON WEB TOKEN
&
Authorization Server

44. Containers - Orchestrators - Cloud Istio: Service Mesh
Containers (Docker) ->
Manage the same code + environment in diferente stages
Orchestrators (Kubernetes, Docker Swarm, Mesos) ->
We need to orchestrated our containers
Cloud (eg. Oracle Cloud, Google Cloud, AWS, Azure, Bluemix)
@betoSalazar

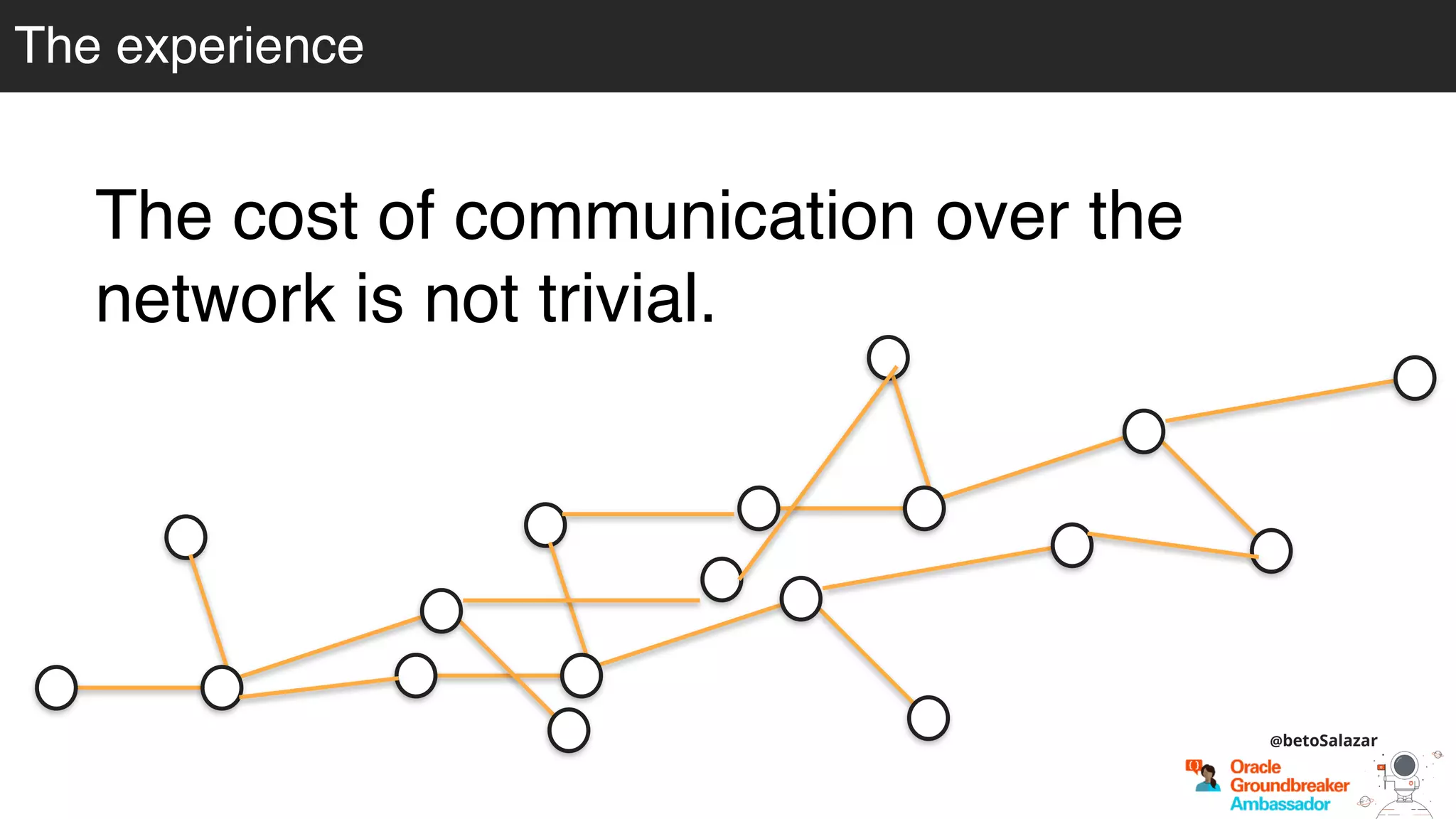

45. The cost of communication over the
network is not trivial.
@betoSalazar
The experience

46. It’s hard to trace the thread of execution in a
distributed system.
@betoSalazar
The experience

47. Eventual consistency ?
@betoSalazar

48. The experience
The cost of development goes up.
@betoSalazar

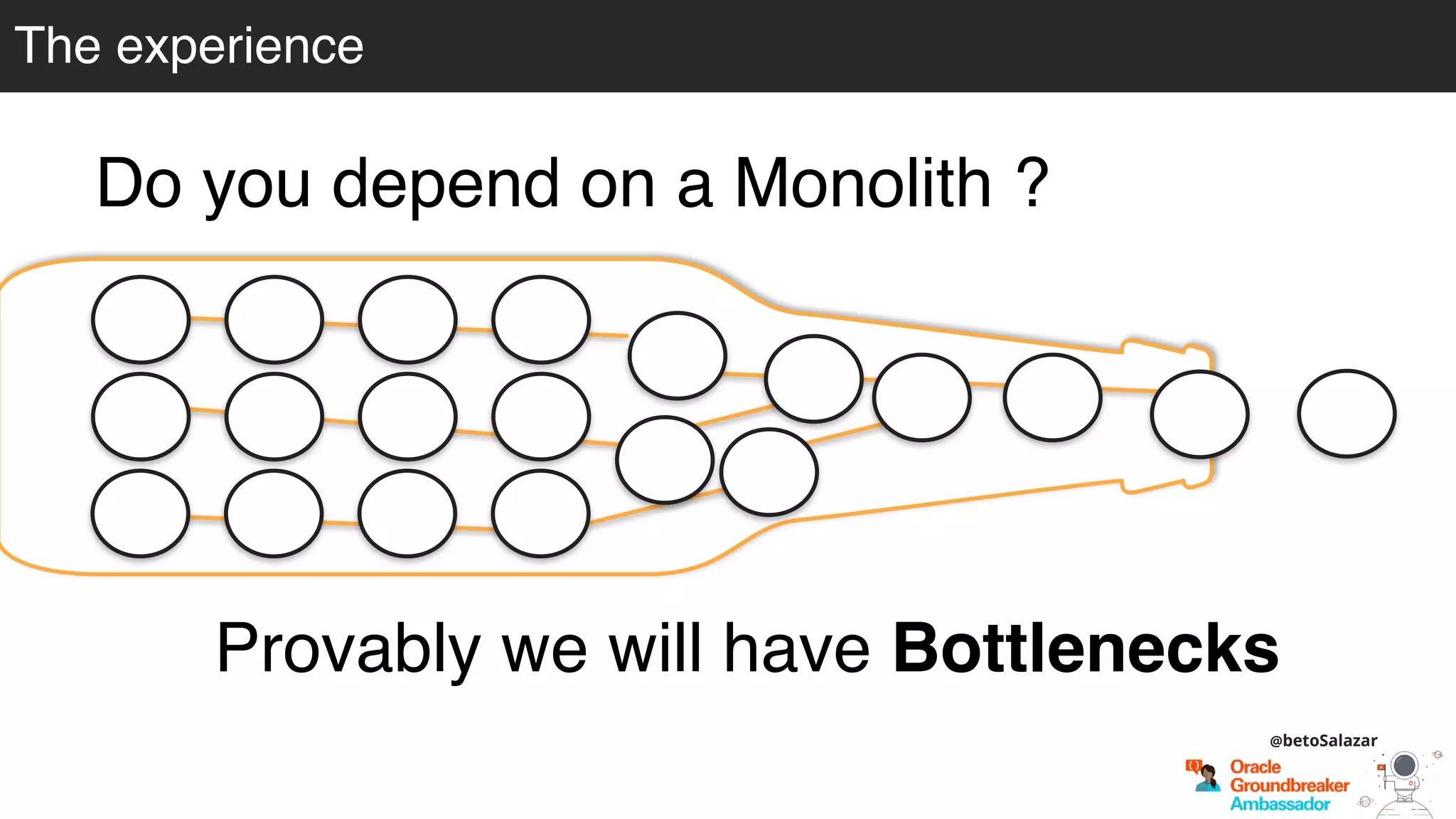

49. The experience
Do you depend on a Monolith ?
Provably we will have Bottlenecks
@betoSalazar

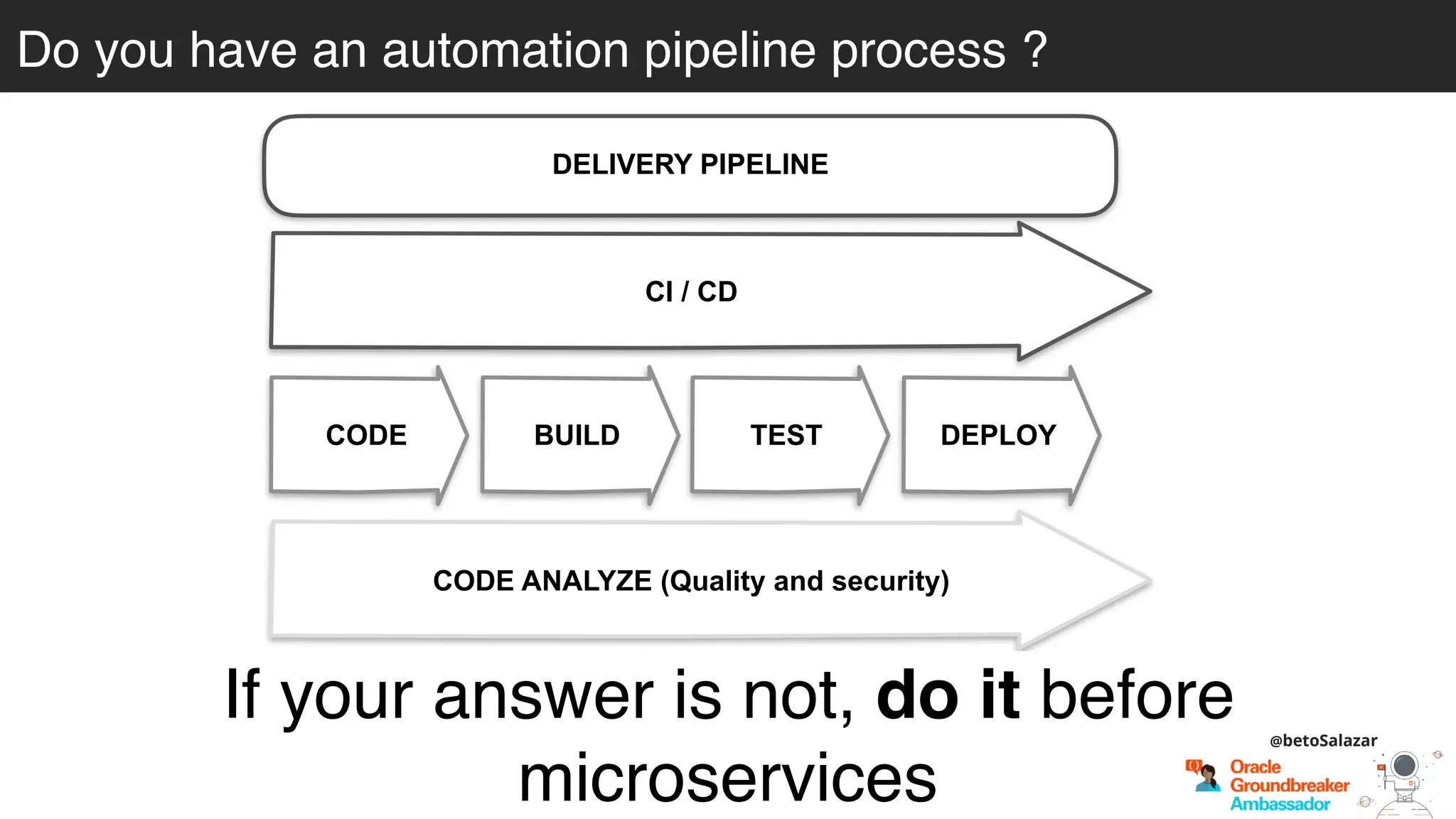

50. Do you have an automation pipeline process ?
DELIVERY PIPELINE
CI / CD
CODE BUILD TEST DEPLOY
CODE ANALYZE (Quality and security)
If your answer is not, do it before
microservices
@betoSalazar

51. @betoSalazar
The experience
2 phase commitScaling
Fail in parts
More tech stack
Trace and logging
Polyglot
Easy to understand
Lose Single data repo

52. asalazar@advlatam.com
@betoSalazar

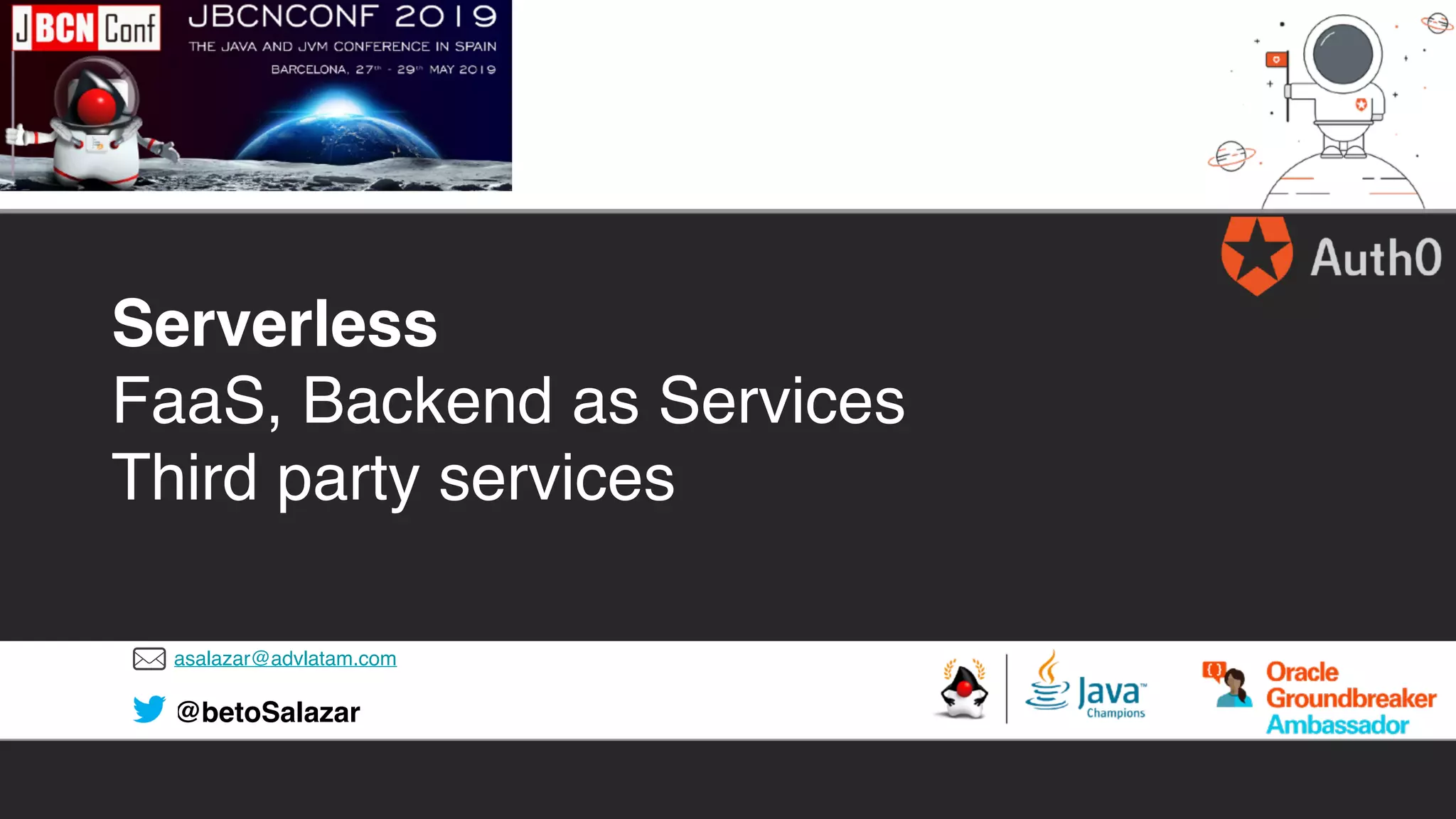

Serverless
FaaS, Backend as Services
Third party services

53. Serverless
Serverless
! Developers code business logic as functions
! Forgetting everything about the servers
provisioning and scaling concerns where the
logic will be executed
! Ephimeral
! Vendor lock-in is a myth
! Multicloud, get the best from each one (AWS,
Oracle Cloud, Google Cloud, AWS, Azure, etc)
! Troubleshooting is hard
@betoSalazar

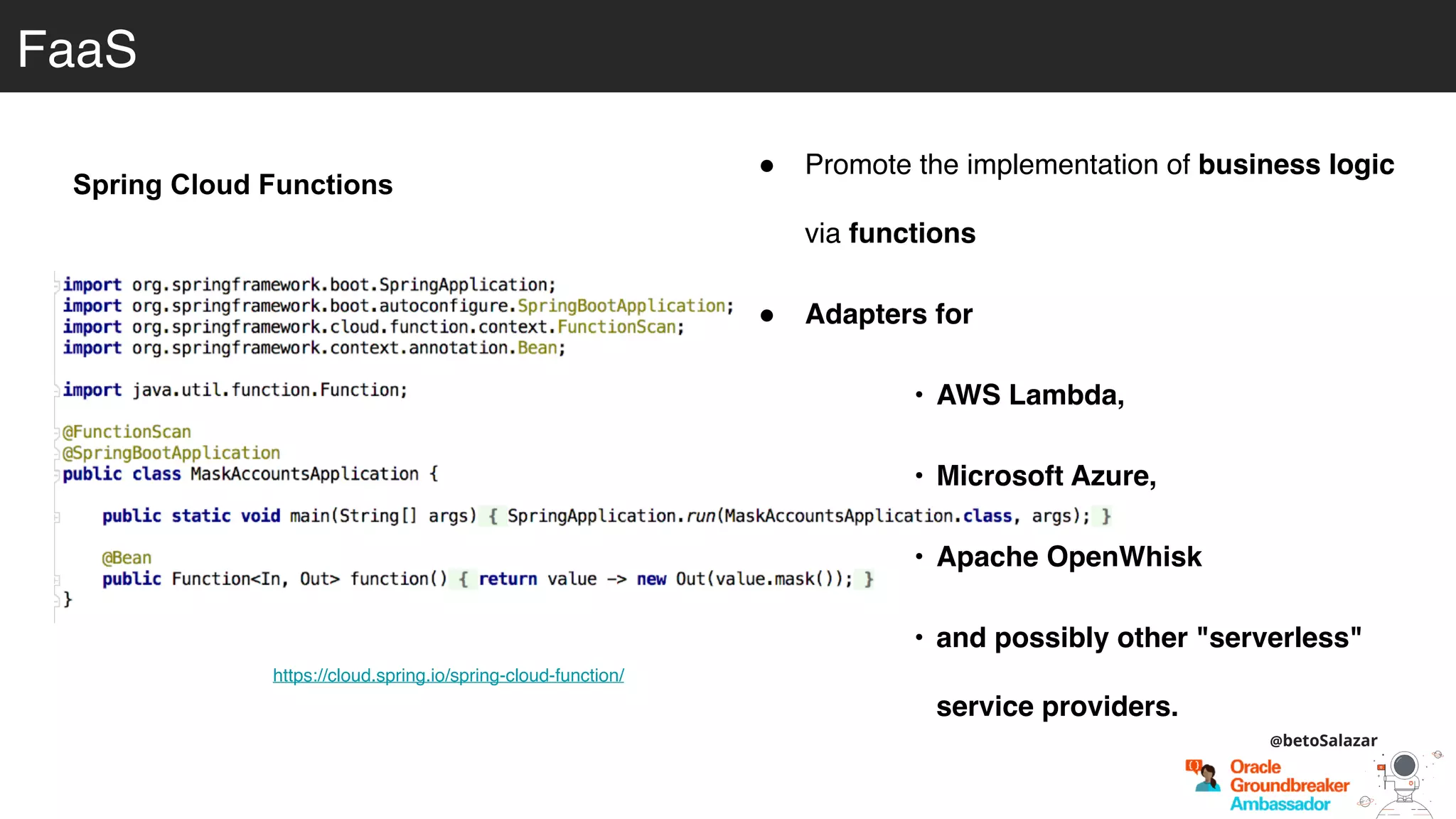

54. https://cloud.spring.io/spring-cloud-function/
Spring Cloud Functions
FaaS
! Promote the implementation of business logic
via functions
! Adapters for
• AWS Lambda,
• Microsoft Azure,
• Apache OpenWhisk
• and possibly other "serverless"
service providers.
@betoSalazar

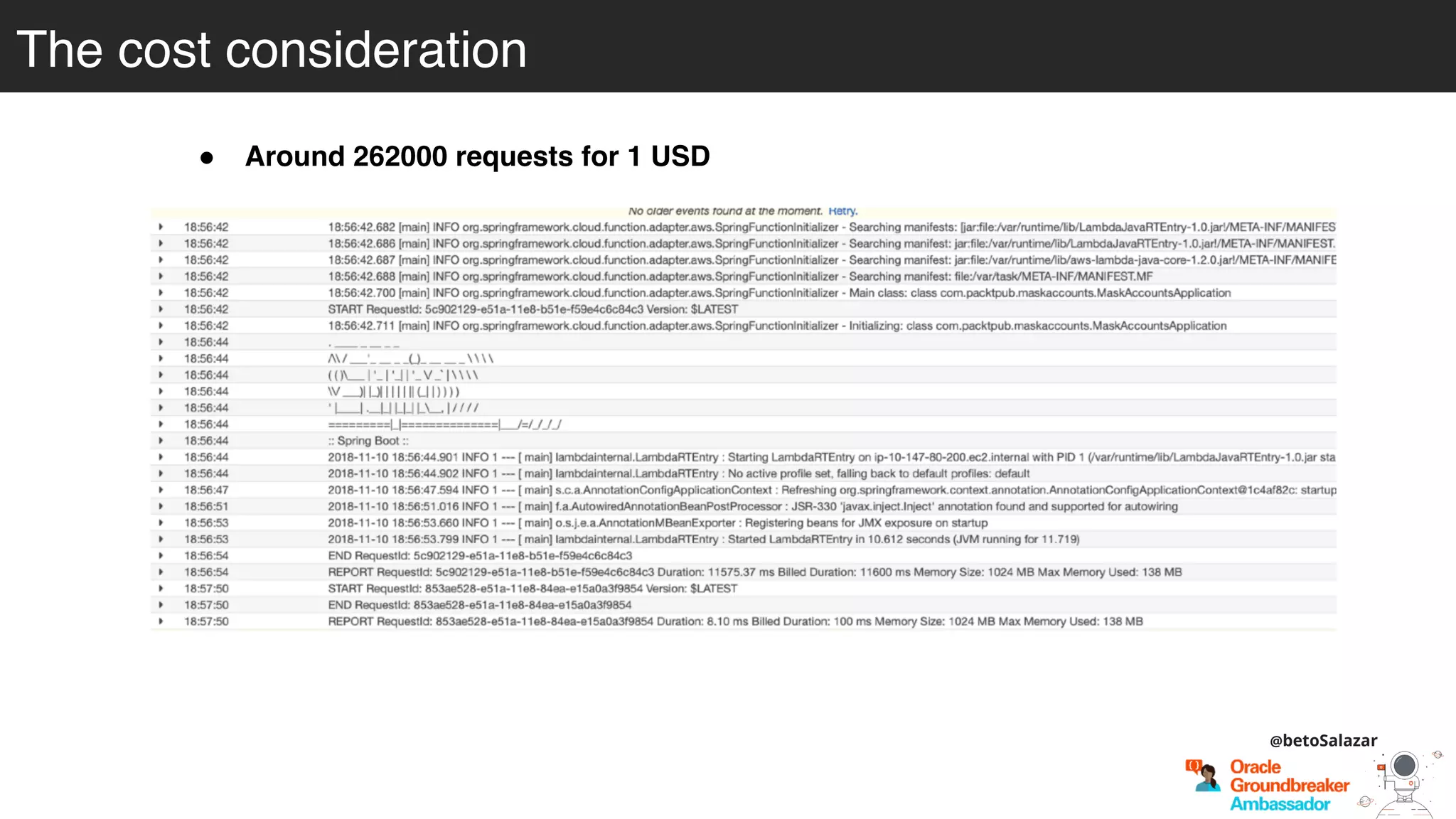

55. The cost consideration
@betoSalazar
! Around 262000 requests for 1 USD
• Request / function = 0.000000313 USD + 0.0000035 USD for the API
Gateway fees
• Around 100ms of time for every invocationAWS Lambda, and above the
minimum 128MB memory
!

56. @betoSalazar
The experience
Infra ready(serverless) Troubleshooting is hard
If it successful take
care about the Cost
Cold start time
I can create a set of
Microservices as
Functions
Failed fast

57. asalazar@advlatam.com
@betoSalazar
The Reality - Tips, tricks, pros , cons

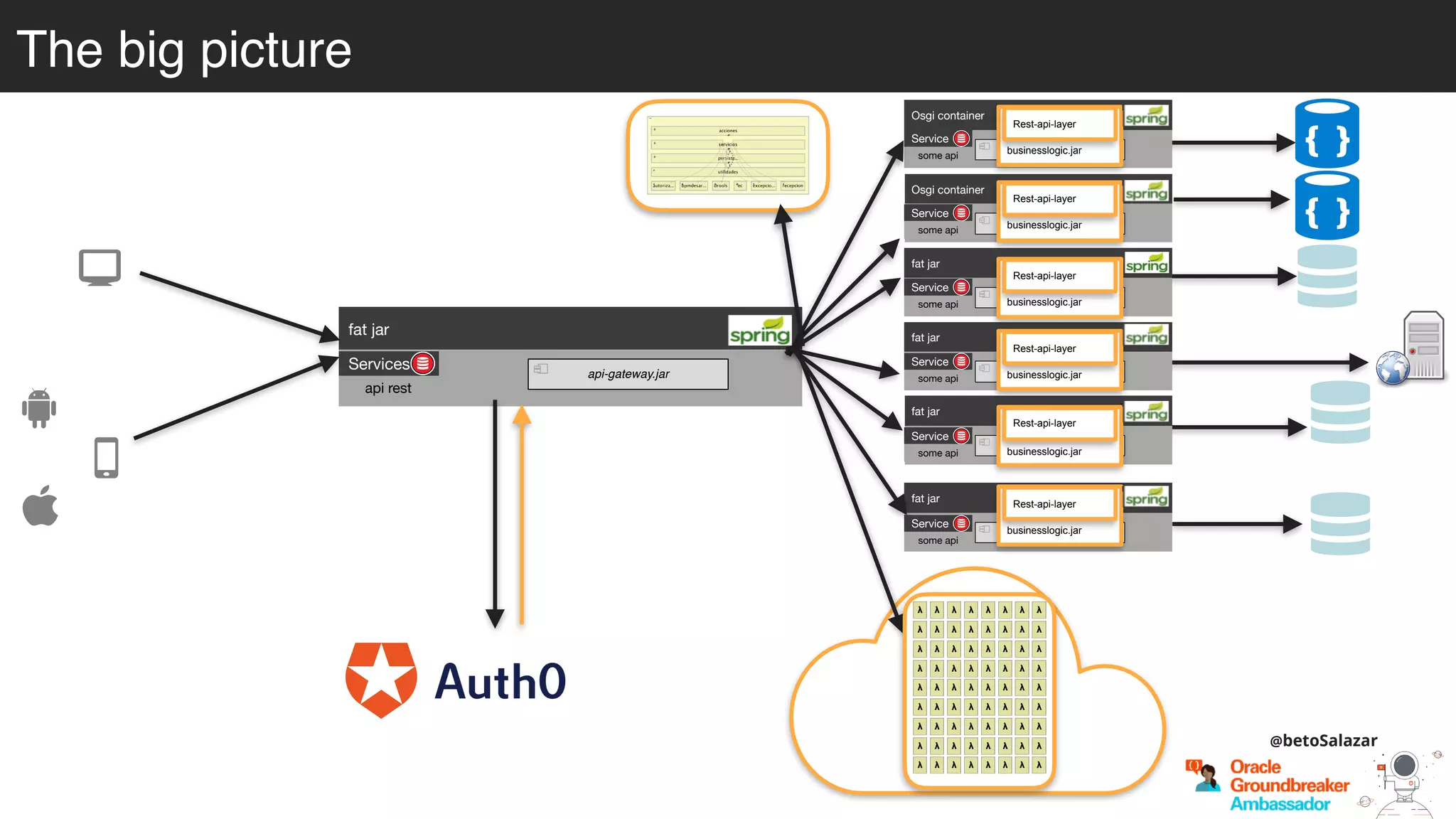

58. The big picture
Osgi container
engine-orchestrator.jar
Osgi container
dynamic-camel-routes.jar
fat jar
batch.jar
fat jar
services.jar
fat jar
business-module1.jar
fat jar
business-module-n.jar
Service
some api
Service
some api
Service
some api
Service
some api
Service
some api
Service
some api
businesslogic.jar
Rest-api-layer
businesslogic.jar
Rest-api-layer
businesslogic.jar
Rest-api-layer
businesslogic.jar
Rest-api-layer
businesslogic.jar
Rest-api-layer
businesslogic.jar
Rest-api-layer
fat jar
api-gateway.jar
Services
api rest
@betoSalazar

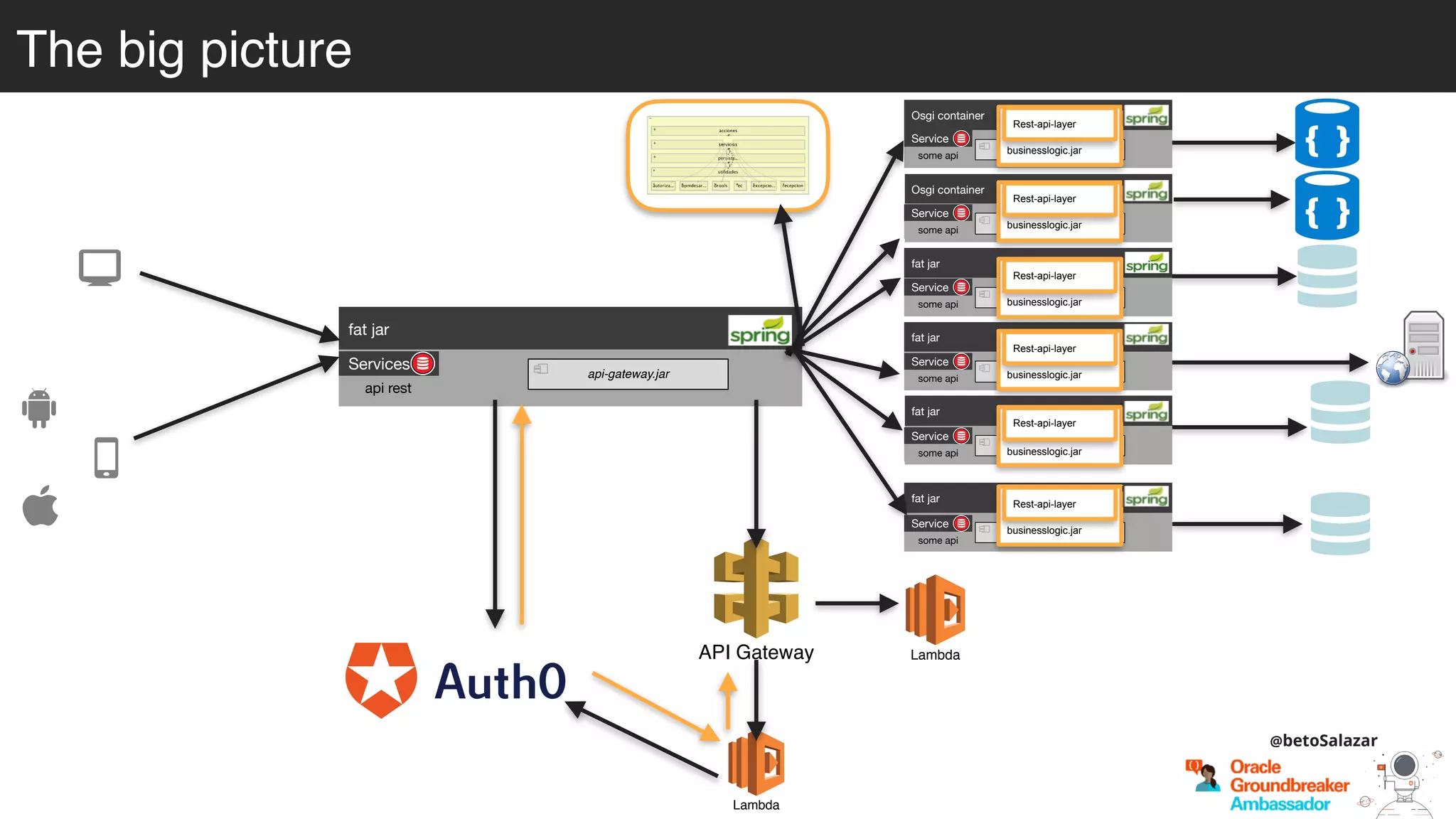

59. The big picture
Osgi container
engine-orchestrator.jar
Osgi container
dynamic-camel-routes.jar
fat jar
batch.jar
fat jar
services.jar
fat jar
business-module1.jar
fat jar
business-module-n.jar
Service
some api
Service
some api
Service
some api
Service
some api
Service
some api
Service
some api
businesslogic.jar
Rest-api-layer
businesslogic.jar
Rest-api-layer
businesslogic.jar
Rest-api-layer
businesslogic.jar
Rest-api-layer
businesslogic.jar
Rest-api-layer
businesslogic.jar
Rest-api-layer
fat jar
api-gateway.jar
Services
api rest
API Gateway Lambda
Lambda
@betoSalazar

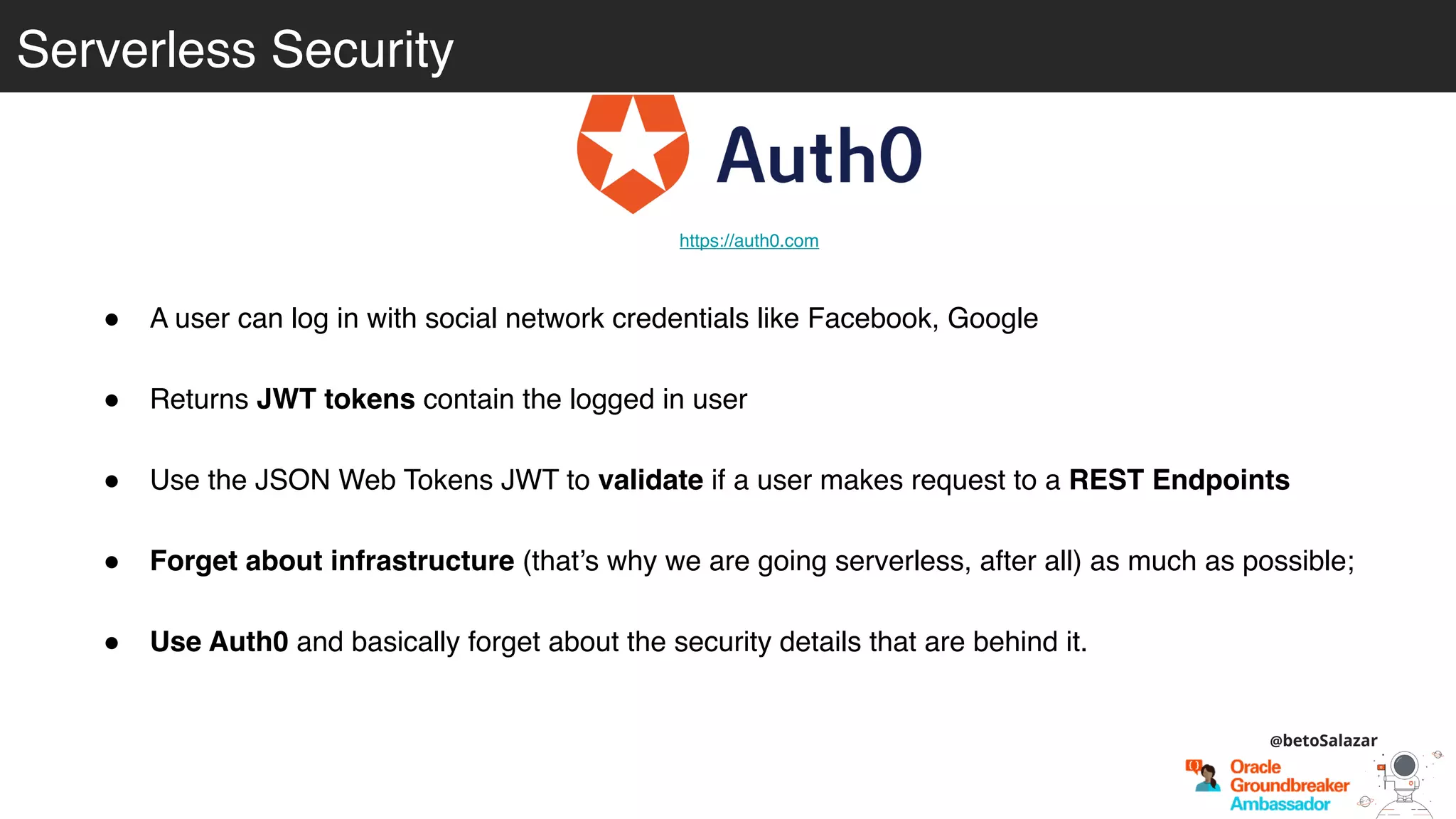

60. Serverless Security
! A user can log in with social network credentials like Facebook, Google
! Returns JWT tokens contain the logged in user
! Use the JSON Web Tokens JWT to validate if a user makes request to a REST Endpoints
! Forget about infrastructure (that’s why we are going serverless, after all) as much as possible;
! Use Auth0 and basically forget about the security details that are behind it.
https://auth0.com
@betoSalazar

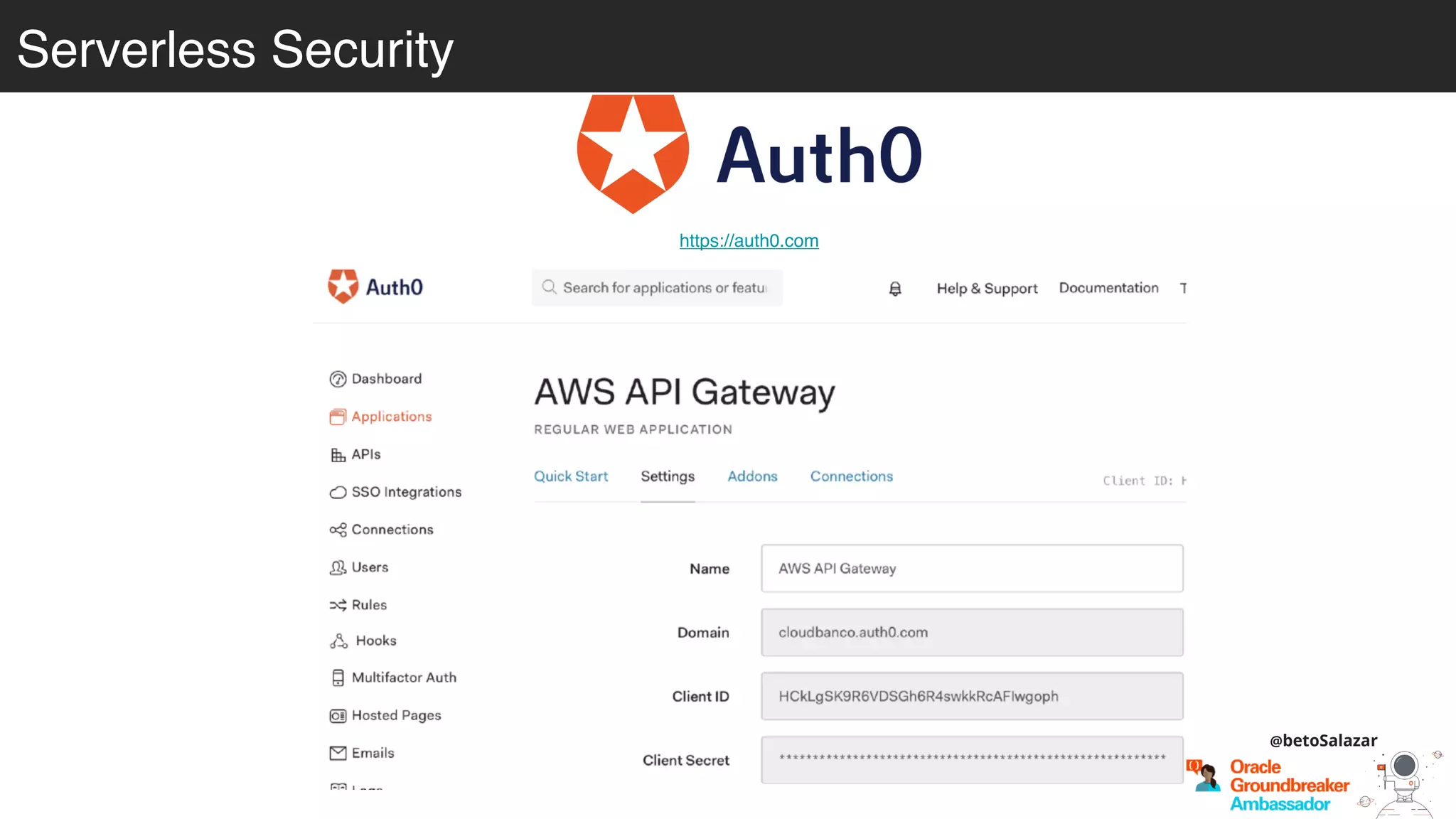

61. Serverless Security
https://auth0.com
@betoSalazar

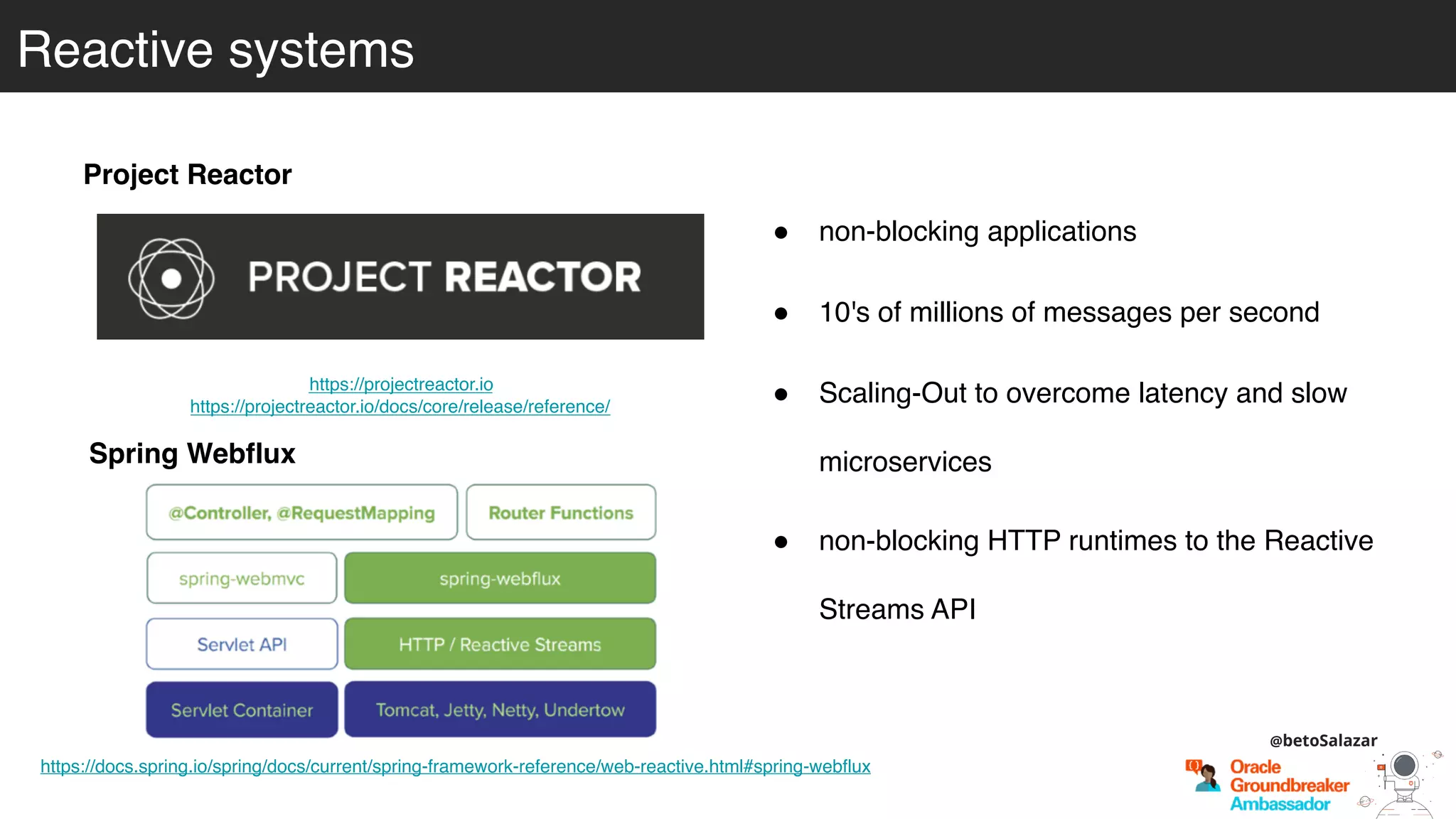

62. Reactive systems
Project Reactor
! non-blocking applications
! 10's of millions of messages per second
! Scaling-Out to overcome latency and slow
microservices
https://projectreactor.io
https://projectreactor.io/docs/core/release/reference/
Spring Webflux
https://docs.spring.io/spring/docs/current/spring-framework-reference/web-reactive.html#spring-webflux
! non-blocking HTTP runtimes to the Reactive
Streams API
@betoSalazar

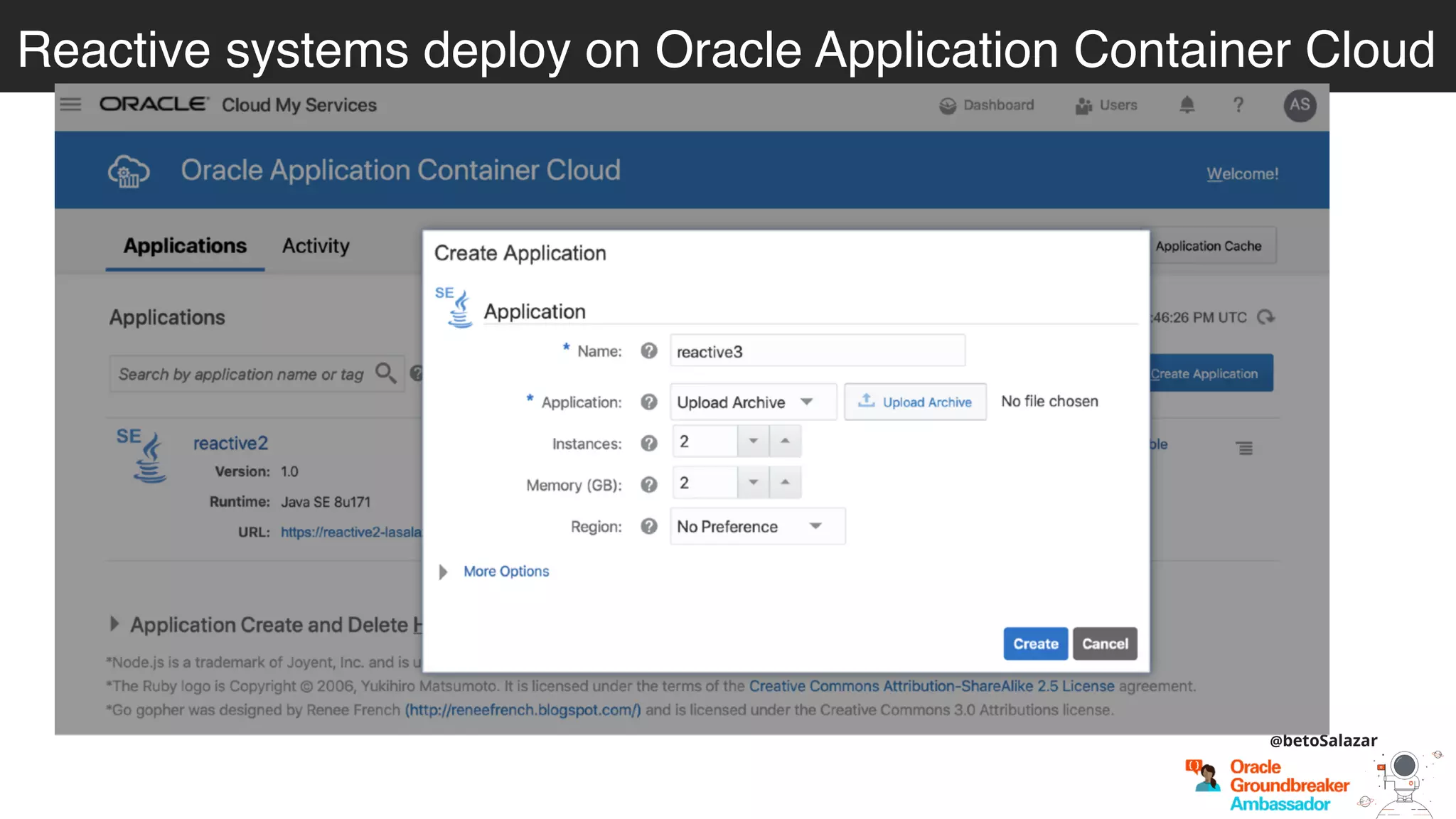

63. Reactive systems deploy on Oracle Application Container Cloud
@betoSalazar

64. asalazar@advlatam.com
@betoSalazar

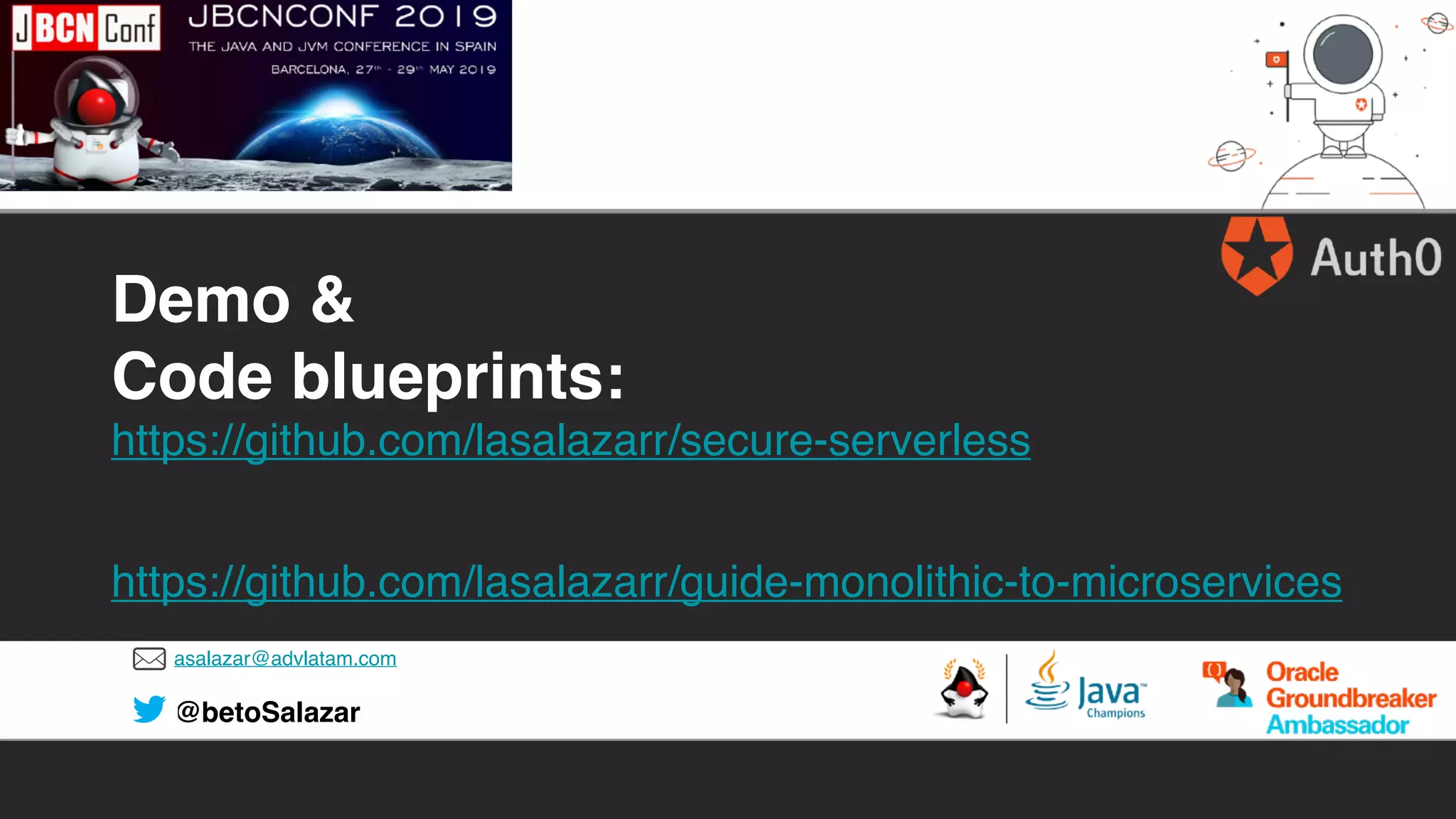

Demo &
Code blueprints:
https://github.com/lasalazarr/secure-serverless
https://github.com/lasalazarr/guide-monolithic-to-microservices

65. asalazar@advlatam.com
@betoSalazar
Summary

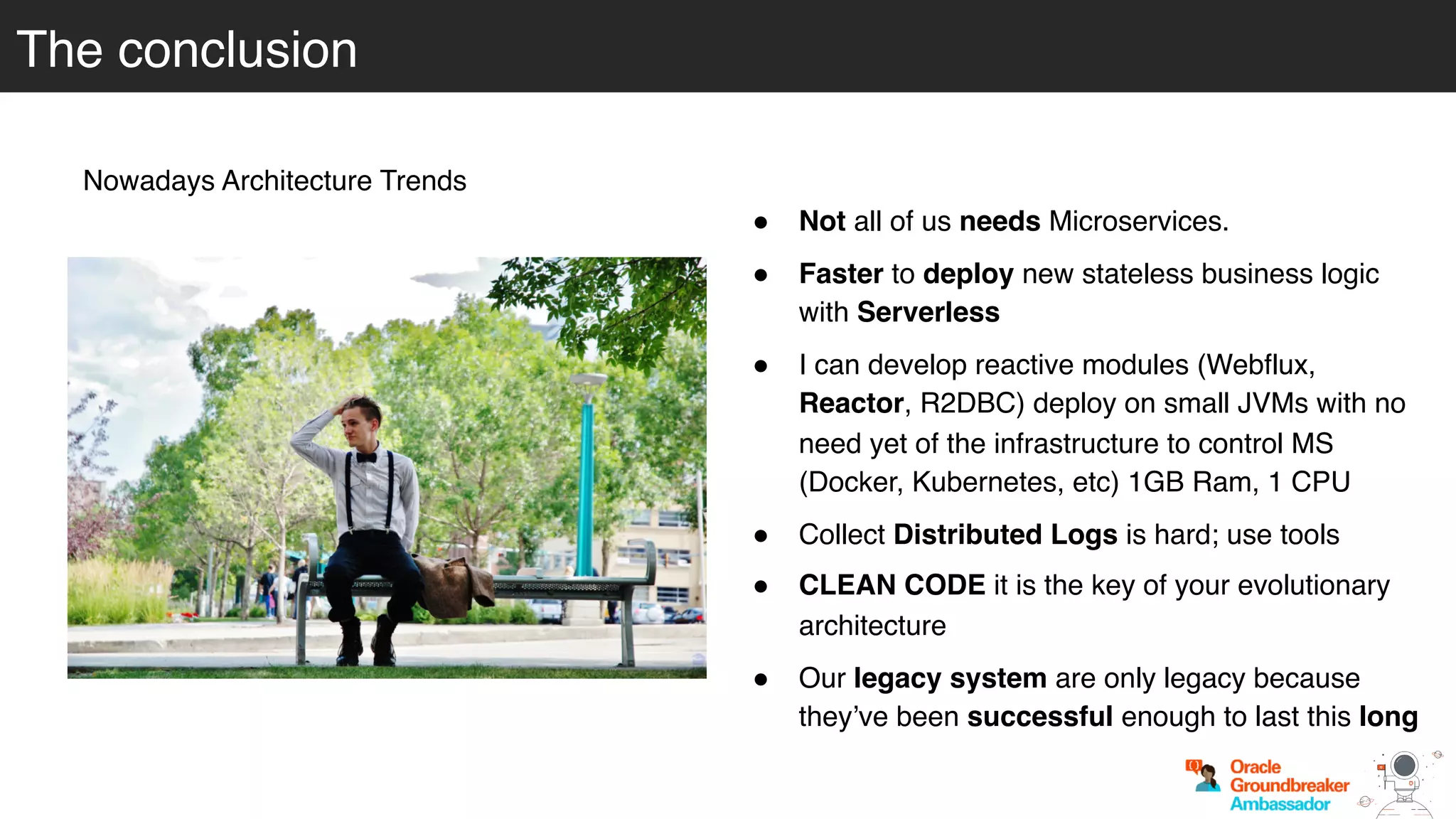

66. The conclusion
Nowadays Architecture Trends
! Not all of us needs Microservices.
! Faster to deploy new stateless business logic
with Serverless
! I can develop reactive modules (Webflux,
Reactor, R2DBC) deploy on small JVMs with no
need yet of the infrastructure to control MS
(Docker, Kubernetes, etc) 1GB Ram, 1 CPU
! Collect Distributed Logs is hard; use tools
! CLEAN CODE it is the key of your evolutionary
architecture
! Our legacy system are only legacy because
they’ve been successful enough to last this long

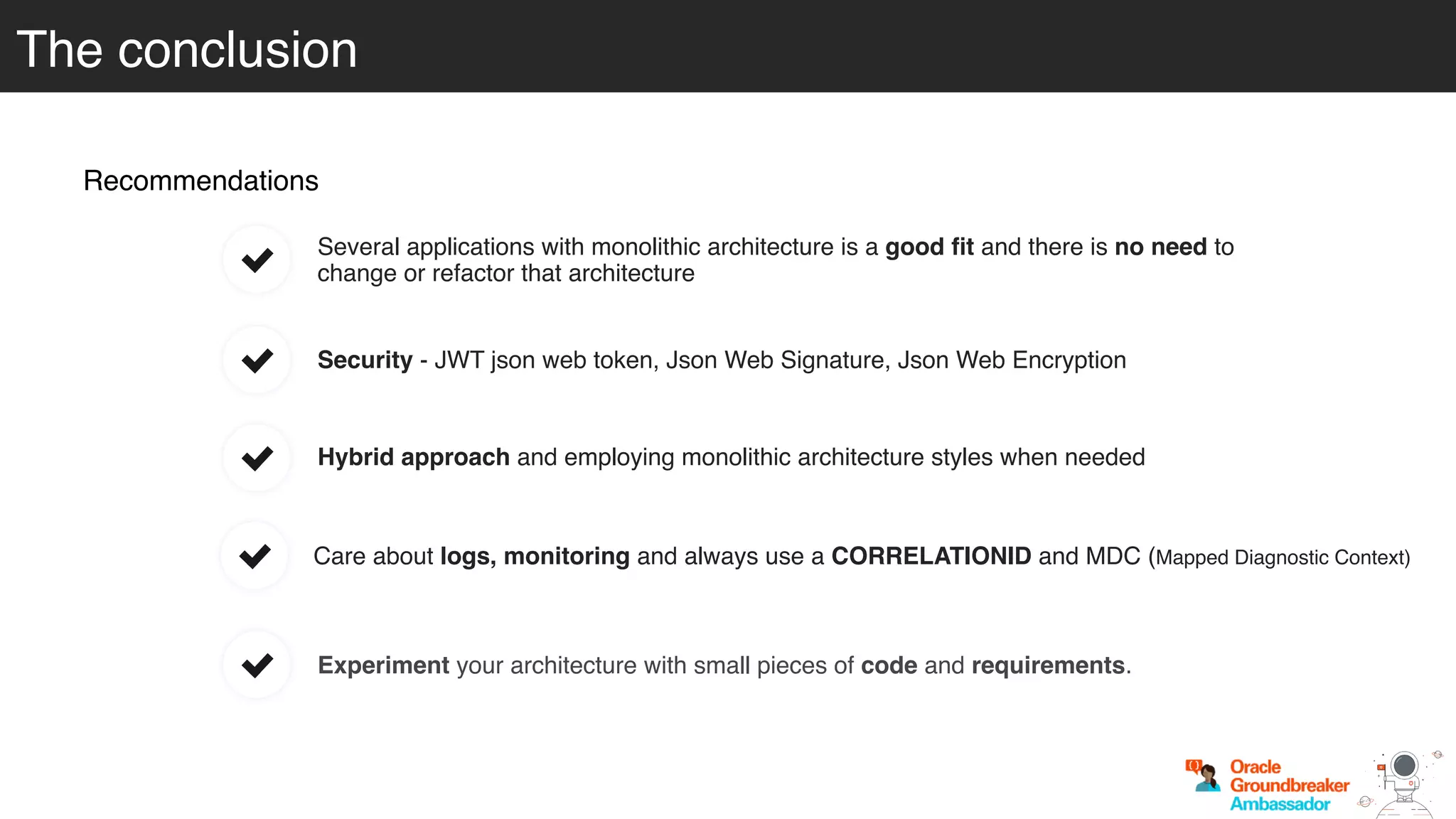

67. The conclusion
Recommendations
Hybrid approach and employing monolithic architecture styles when needed
Care about logs, monitoring and always use a CORRELATIONID and MDC (Mapped Diagnostic Context)
Experiment your architecture with small pieces of code and requirements.
Several applications with monolithic architecture is a good fit and there is no need to
change or refactor that architecture
Security - JWT json web token, Json Web Signature, Json Web Encryption

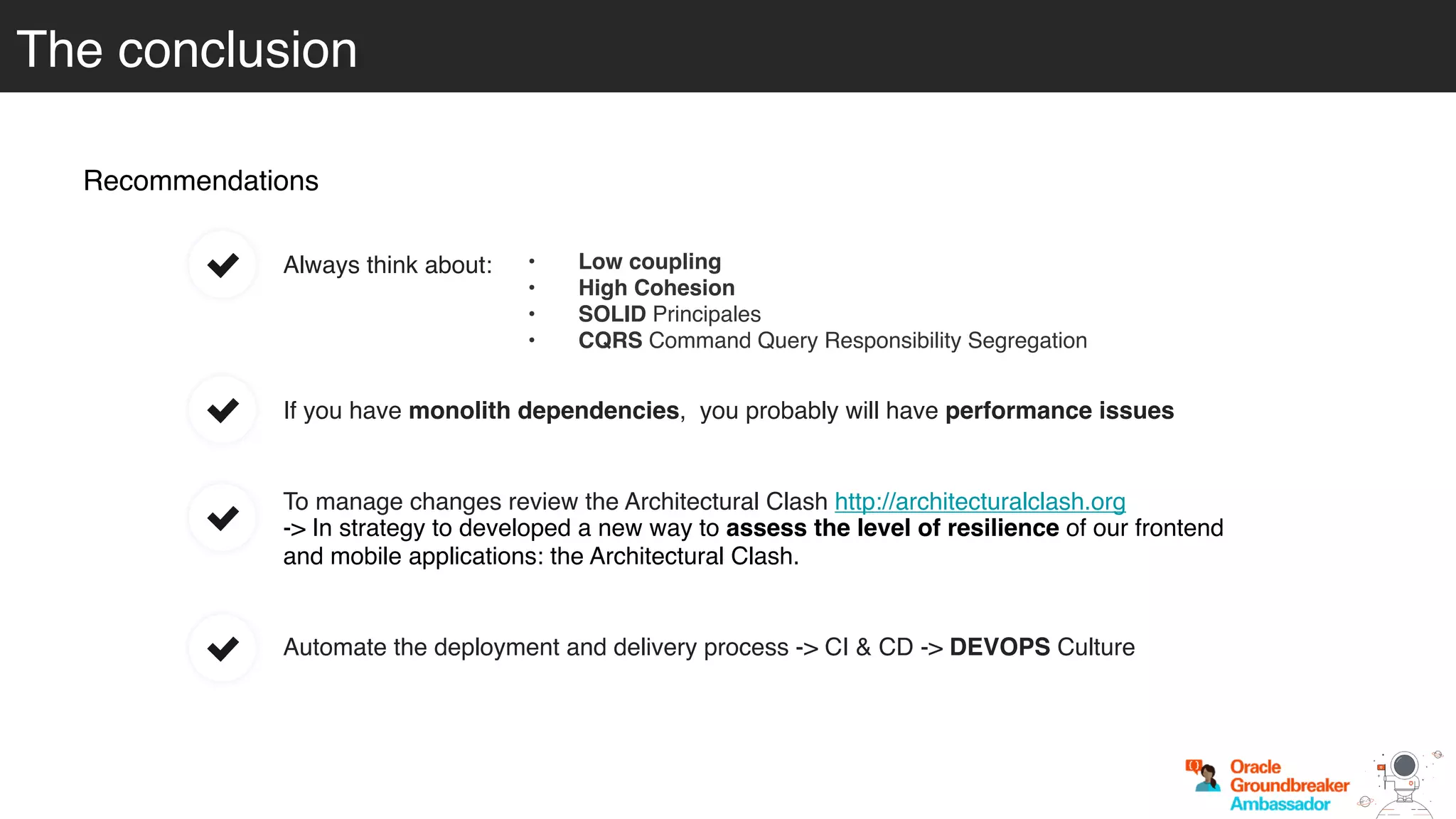

68. Recommendations
To manage changes review the Architectural Clash http://architecturalclash.org
-> In strategy to developed a new way to assess the level of resilience of our frontend
and mobile applications: the Architectural Clash.
Automate the deployment and delivery process -> CI & CD -> DEVOPS Culture
If you have monolith dependencies, you probably will have performance issues
The conclusion
Always think about: • Low coupling
• High Cohesion
• SOLID Principales
• CQRS Command Query Responsibility Segregation

69. asalazar@advlatam.com
@betoSalazar
THANK YOU
Auth0 Ambassadors.
Helping the developer community make the internet
safer.
