This 3D house explorer project allows users to: 1. Explore and select different rooms of a 3D house model from a top-down view or first person view. 2. Choose floor and ground textures, and view the house in day or night mode. 3. Implemented key features like reflections, custom shaders, floor highlighting, collision detection, texture swapping, and different lighting.

1. 3D House Explorer using WebGL
By: Abby Carey and Tina Pi

2. Project Goals
● Create a 3D representation of a simple house
● User is able to select rooms to explore via a top-down view
● User is able to explore the house in detail from a first-person
point of view
● User is able to choose their desired floor and ground texture
● User is able to view the house in day and night mode

3. 3D Model Built in MAYA

4. Key Features and Implementation
● Reflection for mirrors
● Custom shader for walls
● Floor highlighting
● Collision detection
● Texture swapping
● Different lighting

5. Key Features and Implementation:
Reflection
● Create a cube camera using
Three.js
● Map the cube camera to a
material
● Set the position of the cube
camera to be the same as the
position of the plane you want
to be your mirror
● Update the cubeMap of the
cube camera when rendering

6. Key Features and Implementation:
Custom Shader
● Added as scripts to head of html file
● Fragment + Vertex shaders
● Used Three.js to make a ShaderMaterial

7. Key Features and Implementation:
Floor Highlighting
● Have an array of objects to be
highlighted
● Make a vector aligned with mouse
position relative to screen
● Use Three.js to make a Raycaster that
casts a ray originating at the camera to
the vector
● Pass the array of objects to ray’s
.intersectObjects() and assign to a new
array to track which objects are being
intersected
● Check if the array’s length is > 0
(Intersection!)

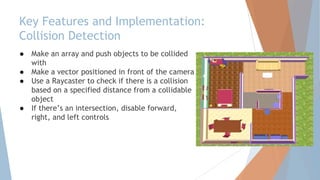

8. Key Features and Implementation:
Collision Detection
● Make an array and push objects to be collided
with
● Make a vector positioned in front of the camera
● Use a Raycaster to check if there is a collision
based on a specified distance from a collidable
object
● If there’s an intersection, disable forward,
right, and left controls

9. Key Features and Implementation:
Texture Swapping
● Used Dat.GUI library to add UI for switching floor and ground textures
● Texture swapping only allowed in top-down view
● Drop down selectors for each room allow user to select which texture to load

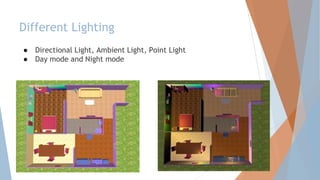

10. Different Lighting
● Directional Light, Ambient Light, Point Light
● Day mode and Night mode
