Java & JavaScipt Reactive Robotics and IoT 2016 @ jProfessionals

Trayan Iliev
tiliev@iproduct.org
http://iproduct.org
Copyright © 2003-2016 IPT - Intellectual
Products & Technologies
December 3, 2016
jProfessionals - Plovdiv
Spring Reactor,
Angular 2, RxJS &
Reactive Robotics

2

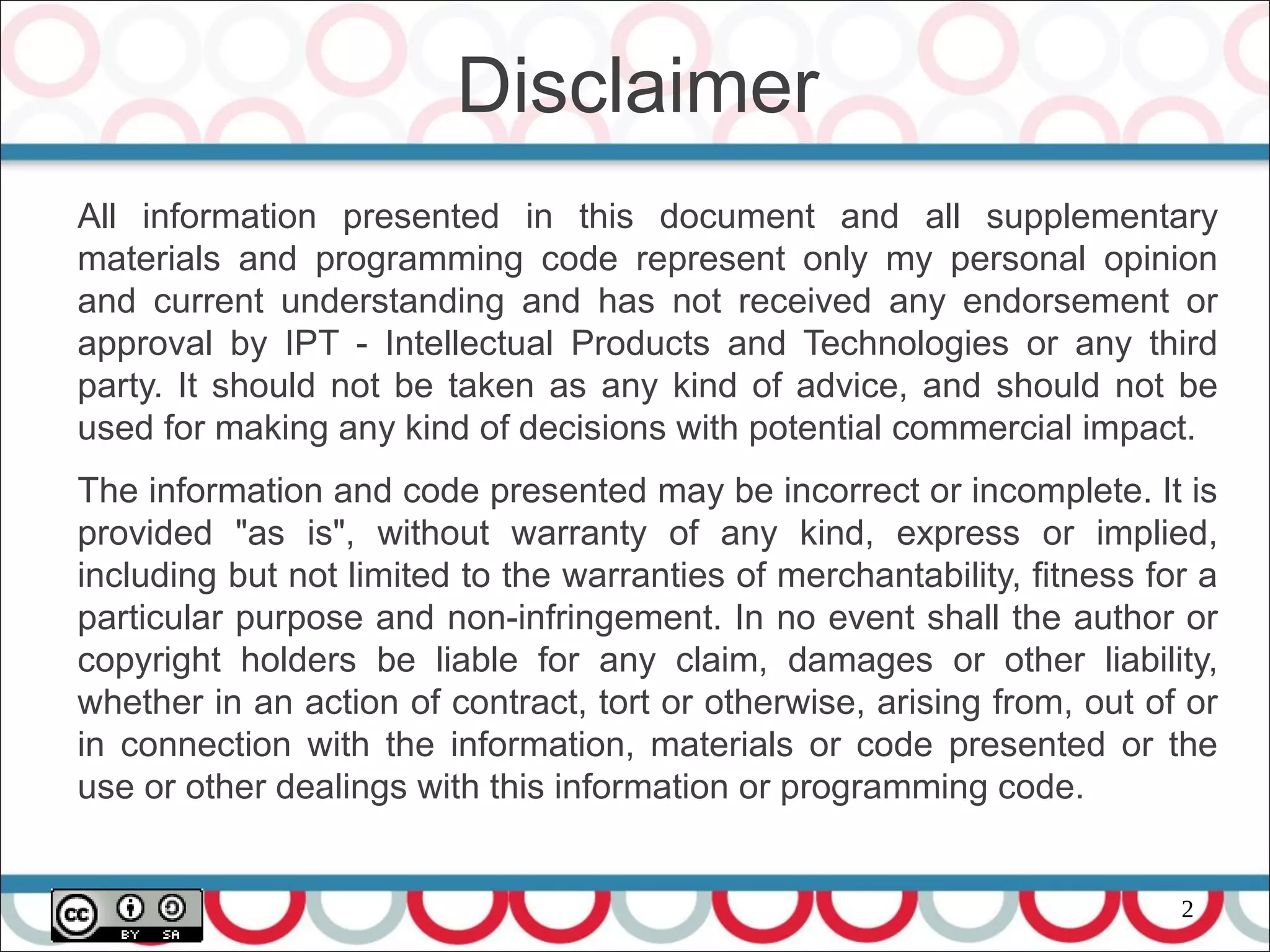

Disclaimer
All information presented in this document and all supplementary
materials and programming code represent only my personal opinion
and current understanding and has not received any endorsement or
approval by IPT - Intellectual Products and Technologies or any third
party. It should not be taken as any kind of advice, and should not be
used for making any kind of decisions with potential commercial impact.
The information and code presented may be incorrect or incomplete. It is
provided "as is", without warranty of any kind, express or implied,
including but not limited to the warranties of merchantability, fitness for a
particular purpose and non-infringement. In no event shall the author or
copyright holders be liable for any claim, damages or other liability,
whether in an action of contract, tort or otherwise, arising from, out of or
in connection with the information, materials or code presented or the
use or other dealings with this information or programming code.

3
Trademarks
Oracle®, Java™ and JavaScript™ are trademarks or registered
trademarks of Oracle and/or its affiliates.
LEGO® is a registered trademark of LEGO® Group. Programs are not
affiliated, sponsored or endorsed by LEGO® Education or LEGO®
Group.
Raspberry Pi™ is a trademark of Raspberry Pi Foundation.
Other names may be trademarks of their respective owners.

IPT - Intellectual Products & Technologies
IT Education Evolved
4
Since 2003 we provide trainings and share tech knowledge
in Java SE/ EE/ Web/ JS/ ES/ TypeScript/ Node/ Express/
Socket.IO/ NoSQL/ Angular 2/ React / REST SOA:
Java EE6/7, Spring, JSF, Portals/Portlets: Liferay, GateIn
Reactive IoT with Reactor / RxJava / RxJS
Node.js + Express/ hapi + React.js + Redux
Angular 2 + TypeScript + Redux (ngrx)
REST HATEOAS – Distributed Hypermedia APIs
Domain Driven Design, Reactive Microservices and
Event Sourcing, Docker/Kubernetes, Big Data

Tales of JAVA Robotics
5
There are several tales to share:
Tale of Robotics, IoT and Complexity
Tale of Common Sense: DDD
Tale of two cities - Imperative and Reactive
 Tale of two brave robots: LeJaRo and IPTPI
 And some real reactive Java + TypeScript / Angular 2 /
WebSocket code 

6
High Performnce Reactive JAVA
 Reactive programming. Reactor & Proactor design
patterns. Reactive Streams (java.util.concurrent.Flow)
 High performance non-blocking asynchronous apps
on JVM using Reactor project & RxJava
 Disruptor (RingBuffer), Flux & Mono, Processors
 End-to-end reactive web applications and services:
Reactor IO (REST, WebSocket) + RxJS + Angular 2
 Demo - reactive hot event streams processing on
Raspberry Pi 2 (ARM v7) based robot IPTPI.
 RxJava (not Zen only :) coans for self assessment

Where to Find the Demo Code?
7
IPTPI Reactive Demo is available @ GitHub:
https://github.com/iproduct/jprime-demo

… Even More Complex
9
Cross-section of many
disciplines:
 mechanical engineering
 electrical engineering
 computer science
 artificial intelligence (AI)
 human-computer interaction
 sociology & psychology
Picture by Hugo Elias of the Shadow Robot Company -
http://www.shadowrobot.com/media/pictures.shtml, CC BY-SA 3.0

Engineering, Science & Art
10
Source: https://commons.wikimedia.org/w/index.php?curid=551256, CC BY-SA 3.0

and How Can We Forget
11
Source: https://commons.wikimedia.org/
w/index.php?curid=234900, CC BY-SA 3.0
Source: Korea Institute of Industrial Technology,
http://news.naver.com/main/read.nhn?
mode=LSD&mid=sec&sid1=102&oid=020&aid=0000371339

Robots: The Most Intelligent Things
12
CC BY 2.0, Source:
https://www.flickr.com/photos/wilgengebroed/8249565455/
Radar, GPS, lidar for navigation and obstacle
avoidance ( 2007 DARPA Urban Challenge )

The Internet of Things has the potential to change the
world, just as the Internet did. Maybe even more so.
 Nearly 50 petabytes of data are captured and created
by human beings
 People have limited time, attention and accuracy
 Capturing data about things in the real world in real time
 Track and count everything, reduce waste, loss & cost.
 Know when things need replacing, repairing or recalling
— Kevin Ashton, 'That 'Internet of Things' Thing', RFID Journal,
2009
Internet of Things (IoT)

 There will be nearly 26 billion devices on the Internet of
Things by 2020.
[Gartner]
 More than 30 billion devices will be wirelessly
connected to the Internet of Things by 2020
[ABI Research]
 It's expected to be a 19 Trillion USD market
[John Chambers, Cisco CEO]
IoT Perspectives

"Basket of remotes" problem – we'll have hundreds of
applications to interface with hundreds of devices that
don't share protocols for speaking with one another
[Jean-Louis Gassée, Apple initial team, and BeOS co-founder]
Only IPv6 addresses are not enough – IoT devices
should be also easily and directly accessible for users
and [their] agents
In read/write mode
Preferably using a standard web browser
Even behind firewalls
IoT - Need for Standards

IoT Services Architecture
16
Devices: Hardware + Embedded Software + Firmware
UART/ I2C/ 2G/ 3G/ LTE/ ZigBee/ 6LowPan/ BLE
Aggregation/ Bus: ESB, Message Broker
Device Gateway: Local Coordination and Event Aggregation
M2M: HTTP(/2) / WS / MQTT / CoAP
Management: TR-069 / OMA-DM / OMA LWM2M
HTTP, AMQP
Cloud (Micro)Service Mng.
Docker, Kubernetes/
Apache Brooklyn
Web/ Mobile
Portal
PaaSDashboard
PaaS API: Event Processing Services, Analytics

Tracking Complexity
17
We need tools to cope with all that complexity inherent in
robotics and IoT domains.
Simple solutions are needed – cope with problems through
divide and concur on different levels of abstraction:
Domain Driven Design (DDD) – back to basics:
domain objects, data and logic.
Described by Eric Evans in his book:
Domain Driven Design: Tackling Complexity in the Heart of
Software, 2004

Common Sense: DDD
18
Actually DDD require additional efforts (as most other
divide and concur modeling approaches :)
 Ubiquitous language and Bounded Contexts
 DDD Application Layers:
Infrastructure, Domain, Application, Presentation
 Hexagonal architecture :
OUTSIDE <-> transformer <-> ( application <-> domain )
[A. Cockburn]

Common Sense: DDD
19
Main concepts:
 Entities, value objects and modules
 Aggregates and Aggregate Roots [Haywood]:
value < entity < aggregate < module < BC
 Repositories, Factories and Services:
application services <-> domain services
 Separating interface from implementation

Imperative and Reactive
20
We live in a Connected Universe
... there is hypothesis that all
the things in the Universe are
intimately connected, and you
can not change a bit without
changing all.
Action – Reaction principle is
the essence of how Universe
behaves.

Imperative and Reactive
 Reactive Programming: using static or dynamic data
flows and propagation of change
Example: a := b + c
 Functional Programming: evaluation of mathematical
functions,
➢ Avoids changing-state and mutable data, declarative
programming
➢ Side effects free => much easier to understand and
predict the program behavior.
Example: books.stream().filter(book -> book.getYear() > 2010)
.forEach( System.out::println )

Functional Reactive (FRP)
22
According to Connal Elliot's (ground-breaking paper @
Conference on Functional Programming, 1997), FRP is:
(a) Denotative
(b) Temporally continuous

Reactive Manifesto
23
[http://www.reactivemanifesto.org]

Reactive Programming
24
 Microsoft®
opens source polyglot project ReactiveX
(Reactive Extensions) [http://reactivex.io]:
Rx = Observables + LINQ + Schedulers :)
Java: RxJava, JavaScript: RxJS, C#: Rx.NET, Scala: RxScala,
Clojure: RxClojure, C++: RxCpp, Ruby: Rx.rb, Python: RxPY,
Groovy: RxGroovy, JRuby: RxJRuby, Kotlin: RxKotlin ...
 Reactive Streams Specification
[http://www.reactive-streams.org/] used by
 (Spring) Project Reactor
[http://projectreactor.io/]

Reactive Streams Spec.
25
 Reactive Streams – provides standard for
asynchronous stream processing with non-blocking
back pressure.
 Minimal set of interfaces, methods and protocols for
asynchronous data streams
 April 30, 2015: has been released version 1.0.0 of
Reactive Streams for the JVM (Java API,
Specification, TCK and implementation examples)
 Java 9: java.util.concurrent.Flow

Reactive Streams Spec.
26
 Publisher – provider of potentially unbounded number
of sequenced elements, according to Subscriber(s)
demand.
Publisher.subscribe(Subscriber) => onSubscribe onNext*
(onError | onComplete)?
 Subscriber – calls Subscription.request(long) to
receive notifications
 Subscription – one-to-one Subscriber ↔ Publisher,
request data and cancel demand (allow cleanup).
 Processor = Subscriber + Publisher

FRP = Async Data Streams
27
 FRP is asynchronous data-flow programming using the
building blocks of functional programming (e.g. map,
reduce, filter) and explicitly modeling time
 Used for GUIs, robotics, and music. Example (RxJava):
Observable.from(new String[]{"Reactive",
"Extensions", "Java"})
.take(2).map(s -> s + " : on " + new Date())
.subscribe(s -> System.out.println(s));
Result:
Reactive : on Wed Jun 17 21:54:02 GMT+02:00 2015
Extensions : on Wed Jun 17 21:54:02 GMT+02:00 2015

28
 Performance is about 2 things (Martin Thompson –
http://www.infoq.com/articles/low-latency-vp ):
– Throughput – units per second, and
– Latency – response time
 Real-time – time constraint from input to response
regardless of system load.
 Hard real-time system if this constraint is not honored then
a total system failure can occur.
 Soft real-time system – low latency response with little
deviation in response time
 100 nano-seconds to 100 milli-seconds. [Peter Lawrey]
What About High Performance?

29
 Mechanical Sympathy – hardware (CPU, cache, memory,
IO, Network), operating system, language implementation
platform (e.g. JVM), and application level code are working
in harmony to minimize the time needed for event (request,
message) processing => 10% / 90% principle
 Throughput vs. latency – bus vs. car traveling
 Throughput ~ System Capacity / Latency
 Achieving low latency may mean additional work done
by system => lowered System Capacity and Throughput
 Horizontal scalability is valuable for high throughput. For
low latency, you need simplicity – critical path.
Throughput vs. Latency

30
 JVMs can be faster than custom C++ code because of the
holistic optimizations that they can apply across an application
[Andy Piper].
 Developers can take advantage of hardware guarantees through
a detailed understanding of:
– Java Memory Model & mapping to underlying hardware
– low latency software system hardware (CPU, cache, memory,
IO, Network)
– avoiding lock-contention and garbage collection
– Compre-And-Swap – CAS (java.util.concurrent.atomic)
– lock-free, wait-free techniques – using standard libraries (e.g.
the LMAX Disruptor)
High Performance Java

31
CPU Cache – False Sharing
Core 2 Core NCore 1 ...
Registers
Execution Units
L1 Cache A | | B |
L2 Cache A | | B |
L3 Cache A | | B |
DRAM Memory
A | | B |
Registers
Execution Units
L1 Cache A | | B |
L2 Cache A | | B |

32
 Low garbage by reusing existing objects + infrequent GC
when application not busy – can improve app 2 - 5x
 JVM generational GC startegy – ideal for objects living very
shortly (garbage collected next minor sweep) or be immortal
 Non-blocking, lockless coding or CAS
 Critical data structures – direct memory access using
DirectByteBuffers or Unsafe => predictable memory layout
and cache misses avoidance
 Busy waiting – giving the CPU to OS kernel slows program
2-5x => avoid context switches
 Amortize the effect of expensive IO - blocking
Low Latency: Things to Remember

33
 Parallel tasks can increase your throughput by increasing
system capacity – it is GOOD!
 But comes together with concurrent access to shared
resources => you have to provide mutual exclusion (MutEx)
by parallel threads when changing the resources' state (read
only access can be shared by multiple threads)
 Mutual exclusion can be achieved in several ways:
– synchronized – hardwired in HotSpot JVM, optimized in J^6
– ReentrantLock, ReadWriteLock, StampedLock →
java.util.concurrent.locks.*
– Optimistic Locking → tryLock(), CAS
Parallelism & Concurrency

34
Simple problem: incrementing a long value 500 000 000 times.
9 implementations:
‒ SynchronousCounter – while (counter++ < 500000000){}
‒ SingleThreadSynchronizedCounter – 1T using synchronized
‒ TwoThreadsSynchronizedCounter – 2T using synchronized
‒ SingleThreadCASCounter – 1T using AtomicLong
‒ TwoThreadsCASCounter – 2T using AtomicLong
‒ TwoThreadsCASCounterLongAdder – 1T using LongAdder
‒ SingleThreadVolatileCounter – 1T, memory barrier (volatile)
‒ TwoThreadsVolatileCounter – 2T, memory barrier (volatile)
Comparing Concurrent Impl.

35
Test results (on my laptop - quad core Intel i7@2.2GHz):
− SynchronousCounter – 190ms
− SingleThreadSynchronizedCounter – 15000 ms
− TwoThreadsSynchronizedCounter – 21000 ms
− SingleThreadCASCounter – 4100 ms
− TwoThreadsCASCounter – 12000 ms
− TwoThreadsCASCounterLongAdder – 12800 ms
− SingleThreadVolatileCounter – 4100 ms
− TwoThreadsVolatileCounter – 20000 ms

36
For more complete micro-benchmarking of
different Mutex implementations see:
http://blog.takipi.com/java-8-stampedlocks-vs-
readwritelocks-and-synchronized/
http://www.slideshare.net/haimyadid/java-8-
stamped-lock

37
 Non-blocking (synchronous) implementation is 2 orders of
magnitude better then synchronized
 We should try to avoid blocking and especially contended
blocking if want to achieve low latency
 If blocking is a must we have to prefer CAS and optimistic
concurrency over blocking (but have in mind it always
depends on concurrent problem at hand and how much
contention do we experience – test early, test often,
microbenchmarks are unreliable and highly platform dependent
– test real application with typical load patterns)
 The real question is: HOW is is possible to build concurrency
without blocking?
Mutex Comparison => Conclusions

38
 Message Driven – asynchronous message-passing allows
to establish a boundary between components that ensures
loose coupling, isolation, location transparency, and
provides the means to delegate errors as messages
[Reactive Manifesto].
 The main idea is to separate concurrent producer and
consumer workers by using message queues.
 Message queues can be unbounded or bounded (limited
max number of messages)
 Unbounded message queues can present memory
allocation problem in case the producers outrun the
consumers for a long period → OutOfMemoryError
Scalable, Massively Concurrent

39
 Queues typically use either linked-lists or arrays for the
underlying storage of elements. Linked lists are not
„mechanically sympathetic” – there is no predictable
caching “stride” (should be less than 2048 bytes in each
direction).
 Bounded queues often experience write contention on
head, tail, and size variables. Even if head and tail
separated using CAS, they usually are in the same cache-
line.
 Queues produce much garbage.
 Typical queues conflate a number of different concerns –
producer and consumer synchronization and data storage
Queues Disadvantages
[http://lmax-exchange.github.com/disruptor/files/Disruptor-1.0.pdf]

40
 LMAX Disruptor design pattern separates different
concerns in a “mechanically sympathetic” way:
- Storage of items being exchanged
- Producer coordination – claiming the next sequence
- Consumers coordination – notified new item is available
 Single Writer principle is employed when writing data in
the Ring Buffer from single producer thread only (no
contention),
 When multiple producers → CAS
 Memory pre-allocated – predictable stride, no garbage
LMAX Disruptor (RingBuffer)
[http://lmax-exchange.github.com/disruptor/files/Disruptor-1.0.pdf]

41
LMAX Disruptor (RingBuffer) High Performance
[http://lmax-exchange.github.com/disruptor/files/Disruptor-
1.0.pdf]
Source: LMAX Disruptor github wiki - https://raw.githubusercontent.com/wiki/LMAX-
Exchange/disruptor/images/Models.png
LMAX-Exchange Disruptor License @ GitHub: Apache License Version 2.0, January 2004 -
http://www.apache.org/licenses/

42
LMAX Disruptor (RingBuffer) High Performance
[http://lmax-exchange.github.com/disruptor/files/Disruptor-
1.0.pdf]
Source: LMAX Disruptor @ GitHub - https://github.com/LMAX-
Exchange/disruptor/blob/master/docs/Disruptor.docx
LMAX-Exchange Disruptor License @ GitHub: Apache License Version 2.0, January 2004 -
http://www.apache.org/licenses/

Project Reactor
43
 Reactor project allows building high-performance (low
latency high throughput) non-blocking asynchronous
applications on JVM.
 Reactor is designed to be extraordinarily fast and can
sustain throughput rates on order of 10's of millions of
operations per second.
 Reactor has powerful API for declaring data
transformations and functional composition.
 Makes use of the concept of Mechanical Sympathy
built on top of Disruptor / RingBuffer.

Project Reactor
44
 Pre-allocation at startup-time
 Message-passing structures are bounded
 Using Reactive and Event-Driven Architecture patterns
=> non-blocking end-to-end flows, replies
 Implement Reactive Streams Specification – efficient
bounded structures requesting no more than capacity
 Applies above features to IPC and provides non-
blocking IO drivers that are flow-control aware
 Expose a Functional API – organize their code in a
side-effect free way, which helps you determine you are
thread-safe and fault-tolerant

Reactor Projects
45
https://github.com/reactor/reactor, Apache Software License 2.0
IPC – Netty, Kafka, Aeron

Reactor Flux
47
https://github.com/reactor/reactor-core, Apache Software License 2.0

Reactor Mono
48

Example: Flux.combineLatest()
49
https://projectreactor.io/core/docs/api/, Apache Software License 2.0

Reactor: Hello World
50
public static void main(String... args) throws
InterruptedException {
EmitterProcessor<String> emitter =
EmitterProcessor.create();
BlockingSink<String> sink = emitter.connectSink();
emitter.publishOn(Schedulers.single())
.map(String::toUpperCase)
.filter(s → s.startsWith("HELLO"))
.delayMillis(1000).subscribe(System.out::println);
sink.submit("Hello World!"); // emit - non blocking
sink.submit("Goodbye World!");
sink.submit("Hello Trayan!");
Thread.sleep(3000);
}

Reactor: Flux Example
51
Flux.fromIterable(getSomeLongList())
.mergeWith(Flux.interval(100))
.doOnNext(serviceA::someObserver)
.map(d -> d * 2)
.take(3)
.onErrorResumeWith(errorHandler::fallback)
.doAfterTerminate(serviceM::incrementTerminate)
.subscribe(System.out::println);

Reactor Bus: IPTPI Java Robot
52

Disruptor (Ring Buffer) used in Reactor
53
Reactor provides 3 major types of Processors:
 EmitterProcessor – using 0 threads (on same thread)
 TopicProcessor using – N threads concurrently
processing the messages (AND operation)
 WorkQueueProcessor – N threads alternatively
processing the messages (XOR operation – messages
are processed exactly by one thread – load ballancing
and work distribution)

IPTPI: RPi2 + Ardunio Robot
56
 Raspberry Pi 2 (quad-core ARMv7
@ 900MHz) + Arduino Leonardo
cloneA-Star 32U4 Micro
 Optical encoders (custom), IR
optical array, 3D accelerometers,
gyros, and compass MinIMU-9 v2
 IPTPI is programmed in Java
using Pi4J, Reactor, RxJava, Akka
 More information about IPTPI:
http://robolearn.org/iptpi-robot/

57
3D accelerometers, gyros,
and compass MinIMU-9 v2
Pololu DRV8835
Dual Motor Driver
for Raspberry Pi
Arduino Leonardo clone
A-Star 32U4 Micro
USB Stereo
Speakers - 5V
LiPo Powebank
15000 mAh

58
Raspberry Pi 2 (quad-core
ARMv7 @ 900MHz)
IR Optical Sensor QRD1114
Array (Line Following)
Adafruit 2.8" PiTFT -
Capacitive Touch Screen

LeJaRo: Lego®
Java Robot
60
 Modular – 3 motors (with encoders) – one driving each
track, and third for robot clamp.
 Three sensors: touch sensor (obstacle avoidance), light
color sensor (follow line), IR sensor (remote).
 LeJaRo is programmed in Java using LeJOS library.
 More information about LeJaRo:
http://robolearn.org/lejaro/
 Programming examples available @GitHub:
https://github.com/iproduct/course-social-robotics/tre
e/master/motors_demo
LEGO® is a registered trademark of LEGO® Group. Programs of IPT are not
affiliated, sponsored or endorsed by LEGO® Education or LEGO® Group.

IPTPI Reactive Streams
62
Encoder
Readings
ArduinoData
Fluxion
Arduino
SerialData
Position
Fluxion
Robot
Positions
Command
Movement
Subscriber
RobotWSService
(using Reactor)
Angular 2 /
TypeScript
MovementCommands

IPTPI: IPTPIDemo I
63
public class IPTPIVDemo {
...
public IPTPIDemo() {
//receive Arduino data readings
ArduinoData =
ArduinoFactory.getInstance().createArduinoData();
//calculate robot positions
PositionsFlux = PositionFactory.createPositionFlux(
arduinoData.getEncoderReadingsFlux());
resentationViews.add(
PositionFactory.createPositionPanel(positionsFlux));
//enable sending commands to Arduino
ArduinoCommandsSub = ArduinoFactory.getInstance()
.createArduinoCommandSubscriber();
/

IPTPI: IPTPIDemo II
64
//Audio player - added @jPrime 2016 Hackergarten
audio = AudioFactory.createAudioPlayer();
//wire robot main controller with services
movementSub =MovementFactory.createMovementCommandSubscriber(
positionsFlux, arduinoData.getLineReadingsFlux());
controller = new RobotController(this::tearDown, movementSub,
arduinoCommandsSub, audio);
//create view with controller and delegate material views
from query services
view = new RobotView("IPTPI Reactive Robotics Demo",
controller, presentationViews);

IPTPI: IPTPIDemo III
65
//expose as WS service
movementSub2 =MovementFactory.createMovementCommandSubscriber(
positionsFlux, arduinoData.getLineReadingsFlux());
positionsService = new RobotWSService(
positionsFlux, movementSub2);
}
public static void main(String[] args) {
// initialize wiringPi library
Gpio.wiringPiSetupGpio();
try {
IPTPIDemo demo = new IPTPIDemo();
} catch (IOException e) {
e.printStackTrace();
}
}

IPTPI: ArduinoData I
66
positionsFlux = EmitterProcessor.create();
positionsSink = positionsFlux.connectSink();
lineFlux = EmitterProcessor.create();
lineSink = lineFlux.connectSink();
final Serial serial = SerialFactory.createInstance();
serial.addListener(new SerialDataEventListener() {
private ByteBuffer buffer = ByteBuffer.allocate(1024);
public void dataReceived(SerialDataEvent event) {
try {
ByteBuffer newBuffer = event.getByteBuffer();
buffer.put(newBuffer); buffer.flip();
...
buffer.get();
long timestamp = buffer.getInt(); //get timestamp
int encoderL = -buffer.getInt(); //motors mirrored
int encoderR = buffer.getInt();

IPTPI: ArduinoData II
67
EncoderReadings readings =
new EncoderReadings(encoderR, encoderL, timestamp);
emitter.submit(readings);
...
buffer.compact();
} catch (Exception e) {
e.printStackTrace();
}
}
});
try {
serial.open(PORT, 38400);
} catch(SerialPortException | IOException ex) {
System.out.println(“SERIAL SETUP FAILED:"+ex.getMessage());
}

IPTPI: PositionFlux I
68
Redux
Pattern!
public PositionsFlux(
Flux<EncoderReadings> readingsFlux) {
this.encoderReadings = readingsFlux;
Flux<EncoderReadings> skip1 = readingsFlux.skip(1);
positionsFlux = Flux.zip(readingsFlux, skip1)
.map(tupple ->
.scan(new Position(0, 0, 0), (last, tupple) -> {
EncoderReadings prev = tupple.getT1();
EncoderReadings curr = tupple.getT2();
int prevL = prev.getEncoderL();
int prevR = prev.getEncoderR();
int currL = curr.getEncoderL();
int currR = curr.getEncoderR();
int sL = currL - prevL;
int sR = currR - prevR;
double alpha0 = last.getHeading();

IPTPI: PositionFlux II
69
double alpha0 = last.getHeading();
if(sR == sL) {
return new Position((float)(last.getX() + sL *
ENCODER_STEP_LENGTH * cos(alpha0)),
(float)(last.getY()+ sL * ENCODER_STEP_LENGTH *
sin(alpha0)), alpha0, curr.getTimestamp());
} else {
…
}
})
);
}

CommandMovementSubscriber I
70
public class CommandMovementSubscriber extends
ConsumerSubscriber<Command<Movement>> {
private PositionFluxion positions;
public CommandMovementSubscriber(PositionFluxion positions){
this.positions = positions;
Gpio.wiringPiSetupGpio(); // initialize wiringPi library
Gpio.pinMode(5, Gpio.OUTPUT); // Motor direction pins
Gpio.pinMode(6, Gpio.OUTPUT);
Gpio.pinMode(12, Gpio.PWM_OUTPUT); // Motor speed pins
Gpio.pinMode(13, Gpio.PWM_OUTPUT);
Gpio.pwmSetMode(Gpio.PWM_MODE_MS);
Gpio.pwmSetRange(MAX_SPEED);
Gpio.pwmSetClock(CLOCK_DIVISOR);
}
@Override
public void doNext(Command<Movement> command) { ... }
}

CommandMovementSubscriber II
71
private void runMotors(MotorsCommand mc) {
//setting motor directions
Gpio.digitalWrite(5, mc.getDirR() > 0 ? 1 : 0);
Gpio.digitalWrite(6, mc.getDirL() > 0 ? 1 : 0);
//setting speed
if(mc.getVelocityR()>=0 && mc.getVelocityR() <=MAX_SPEED)
Gpio.pwmWrite(12, mc.getVelocityR()); // set speed
if(mc.getVelocityL()>=0 && mc.getVelocityL() <=MAX_SPEED)
Gpio.pwmWrite(13, mc.getVelocityL());
}
}

Reactor IO – NetStreams API
72
http://projectreactor.io/io/docs/reference/, Apache License 2.0

Takeaways: Why Go Reactive?
73
Benefits using Reactive Programming + DDD:
 DDD helps to manage complexity in IoT and Robotics -
many subsystems = sub-domains
 Reactive Streams (Fluxes, Monos) = uni-directional data
flows, CQRS, event sourcing, microservices
 Reactive Streams can be non-blocking and highly
efficient, or can utilize blocking if needed
 Naturally implement state management patterns like
Redux, allow time travel, replay and data analytics
 Clear, declarative data transforms that scale (Map-
Reduce, BigData, PaaS)

Takeaways: Why Maybe Not?
74
Cons using Reactive Programming + DDD:
 DDD requires additional efforts to clearly separate
different (sub) domains – DSL translators, factories...
 Reactive Streams utilize functional composition and
require entirely different mindset then imperative – feels
like learning foreign language
 Pure functions and Redux provide much benefits,
but there's always temptation to “do it the old way” :)
 Tool support for functional programming in Java is still
not perfect (in Eclipse at least :)

Where to Find the Demo Code?
75
IPTPI Reactive Demo is available @ GitHub:
https://github.com/iproduct/jprime-demo

76
Resources: RxMarbles & Rx Coans
RxMarbles:
http://rxmarbles.com/
RxJava Koans – Let's try to solve them at:
https://github.com/mutexkid/rxjava-koans
RxJS Koans – for those who prefer JavaScript :)
https://github.com/Reactive-Extensions/RxJSKoans

Tale of Simplicity: DDD
77
http://robolearn.org/ Let's move!
http://iproduct.org/

Thank’s for Your Attention!
78
Trayan Iliev
CEO of IPT – Intellectual Products
& Technologies
http://iproduct.org/
http://robolearn.org/
https://github.com/iproduct
https://twitter.com/trayaniliev
https://www.facebook.com/IPT.EACAD
https://plus.google.com/+IproductOrg

Java & JavaScipt Reactive Robotics and IoT 2016 @ jProfessionals

Recommended

Recommended

More Related Content

Viewers also liked

Viewers also liked (20)

Similar to Java & JavaScipt Reactive Robotics and IoT 2016 @ jProfessionals

Similar to Java & JavaScipt Reactive Robotics and IoT 2016 @ jProfessionals (20)

More from Trayan Iliev

More from Trayan Iliev (8)

Recently uploaded

Recently uploaded (20)

Java & JavaScipt Reactive Robotics and IoT 2016 @ jProfessionals
