iSolution Technologies is a design house specializing in visual solutions with decades of experience. They aim to be a one-stop provider of flat panel and interactive touch solutions. Their core principles are superior customer experience and lower production costs. They offer a range of touch frame and display board products to support growth in various markets like education and entertainment. The company has a strong R&D team and complies with quality and intellectual property standards.

1. iSolution Technologies
Create values for customerStrive for possibleDesire to improve
Contact us:
Ms. Jenny Xu jenny@ist.com.hk

2. Prologue
• iSolution is a specialized design house with
decades of experiences, located in the central
of Shenzhen High-Tech park.
• iSolution owns a wealth of experience, real
expertise and passion for visual solution design.

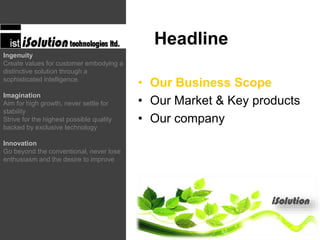

3. • Our Business Scope
• Our Market & Key products
• Our company
Headline
Ingenuity
Create values for customer embodying a
distinctive solution through a
sophisticated intelligence.
Imagination
Aim for high growth, never settle for
stability
Strive for the highest possible quality
backed by exclusive technology
Innovation
Go beyond the conventional, never lose
enthusiasm and the desire to improve

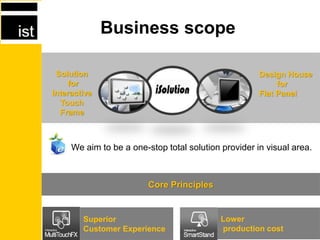

4. We aim to be a one-stop total solution provider in visual area.
Business scope
Design House
for
Flat Panel
Solution
for
Interactive
Touch
Frame
Core Principles
Superior
Customer Experience
Lower
production cost

5. Key Business Model Supports Our Growth
CKD
• Potential customers with
production capability
• One-stop solution provider for
accessory materials of
standardized product
• Cost efficiency
SKD
(Frame
assemble)
• Own intellectual property
rights
• User-customized design
• Strategic partnership
Expanding new business model
Enhancing current business model

6. Own self-design
capability & solution
designer only
• Have an
experienced design
team and possess
rich industrial
resources.
• Focusing on solution
design, never
produce final product
to compete with
client.
Combined solution
for IWB and Flat
panel
• Compared with other
suppliers, we provide
innovative combined
solution for both
IWB and Flat panel
to achieve one-stop
purchasing
Exclusive solution
for VIP clients
• We will sign
confidential
agreement with VIP
clients to avoid
conflicts with clients’
competitors.
Company Strength

7. • Our Business Scope
• Our Market & Key products
• Our company
Headline
Ingenuity
Create values for customer embodying a
distinctive solution through a
sophisticated intelligence.
Imagination
Aim for high growth, never settle for
stability
Strive for the highest possible quality
backed by exclusive technology
Innovation
Go beyond the conventional, never lose
enthusiasm and the desire to improve

8. Infrared Touch Frame Market Highlights
Hyper growth trend in Interactive
Whiteboard Market
Growing demands on interactive smart
terminals market
Rising requirements on pre-school and
entertainment equipment market

9. Our products supports Future Growth
Growing demands
for Multi-touch
appliance(6~10
touches)
16~32 touches on
the application of
Active Table and pre-
school education
equipment
Economic solution on
dual touches
Combination solution of
flat Panel main board
and Infrared Touch
solution on multi-
functional device

10. Infrared Touch Frame Features
Multi-touch: 2, 4/6, 10, 16, 32 touches
Multi-System compatibility: Windows / Linux / Mac OS X / Android.
Scalable dimension : 15~150”
Full screen writing, no dead zone; HID plug & play
Support private protocol
New algorithm and less components, cost efficiency
Support USB testing; All LED signal display clearly, easy to debug and improve
production efficiency
Support USB active reconnection mechanism, stable and reliable

11. Infrared Touch solution
Touch Specification
Touch Dual-touch
Touch Method Fingers or special-
purpose pen
Dimension 16~150”
Main Application Interactive whiteboard
Enquiry Machine
Touch Accuracy ±2mm
Touch Activation
Fore
No pressure request
Response Time 8 ms
Identified
Objective
Any opaque objects with
diameter over 6mm
Software Specification
Scanning Form Auto start, continuous
scanning
Input Mode Click and slide
Resolution 32,768* 32,768
Output Form Coordinate output
Electrical Specification
Power
Requirements
Typical value +DC5V, allowable
deviation ±0.3V
Power Supply DB9/USB2.0 interface
Power
Consumption
Power consumption<1.3W,
working current﹤250mA
Interface PH2.0-4P output cable
(USB2.0)/DB9/USB2.0
Length of Output
Cable
Undisturbed output by USB2.0
outgoing line within 7meters
(customized outgoing line can
reach 15m)
Operating System Windows 8/Windows 7 /
Windows XP/Android/ Mac /
Linux
Operation Method Plug and play (driver free)

12. Infrared Touch solution
Touch Specification
Touch 4/6-touch
Touch Method Fingers or special-
purpose pen
Dimension 15~150”
Main Application Interactive whiteboard
LCD multi-functional
device
Touch Accuracy ±2mm
Touch Activation
Fore
No pressure request
Response Time 10 ms
Identified
Objective
Any opaque objects with
diameter over 6mm
Software Specification
Scanning Form Auto start, continuous
scanning
Input Mode Click and slide
Resolution 32,768* 32,768
Output Form Coordinate output
Electrical Specification
Power
Requirements
Typical value +DC5V, allowable
deviation ±0.3V
Power Supply DB9/USB2.0 interface
Power
Consumption
Power consumption<1.3W,
working current﹤250mA
Interface PH2.0-4P output cable
(USB2.0)/DB9/USB2.0
Length of Output
Cable
Undisturbed output by USB2.0
outgoing line within 7meters
(customized outgoing line can
reach 15m)
Operating System Windows 8/Windows 7 /
Windows XP/Android/ Mac /
Linux
Operation Method Plug and play (driver free)

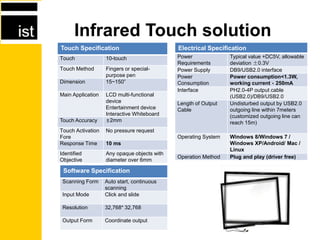

13. Infrared Touch solution
Touch Specification
Touch 10-touch
Touch Method Fingers or special-
purpose pen
Dimension 15~150”
Main Application LCD multi-functional
device
Entertainment device
Interactive Whiteboard
Touch Accuracy ±2mm
Touch Activation
Fore
No pressure request
Response Time 10 ms
Identified
Objective
Any opaque objects with
diameter over 6mm
Software Specification
Scanning Form Auto start, continuous
scanning
Input Mode Click and slide
Resolution 32,768* 32,768
Output Form Coordinate output
Electrical Specification
Power
Requirements
Typical value +DC5V, allowable
deviation ±0.3V
Power Supply DB9/USB2.0 interface
Power
Consumption
Power consumption<1.3W,
working current﹤250mA
Interface PH2.0-4P output cable
(USB2.0)/DB9/USB2.0
Length of Output
Cable
Undisturbed output by USB2.0
outgoing line within 7meters
(customized outgoing line can
reach 15m)
Operating System Windows 8/Windows 7 /
Windows XP/Android/ Mac /
Linux
Operation Method Plug and play (driver free)

14. Infrared Touch solution
Touch Specification
Touch 16/32 -touch
Touch Method Fingers or special-
purpose pen
Dimension 32~84”
Main Application Pre-school education
equipment
Entertainment device
Touch Accuracy ±2mm
Touch Activation
Fore
No pressure request
Response Time 14 ms
Identified
Objective
Any opaque objects with
diameter over 6mm
Software Specification
Scanning Form Auto start, continuous
scanning
Input Mode Click and slide
Resolution 32,768* 32,768
Output Form Coordinate output
Electrical Specification
Power
Requirements
Typical value +DC5V, allowable
deviation ±0.3V
Power Supply DB9/USB2.0 interface
Power
Consumption
Power consumption<1.3W,
working current﹤250mA
Interface PH2.0-4P output cable
(USB2.0)/DB9/USB2.0
Length of Output
Cable
Undisturbed output by USB2.0
outgoing line within 7meters
(customized outgoing line can
reach 15m)
Operating System Windows 8/Windows 7 /
Windows XP/Android/ Mac /
Linux
Operation Method Driver

15. Smart TV Main board solution
Main processer MSD901
Function Android Drive board
Dimension Up to 85”
Main Application Smart TV/ Monitor
System parameter CPU:
GPU:
RAM:
Flash:
SD card:
Android
Version:
ARM dual core A9 1.2G HZ
Quad core 300MHZ
8G (2G*4)bit
DDR3 ,1600MHZ
4GB build in
Support MAX 32GB SD
card
4.2
Panel Type: LCD/LED
Max Resolution:1920*1080
Development
Stage
Completed

16. Flat Panel Main Board solution
Main processer Mstar6M40
Function 4K*2K Drive board
Dimension Up to 85”
Main Application Flat Panel
Monitor
HID input Max resolution: 3840*2160@30HZ
Panel Type: LCD/LED
Interface: LVDS/Vbyone
Max Resolution:3840*2160
FRC 120HZ
Development
Stage
Completed

17. TV Main Board solution
Main
processer
TSUMV69XDT-
Z1/MST6M182XST-Z1
Function TV Drive board
Dimension Up to 85’
Main
Application
Analog TV/ Monitor
Panel Type: LCD/LED
Max Resolution:1920*1080
OSD
Language
Multi-language includes English,
Arabic, French, German, Italian,
Spanish, Portuguese, Russian,
Chinese, etc.
Development
Stage
Completed

18. • Our Business Scope
• Our Market & Key products
• Our company
Headline
Ingenuity
Create values for customer embodying a
distinctive solution through a
sophisticated intelligence.
Imagination
Aim for high growth, never settle for
stability
Strive for the highest possible quality
backed by exclusive technology
Innovation
Go beyond the conventional, never lose
enthusiasm and the desire to improve

19. Company History
IST was established in 2005, starting with software/hardware
design and develop. We specialize in providing a wide range of
solutions for flat-panel TV, interactive touch frame and the control
board of various video appliance.

20. – iSolution team consists of 65 elites, nearly 70% is technical
engineer, 3 with master degree, 41 with bachelor degree.
– Advantage of strong R&D capability makes us a competitive
visual solution provider.
Our members
41%
25%
6%
28% Software Engineer
Hardware Engineer
Testing Engineer
Coordinate

21. • Focus on Customer
Experience
Continuous innovation
• Cost & performanceBalance on
Cost and Efficiency
• Simple but pragmatic management
• Performance Appraisal System
• ISO9000 system
Pragmatic
management
• Mentor system to help and guide new
comers
• Technical seminars to motivate staff
• Corporate culture cultivation
Team
Building
Our Core Management Philosophy
We believe customer experience is the ultimate standard for product design.

22. Quality Principle
• improve, to provide findings that can be used to
improve the software /hardware development and to correct
defects in early stage and prevent costly rework
• inspect, to conduct validation by confirming details
• ideal,to design products or provide services that meet or
surpass customer expectation

23. R&D process
Product Design
Product conceptual design ,
output includes product special characteristics and
specifications
视频演
示
Technology Development
Development applications in visual areas,
ensure convenient for producing
Testing
Electronic testing and Software testing
Instruction to QA and set the testing standard

24. Awards & Certifications
We won the national High Technology Enterprise certification in Nov, 2011.

25. Awards & Certifications
We obtained the membership of Shenzhen Software Industry Association
in 2010.

26. Awards & Certifications
Comply with ISO9001 quality management system in Jun, 2011
To carry out
ISO9001
standard for the
product design
and production;
To audit the
quality procedure
regularly;
To conduct
continuous
improvement
program

27. Intellectual Property Rights

28. The Copyrights of Software

29. Performance Appraisal System
Salary for work
achievement
Bonus for excellent
work performance
Caring for employee’s
concerns and guide
them to be optimistic

30. Staff cultivation
We trust company development relies on every member’s unique innovation;
We appeal sincerity and honesty among team members;
We care and understand their concerns and guide them to be optimistic.

31. Look forward to having the chance
to work with you.
Contact us: Ms. Jenny Xu
jenny@ist.com.hk
Thank you!
