1. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
HOW TO CLEAN AND MAINTAIN YOUR
ILLUMINATED DENTAL ISOLATION SYSTEM

2. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
2
Step One: Disassembly

3. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
3
After Each Patient, Remove the Mouthpiece
from the Control Head and Safely Dispose of It.
Re-use of the mouthpiece can
result in the transmission of
infectious pathogens
SINGLE-USE MEANS SAFE.
Mouthpieces are single-use only
to eliminate the risk of patient
cross contamination.

4. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
4 Remove the Vacuum Light Pipe from the Control Head
Press and hold the rectangular release button on the underside of the
Control Head to release and disconnect the Vacuum Light Pipe.

5. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017

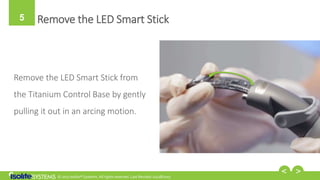

5 Remove the LED Smart Stick
Remove the LED Smart Stick from
the Titanium Control Base by gently
pulling it out in an arcing motion.

6. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
6 Remove the Control Head from the Power Hose
Carefully remove the Control
Head by grasping the end of
the Power Hose and pulling it
straight off.
DO NOT TWIST

7. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017

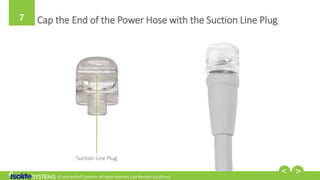

7 Cap the End of the Power Hose with the Suction Line Plug
Suction Line Plug

8. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
8 Remove the Vacuum Levers from the Titanium Control Base
Remove the Vacuum Levers by
rotating the levers to the off
position. Keep pushing gently
until each lever pops out.
Titanium Control Base
Vacuum Levers

9. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
9 Your System Is Now Properly Disassembled
Vacuum Light Pipe
LED Smart Stick
Titanium Control Base
Vacuum Levers

10. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
10
Step Two: Surface Disinfection
Between Each Patient

11. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
11
Between Each Patient, Perform a Surface
Disinfection of the LED Smart Stick
DO NOT SUBMERSE, AUTOCLAVE,
CHEMCLAVE, OR PLACE IN
ULSTRASONIC CLEANER
Follow the cleaning
recommendations provided
in the Instructions for Use
Wipe down the surface of the LED Smart
Stick with an intermediate level disinfectant
wipe with a claim to inactivate
Mycobacterium tuberculosis.

12. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
12
Between Each Patient, Perform a Surface
Disinfection of the Titanium Control Base
Wipe down the surface of the Titanium
Control Base with an intermediate level
disinfectant wipe with a claim to inactivate
Mycobacterium tuberculosis.
Titanium Control Base
Vacuum Levers

13. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
13
Between each patient, perform a surface disinfection of the
Power Hose
Wipe down the surface of the Power Hose
with an intermediate level disinfectant wipe
with a claim to inactivate Mycobacterium
tuberculosis.

14. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
14

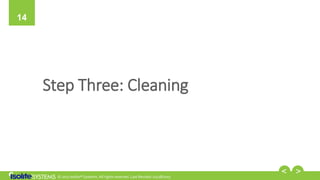

Step Three: Cleaning

15. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
15
Six Vacuum Light Pipes Are Provided So One
Is Always Ready When You Need It

16. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
16 Clean the Vacuum Light Pipe
Using the provided Double End Tube Brush and a neutral pH (6.5-7.5) enzymatic cleaning solution,
remove biomatter and debris from the suction channels. After cleaning, rinse with tap water and dry.
DO NOT HOLD PARTS IN
CLEANING SOLUTION.

17. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
17 Clean the Titanium Control Base
Using the provided Double End Tube Brush and a neutral pH (6.5-7.5) enzymatic cleaning solution, remove
biomatter and debris from the suction channels. After cleaning, rinse with tap water and dry.
DO NOT HOLD PARTS IN CLEANING
SOLUTION OR USE ULTRASONIC CLEANERS

18. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
18
According to Frequency of Use, Regularly Clean the inside of
the Power Hose to Prevent Accumulation of Biofilm
PRIOR TO CLEANING, UNPLUG THE POWER
ADAPTER FROM THE POWER HOSE
Start by vacuuming water through the Power Hose.
Then, vacuum a dental hose cleaner with a pH
between 6 and 8, through the Power Hose per
manufacturer’s instructions.

19. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
19
Step Three: Sterilization

20. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
20
Follow the sterilization
recommendations provided
in the Instructions for Use
Before Use on a Patient, Sterilize the Vacuum Light Pipes

21. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
21 Before Use on a Patient, Sterilize the Vacuum Light Pipes
Place the Vacuum Light Pipes into
an autoclave pouch and sterilize
in a steam autoclave using these
validated sterilization cycles.
Cycle Temperature Min. Exposure Time Min. Drying Time
Standard 121 °C / 250 °F 30 min 30 min
Standard 132 °C / 270 °F 15 min 15 min
Prevacuum 132 °C / 270 °F 4 min 20 min
Prevacuum 134 °C / 273 °F 3 min 20 min

22. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
22
Follow the sterilization
recommendations provided
in the Instructions for Use
Weekly, or as Needed per Standard Office Protocol, Sterilize
the Titanium Control Base
Titanium Control Base
Vacuum Levers

23. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
23
Weekly, or as Needed per Standard Office Protocol,
Sterilize the Titanium Control Base
Place the Titanium Control Base and
Vacuum Levers into an autoclave pouch
and sterilize in a steam autoclave using
these validated sterilization cycles.
Cycle Temperature Min. Exposure Time Min. Drying Time
Standard 121 °C / 250 °F 30 min 30 min
Standard 132 °C / 270 °F 15 min 15 min
Prevacuum 132 °C / 270 °F 4 min 20 min
Prevacuum 134 °C / 273 °F 3 min 20 min

24. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
24
Step Four: Lubrication and Reassembly

25. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
25 Inspect the Vacuum Lever O-rings for Damage
If the O-rings shows signs of cracking,
breakage, or crusty build-up that can
not be completely cleaned with a wet
cotton swab, the O-ring will need to
be removed and replaced.
If properly maintained and lubricated,
the O-ring can last for many months or years.

26. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017

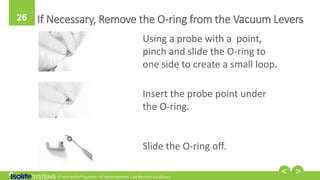

26 If Necessary, Remove the O-ring from the Vacuum Levers
Using a probe with a point,
pinch and slide the O-ring to
one side to create a small loop.
Slide the O-ring off.
Insert the probe point under
the O-ring.

27. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
27 Replace the O-ring on the Vacuum Levers
Roll the O-ring onto the end of the
Vacuum Lever valve barrel and into
the groove.
O-ring in place.

28. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
28 Lubricate the Vacuum Lever O-rings
Coat the O-ring by applying a small
amount of the Dow 111 O-ring
Lubricant provided in the O-ring
Maintenance Kit.
THE VACUUM LEVER O-RINGS REQUIRE
REGULAR LUBRICATION TO OPERATE AT
PEAK EFFICIENCY.

29. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
29 Inspect the Power Hose O-ring for Damage
If the O-ring shows signs of cracking,
breakage, or crusty build-up that can
not be completely cleaned with a wet
cotton swab, the O-ring will need to
be removed and replaced.
The O-ring is located less than ½ inch inside the
blue plastic fitting at the head of the Power Hose.

30. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
30 If Necessary, Remove the O-ring from the Power Hose
Hold the head of the Power Hose and insert
a probe with a point under the O-ring.
Gently guide the probe around the groove.
The O-ring should come out.
Pull out the O-ring.

31. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
31 Replace the O-ring on the Power Hose
Pinch the O-ring and insert
one end into the groove.
Using the probe, massage
the O-ring into the groove.

32. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
32 Lubricate the Power Hose O-ring
Coat the O-ring by applying a small
amount of the Dow 111 O-ring
Lubricant provided in the O-ring
Maintenance Kit.
THE POWER HOSE O-RING
REQUIRES REGULAR LUBRICATION
TO OPERATE AT PEAK EFFICIENCY

33. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
33
Reconnect the Control Head to the Power Hose
and Reinsert the LED Smart Stick

34. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
34 Reattach the Vacuum Light Pipe to the Control Head

35. © 2017 Isolite® Systems. All rights reserved. Last Revised: 02/28/2017
35
THANK YOU.
PLEASE CONTACT US IF YOU HAVE ANY QUESTIONS
OR NEED ANY ADDITIONAL SUPPORT.
