Design Patterns For Distributed
Mobile Applications




                                 Jason H Christensen
                 Intelligence In Motion Partners, LLC
               iPhone Developer Summit West, 2009

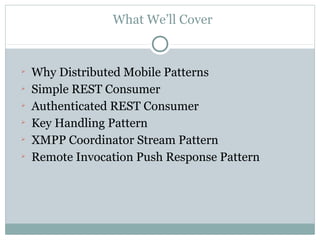

What We’ll Cover



    Why Distributed Mobile Patterns

    Simple REST Consumer

    Authenticated REST Consumer

    Key Handling Pattern

    XMPP Coordinator Stream Pattern

    Remote Invocation Push Response Pattern

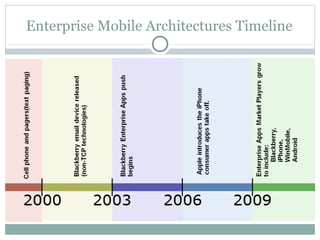

Enterprise Mobile Architectures Timeline
Why Distributed Mobile Architectures

Corporateers are leaving their laptops at their desk.

iPhone in the Enterprise has made some noise, but
  Blackberry is entrenched due to existing apps.

iPhone has to create key advantages to become more
  competitive in the enterprise space.

iPhone has some key disadvantages, limited carrier
  options, new programming language, “data walking
  off”

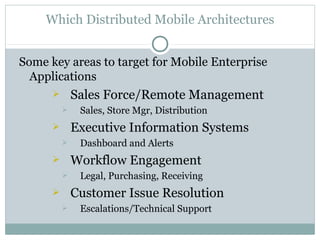

Which Distributed Mobile Architectures


Some key areas to target for Mobile Enterprise
  Applications
             Sales Force/Remote Management
              Sales, Store Mgr, Distribution
             Executive Information Systems
              Dashboard and Alerts
             Workflow Engagement
              Legal, Purchasing, Receiving
             Customer Issue Resolution
              Escalations/Technical Support

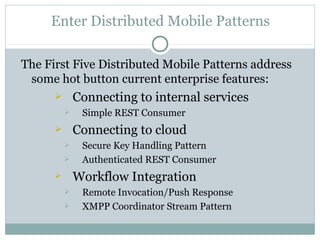

Enter Distributed Mobile Patterns

The First Five Distributed Mobile Patterns address
 some hot button current enterprise features:
             Connecting to internal services
              Simple REST Consumer
             Connecting to cloud
              Secure Key Handling Pattern
              Authenticated REST Consumer
             Workflow Integration
              Remote Invocation/Push Response
              XMPP Coordinator Stream Pattern

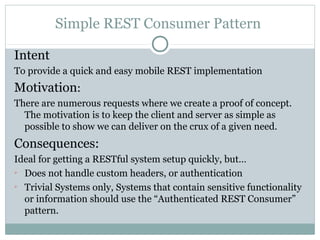

Simple REST Consumer Pattern

Intent
To provide a quick and easy mobile REST implementation
Motivation:
There are numerous requests where we create a proof of concept.
  The motivation is to keep the client and server as simple as
  possible to show we can deliver on the crux of a given need.
Consequences:
Ideal for getting a RESTful system setup quickly, but…

  Does not handle custom headers, or authentication

  Trivial Systems only, Systems that contain sensitive functionality
  or information should use the “Authenticated REST Consumer”
  pattern.

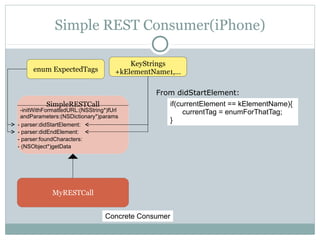

Simple REST Consumer(iPhone)

                                        KeyStrings
     enum ExpectedTags              +kElementName1,…

                                              From didStartElement:
          SimpleRESTCall                             if(currentElement == kElementName){
 -initWithFormattedURL:(NSString*)fUrl                    currentTag = enumForThatTag;
 andParameters:(NSDictionary*)params
                                                     }
- parser:didStartElement:
- parser:didEndElement:
- parser:foundCharacters:
- (NSObject*)getData




             MyRESTCall


                                 Concrete Consumer

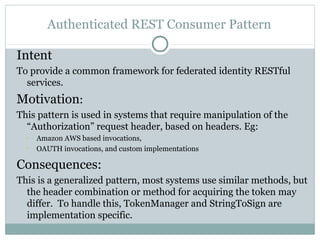

Authenticated REST Consumer Pattern

Intent
To provide a common framework for federated identity RESTful
  services.
Motivation:
This pattern is used in systems that require manipulation of the
  “Authorization” request header, based on headers. Eg:
  
      Amazon AWS based invocations,
  
      OAUTH invocations, and custom implementations

Consequences:
This is a generalized pattern, most systems use similar methods, but
  the header combination or method for acquiring the token may
  differ. To handle this, TokenManager and StringToSign are
  implementation specific.

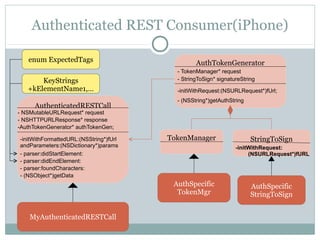

Authenticated REST Consumer(iPhone)

   enum ExpectedTags                             AuthTokenGenerator
                                          - TokenManager* request
       KeyStrings                         - StringToSign* signatureString
   +kElementName1,…                       -initWithRequest:(NSURLRequest*)fUrl;
                                          - (NSString*)getAuthString
      AuthenticatedRESTCall
- NSMutableURLRequest* request
- NSHTTPURLResponse* response
-AuthTokenGenerator* authTokenGen;

-initWithFormattedURL:(NSString*)fUrl   TokenManager                   StringToSign
andParameters:(NSDictionary*)params                              -initWithRequest:
- parser:didStartElement:                                             (NSURLRequest*)fURL
- parser:didEndElement:
- parser:foundCharacters:
- (NSObject*)getData
                                         AuthSpecific                  AuthSpecific
                                          TokenMgr                     StringToSign


    MyAuthenticatedRESTCall

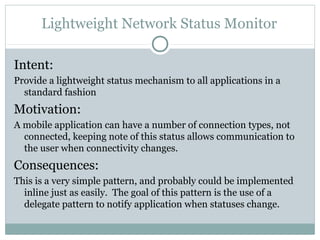

Lightweight Network Status Monitor

Intent:
Provide a lightweight status mechanism to all applications in a
  standard fashion
Motivation:
A mobile application can have a number of connection types, not
  connected, keeping note of this status allows communication to
  the user when connectivity changes.
Consequences:
This is a very simple pattern, and probably could be implemented
  inline just as easily. The goal of this pattern is the use of a
  delegate pattern to notify application when statuses change.

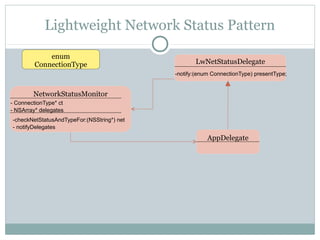

Lightweight Network Status Pattern
             enum
         ConnectionType                            LwNetStatusDelegate
                                            -notify:(enum ConnectionType) presentType;


        NetworkStatusMonitor
- ConnectionType* ct
- NSArray* delegates
-checkNetStatusAndTypeFor:(NSString*) net
- notifyDelegates

                                                        AppDelegate

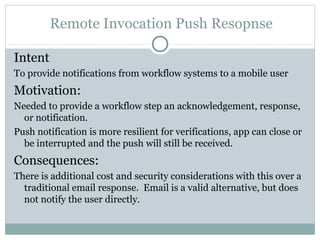

Remote Invocation Push Resopnse

Intent
To provide notifications from workflow systems to a mobile user
Motivation:
Needed to provide a workflow step an acknowledgement, response,
  or notification.
Push notification is more resilient for verifications, app can close or
  be interrupted and the push will still be received.
Consequences:
There is additional cost and security considerations with this over a
  traditional email response. Email is a valid alternative, but does
  not notify the user directly.
Remote Invocation/Push Response (iPhone)

iPhone Application        sendDeviceToken   Web Application
   initPushFunctions                        newDeviceListener

                           HTTP Request
AuthenticatedRESTAsynch


                          HTTP Response
                                                ServerListener


                                                       QueueRequest


                                               ProcessingQueue

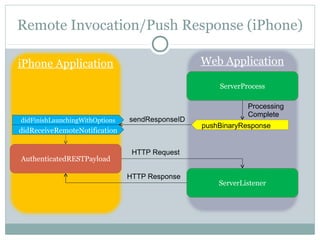

Remote Invocation/Push Response (iPhone)

iPhone Application                               Web Application

                                                     ServerProcess

                                                             Processing
                                                             Complete
didFinishLaunchingWithOptions   sendResponseID
                                                 pushBinaryResponse
didReceiveRemoteNotification


                                 HTTP Request
AuthenticatedRESTPayload

                                HTTP Response
                                                     ServerListener
XMPP Coordinator Stream Pattern


Intent
Utilize a standard messaging protocol as a baseline for higher level
  messaging functionality
Motivation:
This was kind of a eureka moment, but we were stuck trying to find
  a way to bridge between J2EE based MOM and our Mobile Apps.
  We decided to create a listener on the XMPP port and to use that
  to bridge with the phone.
Consequences:
There is additional cost and security considerations with this over a
  traditional email response. Email is a valued alternative, but does
  not notify the user directly.

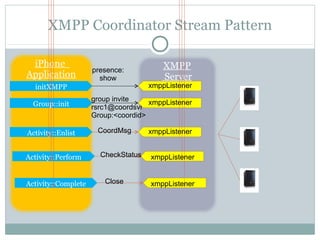

XMPP Coordinator Stream Pattern

 iPhone                                  XMPP
                     presence:
Application            show              Server
  initXMPP                           xmppListener
                     group invite    xmppListener
  Group::init        rsrc1@coordsvr
                     Group:<coordid>

Activity::Enlist      CoordMsg       xmppListener


Activity::Perform      CheckStatus   xmppListener


Activity::Complete      Close        xmppListener

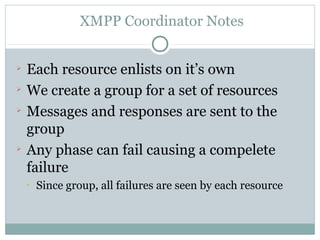

XMPP Coordinator Notes



    Each resource enlists on it’s own

    We create a group for a set of resources

    Messages and responses are sent to the
    group

    Any phase can fail causing a compelete
    failure
    
        Since group, all failures are seen by each resource

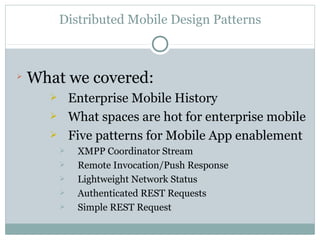

Distributed Mobile Design Patterns




    What we covered:
             Enterprise Mobile History
             What spaces are hot for enterprise mobile
             Five patterns for Mobile App enablement
              XMPP Coordinator Stream
              Remote Invocation/Push Response
              Lightweight Network Status
              Authenticated REST Requests
              Simple REST Request
Questions?




    Feel free to contact me:
        Jason H Christensen
        jason_h_christensen@jasonc411.com
        Slideshare: jasonc411
        Twitter: jasonc411
        http://jasonc411.com
