IoT Security Code of Practice Explained

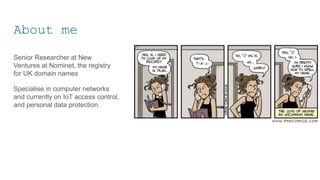

- 2. About me Senior Researcher at New Ventures at Nominet, the registry for UK domain names Specialise in computer networks and currently on IoT access control, and personal data protection.

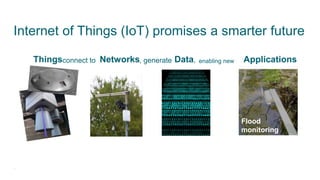

- 3. 3 Internet of Things (IoT) promises a smarter future Things Networks Data, Applications Flood monitoring connect to , generate enabling new

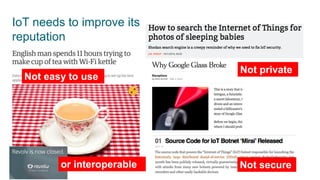

- 4. 4 IoT needs to improve its reputation 4 Not easy to use Not secure Not private or interoperable
- 5. 5 Need to secure end-to-end Things Networks Data, Applications Flood monitoring connect to , generate enabling new Things vary in their capabilities Various communication patterns and network architectures Multiple protocols (proprietary or standards) Security requirements are diverse

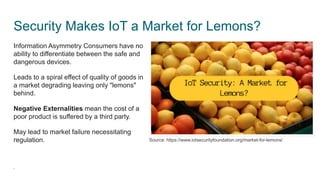

- 6. Security Makes IoT a Market for Lemons? Information Asymmetry Consumers have no ability to differentiate between the safe and dangerous devices. Leads to a spiral effect of quality of goods in a market degrading leaving only "lemons" behind. Negative Externalities mean the cost of a poor product is suffered by a third party. May lead to market failure necessitating regulation. 6 Source: https://www.iotsecurityfoundation.org/market-for-lemons/
- 7. UK Code of Practice for Consumer IoT SecurityVoluntary code of practice In June 2019, DCMS ran a consultation on mandatory requirements to ensure baseline IoT security IoT security label NOMINET IOT PRIVACY 7 Source: DCMS

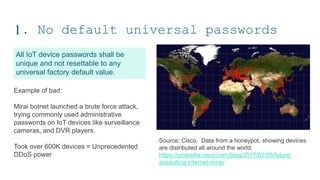

- 8. 1. No default universal passwords All IoT device passwords shall be unique and not resettable to any universal factory default value. NOMINET IOT PRIVACY 8 Example of bad: Mirai botnet launched a brute force attack, trying commonly used administrative passwords on IoT devices like surveillance cameras, and DVR players. Took over 600K devices = Unprecedented DDoS power Source: Cisco. Data from a honeypot, showing devices are distributed all around the world. https://umbrella.cisco.com/blog/2017/01/05/future- assaulting-internet-mirai/

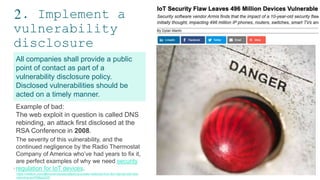

- 9. 2. Implement a vulnerability disclosure policy 9 All companies shall provide a public point of contact as part of a vulnerability disclosure policy. Disclosed vulnerabilities should be acted on a timely manner. 9 Example of bad: The web exploit in question is called DNS rebinding, an attack first disclosed at the RSA Conference in 2008. The severity of this vulnerability, and the continued negligence by the Radio Thermostat Company of America who’ve had years to fix it, are perfect examples of why we need security regulation for IoT devices. https://medium.com/@brannondorsey/attacking-private-networks-from-the-internet-with-dns- rebinding-ea7098a2d325
- 10. 3. Keep software updated Software components should be securely updateable. Constrained devices that cannot physically be updated, should be isolatable and replaceable. https://www.iottechnews.com/news/2017/apr/07/amnesia-yet-another-iot- botnet-targets-global-dvrs/ Example of bad: Amnesia targeted digital video recorders (DVRs) by exploiting an unpatched remote code execution vulnerability disclosed a year before the attacks.

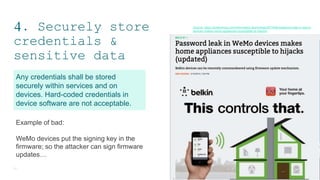

- 11. 4. Securely store credentials & sensitive data 11 Any credentials shall be stored securely within services and on devices. Hard-coded credentials in device software are not acceptable. Example of bad: WeMo devices put the signing key in the firmware; so the attacker can sign firmware updates… Source: https://arstechnica.com/information-technology/2014/02/password-leak-in-wemo- devices-makes-home-appliances-susceptible-to-hijacks/

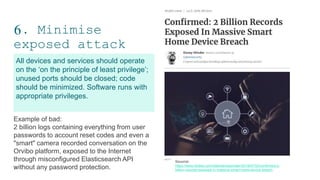

- 12. 6. Minimise exposed attack surfaces 13 All devices and services should operate on the ‘on the principle of least privilege’; unused ports should be closed; code should be minimized. Software runs with appropriate privileges. Example of bad: 2 billion logs containing everything from user passwords to account reset codes and even a "smart" camera recorded conversation on the Orvibo platform, exposed to the Internet through misconfigured Elasticsearch API without any password protection. Souurce: https://www.forbes.com/sites/daveywinder/2019/07/02/confirmed-2- billion-records-exposed-in-massive-smart-home-device-breach

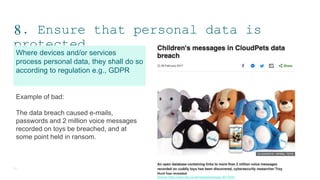

- 13. 8. Ensure that personal data is protected 15 Where devices and/or services process personal data, they shall do so according to regulation e.g., GDPR Example of bad: The data breach caused e-mails, passwords and 2 million voice messages recorded on toys be breached, and at some point held in ransom. Source: https://www.bbc.co.uk/news/technology-39115001

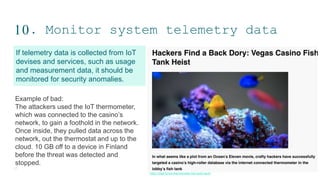

- 14. 10. Monitor system telemetry data 17 If telemetry data is collected from IoT devises and services, such as usage and measurement data, it should be monitored for security anomalies. Example of bad: The attackers used the IoT thermometer, which was connected to the casino’s network, to gain a foothold in the network. Once inside, they pulled data across the network, out the thermostat and up to the cloud. 10 GB off to a device in Finland before the threat was detected and stopped. https://digit.fyi/iot-thermometer-fish-tank-hack/
- 15. 11. Make it easy for consumers to delete personal data 18 Consumers should be given clear instructions on how to delete their personal data. Bad example: Old car is still in the management app, never expires Used home automation hub comes with old owner’s devices, and don’t go away with factory reset Source: https://securityintelligence.com/an-iot-love-story-always-apart-never-disconnected/

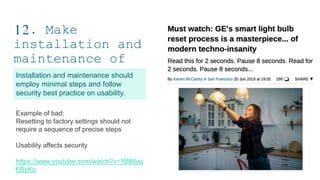

- 16. 12. Make installation and maintenance of devices easy 19 Installation and maintenance should employ minimal steps and follow security best practice on usability. Example of bad: Resetting to factory settings should not require a sequence of precise steps Usability affects security https://www.youtube.com/watch?v=1BB6wj 6RyKo

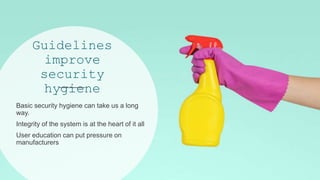

- 17. Guidelines improve security hygiene Basic security hygiene can take us a long way. Integrity of the system is at the heart of it all User education can put pressure on manufacturers
- 18. Thank you
Editor's Notes
- We are part of the Internet DNS infrastructure, and develop cyber-security solutions for UK government and enterprises
- Nothing really interconnects Devices may turn into bricks if companies discontinue service Security threats are a reality: IoT-enabled DDoS attacks, IoT ransomware attacks Creep factor may affect adoption
- is a well-known[1] 1970 paper by economist George Akerlof which examines how the quality of goods traded in a market can degrade in the presence of information asymmetry between buyers and sellers, leaving only "lemons" behind. In American slang, a lemon is a car that is found to be defective only after it has been bought. Consumers have no ability to differentiate between the safe and dangerous devices. When there is Information Asymmetry, consumers differentiate by price, which may drive out good quality products out of the market. Negative Externalities mean bad effects of the market are felt by third parties, in other words the cost of a poor product is suffered by a third party. Such market failure may necessitate regulation!
- The UK's Department for Digital, Culture, Media and Sport ("DCMS") has released a voluntary code of practice to help Internet of Things companies to achieve a "secure by design" approach, including to comply with applicable data protection laws, such as the GDPR, from the earliest stages of the design process. In February 2019, ETSI, the European Standards Organisation, launched the first globally-applicable industry standard on internet-connected consumer devices. ETSI Technical Specification 103 645 brings together what is widely considered good practice in consumer IoT security. The ETSI standard builds on the Code of Practice, but has been designed to work for European and wider global needs.
- Mirai bots scan the IPv4 address space for devices that run telnet or SSH, and attempt to log in using a hardcoded dictionary of IoT credentials. Once successful, the bot sends the victim IP address and associated credentials to a report server, which asynchronously triggers a loader to infect the device. Infected hosts scan for additional victims and accept DDoS commands from a command and control (C2) server. Telnet connection using 10 username and password pairs selected randomly from a pre-configured list of 62 credentials.
- thousands of potentially exploitable vulnerabilities that would have gone unfixed had they not been reported. A VDP is the digital equivalent of “if you see something, say something.” It’s intended to give ethical hackers (also known as “researchers” or “finders”), or anyone who stumbles across something amiss—clear guidelines for reporting potentially unknown or harmful security vulnerabilities to the proper person or team responsible. Think of this real-life analogy: you walk past a neighbor’s house and see their back door was left wide open. What would you do? You’d probably knock on their door, holler to see if they were home, or maybe even call them. But for technology, it’s not that simple. You might not know how to contact them, where to find a phone number or email address. Furthermore, you wouldn’t know if your email or voicemail ever made it to the correct person, or anyone at all. Or, after looking for and not finding an appropriate contact channel, most of us would probably just give up. The result, nearly every time, is that nothing happens...except that the vulnerability remains and the organization is unaware. 2018 IoT Security Foundation Study: 90.3% Companies without a disclosure policy.
- The situation is worse for the computers embedded in IoT devices. In a lot of systems—both low-cost and expensive—users have to manually download and install relevant patches. Often the patching process is tedious and complicated, and beyond the skill of the average user. Sometimes, ISPs have the ability to remotely patch things like routers and modems, but this is also rare. Even worse, many embedded devices don’t have any way to be patched. Right now, the only way for you to update the firmware in your hackable DVR is to throw it away and buy a new one. In 2015, Chrysler recalled 1.4 million vehicles to patch a security vulnerability. The only way to patch them was for Chrysler to mail every car owner a USB drive to plug into a port on the vehicle’s dashboard. In 2017, Abbott Labs told 465,000 pacemaker patients that they had to go to an authorized clinic for a critical security update. At least the patients didn’t have to have their chests opened up. https://medium.com/@brannondorsey/attacking-private-networks-from-the-internet-with-dns-rebinding-ea7098a2d325
- thousands of potentially exploitable vulnerabilities that would have gone unfixed had they not been reported. A VDP is the digital equivalent of “if you see something, say something.” It’s intended to give ethical hackers (also known as “researchers” or “finders”), or anyone who stumbles across something amiss—clear guidelines for reporting potentially unknown or harmful security vulnerabilities to the proper person or team responsible. Think of this real-life analogy: you walk past a neighbor’s house and see their back door was left wide open. What would you do? You’d probably knock on their door, holler to see if they were home, or maybe even call them. But for technology, it’s not that simple. You might not know how to contact them, where to find a phone number or email address. Furthermore, you wouldn’t know if your email or voicemail ever made it to the correct person, or anyone at all. Or, after looking for and not finding an appropriate contact channel, most of us would probably just give up. The result, nearly every time, is that nothing happens...except that the vulnerability remains and the organization is unaware.
- Actually, this happened because some IP camera models didn’t authenticate users exposing video feeds of people’s cameras, but also if it had credentials, it stored them in plain text etc.
- thousands of potentially exploitable vulnerabilities that would have gone unfixed had they not been reported. A VDP is the digital equivalent of “if you see something, say something.” It’s intended to give ethical hackers (also known as “researchers” or “finders”), or anyone who stumbles across something amiss—clear guidelines for reporting potentially unknown or harmful security vulnerabilities to the proper person or team responsible. Think of this real-life analogy: you walk past a neighbor’s house and see their back door was left wide open. What would you do? You’d probably knock on their door, holler to see if they were home, or maybe even call them. But for technology, it’s not that simple. You might not know how to contact them, where to find a phone number or email address. Furthermore, you wouldn’t know if your email or voicemail ever made it to the correct person, or anyone at all. Or, after looking for and not finding an appropriate contact channel, most of us would probably just give up. The result, nearly every time, is that nothing happens...except that the vulnerability remains and the organization is unaware.
- thousands of potentially exploitable vulnerabilities that would have gone unfixed had they not been reported. A VDP is the digital equivalent of “if you see something, say something.” It’s intended to give ethical hackers (also known as “researchers” or “finders”), or anyone who stumbles across something amiss—clear guidelines for reporting potentially unknown or harmful security vulnerabilities to the proper person or team responsible. Think of this real-life analogy: you walk past a neighbor’s house and see their back door was left wide open. What would you do? You’d probably knock on their door, holler to see if they were home, or maybe even call them. But for technology, it’s not that simple. You might not know how to contact them, where to find a phone number or email address. Furthermore, you wouldn’t know if your email or voicemail ever made it to the correct person, or anyone at all. Or, after looking for and not finding an appropriate contact channel, most of us would probably just give up. The result, nearly every time, is that nothing happens...except that the vulnerability remains and the organization is unaware.
- thousands of potentially exploitable vulnerabilities that would have gone unfixed had they not been reported. A VDP is the digital equivalent of “if you see something, say something.” It’s intended to give ethical hackers (also known as “researchers” or “finders”), or anyone who stumbles across something amiss—clear guidelines for reporting potentially unknown or harmful security vulnerabilities to the proper person or team responsible. Think of this real-life analogy: you walk past a neighbor’s house and see their back door was left wide open. What would you do? You’d probably knock on their door, holler to see if they were home, or maybe even call them. But for technology, it’s not that simple. You might not know how to contact them, where to find a phone number or email address. Furthermore, you wouldn’t know if your email or voicemail ever made it to the correct person, or anyone at all. Or, after looking for and not finding an appropriate contact channel, most of us would probably just give up. The result, nearly every time, is that nothing happens...except that the vulnerability remains and the organization is unaware.
- thousands of potentially exploitable vulnerabilities that would have gone unfixed had they not been reported. A VDP is the digital equivalent of “if you see something, say something.” It’s intended to give ethical hackers (also known as “researchers” or “finders”), or anyone who stumbles across something amiss—clear guidelines for reporting potentially unknown or harmful security vulnerabilities to the proper person or team responsible. Think of this real-life analogy: you walk past a neighbor’s house and see their back door was left wide open. What would you do? You’d probably knock on their door, holler to see if they were home, or maybe even call them. But for technology, it’s not that simple. You might not know how to contact them, where to find a phone number or email address. Furthermore, you wouldn’t know if your email or voicemail ever made it to the correct person, or anyone at all. Or, after looking for and not finding an appropriate contact channel, most of us would probably just give up. The result, nearly every time, is that nothing happens...except that the vulnerability remains and the organization is unaware.
- thousands of potentially exploitable vulnerabilities that would have gone unfixed had they not been reported. A VDP is the digital equivalent of “if you see something, say something.” It’s intended to give ethical hackers (also known as “researchers” or “finders”), or anyone who stumbles across something amiss—clear guidelines for reporting potentially unknown or harmful security vulnerabilities to the proper person or team responsible. Think of this real-life analogy: you walk past a neighbor’s house and see their back door was left wide open. What would you do? You’d probably knock on their door, holler to see if they were home, or maybe even call them. But for technology, it’s not that simple. You might not know how to contact them, where to find a phone number or email address. Furthermore, you wouldn’t know if your email or voicemail ever made it to the correct person, or anyone at all. Or, after looking for and not finding an appropriate contact channel, most of us would probably just give up. The result, nearly every time, is that nothing happens...except that the vulnerability remains and the organization is unaware.
- thousands of potentially exploitable vulnerabilities that would have gone unfixed had they not been reported. A VDP is the digital equivalent of “if you see something, say something.” It’s intended to give ethical hackers (also known as “researchers” or “finders”), or anyone who stumbles across something amiss—clear guidelines for reporting potentially unknown or harmful security vulnerabilities to the proper person or team responsible. Think of this real-life analogy: you walk past a neighbor’s house and see their back door was left wide open. What would you do? You’d probably knock on their door, holler to see if they were home, or maybe even call them. But for technology, it’s not that simple. You might not know how to contact them, where to find a phone number or email address. Furthermore, you wouldn’t know if your email or voicemail ever made it to the correct person, or anyone at all. Or, after looking for and not finding an appropriate contact channel, most of us would probably just give up. The result, nearly every time, is that nothing happens...except that the vulnerability remains and the organization is unaware.
- Locus Energy has patched 100,000 of its residential and commercial power meters that were vulnerable to command injection attacks and code execution.
- Requires system to be correct, non-by passable, and tamperproof Requires monitoring for unauthorized changes Extends to secure updates and maintenance
- thousands of potentially exploitable vulnerabilities that would have gone unfixed had they not been reported. A VDP is the digital equivalent of “if you see something, say something.” It’s intended to give ethical hackers (also known as “researchers” or “finders”), or anyone who stumbles across something amiss—clear guidelines for reporting potentially unknown or harmful security vulnerabilities to the proper person or team responsible. Think of this real-life analogy: you walk past a neighbor’s house and see their back door was left wide open. What would you do? You’d probably knock on their door, holler to see if they were home, or maybe even call them. But for technology, it’s not that simple. You might not know how to contact them, where to find a phone number or email address. Furthermore, you wouldn’t know if your email or voicemail ever made it to the correct person, or anyone at all. Or, after looking for and not finding an appropriate contact channel, most of us would probably just give up. The result, nearly every time, is that nothing happens...except that the vulnerability remains and the organization is unaware.
