The document discusses inversion of control (IoC) and how it is implemented in Laravel using the service container. IoC inverts control of object dependencies from the application code to a generic framework. Laravel uses dependency injection as a form of IoC, where dependencies are created outside classes and injected. The powerful Laravel service container leverages PHP's reflection API to automatically inject dependencies based on class definitions.

1. IoC & Laravel
Dinh Hoang Long
FramgiaVN - BrSE
@dinhhoanglong91
1

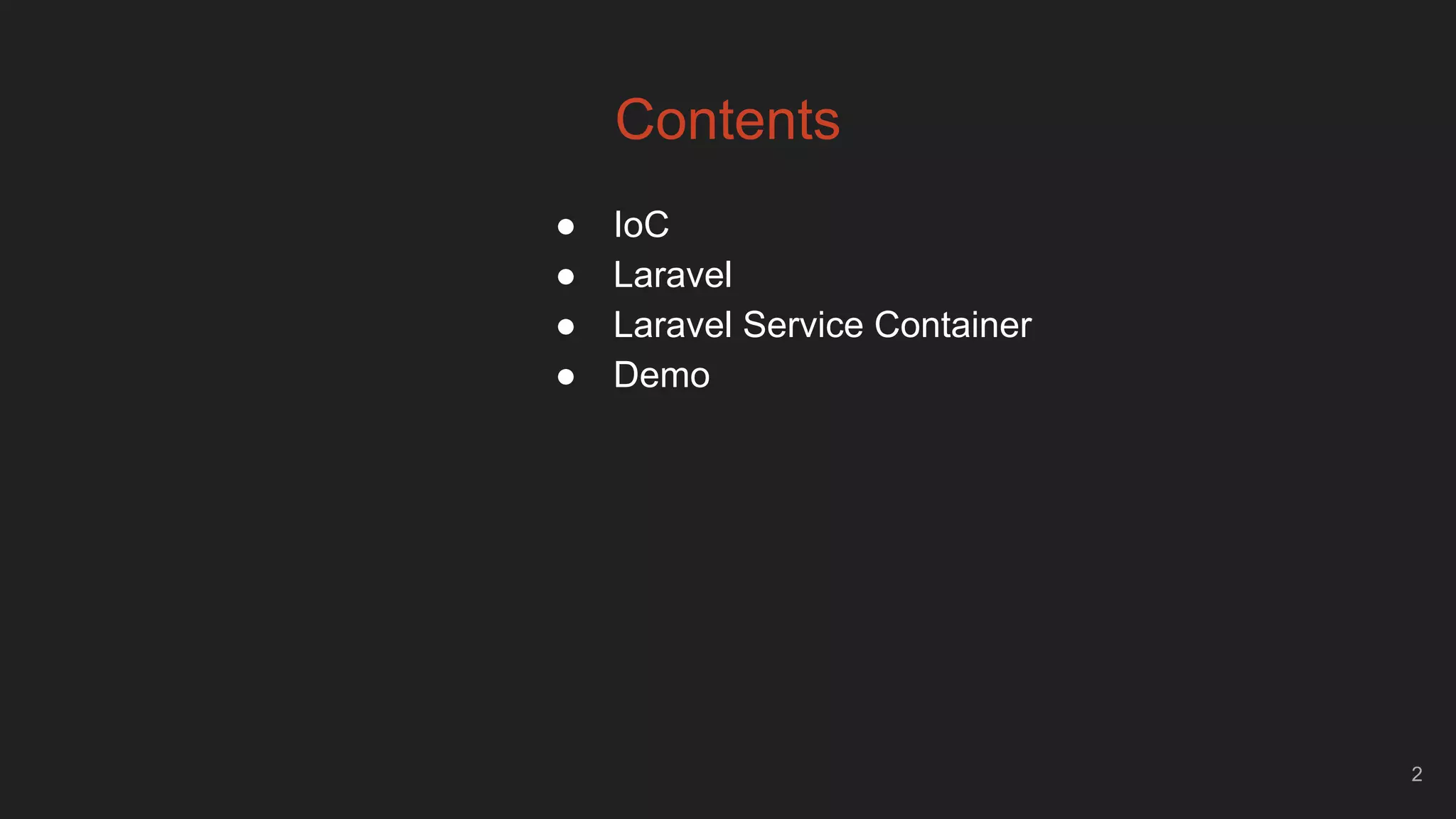

2. Contents
● IoC
● Laravel
● Laravel Service Container
● Demo
2

3. IoC
Inversion of Control
3

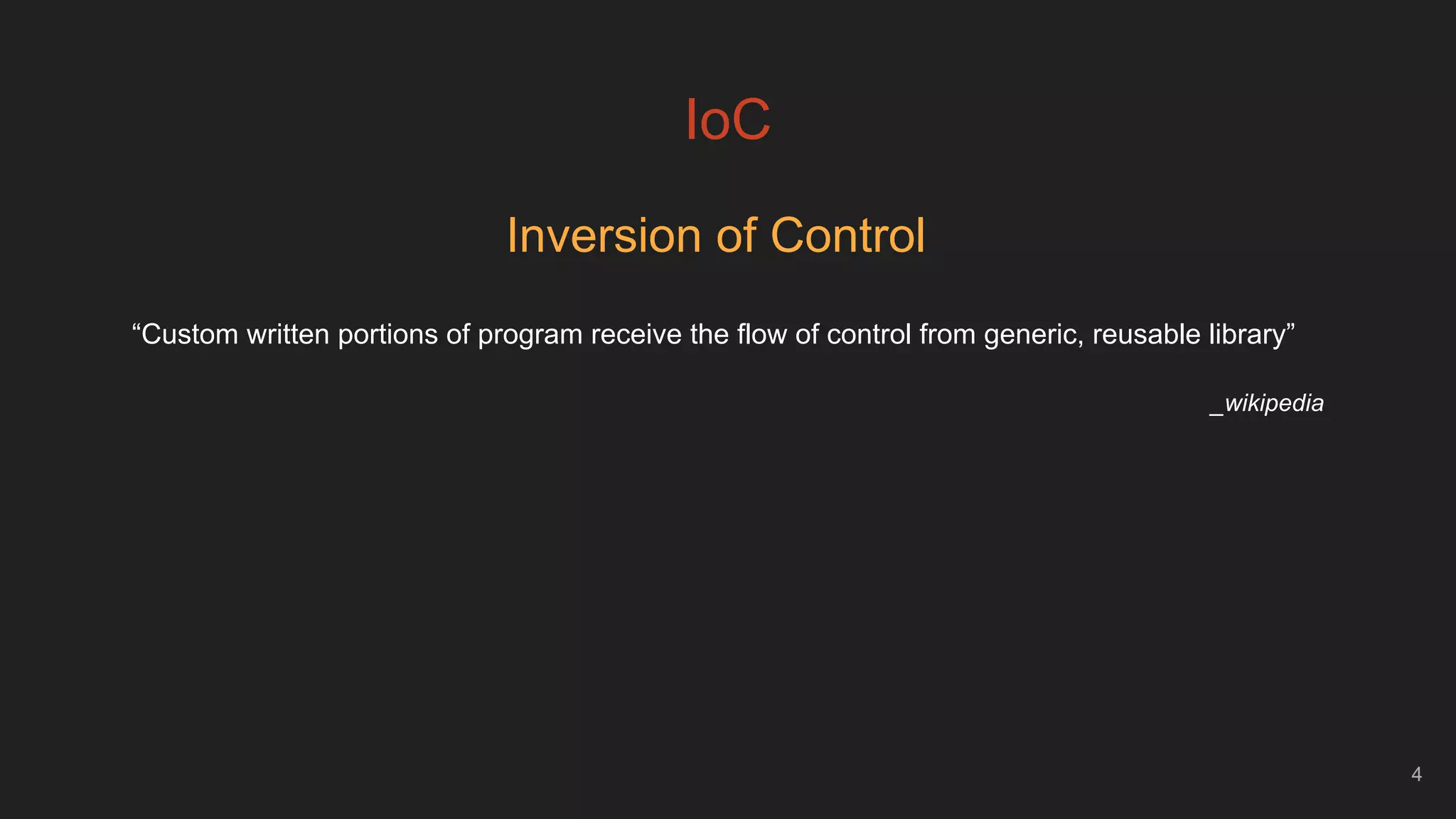

4. IoC
Inversion of Control
4
“Custom written portions of program receive the flow of control from generic, reusable library”
_wikipedia

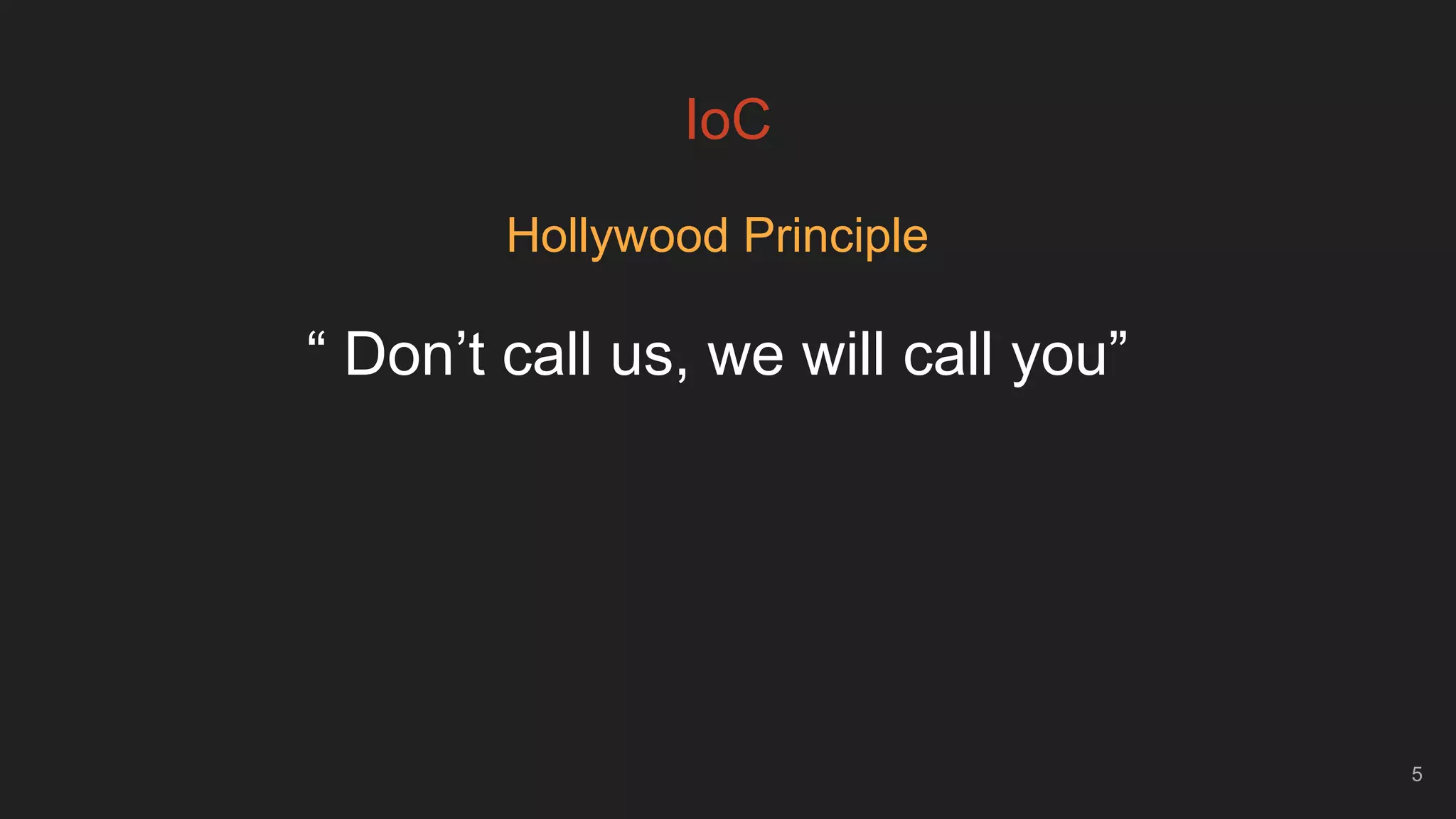

5. IoC
Hollywood Principle
5
“ Don’t call us, we will call you”

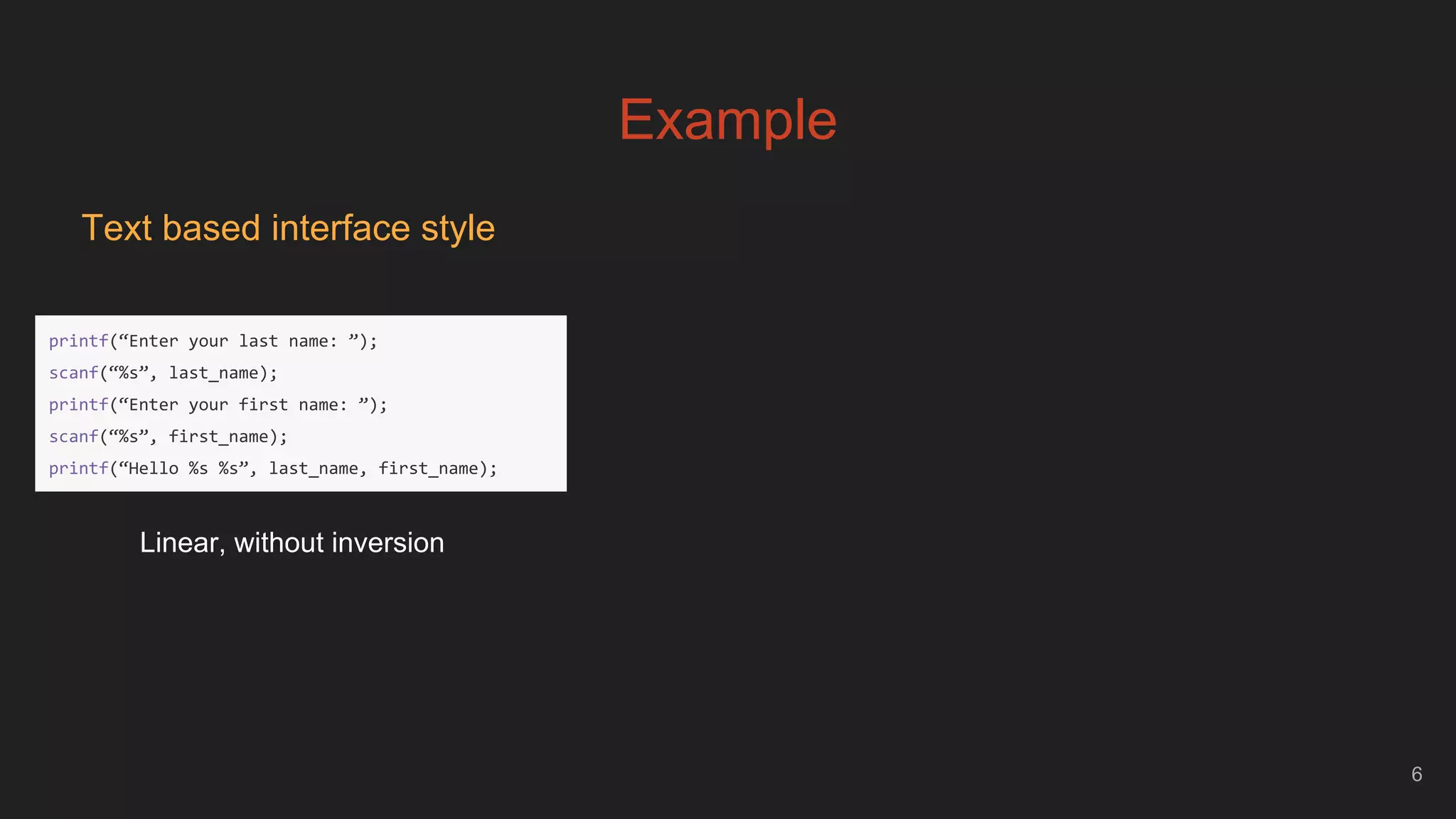

6. Example
6
Text based interface style
printf(“Enter your last name: ”);
scanf(“%s”, last_name);
printf(“Enter your first name: ”);
scanf(“%s”, first_name);
printf(“Hello %s %s”, last_name, first_name);
Linear, without inversion

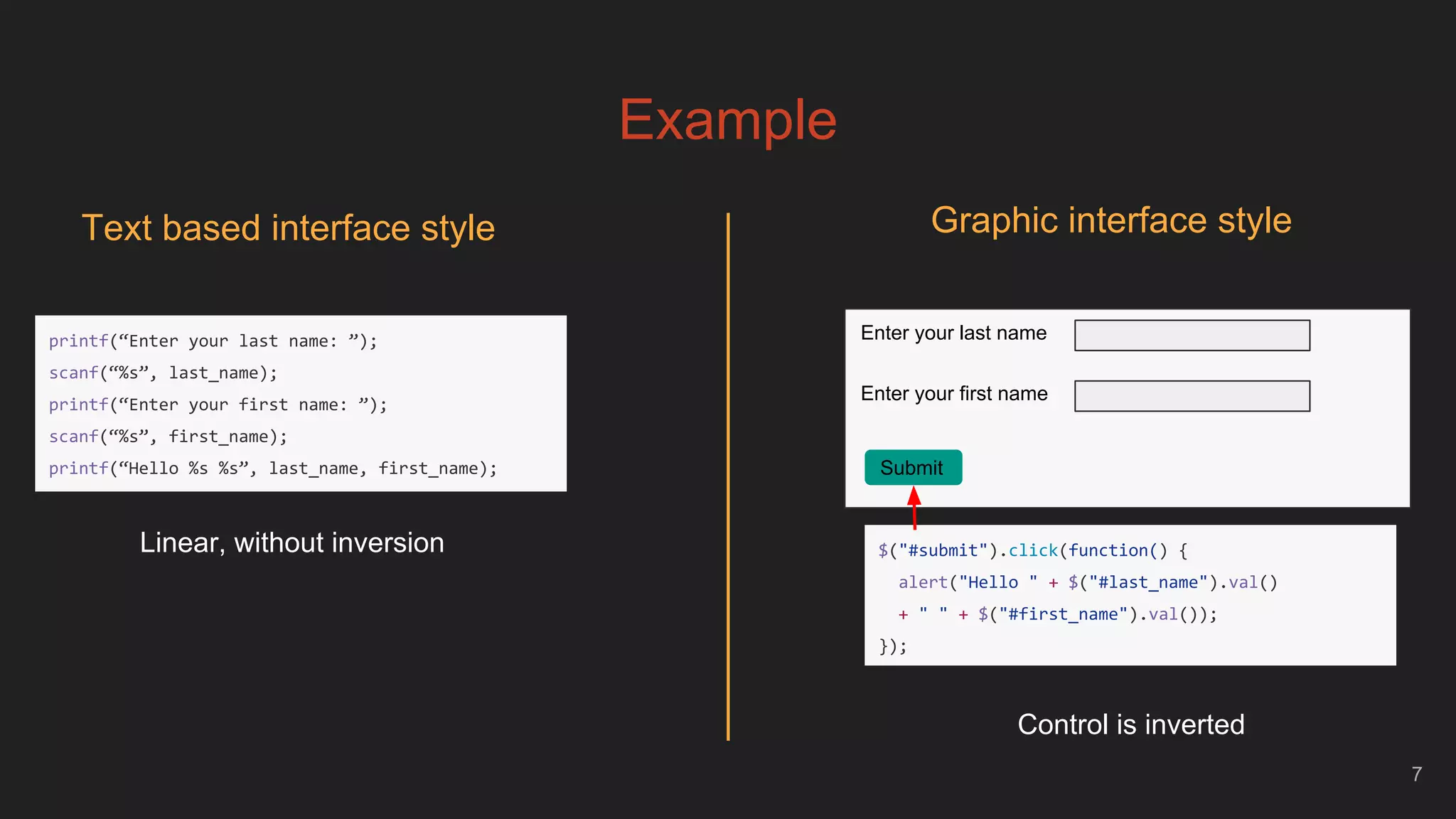

7. Example
7
Text based interface style Graphic interface style
Enter your last name
Enter your first name
Submit
Linear, without inversion
printf(“Enter your last name: ”);
scanf(“%s”, last_name);
printf(“Enter your first name: ”);
scanf(“%s”, first_name);
printf(“Hello %s %s”, last_name, first_name);
Control is inverted
$("#submit").click(function() {
alert("Hello " + $("#last_name").val()
+ " " + $("#first_name").val());
});

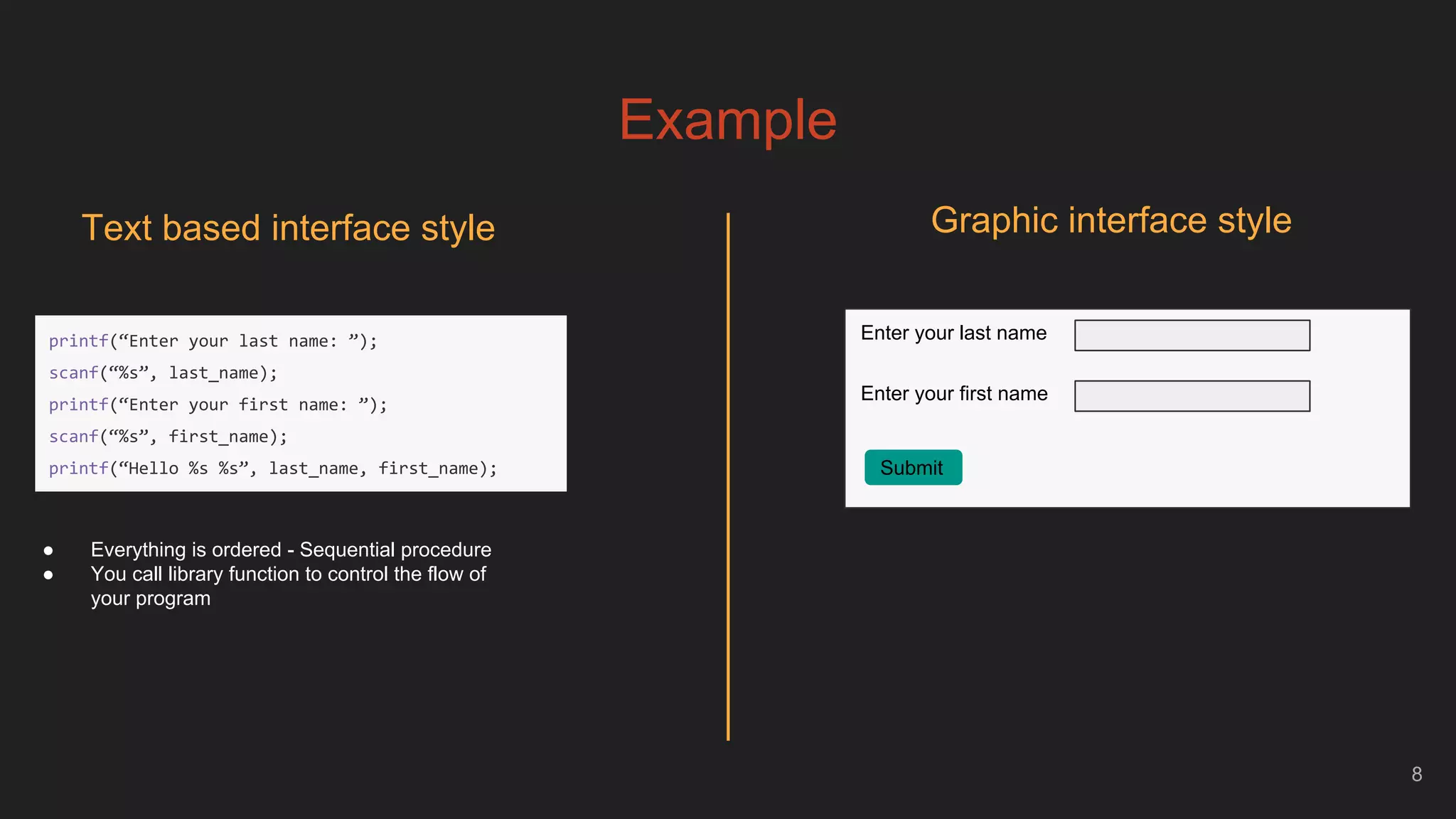

8. Example
8
Text based interface style
Enter your last name
Enter your first name
Submit
● Everything is ordered - Sequential procedure
● You call library function to control the flow of
your program
Graphic interface style
printf(“Enter your last name: ”);
scanf(“%s”, last_name);
printf(“Enter your first name: ”);
scanf(“%s”, first_name);
printf(“Hello %s %s”, last_name, first_name);

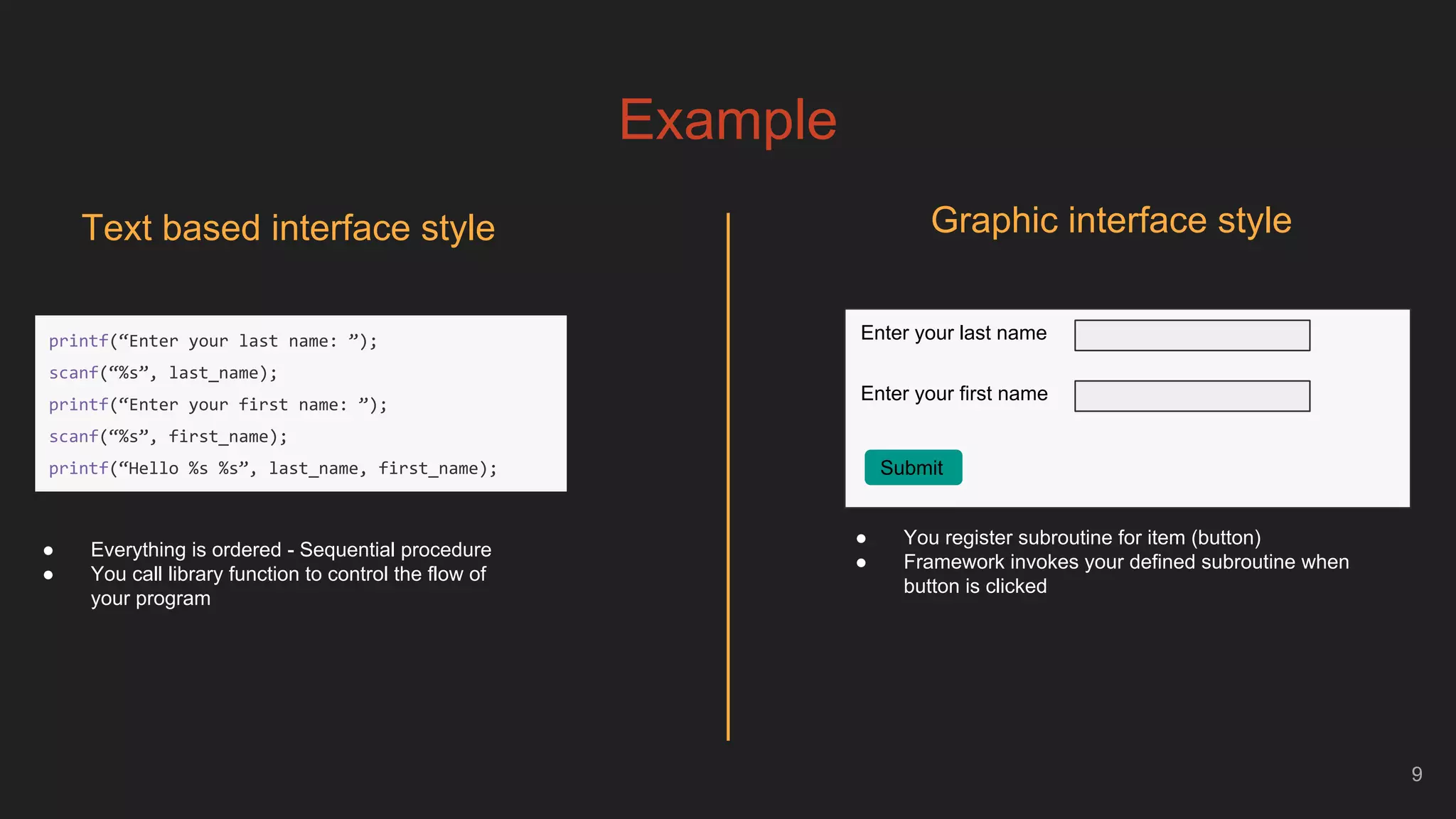

9. Example
9
Text based interface style
Enter your last name
Enter your first name
Submit
● You register subroutine for item (button)
● Framework invokes your defined subroutine when
button is clicked
● Everything is ordered - Sequential procedure
● You call library function to control the flow of
your program
Graphic interface style
printf(“Enter your last name: ”);
scanf(“%s”, last_name);
printf(“Enter your first name: ”);
scanf(“%s”, first_name);
printf(“Hello %s %s”, last_name, first_name);

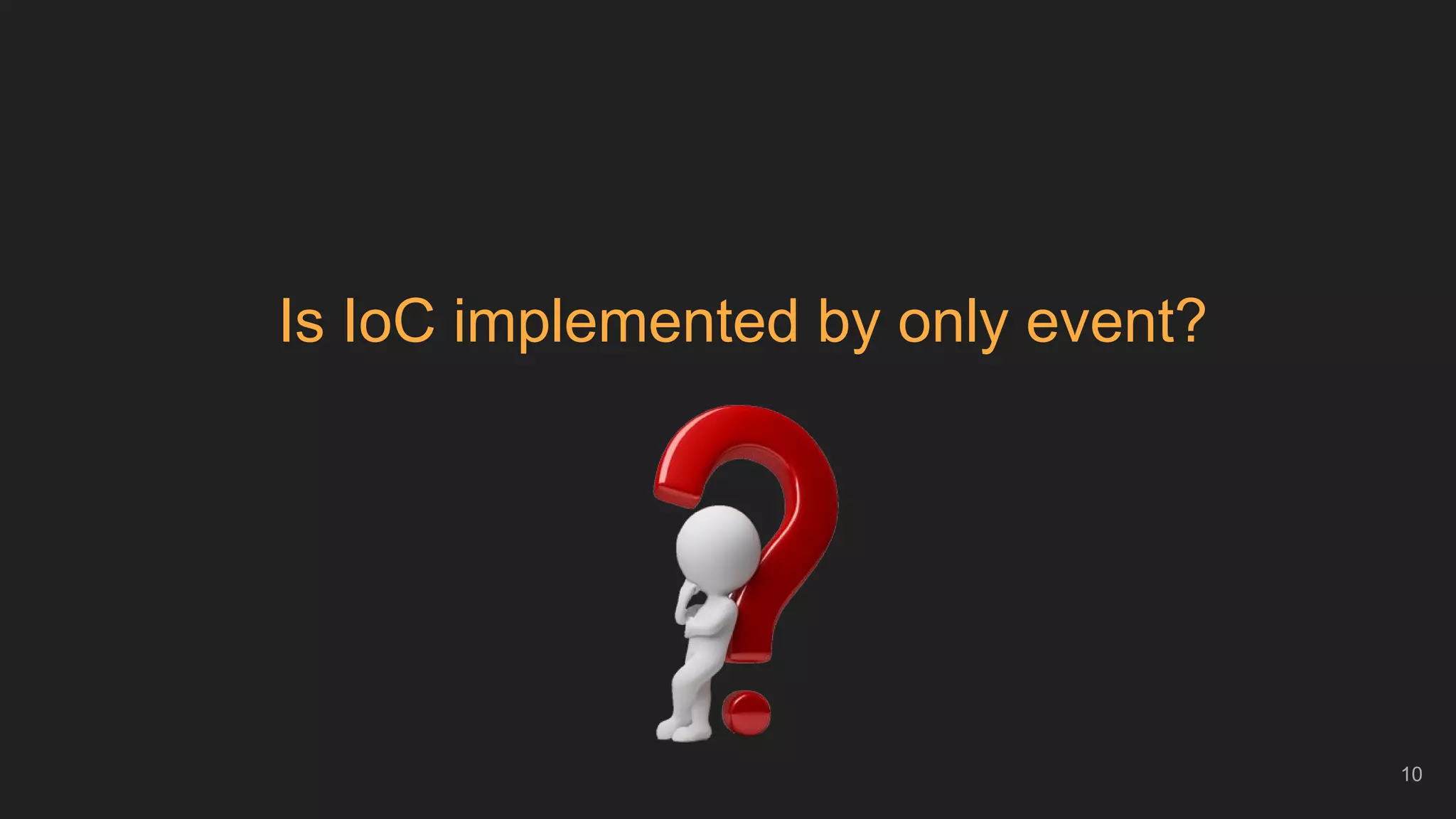

10. Is IoC implemented by only event?
10

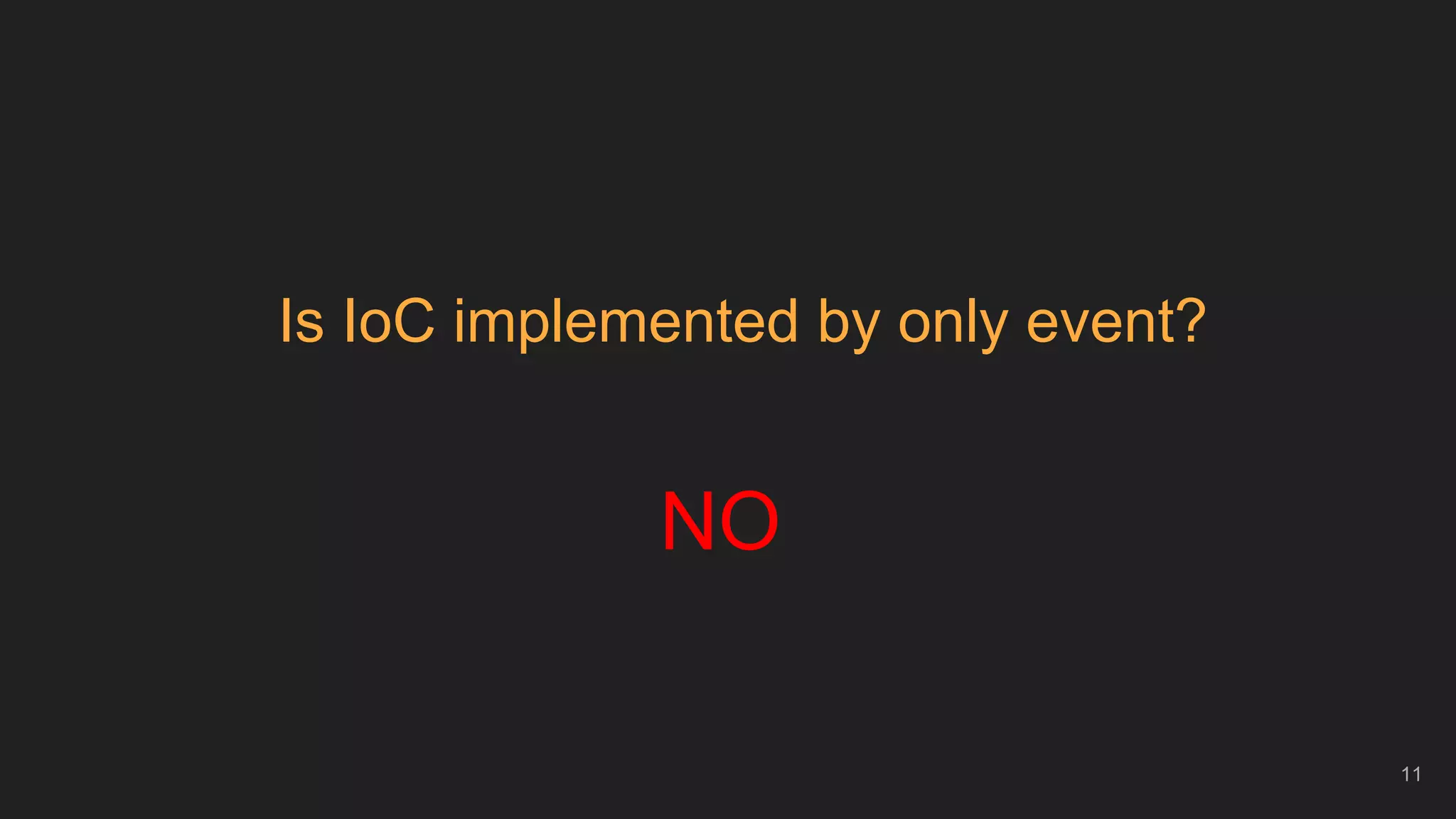

11. Is IoC implemented by only event?
11
NO

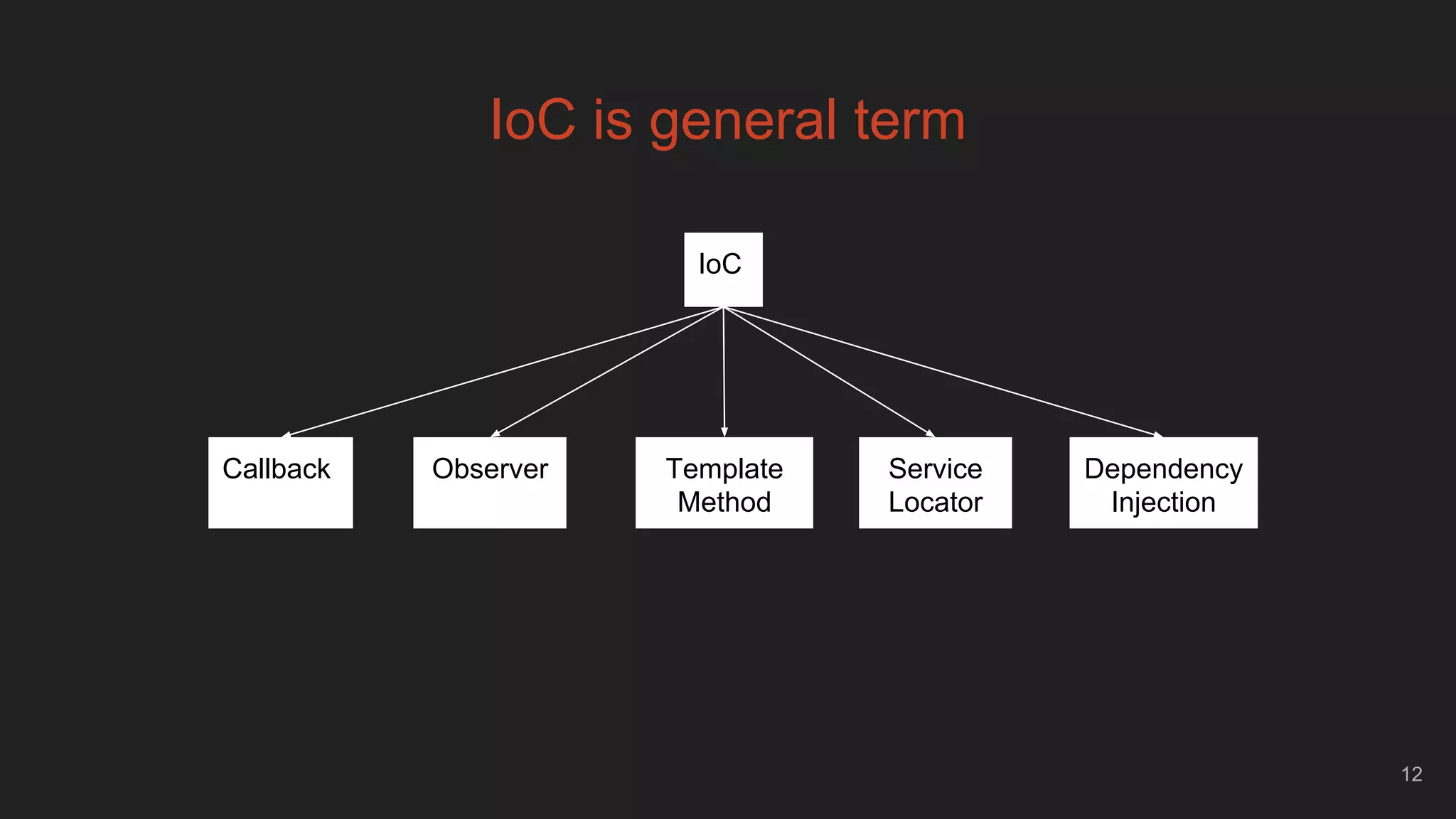

12. IoC is general term
12
IoC
Callback Observer Template
Method
Service
Locator
Dependency
Injection

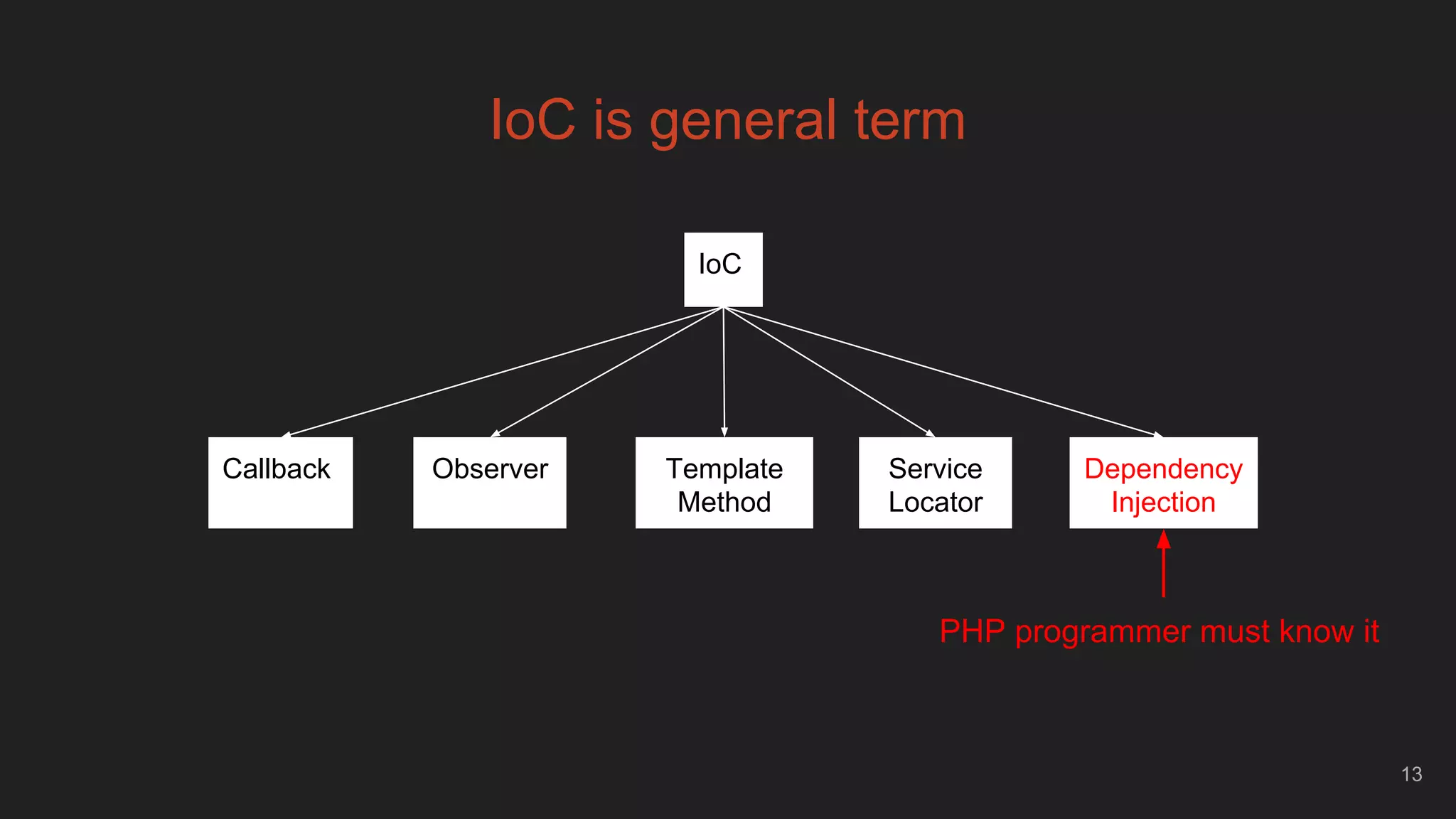

13. IoC is general term
13
IoC
Callback Observer Template
Method
Service
Locator
Dependency
Injection
PHP programmer must know it

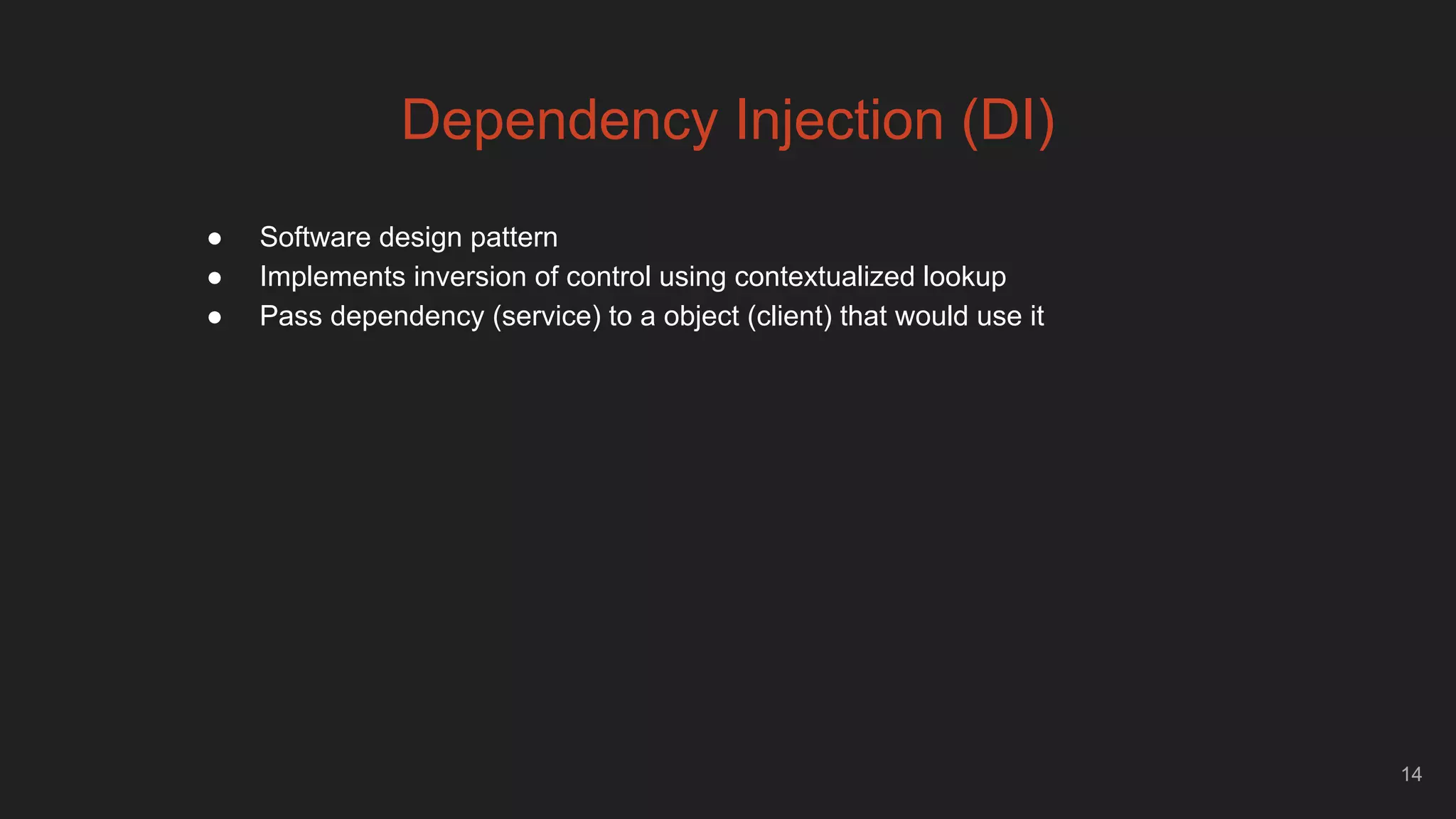

14. 14
● Software design pattern
● Implements inversion of control using contextualized lookup
● Pass dependency (service) to a object (client) that would use it
Dependency Injection (DI)

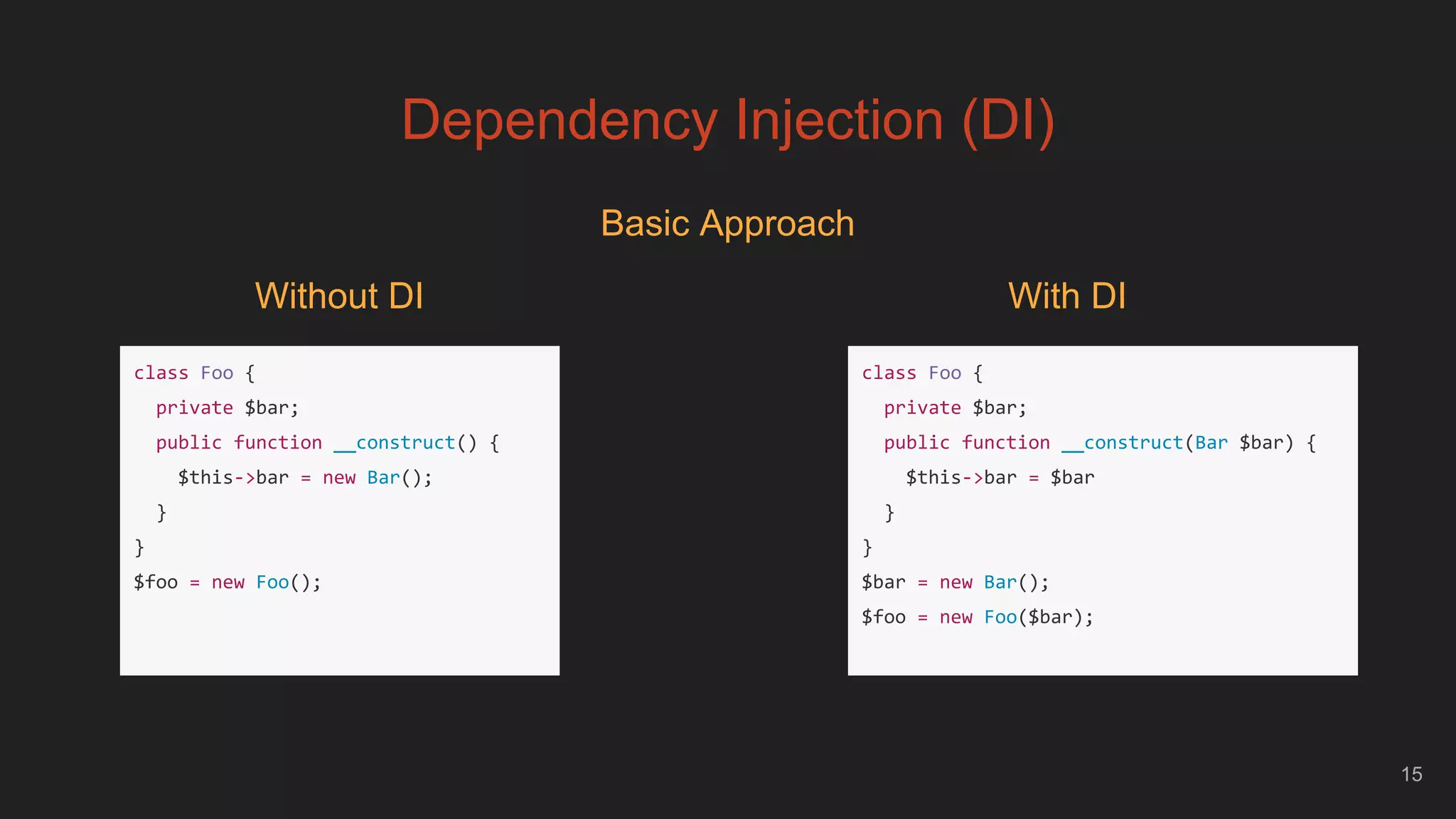

15. Dependency Injection (DI)
15
Basic Approach
class Foo {
private $bar;
public function __construct() {
$this->bar = new Bar();
}
}
$foo = new Foo();
Without DI
class Foo {
private $bar;
public function __construct(Bar $bar) {
$this->bar = $bar
}
}
$bar = new Bar();
$foo = new Foo($bar);
With DI

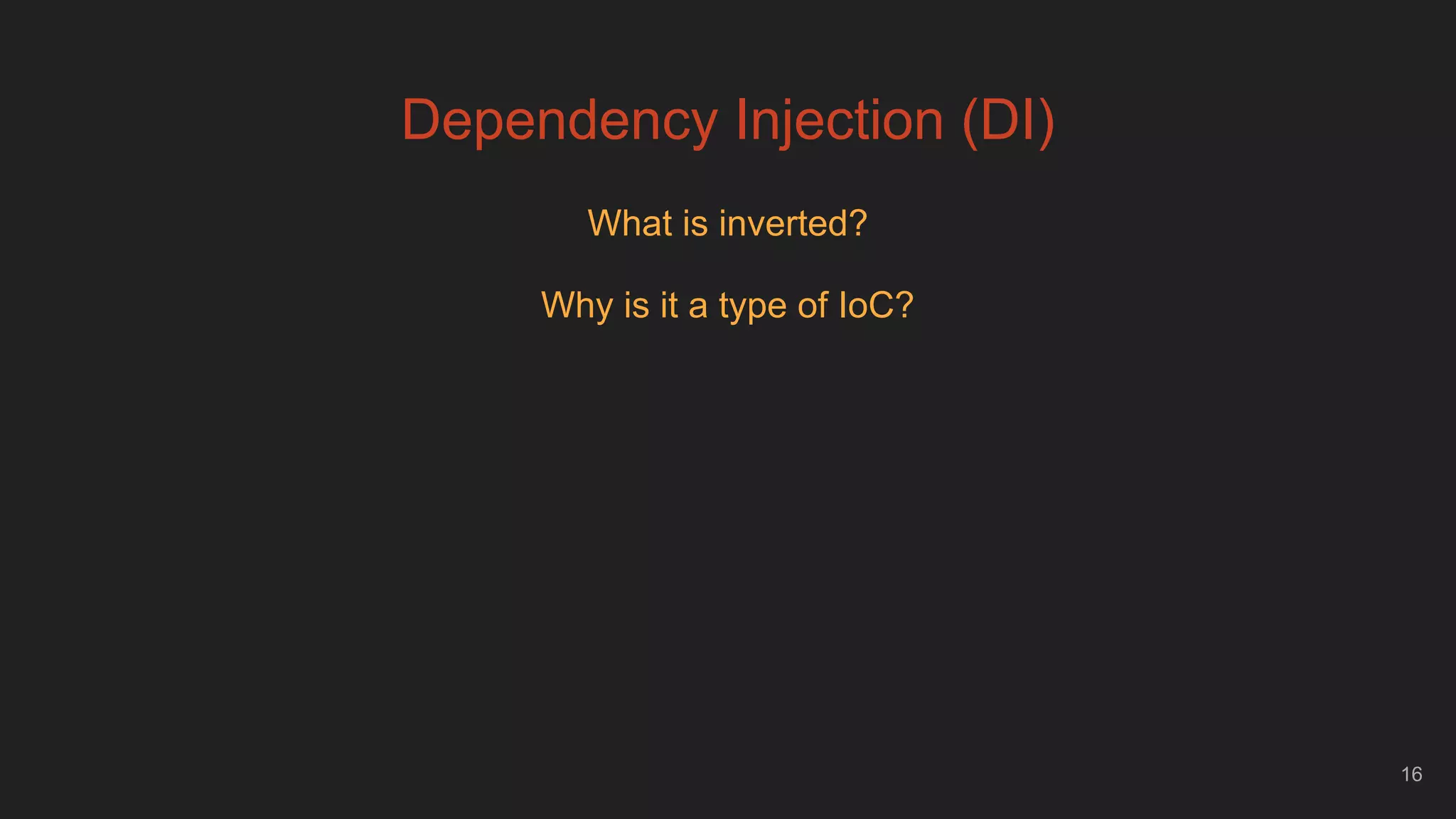

16. 16
Dependency Injection (DI)
What is inverted?
Why is it a type of IoC?

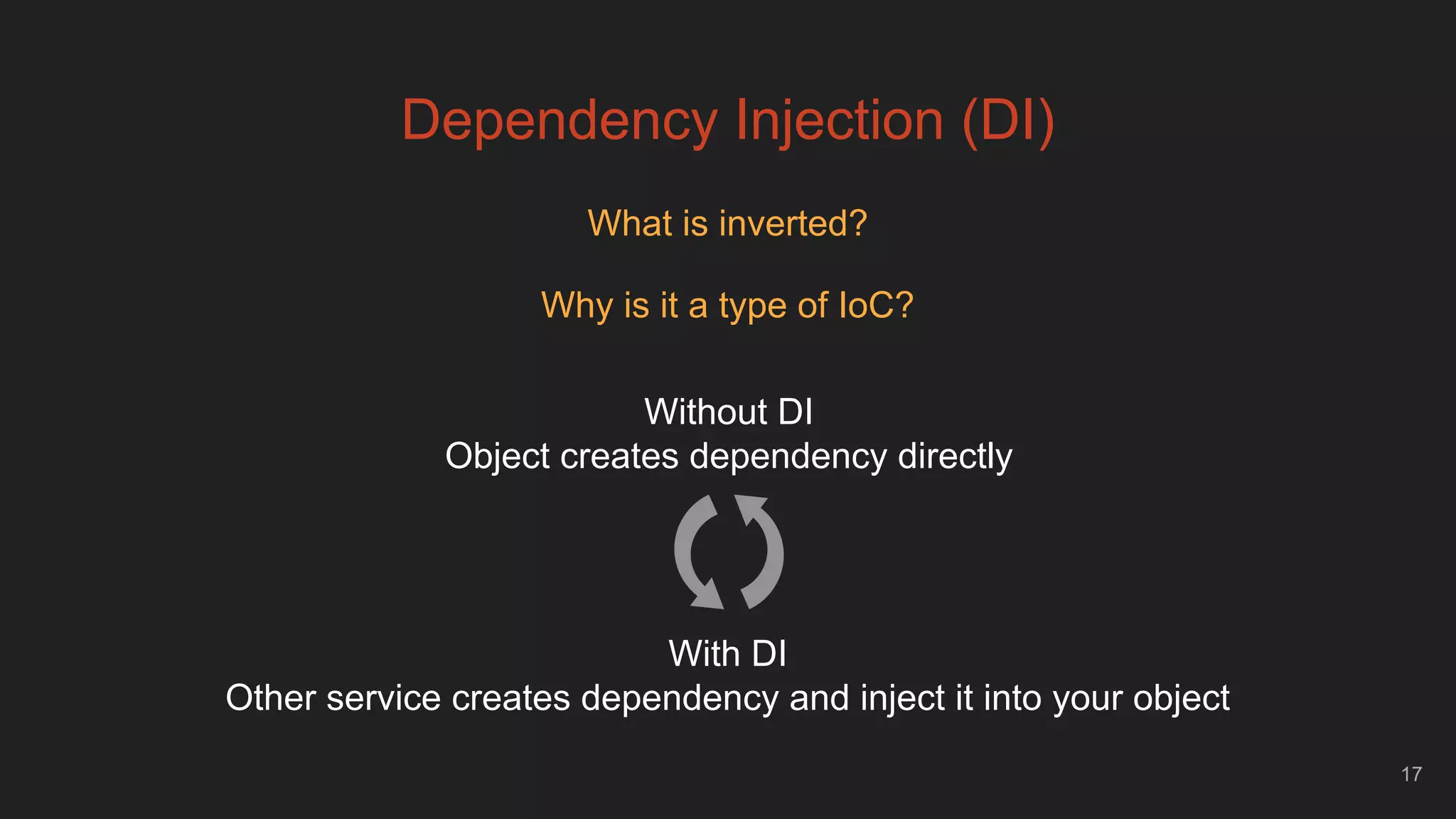

17. 17
Dependency Injection (DI)
What is inverted?
Why is it a type of IoC?
Without DI
Object creates dependency directly
With DI
Other service creates dependency and inject it into your object

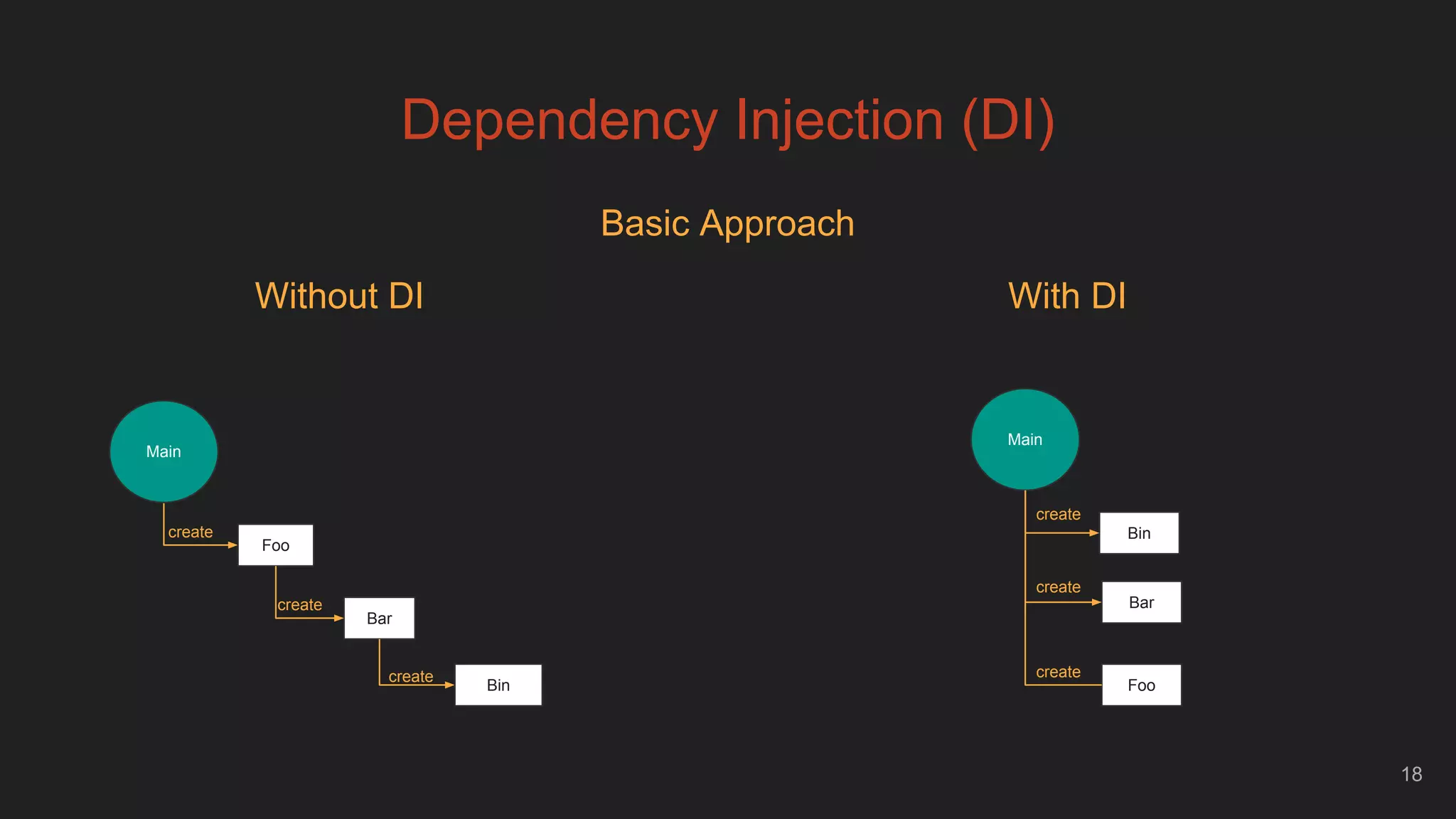

18. Dependency Injection (DI)
18
Basic Approach
Without DI With DI
Main
Foo
Bar
create
create
create
Bin
Main
Bin
Bar
create
Foo
create
create

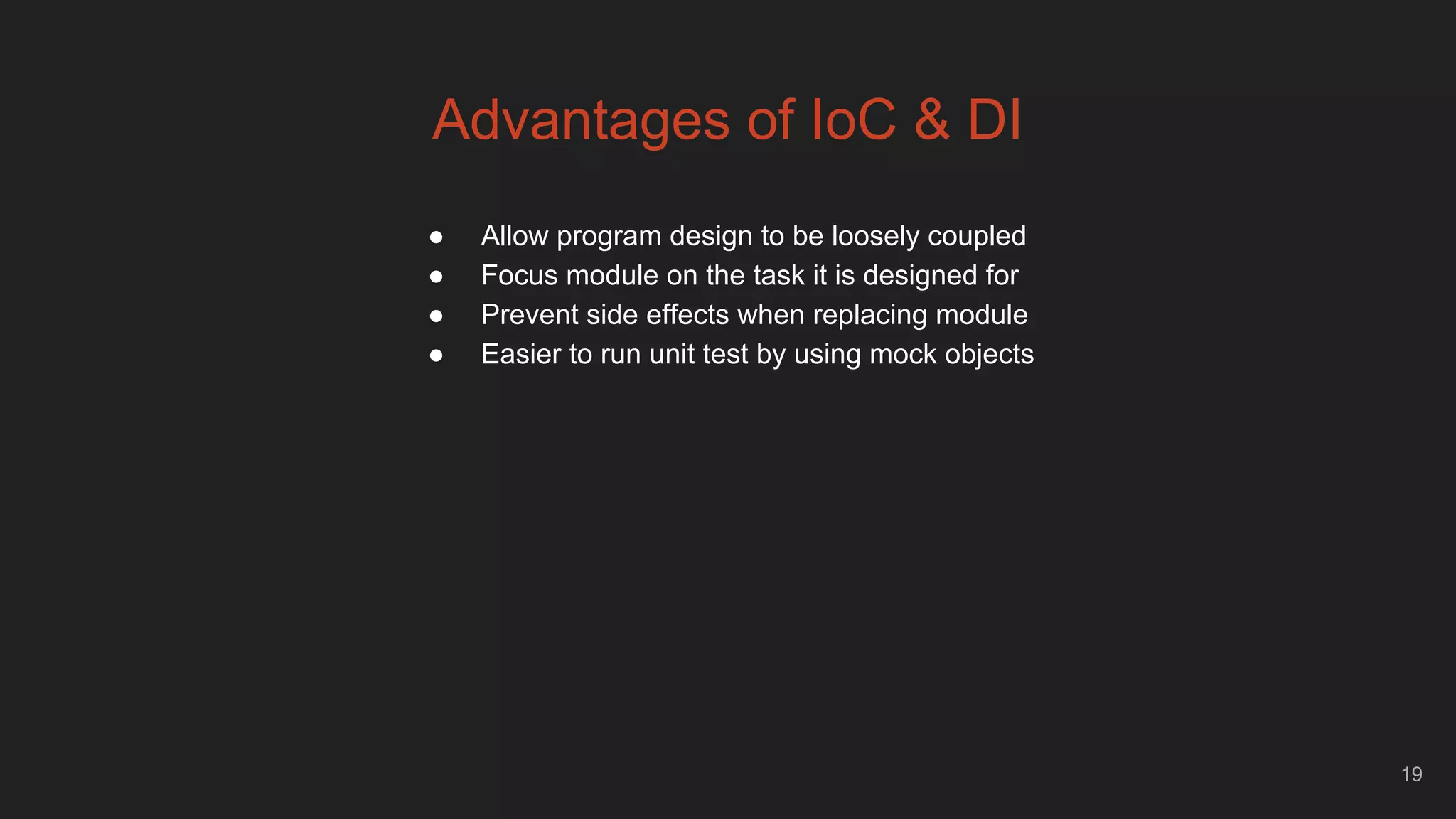

19. 19
Advantages of IoC & DI
● Allow program design to be loosely coupled
● Focus module on the task it is designed for
● Prevent side effects when replacing module
● Easier to run unit test by using mock objects

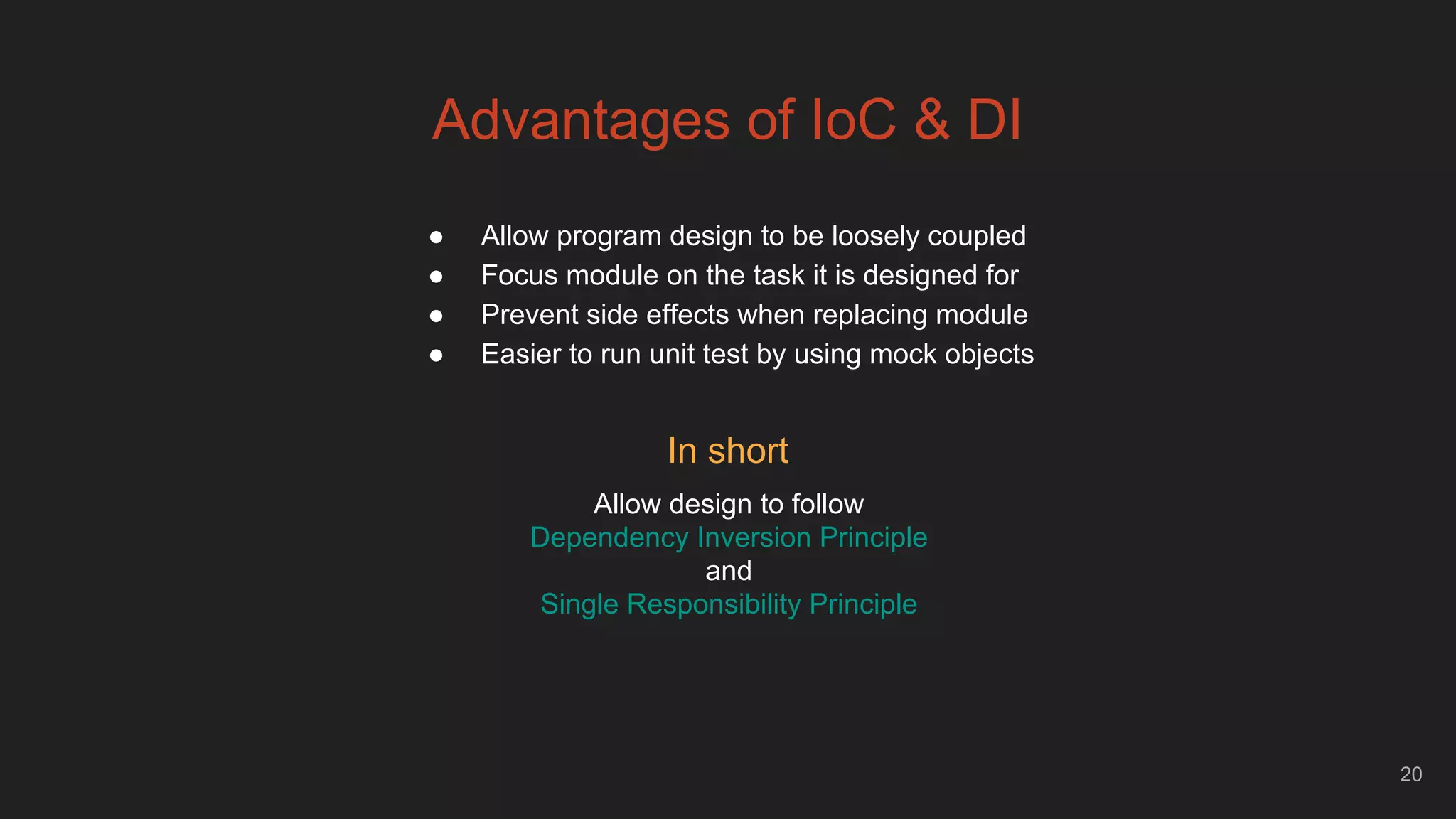

20. 20
Advantages of IoC & DI
● Allow program design to be loosely coupled
● Focus module on the task it is designed for
● Prevent side effects when replacing module
● Easier to run unit test by using mock objects
In short
Allow design to follow
Dependency Inversion Principle
and
Single Responsibility Principle

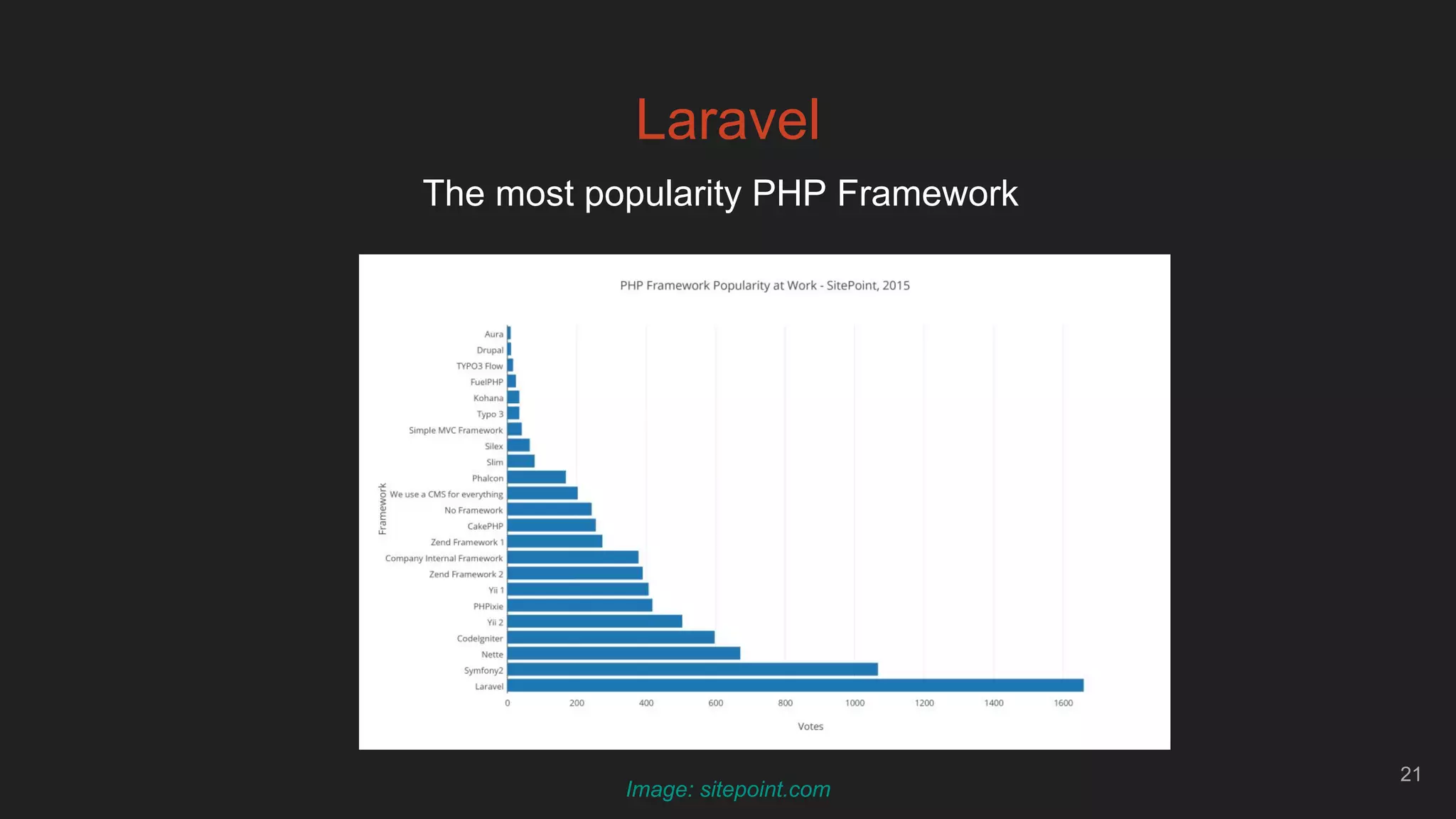

21. Laravel
21
Image: sitepoint.com
The most popularity PHP Framework

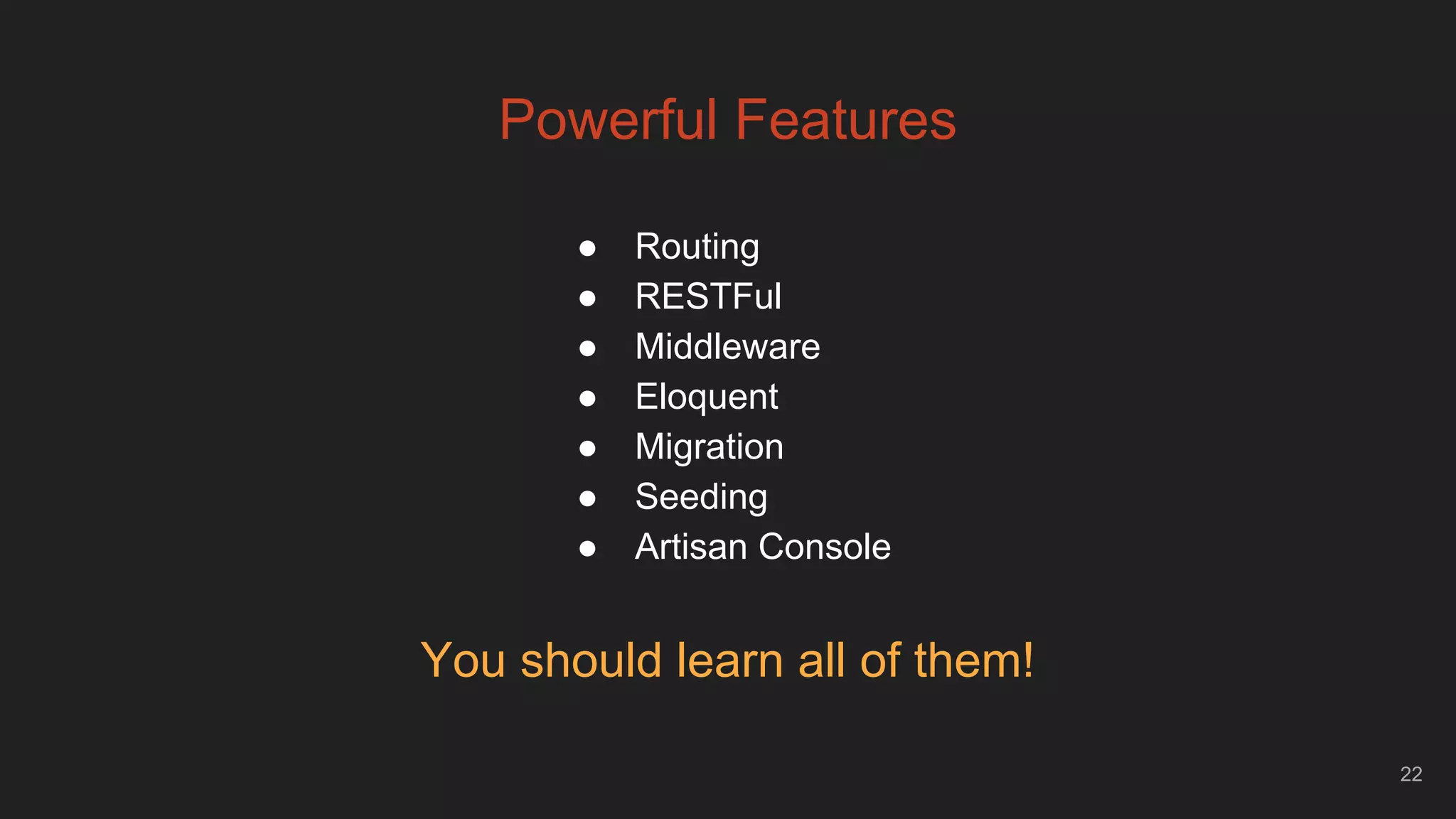

22. Powerful Features
22
● Routing
● RESTFul
● Middleware
● Eloquent
● Migration
● Seeding
● Artisan Console
You should learn all of them!

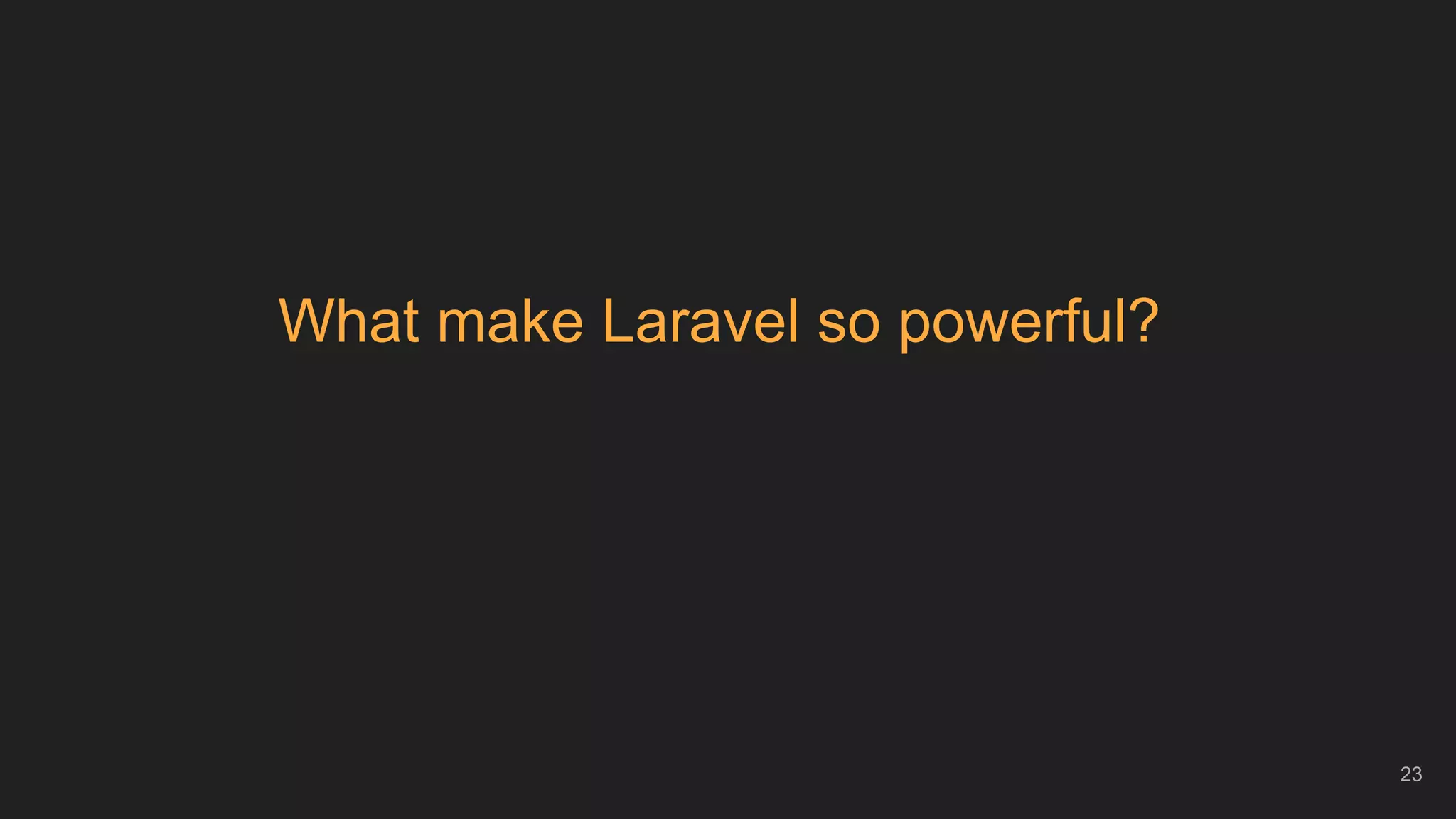

23. What make Laravel so powerful?
23

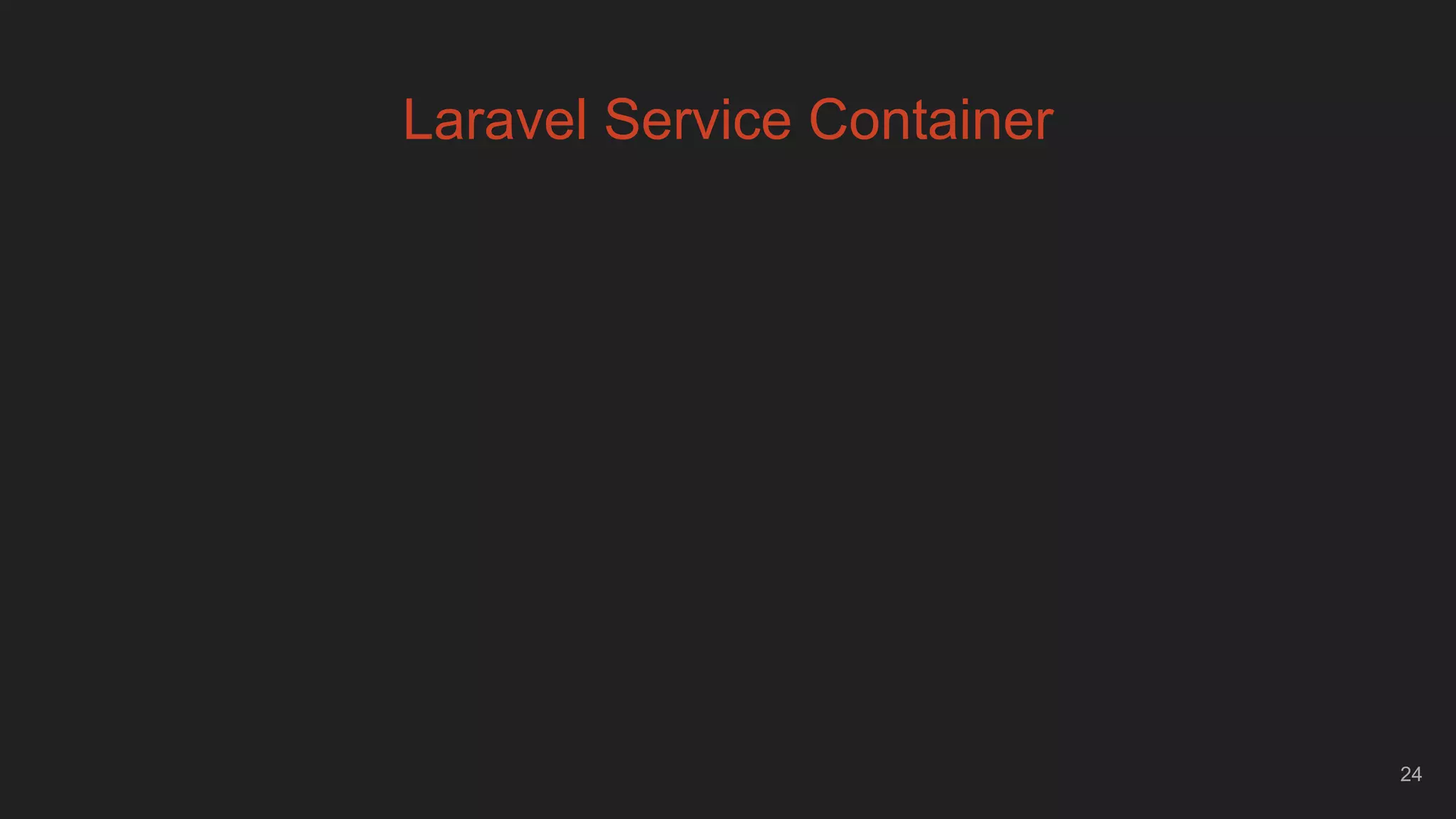

24. 24
Laravel Service Container

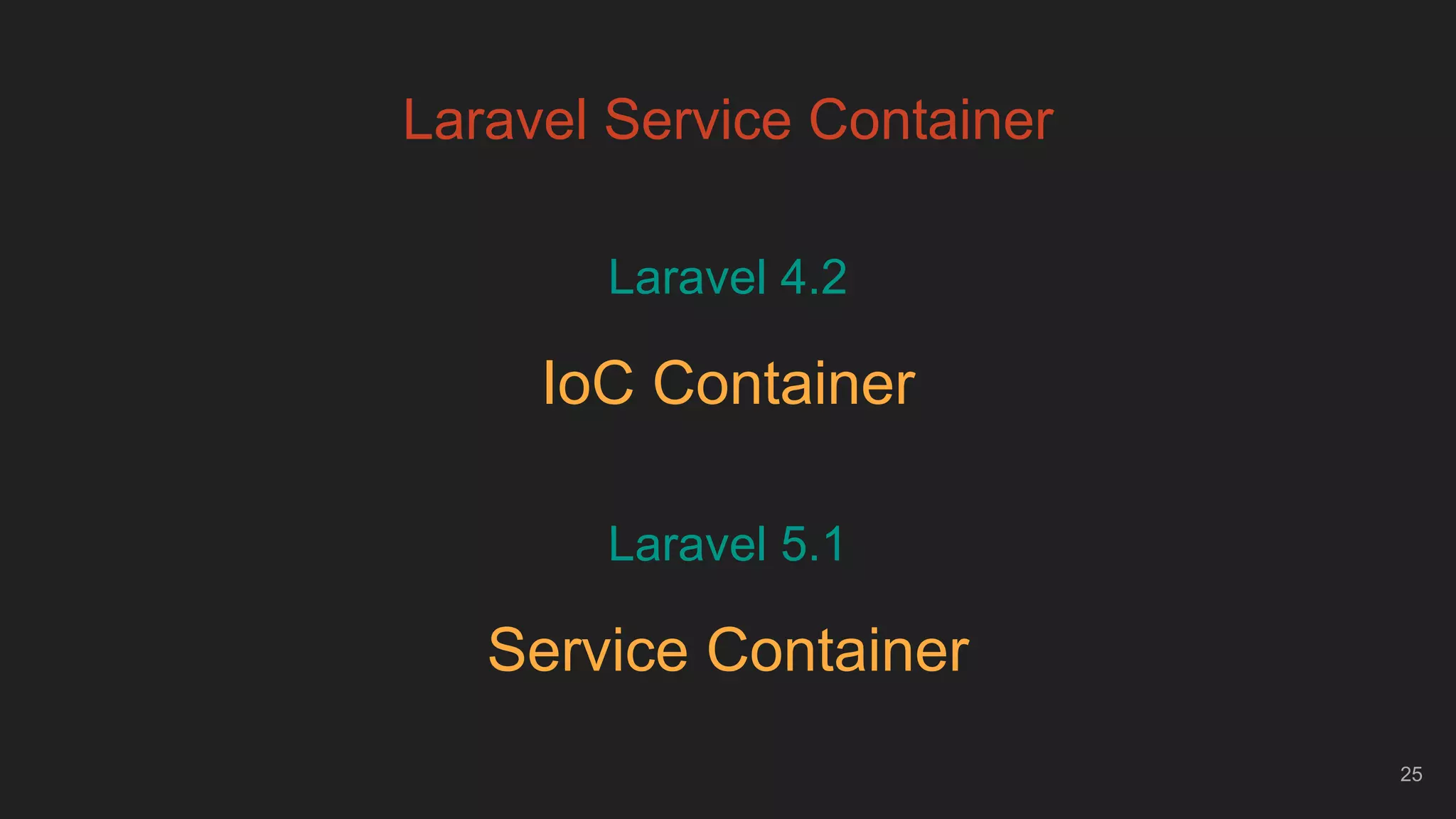

25. 25
Laravel Service Container
Laravel 4.2
IoC Container
Laravel 5.1
Service Container

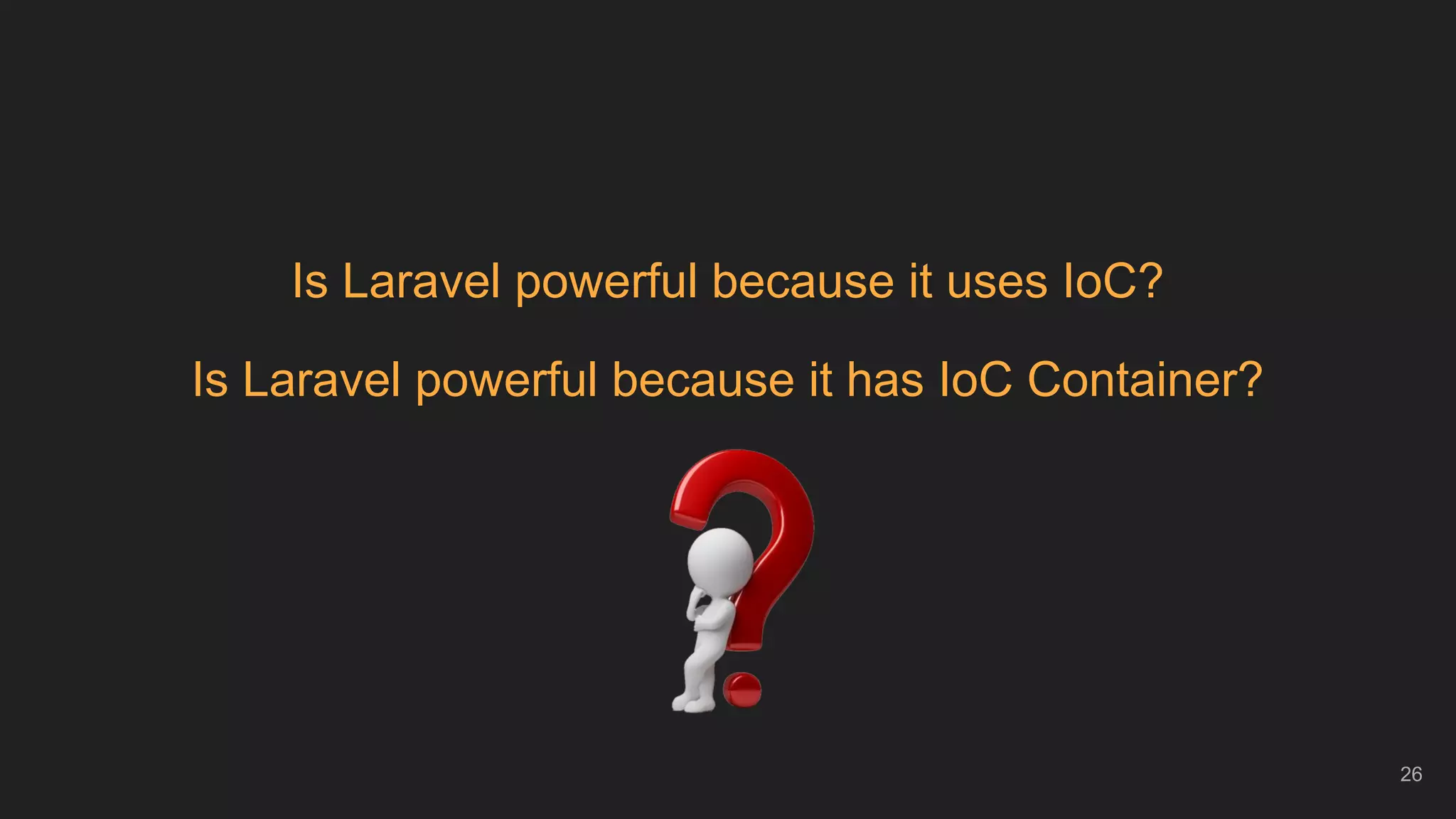

26. 26
Is Laravel powerful because it uses IoC?
Is Laravel powerful because it has IoC Container?

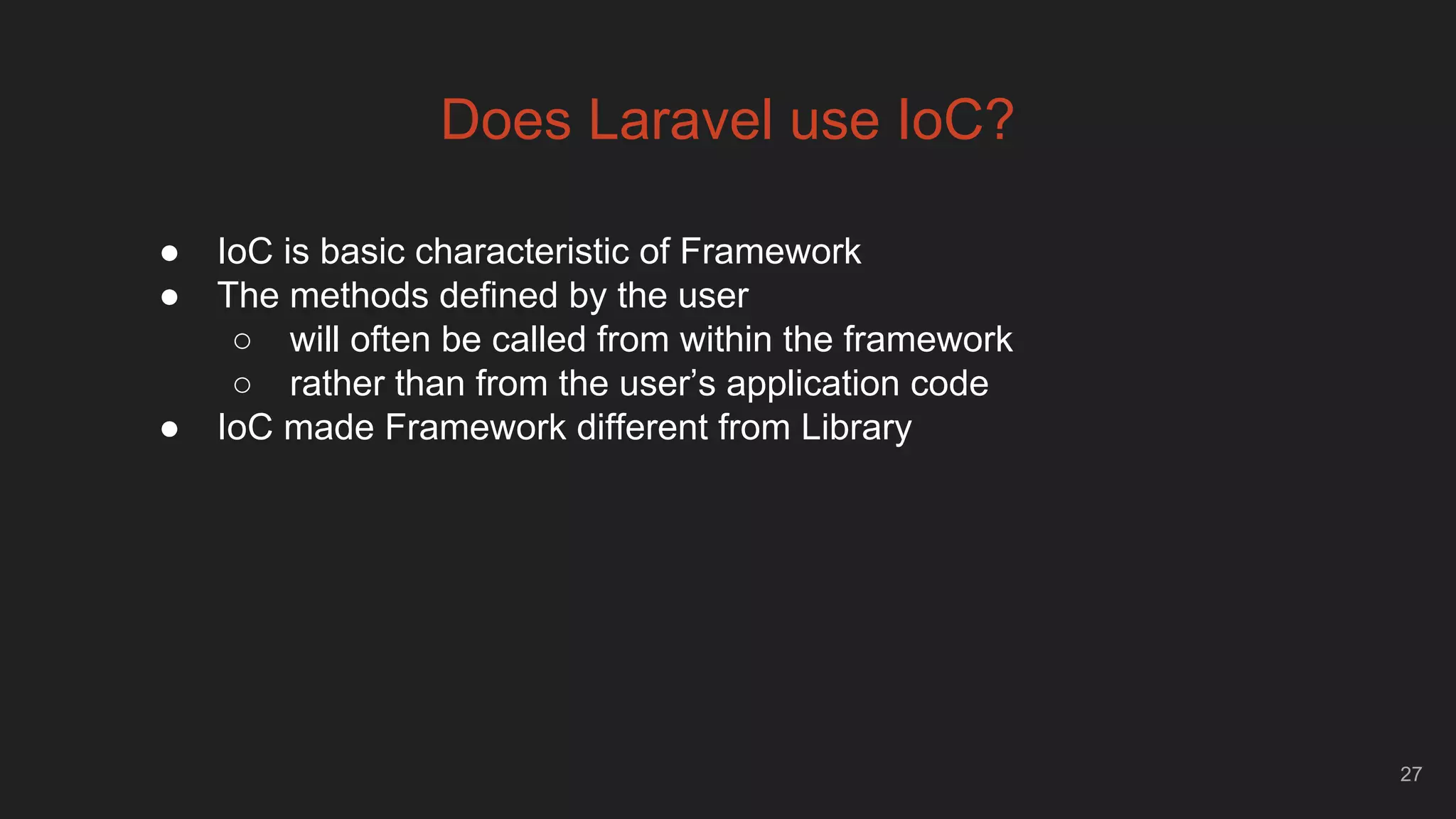

27. 27
Does Laravel use IoC?
● IoC is basic characteristic of Framework
● The methods defined by the user
○ will often be called from within the framework
○ rather than from the user’s application code
● IoC made Framework different from Library

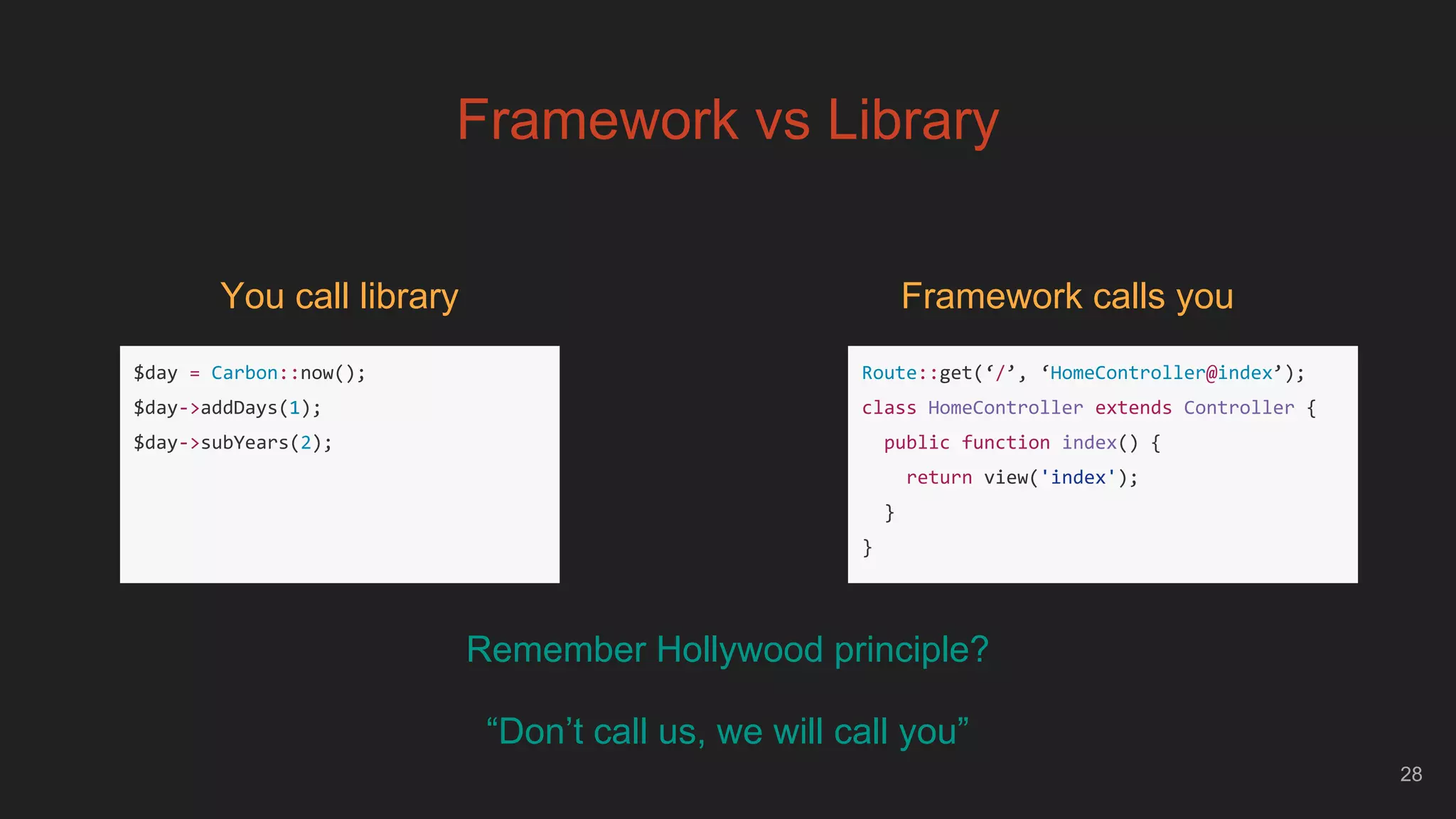

28. 28
Framework vs Library
$day = Carbon::now();
$day->addDays(1);
$day->subYears(2);
You call library
Route::get(‘/’, ‘HomeController@index’);
class HomeController extends Controller {
public function index() {
return view('index');
}
}
Framework calls you
Remember Hollywood principle?
“Don’t call us, we will call you”

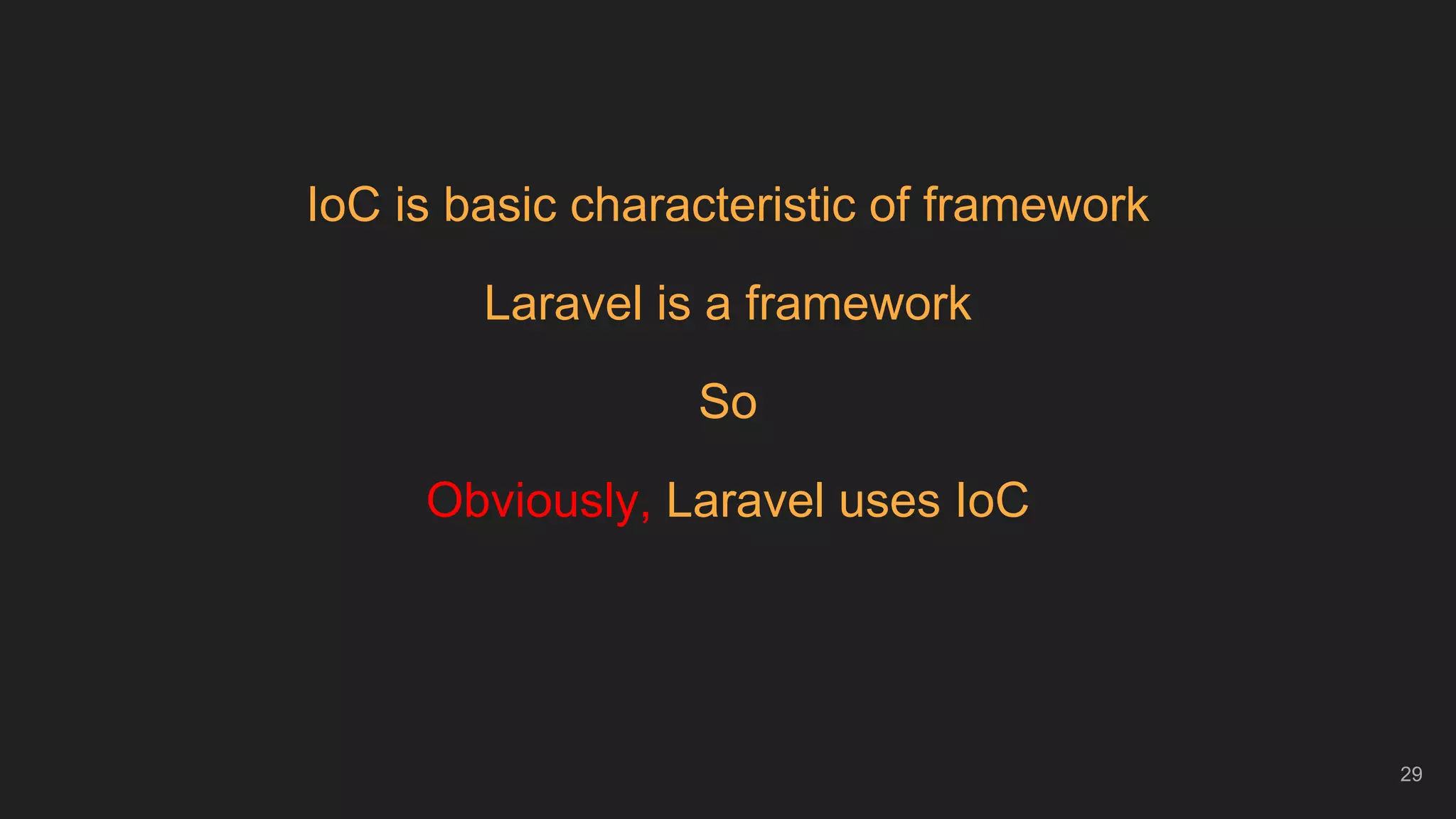

29. 29
IoC is basic characteristic of framework
Laravel is a framework
So
Obviously, Laravel uses IoC

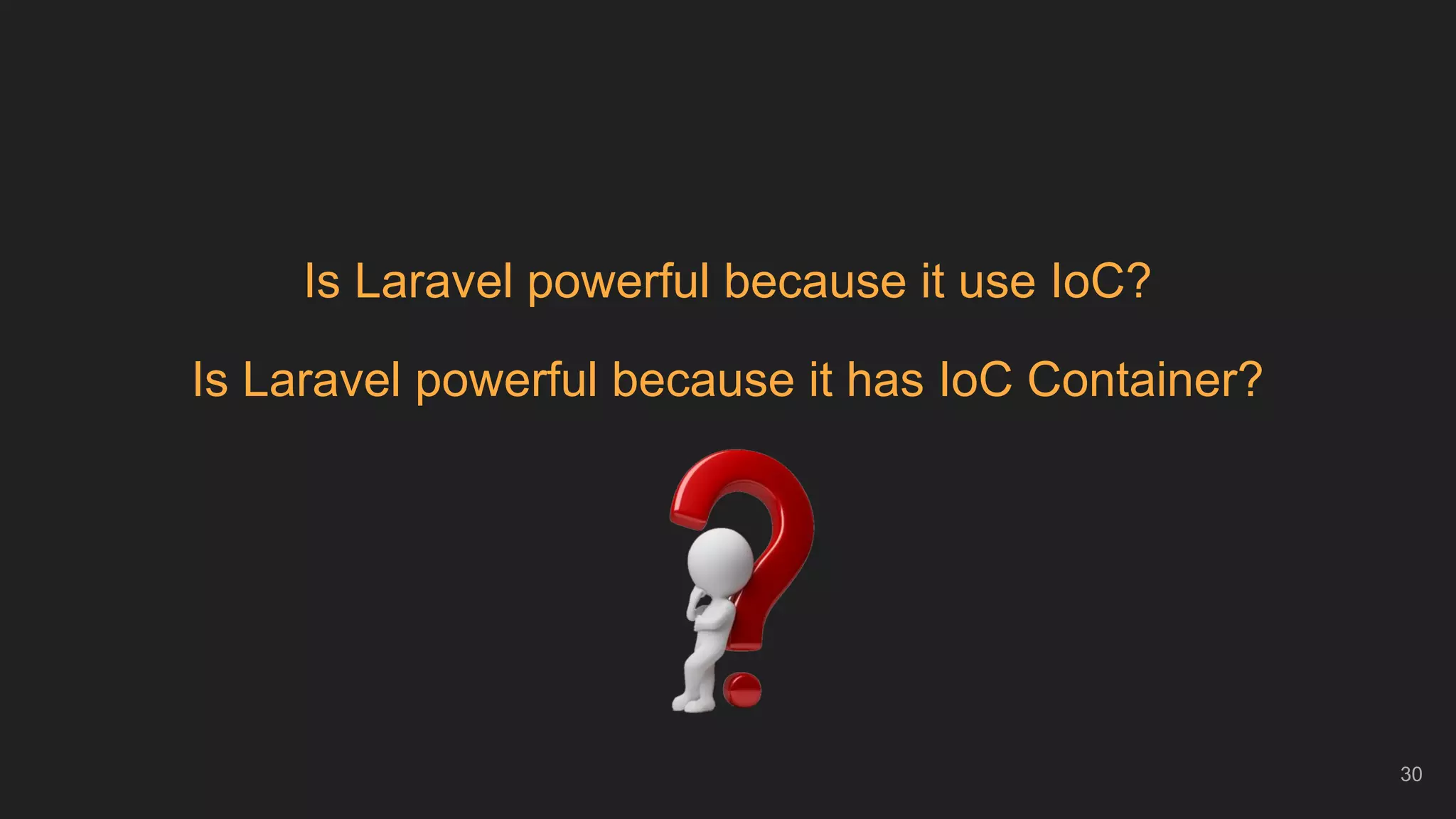

30. 30
Is Laravel powerful because it use IoC?
Is Laravel powerful because it has IoC Container?

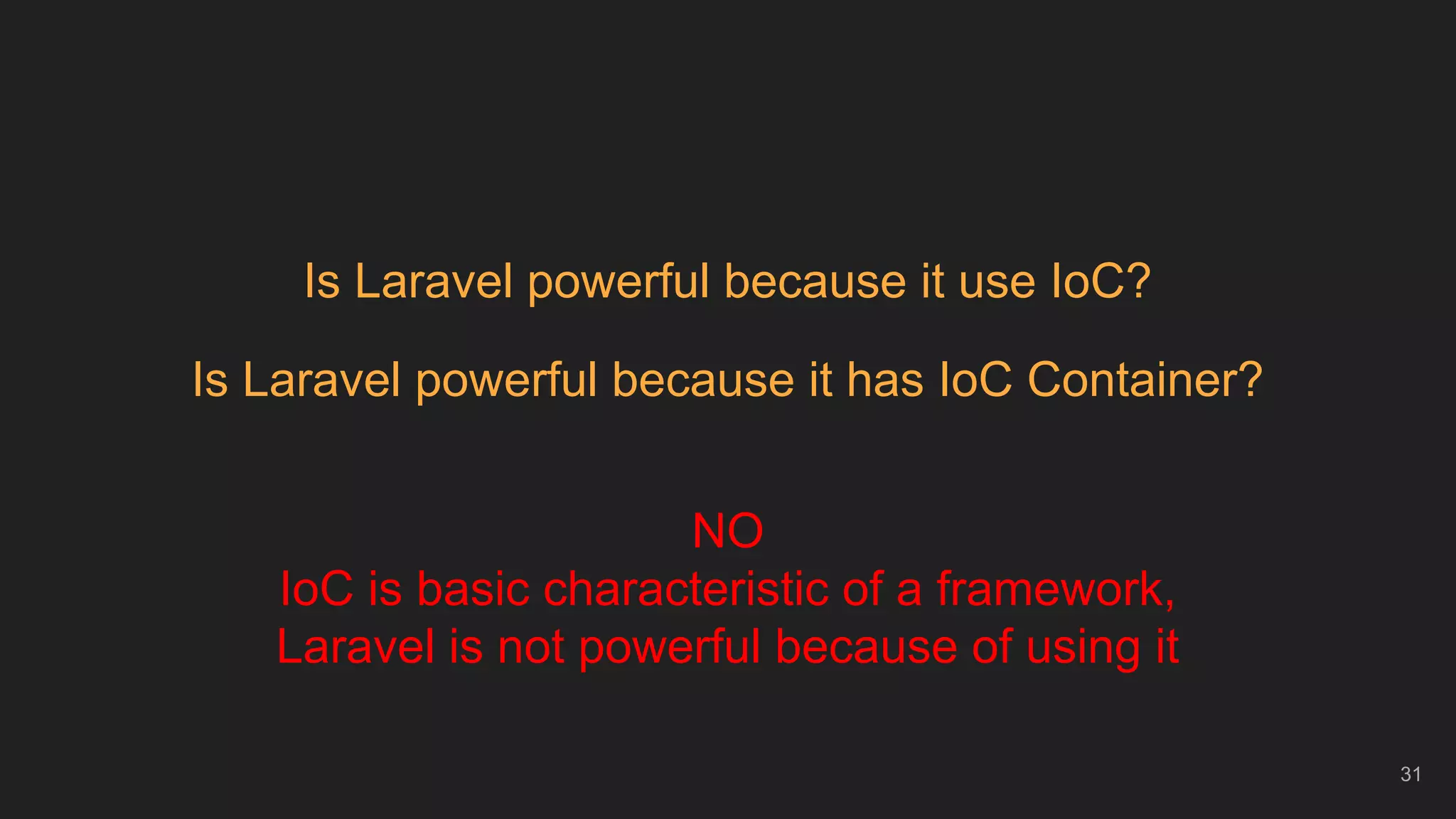

31. 31
Is Laravel powerful because it use IoC?
Is Laravel powerful because it has IoC Container?
NO
IoC is basic characteristic of a framework,
Laravel is not powerful because of using it

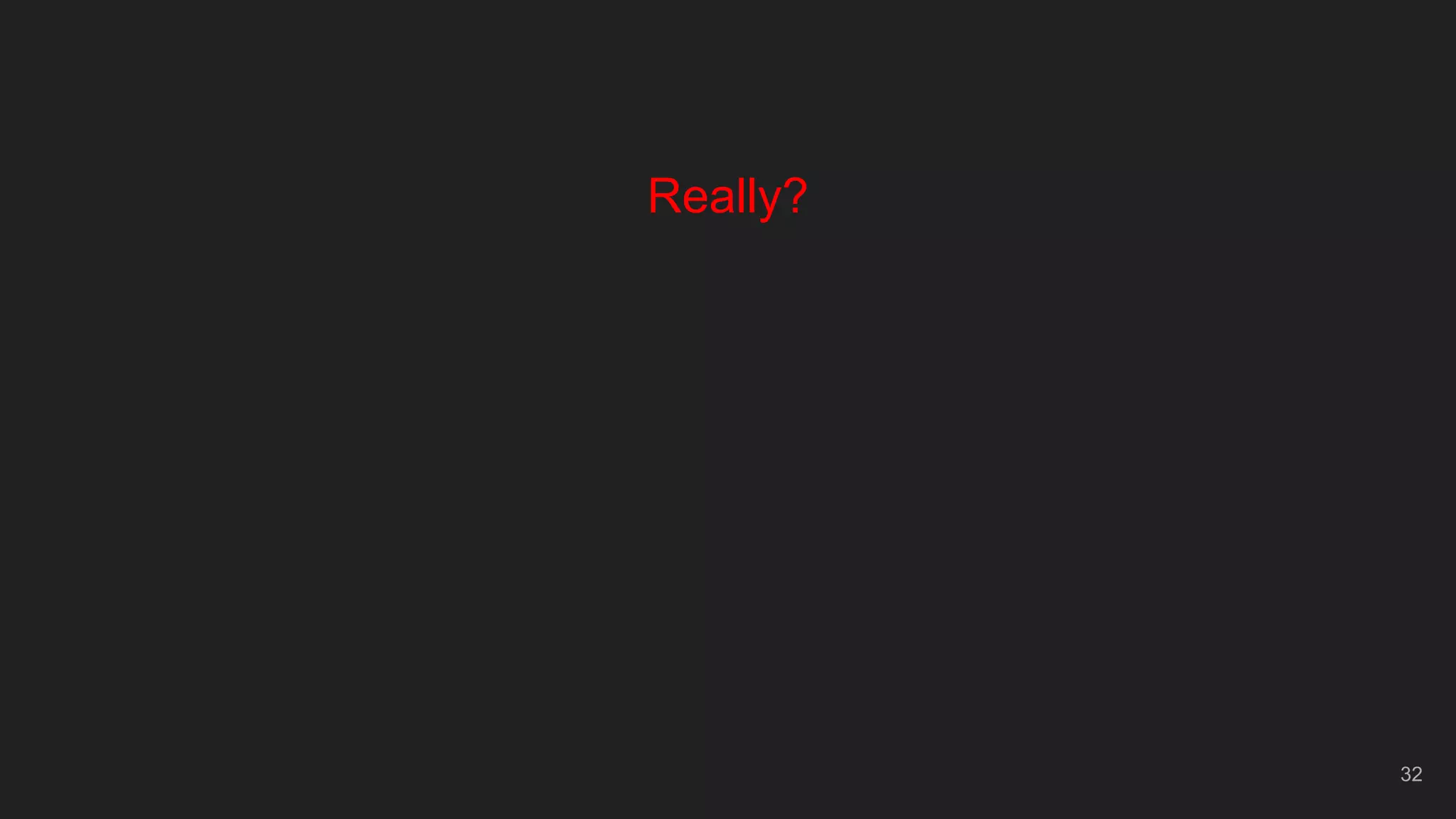

32. 32
Really?

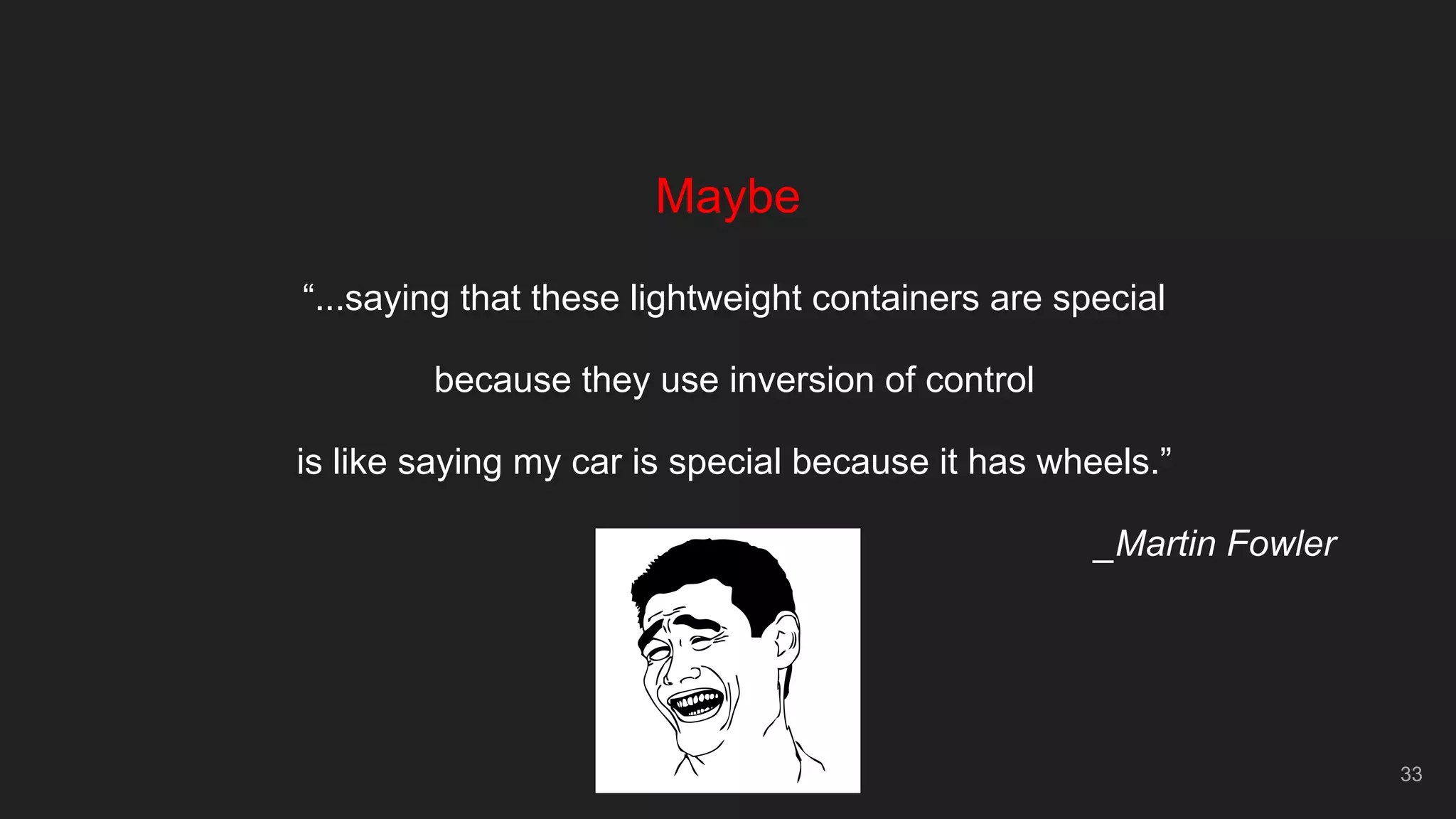

33. 33
Maybe
“...saying that these lightweight containers are special
because they use inversion of control
is like saying my car is special because it has wheels.”
_Martin Fowler

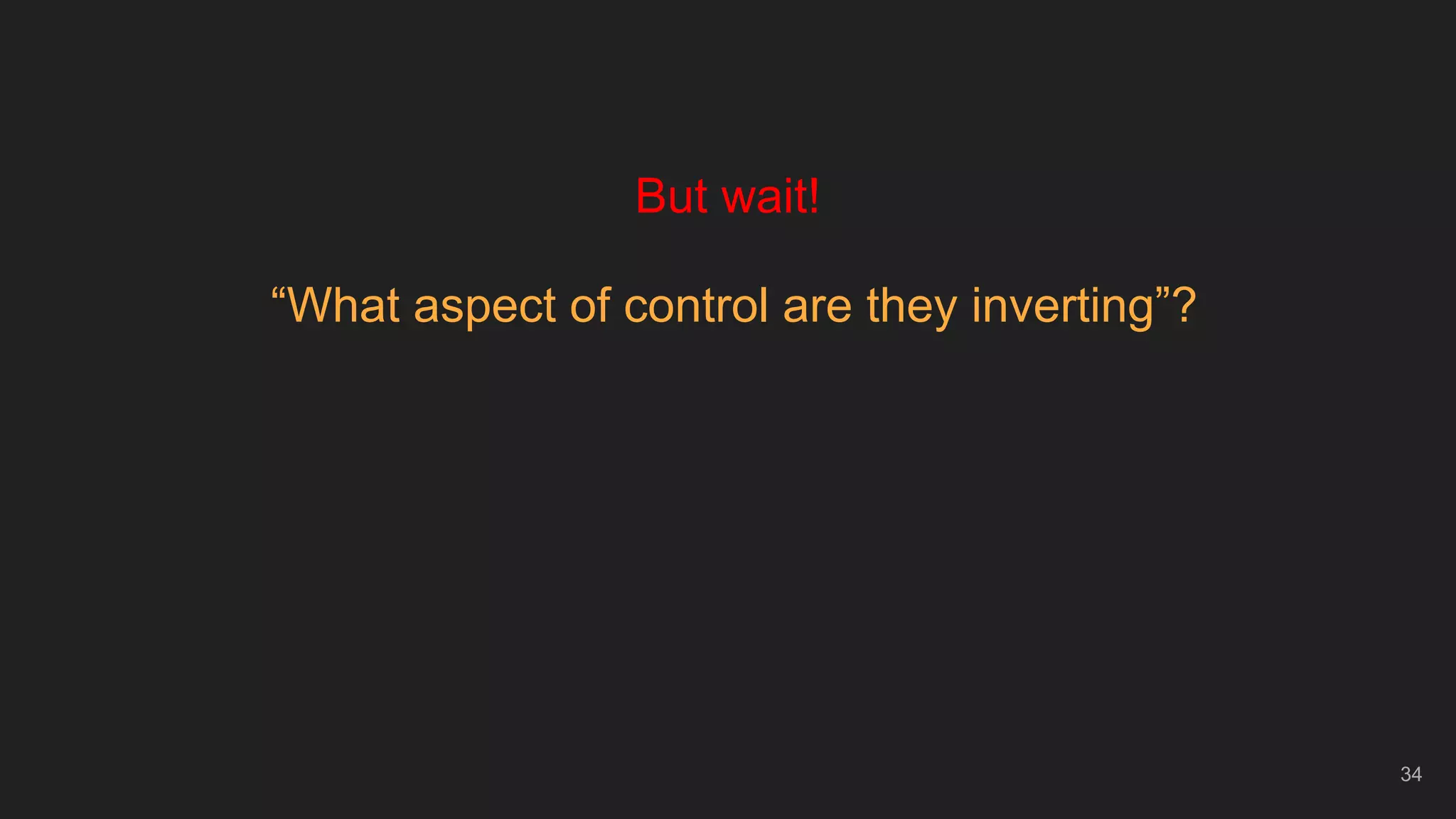

34. 34
But wait!
“What aspect of control are they inverting”?

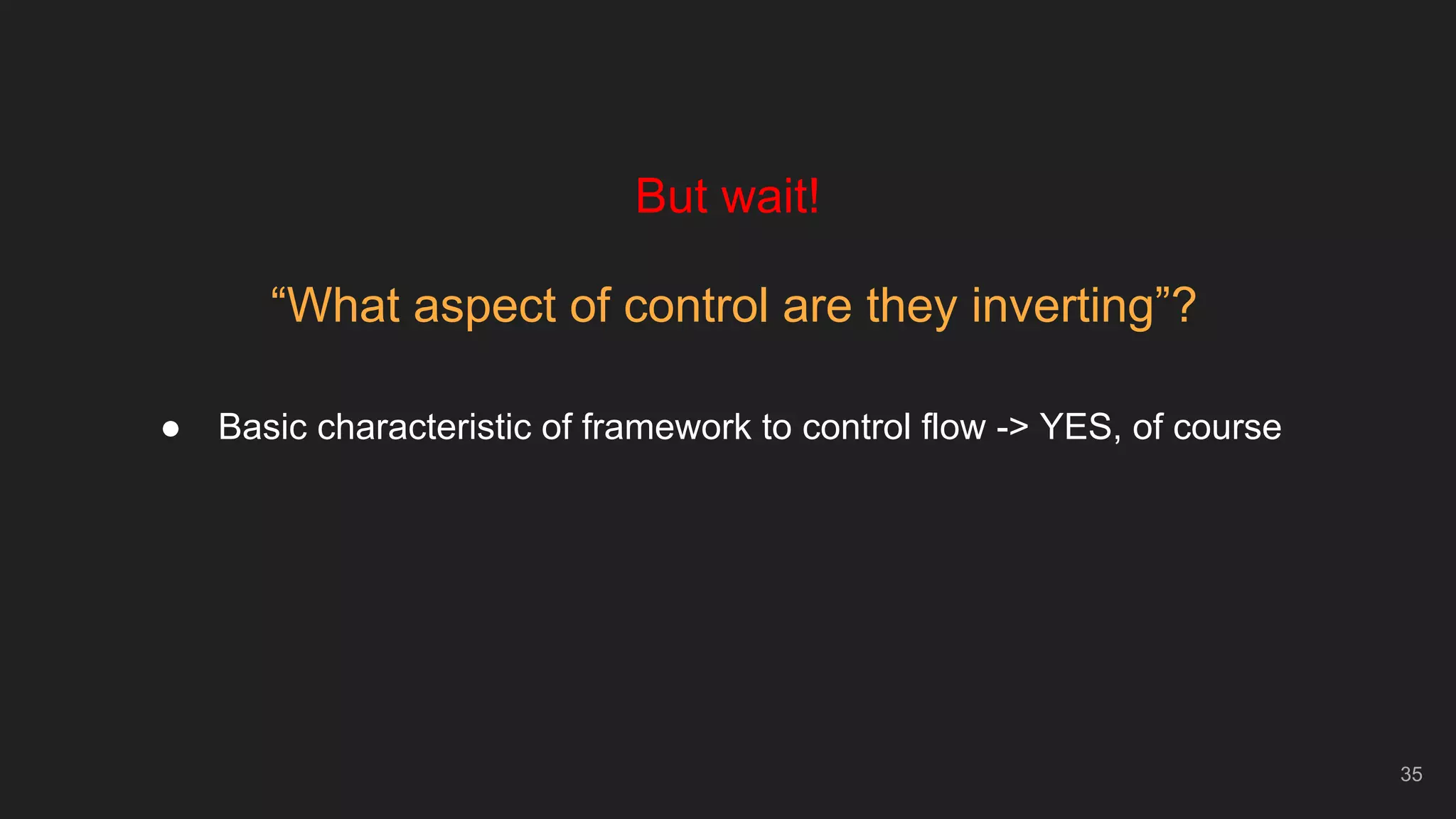

35. 35
But wait!
“What aspect of control are they inverting”?
● Basic characteristic of framework to control flow -> YES, of course

36. 36
But wait!
“What aspect of control are they inverting”?
● Basic characteristic of framework to control flow -> YES, of course
● Dependency Injection -> YES, it is excellent

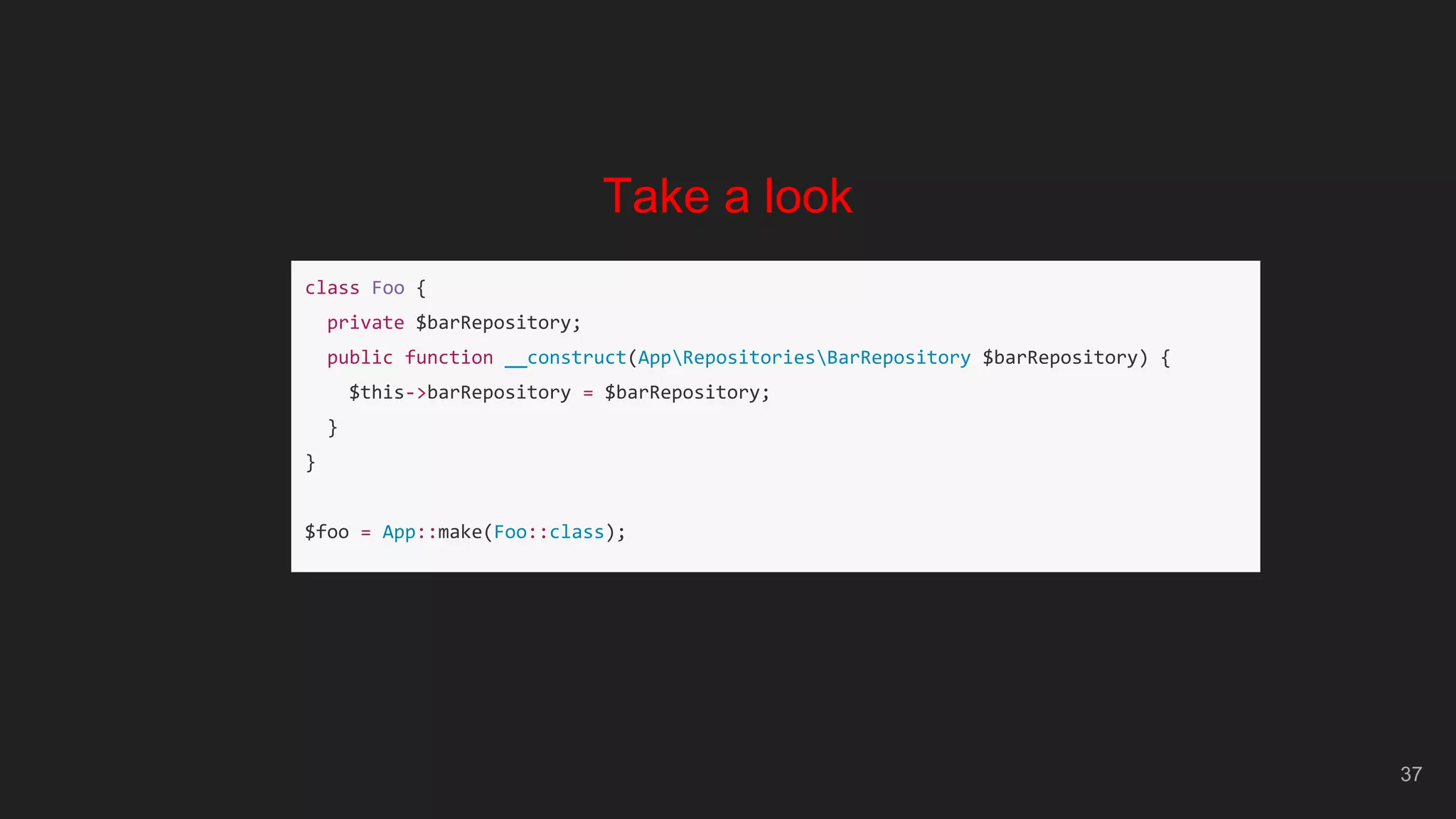

37. 37
Take a look
class Foo {
private $barRepository;
public function __construct(AppRepositoriesBarRepository $barRepository) {
$this->barRepository = $barRepository;
}
}
$foo = App::make(Foo::class);

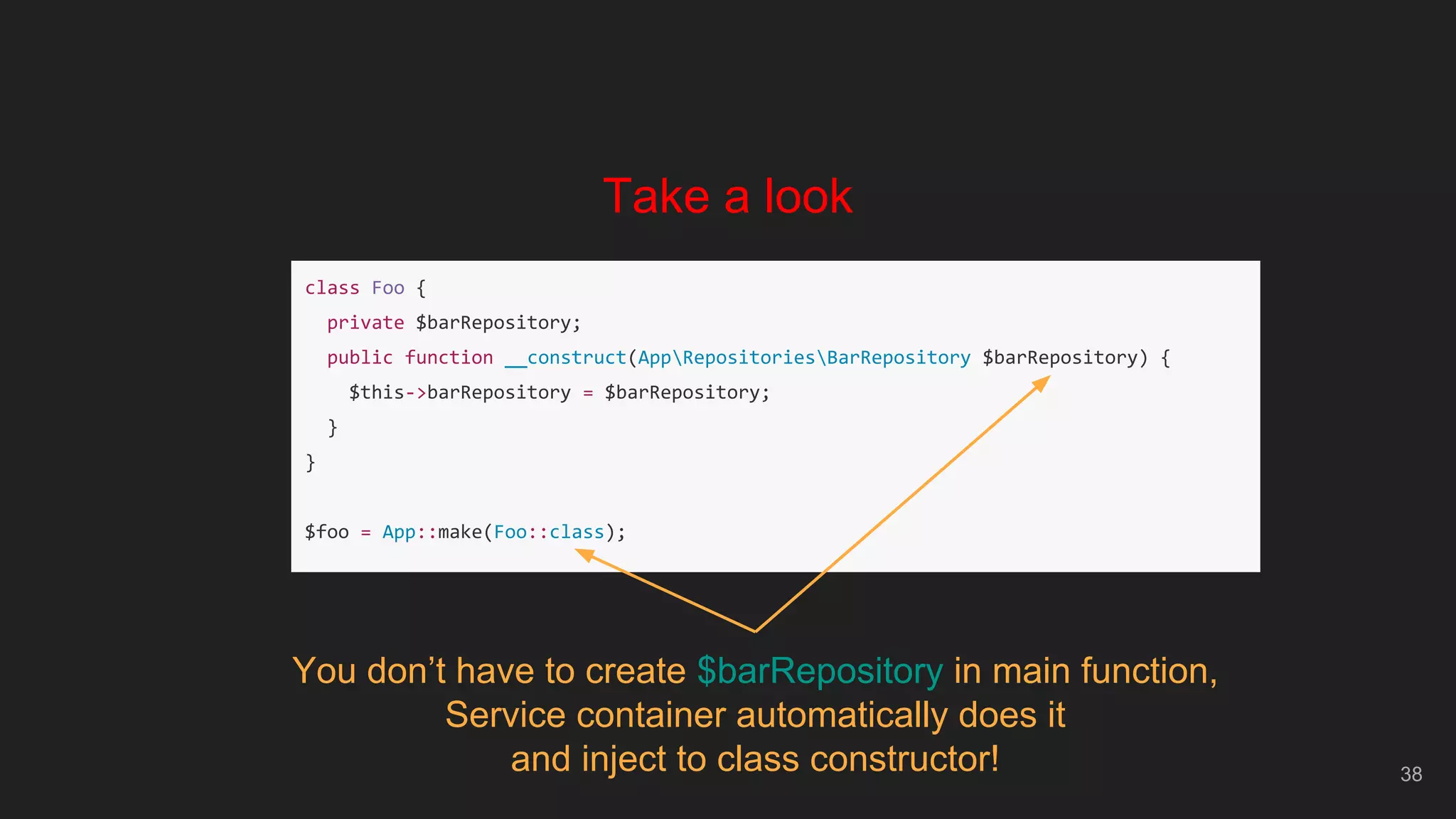

38. 38
Take a look
class Foo {
private $barRepository;
public function __construct(AppRepositoriesBarRepository $barRepository) {
$this->barRepository = $barRepository;
}
}
$foo = App::make(Foo::class);
You don’t have to create $barRepository in main function,
Service container automatically does it
and inject to class constructor!

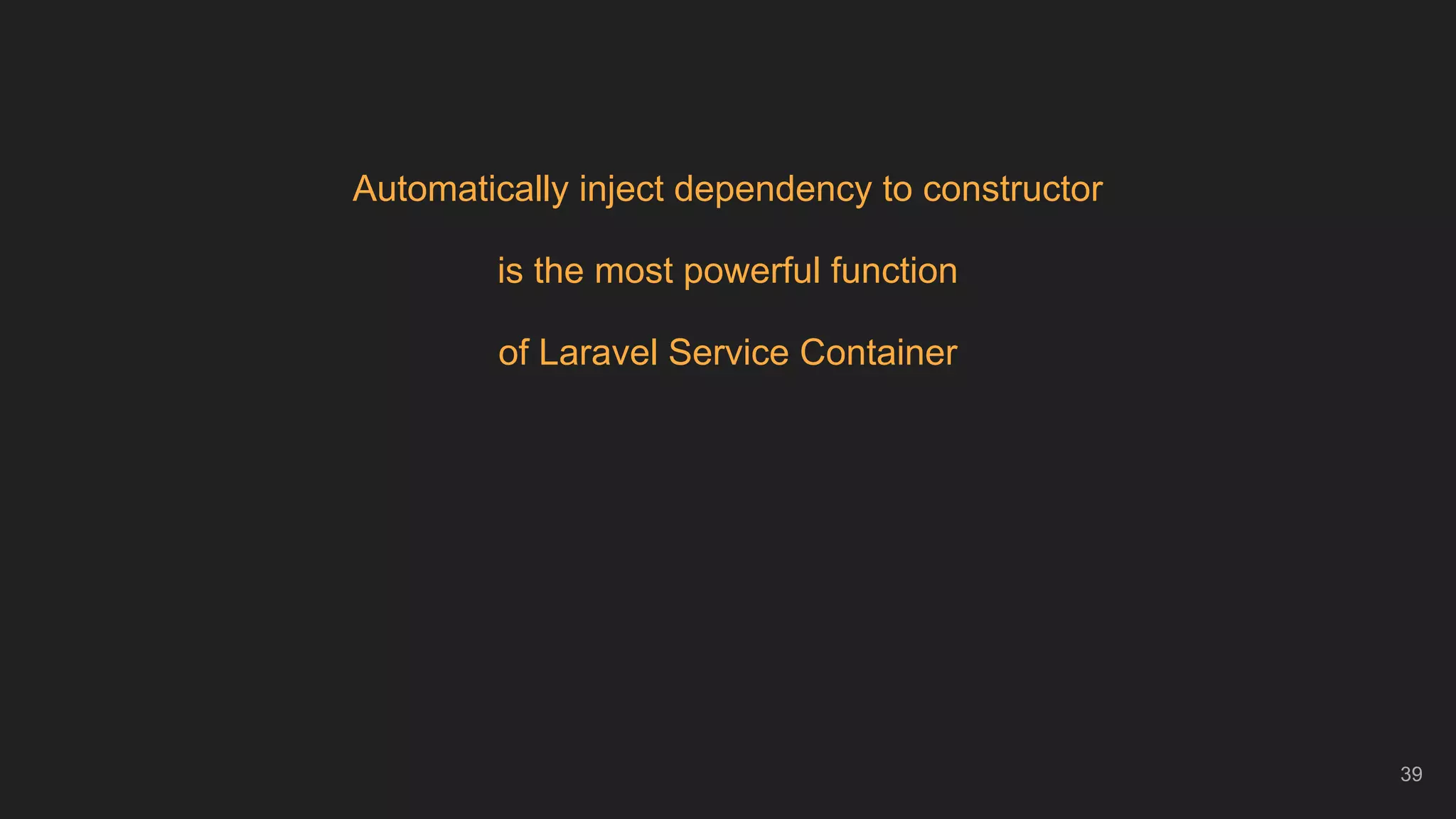

39. 39
Automatically inject dependency to constructor
is the most powerful function
of Laravel Service Container

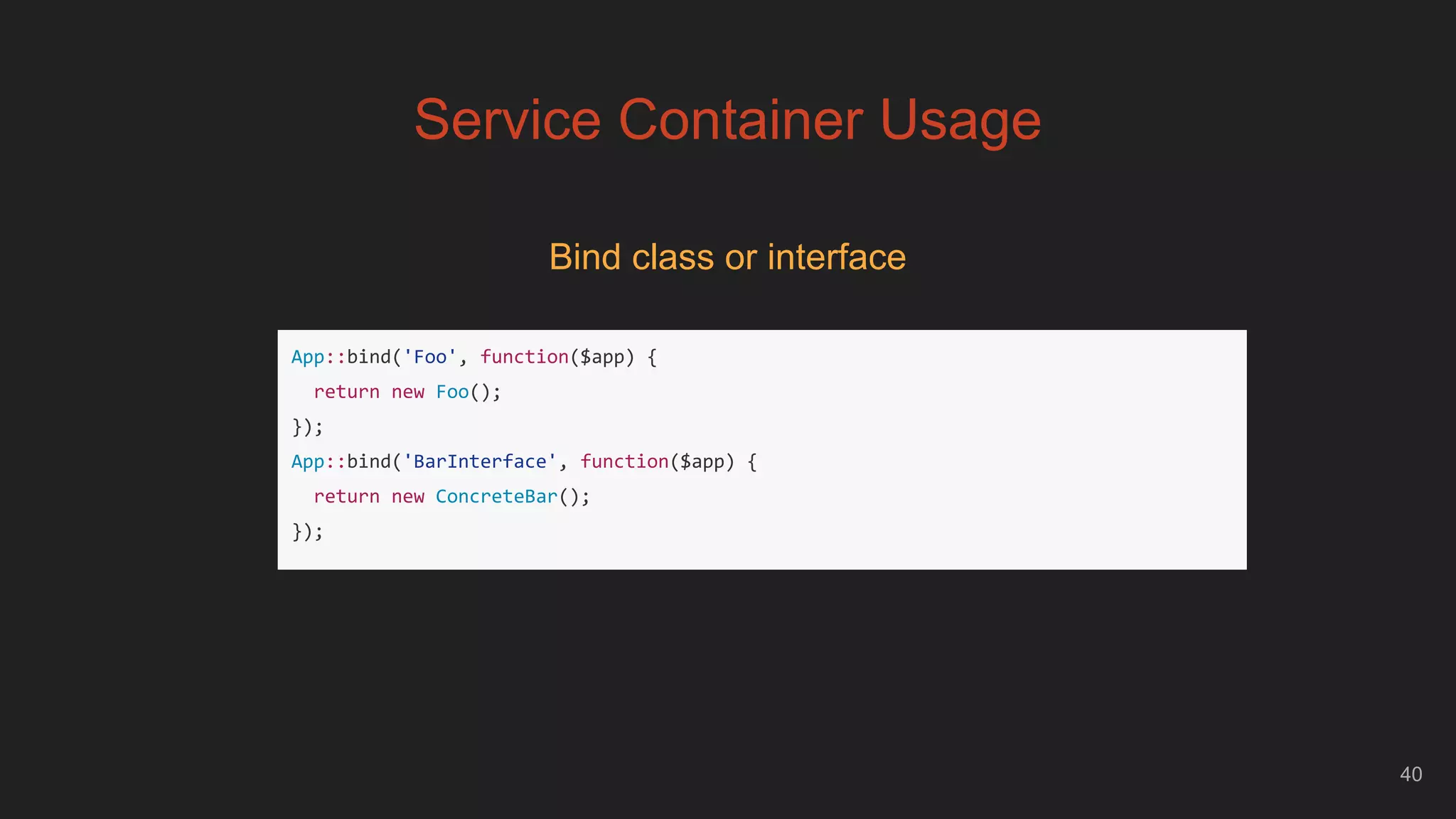

40. 40
Service Container Usage
Bind class or interface
App::bind('Foo', function($app) {
return new Foo();
});
App::bind('BarInterface', function($app) {
return new ConcreteBar();
});

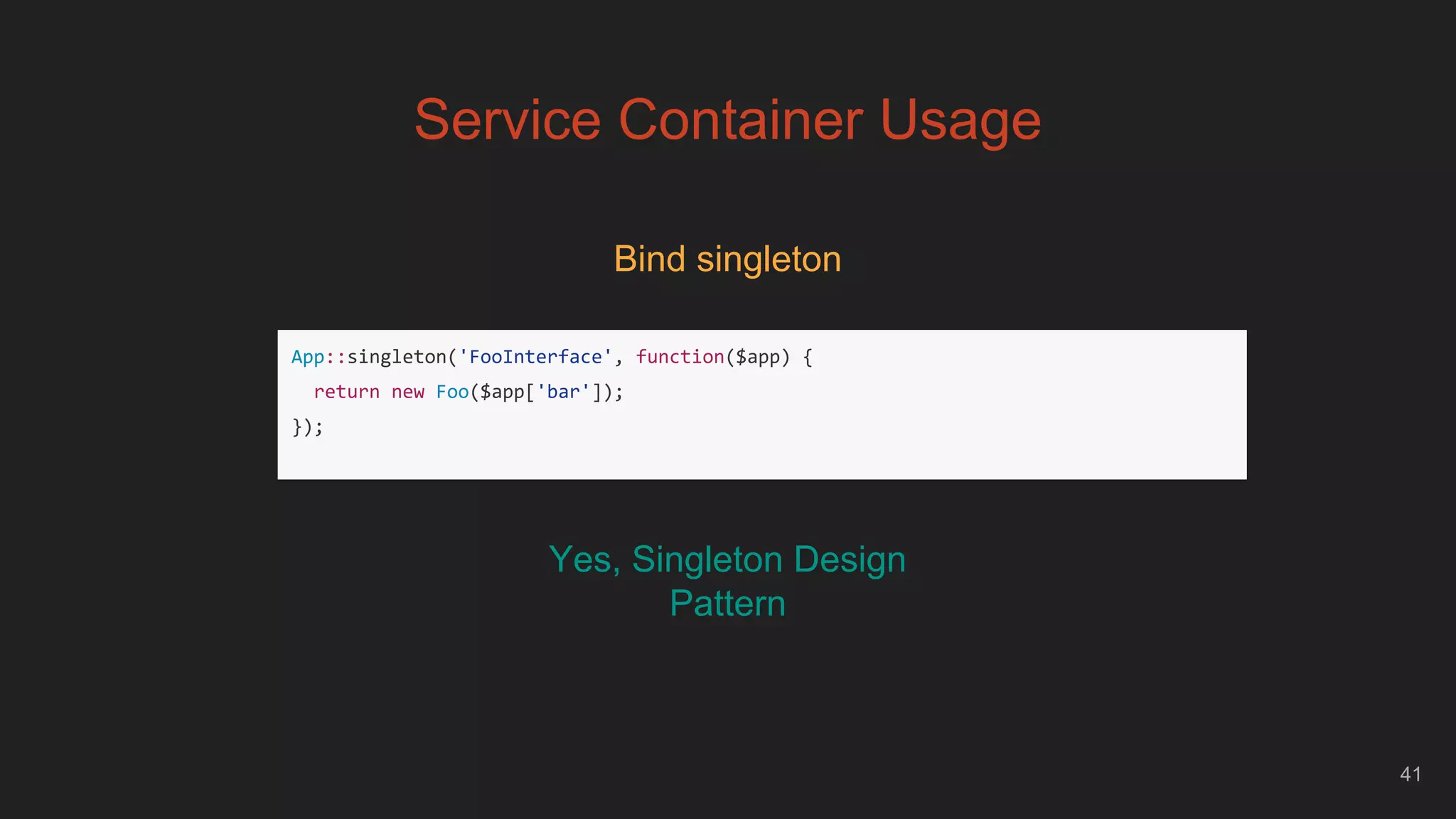

41. 41
Service Container Usage
Bind singleton
App::singleton('FooInterface', function($app) {
return new Foo($app['bar']);
});
Yes, Singleton Design
Pattern

42. 42
Service Container Usage
Bind instance
$foo = new ConcreteFoo(new Bar());
App::instance('FooInterface', $foo);

43. 43
Service Container Usage
Resolve directly
$foo = App::make('foo');
$foo = $this->app['foo'];
Like Service Locator

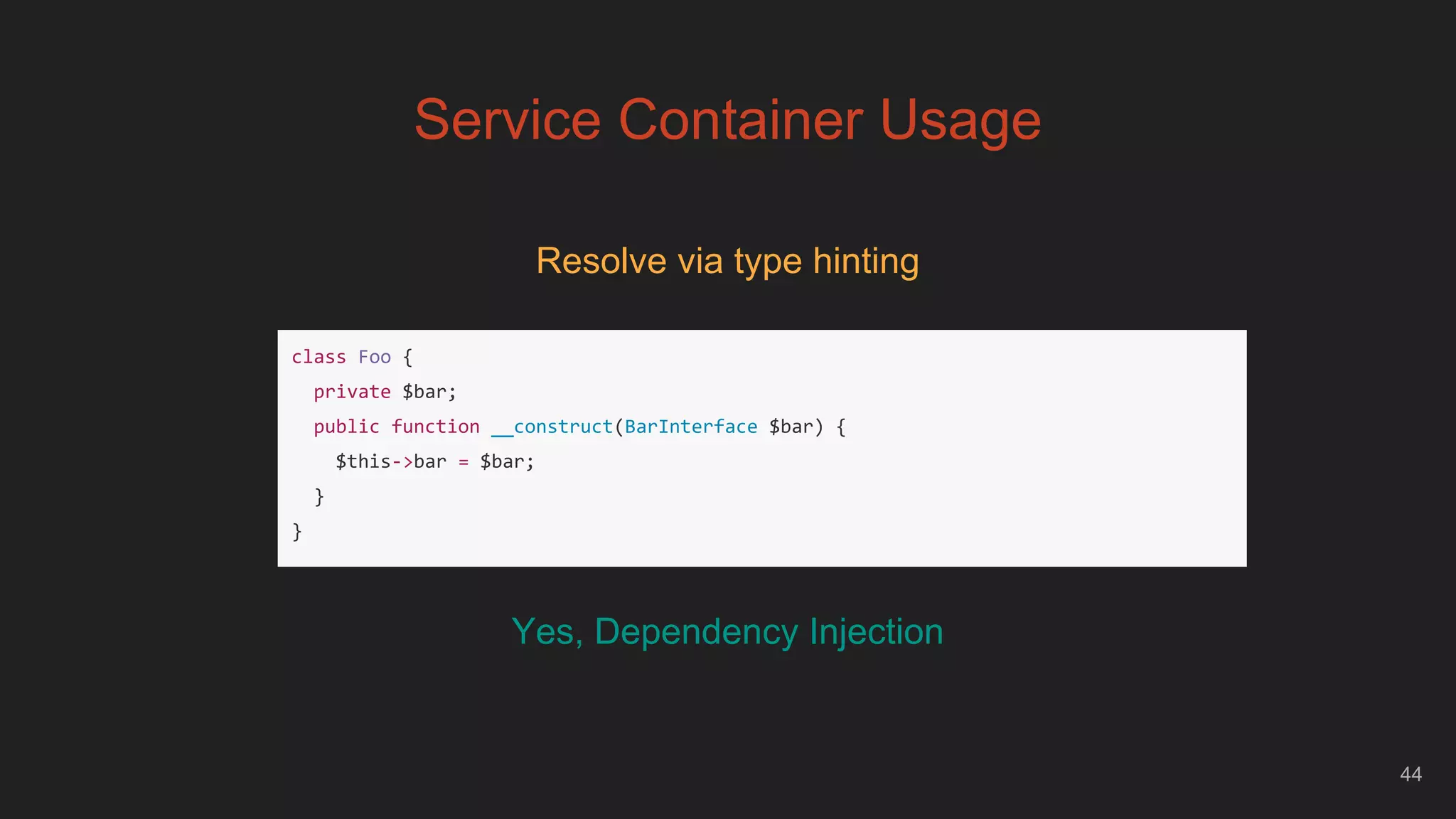

44. 44
Service Container Usage
Resolve via type hinting
class Foo {
private $bar;
public function __construct(BarInterface $bar) {
$this->bar = $bar;
}
}
Yes, Dependency Injection

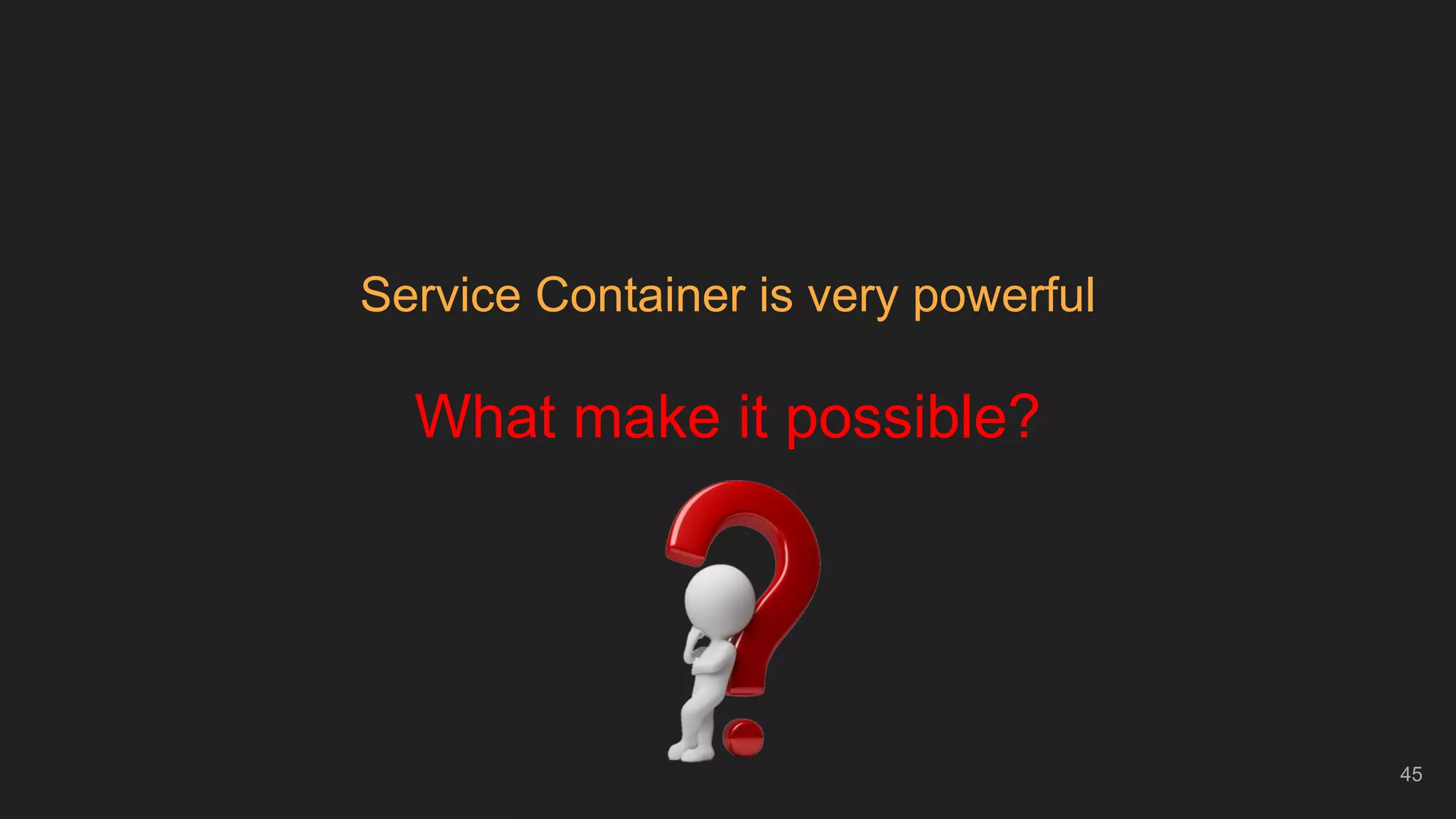

45. 45
Service Container is very powerful
What make it possible?

46. 46
Laravel Service Container

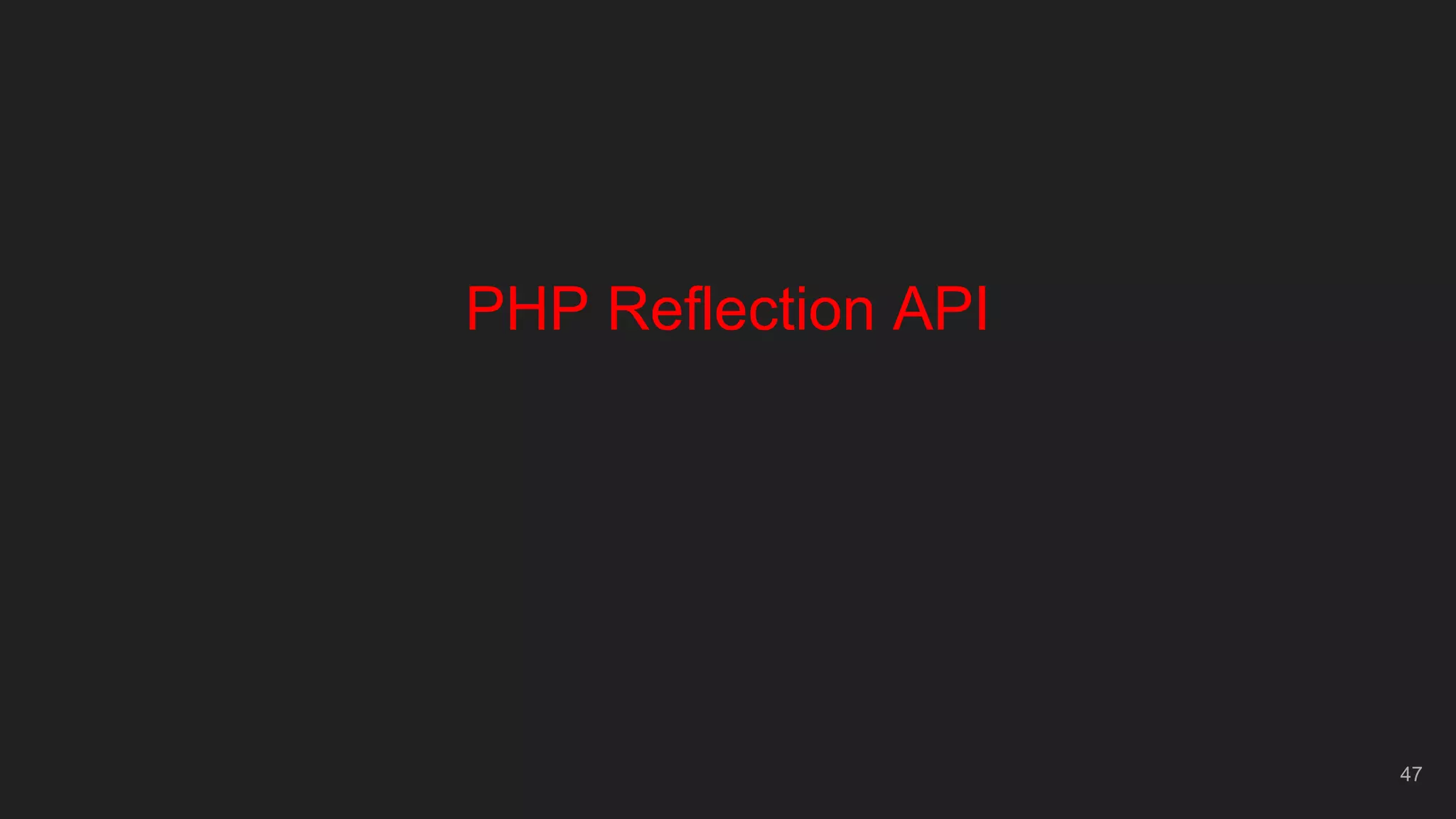

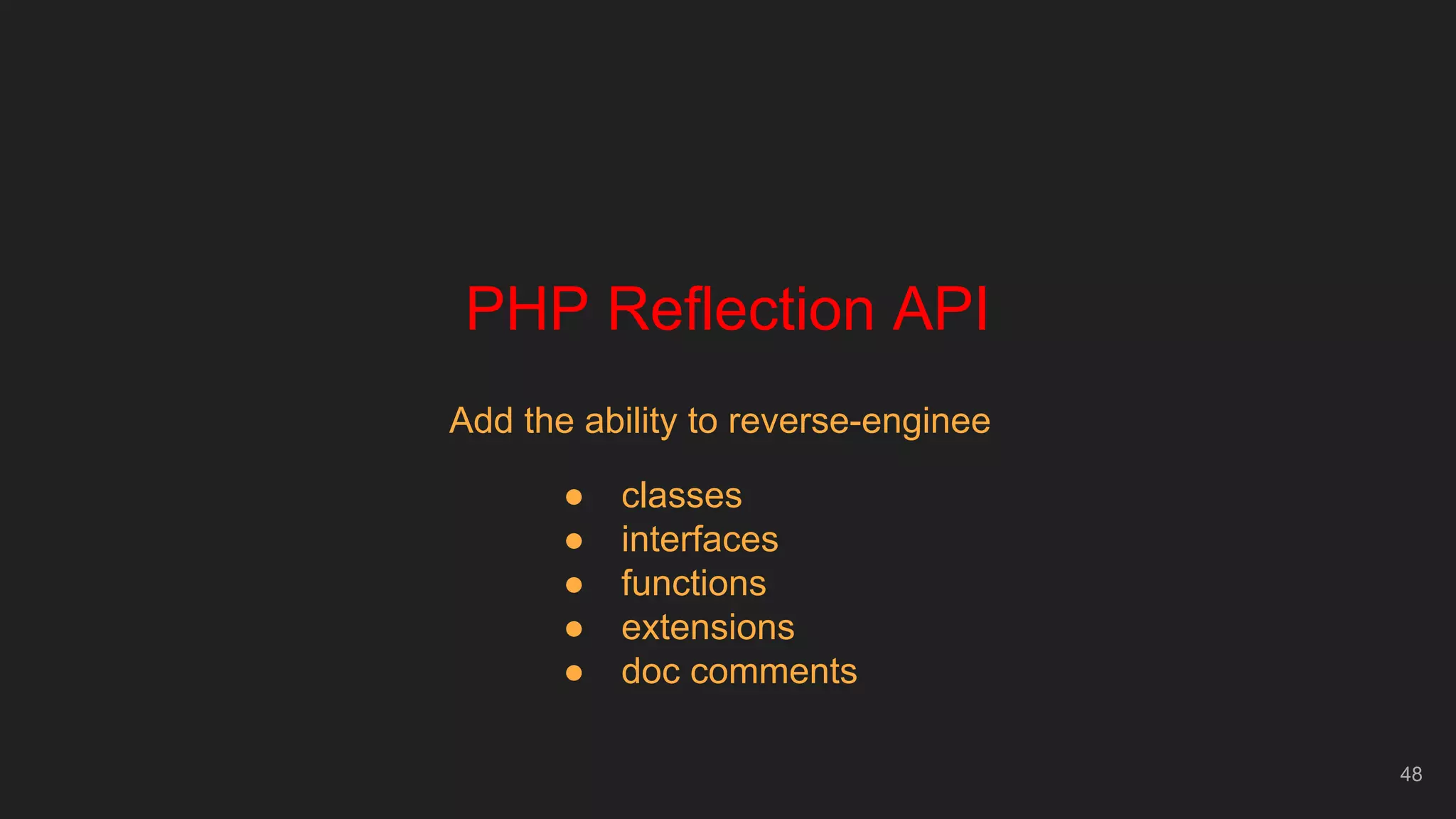

47. 47
PHP Reflection API

48. 48
PHP Reflection API
● classes
● interfaces
● functions
● extensions
● doc comments
Add the ability to reverse-enginee

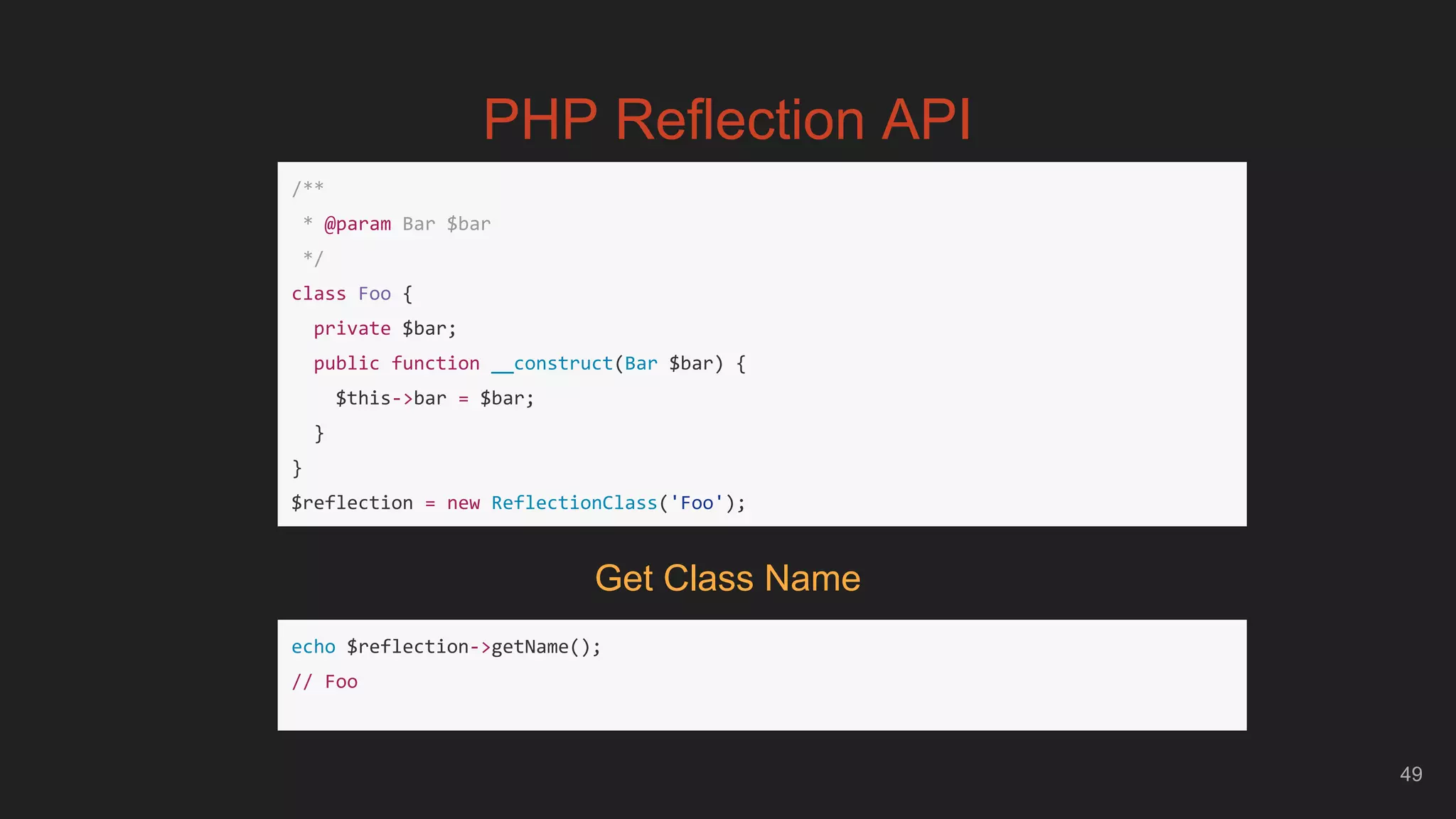

49. 49
PHP Reflection API
/**
* @param Bar $bar
*/
class Foo {
private $bar;
public function __construct(Bar $bar) {
$this->bar = $bar;
}
}
$reflection = new ReflectionClass('Foo');
echo $reflection->getName();
// Foo
Get Class Name

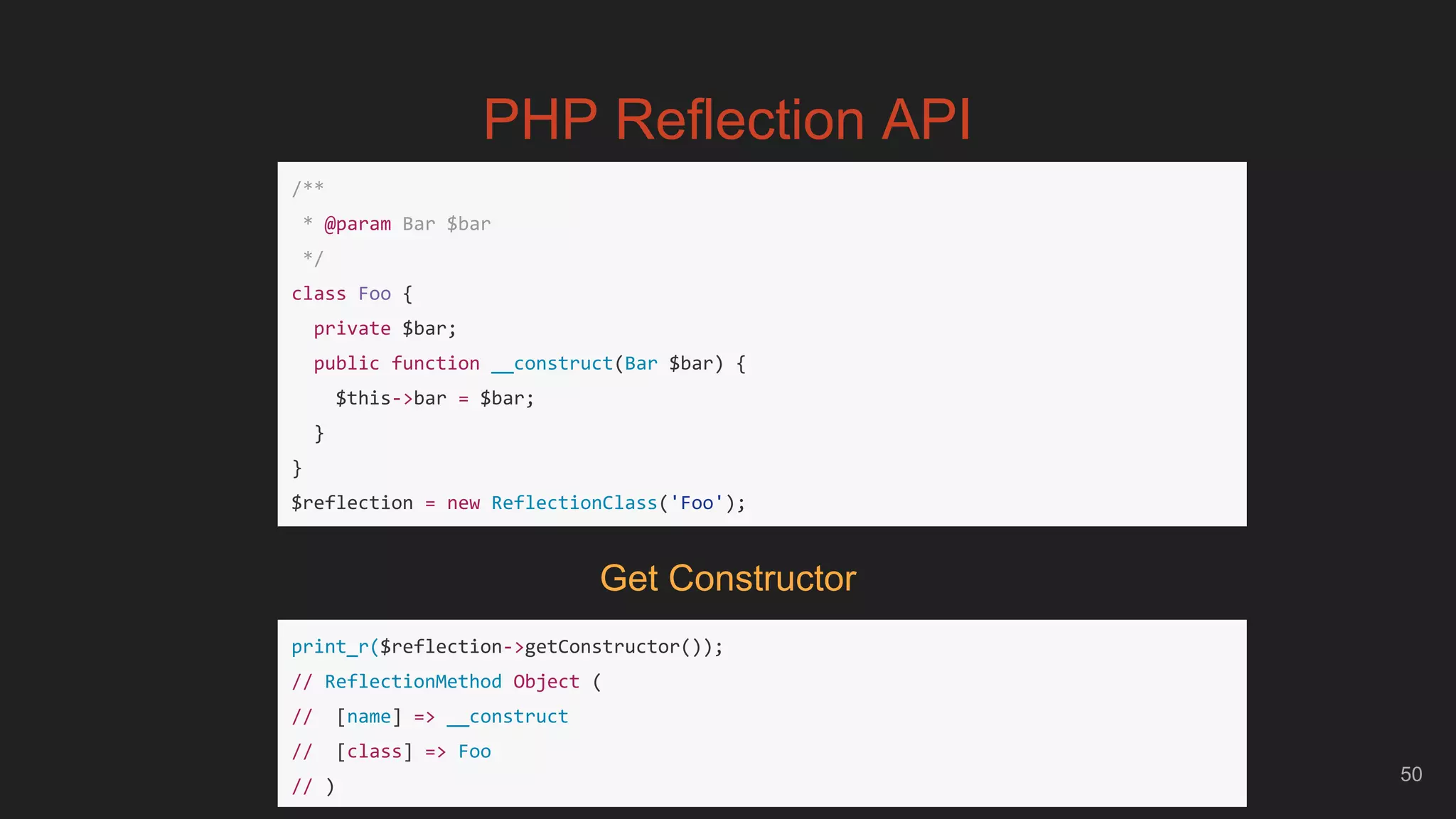

50. 50
PHP Reflection API
/**
* @param Bar $bar
*/
class Foo {
private $bar;
public function __construct(Bar $bar) {
$this->bar = $bar;
}
}
$reflection = new ReflectionClass('Foo');
print_r($reflection->getConstructor());
// ReflectionMethod Object (
// [name] => __construct
// [class] => Foo
// )
Get Constructor

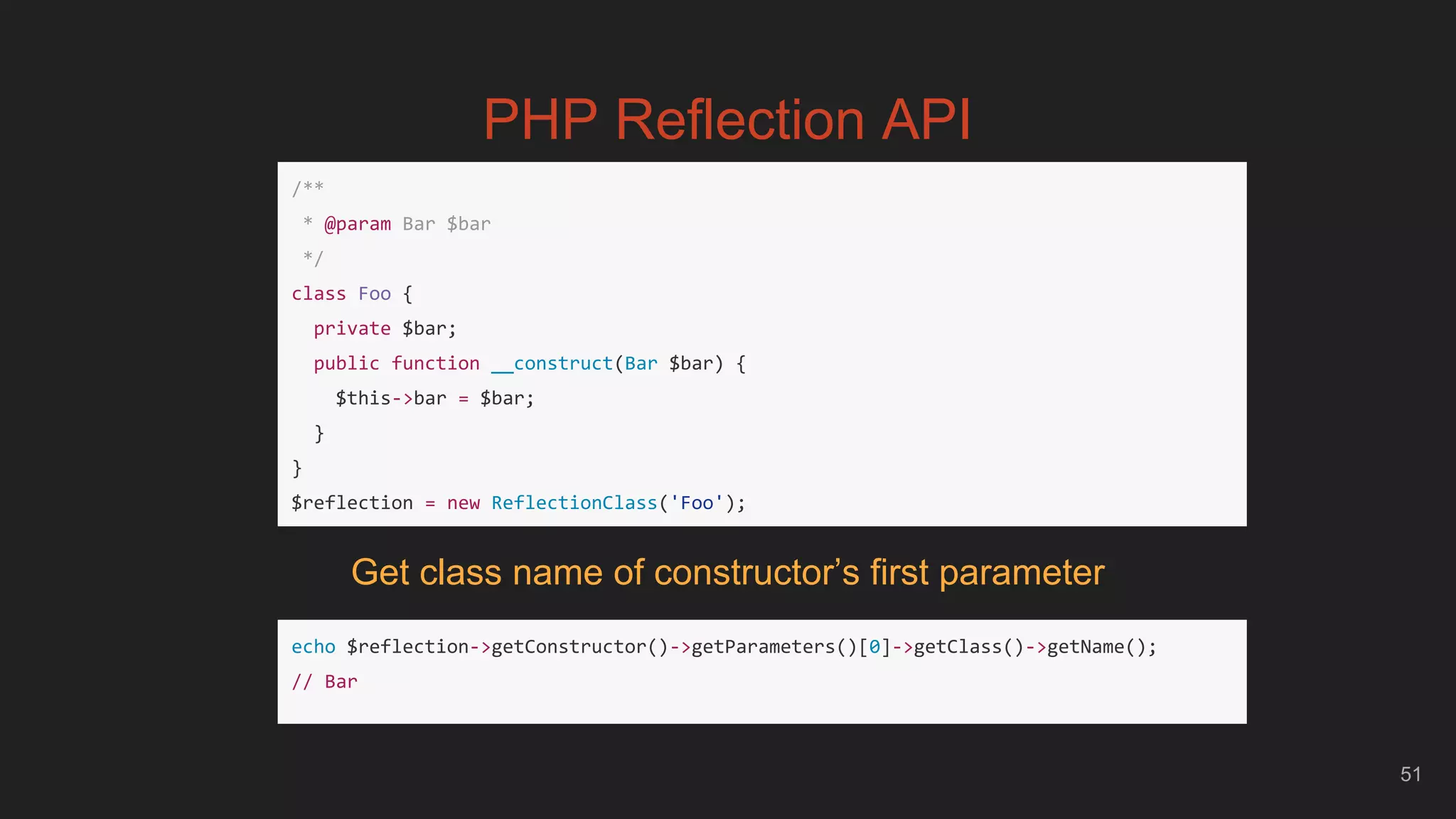

51. 51
PHP Reflection API
/**
* @param Bar $bar
*/
class Foo {
private $bar;
public function __construct(Bar $bar) {
$this->bar = $bar;
}
}
$reflection = new ReflectionClass('Foo');
echo $reflection->getConstructor()->getParameters()[0]->getClass()->getName();
// Bar
Get class name of constructor’s first parameter

52. 52
Now, can you figure out how
Laravel Service Container works?

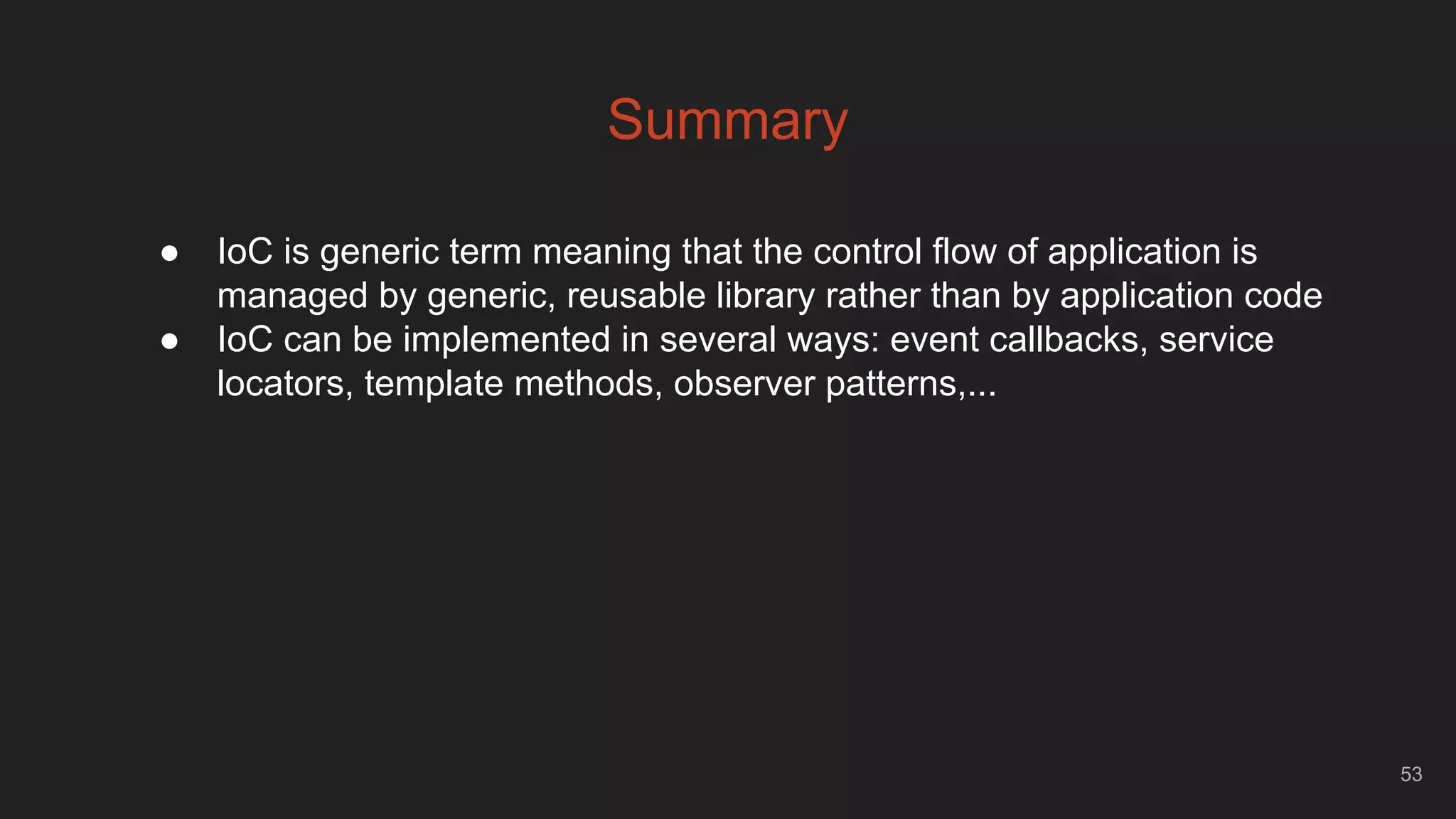

53. 53
Summary
● IoC is generic term meaning that the control flow of application is
managed by generic, reusable library rather than by application code
● IoC can be implemented in several ways: event callbacks, service
locators, template methods, observer patterns,...

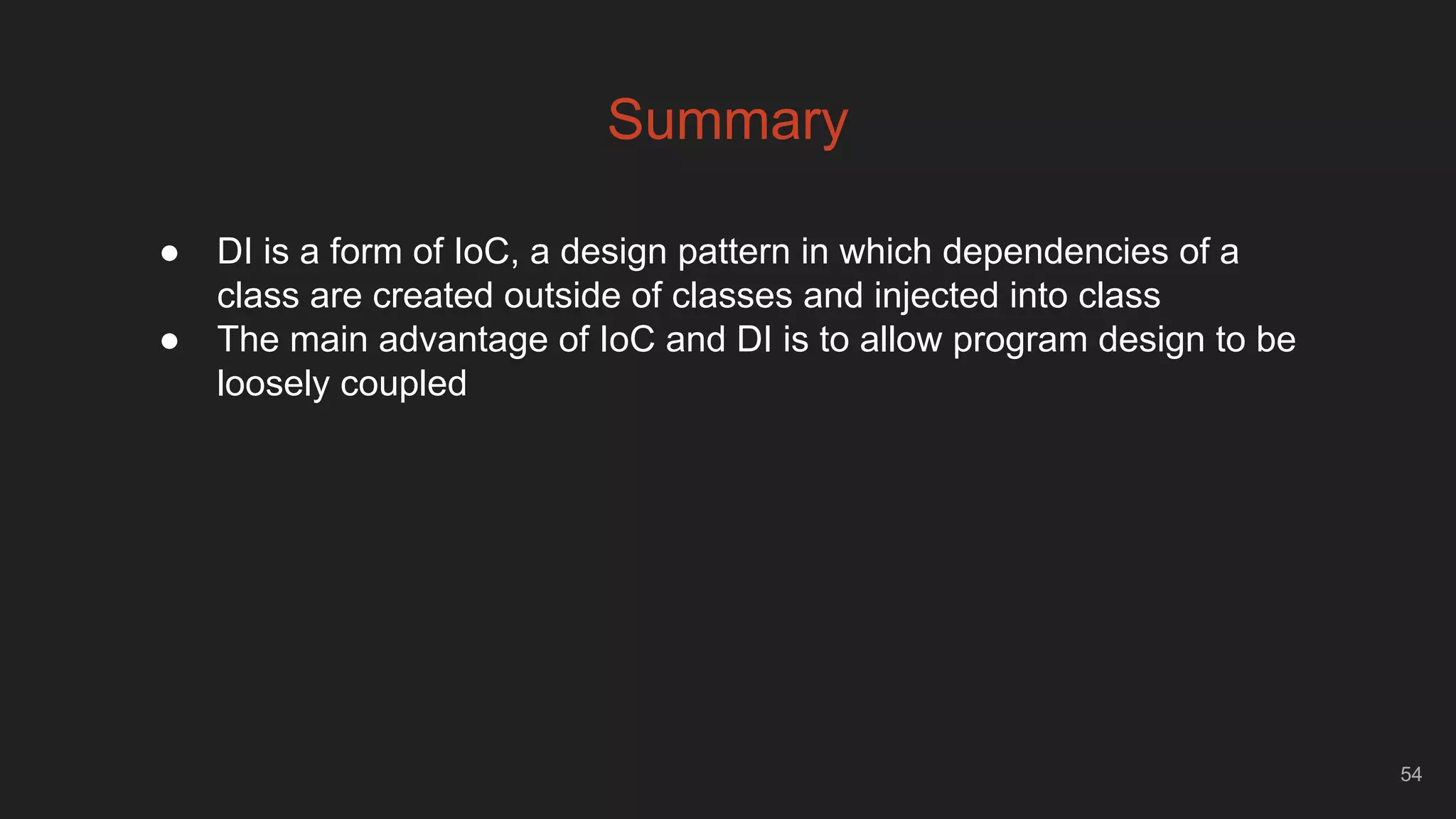

54. 54
Summary
● DI is a form of IoC, a design pattern in which dependencies of a
class are created outside of classes and injected into class
● The main advantage of IoC and DI is to allow program design to be
loosely coupled

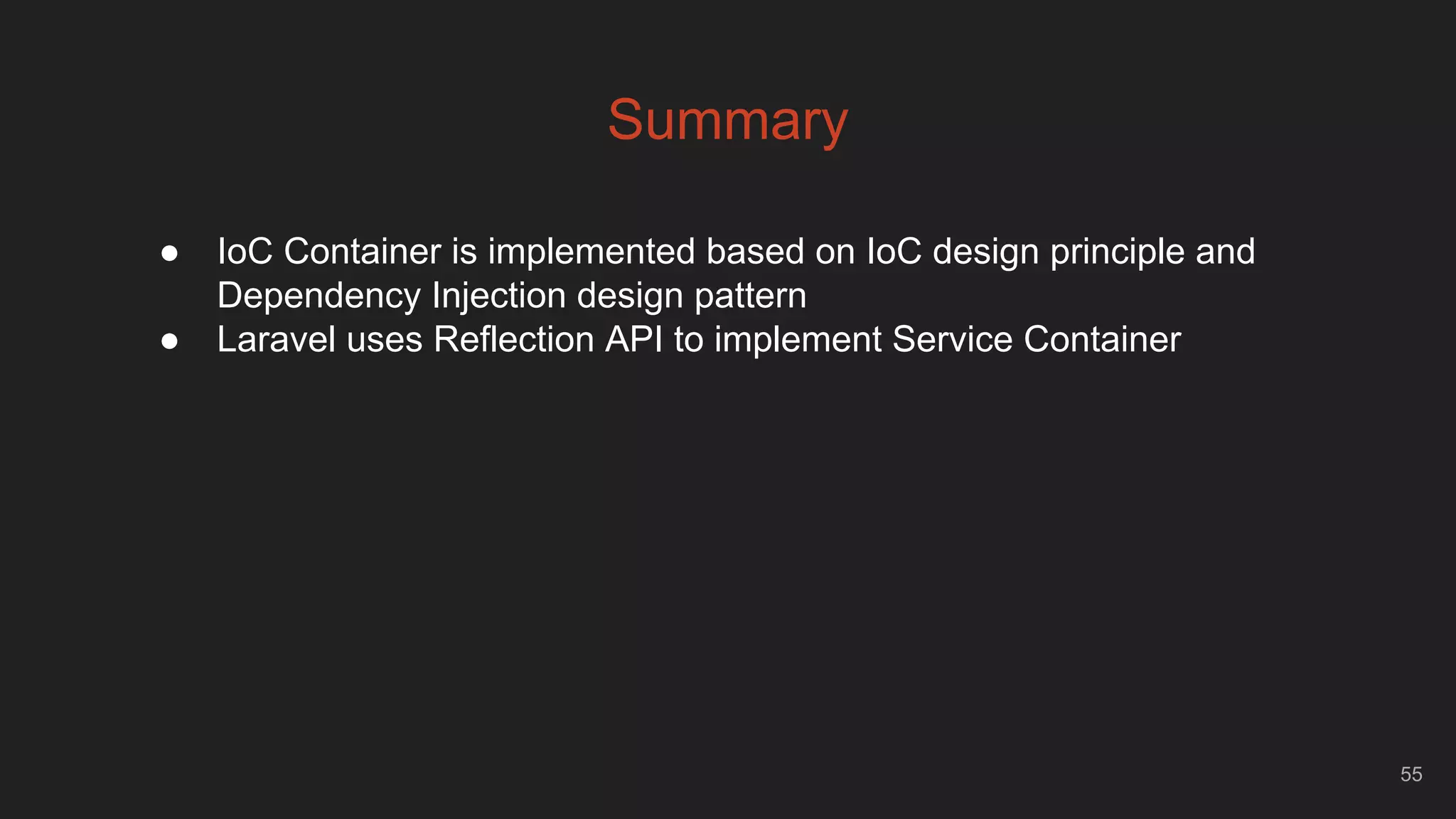

55. 55
Summary
● IoC Container is implemented based on IoC design principle and
Dependency Injection design pattern
● Laravel uses Reflection API to implement Service Container

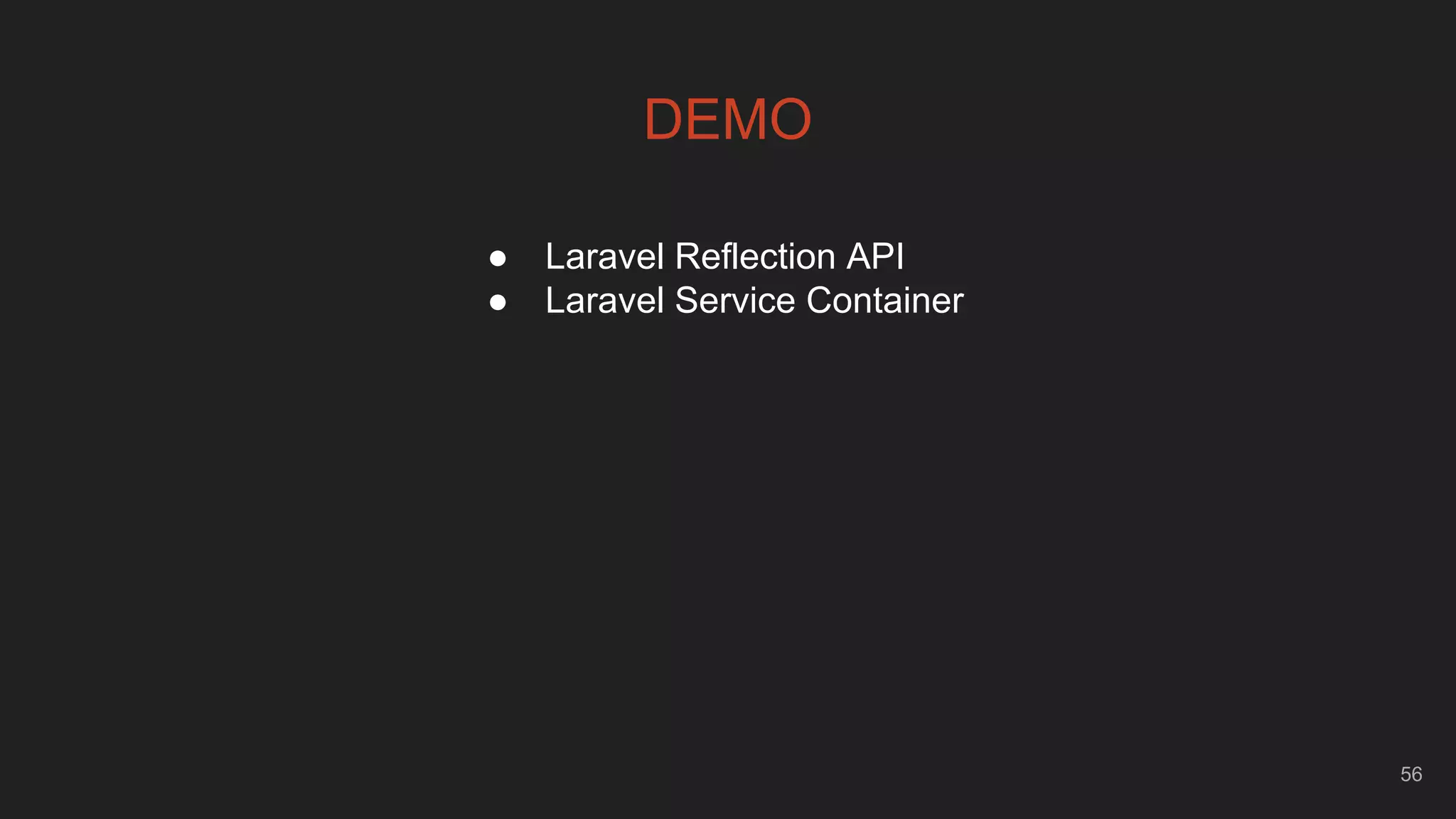

56. 56
DEMO
● Laravel Reflection API
● Laravel Service Container

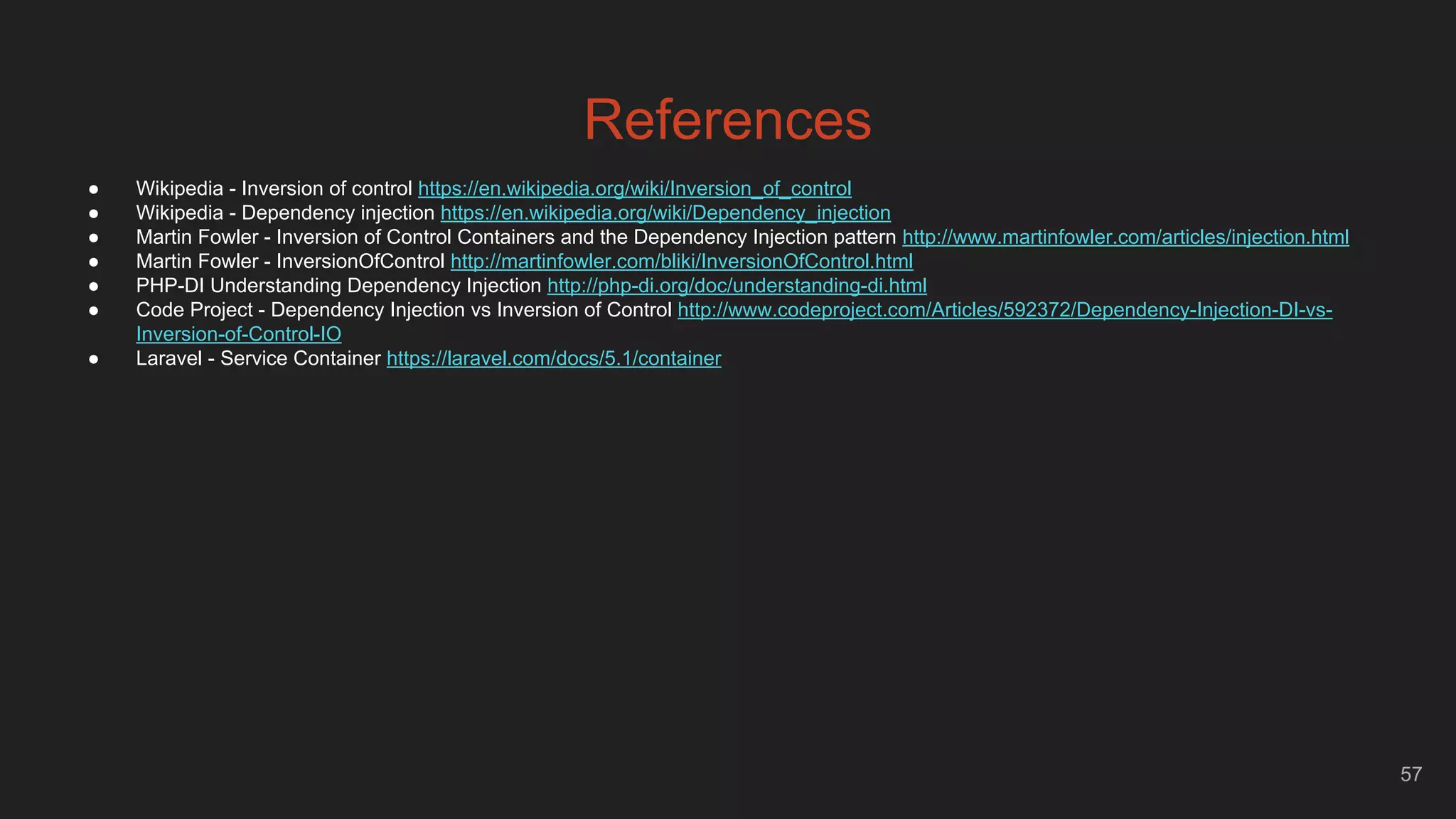

57. 57
References
● Wikipedia - Inversion of control https://en.wikipedia.org/wiki/Inversion_of_control
● Wikipedia - Dependency injection https://en.wikipedia.org/wiki/Dependency_injection
● Martin Fowler - Inversion of Control Containers and the Dependency Injection pattern http://www.martinfowler.com/articles/injection.html
● Martin Fowler - InversionOfControl http://martinfowler.com/bliki/InversionOfControl.html
● PHP-DI Understanding Dependency Injection http://php-di.org/doc/understanding-di.html
● Code Project - Dependency Injection vs Inversion of Control http://www.codeproject.com/Articles/592372/Dependency-Injection-DI-vs-
Inversion-of-Control-IO
● Laravel - Service Container https://laravel.com/docs/5.1/container
